Corrosion Degree Evaluation of Polymer Anti-Corrosive Oil Well Cement under an Acidic Geological Environment Using an Artificial Neural Network

1
China Oilfield Services Limited, Langfang 065200, China
2
School of Petroleum Engineering, Yangtze University, Wuhan 430100, China
3
National Engineering Research Center for Oil and Gas Drilling and Completion Technology, Yangtze University, Wuhan 430100, China
4
Tarim Oilfield Production Capacity Construction Division, Korla 841000, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Polymers 2023, 15(22), 4441; https://doi.org/10.3390/polym15224441
Submission received: 28 September 2023 / Revised: 31 October 2023 / Accepted: 5 November 2023 / Published: 17 November 2023

Abstract

:
Oil well cement is prone to corrosion and damage in carbon dioxide (CO2) acidic gas wells. In order to improve the anti-corrosion ability of oil well cement, polymer resin was used as the anti-corrosion material. The effect of polymer resin on the mechanical and corrosion properties of oil well cement was studied. The corrosion law of polymer anti-corrosion cement in an acidic gas environment was studied. The long-term corrosion degree of polymer anti-corrosion cement was evaluated using an improved neural network model. The cluster particle algorithm (PSO) was used to improve the accuracy of the neural network model. The results indicate that in acidic gas environments, the compressive strength of polymer anti-corrosion cement was reduced under the effect of CO2, and the corrosion depth was increased. The R2 of the prediction model PSO-BPNN3 is 0.9970, and the test error is 0.0136. When corroded for 365 days at 50 °C and 25 MPa pressure of CO2, the corrosion degree of the polymer anti-corrosion cement was 43.6%. The corrosion depth of uncorroded cement stone is 76.69%, which is relatively reduced by 33.09%. The corrosion resistance of cement can be effectively improved by using polymer resin. Using the PSO-BP neural network to evaluate the long-term corrosion changes of polymer anti-corrosion cement under complex acidic gas conditions guides the evaluation of its corrosion resistance.

1. Introduction

The cement sheath used to seal the formation is prone to be corroded by acidic gas in oil and gas wells and geologically sealed wells containing acidic gas, leading to strength reduction, structural damage, and cement integrity failure [1,2]. The damage to cement casing will affect the quality of cementing. Even wellbore collapse occurs severely, causing severe economic losses and environmental pollution [3,4]. The corrosion resistance of cement slurry under acidic corrosive gas can be effectively improved by adding anti-corrosion materials to improve the performance of cement slurry.
To study the corrosion of cement, Liaudat et al. [5] studied the corrosion mechanism of cement in a CO2 environment and found that the degradation of cement structure and strength is caused by the loss of hydrochemical products in a CO2 environment. Kuo et al. [6] studied the changes in oil well cement in corrosive environments and concluded that the reaction between calcium hydroxide and CO2 in cement decreases cement strength. Yin et al. [7] studied the corrosion changes in cement and proposed a carbonated water corrosion model for Portland cement slurry, which agrees with experimental data. Cement has a relatively high degree of corrosion in acidic gas environments. In terms of building cement, the damage caused by corrosion can be reduced by adding anti-corrosion coatings or using other materials. However, in the case of oil well cement, the anti-corrosion performance can only be improved by adding additives. Polymer resin is a type of polymer material, and experimental research has found that adding a certain amount of polymer resin can effectively enhance the anti-corrosion ability of cement slurry. Peng et al. [8] studied the use of water-based modified epoxy resin to improve the corrosion resistance of oil well cement, and the study showed that the corrosion resistance of cement paste with the addition of modified epoxy resin was significantly improved. Qu et al. [9] studied the chlorine corrosion resistance of superhydrophobic anion exchange resin cement mortar in chloride environments. Resin anti-corrosion cement mortar is expected to extend the service life of reinforced concrete in chloride salt environments. Tan et al. [10] considered using organic anti-corrosion resin composite anti-corrosion agents to improve the corrosion resistance of cement slurry. Using slag and resin as anti-corrosion agents can effectively reduce the degree of corrosion in cement slurry. Guo et al. [11] used four different dosages of water-based epoxy resin as polymer cement repair materials. The flexural toughness of epoxy resin-modified OPC mortar is significantly improved, and the compressive strength is preserved. Aguiar et al. [12] used epoxy resin surface treatment to improve the carbonation resistance of concrete. Epoxy resin exhibits better performance than siloxane resin. Resin-based polymers are compatible with water, and their application in cement slurry anti-corrosion has great application value. However, there is currently limited research on the long-term anti-corrosion performance of polymer resin on cement slurry for well cementing. Studying the impact of polymer resin on the long-term corrosion performance of cement slurry is of great significance for the application of polymer resin in acidic and complex gas wells and geological storage wells.
Currently, the evaluation of the corrosion degree of cement slurry is mainly based on indoor experiments. Due to the long cycle and complex conditions of corrosion experiments, it is challenging to study the long-term corrosiveness of cement, observe the long-term corrosion changes in cement, and understand the long-term corrosion resistance of cement systems. Prediction is an effective method for predicting long-term changes based on early patterns. Regression models are commonly used to predict changes in cement properties, but their prediction accuracy could be higher. Finding a prediction method with higher accuracy and better response to cement corrosion changes is significant for oil and gas well development and oil well corrosion evaluation under acidic conditions.
With the development of computer technology, neural network algorithms have been widely applied to complex nonlinear systems based on human brain structures [13,14]. Hao et al. and Shiratori et al. [15,16] proposed an improved prediction model based on neural networks for simultaneously predicting electricity consumption and coal consumption during cement calcination, which has high accuracy. Terzic et al. [17] validated the optimal output of mechanochemical activation of pyrophyllite using an artificial neural network model with high prediction accuracy. Tsamatsoulis et al. [18] established an ANN model to predict changes in cement strength. The optimized prediction model has high accuracy and can be well applied in practice. Brown et al. [19] highlighted some recent effects to connect the ML and nanoscience communities and discussed the challenges and opportunities of artificial intelligence in nanoscience. Neural network models are widely used in complex problems and can better reflect actual changes. However, the BP model has a low convergence speed, is prone to falling into local minimization, and has low accuracy in long-term prediction [20]. Clustering particle algorithms can utilize individuals in a population to obtain the optimal solution, typically used to optimize neural network models [21,22,23]. However, the application of artificial intelligence in oil well cement corrosion is relatively limited, and there are still significant difficulties in establishing more accurate models based on actual situations.
In order to study the corrosiveness of polymer resin-modified oil well cement in acidic gas wells and evaluate the long-term corrosion degree of polymer anti-corrosion cement slurry, experimental research was conducted on the corrosion changes in polymer anti-corrosion cement slurry in corrosive environments. A corrosion prediction model based on the BP network was established by selecting three main influencing factors: corrosion temperature, pressure CO2, corrosion time, and corrosion depth as model parameters. The BP model was optimized using a particle swarm optimization algorithm and compared with regression models and traditional BP network models to verify the correctness of the corrosion prediction model. The long-term corrosion depth of polymer anti-corrosion cement slurry was predicted, and the long-term corrosion resistance of polymer anti-corrosion cement slurry was evaluated. The research results can be used to evaluate the long-term corrosion resistance of polymer anti-corrosion cement slurry in complex acidic gas wells.

2. Materials and Methods

2.1. Materials

Grade-G oil well cement was used as the primary material to prepare cement samples purchased from China Gezhouba Special Cement Factory. The chemical composition of the oil well cement is shown in Table 1. The filtrate reducer, retarder, dispersant, and reinforcer were used to adjust the performances of the oil well cement. The products were purchased from Jingzhou Jiahua Technology Co., Ltd. (Jingzhou, China). The reinforcer and resin were produced in the laboratory.
The filtrate reducer is one of the AMPS-type water-soluble polymers that can be used to reduce the water loss of the oil well cement slurry. The dispersant is an aldehyde ketone condensation polymer that is mainly used to adjust the surface charge of the cement particles to obtain cement slurry with appropriate rheological properties. The retarder consists of polymers with carboxylic and sulfonic acid groups that were mainly used to regulate the thickening time of cement slurry. Polymer resin was obtained from the laboratory and is a bisphenol A-type epoxy resin, which is mainly used to improve the corrosion resistance of cement. The solid phase accounts for 50% of resin materials.

2.2. Methods

2.2.1. Preparation of Cement Samples

The preparation of cement slurry is in accordance with the provisions of the Chinese standard GB/T 19139–2012 [24]. The cement and various additives were mixed uniformly at 4000 rpm by a constant speed mixer (TG-3060A, Shenyang Tiger Petroleum Instrument Equipment Co., Ltd., Shenyang, China) according to the proportion of the experimental formula. The components of cement samples are shown in Table 2.
The prepared cement slurry was placed in a cylindrical mold with a height of 25.4 mm and a diameter of 25.4 mm. Then, the mold was placed in a 70 °C water bath for constant temperature curing for 24 h to form an uncorroded solidified cement sample.

2.2.2. Corrosion Simulation Experiment

A high-temperature and high-pressure corrosion tester (TG-7370D, Shenyang Taige Petroleum Instrument Equipment Co., Ltd., Shenyang, China) was set according to the conditions in the experimental scheme design (Table 3), and the uncorroded cement sample was cured in the high-temperature and high-pressure corrosion tester for the corrosion simulation test. Corrosion depth and compressive strength were selected as the observations [25]. The simulation diagram of oil well cement corrosion is shown in Figure 1. In the experiment, the temperature and pressure of CO2 changes are controlled according to the range of experimental parameters, respectively, and different times and conditions are obtained. The corrosion depth is determined according to the testing method in Section 2.2.3.

2.2.3. Measurement of Corrosion Degree

The corrosion area was calibrated with the characteristic of phenolphthalein turning red when encountering alkali. The four boundary thickness values of the sample that did not turn red were measured with a vernier caliper, and the average value was taken as the corrosion depth of the cement sample [26]. As shown in Figure 2.
The calculation of corrosion degree is
Pc = h/r × 100%
where P c is the corrosion degree of oil well cement; h is the corrosion depth; and r is the radius of the oil well cement sample, which is 12.7 mm in this article.

2.2.4. Test of Compressive Strength

The performance testing of the cement slurry was carried out in accordance with the provisions of the Chinese standard GB/T 19139–2012 [24]. The cement sample was removed from the mold and placed under the universal testing machine for a uniaxial compression test after the surface was wiped to test the compressive strength [27,28]. The universal mechanical testing machine (HY-20080, Shanghai Hengyi Precision Instrument Co., Ltd., Shanghai, China) was used to evaluate the compressive strength of the cement sample. Compressive strength is the maximum stress of the cement slurry in the process of compression failure. The sample used was a cylinder with a diameter of 25.4 mm and a height of 25.4 mm. Three cement stones were tested in each group, and the average value was calculated as the experimental result.
The calculation of compressive strength is
P = F/A
where P is the compressive strength of the sample, F is the load force, and A is the bearing area of the sample.

2.2.5. Analysis of Micromorphology

The cement sample was dried in the oven at 60 °C for 24 h after the hydration was terminated. The surface morphology of the smooth trim sample was observed using the emission field scanning electron microscope (SEM). The prepared cement sample was crushed, and the smooth part in the middle was taken as the sample. The samples are dried in an oven, and the microscopic morphologies of the cement samples are observed using a scanning electron microscope (SU8010, Hitachi, Tokyo, Japan).

2.2.6. PSO Algorithm

Particle swarm optimization is based on the bird swarm search. The optimization problem was set as particles, the potential solution in the D dimension space of the particle was searched, the fitness function judged the potential solution, the optimal solution was updated by iterative search, and the running stopped when the maximum number of iterations or the best potential solution is found in the particle swarm optimization algorithm [29,30]. The PSO principle is shown in Figure 3.

2.3. Model Simulation

The neural numbers of hidden layers were selected as 3, 7, 10, and 12, respectively, and the three-layer BP neural network of 3-3-1, 3-7-1, 3-10-1, and 3-12-1 was established in the MATLAB 2021a software. The PSO algorithm was used to optimize the initial weights and thresholds of the BP neural network. The network algorithm flow chart is shown in Figure 4.
The number of hidden layer neurons h was selected according to the following formula [31,32].
H = ( m + n ) 2 + α
where m is the number of neurons in the input layer, n is the number of neurons in the output layer, and α is the random value in [0, 10].
The normalization formula was used to standardize the sample data. The calculation formula is as follows [33,34]:
x = x i x m i n x m a x x m i n
where x is the normalization result and x m a x and x m i n are the maximum and minimum values of the data, respectively.
The error between the output and the actual value is
E i = O i y i
The overall mean square error (MSE) of the network output is
E t = 1 n i = 1 n ( O i y i ) 2
where i is the number of trainings; O i is the network output value of the ith training; y i is the actual value of the sample for i-th training; and N is the number of training samples.
A total of 100 sample groups were obtained from the experiment. An amount of 80 groups were used as training samples, 10 groups as validation samples, and 10 groups as test samples. The target error and the maximum iterations are selected as the boundary conditions. The parameters of the prediction model are shown in Table 4.

3. Results

3.1. The Effect of Polymer Resin on the Properties of Oil Well Cement

Figure 5 shows the effect of polymer resin on the compressive strength and corrosion resistance of oil well cement. In the corrosion process, the condition is 80 °C × 20 MPa. After adding a certain amount of polymer resin, the strength of the cement slurry decreases to a certain extent. However, the corrosion depth of cement paste under acidic CO2 conditions is significantly reduced compared to that of blank cement paste. When the amount of polymer resin added is 10%, oil well cement still has high compressive strength and excellent corrosion resistance. Resin polymers are dispersed in the cement slurry, forming a polymer film that blocks the connection between hydration products and reduces the strength of the cement. However, at the same time, polymer films protect cement hydration products from acidic gas corrosion, enhancing their corrosion resistance.

3.2. Corrosion Law of Polymer Anti-Corrosion Cement Slurry

The corrosion changes in polymer anti-corrosion cement slurry under CO2 acidic conditions were experimentally studied, and the experimental results are shown in Figure 6.
In Figure 6a, the 7-day compressive strength of polymer anti-corrosion cement is 5.9 MPa less than that of uncorroded cement samples. As shown in Figure 6b, the corrosion depth and corrosion time increase, and the compressive strength decreases after a period of growth with the increase in corrosion time. According to Figure 6c,d, the corrosion depth and compressive strength of polymer anti-corrosion cement increase in the corrosive environment with the increase in corrosion time, corrosion temperature, and pressure of CO2.

3.3. Establishment of Corrosion Prediction Model

Four PSO-BP neural networks with a different number of hidden layer neurons were constructed based on the experimental data and network structure topology. The test samples were trained in the network and compared with the actual value [35]. The appropriate network structure is selected via error verification. The experimental results are as follows.
The results in Table 5 show that the established prediction model has high accuracy. The PSO-BPNN1 and PSO-BPNN2 networks have significant testing errors, resulting in significant deviations between the test and actual values.

3.4. Evaluation of Long-Term Corrosion Degree of Polymer Anti-Corrosion Cement

3.4.1. Prediction of Corrosion Depth

In order to study the applicability of the PSO-BP model in predicting the long-term corrosion of cement, REG, BPNN, and PSO-BPNN3 are used to predict the long-term corrosion depth, respectively. The prediction results are as follows.
Table 6 shows that the predicted values of the traditional BPNN model are relatively small compared to the regression model, and their change trend is very small, possibly falling into local minima. The predicted values based on the PSO-BPNN3 model are generally close to the regression model, indicating no deviation from reality. Regression models are based on empirical formulas for prediction, and their predicted values have high reliability, but their accuracy is relatively low. The PSO-BPNN3 model has high accuracy, and its predicted values can better reflect the actual changes in long-term corrosion of cementing cement.

3.4.2. Evaluation of Long-Term Corrosion Degree

In order to study the corrosion degree of cement slurry in long-term corrosive environments, based on a prediction model, the long-term corrosion prediction depth and corrosion degree calculation formula were used to evaluate the long-term corrosion degree of cement sample M0 without adding polymer resin and cement sample M1 with adding 10% polymer resin.
From Figure 7, it can be seen that based on the experimental anti-corrosion cement slurry system, under corrosion condition 1, when the cement stone M1 is corroded for 365 days, the corrosion degree is 43.6%, and the corrosion degree of M0 is 76.69%. Under corrosion condition 2, after 365 days of corrosion, the corrosion degree of cement stone M1 is 46.2%. The corrosion degree of the cement sheath is less than 50%, and the structure of the cement sheath is damaged due to corrosion but still has a certain degree of integrity. The corrosion degree of M0 is 82.55%, and the corrosion degree is greater than 50%, which has been significantly corroded. Under corrosion conditions 4 and 5, when the cement stone is corroded for 1500 days, the corrosion degree of M1 is 52.66% and 61.52%, but the corrosion degree of M0 is 100%. The sample M1 with polymer resin added still maintains good structural integrity, while the cement sample M0 without resin addition has completely corroded. In long-term corrosion, the depth and degree of corrosion of the cement sheath continue to increase, and its dense structure is damaged, seriously affecting its integrity. The cement slurry added with polymer resin has a relatively lower corrosion degree and good corrosion resistance. By predicting the corrosion degree of cement under different corrosion conditions and times, the long-term sealing ability of the cement sheath can be evaluated, guiding the anti-corrosion design of cement slurry.

4. Discussion

4.1. Anti-Corrosive Mechanism of Polymer Resin

The anti-corrosion mechanism of polymer resin in oil well cement is shown in Figure 8. Polymer resin is dispersed in the cement slurry, forming a polymer film encapsulating hydration products. When an acidic carbon dioxide gas medium invades the interior of cement slurry, the hydration products are corroded and damaged by the acidic medium, leading to the structural damage of cement stone. The hydration products wrapped in polymer resin films can effectively block acidic media and protect cement hydration products from damage. At the same time, the resin film encapsulates or fills between the hydration products, improving the overall density of the cement stone, reducing the invasion of CO2, and reducing the erosion degree of acidic media on the cement [36].

4.2. PSO-BP Model

The results in Figure 9 show that the established prediction model has high accuracy. The PSO-BPNN1 and PSO-BPNN2 networks have significant testing errors, resulting in significant deviations between the test and actual values. The number of network nodes cannot effectively reflect the mapping relationship between input and output, ignoring the characteristics of certain sample data and resulting in significant errors. The error of PSO-BPNN4 is also relatively large, with good fitting at some data points, but there are cases where there is a significant deviation at some data points. The PSO-BPNN3 has the smallest testing error and a slight difference between the predicted and actual values, which can better reflect the actual situation. When there are fewer hidden layer nodes, it is easy to cause overfitting. When new sample data is input, the mapping results in output values that do not match the actual situation, resulting in significant errors in the network [37,38]. According to the results, PSO-BPNN3 has high accuracy and can be used for predicting the corrosion depth of polymer anti-corrosion cement.

4.3. Comparison between the PSO-BP Model and the Traditional BP Model

In order to analyze the differences between the PSO-optimized model and traditional BP model. A traditional BP model (BPNN) was constructed (3-10-1) and compared with the PSO-BP model. The prediction was conducted with test sample data after the training. The test errors of the two models were compared. The experimental results are as follows. It was shown in Table 7 and Figure 10 that the PSO-BP neural network has higher precision, faster network convergence speed, a smaller error of test sample data, lower deviation, and higher stability and reliability than the traditional BP model.

4.4. Comparison between the PSO-BP Model and the Regression Model

An empirical formula-based regression model (REG) was obtained based on experimental data as follows [20]:
h = 2.354 × ln t + 0.0182 × T + 0.2693 × P C O 2 2.775
where h is the corrosion depth; t is the corrosion time; T is the corrosion temperature; and P C O 2 is the pressure of CO2.
The R2 of the fitting function is 0.9746, and the mean square error (MSE) of the test samples is 0.0339.
To analyze the difference in accuracy between the PSO model and regression model in predicting the corrosion of polymer anti-corrosion cement, The PSO-BPNN3 and REG were used to predict the corrosion depth, respectively, and the results were compared. The experimental results are as follows. From the results in Figure 11, the accuracy of the regression model based on empirical formulas is relatively low. The BP neural network model optimized using PSO has higher accuracy compared to multiple regression models.

4.5. Micromorphology of Cement Samples

In order to analyze the microstructure changes in oil well cement under corrosion conditions, the micro-morphology of oil well cement before and after corrosion was observed using a scanning electron microscope. The scanning electron microscope diagram is shown in Figure 12.
Figure 12b shows that the corroded cement sample has more pores, and compared to the pre-corroded cement sample, the structure of the cement sample is relatively loose. The dense structure of the cement sample is destroyed, reducing its strength in corrosive environments. In Figure 12a, there are no obvious corrosion pores inside the cement stone added with polymer resin, and there are many hydrated calcium silicate and calcium hydroxide crystals wrapped in polymer films with a dense overall structure [39]. By comparing the microstructure of two types of cement stone after corrosion, it is further indicated that under acidic conditions, polymer resin can effectively improve the corrosion resistance of cement stone and ensure its integrity.

5. Conclusions

(1)
Adding polymer resin can reduce the strength of cement to some extent but greatly enhance the corrosion resistance of oil well cement. Polymer anti-corrosion cement has lower corrosion than blank cement slurry in long-term corrosion.
(2)
The PSO algorithm can accelerate the convergence of BP neural networks and avoid BP neural networks falling into the local extremum. The PSO-BP model has higher accuracy in predicting the long-term corrosion depth of cement in complex geological environments compared to regression models and traditional BP networks.
(3)
The artificial neural network prediction model based on PSO optimization performs well in predicting and evaluating the long-term corrosion degree of polymer anti-corrosion cement and can guide the design and evaluation of anti-corrosion cement slurry.

Author Contributions

Conceptualization, R.C. and S.Z.; methodology, R.C.; software, R.C. and F.D.; validation, R.C., S.Z., S.L. and J.Z.; formal analysis, J.Z.; investigation, J.Z., S.L. and F.D.; resources, S.L.; data curation, M.X.; writing—original draft preparation, J.Z.; writing—review and editing, M.X., R.C. and S.Z.; visualization, R.C.; supervision, F.D.; project administration, M.X.; funding acquisition, R.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by The Open Fund (UOG2022-24) of the Cooperative Innovation Center of Unconventional Oil and Gas, Yangtze University (Ministry of Education and Hubei Province).

Data Availability Statement

Data will be available upon request.

Conflicts of Interest

Authors Jun Zhao and Shikang Liu were employed by the company China Oilfield Services Limited. Feixu Dai was employed by the company Tarim Oilfield Production Capacity Construction Division. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Arjomand, E.; Bennett, T.; Nguyen, G.D. Evaluation of cement sheath integrity subject to enhanced pressure! J. Pet. Sci. Eng. 2018, 170, 1–13. [Google Scholar] [CrossRef]
  2. Kiran, R.; Teodoriu, C.; Dadmohammadi, Y.; Nygaard, R.; Wood, D.; Mokhtari, M.; Salehi, S. Identification and evaluation of well integrity and causes of failure of well integrity barriers (A review). J. Nat. Gas Sci. Eng. 2017, 45, 511–526. [Google Scholar] [CrossRef]
  3. Patel, H.; Salehi, S. Structural integrity of liner cement in oil & gas wells: Parametric study, sensitivity analysis, and risk assessment. Eng. Fail. Anal. 2021, 122, 105203. [Google Scholar] [CrossRef]
  4. Marbun, B.T.H.; Prasetyok, D.E.; Prabowo, H.; Susilo, D.; Firmansyah, F.R.; Palilu, J.M.; Silamba, I.C.; Santoso, D.; Kadir, W.G.A.; Sule, R.; et al. Well integrity evaluation prior to converting a conventional gas well to CO2 injector well—Gundih CCS pilot project in Indonesia (phase 1). Int. J. Greenh. Gas Control 2019, 88, 447–459. [Google Scholar] [CrossRef]
  5. Liaudat, J.; Martinez, A.; Lopez, C.M.; Carol, I. Modelling acid attack of oilwell cement exposed to carbonated brine. Int. J. Greenh. Gas Control 2018, 68, 191–202. [Google Scholar] [CrossRef]
  6. Kuo, C.C.; Wang, C.L.; Hsiang, H.I. Mechanical and microscopic properties of API G cement after exposure to supercritical CO2. Terr. Atmos. Ocean. Sci. 2017, 28, 209–216. [Google Scholar] [CrossRef]
  7. Yin, S.H.; Yang, Y.F.; Zhang, T.S.; Guo, G.F.; Yu, F. Effect of carbonic acid water on the degradation of Portland cement paste: Corrosion process and kinetics. Constr. Build. Mater. 2015, 91, 39–46. [Google Scholar] [CrossRef]
  8. Peng, Z.; Lv, F.; Feng, Q.; Zheng, Y. Enhancing the CO2-H2S corrosion resistance of oil well cement with a modified epoxy resin. Constr. Build. Mater. 2022, 326, 126854. [Google Scholar] [CrossRef]
  9. Qu, L.; Wang, Q.; Mao, J.; Xu, S.; Zhang, H.; Shi, Z.; Li, X. Study of anti-chlorine corrosion of anion exchange resin based superhydrophobic cement mortar in chloride salt environment. Constr. Build. Mater. 2021, 313, 125540. [Google Scholar] [CrossRef]
  10. Wu, Z.; Song, J.; Xu, M.; Liu, W.; Chen, R.; Pu, L.; Zhou, S. Effect of weighting materials on carbonation of oil well cement-based composites under high temperature and CO2-rich environment. Arab. J. Chem. 2023, 16, 104670. [Google Scholar] [CrossRef]
  11. Guo, S.-Y.; Zhang, X.; Chen, J.-Z.; Mou, B.; Shang, H.-S.; Wang, P.; Zhang, L.; Ren, J. Mechanical and interface bonding properties of epoxy resin reinforced Portland cement repairing mortar. Constr. Build. Mater. 2020, 264, 120715. [Google Scholar] [CrossRef]
  12. Aguiar, J.B.; Junior, C. Carbonation of surface protected concrete. Constr. Build. Mater. 2013, 49, 478–483. [Google Scholar] [CrossRef]
  13. Wang, Z.; Li, W.; Chen, J. Application of Various Nonlinear Models to Predict the Uniaxial Compressive Strength of Weakly Cemented Jurassic Rocks. Nat. Resour. Res. 2022, 31, 371–384. [Google Scholar] [CrossRef]
  14. Fu, H.; Li, K.; Zhang, C.; Zhang, J.; Liu, J.; Chen, X.; Chen, G.; Sun, Y.; Li, S.; Ling, L. Machine-Learning-Assisted Optimization of a Single-Atom Coordination Environment for Accelerated Fenton Catalysis. ACS Nano 2023, 17, 13851–13860. [Google Scholar] [CrossRef]
  15. Hao, X.; Guo, T.; Huang, G.; Shi, X.; Zhao, Y.; Yang, Y. Energy consumption prediction in cement calcination process: A method of deep belief network with sliding window. Energy 2020, 207, 118256. [Google Scholar] [CrossRef]
  16. Shiratori, K.; Bishop, L.D.C.; Ostovar, B.; Baiyasi, R.; Cai, Y.-Y.; Rossky, P.J.; Landes, C.F.; Link, S. Machine-Learned Decision Trees for Predicting Gold Nanorod Sizes from Spectra. J. Phys. Chem. C 2021, 125, 19353–19361. [Google Scholar] [CrossRef]
  17. Terzic, A.; Radulovic, D.; Pezo, M.; Stojanovic, J.; Pezo, L.; Radojevic, Z.; Andric, L. Prediction model based on artificial neural network for pyrophyllite mechano-chemical activation as an integral step in production of cement binders. Constr. Build. Mater. 2020, 258, 119721. [Google Scholar] [CrossRef]
  18. Tsamatsoulis, D. Prediction of Cement Compressive Strength by Combining Dynamic Models of Neural Networks. Chem. Biochem. Eng. Q. 2021, 35, 295–318. [Google Scholar] [CrossRef]
  19. Brown, K.A.; Brittman, S.; Maccaferri, N.; Jariwala, D.; Ceano, U. Machine Learning in Nanoscience: Big Data at Small Scales. Nano Lett. 2020, 20, 2–10. [Google Scholar] [CrossRef]
  20. Ivanov, A.S.; Nikolaev, K.G.; Novikov, A.S.; Yurchenko, S.O.; Novoselov, K.S.; Andreeva, D.V.; Skorb, E.V. Programmable Soft-Matter Electronics. J. Phys. Chem. Lett. 2021, 12, 2017–2022. [Google Scholar] [CrossRef]
  21. Zou, X.F.; Hu, Y.J.; Long, X.B.; Huang, L.Y. Prediction and optimization of phosphorus content in electroless plating of Cr12MoV die steel based on PSO-BP model. Surf. Interfaces 2020, 18, 100443. [Google Scholar] [CrossRef]
  22. Anysz, H.; Narloch, P. Designing the Composition of Cement Stabilized Rammed Earth Using Artificial Neural Networks. Materials 2019, 12, 1396. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, R.; Song, J.; Xu, M.; Wang, X.; Yin, Z.; Liu, T.; Luo, N. Prediction of the corrosion depth of oil well cement corroded by carbon dioxide using GA-BP neural network. Constr. Build. Mater. 2023, 394, 132127. [Google Scholar] [CrossRef]
  24. GB/T 19139-2012; Test Methods for Oil Well Cement. China Standard Press: Beijing, China, 2012.
  25. Zhang, C.; Zhang, J.; Peng, B.; Qiao, H. Depth and prediction model of oilwell cement stone eroded by carbon dioxide. J. Portland 2010, 38, 1782–1787. [Google Scholar] [CrossRef]
  26. Steiner, S.; Lothenbach, B.; Proske, T.; Borgschulte, A.; Winnefeld, F. Effect of relative humidity on the carbonation rate of portlandite, calcium silicate hydrates and ettringite. Cem. Concr. Res. 2020, 135, 106116. [Google Scholar] [CrossRef]
  27. Aladejare, A.E.; Akeju, V.O.; Wang, Y. Probabilistic characterisation of uniaxial compressive strength of rock using test results from multiple types of punch tests. Georisk-Assess. Manag. Risk Eng. Syst. Geohazards 2021, 15, 209–220. [Google Scholar] [CrossRef]
  28. Gaedicke, C.; Torres, A.; Huynh, K.C.T.; Marines, A. A method to correlate splitting tensile strength and compressive strength of pervious concrete cylinders and cores. Constr. Build. Mater. 2016, 125, 271–278. [Google Scholar] [CrossRef]
  29. Malik, S.; Kim, D. Prediction-Learning Algorithm for Efficient Energy Consumption in Smart Buildings Based on Particle Regeneration and Velocity Boost in Particle Swarm Optimization Neural Networks. Energies 2018, 11, 1289. [Google Scholar] [CrossRef]
  30. Wan, P.; Zou, H.; Wang, K.; Zhao, Z. Research on hot deformation behavior of Zr-4 alloy based on PSO-BP artificial neural network. J. Alloys Compd. 2020, 826, 154047. [Google Scholar] [CrossRef]
  31. Yang, J.; Hu, Y.; Zhang, K.; Wu, Y. An improved evolution algorithm using population competition genetic algorithm and self-correction BP neural network based on fitness landscape. Soft Comput. 2021, 25, 1751–1776. [Google Scholar] [CrossRef]
  32. Li, N.; Wang, Y.L.; Ma, W.T.; Xiao, Z.H.; An, Z.E. A Wind Power Prediction Method Based on DE-BP Neural Network. Front. Energy Res. 2022, 10, 844111. [Google Scholar] [CrossRef]
  33. Wang, B.; Yin, S.; Liu, M. Investigation on the Displacement Ductility Coefficient of Reinforced Concrete Columns Strengthened with Textile-Reinforced Concrete. Adv. Civ. Eng. 2021, 2021, 3152619. [Google Scholar] [CrossRef]
  34. Williamson, E.M.; Brutchey, R.L. Using Data-Driven Learning to Predict and Control the Outcomes of Inorganic Materials Synthesis. Inorg. Chem. 2023, 62, 16251–16262. [Google Scholar] [CrossRef] [PubMed]
  35. Han, W.; Nan, L.B.; Su, M.; Chen, Y.; Li, R.N.; Zhang, X.J. Research on the Prediction Method of Centrifugal Pump Performance Based on a Double Hidden Layer BP Neural Network. Energies 2019, 12, 2709. [Google Scholar] [CrossRef]
  36. Furuichi, T.; Takamizawa, T.; Tsujimoto, A.; Miyazaki, M.; Barkmeier, W.W.; Latta, M.A. Mechanical Properties and Sliding-impact Wear Resistance of Self-adhesive Resin Cements. Oper. Dent. 2016, 41, E83–E92. [Google Scholar] [CrossRef]
  37. Aliev, T.A.; Belyaev, V.E.; Pomytkina, A.V.; Nesterov, P.V.; Shityakov, S.; Sadovnichii, R.V.; Novikov, A.S.; Orlova, O.Y.; Masalovich, M.S.; Skorb, E.V. Electrochemical Sensor to Detect Antibiotics in Milk Based on Machine Learning Algorithms. ACS Appl. Mater. Interfaces 2023, 15, 52010–52020. [Google Scholar] [CrossRef] [PubMed]
  38. Yang, A.; Zhuansun, Y.; Liu, C.; Li, J.; Zhang, C. Design of Intrusion Detection System for Internet of Things Based on Improved BP Neural Network. IEEE Access 2019, 7, 106043–106052. [Google Scholar] [CrossRef]
  39. Liu, K.; Wang, S.; Quan, X.; Jing, W.; Xu, J.; Zhao, N.; Liu, B.; Ying, H. Industrial byproduct Iron ore tailings as ecofriendly materials in the utilization of cementitious composites. Constr. Build. Mater. 2023, 372, 130813. [Google Scholar] [CrossRef]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author (s) and contributor (s) and not of MDPI and/or the editor (s). MDPI and/or the editor (s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

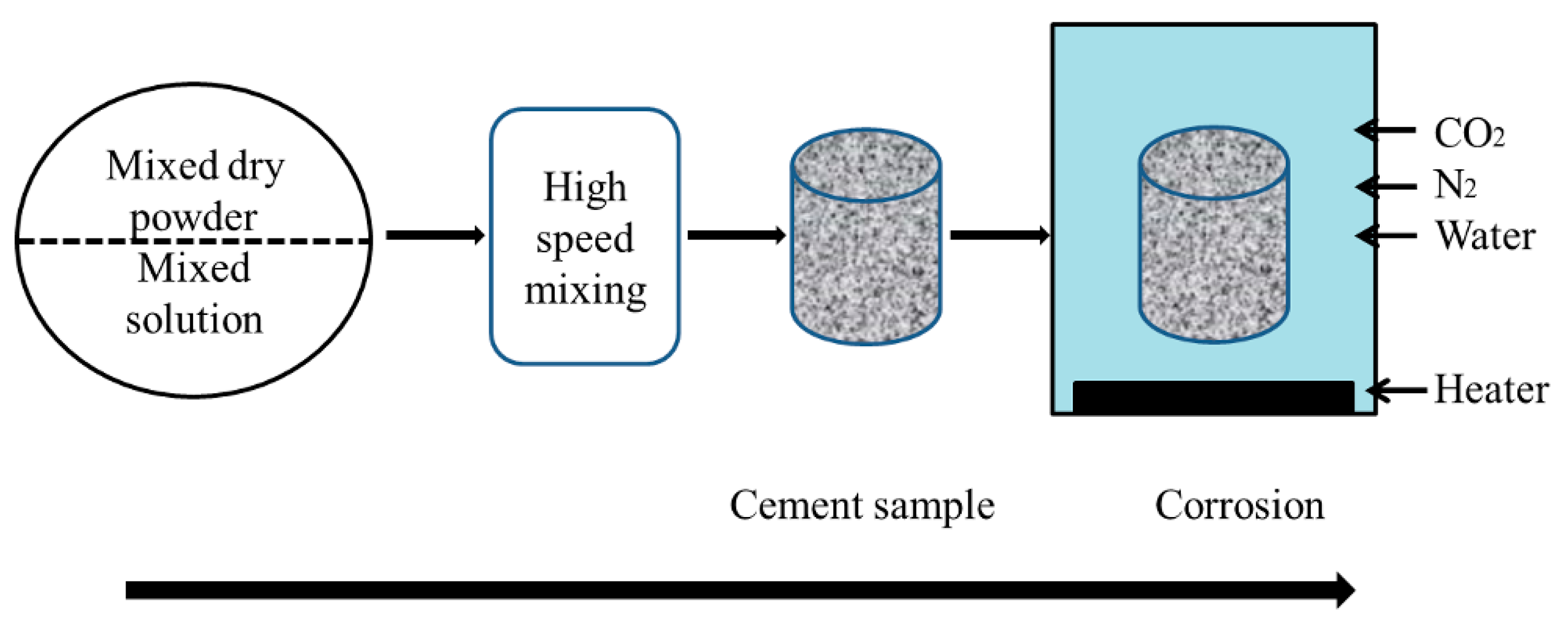

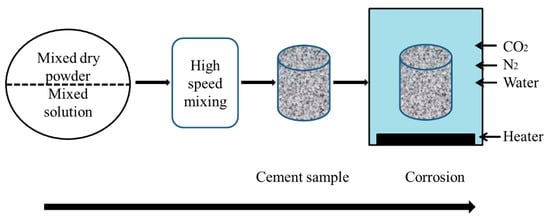

Figure 1. The simulation diagram of oil well cement corrosion.
Figure 1. The simulation diagram of oil well cement corrosion.
Polymers 15 04441 g001

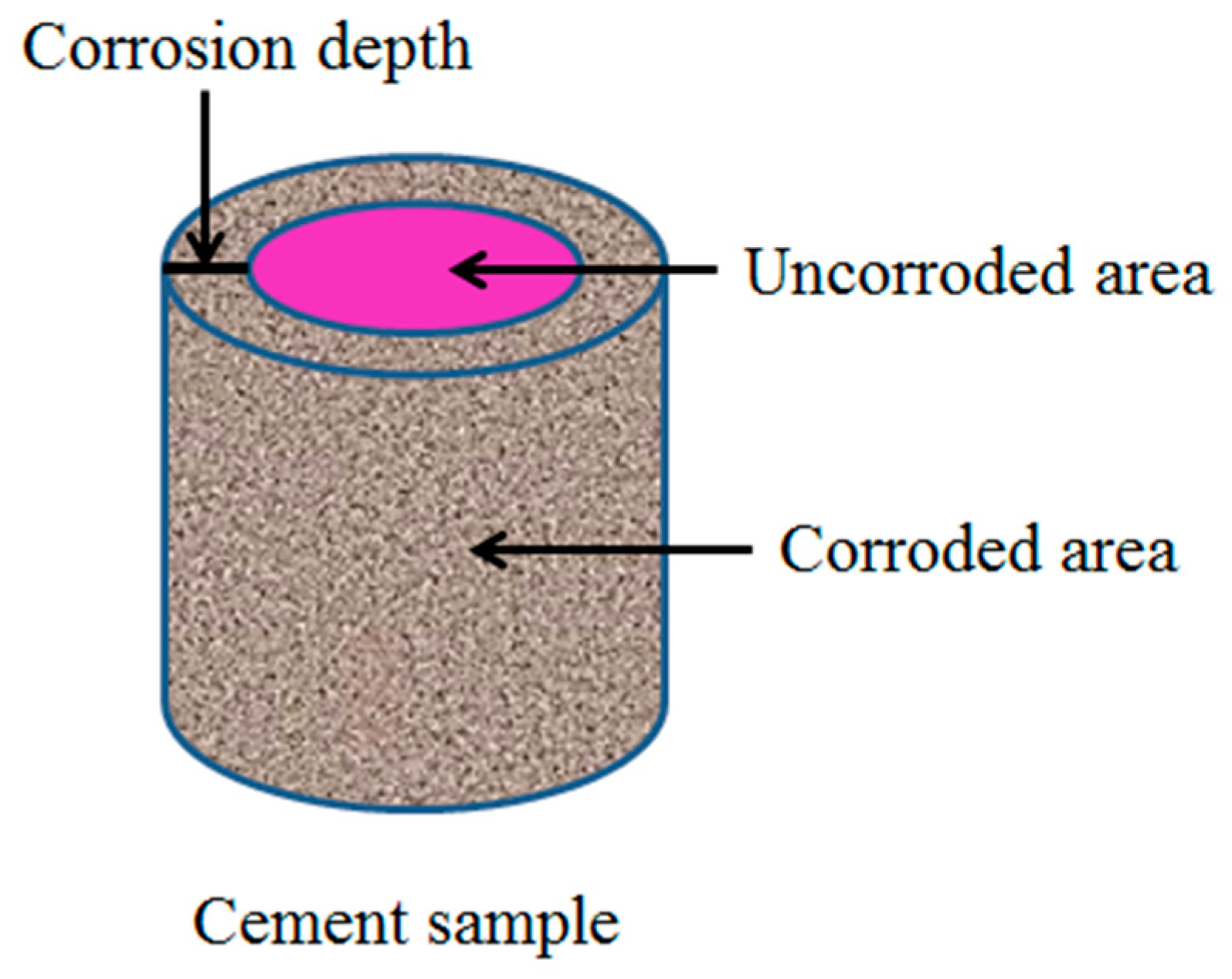

Figure 2. Corrosion of cement sample.
Figure 2. Corrosion of cement sample.
Polymers 15 04441 g002

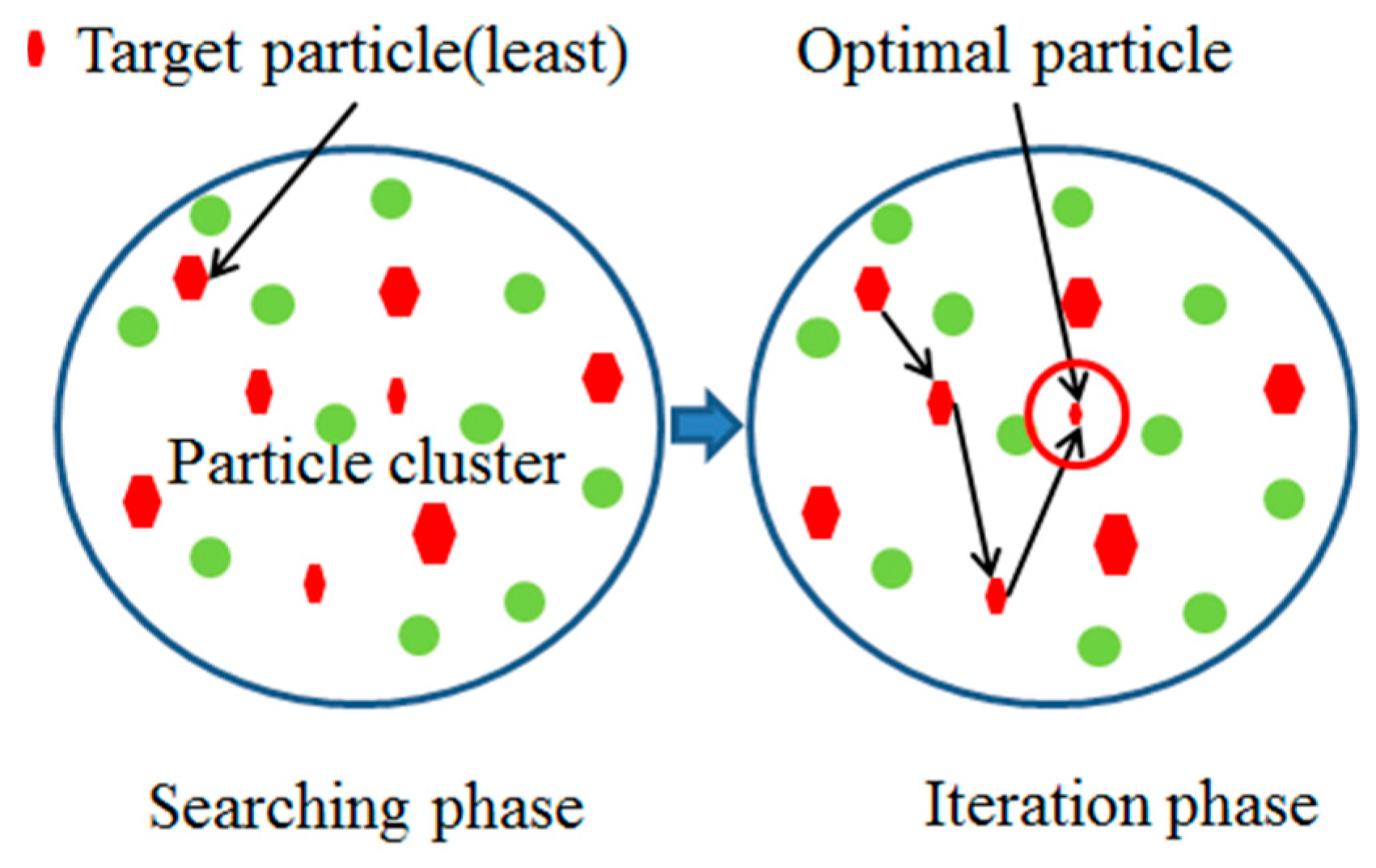

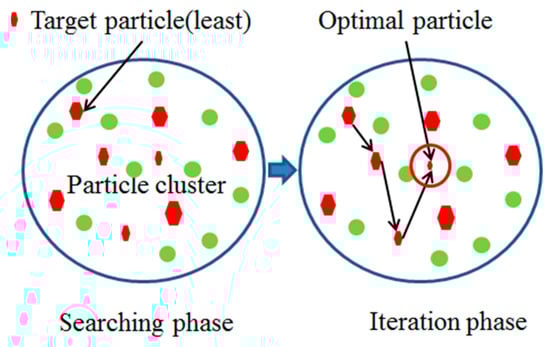

Figure 3. PSO schematic diagram.
Figure 3. PSO schematic diagram.
Polymers 15 04441 g003

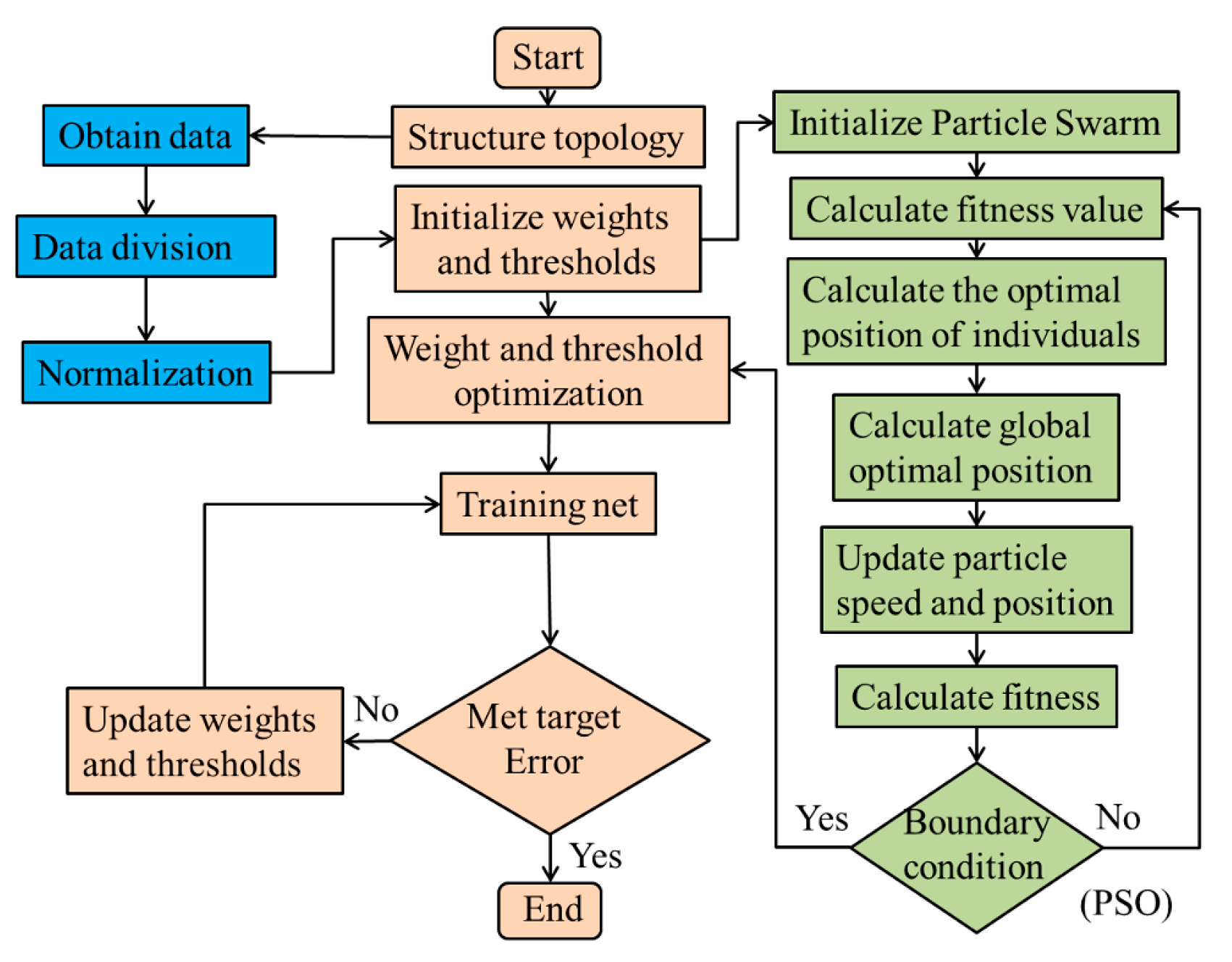

Figure 4. PSO-BP algorithm flow chart.
Figure 4. PSO-BP algorithm flow chart.
Polymers 15 04441 g004

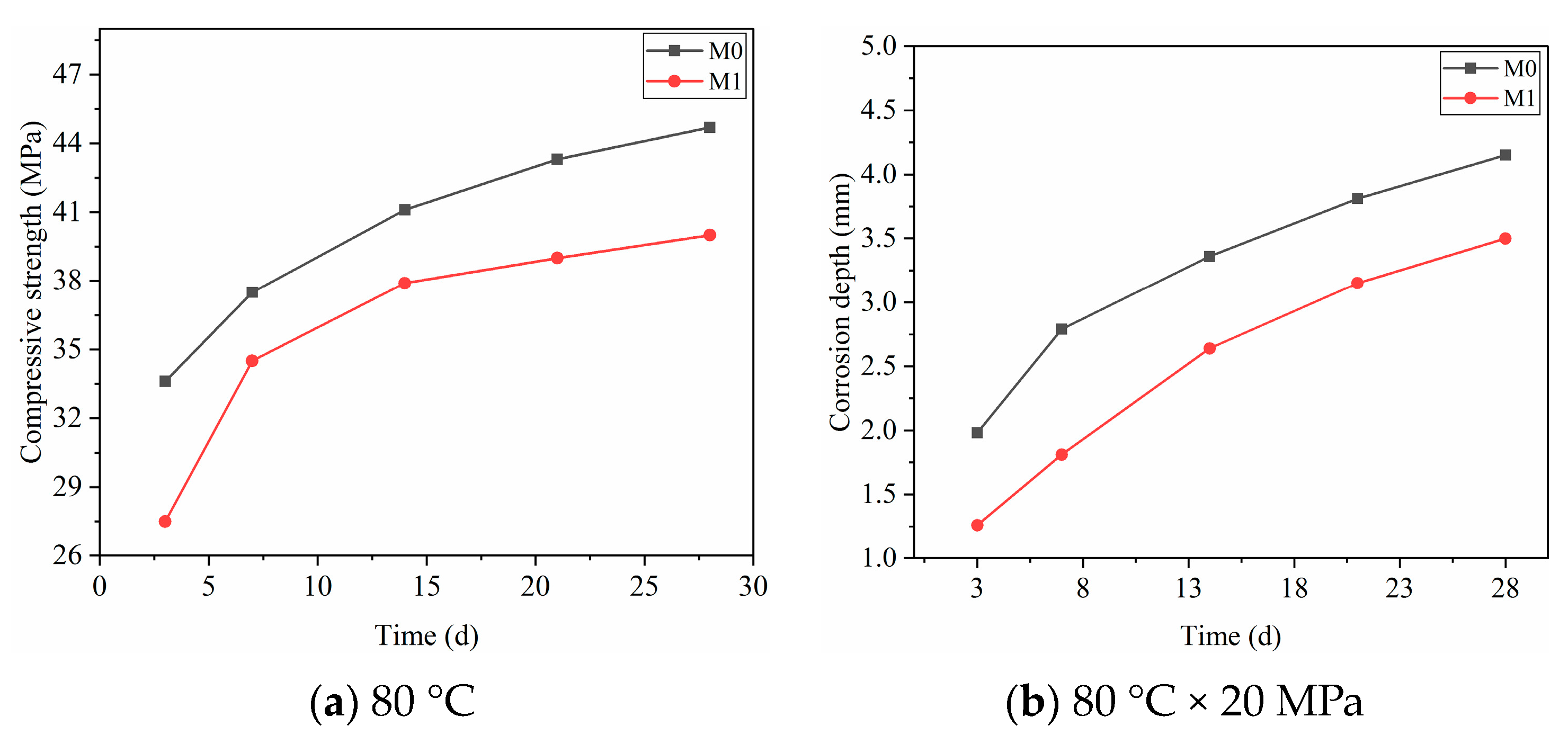

Figure 5. The influence of polymer resin on the compressive strength and anti-corrosion performance of cement: (a) the effect of resin on the compressive strength; (b) the effect of resin on the corrosion depth.
Figure 5. The influence of polymer resin on the compressive strength and anti-corrosion performance of cement: (a) the effect of resin on the compressive strength; (b) the effect of resin on the corrosion depth.
Polymers 15 04441 g005

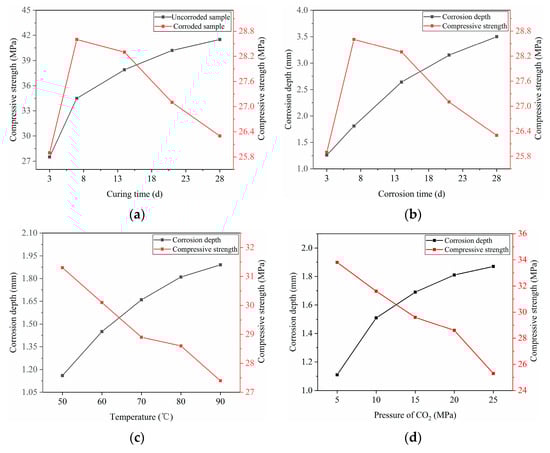

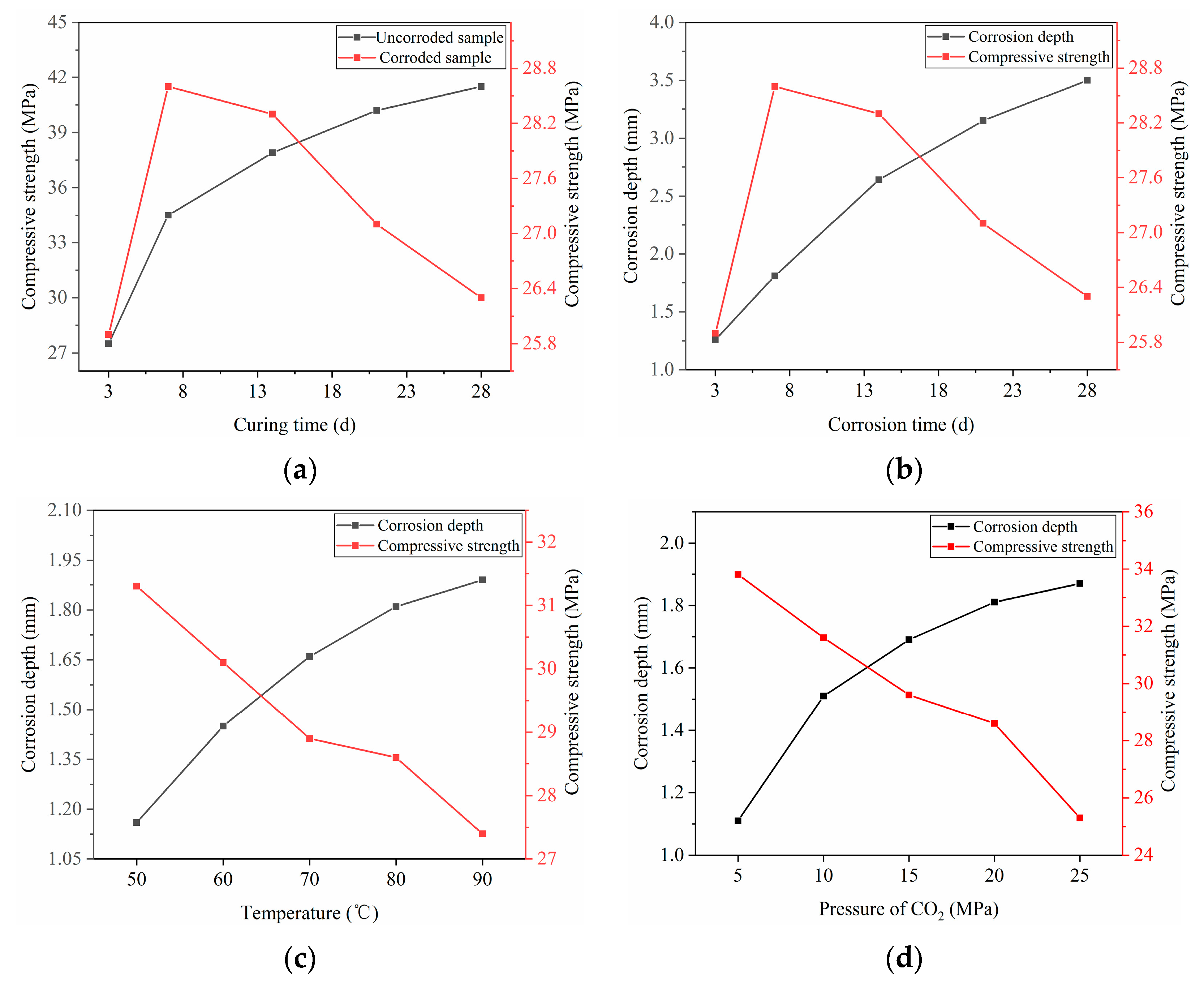

Figure 6. Changes in polymer anti-corrosion cement under corrosive conditions: (a) 80 °C, (b) 80 °C × 20 MPa, (c) 20 MPa × 7 d, (d) 7 d × 80 °C.
Figure 6. Changes in polymer anti-corrosion cement under corrosive conditions: (a) 80 °C, (b) 80 °C × 20 MPa, (c) 20 MPa × 7 d, (d) 7 d × 80 °C.
Polymers 15 04441 g006

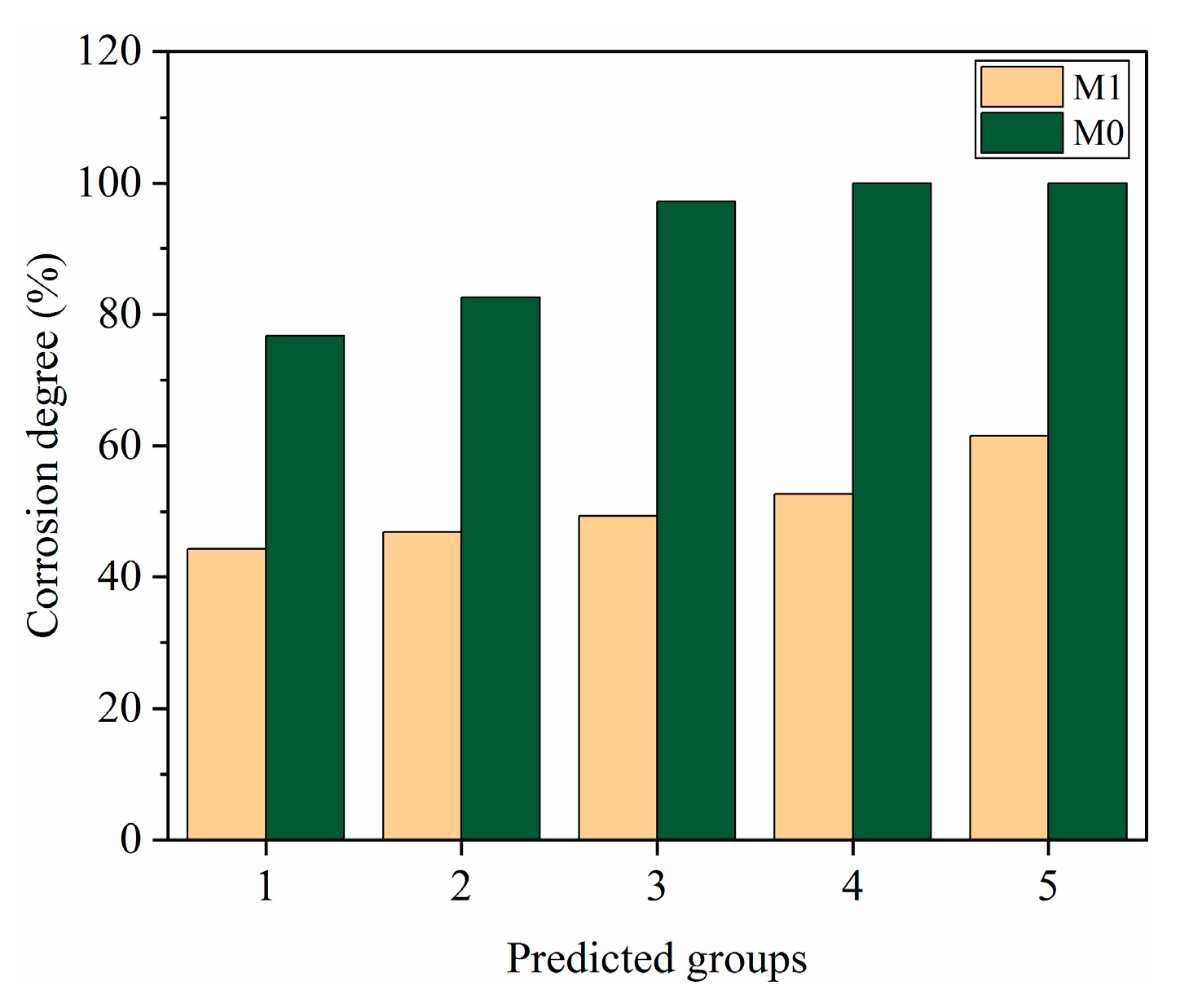

Figure 7. Evaluation of long-term corrosion degree of oil well cement.
Figure 7. Evaluation of long-term corrosion degree of oil well cement.
Polymers 15 04441 g007

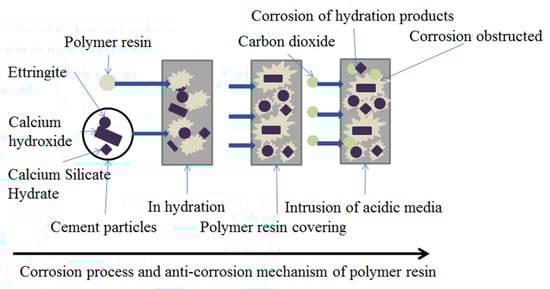

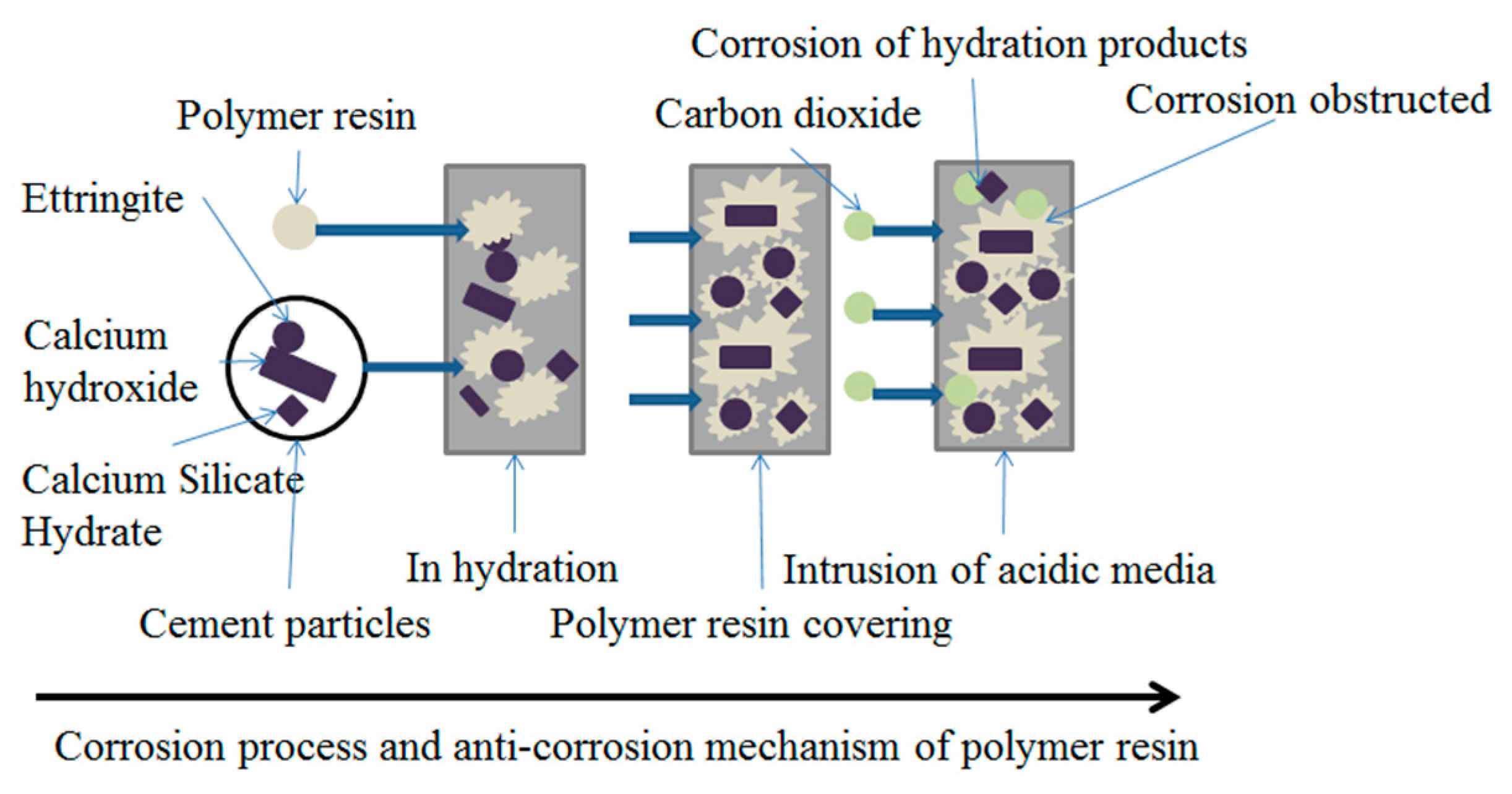

Figure 8. Schematic diagram of resin anti-corrosion mechanism.
Figure 8. Schematic diagram of resin anti-corrosion mechanism.
Polymers 15 04441 g008

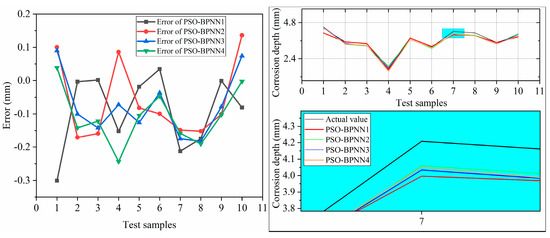

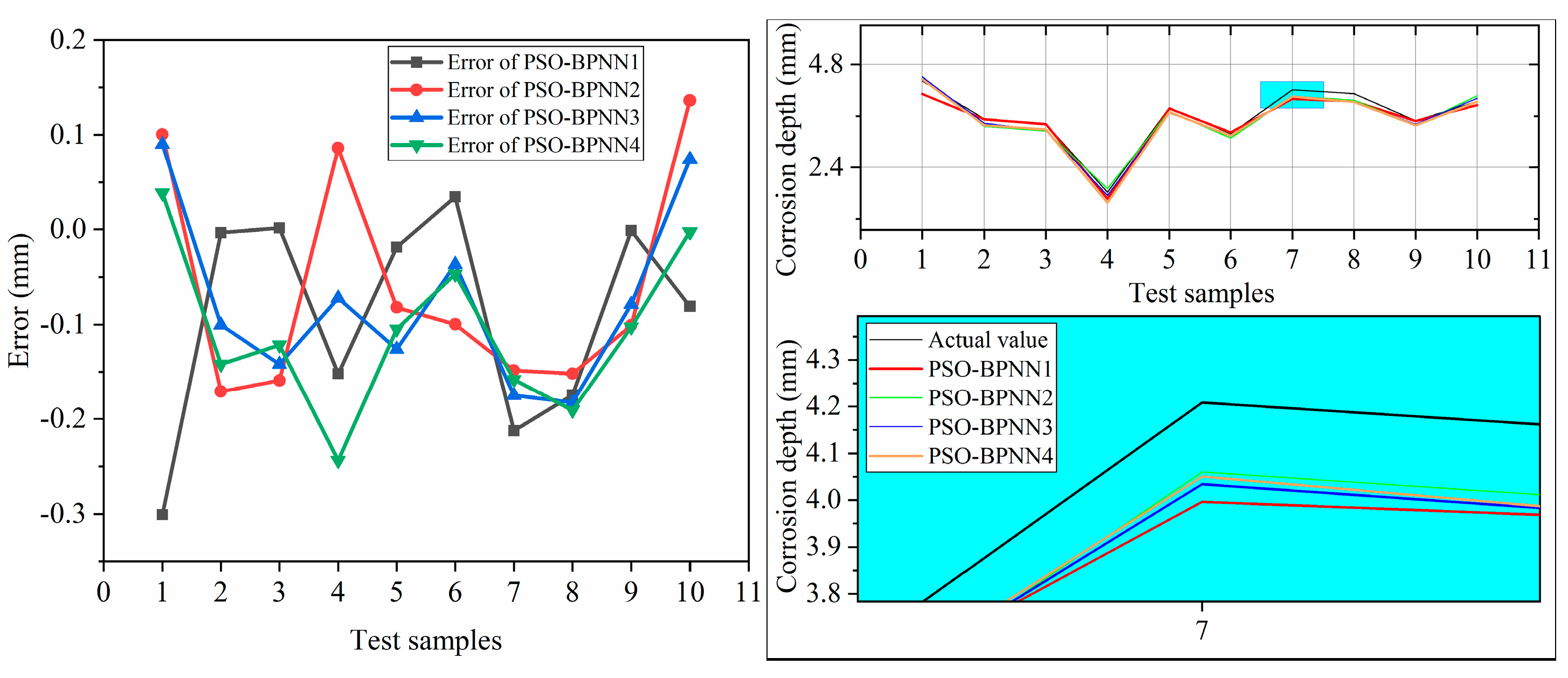

Figure 9. Test error of network with a different number of hidden layer nodes.
Figure 9. Test error of network with a different number of hidden layer nodes.
Polymers 15 04441 g009

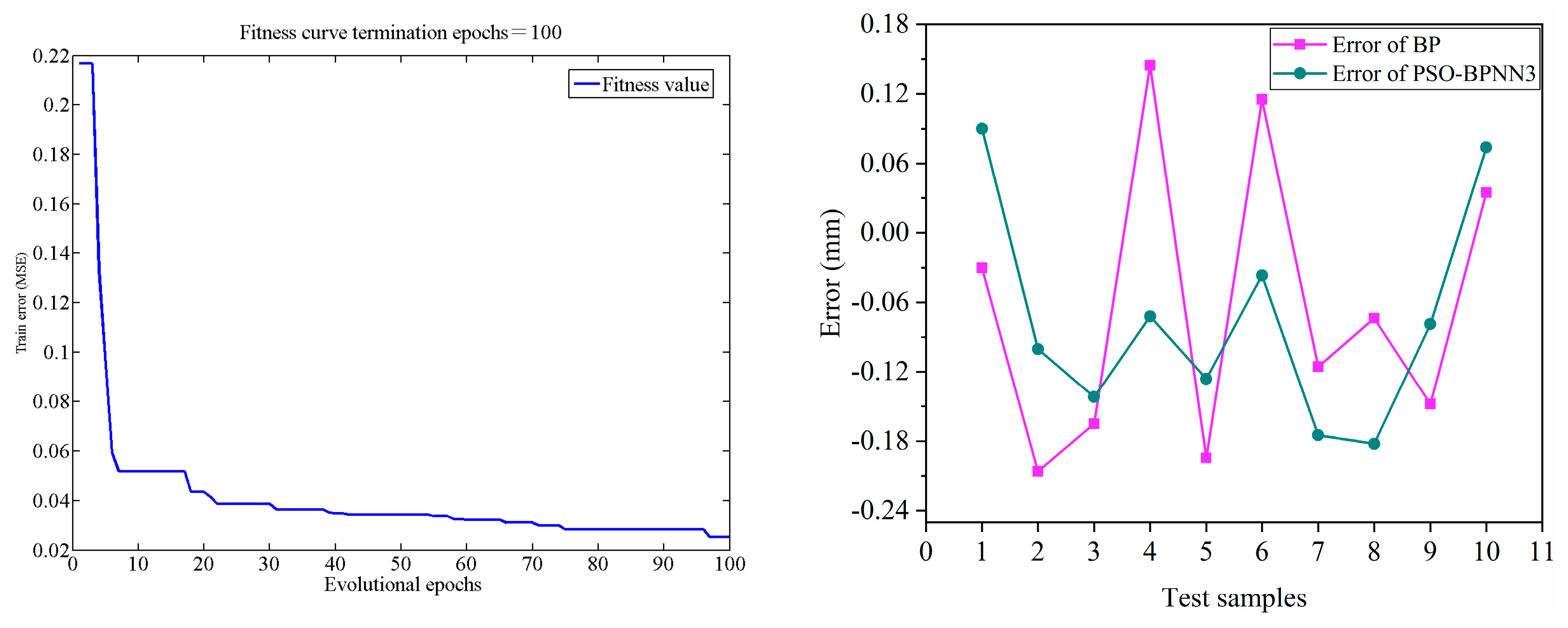

Figure 10. Comparison between the PSO-BP Network and the traditional BP Network.
Figure 10. Comparison between the PSO-BP Network and the traditional BP Network.
Polymers 15 04441 g010

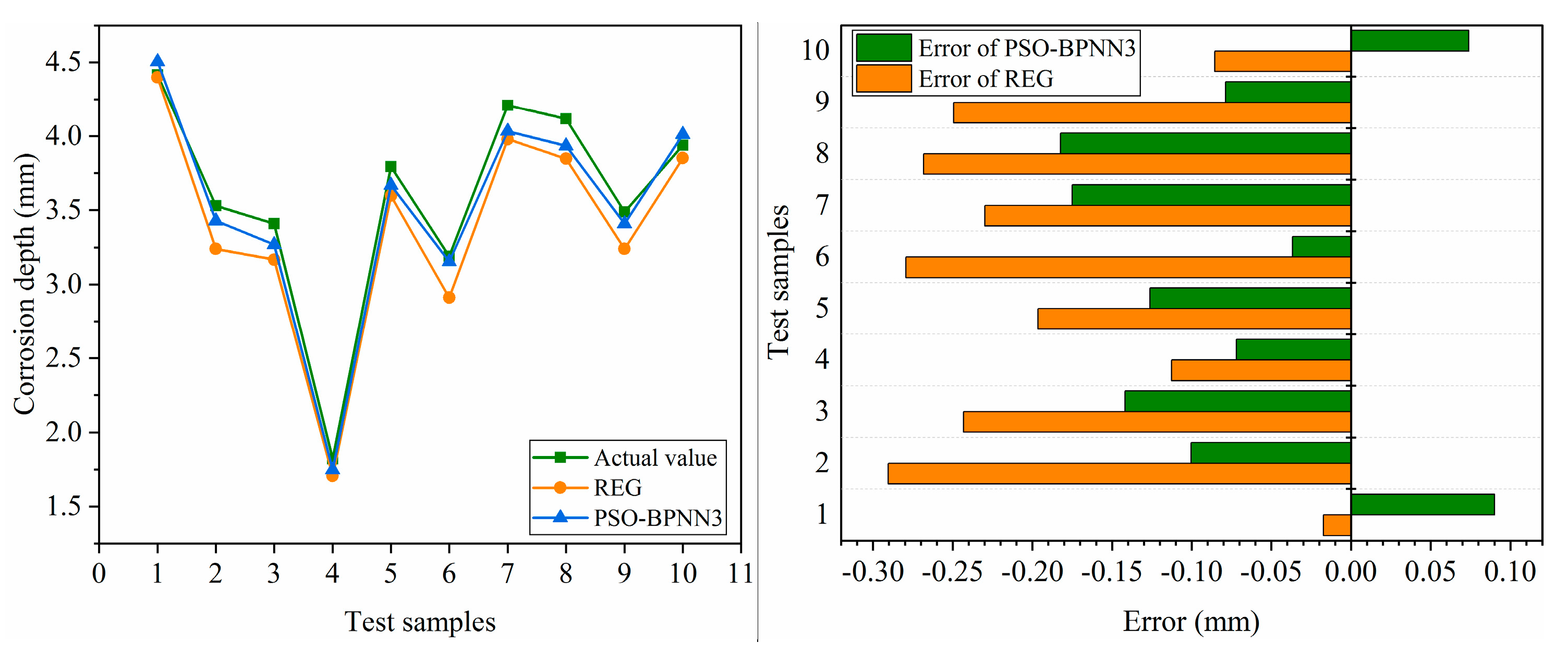

Figure 11. Comparison between the PSO-BP model and the regression model (REG).
Figure 11. Comparison between the PSO-BP model and the regression model (REG).
Polymers 15 04441 g011

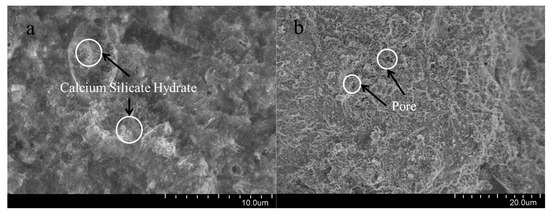

Figure 12. SEM of cement samples (the pressure in the condition is the pressure of CO2). (a): Uncorroded cement sample (7 d × 80 °C). (b): Corroded cement sample (7 d × 80 °C × 20 MPa).
Figure 12. SEM of cement samples (the pressure in the condition is the pressure of CO2). (a): Uncorroded cement sample (7 d × 80 °C). (b): Corroded cement sample (7 d × 80 °C × 20 MPa).
Polymers 15 04441 g012
Table 1. Chemical composition of G-class oil well cement.
Table 1. Chemical composition of G-class oil well cement.
ComponentCaOSiO2Fe2O3Al2O3MgONa2O + K2Others
Content (%)64.222.54.44.11.60.382.82
Table 2. Components of cement slurry.
Table 2. Components of cement slurry.
SamplesCementWaterReinforcerDispersantFiltrate ReducerRetarderResin
M01004420.520.40
M11003920.520.410
Table 3. Experimental scheme.
Table 3. Experimental scheme.
Sample GroupsFactors and Control ScopeObservations
Time (d)Temperature (°C)Pressure of CO2 (MPa)Corrosion Depth (mm)Compressive Strength (MPa)
1001~6050~905~25hP
Table 4. PSO-BP model parameter settings.
Table 4. PSO-BP model parameter settings.
VariableParameter
Input parameterPressure of CO2, Temperature, Time
Network structure3-3-1, 3-7-1, 3-10-1, 3-12-1
VariableParameterVariableParameter
Total number of samples100Output parametersCorrosion depth
Training methodsGradient descent (L-M)Particle dimension16, 36, 51, 61
Number of training samples80Learning rate of BP0.01
Weight correction methodError backpropagationNumber of test samples10
Maximum iterations of BP2000Inertial factor0.7
Number of hidden layers1Particle swarm size100
Maximum iterations of PSO100Target error (MSE)0.001
Number of validation samples10Minimum position−1
Learning parameters of PSO0.05Maximum position1
Minimum speed−0.1Maximum speed0.1
Table 5. Training results of different PSO-BPNN network structures.
Table 5. Training results of different PSO-BPNN network structures.
ModelStructureR2Best Validation Error (MSE)IterationsTest Error (MSE)
PSO-BPNN13-3-10.98800.0024190.0197
PSO-BPNN23-7-10.99550.0062140.0163
PSO-BPNN33-10-10.99700.002240.0136
PSO-BPNN43-12-10.99530.0007190.0216
Table 6. Prediction of long-term corrosion of oil well cement.
Table 6. Prediction of long-term corrosion of oil well cement.
NO.Corrosive ConditionsPrediction of Corrosion Depth (mm)
Pressure of CO2 (MPa)Temperature (°C)Time (d)REGBPNNPSO-BPNN3
125503655.5334.0705.543
215803655.7754.0725.867
35905005.8384.8346.174
4157010006.6245.3586.583
5208015007.3815.5697.691
Table 7. Training results of PSO-BPNN3 and BPNN.
Table 7. Training results of PSO-BPNN3 and BPNN.
ModelStructureR2Best Validation Error (MSE)IterationsTest Error (MSE)
PSO-BPNN33-10-10.99700.002240.0136
BPNN3-10-10.99410.0028140.0184
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhao, J.; Chen, R.; Liu, S.; Zhou, S.; Xu, M.; Dai, F. Corrosion Degree Evaluation of Polymer Anti-Corrosive Oil Well Cement under an Acidic Geological Environment Using an Artificial Neural Network. Polymers 2023, 15, 4441. https://doi.org/10.3390/polym15224441

AMA Style

Zhao J, Chen R, Liu S, Zhou S, Xu M, Dai F. Corrosion Degree Evaluation of Polymer Anti-Corrosive Oil Well Cement under an Acidic Geological Environment Using an Artificial Neural Network. Polymers. 2023; 15(22):4441. https://doi.org/10.3390/polym15224441

Chicago/Turabian Style

Zhao, Jun, Rongyao Chen, Shikang Liu, Shanshan Zhou, Mingbiao Xu, and Feixu Dai. 2023. "Corrosion Degree Evaluation of Polymer Anti-Corrosive Oil Well Cement under an Acidic Geological Environment Using an Artificial Neural Network" Polymers 15, no. 22: 4441. https://doi.org/10.3390/polym15224441

APA Style

Zhao, J., Chen, R., Liu, S., Zhou, S., Xu, M., & Dai, F. (2023). Corrosion Degree Evaluation of Polymer Anti-Corrosive Oil Well Cement under an Acidic Geological Environment Using an Artificial Neural Network. Polymers, 15(22), 4441. https://doi.org/10.3390/polym15224441

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
