Synthesis and Thermoreversible Gelation of Coil–Rod Copolymers with a Dendritic Polyethylene Core and Multiple Helical Poly(γ-benzyl-L-glutamate) Arms

by
Yuliang Lu
1,
Dongtao Liu
1,
Xinjie Wei
1,
Jiming Song
1,
Qiaogang Xiao
1,
Kezheng Du
1,
Xinbo Shi
2,3 and
Haiyang Gao
2,*
1
China National Offshore Oil Corporation Energy Technology & Services Limited Shenzhen Branch, Shenzhen 518067, China
2
School of Materials Science and Engineering, PCFM Lab, GD HPPC Lab, Sun Yat-Sen University, Guangzhou 510275, China
3
Chain Walking New Material Technology (Guangzhou) Co., Ltd., Guangzhou 511457, China
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(22), 4351; https://doi.org/10.3390/polym15224351
Submission received: 22 September 2023 / Revised: 2 November 2023 / Accepted: 3 November 2023 / Published: 8 November 2023
(This article belongs to the Section Polymer Chemistry)
Browse Figures
Versions Notes

Abstract

:
Coil–rod copolymers with a dendritic polyethylene (DPE) core and multiple helical poly(γ-benzyl-L-glutamate) (PBLG) arms (DPE-(PBLG)n) were prepared by palladium-catalyzed copolymerization in tandem with ring-opening polymerization (ROP). Macroinitiator (DPE–(NH2)11) was firstly prepared by the group transformation of DPE–(OH)11 generated from palladium-catalyzed copolymerization of ethylene and acrylate comonomer. Coil–helical DPE-(PBLG)11 copolymers were prepared by ROP of γ-benzyl-L-glutamate-N-carboxyanhydride (BLG-NCA). These DPE-(PBLG)11 copolymers could form thermoreversible gels in toluene solvent, and the dendritic topology of the DPE core increased the critical gelation concentrations. The self-assembled nanostructure of gels was fully characterized by transmission electron microscopy (TEM), atomic force microscopy (AFM), small-angle X-ray scattering (SAXS), and wide-angle X-ray diffraction (WAXD), and the morphology of the fibrous structure was a twisted flat ribbon through a self-assembled nanoribbon mechanism. The self-assembled fibers formed by DPE-(PBLG45)11 are more heterogeneous and ramified than previously observed fibers formed by PBLG homopolymer and block copolymers.

Graphical Abstract

1. Introduction

As a class of polymers with unique chain architecture, dendritic polymers have received considerable attention [1]. Compared with linear, branched, and crosslinked polymers, dendritic polymers have compact globular shape featured with extensive branch-on-branch chain architectures, which renders them with unique physical properties such as dilute melt/solution viscosity, excellent solubility in solvent, and plenty of reactive terminal groups [2,3,4,5]. Dendritic polymers have shown good application potential in rheological additives, drug delivery, biomedical materials, and nanoelectronics [6,7,8].
The common synthesis of dendritic polymers through stepwise polymerization of polar AB2 or vinyl monomers offers structural control and uniformity, whereas the tedious and sophisticated multistep synthesis also limits their general applicability. Based on α-diimine nickel/palladium-catalyzed ethylene chain walking polymerization discovered by Brookhart [9,10], Guan has pioneeringly reported the synthesis of a hydrophobic hyperbranched/dendritic polyethylene (HBPE/DPE) using α-diimine palladium catalysts by turning reaction temperature and ethylene pressure [11,12,13]. The resultant polymeric product is a class of hyperbranched/dendritic polyethylene comprising multiple branches joined together, which is different from highly branched PE and low-density PE (LDPE).
Because the PE is full nonpolar, the application of dendritic polyethylene (DPE) is often limited. Because α-diimine palladium catalysts display two striking features including chain walking and excellent tolerance toward polar comonomers, the palladium-catalyzed copolymerization of ethylene and polar comonomers opens a way to the development of functionalized DPEs tethered with various polar groups [14,15,16]. These functionalized groups are often positioned at the branching ends of DPE, which is a result of chain walking mechanism presented by Brookhart [10]. The exposition of reactive end groups on the periphery of DPE facilitates construction of functional copolymers for improving material properties and expanding applications. Several research groups including Guan, Ye, Xu, and our groups have prepared various HBPE/DPE copolymers with multiple functionalized arms by a tandem synthetic strategy combining palladium-catalyzed chain walking copolymerization with other living/controlled polymerization techniques [17,18,19,20,21,22,23,24,25,26,27,28,29]. Despite these contributions, functional polymer arms grafted on HBPE/DPE are only limited to coil polymer chain segments. No rod-like polymer block has been introduced on the HBPE/DPE to date, especially artificial polypeptide, although linear/branched PE-polypeptide copolymers have been reported to be biologically interesting [30,31,32,33,34,35,36,37,38].
Poly(γ-benzyl-L-glutamate) (PBLG) polymer is a common artificial polypeptide, which can assume a rigid α-helical conformation. Therefore, PBLG is usually used as a versatile building block for constructing copolymers with unique structures and investigating their phase behaviors [39]. Although the preparation and phase behaviors of PBLG-based block copolymers with rod–coil superstructures have been extensively studied [40,41,42,43,44,45], few copolymers with multiple PBLG arms are reported. In this contribution, we report the first synthesis of coil–rod copolymers with a DPE core and multiple helical PBLG arms by a tandem approach of α-diimine palladium-catalyzed copolymerization of ethylene and polar comonomer in combination with ROP of γ-benzyl-L-glutamate-N-carboxyanhydride (BLG-NCA). We can envision that the functional DPE-(PBLG)n copolymers have a unique architecture with a coil DPE core and the multiple rod PBLG arms, which is very interesting for self-assembly. DPE-(PBLG)n copolymers can self-assemble into fibrils to form thermoreversible organogels in toluene by a nanoribbon mechanism. Importantly, the dendritic topology of DPE core not only increases the critical gelation concentration, but also leads to heterogeneous and ramified fibers.

2. Materials and Methods

2.1. General Procedures

All manipulations involving air- and moisture-sensitive compounds were performed under a nitrogen atmosphere with standard anhydrous and anaerobic operation.

2.2. Materials

Dichloromethane were dried and purified from calcium hydride under a nitrogen atmosphere, and toluene and hexane from were dried and purified by sodium/potassium alloy under a nitrogen atmosphere. Ethylene gas (99.99%) was purchased from Guangzhou Gas company and purified by passing through columns packed with deoxygenation agent and molecular sieves before polymerization. N-tert-butoxycarbonyl-L-valine (BOC-L-valine) were purchased from Sigma-Aldrich and directly used without purification. The α-diimine palladium catalyst was synthesized according to the literature [10]. Other commercially available chemical reagents were purchased and used as received.

2.3. Synthesis of γ-Benzyl-L-glutamate-N-carboxyanhydride

γ-Benzyl-L-glutamate-N-carboxyanhydride (BLG-NCA) was prepared according to reported literature [38]. Some 15 g (0.063 mol) of γ-Benzyl-L-glutamate was dissolved in 450 mL of ethyl acetate solvent in a round-bottom flask fitted with a stirring bar under N2 atmosphere. After heating to reflux, 6.3 g (0.021 mol) of triphosgene was injected and the reaction kept stirring and refluxing under nitrogen atmosphere. After 5 h, the reaction was then stopped and cooled slowly to −5 °C. The resultant cold solution was transferred to a separatory funnel and washed with 200 mL of pure and cold water at 0 °C. The organic layer was then washed with 200 mL of NaHCO3 solution at 0 °C and then dried with anhydrous MgSO4. The clear solution was filtered and concentrated on a rotary evaporator. An equal volume of hexane was then added to induce crystallization of the NCA. Pure polymerization-grade BLG-NCA product was obtained by three times recrystallization from mixture solvent (hexane:ethyl acetate = 3:1). 1H NMR (CDCl3, ppm): 7.39–7.25 (m, 5H), 6.25 (s, 1H), 5.16 (s, 2H), 4.38 (t, 1H), 2.63 (t, 2H), 2.38–2.06 (m, 2H).

2.4. Synthesis of Polar Comonomer HEA-TMS

2-Hydroxyethyl acrylate (HEA) (0.1 mmol) was mixed with 0.12 mol imidazole in 20 mL CH2Cl2, and then mixture solution in CH2Cl2 was dopped into trimethylchlorosilane (TMS) solution in 20 mL CH2Cl2 at 0 °C. After addition, the reaction system was slowly heated to room temperature and stirred overnight. The resultant mixtures were filtrated to remove imidazole hydrochloride precipitation. The crude product trimethylsilyl-protected 2-hydroxyethyl acrylate (HEA-TMS) was generated from the filtrate by washing with water two times, drying by MgSO4, and evaporating solvent. HEA-TMS was further purified by column separation and was directly used in copolymerization. HEA-TMS was characterized by 1H NMR spectroscopy. 1H NMR (CDCl3, ppm): 4.48 (d, 2H), 6.23 (m, H), 5.85 (d, H), 4.24 (t, 2H), 3.79 (t, 2H).

2.5. Synthesis of DPE-(OH)11 by Palladium-Catalyzed Copolymerization of Ethylene and HEA-TMS

Palladium-catalyzed copolymerization of ethylene and the HEA-TMS comonomer was performed in a 300 mL Parr autoclave. The autoclave was firstly dried for 4 h at 150 °C, followed by cooling to room temperature under vacuum, and purged three times with ethylene. A prescribed (0.2 M) amount of HEA-TMS solution in CH2Cl2 was added into the autoclave. After stirring for 10 min at 35 °C, 3.0 mmol of α-diimine palladium catalyst in 10 mL CH2Cl2 was injected into the autoclave, and the total system volume was kept at 200 mL. Polymerization was carried out at 0.1 atm ethylene pressure. After 24 h, the polymerization was stopped by venting the autoclave and the oily product was precipitated out using methanol. To remove catalyst residues, the polymeric product was further purified by flash column separation packed with neutral alumina and silica gel using hexane as solvent. The solvent was subsequently evaporated to obtain colorless polymeric product. The deprotection of TMS was done by treating the copolymers with 10.0 equiv. tetrabutylammonium fluoride in 100 mL THF overnight to remove all the free hydroxyl groups. After concentration by rotary evaporation, the product was then obtained by precipitation by adding 300 mL methanol solvent and then drying under vacuum at 40 °C. The microstructure of the product was characterized by 1H NMR spectroscopy. 1H NMR (CDCl3, ppm): 4.20 (t, 2H); 3.72 (s, 2H); 2.35 (m, 2H), 1.4–0.75 (PE). The amount of HEA in copolymer was 0.32 mol% determined by1H NMR spectroscopy, Mn of copolymer determined by gel permeation chromatography (GPC) with a light scattering (LS) detector (GPC-LS) was 95 kg/mol with PDI of 1.38, and branch density was 102/1000 C.

2.6. Synthesis of DPE-(NH2)11

First, 2.0 g DPE-(OH)11 was added into a dried flask, and then 0.2 g N-tert-butoxycarbonyl-L-valine (BOC-L-valine) solution in toluene (40 mL) was also injected. The solution was treated with 0.2 g N,N-dicyclohexylcarbodiimide (DCC) solution and then stirred at room temperature. After 72 h, the dicyclohexylurea was removed by filtration. Then, the polymer solution was poured into an excess of cold methanol and the resultant polymer (DPE-(NH-BOC)11) was precipitated and purified by filtrating, washing with methanol four times, and drying under vacuum at 30 °C. 1H NMR (CDCl3, ppm): 4.30 (t, 4H), 2.36 (s, 2H), 1.42 (s, 9H), 1.4–0.75 (PE and CH(CH3)2).
The DPE-(NH-BOC)11 solution in 30 mL toluene was treated with 15 mL of trifluoroacetic acid (TFA). After 2 h, TFA was then removed by rotary evaporation. The resultant product was re-dissolved in 50 mL toluene solvent, and then solution was extracted several times with aqueous NaHCO3 and water. The polymer was obtained by adding a large amount of methanol into its toluene solution. The precipitation was collected by filtration. The polymer (DPE-(NH2)11) was obtained by washing with methanol four times and drying in vacuum at room temperature. 1H (CDCl3, ppm): 4.35 (m, 4H), 2.34 (s, 2H), 1.4–0.75 (PE and CH(CH3)2).

2.7. Synthesis of DPE-(PBLG)11 Copolymers

A dried round-bottom flask with a stirring bar was vented several times using N2. The appropriate amount of DPE-(NH2)11 macroinitiator in 5 mL dried CH2Cl2 was transferred into the round-bottom flask. The desired amount of BLG-NCA monomer solution in dried CH2Cl2 was introduced into the round-bottom flask, and the polymerization reaction was continuously stirring for 72 h at 25 °C. The copolymer solution in CH2Cl2 was poured into an excess of hexane, and then precipitations were collected by filtration. The copolymer was further purified by washing with hexane five times and drying under vacuum at room temperature. 1H NMR (CDCl3, ppm): 7.83 (d, 1H), 7.29–7.20 (m, 5H), 5.07 (s, 2H), 4.56 (s, 1H), 2.44 (t, 2H), 2.08–1.92 (m, 2H), 1.4–0.75 (PE).

2.8. Gelation Experiment for DPE-(PBLG)11

In a 10 mL vial, the desired amount of DPE-(PBLG)11 copolymers were transferred in 3 mL of toluene solvent. The mixture was heated to 90 °C and stirred until the DPE-(PBLG)11 copolymers were fully dissolved in toluene. The solution was then cooled slowly. At the critical gelation temperature, the transparent organogels were formed and observed. The apparent critical gelation concentrations (Cgel) and the critical gelation temperatures (Tgel) were determined by the test tube inversion method.

2.9. Measurements

1H NMR spectra were performed on a Bruker 500 MHz instrument in CDCl3. Fourier transform infrared (FTIR) spectra of polymers were determined on a Nicolet NEXUS–670 FTIR spectrometer. Gel permeation chromatography (GPC) analysis of DPE was conducted on a Waters Breeze instrument system using THF as the eluent with a flow rate of 1.0 mL/min at 40 °C. The instrument was equipped with a differential refractive index (DRI) detector and a light scattering (LS) detector (λ = 670 nm) to detect absolute molecular weight and distribution (Mw/Mn). Differential scanning calorimetry (DSC) analysis of copolymer samples was conducted with a Perkin Elmer DSC-8000 instrument. The second heating curves were recorded from 30 °C to 150 °C with a heating and cooling rate of 10 °C/min. Transmission electron microscopy (TEM) observation of samples was taken on a TEM instrument (Philips TECNAI) (voltage = 120 kV). Atomic force microscopy (AFM) morphological observation of the gels was carried out on SPA300 HV Probe station (Tokyo, Japan) in tapping mode. Small-angle X-ray scattering (SAXS) measurement was performed on a Bruker Nanostar U system with a Cu Ka radiation (λ = 1.54 Å) operating at 40 kV and 35 mA. The scattered results were collected using a 2D photon counting HI-STAR detector in a q range from 0.015 to 0.2 Å. The d-spacing data was calculated from the formula d = 2π/q. Wide X-ray diffraction (WAXD) results were collected on a Rigaku RINT-2000 counter diffractometer with a Cu Ka radiation source operating at 40 kV and 30 mA. For X-ray experiments, gels were slowly dried under air for a long duration.

3. Results and Discussion

3.1. Synthesis and Characterization of DPE Tethered with Amine Groups

As shown in Scheme 1, DPE-(PBLG)n copolymers were prepared by palladium-catalyzed copolymerization of ethylene with polar comonomer in tandem with ring-opening polymerization (ROP) of BLG-NCA. Based on our previous work [11,24], the DPE containing peripheral multi-hydroxyl groups (DPE–(OH)n) was prepared by copolymerization of ethylene and HEA-TMS (2-hydroxyethyl acrylate with a protected hydroxyl by trimethylsilyl (TMS)) using a classic Brookhart-type palladium catalyst at 35 °C and low ethylene pressure of 0.1 atm after full deprotection of TMS using by tetrabutylammonium fluoride (TBAF). Because of dendritic architecture, the absolute number-average molecular weight (Mn) of the obtained DPE–(OH)n was 95 kg/mol with a polydispersity index (PDI) of 1.38 determined by GPC-LS using a light scattering detector. 1H NMR analysis (Figure 1) shows that the branching density of DPE–(OH)n is 102/1000 C, and the n value (the average number of the terminated –OH per each molecule) was ~11 according to the incorporation of hydroxyl groups (0.32 mol%) (see experiment). Therefore, the obtained hydroxyl-functionalized DPE is a DPE–(OH)11 with Mn of 95 kg/mol and PDI of 1.38.
The terminated hydroxyl groups of DPE were converted into the amino groups by end-capping DPE–(OH)11 with N-tert-butoxycarbonyl-L-valine (BOC-L-valine) and deprotecting BOC group [24]. To improve efficiency of conversion, the excess of small molecule agents was used in the reaction. At same time, the easy solubility of the DPE in solvent and the exposition of hydroxyl groups on the periphery of DPE also facilitated quantitative conversion. The full conversion from the hydroxyl to the amine groups is confirmed by the disappearance of a characteristic triplet peak (c) (Figure 1a) at 3.72 ppm (–CH2OH) and the presence of methylene signal linked to ester (CH2–COO) (e+f) at 4.20 ppm (Figure 1b). Complete deprotection of BOC group was also proved by the disappearance of methyl signal (g) on the COOC(CH3)3 group (1.44 ppm) in the 1H NMR spectrum (Figure 1c).

3.2. Synthesis and Characterization of DPE-(PBLG)n Copolymers

The amino-functionalized DPE–(NH2)11 was used a macroinitiator to initiate the ROP of BLG-NCA in CH2Cl2. Three samples of DPE-(PBLG)11 with a same DPE core but different PBLG arm lengths were synthesized (see Table 1) by changing BLG-NCA monomer addition. No weight loss was found by extracting copolymer products using petroleum ether to removal macroinitiator residuals, suggesting complete initiation of amino because of excellent solubility of the DPE in solvent. Attempts to determine copolymer molecular weights by GPC using THF or CHCl3 as eluent were unsuccessful. Overlapped elution traces with solvent were observed, which was ascribed to the strong interactions between the polypeptide-based polymers and GPC columns [38,40]. DMF in the presence of LiBr is a good eluent for GPC determination of PBLG homopolymer, but it is unsuitable for DPE-(PBLG)n copolymers because self-assembly of DPE-(PBLG)n is expected to take place in selective DMF solvent.
It is reported that the primary anime-initiated ROP of N-carboxyanhydrides is a controlled reaction to afford polypeptides with narrow PDIs (PDI = 1.2–1.4) [40]. Therefore, it is expected that the DPE-(PBLG)11 copolymer has same PBLG arm length [46,47]. 1H NMR analysis was performed to characterize copolymer chemical structure and molecular weight. As shown in Figure 2, characteristic peaks of PBLG building blocks are clearly observed at 5.06 (peak e) and 7.81 ppm (peak g), indicating successful copolymerization. Based on the integral ratios of characteristic peaks (peak e vs. peak a for DPE), the degree of polymerizations (DPs) of γ-benzyl-L-glutamate are calculated to be 23, 31, and 45, respectively. Therefore, number-average molecular weights of three copolymers are also calculated and listed in Table 1.
The thermal analyses of the obtained DPE-(PBLG)11 copolymer samples were performed using differential scanning calorimetry (DSC). In the second heating run, DPE-(PBLG)11 copolymers did not show any endothermic peaks. Firstly, the PE building block did not display the endothermic peak because of its dendritic structure. Secondly, PBLG segment also did not exhibit the liquid crystalline phase transition temperature, which was previously observed at 114–117 °C for some PBLG block copolymers [48,49,50]. Possibly, the unique core-shell structure of DPE-(PBLG)11 copolymer samples led to the disappearance of the liquid crystalline phase transition temperature of the PBLG segment.
PBLG can display three secondary structures including α-helix, β-sheet, and random coil conformations, which are determined by PBLG chain length [51]. FTIR analysis was used to characterize the secondary conformation structures of PBLG arms of DPE-(PBLG)11 copolymers. As shown in Figure 3, characteristic vibrational peaks (amide I band at 1650 cm−1, amide II band at 1550 cm−1) are clearly observed and no vibrational peaks of β-sheet conformation at ~1630 and 1530 cm−1 appear, indicating that three DPE-(PBLG)11 samples assume α-helix conformation. Therefore, the obtained DPE-(PBLG)11 copolymers have a unique architecture with a dendritic and coil core and multiple rod and helix arms.

3.3. Gelation of DPE-(PBLG)11 Copolymer

It is known that PBLG homopeptide can form thermoreversible gels in toluene by hydrogen bonding interactions, while PBLG-based block copolymers also show thermoreversible gelation by a nanoribbon mechanism driven by π–π stacking interactions [52,53,54]. Although previous studies have shown that the architecture and chemical structure of PBLG-based copolymers have an important influence on gelation [38,52,53,54], copolymers with a dendritic and coil core and multiple PBLG arms have never been reported on or used to study the gelation behavior. Herein, DPE-(PBLG)11 copolymers were used to study their gelation in toluene and illuminate the effect of copolymer architecture.
Three DPE-(PBLG)11 copolymers were soluble in hot toluene (90 °C) because of excellent solubility of DPE. When the solution temperature decreased below 70 °C, three organogels were formed. When organogels was heated up to >70 °C, the toluene solution was generated again (Figure 4, left). Therefore, DPE-(PBLG)11 copolymers showed thermoreversible gelation. The apparent critical gelation concentrations (Cgel) and the critical gelation temperatures (Tgel) of copolymers in toluene were further determined by the test tube inversion method and listed in Table 2.
Previous literature has reported that PBLG homopolymer had a low Cgel of ~1.7% and low Tgel of 33 °C while PBLG block copolymers had a low Cgel of 0.2~2.0% and increasing Tgel of 40 °C~50 °C [38,52]. In our systems, fully stagnant organogels were only formed at high concentrations (Cgel) of 10.5, 9.4, and 8.7 wt% for three samples DPE-(PBLG23)11, DPE-(PBLG31)11, and DPE-(PBLG45)11, respectively. Furthermore, high gel-sol phase transition temperatures (Tgel) of 65 °C~70 °C were also determined. Obviously, high Cgel and Tgel are closely related to copolymer architecture of DPE-(PBLG)11. Dong previously reported dendron-like PBLG/linear poly(e-caprolactone)/dendron-like PBLG triblock copolymers had a high Cgel of 8 wt% [40]. Nandi and Banerjee found that the Tgel of dendritic peptide increased with increasing Cgel, and reached 60 °C~160 °C in 1,2-dichlorobenzene [55]. Therefore, high Cgel and Tgel of DPE-(PBLG)11 copolymers are reasonably ascribed to the unique copolymer architecture with a dendritic PE core and multiple PBLG arms. Like PBLG based block copolymer, the chain length of the PBLG arm has a remarkable effect on the gelation of the DPE-(PBLG)11 copolymers. As shown in Table 2, the Cgel decreases but the Tgel increases with increasing PBLG length. The dependence of Cgel on the PBLG chain length strongly suggests that the driving force of the self-assembly is mainly originated from the π–π interaction between the different PBLG helices [40,55].
To directly visualize the self-assembled nanostructures, transmission electron microscopy (TEM) and atomic force microscopy (AFM) were used to characterize gel sample. As shown in Figure 4, TEM image shows the assembly of DPE-(PBLG45)11 in a network of fibrous structure, and their average width was about 20 ± 5 nm. AFM images (Figure 5) also reveal a fibrillar network, and deep analysis of the AFM height profiles of DPE-(PBLG45)11 shows a height of ~2 nm, and a width of ~20 nm. Therefore, TEM and AFM clearly proved that the fibril morphology is not cylindrical but displays twisted flat ribbons. It is worthwhile that the self-assembled fibers formed by DPE-(PBLG45)11 are more heterogeneous than previously observed fibers formed by PBLG homopolymer and block copolymers [36,40]. For PBLG homopolymer and block copolymers, self-assembled nanostructures usually show intertwined structure (physical entanglement) among ribbons. In addition to physical entanglement, ramified structures are also observed in AFM macrograph (Figure 5), which is generated from of a DPE core (chemical crosslinking). Generally, the DPE core causes heterogeneous and ramified fibers.
Small-angle X-ray scattering (SAXS) detection on the dried organogel was also performed, and the data for the dried DPE-(PBLG45)11 toluene gel is shown in Figure 6. The ribbon width is revealed by a diffraction peak at 15.4 nm, which is basically consistent with TEM and AFM observations. Wide angle X-ray diffraction (WAXD) of the dried organogel of DPE-(PBLG45)11 also shows a diffraction peak at 1.5 nm, which corresponds to the distance between PBLG helices (inset of Figure 6). Therefore, the morphology of the fibers is a twisted flat ribbon formed by a 1-D monolayer stacking. In general, the experimental results in this work verify that the nanoribbon mechanism for the self-assembly of PBLG based block copolymers proposed by Manner also applies to DPE-(PBLG)11 copolymers with a dendritic PE and helical PBLGs arms [43]. We can reasonably imagine that DPE-PBLGs copolymers self-assemble in an anti-parallel fashion because of bulky dendritic PE, and not all PBLG arms get involved in self-assembly, which is responsible for high Cgel [52].

4. Conclusions

In conclusion, we have successfully synthesized coil–rod DPE-(PBLG)11 copolymers by combining palladium-catalyzed copolymerization of ethylene with HEA-TMS comonomer and ROP of BLG-NCA. The unique structure of copolymers is characterized to a DPE core and multiple helical PBLG arms. DPE-(PBLG)11 copolymers formed thermoreversible gels in toluene. The dendritic topology of DPE core increases the critical gelation concentrations and the critical gelation temperatures, while increasing PBLG chain length leads to a decrease in the critical gelation concentration. The self-assembled structure of gels is twisted flat ribbons formed through a self-assembled nanoribbon mechanism. The self-assembled fibers formed by DPE-(PBLG45)11 are more heterogeneous and ramified than previously observed fibers formed by PBLG homopolymer and block copolymers because of the DPE core. Such a self-assembly of coil DPE-rod PBLG copolymer is interesting, which shows a potential application in the field of biomaterial.

Author Contributions

Y.L.: Conceptualization, data curation, writing—original draft, and methodology. D.L.: Resources and data curation. X.W.: Resources, data curation and formal analysis. J.S.: Methodology, formal analysis. Q.X.: Data curation, formal analysis. K.D.: Resources, review and editing. X.S.: Resources, data curation, formal analysis. H.G.: Supervision, project administration, conceptualization, methodology, funding acquisition, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the State Key Research Development Program of China (Grant No. 2021YFB3800701), Research and Development of Pressure Activated Plugging and Repairing Agent (GCJSXMHT-2201), and PetroChina Scientific and Technological Projects (kywx-21-011, 2020B-2512, 2021DJ5902, and 2020-CB-02-13).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

Authors Y.L., D.L., X.W., J.S., Q.X. and K.D. were employed by the company China National Offshore Oil Corporation Energy Technology and Services Limited Shenzhen Branch. Author X.S. were employed by the company Chain Walking New Material Technology (Guangzhou) Co. Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Voit, B.I.; Lederer, A. Hyperbranched and highly branched polymer architectures—Synthetic strategies and major characterization aspects. Chem. Rev. 2009, 109, 5924–5973. [Google Scholar] [CrossRef]
  2. Gao, C.; Yan, D. Hyperbranched polymers: From synthesis to applications. Prog. Polym. Sci. 2004, 29, 183–275. [Google Scholar] [CrossRef]
  3. Grayson, S.M.; Fréchet, J.M.J. Convergent dendrons and dendrimers: From synthesis to applications. Chem. Rev. 2001, 101, 3819–3868. [Google Scholar] [CrossRef] [PubMed]
  4. Moore, J.S. Shape-persistent molecular architectures of nanoscale dimension. Acc. Chem. Res. 1997, 30, 402–413. [Google Scholar] [CrossRef]
  5. Liu, X.; Jin, X.; Ma, P.X. Nanofibrous hollow microspheres self-assembled from star-shaped polymers as injectable cell carriers for knee repair. Nat. Mater. 2011, 10, 398–406. [Google Scholar] [CrossRef]
  6. Knoll, K.; Nießner, N. Styrolux+ and styroflex+− from transparent high impact polystyrene to new thermoplastic elastomers: Syntheses, applications and blends with other styrene based polymers. In Macromolecular Symposia; WILEY-VCH Verlag GmbH & Co., KGaA: Weinheim, Germany, 1998; Volume 132, pp. 231–243. [Google Scholar]
  7. Wang, J.; Ye, Z.; Zhu, S. Topology-engineered hyperbranched high-molecular-weight polyethylenes as lubricant viscosity-index improvers of high shear stability. Ind. Eng. Chem. Res. 2007, 46, 1174–1178. [Google Scholar] [CrossRef]
  8. Morgan, S.; Ye, Z.; Subramanian, R.; Zhu, S. Higher-molecular-weight hyperbranched polyethylenes containing crosslinking structures as lubricant viscosity-index improvers. Polym. Eng. Sci. 2010, 50, 911–918. [Google Scholar] [CrossRef]
  9. Johnson, L.K.; Meckin, S.; Brookhart, M. Copolymerization of ethylene and propylene with functionalized vinyl monomers by palladium(II) catalysts. J. Am. Chem. Soc. 1996, 118, 267–268. [Google Scholar] [CrossRef]
  10. Meckin, S.; Johnson, L.K.; Wang, L.; Brookhart, M. Mechanistic studies of the palladium-catalyzed copolymerization of ethylene and α-olefins with methyl acrylate. J. Am. Chem. Soc. 1998, 120, 888–889. [Google Scholar] [CrossRef]
  11. Guan, Z.; Cotts, P.M.; McCord, E.F.; McLain, S.J. Chain walking: A new strategy to control polymer topology. Science 1999, 283, 2059–2062. [Google Scholar] [CrossRef]
  12. Guan, Z. Recent Progress of Catalytic polymerization for controlling polymer topology. Chem. Asian J. 2010, 5, 1058–1070. [Google Scholar] [CrossRef] [PubMed]
  13. Guan, Z. Control of polymer topology by chain-walking catalysts. Eur. J. 2002, 8, 3086–3092. [Google Scholar] [CrossRef]
  14. Ye, Z.; Li, S. Hyperbranched polyethylenes and functionalized polymers by chain walking polymerization with Pd-diimine catalysis. Macromol. React. Eng. 2010, 4, 319–332. [Google Scholar] [CrossRef]
  15. Chen, G.; Ma, X.S.; Guan, Z. Synthesis of functional olefin copolymers with controllable topologies using a chain-walking catalyst. J. Am. Chem. Soc. 2003, 125, 6697–6704. [Google Scholar] [CrossRef] [PubMed]
  16. Chen, G.; Guan, Z. Transition metal-catalyzed one-pot synthesis of water-soluble dendritic molecular nanocarriers. J. Am. Chem. Soc. 2004, 126, 2662–2663. [Google Scholar] [CrossRef]
  17. Popeney, C.S.; Lukowiak, M.C.; Böttcher, C.; Schade, B.; Welker, P.; Mangoldt, D.; Gunkel, G.; Guan, Z.; Haag, R. Tandem coordination, ring-opening, hyperbranched polymerization for the synthesis of water-soluble core–shell unimolecular transporters. ACS Macro Lett. 2012, 1, 564–567. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, G.; Felgner, P.L.; Guan, Z. Efficient catalytic synthesis of dendritic polymers having internal fluorescence labels for bioconjugation. Biomacromolecules 2008, 9, 1745–1754. [Google Scholar] [CrossRef]
  19. Dong, Z.; Ye, Z. Hyperbranched polyethylenes by chain walking polymerization: Synthesis, properties, functionalization, and applications. Polym. Chem. 2012, 3, 286–301. [Google Scholar] [CrossRef]
  20. Zhang, K.; Wang, J.; Subramanian, R.; Ye, Z.; Lu, J.; Yu, Q. Chain walking ethylene copolymerization with an ATRP Inimer for one-pot synthesis of hyperbranched polyethylenes tethered with ATRP initiating sites. Macromol. Rapid Commun. 2007, 28, 2185–2191. [Google Scholar] [CrossRef]
  21. Zhang, K.; Ye, Z.; Subramanian, R. S Synthesis of block copolymers of ethylene with styrene and n-butyl acrylate via a tandem strategy combining ethylene “living” polymerization catalyzed by a functionalized Pd−diimine catalyst with atom transfer radical polymerization. Macromolecules 2008, 41, 640–649. [Google Scholar] [CrossRef]
  22. Zhang, L.; Yin, Q.; Su, J.; Wu, Q. Local polarity andmicroviscosity of the interior of dendritic polyethylene amphiphiles. Macromolecules 2011, 44, 6885–6890. [Google Scholar] [CrossRef]
  23. Gao, H.; Tang, Y.; Hu, Z.; Guan, Q.; Shi, X.; Zhu, F.; Wu, Q. Synthesis of amphiphilic copolymers with a dendritic polyethylene core and poly(ethylene oxide) arms and their self-assembled nanostructures. Polym. Chem. 2013, 4, 1107–1114. [Google Scholar] [CrossRef]
  24. Shi, X.; Zhao, Y.; Gao, H.; Zhang, L.; Zhu, F.; Wu, Q. Synthesis of hyperbranched polyethylene amphiphiles by chain walking polymerization in tandem with raft polymerization and supramolecular self-assembly vesicles. Macromol. Rapid Commun. 2012, 33, 374–379. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, L.; Su, J.; Zhang, W.; Ding, M.; Chen, X.; Wu, Q. Temperature-sensitive phase transition of dendritic polyethylene amphiphiles with core−shell architecture revealed by a Rayleigh scattering technique. Langmuir 2010, 26, 5801–5807. [Google Scholar] [CrossRef]
  26. Xu, Z.; Zhang, Y.; Zhou, J.; Qi, M.; Shi, J.; Zhang, J. Study on high-temperature composite properties of fluorosilicone rubber with nano-Sb2O3. J. Appl. Polym. Sci. 2020, 137, 49302. [Google Scholar] [CrossRef]
  27. Song, J.; He, J.; Hu, J.; Ma, J.; Jiang, H.; Hu, S.; Ye, H.; Xu, L. A Universal strategy for producing fluorescent polymers based on designer hyperbranched polyethylene ternary copolymers. Macromolecules 2022, 55, 2085–2095. [Google Scholar] [CrossRef]
  28. Al-Sulami, A.; Ladelta, V.; Hadjichristidis, N. In-chain functionalized poly(ε-caprolactone): A valuable precursor towards the synthesis of 3-miktoarm star containing hyperbranched polyethylene. J. Polym. Sci. 2020, 58, 2764–2773. [Google Scholar] [CrossRef]
  29. Nunvářová, K.; Charvátová, B.; Šlouf, M.; Hermanová, S.; Merna, J. Synthesis of amphiphilic copolymers based on dendritic polyethylene grafted by polyhydroxyethylmethacrylate and polyhydroxypropylmethacrylate and their use for construction of nanoparticles. Eur. Polym. J. 2019, 115, 193–200. [Google Scholar] [CrossRef]
  30. Chécot, F.; Lecommandoux, S.; Gnanou, Y.; Klok, H.-A. Water-soluble stimuli-responsive vesicles from peptide-based diblock copolymers. Angew. Chem. Int. Ed. 2002, 41, 1339–1343. [Google Scholar] [CrossRef]
  31. Chécot, F.; Lecommandoux, S.; Klo, H.A.; Gnanou, Y. From supramolecular polymersomes to stimuli-responsive nano-capsules based on poly(diene-b-peptide) diblock copolymers. Eur. Phys. J. E 2003, 10, 25–35. [Google Scholar] [CrossRef]
  32. Kukula, H.; Schlaad, H.; Antonietti, M.; Főrster, S. The formation of polymer vesicles or “peptosomes” by polybutadiene-block-poly(L-glutamate)s in dilute aqueous solution. J. Am. Chem. Soc. 2002, 124, 1658–1663. [Google Scholar] [CrossRef] [PubMed]
  33. Sigel, R.; Losik, M.; Schlaad, H. pH responsiveness of block copolymer vesicles with a polypeptide corona. Langmuir 2007, 23, 7196–7199. [Google Scholar] [CrossRef] [PubMed]
  34. Gebhardt, K.E.; Ahn, S.; Venkatachalam, G.; Savin, D.A. rod-sphere transition in polybutadiene−poly(L-lysine) block copolymer assemblies. Langmuir 2007, 23, 2851–2856. [Google Scholar] [CrossRef]
  35. Chécot, F.; Brûlet, A.; Oberdisse, J.; Gnanou, Y.; Mondain-Monval, O.; Lecommandoux, S. Structure of polypeptide-based diblock copolymers in solution:  stimuli-responsive vesicles and micelles. Langmuir 2005, 21, 4308–4315. [Google Scholar] [CrossRef]
  36. Gao, H.; Li, G.; Hu, Z.; Xiao, Z.; Liang, G.; Wu, Q. Synthesis of amphiphilic polyethylene-b-poly(L-glutamate) block copolymers with vastly different solubilities and their stimuli-responsive polymeric micelles in aqueous solution. Polymer 2014, 55, 4593–4600. [Google Scholar] [CrossRef]
  37. Pei, L.; Ma, H.; Jiang, Y.; Zheng, H.; Gao, H. Amphiphilic polyethylene-b-poly(L-lysine) block copolymer: Synthesis, self-assembly, and responsivity. Int. J. Mol. Sci. 2023, 24, 5495. [Google Scholar] [CrossRef]
  38. Gao, H.; Hu, Z.; Guan, Q.; Liu, Y.; Zhu, F.; Wu, Q. Synthesis and thermoreversible gelation of coil-helical polyethylene-block-poly(γ-benzyl-L-glutamate) diblock copolymer. Polymer 2013, 54, 4923–4929. [Google Scholar] [CrossRef]
  39. Tadmor, R.; Khalfin, R.L.; Cohen, Y. Reversible gelation in isotropic solutions of the helical polypeptide poly(γ-benzyl-L-glutamate):  kinetics and formation mechanism of the fibrillar network. Langmuir 2002, 18, 7146–7150. [Google Scholar] [CrossRef]
  40. You, Y.; Chen, Y.; Hua, C.; Dong, C. Synthesis and thermoreversible gelation of dendron-like polypeptide/linear poly(ε-caprolactone)/dendron-like polypeptide triblock copolymers. J. Polym. Sci. Pol. Chem. 2010, 48, 709–718. [Google Scholar] [CrossRef]
  41. Kim, Y.T.; Winnik, M.A.; Manners, I. Synthesis and self-assembly of dendritic-helical block copolypeptides. Soft Matter 2006, 2, 957–965. [Google Scholar] [CrossRef]
  42. Smith, D.K.; Hirst, A.R.; Love, C.S.; Hardy, J.G.; Brignell, S.V.; Huang, B. Self-assembly using dendritic building blocks—Towards controllable nanomaterials. Prog. Polym. Sci. 2005, 30, 220–293. [Google Scholar] [CrossRef]
  43. Kim, K.T.; Park, C.; Vandermeulen, G.W.M.; Rider, D.A.; Kim, C.; Winnik, M.A.; Manners, I. Gelation of helical polypeptide–random coil diblock copolymers by a nanoribbon mechanism. Angew. Chem. Int. Ed. 2005, 44, 7964–7968. [Google Scholar] [CrossRef] [PubMed]
  44. Niehoff, A.; Mantion, A.; McAloney, R.; Huber, A.; Falkenhagen, J.; Goh, C.M.; Thünemann, A.F.; Winnik, M.A.; Menzel, H. Elucidation of the structure of poly(γ-benzyl-L-glutamate) nanofibers and gel networks in a helicogenic solvent. Colloid. Polym. Sci. 2013, 291, 1353–1363. [Google Scholar] [CrossRef] [PubMed]
  45. Vacogne, C.D.; Schopferer, M.; Schlaad, H. Physical gelation of α-helical copolypeptides. Biomacromolecules 2016, 17, 2384–2391. [Google Scholar] [CrossRef] [PubMed]
  46. Dimitrov, I.; Schlaad, H. Synthesis of nearly monodisperse polystyrene–polypeptideblock copolymersviapolymerisation of N-carboxyanhydrides. Chem. Commun. 2003, 23, 2944–2955. [Google Scholar] [CrossRef]
  47. Dimitrov, I.; Kukula, H.; Cölfen, H.; Schlaad, H. Advances in the synthesis and characterization of polypeptide-based hybrid block copolymers. Macromol. Symp. 2004, 215, 383–393. [Google Scholar] [CrossRef]
  48. Hellaye, M.L.; Fortin, N.; Guilloteau, J.; Soum, A.; Lecommandoux, S.; Guillaume, S.M. Biodegradable polycarbonate-b-polypeptide and polyester-b-polypeptide block copolymers: Synthesis and nanoparticle formation towards biomaterials. Biomacromolecules 2008, 9, 1924–1933. [Google Scholar] [CrossRef]
  49. Klok, H.-A.; Langenwalter, J.F.; Lecommandoux, S. Self-assembly of peptide-based diblock oligomers. Macromolecules 2000, 33, 7819–7826. [Google Scholar] [CrossRef]
  50. Lecommandoux, S.; Achard, M.-F.; Langenwalter, J.F.; Klok, H.-A. Self-Assembly of Rod−Coil Diblock Oligomers Based on α-Helical Peptides. Macromolecules 2001, 34, 9100–9111. [Google Scholar] [CrossRef]
  51. Yu, S.M.; Conticello, V.P.; Zhang, G.; Kayser, C.; Fournier, M.J.; Mason, T.L.; Tirrell, D.A. Smectic ordering in solutions and films of a rod-like polymer owing to monodispersity of chain length. Nature 1997, 389, 167–170. [Google Scholar] [CrossRef]
  52. Kuo, S.; Lee, H.; Huang, W.; Jeong, K.; Chang, F. Solid state and solution self-assembly of helical polypeptides tethered to polyhedral oligomeric silsesquioxanes. Macromolecules 2009, 42, 1619–1626. [Google Scholar] [CrossRef]
  53. Kim, K.; Park, C.; Kim, C.; Winnik, M.A.; Manners, I. Self-assembly of dendron-helical polypeptidecopolymers: Organogels and lyotropic liquid crystals. Chem. Commun. 2006, 13, 1372–1374. [Google Scholar] [CrossRef] [PubMed]
  54. Hadjichristidis, N.; Iatrou, H.; Pitsikalis, M.; Sakellariou, G. Synthesis of well-defined polypeptide-based materials via the ring-opening polymerization of α-amino acid N-carboxyanhydrides. Chem. Rev. 2009, 109, 5528–5578. [Google Scholar] [CrossRef]
  55. Palui, G.; Garai, A.; Nanda, J.; Nandi, A.K.; Banerjee, A. Organogels from Different Self-Assembling New Dendritic Peptides: Morphology, Reheology, and Structural Investigations. J. Phys. Chem. B 2010, 114, 1249–1256. [Google Scholar] [CrossRef]
Polymers 15 04351 sch001

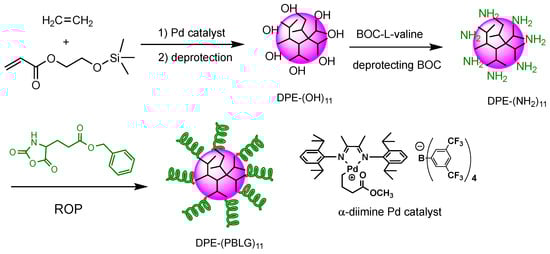

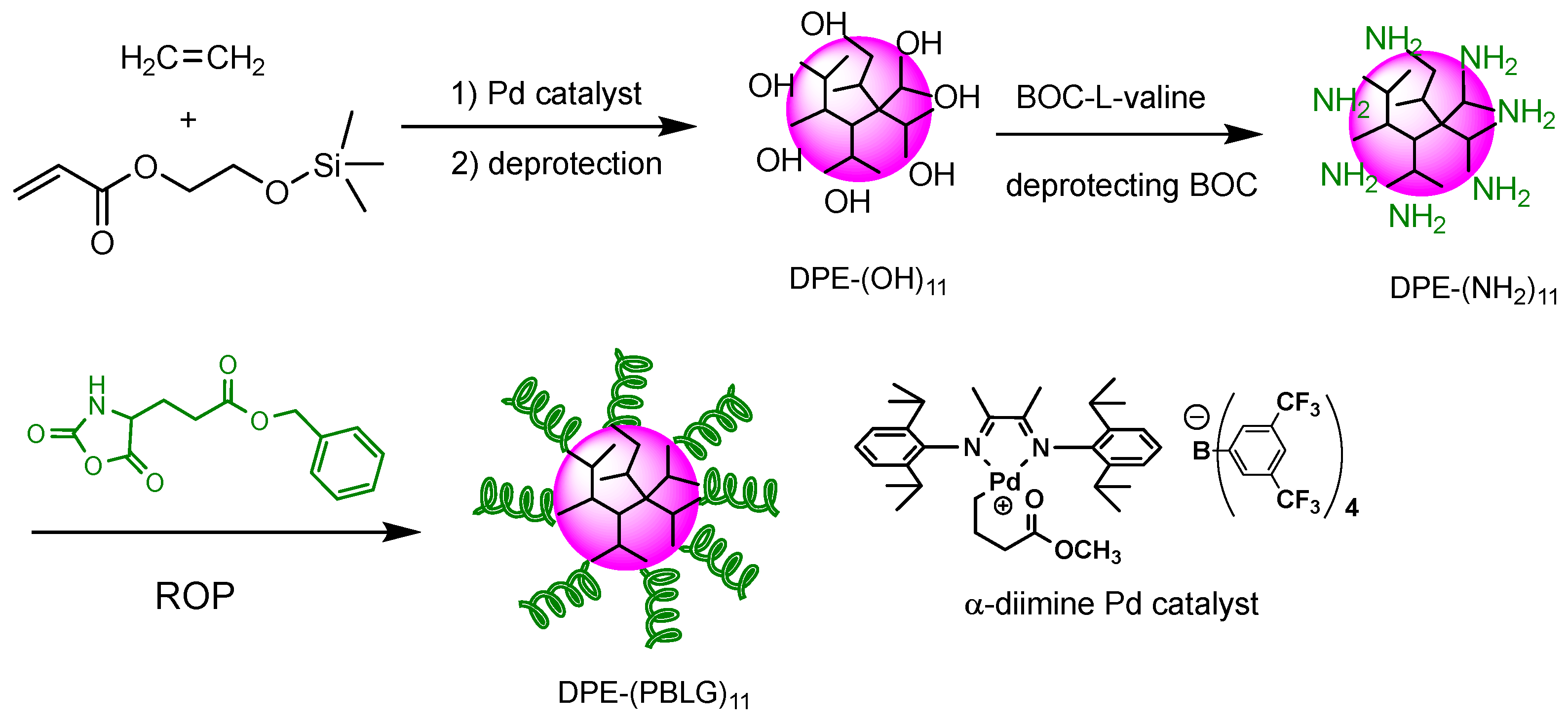

Scheme 1. Synthetic route to DPE-(PBLG)n by combination of chain walking copolymerization of ethylene with HEA-TMS and ROP of BLG-NCA.
Scheme 1. Synthetic route to DPE-(PBLG)n by combination of chain walking copolymerization of ethylene with HEA-TMS and ROP of BLG-NCA.
Polymers 15 04351 sch001
Polymers 15 04351 g001

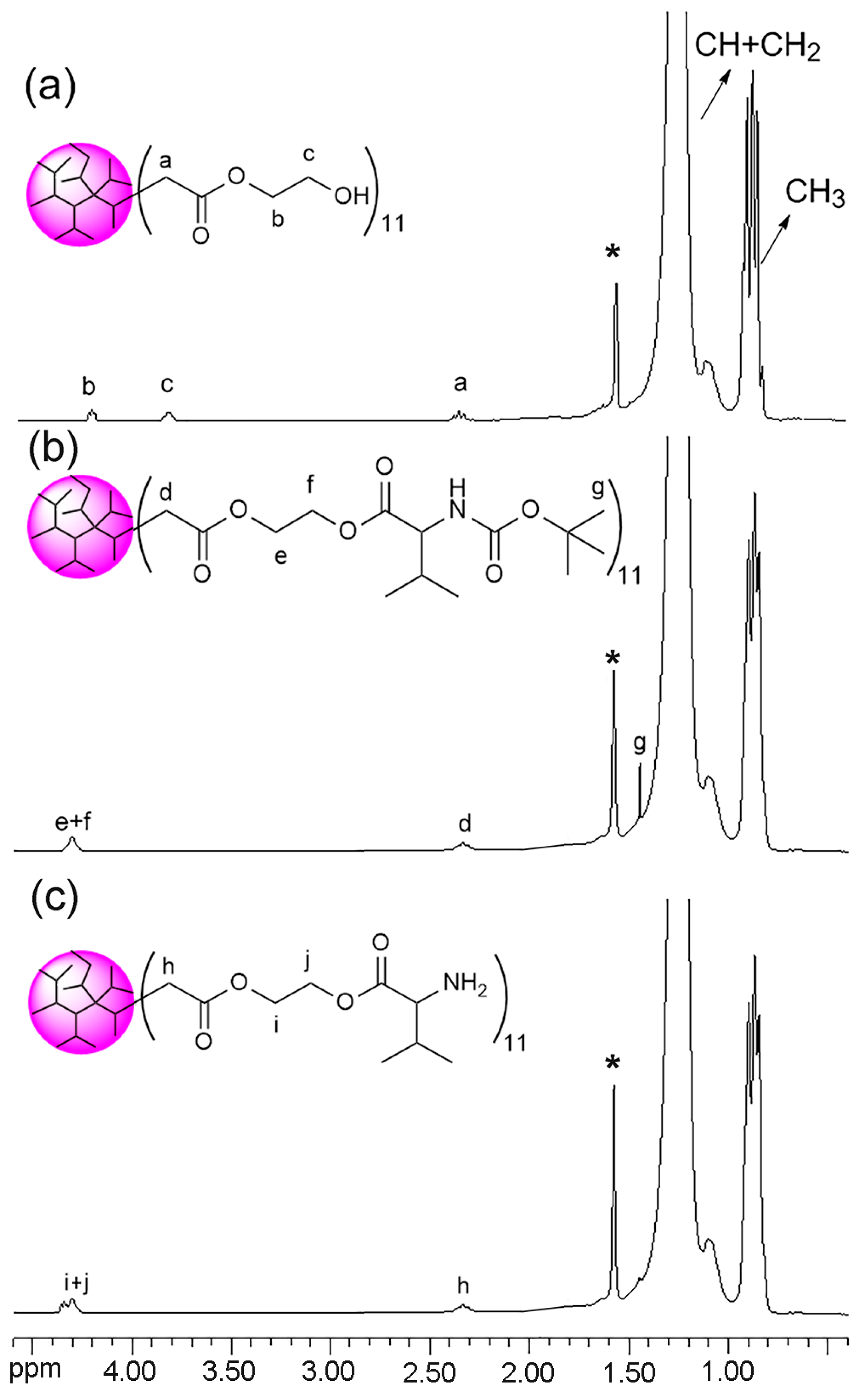

Figure 1. 1H NMR spectra of DPE–(OH)11 (a), DPE–(BOC)11 (b), and DPE–(NH2)11 (c) (* water peak). (a–c) explanations.
Figure 1. 1H NMR spectra of DPE–(OH)11 (a), DPE–(BOC)11 (b), and DPE–(NH2)11 (c) (* water peak). (a–c) explanations.
Polymers 15 04351 g001
Polymers 15 04351 g002

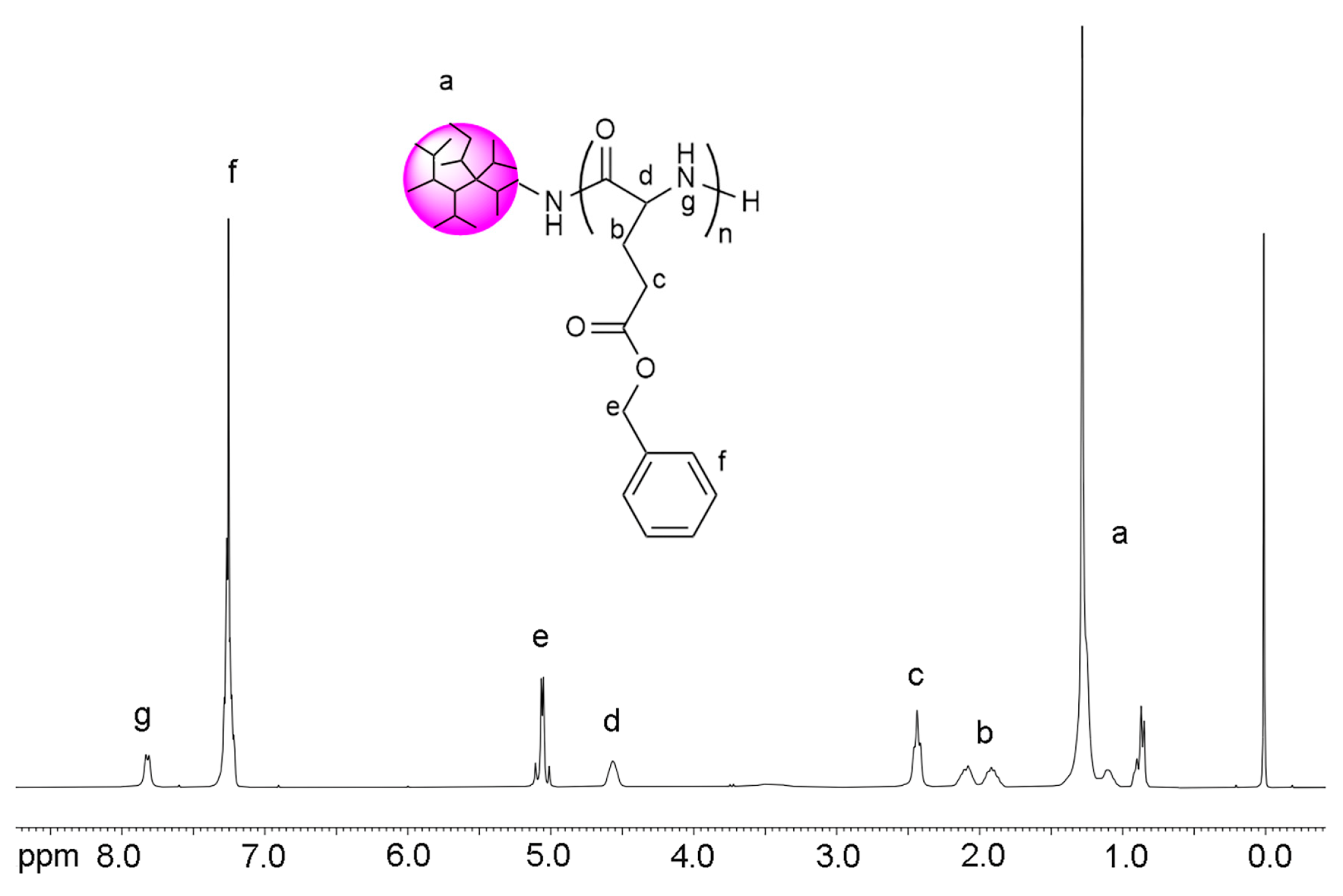

Figure 2. 1H NMR spectrum of DPE-(PBLG)11.
Figure 2. 1H NMR spectrum of DPE-(PBLG)11.
Polymers 15 04351 g002
Polymers 15 04351 g003

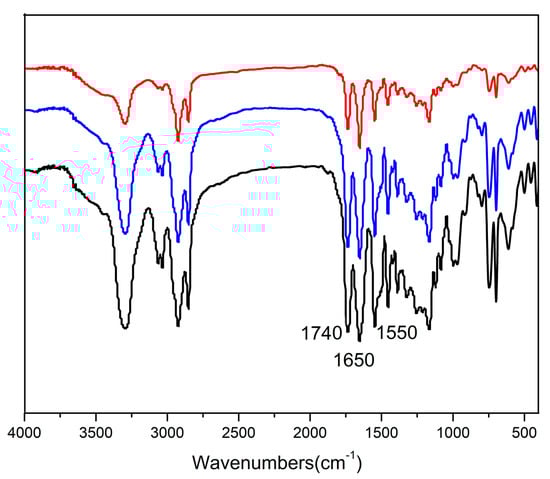

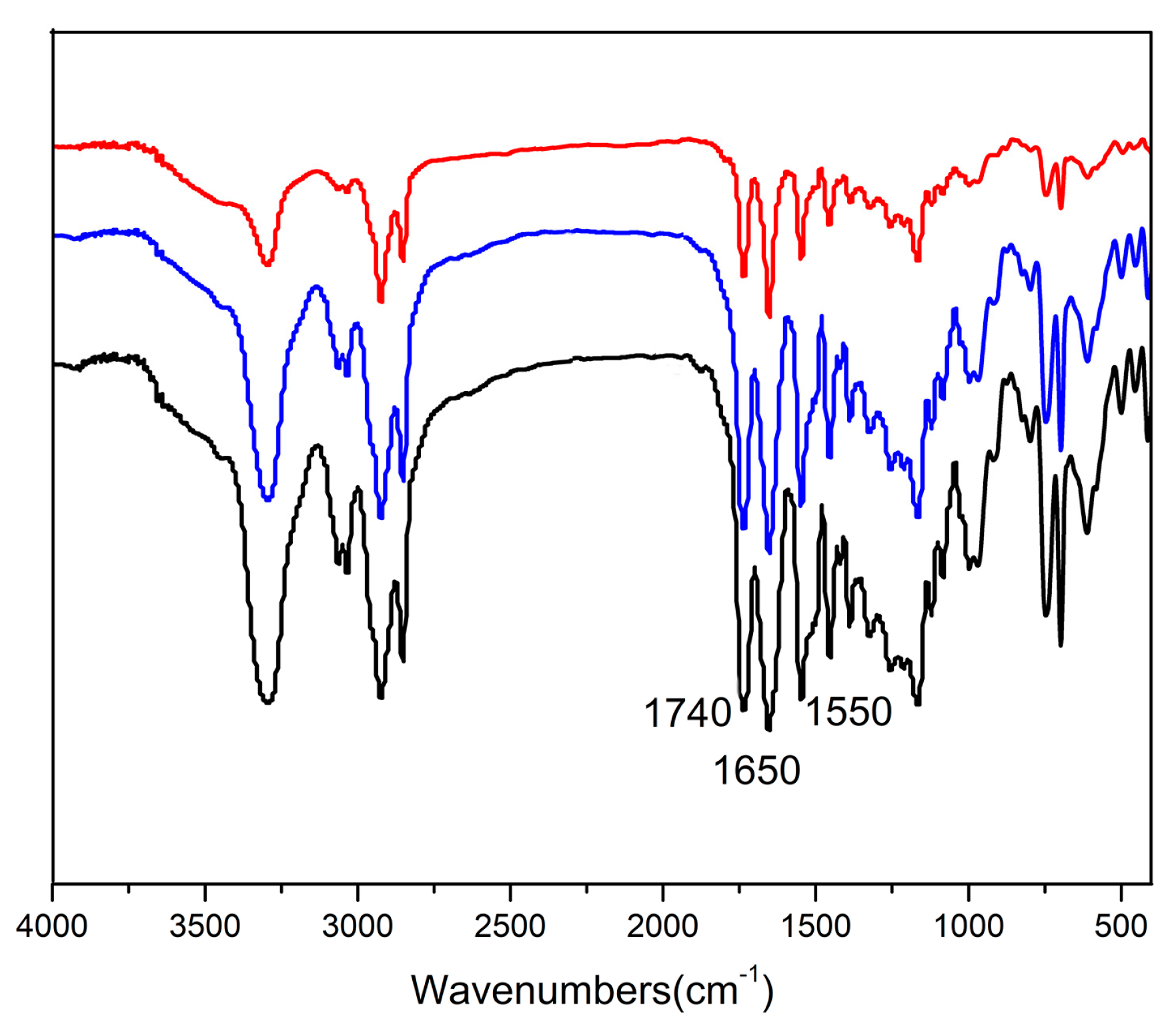

Figure 3. FTIR spectra of DPE-(PBLG)11 copolymer samples. DPE-(PBLG23)11 (red), DPE-(PBLG31)11 (blue), DPE-(PBLG45)11 (black).
Figure 3. FTIR spectra of DPE-(PBLG)11 copolymer samples. DPE-(PBLG23)11 (red), DPE-(PBLG31)11 (blue), DPE-(PBLG45)11 (black).
Polymers 15 04351 g003
Polymers 15 04351 g004

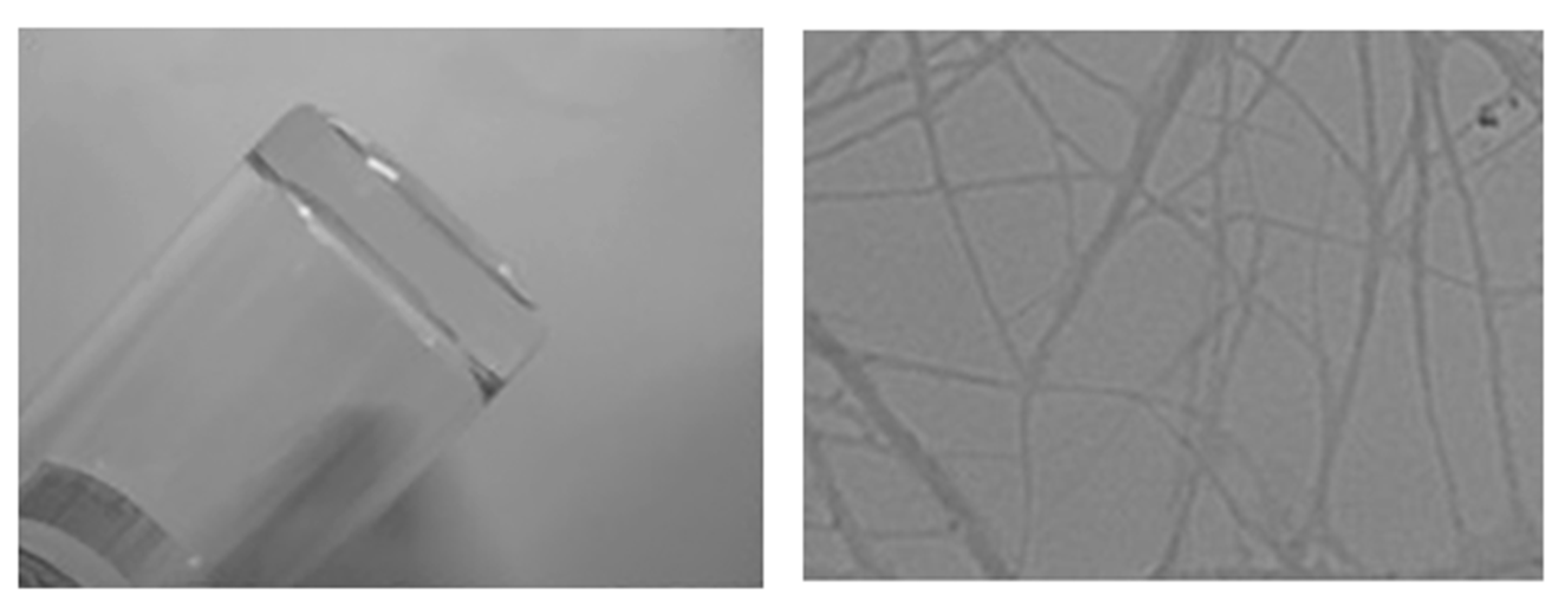

Figure 4. Gel image (left) generated from DPE-(PBLG45)11 in toluene and TEM photograph (right) of gel.
Figure 4. Gel image (left) generated from DPE-(PBLG45)11 in toluene and TEM photograph (right) of gel.
Polymers 15 04351 g004
Polymers 15 04351 g005

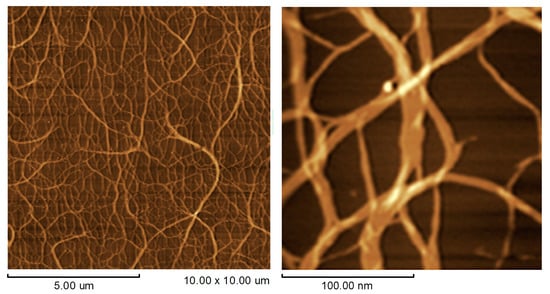

Figure 5. AFM image and magnified AFM image of gel generated from DPE-(PBLG45)11 in toluene.
Figure 5. AFM image and magnified AFM image of gel generated from DPE-(PBLG45)11 in toluene.
Polymers 15 04351 g005
Polymers 15 04351 g006

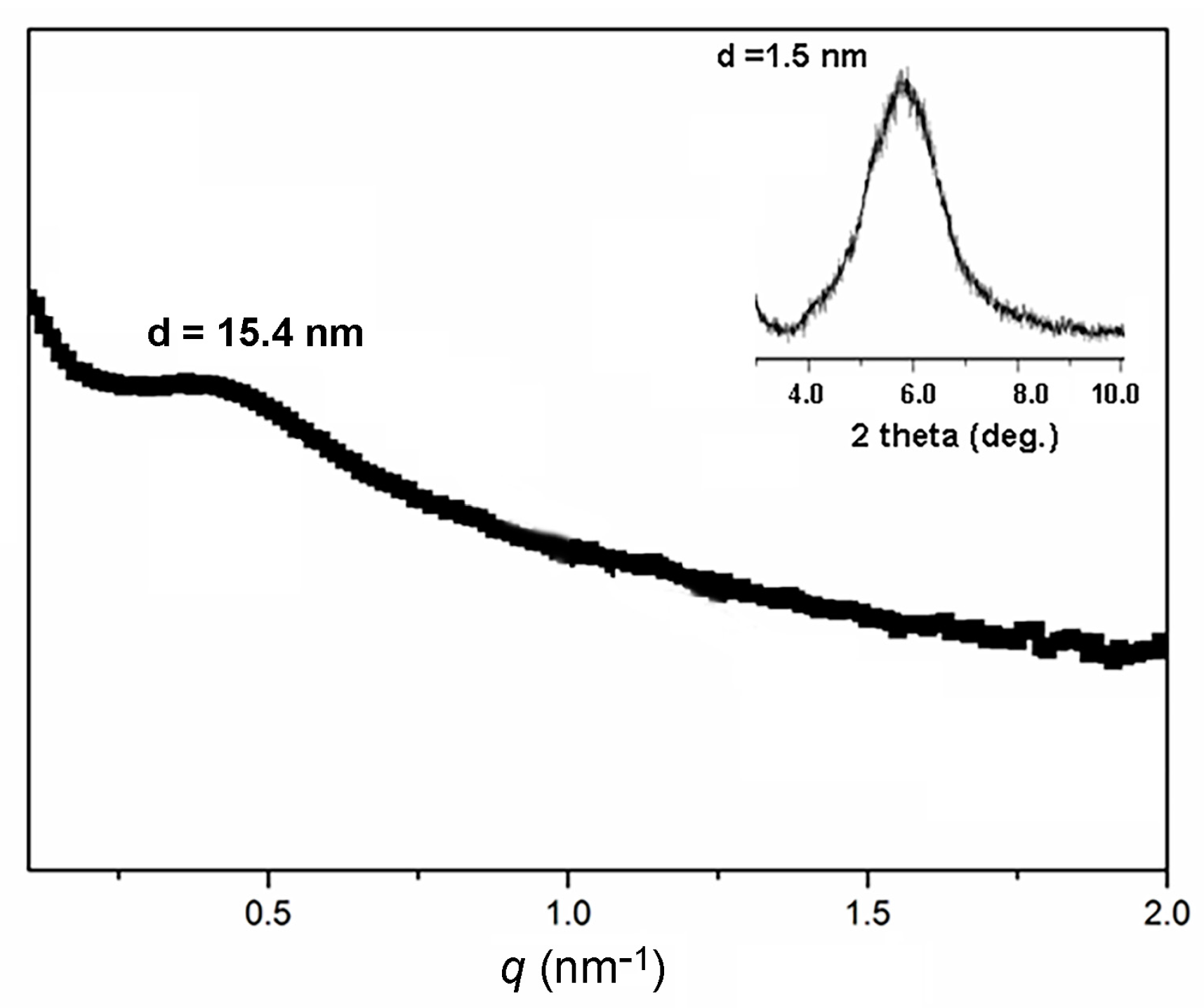

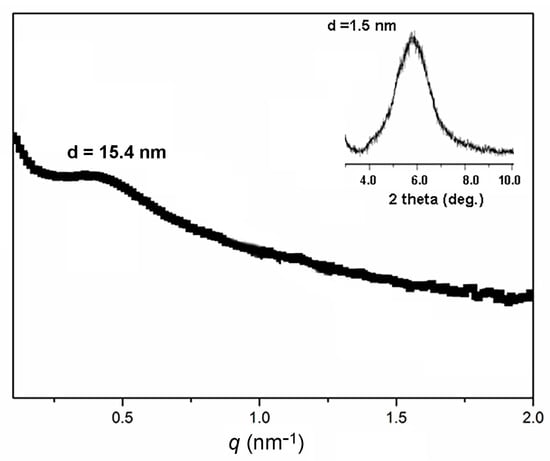

Figure 6. SAXS and WAXD (inset) profiles of the dried gel generated from DPE-(PBLG45)11.
Figure 6. SAXS and WAXD (inset) profiles of the dried gel generated from DPE-(PBLG45)11.
Polymers 15 04351 g006
Table 1. Synthesis and characterization of DPE-(PBLG)11 copolymers a.
Table 1. Synthesis and characterization of DPE-(PBLG)11 copolymers a.
EntryPolymer b NCA/DPE bConversion
(%)		Mn-NMRc
(kg/mol)		Mn-PBLGc
(kg/mol)		DP d
1DPE-(NH2)110–95.0––
2DPE-(PBLG23)1140063.2161.06.023
3DPE-(PBLG31)1155062.0181.97.931
4DPE-(PBLG45)1180061.9224.811.845
a Conditions: 25 °C, 72 h, 5 mL CH2Cl2, 0.2 g DPE-(NH2)11; b feeding ratio of BLG-NCA to DPE-(NH2)11; c Determined by 1H NMR spectroscopy.; d Degree of polymerization of BLG-NCA monomer calculated by Mn of PBLG chain.
Table 2. Organogel parameters for DPE-(PBLG)11 copolymers.
Table 2. Organogel parameters for DPE-(PBLG)11 copolymers.
EntryCopolymer NPBLGCgel a (wt%)Tgel a (°C)
1DPE-(PBLG23)112310.565
2DPE-(PBLG31)11319.468
3DPE-(PBLG45)11458.770
a Determined by the test tube inversion method.
