Review

Sericin from Fibroin-Deficient Silkworms Served as a Promising Resource for Biomedicine

by
Yurong Li
1,2,†,
Yongkang Wei
1,†,
Guozheng Zhang
1,2 and
Yeshun Zhang
1,2,3,*
1
College of Biotechnology, Jiangsu University of Science and Technology, Zhenjiang 212100, China
2
Key Laboratory of Silkworm and Mulberry Genetic Improvement, Ministry of Agriculture and Rural Affairs, Sericultural Research Institute, Chinese Academy of Agricultural Sciences, Zhenjiang 212100, China
3
Zhenjiang Zhongnong Biotechnology Co., Ltd., Zhenjiang 212121, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2023, 15(13), 2941; https://doi.org/10.3390/polym15132941
Submission received: 23 May 2023 / Revised: 21 June 2023 / Accepted: 27 June 2023 / Published: 4 July 2023
(This article belongs to the Section Biomacromolecules, Biobased and Biodegradable Polymers)
Browse Figures
Review Reports Versions Notes

Abstract

:
Sericin, a fascinating natural biomaterial derived from silkworms, has received increasing interest in recent years for its unique bioactivity and high compatibility. Silkworms can be divided into wild-type or silk fibroin-deficient mutants according to whether they synthesize and secrete silk fibroin. Silk fibroin-deficient mutant silkworms and their cocoons are convenient for us to obtain diverse and high-quality sericin, which has been applicated in various fields such as cell culture, tissue engineering, drug delivery, and cosmetics. Here, we present an overview of our silkworm varieties resources, especially silk fibroin-deficient mutant silkworms. We optimized various extraction methods of sericin and summarized the characteristics and advantages of sericin. Finally, we developed and discussed a series of sericin-based biomaterials for promising applications for a diverse set of needs.

1. Introduction

The silkworm, as a completely domesticated insect with a good breeding and genetic system, has been considered an ideal model organism for biological study [1]. Silkworms can be divided into wild-type or silk fibroin-deficient mutants according to whether they synthesize and secrete silk fibroin. The wild-type silkworms secrete natural silk composed of sericin and silk fibroin. The sericin, as the outer layer, tightly encapsulates two bundles of silk fibroin (the core layer) with rounded triangle cross sections to protect and glue, increasing the stability and toughness of the silk [2,3]. Silk fibroin has attracted much attention in biomedical fields due to its suitable physicochemical properties and good biocompatibility [4]. In contrast, sericin has been neglected for thousands of years during the development of the textile industry, resulting in environmental pollution and a waste of resources [5,6]. In recent years, much research has found that sericin is an excellent natural biological material because of its excellent biological activity, low immunogenicity, controlled degradability, and easy modifiability [7,8,9]. However, separating sericin from wild-type silkworm cocoons seriously damages its natural structure and activity, accompanied with a complicated extraction process, thus restricting its application [10,11]. In addition, the content of sericin in wild-type silkworm cocoons is relatively low, accounting for about 25–30% [12,13]. Therefore, there is an urgent need to cultivate fine breeds of silk fibroin-deficient mutants, which only secrete pure sericin with high quality and not silk fibroin, due to the absence of posterior silk glands that synthesize silk fibroin. Our lab members obtained various silk fibroin-deficient mutant silkworms through genetic breeding technology [14,15]. Through establishing or optimizing various extraction methods of sericin from silk fibroin-deficient mutants, the properties of sericin were explored, including promoting cell adhesion and proliferation, humidity preservation, antibacterial, anti-oxidation, and anti-inflammatory properties, the inhibition of tyrosinase, etc. [16,17]. Moreover, sericin-based biomaterials with excellent properties (such as elasticity, mechanical strength, biodegradability, and biocompatibility) have been developed by modification, or by cross-linking with other polymers [7,18,19]. Therefore, sericin has attracted more and more attention in various fields, such as cell culture, tissue engineering, and drug delivery [16,17,20,21,22,23]. For instance, sericin has been used as a fetal bovine serum (FBS) substitute for cell cultures, promoting cell growth and proliferation [23]. The applications of sericin in tissue engineering involve tissue injury repair and the regeneration of bone and nerve [21,24,25,26]. Sericin-based biomaterials, such as hydrogel, film, and sponge, are usually used as carriers for delivering drugs or growth factors [27,28,29]. Sericin from silk fibroin-deficient silkworms was also applied in disease therapy, mainly referring to chronic nerve compression, myocardial infarction, and stroke [20,30,31]. Sericin has attracted great attention in the field of cosmetics due to its natural biological activities [32,33]. The recovery and exploitation of sericin would not only minimize environmental problems, but also has important scientific significance and application values. This review focused on concluding the resources and characteristics of sericin from silk fibroin-deficient mutants, summarizing different types of sericin-based biomaterials and their applications, and offering prospects for future applications.

2. Resources of Sericin and Cultivation of Silkworm Varieties

Sericin, a natural protein secreted by silkworms, consists of 18 amino acids [7]. Sericin has high yields (annual output of about 50,000 tons worldwide [34]), benefiting from silkworm varieties’ rich resources. There are thousands of silkworm varieties in the world, and our institute (Sericultural Research Institute, Chinese Academy of Agricultural Sciences) has more than a thousand species. The variety of silkworms provide us with different properties of sericin.
Cocoons produced by silk fibroin-deficient mutant silkworms are favored for separating and extracting sericin with excellent properties. However, considering that the natural mutant silkworms have low yields of sericin, poor resistance against disease, and breeding difficulty [14], our research lab focused on breeding new silk fibroin-deficient mutants to overcome the above defects. We obtained silk fibroin-deficient mutants with high yield, disease resistance, large cocoon, and small pupa by using silk fibroin-deficient mutant varieties, Nuclear Polyhedrosis Virus (NPV) resistance varieties, and high-yield and high-quality practical varieties as parents through silkworm genetic breeding techniques (cross and backcross) for dozens of generations. The sericin cocoon layer ratio produced by new mutant silkworms was increased from about 1.0% to 5.5%. These superior varieties have laid a solid foundation for exploiting and utilizing sericin. Figure 1 presented the silk glands, cocoons, and microstructures of silks from different species of wild-type silkworms and silk fibroin-deficient mutant silkworms in our research group.
Fluorescent materials with high biocompatibility and bioactivity are widely applied in tracing and labeling [29,35]. When they act as an additive, the fluorescence interferes with some test items. For different practical applications, we selected silk fibroin-deficient mutant silkworms through genetic breeding technology, which could produce sericin with strong fluorescence or weak fluorescence at different wavelengths (Figure 2).
The artificial feed rearing of silkworms is an important developmental direction of silkworm rearing [36]. This silkworm-rearing mode is conducive to the formation of uniform and stable silkworm cocoons through the standardized control of the environment. The uniformity and stability of material properties are very important for their applications in biomedicine [37]. For this reason, anti-diseases silk fibroin-deficient mutant silkworms were employed to cross with silkworms with a high adaptability to artificial feed. We obtained a new silk fibroin-deficient mutant silkworm with an adaptability to artificial feed through successive selection and backcrossing, which could produce uniform cocoons with high cocoon layer ratios (Figure 3).
The quality of silkworm cocoons depends on the rearing and mounting conditions. High-quality silkworm feed (mulberry leaves or artificial feed) was used to rear silkworms under standardized feeding conditions for obtaining high-quality pure sericin cocoons [38]. Considering that the temperature, humidity [39], and airflow (especially the humidity) in the mounting conditions could affect the properties of sericin, we optimized the mounting conditions and realized the standardization of the parameters to maintain the uniformity and stability of silkworm cocoons [40]. In addition, we found that the silk secretion environment of silkworms influences the properties of cocoons during the production process of sericin raw materials. In particular, environmental humidity significantly affected the secondary structure composition of sericin in silkworm cocoons. Based on our research, it was appropriate to control the environmental temperature of silkworm silk production at 23–28 °C, and the humidity at 60–70%. Finally, the sick and injured individuals were first removed to prevent contamination of the cocoons in the cocoon-picking process.

3. Characteristics and Advantages of Sericin from Fibroin-Deficient Mutant Silkworms

3.1. Extraction Processes of Sericin

In general, extracting sericin from wild silkworm cocoons mainly adopts methods involving high-temperature and high-pressure, urea, sodium carbonate, and acid extraction [41]. However, these relatively rough methods will seriously damage the natural structure of the sericin, leading to the degradation of sericin. In addition, it is difficult to completely remove the chemical agents introduced by the above methods, resulting in serious restrictions of the practical applications of sericin [42].
Based on the characteristics of sericin secreted by mutant silkworms, we established or optimized various extraction methods of sericin and obtained sericin for meeting different needs, which greatly expanded the application of sericin (Figure 4a,b).
The extraction methods of sericin from fibroin-deficient mutant silkworms were as follows:
(1)
The cocoons were crushed at a low temperature and then sieved to 100 mesh, which could accelerate the hydration of sericin, shorten the time of sericin dissolution, and further reduce the degradation of sericin.
(2)
Sericin with a low degradation degree could be extracted from cocoons using a relatively mild method of LiBr [16].
(3)
Low molecular weight sericin was obtained by the high-temperature and high-pressure method or enzymolysis method [43,44].
(4)
The concentration of sericin reached 16% (w/v) by extracting sericin from silk glands of silkworms directly at the mature stage in the 5th instar.

3.2. Advantages of Sericin from Fibroin-Deficient Mutant Silkworms

Sericin extracted from silk fibroin-deficient mutant silkworm cocoons has many advantages. Firstly, sericin extracted from cocoons using a relatively mild method of LiBr has a low degradation degree. Sericin extracted from cocoons using a relatively mild method of LiBr (Figure 4c, lane 2) was similar to that extracted from the silk glands of silkworms directly [45], and maintained its original protein structure. However, sericin extracted by using boiling water could disrupt the protein structure and produce a low molecular weight, and thus the electrophoretic band had diffusion (Figure 4c, lane 1). Secondly, the solubility of sericin in fibroin-deficient mutant cocoons was much higher than that in wild-type cocoons in hot water. Sericin in mutant cocoons was dissolved completely at 121 °C for 20 min, while only a fraction of wild-type cocoons could be dissolved. It is well known that sericin is comprised of various bioactive peptides [8]. Therefore, the ingredients of sericin isolated from fibroin-deficient cocoons were different from those of wild-type cocoons, even when using the same extraction method. Thirdly, the contents of the free amino group in sericin extracted from mutant cocoons were much higher than that from wild-type cocoons. For example, the content of free amino end groups in the sericin isolated from fibroin-deficient silkworm cocoons (180 Nd-s) was as high as 12 times that of wild-type silkworms cocoons (Jingsong A) (to be published).

4. Preparation and Application of Sericin-Based Biomaterials

As a natural macromolecular, sericin from fibroin-deficient mutant silkworms can be readily engineered into various types of biomaterials, such as hydrogels, films, sponges, scaffolds, conduits, and so on [7,46,47]. Hydrogels are a class of three-dimensional (3D) polymer networks which can adjust their physicochemical properties to meet specific needs under different conditions [48]. As early as 2014, an author in our team prepared injectable and fluorescent sericin hydrogels by crosslinking glutaraldehyde with low-degradation sericin extracted with the LiBr method from silk fibroin-deficient mutant cocoons (Figure 5a) [16]. Considering the toxicity of crosslinkers and the poor transparency of the prepared sericin hydrogels, we extracted sericin from the white fibroin-deficient mutant cocoons and used the ultrasonic method to prepare an injectable sericin hydrogel with high transparency, good elasticity, and high biocompatibility (Figure 5b) [49]. The difficulty is in the sterilization of silk-worm cocoons and the extracted sericin protein solution’s failure to pass the filtration membrane (0.22 μm), while the existing sterilization methods of sericin hydrogels can have adverse effects on the material. Therefore, we synthesized a sterile self-assembled sericin hydrogel by using the high-temperature and high-pressure method (Figure 5c) [43]. A high extraction rate of sericin (up to 95%) and a high concentration of sterile sericin solution (up to 15% w/v) were obtained directly under high-temperature and high-pressure conditions. The gelation time of these kinds of sericin hydrogels could be controlled within a few minutes to hours by adjusting the concentration, pH, and temperature of sericin protein solution. In addition, these hydrogels without toxic crosslinkers formed by self-assembly in a sterile environment can be directly used as biomaterials for cell culture or tissue engineering. In many cases, a key limitation to the application of hydrogels is their relatively poor mechanical strength [50]. For this reason, we tried to isolate non-degradable sericin with a high concentration (16% w/v) from silk fibroin-deficient mutant silkworms and then prepared a strong sericin hydrogel with high elastic modulus (310 kPa) by cross-linking sericin with H2O2 [45]. This hydrogel has excellent elasticity, good cytocompatibility, and controlled drug delivery (Figure 5d). In addition, we combined sericin with alginate or polyacrylamide to prepare two kinds of interpenetrating double-network hydrogels with excellent properties, namely sericin-alginate hydrogel (Figure 5e) [17] and sericin-polyacrylamide hydrogel (Figure 5f) [51]. The above sericin-based hydrogels had various properties, including a simple fabrication process, sterility, injectability, high mechanical strength, satisfactory bioactivities, etc.
Except for hydrogels, various biomaterials were exploited based on sericin from fibroin-deficient mutant silkworms, including films, sponge, scaffolds, and conduits. Beneficial for their satisfactory properties of sericin, sericin-based biomaterials are widely applied in various fields. Here, we summarize different types of sericin-based materials and their biomedical applications (Table 1).

4.1. Cell Culture

With the rapid development of the biomedicine industry, the scale of cell culture is growing, as well as the market demand for cell culture medium. Fetal bovine serum (FBS), as one of the main components of culture medium, has occupied tens of billions of dollars in the market [58,59]. However, there are many problems in the expansion and application of FBS, such as high prices, the risk of viral infection, animal ethics issues, and insufficient resources. Hence, developing inexpensive, safe, and effective FBS substitutes for cell culture has become an important research topic and a hot issue in cell culture fields [23,60]. In this contribution, our group provided FBS substitutes of sericin protein without toxic and harmful substances by extracting sericin from three silk fibroin-deficient mutant cocoons through high-temperature and high-pressure or enzymolysis methods. We then systematically evaluated the effects of sericin protein and its hydrolysate on culturing several cell lines, including cell adhesion, cell viability, cell growth, and proliferation. The results showed that sericin and its hydrolysate from different varieties of cocoons could greatly promote cell proliferation. Moreover, we compared the function of sericin and FBS on cell culture. The cell viability results showed that sericin protein and its hydrolysate groups were similar to the control (10% FBS), and there was no significant difference in cell morphology in different groups (Figure 6, to be published). In addition, compared with FBS medium, cells cultured in sericin medium showed similar cell morphology, similar or higher cell survival, a lower population doubling time (PDT), and a higher percentage of S phases with a higher G2/G1 ratio, indicating that sericin is beneficial to cell growth and proliferation [23]. Moreover, many studies demonstrated that sericin can promote the proliferation and maintain the functions of various types of cells, including normal mammalian cells, tumor cells, and insect cells [58,59]. For instance, a culture medium containing 0.01% sericin could maintain the secretion function of islet cells, thus exerting the hypoglycemic effects of islet cells [61]. These aforementioned benefits of sericin on cell culture expand its applications (for example, in tissue engineering).

4.2. Tissue Engineering

With the development and utilization of sericin from fibroin-deficient silkworms, sericin-based biomaterials have been increasingly investigated and utilized in skin injury repair [25,54,55], bone and cartilage tissue engineering [26,53], and nerve regeneration [21,22,24,30].
Skin injury repair is challenging for traditional wound dressings (such as gauze, bandages, and cotton pads). Natural biomaterials are favored for preparing bioactive wound dressings due to their functions of cell proliferation and differentiation, and good biocompatibility [62]. Sericin fibers with non-destructive structures have excellent physicochemical properties and biological activities, while it is attractive to develop a bioactive wound dressing based on native sericin fiber [55]. Our group first reported designing and performing a flat and uniform natural sericin wound dressing using fibroin-deficient silkworms through the directional genetic breeding technology. The obtained sericin wound dressing had a porous fibrous network structure with high porosity, thus achieving excellent air permeability (Figure 7). Moreover, the sericin wound dressing presented softness, high mechanical strength, and a high water absorption capacity. More importantly, the sericin fiber scaffold had good biocompatibility, which could support cell growth, proliferation, and migration. When tested in a mouse model of full-thickness skin wounds, the sericin wound dressing effectively promoted wound healing [55]. In addition, studies reported that films or hydrogels formed by sericin served as wound dressings for wound healing [54]. In another work, we prepared a highly bioactive silk protein wound dressing (SPD) with a natural silk fiber-sericin hydrogel interpenetrating double network structure. SPD combines the dual characteristics of natural silk protein and sericin hydrogel, which can promote wound healing in mice [25]. New biomaterials prepared via sericin combination with other polymers (such as polyacrylamide) have great potential for wound healing [51].
Currently, the application of sericin from silk fibroin-deficient silkworms in other tissue injury repair areas mainly refers to nerve injury repair, stroke, and myocardial infarction. The excellent biocompatibility of sericin is keystone factor for its application [7]. As mentioned above, Wang’s team first reported a genipin cross-linked chitosan-sericin 3D scaffold for the repair of chronic nerve compression [30]. This mainly benefits from the function of sericin to promote nerve regeneration. Sericin has been used to construct peripheral neural regeneration due to its good biocompatibility and biodegradability [21,22,24]. In addition, the neural regeneration function of a nerve guidance conduit prepared by combining sericin with silicone has been verified [21]. Furthermore, a carbon nanotube (CNT)/sericin nerve conduit with electrical conductivity and suitable mechanical properties was developed and applied for nerve repair. This CNT/sericin nerve conduit possessed electrical conductivity, favorable properties (including physicochemical properties and bioactivities), and suitable mechanical properties. When this conduit was applied in a rat sciatic nerve injury model, the CNT/sericin conduit combined with electrical stimulation effectively promoted both structural repair and functional recovery [57]. It was reported that using sericin fabricated a genipin-cross-linked sericin hydrogel (GSH), which supported the effective attachment and growth of neurons in vitro. Notably, sericin has intrinsic neurotrophic and neuroprotective functions, which endowed GSH as a potential neuronal cell delivery vehicle for ischemic stroke repair [20]. For acute myocardial infarction treatment, sericin hydrogel was injected into the myocardial infarction area and they found that sericin hydrogel could reduce scar formation and the infarct area, increase the wall thickness and neovascularization, inhibit the inflammatory response and apoptosis induced by myocardial infarction, and thus significantly improve cardiac function [31]. Although there are only a few examples which demonstrate that sericin from silk fibroin-deficient silkworms could be used well in disease therapy, it will be widely used in disease therapy in the future with the deepening of research.
In terms of bone tissue engineering, sericin can enhance the adhesion, proliferation, and differentiation of osteoblast cells, thus promoting bone regeneration [63]. Sericin has been functionalized to be sericin methacryloyl (SerMA), which formed an in situ hydrogel under UV light through photo-crosslinking. SerMA hydrogel possesses excellent biocompatibility and was shown to adhere to chondrocytes, and promote the growth and proliferation of chondrocytes even in nutrition-lacking conditions. Surprisingly, the in vivo implantation of SerMA hydrogels loaded with chondrocytes effectively formed artificial cartilages after 8 weeks [26]. Following that, the team mixed graphene oxide into SerMA hydrogel to improve its mechanical strength [53]. The sericin in the hydrogel can promote the migration of bone marrow stromal cells (BMSCs), while the embedded graphene oxide can promote the osteogenic differentiation of BMSCs. Therefore, this hydrogel demonstrated a significant effect on skull regeneration in mice [53].

4.3. Drug Delivery

Sericin-based biomaterials, such as hydrogels, films, and sponges, are usually used as carriers for drug delivery [28]. Hydrogels formed by sericin from silk fibroin-deficient silkworms could load drugs or growth factors, exhibiting the function of controlled release [16,17,28]. Zhang et al. proved that increasing the contents of sericin in interpenetrating network (IPN) hydrogels (comprising interwoven sericin and alginate sericin and alginate) can improve its sustained-release ability. This study indicated that sericin provides a convenient way to regulate and control drug release [17]. As aforementioned, our team evaluated the release behavior of the sericin hydrogel formed by sericin from the silk gland of silk fibroin-deficient mutant silkworms cross-linking H2O2. An antitumor drug, adriamycin hydrochloride (DOX-HCl), was chosen as the model drug, and we observed a sustained drug release within 40 days [45]. Wang et.al fabricated a kind of hydrogel with three-dimensional (3D) networks and subsequently revealed its drug release performance, suggesting that this sericin hydrogel has potential as a carrier for drug delivery in vivo [16]. In another work, a genipin cross-linked chitosan-sericin 3D hydrogel scaffold was designed and prepared for in vivo delivering nerve growth factor (NGF) [30]. In our work, a series of hydrogels were prepared by self-assembly or crosslinking with other polymers [43,45,49,51]. These hydrogels possess a high swelling rate, which is beneficial for drug delivery. In addition to hydrogels, films and sponges formed by sericin from silk fibroin-deficient silkworms have also been used for drug delivery. In Ayumu Nishida’s study, the authors used sericin to prepare films and sponges and then examined the release properties of the charged protein, fluorescein isothiocyanate-albumin (FA). The results demonstrated that FA was sustained-released from film and sponges in vitro. For the in vivo release, FA remained for 3–6 weeks or more in rats. The concentration of sericin is a crucial factor for charged drug effective release [28]. These findings indicated that sericin is an excellent biomaterial for drug delivery.

4.4. Cosmetics

Sericin has attracted great attention in the field of cosmetics due to its natural biological activities, including moisturization, anti-oxidation, antibacterial, and anti-inflammatory properties, its inhibition of tyrosinase, and polyphenol oxidase activities [64,65,66]. The antioxidant properties of sericin are closely related to its activities of scavenging reactive oxygen species (ROS), inhibiting lipid peroxidation, and anti-tyrosinase and anti-elastase properties [67,68]. In addition, sericin could enhance the activity of antioxidant enzymes, such as superoxide dismutase (SOD), catalase (CAT), and glutathione peroxidase (GPX) [69]. The antioxidant activity of sericin benefits from its high serine and threonine content [68]. Moreover, it was found that sericin has inhibitory effects on Staphylococcus epidermidis, Staphylococcus aureus, and Bacillus subtilis. The reason is that sericin has a positive amino acid side-chain due to its carboxyl group being protonated under acidic conditions, thus having antibacterial activity [70]. In addition, sericin contains various amino acids with hydrophilic side groups (about 80%), such as serine (30 to 33%), which has a superb water absorption capacity. The sericin may also prevent the loss of water by forming a smooth and soft film on the skin surface [71].

5. Conclusions and Outlook

Sericin has excellent biological activity and abundant resources. The presence of mutant varieties of silkworms, especially, have brought great conveniences to our development and application of sericin. Through the optimization of the sericin extraction process, the further study of sericin biological activity, and the exploitation of new sericin-based materials, sericin will expand its application in various fields. In addition to cell culture, tissue engineering, drug delivery, and cosmetics, sericin from silk fibroin-deficient silkworms also has great potential in applications for functional foods. At present, there have been few studies about sericin from silk fibroin-deficient silk-worms in functional food. Sericin consists of 18 amino acids, including serine, aspartic acid, glycine, threonine, tyrosine, alanine, etc. [7]. Among them, glycine and serine can promote glycaemic decomposition and reduce the amount of cholesterol in the blood [72]. Alanine can stimulate the cell vitality of the hepatocyte, thus accelerating alcohol metabolism [73]. And tyrosine has significant effects on the prevention and treatment of Alzheimer’s disease [74]. Therefore, there is a possible trend to develop and utilize sericin from silk fibroin-deficient silkworms as raw materials for commercial functional food. In summary, sericin has promising applications and commercial value in the future.

Author Contributions

Y.Z. conceived and designed the structure of the review and Y.L. and Y.W. wrote the manuscript, which was finally edited by G.Z. and Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of Jiangsu Province of China (Grant No. BK20221291), China; the earmarked fund for CARS-18; Postgraduate Research and Practice Innovation Program of Jiangsu Province (Grant No. KYCX21_3511, KYCX22_3767), China; and the Doctoral Start-up Fund of Jiangsu University of Science and Technology (Grant No. 1732932204), China.

Institutional Review Board Statement

This manuscript does not contain any studies involving human or animal subjects.

Data Availability Statement

No new data were created or analyzed in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nouara, A.; Lü, P.; Chen, K. Silkworm, bombyx mori, as an alternative model organism in toxicological research. Environ. Sci. Pollut. Res. 2018, 25, 35048–35054. [Google Scholar]
  2. Chen, X.; Wang, Y.; Wang, Y.; Li, Q.; Liang, X.; Wang, G.; Li, J.; Peng, R.; Sima, Y.; Xu, S. Ectopic expression of sericin enables efficient production of ancient silk with structural changes in silkworm. Nat. Commun. 2022, 13, 6295. [Google Scholar] [CrossRef]
  3. Du, S.; Zhang, J.; Zhou, W.; Li, Q.; Wang, X. Interactions between fibroin and sericin proteins from antheraea pernyi and bombyx mori silk fibers. J. Colloid Interface Sci. 2016, 478, 316–323. [Google Scholar] [CrossRef] [PubMed]
  4. Kundu, B.; Rajkhowa, R.; Kundu, S.C.; Wang, X. Silk fibroin biomaterials for tissue regenerations. Adv. Drug Deliv. Rev. 2013, 65, 457–470. [Google Scholar] [CrossRef] [PubMed]
  5. Hu, D.; Li, T.; Liang, W.; Wang, Y.; Feng, M.; Sun, J. Silk sericin as building blocks of bioactive materials for advanced therapeutics. J. Control. Release 2023, 353, 303–316. [Google Scholar] [CrossRef] [PubMed]
  6. Zhao, Z.; Li, W.; Wang, F.; Zhang, Y. Using of hydrated lime water as a novel degumming agent of silk and sericin recycling from wastewater. J. Clean. Prod. 2018, 172, 2090–2096. [Google Scholar] [CrossRef]
  7. Liu, J.; Shi, L.; Deng, Y.; Zou, M.; Cai, B.; Song, Y.; Wang, Z.; Wang, L. Silk sericin-based materials for biomedical applications. Biomaterials 2022, 287, 121638. [Google Scholar] [CrossRef] [PubMed]
  8. Zhao, Z.; Zhang, Y. Greener degumming production of layered sericin peptides from a silkworm cocoon and their physicochemical characteristics and bioactivities in vitro. J. Clean. Prod. 2020, 261, 121080. [Google Scholar] [CrossRef]
  9. Ahsan, F.; Ansari, T.; Usmani, S.; Bagga, P. An insight on silk protein sericin: From processing to biomedical application. Drug Res. 2018, 68, 317–327. [Google Scholar] [CrossRef]
  10. Yun, H.; Oh, H.; Kim, M.; Kwak, H.; Lee, J.; Um, I.; Vootla, S.; Lee, K. Extraction conditions of antheraea mylitta sericin with high yields and minimum molecular weight degradation. Int. J. Biol. Macromol. 2013, 52, 59–65. [Google Scholar] [CrossRef]
  11. Aramwit, P.; Kanokpanont, S.; Nakpheng, T.; Srichana, T. The effect of sericin from various extraction methods on cell viability and collagen production. Int. J. Mol. Sci. 2010, 11, 2200–2211. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Suryawanshi, R.; Kanoujia, J.; Parashar, P.; Saraf, A. Sericin: A versatile protein biopolymer with therapeutic significance. Curr. Pharm. Des. 2020, 26, 5414–5429. [Google Scholar] [CrossRef] [PubMed]
  13. Iyengar, M. A new silkworm race for sericin production. Indian Silk 2007, 46, 28–29. [Google Scholar]
  14. Mase, K.; Iizuka, T.; Okada, E.; Miyajima, T.; Yamamoto, T. A new silkworm race for sericin production, “sericin hope” and its product, “virgin sericin”. J. Insect Biotechnol. Sericology 2006, 75, 85–88. [Google Scholar]
  15. Mase, K.; Iizuka, T.; Okada, E.; Miyajima, T.; Yamamoto, T. A new silkworm race for the production of sericin cocoon with the higher function. Bio Ind. 2007, 24, 53–59. [Google Scholar]
  16. Wang, Z.; Zhang, Y.; Zhang, J.; Huang, L.; Liu, J.; Li, Y.; Zhang, G.; Kundu, S.; Wang, L. Exploring natural silk protein sericin for regenerative medicine: An injectable, photoluminescent, cell-adhesive 3d hydrogel. Sci. Rep. 2014, 4, 7064. [Google Scholar] [CrossRef] [Green Version]
  17. Zhang, Y.; Liu, J.; Huang, L.; Wang, Z.; Wang, L. Design and performance of a sericin-alginate interpenetrating network hydrogel for cell and drug delivery. Sci. Rep. 2015, 5, 12374. [Google Scholar] [CrossRef] [Green Version]
  18. Wang, F.; Guo, C.; Yang, Q.; Li, C.; Zhao, P.; Xia, Q.; Kaplan, D. Protein composites from silkworm cocoons as versatile biomaterials. Acta Biomater. 2021, 121, 180–192. [Google Scholar] [CrossRef]
  19. Perteghella, S.; Rassu, G.; Gavini, E.; Obinu, A.; Bari, E.; Mandracchia, D.; Bonferoni, M.; Giunchedi, P.; Torre, M. Crocetin as new cross-linker for bioactive sericin nanoparticles. Pharmaceutics 2021, 13, 680. [Google Scholar] [CrossRef]
  20. Wang, Z.; Wang, J.; Jin, Y.; Luo, Z.; Yang, W.; Xie, H.; Huang, K.; Wang, L. A neuroprotective sericin hydrogel as an effective neuronal cell carrier for the repair of ischemic stroke. ACS Appl. Mater. Interfaces 2015, 7, 24629–24640. [Google Scholar] [CrossRef]
  21. Xie, H.; Yang, W.; Chen, J.; Zhang, J.; Lu, X.; Zhao, X.; Huang, K.; Li, H.; Chang, P.; Wang, Z.; et al. A silk sericin/silicone nerve guidance conduit promotes regeneration of a transected sciatic nerve. Adv. Healthc. Mater. 2015, 4, 2195–2205. [Google Scholar] [CrossRef] [PubMed]
  22. Parker, B.; Rhodes, D.; O’Brien, C.; Rodda, A.; Cameron, N. Nerve guidance conduit development for primary treatment of peripheral nerve transection injuries: A commercial perspective. Acta Biomater. 2021, 135, 64–86. [Google Scholar] [CrossRef]
  23. Liu, L.; Wang, J.; Duan, S.; Chen, L.; Xiang, H.; Dong, Y.; Wang, W. Systematic evaluation of sericin protein as a substitute for fetal bovine serum in cell culture. Sci. Rep. 2016, 6, 31516. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Zhang, L.; Yang, W.; Xie, H.; Wang, H.; Wang, J.; Su, Q.; Li, X.; Song, Y.; Wang, G.; Wang, L.; et al. Sericin nerve guidance conduit delivering therapeutically repurposed clobetasol for functional and structural regeneration of transected peripheral nerves. ACS Biomater. Sci. Eng. 2019, 5, 1426–1439. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Y.; Wang, S.; Li, Y.; Zhang, G.; Wu, T.; Wei, Y.; Cao, X.; Yan, H.; Liang, P.; Yan, Z.; et al. Resveratrol loaded native silk fiber-sericin hydrogel double interpenetrating bioactive wound dressing facilitates full-thickness skin wound healing. Biomed. Mater. 2023, 18, 045007. [Google Scholar] [CrossRef] [PubMed]
  26. Qi, C.; Liu, J.; Jin, Y.; Xu, L.; Wang, G.; Wang, Z.; Wang, L. Photo-crosslinkable, injectable sericin hydrogel as 3d biomimetic extracellular matrix for minimally invasive repairing cartilage. Biomaterials 2018, 163, 89–104. [Google Scholar] [CrossRef]
  27. Nardini, M.; Perteghella, S.; Mastracci, L.; Grillo, F.; Marrubini, G.; Bari, E.; Formica, M.; Gentili, C.; Cancedda, R.; Torre, M.; et al. Growth factors delivery system for skin regeneration: An advanced wound dressing. Pharmaceutics 2020, 12, 120. [Google Scholar] [CrossRef] [Green Version]
  28. Nishida, A.; Yamada, M.; Kanazawa, T.; Takashima, Y.; Ouchi, K.; Okada, H. Sustained-release of protein from biodegradable sericin film, gel and sponge. Int. J. Pharm. 2011, 407, 44–52. [Google Scholar] [CrossRef]
  29. Liu, J.; Qi, C.; Tao, K.; Zhang, J.; Zhang, J.; Xu, L.; Jiang, X.; Zhang, Y.; Huang, L.; Li, Q.; et al. Sericin/dextran injectable hydrogel as an optically trackable drug delivery system for malignant melanoma treatment. ACS Appl. Mater. Interfaces 2016, 8, 6411–6422. [Google Scholar] [CrossRef]
  30. Zhang, L.; Yang, W.; Tao, K.; Song, Y.; Xie, H.; Wang, J.; Li, X.; Shuai, X.; Gao, J.; Chang, P.; et al. Sustained local release of ngf from a chitosan–sericin composite scaffold for treating chronic nerve compression. ACS Appl. Mater. Interfaces 2017, 9, 3432–3444. [Google Scholar] [CrossRef]
  31. Song, Y.; Zhang, C.; Zhang, J.; Sun, N.; Huang, K.; Li, H.; Wang, Z.; Huang, K.; Wang, L. An injectable silk sericin hydrogel promotes cardiac functional recovery after ischemic myocardial infarction. Acta Biomater. 2016, 41, 210–223. [Google Scholar] [CrossRef] [PubMed]
  32. Giovannelli, L.; Milanesi, A.; Ugazio, E.; Fracchia, L.; Segale, L. Effect of methyl–β–cyclodextrin and trehalose on the freeze–drying and spray–drying of sericin for cosmetic purposes. Pharmaceuticals 2021, 14, 262. [Google Scholar] [CrossRef] [PubMed]
  33. Tengattini, S.; Orlandi, G.; Perteghella, S.; Bari, E.; Amadio, M.; Calleri, E.; Massolini, G.; Torre, M.L.; Temporini, C. Chromatographic profiling of silk sericin for biomedical and cosmetic use by complementary hydrophylic, reversed phase and size exclusion chromatographic methods. J. Pharm. Biomed. Anal. 2020, 186, 113291. [Google Scholar] [CrossRef] [PubMed]
  34. Tang, Y.; Deng, J.; Li, W.; Malyi, O.; Zhang, Y.; Zhou, X.; Pan, S.; Wei, J.; Cai, Y.; Chen, Z.; et al. Water-soluble sericin protein enabling stable solid–electrolyte interphase for fast charging high voltage battery electrode. Adv. Mater. 2017, 29, 1701828. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, H.; Ji, X.; Li, Z.; Huang, F. Fluorescent supramolecular polymeric materials. Adv. Mater. 2017, 29, 1606117. [Google Scholar] [CrossRef] [PubMed]
  36. Lamberti, C.; Gai, F.; Cirrincione, S.; Giribaldi, M.; Purrotti, M.; Manfredi, M.; Marengo, E.; Sicuro, B.; Saviane, A.; Cappellozza, S. Investigation of the protein profile of silkworm (bombyx mori) pupae reared on a well-calibrated artificial diet compared to mulberry leaf diet. PeerJ 2019, 7, e6723. [Google Scholar] [CrossRef] [Green Version]
  37. Wang, Y.; Liu, X.; Xia, L.; Zhang, C.; Xu, W. Effects of iron oxide content on the growth of silkworm and properties of silk. J. Nat. Fibers 2022, 19, 319–328. [Google Scholar] [CrossRef]
  38. Dong, H.; Zhang, S.; Tao, H.; Chen, Z.; Li, X.; Qiu, J.; Cui, W.; Sima, Y.; Cui, W.; Xu, S. Metabolomics differences between silkworms (bombyx mori) reared on fresh mulberry (morus) leaves or artificial diets. Sci. Rep. 2017, 7, 10972. [Google Scholar] [CrossRef] [Green Version]
  39. Offord, C.; Vollrath, F.; Holland, C. Environmental effects on the construction and physical properties of bombyx mori cocoons. J. Mater. Sci. 2016, 51, 10863–10872. [Google Scholar] [CrossRef] [Green Version]
  40. Vaidya, S.; Yadav, U.; Bhouraskar, J. Effects of temperature and relative humidity on rearing performances of eri silkworm (philosami aricini). Environ. Conserv. J. 2014, 15, 189–196. [Google Scholar] [CrossRef]
  41. Biswal, B.; Dan, A.; Sengupta, A.; Das, M.; Bindhani, B.; Das, D.; Parhi, P. Extraction of silk fibroin with several sericin removal processes and its importance in tissue engineering: A review. J. Polym. Environ. 2022, 30, 2222–2253. [Google Scholar] [CrossRef]
  42. Li, Y.; Huang, Y.; Pan, P.; Che, X.; Zhang, Y.; Zhang, Y.; Amal, A.; Li, X.; Niu, W.; Luo, N.; et al. Sericin and sericin-derived peptide alleviate viral pathogenesis in mice though inhibiting lactate production and facilitating antiviral response. Appl. Mater. Today 2021, 25, 101256. [Google Scholar] [CrossRef]
  43. Zhang, Y.; Zhao, Y.; He, X.; Fang, A.; Jiang, R.; Wu, T.; Chen, H.; Cao, X.; Liang, P.; Xia, D.; et al. A sterile self-assembled sericin hydrogel via a simple two-step process. Polym. Test. 2019, 80, 106016. [Google Scholar] [CrossRef]
  44. Mahmoodi, N.; Arami, M.; Mazaheri, F.; Rahimi, S. Degradation of sericin (degumming) of persian silk by ultrasound and enzymes as a cleaner and environmentally friendly process. J. Clean. Prod. 2010, 18, 146–151. [Google Scholar] [CrossRef]
  45. Zhang, Y.; Wu, T.; Shen, C.; Xu, G.; Chen, H.; Yan, H.; Xiong, M.; Zhang, G. A robust sericin hydrogel formed by a native sericin from silkworm bodies. Fibers Polym. 2022, 23, 1826–1833. [Google Scholar] [CrossRef]
  46. Yang, C.; Yao, L.; Zhang, L. Silk sericin-based biomaterials shine in food and pharmaceutical industries. Smart Mater. Med. 2023, 4, 447–459. [Google Scholar] [CrossRef]
  47. Das, G.; Shin, H.; Campos, E.; Fraceto, L.; del Pilar Rodriguez-Torres, M.; Mariano, K.; de Araujo, D.; Fernández-Luqueño, F.; Grillo, R.; Patra, J. Sericin based nanoformulations: A comprehensive review on molecular mechanisms of interaction with organisms to biological applications. J. Nanobiotechnology 2021, 19, 30. [Google Scholar] [CrossRef]
  48. Sano, K.; Ishida, Y.; Aida, T. Synthesis of anisotropic hydrogels and their applications. Angew. Chem. Int. Ed. 2018, 57, 2532–2543. [Google Scholar] [CrossRef]
  49. Zhang, Y.; Jiang, R.; Fang, A.; Zhao, Y.; Wu, T.; Cao, X.; Liang, P.; Xia, D.; Zhang, G. A highly transparent, elastic, injectable sericin hydrogel induced by ultrasound. Polym. Test. 2019, 77, 105890. [Google Scholar] [CrossRef]
  50. Gu, Z.; Chen, L.; Xu, Y.; Liu, Y.; Zhao, Z.; Zhao, C.; Lei, W.; Rong, Q.; Fang, R.; Zhao, T.; et al. General strategy to fabricate highly filled microcomposite hydrogels with high mechanical strength and stiffness. ACS Appl. Mater. Interfaces 2018, 10, 4161–4167. [Google Scholar] [CrossRef]
  51. Zhang, Y.; Chen, H.; Li, Y.; Fang, A.; Wu, T.; Shen, C.; Zhao, Y.; Zhang, G. A transparent sericin-polyacrylamide interpenetrating network hydrogel as visualized dressing material. Polym. Test. 2020, 87, 106517. [Google Scholar] [CrossRef]
  52. Qi, C.; Xu, L.; Deng, Y.; Wang, G.; Wang, Z.; Wang, L. Retracted article: Sericin hydrogels promote skin wound healing with effective regeneration of hair follicles and sebaceous glands after complete loss of epidermis and dermis. Biomater. Sci. 2018, 6, 2859–2870. [Google Scholar] [CrossRef] [PubMed]
  53. Qi, C.; Deng, Y.; Xu, L.; Yang, C.; Zhu, Y.; Wang, G.; Wang, Z.; Wang, L. A sericin/graphene oxide composite scaffold as a biomimetic extracellular matrix for structural and functional repair of calvarial bone. Theranostics 2020, 10, 741–756. [Google Scholar] [CrossRef] [PubMed]
  54. Teramoto, H.; Kameda, T.; Tamada, Y. Preparation of gel film from bombyx mori silk sericin and its characterization as a wound dressing. Biosci. Biotechnol. Biochem. 2008, 72, 3189–3196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Li, Y.; Wu, T.; Zhang, G.; Fang, A.; Li, Y.; Wang, S.; Yan, H.; Liang, P.; Lian, J.; Zhang, Y. A native sericin wound dressing spun directly from silkworms enhances wound healing. Colloids Surf. B 2023, 225, 113228. [Google Scholar] [CrossRef] [PubMed]
  56. Wang, J.; Li, X.; Song, Y.; Su, Q.; Xiaohalati, X.; Yang, W.; Xu, L.; Cai, B.; Wang, G.; Wang, Z.; et al. Injectable silk sericin scaffolds with programmable shape-memory property and neuro-differentiation-promoting activity for individualized brain repair of severe ischemic stroke. Bioact. Mater. 2021, 6, 1988–1999. [Google Scholar] [CrossRef] [PubMed]
  57. Li, X.; Yang, W.; Xie, H.; Wang, J.; Zhang, L.; Wang, Z.; Wang, L. Cnt/sericin conductive nerve guidance conduit promotes functional recovery of transected peripheral nerve injury in a rat model. ACS Appl. Mater. Interfaces 2020, 12, 36860–36872. [Google Scholar] [CrossRef]
  58. Terada, S.; Nishimura, T.; Sasaki, M.; Yamada, H.; Miki, M. Sericin, a protein derived from silkworms, accelerates the proliferation of several mammalian cell lines including a hybridoma. Cytotechnology 2002, 40, 3–12. [Google Scholar] [CrossRef]
  59. Terada, S.; Sasaki, M.; Yanagihara, K.; Yamada, H. Preparation of silk protein sericin as mitogenic factor for better mammalian cell culture. J. Biosci. Bioeng. 2005, 100, 667–671. [Google Scholar] [CrossRef]
  60. Sahu, N.; Pal, S.; Sapru, S.; Kundu, J.; Talukdar, S.; Singh, N.; Yao, J.; Kundu, S. Non-mulberry and mulberry silk protein sericins as potential media supplement for animal cell culture. BioMed Res. Int. 2016, 2016, 7461041. [Google Scholar] [CrossRef] [Green Version]
  61. Ogawa, A.; Terada, S.; Miki, M.; Kimura, T.; Yamaguchi, A.; Sasaki, M.; Yamada, H. Supplementation of sericin is effective in maintenance of islet survival and function under serum-free culture. In Animal Cell Technology: Basic & Applied Aspects; Springer: Dordrecht, The Netherlands, 2006; Volume 14, pp. 107–112. [Google Scholar]
  62. Deng, T.; Gao, D.; Song, X.; Zhou, Z.; Zhou, L.; Tao, M.; Jiang, Z.; Yang, L.; Luo, L.; Zhou, A.; et al. A natural biological adhesive from snail mucus for wound repair. Nat. Commun. 2023, 14, 396. [Google Scholar] [CrossRef] [PubMed]
  63. Wang, F.; Hou, K.; Chen, W.; Wang, Y.; Wang, R.; Tian, C.; Xu, S.; Ji, Y.; Yang, Q.; Zhao, P.; et al. Transgenic pdgf-bb/sericin hydrogel supports for cell proliferation and osteogenic differentiation. Biomater. Sci. 2020, 8, 657–672. [Google Scholar] [CrossRef] [PubMed]
  64. El-Samad, L.M.; Hassan, M.A.; Basha, A.A.; El-Ashram, S.; Radwan, E.H.; Abdul Aziz, K.K.; Tamer, T.M.; Augustyniak, M.; El Wakil, A. Carboxymethyl cellulose/sericin-based hydrogels with intrinsic antibacterial, antioxidant, and anti-inflammatory properties promote re-epithelization of diabetic wounds in rats. Int. J. Pharm. 2022, 629, 122328. [Google Scholar] [CrossRef] [PubMed]
  65. Padamwar, M.; Pawar, A.; Daithankar, A.; Mahadik, K. Silk sericin as a moisturizer: An in vivo study. J. Cosmet. Dermatol. 2005, 4, 250–257. [Google Scholar] [CrossRef]
  66. Rahimpour, S.; Jabbari, H.; Yousofi, H.; Fathi, A.; Mahmoodi, S.; Jafarian, M.; Shomali, N.; Shotorbani, S. Regulatory effect of sericin protein in inflammatory pathways; a comprehensive review. Pathol. Res. Pract. 2023, 243, 154369. [Google Scholar] [CrossRef]
  67. Kato, N.; Sato, S.; Yamanaka, A.; Yamada, H.; Fuwa, N.; Nomura, M. Silk protein, sericin, inhibits lipid peroxidation and tyrosinase activity. Biosci. Biotechnol. Biochem. 1998, 62, 145–147. [Google Scholar] [CrossRef] [Green Version]
  68. Jena, K.; Pandey, J.; Kumari, R.; Sinha, A.; Gupta, V.; Singh, G. Free radical scavenging potential of sericin obtained from various ecoraces of tasar cocoons and its cosmeceuticals implication. Int. J. Biol. Macromol. 2018, 120, 255–262. [Google Scholar] [CrossRef]
  69. Dong, X.; Zhao, S.; Yin, X.; Wang, H.; Wei, Z.; Zhang, Y. Silk sericin has significantly hypoglycaemic effect in type 2 diabetic mice via anti-oxidation and anti-inflammation. Int. J. Biol. Macromol. 2020, 150, 1061–1071. [Google Scholar] [CrossRef]
  70. Manesa, K.; Kebede, T.; Dube, S.; Nindi, M. Profiling of silk sericin from cocoons of three southern african wild silk moths with a focus on their antimicrobial and antioxidant properties. Materials 2020, 13, 5706. [Google Scholar] [CrossRef]
  71. Kunz, R.; Brancalhão, R.; Ribeiro, L.; Natali, M. Silkworm sericin: Properties and biomedical applications. BioMed Res. Int. 2016, 2016, 8175701. [Google Scholar] [CrossRef] [Green Version]
  72. Wang, H.; Zhong, Z.; Weng, Y.; Wei, Z.; Zhang, Y. Degraded sericin significantly regulates blood glucose levels and improves impaired liver function in t2d rats by reducing oxidative stress. Biomolecules 2021, 11, 1255. [Google Scholar] [CrossRef] [PubMed]
  73. Li, Y.; Ji, D.; Chen, S.; Hu, G. Protective effects of sericin protein on alcohol-mediated liver damage in mice. Alcohol Alcohol. 2008, 43, 246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Watkins, S.; Thomas, D.; Clifford, M.; Tidmarsh, S.; Sweeney, A.; Ah, E.; Dickerson, J.; Cowie, V.; Shaw, D. Plasma amino acids in patients with senile dementia and in subjects with down’s syndrome at an age vulnerable to alzheimer changes. J. Intellect. Disabil. Res. 1989, 33, 159–166. [Google Scholar] [CrossRef] [PubMed]
Polymers 15 02941 g001 550
Figure 1. Silk glands, cocoons, and microstructures of silks from wild-type silkworms and silk fibroin-deficient mutant silkworms. (a,b) The photos of silk glands isolated from wild-type silkworms (a) and silk fibroin-deficient mutant silkworms (b), respectively. The anterior silk gland (AG), middle silk gland (MG), and posterior silk gland (PG) are labeled using red arrows. There is no AG in the silk glands of silk fibroin-deficient mutant silkworms. (c,d) The representative photograph of the cocoons produced by wild-type silkworms. (e–l) The representative photograph of cocoons produced by different varieties of fibroin-deficient silkworms. (m,n) The microstructures of the wild-type silkworm cocoons (m) and silk fibroin-deficient mutant silkworm cocoons (n), respectively. (o,p) The model diagrams of silk fibers secreted from wild-type silkworm (o) and fibroin-deficient mutant silkworm (p).
Figure 1. Silk glands, cocoons, and microstructures of silks from wild-type silkworms and silk fibroin-deficient mutant silkworms. (a,b) The photos of silk glands isolated from wild-type silkworms (a) and silk fibroin-deficient mutant silkworms (b), respectively. The anterior silk gland (AG), middle silk gland (MG), and posterior silk gland (PG) are labeled using red arrows. There is no AG in the silk glands of silk fibroin-deficient mutant silkworms. (c,d) The representative photograph of the cocoons produced by wild-type silkworms. (e–l) The representative photograph of cocoons produced by different varieties of fibroin-deficient silkworms. (m,n) The microstructures of the wild-type silkworm cocoons (m) and silk fibroin-deficient mutant silkworm cocoons (n), respectively. (o,p) The model diagrams of silk fibers secreted from wild-type silkworm (o) and fibroin-deficient mutant silkworm (p).
Polymers 15 02941 g001
Polymers 15 02941 g002 550

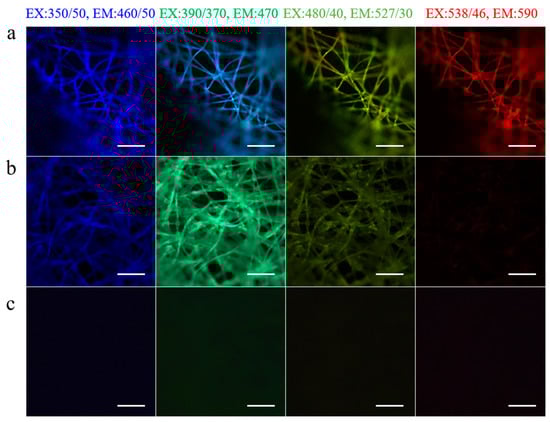

Figure 2. Fluorescence of fibroin-deficient silkworm cocoons. (a–c) The fluorescence images of the random regions from three varieties of silkworm cocoons were imaged under the light at different wavelengths. Scale bars, 50 μm.
Figure 2. Fluorescence of fibroin-deficient silkworm cocoons. (a–c) The fluorescence images of the random regions from three varieties of silkworm cocoons were imaged under the light at different wavelengths. Scale bars, 50 μm.
Polymers 15 02941 g002
Polymers 15 02941 g003 550
Figure 3. Silkworms with high adaptability to artificial diet and their cocoons produced by raising the artificial diet for all ages.
Figure 3. Silkworms with high adaptability to artificial diet and their cocoons produced by raising the artificial diet for all ages.
Polymers 15 02941 g003
Polymers 15 02941 g004 550

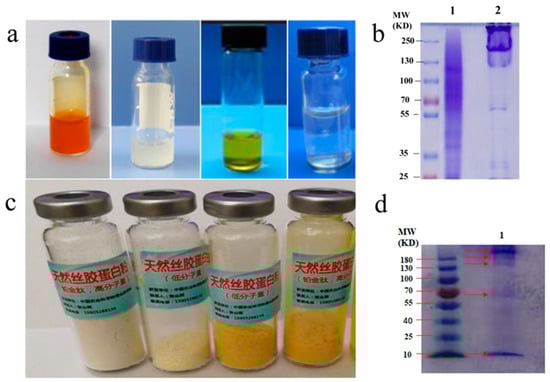

Figure 4. A series of sericin solutions and sericin powders prepared in different ways. (a) Left column and middle left are the high concentrations of native sericin solutions isolated from silk gland of different varieties of silk fibroin-deficient silkworms. Middle-right and right column are the sericin solutions with low degradation extracted from different varieties of fibroin-deficient silkworm cocoons using LiBr methods. (b) Sericin protein powders prepared from fibroin-deficient cocoons in different ways. From left to right: white high molecular sericin powder, white low molecular sericin powder, yellow low molecular sericin powder, yellow low molecular sericin powder, yellow low molecular sericin powder. (c) The protein profiles of the sericin solution extracted from fibroin-deficient silkworm cocoons by using boiling water (lane 1) and 6 M LiBr at 35 °C (lane 2). (d) The protein profiles of the sericin solution extracted from the silk gland of fibroin-deficient silkworms (lane 1).
Figure 4. A series of sericin solutions and sericin powders prepared in different ways. (a) Left column and middle left are the high concentrations of native sericin solutions isolated from silk gland of different varieties of silk fibroin-deficient silkworms. Middle-right and right column are the sericin solutions with low degradation extracted from different varieties of fibroin-deficient silkworm cocoons using LiBr methods. (b) Sericin protein powders prepared from fibroin-deficient cocoons in different ways. From left to right: white high molecular sericin powder, white low molecular sericin powder, yellow low molecular sericin powder, yellow low molecular sericin powder, yellow low molecular sericin powder. (c) The protein profiles of the sericin solution extracted from fibroin-deficient silkworm cocoons by using boiling water (lane 1) and 6 M LiBr at 35 °C (lane 2). (d) The protein profiles of the sericin solution extracted from the silk gland of fibroin-deficient silkworms (lane 1).
Polymers 15 02941 g004
Polymers 15 02941 g005 550

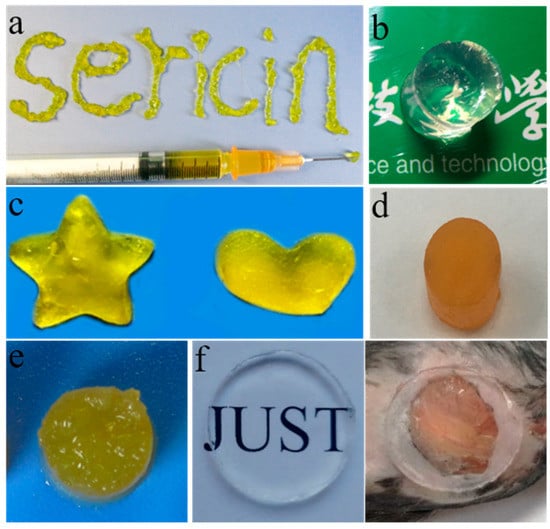

Figure 5. Hydrogels fabricated by sericin isolated from fibroin-deficient silkworm cocoons or silk glands of silkworms. (a) An injectable, photoluminescent, cell-adhesive 3D hydrogel formed by covalent crosslinking [16]. (b) A highly transparent, elastic, injectable sericin hydrogel induced by ultrasound [49]. (c) A sterile self-assembled sericin hydrogel [43]. (d) A robust sericin hydrogel [45]. (e) A sericin-alginate interpenetrating network hydrogel [17]. (f) A transparent sericin-polyacrylamide interpenetrating network hydrogel [51].
Figure 5. Hydrogels fabricated by sericin isolated from fibroin-deficient silkworm cocoons or silk glands of silkworms. (a) An injectable, photoluminescent, cell-adhesive 3D hydrogel formed by covalent crosslinking [16]. (b) A highly transparent, elastic, injectable sericin hydrogel induced by ultrasound [49]. (c) A sterile self-assembled sericin hydrogel [43]. (d) A robust sericin hydrogel [45]. (e) A sericin-alginate interpenetrating network hydrogel [17]. (f) A transparent sericin-polyacrylamide interpenetrating network hydrogel [51].
Polymers 15 02941 g005
Polymers 15 02941 g006 550

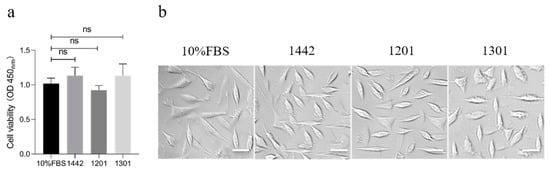

Figure 6. The cell viabilities (a) and morphologies (b) of NIH3T3 cells cultured using high sugar DMEM medium containing 10% fetal bovine serum (FBS) or 0.2% (w/v) sericin isolated from cocoons of 3 silkworm varieties (1201, 1301, and 1442). ns in figure a representative no significant difference.
Figure 6. The cell viabilities (a) and morphologies (b) of NIH3T3 cells cultured using high sugar DMEM medium containing 10% fetal bovine serum (FBS) or 0.2% (w/v) sericin isolated from cocoons of 3 silkworm varieties (1201, 1301, and 1442). ns in figure a representative no significant difference.
Polymers 15 02941 g006
Polymers 15 02941 g007 550

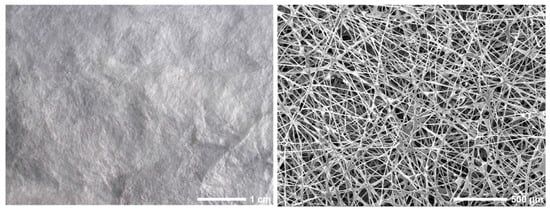

Figure 7. Sericin wound dressing (left column) and its microstructure (right column) [55].
Figure 7. Sericin wound dressing (left column) and its microstructure (right column) [55].
Polymers 15 02941 g007
Table
Table 1. Biomedical applications of sericin from fibroin-deficient silkworms.
Table 1. Biomedical applications of sericin from fibroin-deficient silkworms.
MaterialsApplicationsReference
Hydrogels
SericinTissue engineering[43,45,49]
SericinWound dressing[25]
SericinIschemic Stroke[20]
SericinIschemic myocardial infarction[31]
SericinCartilage regeneration[26]
Sericin/MethacrylateSkin wound healing[52]
Sericin/Graphene oxideCalvarial bone regeneration[53]
Sericin/AlginateCell culture and drug delivery[17]
Sericin/GlutaraldehydeCell culture and drug delivery[16]
Sericin/PolyacrylamideVisualized dressing[51]
Films
SericinWound dressing[54]
SericinDrug delivery[28]
Sponges
SericinDrug delivery[28]
Scaffolds
SericinWound dressing[55]
Sericin/ChitosanChronic nerve compression treatment[30]
Sericin/Carbon-Nanotubes (CNTs)Ischemic stroke damage treatment[56]
Conduits
SericinPeripheral nerve regeneration[22]
Sericin/SiliconePeripheral nerve regeneration[21]
Sericin/ClobetasolPeripheral nerve regeneration[24]
Sericin/CNTsPeripheral nerve regeneration[57]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, Y.; Wei, Y.; Zhang, G.; Zhang, Y. Sericin from Fibroin-Deficient Silkworms Served as a Promising Resource for Biomedicine. Polymers 2023, 15, 2941. https://doi.org/10.3390/polym15132941

AMA Style

Li Y, Wei Y, Zhang G, Zhang Y. Sericin from Fibroin-Deficient Silkworms Served as a Promising Resource for Biomedicine. Polymers. 2023; 15(13):2941. https://doi.org/10.3390/polym15132941

Chicago/Turabian Style

Li, Yurong, Yongkang Wei, Guozheng Zhang, and Yeshun Zhang. 2023. "Sericin from Fibroin-Deficient Silkworms Served as a Promising Resource for Biomedicine" Polymers 15, no. 13: 2941. https://doi.org/10.3390/polym15132941

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
