# Compounding, Rheology and Numerical Simulation of Highly Filled Graphite Compounds for Potential Fuel Cell Applications

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

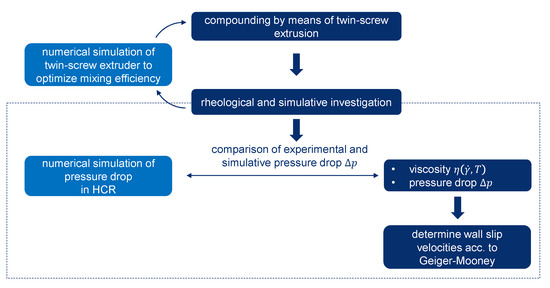

## 2. Approach and Experimental Set-Up

#### 2.1. Experimental Compounding Process

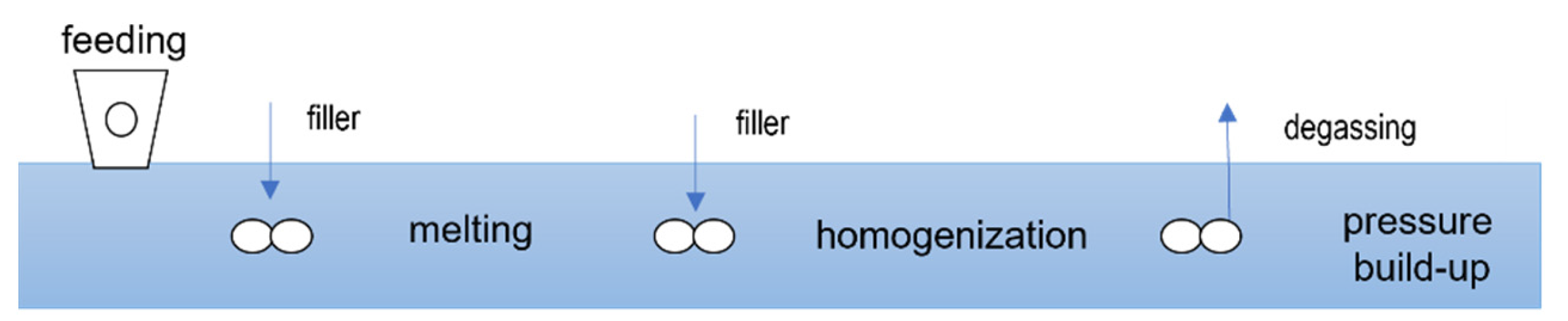

^{3}, large amounts of air are taken into the process, which must be reduced as much as possible. Air intakes reduce the conveying capacity, the throughput, the mixing quality of the twin-screw extruder, and finally the compound quality. Therefore, it is imperative that the air included in the fillers is minimized as far as possible before they are added to the twin-screw extruder.

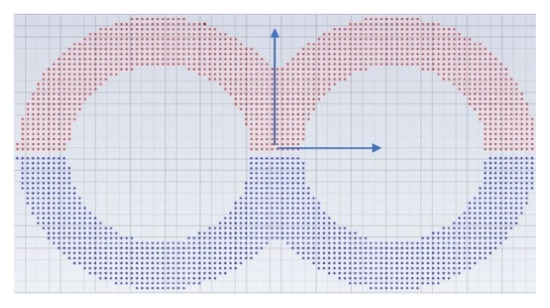

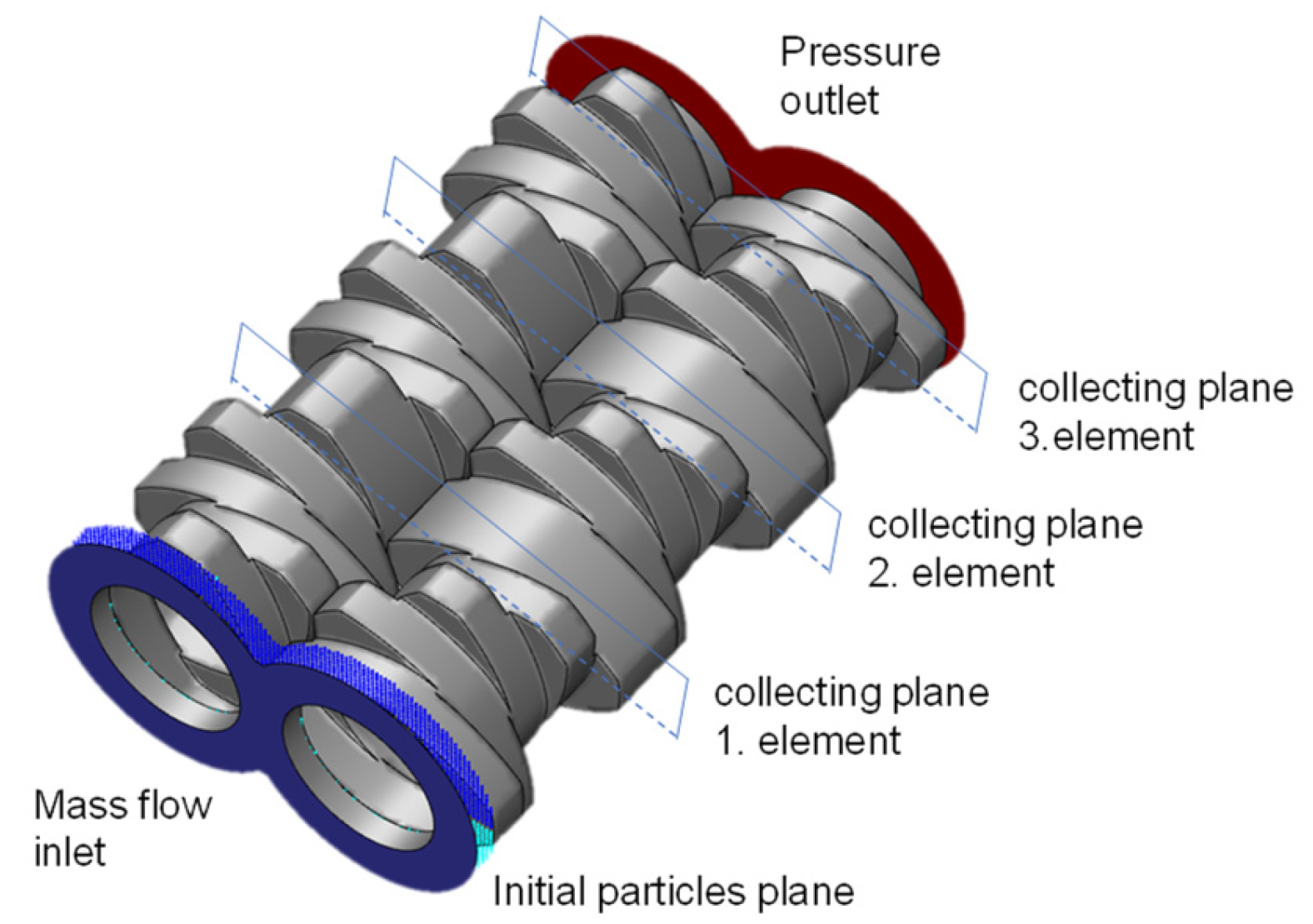

#### 2.2. Numerical Simulation of Twin Srew Mixing Process

^{5}Pas, $B$ = 9.1 1/s and $C=$ 0.727, respectively.

#### 2.3. Multiphase Flow

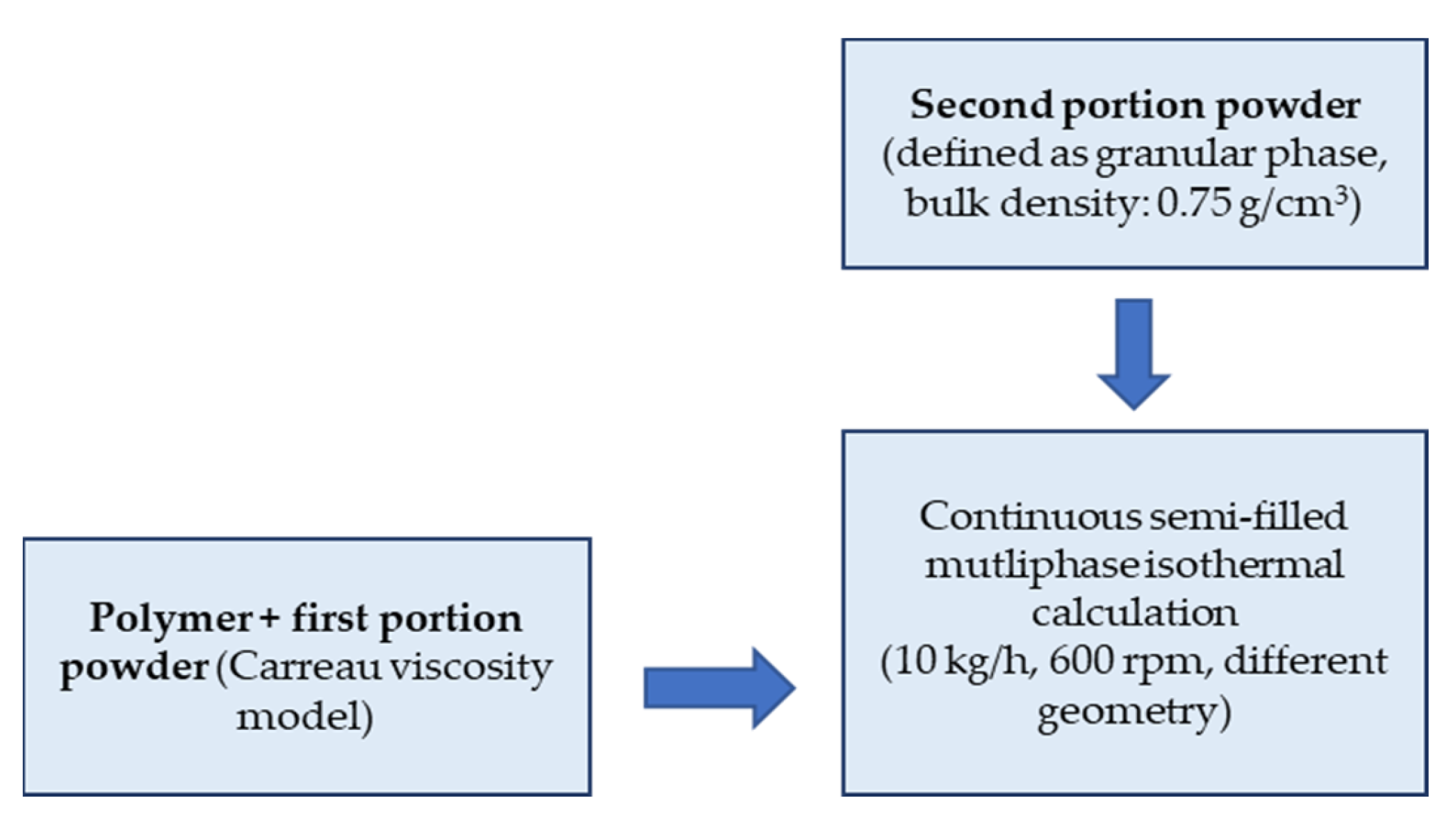

^{3}Pas, $B$= 0.772 1/s, and $C=$ 0.481. The mixing process is simulated over many revolutions until reaching the stationary state. No interaction is allowed between the air phase and the other two product phases consisting of premixed polymer and powder. The mixing density is used as a physical value for confirming the stationary state and for the evaluation and comparison between the different geometries.

#### 2.4. Rheological Characterization and Materials

^{−1}. Higher shear rates are not expected during the extrusion of bipolar plates with a dimension of 150 mm × 2 mm, which can be confirmed via a simple analytical estimation. All measurements were performed three times to ensure a high reproducibility. The obtained values were subsequently arithmetically averaged.

#### 2.5. Simulation Model of High-Pressure Capillary Rheometer

## 3. Results

#### 3.1. Simulation of Distributive Mixing Process in Co-Rotating Twin Screw Extruders

#### 3.1.1. Mixing over Kneading Blocks

#### 3.1.2. Special Mixing Elements

#### 3.2. Results of the Multiphase Mixing Simulation

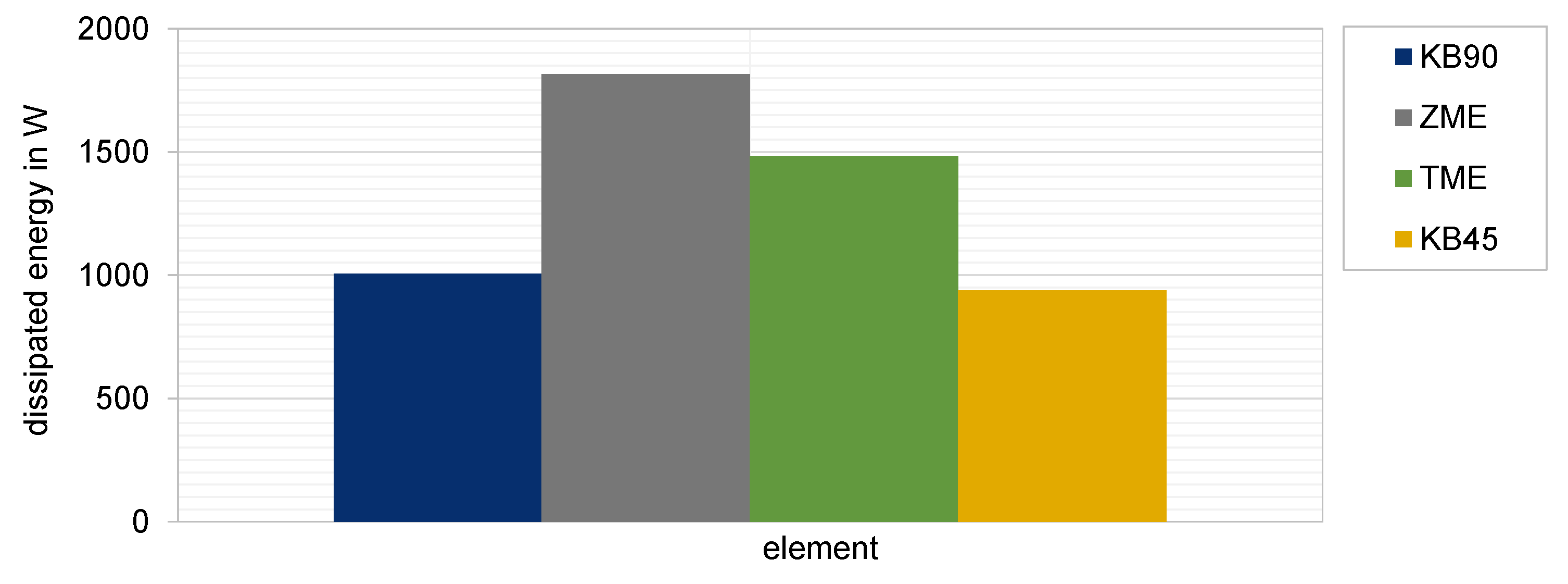

#### 3.3. Concluding Remarks of Mixing Simulation

#### 3.4. Melt Density and Results of High-Pressure Capillary Measurements

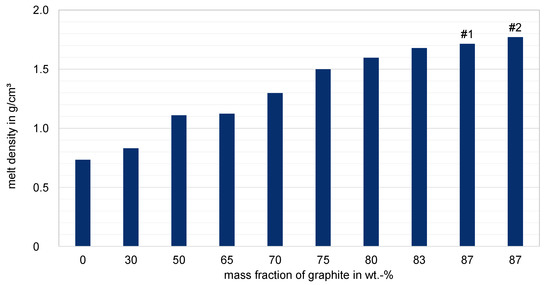

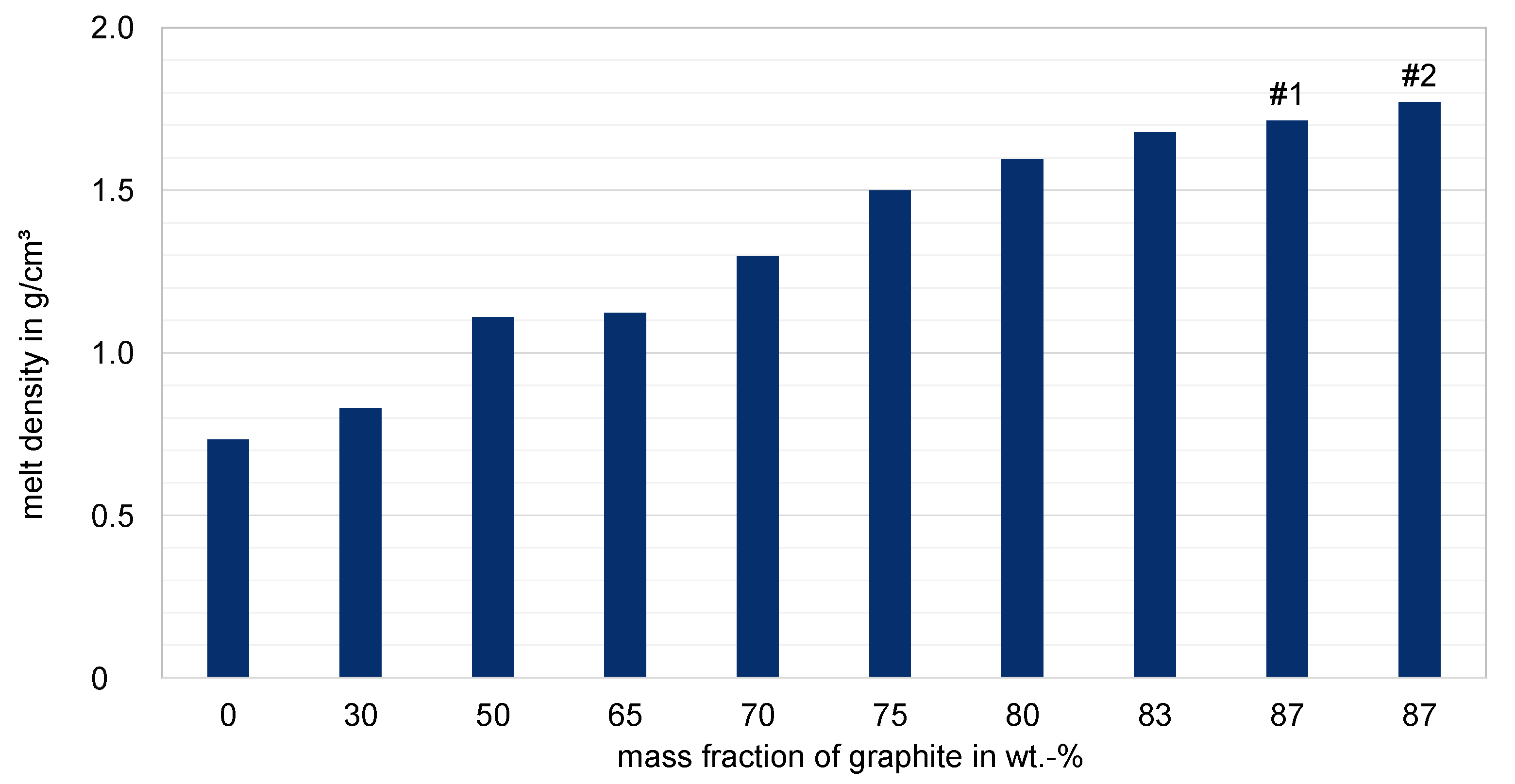

^{3}for the unfilled base polymer to a value of 1.75 g/cm

^{3}for the highly filled compound, with a mass fraction of 87 wt.-% graphite. The density of pure graphite tends to be around 2.1 g/cm

^{3}. Compared to the unfilled raw material, the melt density doubles already at a filling ratio of approximately 75 wt.-%. This already suggests a processing challenge.

#### 3.5. Analysis of Wall Slip Effects

#### 3.6. Simulation Results of High-Pressure Capillary Rheometer

^{−1}) for this compound, the presence of wall slip effects could hardly be excluded completely. However, a plausible explanation for the abnormally high deviation for this specific simulation run has not yet been found. Nevertheless, a numerical problem could not yet be found.

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

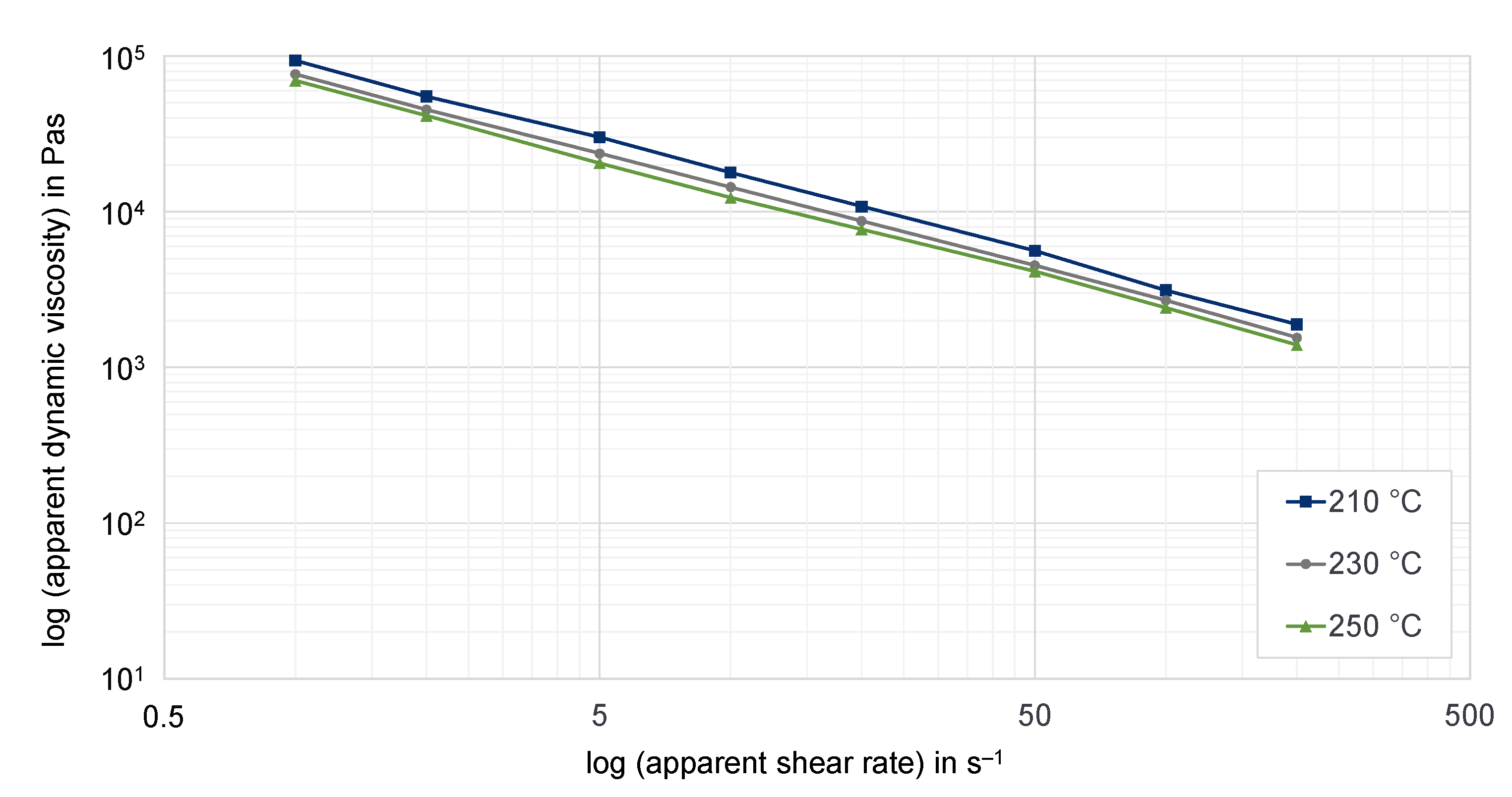

**Figure A1.**Measured apparent shear viscosities depending on temperature for a filler content of 87 wt.-%-#2 (slit die 1).

## References

- Ahlfs, S.; Goudz, A.; Streichfuss, M.; Ahlfs, S.; Goudz, A.; Streichfuss, M. Die Brennstoffzelle: Eine Technische und Logistische Betrachtung Sowie Deren Anwendung im ÖPNV; Springer Fachmedien Wiesbaden: Wiesbaden, Germany, 2020. [Google Scholar]
- Hamacher, T.; Töpler, J.; Lehmann, J. Wasserstoff und Brennstoffzelle: Technologien und Marktperspektiven; 2 Auflage; Springer Vieweg: Berlin/Heidelberg, Germany, 2017; ISBN 978-3-662-53359-8. [Google Scholar]
- Kaiser, R.L. Bipolarplatten für Polymerelektrolytmembran-Brennstoffzellen aus Thermisch und Elektrisch Hochleitfähigen Thermoplastischen Kunststoffen: Rezeptierung, Herstellung, Charakterisierung und Anwendung. Ph.D. Thesis, University of Stuttgart, Stuttgart, Germany, 2008. [Google Scholar]
- Bonten, C. Plastics Technology: Introduction and Fundamentals; Hanser: Munich, Germany, 2019; ISBN 9781569907689. [Google Scholar]
- Roth, B.; Frank, R.; Kleffel, T.; Schneider, K.; Drummer, D. High-Precision Thin Wall Bipolar Plates for Fuel Cell Applications via Injection Compression Molding with Dynamic Mold Temperature Control. Polymers
**2022**, 14, 2799. [Google Scholar] [CrossRef] [PubMed] - Offermann, H. Zum Wandverhalten von Hart-PVC-Schmelzen. Rheol. Acta
**1975**, 14, 342–346. [Google Scholar] [CrossRef] - Menning, G. Visuelle Untersuchungen zum Wandgleitverhalten hochpolymerer Schmelzen. Rheol. Acta
**1976**, 15, 199–205. [Google Scholar] [CrossRef] - Hegler, R.P.; Menning, G. Untersuchungen zum Wandgleiten von plastifiziertem Hart-PVC. Rheol. Acta
**1981**, 20, 553–560. [Google Scholar] [CrossRef] - Friesenbichler, W. Ermittlung von Rheologischen Kenndaten für Wandgleitende PVC-U Mischungen und ihre Anwendung für Düsenberechnungen Beim Extrudieren. Ph.D. Thesis, Montanuniversität Leoben, Leoben, Austria, 1992. [Google Scholar]
- Hatzikiriakos, S.G.; Dealy, J.M. Wall slip of molten high density polyethylene. I. Sliding plate rheometer studies. J. Rheol.
**1991**, 35, 497–523. [Google Scholar] [CrossRef] - Uhland, E. Das anormale Fließverhalten von Polyäthylen hoher Dichte. Rheol. Acta
**1979**, 18, 1–24. [Google Scholar] [CrossRef] - Atwood, B.T.; Schowalter, W.R. Measurements of slip at the wall during flow of high-density polyethylene through rectangular conduit. Rheol. Acta
**1989**, 28, 134–146. [Google Scholar] [CrossRef] - Mitsoulis, E.; Hatzikiriakos, S.G. Rheological Properties Related to Extrusion of Polyolefins. Polymers
**2021**, 13, 489. [Google Scholar] [CrossRef] - Laun, H.M. Elastic properties of polyethylene melts at high shear rates with respect to extrusion. Rheol. Acta
**1982**, 21, 464–469. [Google Scholar] [CrossRef] - Putz, V.; Buchegger, T.; Apostol, S.; Voglhuber-Brunnmaier, T.; Miethlinger, J.; Zagar, B.G.; Selvasankar, R.K. In-Line Flow Measurement of Molten PLA in Capillary Flow Channels Using Ultrasound. In Proceedings of the 2015 9th International Conference on Sensing Technology (ICST), Auckland, New Zealand, 8–10 December 2015; pp. 151–156. [Google Scholar] [CrossRef]
- Brockhaus, S.; Klie, B.; Schöppner, V.; Giese, U. Grundlegende Studie und alternative Methode zur Bewertung des Wandgleiteffekts bei hochviskosen Kautschukmischungen. Kautsch. Gummi Kunstst.
**2014**, 67, 44–51. [Google Scholar] - Jepsen, C.; Räbiger, N. Untersuchungen zum Wandgleitverhalten von Kautschukmischungen an einem Hochdruck-Kapillar-Viskosimeter. KGK Kautsch. Gummi Kunstst.
**1988**, 41, 342–352. [Google Scholar] - Wiegreffe, S. Untersuchungen zum Wandgleitverhalten von EPDM und SBR. KGK Kautsch. Gummi Kunstst.
**1991**, 44, 216–221. [Google Scholar] - Malkin, A.Y.; Baranov, A.V.; Vickulenkova, M.E. Experimental estimation of wall slip for filled rubber compounds. Rheol. Acta
**1993**, 32, 150–155. [Google Scholar] [CrossRef] - Klie, B.; Haberstroh, E.; Giese, U.; Brockhaus, S.; Schöppner, V. Influence of the flow channel coating of the high pressure capillary viscometer on the formation of wall slip effects in the case of rubber compounds. KGK Kautsch. Gummi Kunstst.
**2015**, 68, 46–58. [Google Scholar] - Laenger, K.F.; Laenger, F.; Geiger, K. Wandgleiten keramischer Extrusions-Pressmassen, Teil 2. Ceram. Forum Int.
**2017**, 94, D13–D18. [Google Scholar] - Händle, F.; Laenger, F. Wall slippage of ceramic extrusion bodies. Dtsch. Keram. Ges.
**2009**, 86, 32–36. [Google Scholar] - Schramm, D. Möglichkeiten und Grenzen einer Verbesserten Prozessbeschreibung für Kautschukextruder. Ph.D. Thesis, Universität Paderborn, Paderborn, Germany, 2003. [Google Scholar]
- Eggers, H. Rheologie Gefüllter Kautschukschmelzen. Ph.D. Thesis, RWTH Aachen University, Aachen, Germany, 1996. [Google Scholar]
- Geiger, K. Rheologische Charakterisierung von EPDM-Kautschukmischungen mittels Kapillarrheometer-Systemen. Kautsch. Gummi Kunstst.
**1989**, 42, 273–283. [Google Scholar] - Ramamurthy, A.V. Wall Slip in Viscous Fluids and Influence of Materials of Construction. J. Rheol.
**1986**, 30, 337–357. [Google Scholar] [CrossRef] - Hatzikiriakos, S.G. Wall slip of molten polymers. Prog. Polym. Sci.
**2012**, 37, 624–643. [Google Scholar] [CrossRef] - Münstedt, H. Investigations of Slip in Capillary Flow by Laser-Doppler Velocimetry and Their Relations to Melt Fracture. AIP Conf. Proc.
**2015**, 1662, 30001. [Google Scholar] - Mooney, M. Explicit Formulas for Slip and Fluidity. J. Rheol.
**1931**, 2, 210–222. [Google Scholar] [CrossRef] - Kreuz, C.; Niemzig, O.; Rau, O. Charakterisierung Hochgefüllter Graphit-Compounds zur Auslegung und Optimierung des Spritzgießprozesses für Bipolarplatten in Brennstoffzellen-Anwendungen: Projektbericht des Projektes 304 ZN (DKI Darmstadt), Laufzeit 2009–2011. Available online: https://www.google.com.hk/url?sa=i&rct=j&q=&esrc=s&source=web&cd=&ved=0CAIQw7AJahcKEwigxrmS9Zn_AhUAAAAAHQAAAAAQAg&url=https%3A%2F%2Fwww.zbt-duisburg.de%2Ffileadmin%2Fuser_upload%2F01-aktuell%2F05-publikationen%2F06-Projektberichte%2FAiF304ZN_Abschlussbericht_Rheo-SG.pdf&psig=AOvVaw2pRW69Yfai_PE-F0vITG02&ust=1685428529119751 (accessed on 5 June 2023).
- Galaktionov, O.S.; Anderson, P.D.; Kruijt, P.; Peters, G.; Meijer, H. A mapping approach for three-dimensional distributive mixing analysis. Comput. Fluids
**2001**, 30, 271–289. [Google Scholar] [CrossRef] - Sussman, M.; Smereka, P.; Osher, S. A Level Set Approach for Computing Solutions to Incompressible Two-Phase Flow. J. Comput. Phys.
**1994**, 114, 146–159. [Google Scholar] [CrossRef] - Wang, W.; Manas-Zloczower, I.; Kaufman, M. Characterization of Distributive Mixing in Polymer Processing Equipment using Renyi Entropies. Int. Polym. Process.
**2001**, 16, 315–322. [Google Scholar] [CrossRef] - Alemaskin, K. Entropic Measures of Mixing in Application to Polymer Processing. Ph.D. Thesis, Case Western Reserve University, Cleveland, OH, USA, 2005. [Google Scholar]
- Wang, W.; Manas-Zloczower, I. Temporal distributions: The basis for the development of mixing indexes for scale-up of polymer processing equipment. Polym. Eng. Sci.
**2001**, 41, 1068–1077. [Google Scholar] [CrossRef] - Poux, M.; Fayolle, P.; Bertrand, J.; Bridoux, D.; Bousquet, J. Powder mixing: Some practical rules applied to agitated systems. Powder Technol.
**1991**, 68, 213–234. [Google Scholar] [CrossRef] - Erb, T. Simulationsgestützte Optimierung Dynamischer Mischer für Hochleistungsextruder. Ph.D. Thesis, University of Stuttgart, Stuttgart, Germany, 2018. [Google Scholar]
- Danckwerts, P.V. The definition and measurement of some characteristics of mixtures. Appl. Sci. Res.
**1952**, 3, 279–296. [Google Scholar] [CrossRef] - Kang, T.G.; Kwon, T.H. Colored particle tracking method for mixing analysis of chaotic micromixers. J. Micromech. Microeng.
**2004**, 14, 891–899. [Google Scholar] [CrossRef] - Frungieri, G.; Boccardo, G.; Buffo, A.; Karimi–Varzaneh, H.A.; Vanni, M. CFD-DEM characterization and population balance modelling of a dispersive mixing process. Chem. Eng. Sci.
**2022**, 260, 117859. [Google Scholar] [CrossRef] - Frungieri, G.; Boccardo, G.; Buffo, A.; Marchisio, D.; Karimi-Varzaneh, H.A.; Vanni, M. A CFD-DEM approach to study the breakup of fractal agglomerates in an internal mixer. Can. J. Chem. Eng.
**2020**, 98, 1880–1892. [Google Scholar] [CrossRef] - ANSYS, Inc. ANSYS Fluent Theory Guide 2021. Available online: https://www.google.com.hk/url?sa=i&rct=j&q=&esrc=s&source=web&cd=&cad=rja&uact=8&ved=0CAIQw7AJahcKEwiomYbN-Jn_AhUAAAAAHQAAAAAQAg&url=https%3A%2F%2Fdl.cfdexperts.net%2Fcfd_resources%2FAnsys_Documentation%2FFluent%2FAnsys_Fluent_Theory_Guide.pdf&psig=AOvVaw0egkgwFRV9F1OkbTtJTHAO&ust=1685429546598347 (accessed on 5 June 2023).
- Mezger, T.G. Das Rheologie Handbuch; Vincentz Network: Hannover, Germany, 2019. [Google Scholar]
- Weller, H.G.; Tabor, G.; Jasak, H.; Fureby, C. A tensorial approach to computational continuum mechanics using object-oriented techniques. Comput. Phys.
**1998**, 12, 620. [Google Scholar] [CrossRef] - Jasak, H. Error Analysis Estimation for Finite Volume Method with Applications to Fluid Flow. Ph.D. Thesis, University of London, London, UK, 1996. [Google Scholar]
- Reitinger, P.; Bonten, C. Wall Slip Effects in Plastics Processing. In Proceedings of the Tagungsband des 28 Stuttgarter Kunststoffkolloquiums, Stuttgart, Germany, 28 February–2 March 2023; pp. 93–100. [Google Scholar]

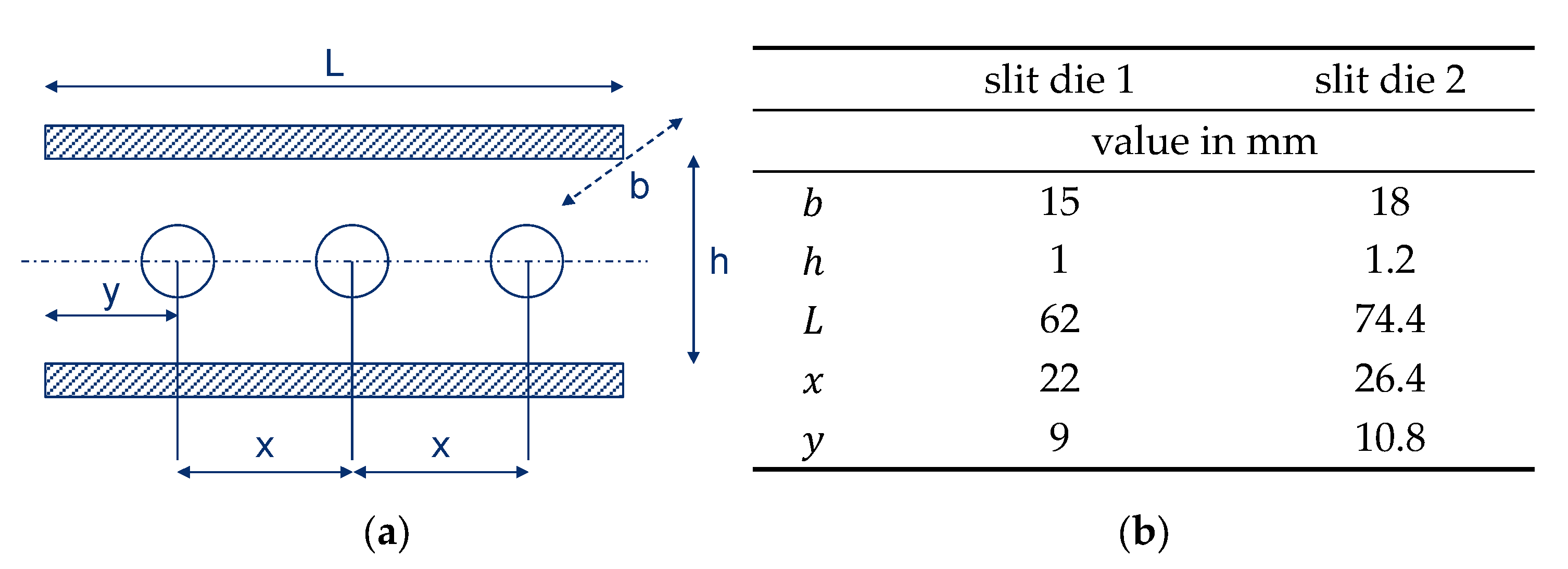

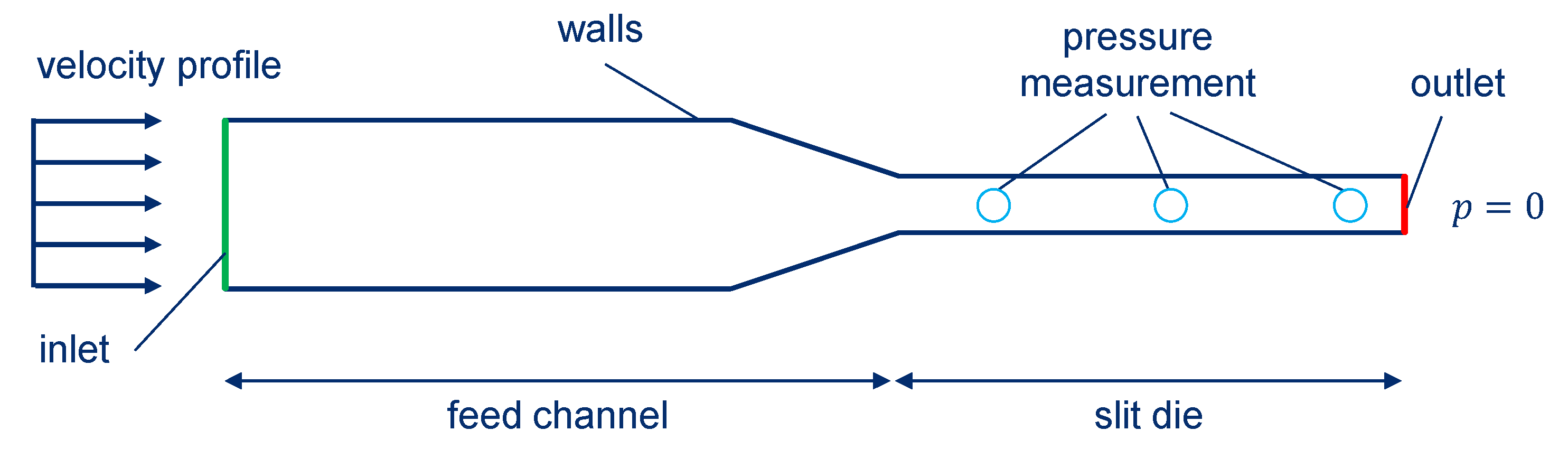

**Figure 7.**Schematic description of model used for the simulation of the high-pressure capillary rheometer.

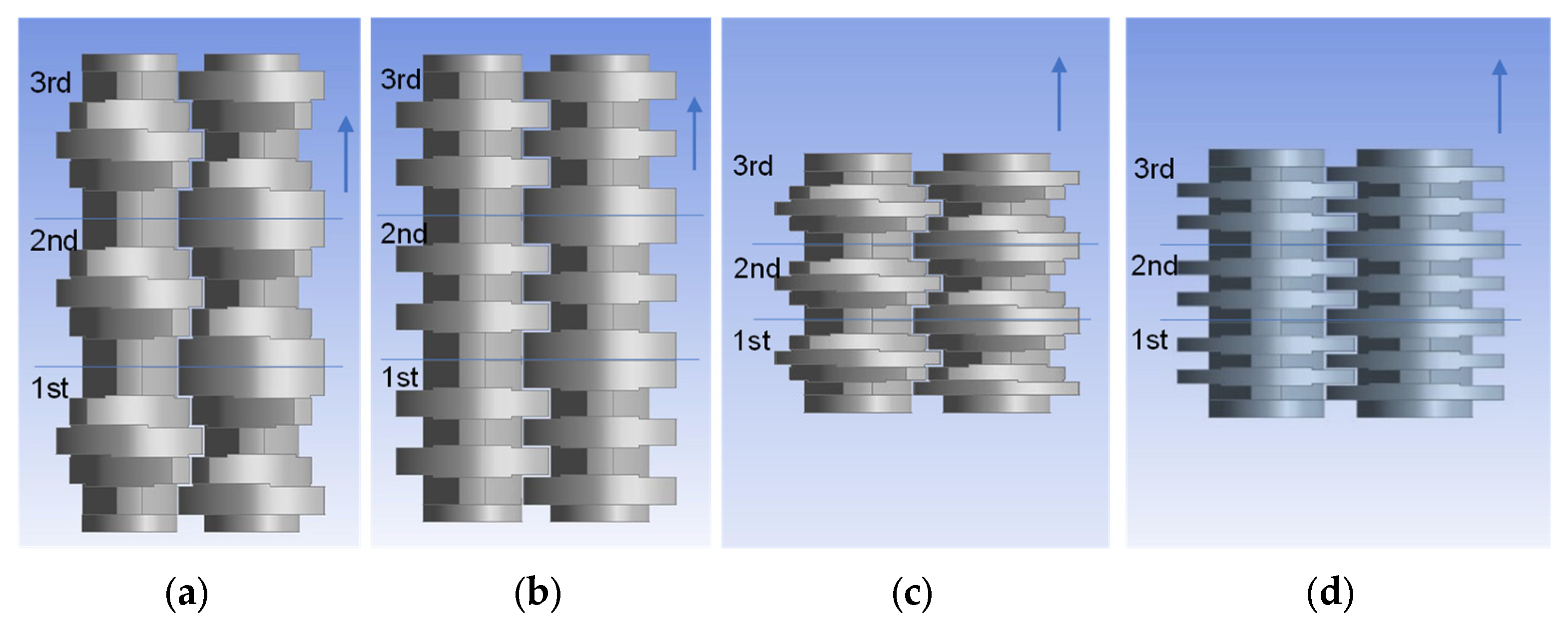

**Figure 8.**Geometry of kneading blocks, combinations of wide and narrow disks 45° and 90°. (

**a**) wide disks 45°, (

**b**) wide disks 90°, (

**c**) narrow disks 45°, and (

**d**) narrow disks 90°.

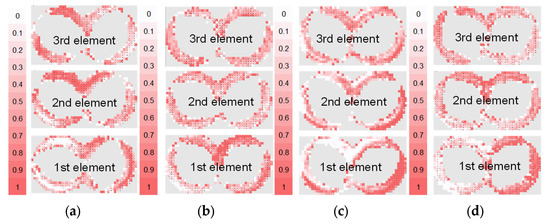

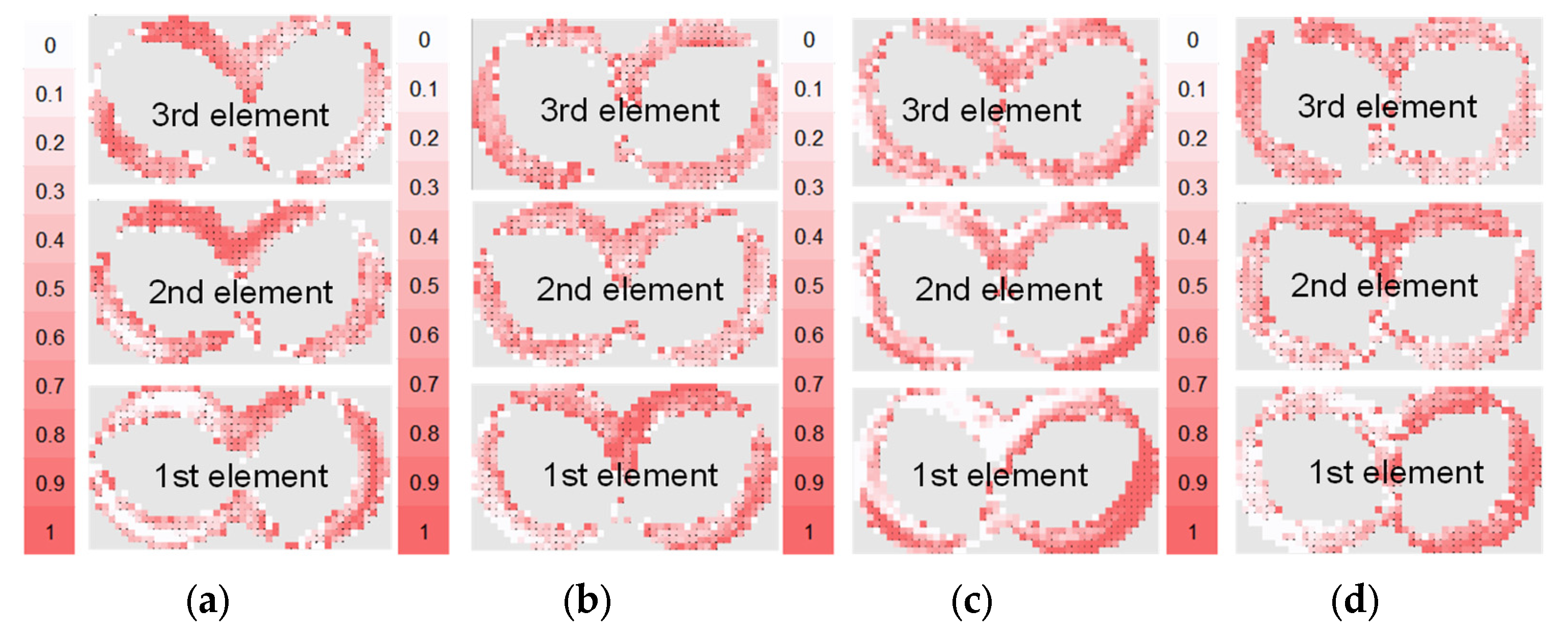

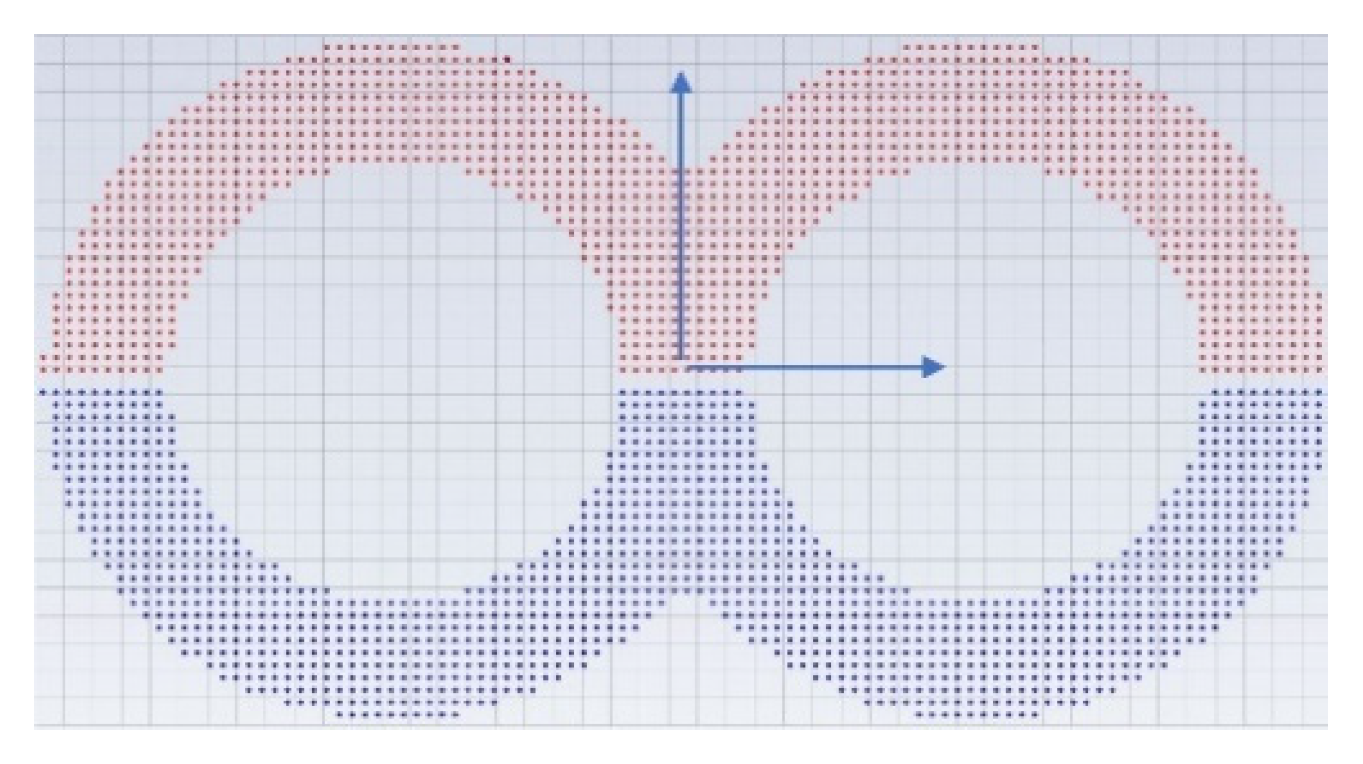

**Figure 9.**Bin concentrations distribution cut-outs (0.5: fully mixed; 1: fully segregated) after reaching the “stationary” state of mixing. (

**a**) wide disks 45°, (

**b**) wide disks 90°, (

**c**) narrow disks 45°, and (

**d**) narrow disks 90°.

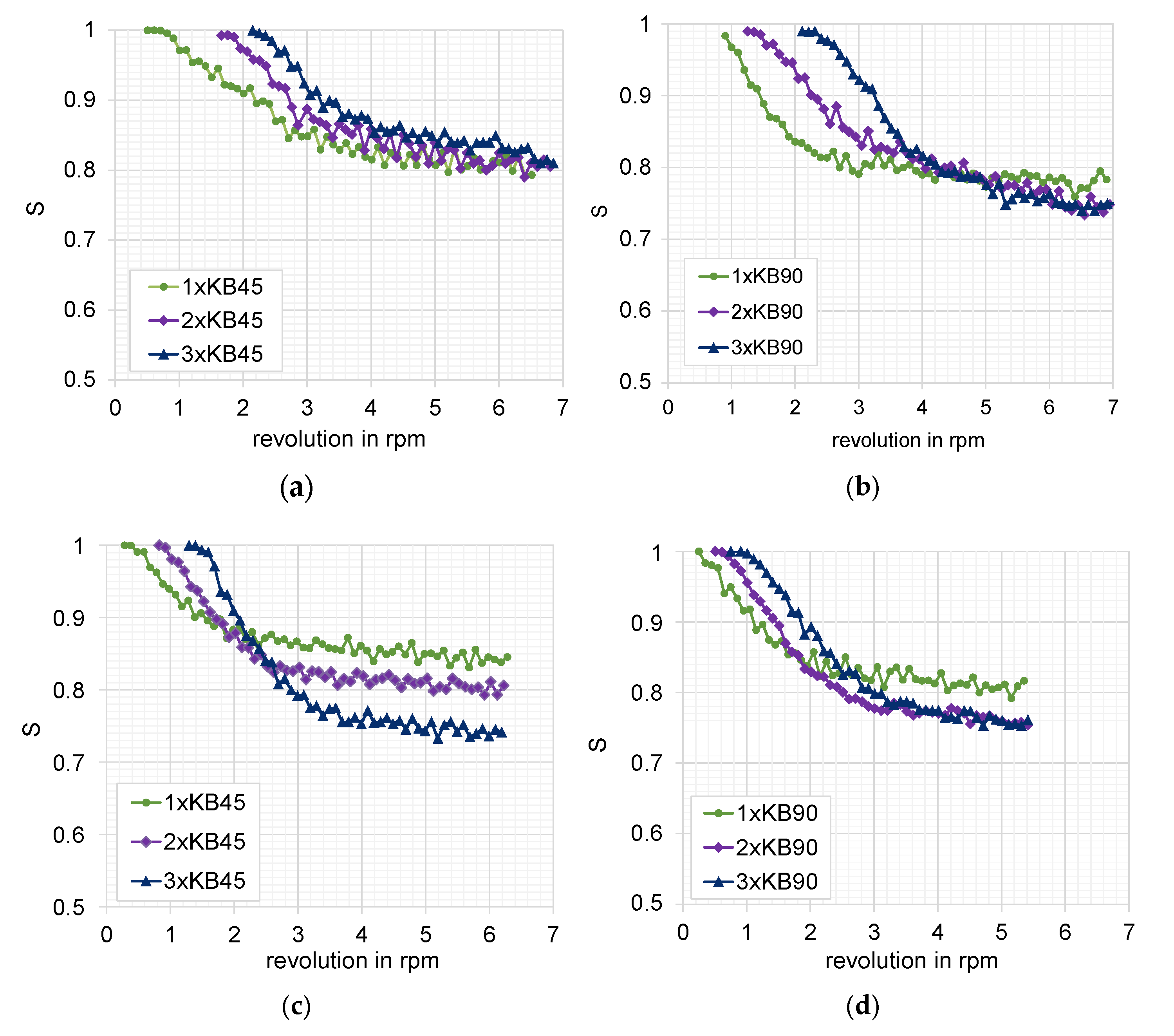

**Figure 10.**Evolution of the mixing coefficient as function of the number of revolutions: (

**a**) wide disks 45°, (

**b**) wide disks 90°, (

**c**) narrow disks 45°, and (

**d**) narrow disks 90°.

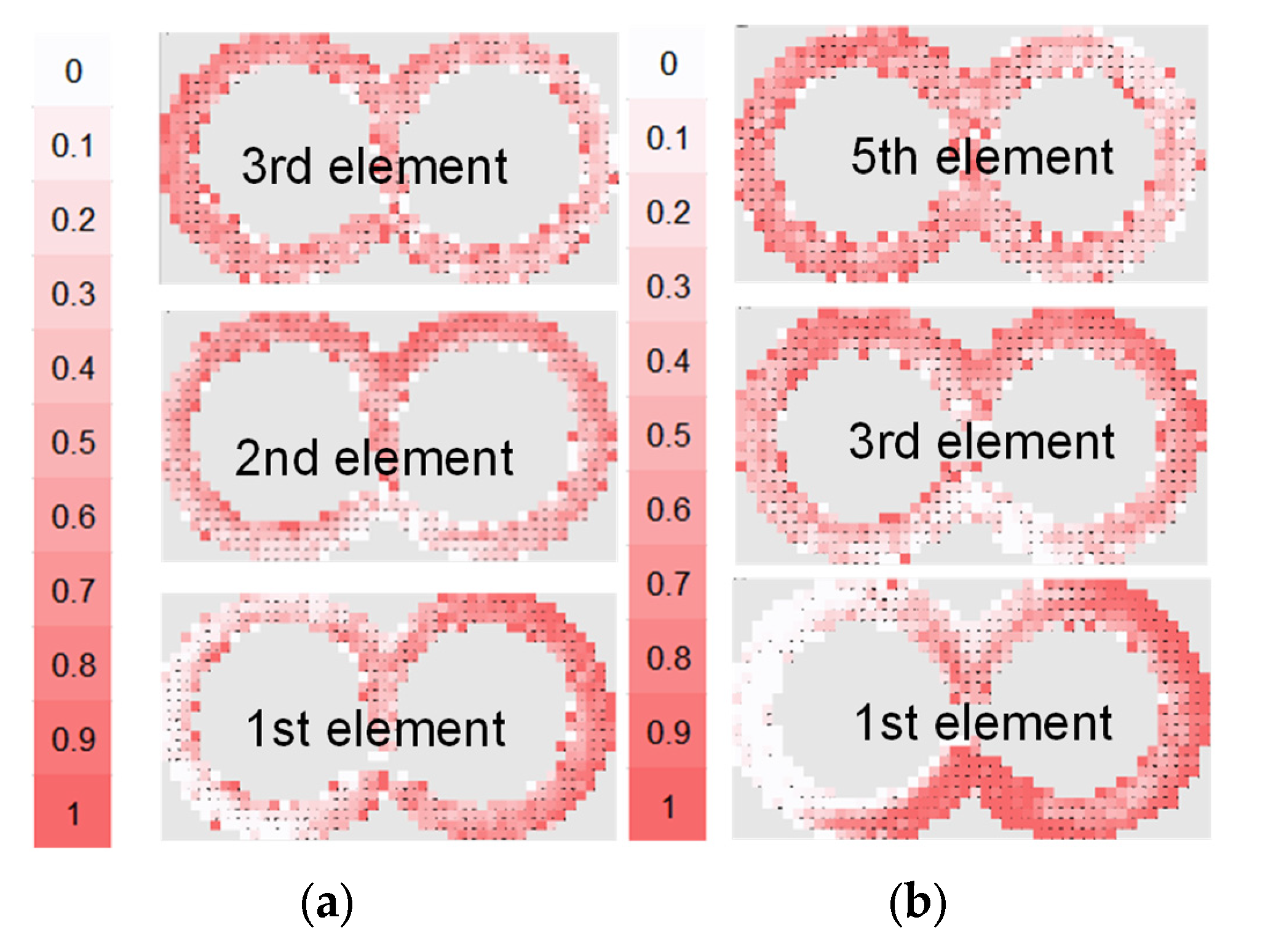

**Figure 12.**Bin concentration cut-outs: (0.5: fully mixed; 1: fully segregated) (

**a**) ZME configuration and (

**b**) TME configuration (only for first, third and fifth).

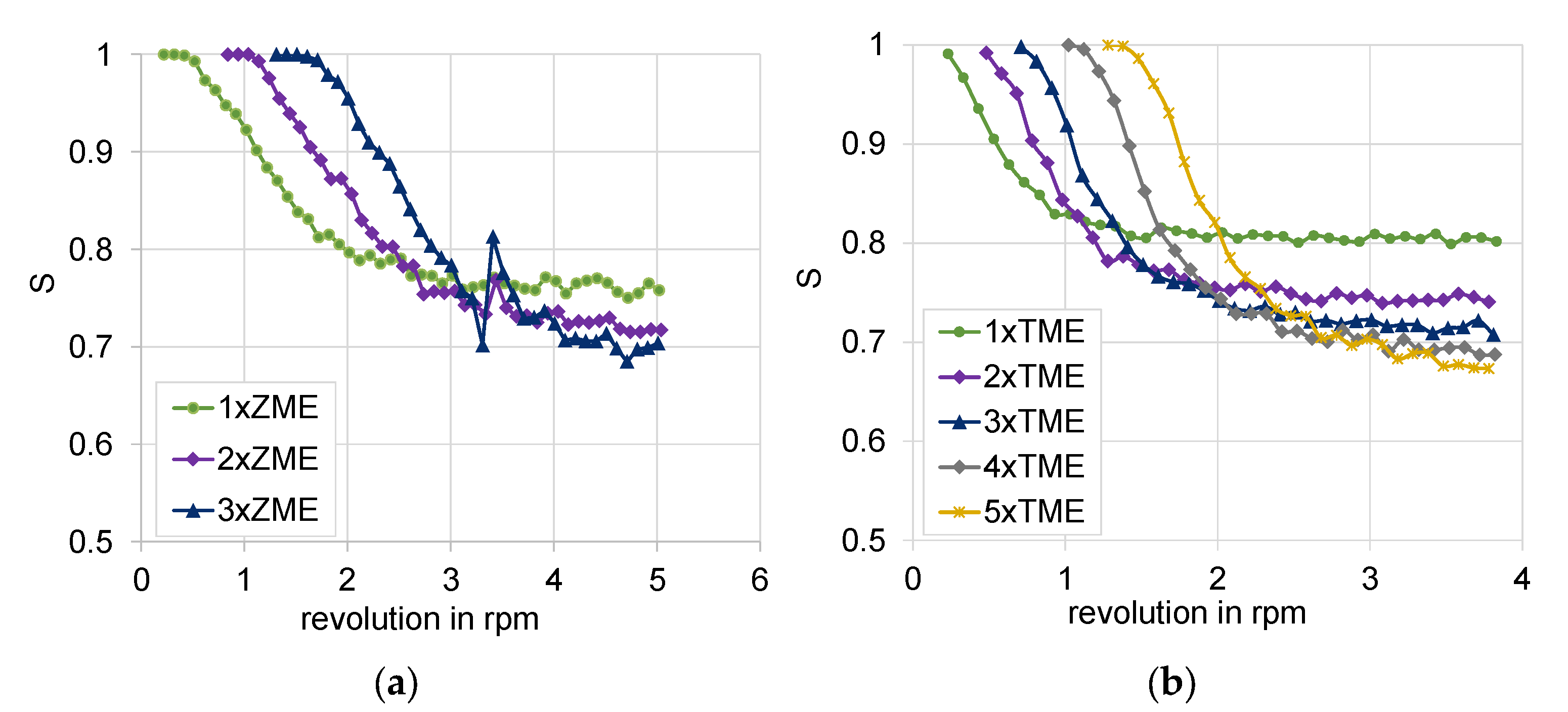

**Figure 13.**Evolution of mixing coefficient over the number of revolutions: cut-outs: (

**a**) ZME configuration and (

**b**) TME configuration (only for first, third and fifth).

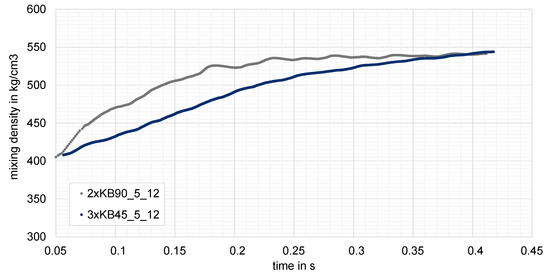

**Figure 15.**Evolution of mixing density over the time for two narrow kneading configurations: two-element neutral kneading block and three element conveying blocks. Achievement of stationary state for both at about 0.4 s.

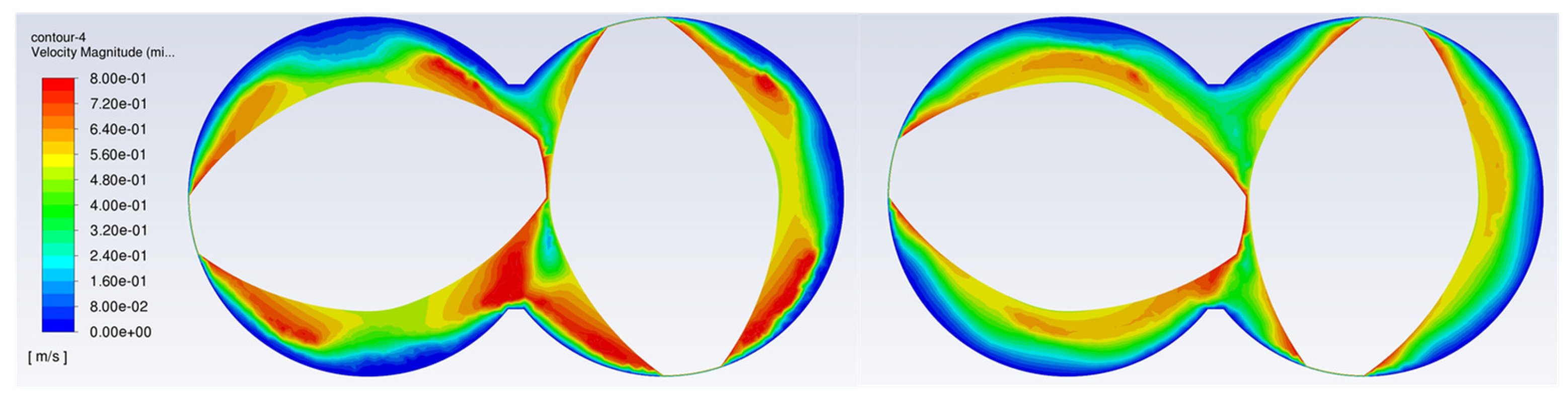

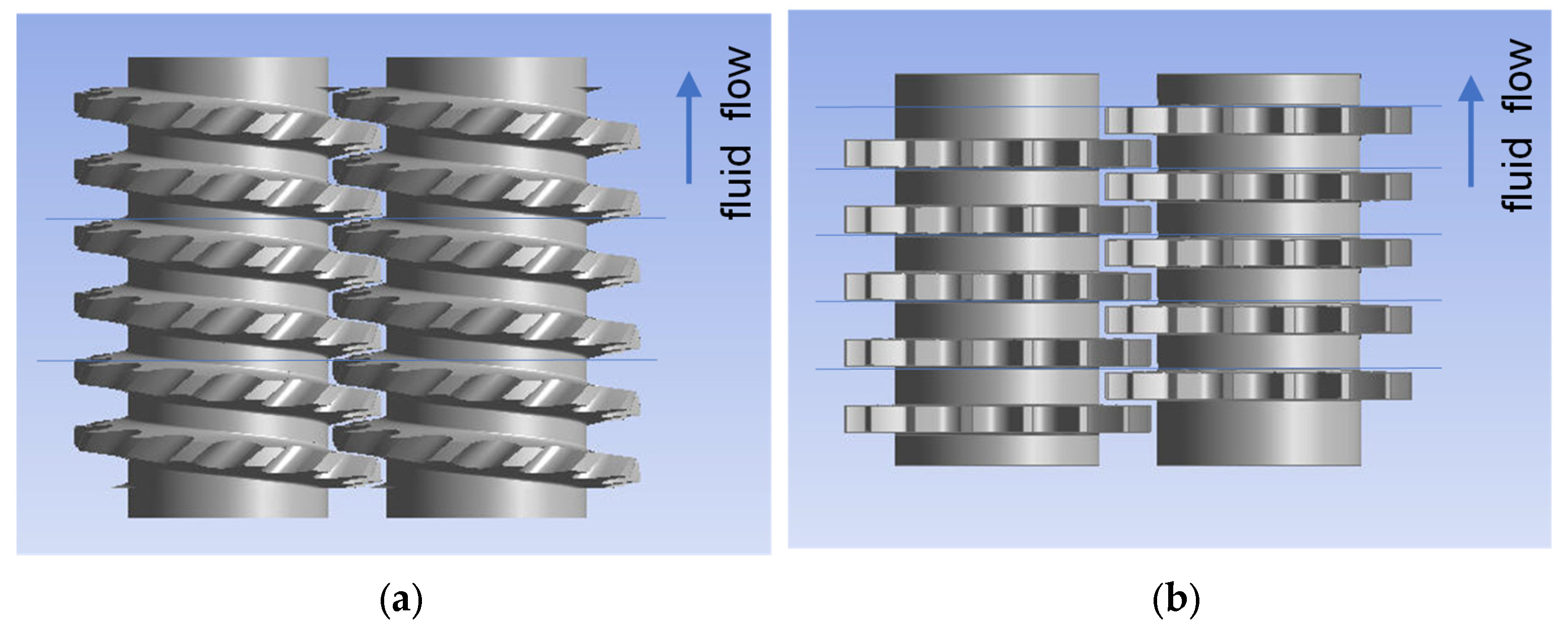

**Figure 16.**Instantaneous velocity contour plot at the end of the element combination for two-element neutral kneading blocks (

**left**) and three element conveying blocks (

**right**).

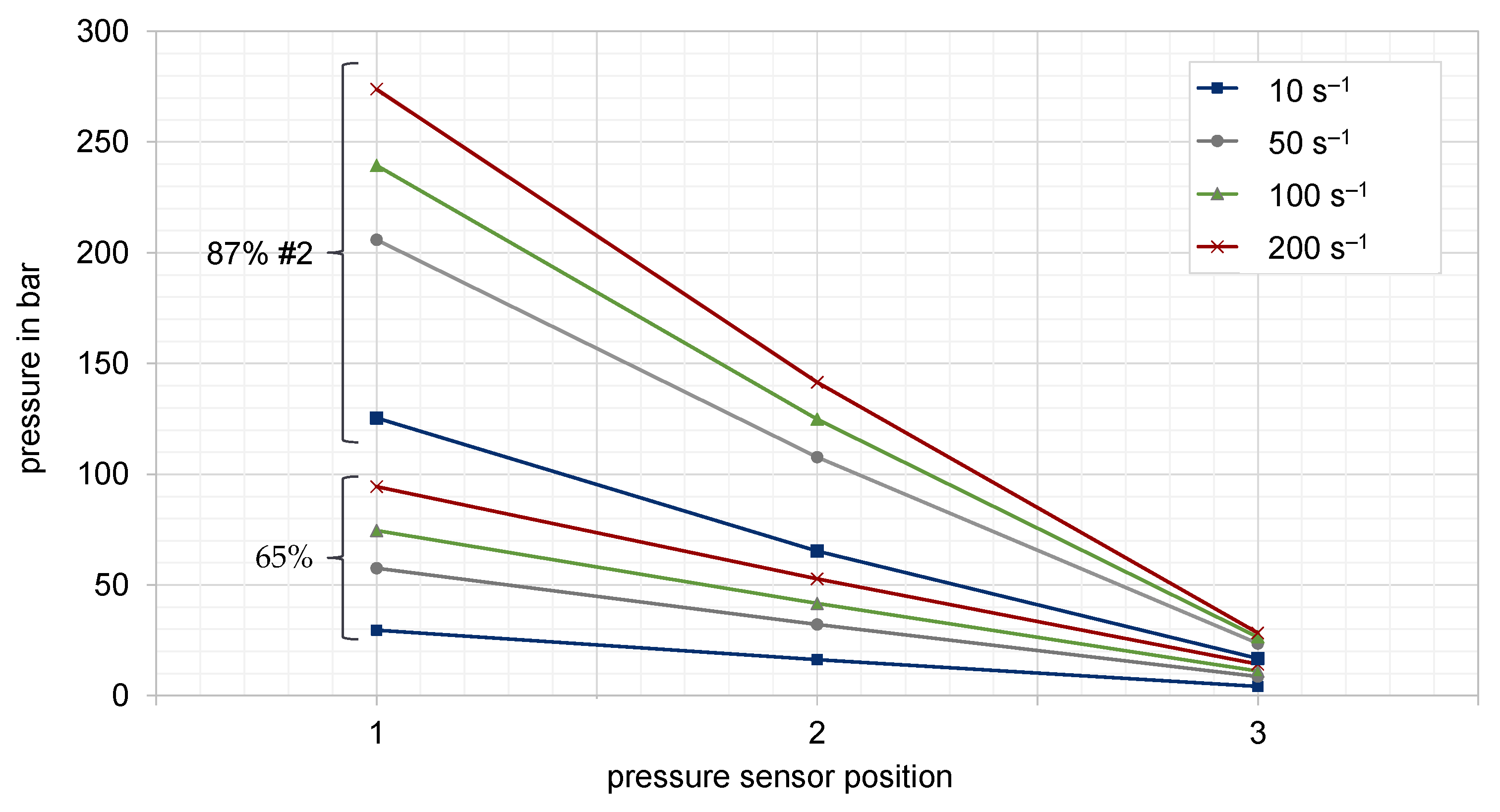

**Figure 18.**Axial pressure profiles for a graphite filling degree of 65 wt.-% and 87 wt.-%-#2 at a temperature of 250 °C (slit die 1).

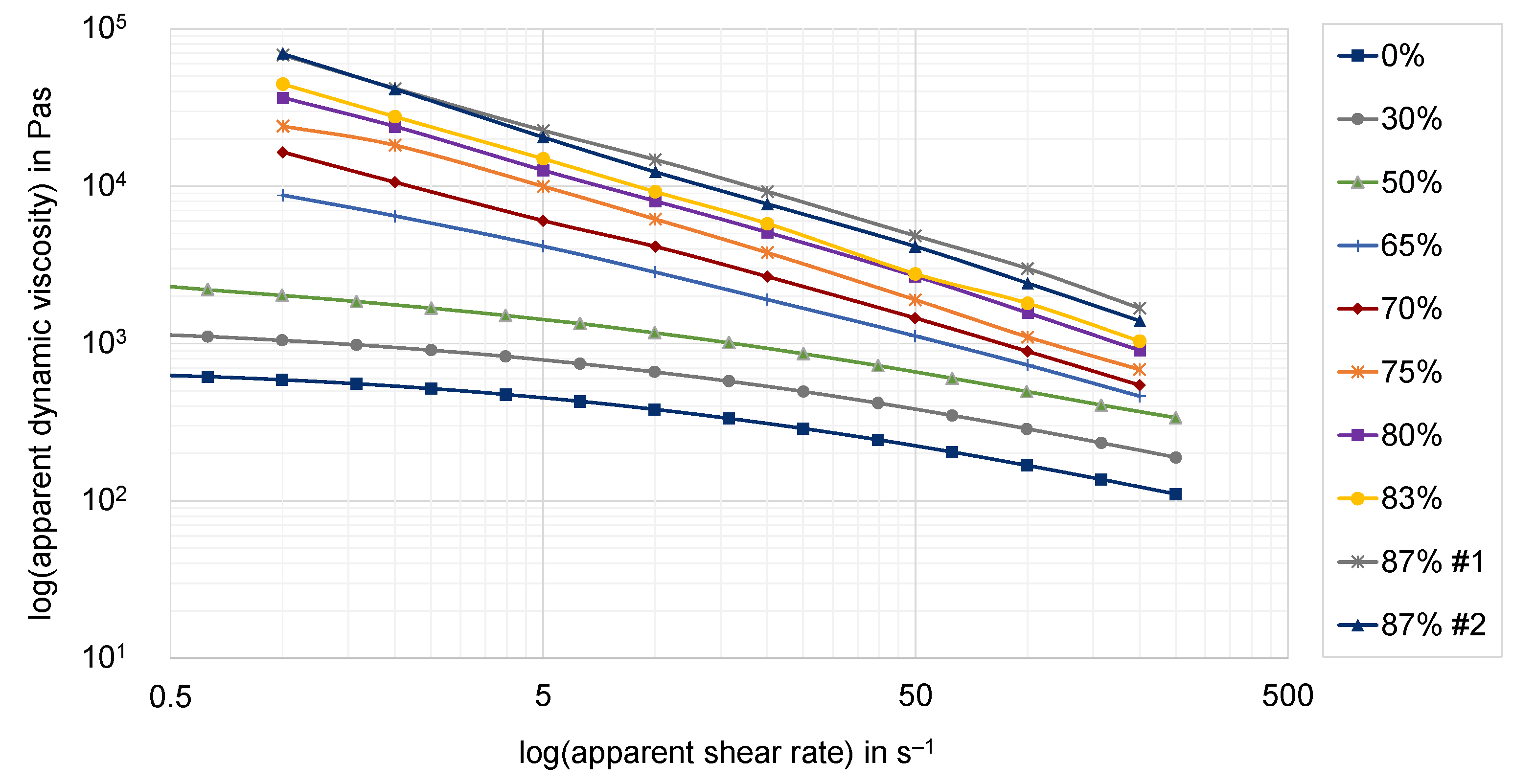

**Figure 19.**Apparent shear viscosities in dependence of the graphite mass fraction at a temperature of 250 °C (slit die 1), compounds with filler content up to and including 50 wt.-% were determined by PPR and higher than 50 wt.-% were determined by HCR.

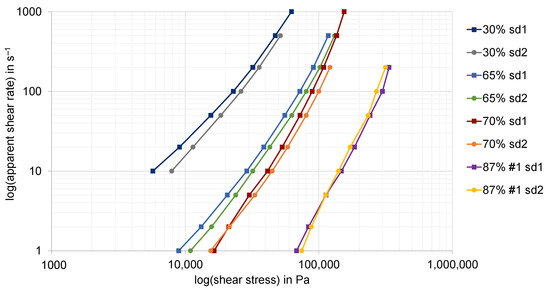

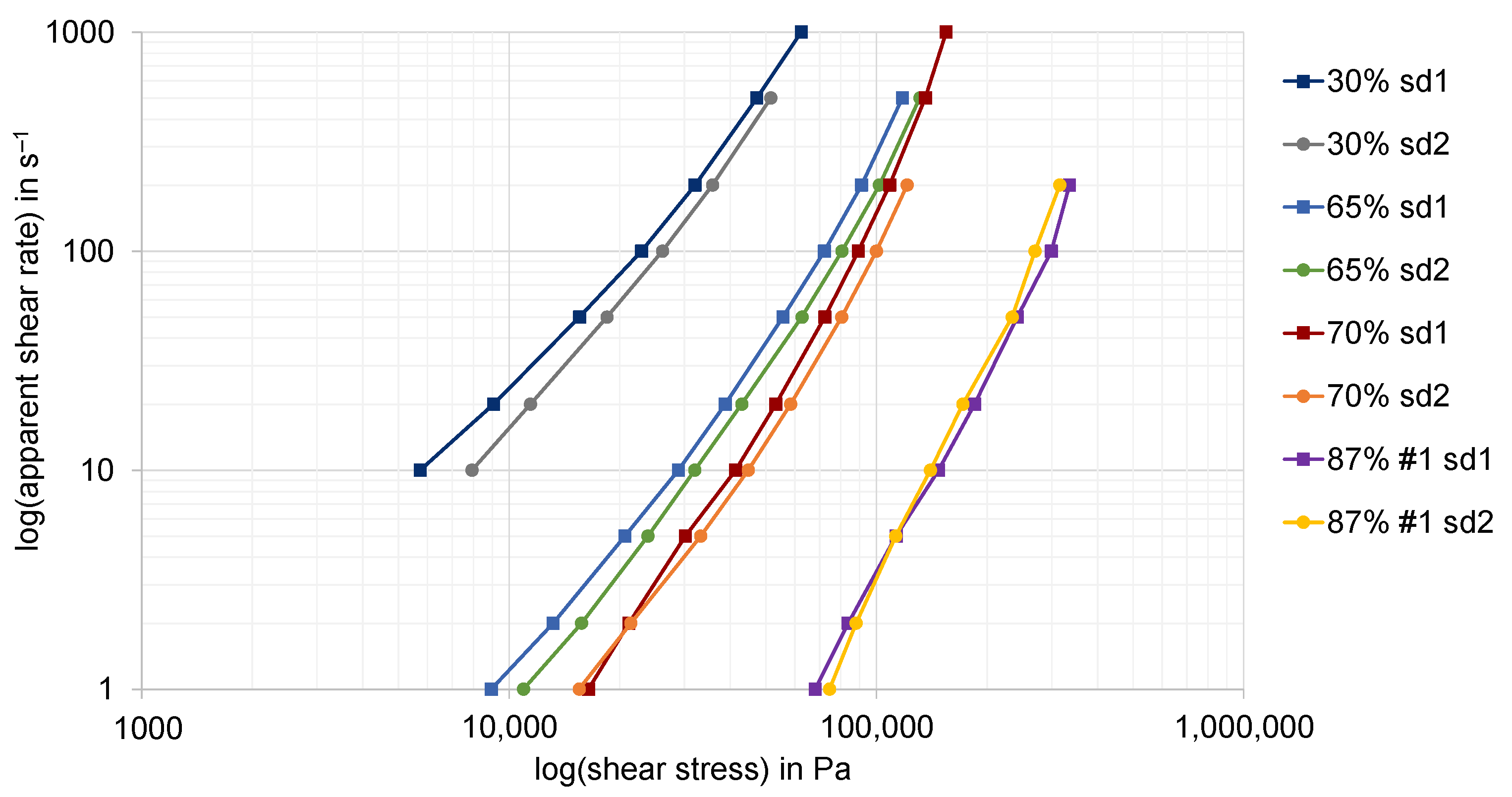

**Figure 20.**Comparison of the apparent shear stress and shear rate for two different slit dies (sd1 and sd2) in dependence of the filler fraction of the analyzed compounds at a temperature of 250 °C.

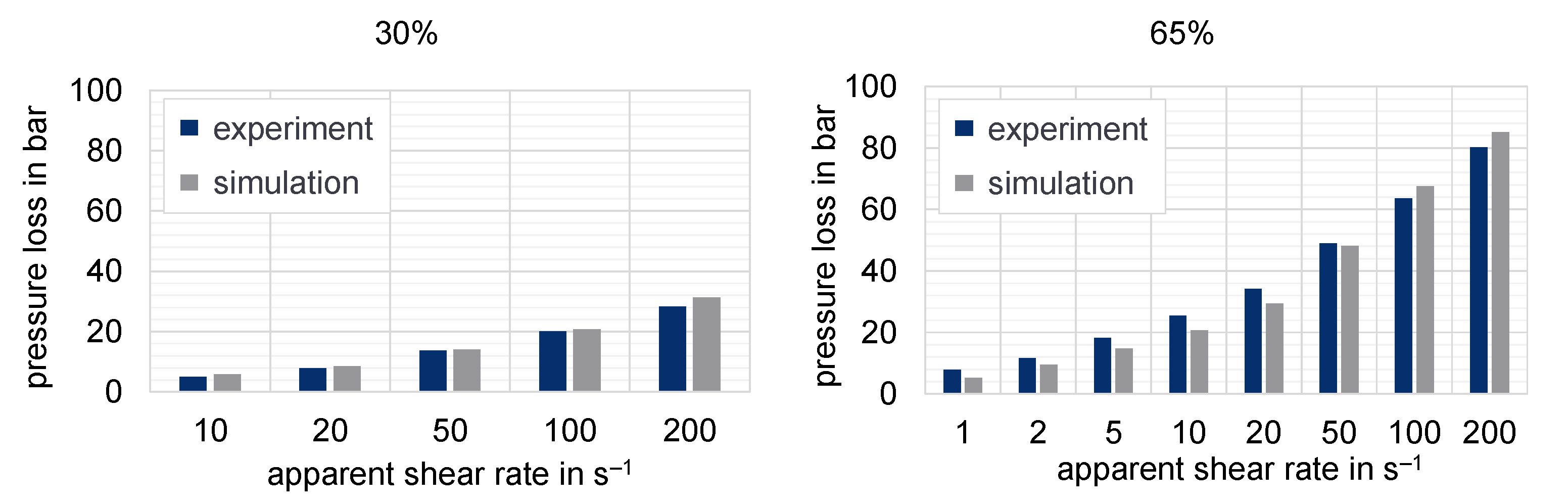

**Figure 21.**Pressure losses measured with HCR to simulation results for 30% and 65% mass fraction of graphite at a temperature of 250 °C (slit die 1).

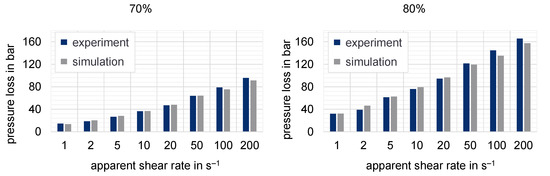

**Figure 22.**Pressure losses measured with HCR compared to simulation results for 70% and 80% mass fraction of graphite at a temperature of 250 °C (slit die 1).

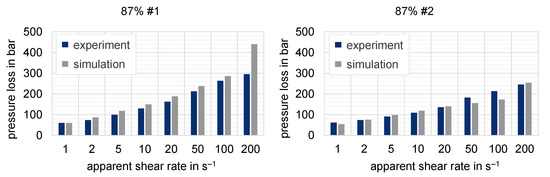

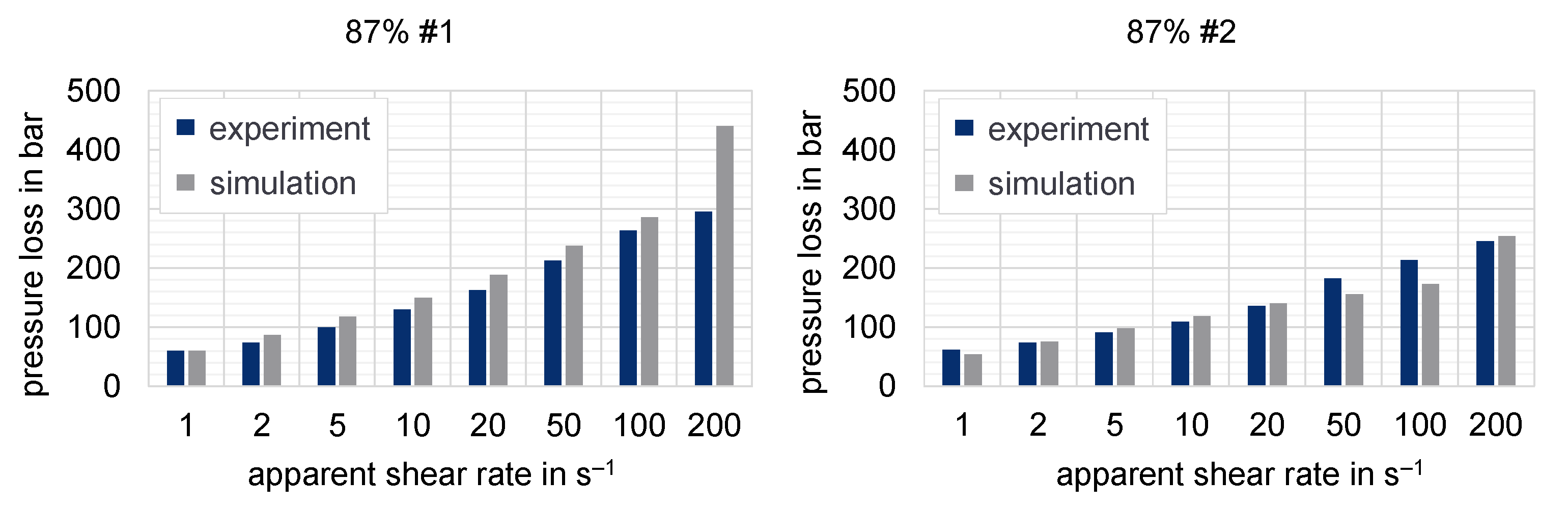

**Figure 23.**Pressure losses measured with HCR compared to simulation results for the different compounds #1 and #2 with 87% mass fraction of graphite at a temperature of 250 °C (slit die 1).

Process Data | |
---|---|

screw diameter | 26 mm |

throughput | 10 kg/h |

rotational speed | 600 rpm |

L/D | 48 |

Element | Staggering Angle | L/D |
---|---|---|

Zahnmischelement ZME—mixing elements | - | 1 (3 elements) |

Turbine Mixing Element TME—mixing element | - | 1 (5 elements) |

Kneading blocks—narrow disks | 90° | 0.5; 1; 1.5 (1–3 elements) |

Kneading blocks—wide disks | 90° | 1; 2; 3 (1–3 elements) |

Kneading blocks—narrow disks | 45° | 0.5; 1; 1.5 (1–3 elements) |

Kneading blocks—wide disks (Reference configuration) | 45° | 1; 2; 3 (1–3 elements) |

Element | Mixing Coefficient L/D = 1 | Mixing Coefficient L/D = 1.5 |
---|---|---|

ZME—mixing elements | 0.7 | - |

TME—mixing element | 0.67 | - |

Kneading blocks 90°—narrow disks | 0.75 | 0.75 |

Kneading blocks 90°—wide disks | 0.78 | 0.75 |

Kneading blocks 45°—narrow disks | 0.8 | 0.75 |

Kneading blocks 45°—wide disks | 0.8 | 0.8 |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Celik, A.; Willems, F.; Tüzün, M.; Marinova, S.; Heyn, J.; Fiedler, M.; Bonten, C.
Compounding, Rheology and Numerical Simulation of Highly Filled Graphite Compounds for Potential Fuel Cell Applications. *Polymers* **2023**, *15*, 2589.
https://doi.org/10.3390/polym15122589

**AMA Style**

Celik A, Willems F, Tüzün M, Marinova S, Heyn J, Fiedler M, Bonten C.
Compounding, Rheology and Numerical Simulation of Highly Filled Graphite Compounds for Potential Fuel Cell Applications. *Polymers*. 2023; 15(12):2589.
https://doi.org/10.3390/polym15122589

**Chicago/Turabian Style**

Celik, Alptekin, Fabian Willems, Mustafa Tüzün, Svetlana Marinova, Johannes Heyn, Markus Fiedler, and Christian Bonten.
2023. "Compounding, Rheology and Numerical Simulation of Highly Filled Graphite Compounds for Potential Fuel Cell Applications" *Polymers* 15, no. 12: 2589.
https://doi.org/10.3390/polym15122589
