Gelatin/Na2Ti3O7 Nanocomposite Scaffolds: Mechanical Properties and Characterization for Tissue Engineering Applications

Rittichai Sangkatip
Kaona Jongwuttanaruk
2 and
Wipoo Sriseubsai
Department of Industrial Engineering, School of Engineering, King Mongkut’s Institute of Technology Ladkrabang, Bangkok 10520, Thailand
Department of Industrial Engineering, Faculty of Engineering, Rajamangala University of Technology Thanyaburi, Pathum Thani 12110, Thailand
Author to whom correspondence should be addressed.
Polymers 2023, 15(10), 2322;
Submission received: 11 March 2023 / Revised: 1 May 2023 / Accepted: 9 May 2023 / Published: 16 May 2023
(This article belongs to the Special Issue Development and Application of Polymer Scaffolds)


Materials and manufacturing technologies are necessary for tissue engineering and developing temporary artificial extracellular matrices. In this study, scaffolds were fabricated from freshly synthesized titanate (Na2Ti3O7) and its precursor titanium dioxide and their properties were investigated. The scaffolds with improved properties were then mixed with gelatin to form a scaffold material using the freeze-drying technique. To determine the optimal composition for the compression test of the nanocomposite scaffold, a mixture design with three factors of gelatin, titanate, and deionized water was used. Then, the scaffold microstructures were examined by scanning electron microscopy (SEM) to determine the porosity of the nanocomposite scaffolds. The scaffolds were fabricated as a nanocomposite and determined their compressive modulus values. The results showed that the porosity of the gelatin/Na2Ti3O7 nanocomposite scaffolds ranged from 67% to 85%. When the mixing ratio was 100:0, the degree of swelling was 22.98%. The highest swelling ratio of 85.43% was obtained when the freeze-drying technique was applied to the mixture of gelatin and Na2Ti3O7 with a mixing ratio of 80:20. The specimens formed (gelatin:titanate = 80:20) exhibited a compressive modulus of 30.57 kPa. The sample with a composition of 15.10% gelatin, 2% Na2Ti3O7, and 82.9% DI water, processed by the mixture design technique, showed the highest yield of 30.57 kPa in the compression test.

1. Introduction

The scaffold is a structure required for cell growth. When living cells are in the scaffold, they multiply. Collagen, gelatin, silk, and synthetic PLA/PCL materials might be used for biomaterial scaffold development. In most cases, the biomaterial scaffold is used in experiments with various methods. [1] Currently, research is being conducted to develop biomaterials for medical applications. However, while developing material properties, the improvement of the mechanical properties of materials should be considered. The mechanical properties of materials can respond positively to real applications, especially the mechanical properties of gelatin. The mechanical properties of gelatin must be improved before it is used. [2] Gelatin consists of protein molecules composed of amino acid chains. Gelatin can be obtained from bones and animal skins. When gelatin is melted at 32 °C, it is in a viscous liquid state. Then, it becomes a gel within a few minutes. Gelatin is mainly used as an ingredient in cosmetics, medicines, foods, photographic films, and coated tablets. However, gelatin is too expensive for commercial use. Therefore, the properties of gelatin were investigated in several studies. The improvement of the properties of gelatin is usually performed by mixing it with other materials to reduce the material cost [2,3,4,5,6,7]. The use of titanium oxide (TiO2) in the culture of muscle cells (C2C12 myoblasts), fibroblasts, and keratinocytes has been extensively studied. These cultured cells showed good adhesive properties and could be efficiently used in tissue engineering [8,9]. Nano titanium dioxide is a biocompatible material with high tensile strength and nontoxic effects [10,11,12]. It can improve the antibacterial properties of the scaffold material and promote the wound-healing performance of the material [13,14,15]. Scaffolds have also been prepared by salt leaching [16,17,18], solvent casting [19], phase separation [20], gas foaming [21], freeze drying, electrospinning, and fiber bonding [22,23]. The gas foaming technique offers several advantages in the fabrication of scaffolds, such as no need for aggressive organic solvents during the fabrication process, and the pore size and fiber diameter can be adjusted. However, this technique also has some disadvantages, such as the absence of pore interconnections, which in turn depend on the expansion mechanism of the gas during scaffold formation. The electrospinning processes offer simple advantages such as cost efficiency, wide pore size distribution, high porosity, and large surface areas. Therefore, electrospinning processes are used to produce samples with small pores and inhomogeneous pore distribution. However, the process leads to the formation of scaffolds with a low volume. Highly porous samples with interconnected pores can be produced using the fiber-bonding technique. However, a major limitation of this technique is that the prepared samples are toxic to cells, and this toxicity cannot be eliminated [24]. Additionally, several devices, a large room, and numerous protective systems are required to perform the gas foaming, electrospinning, and fiber-bonding techniques. In comparison, the freeze-drying technique is a simple and inexpensive choice because only solvents are required in this method [25]. A mixture of titanium dioxide (TiO2) and polymers forms a framework that is more powerful due to an improvement in mechanical properties. A mixture of titanium dioxide (TiO2) and polymers results in better performance compared to the use of a normal polymer regarding size and texture [26,27,28]. Several studies have demonstrated the effectiveness of titanium dioxide (TiO2) in killing bacteria [29,30,31,32,33,34,35]. Some studies have shown that the use of nanoparticles along with a polymer improves the properties of the scaffold. The use of nanoparticles in a proportion of 5% mixed with 25–40% microcomposites can improve the properties [36,37,38,39]. The physical properties of titanium dioxide, such as structure, particle size, specific surface area, etc., directly affect the reaction mechanism. These physical properties depend on the synthesis method and conditions. In this study, the hygrothermal method was used to synthesize the material. In this method, the shape of the compounds can be controlled. Compounds with various shapes have been reported, including those with nanostructures such as nanotubes [40,41,42,43], nanoribbons [44,45,46,47], and nanowires [48,49]. The hydrothermal synthesis method increases chemical homogeneity without the need for further combustion or comminution. Additionally, the hydrothermal method allows the synthesis of compounds with a layered structure, especially a layered structure in which ions move between layers [40,49]. The hydrothermal synthesis method uses titanium dioxide (TiO2), and thus, the synthesis process must be performed under highly alkaline conditions and at high temperatures. However, such alkaline conditions and high temperatures can accelerate the process of structural changes in the compound. For example, one study reported that the layered structure of titanium dioxide (TiO2) changes to Na2Ti3O7 [50].
Some studies [51,52] reported the preparation of a gelatin/Na2Ti3O7 nanocomposite scaffold by mixing titanate (Na2Ti3O7) and gelatin. A salt leaching technique was used to synthesize titanate (Na2Ti3O7) from titanium dioxide (TiO2). The prepared gelatin/Na2Ti3O7 nanocomposite scaffold showed the best results concerning tensile strength and pore size. In this study, a mixture-design method was used to fabricate the scaffold instead of the freeze-drying technique. Then, the porosity, compression modulus, biodegradability, and swelling of the prepared samples were investigated.

2. Materials and Methods

2.1. Materials

Two main materials were used in the experiments. The first was gelatin which comprised porcine skin, 180 G Bloom, Type B from Fluke Analytical, and 2,2,2-trifluoroethanol (TFE) (purity 99.0%). Powdered gelatin was obtained from Sigma-Aldrich Corporation, Bangkok, Thailand.
The other material was titanate (Na2Ti3O7) synthesized from titanium dioxide and sodium hydroxide as precursors. A solution of sodium hydroxide (20 mL) was mixed with 0.5 g of titanium dioxide and then stirred with a magnetic stirrer (mixing time: 90 min). The mixture was then placed in an alkaline hydrothermal reactor at 200 °C for 24 h. The slurry was then purified with deionized water until the pH reached 7 and titanate (Na2Ti3O7) was formed. Then, the titanate was dried in an oven at 80 °C for 24 h to obtain titanate (v). The titanate had a specific surface area (BET) of 10 m2/g, an average primary particle size of 197 nm, and a catalytic activity equivalent to that of 100% anatase.

2.2. Mixture Design

The mixture design experiment involves analyzing the result as a function of the percentage of components [53]. The objective is to explore the possible results by estimating the parameters of each component to be prepared to achieve the best value or the value desired by the experimenter. In the present study, the constrained mixture design principle or the vertex model was used. The experimental design was based on three parameters: gelatin, Na2Ti3O7, and DI water. Minitab 21 software was used for statistical analyses. The software was customized to display the three factors as A, B, and C, where A was gelatin, B was Na2Ti3O7, and C was DI water. Gelatin and collagen were used for fabricating the scaffold for the fibroblast cell culture. The properties of the scaffolds obtained from type A and type B gelatin were compared to the scaffolds obtained from collagen, which is used widely as a skin substitute. Titanate ribbon (Na2Ti3O7) was synthesized to study the compressive modulus. Table 1 presents the ratio in which the three substances (A, B, and C) were mixed.

2.3. Preparation of the Gelatin/Na2Ti3O7 Nanocomposite Scaffold Samples Using the Freeze-Drying Technique

According to the principles of mixture design, the three raw materials (gelatin, titanate, and DI water) were mixed in a definite ratio and stirred for 30 min at 50 °C. The mixtures were then poured into the wells of a five-well culture plate, with each well containing equal volumes, followed by freezing treatment overnight at −30 °C. After vacuum freeze-drying at −50 °C, all the samples were stored at −20 °C until further use [10]. The mass ratios and the designations of the prepared samples are listed in Table 2. Some of the mixtures are shown in Figure 1.

2.4. Compressive Test

Pressure resistance is one of the key properties of scaffolds. Therefore, the impact of the prepared gelatin/Na2Ti3O7 nanocomposite scaffolds was investigated by employing the universal testing machine (UTM, Instron No. 5566, Norwood, MA, USA) using the 10 kN load cells (Figure 2). The flexible cellular materials slab and the bonded and molded urethane foams were evaluated using the respective standard ASTM D 3574 methods [18]. The testing was conducted in a dry state at 25 °C at a speed maintained at 0.5 mm/min. The load was applied until the samples were compressed to approximately 100% of their original height. The stiffness of the scaffolds was assessed at the stress-point region. The yield strength was considered the stress-strain kPa yield point. The dimensions of the prepared samples were diameter, 1 cm and thickness, 1 cm. Each sample was tested five times. Subsequently, the average and standard deviations were determined for all samples.

2.5. Biodegradation of the Gelatin/Na2Ti3O7 Nanocomposite Scaffold Samples

The bioavailability of the prepared gelatin/Na2Ti3O7 nanocomposite scaffold samples was determined through the in vitro weight biodegradation analysis of the samples. The sample fragments were first incubated in the PBS solution (pH 7.4) containing 104 U/mL of lysozyme in an oven at 37 °C for 54 h. Afterwards, the samples were incubated in an enzyme-free buffer, followed by curing and then thoroughly washing the samples with pure water to remove the enzymes. The samples were then dried and weighed several times, i.e., the degree of enzymatic biodegradation was determined after 0.5, 1, 1.5, 24, 48, and 54 h [16,17] using the following equation:
Weight remain % = 100 W 0 W f W 0 × 100
  • W 0 denotes the initial weight of the nanocomposite scaffold;
  • W f denotes the final weight of the nanocomposite scaffold.

2.6. Swelling Test

The swelling test of scaffolds is an important tool to investigate the diffusion of water or liquid into the scaffold. In the present study, the swelling test was performed to evaluate the percentage difference between the dry weight and wet weight of the prepared biomedical scaffold. The dried nanocomposite scaffold was weighed and then soaked in a PBS buffer solution (pH 7.4) at 37 °C for 3 h [20,21]. Afterwards, both sides of the scaffold were wiped using low-lint paper for 10 s on each side, followed by weighing the scaffold immediately. The dry weight and wet weight values were then utilized to calculate the swelling ratio using the following formula:
Swelling ratio = W s o W o W 0
  • W s o denotes the weight of the scaffold absorbing the water content;
  • W 0 denotes the initial weight of the nanocomposite scaffold.

2.7. Statistical Analysis

The quantitative results were evaluated for data normality using Explore software and subjected to Tukey’s A test. The results were presented as the mean standard error (SE). In the case of significant result values obtained (p = 0.05), post hoc tests were conducted. Post hoc tests are an integral part of ANOVA. When ANOVA is performed to compare the means of a minimum of three groups, obtaining statistically significant results indicates that all the compared group means are not equal. However, the ANOVA results do not identify which particular differences between the pairs of means are significant. In this context, using post hoc tests enables exploring the differences among multiple groups while controlling the experiment-wise error rate. Tukey’s method is a single-step multiple-comparison procedure and statistical test, which may be used to identify the means that are significantly different from each other. Therefore, Tukey’s multiple-comparison test was also conducted for analysis in the present study. All descriptive and inferential statistical analyses were conducted using MINITAB Statistical Software (v. 21).

3. Results and Discussion

3.1. Experimental Design and Results

A simplex axial design experiment was conducted for the mixture design of gelatin (A), titanate (Na2Ti3O7) (B), and DI water (C) using the conditions stated above. In total, 27 experimental trials were performed, with three replicates in each trial condition. The results of the compressive test are presented in Table 2.

3.2. Residual Plots for Response

The quality of the result data was evaluated using the (1) normal distribution test, (2) the data independence test, and (3) the test of variance stability (Figure 3). As depicted in Figure 3, the data distribution did not have a specific pattern, indicating data independence, i.e., the data were collected randomly. In addition, the plot in which a straight line indicated the normality of the data obtained in the experimental work demonstrated that the experimental data had a stable variance as per the design. Therefore, it was concluded that the obtained data had all three properties.

3.3. Analysis of Variance (ANOVA)

The analysis of variance, or ANOVA, is a linear modeling method for evaluating the relationship data [16]. In the present study, an ANOVA was performed to determine the compressive modulus. The results were considered statistically significant at p < 0.05 (Table 3). The ANOVA results revealed that the interaction term between the amount of gelatin used and the amount of titanate (Na2Ti3O7) used was statistically significant (p = 0.000). The amounts of gelatin and DI water were also significantly related (p < 0.05). The coefficient of determination (R2) indicates the percentage variation in the dependent variables that is explained by the independent variables in a regression analysis. The results for the regression analysis conducted in the present study for the response surface methodology results presented in Table 3 revealed a high coefficient of determination (R2 = 84.55%). This observation indicated that the independent variables [the amounts of gelatin, titanate (Na2Ti3O7), and DI water] could explain 82.54% of the variation in the independent variables [the amounts of gelatin, titanate (Na2Ti3O7), and DI water]. Therefore, the model was used to obtain a prediction equation to determine an accurate and appropriate response value.

3.4. Results of the Response Surface Methodology Analysis

The response surface methodology analysis is an effective method for optimizing the process conditions. It may also be used for determining the influence of various factors. As depicted in Figure 4, the response surface revealed for the compressive test of the nanocomposite scaffold-forming process involving gelatin, titanate (Na2Ti3O7), and DI water increased with the increase in the amounts of gelatin and Na2Ti3O7.

3.5. Optimization

A response optimizer function was adopted to determine the most appropriate value of the factors and thereby efficiently obtain the tensile strength. In addition, another function was adopted to identify the most appropriate parameter among the factors and measure composite desirability (D). The value of composite desirability ranged from 0 to 1. When D was equal to 1, the result was favorable for the overall response. The results revealed that 15.10% gelatin, 2% titanate (Na2Ti3O7), and 82.90% DI water, or gelatin/Na2Ti3O7 in the ratio of 80/20, yielded the highest tensile strength of 30.57 kPa and the highest desirability of 1 (Figure 5).
The samples with gelatin and Na2Ti3O7 mixed in ratios of 100/0, 90/10, 80/20, 70/30, and 60/40 were investigated using the degradation test and the swelling test and also by analyzing the surface morphology and the pore size of the samples.

3.6. Biodegradation of the Gelatin/Na2Ti3O7 Nanocomposite Scaffold Samples Results

Figure 6 depicts a comparison of the pure gelatin nanocomposite scaffolds and the gelatin/Na2Ti3O7 nanocomposite scaffolds based on the results of the biodegradation analysis [18,19]. It was observed that the nanocomposite scaffolds prepared from pure gelatin (gelatin/Na2Ti3O7 ratio—100/0) degraded in just one hour, while the nanocomposite scaffolds prepared from the 90/10 gelatin/Na2Ti3O7 mixture required 24 h for degradation. Moreover, the 60/40 and 70/30 gelatin/Na2Ti3O7 mixtures degraded in 48 h, while the 80:20 gelatin/Na2Ti3O7 mixture degraded in 54 h.

3.7. Swelling Test Results

Figure 7 depicts the nanocomposite scaffolds obtained using the freeze-drying technique. The swelling ratio of the scaffold with a gelatin/Na2Ti3O7 mixture ratio of 100:0 was 22.98%. The highest swelling ratio of 85.43% was obtained for the scaffold with a gelatin/Na2Ti3O7 mixture ratio of 80:20. This corresponded to the porosity value of the mixing ratio of 80:20, i.e., when the workpiece had high porosity, there was more space for water absorption, and thus, the rate of swelling increased.

3.8. Porosity Percent and Pore Size of the Gelatin/Na2Ti3O7 Nanocomposite Scaffolds Prepared Using the Freeze-Drying Technique

The porosity of the gelatin/Na2Ti3O7 nanocomposite scaffolds was determined using the following equation [25]:
P o r o s i t y % = V p o r e V c o m p a c t × 100
where VPore denotes the volume of the pores in the cellular scaffold material and Vcompact denotes the volume of the nonporous workpiece.
The porous nature of the character scaffolds prepared using the freeze-drying technique depends on the size of the pore networks that are interconnected. In the present study, the scaffolds presented a homogeneous porous morphology. The porosity of the gelatin/Na2Ti3O7 nanocomposite scaffold was subject to the conditions of the freeze-drying technique. The porosity was calculated using Equation (3). The result revealed that the porosity of the samples ranged from 67% to 85% (Figure 6). The porosity of the gelatin/Na2Ti3O7 nanocomposite scaffolds was >85%, which is conducive to cell growth [16,17,18]. The microstructures of the pure gelatin and gelatin/Na2Ti3O7 nanocomposite scaffolds are depicted in Figure 8a–e. The pure gelatin scaffolds were observed to be spongy, with interconnected pore networks of indeterminate sizes distributed throughout the scaffold. The gelatin/Na2Ti3O7 scaffolds had a porous material, with evenly-distributed pores of sizes in the approximate range of 250–425 µm, which is the optimal size for the growth of bone cells [54]. However, this variation in the pore size of the prepared scaffolds could affect the movement of toxins for removal from the cells and the transmission of nutrients through the scaffold material. Despite the afore-stated limitation of the prepared scaffold samples, the fact that all prepared samples exhibited a certain degree of porosity indicated that these scaffolds would influence cell growth upon application [16,17,18].
The porosity percentage and the pore diameter (pore size) of the gelatin/Na2Ti3O7 nanocomposite scaffolds prepared in the present study were determined, and the result values are listed in Table 4. As evident, the pore size decreased when excessive or pure Na2Ti3O7 was added to the material composition [51,52]. In addition, the diameters of the pores (pore size) in the different gelatin/Na2Ti3O7 scaffolds were not extremely small or large.

3.9. Surface Morphology of the Prepared Nanocomposite Scaffolds

The scanning electron microscope (SEM) [1,11] was invented by M. Von Andenne in 1957. In SEM analysis, the sample preparation step is crucial for obtaining the representative material and ensuring that the results truly refer to the structure. However, the samples are not required to be of the same size. In the present study, only the surfaces of the sample scaffold structures were examined using SEM. Therefore, the number of electrons passing through the scaffold to the transmission electron microscope was not determined. Scanning electron microscopy may, therefore, be performed for analyzing the surfaces of cells and skin samples. A high-energy electron beam was aimed at the surface of the scaffold sample. When the electron beam strikes the outer surface of the sample at higher angles of incidence, the scanning electron microscope produces secondary electrons. The signals from these secondary electrons are then recorded and converted to electronic signals. The electronic signals are then projected onto a television which produces a 3D image of the sample scaffold structures. A scanning electron microscope has a lower vision capability and a lower magnification compared to a transmission electron microscope. Therefore, a scanning electron microscope is suitable for the investigation, analysis, morphological structure study, and detailed examination of the sample scaffold surfaces, such as the surface of a cell, a skin sample, the external surface of a tissue, the external surface of a cell, a metal cross-section, and the cross-section of a nonmetal material, among others.
The morphology of the nanocomposite scaffold was examined using a scanning electron microscope (SEM; JSM-5610LV, JEOL) at a voltage of 20 kV. The sample surface was first coated with gold [55]. The sample was then examined under SEM, and the pore size was measured at least 20 times. The calculated average-diameter values are listed in Table 4. The images of the pores in the prepared nanocomposite scaffold samples were obtained after the dehydrothermal treatment (DHT) of the samples at 140 °C for 48 h (Figure 6). The diameters of the pores of the gelatin/Na2Ti3O7 nanocomposite scaffold were observed to have changed. The fabricated scaffold exhibited varied pore sizes (Figure 6). When a greater amount of Na2Ti3O7 was added to the scaffold composition, the sizes of the pores were reduced. Figure 8c depicts the high variation in the pore sizes. As depicted in Figure 8a–f, the diameters of the pores in the prepared gelatin/Na2Ti3O7 nanocomposite scaffolds ranged from 120 to 240 µm. However, the SEM cross-section of the 80/20 sample shown in Figure 8f also indicates uniform porosity characteristics. This indicates that when titanate (Na2Ti3O7) is added, samples can have more porosity. There is a network of interconnections between the pores compared to the 100/0 sample.
Figure 8. The SEM images of the scaffolds prepared using the freeze-drying technique, with the gelatin/Na2Ti3O7 mixture ratio of (a) 100/0, (b) 90/10, (c) 80/20, (d) 70/30, (e) 60/40 and cross-sectional (f) 80/20.
Figure 8. The SEM images of the scaffolds prepared using the freeze-drying technique, with the gelatin/Na2Ti3O7 mixture ratio of (a) 100/0, (b) 90/10, (c) 80/20, (d) 70/30, (e) 60/40 and cross-sectional (f) 80/20.
Polymers 15 02322 g008aPolymers 15 02322 g008b

3.10. Characterization of the Gelatin/Na2Ti3O7 Nanocomposite Scaffolds

The FTIR spectra were obtained by analyzing the structure and molecular composition of the sample gelatin/Na2Ti3O7 nanocomposite scaffold using a Fourier transform infrared spectrometer (Brand: PerkinElmer Scientific Model: Spectrum Two FT-IR Spectrometer (Universal ATR Sampling Accessory)). By measuring the absorbance of substances in the infrared range (Figure 9), we found that in the wavelength range of 3300–3500 cm−1, aliphatic C–H stretching signals were found in the range of about 3100–2700 cm−1. Additionally, in the wavelength range of 1620–1680 cm−1, C = bonds were found. O stretching of amide groups was observed in the wavelength range of 1640–1590 cm−1; N–H bending signals were observed in the wavelength range of 1365–1455 cm−1; and C–H bending signals were observed in the wavelength range of 1256–1332 cm−1. Signs of C-N stretching were also found [56,57].
However, no new peaks were observed, indicating that the added titanate (Na2Ti3O7) did not react with glutaraldehyde. Titanate (Na2Ti3O7) can act as a reinforcing agent, dispersed in the hydrogel or matrix [58]. It can enhance the properties of the matrix and the composite materials.

3.11. Effects of the Different Techniques Used for the Fabrication of a Scaffold: Freeze-Drying Technique and Salt-Leaching Technique

The scaffolds prepared using the salt-leaching technique exhibit a porous nature that depends on the size of the salt crystals used. The porous networks in these scaffolds are interconnected, and the porous morphology is homogeneous. According to the results of the present study, the porosity of the prepared samples ranged from 75% to 81%. Previous studies [59,60,61] have not reported any scaffolds with a porosity exceeding 85%. Moreover, the porosity of the prepared scaffold was reported to be lower than that of the sample with added salt (at 85%) [62]. This resulted in the agglomeration of salt particles and a loss of salt particles during the sedimentation process. The results obtained in the present study using the freeze-drying technique for scaffold preparation were comparable to those of the previous studies [51]. The freeze-drying technique produced scaffolds with similar shapes and hole sizes. The pores were also well connected, while the porosity and the pore size could be controlled better using this technique.

4. Conclusions

The gelatin/Na2Ti3O7 nanocomposite scaffolds were fabricated using the freeze-drying technique, and then, they were characterized. The gelatin/Na2Ti3O7 nanocomposite scaffolds were prepared from gelatin and titanate (Na2Ti3O7). The mixture experimental-design technique was adopted as a statistical analysis tool. The results showed that titanate (Na2Ti3O7) played an important role in improving the porosity, compressive test results, biodegradation, swelling test outcomes, porosity percentage, and pore-size values of the prepared nanocomposite scaffolds. A good porosity range of 67–85% was observed. In the compressive test, the prepared samples (gelatin:titanate = 80:20) showed a yield value of 30.57 kPa. The sample prepared using the mixture design technique (15.10% gelatine, 2% Na2Ti3O7, and 82.9% DI water) resulted in the highest yield in the compressive test. Theoretically, a scaffold must be highly porous and have a three-dimensional shape. The pores should be interconnected to form networks throughout the scaffold to ensure adequate cell growth and the appropriate transport of nutrients and wastes. This is important because the transport of nutrients and wastes also controls the degradation rate and the water absorption capacity of the scaffold. Therefore, if the scaffold has a greater porous volume, cell-adhesion efficiency, and cell-growth volume are affected, which is consistent with the results of this study.

Author Contributions

Conceptualization, R.S., W.S. and K.J.; methodology, R.S. and W.S. writing—original draft preparation, R.S.; writing—review and editing, W.S. All authors have read and agreed to the published version of the manuscript.


This research was funded by the King Mongkut’s Institute of Technology Ladkrabang, grant number 2564–02–01–017, and the APC was funded by the School of Engineering, King Mongkut’s Institute of Technology Ladkrabang, Thailand.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available in this article.


The authors thank the Industrial Engineering Department, School of Engineering, King Mongkut’s Institute of Technology Ladkrabang (KMITL), Thailand.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Khan, M.U.A.; Haider, S.; Shah, S.A.; Abd Razak, S.I.; Hassan, S.A.; Kadir, M.R.A.; Haider, A. Arabinoxylan-co-AA/HAp/TiO2 Nanocomposite Scaffold a Potential Material for Bone Tissue Engineering: An Invitro Study. Int. J. Biol. Macromol. 2020, 151, 584–594. [Google Scholar] [CrossRef] [PubMed]
  2. Mao, J.S.; Zhao, L.G.; Yin, Y.J.; De Yao, K. Structure and properties of bilayer chitosan–gelatin scaffolds. Biomaterials 2003, 24, 1067–1074. [Google Scholar] [CrossRef] [PubMed]
  3. Gomes, S.R.; Rodrigues, G.; Martins, G.G.; Henriques, C.M.R.; Silva, J.C. In vitro evaluation of crosslinked electrospun fish gelatin scaffolds. Mater. Sci. Eng. C 2013, 33, 1219–1227. [Google Scholar] [CrossRef] [PubMed]
  4. Pezeshki-Modaress, M.; Mirzadeh, H. Gelatin–GAG electrospun nanofibrous scaffold for skin tissue engineering: Fabrication and modeling of process parameters. Mater. Sci. Eng. C 2015, 48, 704–712. [Google Scholar] [CrossRef]
  5. Zeugolis, D.I.; Khew, S.T.; Yew, E.S.Y.; Ekaputra, A.K.; Tong, Y.W.; Yung, L.-Y.L.; Hutmacher, D.W.; Sheppard, C.; Raghunath, M. Electrospinning of pure collagen nano-fibers Just an expensive way to make gelatin. Biomaterials 2008, 29, 2293–2305. [Google Scholar] [CrossRef]
  6. Huang, Z.-M.; Zhang, Y.Z.; Ramakrishna, S.; Lim, C.T. Electrospinning and mechanical characterization of gelatin nanofibers. Polymer 2004, 45, 5361–5368. [Google Scholar] [CrossRef]
  7. Pek, Y.S.; Spector, M.; Yannas, I.V.; Gibson, L.J. Degradation of a collagen–chondroitin-6-sulfate matrix by collagenase and by chondroitinase. Biomaterials 2004, 25, 473–482. [Google Scholar] [CrossRef]
  8. Genchi, G.; Nuhn, H.; Liakos, I.; Marino, A.; Marras, S.; Athanassiou, A.; Mattoli, V.; Desai, T. Titanium dioxide nanotube arrays coated with laminin enhance C2C12 skeletal myoblast adhesion and differentiation. RSC Adv. 2016, 22, 18502–18514. [Google Scholar] [CrossRef]
  9. Smith, B.S.; Yoriya, S.; Johnson, T.; Popat, K.C. Dermal fibroblast and epidermal keratinocyte functionality on titania nanotube arrays. Acta Biomater. 2011, 7, 2686–2696. [Google Scholar] [CrossRef]
  10. Fan, X.; Chen, K.; He, X.; Li, N.; Huang, J.; Tang, K.; Li, Y.; Wang, F. Nano-TiO2/collagen-chitosan porous scaffold for wound repairing. Int. J. Biol. Macromol. 2016, 91, 15–22. [Google Scholar] [CrossRef]
  11. Cordero-Arias, L.; Cabanas-Polo, S.; Gilabert, J.; Goudouri, O.M.; Sanchez, E.; Virtanen, S.; Boccaccini, A.R. Electrophoretic deposition of nanostructured TiO2/alginate and TiO2-bioactive glass/alginate composite coatings on stainless steel. Adv. Appl. Ceram. 2014, 113, 42–49. [Google Scholar] [CrossRef]
  12. Kulkarni, M.; Mazare, A.; Gongadze, E.; Perutkova, S.; Kralj-Iglic, V.; Milosev, I.; Schmuki, P.; Iglic, C.; Mozetic, M. Titanium nanostructures for biomedical applications. Nanotechnology 2015, 26, 062002. [Google Scholar] [CrossRef] [PubMed]
  13. Fu, S.-Y.; Lauke, B. Characterization of tensile behavior of hybrid short glass fiber/calcite particle/ABS composites. Compos. Part A: Appl. Sci. Manuf. 1998, 29, 575–583. [Google Scholar] [CrossRef]
  14. Lai, S.-M.; Li, H.-C.; Liao, Y.-C. Properties and preparation of compatibilized nylon 6 Nanocomposites/ABS blends: Part II—Physical and thermal properties. Eur. Polym. J. 2007, 43, 1660–1671. [Google Scholar] [CrossRef]
  15. Yousefi, M.; Salavati-Niasari, M.; Gholamian, F.; Ghanbari, D.; Aminifazl, A. Polymeric nanocomposite materials: Synthesis and thermal degradation of acrylonitrile–butadiene–styrene/tin sulfide (ABS/SnS). Inorg. Chim. Acta 2011, 371, 1–5. [Google Scholar] [CrossRef]
  16. Rezwan, K.; Chen, Q.Z.; Blaker, J.J.; Boccaccini, A.R. Biodegradable and bioactive porous polymer/inorganic composite scaffolds for bone tissue engineering. Biomaterials 2006, 27, 3413–3431. [Google Scholar] [CrossRef]
  17. Nam, Y.J.; Stöver, T.; Hartman, S.S.; Altschuler, R.A. Upregulation of glial cell line-derived neurotrophic factor (GDNF) in the rat cochlea following noise. Hear. Res. 2000, 146, 1–6. [Google Scholar] [CrossRef]
  18. Hou, Q.; Grijpma, D.W.; Feijen, J. Porous polymeric structures for tissue engineering prepared by coagulation, compression molding, and salt leaching technique. Biomaterials 2003, 24, 1937–1947. [Google Scholar] [CrossRef]
  19. Mikos, A.G.; Thorsen, A.J.; Czerwonka, L.A.; Bao, Y.; Langer, R.; Winslow, D.N.; Vacanti, J.P. Preparation and characterization of poly (L-lactic acid) foams. Polymer 1994, 35, 1068–1077. [Google Scholar] [CrossRef]
  20. Lo, H.; Ponticiello, M.S.; Leong, K.W. Fabrication of Controlled Release Biodegradable Foams by Phase Separation. Tissue Eng. 1995, 1, 18–25. [Google Scholar] [CrossRef]
  21. Mooney, D.J.; Baldwin, D.F.; Suh, N.P.; Vacanti, J.P.; Langer, R. A novel approach to fabricate porous sponges of poly (D, L-lactic-co-glycolic acid) without the use of organic solvents. Biomaterials 1996, 17, 1417–1422. [Google Scholar] [CrossRef]
  22. Leong, K.F.; Cheah, C.M.; Chua, C.K. Solid freeform fabrication of three-dimensional scaffolds for engineering replacement tissues and organs. Biomaterials 2003, 24, 2363–2378. [Google Scholar] [CrossRef]
  23. Whang, K.; Thomas, C.H.; Healy, K.E.; Nuber, G. A novel method to fabricate bioabsorbable scaffolds. Polymer 1995, 36, 837–842. [Google Scholar] [CrossRef]
  24. Hoque, M.E.; Nuge, T.; Yeow, T.K.; Nordin, N.; Prasad, R.G.S.V. Gelatin Based Scaffolds for Tissue Engineering—A review. Polym. Res. J. 2015, 9, 15–32. [Google Scholar]
  25. Cho, Y.S.; Kim, B.S.; You, H.K.; Cho, Y.S. A novel technique for scaffold fabrication: SLUP (salt leaching using powder). Curr. Appl. Phys. 2014, 14, 371–377. [Google Scholar] [CrossRef]
  26. Bruton, A.R. Manufacturing, and Performance of Titanium Dioxide Ultra-High Molecular Weight Polyethylene nanocomposite Materials. Master’s Thesis, University of Delaware, Newark, DE, USA, 2006. [Google Scholar]
  27. Giraldo, L.F.; Echeverri, M.; López, B.L. Reinforcement of Polyamide 6 with Nanoparticles. Macromol. Symp. 2007, 258, 119–128. [Google Scholar] [CrossRef]
  28. Zhang, Z.; Yang, J.L.; Friedrich, K. Creep resistant polymeric nanocomposites. Polymer 2004, 45, 3481–3485. [Google Scholar] [CrossRef]
  29. Matsuyama, T.; Tomoda, R.; Nakajima, T.; Wake, H. Photo electrochemical sterilization of microbial cells by semiconductor powders. FEMS Microbial. Lett. 1985, 29, 211–214. [Google Scholar] [CrossRef]
  30. Kiema, G.K.; Colgan, M.J.; Brett, M.J. Dye-sensitized solar cells incorporating obliquely deposited titanium oxide layers. Sol. Energy Mater. Sol. Cells 2005, 85, 321–331. [Google Scholar] [CrossRef]
  31. Walsh, F.C.; Bavykin, D.V.; Torrente-Murciano, L.; Lapkin, A.A.; Cressey, B.A. Synthesis of novel composite materials via the deposition of precious metals onto protonated titanate (TiO2) nanotubes. Trans. Inst. Met. Finish. 2006, 6, 293–299. [Google Scholar] [CrossRef]
  32. Bavykin, D.V.; Parmon, V.N.; Lapkin, A.A.; Walsh, F.C. The effect of hydrothermal condition on the mesoporous structure of TiO2 nanotube. J. Mater. Chem. 2004, 14, 3370–3377. [Google Scholar] [CrossRef]
  33. Fu, Y.; Wei, Z.D.; Chen, S.G.; Li, L.; Feng, Y.C.; Wang, Y.Q.; Ma, X.L.; Liao, M.J.; Shen, P.K.; Jiang, S.P. Synthesis of Pd/TiO2 nanotubes/Ti for oxygen reduction reaction in acidic solution. J. Power Sources 2009, 189, 982–987. [Google Scholar] [CrossRef]
  34. Dechakiatkrai, C.; Chen, J.; Lynam, C.; Phanichphant, S.; Wallace, G.G. Photocatalytic degradation of methanol using titanium dioxide/single walled carbon nanotube composite. J. Electrochem. Soc. 2007, 154, A407–A411. [Google Scholar] [CrossRef]
  35. Madhugiri, S.; Sun, B.; Smirniotis, P.G.; Ferraris, J.P.; Balkus, K.J., Jr. Electrospun mesoporous titanium dioxide fibers. Microporous Mesoporous Mater. 2004, 69, 77–83. [Google Scholar] [CrossRef]
  36. Saujanya, C.; Radhakrishnan, S. Structure development and crystallization behavior of PP/nanoparticulate composite. Polymer 2001, 42, 6723–6731. [Google Scholar] [CrossRef]
  37. Zheng, Y.; Zhengb, Y.; Ning, R. Effects of nanoparticles SiO2 on the performance of nanocomposites. Mater. Lett. 2003, 57, 2940–2944. [Google Scholar] [CrossRef]
  38. Esthappan, S.K.; Kuttappan, S.K.; Joseph, R. Effect of titanium dioxide on the thermal aging of polypropylene. Polym. Degrad. Stab. 2012, 97, 615–620. [Google Scholar] [CrossRef]
  39. Akkapeddi, M.K. Glass fiber reinforced polyamide-6 nanocomposites. Polym. Compos. 2000, 21, 576–585. [Google Scholar] [CrossRef]
  40. Kasuga, T.; Hiramatsu, M.; Hoson, A.; Sekino, T.; Niihara, K. Formation of titanium oxide nanotube. Langmuir 1998, 14, 3160–3163. [Google Scholar] [CrossRef]
  41. Kasuga, T.; Hiramatsu, M.; Hoson, A.; Sekino, T.; Niihara, K. Titania nanotubes prepared by chemical processing. Adv. Mater. 1999, 11, 1307–1311. [Google Scholar] [CrossRef]
  42. Chen, Q.; Zhou, W.; Du, G.H.; Peng, L.M. Titanate nanotubes made via a single alkali treatment. Adv. Mater. 2002, 14, 1208–1211. [Google Scholar] [CrossRef]
  43. Kiatkittipong, K.; Scott, J.; Amal, R. Hydrothermally synthesized titanate nanostructures: Impact of heat treatment on particle characteristics and photocatalytic properties. ACS Appl. Mater. Interfaces 2011, 3, 3988–3996. [Google Scholar] [CrossRef] [PubMed]
  44. Yuan, Z.Y.; Colomer, J.F.; Su, B.L. Titanium oxide nanoribbons. Chem. Phys. Lett. 2002, 363, 362–366. [Google Scholar] [CrossRef]
  45. Kiatkittipong, K.; Ye, C.; Scott, J.; Amal, R. Understanding Hydrothermal Titanate Nanoribbon Formation. Cryst. Growth Des. 2010, 10, 3618–3625. [Google Scholar] [CrossRef]
  46. Zhang, Y.X.; Li, G.H.; Jin, Y.X.; Zhang, Y.; Zhang, J.; Zhang, L.D. Hydrothermal synthesis and photoluminescence of TiO2 nanowires. Chem. Phys. Lett. 2002, 365, 300–304. [Google Scholar] [CrossRef]
  47. Yoshida, R.; Suzuki, Y.; Yoshikawa, S. Syntheses of TiO2 (B) nanowires and TiO2 anatase nanowires by hydrothermal and post-heat treatments. J. Solid-State Chem. 2005, 178, 2179–2185. [Google Scholar] [CrossRef]
  48. Armstrong, A.R.; Armstrong, G.; Canales, J.; Bruce, P.G. TiO2 -B nanowires. Angew. Chem. Int. Ed. 2004, 43, 2286–2288. [Google Scholar] [CrossRef]
  49. Byrappa, K.; Yoshimura, M. Handbook of Hydrothermal Technology—A Technology for Crystal Growth and Materials Processing; William Andrew Publishing/Noyes: Norwich, NY, USA, 2001. [Google Scholar]
  50. Ma, R.; Bando, Y.; Sasaki, T. Nanotubes of lepidocrocite titanates. Chem. Phys. Lett. 2003, 380, 577–582. [Google Scholar] [CrossRef]
  51. Sangkatip, R.; Sriseubsai, W.; Kiatkittipong, K.; Jongwuttanaruk, K. Optimization of Salt-Leaching Parameters for Gelatin/Na2Ti3O7 Scaffolds Using a Mixture Design Experiment. Polymers 2022, 14, 559. [Google Scholar] [CrossRef]
  52. Sangkatip, R.; Sriseubsai, W.; Kiatkittipong, K. Preparation, and Characterization of the Na2Ti3O7: ABS/Na2Ti3O7 Composites. Key Eng. Mater. 2017, 753, 39–43. [Google Scholar] [CrossRef]
  53. Myers, R.H.; Montgomery, D.C. Response Surface Methodology Process and Product Optimization Using Designed Experiments, 2nd ed.; John Wiley and Son, Inc.: New York, NY, USA, 2002. [Google Scholar]
  54. Hajiali, H.; Karbasi, S.; Hosseinalipour, M.; Rezaie, H. Preparation of a novel biodegradable nanocomposite scaffold based on poly (3-hydroxybutyrate)/bioglass nanoparticles for bone tissue engineering. J. Mater. Sci. Mater. Med. 2010, 21, 2125–2132. [Google Scholar] [CrossRef]
  55. Chen, H.; Huang, J.; Yu, J.; Liu, S.; Gu, P. Electrospun chitosan-graft-poly (ε-caprolactone)/poly (ε-caprolactone) cationic nanofibrous mats as potential scaffolds for skin tissue engineering. Int. J. Biol. Macromol. 2011, 48, 13–19. [Google Scholar] [CrossRef]
  56. Mohd Amin, M.C.I.; Ahmad, N.; Halib, N.; Ahmad, I. Synthesis and characterization of thermo- and pH-responsive bacterial cellulose/acrylic acid hydrogels for drug delivery. Carbohydr. Polym. 2012, 88, 465–473. [Google Scholar] [CrossRef]
  57. Rokhade, A.P.; Agnihotri, S.A.; Patil, S.A.; Mallikarjuna, N.N.; Kulkarni, P.V.; Aminabhavi, T.M. Semi-interpenetrating polymer network microspheres of gelatin and sodium carboxymethyl cellulose for controlled release of ketorolac tromethamine. Carbohydr. Polym. 2006, 65, 243–252. [Google Scholar] [CrossRef]
  58. Ooi, S.Y.; Ahmad, I.; Amin, M.C.I.M. Cellulose nanocrystals extracted from rice husks as a reinforcing material in gelatin hydrogels for use in controlled drug delivery systems. Ind. Crops Prod. 2015, 93, 227–234. [Google Scholar] [CrossRef]
  59. Wiwatwongwana, F.; Promma, N. Characterization of Gelatin-Carboxymethylcellulose Scaffolds. In Proceedings of the 4th International Conference on Chemical Materials and Process (ICCMP 2018), 100th Building, Faculty of Engineering, Chulalongkorn University, Bangkok, Thailand, 23–25 May 2018. (Oral presentation). [Google Scholar]
  60. Jongwuttanaruk, K.; Surin, P.; Wiwatwongwana, F. Characterization of Gelatin/CMC Scaffolds by Electrospinning and Comparison with Freeze Dry Techniques. In Proceedings of the 4th International Conference on Chemical Materials and Process (ICCMP 2018), 100th Building, Faculty of Engineering, Chulalongkorn University, Bangkok, Thailand, 23–25 May 2018. (Oral presentation). [Google Scholar]
  61. Ma, J.; Wang, H.; He, B.; Chen, J. A preliminary in vitro study on the fabrication and tissue engineering applications of a novel chitosan bilayer material as a scaffold of human no fetal dermal fibroblasts. Biomaterials 2001, 22, 331–336. [Google Scholar] [CrossRef]
  62. Leea, S.B.; Kima, Y.H.; Chonga, M.S.; Hong, S.H.; Leea, Y.M. Study of gelatin-containing artificial skin V: Fabrication of gelatin scaffolds using a salt-leaching method. Biomaterials 2005, 26, 1961–1968. [Google Scholar] [CrossRef]
Figure 1. The gelatin/Na2Ti3O7 nanocomposite scaffold samples prepared using the freeze-drying technique.
Figure 1. The gelatin/Na2Ti3O7 nanocomposite scaffold samples prepared using the freeze-drying technique.
Polymers 15 02322 g001

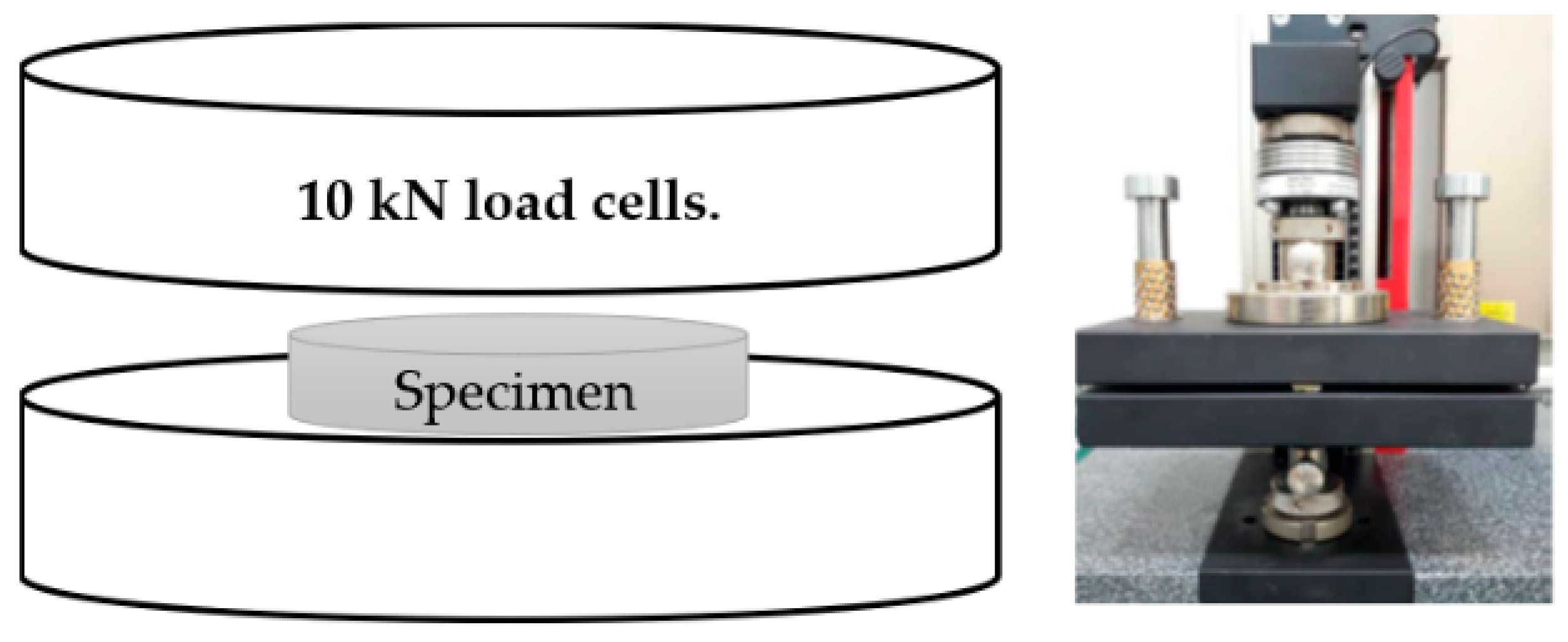

Figure 2. The testing of the prepared gelatin/Na2Ti3O7 nanocomposite scaffold samples using the universal testing machine.
Figure 2. The testing of the prepared gelatin/Na2Ti3O7 nanocomposite scaffold samples using the universal testing machine.
Polymers 15 02322 g002

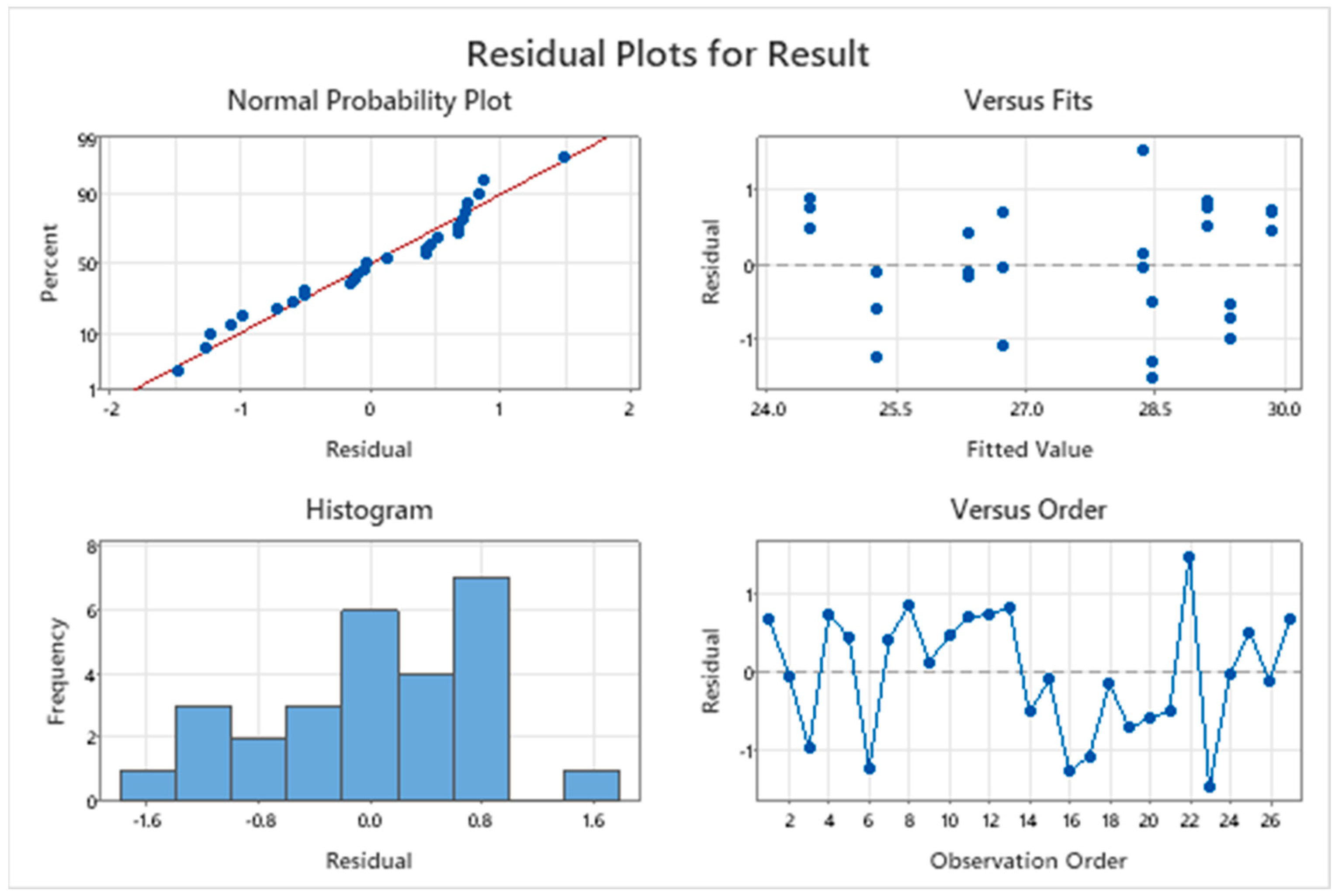

Figure 3. The residual plots for response average (kPa).
Figure 3. The residual plots for response average (kPa).
Polymers 15 02322 g003

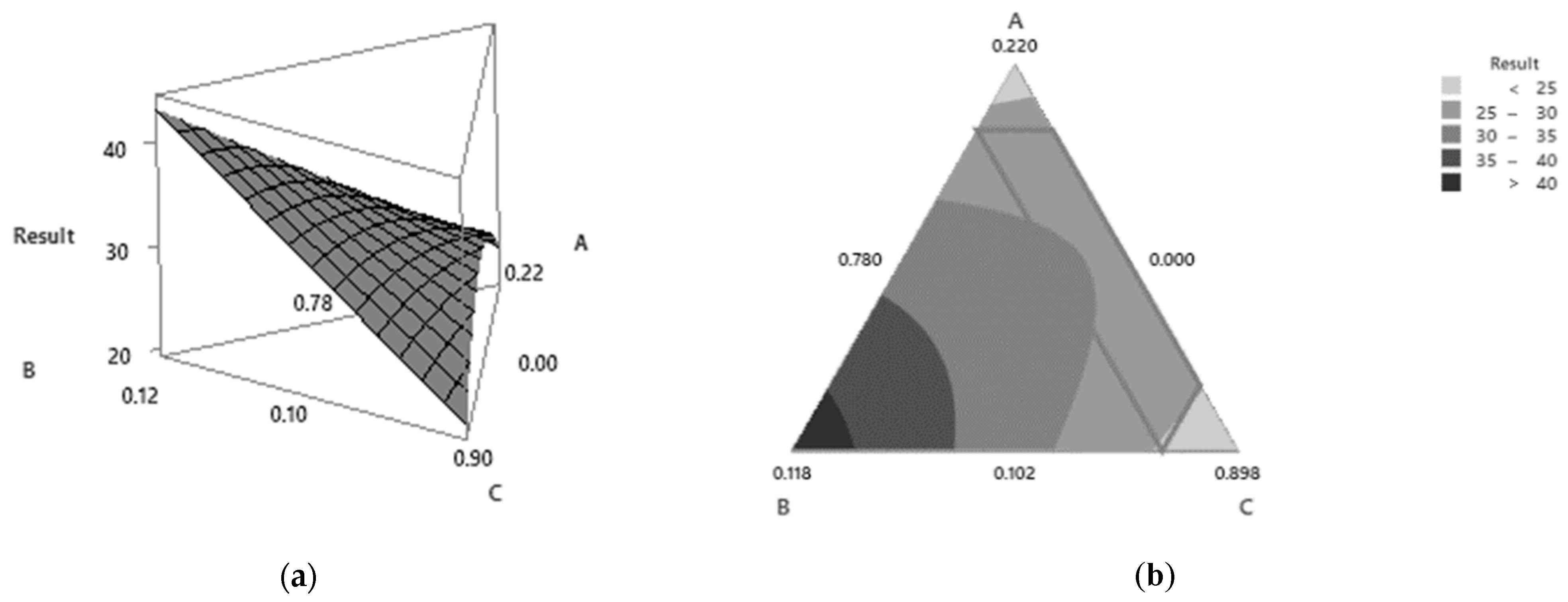

Figure 4. The mixture surface plot (a) and the mixture contour plot (b).
Figure 4. The mixture surface plot (a) and the mixture contour plot (b).
Polymers 15 02322 g004

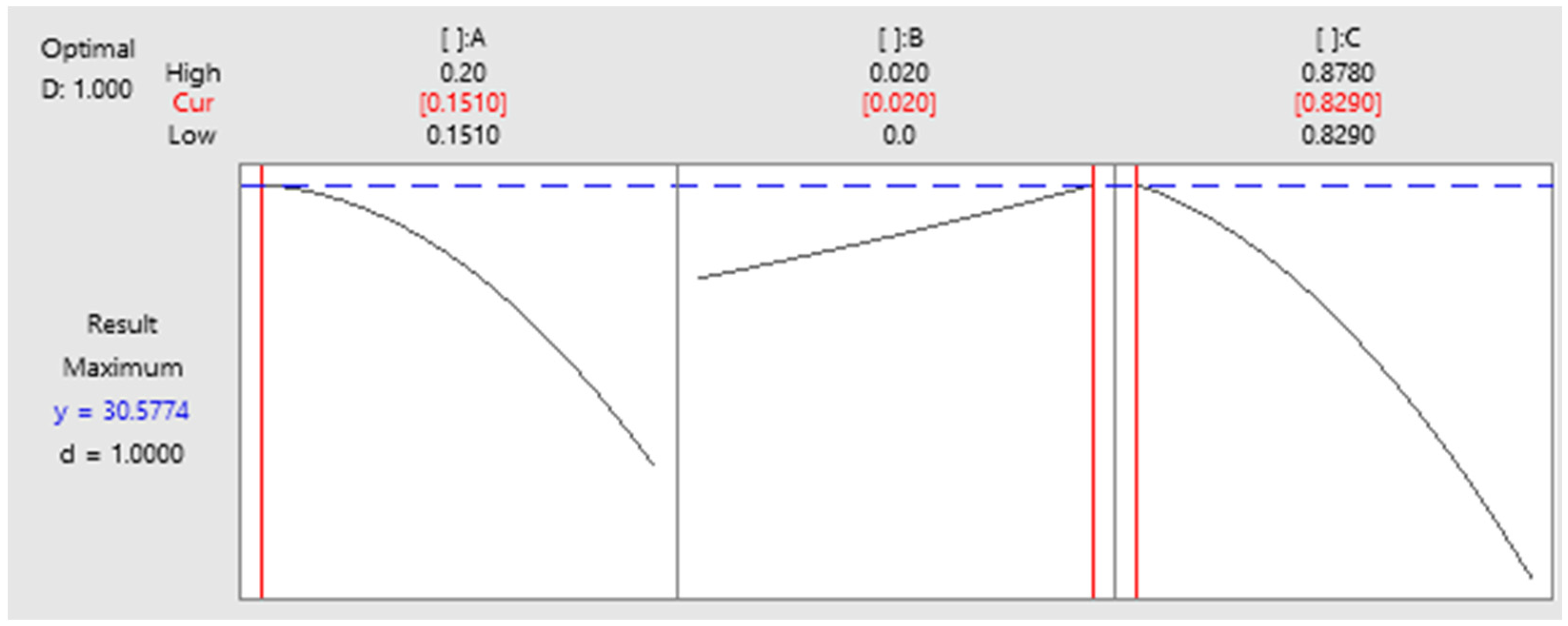

Figure 5. Optimization chart.
Figure 5. Optimization chart.
Polymers 15 02322 g005

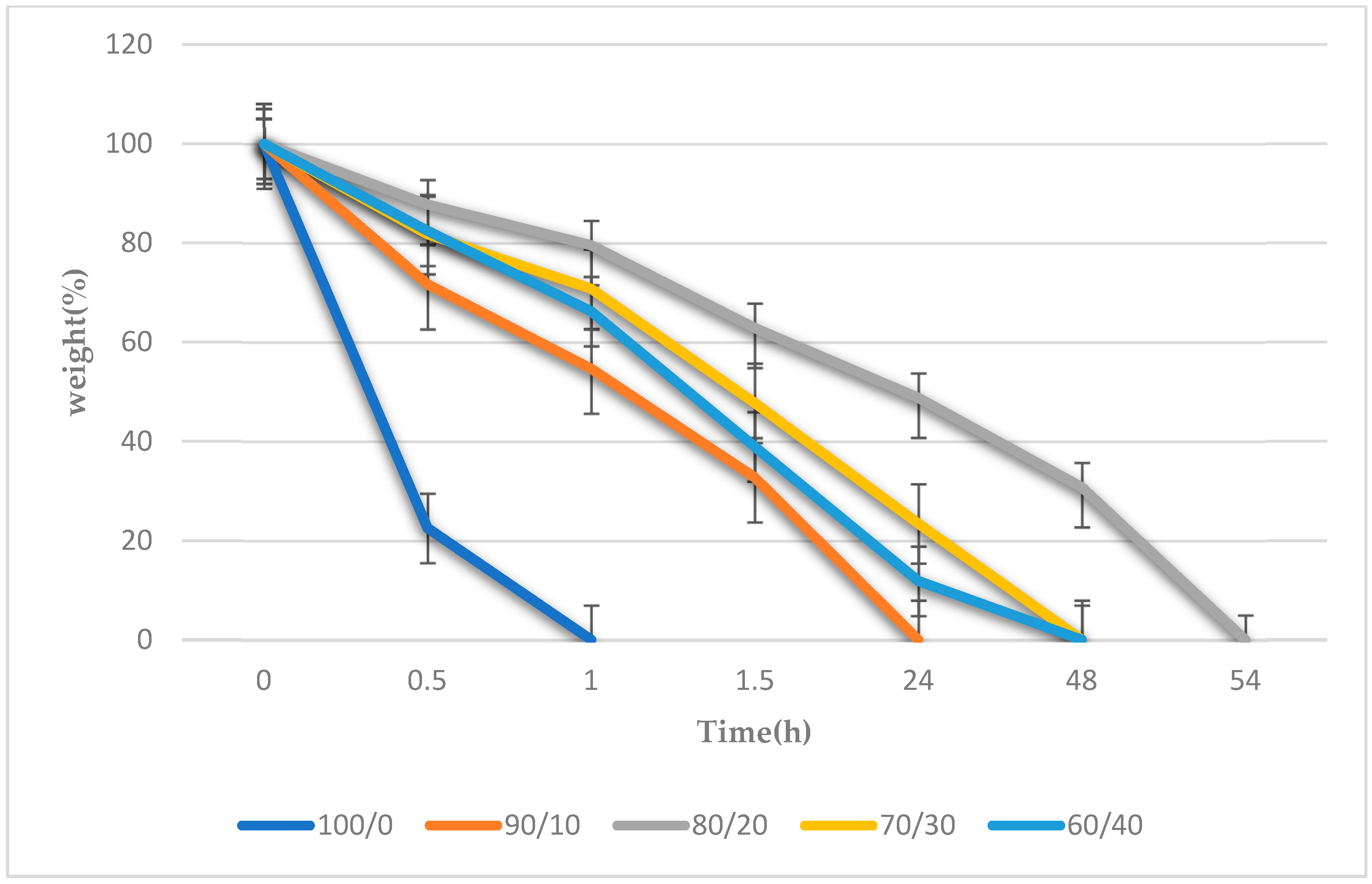

Figure 6. Results of the biodegradation of the gelatin/Na2Ti3O7 nanocomposite scaffolds. (n = 20) at p < 0.05.
Figure 6. Results of the biodegradation of the gelatin/Na2Ti3O7 nanocomposite scaffolds. (n = 20) at p < 0.05.
Polymers 15 02322 g006

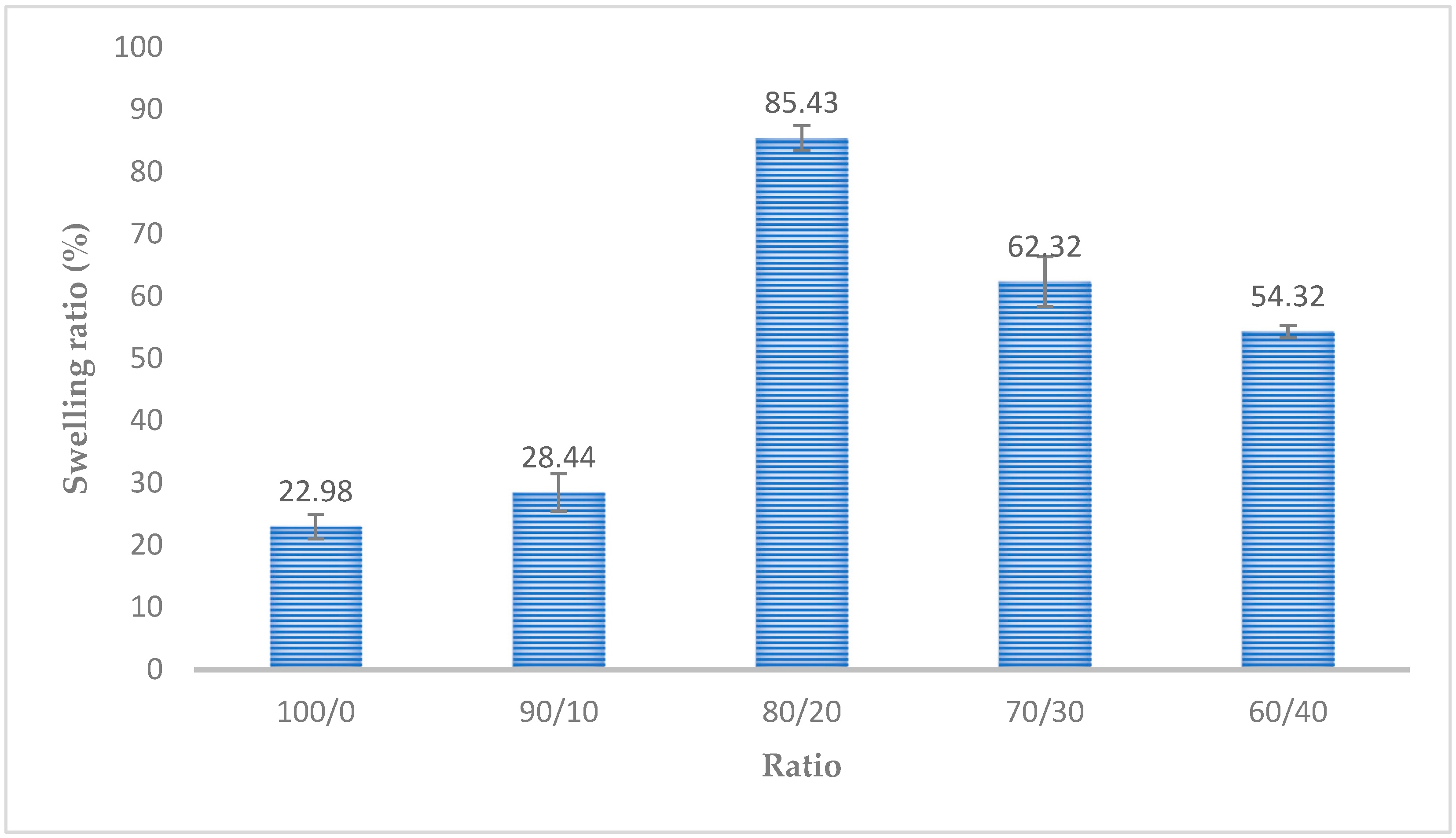

Figure 7. The swelling ratios of the different gelatin/Na2Ti3O7 nanocomposite scaffolds prepared using the freeze-drying technique. (n = 20) at p < 0.05.
Figure 7. The swelling ratios of the different gelatin/Na2Ti3O7 nanocomposite scaffolds prepared using the freeze-drying technique. (n = 20) at p < 0.05.
Polymers 15 02322 g007

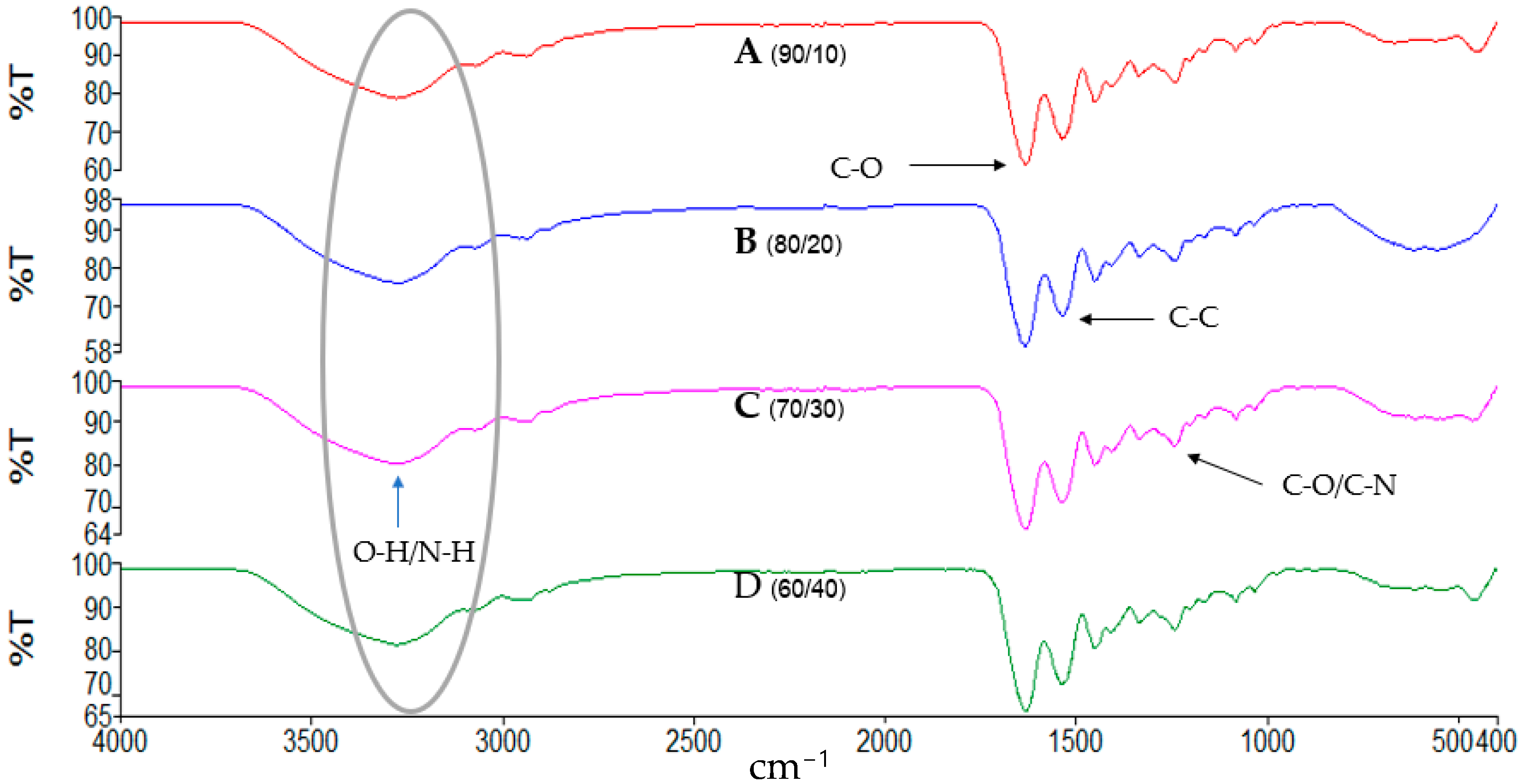

Figure 9. The FTIR spectrum of the gelatin/Na2Ti3O7 nanocomposite scaffold.
Figure 9. The FTIR spectrum of the gelatin/Na2Ti3O7 nanocomposite scaffold.
Polymers 15 02322 g009
Table 1. The raw materials used for synthesizing the gelatin/Na2Ti3O7 nanocomposite scaffolds.
Table 1. The raw materials used for synthesizing the gelatin/Na2Ti3O7 nanocomposite scaffolds.
FactorsFactor Levels
Low LevelHigh Level
A: Gelatin (g)020
B: Na2Ti3O7 (g)02
C: DI water (mL)087.8
Table 2. The experimental design and results.
Table 2. The experimental design and results.
Run OrderFactorsCompressive Test (kPa.)
A: GelatinB: Na2Ti3O7C: DI Water
Table 3. Summary of the results obtained in the analysis of variance (ANOVA).
Table 3. Summary of the results obtained in the analysis of variance (ANOVA).
SourceDFSeq SSAdj SSAdj MSF-Valuep-Value
Residual Error2316.06716.0670.6986
Lack of Fit511.40811.4082.28178.820.000
Pure Error184.6594.6590.2588
Table 4. The porosity percentage and pore size of the scaffolds (significance level—p < 0.05).
Table 4. The porosity percentage and pore size of the scaffolds (significance level—p < 0.05).
Gelatin/Na2Ti3O7Pore Size (µm)Porosity (%)
100/0124.23 ± 2.6567.96 ± 2.77
90/10195.32 ± 2.5283.43 ± 0.82
80/20278.71 ± 2.5286.42 ± 1.08
70/30257.79 ± 2.0885.44 ± 1.20
60/40234.56 ± 3.5184.63 ± 2.30
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sangkatip, R.; Jongwuttanaruk, K.; Sriseubsai, W. Gelatin/Na2Ti3O7 Nanocomposite Scaffolds: Mechanical Properties and Characterization for Tissue Engineering Applications. Polymers 2023, 15, 2322.

AMA Style

Sangkatip R, Jongwuttanaruk K, Sriseubsai W. Gelatin/Na2Ti3O7 Nanocomposite Scaffolds: Mechanical Properties and Characterization for Tissue Engineering Applications. Polymers. 2023; 15(10):2322.

Chicago/Turabian Style

Sangkatip, Rittichai, Kaona Jongwuttanaruk, and Wipoo Sriseubsai. 2023. "Gelatin/Na2Ti3O7 Nanocomposite Scaffolds: Mechanical Properties and Characterization for Tissue Engineering Applications" Polymers 15, no. 10: 2322.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
