Chitosan Based Biodegradable Composite for Antibacterial Food Packaging Application

by
Andre Jiang
1,†,
Rajkumar Patel
2,†,
Bandana Padhan
3,
Supriya Palimkar
4,
Padmaja Galgali
4,
Arindam Adhikari
4,
Imre Varga
5,* and
Madhumita Patel
6,*
1
Department of Chemical Engineering, The Cooper Union for the Advancement of Science and Art, New York, NY 10003, USA
2
Energy & Environmental Science and Engineering (EESE), Integrated Science and Engineering Division (ISED), Underwood International College, Yonsei University, 85 Songdogwahak-ro, Yeonsugu, Incheon 21938, Republic of Korea
3
Department of Biotechnology, School of Life Science and Biotechnology, Adamas University, Kolkata 700126, West Bengal, India
4
Aadarsh Innovations, Balewadi, Pune 411045, Maharashtra, India
5
Institute of Chemistry, Eötvös Loránd University, 1117 Budapest, Hungary
6
Department of Chemistry and Nanoscience, Ewha Womans University, 52 Ewhayeodae-gil, Seodaemun-gu, Seoul 03760, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2023, 15(10), 2235; https://doi.org/10.3390/polym15102235
Submission received: 15 April 2023 / Revised: 6 May 2023 / Accepted: 6 May 2023 / Published: 9 May 2023
(This article belongs to the Special Issue Food Biopolymers)
Browse Figures
Versions Notes

Abstract

:
A recent focus on the development of biobased polymer packaging films has come about in response to the environmental hazards caused by petroleum-based, nonbiodegradable packaging materials. Among biopolymers, chitosan is one of the most popular due to its biocompatibility, biodegradability, antibacterial properties, and ease of use. Due to its ability to inhibit gram-negative and gram-positive bacteria, yeast, and foodborne filamentous fungi, chitosan is a suitable biopolymer for developing food packaging. However, more than the chitosan is required for active packaging. In this review, we summarize chitosan composites which show active packaging and improves food storage condition and extends its shelf life. Active compounds such as essential oils and phenolic compounds with chitosan are reviewed. Moreover, composites with polysaccharides and various nanoparticles are also summarized. This review provides valuable information for selecting a composite that enhances shelf life and other functional qualities when embedding chitosan. Furthermore, this report will provide directions for the development of novel biodegradable food packaging materials.

1. Introduction

Products made from synthetic plastics, such as disposable grocery bags, are used daily. However, negative consequences of the nonrenewable, petroleum-based synthetic plastics have become increasingly known [1,2]. Synthetic plastics are nonbiodegradable and can take thousands of years to decompose. Although these synthetic polymers can be recycled, most end up in landfills or oceans where pollution can significantly damage the local ecosystem.
The synthetic plastics used in food packaging are environmentally unfriendly and we have begun to explore biodegradable packaging materials. Therefore, the food industry is searching for the possibility of using biodegradable materials derived from natural sources such as cellulose and its derivatives, chitosan, starch, alginate, pectin, pullulan, gelatin, whey, soybean proteins, etc. Bacterial cellulose and other plant-derived celluloses have been used as food packaging materials, but they do not have any functional or mechanical properties. Alginate exhibits good tensile strength, good film-forming abilities, and flexibility, but it has the major drawback of a high water vapor transmission rate [3]. Gelatin is also well known for its film-forming ability but is limited to mechanical properties and thermal stability [4]. Among these biopolymers, chitosan and its derivatives have excellent film-forming properties, nontoxicity, biodegradability, antibacterial, antifungal, and metal-chelating characteristics [5]. Thus, the demand for chitin and chitosan has increased [6,7].
Chitosan is a polysaccharide found in crustacean shells that can be manufactured via the deacetylation of chitin (Scheme 1) [8]. As an alternative material, chitosan shows potential applications in many industries, such as food, agriculture, and medicine. Chitosan films and coatings have been extensively studied because they are non-toxic, antimicrobial, biodegradable, and produced from a renewable source [9,10]. The film is generally obtained using the casting method, where chitosan dissolves in a suitable solvent and simultaneously incorporates the plasticizer, the active compound, and the nanofiller of interest. Chitosan possesses antibacterial properties due to positively charged amino groups (NH3+) at the C-2 positions in the glucose monomers.
Recently, several approaches have been adopted to modify chitosan to achieve the desired food-packaging qualities. Incorporating different additives such as essential oils and plant extracts with chitosan significantly enhances the antibacterial and antioxidant properties, the current trend in a coating that improves the shelf life [11,12,13,14]. Additional modifications with starch, alginate, and pectin improve mechanical properties [15]. Furthermore, researchers improve the mechanical and physiochemical properties by incorporating bioactive additives such as polyphenols, oils, and plasticizers [16,17]. Comprising nanoscale reinforcements is another way to increase the food packaging quality [18,19].
Many attempts have been made to produce chitosan composites with nanoparticles, phenols, plant extract, metal ions and tannic acid, citric acid, etc. to enhance the pharmacological properties of the products [20,21]. However, continuous progress in this area needs more compilation. The present review focuses on different types of chitosan composites that enhance physicochemical properties and increase food quality as a packaging. This article aims to summarize the latest developments of chitosan modification as a modern food packaging.

Antimicrobial Mechanism of Chitosan

Chitosan shows antimicrobial activity against various microorganisms, including bacteria, fungi, and algae [22]. The antimicrobial activity of chitosan includes the degree of polymerization, the host, the chitosan composition, and the substrate composition [22,23]. However, the antimicrobial activity of chitosan is still unknown and several mechanisms have been hypothesized [22]. Research shows that chitosan exhibits higher bacteriostasis than fungistasis at low temperatures (−20 °C) [24]. A hypothesized antimicrobial mechanism is that chitosan-based films form a cellophane-like structure to build a protective layer on the food surface to block external microbes [25]. The protective layer of chitosan-based films may also restrict oxygen permeability to inhibit the growth of bacteria within the food [26]. Another antimicrobial mechanism includes the adsorption of the chitosan polymers on the surface of the microbes to cause a blockage.
Chitosan contains positively charged NH3+ groups that can interact with the negatively charged phosphoryl groups leading to intercellular electrolyte leakage and killing the bacteria [27,28,29]. Chitosan can also inhibit microbes from replicating by penetrating the nuclei, binding to the DNA, and preventing the synthesis of RNA [30]. Finally, chitosan can chelate essential nutrients and metals, rendering them unavailable for microbes [20].

2. Chitosan Composites

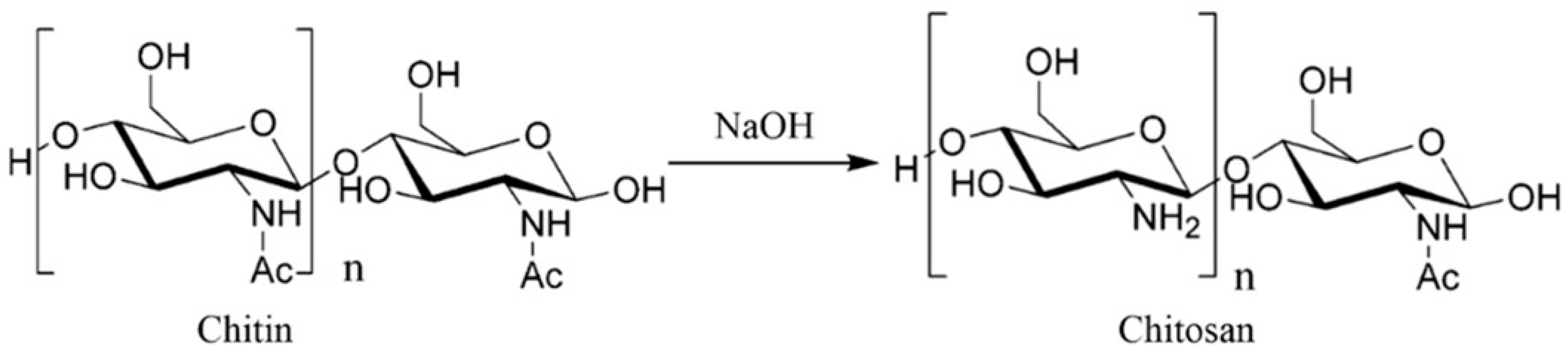

Chitosan obtained from the deacetylation of chitin is a waste product of the seafood industry. The film-forming ability allows chitosan to form an edible coating or films that can improve the preservation of food products. Interactions between the cationic chitosan film microorganisms’ negatively charged membrane prevent bacteria and fungi’s growth. Pristine chitosan films have been studied for years as a potential food packaging material. However, recent research on chitosan includes chitosan-based composite films, which contain different functional components to improve the properties of films.

2.1. Chitosan/Essential Oil Composites

Natural essential oils extracted from plants have potential applications as environmentally friendly food preservatives in edible films. Adding essential oil to polymers increases the films’ antibacterial and antifungal activity [26,31]. Moreover, the essential oil in chitosan-based films regulates the release rate of antimicrobial agents to maintain the concentration of active compounds over an extended time. Essential oils include between 85 and 99% volatile substances, such as terpenes, terpenoids, and other alpha-aromatic and aromatic substances, and between 1 and 15% non-volatile substances; these substances are frequently utilized in the food sector [32].
On that basis, ginger essential oil (GEO) obtained from ginger enhanced the physiochemical properties of chitosan and fish sarcoplasmic protein (FSP) film. All the GEO/FSP/chitosan composite films exhibited excellent UV-barrier properties from 200 to 280 nm, decreased tensile strength, and higher elongation at break compared to pristine chitosan film. The composite film prolonged the shelf life of fillets by two days and enhanced the antimicrobial activity of chitosan films. Additionally, GEO was slowly released onto the surface of the fish to improve preservation [33]. Another chitosan-based composite film that contained essential oil of fennel (EOF), potato peel extract (PPE), and polyvinyl alcohol (PVA) improved the antioxidant and antimicrobial properties of the film. The nano chitosan-PPE-PVA-EOF composite film enhanced mechanical properties and extended the shelf life of food. The composite film degraded entirely within two days by Pseudomonas putida while the chitosan control film took about one week [34]. Furthermore, composite films based on chitosan and honeysuckle flower extract (HFE) enhanced antioxidant activity, antimicrobial activity, and reduced water vapor permeability (WVP). With the addition of HFE (30%), the DPPH scavenging activity and E. coli inhibition zone increased. However, mechanical tests showed that incorporating HFE reduced the tensile strength and elongation at break. The composite films have great potential for antimicrobial packaging for highly perishable foods [35].
The essential oil extracted from cinnamon has been getting attention due to its antimicrobial properties. Octenyl succinic anhydride (OSA) and gum arabic (GA) stabilized with cinnamon essential (CEO) can be incorporated into chitosan-based films to increase the emulsion capacity of OSA and GA. CEO emulsions into the chitosan films improved antimicrobial activity against E. coli and S. aureus. However, it reduced the tensile strength of the film. The OSA-GA stabilized CEO emulsions into CS films could be used to protect edible films and increase durability (Figure 1) [36]. Similarly, chitosan film containing thyme essential oil enhanced the film’s mechanical, thermal, and antibacterial properties. Moreover, combing of calcium chloride, zinc oxide (ZnO), poly ethylene glycol (PEG), and nano clay (NC) in chitosan-based films preserved the quality of sweet cherries by conserving higher titratable acidity, total soluble solids, and reduced weight loss [37].

2.2. Polyphenolic/Chitosan Composite

Chitosan film without composite is hydrophilic and has weaker mechanical, thermal, and water vapor barrier characteristics than synthetic composites. To increase the use of chitosan films, nature extracts, which often contain a variety of functional activities, can be added to the film as active components and fillers. Several phenolic compounds (ferulic acid, gallic acid, tannic acid, quercetin, and curcumin) have recently been reported as chitosan-based composite films [38,39,40,41,42,43]. These phenolic compounds could enhance various properties, including the mechanical strength of chitosan films [39,43].
The phenolic compound (gallic acid, procyanidins, catechin, and epicatechin) from grape seed extract (GSE) can have antioxidant and antimicrobial activity. GSE and carvacrol incorporated in chitosan films extended the shelf life of refrigerated salmon up to one week [44]. A mathematical model study also proved that gallic acid release from chitosan/carvacrol films improves food preservation and shelf-life extension of water-based food products at different temperatures [45]. Similarly, in the study of Sogut et al., the GSE/chitosan films exhibited higher elastic modulus and elongation at break compared to chitosan films. The antioxidant activity, light barrier properties, and antibacterial activity also increased as the GSE content increased in the chitosan film. Chitosan films incorporated with GSE exhibited superior antimicrobial activity against Listeria monocytogenes, Escherichia coli, and Staphylococcus aureus. Moreover, composite chitosan films with 15% GSE inhibited the total mesophilic aerobic bacteria and coliform foods [46]. The GSE with poly(ε-caprolactone) (PCL) and chitosan was reported as an antimicrobial packaging for food by inhibiting the growth of E. coli and mold, respectively. The pit morphology of chitosan films increased as the concentration of GFSE increased due to the incorporation of glycerol in the GFSE. These pits facilitate the release of GFSE out of the composite films and can suppress microbial growth. The GFSE chitosan composite films still exhibited adequate tensile strength and flexibility but decreased the film’s resistance to breakage and elasticity. Furthermore, no mold growth was observed on the bread packaged with films containing GFSE (Figure 2) [47].
Another polyphenol group from kombucha tea (KT) embedded with chitosan films improved antimicrobial and antioxidant activities, extending the shelf life and lowering the minced beef’s lipid oxidation by three days. KT significantly enhanced the antioxidant activity of chitosan-based films. Food packaging material should ideally exhibit low light transmittance. UV–vis spectroscopy analysis between 300 nm and 800 nm determined KT significantly decreased UV and visible light’s transmittance. Adding KT also considerably increased the water solubility and reduced the water vapor permeability of chitosan films [1]. Karača et al. fabricated an edible film that contained coca (Theobroma cacao L.) powder using chitosan, alginate, and pectin with whey protein. The resultant plain alginate films exhibited the highest elongation at break. Adding proteins caused the release of polyphenols to be prolonged and enhanced the functional properties. The plain alginate and pectin films exhibited the highest total phenol content (TPC) compared to chitosan-based films, alginate- and pectin-based films. Further, the sensory score was reported to be highest in alginate-based edible films based on acceptability, appearance, color, transparency, and elasticity [48].
Protocatechuic acid (PA), a natural phenolic antioxidant grafted with chitosan (PA-g-CS), exhibited higher water solubility and lower moisture content than chitosan films. The film exhibited greater tensile strength and elongation at break compared to chitosan films. Furthermore, the PA-g-CS films showed lower transmittance of light around 300 nm, and the decomposition of the film was lower between 30 °C and 167 °C. Finally, PA-G-CS also exhibited higher antioxidant activity than chitosan films. The free radical scavenging activity increased as the PA content increased [49]. The syringic acid/chitosan composite film effectively preserved quail egg coatings by inhibiting bacterial growth. The obtained film exhibited increased density, water solubility, and opacity, and decreased water vapor permeability and water content [50].

2.3. Polysaccharide/Chitosan Composite

Reports have shown that polysaccharides can be blended with chitosan to develop chitosan-based functional films. The advantages of using starch include low cost, availability, biodegradability, and renewability. Additionally, starch and chitosan possess good film-forming capacities, which enable the formation of a composite film [51]. The obtained film enhanced antioxidant activity and water vapor barrier property, while lowering bacterial adhesion on the packaging. These properties show that the composite has potential applications as an active packing film for foods [52,53].
Bhardwaj et al. investigated the properties of food-grade cellulose-based papers made from sugarcane bagasse and corn husk coated with chitosan and beeswax–chitosan emulsion. The WC (beeswax–chitosan emulsion coated) and CC (chitosan coated) paper reduced yeast and mold growth by 8 to 12 days, depending on the temperature. In addition, the enhanced barrier properties against air and moisture are attributed to better bread quality [54]. The chitosan/cellulose nanocrystals (CNC) exhibited antimicrobial activity against the gram-negative, gram-positive bacterial, and fungicidal activity. The chitosan films also reduced Pseudomonas and Enterobacteriaceae bacteria growth in meat. The obtained chitosan films exhibited enhanced oxygen barrier and thermal stability properties; however, the water permeability stayed the same. Additionally, chitosan/CNC films exhibited increased tensile strength and Young’s modulus [55]. In another study, CNC added to chitosan solution was observed to have improved the water resistance of the films prepared by the solvent casting method. The nanochitosan (NCH)-CNC suspension was cast into a petri-dish and dried at 50% relative humidity for two days. The resultant NCH-CNC films exhibited a smooth and continuous surface. The film morphology was reported to be smoother in nanoform and the film thickness was decreased by the incorporating of nanocellulose [56].
In the continuous growth of biodegradable materials, starch shows the potential to develop active food packaging material due to its low cost, availability, functionality, and, most importantly, biodegradability. Starch-based films are often odorless, tasteless, colorless, nontoxic, and biodegradable. However, compared to synthetic polymers, starch films have poor mechanical and barrier qualities, restricting their use in food packaging. Therefore, scientists have been investigating retaining starch characteristics by blending with the other natural biopolymers. The intermolecular bonds between the amino functional groups of chitosan improved many food packaging properties such as tensile strength, thermal stability, hydrophobicity, water adsorption, and gas barrier properties [57]. Corn starch and chitosan film prepared via the casting method exhibited excellent elongation at break and tensile strength [58]. Thermoplastic corn starch (TPS) and chitosan oligomer (CO) composite films extended food shelf life. The chitosan oligomers diffused through the polymer towards the food surface acting as an antimicrobial agent. Results showed that the film could preserve perishable foods for one week. The resultant TPS/CO composite film exhibited good antimicrobial capability and suggested an efficient way to inhibit microbial development [59].
Sugar palm starch (SPS) with chitosan and extra virgin olive oil (EVOO) composite film exhibited the lowest second-stage degradation temperature (184.2 °C). In comparison, chitosan/SPS-EVOO (2%) showed the highest second-stage degradation temperature (223.1 °C) and had the most optimal improvement in elongation at break and tensile strength [60]. The chitosan–Dioscorea alata starch composite film developed by response surface methodology (RSM) achieved desirable food packaging properties such as moisture content, biodegradability, elastic modulus, and tensile strength. Further, adding essential oil from garlic, aloevera, and lemon grass increased the antibacterial properties against E. coli, Salmonella typhi, S. epidermidis, and S. aureus (Figure 3) [61]. Furthermore, the composite film of starch–chitosan and montmorillonite filler nanoparticles significantly increased tensile strength and improved water vapor barrier properties [62].
Incorporating chitosan nanoparticles (CNP) into starch films acted as a natural filler and improved the film’s mechanical properties and water sorption [63]. The starch/CNP nanocomposite films inhibited the growth of S. aureus, B. cereus, E. coli, and S. typhimurium and extended the shelf life of perishable foods [64]. Similarly, Zhao et al. added chitosan and gallic acid into cassava starch via subcritical water technology to produce a composite film. Hydrogen bonds and crystallinity affected the mechanical properties of each respective film. Results showed that chitosan–starch films exhibited the highest tensile strength and elongation (100.1%). Additionally, cassava starch was found to be a capable carrier of antioxidants and antimicrobials which can extend the shelf life of foods. The chitosan/gallic acid/cassava starch composite film elongated the shelf life of cooked ham for 25 days and may have a potential application as a food packaging material [65].
The other polysaccharides, such as pectin, can also be blended with chitosan to prepare a composite film that is stable and uniform due to the intermolecular interactions between the oppositely charged ions. A film that combined tea polyphenols (TP), pectin, and chitosan (CPFT) increased the water vapor permeability and moisture content. Adding TP improved antioxidant activity and reduced bacterial growth [66]. Similarly, Schnell et al. prepared a film that contained colloidal suspensions of cationic polyelectrolyte complex (CatPEC) of xylan (Xyl) and chitosan. The obtained film exhibited lower water vapor transmission rates and oxygen permeability. Moreover, it inhibited E. coli and S. aureus growth [67].
Konjac glucomannan (KGM) is a polysaccharide and water-soluble dietary fiber, derived from Amorphophallus konjac. KGM combined with TEMPO-ChNCS (TEMPO-oxidized chitin nanocrystal) increased tensile strength and reduced water vapor permeability [68]. Similarly, the composite of epigallocatechin gallate (EGCG) with KGM/carboxymethyl chitosan (KGM/CMCS) demonstrated desirable characteristics of superior antioxidant properties and antibacterial properties that are essential for food packaging. EGCG enhanced the water vapor barrier properties, increased thermal stability, increased tensile strength, and increased UV-light barrier properties [69]. Further, a de-oiled crude green algal ethanolic extract (CAEE) was incorporated into chitosan films to minimize postharvest loss and prolong the shelf life of tomatoes (Figure 4) [70]. Chitosan composite with polysaccharides improves their physical and mechanical properties, depicted in Table 1.

2.4. Gelatin/Chitosan Composite

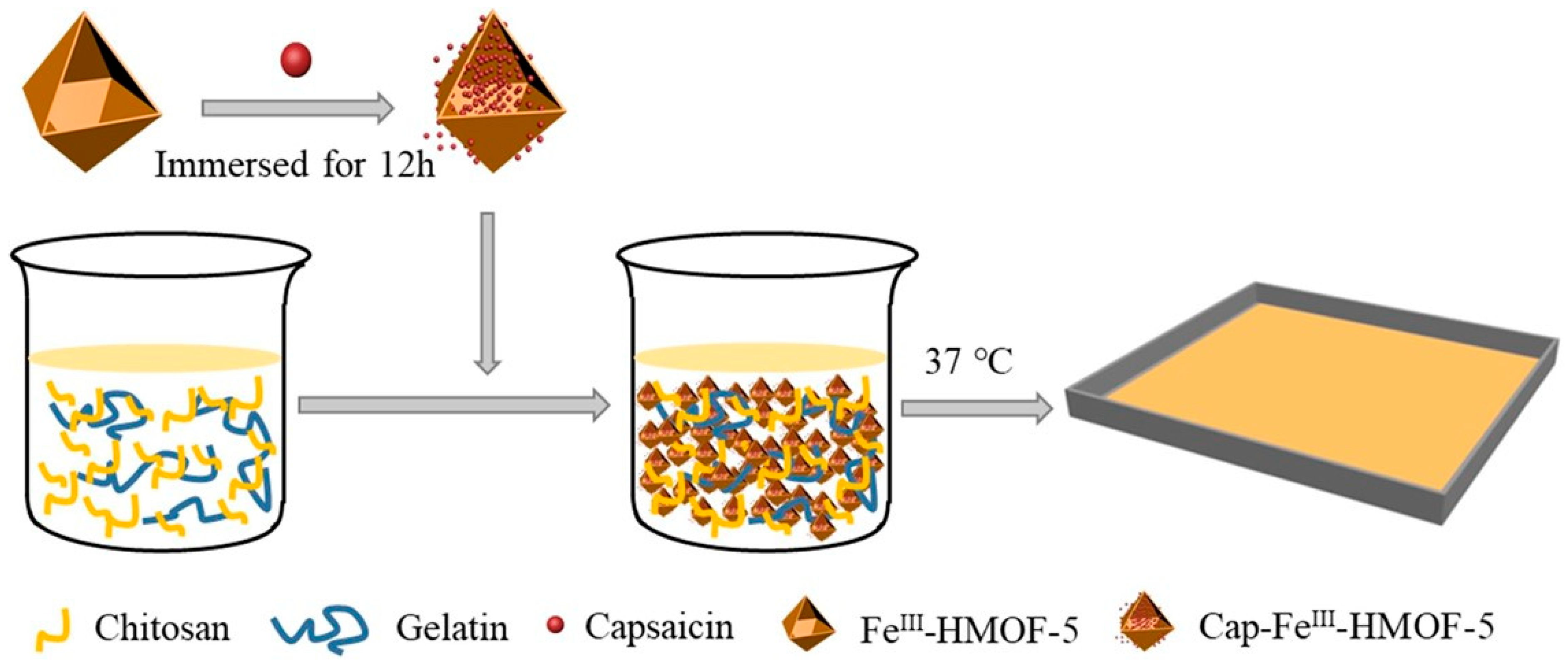

Gelatin is a protein obtained from animal collagen that blends with chitosan used to make composite films that exhibit improved mechanical properties, water barrier properties, and light barrier properties [71,72,73,74].
Perishable foods treated with chitosan–gelatin edible films exhibited low microbial decay and longer shelf life [75]. The shelf-life of a carrot piece can be increased upto ten days, using a composite film of chitosan and gelatin [76]. Furthermore, the gelatin/chitosan composite with phenolic antioxidants (gallic and trans-cinnamic acids) exhibited significantly higher reducing power (RP) and iron chelating power (ICP) compared to the trans-cinnamic acid/gelatin/chitosan films. The kinetic release of phenolic compound strongly influenced the antioxidant activity, RP, ICP, and antimicrobial activity of the films [77].
A composite film of cinnamon essential oil (CEO), chitosan, and gelatin via the casting method exhibited UV-light barrier properties. The composite film also showed greater elongation at break but a decreased tensile strength compared to CS films. Additionally, the results found that gelatin and CEO enhanced thermal stability while reducing wettability and crystallinity. The composite film also exhibited excellent antibacterial activity against E. coli and S. aureus [78]. Halim et al. showed that incorporating tannic acid into CS, gelatin, and methylcellulose (MC) increased the antibacterial properties of the composite film against E. coli and S. aureus. MC exhibited the lowest weight loss % while chitosan exhibited the highest. Additionally, the incorporation of tannic acid significantly reduced light transmittance which is a better preservative [79]. Combining nano-cellulose into chitosan, gelatin, and starch improved the anti-fungal, mechanical, and water barrier properties. With the chitosan amount, food preservation, Young’s modulus, and tensile strength increased while the elongation at break decreased. However, Young’s modulus and tensile strength decreased as the nanocellulose content increased. Additionally, composite films that contained starch nanocellulose were more brittle due to the rigid behavior of NCC compared to gelatin. Additionally, the nanocomposite film containing ~5% NCC content of starch-based film exhibited high transmittance of UV light [80]. Furthermore, the antibacterial performance of gelatin/chitosan film was enhanced by incorporating capsaicin (Cap) via FeIII doped hollow metal–organic framework (FeIII-HMOF-5) nanocarriers. Incorporating Cap- FeIII-HMOF-5 increased tensile strength and reduced elongation at break. Moreover, due to the hydrophilic properties of Cap- FeIII-HMOF-5, water vapor permeability decreased as the content increased (Figure 5) [81]. The gelatin/chitosan film improves the physical and mechanical properties, depicted in Table 2.

2.5. Polyvinyl Alcohol/Chitosan Composite

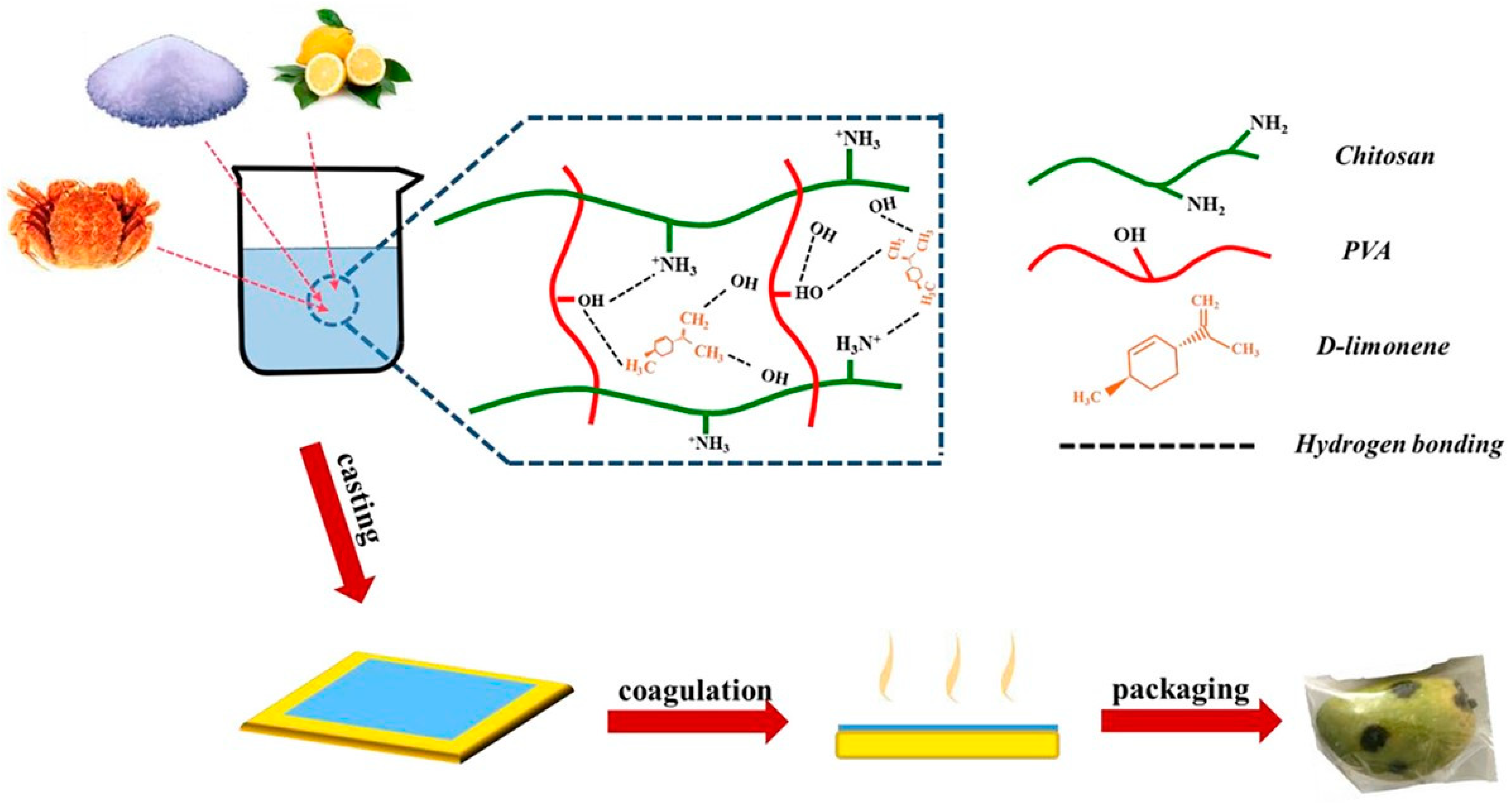

Food packages containing chitosan kept the food fresh without a freezer for some time while degrading and preventing future soil pollution. However, the fast dissolution in acidic solution and lack of flexibility of chitosan films are its drawbacks. Therefore, creating an affordable, biodegradable polymer film for food packaging is essential. Polyvinyl alcohol (PVA) has numerous advantages for food packaging, including high hydrophilicity, outstanding chemical stability, and exceptional film-forming abilities. Therefore, the current research on the composite of PVA with chitosan is gaining attention.
Hydrogen bonding can cause entanglements between PVA and quaternary ammonium chitosan (QAC), forming a composite film with enhanced mechanical properties [83]. A study by Hu et al. showed that the QAC/PVA composite film significantly increased water vapor permeability, tensile strength, and elongation at break. The films reduced peroxide levels and thiobarbituric acid levels in peanut oil and stored it for 28 days at 37 °C [84]. Similarly, the composite of PVA, chitosan, and various levels of D-Limonene (DL) film exhibited the most optimal tensile strength and water vapor permeability. The composite films also inhibited E. coli and S. aureus growth and increased the shelf life of mangoes. The film significantly slowed the decay process (Figure 6) [85].
A chitosan/polyvinylpyrrolidone (PVP) composite film enriched with nanoparticles (NP) from plant extracts could detect fungi infection progress in strawberries. This phytopathogenic fungus was detected faster using NP added to a plastic package containing inoculated strawberries as it changed their absorbance and transmittance during R. stolonifer growth [86]. A biodegradable film made of PVA/chitosan can be improved with silica as a safety candidate. By hydrogen bonding between silica and PVA or chitosan, Yu et al. improved tensile strength of biodegradable PVA/chitosan films by as much as 45%. The preservation time was also extended thrice by reducing oxygen permeability and moisture by 25.58% and 10.2%, respectively [87].
Similarly, chitosan/PVA-based films with sulfosuccinic acid (SSA) fabricated by casting method and UV curing process exhibited significantly higher tensile strength while reduced elongation at break. The obtained film improved mechanical, thermal, and water barrier properties by adding glycerol and xylitol to 20–180%. Apple coated with the film reduced the decomposition time by up to 70 days compared to uncoated apples. The biodegradability of the film was found to have degraded by about 40–65% after 220 days [88]. Furthermore, sodium lactate loaded in chitosan–PVA/montmorillonite (NaL-CS/PVA/MMT) showed increased water sorption activity with MMT content. However, the incorporation of MMT decreased water vapor permeability, and significantly reduced oxygen and carbon dioxide permeability. Additionally, it inhibited the growth of E. coli and well-controlled NaL release, which was dependent on the pH value of the aqueous solution and ionic strength. The composite film exhibited barrier properties suitable for food packaging [89].

2.6. Metal/Metal Oxide Nanoparticles/Chitosan Composite

Several attempts have been undertaken to modify the characteristics of chitosan for packaging materials by mixing them with plasticizers or nanoparticle fillers. Compared to the original polymers or traditional composites, the nanocomposites were reported to have superior barrier, mechanical properties, and heat-resistant capabilities, and suggest potential applications for food packaging.
Silver nanoparticles (AgNP) exhibit antimicrobial properties against various microorganisms and can combine with chitosan for food packaging. Thus, AgNP was used to form catechol-modified chitosan AgNP (CSCT AgNPs) and gelatin (CSCT/G/AgNP) composite films. Results showed gelatin improved the mechanical and water barrier properties while AgNP enhanced antibacterial properties against S. aureus and E. coli. The bactericidal ratio increased significantly as the AgNP content increased. The improved mechanical properties, physiochemical, and antibacterial properties indicated potential application as active food packaging material [82]. In another study, chitosan-based films modified with an azopolymer and AgNP also have the potential in food packaging applications. Further it showed that composite film also exhibited lower hydrophilicity and more excellent thermal stability than pristine chitosan films. Mechanical testing showed that the tensile strength and elastic modulus increased for blend and nanocomposite films. The chitosan-based modified azopolymer with AgNP exhibited enhanced light barrier properties, thermal stability, and mechanical properties [90].

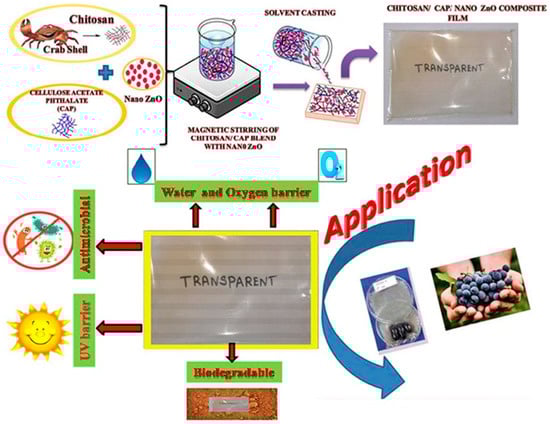

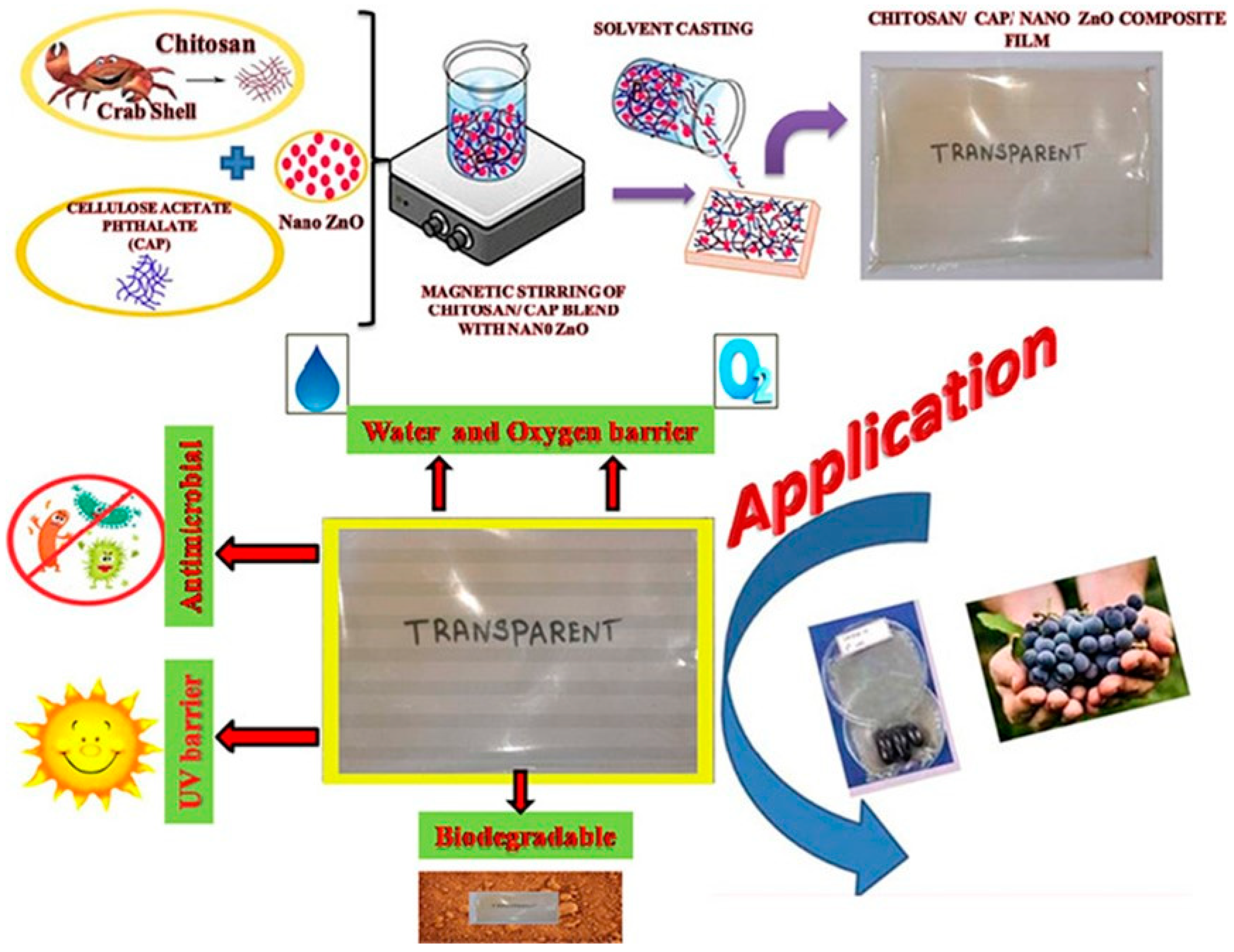

Zinc oxide (ZnO) can also be added to chitosan films to enhance physiochemical and biological properties. ZnONP embedded into chitosan cellulose acetate phthalate (CAP) films improved mechanical, barrier, and antimicrobial properties. The chitosan–CAP films with 5% w/w nanoZnO (CCZ) were reported to have the most optimal strength and stiffness, which significantly (9 days) extended the shelf life of black grapefruits. Additionally, the oxygen and water vapor transmission rates of CCZ films were substantially lower with larger inhibition zones (Figure 7) [91]. ZnONP/chitosan composite films exhibited greater thermal stability at high temperatures due to the hydrogen bonds between the ZnO and chitosan [92]. A study by Souze et al. showed the ZnONP synthesized by using apple peel extracts incorporated into chitosan films also improved the antimicrobial activity of composite films. Experiments with fresh poultry showed the shelf life was extended due to the film decreasing the deterioration rate [93].
Adding melissa essential oil (MEO) into the ZnO/chitosan composite films enhanced mechanical properties. MEO enhanced antibacterial activity while ZnO enhanced the crystalline structure of chitosan films. As the composition of ZnO and MEO increased, the transparency of the film also increased [94]. It was also reported that when chitosan and ZnO nanoparticles were incorporated into gallic acid films (Ch-ZnO@gal) it improved the mechanical, physiochemical, and antibacterial properties. Resultant Ch-ZnO@gal composite films were reported to exhibit significantly greater tensile strength than chitosan films. However, the elongation at break of Ch-ZnO@gal was lower than the chitosan control group. The incorporation of ZnO@gal enhanced the light barrier properties, water vapor permeability, and oxygen permeability. Further antioxidant activity showed that the antioxidant activity increased as the concentration of ZnO@gal increased. Finally, with the concentration of ZnO@gal, the antibacterial property increased. The results seem to suggest that ZnO@gal has potential applications to improve biocomposite chitosan films for food packaging applications [95]. Wang et al. studied a composite film of carboxymethyl chitosan (CMCS), carboxymethyl cellulose sodium (CMC) polylactic acid (PLA), and ZnO NP. Multilayers of the composite film showed that the oxygen barrier properties were significantly (99%) greater than a layer of PLA coating. Additional results also showed that films with ZnO nanoparticles exhibited water, oxygen, heptane vapor, oil barrier, and high antibacterial properties [96].
Sulfur nanoparticles (SNP) are known to be great as antimicrobial agents. Shankar et al. developed a chitosan/SNP composite with greater tensile strength and elastic modulus. The tensile strength of the chitosan/SNP films increased with the SNP content. Further mechanical tests showed that SNP decreased the elongation at break of the chitosan films. Thermogravimetric analysis showed that chitosan/SNP composite films exhibited greater thermal stability than chitosan films. The results found that chitosan/SNP composite films completely inhibited the growth of E. coli and L. monocytogenes within 6 h and 12 h, which may have potential applications for active food-packaging material [97]. Another study prepared chitosan and PVA coatings with ferulic acid as a cross-linking agent using layer-by-layer assembly technology. Due to the homogenous spread of nanoparticles, the tensile strength, water resistance, antioxidant, and antibacterial activities improved. Experiments showed that the resultant films could extend the shelf life of cherry tomatoes [98].

2.7. Clay/Chitosan Composite

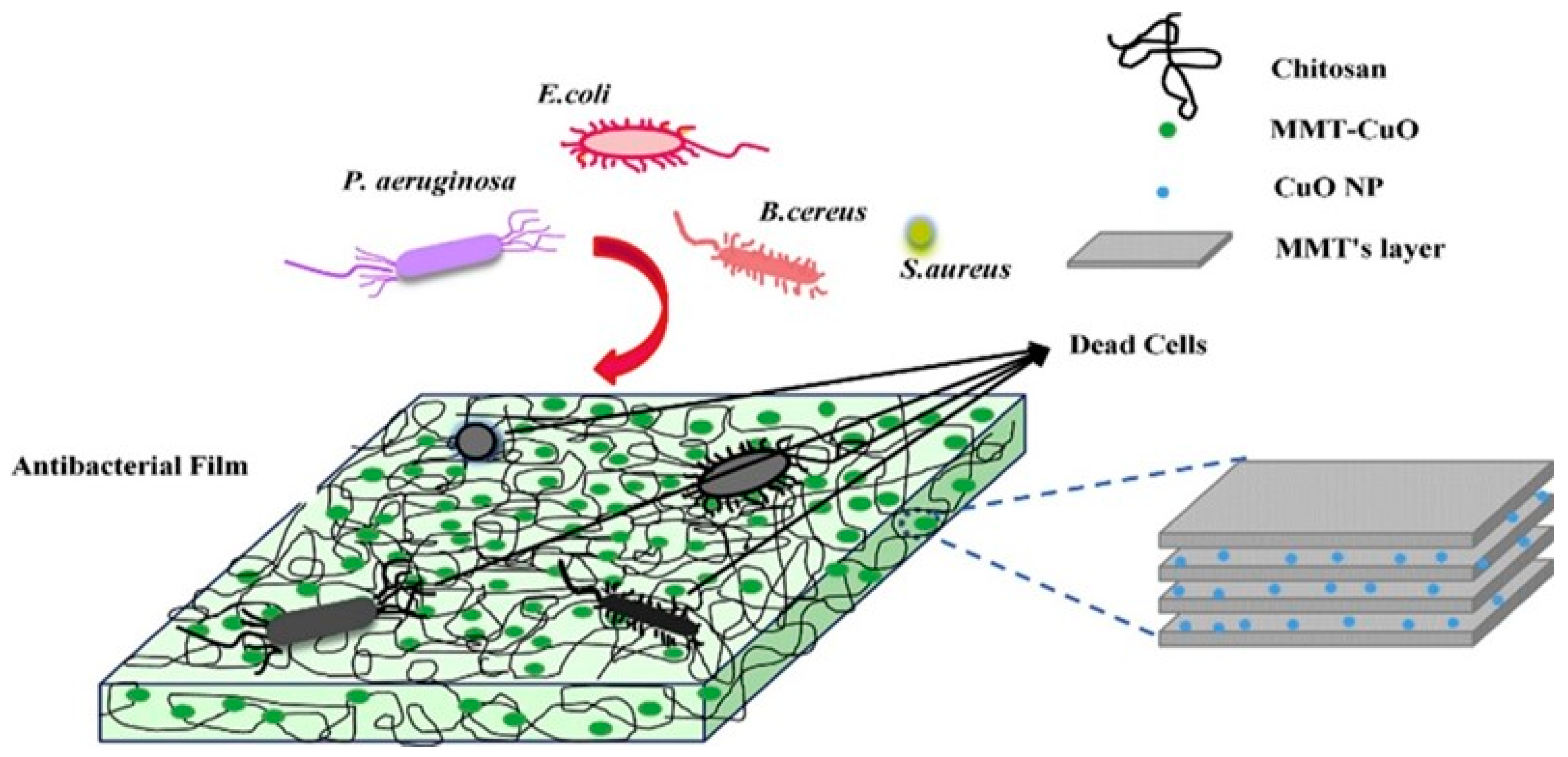

Montmorillonite (MMT), a potential adsorbent in food packaging films, was considered as a nanocarrier of essential oil [99]. Giannakas et al. adsorbed essential oil into sodium montmorillonite (NaMt) or organomodified-montmorillonite (OrgMt) and prepared a composite film with chitosan. The nanocomposite films exhibited lower water adsorption values, the highest barrier properties, and great antimicrobial activity against E. coli The nanocomposite films prepared from OrgMt via the modified clay exhibited better antioxidant activity than films prepared with NaMt. The Cs/OrgMt/TO nanocomposite films were effective food packaging films that extended the shelf life of foods [100].
Souza et al. investigated the physical and morphological properties of chitosan/MMT (CS/MMT) nanocomposite films activated with ginger essential oil (GEO). The chitosan composite films began to degrade significantly at very high temperatures between 283.5 °C and 290.8 °C due to degradation of chitosan. Experimental results found that incorporating of GEO and MMT enhanced the barrier properties against light, gases, and water vapor [101]. Moreover, chitosan/Na-MMT increased the shelf life of cherry tomatoes. The film significantly reduced the mass loss and nutrient loss of cherry tomatoes. As a result of the incorporation of MMT into the composite films, the films showed improved swelling resistance and elongation at break (68%). In contrast, the films without MMT exhibited poorer structural and thermal properties [102]. CMC-MMT incorporated with TiO2 showed antibacterial inhibition for both gram-negative and gram-positive bacteria. Also, the tensile strength of the film containing TiO2 nanoparticles increased [103].
The hydrogen bond between chitosan and the Si-O bonds of nanoclay influenced changes in the mechanical properties of the materials. The nanocomposite films with chitosan/tween 80/rosehip seed oil (RSO) formed by dispersed MMT nano clay C30B via casting film-forming emulsions exhibited significantly higher elasticity. The composite film showed suitable CO2 barrier properties for food packaging material. The composite films also demonstrated antimicrobial activity against E. coli, Salmonella typhymurium, and Bacillus cereus that increased the shelf life of perishable foods. The RSO improved the mechanical, gas, and water vapor barrier properties and antioxidant activity [104]. Additional studies also showed that MMT and tocopherol improved chitosan film’s mechanical properties, thermal stability, and antioxidant activity [105].
Colorimetric oxygen indicator film made of chitosan/MMT grafted with cyclodextrin (CD) with methylene blue/glucose system is used for packaging foods. When oxygen is present, the MB–glucose redox system causes the film to change color. MMT and CD grafting onto chitosan increased hydrophilicity and enhanced the film color change. The films were promising for food packaging because of their high color sensitivity to high relative humidity. PET films may also delay the color change to blue with a low oxygen permeability. In addition, the film can elongate the storage time for three weeks in a refrigerator [106]. When MMT–copper oxide nanocomposites (MMT-CuO) were incorporated into the chitosan matrix, it improved the optical, mechanical, and antibacterial properties. In contrast, the water solubility, UV transition, water vapor, and oxygen permeability decreased. The MMT-CuO nanocomposites had little effect on the transparency of the films and increased the tensile strength and percent elongation. As a result, chitosan-MMT-CuO nanocomposite films have potential applications in active food packaging (Figure 8) [107].
A study by Yan et al. showed that the α-tocopherol-chitosan nanoparticles/chitosan/montmorillonite (TOC-CSNPs/CS/MMT) composite films can be used for food packaging applications with improved physiochemical properties and antioxidant activity. The water solubility of the TOC-CSNPs/CS/MMT composite films decreased with the TOC-CSNP content. Films with 10% TOC-CSNP exhibited the lowest water solubility. Furthermore, the swelling ratio decreased as the TOC-CSNP content increased. Antioxidant evaluation of the composite films found that the composite films exhibited significantly higher radical scavenging activity than CS/MMT and CS films [108].

2.8. Carbon/Chitosan Composite

Recently, graphene has been utilized in the food packaging industry due to its potent antimicrobial properties. Graphene oxide (GO) has the unique property of being homogenously dispersed into chitosan polymer nanocomposite films. The GO–chitosan nanocomposite films significantly improved the thermal stability and mechanical properties. Crosslinking between chitosan and GO may have significant effects on mechanical properties. The incorporation of GO increased the tensile strength and thermal properties of the chitosan film. Moreover, the antimicrobial properties against E. coli and B. subtillis were also contributed to by the incorporation of GO [109]. A laser-induced micropore-based modified atmosphere packaging and carbon-dot/chitosan coat exhibited good preservation of food flavor components such as alcohol, ketones, and aldehydes [110].

3. Conclusions and Future Prospects

The awareness of environmental problems caused by plastic packaging has increased interest in environmentally friendly packaging materials. The seafood industry generates large amounts of crustacean shell waste every year. In addition to chitin, this waste produces chitosan using various methods. Chitosan is substantially less expensive than other biopolymers since it is derived from a bio-waste product utilizing various energy-efficient techniques. Chitosan, one of the polysaccharides, has undergone significant research and has been used to create biodegradable food packaging. Due to its antibacterial properties, chitosan is frequently utilized as antimicrobial films, edible protective coatings, dipping, and spraying for food items. Antimicrobial packaging is crucial, and can kill or inhibit food-contaminating pathogenic bacteria. Researchers have combined chitosan with other biopolymers and nanocomposites to improve mechanical properties, optical properties, barrier properties, and thermal stability. We have selected a few of the best composites with improved essential properties for food packaging in Table 3. However, more research is required to get this biopolymer to industrial levels for food packaging applications. A few aspects should be considered for future developments as follows: (i) degradation of the films in the real environment; (ii) the toxicity of chitosan-based film; and (iii) active and intelligent packaging system. Over the past ten years, much work has gone into creating and testing antimicrobial films to increase food safety and shelf life. This review briefly overviews recent developments in creating chitosan composite films for food packaging.

Author Contributions

Conceptualization, M.P., R.P. and I.V.; writing-original draft A.J., R.P. and B.P.; review and editing, S.P., P.G. and A.A.; Supervision, M.P.; funding acquisition, I.V. All authors have read and agreed to the published version of the manuscript.

Funding

The research was funded by Eötvös Loránd University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This research received funding from the Hungarian National Research, Development and Innovation Office (NKFIH K116629), which is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ashrafi, A.; Jokar, M.; Mohammadi Nafchi, A. Preparation and characterization of biocomposite film based on chitosan and kombucha tea as active food packaging. Int. J. Biol. Macromol. 2018, 108, 444–454. [Google Scholar] [CrossRef] [PubMed]
  2. Cesa-Luna, C.; Alatorre-Cruz, J.M.; Carreño-López, R.; Quintero-Hernández, V.; Baez, A. Emerging Applications of Bacteriocins as Antimicrobials, Anticancer Drugs, and Modulators of The Gastrointestinal Microbiota. Pol. J. Microbiol. 2021, 70, 143–159. [Google Scholar] [CrossRef] [PubMed]
  3. Kontominas, M.G. Use of Alginates as Food Packaging Materials. Foods 2020, 9, 1440. [Google Scholar] [CrossRef] [PubMed]
  4. Ramos, M.; Valdés, A.; Beltrán, A.; Garrigós, M.C. Gelatin-Based Films and Coatings for Food Packaging Applications. Coatings 2016, 6, 41. [Google Scholar] [CrossRef]
  5. Flórez, M.; Guerra-Rodríguez, E.; Cazón, P.; Vázquez, M. Chitosan for food packaging: Recent advances in active and intelligent films. Food Hydrocoll. 2022, 124, 107328. [Google Scholar] [CrossRef]
  6. Castillo, B.E.; Prokhorov, E.; Luna-Bárcenas, G.; Kovalenko, Y. Potential Use of Chitosan-TiO2 Nanocomposites for the Electroanalytical Detection of Imidacloprid. Polymers 2022, 14, 1686. [Google Scholar] [CrossRef]
  7. Omerović, N.; Djisalov, M.; Živojević, K.; Mladenović, M.; Vunduk, J.; Milenković, I.; Knežević, N.Ž.; Gadjanski, I.; Vidić, J. Antimicrobial nanoparticles and biodegradable polymer composites for active food packaging applications. Compr. Rev. Food Sci. Food Saf. 2021, 20, 2428–2454. [Google Scholar] [CrossRef]
  8. Liu, T.; Li, J.; Tang, Q.; Qiu, P.; Gou, D.; Zhao, J. Chitosan-Based Materials: An Overview of Potential Applications in Food Packaging. Foods 2022, 11, 1490. [Google Scholar] [CrossRef]
  9. Famiglietti, M.; Savastano, A.; Gaglione, R.; Arciello, A.; Naviglio, D.; Mariniello, L. Edible Films Made of Dried Olive Leaf Extract and Chitosan: Characterization and Applications. Foods 2022, 11, 2078. [Google Scholar] [CrossRef]
  10. Tao, W.; Wang, G.; Pei, X.; Sun, W.; Wang, M. Chitosan Oligosaccharide Attenuates Lipopolysaccharide-Induced Intestinal Barrier Dysfunction through Suppressing the Inflammatory Response and Oxidative Stress in Mice. Antioxidants 2022, 11, 1384. [Google Scholar] [CrossRef]
  11. Chen, M.Y.; Alexiev, A.; McKenzie, V.J. Bacterial Biofilm Thickness and Fungal Inhibitory Bacterial Richness Both Prevent Establishment of the Amphibian Fungal Pathogen Batrachochytrium dendrobatidis. Appl. Environ. Microbiol. 2022, 88, e01604–e01621. [Google Scholar] [CrossRef] [PubMed]
  12. Xu, K.; Dai, Q.; Dong, K.; Wei, N.; Qin, Z. Double noncovalent network chitosan/hyperbranched polyethylenimine/Fe3+ films with high toughness and good antibacterial activity. RSC Adv. 2022, 12, 5255–5264. [Google Scholar] [CrossRef] [PubMed]
  13. Shen, B.; Wang, Y.; Wang, X.; Amal, F.E.; Zhu, L.; Jiang, L. A Cruciform Petal-like (ZIF-8) with Bactericidal Activity against Foodborne Gram-Positive Bacteria for Antibacterial Food Packaging. Int. J. Mol. Sci. 2022, 23, 7510. [Google Scholar] [CrossRef]
  14. Wojnowska-Baryła, I.; Kulikowska, D.; Bernat, K. Effect of Bio-Based Products on Waste Management. Sustainability 2020, 12, 2088. [Google Scholar] [CrossRef]
  15. Xu, Y.X.; Kim, K.M.; Hanna, M.A.; Nag, D. Chitosan–starch composite film: Preparation and characterization. Ind. Crops Prod. 2005, 21, 185–192. [Google Scholar] [CrossRef]
  16. Lu, N.; Liu, Y. Structural, physicochemical, and functional (antioxidant-antimicrobial) properties of 2-O-methyl-β-cyclodextrin inclusion with hexahydro-β-acids in chitosan films. Colloids Surf. B Biointerfaces 2020, 191, 111002. [Google Scholar] [CrossRef]
  17. Farmoudeh, A.; Shokoohi, A.; Ebrahimnejad, P. Preparation and Evaluation of the Antibacterial Effect of Chitosan Nanoparticles Containing Ginger Extract Tailored by Central Composite Design. Adv. Pharm. Bull. 2021, 11, 643–650. [Google Scholar] [CrossRef]
  18. Pires, J.R.A.; de Souza, V.G.L.; Fernando, A.L. Chitosan/montmorillonite bionanocomposites incorporated with rosemary and ginger essential oil as packaging for fresh poultry meat. Food Packag. Shelf Life 2018, 17, 142–149. [Google Scholar] [CrossRef]
  19. Kaur, J.; Sood, K.; Bhardwaj, N.; Arya, S.K.; Khatri, M. Nanomaterial loaded chitosan nanocomposite films for antimicrobial food packaging. Mater. Today: Proc. 2020, 28, 1904–1909. [Google Scholar] [CrossRef]
  20. Wang, H.; Qian, J.; Ding, F. Emerging Chitosan-Based Films for Food Packaging Applications. J. Agric. Food Chem. 2018, 66, 395–413. [Google Scholar] [CrossRef]
  21. Souza, V.G.L.; Pires, J.R.A.; Rodrigues, C.; Coelhoso, I.M.; Fernando, A.L. Chitosan Composites in Packaging Industry—Current Trends and Future Challenges. Polymers 2020, 12, 417. [Google Scholar] [CrossRef] [PubMed]
  22. Rabea, E.I.; Badawy, M.E.T.; Stevens, C.V.; Smagghe, G.; Steurbaut, W. Chitosan as Antimicrobial Agent:  Applications and Mode of Action. Biomacromolecules 2003, 4, 1457–1465. [Google Scholar] [CrossRef] [PubMed]
  23. Zheng, L.-Y.; Zhu, J.-F. Study on antimicrobial activity of chitosan with different molecular weights. Carbohydr. Polym. 2003, 54, 527–530. [Google Scholar] [CrossRef]
  24. Chouljenko, A.; Chotiko, A.; Reyes, V.; Alfaro, L.; Liu, C.; Dzandu, B.; Sathivel, S. Application of water-soluble chitosan to shrimp for quality retention. LWT 2016, 74, 571–579. [Google Scholar] [CrossRef]
  25. Kumari, P.; Barman, K.; Patel, V.B.; Siddiqui, M.W.; Kole, B. Reducing postharvest pericarp browning and preserving health promoting compounds of litchi fruit by combination treatment of salicylic acid and chitosan. Sci. Hortic. 2015, 197, 555–563. [Google Scholar] [CrossRef]
  26. Giannakas, A.; Vlacha, M.; Salmas, C.; Leontiou, A.; Katapodis, P.; Stamatis, H.; Barkoula, N.-M.; Ladavos, A. Preparation, characterization, mechanical, barrier and antimicrobial properties of chitosan/PVOH/clay nanocomposites. Carbohydr. Polym. 2016, 140, 408–415. [Google Scholar] [CrossRef]
  27. Fernández-Pan, I.; Maté, J.I.; Gardrat, C.; Coma, V. Effect of chitosan molecular weight on the antimicrobial activity and release rate of carvacrol-enriched films. Food Hydrocolloids 2015, 51, 60–68. [Google Scholar] [CrossRef]
  28. Latou, E.; Mexis, S.; Badeka, A.; Kontakos, S.; Kontominas, M.J.L.-F. Combined effect of chitosan and modified atmosphere packaging for shelf life extension of chicken breast fillets. LWT 2014, 55, 263–268. [Google Scholar] [CrossRef]
  29. Youssef, A.M.; El-Sayed, S.M.; El-Sayed, H.S.; Salama, H.H.; Dufresne, A. Enhancement of Egyptian soft white cheese shelf life using a novel chitosan/carboxymethyl cellulose/zinc oxide bionanocomposite film. Carbohydr. Polym. 2016, 151, 9–19. [Google Scholar] [CrossRef]
  30. Sudarshan, N.; Hoover, D.; Knorr, D. Antibacterial action of chitosan. Food Biotechnol. 1992, 6, 257–272. [Google Scholar] [CrossRef]
  31. Avila-Sosa, R.; Palou, E.; Jiménez Munguía, M.T.; Nevárez-Moorillón, G.V.; Navarro Cruz, A.R.; López-Malo, A. Antifungal activity by vapor contact of essential oils added to amaranth, chitosan, or starch edible films. Int. J. Food Microbiol. 2012, 153, 66–72. [Google Scholar] [CrossRef] [PubMed]
  32. Meenu, M.; Padhan, B.; Patel, M.; Patel, R.; Xu, B. Antibacterial activity of essential oils from different parts of plants against Salmonella and Listeria spp. Food Chem. 2023, 404, 134723. [Google Scholar] [CrossRef] [PubMed]
  33. Cai, L.; Wang, Y.; Cao, A. The physiochemical and preservation properties of fish sarcoplasmic protein/chitosan composite films containing ginger essential oil emulsions. J. Food Process. Eng. 2020, 43, e13495. [Google Scholar] [CrossRef]
  34. Sadadekar, A.S.; Shruthy, R.; Preetha, R.; Kumar, N.; Pande, K.R.; Nagamaniammai, G. Enhanced antimicrobial and antioxidant properties of Nano chitosan and pectin based biodegradable active packaging films incorporated with fennel (Foeniculum vulgare) essential oil and potato (Solanum tuberosum) peel extracts. J. Food Sci. Technol. 2022, 60, 938–946. [Google Scholar] [CrossRef]
  35. Wang, L.; Wang, Q.; Tong, J.; Zhou, J. Physicochemical Properties of Chitosan Films Incorporated with Honeysuckle Flower Extract for Active Food Packaging. J. Food Process. Eng. 2017, 40, e12305. [Google Scholar] [CrossRef]
  36. Xu, T.; Gao, C.; Feng, X.; Wu, D.; Meng, L.; Cheng, W.; Zhang, Y.; Tang, X. Characterization of chitosan based polyelectrolyte films incorporated with OSA-modified gum arabic-stabilized cinnamon essential oil emulsions. Int. J. Biol. Macromol. 2020, 150, 362–370. [Google Scholar] [CrossRef]
  37. Zehra, A.; Wani, S.M.; Bhat, T.A.; Jan, N.; Hussain, S.Z.; Naik, H.R. Preparation of a biodegradable chitosan packaging film based on zinc oxide, calcium chloride, nano clay and poly ethylene glycol incorporated with thyme oil for shelf-life prolongation of sweet cherry. Int. J. Biol. Macromol. 2022, 217, 572–582. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, Y.; Cai, Y.; Jiang, X.; Wu, J.; Le, X. Molecular interactions, characterization and antimicrobial activity of curcumin–chitosan blend films. Food Hydrocoll. 2016, 52, 564–572. [Google Scholar] [CrossRef]
  39. Mathew, S.; Abraham, T.E. Characterisation of ferulic acid incorporated starch–chitosan blend films. Food Hydrocoll. 2008, 22, 826–835. [Google Scholar] [CrossRef]
  40. Rivero, S.; García, M.A.; Pinotti, A. Crosslinking capacity of tannic acid in plasticized chitosan films. Carbohydr. Polym. 2010, 82, 270–276. [Google Scholar] [CrossRef]
  41. Rubentheren, V.; Ward, T.A.; Chee, C.Y.; Nair, P. Physical and chemical reinforcement of chitosan film using nanocrystalline cellulose and tannic acid. Cellulose 2015, 22, 2529–2541. [Google Scholar] [CrossRef]
  42. Souza, M.P.; Vaz, A.F.M.; Silva, H.D.; Cerqueira, M.A.; Vicente, A.A.; Carneiro-da-Cunha, M.G. Development and Characterization of an Active Chitosan-Based Film Containing Quercetin. Food Bioprocess Technol. 2015, 8, 2183–2191. [Google Scholar] [CrossRef]
  43. Sun, X.; Wang, Z.; Kadouh, H.; Zhou, K. The antimicrobial, mechanical, physical and structural properties of chitosan–gallic acid films. LWT-Food Sci. Technol. 2014, 57, 83–89. [Google Scholar] [CrossRef]
  44. Alves, V.L.C.D.; Rico, B.P.M.; Cruz, R.M.S.; Vicente, A.A.; Khmelinskii, I.; Vieira, M.C. Preparation and characterization of a chitosan film with grape seed extract-carvacrol microcapsules and its effect on the shelf-life of refrigerated Salmon (Salmo salar). LWT 2018, 89, 525–534. [Google Scholar] [CrossRef]
  45. Rubilar, J.F.; Cruz, R.M.S.; Zuñiga, R.N.; Khmelinskii, I.; Vieira, M.C. Mathematical modeling of gallic acid release from chitosan films with grape seed extract and carvacrol. Int. J. Biol. Macromol. 2017, 104, 197–203. [Google Scholar] [CrossRef]
  46. Sogut, E.; Seydim, A.C. The effects of Chitosan and grape seed extract-based edible films on the quality of vacuum packaged chicken breast fillets. Food Packag. Shelf Life 2018, 18, 13–20. [Google Scholar] [CrossRef]
  47. Wang, K.; Lim, P.N.; Tong, S.Y.; Thian, E.S. Development of grapefruit seed extract-loaded poly(ε-caprolactone)/chitosan films for antimicrobial food packaging. Food Packag. Shelf Life 2019, 22, 100396. [Google Scholar] [CrossRef]
  48. Karača, S.; Trifković, K.; Martinić, A.; Đorđević, V.; Šeremet, D.; Vojvodić Cebin, A.; Bugarski, B.; Komes, D. Development and characterisation of functional cocoa (Theobroma cacao L.)-based edible films. Int. J. Food Sci. Technol. 2020, 55, 1326–1335. [Google Scholar] [CrossRef]
  49. Liu, J.; Meng, C.; Liu, S.; Kan, J.; Jin, C. Preparation and characterization of protocatechuic acid grafted chitosan films with antioxidant activity. Food Hydrocoll. 2017, 63, 457–466. [Google Scholar] [CrossRef]
  50. Yang, K.; Dang, H.; Liu, L.; Hu, X.; Li, X.; Ma, Z.; Wang, X.; Ren, T. Effect of syringic acid incorporation on the physical, mechanical, structural and antibacterial properties of chitosan film for quail eggs preservation. Int. J. Biol. Macromol. 2019, 141, 876–884. [Google Scholar] [CrossRef]
  51. Talón, E.; Trifkovic, K.T.; Nedovic, V.A.; Bugarski, B.M.; Vargas, M.; Chiralt, A.; González-Martínez, C. Antioxidant edible films based on chitosan and starch containing polyphenols from thyme extracts. Carbohydr. Polym. 2017, 157, 1153–1161. [Google Scholar] [CrossRef] [PubMed]
  52. Woranuch, S.; Yoksan, R. Eugenol-loaded chitosan nanoparticles: II. Application in bio-based plastics for active packaging. Carbohydr Polym 2013, 96, 586–592. [Google Scholar] [CrossRef]
  53. Alix, S.; Mahieu, A.; Terrie, C.; Soulestin, J.; Gerault, E.; Feuilloley, M.G.J.; Gattin, R.; Edon, V.; Ait-Younes, T.; Leblanc, N. Active pseudo-multilayered films from polycaprolactone and starch based matrix for food-packaging applications. Eur. Polym. J. 2013, 49, 1234–1242. [Google Scholar] [CrossRef]
  54. Bhardwaj, A.; Sharma, N.; Sharma, V.; Alam, T.; Sahu, J.K.; Hamid, H. Assessing the consumer acceptance and storability of chitosan and beeswax coated cellulose packaging for whole wheat bread. Food Control 2022, 133, 108682. [Google Scholar] [CrossRef]
  55. Costa, S.M.; Ferreira, D.P.; Teixeira, P.; Ballesteros, L.F.; Teixeira, J.A.; Fangueiro, R. Active natural-based films for food packaging applications: The combined effect of chitosan and nanocellulose. Int. J. Biol. Macromol. 2021, 177, 241–251. [Google Scholar] [CrossRef]
  56. Pinem, M.P.; Wardhono, E.Y.; Nadaud, F.; Clausse, D.; Saleh, K.; Guénin, E. Nanofluid to Nanocomposite Film: Chitosan and Cellulose-Based Edible Packaging. Nanomaterials 2020, 10, 660. [Google Scholar] [CrossRef] [PubMed]
  57. Jiménez-Regalado, E.J.; Caicedo, C.; Fonseca-García, A.; Rivera-Vallejo, C.C.; Aguirre-Loredo, R.Y. Preparation and Physicochemical Properties of Modified Corn Starch-Chitosan Biodegradable Films. Polymers 2021, 13, 4431. [Google Scholar] [CrossRef] [PubMed]
  58. Ren, L.; Yan, X.; Zhou, J.; Tong, J.; Su, X. Influence of chitosan concentration on mechanical and barrier properties of corn starch/chitosan films. Int. J. Biol. Macromol. 2017, 105, 1636–1643. [Google Scholar] [CrossRef]
  59. Castillo, L.A.; Farenzena, S.; Pintos, E.; Rodríguez, M.S.; Villar, M.A.; García, M.A.; López, O.V. Active films based on thermoplastic corn starch and chitosan oligomer for food packaging applications. Food Packag. Shelf Life 2017, 14, 128–136. [Google Scholar] [CrossRef]
  60. Hasan, M.; Rusman, R.; Khaldun, I.; Ardana, L.; Mudatsir, M.; Fansuri, H. Active edible sugar palm starch-chitosan films carrying extra virgin olive oil: Barrier, thermo-mechanical, antioxidant, and antimicrobial properties. Int. J. Biol. Macromol. 2020, 163, 766–775. [Google Scholar] [CrossRef]
  61. Istiqomah, A.; Utami, M.R.; Firdaus, M.; Suryanti, V.; Kusumaningsih, T. Antibacterial chitosan-Dioscorea alata starch film enriched with essential oils optimally prepared by following response surface methodology. Food Biosci. 2022, 46, 101603. [Google Scholar] [CrossRef]
  62. Llanos, J.H.R.; Avezum, L.; Dacanal, G.C.; Tadini, C.C. Increase in the physical performance of nanostructured starch/chitosan blends with montmorillonite. Colloid Polym. Sci. 2021, 299, 1901–1915. [Google Scholar] [CrossRef]
  63. Othman, S.H.; Kechik, N.R.A.; Shapi’i, R.A.; Talib, R.A.; Tawakkal, I.S.M.A. Water Sorption and Mechanical Properties of Starch/Chitosan Nanoparticle Films. J. Nanomater. 2019, 2019, 3843949. [Google Scholar] [CrossRef]
  64. Shapi’i, R.A.; Othman, S.H.; Nordin, N.; Kadir Basha, R.; Nazli Naim, M. Antimicrobial properties of starch films incorporated with chitosan nanoparticles: In vitro and in vivo evaluation. Carbohydr. Polym. 2020, 230, 115602. [Google Scholar] [CrossRef]
  65. Zhao, Y.; Teixeira, J.S.; Gänzle, M.M.; Saldaña, M.D.A. Development of antimicrobial films based on cassava starch, chitosan and gallic acid using subcritical water technology. J. Supercrit. Fluids 2018, 137, 101–110. [Google Scholar] [CrossRef]
  66. Gao, H.-X.; He, Z.; Sun, Q.; He, Q.; Zeng, W.-C. A functional polysaccharide film forming by pectin, chitosan, and tea polyphenols. Carbohydr. Polym. 2019, 215, 1–7. [Google Scholar] [CrossRef] [PubMed]
  67. Schnell, C.N.; Galván, M.V.; Peresin, M.S.; Inalbon, M.C.; Vartiainen, J.; Zanuttini, M.A.; Mocchiutti, P. Films from xylan/chitosan complexes: Preparation and characterization. Cellulose 2017, 24, 4393–4403. [Google Scholar] [CrossRef]
  68. Sun, J.; Du, Y.; Ma, J.; Li, Y.; Wang, L.; Lu, Y.; Zou, J.; Pang, J.; Wu, C. Transparent bionanocomposite films based on konjac glucomannan, chitosan, and TEMPO-oxidized chitin nanocrystals with enhanced mechanical and barrier properties. Int. J. Biol. Macromol. 2019, 138, 866–873. [Google Scholar] [CrossRef]
  69. Sun, J.; Jiang, H.; Li, M.; Lu, Y.; Du, Y.; Tong, C.; Pang, J.; Wu, C. Preparation and characterization of multifunctional konjac glucomannan/carboxymethyl chitosan biocomposite films incorporated with epigallocatechin gallate. Food Hydrocoll. 2020, 105, 105756. [Google Scholar] [CrossRef]
  70. Mondal, K.; Goud, V.V.; Katiyar, V. Effect of Waste Green Algal Biomass Extract Incorporated Chitosan-Based Edible Coating on the Shelf Life and Quality Attributes of Tomato. ACS Food Sci. Technol. 2022, 2, 1151–1165. [Google Scholar] [CrossRef]
  71. Hosseini, S.F.; Rezaei, M.; Zandi, M.; Farahmandghavi, F. Fabrication of bio-nanocomposite films based on fish gelatin reinforced with chitosan nanoparticles. Food Hydrocoll. 2015, 44, 172–182. [Google Scholar] [CrossRef]
  72. Hosseini, S.F.; Rezaei, M.; Zandi, M.; Farahmandghavi, F. Preparation and Characterization of Chitosan Nanoparticles-Loaded Fish Gelatin-Based Edible Films. J. Food Process. Eng. 2016, 39, 521–530. [Google Scholar] [CrossRef]
  73. Hosseini, S.F.; Rezaei, M.; Zandi, M.; Ghavi, F.F. Preparation and functional properties of fish gelatin–chitosan blend edible films. Food Chem. 2013, 136, 1490–1495. [Google Scholar] [CrossRef]
  74. Kowalczyk, D.; Kordowska-Wiater, M.; Nowak, J.; Baraniak, B. Characterization of films based on chitosan lactate and its blends with oxidized starch and gelatin. Int. J. Biol. Macromol. 2015, 77, 350–359. [Google Scholar] [CrossRef]
  75. Poverenov, E.; Zaitsev, Y.; Arnon, H.; Granit, R.; Alkalai-Tuvia, S.; Perzelan, Y.; Weinberg, T.; Fallik, E. Effects of a composite chitosan–gelatin edible coating on postharvest quality and storability of red bell peppers. Postharvest Biol. Technol. 2014, 96, 106–109. [Google Scholar] [CrossRef]
  76. Ediyilyam, S.; George, B.; Shankar, S.S.; Dennis, T.T.; Wacławek, S.; Černík, M.; Padil, V.V.T. Chitosan/Gelatin/Silver Nanoparticles Composites Films for Biodegradable Food Packaging Applications. Polymers 2021, 13, 1680. [Google Scholar] [CrossRef]
  77. Benbettaïeb, N.; Mahfoudh, R.; Moundanga, S.; Brachais, C.-H.; Chambin, O.; Debeaufort, F. Modeling of the release kinetics of phenolic acids embedded in gelatin/chitosan bioactive-packaging films: Influence of both water activity and viscosity of the food simulant on the film structure and antioxidant activity. Int. J. Biol. Macromol. 2020, 160, 780–794. [Google Scholar] [CrossRef] [PubMed]
  78. Guo, Y.; Chen, X.; Yang, F.; Wang, T.; Ni, M.; Chen, Y.; Yang, F.; Huang, D.; Fu, C.; Wang, S. Preparation and Characterization of Chitosan-Based Ternary Blend Edible Films with Efficient Antimicrobial Activities for Food Packaging Applications. J. Food Sci. 2019, 84, 1411–1419. [Google Scholar] [CrossRef] [PubMed]
  79. Kamari, A.; Phillip, E.J.I. Chitosan, gelatin and methylcellulose films incorporated with tannic acid for food packaging. Int. J. Biol. Macromol. 2018, 120, 1119–1126. [Google Scholar]
  80. Noorbakhsh-Soltani, S.; Zerafat, M.; Sabbaghi, S. A comparative study of gelatin and starch-based nano-composite films modified by nano-cellulose and chitosan for food packaging applications. Carbohydr. Polym. 2018, 189, 48–55. [Google Scholar] [CrossRef]
  81. Zhao, J.; Wei, F.; Xu, W.; Han, X.J.A.S.S. Enhanced antibacterial performance of gelatin/chitosan film containing capsaicin loaded MOFs for food packaging. Appl. Surf. Sci. 2020, 510, 145418. [Google Scholar] [CrossRef]
  82. Cao, W.; Yan, J.; Liu, C.; Zhang, J.; Wang, H.; Gao, X.; Yan, H.; Niu, B.; Li, W. Preparation and characterization of catechol-grafted chitosan/gelatin/modified chitosan-AgNP blend films. Carbohydr. Polym. 2020, 247, 116643. [Google Scholar] [CrossRef]
  83. Hu, D.; Wang, L. Fabrication of antibacterial blend film from poly (vinyl alcohol) and quaternized chitosan for packaging. Mater. Res. Bull. 2016, 78, 46–52. [Google Scholar] [CrossRef]
  84. Hu, H.; Yong, H.; Yao, X.; Chen, D.; Kan, J.; Liu, J. Effect of starch aldehyde-catechin conjugates on the structural, physical and antioxidant properties of quaternary ammonium chitosan/polyvinyl alcohol films. Food Hydrocoll. 2022, 124, 107279. [Google Scholar] [CrossRef]
  85. Lan, W.; Wang, S.; Chen, M.; Sameen, D.E.; Lee, K.; Liu, Y. Developing poly (vinyl alcohol)/chitosan films incorporate with d-limonene: Study of structural, antibacterial, and fruit preservation properties. Int. J. Biol. Macromol. 2020, 145, 722–732. [Google Scholar] [CrossRef]
  86. Ventura-Aguilar, R.I.; Díaz-Galindo, E.P.; Bautista-Baños, S.; Mendoza-Acevedo, S.; Munguía-Cervantes, J.E.; Correa-Pacheco, Z.N.; Bosquez-Molina, E. Monitoring the infection process of Rhizopus stolonifer on strawberry fruit during storage using films based on chitosan/polyvinyl alcohol/polyvinylpyrrolidone and plant extracts. Int. J. Biol. Macromol. 2021, 182, 583–594. [Google Scholar] [CrossRef] [PubMed]
  87. Yu, Z.; Li, B.; Chu, J.; Zhang, P. Silica in situ enhanced PVA/chitosan biodegradable films for food packages. Carbohydr. Polym. 2018, 184, 214–220. [Google Scholar] [CrossRef] [PubMed]
  88. Yun, Y.-H.; Lee, C.-M.; Kim, Y.-S.; Yoon, S.-D. Preparation of chitosan/polyvinyl alcohol blended films containing sulfosuccinic acid as the crosslinking agent using UV curing process. Food Res. Int. 2017, 100, 377–386. [Google Scholar] [CrossRef] [PubMed]
  89. Zhang, L.; Wang, H.; Jin, C.; Zhang, R.; Li, L.; Li, X.; Jiang, S. Sodium lactate loaded chitosan-polyvinyl alcohol/montmorillonite composite film towards active food packaging. Innov. Food Sci. Emerg. Technol. 2017, 42, 101–108. [Google Scholar] [CrossRef]
  90. Fernandez, R.; Bonardd, S.; Algar, I.; Barandiaran, I.; Kortaberria, G.; Gutierrez, J.; Tercjak, A. Photo-active chitosan-based hybrid films. Eur. Polym. J. 2020, 122, 109373. [Google Scholar] [CrossRef]
  91. Indumathi, M.; Sarojini, K.S.; Rajarajeswari, G.J. Antimicrobial and biodegradable chitosan/cellulose acetate phthalate/ZnO nano composite films with optimal oxygen permeability and hydrophobicity for extending the shelf life of black grape fruits. Int. J. Biol. Macromol. 2019, 132, 1112–1120. [Google Scholar] [CrossRef] [PubMed]
  92. Priyadarshi, R.; Negi, Y.S. Effect of varying filler concentration on zinc oxide nanoparticle embedded chitosan films as potential food packaging material. J. Polym. Environ. 2017, 25, 1087–1098. [Google Scholar] [CrossRef]
  93. Souza, V.G.L.; Rodrigues, C.; Valente, S.; Pimenta, C.; Pires, J.R.A.; Alves, M.M.; Santos, C.F.; Coelhoso, I.M.; Fernando, A.L. Eco-friendly ZnO/Chitosan bionanocomposites films for packaging of fresh poultry meat. Coatings 2020, 10, 110. [Google Scholar] [CrossRef]
  94. Sani, I.K.; Pirsa, S.; Tağı, Ş. Preparation of chitosan/zinc oxide/Melissa officinalis essential oil nano-composite film and evaluation of physical, mechanical and antimicrobial properties by response surface method. Polym. Test. 2019, 79, 106004. [Google Scholar] [CrossRef]
  95. Yadav, S.; Mehrotra, G.; Dutta, P. Chitosan based ZnO nanoparticles loaded gallic-acid films for active food packaging. Food Chem. 2021, 334, 127605. [Google Scholar] [CrossRef] [PubMed]
  96. Wang, F.-J.; Wang, L.-Q.; Zhang, X.-C.; Ma, S.-F.; Zhao, Z.-C. Study on the barrier properties and antibacterial properties of cellulose-based multilayer coated paperboard used for fast food packaging. Food Biosci. 2022, 46, 101398. [Google Scholar] [CrossRef]
  97. Shankar, S.; Rhim, J.-W.J.F.H. Preparation of sulfur nanoparticle-incorporated antimicrobial chitosan films. Food Hydrocoll. 2018, 82, 116–123. [Google Scholar] [CrossRef]
  98. Yan, J.; Li, M.; Wang, H.; Lian, X.; Fan, Y.; Xie, Z.; Niu, B.; Li, W. Preparation and property studies of chitosan-PVA biodegradable antibacterial multilayer films doped with Cu2O and nano-chitosan composites. Food Control. 2021, 126, 108049. [Google Scholar] [CrossRef]
  99. Giannakas, A.E.; Leontiou, A.A. Montmorillonite composite materials and food packaging. In Composites Materials for Food Packaging; Scrivener Publishing LLC: Beverly, MA, USA, 2018; pp. 1–71. [Google Scholar]
  100. Giannakas, A.; Stathopoulou, P.; Tsiamis, G.; Salmas, C.J. The effect of different preparation methods on the development of chitosan/thyme oil/montmorillonite nanocomposite active packaging films. J. Food Process. Preserv. 2020, 44, e14327. [Google Scholar] [CrossRef]
  101. Souza, V.G.L.; Pires, J.R.A.; Rodrigues, C.; Rodrigues, P.F.; Lopes, A.; Silva, R.J.; Caldeira, J.; Duarte, M.P.; Fernandes, F.B.; Coelhoso, I.M. Physical and morphological characterization of chitosan/montmorillonite films incorporated with ginger essential oil. Coatings 2019, 9, 700. [Google Scholar] [CrossRef]
  102. Lai, Y.; Wang, W.; Zhao, J.; Tu, S.; Yin, Y.; Ye, L. Chitosan Na-montmorillonite films incorporated with citric acid for prolonging cherry tomatoes shelf life. Shelf Life 2022, 33, 100879. [Google Scholar] [CrossRef]
  103. Anvar, H.; Sheikhloie, H. Synthesis and Evaluation of Physicochemical and Antimicrobial Properties of Bionanocomposites Based on Carboxymethylchitosan Biopolymer-Montmorillonite Nanoclay in the Presence of TiO₂ Nanoparticles. J. Food Sci. Technol. 2021, 18, 283–297. [Google Scholar] [CrossRef]
  104. Butnaru, E.; Stoleru, E.; Brebu, M.A.; Darie-Nita, R.N.; Bargan, A.; Vasile, C. Chitosan-based bionanocomposite films prepared by emulsion technique for food preservation. Materials 2019, 12, 373. [Google Scholar] [CrossRef]
  105. Dias, M.V.; de Azevedo, V.M.; Ferreira, L.F.; de Oliveira, A.C.S.; Borges, S.V.; de Fatima Ferreira Soares, N.; Medeiros, E.A.A.; de Deus Souza Carneiro, J.J. Chitosan-nanocomposites as a food active packaging: Effect of addition of tocopherol and modified montmorillonite. J. Food Process. Eng. 2021, 44, e13843. [Google Scholar] [CrossRef]
  106. Jarupatnadech, T.; Chalitangkoon, J.; Monvisade, P. Colorimetric oxygen indicator films based on β-cyclodextrin grafted chitosan/montmorillonite with redox system for intelligent food packaging. Packag. Technol. Sci. 2022, 35, 515–525. [Google Scholar] [CrossRef]
  107. Nouri, A.; Yaraki, M.T.; Ghorbanpour, M.; Agarwal, S.; Gupta, V.K. Enhanced Antibacterial effect of chitosan film using Montmorillonite/CuO nanocomposite. Int. J. Biol. Macromol. 2018, 109, 1219–1231. [Google Scholar] [CrossRef]
  108. Yan, W.; Chen, W.; Muhammad, U.; Zhang, J.; Zhuang, H.; Zhou, G. Preparation of α-tocopherol-chitosan nanoparticles/chitosan/montmorillonite film and the antioxidant efficiency on sliced dry-cured ham. Food Control. 2019, 104, 132–138. [Google Scholar] [CrossRef]
  109. Grande, C.D.; Mangadlao, J.; Fan, J.; De Leon, A.; Delgado-Ospina, J.; Rojas, J.G.; Rodrigues, D.F.; Advincula, R. Chitosan Cross-Linked Graphene Oxide Nanocomposite Films with Antimicrobial Activity for Application in Food Industry. In Macromolecular Symposia; John Wiley & Sons: Hoboken, NJ, USA, 2017; p. 1600114. [Google Scholar]
  110. Fan, K.; Zhang, M.; Guo, C.; Dan, W.; Devahastin, S.J.F.; Technology, B. Laser-induced microporous modified atmosphere packaging and chitosan carbon-dot coating as a novel combined preservation method for fresh-cut cucumber. Food Bioprocess Technol. 2021, 14, 968–983. [Google Scholar] [CrossRef]
Polymers 15 02235 sch001 550
Scheme 1. Chitosan preparation from chitin by deacetylation [8].
Scheme 1. Chitosan preparation from chitin by deacetylation [8].
Polymers 15 02235 sch001
Polymers 15 02235 g001 550
Figure 1. Antimicrobial activity of CEO emulsions against E. coli (A) and S. aureus (B). GA/CEO, GA/CEO-U, OSA-GA/CEO, OSA-GA/CEO-U represents 1–4, respectively. Visual appearance of film-forming dispersions (C) and films (D) with different ratios of CEO emulsions: a, a1—0% emulsion; b, b1—5% emulsion; c, c1—10% emulsion; d, d1—15% emulsion; e, e1—20% emulsion [36].
Figure 1. Antimicrobial activity of CEO emulsions against E. coli (A) and S. aureus (B). GA/CEO, GA/CEO-U, OSA-GA/CEO, OSA-GA/CEO-U represents 1–4, respectively. Visual appearance of film-forming dispersions (C) and films (D) with different ratios of CEO emulsions: a, a1—0% emulsion; b, b1—5% emulsion; c, c1—10% emulsion; d, d1—15% emulsion; e, e1—20% emulsion [36].
Polymers 15 02235 g001
Polymers 15 02235 g002 550

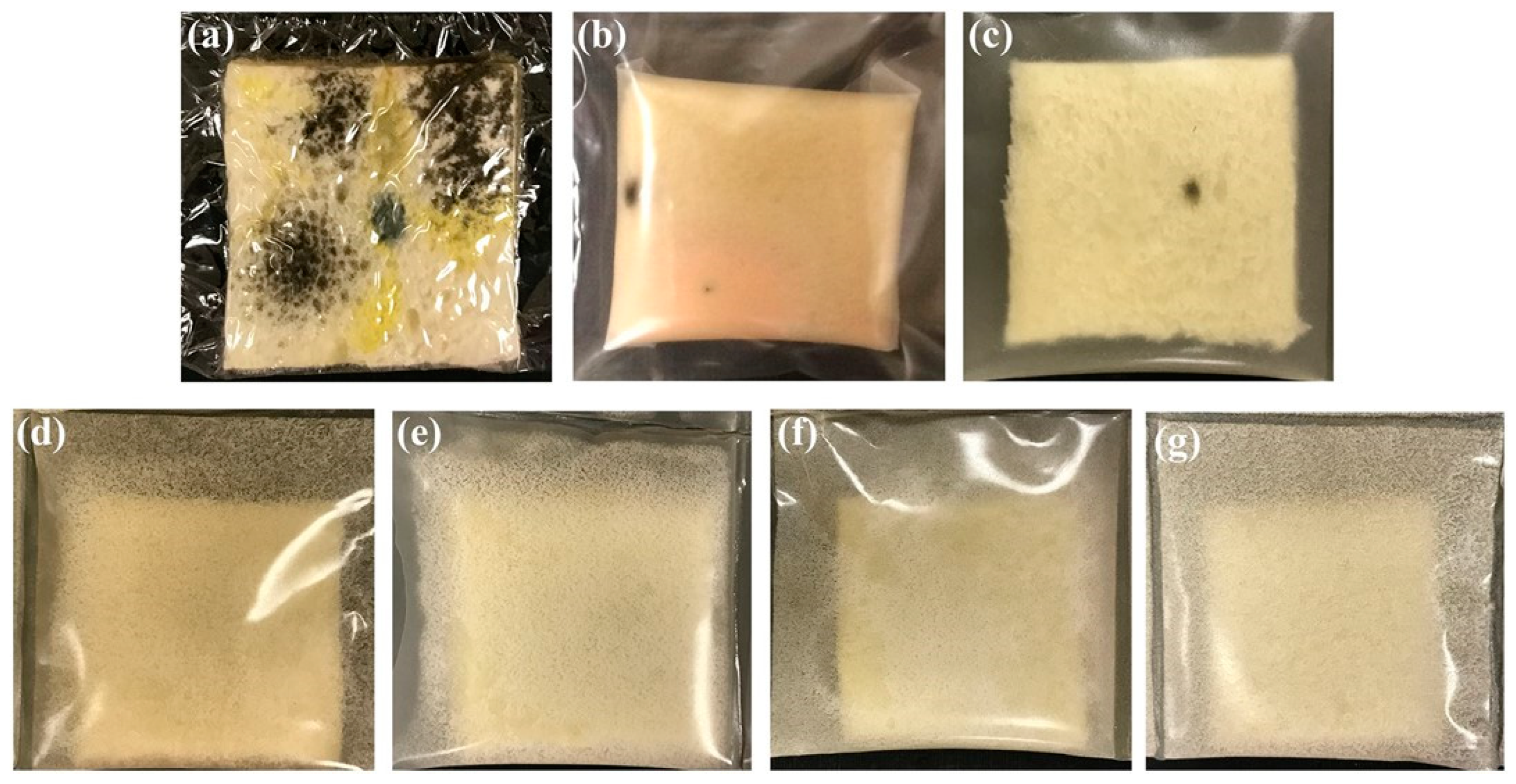

Figure 2. Bread samples packaged by (a) PE, (b) PCL/chitosan, (c) GFSE content 0.5, (d) 1.0, (e) 1.5, (f) 2.0, and (g) 2.5 films at 24 °C, for one week [47].
Figure 2. Bread samples packaged by (a) PE, (b) PCL/chitosan, (c) GFSE content 0.5, (d) 1.0, (e) 1.5, (f) 2.0, and (g) 2.5 films at 24 °C, for one week [47].
Polymers 15 02235 g002
Polymers 15 02235 g003 550
Figure 3. Schematic representation of chitosan–starch based composite film with antibacterial activity [61].
Figure 3. Schematic representation of chitosan–starch based composite film with antibacterial activity [61].
Polymers 15 02235 g003
Polymers 15 02235 g004 550

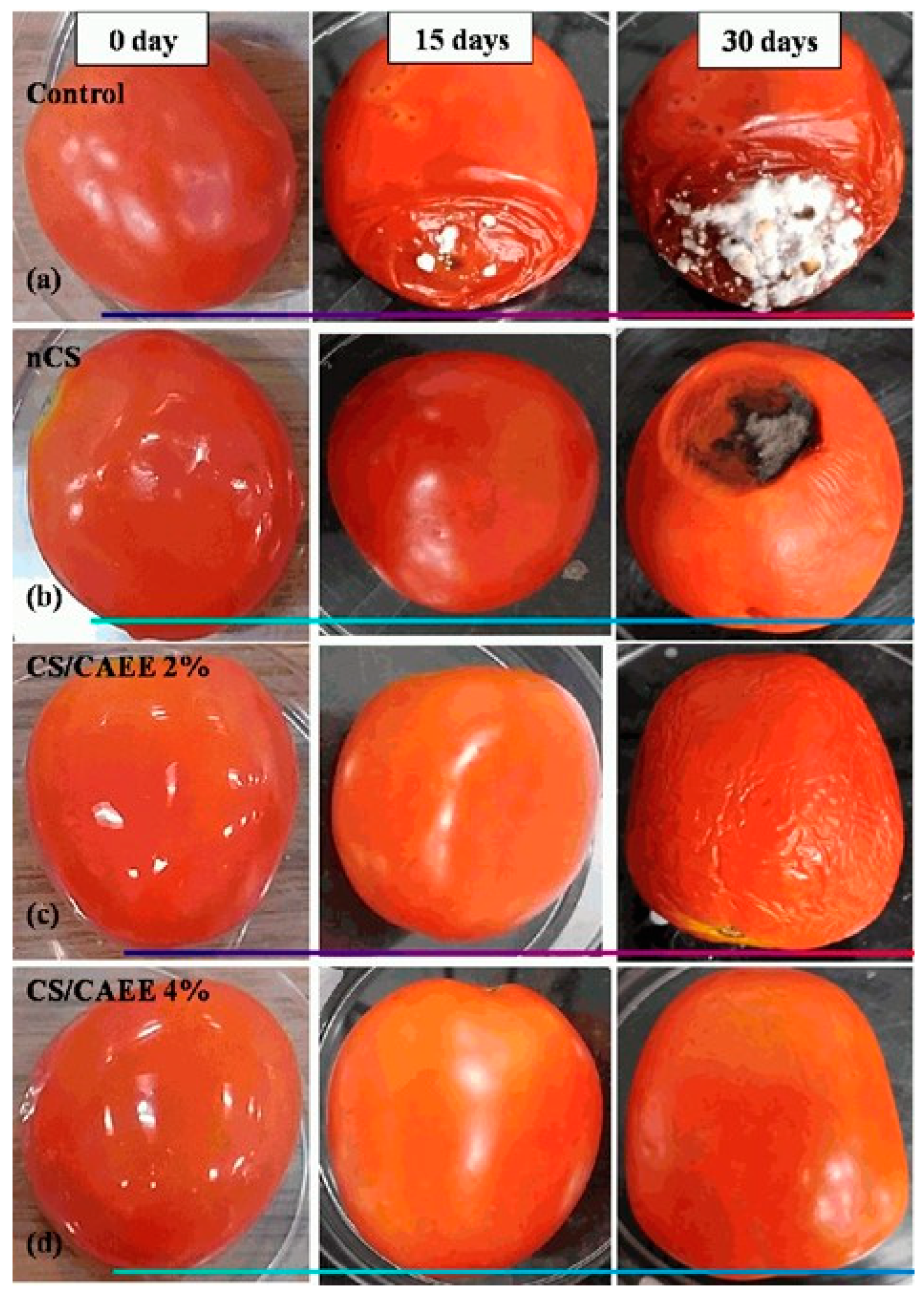

Figure 4. Photograph of tomato: (a) control, (b) nCS, (c) CS/CAEE 2%, (d) CS/CAEE 4%, at a specific storage day [70].
Figure 4. Photograph of tomato: (a) control, (b) nCS, (c) CS/CAEE 2%, (d) CS/CAEE 4%, at a specific storage day [70].
Polymers 15 02235 g004
Polymers 15 02235 g005 550
Figure 5. Schematic representation of Cap-FeIII-HMOF-5 modified gel/chi film preparation [81].
Figure 5. Schematic representation of Cap-FeIII-HMOF-5 modified gel/chi film preparation [81].
Polymers 15 02235 g005
Polymers 15 02235 g006 550
Figure 6. Schematic diagram for the preparation of PVA/CS/DL composite films that increased the shelf life of mangoes [85].
Figure 6. Schematic diagram for the preparation of PVA/CS/DL composite films that increased the shelf life of mangoes [85].
Polymers 15 02235 g006
Polymers 15 02235 g007 550
Figure 7. Schematic diagram of CS/CAP and ZnO nanoparticle film preparation and applications [91].
Figure 7. Schematic diagram of CS/CAP and ZnO nanoparticle film preparation and applications [91].
Polymers 15 02235 g007
Polymers 15 02235 g008 550
Figure 8. Graphical representation showing antimicrobial properties of MMT-CuO nanocomposites [107].
Figure 8. Graphical representation showing antimicrobial properties of MMT-CuO nanocomposites [107].
Polymers 15 02235 g008
Table
Table 1. Starch incorporated chitosan film with different additives.
Table 1. Starch incorporated chitosan film with different additives.
CompositeFunctional PropertiesPhysical PropertiesReferences
Antimicrobial CapacityAntioxidant ActivityThicknessMechanical
Chitosan/corn starch/glycerol------------Tensile strength increased up to 2.24 times compared to pure chitosan[58]
Chitosan/cassava starch/gallic acid/glycerolDelayed microbial growth for two weeksNo significant changes compared to Trolox equivalent performance----Tensile strength increased from 0.51 to 0.83 MPa with the chitosan content[65]
Chitosan/starch/sodium tripolyphosphate--------20–100 nm diameter----[63]
Chitosan/sugar palm starch/extra virgin olive oil (EVOO)Inhibitory activity against E. coli and S.aureusIncreased significantly on the addition of EVOO up to 2.0%Varied based on EVOO contentTensile strength increased up to 2581 MPa with the addition of 2% EVOO[60]
Chitosan nanoparticle/tapioca starch/glycerol/sodium tripolyphosphateGrowth inhibition of B. cereus, S. aureus, E. coli------------[64]
Table
Table 2. Gelatin incorporated chitosan film with different additives.
Table 2. Gelatin incorporated chitosan film with different additives.
CompositeFunctional PropertiesPhysical PropertiesReferences
Antimicrobial CapacityAntioxidant ActivityPhysicochemical PropertiesMechanical Properties
Chitosan/gelatin/methylcellulose/tannic acidImproved antimicrobial activity against E. coli and S. aureus----Improved water vapor barrier and oxygen barrier propertiesTensile strength decreased from 27.3 to 7.26 MPa with the addition of tannic acid[79]
Nano-cellulose/gelatin/chitosan/starch matrices--------Increased UV transparencyYoung modulus increased up to 18,300 MPa with 10% of nanocellulose content[80]
Chitosan/gelatin/cinnamon essential oilImproved antibacterial activity against E. coli and S. aureus----Lower water vapor permeability and higher visible light transmissionTensile strength increased up to 52.31 ± 1.40 MPa compared to pristine chitosan 43.49 ± 2.48 MPa[78]
Chitosan/fish gelatin/gallic acid/trans-cinnamic acidsStrongly decreased bacterial growth of E. coliIncreased for films with gallic acid only--------[77]
Gelatin/chitosan/Cap- FeIII-HMOF-5Improved activity against E. coli----Enhanced water vapor permeability and UV block propertiesTensile strength increased up to 46.05 ± 0.21 MPa with the addition of MOF[81]
Catechol modified chitosan/gelatin/silver nanoparticleInhibitory activity against E. coli and S. aureusIncreasedImproved water vapor resistanceTensile strength increased up to 25.38 ± 0.98 when compared to pure chitosan 9.25 MPa[82]
Table
Table 3. A few of the best chitosan composites with improved essential properties for food packaging.
Table 3. A few of the best chitosan composites with improved essential properties for food packaging.
CompositeReferences
Chitosan/ZnO/CaCl2/NC/PEG/thyme oil[37]
Chitosan/protocatechuic acid[49]
Chitosan/cornstarch[57]
Chitosan/sugar palm starch/olive oil[60]
Chitosan/discorea alata starch/glycerol/essential oil[61]
Chitosan/cassava starch/gallic acid[65]
Carboxymethyl chitosan/Konjac glucomannan/epigallocatechin gallate[69]
Quaternary ammonium chitosan/polyvinyl alcohol[84]
Chitosan/azopolymer/silver nanoparticle[90]
Chitosan/zinc oxide nanoparticles loaded gallic acid[95]
Chitosan/polyvinyl alcohol/ferulic acid[98]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jiang, A.; Patel, R.; Padhan, B.; Palimkar, S.; Galgali, P.; Adhikari, A.; Varga, I.; Patel, M. Chitosan Based Biodegradable Composite for Antibacterial Food Packaging Application. Polymers 2023, 15, 2235. https://doi.org/10.3390/polym15102235

AMA Style

Jiang A, Patel R, Padhan B, Palimkar S, Galgali P, Adhikari A, Varga I, Patel M. Chitosan Based Biodegradable Composite for Antibacterial Food Packaging Application. Polymers. 2023; 15(10):2235. https://doi.org/10.3390/polym15102235

Chicago/Turabian Style

Jiang, Andre, Rajkumar Patel, Bandana Padhan, Supriya Palimkar, Padmaja Galgali, Arindam Adhikari, Imre Varga, and Madhumita Patel. 2023. "Chitosan Based Biodegradable Composite for Antibacterial Food Packaging Application" Polymers 15, no. 10: 2235. https://doi.org/10.3390/polym15102235

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
