Construction of Porous Organic/Inorganic Hybrid Polymers Based on Polyhedral Oligomeric Silsesquioxane for Energy Storage and Hydrogen Production from Water

Mohamed Gamal Mohamed
Mohamed Hammad Elsayed
Yunsheng Ye
Maha Mohamed Samy
Ahmed E. Hassan
Tharwat Hassan Mansoure
Zhenhai Wen
Ho-Hsiu Chou
Kuei-Hsien Chen
3 and
Shiao-Wei Kuo
Department of Materials and Optoelectronic Science, College of Semiconductor and Advanced Technology Research, Center for Functional Polymers and Supramolecular Materials, National Sun Yat-sen University, Kaohsiung 804, Taiwan
Chemistry Department, Faculty of Science, Assiut University, Assiut 71515, Egypt
Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei 10617, Taiwan
Department of Chemistry, Faculty of Science, Al-Azhar University, Nasr City, Cairo 11884, Egypt
CAS Key Laboratory of Design and Assembly of Functional Nanostructures, Fujian Provincial Key Laboratory of Nanomaterials, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China
University of Chinese Academy of Sciences, Beijing 100049, China
Department of Chemical Engineering, National Tsing Hua University, Hsinchu 30013, Taiwan
Department of Medicinal and Applied Chemistry, Kaohsiung Medical University, Kaohsiung 807, Taiwan
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Polymers 2023, 15(1), 182;
Submission received: 27 October 2022 / Revised: 22 December 2022 / Accepted: 23 December 2022 / Published: 30 December 2022
(This article belongs to the Special Issue Advances in Multifunctional Polymer-Based Nanocomposites)


In this study, we used effective and one-pot Heck coupling reactions under moderate reaction conditions to construct two new hybrid porous polymers (named OVS-P-TPA and OVS-P-F HPPs) with high yield, based on silsesquioxane cage nanoparticles through the reaction of octavinylsilsesquioxane (OVS) with different brominated pyrene (P-Br4), triphenylamine (TPA-Br3), and fluorene (F-Br2) as co-monomer units. The successful syntheses of both OVS-HPPs were tested using various instruments, such as X-ray photoelectron (XPS), solid-state 13C NMR, and Fourier transform infrared spectroscopy (FTIR) analyses. All spectroscopic data confirmed the successful incorporation and linkage of P, TPA, and F units into the POSS cage in order to form porous OVS-HPP materials. In addition, the thermogravimetric analysis (TGA) and N2 adsorption analyses revealed the thermal stabilities of OVS-P-F HPP (Td10 = 444 °C; char yield: 79 wt%), with a significant specific surface area of 375 m2 g–1 and a large pore volume of 0.69 cm3 g–1. According to electrochemical three-electrode performance, the OVS-P-F HPP precursor displayed superior capacitances of 292 F g−1 with a capacity retention of 99.8% compared to OVS-P-TPA HPP material. Interestingly, the OVS-P-TPA HPP showed a promising HER value of 701.9 µmol g−1 h−1, which is more than 12 times higher than that of OVS-P-F HPP (56.6 µmol g−1 h−1), based on photocatalytic experimental results.

1. Introduction

Supercapacitors (SCs) are regarded as an alternative technology to fuel cells, the usual capacitor, and batteries. They acquired widespread interest compared with other batteries and conventional capacitors due to their lower environmental impact, prolonged cycle life, and higher power capability [1,2,3,4,5,6,7,8]. SCs have two common types: electrode–electrolyte interfaces in electric double-layer capacitors (EDLCs), which are followed by physical adsorption; and pseudocapacitors, which involve faradaic interactions that occur between the electrolyte and organic moieties or active metal oxides [9,10,11,12,13,14,15,16]. As research advances, scientists are no longer concentrating only on developing the energy density of supercapacitors but are focusing more on improving the multifunctionality of supercapacitors, such as elastic wearable supercapacitors, smart energy storage windows, electrochromic supercapacitors (ESCs), self/charging supercapacitors, and so on [17,18,19,20,21,22]. Significantly, the performance of the supercapacitor is related to the electrode material which should fulfill the following advantages: higher electrical conductivity in order to facilitate high-rate capabilities and power densities, a large specific surface beside porosity, outstanding compatibility in order to ease ion diffusion and the ion/attainable surface area, and good distribution of pore size in order to achieve high specific capacitance and effective charge storage [23,24,25,26,27,28,29,30,31,32,33]. Hence, the most widespread materials that are utilized as the electrodes in SC applications are redox organic molecules, porous carbon materials, metal oxides, sulfides, hydroxides, and conjugated polymers (i.e., microporous polymers) because of their high surface area, versatility, adjustable porosity, obtainable raw materials, high electrical conductivity, high sustainability, and their remarkable stability under a large range of potential windows [34,35,36,37,38,39,40,41,42].
Porous organic polymers and porous organic hybrid polymers containing polyhedral oligomeric silsesquioxanes (POSS) have been immensely exercised in numerous applications, including hydrogen production, gas capture, chemical sensing catalysis, microelectronics, aerospace, iodine capture, biomedicine, water treatment, and energy storage [43,44,45,46,47,48]. In particular, cubic silsesquioxane molecules, which are considered an important kind of polyhedral oligomeric silsesquioxane, have attracted considerable attention in the scientific society, owing to their wonderful design from inorganic/organic hybrid materials, high surface area, tunable chemical properties, optical transparency, excellent mechanical toughness, and thermal stability [43,44,45,46,47,48,49,50,51,52]. The above molecules have a formula of (RSiO1.5) with a nanoscale diameter of about 1–3 nm which contain inorganic cages in their structures that provide superior advantages, as mentioned before [53,54,55,56,57]. Subsequently, various preparation methods have been reported in order to synthesize porous polymers using cubic silsesquioxane molecules as the building unit, such as the Heck coupling reaction which achieves the demand of preparing clean and low-price materials with high-performance capabilities for energy storage devices and other applications. For example, Ervithayasuporn’s group used a porous polymer nanocomposite based on OVS and porphyrin for capturing heavy metal anions and ions [58]. Zhang et al. prepared azo porous materials containing OVS as a cage and porphyrin for removing RhB and various metal ions from wastewater [59].
Motivated by these earlier reports, here, we have prepared two porous OVS-P-TPA and OVS-P-F HPPs with high yield using the Heck coupling reaction of the OVS cage with two different brominated comonomers (P/TPA and P/F) in the presence of Pd as a catalyst under moderate reaction conditions, as presented in Scheme 1. The molecular chemical structures, thermal stability (including temperature decomposition and carbon residues), crystallinities, surface morphologies, and porosity properties of the OVS-P-TPA and OVS-P-F HPPs were carefully investigated and discussed in detail using Brunauer–Emmett–Teller (BET) surface areas, X-ray photoelectron (XPS), and Fourier transforms infrared spectroscopy (FTIR) analyses. For the real application of these porous hybrid materials, two OVS-P-TPA and OVS-P-F HPPs were applied, and the electrochemical three-electrode performance and H2 evolution from water splitting were assessed. The data revealed that the POSS-P-F HPP precursor displayed high specific capacitances of 292 F g−1 with a capacity retention of 99.8% compared to the POSS-P-TPA HPP material. Interestingly, the OVS-P-TPA HPP shows a promising HER value of 701.9 µmol g−1 h−1 based on photocatalytic experimental results.

2. Materials and Methods

2.1. Materials

Octavinylsilsesquioxane (OVS), potassium carbonate (K2CO3), Pd(PPh3)4, iron(III) chloride (FeCl3), pyrene (P), bromine (Br2), N-bromosuccinimide (NBS), nitrobenzene, triphenylamine (TPA), and fluorene (F) were ordered from Alfa Aesar. All the organic solvents were obtained from Acros.

2.2. Synthesis of P–Br4 [60,61]

Nitrobenzene (60 mL), Br2 (4 mL), and P molecules (2.00 g, 10 mmol) were introduced into a 100 mL two-necked flask that was filled with nitrogen. The mixture was then heated at 120 °C for 24 h, and the resulting P–Br4 was washed with EtOH before drying in a vacuum-sealed oven at 50 °C (4 g, 93%, Scheme 1). FTIR (Figure S1): 3053 (aromatic C–H stretching).

2.3. Synthesis of TPA-Br3 [39]

DMF (40 mL), NBS (3.00 g, 17.25 mmol), and TPA (1.38 g, 5.62 mmol) were combined in a 200 mL two-necked flask in an N2 atmosphere for 24 h at room temperature. Next, 300 mL of water and 200 mL of DCM were added to the reaction mixture. The DCM layer was dried over MgSO4 and evaporated in order to attain a white powder (2.83 g, 92%). M.p.: 142 °C (DSC, Figure S2). FTIR (Figure S3): 3078 (aromatic C–H stretching). 1H-NMR (Figure S4): 6.94–7.35 (aromatic protons).13C NMR (Figure S5): 146.80, 133.20, 126.20, and 116.40.

2.4. Synthesis of 2,7-Dibrmo-9H-Fluorene (F–Br2) [20]

F (4.00 g, 24.0 mmol), Br2 solution (1.29 mL, 25.27 mmol), CHCl3 (50 mL), and FeCl3 (0.134 g, 2.40 mmol) were injected into a 100 mL two-necked flask in an N2 atmosphere. The reaction was then held in the dark for 4 h. After this, CHCl3 was removed under a vacuum system in order to obtain F–Br2 as a white powder (7.80 g, 89%, Scheme S3). M.p.:165 °C (DSC, Figure S6). FTIR (Figure S7): 3056 (aromatic C–H stretching). 1H NMR (Figure S8): 3.90 (S, 2H) and 7.51–7. 66 (aromatic protons). 13C NMR (Figure S9): 145.36, 140.13, 130.98, 128.35, 122.06, and 36.69.

2.5. Synthesis of OVS-P-TPA HPP and OVS-P-F HPP

A mixture of DMF (25 mL), Pd(PPh3)4 (0.032 g, 0.27 mmol), TPA-Br3 (1.45 g, 3 mmol) or F-Br2 (0.97, 3 mmol), OVS (0.5 g, 0.79 mmol), P-Br4 (0.04 g, 0.08 mmol), and K2CO3 (1.1 g, 7.9 mmol) was charged into a 50 mL two-necked round flask under an N2 atmosphere. The obtained solution was heated at 100 °C for 72 h. The solid was filtered and washed many times with water, THF, methanol, and acetone in order to obtain a red powder for OVS-P-TPA HPP (yield: 85%) and a yellow powder for OVS-P-F HPP (yield: 80%). The schematic route of OVS-P-TPA HPP and OVS-P-F HPP is displayed in Scheme 1a,b, respectively.

2.6. Photocatalytic H2 Evolution Experiment

In a typical measurement, 5 mg of OVS-P-TPA HPP or OVS-O-F HPP photocatalyst was dispersed by sonication in a 10 mL solution (water/MeOH (2/1)) containing 0.1 M ascorbic acid (AA), which was then inserted into the reaction glass container and sealed tightly with a rubber septum. Prior to illumination, the aerobic oxygen was removed from the sample by evacuating the solution mixture and then exposing it to a continuous stream of Ar gas for 30 min. The catalyst solution was exposed to light from a 350 W Xe lamp (1000 W m−2; λ > 380 nm) that had passed through a 380 nm band-pass filter. Using a gas-tight syringe, the hydrogen sample was taken every hour and injected in a Shimazhu GC-2014 gas chromatograph, using Ar as the carrier gas. Hydrogen was detected with a thermal conductivity detector, referring to the standard hydrogen gases with known concentrations [62,63].

2.7. Computational Details

The density functional theory (DFT) of the DMol3 code [64] was used in order to obtain the optimized structure and electronic properties. The generalized gradient approximation of the Perdew–Burke–Ernzerhof functional (GGA + PBE) was adopted throughout all the calculations [65]. The system’s energy was converged to 10−5 Ha, and the max force and the max displacements were 0.002 Ha/Å and 0.005 Å, respectively. In order to ensure self-consistent field (SCF) convergence accuracy, a self-consistent field (SCF) was converged to 10−6 Ha. In addition to their electron densities, the energy levels of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) were computed [66].

3. Results

3.1. Synthesis and Characterization of OVS-P-TPA and OVS-P-F HPPs

The preparation route of OVS-HPPs (OVS-P-TPA and OVS-P-F HPPs) is presented in Scheme 1. First, the P-Br4 monomer was synthesized using the bromination reaction of P with Br2, using nitrobenzene as a solvent, as shown in Scheme S1. Secondly, TPA-Br3 was easily synthesized through the reaction of TPA with Br2 solution in DMF at 25 °C (see Scheme S2). Finally, F-Br2 was prepared with a high yield through the reaction of the F molecule with Br2 in CHCl3 (see Scheme S3). The NMR and FTIR data of the P-Br4, TPA-Br3, and F-Br2 monomers in this study confirmed their successful synthesis [see the experimental part of this study]. Scheme 1 displays the synthesis route for the synthesis of our two new porous hybrid polymers (OVS-HPPs) based on the OVS unit (named OVS-P-TPA and OVS-P-F HPPs) via a simple and efficient Heck coupling reaction in a mixed solution containing DMF, K2CO3, and Pd as a catalyst. The mole ratios between all the monomers (OVS/TPA-Br3 or F-Br2/P-Br4), which were used in the preparation of the OVS-HPPs, was 1:3.8:0.1 [67]. We used this ratio to get a high surface area of these HPP materials and to increase the amount of pyrene moiety content as a donor unit in the HPP framework in order to adjust the energy band gap and investigate their potential applications in energy storage and hydrogen evolution. The OVS-P-TPA HPP was obtained through the reaction of OVS with P-Br4 and TPA-Br3. This reaction produced OVS-P-TPA as a red powder [Scheme 1a]. OVS-P-F HPP was obtained through the reaction of OVS with P-Br4 and F-Br2, which produced a yellow solid [Scheme 1b]. After completing the Heck coupling reaction, we revealed that the obtained OVS-HPP materials were not soluble in MeOH, H2O, DMF, DCM, THF, and acetone, indicating that our porous OVS-HPPs had a high crosslinking density and a high degree of polymerization. The matching bands for stretching Si-O-Si, C=C, and C=C-H groups in the OVS compound showed at 1107, 1600, and 3066 cm−1, respectively, as shown in Figure 1a. According to Figure 1a,b, Figures S10 and S11, the band of the C-H aromatic in P-Br4, TPA-Br3, and F-Br2 are represented at 3053, 3078, and 3056 cm−1, respectively. Figure 1a,b, Figures S10 and S11 show that the peaks for aliphatic C-H and C=C units in the FTIR profiles of the OVS-P-TPA and OVS-P-F HPPs were found in the ranges of 2981–2964 and 1600–1590 cm−1, respectively. As anticipated, the Si-O-Si absorption bands in both the OVS-P-TPA and the OVS-P-F HPPs (Figure 1a,b) were wider compared to the Si-O-Si unit in the OVS compound (Figure 1). This was attributed to the development of cross-linked networks. Figure 1c reveals that the signal for aromatic carbons appeared in the range of 142–117 ppm for OVS-P-TPA HPP and 146–114 ppm for OVS-P-F HPP. The signal of the carbon nuclei of the C-N unit appeared at 146 ppm for OVS-P-TPA HPP. In addition, in the 13C NMR solid-state profile, OVS-P-F HPP had a signal located at 36.6 ppm, corresponding to the CH2 group. Moreover, the presence of OVS cage units in all the OVS-HPP materials was proven using 29Si NMR solid-state profile (Figure 1d). The two OVS-HPP samples displayed two signals centered near −14 and −80 ppm due to the Si-C=C and T3, respectively.
The surface chemical composition of OVS-P-TPA HPP and OVS-P-F HPP were detected in X-ray photoelectron spectroscopic (XPS) measurements. As can be seen in Figure 2, the Si2p (103.13 eV), Si2s (153.31 eV), C1s (285.80 eV), and N1s (401.12 eV) peaks appeared in the OVS-P-TPA HPP precursor (Figure 2a), whereas the Si2p (103.48 eV), Si2s (153.84 eV), and C1s (285.34 eV) signals appeared in the OVS-P-F HPP framework (Figure 2b) [68]. All the analyses above, including FTIR, XPS, 13C, and 29Si NMR solid-state analyses, strongly demonstrated the successful synthesis of OVS-P-TPA HPP and OVS-P-F HPP.
Figure 3 displays the thermogravimetric analysis (TGA) profiles of OVS-P-TPA HPP and OVS-P-F HPP and their corresponding building blocks under an N2 atmosphere at 800 °C. The OVS-P-F HPP showed thermal decomposition temperatures of Td5, Td10 with a char yield at 228, 283°C, and 51 wt%, respectively. For OVS-P-TPA HPP and OVS-P-F HPP; these were 349, 444 °C and 79 wt%, respectively. Interestingly, after the Heck polymerization reaction, both OVS-HPPs possessed outstanding thermal stability properties compared with their building blocks, as shown in Figure 3a,b. The thermal stability results (including Td5, Td10, and the char yields) of the OVS-HPPs and all the synthesized monomers used in this study are summarized in Table 1 and Table S1. The X-ray patterns (Figure S12) displayed amorphous characteristics for the OVS-HPPs materials. In addition, a gradual high X-ray diffraction peak can be seen at 2θ = 22° for the presence of Si-O-Si groups in the OVS cage [67].
In order to confirm the porosity properties of the OVS-HPPs, the BET analyses were performed at 77 K and 1 bar (Figure 4). According to the IUPAC classification, the N2 isotherm profile for the OVS-P-TPA HPP sample (Figure 4a) was type III, and for the OVS-P-F HPP framework was the type I and IV (Figure 4b). OVS-P-TPA HPP contains mainly meso- and macro-pores, and OVS-P-F HPP shows a mix of micro- and mesopores at high relative pressures (P/P0 > 0.9), based on BET analyses. The specific surface area and total pore volumes of the OVS-P-TPA and OVS-P-F HPPs were 60 m2 g −1 and 0.19 cm3, and 375 m2 g −1 and 0.69 cm3 g −1, respectively (Table 1). We used the nonlocal density functional theory method to calculate the pore size distribution for the OVS-HPPs materials (Figure 4c,d), and the pore diameters were found to be 2.56 and 2.20 nm, respectively, for the OVS-P-TPA and OVS-P-F HPPs. In addition, the relative content of micropores for the OVS-P-TPA and OVS-P-F HPPs was 0.12 and 0.21, respectively.
The shape and porosity parameters of the OVS-HPPs were evaluated using SEM and TEM measurements (Figure 5). The OVS-P-TPA and OVS-P-F HPPs featured irregular aggregated sphere structures and aggregated irregular cloud-like structures, respectively, according to the SEM images (Figure 5a,b). Moreover, the TEM images of the OVS-HPP materials are shown in Figure 5c,d; the images revealed the presence of pinholes and the presence of dark and bright regions in their structures.

3.2. Electrochemical Analysis of the OVS-P-TPA and OVS-P-F HPPs

A three-electrode setup was used to examine the electrochemical performance of the OVS-HPP materials (OVS-P-TPA and OVS-P-F HPPs) using cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) measurements. Figure 6a,b shows the CV curves of the two synthesized OVS-HPP frameworks and the configuration of the electrochemical cell used for the measurements. The voltage windows ranged from 0.00 to 1.00 V (vs. Hg/HgO) at a sweep speed ranging from 5 to 200 mV s−1. Furthermore, when recorded at the highest scan rate of 200 mV s−1, the CV curves of the OVS-HPP samples showed rectangle-shaped shapes with the appearance of humps, indicating that this capacitive response was primarily caused by EDLC with a small amount of pseudocapacitance [2,12,35,69]. The integrated area of the OVS-P-F HPP sample was higher than that of the OVS-P-TPA HPP sample, revealing its superior electrochemical performance. This superior electrochemical performance of the OVS-P-F HPP sample was due to its high porosity properties [12]. Figure 6c,d presents the GCD curves of the OVS-P-TPA and OVS-P-F HPPs. The GCD curves of the OVS-HPP samples revealed triangular-like shapes with a slight bend at different current densities (0.5–20 A g−1), indicating the presence of pseudocapacitance and EDLC characteristics [2,12,35,69].
Figure 7a presents the capacitances of the OVS-HPPs determined using Equation (S1) (from the GCD curves). The OVS-P-F HPP sample displayed excellent capacitance (292 F g–1) among the tested OVS-P-TPA HPPs (72 F g–1) at 0.5 A g–1. This behavior could be explained in terms of its higher surface area (375 m2 g−1), and the existence of phenyl rings with abundant electrons, which make electrolytes more easily accessible to the surface of the electrode [2,12,35,69]. In addition, the capacitances of the OVS-HPP-based samples reduced as the current density increased from 0.5 to 20 A g−1 due to inadequate available time for ion diffusion and adsorption inside the tiniest pores inside a big particle at high current densities [3,12,69]. Additionally, compared to the other porous materials, the OVS-P-F HPP-based material showed good capacitance (Table S2) [12,35,69,70,71]. GCD measurements were used to examine the stability of the OVS-HPP samples after 2000 cycles at 10 A g−1 (Figure 7b). The OVS-P-TPA and OVS-P-F HPP samples displayed good cycling stability (Figure 7b), with 98.1 and 99.8% retention, respectively. The Ragone plot (Figure 7c) showed that the energy densities of the OVS-P-TPA and OVS-P-F HPP samples were 10.02 and 40.5 Wh Kg−1, respectively.

3.3. Photocatalytic Performance of OVS-P-TPA HPP and OVS-P-F HPP for H2 Production

The ultraviolet-visible diffuse reflectance spectroscopy (UV-Vis DRS) was used to investigate the light absorption properties of the polymers, as shown in Figure 8a. The two polymers demonstrated good absorption in the visible light region, indicating their ability to harvest large amounts of visible light during the photocatalytic reaction. The onset of the absorption spectrum of the two polymers approximately reached 600 and 650 nm for OVS-P-F HPP and OVS-P-TPA HPP, respectively. The bandgap (Eg) of the polymers was determined from the Tauc plot of (αhν)2 versus (hν) from the UV-Vis spectra and by extrapolation of the linear part of the curve to the energy axis in order to obtain the optical bandgap based on the equation: αhν = A(hν − Eg)γ, where α is the absorption coefficient, A is an energy-independent constant, Eg is the optical band gap, h is the plank constant, v is the velocity, and γ is the electronic transition. As shown in Figure 8b, the Eg values of the OVS-P-F HPP and OVS-P-TPA HPP polymers were calculated to be 2.26 and 2.16 eV, respectively. Next, we tested the polymers as photocatalysts for light-driven hydrogen evolution. In the presence of AA as a sacrificial reagent and without a Pt co-catalyst, we recorded the hydrogen evolution kinetic curve to explore the H2 evolution efficiency of the polymer photocatalyst, as shown in Figure 8c. The hydrogen evolution rate (HER) was obtained from the kinetic curves (Figure 8d). The total amount of H2 produced by the OVS-P-TPA HPP and OVS-P-F HPP polymer photocatalysts reached 2000 and 185 µmol/g after 4 h of the reaction, respectively (Figure 8c). The HER was calculated for the two polymers from the kinetic curve presented in Figure 8d. The OVS-P-TPA HPP sample shows a promising HER value of 701.9 µmol g−1 h−1, which is more than 12 times higher than that of OVS-P-F HPP (56.6 µmol g−1 h−1). The high HER value of OVS-P-TPA HPP is due to the donor–acceptor structure between the pyrene and triphenylamine moieties of the OVS-P-TPA HPP polymer, leading to separation of the charge carrier and then the enhancement of photocatalytic activity.
To determine how the donor and acceptor fragments influenced the photoelectric properties of the examined compounds, we calculated the charge density of the high occupied molecular orbital (HOMO) and low unoccupied molecular orbital (LUMO) energy levels using the density functional theory (DFT) of the DMol3 code. Figure 9 shows that highly pronounced spatial separation of the HOMOs and LUMOs can be observed for OVS-P-TPA HPP in contrast to OVS-P-F HPP. The LUMO orbital in the OVS-P-TPA HPP sample was mainly localized over the pyrene donor, whereas the HOMO orbital was localized over the triphenyl acceptor. On the other hand, in the case of the OVS-P-F HPP polymer, the HOMO and LUMO orbitals were localized over the pyrene moiety, and no charge separation was observed. Thus, we expect that OVS-P-TPA HPP has a better ability to separate the photogenerated e$#x2212;/h+ pairs and higher photocatalytic efficiency than other molecules. This distribution indicates high electron delocalization, and significant charge transfer (CT) occurs inside the investigated molecule under light irradiation.

4. Conclusions

In this study, we successfully constructed and designed OVSP-TPA HPP and POSS-P-F HPP using simple Heck coupling under moderate and suitable reaction conditions through the reaction of an OVS inorganic cage with brominated P/TPA or P/F as comonomers. All spectroscopic results revealed the successful syntheses of both OVS-HPPs with good yield. The POSS-P-F HPP sample had a Td10 of 444 °C, with a char yield of 79 wt%, as well as a high specific surface area of 375 m2 g–1 and a pore volume of 0.69 cm3 g–1. According to electrochemical three-electrode performance, the POSS-P-TPA and POSS-P-F HPPs precursor capacitances were 72 and 292 F g−1, respectively. Furthermore, the OVS-P-TPA HPP had a promising HER value of 701.9 µmol g−1 h−1 due to the donor–acceptor structure that was obtained between the P and TPA moieties of the OVS-P-TPA HPP.

Supplementary Materials

The following supporting information can be downloaded at:, Scheme S1: Synthesis of P-Br4 from pyrene in the presence of Br2; Scheme S2: Synthesis of TPA-Br3 from TPA in the presence of NBS and DMF as a solvent; Scheme S3: Synthesis of F-Br2 from fluorene in the presence of Br2; Figure S1: FTIR spectrum of P-Br4; Figure S2: DSC profile of TPA-Br3; Figure S3: FTIR spectrum of TPA-Br3; Figure S4: 1H NMR spectrum of TPA-Br3; Figure S5: 13C NMR spectrum of TPA-Br3; Figure S6: DSC profile of F-Br2; Figure S7: FTIR spectrum of F-Br2; Figure S8: 1H NMR spectrum of F-Br2; Figure S9: 13C NMR spectrum of F-Br2; Figure S10: FTIR analyses of OVS, P-Br4, TPA-Br3, and OVS-P-TPA HPP; Figure S11: FTIR analyses of OVS, P-Br4, F-Br2, and OVS-P-F HPP; Figure S12: XRD patterns of OVS-P-TPA and OVS-P-F HPPs; Table S1: TGA data of OVS-HPPs and synthesized monomers in this study; Table S2: Summarizes the specific capacitances of POSS-P-TPA HPP and POSS-P-F HPP compared to other organic and inorganic porous materials.

Author Contributions

Conceptualization, M.G.M., M.H.E. and M.M.S.; methodology, M.G.M., M.M.S. and Y.Y.; software, M.H.E. and A.E.H.; validation, M.G.M., M.H.E., Y.Y., Z.W. and M.M.S.; formal analysis, M.G.M., M.H.E. and T.H.M.; investigation, M.G.M., M.H.E., T.H.M., A.E.H. and M.M.S.; resources, H.-H.C., K.-H.C. and S.-W.K.; data curation, M.G.M., M.H.E., T.H.M., A.E.H. and M.M.S.; writing—original draft preparation, M.G.M. and M.H.E.; writing—review and editing, M.G.M. and M.H.E.; visualization, M.G.M. and M.H.E.; supervision, M.G.M., H.-H.C., K.-H.C. and S.-W.K.; project administration, H.-H.C. and S.-W.K.; funding acquisition, H.-H.C. and S.-W.K. All authors have read and agreed to the published version of the manuscript.


This study was supported financially by the Ministry of Science and Technology, Taiwan, under contracts NSTC 110-2124-M-002-013 and 111-2223-E-110-004.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.


The authors thank the staff at National Sun Yat-sen University for their assistance with the TEM (ID: EM022600) experiments.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zhao, C.; Jia, X.; Shu, K.; Yu, C.; Wallace, G.G.; Wang, C. Conducting polymer composites for unconventional solid-state supercapacitors. J. Mater. Chem. A 2020, 8, 4677–4699. [Google Scholar] [CrossRef]
  2. Weng, T.H.; Mohamed, M.G.; Sharma, S.U.; Chaganti, S.V.; Samy, M.M.; Lee, J.T.; Kuo, S.W. Ultrastable Three-Dimensional Triptycene- and Tetraphenylethene-Conjugated Microporous Polymers for Energy Storage. ACS Appl. Energy Mater. 2022, 5, 14239–14249. [Google Scholar] [CrossRef]
  3. Najib, S.; Erdem, E. Current progress achieved in novel materials for supercapacitor electrodes: Mini review. Nanoscale Adv. 2019, 1, 2817–2827. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Huang, Q.; Wang, J.; Gong, H.; Zhang, Q.; Wang, M.; Wang, W.; Nshimiyimana, J.P.; Diao, X. A rechargeable electrochromic energy storage device enabling effective energy recovery. J. Mater. Chem. A 2021, 9, 6451–6459. [Google Scholar] [CrossRef]
  5. Mohamed, M.G.; Hu, H.Y.; Madhu, M.; Ejaz, M.; Sharma, S.U.; Tseng, W.L.; Samy, M.M.; Huang, C.W.; Lee, J.T.; Kuo, S.W. Construction of Ultrastable Conjugated Microporous Polymers Containing Thiophene and Fluorene for Metal Ion Sensing and Energy Storage. Micromachines 2022, 13, 1466. [Google Scholar] [CrossRef]
  6. Anjum, N.; Joyal, N.; Iroegbu, J.; Li, D.; Shen, C. Humidity modulated properties of hydrogel polymer electrolytes for flexible supercapacitors. J. Power Sources 2021, 499, 229962. [Google Scholar] [CrossRef]
  7. Ejaz, M.; Mohamed, M.G.; Sharma, S.U.; Lee, J.T.; Huang, C.F.; Chen, T.; Kuo, S.W. An Ultrastable Porous Polyhedral Oligomeric Silsesquioxane/Tetraphenylthiophene Hybrid as a High-Performance Electrode for Supercapacitors. Molecules 2022, 27, 6238. [Google Scholar] [CrossRef]
  8. Samy, M.M.; Sharma, S.U.; Mohamed, M.G.; Mohammed, A.A.K.; Chaganti, S.V.; Lee, J.T.; Kuo, S.W. Conjugated microporous polymers containing ferrocene units for high carbon dioxide uptake and energy storage. Mater. Chem. Phys. 2022, 287, 126177. [Google Scholar] [CrossRef]
  9. Samy, M.M.; Mohamed, M.G.; Kuo, S.W. Pyrene-functionalized tetraphenylethylene polybenzoxazine for dispersing single-walled carbon nanotubes and energy storage. Compos. Sci. Technol. 2020, 199, 108360. [Google Scholar] [CrossRef]
  10. Samy, M.M.; Mohamed, M.G.; Sharma, S.U.; Chaganti, S.V.; Mansoure, T.H.; Lee, J.T.; Chen, T.; Kuo, S.W. Constructing conjugated microporous polymers containing triphenylamine moieties for high-performance capacitive energy storage. Polymer 2023, 264, 125541. [Google Scholar] [CrossRef]
  11. Li, L.; Lu, F.; Xue, R.; Ma, B.L.; Li, Q.; Wu, N.; Liu, H.; Yao, W.Q.; Guo, H.; Yang, W. Ultrastable triazine-based covalent organic framework with an interlayer hydrogen bonding for supercapacitor applications. ACS Appl. Mater. Interfaces 2019, 11, 26355–26363. [Google Scholar] [CrossRef]
  12. Mohamed, M.G.; Mansoure, T.H.; Takashi, Y.; Samy, M.M.; Chen, T.; Kuo, S.W. Ultrastable porous organic/inorganic polymers based on polyhedral oligomeric silsesquioxane (POSS) hybrids exhibiting high performance for thermal property and energy storage. Microporous Mesoporous Mater. 2021, 328, 111505. [Google Scholar] [CrossRef]
  13. Lyu, W.; Yan, C.; Chen, Z.; Chen, J.; Zuo, H.; Teng, L.; Liu, H.; Wang, L.; Liao, Y. Spirobifluorene-Based Conjugated Microporous Polymer-Grafted Carbon Nanotubes for Efficient Supercapacitive Energy Storage. ACS Appl. Energy Mater. 2022, 5, 3706–3714. [Google Scholar] [CrossRef]
  14. Septiani, W.; Kaneti, Y.V.; Fathoni, K.B.; Wang, J.; Ide, Y.; Yuliarto, B.; Nugraha, B.; Dipojono, H.K.; Nanjundan, A.K.; Golberg, D.; et al. Self-Assembly of Nickel Phosphate-Based Nanotubes into Two-Dimensional Crumpled Sheet-Like Architectures for High-Performance Asymmetric Supercapacitors. Nano Energy 2020, 67, 104270. [Google Scholar] [CrossRef]
  15. Zhu, T.; Yang, Y.; Liu, Y.; Lopez-Hallman, R.; Ma, Z.; Liu, L.; Gong, X. Wireless portable light-weight self-charging power packs by perovskite-organic tandem solar cells integrated with solid-state asymmetric supercapacitors. Nano Energy 2020, 78, 105397. [Google Scholar] [CrossRef]
  16. Young, C.; Park, T.; Yi, J.W.; Kim, J.; Hossain, M.S.A.; Kaneti, Y.V.; Yamauchi, Y. Advanced Functional Carbons and Their Hybrid Nanoarchitectures Towards Supercapacitor Applications. ChemSusChem 2018, 11, 3546–3558. [Google Scholar] [CrossRef]
  17. Mohamed, M.G.; Ahmed, M.M.M.; Du, W.T.; Kuo, S.W. Meso/Microporous Carbons from Conjugated Hyper-Crosslinked Polymers Based on Tetraphenylethene for High-Performance CO2 Capture and Supercapacitor. Molecules 2021, 26, 738. [Google Scholar] [CrossRef]
  18. Xu, Z.; Sun, S.; Han, Y.; Wei, Z.; Cheng, Y.; Yin, S.; Cui, W. High-Energy-Density Asymmetric Supercapacitor Based on a Durable and Stable Manganese Molybdate Nanostructure Electrode for Energy Storage Systems. Appl. Energy Mater. 2020, 3, 5393–5404. [Google Scholar] [CrossRef]
  19. Mohamed, M.G.; Chaganti, S.V.; Sharma, S.U.; Samy, M.M.; Ejaz, M.; Lee, J.T.; Zhang, K.; Kuo, S.W. Constructing Conjugated Microporous Polymers Containing the Pyrene-4,5,9,10-Tetraone Unit for Energy Storage. ACS Appl. Energy Mater. 2022, 5, 10130–10140. [Google Scholar] [CrossRef]
  20. Mohamed, M.G.; Elsayed, M.H.; Elewa, A.M.; EL-Mahdy, A.F.M.; Yang, C.H.; Mohammed, A.A.K.; Chou, H.H.; Kuo, S.W. Pyrene-containing conjugated organic microporous polymers for photocatalytic hydrogen evolution from water. Catal. Sci. Technol. 2021, 11, 2229–2241. [Google Scholar] [CrossRef]
  21. Wang, Q.; Zhu, M.; Chen, G.; Dudko, N.; Li, Y.; Liu, H.; Shi, L.; Wu, G.; Zhang, D. High-Performance Microsized Si Anodes for Lithium-Ion Batteries: Insights into the Polymer Configuration Conversion Mechanism. Adv. Mater. 2022, 34, 2109658. [Google Scholar] [CrossRef] [PubMed]
  22. Khattak, A.M.; Sin, H.; Ghazi, Z.A.; He, X.; Liang, B.; Khan, N.A.; Alanagh, H.R.; Iqbal, A.; Li, L.S.; Tang, Z.T. Controllable fabrication of redox-active conjugated microporous polymer on reduced graphene oxide for high performance faradaic energy storage. J. Mater. Chem. A 2018, 6, 18827–18832. [Google Scholar] [CrossRef]
  23. Amin, K.; Ashraf, N.; Mao, L.; Faul, C.F.J.; Wei, Z. Conjugated microporous polymers for energy storage: Recent progress and challenges. Nano Energy 2021, 85, 105958. [Google Scholar] [CrossRef]
  24. Zheng, S.; Miao, L.; Sun, T.; Li, L.; Ma, T.; Bao, J.; Tao, Z.; Chen, J. An extended carbonyl-rich conjugated polymer cathode for high-capacity lithium-ion batteries. J. Mater. Chem. A 2021, 9, 2700–2705. [Google Scholar] [CrossRef]
  25. Mohamed, M.G.; Chaganti, S.V.; Li, M.S.; Samy, M.M.; Sharma, S.U.; Lee, J.T.; Elsayed, M.H.; Chou, H.H.; Kuo, S.W. Ultrastable Porous Organic Polymers Containing Thianthrene and Pyrene Units as Organic Electrode Materials for Supercapacitors. ACS Appl. Energy Mater. 2022, 5, 6442–6452. [Google Scholar] [CrossRef]
  26. Mei, L.; Wei, J.-C.; Duan, Q. Construction of copper porphyrinlinked conjugated microporous polymer/carbon nanotube composite as flexible electrodes for supercapacitors. J. Mater. Sci. Mater. Electron. 2021, 32, 24953–24963. [Google Scholar] [CrossRef]
  27. Kim, D.; Kang, J.; Yan, B.; Seong, K.; Piao, Y. Ambient Temperature Synthesis of Iron-Doped Porous Nickel Pyrophosphate Nanoparticles with Long-Term Chemical Stability for High-Performance Oxygen Evolution Reaction Catalysis and Supercapacitors. ACS Sustain. Chem. Eng. 2020, 8, 2843–2853. [Google Scholar] [CrossRef]
  28. Mohamed, M.G.; Sharma, S.U.; Yang, C.H.; Samy, M.M.; Mohammed, A.A.K.; Chaganti, S.V.; Lee, J.T.; Kuo, S.W. Anthraquinone-Enriched Conjugated Microporous Polymers as Organic Cathode Materials for High-Performance Lithium-Ion Batteries. ACS Appl. Energy Mater. 2021, 4, 14628–14639. [Google Scholar] [CrossRef]
  29. Mohamed, M.G.; EL-Mahdy, A.F.M.; Kotp, M.G.; Kuo, S.W. Advances in porous organic polymers: Syntheses, structures, and diverse applications. Mater. Adv. 2022, 3, 707–733. [Google Scholar] [CrossRef]
  30. Cai, G.; Cui, P.; Shi, W.; Morris, S.; Lou, S.N.; Chen, J.; Ciou, J.H.; Paidi, V.K.; Lee, K.S.; Li, S.; et al. One-Dimensional π -d Conjugated Coordination Polymer for Electrochromic Energy Storage Device with Exceptionally High Performance. Adv. Sci. 2020, 7, 1903109. [Google Scholar] [CrossRef]
  31. Wang, Y.; Li, W.; Zhang, L.; Zhang, X.; Tan, B.; Hao, J.; Zhang, J.; Wang, X.; Hu, Q.; Lu, X. Amorphous Cobalt Hydrogen Phosphate Nanosheets with Remarkable Electrochemical Performances as Advanced Electrode for Supercapacitors. J. Power Sources 2020, 449, 227487. [Google Scholar] [CrossRef]
  32. Roh, D.H.; Shin, H.; Kim, H.T.; Kwon, T.H. Sono-Cavitation and Nebulization-Based Synthesis of Conjugated Microporous Polymers for Energy Storage Applications. ACS Appl. Mater. Interfaces 2021, 13, 61598–61609. [Google Scholar] [CrossRef]
  33. Mohamed, M.G.; Atayde, E.C., Jr.; Matsagar, M.B.; Na, J.; Yamauchi, Y.; Wu, K.C.W.; Kuo, S.W. Construction Hierarchically Mesoporous/Microporous Materials Based on Block Copolymer and Covalent Organic Framework. J. Taiwan Inst. Chem. Eng. 2020, 112, 180–192. [Google Scholar] [CrossRef]
  34. Wang, H.; Cheng, Z.; Liao, Y.; Li, J.; Weber, J.; Thomas, A.; Faul, C.F.J. Conjugated Microporous Polycarbazole Networks as Precursors for Nitrogen-Enriched Microporous Carbons for CO2 Storage and Electrochemical Capacitors. Chem. Mater. 2017, 29, 4885–4893. [Google Scholar] [CrossRef] [Green Version]
  35. Samy, M.M.; Mohamed, M.G.; Mansoure, T.H.; Meng, T.S.; Khan, M.A.R.; Liaw, C.C.; Kuo, S.W. Solid state chemical transformations through ring-opening polymerization of ferrocene-based conjugated microporous polymers in host–guest complexes with benzoxazine-linked cyclodextrin. J. Taiwan Inst. Chem. Eng. 2022, 132, 104110. [Google Scholar] [CrossRef]
  36. Mohamed, M.G.; Sharma, S.U.; Liu, N.Y.; Mansoure, T.H.; Samy, M.M.; Chaganti, S.V.; Chang, Y.L.; Lee, J.T.; Kuo, S.W. Ultrastable Covalent Triazine Organic Framework Based on Anthracene Moiety as Platform for High-Performance Carbon Dioxide Adsorption and Supercapacitors. Int. J. Mol. Sci. 2022, 23, 3174. [Google Scholar] [CrossRef]
  37. Das, S.; Heasman, P.; Ben, T.; Qiu, S. Porous organic materials: Strategic design and structure–function correlation. Chem. Rev. 2017, 117, 1515–1563. [Google Scholar] [CrossRef]
  38. Weng, Z.; Su, Y.; Wang, D.W.; Li, F.; Du, J.; Cheng, H.M. Graphene–cellulose paper flexible supercapacitors. Adv. Energy Mater. 2011, 1, 917–922. [Google Scholar] [CrossRef]
  39. Mohamed, M.G.; Samy, M.M.; Mansoure, T.H.; Sharma, S.U.; Tsai, M.S.; Chen, J.H.; Lee, J.T.; Kuo, S.W. Dispersions of 1,3,4-Oxadiazole-Linked Conjugated Microporous Polymers with Carbon Nanotubes as a High-Performance Electrode for Supercapacitors. ACS Appl. Energy Mater. 2022, 5, 3677–3688. [Google Scholar] [CrossRef]
  40. Kim, J.; Kim, J.H.; Ariga, K. Redox-Active Polymers for Energy Storage Nanoarchitectonics. Joule 2017, 1, 739–768. [Google Scholar] [CrossRef]
  41. Samy, M.M.; Mekhemer, I.M.A.; Mohamed, M.G.; Elsayed, M.H.; Lin, K.H.; Chen, Y.K.; Wu, T.L.; Chou, H.H.; Kuo, S.W. Conjugated microporous polymers incorporating Thiazolo[5,4-d]thiazole moieties for Sunlight-Driven hydrogen production from water. Chem. Eng. J. 2022, 446, 137158. [Google Scholar] [CrossRef]
  42. Mohamed, M.G.; Samy, M.M.; Mansoure, T.H.; Li, C.J.; Li, W.C.; Chen, J.H.; Zhang, K.; Kuo, S.W. Microporous Carbon and Carbon/Metal Composite Materials Derived from Bio-Benzoxazine-Linked Precursor for CO2 Capture and Energy Storage Applications. Int. J. Mol. Sci. 2022, 23, 347. [Google Scholar] [CrossRef] [PubMed]
  43. Li, G.; Wang, Z. CO2 capture and conversion to di-functional cyclic carbonates in metalloporphyrin-based porous polyaminals with large surface area. Microporous Mesoporous Mater. 2022, 434, 112119. [Google Scholar] [CrossRef]
  44. Maarisetty, D.; Baral, S.S. Effect of Defects on Optical, Electronic, and Interface Properties of NiO/SnO2 Heterostructures: Dual-Functional Solar Photocatalytic H2 Production and RhB Degradation. ACS Appl. Mater. Interfaces 2021, 13, 60002–60017. [Google Scholar] [CrossRef] [PubMed]
  45. Deng, Z.; Zhao, H.; Cao, X.; Xiong, S.; Li, G.; Deng, J.; Yang, H.; Zhang, W.; Liu, Q. Enhancing Built-in Electric Field via Molecular Dipole Control in Conjugated Microporous Polymers for Boosting Charge Separation. ACS Appl. Mater. Interfaces 2022, 14, 35745–35754. [Google Scholar] [CrossRef]
  46. Zhang, W.; Deng, Z.; Deng, J.; Hu, C.T.; Liao, Y.; Yang, H.; Liu, Q. Regulating the exciton binding energy of covalent triazine frameworks for enhancing photocatalysis. J. Mater. Chem. A 2022, 10, 22419–22427. [Google Scholar] [CrossRef]
  47. Mohamed, M.G.; Tsai, M.Y.; Wang, C.F.; Huang, C.F.; Danko, M.; Dai, L.; Chen, T.; Kuo, S.W. Multifunctional Polyhedral Oligomeric Silsesquioxane (POSS) Based Hybrid Porous Materials for CO2 Uptake and Iodine Adsorption. Polymers 2021, 13, 221. [Google Scholar] [CrossRef]
  48. Mituła, K.; Januszewski, R.; Duszczak, J.; Rzonsowska, M.; Dudziec, B. High thermally stable polysiloxanes cross-linked with di(alkenyl)functionalized DDSQs exhibiting swelling abilities. Eur. Polym. J. 2021, 143, 110180. [Google Scholar] [CrossRef]
  49. Guo, X.; Rabeah, J.; Sun, R.; Wang, D.; Mejía, E. Fluorescent Hybrid Porous Polymers as Sustainable Heterogeneous Photocatalysts for Cross-Dehydrogenative Coupling Reactions. ACS Appl. Mater. Interfaces 2021, 13, 42889–42897. [Google Scholar] [CrossRef]
  50. Meng, X.; Liu, Y.; Wang, S.; Du, J.; Ye, Y.; Song, X.; Liang, Z. Silsesquioxane-carbazole-corbelled hybrid porous polymers with flexible nanopores for efficient CO2 conversion and luminescence sensing. ACS Appl. Polym. Mater. 2019, 2, 189–197. [Google Scholar] [CrossRef]
  51. Wang, Q.; Unno, M.; Liu, H. Silsesquioxane-Based Triphenylamine-Linked Fluorescent Porous Polymer for Dyes Adsorption and Nitro-Aromatics Detection. Materials 2021, 14, 3851. [Google Scholar] [CrossRef]
  52. Wang, Q.; Liu, H.; Jiang, C.; Liu, H. Silsesquioxane-based triphenylamine functionalized porous polymer for CO2, I2 capture and nitro-aromatics detection. Polymer 2020, 186, 122004. [Google Scholar] [CrossRef]
  53. Mohamed, M.G.; Kuo, S.W. Progress in the self-assembly of organic/inorganic polyhedral oligomeric silsesquioxane (POSS) hybrids. Soft Matter 2022, 18, 5535–5561. [Google Scholar] [CrossRef]
  54. Du, Y.; Liu, H. Cage-like silsesquioxanes-based hybrid materials. Dalton Trans. 2020, 49, 5396–5405. [Google Scholar] [CrossRef]
  55. Gon, M.; Saotome, S.; Tanaka, K.; Chujo, Y. Paintable hybrids with thermally stable dual emission composed of tetraphenylethene integrated POSS and MEH-PPV for heat-resistant white-light luminophores. ACS Appl. Mater. Interfaces 2021, 13, 12483–12490. [Google Scholar] [CrossRef]
  56. Kuo, S.W. Hydrogen bonding interactions in polymer/polyhedral oligomeric silsesquioxane nanomaterials. J. Polym. Res. 2022, 29, 69. [Google Scholar] [CrossRef]
  57. Mohamed, M.G.; Kuo, S.W. Functional Silica and Carbon Nanocomposites Based on Polybenzoxazines. Macromol. Chem. Phys. 2019, 220, 1800306. [Google Scholar] [CrossRef]
  58. Majumdar, R.; Wannasiri, C.; Sukwattanasinitt, M.; Ervithayasuporn, V. Porous silsesquioxane cage and porphyrin nanocomposites: Sensing and adsorption for heavy metals and anions. Polym. Chem. 2021, 12, 3391–3412. [Google Scholar] [CrossRef]
  59. Chen, Y.; Fang, Y.; Yu, J.; Gao, W.; Zhao, H.; Zhang, X. A silsesquioxane-porphyrin-based porous organic polymer as a highly efficient and recyclable absorbent for wastewater treatment. J. Hazard. Mater. 2021, 406, 124769. [Google Scholar] [CrossRef]
  60. Mohamed, M.G.; Chen, T.C.; Kuo, S.W. Solid-State Chemical Transformations to Enhance Gas Capture in Benzoxazine-Linked Conjugated Microporous Polymers. Macromolecules 2021, 54, 5866–5877. [Google Scholar] [CrossRef]
  61. Mohamed, M.G.; Mansoure, T.H.; Samy, M.M.; Takashi, Y.; Mohammed, A.A.K.; Ahamad, T.; Alshehri, S.M.; Kim, J.; Matsagar, B.M.; Wu, K.C.W.; et al. Ultrastable Conjugated Microporous Polymers Containing Benzobisthiadiazole and Pyrene Building Blocks for Energy Storage Applications. Molecules 2022, 27, 2025. [Google Scholar] [CrossRef] [PubMed]
  62. Elsayed, M.H.; Jayakumar, J.; Abdellah, M.; Mansoure, T.H.; Zheng, K.; Elewa, A.M.; Chang, C.L.; Ting, L.Y.; Lin, W.C.; Yu, H.H.; et al. Visible-light-driven hydrogen evolution using nitrogen-doped carbon quantum dot-implanted polymer dots as metal-free photocatalysts. Appl. Catal. B 2021, 283, 119659. [Google Scholar] [CrossRef]
  63. Elsayed, M.H.; Abdellah, M.; Hung, Y.H.; Jayakumar, J.; Ting, L.Y.; Elewa, A.M.; Chang, C.L.; Lin, W.C.; Wang, K.L.; Abdel-Hafiez, M.; et al. Hydrophobic and Hydrophilic Conjugated Polymer Dots as Binary Photocatalysts for Enhanced Visible-Light-Driven Hydrogen Evolution through Förster Resonance Energy Transfer. ACS Appl. Mater. Interfaces 2021, 13, 56554–56565. [Google Scholar] [CrossRef] [PubMed]
  64. Delley, B. From molecules to solids with the DMol3 approach. J. Chem. Phys. 2000, 113, 7756–7764. [Google Scholar] [CrossRef]
  65. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [Green Version]
  66. Stratmann, R.E.; Scuseria, G.E.; Frisch, M.J. An efficient implementation of time-dependent density-functional theory for the calculation of excitation energies of large molecules. Chem. Phys. 1998, 109, 8218–8224. [Google Scholar] [CrossRef]
  67. Sun, R.; Feng, S.; Wang, D.; Liu, H. Fluorescence-Tuned Silicone Elastomers for Multicolored Ultraviolet Light-Emitting Diodes: Realizing the Processability of Polyhedral Oligomeric Silsesquioxane-Based Hybrid Porous Polymers. Chem. Mater. 2018, 30, 6370–6376. [Google Scholar] [CrossRef]
  68. Xue, Y.; Liu, Y.; Lu, F.; Qu, J.; Chen, H.; Dai, L. Functionalization of Graphene Oxide with Polyhedral Oligomeric Silsesquioxane (POSS) for Multifunctional Applications. J. Phys. Chem. Lett. 2012, 3, 1607–1612. [Google Scholar] [CrossRef]
  69. Mei, L.; Cui, X.; Duan, Q.; Li, Y.; Lv, X.; Wang, H.G. Metal phthalocyanine-linked conjugated microporous polymer hybridized with carbon nanotubes as a high-performance flexible electrode for supercapacitors. Int. J. Hydrogen Energy 2020, 45, 22950. [Google Scholar] [CrossRef]
  70. Samy, M.M.; Mohamed, M.G.; El-Mahdy, A.F.M.; Mansoure, T.H.; Wu, K.C.W.; Kuo, S.W. High-Performance Supercapacitor Electrodes Prepared from Dispersions of Tetrabenzonaphthalene-Based Conjugated Microporous Polymers and Carbon Nanotubes. ACS Appl. Mater. Interfaces 2021, 13, 51906–51916. [Google Scholar] [CrossRef]
  71. Lee, J.S.M.; Wu, T.H.; Alston, B.M.; Briggs, M.E.; Hasell, T.; Hub, C.C.; Cooper, A.I. Porosity-engineered carbons for supercapacitive energy storage using conjugated microporous polymer precursors. J. Mater. Chem. A 2016, 4, 7665–7673. [Google Scholar] [CrossRef]

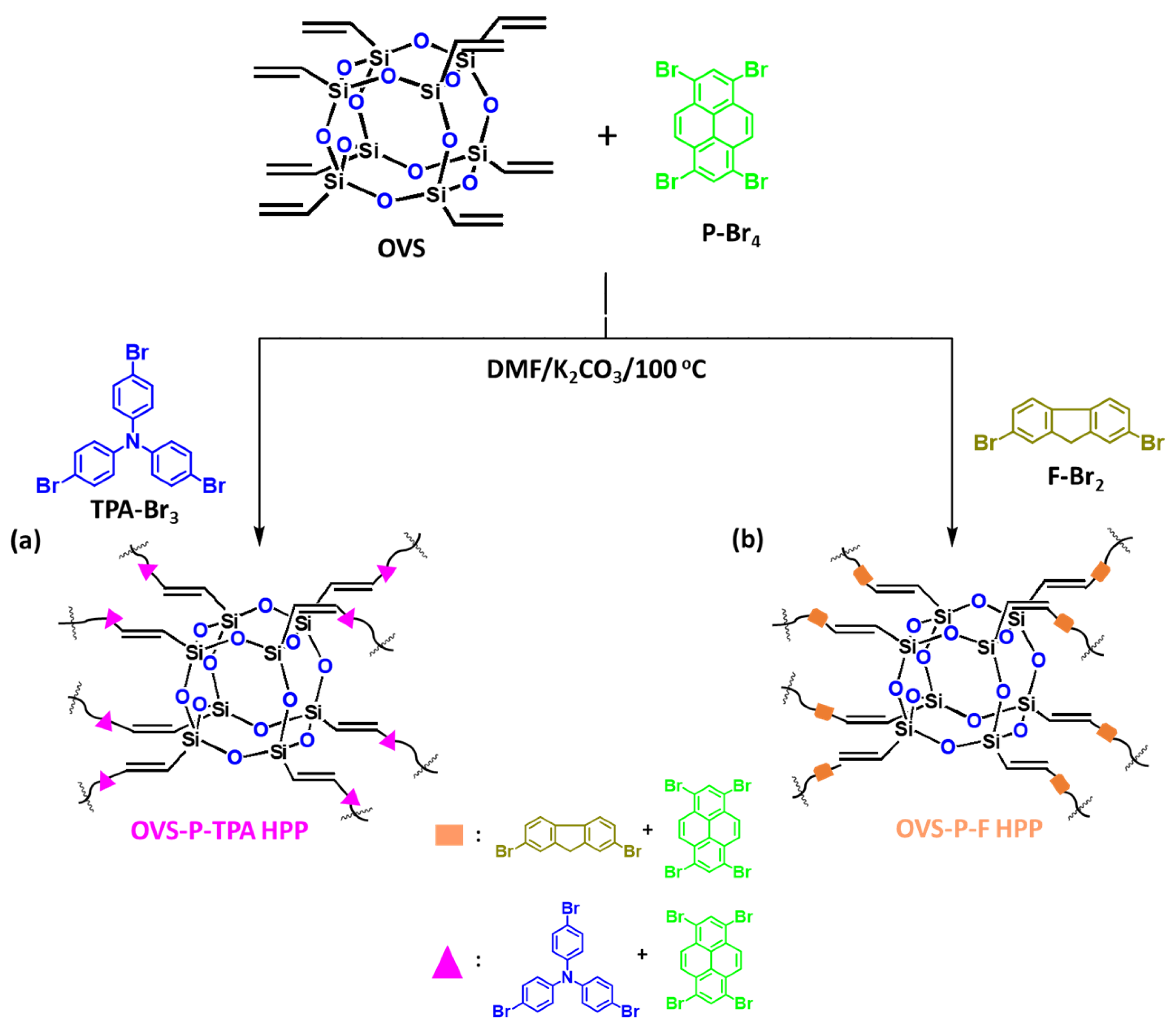

Scheme 1. Preparation route of (a) OVS-P-TPA HPP and (b) OVS-P-F HPP through the Heck coupling reaction.
Scheme 1. Preparation route of (a) OVS-P-TPA HPP and (b) OVS-P-F HPP through the Heck coupling reaction.
Polymers 15 00182 sch001
Figure 1. FTIR analyses of (a) OVS, P-Br4, TPA-Br3, and OVS-P-TPA HPP; (b) OVS, P-Br4, F-Br2, and OVS-P-F HPP; (c) the 13C NMR solid-state profile; and (d) the 29Si NMR solid-state profile of OVS-P-TPA HPP and OVS-P-F HPP. * denotes the side band of solid-state nuclear magnetic resonance spectroscopy (NMR).
Figure 1. FTIR analyses of (a) OVS, P-Br4, TPA-Br3, and OVS-P-TPA HPP; (b) OVS, P-Br4, F-Br2, and OVS-P-F HPP; (c) the 13C NMR solid-state profile; and (d) the 29Si NMR solid-state profile of OVS-P-TPA HPP and OVS-P-F HPP. * denotes the side band of solid-state nuclear magnetic resonance spectroscopy (NMR).
Polymers 15 00182 g001

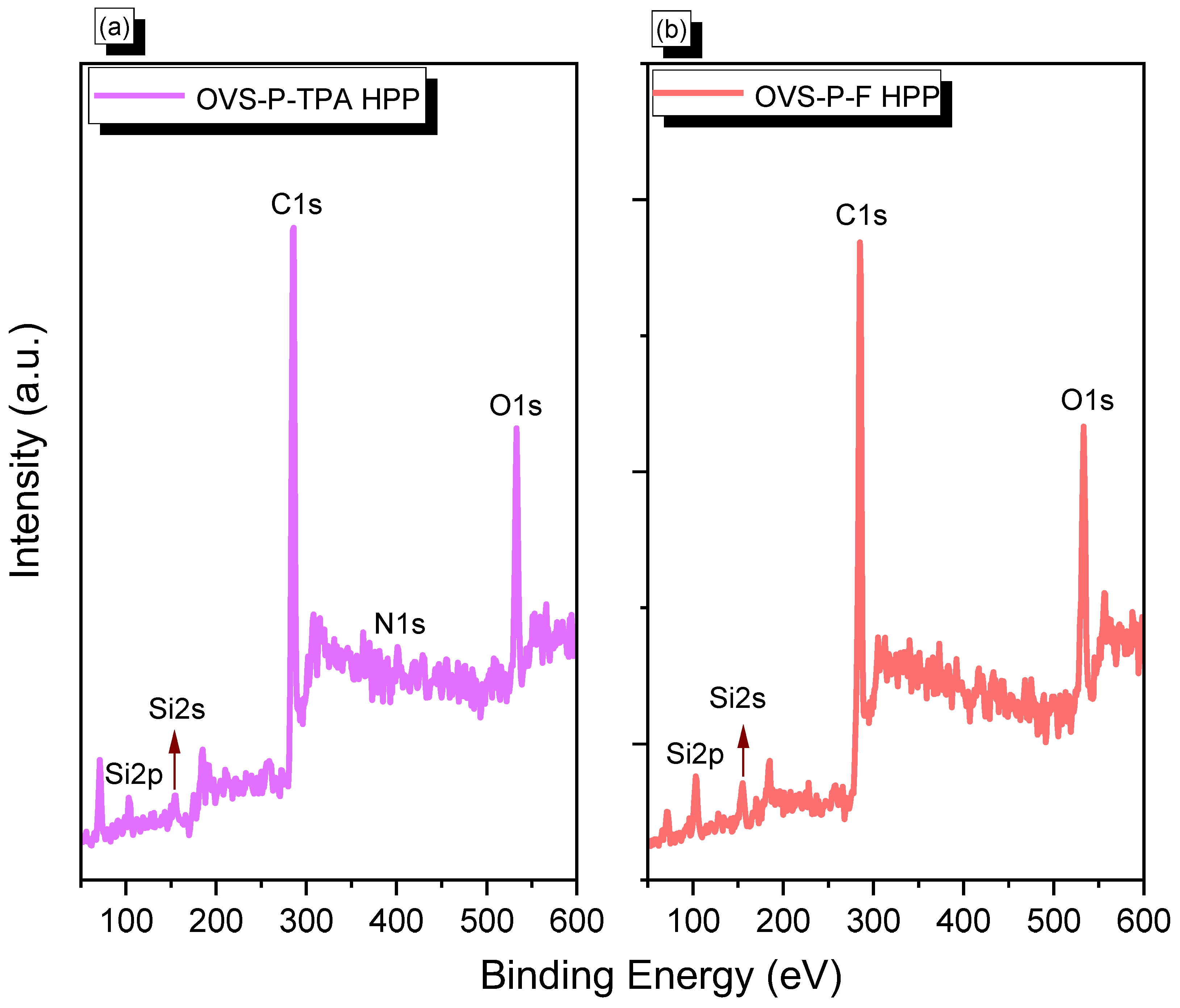

Figure 2. XPS analysis of (a) OVS-P-TPA HPP and (b) OVS-P-F HPP.
Figure 2. XPS analysis of (a) OVS-P-TPA HPP and (b) OVS-P-F HPP.
Polymers 15 00182 g002

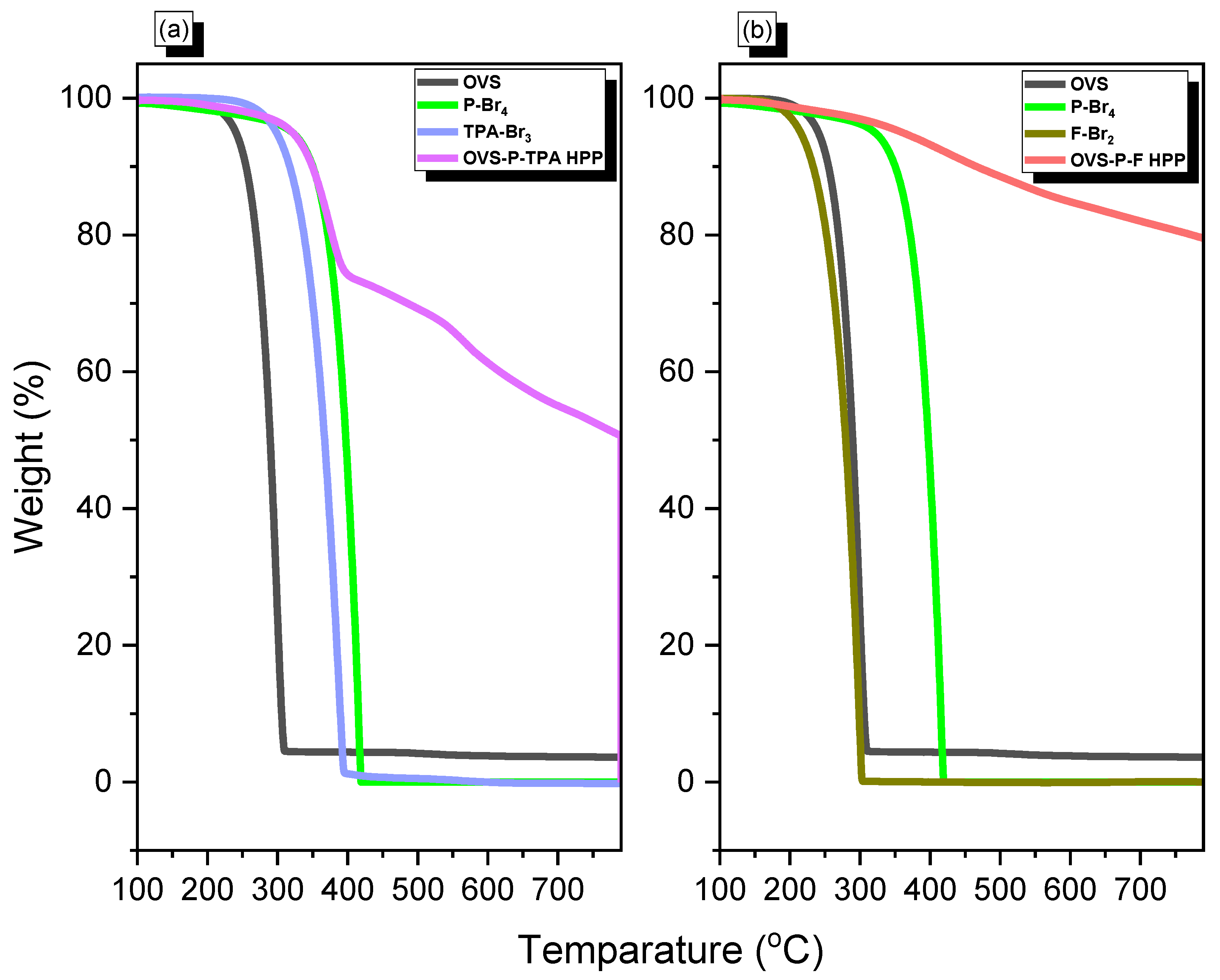

Figure 3. TGA analyses of (a) OVS, P-Br4, TPA-Br3, and OVS-P-TPA HPP and (b) OVS, P-Br4, F-Br2, and OVS-P-F HPP under N2.
Figure 3. TGA analyses of (a) OVS, P-Br4, TPA-Br3, and OVS-P-TPA HPP and (b) OVS, P-Br4, F-Br2, and OVS-P-F HPP under N2.
Polymers 15 00182 g003

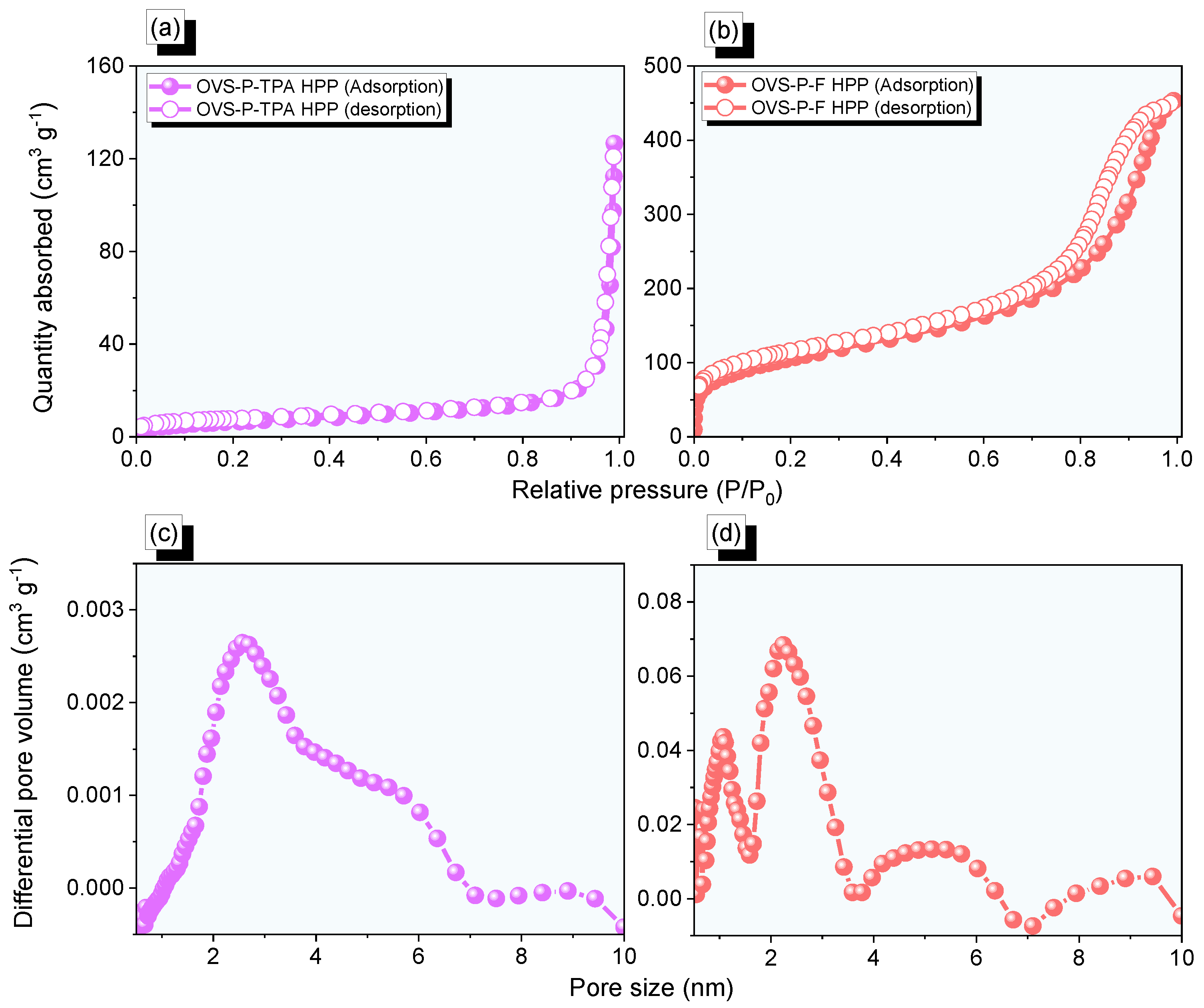

Figure 4. BET and pore size profiles of (a,c) OVS-P-TPA HPP and (b,d) OVS-P-F HPP.
Figure 4. BET and pore size profiles of (a,c) OVS-P-TPA HPP and (b,d) OVS-P-F HPP.
Polymers 15 00182 g004
Figure 5. SEM and TEM images of (a,c) OVS-P-TPA HPP and (b,d) OVS-P-F HPP.
Figure 5. SEM and TEM images of (a,c) OVS-P-TPA HPP and (b,d) OVS-P-F HPP.
Polymers 15 00182 g005

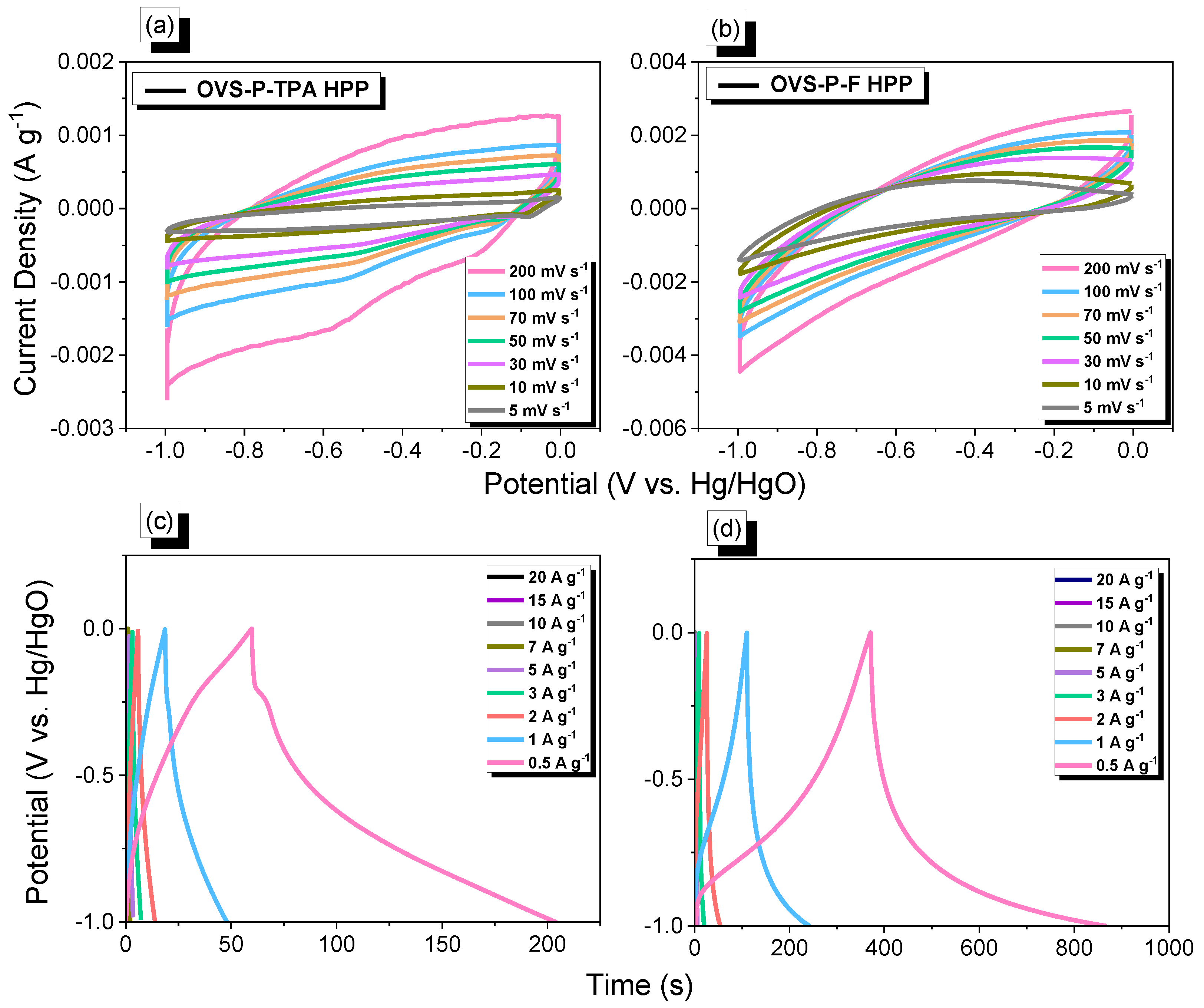

Figure 6. CV and GCD curves of (a,c) OVS-P-TPA HPP and (b,d) OVS-P-F HPP.
Figure 6. CV and GCD curves of (a,c) OVS-P-TPA HPP and (b,d) OVS-P-F HPP.
Polymers 15 00182 g006

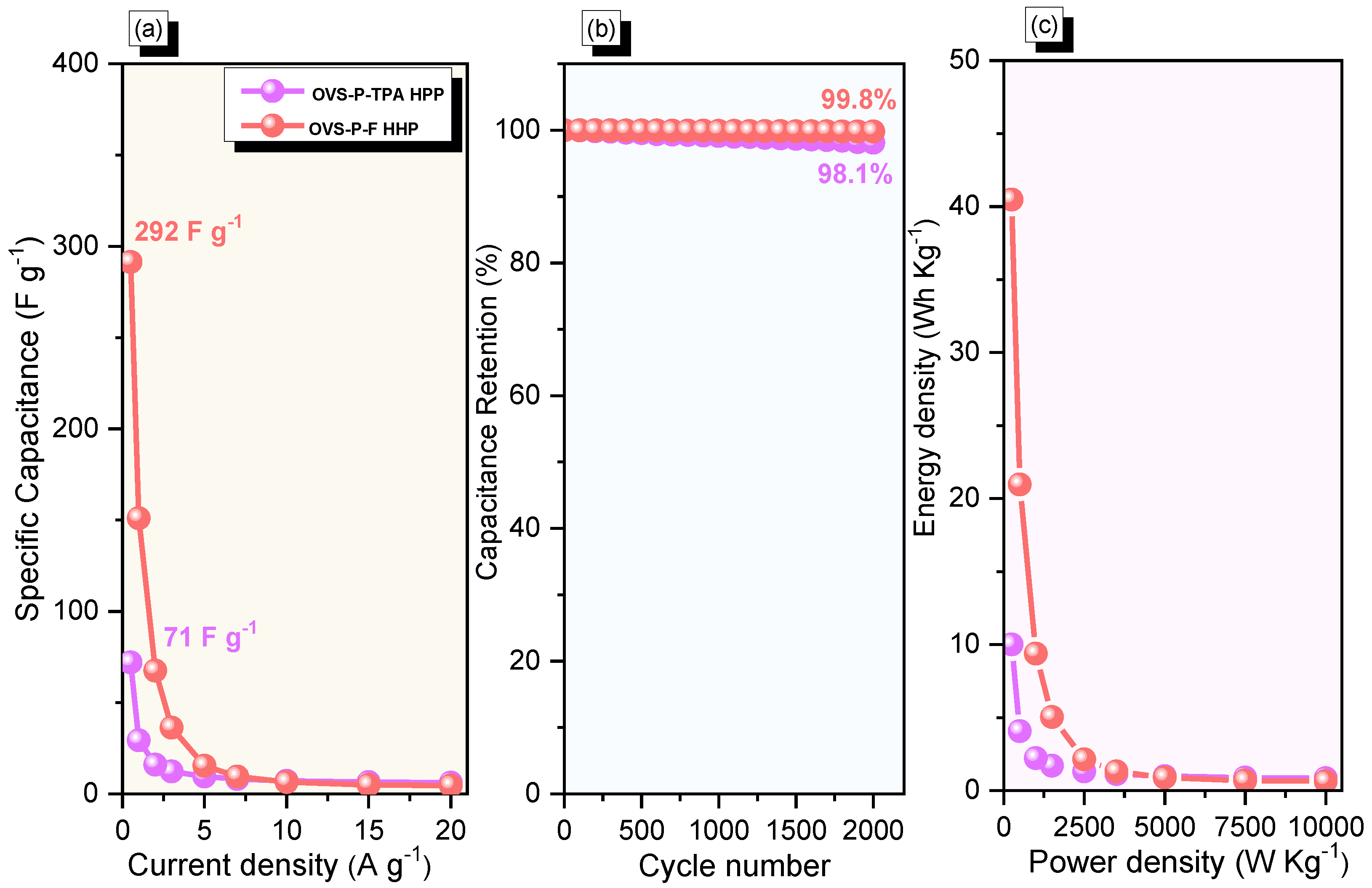

Figure 7. (a) Specific capacitance, (b) durability, and (c) Ragone plots of OVS-P-TPA HPP and OVS-P-F HPP.
Figure 7. (a) Specific capacitance, (b) durability, and (c) Ragone plots of OVS-P-TPA HPP and OVS-P-F HPP.
Polymers 15 00182 g007

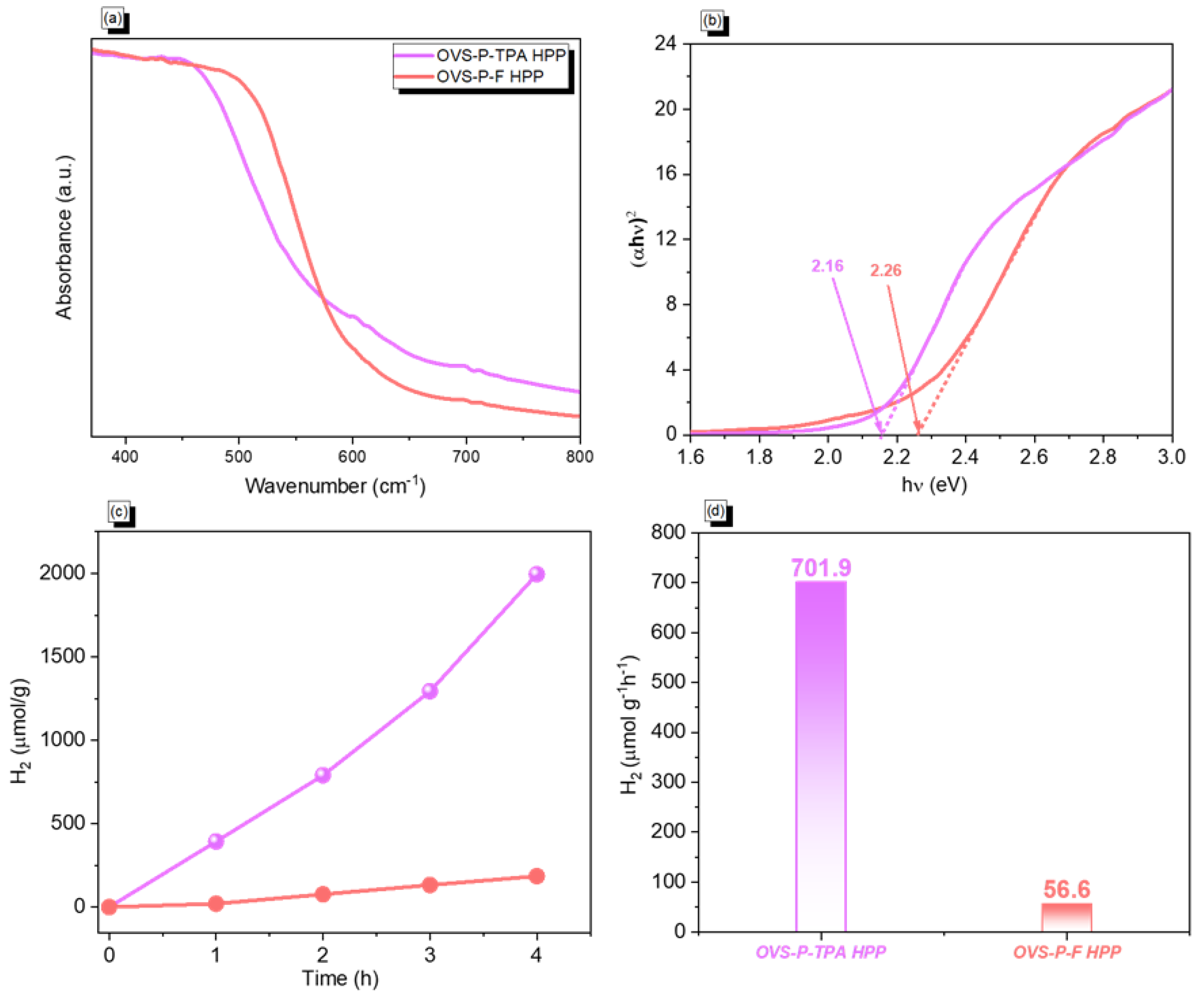

Figure 8. (a) UV-Vis DRS absorption spectra of the OVS-HPPs, (b) the Tauc plot of (αhν)2 versus (hν) from the UV-Vis spectra for calculating the bandgap of the OVS-HPPs, (c) time course of the produced H2, and (d) HER of the two polymers. Conditions: ascorbic acid (AA, 0.1 M) and a xenon lamp light source (AM1.5, λ > 380 nm, and 1000 W m−2).
Figure 8. (a) UV-Vis DRS absorption spectra of the OVS-HPPs, (b) the Tauc plot of (αhν)2 versus (hν) from the UV-Vis spectra for calculating the bandgap of the OVS-HPPs, (c) time course of the produced H2, and (d) HER of the two polymers. Conditions: ascorbic acid (AA, 0.1 M) and a xenon lamp light source (AM1.5, λ > 380 nm, and 1000 W m−2).
Polymers 15 00182 g008

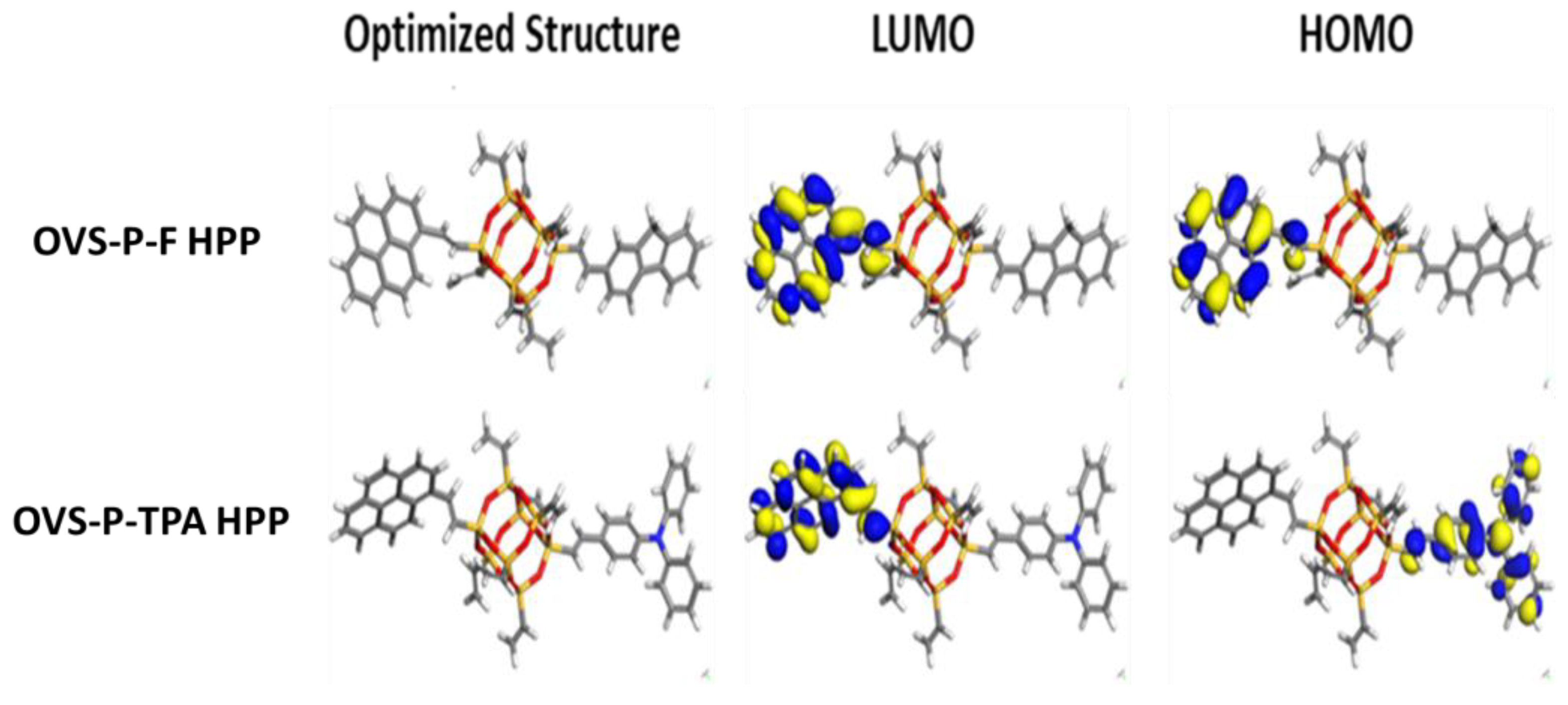

Figure 9. Optimized geometries, the density of HOMO, and the density of LUMO frontier molecular orbitals of the OVS-HPPs.
Figure 9. Optimized geometries, the density of HOMO, and the density of LUMO frontier molecular orbitals of the OVS-HPPs.
Polymers 15 00182 g009
Table 1. TGA, BET, and capacitance data for the OVS-HPPs materials.
Table 1. TGA, BET, and capacitance data for the OVS-HPPs materials.
SampleTd10 (°C)Char Yield (wt.%)Surface Area (m2 g–1)Pore Volume (cm3 g–1)Pore Size (nm)Capacity at 0.5 A g–1 (F g–1)
OVS-P-TPA HPP28351600.192.5671
OVS-P-F HPP444793750.692.2296
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mohamed, M.G.; Elsayed, M.H.; Ye, Y.; Samy, M.M.; Hassan, A.E.; Mansoure, T.H.; Wen, Z.; Chou, H.-H.; Chen, K.-H.; Kuo, S.-W. Construction of Porous Organic/Inorganic Hybrid Polymers Based on Polyhedral Oligomeric Silsesquioxane for Energy Storage and Hydrogen Production from Water. Polymers 2023, 15, 182.

AMA Style

Mohamed MG, Elsayed MH, Ye Y, Samy MM, Hassan AE, Mansoure TH, Wen Z, Chou H-H, Chen K-H, Kuo S-W. Construction of Porous Organic/Inorganic Hybrid Polymers Based on Polyhedral Oligomeric Silsesquioxane for Energy Storage and Hydrogen Production from Water. Polymers. 2023; 15(1):182.

Chicago/Turabian Style

Mohamed, Mohamed Gamal, Mohamed Hammad Elsayed, Yunsheng Ye, Maha Mohamed Samy, Ahmed E. Hassan, Tharwat Hassan Mansoure, Zhenhai Wen, Ho-Hsiu Chou, Kuei-Hsien Chen, and Shiao-Wei Kuo. 2023. "Construction of Porous Organic/Inorganic Hybrid Polymers Based on Polyhedral Oligomeric Silsesquioxane for Energy Storage and Hydrogen Production from Water" Polymers 15, no. 1: 182.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
