Review

Functional Separators for Long-Life and Safe Li Metal Batteries: A Minireview

1
State Key Laboratory of High-Performance Ceramics and Superfine Microstructures, Shanghai Institute of Ceramics, Chinese Academy of Sciences, 1295 Dingxi Road, Shanghai 200050, China
2
Key Laboratory of Advanced Carbon Materials and Wearable Energy Technologies of Jiangsu Province, Soochow Institute for Energy and Materials Innovations, Light Industry Institute of Electrochemical Power Sources, College of Energy, Soochow University, Suzhou 215006, China
3
Department of Applied Physics, The Hong Kong Polytechnic University, Hung Hom, Hong Kong, China
4
Shenzhen Geim Graphene Center, Shenzhen Key Laboratory on Power Battery Safety, Tsinghua Shenzhen International Graduate School (SIGS), Shenzhen 518071, China
*
Authors to whom correspondence should be addressed.
Polymers 2022, 14(21), 4546; https://doi.org/10.3390/polym14214546
Submission received: 3 October 2022 / Revised: 22 October 2022 / Accepted: 24 October 2022 / Published: 26 October 2022
(This article belongs to the Special Issue Polymer Battery Materials)

Abstract

:
Lithium (Li) metal batteries (LMBs) have received extensive research attention in recent years because of their high energy density. However, uncontrollable Li dendrite growth deteriorates the battery life and brings about severe safety hazards. The rational design of battery separators is an effective approach to regulate uniform Li metal deposition towards boosted cycle life and safety of LMBs. Herein, we review the recent research progress concerning this issue, including mechanically strengthened separator fabrication, functional separator construction towards regulated Li ion deposition, and flame-retardant separator design. Moreover, the key issues and prospects of optimal design of separators are clarified for future development. This minireview is expected to bring new insight into developing advanced separators for long-life and safe LMBs.

1. Introduction

As one of the most mature clean energy storage devices, Li-ion batteries have been widely used in various portable electronic products and electric vehicles [1,2]. Nevertheless, with the urgent need for long cruising range (>300 km) and long service life in electric vehicles, there is an increasing demand for higher energy density in rechargeable batteries [3,4,5]. To achieve this goal, it is of great importance to develop electrode materials with higher capacity. Li metal has an ultrahigh theoretical capacity of 3860 mAh g−1, a low mass density of 0.534 g cm−3, and an extremely low electrochemical reduction potential (−3.04 V vs. standard hydrogen electrode), and has been regarded as the most promising anode material [6,7]. However, the formation of an unstable solid electrolyte interface (SEI), the large volume change during Li plating/stripping cycles, and the uncontrollable growth of Li dendrites deteriorate the cycle life and safety of Li metal batteries (LMBs), seriously hindering their practical applications [8,9,10].
Various strategies have been proposed to address the above challenges in LMBs, including constructing functional artificial SEI [11,12,13,14], electrolyte engineering [15,16,17], separator modification [18,19,20,21,22,23], solid-state electrolyte design [24,25], and the construction of 3D composite Li metal anodes [26,27,28,29]. Among these strategies, separator modification plays an important role, because it would result in little change in the volume/mass of the battery, and thus would have little effect on the energy density of the Li metal battery. In addition, separators can be prepared at large scale, which helps to reduce the cost. The most widely used separators, such as polyethylene (PE) and polypropylene (PP), have the characteristics of porosity and electrolyte wettability. However, the low melting point of traditional separators leads to weak thermal stability and deterioration of mechanical properties as the temperature exceeds the melting point. Some nanofiber membranes with high porosity and outstanding thermal stability, such as polyacrylonitrile (PAN) and polyvinylidene fluoride (PVDF), can replace the above-mentioned separators, but suffer from poor mechanical strength due to weak physical interaction between the fibers. Therefore, by changing the composition and structure of the separator, the transport path of the Li ion can be adjusted, which would be beneficial in regulating Li nucleation and deposition behaviors. In addition, the functional separators can improve the mechanical strength to suppress Li dendrite growth and prevent piercing caused by Li dendrites.
The designing and optimization of separators, including modifying separators with functional polymers [30,31], carbon materials [32,33], metal particles [34,35], and solid electrolytes [36,37], have been widely studied. Given the increasing research activity on the optimal design of Li battery separators in recent years, a timely and comprehensive review of this interesting and sustainable research area is highly desirable. Here, in this minireview, we discuss the recent research progress of mechanically strengthened separator fabrication, functional separator construction towards regulated Li ion deposition, and flame-retardant separator design. Furthermore, current limitations and challenges of functional separator design in LMBs, as well as future research directions, are considered.

2. Mechanically Strengthened Separator Fabrication

Strengthening separators has been deemed an effective strategy to block the growth of Li dendrites and prevent the short-circuit of LMBs. However, the Li dendrite is sharp and has a high Young’s modulus to pierce commercial separators such as polypropylene (PP) or polyethylene (PE) films [38]. Naturally, designing separators with a Young’s modulus greater than 6 GPa is a straightforward and convenient strategy to protect the separator from punctures [39,40].
Coating commercial separators with rigid layers is recognized as a promising way to elevate the puncture strength of the separator. Inorganic materials possessing strong mechanical properties can be coated on the surface of commercial separators to improve the separator strength. Inspired by the shield design, Zhu et al. [41] proposed inhibiting Li dendrite growth by designing a nano-shield separator consisting of SiO2 nanoparticles with 500 nm diameter and commercial PP film (Figure 1a,b). By combining theoretical calculations and experiments, they found that a carved shield with a radius comparable to that of the puncturing tip can efficiently distribute interfacial stresses and mitigate short-circuits in LMBs (Figure 1c). Further, the effect of the nano-shield was attributed to a shift in the growth orientation of the Li dendrites and the tortuous growth pathway induced by the SiO2 nanoparticles coating. At a current density of 0.5 mA cm−2, the voltage plateau of the blank separator abruptly dropped from around 60 mV to roughly 10 mV after about 23 h, indicating that the cell was internally shortened by Li dendrites (Figure 1d). The cell with the nano-shield protected separator achieved a battery life of more than 110 h without short-circuiting, which is approximately five times longer than that of the cell with the conventional blank separator (Figure 1d).
However, due to the ionically insulating properties of some inorganic materials, the transport of Li ions maybe slowed down by the dense and stiff layers on the separator. In order to maintain both the mechanical barrier effect and transport rate of Li ion, Sun et al. [42] used a dual-functional graphene/PP/Al2O3 (DF-GPA) separator, in which compact graphene and Al2O3 powder were coated on each side of the separator (Figure 1e,f). The developed DF-GPA plays dual roles in LMBs. First, graphene can serve as strongly conducting layer for smooth electrons and Li ion transportation. Secondly, the Al2O3 coating layer on the other side provides a superior mechanical property to minimize the risk of short-circuit caused by the penetration of Li dendrites. Consequently, the Li–S cell with a DF-GPA separator harvested a discharge capacity of 730 mA h g−1 after 450 cycles at a current rate of 1 C (Figure 1g), exhibiting an improved cycling stability compared with the normal graphene/PP composite separator.
Modification of rigid layers on separator surfaces is an effective approach to suppress Li dendrite growth. However, if an extreme volume change occurs in the electrode, the rigid layer may be peeled off. Moreover, the coating layer would increase the weight of the separator and thus decrease the energy density of LMBs. Therefore, constructing integrated separators is considered a more promising strategy in terms of reducing energy density loss. In this regard, high-modulus polymers are suitable for the fabrication of flexible and high-strength separators that can prevent the growth and penetration of Li dendrites. Sun et al. [43] fabricated a thin nanoporous network from exfoliated poly(p-phenylene benzobisoxazole) (PBO) nanofibers through a simple blade casting process (Figure 1h). The nanoporous membranes (NMs) displayed superior mechanical properties with an ultimate strength of 525 MPa and a high Young’s module of 20 GPa. Symmetric Li|Li cells with Celgard 2400 and NMs were tested to compare the battery life with two distinct separators. The voltage plateau in Celgard 2400 cells decreased from 0.031 V to 0.024 V after 200 h, indicating that the separator was slowly penetrated by Li dendrites (top of Figure 1i). As for the PBO-NM cell, the steady voltage profile was maintained at 0.025 V from the beginning to 700 h, which suggests an effective suppression of Li dendrite growth (Figure 1i bottom). Moreover, dendritic Li appeared on the mossy electrode surface after 230 h of cycling with Celgard 2400, while a smooth and flat Li surface was observed after 700 h of cycling with PBO-NMs (Figure 1j), which again substantiates the ability of PBO-NMs to depress Li dendrite growth.
Stiff and tough polymers are attractive separator materials for the construction of safe and long-life LMBs. However, the electrochemical stability and resistance to solvent dissolution pose a great challenge to the practical application of such separators. More research efforts should be devoted to improving the durability of functional separators.

3. Functional Separator Construction towards Regulated Li Ion Deposition

The inhomogeneous deposition of Li ions is prone to result in nucleation and growth of Li metal at high Li-ion concentration spots, leading to Li dendrite formation and subsequent penetration of separators. Regulating Li ion deposition for homogeneous nucleation can effectively address this challenge. Therefore, the construction of uniform nucleation sites on separator surfaces is another tractable and effective method to suppress the growth of Li dendrites [44]. Modified separators with lithiophilic metals [45,46,47], inorganic/heteroatom-doped carbon composite materials [48,49], and 3D architectures with confined spaces [50,51] may provide rapid and uniform diffusion pathways for Li ion transportation and achieve homogeneous Li ion flux on the surface of electrodes, leading to a dendrite-free uniform lithium deposition.
As for functional separators, lithiophilic metal particles decorated on separators can introduce nucleation sites for Li ions. Song et al. [52] to proposed the deposition of magnesium (Mg) nanoparticles on a single-side of separators by magnetron sputtering to suppress the Li dendrite growth (Figure 2a). The metal Mg particles were chosen for the construction of the lithiophilic separator due to the large solid solubility between the metals Li and Mg. The lithiophilic Mg can considerably reduce the Gibbs free energy for Li electrodeposition, which means that the uniform Mg layer can serve as the heterogeneous nucleation site and guide the even formation of Li metal. The Li|LiCoO2 full cell with the Mg-coated separator showed elevated capacity retention, maintaining 80% capacity at 104 mA h g−1 after 400 cycles. On the contrary, the cell with the blank separator exhibited a rapidly fading capacity of 75.9 mA h g−1 after 330 cycles, which is only 60.2% of the initial capacity. Lithiophilic metal modified separators also face a huge challenge in that the Li metal may deposit at the interface between separators and the modified layer. This causes cracks in the coating layer and fails to suppress the growth of Li dendrites in the long term. Introducing a concentration gradient of nucleation sites in the lithiophilic metal coating layer is expected to solve this problem.
Since Li ions prefer to be absorbed by lithiophilic sites via electrostatic interactions, inorganic materials or heteroatom-doped carbon materials are also efficient in increasing the rate and homogeneity of Li ion flux. Zhang et al. [53] utilized first principles calculations and experimental verification to investigate the lithiophilicity chemistry of heteroatom-doped carbon materials. Twenty species with various dopant forms were modeled to construct heteroatom-doped graphene nanoribbons. It was concluded that the carboxylic group, pyridinic nitrogen, and ketone group exhibited the largest binding energy (Figure 2b,c). To validate the calculated result, Li nucleation overpotential was tested to evaluate the lithiophilicity of three kinds of graphene materials: pristine graphene (G), nitrogen-doped graphene (NG), and oxygen-containing graphene (OG), which had the nucleation overpotential of 22.9, 19.4, 15.0 mV, respectively, indicating that OG processed the lowest nucleation energy barrier and the best lithiophilicity (Figure 2d). More significantly, separators modified with carbon materials can be applied to reduce the polysulfide shuttle in Li-S batteries. Porous carbon materials can not only can strengthen the physical absorption of long-chain polysulfides, but also can effectively enhance the chemical affinity of polysulfides due to their polar functional groups. Nitrogen-doped carbon was developed to modify PP separators by Balach et al., and promoted the absorption of long-chain polysulfides because of the unique physical and interfacial chemical properties of doped-carbon layer. The deterioration rate at 0.5 C for a cycle stability of more than 1200 cycles was only 0.037%, exhibiting an enhanced cycle stability and capacity retention [54]. Some inorganic materials with rich inherent defects, such as TiO2, can accelerate the redox kinetic of polysulfides. Xiao et al., designed separators modified with a nonpolar conductive physical layer (graphene) and polar chemical absorption layer (TiO2), which demonstrate a very high reversible specific capacity beyond 1000 mA h g−1 over 300 cycles at 0.5 C [55].
Additional materials with polar groups can also regulate Li ion deposition through electrostatic interactions. Han et al. [56] developed polyacrylonitrile fiber/polyimide sphere (PAN fiber/PI sphere) double-layer coating to guide uniform deposition of Li ions and suppress Li dendrites growth (Figure 2e). The mechanism of dendrite-free deposition on a separator with a PAN fiber/PI sphere is shown in Figure 2f. The lone pair of electrons of oxygen in the oxygen-containing functional groups (C=O) of PI exhibit considerable affinity for Li ions and may evenly adsorb Li ions on their surfaces. When Li ions obtain an electron and are reduced into the Li atom, the interaction between Li atoms and PI spheres become weaker, causing the uniform deposition of Li metal on the surface of electrode. Li|PAN/PI@Cu (where “|” and “@” mean “countering” and “coating”, respectively) has a steady CE and shows better cycling stability than Li|Cu and Li|PI@Cu, exhibiting a high CE of 98% after 500 cycles (Figure 2g). PAN/PI@Cu still delivers a high CE of 97.3% for 130 cycles even at a raised current density of 2 mA cm−2 with a deposition capacity of 2 mA h cm−2 (Figure 2h).
Designing the coating layer of separators with a polar group is a useful strategy to regulate the deposition of Li ions and suppress Li dendrite growth. However, if the electron conductivity of the anode is lower than that of the coating layer in functional separators, the Li ion might be deposited in the coating layer instead of the anode matrix. Therefore, it is advisable to pay attention to problems concerning matching between the anode matrix and coating materials while constructing functional separators modified with polar groups.

4. Flame-Retardant Separator Design

To guarantee battery safety, thermally responsive separators need to be constructed to cope with elevated temperatures and thermal runaway. Separators with thermal response are developed with a view to thermal shutdown and flame-retardation. Thermal shutdown separators constantly incorporate thermoplastic polymer particles, which would melt and form an insulating barrier to inhibit Li+ transport, interrupting the battery reactions as the temperature reaches a critical value [57,58]. PE microspheres with low-density are commonly employed as a shutdown layer benefiting from their enormous surface areas, which allow them to respond quickly to temperature changes in batteries, and their abundance of microporous channels for the movement of electrolyte. Zhong et al. [59] coated a thin layer of low-density polyethylene microspheres (PM) onto commercial PP separators and investigated their thermal response behaviors. A PM layer with a porous structure profited from normal charge-discharge reactions at ambient temperature, but began to melt at 110 °C and collapsed to form dense protected layers for interrupting the battery reaction after 3 s (Figure 3a). PM/PP separators have rapid thermal shutdown behaviors with impedance starting to increase at 120 °C in 20 s and then rapidly rising within 5 s at 140 °C (Figure 3b). What is more, the electrochemical performance of the cell with PM/PP separator is almost same as that of the cells with the PP separator (Figure 3c). Compared to the blank PP and PP/PE/PP separators, the PM/PP separator is effective in controlling the temperature rise of the Li battery by timely melting of the PM coating layer (Figure 3d).
A multilayer structure is also employed to construct separators with shutdown properties. Multilayer separators are always composed of an interlayer with a lower melting temperature and outer layers with higher thermal stability. When the temperature rises, the interlayer fuses and merges with outer layers to form a pore-free layer, cutting off the channel of Li+ transport [60]. Xu et al. [61] developed a tri-layer membrane by sandwiching a poly(methyl methacrylate) interlayer between amido functionalized poly(ether ketone) outer layers (APEEK) to protect the Li battery from thermal runaway (Figure 3e). The fusible interlayer melts and blocks the pore of non-woven crosslinking APEEK/PMMA/crosslinking APEEK (NW-CA/P/CA) tri-layer membrane above 110 °C (Figure 3f), which prevents the transfer of Li ions between the electrodes and suppresses the electrode reactions.
For multilayer separators, compatibility issues and weak adhesion pose great challenges for different layers. In addition, inhomogeneous coatings can affect Li+ migration rate and thermal shutdown performance. To address the above issues, coaxial electrospinning is a tractable and well-established technique for fabricating core-shell-structured membranes with shutdown properties [62]. Taking advantage of this method, Cao et al. [63] successfully fabricated poly(lactic acid)@poly(butylene succinate) (PLA@PBS) as a shutdown separator (Figure 3g,h). PLA is used as the core material due to its excellent thermal stability and mechanical strength, and PBS is used as a shell material due to its strong affinity for liquid electrolytes and appropriate melting temperature. Compared to differential scanning calorimetry (DSC) results between PLA@PBS separators and the Celgard 2325 separator, PLA@PBS separators exhibited lower shutdown temperatures at 110.5 and 165.0 °C, reducing the probability of thermal runaway (Figure 3i).
Figure 3. (a) Morphological and structural changes of the PM coating layer with heating time in a 110 °C PC bath. (b) Log Z-t plots of the SS/separator/SS coin cells using commercial PP/PE/PP separator. (c) Current density for the charge-discharge process at 0.5 C. (d) Adiabatic T-t curves of the LiCoO2|Li coin cells using different separators in short circuit tests [59]. Reprinted with permission from Ref. [59]. 2019 Elsevier. (e) Conceptual plan of the trilayer nonwoven membrane. (f) Cross-section of the NW-CA/P/CA membrane avulsed using adhesive tape [61]. Reprinted with permission from Ref. [61]. 2018 Elsevier. (g) SEM and (h) TEM images of the PLA@PBS separator. (i) DSC curves of the PLA@PBS and Celgard 2325 separators [63]. Reprinted with permission from Ref. [63]. 2017 The Royal Society of Chemistry.
Figure 3. (a) Morphological and structural changes of the PM coating layer with heating time in a 110 °C PC bath. (b) Log Z-t plots of the SS/separator/SS coin cells using commercial PP/PE/PP separator. (c) Current density for the charge-discharge process at 0.5 C. (d) Adiabatic T-t curves of the LiCoO2|Li coin cells using different separators in short circuit tests [59]. Reprinted with permission from Ref. [59]. 2019 Elsevier. (e) Conceptual plan of the trilayer nonwoven membrane. (f) Cross-section of the NW-CA/P/CA membrane avulsed using adhesive tape [61]. Reprinted with permission from Ref. [61]. 2018 Elsevier. (g) SEM and (h) TEM images of the PLA@PBS separator. (i) DSC curves of the PLA@PBS and Celgard 2325 separators [63]. Reprinted with permission from Ref. [63]. 2017 The Royal Society of Chemistry.
Polymers 14 04546 g003
Flame-retardant separators incorporated with extinguishing agents can effectively prevent the combustion caused by thermal runaway and improve the safety of LMBs [64,65,66]. Organic and inorganic materials, such as triphenyl phosphate (TPP), metal hydroxides, Sb2O3, MoO3, are commonly used as extinction agents [67,68,69]. Among them, the metal hydroxides Mg(OH)2 and Al(OH)3 are the most common inorganic flame retardants, and efficiently reduce the surface temperature of the combustible materials and inhibit the combustible gas by releasing lots of water at elevated temperature and absorbing plenty of heat when combined with water vapor. Organic materials are mostly halogen- or phosphorus-based molecules that exhibit flame retardation by suppressing chain reactions and flame propagation through radical scavenging processes or physical isolation mechanisms [69,70]. He et al. [71] constructed a bilayer separator by incorporating MoO3 and Al-doped Li6.75La3Zr1.75Ta0.25O12(LLZTO) (Figure 4a). Combustion was considerably suppressed with interfacial adhesion of MoO3 and LLZTO to poly(vinylidenefluoride-hexafluoropropylene) (PVDF-HFP) by abundant hydrogen bonds and van der Waals forces of the bilayer separators. LLZTO shows excellent Li-ion conductivity, and MoO3 exhibits remarkable flame-retardant capabilities by lowering the generation of volatile hydrocarbon species and flammable benzene species. A Li|LiFePO4 cell with such bilayer separator also exhibited lower charge-transfer resistance and faster reaction kinetics compared to those with Celgard 2325 and PVDF-HFP (Figure 4b). The discharge capacity could reach 162 mA h g−1 at 0.5 C after 100 cycles with a capacity retention of 95% and high average CE of near 100%, further demonstrating the superiority of the bilayer separator to the blank separator in LMBs (Figure 4c).
Because some flame retardants can increase electrolyte viscosity and thus reduce the ionic conductivity of electrolytes, thermal-sensitive polymers have been adopted as a protective layer to prevent the exposure of flame retardants to the electrolyte and sustain the ionic conductivity [72]. Cui et al. [69] developed a microfiber with a core-shell structure by electrospinning, where the triphenyl phosphate (TPP), a common organophosphorus-based flame retardant, was the core and PVDF-HFP was the shell (Figure 4d). When an Li battery suffers from thermal runaway, the shell melts and releases the flame retardant (TPP) due to the increasing temperature, suppressing combustion of the highly flammable electrolytes. Compared to commercial separators with compositing 30% TPP, the TPP@PVDF-HFP core-shell structure avoids the negative effects of TPP on the electrochemical performance of the anode and shows excellent capacity when equipped with commercial separator (Figure 4e). More importantly, the PVDF-HFP melts and releases TPP when the temperature rises to 150 °C (Figure 4f), and the encapsulated TPP (~100%) is abruptly released into the electrolyte upon heating up to 160 °C.

5. Summary and Outlook

The latest developments on functional separators for long-life and safe Li metal batteries have been summarized and discussed in this minireview, including mechanically strengthened separator fabrication, functional separator construction towards regulated Li ion deposition, and flame-retardant separator design. The basic mechanism for mechanically strengthened separator fabrication is attributable to the mechanical barrier effect with higher puncture strength, strong enough to bend the tip of the Li dendrite. Functional separator construction towards regulated Li ion deposition can construct even lithiophilic sites for uniform nucleating and growth. Flame-retardant separator design aims at controlling thermal runaway by forming dense separators to interrupt battery reactions or releasing flame retardants to prevent burning. Although various strategies have been applied to improve the functional separators for practical applications of LIBs, there are still some challenges that need to be addressed.
(1)
Most of the reported functional separators have been developed with top-down strategies such as the tap-casting method, which leads to a lack of control over the thickness and the homogeneous distribution of different components. More elaborate bottom-up strategies should be designed to develop uniform and homogenous separators.
(2)
To minimize sacrifice in both volumetric and gravitation energy density, the thickness of the modification layer should be controlled at <1 µm (<5% in thickness compared to commercially separator such as Celgard 2325) and its density should be reduced as low as possible. In this regard, novel nanostructured nanomaterials, especially 2D graphene and boron nitride, are good options.
(3)
To avoid peeling of the modification layer from the separator during Li plating/stripping cycles, molecular and structural designs to improve the flexibility and elasticity of the modification layer, as well as its adhesion on the separator, are highly desirable.
(4)
To help eliminate battery thermal runaway caused by Li dendrites and improve battery safety, the thermal conductivity of the separator should be further improved for better battery heat dissipation; few studies have focused on this.
(5)
The “activation” of functional separators should be understood in depth. Some of the designed separators are not electrochemically inert, and they may absorb Li+, or even react with electrolyte or Li metal electrodes, especially under complex electrochemical conditions. These “activations” (absorption and reaction) together with the influence on battery performance should be carefully studied.
(6)
The performance of the designed separators should be evaluated under practical conditions. The areal current density and capacity for Li|Li symmetric cells and Li metal full cells should be higher than 3 mA cm−2 and 3 mAh cm−2, respectively, because the area capacity of commercial energy-type LMBs is >3 mAh cm−2 and the discharging/charging current is >3 mA cm−2 based on 1 C rate. The electrolyte amount should be controlled at <10 µL mAh−1 (requirement of lean electrolyte), and the capacity ratio of Li metal anode and cathode should be <5 to maintain high volumetric energy density.

Author Contributions

Conceptualization and writing—original draft, Y.L., J.D. and Z.W.; writing—review and editing, Z.W., J.D., Y.L., Y.Z., Q.Y. and Y.Y.; project administration, Z.W. and J.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tarascon, J.-M.; Armand, M. Issues and challenges facing rechargeable lithium batteries. Nature 2001, 414, 359–367. [Google Scholar] [CrossRef] [PubMed]
  2. Li, M.; Lu, J.; Chen, Z.; Amine, K. 30 years of lithium-ion batteries. Adv. Mater. 2018, 30, e1800561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Bhardwaj, A.; Kaur, J.; Wuest, M.; Wuest, F. In situ click chemistry generation of cyclooxygenase-2 inhibitors. Nat. Commun. 2017, 8, 1. [Google Scholar] [CrossRef] [Green Version]
  4. Wu, J.; Lin, C.; Liang, Q.; Zhou, G.; Liu, J.; Liang, G.; Wang, M.; Li, B.; Hu, L.; Ciucci, F.; et al. Sodium-rich NASICON-structured cathodes for boosting the energy density and lifespan of sodium-free-anode sodium metal batteries. InfoMat 2022, 4, e12288. [Google Scholar] [CrossRef]
  5. Choi, J.W.; Aurbach, D. Promise and reality of post-lithium-ion batteries with high energy densities. Nat. Rev. Mater. 2016, 1, 16013. [Google Scholar] [CrossRef] [Green Version]
  6. An, H.; Roh, Y.; Jo, Y.; Lee, H.; Lim, M.; Lee, M.; Lee, Y.M.; Lee, H. Separator dependency on cycling stability of lithium metal batteries under practical conditions. Energy Environ. Mater. 2022. [Google Scholar] [CrossRef]
  7. Tian, Y.; Lin, C.; Li, H.; Du, J.; Xiong, R. Deep neural network-driven in-situ detection and quantification of lithium plating on anodes in commercial lithium-ion batteries. EcoMat 2022, e12280. [Google Scholar] [CrossRef]
  8. Liu, B.; Zhang, J.-G.; Xu, W. Advancing lithium metal batteries. Joule 2018, 2, 833–845. [Google Scholar] [CrossRef] [Green Version]
  9. Xiao, J.; Li, Q.; Bi, Y.; Cai, M.; Dunn, B.; Glossmann, T.; Liu, J.; Osaka, T.; Sugiura, R.; Wu, B.; et al. Understanding and applying coulombic efficiency in lithium metal batteries. Nat. Energy 2020, 5, 561–568. [Google Scholar] [CrossRef]
  10. Wang, Z.; Wang, Y.; Wu, C.; Pang, W.K.; Mao, J.; Guo, Z. Constructing nitrided interfaces for stabilizing Li metal electrodes in liquid electrolytes. Chem. Sci. 2021, 12, 8945–8966. [Google Scholar] [CrossRef]
  11. Zhao, Q.; Stalin, S.; Archer, L.A. Stabilizing metal battery anodes through the design of solid electrolyte interphases. Joule 2021, 5, 1119–1142. [Google Scholar] [CrossRef]
  12. Yu, Z.; Cui, Y.; Bao, Z. Design Principles of Artificial Solid Electrolyte Interphases for Lithium-Metal Anodes. Cell Rep. Phys. Sci. 2020, 1, 100119. [Google Scholar] [CrossRef]
  13. Wang, Y.; Wang, Z.; Zhao, L.; Fan, Q.; Zeng, X.; Liu, S.; Pang, W.K.; He, Y.B.; Guo, Z. Lithium metal electrode with increased air stability and robust solid electrolyte interphase realized by silane coupling agent modification. Adv. Mater. 2021, 33, e2008133. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, Z.; Wang, Y.; Zhang, Z.; Chen, X.; Lie, W.; He, Y.B.; Zhou, Z.; Xia, G.; Guo, Z. Building artificial solid-electrolyte interphase with uniform intermolecular ionic bonds toward dendrite-free lithium metal anodes. Adv. Funct. Mater. 2020, 30, 2002414. [Google Scholar] [CrossRef]
  15. Teng, W.; Wu, J.; Liang, Q.; Deng, J.; Xu, Y.; Liu, Q.; Wang, B.; Ma, T.; Nan, D.; Liu, J.; et al. Designing advanced liquid electrolytes for alkali metal batteries: Principles, progress, and perspectives. Energy Environ. Mater. 2022. [Google Scholar] [CrossRef]
  16. Qin, K.; Holguin, K.; Mohammadiroudbari, M.; Huang, J.; Kim, E.Y.S.; Hall, R.; Luo, C. Strategies in structure and electrolyte design for high-performance lithium metal batteries. Adv. Funct. Mater. 2021, 31, 2009694. [Google Scholar] [CrossRef]
  17. Wang, Z.; Wang, Y.; Li, B.; Bouwer, J.C.; Davey, K.; Lu, J.; Guo, Z. Non-flammable ester electrolyte with boosted stability against Li for high-performance Li metal batteries. Angew. Chem. Int. Ed. 2022, 61, e202206682. [Google Scholar] [CrossRef]
  18. Lee, H.; Ren, X.; Niu, C.; Yu, L.; Engelhard, M.H.; Cho, I.; Ryou, M.H.; Jin, H.S.; Kim, H.T.; Liu, J.; et al. Suppressing lithium dendrite growth by metallic coating on a separator. Adv. Funct. Mater. 2017, 27, 1704391. [Google Scholar] [CrossRef]
  19. Foroozan, T.; Soto, F.A.; Yurkiv, V.; Sharifi-Asl, S.; Deivanayagam, R.; Huang, Z.; Rojaee, R.; Mashayek, F.; Balbuena, P.B.; Shahbazian-Yassar, R. Synergistic effect of graphene oxide for impeding the dendritic plating of Li. Adv. Funct. Mater. 2018, 28, 1705917. [Google Scholar] [CrossRef]
  20. Li, C.; Liu, S.; Shi, C.; Liang, G.; Lu, Z.; Fu, R.; Wu, D. Two-dimensional molecular brush-functionalized porous bilayer composite separators toward ultrastable high-current density lithium metal anodes. Nat. Commun. 2019, 10, 1363. [Google Scholar] [CrossRef]
  21. Zheng, S.; Mo, L.; Chen, K.; Chen, A.L.; Zhang, X.; Fan, X.; Lai, F.; Wei, Q.; Miao, Y.E.; Liu, T.; et al. Precise control of Li+ directed transport via electronegative polymer brushes on polyolefin separators for dendrite-free lithium deposition. Adv. Funct. Mater. 2022, 32, 2201430. [Google Scholar] [CrossRef]
  22. Guo, Y.; Niu, P.; Liu, Y.; Ouyang, Y.; Li, D.; Zhai, T.; Li, H.; Cui, Y. An autotransferable g-C3N4 Li+-modulating layer toward stable lithium anodes. Adv. Mater. 2019, 31, e1900342. [Google Scholar] [CrossRef] [PubMed]
  23. Li, X.; Yuan, L.; Liu, D.; Liao, M.; Chen, J.; Yuan, K.; Xiang, J.; Li, Z.; Huang, Y. Elevated lithium ion regulation by a “Natural Silk” modified separator for high-performance lithium metal anode. Adv. Funct. Mater. 2021, 31, 2100537. [Google Scholar] [CrossRef]
  24. Zheng, Y.; Yao, Y.; Ou, J.; Li, M.; Luo, D.; Dou, H.; Li, Z.; Amine, K.; Yu, A.; Chen, Z. A review of composite solid-state electrolytes for lithium batteries: Fundamentals, key materials and advanced structures. Chem. Soc. Rev. 2020, 49, 8790–8839. [Google Scholar] [CrossRef] [PubMed]
  25. Fan, L.; Wei, S.; Li, S.; Li, Q.; Lu, Y. Recent progress of the solid-state electrolytes for high-energy metal-based batteries. Adv. Energy Mater. 2018, 8, 1702657. [Google Scholar] [CrossRef]
  26. Wang, J.; Yang, M.; Zou, G.; Liu, D.; Peng, Q. lithiation MXene derivative skeletons for wide-temperature lithium metal anodes. Adv. Funct. Mater. 2021, 31, 202101180. [Google Scholar] [CrossRef]
  27. Qian, X.; Fan, X.; Peng, Y.; Xue, P.; Sun, C.; Shi, X.; Lai, C.; Liang, J. Polysiloxane cross-linked mechanically stable MXene-based lithium host for ultrastable lithium metal anodes with ultrahigh current densities and capacities. Adv. Funct. Mater. 2020, 31, 2008044. [Google Scholar] [CrossRef]
  28. Wang, Y.; Wang, Z.; Lei, D.; Lv, W.; Zhao, Q.; Ni, B.; Liu, Y.; Li, B.; Kang, F.; He, Y.B. spherical Li deposited inside 3D Cu skeleton as anode with ultrastable performance. ACS Appl. Mater. Interfaces 2018, 10, 20244–20249. [Google Scholar] [CrossRef]
  29. Wang, Z.; Gao, H.; Zhang, Q.; Liu, Y.; Chen, J.; Guo, Z. Recent advances in 3D graphene architectures and their composites for energy storage applications. Small 2019, 15, e1803858. [Google Scholar] [CrossRef] [Green Version]
  30. Kim, P.J.; Pol, V.G. High performance lithium metal batteries enabled by surface tailoring of polypropylene separator with a polydopamine/graphene layer. Adv. Energy Mater. 2018, 8, 1802665. [Google Scholar] [CrossRef]
  31. Wang, Z.; Pan, R.; Xu, C.; Ruan, C.; Edström, K.; Strømme, M.; Nyholm, L. Conducting polymer paper-derived separators for lithium metal batteries. Energy Storage Mater. 2018, 13, 283–292. [Google Scholar] [CrossRef]
  32. Oh, J.; Jo, H.; Lee, H.; Kim, H.-T.; Lee, Y.M.; Ryou, M.H. Polydopamine-treated three-dimensional carbon fiber-coated separator for achieving high-performance lithium metal batteries. J. Power Sources 2019, 430, 130–136. [Google Scholar] [CrossRef]
  33. Yu, B.; Chen, D.; Wang, Z.; Qi, F.; Zhang, X.; Wang, X.; Hu, Y.; Wang, B.; Zhang, W.; Chen, Y.; et al. Mo2C quantum dots@graphene functionalized separator toward high-current-density lithium metal anodes for ultrastable Li-S batteries. Chem. Eng. J. 2020, 399, 125837. [Google Scholar] [CrossRef]
  34. Wen, K.; Liu, L.; Chen, S.; Zhang, S. A bidirectional growth mechanism for a stable lithium anode by a platinum nanolayer sputtered on a polypropylene separator. RSC Adv. 2018, 8, 13034–13039. [Google Scholar] [CrossRef] [Green Version]
  35. Liu, M.; Deng, N.; Ju, J.; Wang, L.; Wang, G.; Ma, Y.; Kang, W.; Yan, J. Silver nanoparticle-doped 3D porous carbon nanofibers as separator coating for stable lithium metal anodes. ACS Appl. Mater. Interfaces 2019, 11, 17843–17852. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, Y.; Lin, D.; Yuen, P.Y.; Liu, K.; Xie, J.; Dauskardt, R.H.; Cui, Y. An artificial solid electrolyte interphase with high li-ion conductivity, mechanical strength, and flexibility for stable lithium metal anodes. Adv. Mater. 2017, 29, 1605531. [Google Scholar] [CrossRef]
  37. Huo, H.; Li, X.; Chen, Y.; Liang, J.; Deng, S.; Gao, X.; Doyle-Davis, K.; Li, R.; Guo, X.; Shen, Y.; et al. Bifunctional composite separator with a solid-state-battery strategy for dendrite-free lithium metal batteries. Energy Storage Mater. 2020, 29, 361–366. [Google Scholar] [CrossRef]
  38. Wu, H.; Zhuo, D.; Kong, D.; Cui, Y. Improving battery safety by early detection of internal shorting with a bifunctional separator. Nat. Commun. 2014, 5, 5193. [Google Scholar] [CrossRef] [Green Version]
  39. Wang, Q.; Yang, J.; Wang, Z.; Shi, L.; Zhao, Y.; Yuan, S. Dual-Scale Al2O3 particles coating for high-performance separator and lithium metal anode. Energy Technol. 2020, 8, 1901429. [Google Scholar] [CrossRef]
  40. Monroe, C.; Newman, J. Dendrite Growth in lithium/polymer systems a propagation model for liquid electrolytes under galvanostatic conditions. J. Electrochem. Soc. 2003, 150, A1377–A1384. [Google Scholar] [CrossRef]
  41. Liang, J.; Chen, Q.; Liao, X.; Yao, P.; Zhu, B.; Lv, G.; Wang, X.; Chen, X.; Zhu, J. A nano-shield design for deparators to resist dendrite formation in lithium-metal batteries. Angew. Chem. Int. Ed. 2020, 59, 6561–6566. [Google Scholar] [CrossRef] [PubMed]
  42. Hwang, J.-Y.; Kim, H.M.; Shin, S.; Sun, Y.-K. Designing a high-performance lithium-sulfur batteries based on layered double hydroxides-carbon nanotubes composite cathode and a dual-functional graphene-polypropylene-Al2O3 separator. Adv. Funct. Mater. 2018, 28, 1704294. [Google Scholar] [CrossRef]
  43. Hao, X.; Zhu, J.; Jiang, X.; Wu, H.; Qiao, J.; Sun, W.; Wang, Z.; Sun, K. Ultrastrong polyoxyzole nanofiber membranes for dendrite-proof and heat-resistant battery separators. Nano Lett. 2016, 16, 2981–2987. [Google Scholar] [CrossRef] [PubMed]
  44. Luo, L.; Li, J.; Yaghoobnejad Asl, H.; Manthiram, A. A 3D lithiophilic Mo2N-modified carbon nanofiber architecture for dendrite-free lithium-metal anodes in a full cell. Adv. Mater. 2019, 31, e1904537. [Google Scholar] [CrossRef] [PubMed]
  45. Adair, K.R.; Iqbal, M.; Wang, C.; Zhao, Y.; Banis, M.N.; Li, R.; Zhang, L.; Yang, R.; Lu, S.; Sun, X. Towards high performance Li metal batteries: Nanoscale surface modification of 3D metal hosts for pre-stored Li metal anodes. Nano Energy 2018, 54, 375–382. [Google Scholar] [CrossRef]
  46. Pei, F.; Fu, A.; Ye, W.; Peng, J.; Fang, X.; Wang, M.S.; Zheng, N. Robust lithium metal anodes realized by lithiophilic 3D porous current collectors for constructing high-energy lithium-sulfur batteries. ACS Nano 2019, 13, 8337–8346. [Google Scholar] [CrossRef]
  47. Yang, C.; Yao, Y.; He, S.; Xie, H.; Hitz, E.; Hu, L. Ultrafine silver nanoparticles for seeded lithium deposition toward stable lithium metal anode. Adv. Mater. 2017, 29, 1702714. [Google Scholar] [CrossRef]
  48. Duan, H.; Zhang, J.; Chen, X.; Zhang, X.D.; Li, J.Y.; Huang, L.B.; Zhang, X.; Shi, J.L.; Yin, Y.X.; Zhang, Q.; et al. Uniform nucleation of lithium in 3D current collectors via bromide intermediates for stable cycling lithium metal batteries. J. Am. Chem. Soc. 2018, 140, 18051–18057. [Google Scholar] [CrossRef]
  49. Liu, B.; Zhang, Y.; Pan, G.; Ai, C.; Deng, S.; Liu, S.; Liu, Q.; Wang, X.; Xia, X.; Tu, J. Ordered lithiophilic sites to regulate Li plating/stripping behavior for superior lithium metal anodes. J. Mater. Chem. A 2019, 7, 21794–21801. [Google Scholar] [CrossRef]
  50. Liu, L.; Yin, Y.X.; Li, J.Y.; Guo, Y.G.; Wan, L.J. Ladderlike carbon nanoarrays on 3D conducting skeletons enable uniform lithium nucleation for stable lithium metal anodes. Chem. Commun. 2018, 54, 5330–5333. [Google Scholar] [CrossRef]
  51. Xie, J.; Wan, J.; Lee, H.R.; Yan, K.; Li, Y.; Shi, F.; Huang, W.; Pei, A.; Chen, G.; Subbaraman, R.; et al. Engineering stable interfaces for three-dimensional lithium metal anodes. Sci. Adv. 2018, 4, eaat5168. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Liu, Y.; Xiong, S.; Wang, J.; Jiao, X.; Li, S.; Zhang, C.; Song, Z.; Song, J. Dendrite-free lithium metal anode enabled by separator engineering via uniform loading of lithiophilic nucleation sites. Energy Storage Mater. 2019, 19, 24–30. [Google Scholar] [CrossRef]
  53. Chen, X.; Chen, X.-R.; Hou, T.-Z.; Li, B.-Q.; Cheng, X.-B.; Zhang, R.; Zhang, Q. Lithiophilicity chemistry of heteroatom-doped carbon to guide uniform lithium nucleation in lithium metal anodes. Sci. Adv. 2019, 5, eaau7728. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Balach, J.; Jaumann, T.; Klose, M.; Oswald, S.; Eckert, J.; Giebeler, L. Improved cycling stability of lithium-sulfur batteries using a polypropylene-supported nitrogen-doped mesoporous carbon hybrid separator as polysulfide adsorbent. J. Power Sources 2016, 303, 317–324. [Google Scholar] [CrossRef]
  55. Xiao, Z.; Yang, Z.; Wang, L.; Nie, H.; Zhong, M.; Lai, Q.; Xu, X.; Zhang, L.; Huang, S. A lightweight TiO2/Graphene interlayer, applied as a highly effective polysulfide absorbent for fast, long-life lithium-sulfur batteries. Adv. Mater. 2015, 27, 2891–2898. [Google Scholar] [CrossRef]
  56. Shen, F.; Wang, K.; Yin, Y.; Shi, L.; Zeng, D.; Han, X. PAN/PI functional double-layer coating for dendrite-free lithium metal anodes. J. Mater. Chem. A 2020, 8, 6183–6189. [Google Scholar] [CrossRef]
  57. Baginska, M.; Blaiszik, B.J.; Merriman, R.J.; Sottos, N.R.; Moore, J.S.; White, S.R. Autonomic shutdown of lithium-Ion batteries using thermoresponsive microspheres. Adv. Energy Mater. 2012, 2, 583–590. [Google Scholar] [CrossRef]
  58. Kim, Y.; Lee, W.-Y.; Kim, K.J.; Yu, J.-S.; Kim, Y.-J. Shutdown-functionalized nonwoven separator with improved thermal and electrochemical properties for lithium-ion batteries. J. Power Sources 2016, 305, 225–232. [Google Scholar] [CrossRef]
  59. Zhang, C.; Li, H.; Wang, S.; Cao, Y.; Yang, H.; Ai, X.; Zhong, F. A polyethylene microsphere-coated separator with rapid thermal shutdown function for lithium-ion batteries. J. Energy Chem. 2020, 44, 33–40. [Google Scholar] [CrossRef] [Green Version]
  60. Gong, W.; Zhang, Z.; Wei, S.; Ruan, S.; Shen, C.; Turng, L.-S. Thermosensitive polyacrylonitrile/polyethylene oxide/polyacrylonitrile membrane separators for prompt and safer thermal lithium-ion battery shutdown. J. Electrochem. Soc. 2020, 167, 020509. [Google Scholar] [CrossRef]
  61. Li, Z.; Xiong, Y.; Sun, S.; Zhang, L.; Li, S.; Liu, X.; Xu, Z.; Xu, S. Tri-layer nonwoven membrane with shutdown property and high robustness as a high-safety lithium ion battery separator. J. Membr. Sci. 2018, 565, 50–60. [Google Scholar] [CrossRef]
  62. Gong, W.; Wei, S.; Ruan, S.; Shen, C. Electrospun coaxial PPESK/PVDF fibrous membranes with thermal shutdown property used for lithium-ion batteries. Mater. Lett. 2019, 244, 126–129. [Google Scholar] [CrossRef]
  63. Jiang, X.; Xiao, L.; Ai, X.; Yang, H.; Cao, Y. A novel bifunctional thermo-sensitive poly(lactic acid)@poly(butylene succinate) core-shell fibrous separator prepared by a coaxial electrospinning route for safe lithium-ion batteries. J. Mater. Chem. A 2017, 5, 23238–23242. [Google Scholar] [CrossRef]
  64. Sun, G.; Kong, L.; Liu, B.; Niu, H.; Zhang, M.; Tian, G.; Qi, S.; Wu, D. Ultrahigh-strength, nonflammable and high-wettability separators based on novel polyimide-core@polybenzimidazole-sheath nanofibers for advanced and safe lithium-ion batteries. J. Membr. Sci. 2019, 582, 132–139. [Google Scholar] [CrossRef]
  65. Sun, G.; Dong, G.; Kong, L.; Yan, X.; Tian, G.; Qi, S.; Wu, D. Robust polyimide nanofibrous membrane with porous-layer-coated morphology by in situ self-bonding and micro-crosslinking for lithium-ion battery separator. Nanoscale 2018, 10, 22439–22447. [Google Scholar] [CrossRef] [PubMed]
  66. Zhai, Y.; Xiao, K.; Yu, J.; Yang, J.; Ding, B. Thermostable and nonflammable silica-polyetherimide-polyurethane nanofibrous separators for high power lithium ion batteries. J. Mater. Chem. A 2015, 3, 10551–10558. [Google Scholar] [CrossRef]
  67. Woo, J.-J.; Nam, S.H.; Seo, S.-J.; Yun, S.-H.; Kim, W.B.; Xu, T.; Moon, S.-H. A flame retarding separator with improved thermal stability for safe lithium-ion batteries. Electrochem. Commun. 2013, 35, 68–71. [Google Scholar] [CrossRef]
  68. Yeon, D.; Lee, Y.; Ryou, M.-H.; Lee, Y.M. New flame-retardant composite separators based on metal hydroxides for lithium-ion batteries. Electrochim. Acta 2015, 157, 282–289. [Google Scholar] [CrossRef]
  69. Liu, K.; Liu, W.; Qiu, Y.; Kong, B.; Sun, Y.; Chen, Z.; Zhuo, D.; Lin, D.; Cui, Y. Electrospun core-shell microfiber separator with thermal-triggered flame-retardant properties for lithium-ion batteries. Sci. Adv. 2017, 3, e1601978. [Google Scholar] [CrossRef] [Green Version]
  70. Kim, S.; Han, T.; Jeong, J.; Lee, H.; Ryou, M.-H.; Lee, Y.M. A flame-retardant composite polymer electrolyte for lithium-ion polymer batteries. Electrochim. Acta 2017, 241, 553–559. [Google Scholar] [CrossRef]
  71. Zeng, G.; Zhao, J.; Feng, C.; Chen, D.; Meng, Y.; Boateng, B.; Lu, N.; He, W. Flame-retardant bilayer separator with multifaceted van der waals interaction for lithium-ion batteries. ACS Appl. Mater. Interfaces 2019, 11, 26402–26411. [Google Scholar] [CrossRef] [PubMed]
  72. Yim, T.; Park, M.S.; Woo, S.G.; Kwon, H.K.; Yoo, J.K.; Jung, Y.S.; Kim, K.J.; Yu, J.S.; Kim, Y.J. Self-extinguishing lithium ion batteries based on internally embedded fire-Extinguishing microcapsules with temperature-responsiveness. Nano Lett. 2015, 15, 5059–5067. [Google Scholar] [CrossRef] [PubMed]

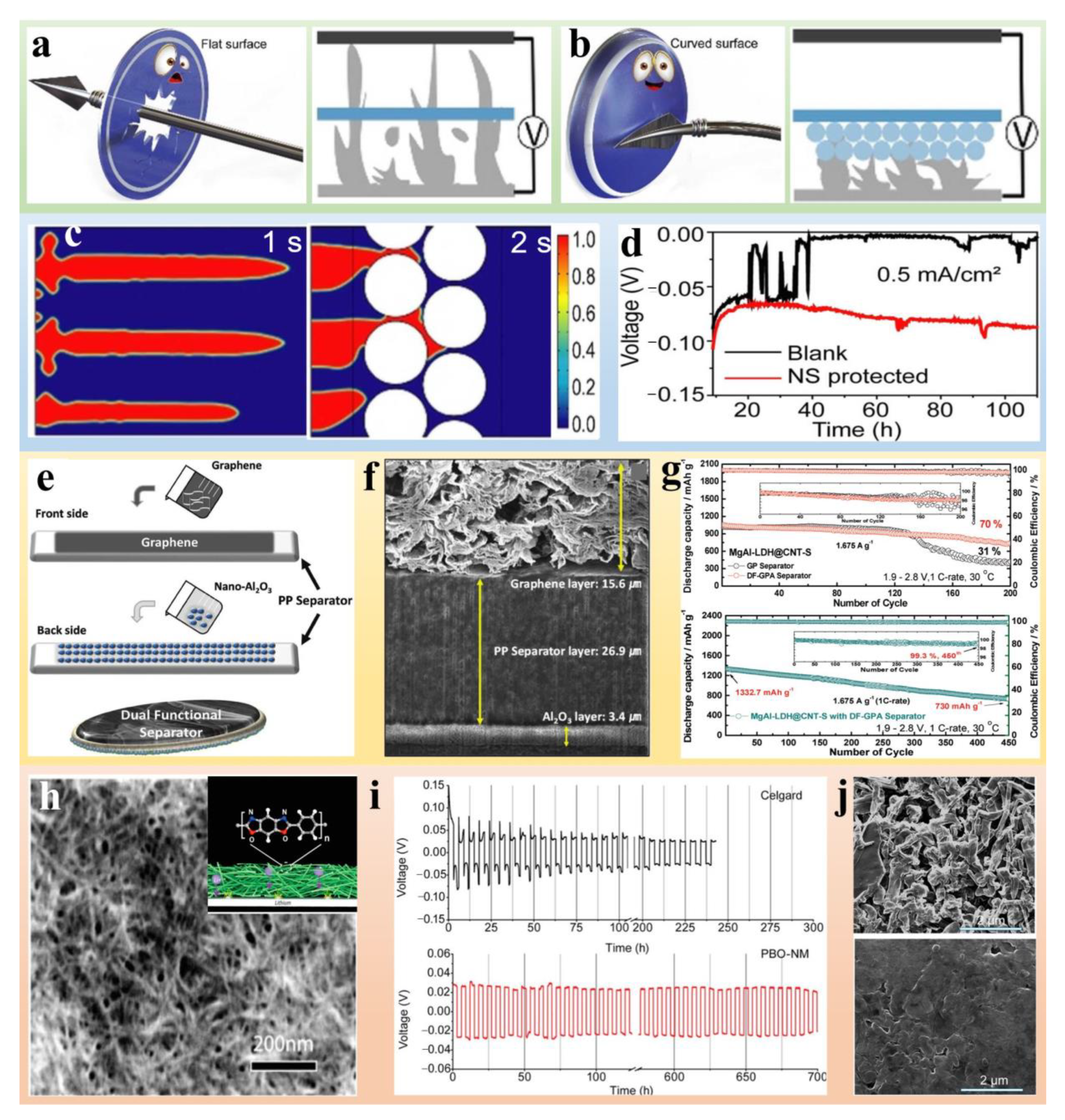

Figure 1. (a,b) Schematic diagram of Li dendrite blocking behavior with flat/curved shield. (c) Finite element simulations: Li dendrite growth against blank separators (left); Li dendrite growth against SiO2 modified PP separators (right). (d) Voltage profiles of cells with NS protected and blank separators at 0.5 mA cm−2 [41]. Reprinted with permission from Ref. [41]. 2020 John Wiley and Sons. (e) Schematic diagram of the synthesis process of the dual-functional graphene/PP/Al2O3 (DF-GPA) separator. (f) Cross-sectional SEM images of graphene/PP/Al2O3 (DF-GPA) separator. (g) Corresponding discharge capacity retentions and cell efficiencies during 200 cycles (top) and long-term cycling stability results of a cell based on a MgAl-LDH@CNT-S cathode and a DF-GPA separator (bottom) [42]. Reprinted with permission from Ref. [42]. 2017 John Wiley and Sons. (h) SEM images of a PBO-NF network, the insert is schematic diagram of Li anode. (i) Voltage-time charts at a fixed current density of 0.38 mA cm−2 using Celgard 2400 (top) and PBO-NM (bottom). (j) SEM images of Li electrode in contact with Celgard 2400 after 240 h cycling (top) and PBO-NM after 700 h cycling (bottom) [43]. Reprinted with permission from Ref. [43]. 2016 American Chemical Society.
Figure 1. (a,b) Schematic diagram of Li dendrite blocking behavior with flat/curved shield. (c) Finite element simulations: Li dendrite growth against blank separators (left); Li dendrite growth against SiO2 modified PP separators (right). (d) Voltage profiles of cells with NS protected and blank separators at 0.5 mA cm−2 [41]. Reprinted with permission from Ref. [41]. 2020 John Wiley and Sons. (e) Schematic diagram of the synthesis process of the dual-functional graphene/PP/Al2O3 (DF-GPA) separator. (f) Cross-sectional SEM images of graphene/PP/Al2O3 (DF-GPA) separator. (g) Corresponding discharge capacity retentions and cell efficiencies during 200 cycles (top) and long-term cycling stability results of a cell based on a MgAl-LDH@CNT-S cathode and a DF-GPA separator (bottom) [42]. Reprinted with permission from Ref. [42]. 2017 John Wiley and Sons. (h) SEM images of a PBO-NF network, the insert is schematic diagram of Li anode. (i) Voltage-time charts at a fixed current density of 0.38 mA cm−2 using Celgard 2400 (top) and PBO-NM (bottom). (j) SEM images of Li electrode in contact with Celgard 2400 after 240 h cycling (top) and PBO-NM after 700 h cycling (bottom) [43]. Reprinted with permission from Ref. [43]. 2016 American Chemical Society.
Polymers 14 04546 g001
Figure 2. (a) Schematic diagram of electrodeposition with a Mg-coated separator [52]. Reprinted with permission from Ref. [52]. 2018 Elsevier. (b) Schematic representation of the Li nucleation on carbon materials. (c) The correlation between Li atom binding energy theoretical Li chemical shift. (d) Voltage-time curves during Li nucleation at 0.50 mA cm−2 on pristine graphene (G), nitrogen-doped graphene (NG), and oxygen-containing graphene (OG) electrode [53]. Reprinted with permission from Ref. [53]. 2019 American Association for the Advancement of Science. (e) Schematic diagrams of Li deposition behaviors on different substrates. (f) Schematic diagram of the dendrite-free mechanism. Comparison of Coulumbic efficiencies of Li|Cu, Li|PI@Cu and Li|PAN/PI@Cu cells (g) at 1 mA cm−2, and 1 mA h cm−2 and (h) at 2 mA cm−2, and 2 mA h cm−2 [56]. Reprinted with permission from Ref. [56]. 2020 The Royal Society of Chemistry.
Figure 2. (a) Schematic diagram of electrodeposition with a Mg-coated separator [52]. Reprinted with permission from Ref. [52]. 2018 Elsevier. (b) Schematic representation of the Li nucleation on carbon materials. (c) The correlation between Li atom binding energy theoretical Li chemical shift. (d) Voltage-time curves during Li nucleation at 0.50 mA cm−2 on pristine graphene (G), nitrogen-doped graphene (NG), and oxygen-containing graphene (OG) electrode [53]. Reprinted with permission from Ref. [53]. 2019 American Association for the Advancement of Science. (e) Schematic diagrams of Li deposition behaviors on different substrates. (f) Schematic diagram of the dendrite-free mechanism. Comparison of Coulumbic efficiencies of Li|Cu, Li|PI@Cu and Li|PAN/PI@Cu cells (g) at 1 mA cm−2, and 1 mA h cm−2 and (h) at 2 mA cm−2, and 2 mA h cm−2 [56]. Reprinted with permission from Ref. [56]. 2020 The Royal Society of Chemistry.
Polymers 14 04546 g002

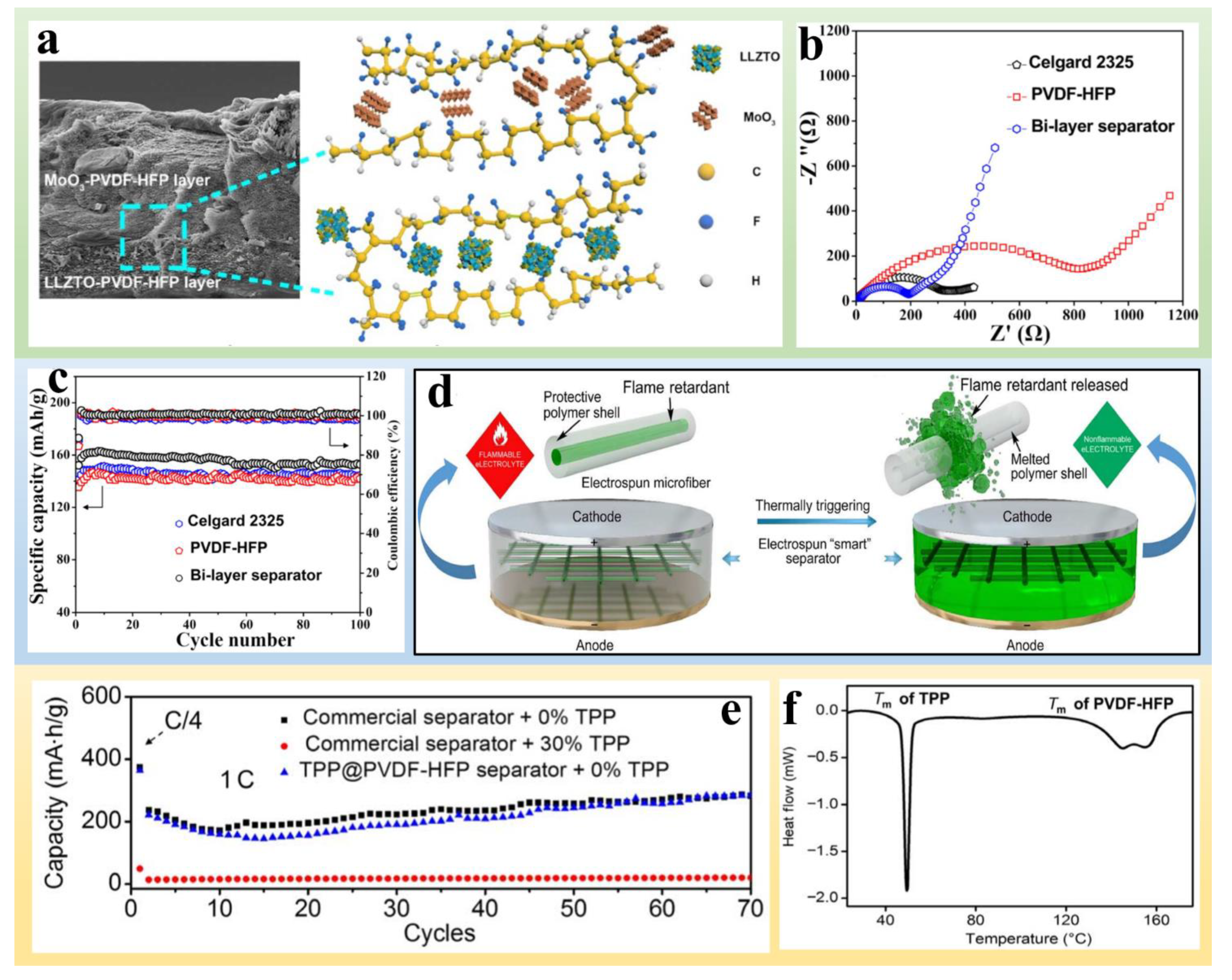

Figure 4. (a) Cross-sectional SEM images of the bilayer separator and a schematic illustration of the bilayer structure. (b) EIS of Li/LFP cells with Celgard 2325, PVDF-HFP, and bilayer separators. (c) Cyclic performances of Li/LFP cells assembled with Celgard 2325, PVDF-HFP, and a bilayer separator [71]. Reprinted with permission from Ref. [71]. 2019 American Chemical Society. (d) Schematic of the “smart” electrospun separator with thermal-triggered flame-retardant properties for Li-ion batteries. (e) Electrochemical performances of a graphite anode using different combinations of separators and electrolytes. (f) DSC of the TPP@PVDF-HFP separator [69]. Reprinted with permission from Ref. [69]. 2017 American Association for the Advancement of Science.
Figure 4. (a) Cross-sectional SEM images of the bilayer separator and a schematic illustration of the bilayer structure. (b) EIS of Li/LFP cells with Celgard 2325, PVDF-HFP, and bilayer separators. (c) Cyclic performances of Li/LFP cells assembled with Celgard 2325, PVDF-HFP, and a bilayer separator [71]. Reprinted with permission from Ref. [71]. 2019 American Chemical Society. (d) Schematic of the “smart” electrospun separator with thermal-triggered flame-retardant properties for Li-ion batteries. (e) Electrochemical performances of a graphite anode using different combinations of separators and electrolytes. (f) DSC of the TPP@PVDF-HFP separator [69]. Reprinted with permission from Ref. [69]. 2017 American Association for the Advancement of Science.
Polymers 14 04546 g004
