Article

Synthesis of Water-Dispersed Sulfobetaine Methacrylate–Iron Oxide Nanoparticle-Coated Graphene Composite by Free Radical Polymerization

by
Suguna Perumal
1,2,*,†,
Raji Atchudan
2,3,† and
Yong Rok Lee
2,*
1
Department of Chemistry, Sejong University, Seoul 143-747, Korea
2
School of Chemical Engineering, Yeungnam University, Gyeongsan 38541, Korea
3
Department of Chemistry, Saveetha School of Engineering, Saveetha Institute of Medical and Technical Sciences, Chennai 602105, Tamil Nadu, India
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2022, 14(18), 3885; https://doi.org/10.3390/polym14183885
Submission received: 15 August 2022 / Revised: 8 September 2022 / Accepted: 16 September 2022 / Published: 17 September 2022
(This article belongs to the Special Issue Polymer Nanoparticles: Synthesis and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Research on the synthesis of water-soluble polymers has accelerated in recent years, as they are employed in many bio-applications. Herein, the synthesis of poly[2-(methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide (PSB) by free radical polymerization in a sonication bath is described. PSB and iron oxide nanoparticles (IONPs) were simultaneously stabilized on the graphene surface. Graphene surfaces with PSB (GPSB) and graphene surfaces with PSB and IONPs (GPSBI) were prepared. Since PSB is a water-soluble polymer, the hydrophobic nature of graphene surfaces converts to hydrophilic nature. Subsequently, the prepared graphene composites, GPSB and GPSBI, were well-dispersed in water. The preparation of GPSB and GPSBI was confirmed by X-ray diffraction, Raman spectroscopy, field emission scanning electron microscopy, transmission electron microscopy, X-ray photoelectron spectroscopy, and thermogravimetric analysis. The impacts of PSB and IONPs on the graphene surfaces were studied systematically.

Graphical Abstract

1. Introduction

Continuous research is ongoing towards the development of diagnosis and therapeutic agents for detecting and treating cancer cells. Nanostructures and hybrid nanostructures are used for diagnosis and therapeutic applications [1,2,3,4]. These nanostructures can be tuned to accommodate the desired properties. In recent times, iron oxide nanomaterials (IONPs) attained considerable attention in various fields, including biomedical, diagnostic, and therapeutic applications [5,6,7]. The magnetic surface and intrinsic properties such as colloidal stability, low toxicity, and uniform size allowed researchers to use IONPs in different applications [7,8,9]. However, compared to IONPs alone, composites, especially those with nanoscale dimensions, have improved properties and are used in various applications [10,11,12,13]. In composites, research on graphene with IONPs is emphasized because of their excellent properties [14,15].
Graphene is a two-dimensional material composed of sp2 carbon atoms [16,17]. Graphene is an excellent material that has superior mechanical, electrical, and thermal properties [18,19]. Because of these properties, graphene and graphene composites are used in broad applications such as supercapacitors, water treatment, and biomedical applications [20,21,22,23,24,25]. Size-controlled graphene sheets with IONPs [26] showed remarkable catalytic activity in oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) [27]. Three-dimensional reduced graphene oxide surface with IONPs was reported as an effective active material for deionization electrodes [28]. Superparamagnetic IONPs with graphene oxide (GO) are used as a resonance contrast agent for magnetic resonance imaging [29]. GO with IONPs is suggested for resonance/fluorescence imaging and cancer sensing applications [29,30]. In addition, IONPs grafted on GO surfaces are used for hyperthermia applications [31]. The polymers on the graphene surface tune the properties of graphene composites [32,33,34,35,36]. Different types of biocompatible polymers are used to stabilize the graphene surface for cancer theranostics [37,38,39,40,41]. Recently, we published a study on graphene nanocarriers for treating thyroid cancer cells [42]. Doxorubicin-loaded 2-(methacryloxyloxy)ethyl phosphorylcholine and poly(ethylene glycol) monomethacrylate stabilized the graphene surface with IONPs, representing a remarkable nanocarrier [42].
In this work, [2-(methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide (SB) monomer was polymerized on the graphene surface, and graphite (G) was exfoliated into thin-layered graphene sheets by sonication. Two composites were prepared in the absence and presence of IONPs, GPSB and GPSBI, respectively. The prepared GPSB and GPSBI composites were characterized using various studies.

2. Materials and Methods

2.1. Materials

SB (95%), G, and 4,4′-azobis(4-cyanovaleric acid) (ACVA, ≥98%) were purchased from Sigma-Aldrich, South Korea, and used as received. Deionized water (DI) was used in all experiments. Using a bath sonicator (40 kHz, 110 W, BRANSON 3800, Richmond VA, USA), in situ polymerization of SB monomer was performed on the graphene surface at 70 °C. The composites were centrifuged using VS-18000M, VISION Scientific Co., Ltd., Daejeon-Si, Korea.

2.2. Methods

PSB, GPSB, and GPSBI were characterized using various physicochemical techniques. Raman spectra for composites were obtained on the XploRA Micro-Raman spectrophotometer (Horiba) in the range between 1000 and 3000 cm−1. X-ray diffraction (XRD) studies were carried out using the PANalytical X’Pert3 MRD diffractometer with monochromatized Cu Kα radiation (λ = 1.54 Å) at 40 kV and 30 mA and were recorded in the range from 20° to 80° (2θ). Field emission scanning electron microscopy (FESEM) with energy-dispersive X-ray spectroscopy (EDS) was used to evaluate the surface morphology of the composites. Using the Hitachi S-4800 equipped with EDX at an accelerating voltage of 10 kV, FESEM and EDS measurements were carried out. Transmission electron microscopy (TEM) images were obtained from JEOL JEM with an operating accelerating voltage of 120 kV. X-ray photoelectron spectroscopy (XPS) spectra were recorded using K-Alpha (Thermo Scientific, Waltham, MA, USA), and CasaXPS software was used for the deconvolution of the high-resolution XPS spectra. Thermogravimetric analysis (TGA) measurements were carried out on SDT Q600 with nitrogen atmosphere over 0–900 °C with 10 °C/min.

2.3. Graphene-poly[2-(Methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium Hydroxide] Composite

The preparation of graphene-poly[2-(methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide] composite (GPSB) was prepared as shown in Scheme 1. Monomer SB (500 mg, 1.78 mmol), ACVA (25.0 mg, 0.089 mmol), and 250 mg of G in 70 mL of DI water were heated at 70 °C for 6 h in a sonication bath. Then, the composite GPSB was purified by centrifugation at 5000 rpm for 15 min. Triplicate centrifugation followed by drying in a freeze dryer yielded fine powder of GPSB that was re-dispersed in DI water for further characterization.

2.4. Graphene-poly[2-(Methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium Hydroxide]–Iron Oxide Nanoparticle Composite

The preparation of the graphene-poly[2-(methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide]–iron oxide nanoparticle composite (GPSBI) was prepared as shown in Scheme 2. To prepare GPSBI, IONPs were prepared following earlier reports [43,44]. Iron acetylacetonate (3.0 g, 8.49 mmol) in 60 mL of benzyl alcohol was added to an autoclave container and heated at 180 °C for 48 h. The precipitates were purified by washing with ethanol and then centrifuged. Successively the precipitates were further washed with dichloromethane and then centrifuged. The purified IONPs were dried in a hot-air oven at 60 °C and used for the preparation of GPSBI composite. Monomer SB (500 mg, 1.78 mmol), ACVA (25.0 mg, 0.089 mmol), 250 mg of G, and 50 mg of IONPs were added to 70 mL of DI water, and the mixture was heated at 70 °C for 6 h in a sonication bath. The composite GPSBI was then purified by centrifugation at 5000 rpm for 15 min. Washing was performed three times with water and the composite was dried in a freeze dryer. The obtained fine powder of GPSBI was re-dispersed in DI water for further characterization.

3. Result and Discussion

In situ polymerizations of SB monomer on the graphene surface were carried out, and the graphite was exfoliated into thin layers with the smaller size of the graphene sheets. To know the molecular weight of PSB on the graphene surface, PSB was prepared by adopting the same procedure as GPSB and GPSBI by excluding graphene powder. The prepared PSB was characterized using size-exclusion chromatography (SEC) and TGA. The molecular number of PSB was measured as 24,536 g/mol using SEC (refer to supporting information). The GPSB and GPSBI composites were characterized using various physicochemical techniques. The composites were compared with G and IONPs.
X-ray diffraction (XRD) patterns have been utilized to study the defect polymer-stabilized graphene sheets in composites. The XRD patterns obtained for G, IONPs, GPSB, and GPSBI can be seen in Figure 1a. In G, the typical graphitic peaks at 2θ = 26.4° with d-spacing of 3.34 Å (Bragg law: d = n × λ/2θ; n = 1, λ = 0.154 nm) and at 2θ = ~55° correspond to (002) and (004) planes, respectively [45,46]. The diffraction peaks of IONPs observed at 30.33°, 35.77°, 43.43°, 53.81°, 57.44°, and 62.98° correspond to the planes (220), (311), (222), (400), (422), (511), and (440), respectively [47,48,49,50]. The size (Scherer formula: D = k × λ/(β × cosθ); k = 0.9, λ = 0.154 nm, β = full width half maximum) of IONPs was calculated as ~17.0 nm using the (311) plane [51]. The diffraction peak in GPSB was observed at 26.64°, corresponding to the (002) plane. The GPSBI composite shows peaks at 26.67°, 30.33°, 35.77°, 43.43°, 53.81°, 57.44°, and 62.98° that are attributed to (002-graphitic) and iron oxide peaks (220), (311), (222), (400), (422), (511), and (440), respectively. The interlayer distance of graphene sheets in GPSB and GPSBI were calculated as 3.36 and 3.30 Å; a slight increment in the interlayer distance suggests the partial exfoliation of graphite into graphene. Furthermore, compared with G, the diffraction peaks of GPSB and GPSBI show a slight shift and decrement in intensity. This might be due to defects in graphene sheets because of the presence of PSB and IONPs. However, the interlayer distance in GPSBI is higher than G but lower than the interlayer distance in GPSB; this can be explained by considering the presence of IONPs on graphene in addition to PSB.
Figure 1b presents the Raman spectra of G, GPSB, and GPSBI, showing three strong peaks at ~1350, ~1580, and ~2700 cm−1 corresponding to D, G, and 2D bands, respectively. The D band represents the defect sites in the graphene sheets at edges and surfaces and the size of the graphitic crystals [52,53]. The G band arises from the sp2 carbon–carbon bond from the first-order scattering of the E2g phonon [54]. ID/IG ratios of G, GPSB, and GPSBI were calculated as 0.13, 0.15, and 0.29, respectively. The ID/IG ratio represents the degree of disorder and inversely relates to the size of graphene sheets [55]. The ID/IG ratio result suggests that the size of graphene is decreasing in the order of G, GPSB, and GPSBI. In addition, the disorder in the composite increases, which confirms the functionalization of the graphene surface with PSB in GPSB and with PSB and IONPs in GPSBI. The 2D band around 2700 cm−1 indicates the layer of graphene sheets in the composites [56,57]. Compared to G, 2D bands in GPSB and GPSBI are sharp, indicating the thin-layered graphene sheets compared to the graphene sheets in G. Additionally, GPSBI has two sharp, distinct peaks and two small, broad peaks at ~210, ~277, ~380, and ~580 cm−1, attributed to the IONPs, confirmed by the Raman spectra of IONPs shown in Figure S1.
The surface morphology of the G, IONPs, GPSB, and GPSBI was examined by FESEM and TEM measurements. The FESEM images of G and corresponding elemental mapping are shown in Figure S2. The FESEM image of graphite flakes reveals graphene sheets with lateral sizes of 10 ± 4 µm. The elemental mapping measurement confirms the uniform distribution of carbon (C) elements and the fair distribution of oxygen (O) elements on the G surface. Figure S3 depicts the FESEM images of IONPs, and their elemental mapping is shown in Figure S3b. The even distribution of O and iron (Fe) elements is clear from the images (Figure S3c,d).
Figure 2 displays the FESEM images (a–c) of GPSB and their elemental mapping (d–g). GPSB possesses plate-like morphology with homogenous granular size. The size of graphene sheets is much smaller than graphene sheets in G; the lateral size of graphene sheets in GPSB was measured as 3 ± 1 µm. The elemental mapping of GPSB (Figure 2b) was further analyzed to study the existing elements. The results revealed that C (Figure 2d), nitrogen (N) (Figure 2e), O (Figure 2f), and sulfur (S) (Figure 2g) are evenly distributed on the graphene sheets. The intensity of element O is significantly improved compared to element O in G. The elements (O, N, and S) originated from PSB, indicating the successful formation of composite GPSB and functionalization of graphene sheets with PSB.
FESEM images, along with the elemental mapping of GPSBI, are depicted in Figure 3. As can be seen in Figure 3, the prepared GPSBI exhibits the plate-like structure of graphene sheets with IONPs. Moreover, a large amount of IONPs are distributed homogeneously on the graphene sheets. The average lateral size of graphene sheets was measured as 3 ± 0.5 µm. The presence of elements C, N, O, and S from PSB and Fe and O from IONPs were confirmed from the elemental mapping images, as shown in Figure 3d–h.
The morphologies of G, IONPs, GPSB, and GPSBI were further investigated using TEM measurements. The TEM images of G depicted in Figure S4 reveal the plate-like, wrinkled structure of graphene sheets. The lateral size of the graphene sheets in G was measured as 9 ± 4 µm.
Figure 4 exhibits the morphology of GPSB and GPSBI composites. Figure 4a–c illustrates the TEM images of GPSB composites, displaying the layered, folded, wrinkled structure with many small graphene sheets on large graphene sheets. The lateral size of graphene sheets in GPSB was measured as 2.5 ± 0.2 µm. Figure S5 exposes the aggregated spherical shape IONPs particles with an average size of about 20 ± 8 nm. The size of IONPs measured from XRD (~17 nm) and TEM (20 ± 8 nm) shows a similar result. Aggregated IONPs (Figure S5) suggest that the surface is not well stabilized with the stabilizing molecules/benzyl alcohol used during the preparation of IONPs. However, the IONPs in GPSBI composites (Figure 4d) show a uniform distribution. In addition, Figure 4d–f reveals the thin graphene sheets compared to graphene sheets in GPSB (Figure 4a–c). This reveals that PSB and IONPs have effective interaction with graphene sheets in GPSBI. Thus, the uniform distribution of IONPs on the graphene surface is observed in the TEM image. The lateral size of graphene sheets in GPSBI was measured at 1.5 ± 0.2 µm, and IONPs were measured at 18 ± 5 nm, showing that the size of the IONPs is maintained in the stabilization of the graphene surface.
The XPS data provide further information about the chemical composition and formation of GPSB and GPSBI. The survey XPS spectrum of G is depicted in Figure S6, with peaks at binding energy of ~286 and ~530 eV attributed to C 1s and O 1s, respectively (Figure S6a). The C 1s level deconvoluted into four peaks at 284.76, 285.52, 286.22, and 286.92 eV, attributed to C=C/C-C, C-O, C=O, and O=C-OH, respectively (Figure S6b). The deconvoluted XPS spectra of O 1s for G shown in Figure S6c show oxygen in different functional groups: C=O (531.80 eV), C-O (533.16 eV), and O=C-O (533.84 eV). Figure S6d shows the survey spectrum of IONPs, which contains Fe and O elements. Figure S6e displays the Fe 2p high-resolution spectrum, with two prominent peaks at ~711 and 724 eV assigned to Fe 2p3/2 and Fe 2p1/2, respectively, consistent with the reported IONPs [58,59]. Deconvolution of Fe 2p3/2 shows three peaks at 710.98, 714.54, and 719.01 eV attributed to Fe3+, Fe2+, and satellite peaks of Fe 2p3/2, respectively. Three peaks observed on deconvolution of Fe 2p1/2 at 724.08, 727.13, and 732.36 eV correspond to Fe3+, Fe2+, and satellite Fe peak of Fe 2p1/2, respectively. This result reveals that the major component of IONPs is Fe3+ with a minor component of Fe2+.
The XPS spectra of GPSB are shown in Figure 5, and the survey spectra of GPSB are depicted in Figure 5a. The survey spectrum indicates the presence of elements such as S 2p, C 1s, N 1s, and O 1s at 170, 285, 403, and 530 eV, respectively. On deconvolution of C 1s (Figure 5b), five peaks were observed at 284.76, 285.59, 286.37, 287.13, and 289.12 eV, responsible for C=C/C-C, C-N/C-SO3, C-O, C=O, and O=C-O/O-C-SO3, respectively. The SO3 arises from the sulfonate group in PSB [60,61]. The deconvoluted XPS spectra of N 1s for GPSB, shown in Figure 5c, reveal oxygen atoms in different functional groups: −N− (399.75 eV) and −N(CH3)3+ (402.65 eV) [60]. The O 1s level (Figure 5d) shows four peaks at 531.28, 532.40, 533.62, and 534.45 eV corresponding to C=O, C-O, O=C-OH, and H-O-H (moisture), respectively. Figure 5e shows the S 2p level with deconvolution results in four peaks at 164.06, 165.22, 167.68, and 168.89 eV attributed to oxidized S, C-SO32− 2p3/2, and C-SO32− 2p1/2, respectively. The presence of −SO3 and −N(CH3)3+ confirms the functionalization of the graphene surface with PSB.
Figure 6 shows the XPS spectra of GPSBI. The survey spectra show distinct peaks of S 2p, C 1s, N 1s, O 1s, and Fe 2p at 170, 284, 401, 532, and 712 eV, respectively (Figure 6a). Five peaks were observed on deconvolution of the C 1s level (Figure 6b) at 284.80, 285.68, 286.51, 287.31, and 289.22 eV responsible for C=C/C-C, C-N/C-SO3, C-OH/C-O-C, C=O, and O=C-O/O=C-SO3, respectively. Deconvolution of the N 1s level results in two peaks at 400.14 and 402.78 eV, attributed to the presence of −N(CH3)3+ and −N- groups in GPSBI, respectively (Figure 6c). Four peaks at 530.56, 531.65, 532.76, and 534.06 eV were observed on the deconvolution of O 1s (Figure 6d), responsible for C=O, C-O/Fe-O, O=C-OH, and H-O-H, respectively. Figure 6e depicts the high-resolution spectra of GPSBI at the S 2p level, resulting in four peaks on deconvolution. Two trace peaks of oxidized S at 164.21 and 165.36 eV and major peaks at 167.85 and 169.06 eV are responsible for C-SO32− 2p3/2 and C-SO32− 2p1/2, respectively. At the Fe 2p level, GPSBI showed six peaks on deconvolution, which is clear from Figure 6f. Three peaks were observed at the Fe 2p3/2 level at 711.41, 714.46, and 719.35 eV, which are attributed to Fe3+, Fe2+, and Fe 2p3/2 satellite peaks, respectively. Similarly, the Fe 2p1/2 level showed peaks at 724.47, 727.35, and 732.81 eV, which are responsible for Fe3+, Fe2+, and Fe 2p1/2 satellite peaks, respectively. This result reveals that the major composition of IONPs in GPSBI is Fe3+. XPS studies reveal that the major component of IONPs is Fe3O4, and it has a minor component, α-Fe2O3. Moreover, the structure of IONPS remains the same in GPSB, and GPSBI structural changes were not observed.
The thermal behaviors of G, IONPs, PSB, and prepared composites were studied by TGA. G, IONPs, GPSB, GPSBI, and PSB samples were subjected to thermal decomposition up to 900 °C in the inert atmosphere, as shown in Figure 7. The thermal pattern of G and IONPs clearly show residue of about 98.19% and 95.01%, respectively. This reveals the stability of G and IONPs. The 5% loss in IONPs and 2% loss in G might be responsible for the degradation of adsorbed water molecules or moisture on the surface. PSB showed three-step degradation, with weight loss of 5% below 200 °C, weight loss of 16.5% between 230 and 320 °C, and weight loss of 84.5% above 350 until 450 °C, which are attributed to adsorbed water molecules, the degradation of nitrogen atoms from quaternary ammonium salt, and sulfate groups, respectively [62,63,64]. The remaining polymer degraded and showed a residual weight of about 5.66% at ~900 °C. The composites GPSB and GPSBI showed three-step degradation. The 5% weight loss observed for GPSB around 100 °C was due to the degradation of adsorbed water molecules. As a second step, polymer degradation takes place with a weight loss of 23.58% between 250 and 320 °C (nitrogen groups). The sulfate groups degraded between 320 and 425 °C with a weight loss of 32.6%. Furthermore, GPSB showed residual weight loss of 60.5% observed until ~900 °C, which was attributed to the degradation of left polymer structures and decomposition of most stable oxygen functionalities [65,66]. In GPSBI composites, 5% weight loss at about 100 °C was due to the degradation of water molecules that began at about 70 °C. The PSB polymer decomposition occurred in two steps at 250–320 °C (nitrogen atoms) and 350–420 °C (sulfonate) with weight loss of ~23% and ~28%, respectively. From ~450 °C to 730 °C, weight loss might be due to the degradation of the remaining part of the polymer and degradation of IONPs left with the residual weight of about 58.8% at around 900 °C [66].
The overall studies revealed that PSB interacts with graphene surfaces through ester, quaternary ammonium, and oxygen from sulfonate units. Furthermore, sulfonate units from PSB interact simultaneously with IONPs and graphene surfaces. These interactions help to thoroughly disperse GPSB and GPSBI composites in water. Thus, the hydrophobic nature of the graphene surface can be converted to hydrophilic nature and can be applied to bio-applications.

4. Conclusions

We successfully prepared GPSB and GPSBI composites using a simple method. XRD and Raman studies confirm the partial exfoliation of graphite into thin-layered graphene sheets in GPSB and GPSBI composites. TEM and SEM measurements revealed the size of graphene sheets in GPSB and GPSBI as 3 ± 0.2 µm. These graphene sheets are smaller than the graphene sheets that were in G. From XRD and TEM studies, IONP size was measured as ~20 nm. The elemental mapping further showed the uniform distribution of PSB and IONPs on graphene sheets. XPS and TGA revealed the presence of PSB and IONPs in the prepared composites. TGA showed the residual weight as 60.5% and 58.8% for GPSB and GPSBI, respectively. This shows the amount of graphene that exists in the prepared composites. The combination of PSB with graphene surface showed remarkable structural and physicochemical properties with IONPs. These composites with outstanding functionalities can be potential candidates for biomedicine applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14183885/s1. Scheme 1: synthesis of poly[2-Methacryloyloxy]ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide], Figure S1: Raman spectrum of IONPs, Figure S2: FESEM images and elemental mapping of G, Figure S3: FESEM images and elemental mapping of IONPs, Figure S4: TEM images of G, Figure S5: TEM images of INOPs, and Figure S6: XPS spectra of G and IONPs.

Author Contributions

The manuscript was written through the contributions of all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a National Research Foundation of Korea (NRF) grant funded by the Korean government MSIT (2021R1A2B5B02002436).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no competing financial interest.

References

  1. Yetisgin, A.A.; Cetinel, S.; Zuvin, M.; Kosar, A.; Kutlu, O. Therapeutic Nanoparticles and Their Targeted Delivery Applications. Molecules 2020, 25, 2193. [Google Scholar] [CrossRef] [PubMed]
  2. Chenthamara, D.; Subramaniam, S.; Ramakrishnan, S.G.; Krishnaswamy, S.; Essa, M.M.; Lin, F.H.; Qoronfleh, M.W. Therapeutic efficacy of nanoparticles and routes of administration. Biomater. Res. 2019, 23, 20. [Google Scholar] [CrossRef] [PubMed]
  3. Mitchell, M.J.; Billingsley, M.M.; Haley, R.M.; Wechsler, M.E.; Peppas, N.A.; Langer, R. Engineering precision nanoparticles for drug delivery. Nat. Rev. Drug Discov. 2021, 20, 101–124. [Google Scholar] [CrossRef] [PubMed]
  4. Tharkar, P.; Varanasi, R.; Wong, W.S.F.; Jin, C.; Chrzanowski, W. Nano-Enhanced Drug Delivery and Therapeutic Ultrasound for Cancer Treatment and Beyond. Front. Bioeng. Biotechnol. 2019, 7, 324. [Google Scholar] [CrossRef] [PubMed]
  5. Arias, L.S.; Pessan, J.P.; Vieira, A.P.M.; de Lima, T.M.T.; Delbem, A.C.B.; Monteiro, D.R. Iron Oxide Nanoparticles for Biomedical Applications: A Perspective on Synthesis, Drugs, Antimicrobial Activity, and Toxicity. Antibiotics 2018, 7, 46. [Google Scholar] [CrossRef] [PubMed]
  6. Hou, Z.; Liu, Y.; Xu, J.; Zhu, J. Surface engineering of magnetic iron oxide nanoparticles by polymer grafting: Synthesis progress and biomedical applications. Nanoscale 2020, 12, 14957–14975. [Google Scholar] [CrossRef] [PubMed]
  7. Wu, W.; Jiang, C.Z.; Roy, V.A.L. Designed synthesis and surface engineering strategies of magnetic iron oxide nanoparticles for biomedical applications. Nanoscale 2016, 8, 19421–19474. [Google Scholar] [CrossRef] [PubMed]
  8. Dave, P.N.; Chopda, L.V. Application of Iron Oxide Nanomaterials for the Removal of Heavy Metals. J. Nanotechnol. 2014, 2014, 398569. [Google Scholar] [CrossRef]
  9. Sangaiya, P.; Jayaprakash, R. A Review on Iron Oxide Nanoparticles and Their Biomedical Applications. J. Supercond. Nov. Magn. 2018, 31, 3397–3413. [Google Scholar] [CrossRef]
  10. Schwaminger, S.P.; Brammen, M.W.; Zunhammer, F.; Däumler, N.; Fraga-García, P.; Berensmeier, S. Iron Oxide Nanoparticles: Multiwall Carbon Nanotube Composite Materials for Batch or Chromatographic Biomolecule Separation. Nanoscale Res. Lett. 2021, 16, 30. [Google Scholar] [CrossRef]
  11. Mourdikoudis, S.; Kostopoulou, A.; LaGrow, A.P. Magnetic Nanoparticle Composites: Synergistic Effects and Applications. Adv. Sci. 2021, 8, 2004951. [Google Scholar] [CrossRef] [PubMed]
  12. Pillarisetti, S.; Uthaman, S.; Huh, K.M.; Koh, Y.S.; Lee, S.; Park, I.-K. Multimodal Composite Iron Oxide Nanoparticles for Biomedical Applications. Tissue Eng. Regen. Med. 2019, 16, 451–465. [Google Scholar] [CrossRef] [PubMed]
  13. Zare, E.N.; Abdollahi, T.; Motahari, A. Effect of functionalization of iron oxide nanoparticles on the physical properties of poly (aniline-co-pyrrole) based nanocomposites: Experimental and theoretical studies. Arab. J. Chem. 2020, 13, 2331–2339. [Google Scholar] [CrossRef]
  14. Darabdhara, G.; Borthakur, P.; Das, M.R.; Szunerits, S.; Boukherroub, R. Iron Oxide Nanoparticles-Graphene Composite Materials: Synthesis, Characterization and Applications. In Handbook of Carbon Nano Materials; Springer: Cham, Switzerland, 2020; pp. 265–309. [Google Scholar]
  15. Rodríguez, B.A.G.; Pérez-Caro, M.; Alencar, R.S.; Filho, A.G.S.; Aguiar, J.A. Graphene nanoribbons and iron oxide nanoparticles composite as a potential candidate in DNA sensing applications. J. Appl. Phys. 2020, 127, 044901. [Google Scholar] [CrossRef]
  16. Suarez-Martinez, I.; Grobert, N.; Ewels, C.P. Nomenclature of sp2 carbon nanoforms. Carbon 2012, 50, 741–747. [Google Scholar] [CrossRef]
  17. Sheikhi, M.; Shahab, S.; Balali, E.; Alnajjar, R.; Kaviani, S.; Khancheuski, M.; Al Saud, S. Study of the Ribavirin drug adsorption on the surfaces of carbon nanotube and graphene nanosheet using density functional theory calculations. Bull. Korean Chem. Soc. 2021, 42, 1446–1457. [Google Scholar] [CrossRef]
  18. Al Faruque, M.A.; Syduzzaman, M.; Sarkar, J.; Bilisik, K.; Naebe, M. A Review on the Production Methods and Applications of Graphene-Based Materials. Nanomaterials 2021, 11, 2414. [Google Scholar] [CrossRef] [PubMed]
  19. Liao, G.; Hu, J.; Chen, Z.; Zhang, R.; Wang, G.; Kuang, T. Preparation, Properties, and Applications of Graphene-Based Hydrogels. Front. Chem. 2018, 6, 450. [Google Scholar] [CrossRef]
  20. Velasco, A.; Ryu, Y.K.; Boscá, A.; Ladrón-de-Guevara, A.; Hunt, E.; Zuo, J.; Pedrós, J.; Calle, F.; Martinez, J. Recent trends in graphene supercapacitors: From large area to microsupercapacitors. Sustain. Energy Fuels 2021, 5, 1235–1254. [Google Scholar] [CrossRef]
  21. Liu, C.; Yu, Z.; Neff, D.; Zhamu, A.; Jang, B.Z. Graphene-Based Supercapacitor with an Ultrahigh Energy Density. Nano Lett. 2010, 10, 4863–4868. [Google Scholar] [CrossRef]
  22. Bhol, P.; Yadav, S.; Altaee, A.; Saxena, M.; Misra, P.K.; Samal, A.K. Graphene-Based Membranes for Water and Wastewater Treatment: A Review. ACS Appl. Nano Mater. 2021, 4, 3274–3293. [Google Scholar] [CrossRef]
  23. Safarpour, M.; Khataee, A. Chapter 15—Graphene-Based Materials for Water Purification. In Nanoscale Materials in Water Purification; Thomas, S., Pasquini, D., Leu, S.-Y., Gopakumar, D.A., Eds.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 383–430. [Google Scholar]
  24. Shen, H.; Zhang, L.; Liu, M.; Zhang, Z. Biomedical applications of graphene. Theranostics 2012, 2, 283–294. [Google Scholar] [CrossRef] [PubMed]
  25. Chung, C.; Kim, Y.-K.; Shin, D.; Ryoo, S.-R.; Hong, B.H.; Min, D.-H. Biomedical Applications of Graphene and Graphene Oxide. Acc. Chem. Res. 2013, 46, 2211–2224. [Google Scholar] [CrossRef]
  26. Lyubutin, I.S.; Baskakov, A.O.; Starchikov, S.S.; Shih, K.-Y.; Lin, C.-R.; Tseng, Y.-T.; Yang, S.-S.; Han, Z.-Y.; Ogarkova, Y.L.; Nikolaichik, V.I.; et al. Synthesis and characterization of graphene modified by iron oxide nanoparticles. Mater. Chem. Phys. 2018, 219, 411–420. [Google Scholar] [CrossRef]
  27. Hof, F.; Liu, M.; Valenti, G.; Picheau, E.; Paolucci, F.; Pénicaud, A. Size Control of Nanographene Supported Iron Oxide Nanoparticles Enhances Their Electrocatalytic Performance for the Oxygen Reduction and Oxygen Evolution Reactions. J. Phys. Chem. C 2019, 123, 20774–20780. [Google Scholar] [CrossRef]
  28. Belaustegui, Y.; Rincón, I.; Fernández-Carretero, F.; Azpiroz, P.; García-Luís, A.; Tanaka, D.A.P. Three-dimensional reduced graphene oxide decorated with iron oxide nanoparticles as efficient active material for high performance capacitive deionization electrodes. Chem. Eng. J. Adv. 2021, 6, 100094. [Google Scholar] [CrossRef]
  29. Gonzalez-Rodriguez, R.; Campbell, E.; Naumov, A. Multifunctional graphene oxide/iron oxide nanoparticles for magnetic targeted drug delivery dual magnetic resonance/fluorescence imaging and cancer sensing. PLoS ONE 2019, 14, e0217072. [Google Scholar] [CrossRef]
  30. Kim, J.D.; Choi, H.C. Enzyme-free H2O2 Sensing at ZnO–Graphene Oxide-modified Glassy Carbon Electrode. Bull. Korean Chem. Soc. 2021, 42, 25–28. [Google Scholar] [CrossRef]
  31. Umar, A.A.; Patah, M.F.A.; Abnisa, F.; Daud, W.M.A.W. Preparation of magnetized iron oxide grafted on graphene oxide for hyperthermia application. Rev. Chem. Eng. 2020, 38, 569–601. [Google Scholar] [CrossRef]
  32. Pinto, A.M.; Magalhães, F.D. Graphene-Polymer Composites. Polymers 2021, 13, 685. [Google Scholar] [CrossRef]
  33. Ganguly, S.; Kanovsky, N.; Das, P.; Gedanken, A.; Margel, S. Photopolymerized Thin Coating of Polypyrrole/Graphene Nanofiber/Iron Oxide onto Nonpolar Plastic for Flexible Electromagnetic Radiation Shielding, Strain Sensing, and Non-Contact Heating Applications. Adv. Mater. Interfaces 2021, 8, 2101255. [Google Scholar] [CrossRef]
  34. Ibrahim, A.; Klopocinska, A.; Horvat, K.; Abdel Hamid, Z. Graphene-Based Nanocomposites: Synthesis, Mechanical Properties, and Characterizations. Polymers 2021, 13, 2869. [Google Scholar] [CrossRef] [PubMed]
  35. Ramachandra Kurup Sasikala, A.; Thomas, R.G.; Unnithan, A.R.; Saravanakumar, B.; Jeong, Y.Y.; Park, C.H.; Kim, C.S. Multifunctional Nanocarpets for Cancer Theranostics: Remotely Controlled Graphene Nanoheaters for Thermo-Chemosensitisation and Magnetic Resonance Imaging. Sci. Rep. 2016, 6, 20543. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, J.; Yang, W.; Tao, L.; Li, D.; Boyer, C.A.; Davis, T.P. Thermosensitive graphene nanocomposites formed using pyrene terminal polymers made by RAFT polymerization. J. Polym. Sci. Part A 2010, 48, 425–433. [Google Scholar] [CrossRef]
  37. Sivakumar, M.P.; Islami, M.; Zarrabi, A.; Khosravi, A.; Peimanfard, S. Polymer-Graphene Nanoassemblies and their Applications in Cancer Theranostics. Anti-Cancer Agents Med. Chem. 2020, 20, 1340–1351. [Google Scholar] [CrossRef]
  38. Liu, L.; Ma, Q.; Cao, J.; Gao, Y.; Han, S.; Liang, Y.; Zhang, T.; Song, Y.; Sun, Y. Recent progress of graphene oxide-based multifunctional nanomaterials for cancer treatment. Cancer Nanotechnol. 2021, 12, 18. [Google Scholar] [CrossRef]
  39. Dash, B.S.; Jose, G.; Lu, Y.-J.; Chen, J.-P. Functionalized Reduced Graphene Oxide as a Versatile Tool for Cancer Therapy. Int. J. Mol. Sci. 2021, 22, 2989. [Google Scholar] [CrossRef]
  40. Gurunathan, S.; Jeyaraj, M.; Kang, M.-H.; Kim, J.-H. Graphene Oxide–Platinum Nanoparticle Nanocomposites: A Suitable Biocompatible Therapeutic Agent for Prostate Cancer. Polymers 2019, 11, 733. [Google Scholar] [CrossRef]
  41. Sattari, S.; Adeli, M.; Beyranvand, S. Functionalized Graphene Platforms for Anticancer Drug Delivery. Int. J. Nanomed. 2021, 16, 5955–5980. [Google Scholar] [CrossRef]
  42. Perumal, S.; Gangadaran, P.; Bae, Y.W.; Ahn, B.-C.; Cheong, I.W. Noncovalent Functionalized Graphene Nanocarriers from Graphite for Treating Thyroid Cancer Cells. ACS Biomater. Sci. Eng. 2021, 7, 2317–2328. [Google Scholar] [CrossRef]
  43. Atchudan, R.; Perumal, S.; Jebakumar Immanuel Edison, T.N.; Lee, Y.R. Facile synthesis of monodisperse hollow carbon nanospheres using sucrose by carbonization route. Mater. Lett. 2016, 166, 145–149. [Google Scholar] [CrossRef]
  44. Pinna, N.; Grancharov, S.; Beato, P.; Bonville, P.; Antonietti, M.; Niederberger, M. Magnetite Nanocrystals:  Nonaqueous Synthesis, Characterization, and Solubility. Chem. Mater. 2005, 17, 3044–3049. [Google Scholar] [CrossRef]
  45. Zhang, K.; Zhang, Y.; Wang, S. Enhancing thermoelectric properties of organic composites through hierarchical nanostructures. Sci. Rep. 2013, 3, 3448. [Google Scholar] [CrossRef]
  46. Çakmak, G.; Öztürk, T. Continuous synthesis of graphite with tunable interlayer distance. Diam. Relat. Mater. 2019, 96, 134–139. [Google Scholar] [CrossRef]
  47. Girod, M.; Vogel, S.; Szczerba, W.; Thünemann, A.F. How temperature determines formation of maghemite nanoparticles. J. Magn. Magn. Mater. 2015, 380, 163–167. [Google Scholar] [CrossRef]
  48. Schwaminger, S.P.; Syhr, C.; Berensmeier, S. Controlled Synthesis of Magnetic Iron Oxide Nanoparticles: Magnetite or Maghemite? Crystals 2020, 10, 214. [Google Scholar] [CrossRef]
  49. Karami, H. Synthesis and Characterization of Iron Oxide Nanoparticles by Solid State Chemical Reaction Method. J. Clust. Sci. 2010, 21, 11–20. [Google Scholar] [CrossRef]
  50. Ajinkya, N.; Yu, X.; Kaithal, P.; Luo, H.; Somani, P.; Ramakrishna, S. Magnetic Iron Oxide Nanoparticle (IONP) Synthesis to Applications: Present and Future. Materials 2020, 13, 4644. [Google Scholar] [CrossRef]
  51. He, K.; Chen, N.; Wang, C.; Wei, L.; Chen, J. Method for Determining Crystal Grain Size by X-Ray Diffraction. Cryst. Res. Technol. 2018, 53, 1700157. [Google Scholar] [CrossRef]
  52. Kim, S.-G.; Park, O.-K.; Lee, J.H.; Ku, B.-C. Layer-by-layer assembled graphene oxide films and barrier properties of thermally reduced graphene oxide membranes. Carbon Lett. 2013, 14, 247–250. [Google Scholar] [CrossRef] [Green Version]
  53. Bîru, E.I. Graphene Nanocomposites Studied by Raman Spectroscopy; IntechOpen: London, UK, 2018. [Google Scholar]
  54. Mohan, V.B.; Bhattacharyya, M.S.; Liu, D.; Jayaraman, K. Improvements in Electronic Structure and Properties of Graphene Derivatives. Adv. Mater. Lett. 2016, 7, 421–429. [Google Scholar] [CrossRef]
  55. Strankowski, M.; WBodarczyk, D.; Piszczyk, A.; Strankowska, J. Polyurethane Nanocomposites Containing Reduced Graphene Oxide, FTIR, Raman, and XRD Studies. Spectroscopy 2016, 2016, 1–6. [Google Scholar] [CrossRef]
  56. Ferrari, A.C. Raman spectroscopy of graphene and graphite: Disorder, electron–phonon coupling, doping and nonadiabatic effects. Solid State Commun. 2007, 143, 47–57. [Google Scholar] [CrossRef]
  57. Frank, O.; Mohr, M.; Maultzsch, J.; Thomsen, C.; Riaz, I.; Jalil, R.; Novoselov, K.S.; Tsoukleri, G.; Parthenios, J.; Papagelis, K.; et al. Raman 2D-Band Splitting in Graphene: Theory and Experiment. ACS Nano 2011, 5, 2231–2239. [Google Scholar] [CrossRef] [PubMed]
  58. Arunima, R.; Madhulika, S.; Niroj, K.S. Assessing magnetic and inductive thermal properties of various surfactants functionalised Fe3O4 nanoparticles for hyperthermia. Sci. Rep. 2020, 10, 15045. [Google Scholar] [CrossRef]
  59. Li, S.; Xia, X.; Vogt, B.D. Microwave-Enabled Size Control of Iron Oxide Nanoparticles on Reduced Graphene Oxide. Langmuir 2021, 37, 11131–11141. [Google Scholar] [CrossRef]
  60. Chien, H.-W.; Lin, H.-Y.; Tsai, C.-Y.; Chen, T.-Y.; Chen, W.-N. Superhydrophilic Coating with Antibacterial and Oil-Repellent Properties via NaIO(4)-Triggered Polydopamine/Sulfobetaine Methacrylate Polymerization. Polymers 2020, 12, 2008. [Google Scholar] [CrossRef]
  61. Yang, W.J.; Neoh, K.-G.; Kang, E.-T.; Lay-Ming Teo, S.; Rittschof, D. Stainless steel surfaces with thiol-terminated hyperbranched polymers for functionalization via thiol-based chemistry. Polym. Chem. 2013, 4, 3105–3115. [Google Scholar] [CrossRef]
  62. Hildebrand, V.; Laschewsky, A.; Päch, M.; Müller-Buschbaum, P.; Papadakis, C.M. Effect of the zwitterion structure on the thermo-responsive behaviour of poly(sulfobetaine methacrylates). Polym. Chem. 2017, 8, 310–322. [Google Scholar] [CrossRef]
  63. Galin, M.; Marchal, E.; Mathis, A.; Meurer, B.; Soto, Y.M.M.; Galin, J.C. Poly(sulphopropylbetaines): 3. Bulk properties. Polymer 1987, 28, 1937–1944. [Google Scholar] [CrossRef]
  64. Schönemann, E.; Laschewsky, A.; Wischerhoff, E.; Koc, J.; Rosenhahn, A. Surface Modification by Polyzwitterions of the Sulfabetaine-Type, and Their Resistance to Biofouling. Polymers 2019, 11, 1014. [Google Scholar] [CrossRef] [PubMed]
  65. Shen, J.; Hu, Y.; Shi, M.; Lu, X.; Qin, C.; Li, C.; Ye, M. Fast and Facile Preparation of Graphene Oxide and Reduced Graphene Oxide Nanoplatelets. Chem. Mater. 2009, 21, 3514–3520. [Google Scholar] [CrossRef]
  66. Ibrahim, G.P.S.; Isloor, A.M.; Ismail, A.F.; Farnood, R. One-step synthesis of zwitterionic graphene oxide nanohybrid: Application to polysulfone tight ultrafiltration hollow fiber membrane. Sci. Rep. 2020, 10, 6880. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Polymers 14 03885 sch001 550

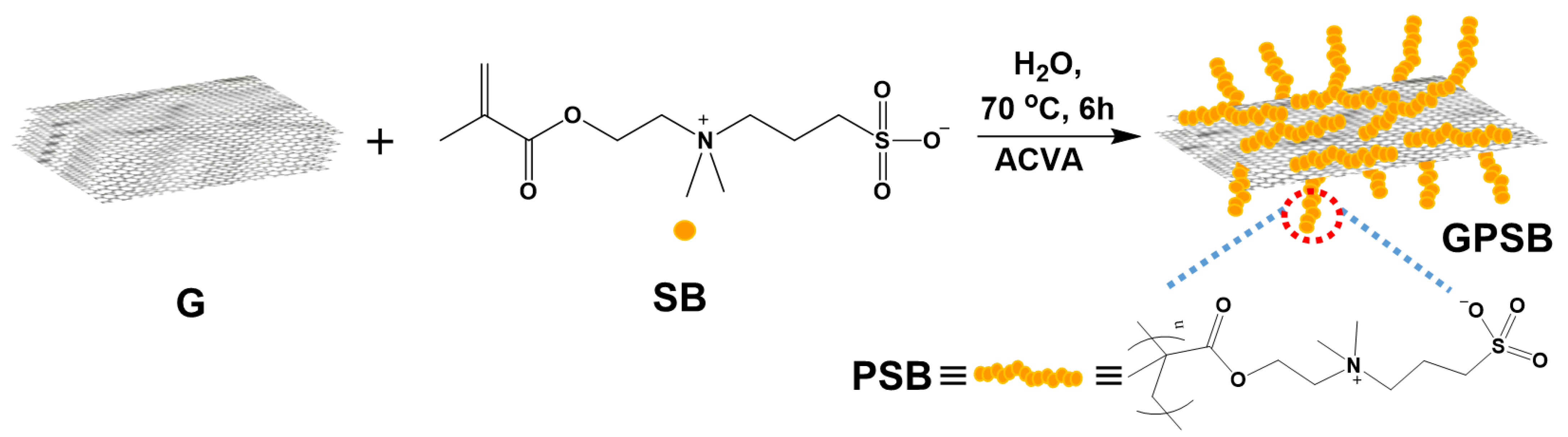

Scheme 1. Synthesis of graphene-poly[2-(methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide] composite.
Scheme 1. Synthesis of graphene-poly[2-(methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide] composite.
Polymers 14 03885 sch001
Polymers 14 03885 sch002 550

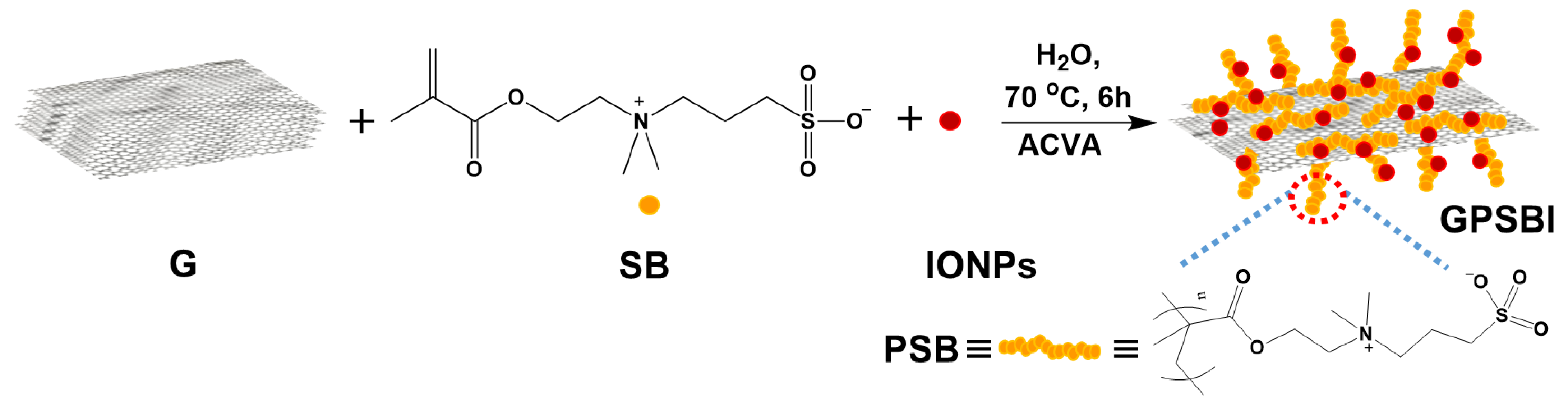

Scheme 2. Synthesis of the graphene-poly[2-(methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide]–iron oxide nanoparticle composite.
Scheme 2. Synthesis of the graphene-poly[2-(methacryloyloxy)ethyl]dimethyl-(3-sulfopropyl)ammonium hydroxide]–iron oxide nanoparticle composite.
Polymers 14 03885 sch002
Polymers 14 03885 g001 550

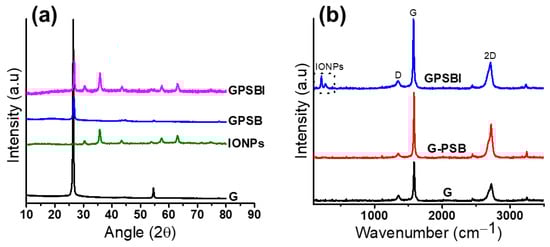

Figure 1. (a) XRD patterns corresponding to G, IONPs, GPSB, and GPSBI. (b) Raman spectra of G, GPSB, and GPSBI.
Figure 1. (a) XRD patterns corresponding to G, IONPs, GPSB, and GPSBI. (b) Raman spectra of G, GPSB, and GPSBI.
Polymers 14 03885 g001
Polymers 14 03885 g002 550

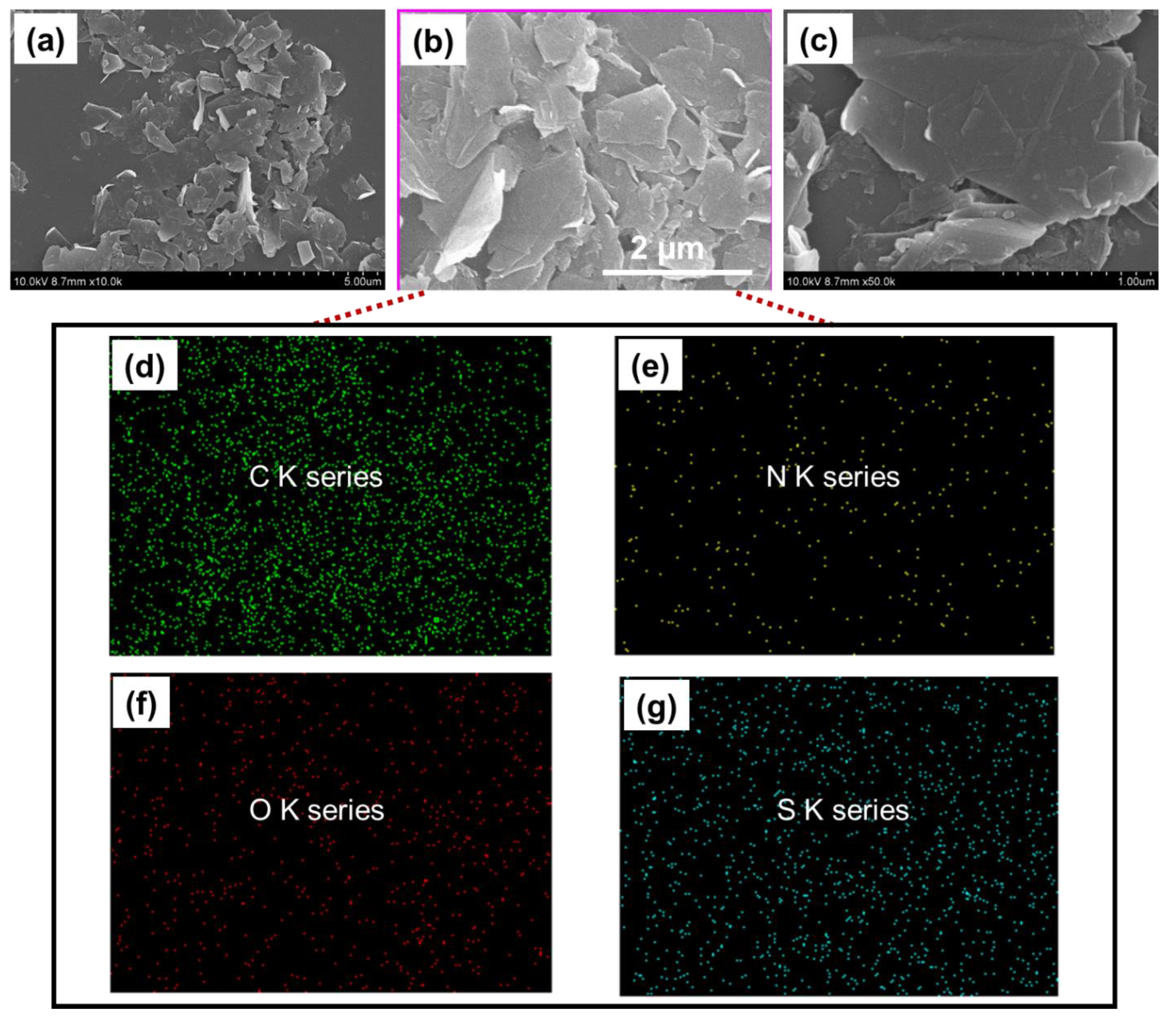

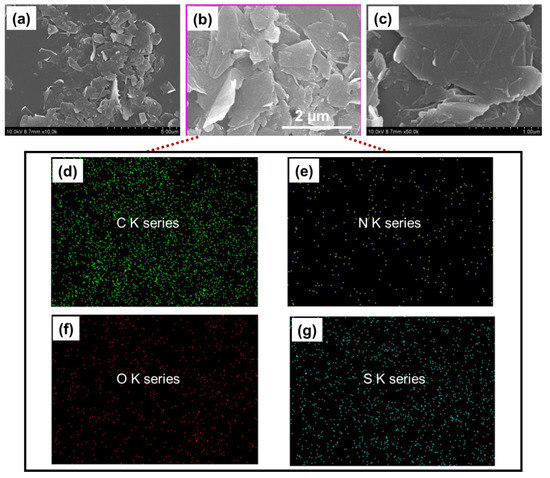

Figure 2. FESEM images of GPSB (a–c). Elemental mapping of GPSB C K series (d), N K series (e), O K series (f), and S K series (g).
Figure 2. FESEM images of GPSB (a–c). Elemental mapping of GPSB C K series (d), N K series (e), O K series (f), and S K series (g).
Polymers 14 03885 g002
Polymers 14 03885 g003 550

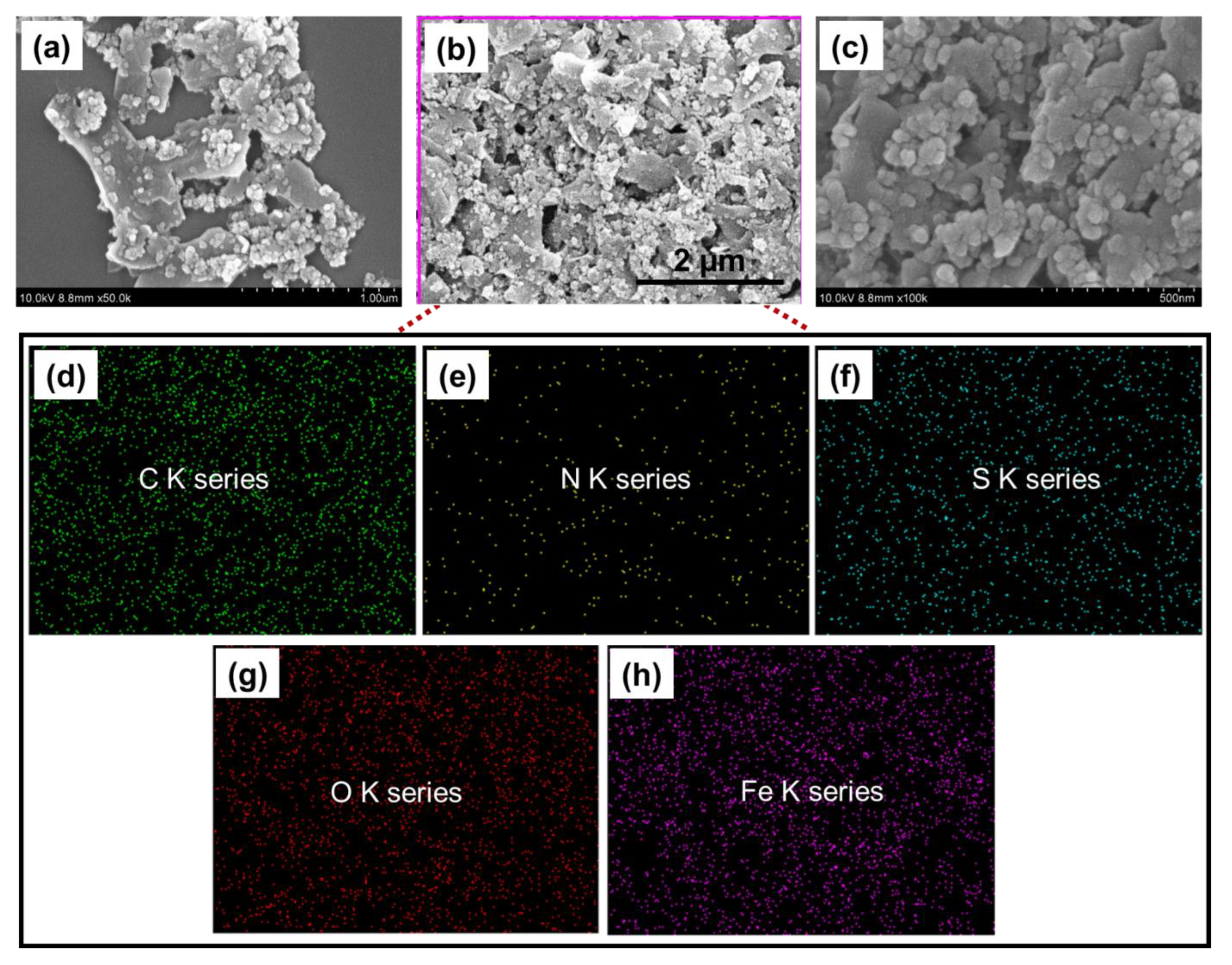

Figure 3. FESEM images of GPSBI (a–c). Elemental mapping of GPSBI C K series (d), N K series (e), S K series (f), O K series (g), and Fe K series (h).
Figure 3. FESEM images of GPSBI (a–c). Elemental mapping of GPSBI C K series (d), N K series (e), S K series (f), O K series (g), and Fe K series (h).
Polymers 14 03885 g003
Polymers 14 03885 g004 550

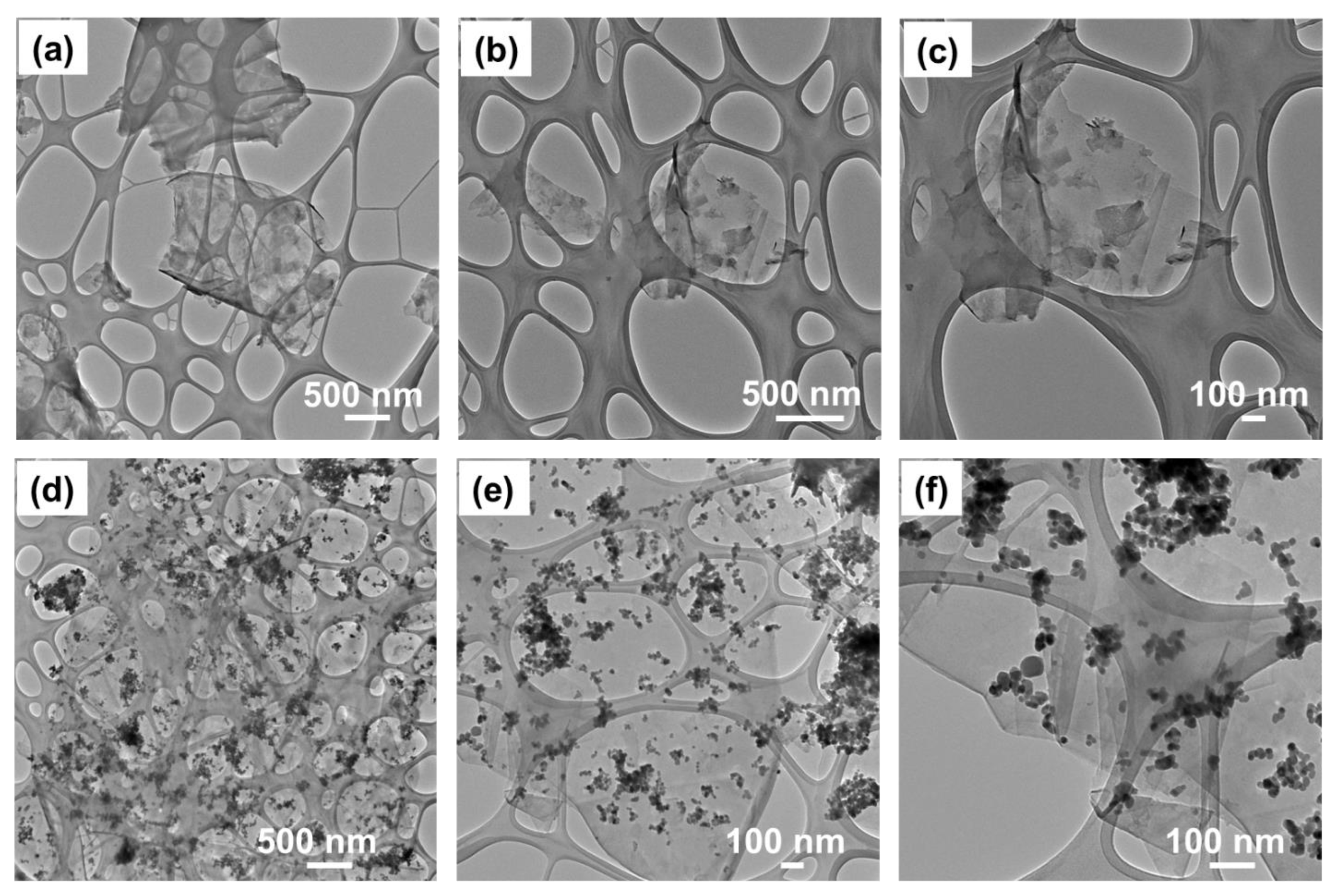

Figure 4. TEM images of GPSB (a–c) and GPSBI (d–f) with different magnifications.
Figure 4. TEM images of GPSB (a–c) and GPSBI (d–f) with different magnifications.
Polymers 14 03885 g004
Polymers 14 03885 g005 550

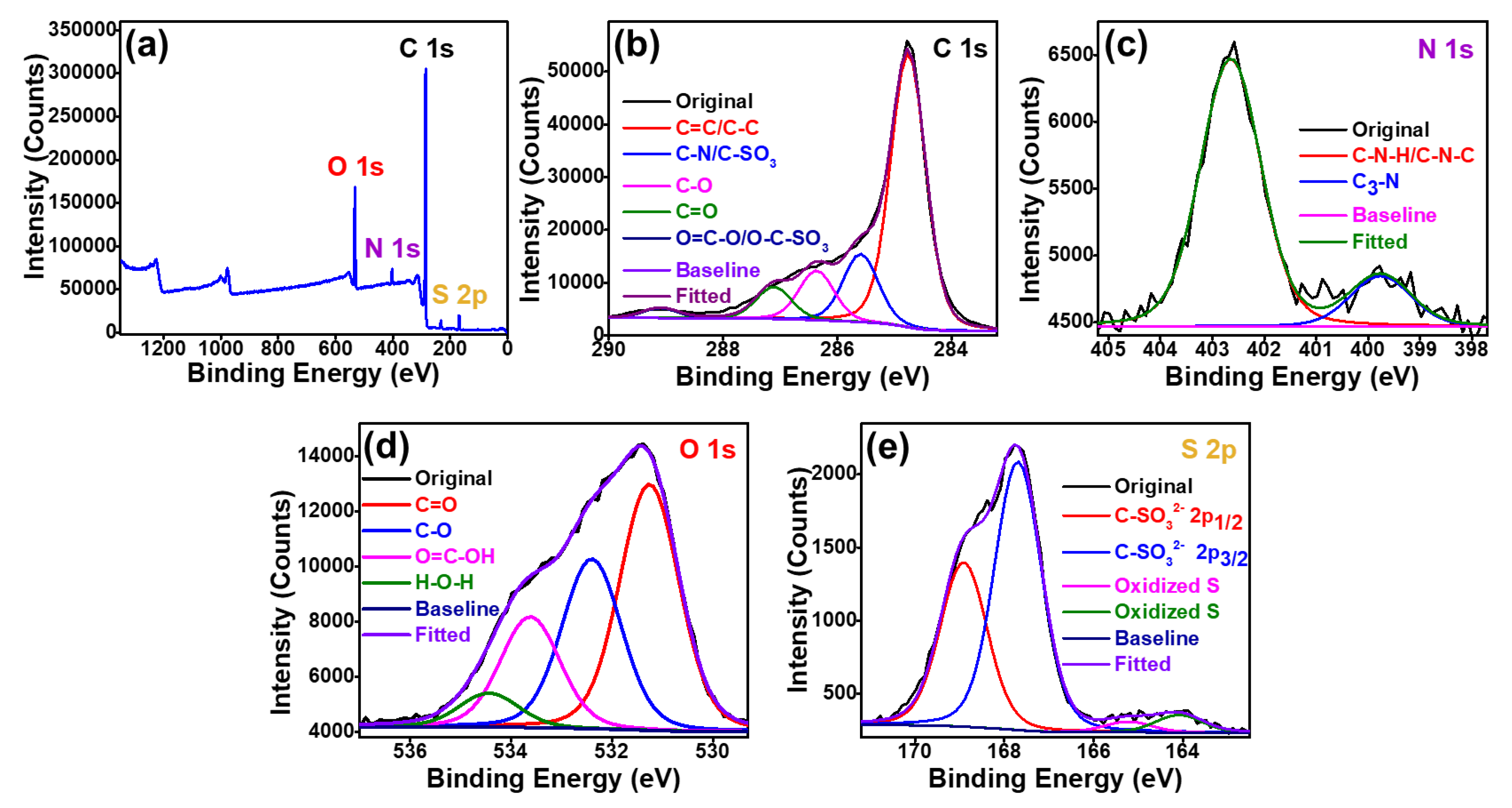

Figure 5. XPS spectra of GPSB: (a) survey spectra, (b) C 1s, (c) N 1s, (d) O 1s, and S 2p (e).
Figure 5. XPS spectra of GPSB: (a) survey spectra, (b) C 1s, (c) N 1s, (d) O 1s, and S 2p (e).
Polymers 14 03885 g005
Polymers 14 03885 g006 550

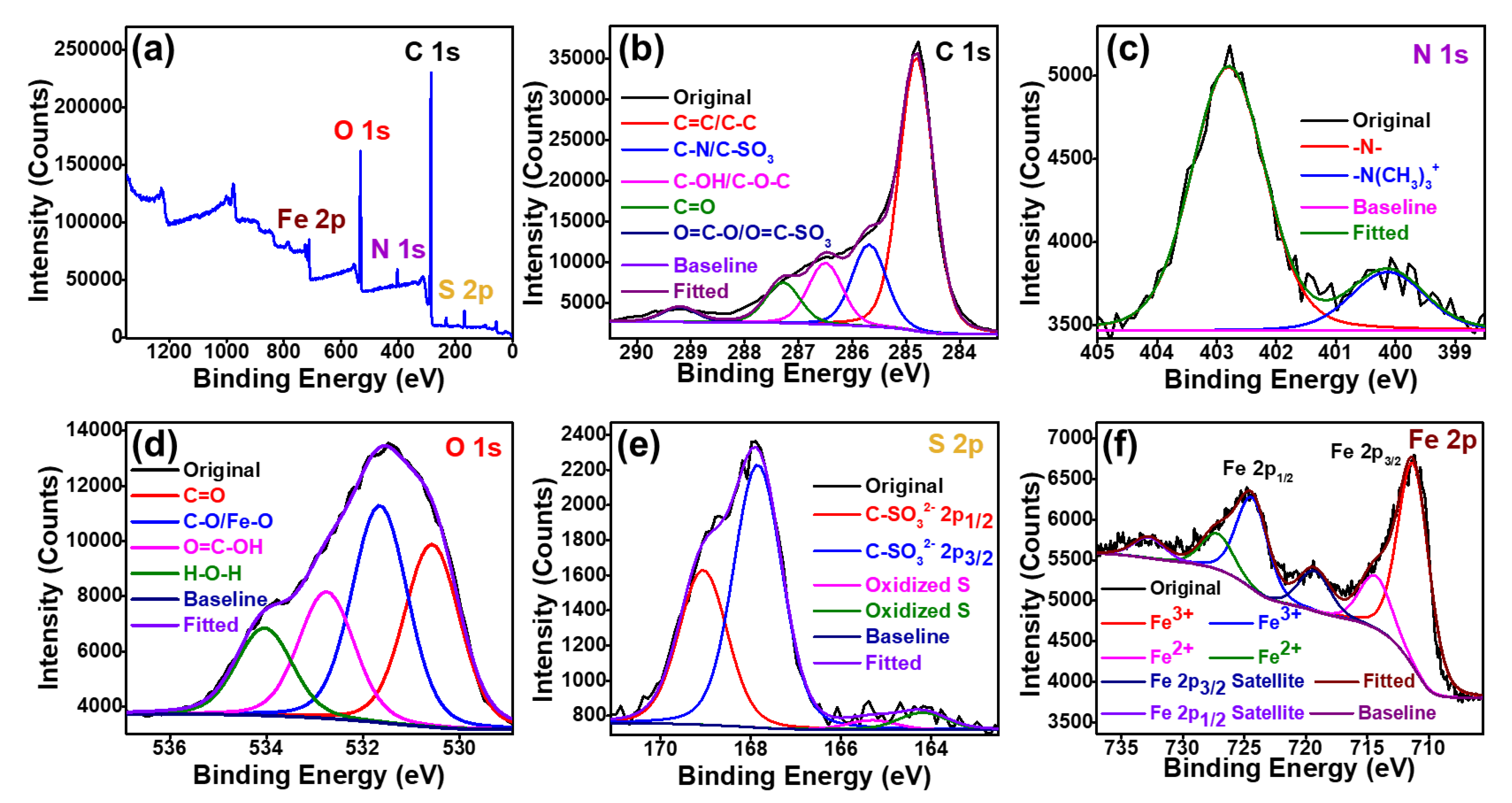

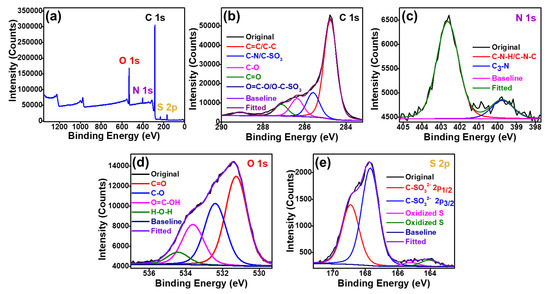

Figure 6. XPS spectra of GPSBI: (a) survey spectra, (b) C 1s, (c) N 1s, (d) O 1s, (e) S 2p, and (f) Fe 2p.
Figure 6. XPS spectra of GPSBI: (a) survey spectra, (b) C 1s, (c) N 1s, (d) O 1s, (e) S 2p, and (f) Fe 2p.
Polymers 14 03885 g006
Polymers 14 03885 g007 550

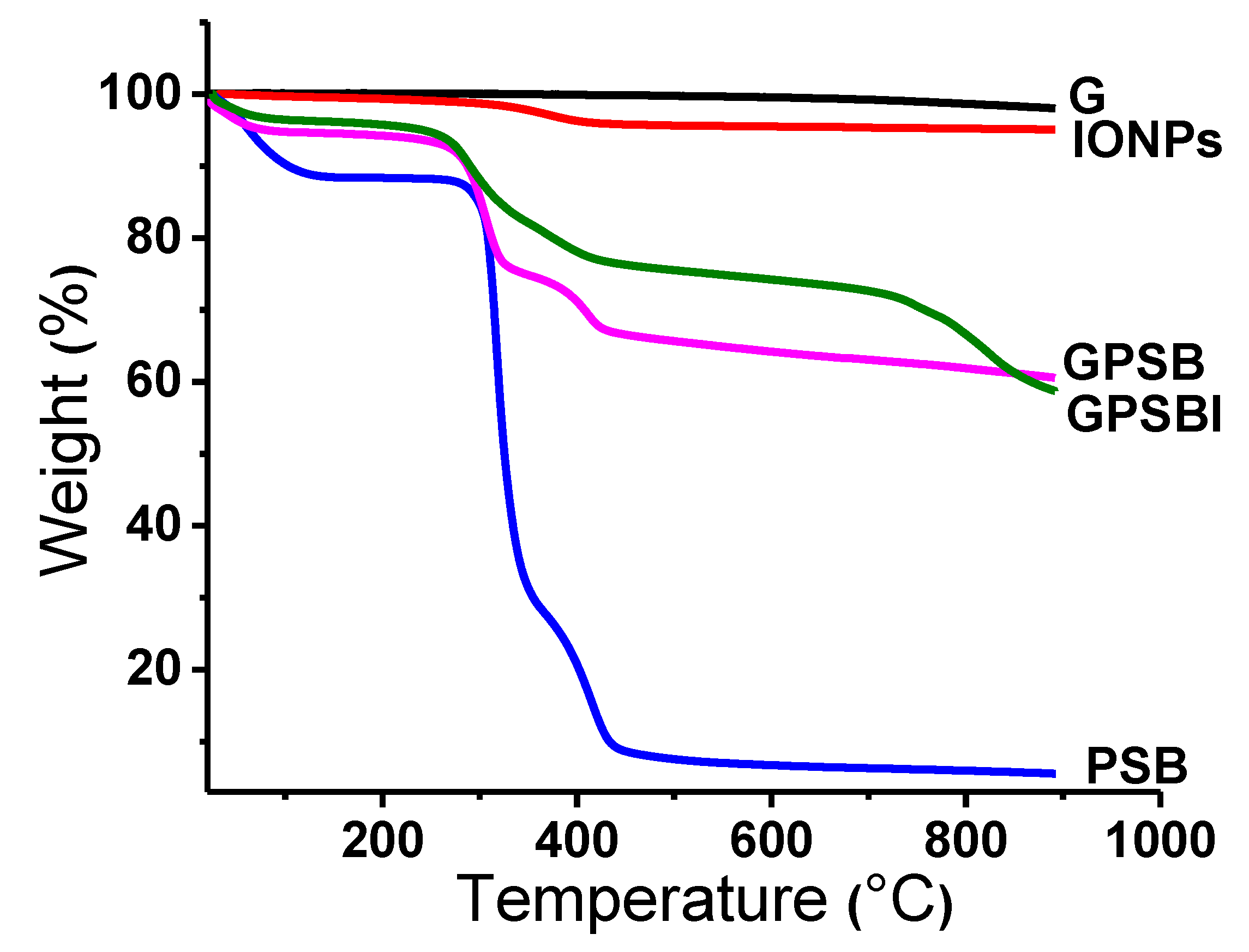

Figure 7. TGA thermograms of G, IONPs, GPSB, GPSBI, and PSB.
Figure 7. TGA thermograms of G, IONPs, GPSB, GPSBI, and PSB.
Polymers 14 03885 g007
