Effects of Periodontal Splints on Biomechanical Behaviors in Compromised Periodontal Tissues and Cement Layer: 3D Finite Element Analysis

by
Yuchen Liu
1,2,3,4,†,
Ming Fang
1,2,3,4,*,†,
Ruifeng Zhao
1,2,3,5,
Hengyan Liu
1,2,3,4,
Min Tian
1,2,3,4,
Sheng Zhong
1,2,3,5 and
Shizhu Bai
1,2,3,5,*
1
State Key Laboratory of Military Stomatology, School of Stomatology, The Fourth Military Medical University, Xi’an 710032, China
2
National Clinical Research Center for Oral Diseases, School of Stomatology, The Fourth Military Medical University, Xi’an 710032, China
3
Shaanxi Key Laboratory of Stomatology, School of Stomatology, The Fourth Military Medical University, Xi’an 710032, China
4
Department of Prosthodontics, School of Stomatology, The Fourth Military Medical University, Xi’an 710032, China
5
Digital Dentistry Center, School of Stomatology, The Fourth Military Medical University, Xi’an 710032, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2022, 14(14), 2835; https://doi.org/10.3390/polym14142835
Submission received: 24 June 2022 / Revised: 7 July 2022 / Accepted: 10 July 2022 / Published: 12 July 2022
(This article belongs to the Special Issue Biomedical Modelling and Biomechanics of Polymer Materials)
Browse Figures
Versions Notes

Abstract

:
Background: In this study, we evaluated the effect of periodontal splints made from different materials on the stress distributions in compromised periodontal tissues and cement layers, using a computer simulation of mastication. Methods: Twenty-five 3D models were created for a segment of mandibular teeth with different periodontal splints bilaterally extended to the canines. The models were divided into five groups according to the different materials and thicknesses (mm) of the splints: the non-splinted group, PEEK 0.7 group, PEEK 1.0 group, FRC group, and titanium group. Each group was subdivided based on five bone loss levels. Tooth 41 of each model was subjected to vertical and oblique (θ = 45°) static loads of 100 N, respectively, onto the incisal edge. The von Mises stresses and maximum principal stress were analyzed using Abaqus software. Results: Oblique loading resulted in higher stresses on periodontal tissues, cement layers, and splints than those caused by vertical loading. The lower the supporting bone level, the greater the stress difference between the splinted groups and the non-splinted group. In model 133,331, with severe bone loss, the maximum von Mises stress values on the alveolar bone in tooth 41 under oblique loading dramatically decreased from 406.4 MPa in the non-splinted group to 28.62 MPa in the PEEK group and to 9.59 MPa in the titanium group. The four splinted groups presented similar stress distributions in periodontal tissues. The lowest stress level on the splint was observed in the PEEK 0.7 group, and the highest stress level was transferred to the cement layer in this group. Stress concentrations were primarily exhibited at the connectors near the load-carrying area. Conclusions: The tested splinted groups were all effective in distributing the loads on periodontal tissues around splinted teeth with similar patterns. Using splinting materials with low elastic moduli reduced the stress concentration at the splint connectors, whereas the tensile stress concentration was increased in the cement layer. Thus, the use of adhesive cement with a higher elastic modulus is recommended when applying less rigid PEEK splints.

1. Introduction

Periodontitis is a microbially associated, host-mediated inflammatory disease. Its primary features include the loss of periodontal attachment and marginal alveolar bone loss [1]. Progressive alveolar bone loss eventually leads to hypermobility of the teeth, which has a negative impact on masticatory function or chewing comfort, aesthetics, and phonetics [2]. Efforts should be directed toward tooth splinting for patients with mobile teeth [3]. Splinting is defined as connecting pathological mobile teeth with relatively healthy adjacent ones into a rigid unit, which is commonly used in mandibular anterior teeth. Such a fixed unit can not only stabilize mobile teeth in a predetermined position to restore patients’ psychological and physical well-being but also decrease stress concentrations [2,3]. In addition, splinting can induce bone-remodeling processes, consequently, preventing bone loss [4].
Regarding materials used in dental immobilization systems, fiber-reinforced composite has been used for a long time due to its high strength, pliability, bondability, biocompatibility, and esthetics. However, it requires lengthy chair-side procedures. In addition, discoloration and dislodgement are possible complications [5]. Moreover, fiber-reinforced composite resin easily induces plaque formation, which has an adverse effect on periodontal maintenance.
Computer-aided design/computer-aided manufacturing (CAD/CAM) technology is one of the fastest-evolving aspects of modern dentistry, offering some improvements to periodontal splints. First, it can increase patients’ comfort and improve cooperation [6]. In addition, CAD/CAM-processed indirect periodontal splints have a closer fit with the curved dental arch and lingual teeth profile than direct ones [7]. Most importantly, the need for time-consuming clinical procedures is reduced. CAD/CAM technology makes it possible for dentists to perform these procedures more accurately and efficiently.
Two main types of materials currently available for use in CAD/CAM splints are titanium and polyetheretherketone (PEEK) [7,8]. PEEK is a thermoplastic, tooth-colored polymetric material, with extreme heat resistance and high performance. Due to its excellent physical and biological properties, and the fact that it has better esthetics than metals, PEEK has been proposed for use in prosthodontic applications, such as in implants, provisional abutments, crowns, bridges, and removable partial dentures [9,10]. Another positive feature of PEEK is its low plaque affinity, which is important when treating patients with periodontitis. An in vitro study revealed that the formation of dental biofilm on the PEEK surface is even lower than that on titanium and zirconia ceramics [11]. Thereby, it seems that PEEK is advantageous compared with titanium in the fabrication of periodontal splints.
The clinical longevity of periodontal splints depends to a great extent on their biomechanical behaviors in compromised periodontal tissues and cement layers. Different periodontal splints exhibit different patterns of load distribution and transfer, due to the different stiffnesses in splinting materials [2,4]. An understanding of stress magnitude and distribution in reduced periodontal supporting tissues is crucial to avoid the major complications in periodontal splints: debonding and fracture [2,4]. However, there is little biomechanical evidence to compare the effectiveness of PEEK splints with that of other periodontal splints. Finite element analysis (FEA) is a non-invasive tool for use in the study of biomechanics and the effect of mechanical strength on biological systems [12]. In dentistry, FEA has been used to estimate stress distribution in periodontium [13]. As the periodontal ligament (PDL) is the most crucial component of periodontium, the inclusion of the PDL in an FEA model yields more reliable results. Although a model of this type may not completely replicate the oral environment, the results may be referred to qualitatively [12].
Therefore, the aim of this study was to evaluate the effect of four types of splints under loading on stress distributions in periodontal tissues, cement layers, and splints themselves, and to assess the impact of PEEK splints in terms of both the risk of debonding from abutment teeth and damage to periodontal tissues.

2. Materials and Methods

2.1. Generation of the Geometric Models and Study Design

Computed tomography scans of the lower jaw and mandibular dentition were obtained from a Chinese patient with full natural dentition. The experimental procedures were approved by the Medical Ethics Committee of the School of Stomatology, the Fourth Military Medical University (Reference number IRB-REV-2021134). We collected a total of 640 slices and saved them as DICOM files. Image data sets were processed via 3D image generation software Mimics Research 19.0 (Materialise NV, Leuven, Belgium). The mandibular structures were segmented as bone and teeth using an image density thresholding tool, which isolates different structures by converting grayscale values into binary images. Incisors, canines, first premolars, and second premolars were separated from each other. Then, the preliminary models were polished to obtain smooth models with no irregularities, and the data were converted to the STL. file format.
The volumetric models, including those of mandible and segment teeth, were imported into Geomagic Wrap 2015 (3D Systems, Rock Hill, SC, USA). The bone was segmented as a cancellous core surrounded by a cortical layer. The PDL was virtually constructed around the tooth roots based on their actual anatomy. Periodontal splints that extended to the canines bilaterally and their cement layer were molded based on the lingual anatomy of the abutment teeth. Resin cement with a thickness of 0.1 mm was used for the cement layer as it is commonly used clinically. The models were then divided into five groups according to the different materials and thicknesses (mm) of the splints: the non-splinted group, PEEK 0.7 group, PEEK 1.0 group, fiber-reinforced resin (FRC) group, and titanium group. All materials and structures were assumed to be homogeneous, isotropic, and linearly elastic. The Young’s modulus and Poisson’s ratios were assigned according to values from the literature (Table 1). All these parts were converted into non-uniform rational B-spline surfaces and saved as Initial Graphics Exchange Specification (IGES) files. These IGES files were then imported into the multi-disciplinary finite element pre-processor software HyperMesh 19.0 (Altair Engineering, Troy, MI, USA).
In order to simulate various clinical scenarios regarding the levels of horizontal bone loss, five different geometries of periodontal tissues were used (Figure 1 and Table 2).

2.2. Finite Element Analysis (FEA)

Uniform surface meshes and isoparametric tetrahedral elements with increasing mesh densities were used until convergence was achieved using HyperMesh software. The element used in the mesh division was tetrahedral with 10 nodes (Tet-10). A mesh convergence test was performed, determining a finite number of 1,468,572~1,646,534 elements and 335,005~371,127 nodes. PEEK and titanium splints shared one type of cement layer. Due to the different geometry of FRC, a strip-shaped cement layer was used in the FRC group. Then, all the models were imported into the Abaqus/CAE 2019 software (SIMULIA, Dassault Systèmes, Vélizy-Villacoublay, France) for stress analysis (Figure 2).
Contact was defined using surface-to-surface discretization for more accurate stress results compared with node-to-surface discretization [14]. Tie constraints were set up between the bone, periodontal ligament, cement layer, periodontal splint, and teeth. Such contact could avoid relative motion and any friction. The adjacent teeth interproximal surfaces in periodontal compromised tissues were lost, which did not lead to existing stress transmission from one element to another at the interface region. Therefore, the relationship between teeth elements was not defined.
As mentioned above, a total of 25 models were developed. In order to simulate biting forces, each model was subjected to vertical and oblique (θ = 45°) static loads of 100 N, respectively, from the midpoint of the incisal edge on tooth 41. The fixed support was defined on the condylar, coronoid, and inferior border of the mandible, in case of any displacement or rotation in the models.
The equivalent von Mises stress magnitudes and distributions in the PDL and the alveolar bone, as well as the splints themselves were measured through colorimetric graphs in all the groups, and the maximum principal stress in the cement layer was calculated. The material failed when the equivalent von Mises stress values exceeded the tensile strength of the material [19]. Due to the numerical nature of this work and the fact that additional series of observations would yield the same data, the statistical analysis could not be performed.

3. Results

3.1. Maximum von Mises Stress on Periodontal Tissues in Non-splinted Models with Different Bone Levels

As shown in Figure 3, the maximum von Mises stress values on the PDL and alveolar bone increased with reduced bone levels around tooth 41 and adjacent teeth in non-splinted models, especially under oblique loading. Only a small amount of the load on tooth 41 was transferred to the alveolar bone of the adjacent teeth 42 and 31, which did not have periodontal splinting.

3.2. Maximum von Mises Stress on Periodontal Tissues Surrounding Splinted Teeth with Different Bone Levels

As shown in Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8, the von Mises stress value on the alveolar bone was higher than that on the PDL, regardless of the model and loading condition. The lower the supporting bone level, the greater the stress difference between the splinted groups and the non-splinted group. Four splinted groups presented similar stress magnitudes and distribution patterns on periodontal tissues.
The maximum von Mises stress values on periodontal tissues in tooth 41 in the non-splinted group were higher than those in the splinted groups, among which stresses were slightly higher in the PEEK groups than those in the FRC and titanium groups. In particular, in model 133331 with severe bone loss exhibited in Figure 8, the maximum von Mises stress values on the alveolar bone in tooth 41 under oblique loading dramatically decreased from 406.4 MPa in the non-splinted group to 28.62 MPa in the PEEK group and to 9.59 MPa in the titanium group. In addition, periodontal splinting was shown to distribute slightly higher stress values to the PDL in the canines than those in non-splinted ones. Under vertical loading, splinted groups presented similar stress distribution patterns in canine alveolar bone. However, there was no notable difference in the maximum von Mises stress values among groups under oblique loading.

3.3. Maximum Principal Stresses on the Cement Layer and Maximum Von Mises Stresses on the Periodontal Splints

The magnitude and distributions of stress on the cement layers and different periodontal splints are displayed in Figure 9.
It could be observed that the greater the elastic modulus of the splint, the higher the stress value that was concentrated on it, and the lower the stress value that was transferred to the cement layer. The highest stress value on the splint was observed in the titanium group, and the lowest stress value was transferred to the cement layer in this group. Oblique loading resulted in higher stress values than vertical loading in all the groups. More severe alveolar bone loss induced augmented stress on splints.
Among all the groups, the stress concentrations in the cement layer and splints were primarily exhibited at the connectors near the load-carrying area.

4. Discussion

Horizontal bone loss is one of the consequences of chronic periodontitis. In the present study, it was demonstrated that the stress values on the remaining PDL and alveolar bone increased with reduced bone levels in non-splinted mandibular anterior teeth. Other studies have shown a similar trend [20,21,22,23]. It has been shown that reduced alveolar bone support leads to unfavorable crown to root ratios in the abutment teeth, which can increase the leverage. Under this circumstance, abnormal stress values concentrate in the periodontium, especially in the alveolar bone crest [24]. The accumulation of stress in the alveolar bone may lead to the exacerbation of the situation in the defect region and possibly induce further bone resorption [24]. In addition, compromised alveolar bone support results in a reduced PDL volume. This may be one of the reasons why the stress values in PDLs may rise [22]. The presence of the PDL makes it possible to distribute and absorb forces produced during mastication [25]. Reduced PDL volume may cause secondary occlusal trauma [26]. The simultaneous occurrence of periodontitis and occlusal trauma could accelerate pre-existing periodontal lesions [27]. Therefore, it is necessary to reduce the deteriorating effects of compromised supporting tissues under physiologic loads.
Splints are commonly used to reduce the risk of secondary traumatic occlusion on periodontally compromised teeth and facilitate the distribution of occlusal forces [2]. Our research showed that splinting abutment teeth with different materials led to a dramatic decrease in stress values in periodontal tissues. This is in line with a study conducted by Soares et al., who demonstrated that the main objective of stabilizing teeth with a splint is the reduction in biomechanical stresses in the supporting bone structure [21].
As the maximum occlusal load on incisors was reported to vary between 40 and 200 N [28], a concentrated 100-N load was regarded to be within physiologic limits and was applied vertically or obliquely in the current study. The oblique load was applied at an angle of 45° to simulate the contact of the mandibular incisal edges with the lingual surfaces of the maxillary teeth [7,20,21]. Although the occlusal loads in the mandibular anterior region are relatively small and distributed evenly, concentrated occlusal force can be produced under conditions such as a hard bite into food. Oblique loading resulted in higher stress values on periodontal tissues, cement layers, and splints than those caused by vertical loading, which is in accordance with previous studies [29,30]. The highest equivalent stress may lead to periodontal hazards [13,30]. Emphasis should be placed on the importance of avoiding or reducing oblique loading.
Young’s modulus (an intrinsic mechanical property of the material) is an indicator of material stiffness and illustrates a positive association between the modulus of elasticity and substance rigidity [31]. Rigid materials tend to have high elastic moduli. Splints with different materials have different patterns of transmission and cause different distributions of masticatory forces. This is the reason why they have different biomechanical responses in periodontal tissues [21]. Although current guidelines for the treatment of mobile teeth and traumatic injuries recommend the use of ‘flexible’ splints, the specific definition of what is considered flexible versus rigid has not been clearly defined [2]. Among the tested materials in the current study, PEEK is the most flexible splint in terms of its elastic modulus, followed by fiber-reinforced composite, and titanium is the most rigid. The PEEK splints we used here were made from polymer-BioHPP, which adds 20% special ceramic filler to pure PEEK [32]. The fiber-reinforced composite splints were simulated virtually with Quartz Splints, containing silica fibers. Silica in silica fibers is crystalline, whereas it is amorphous in glass fibers. Silica fiber exhibits higher flexural strength than glass fiber [33]. A previous study carried out by Saquib et al. showed that polyethylene fibers are more flexible than glass fibers [31]. Ribbond® is made from leno weave, an ultra-high-molecular-weight polyethylene fiber, which is commonly used for splinting [2]. Flexible splinting may recover the physiologic mobility of teeth and thus may foster bone-remodeling stimulation in a previously jeopardized periodontium [31]. However, rigid splints may limit the movement of abutment teeth. An in vitro study claimed that mild tooth movement would favor the revascularization process, whereas complete immobilization would interfere with fibroblast metabolism [34]. This is the reason why flexible splinting is recommended. In our investigation, the greater the stiffness of the splinting material tested, the lower the maximum von Mises stress value that was concentrated on the alveolar bone. PEEK groups induced higher stress values on the periodontal structures, but it remains unclear whether such stress values would lead to bone loss or bone remodeling. Further laboratory studies are still needed to clarify the issue, as alveolar bone is a dynamic material, the properties of which are influenced by a number of factors. Theoretically, PEEK splints can allow the physiological movement of the mobile abutment teeth, which may promote improved healing of the periodontal tissues compared to rigid splints. Ribbond®, the elastic modulus of which (4 GPa) is comparable to that of PEEK [31], has been proven to be an excellent material for splinting mobile teeth due to its flexibility [2,35]. However, during the masticatory process, the infiltrating composite resin inside Ribbond® may undergo microcracks and expansion. In addition, direct splinting increases the chair-side time and needs complex manipulation. CAD/CAM PEEK blocks can solve the abovementioned problems, and thus may be a potential alternative to Ribbond® for periodontal splinting. Although it may require more laboratory research, the use of PEEK for periodontal splinting has many advantages, such as reducing the need for time-consuming clinical procedures, better adaptation to abutment, etc.
Despite the fact that splinted teeth can survive for a long time, significant efforts are necessary to retain these teeth [36]. A high number of repairs are needed as splint fracture or debonding was documented in 25.6% of patients within the first 3 years after direct periodontal splinting [37]. Thereby, finding measures to prevent splint fracture or debonding is a critical issue to improve the clinical longevity of periodontal splints.
When occlusal force is loaded on abutment teeth, the splint deforms, and peel force is generated in the cement layer, promoting the debonding of the splint. It was revealed in our research that high stress concentrations were primarily exhibited at the splint connectors near the load-carrying site, which is the high-risk area for debonding and should be thickened. With regard to maximum principal stress on the cement layer among all models, more stresses were induced in the PEEK 0.7 group compared with the FRC group and titanium group. This finding corroborates with those of previous studies, in which rigid restorative materials presented reduced stresses on the cement layer [38,39], whereas a flexible prosthesis showed higher displacement than a rigid one, inducing a higher stress concentration at the adhesive interface [40]. In this way, when applying a less rigid PEEK splint, the use of adhesive cement with a higher elastic modulus is recommended, as it can concentrate less tensile stress at the connectors [41].
The fracture resistance of a restoration depends on the strength of the material from which it is fabricated. In our investigation, it was found that the greater the elastic modulus of the splint, the higher the level of stress that is concentrated on it. Due to its relatively lower elastic modulus, the lowest stress on the splint was observed in the PEEK 0.7 group. The tensile strength of PEEK is 100.69 MPa [42]. The maximum von Mises stresses calculated in this study ranged from 22.07 MPa to 88.15 MPa, indicating that PEEK splints in mandibular anterior teeth may have good fracture resistance. Nevertheless, a number of factors are associated with the long-term behavior of splints. We found that more severe alveolar bone loss induced augmented stress on splints. This is in line with the finding of a clinical study, which showed that teeth with more severe bone loss presented lower resistance to chewing forces, and the resulting stress onto the splint could lead to a higher likelihood of splint fractures [36]. Long-term clinical observations are needed to further evaluate the clinical performance of PEEK splints.
FEA is a highly valuable research tool [26]. Nevertheless, there are still limitations to this type of study. Not all factors were numerically simulated in the analysis, due to the complexity of the dynamic oral cavity and its internal biological phenomena. Complete and permanent bonding depends on multiple factors in addition to stress concentration. Cyclic loading and the fatigue and endurance of the splints were not studied in the present study. Mathematical analysis generates theoretical results which need to be correlated with laboratory and clinical findings. The long-term clinical performance of different splinting materials should be evaluated in future studies.

5. Conclusions

Within the limitations of the current finite element analysis, in conclusion, oblique loading resulted in higher stress values on periodontal tissues, cement layers, and splints than those caused by vertical loading. The stresses on the remaining periodontal ligament and alveolar bone increased with the severity of bone loss. The tested splinted groups were all effective in distributing the loads on periodontal tissues around splinted teeth with similar patterns. The use of splinting material with a low elastic modulus, such as PEEK, reduces the stress concentration at the splint connectors while increasing the tensile stress concentration in the cement layer.

Author Contributions

Y.L. and M.F. contributed equally to this work. Conceptualization, S.B. and M.F.; methodology, Y.L. and H.L.; software, Y.L. and R.Z.; validation, S.Z., R.Z. and M.T.; formal analysis, M.F.; investigation, H.L.; resources, R.Z.; data curation, M.T.; writing—original draft preparation, Y.L.; writing—review and editing, S.B.; visualization, S.B.; supervision, M.T.; project administration, M.F.; funding acquisition, M.F. and S.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Shaanxi Key Research and Development Program (No. 2022SF-062) and the National Natural Science Foundation of China (NO. 81970987).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board (or Ethics Committee) of the School of Stomatology, the Fourth Military Medical University (protocol code IRB-REV-2021134 and date of approval: 3 December 2021).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tonetti, M.S.; Greenwell, H.; Kornman, K.S. Staging and Grading of Periodontitis: Framework and Proposal of a New Classification and Case Definition. J. Periodontol. 2018, 89, S159–S172. [Google Scholar] [CrossRef] [Green Version]
  2. Kathariya, R.; Devanoorkar, A.; Golani, R.; Shetty, N.; Vallakatla, V.; Bhat, M.Y.S. To Splint or Not to Splint: The Current Status of Periodontal Splinting. J. Int. Acad. Periodontol. 2016, 18, 45–56. [Google Scholar]
  3. Jepsen, S.; Caton, J.G.; Albandar, J.M.; Bissada, N.F.; Bouchard, P.; Cortellini, P.; Demirel, K.; de Sanctis, M.; Ercoli, C.; Fan, J.; et al. Periodontal Manifestations of Systemic Diseases and Developmental and Acquired Conditions: Consensus Report of Workgroup 3 of the 2017 World Workshop on the Classification of Periodontal and Peri-Implant Diseases and Conditions: Classification and Case Definitions for Periodontal Manifestations of Systemic Diseases and Developmental and Acquired Conditions. J. Periodontol. 2018, 89, S237–S248. [Google Scholar]
  4. Machtei, E.E.; Hirsch, I. Retention of Hopeless Teeth: The Effect on the Adjacent Proximal Bone Following Periodontal Surgery. J. Periodontol. 2007, 78, 2246–2252. [Google Scholar] [CrossRef] [Green Version]
  5. Kumbuloglu, O.; Saracoglu, A.; Özcan, M. Pilot Study of Unidirectional E-Glass Fibre-Reinforced Composite Resin Splints: Up to 4.5-Year Clinical Follow-Up. J. Dent. 2011, 39, 871–877. [Google Scholar] [CrossRef]
  6. Alghazzawi, T.F. Advancements in CAD/CAM Technology: Options for Practical Implementation. J. Prosthodont. Res. 2016, 60, 72–84. [Google Scholar] [CrossRef]
  7. Zhang, C.; Liu, Q.; Yang, J.; Hou, J. A Digital Technique for Splinting Periodontally Compromised Mobile Teeth in the Mandibular Anterior Region. J. Prosthet. Dent. 2021, 125, 560–563. [Google Scholar] [CrossRef]
  8. Elfahl, B.N.; Mostafa, T.M.N. Polyetheretherketone Custom CAD-CAM Splint for Treatment of Periodontally Affected Mobile Anterior Teeth. J. Prosthet. Dent. 2022, 127, 210–212. [Google Scholar] [CrossRef]
  9. Najeeb, S.; Zafar, M.S.; Khurshid, Z.; Siddiqui, F. Applications of Polyetheretherketone (PEEK) in Oral Implantology and Prosthodontics. J. Prosthodont. Res. 2016, 60, 12–19. [Google Scholar] [CrossRef]
  10. Stawarczyk, B.; Eichberger, M.; Uhrenbacher, J.; Wimmer, T.; Edelhoff, D.; Schmidlin, P.R. Three-Unit Reinforced Polyetheretherketone Composite FDPs: Influence of Fabrication Method on Load-Bearing Capacity and Failure Types. Dent. Mater. J. 2015, 34, 7–12. [Google Scholar] [CrossRef] [Green Version]
  11. Hahnel, S.; Wieser, A.; Lang, R.; Rosentritt, M. Biofilm Formation on the Surface of Modern Implant Abutment Materials. Clin. Oral Implant. Res. 2015, 26, 1297–1301. [Google Scholar] [CrossRef]
  12. Trivedi, S. Finite Element Analysis: A Boon to Dentistry. J. Oral Biol. Craniofacial Res. 2014, 4, 200–203. [Google Scholar] [CrossRef] [Green Version]
  13. Luchian, I.; Martu, M.-A.; Tatarciuc, M.; Scutariu, M.M.; Ioanid, N.; Pasarin, L.; Kappenberg-Nitescu, D.C.; Sioustis, I.-A.; Solomon, S.M. Using FEM to Assess the Effect of Orthodontic Forces on Affected Periodontium. Appl. Sci. 2021, 11, 7183. [Google Scholar] [CrossRef]
  14. Bachiri, A.; Djebbar, N.; Boutabout, B.; Serier, B. Effect of Different Impactor Designs on Biomechanical Behavior in the Interface Bone-Implant: A Comparative Biomechanics Study. Comput. Methods Programs Biomed. 2020, 197, 105723. [Google Scholar] [CrossRef]
  15. Ubaldini, A.L.M.; Benetti, A.R.; Sato, F.; Pascotto, R.C.; Medina Neto, A.; Baesso, M.L.; Peutzfeldt, A. Challenges in luting fibre posts: Adhesion to the post and to the dentine. Dent. Mater. 2018, 34, 1054–1062. [Google Scholar] [CrossRef]
  16. Tribst, J.P.M.; Dal Piva, A.M.D.O.; Borges, A.L.S.; Araújo, R.M.; da Silva, J.M.F.; Bottino, M.A.; Kleverlaan, C.J.; de Jager, N. Effect of Different Materials and Undercut on the Removal Force and Stress Distribution in Circumferential Clasps during Direct Retainer Action in Removable Partial Dentures. Dent. Mater. 2020, 36, 179–186. [Google Scholar] [CrossRef]
  17. Pirmoradian, M.; Naeeni, H.A.; Firouzbakht, M.; Toghraie, D.; khabaz, M.K.; Darabi, R. Finite Element Analysis and Experimental Evaluation on Stress Distribution and Sensitivity of Dental Implants to Assess Optimum Length and Thread Pitch. Comput. Methods Programs Biomed. 2020, 187, 105258. [Google Scholar] [CrossRef]
  18. Vukicevic, A.M.; Zelic, K.; Milasinovic, D.; Sarrami-Foroushani, A.; Jovicic, G.; Milovanovic, P.; Djuric, M.; Filipovic, N.; Frangi, A.F. OpenMandible: An Open-Source Framework for Highly Realistic Numerical Modelling of Lower Mandible Physiology. Dent. Mater. 2021, 37, 612–624. [Google Scholar] [CrossRef]
  19. Dejak, B.; Młotkowski, A. A Comparison of Stresses in Molar Teeth Restored with Inlays and Direct Restorations, Including Polymerization Shrinkage of Composite Resin and Tooth Loading during Mastication. Dent. Mater. 2015, 31, e77–e87. [Google Scholar] [CrossRef]
  20. Kurgan, S.; Terzioglu, H.; Yilmaz, B. Stress Distribution in Reduced Periodontal Supporting Tissues Surrounding Splinted Teeth. Int. J. Periodontics Restor. Dent. 2014, 34, e93–e101. [Google Scholar] [CrossRef]
  21. Soares, P.B.F.; Fernandes Neto, A.J.; Magalhães, D.; Versluis, A.; Soares, C.J. Effect of Bone Loss Simulation and Periodontal Splinting on Bone Strain. Arch. Oral Biol. 2011, 56, 1373–1381. [Google Scholar] [CrossRef] [Green Version]
  22. Kettenbeil, A.K.; Reimann, S.; Reichert, C.; Keilig, L.; Jäger, A.; Bourauel, C. Numerical Simulation and Biomechanical Analysis of an Orthodontically Treated Periodontally Damaged Dentition. J. Orofac. Orthop. 2022, 83, 255–268. [Google Scholar] [CrossRef]
  23. Baghdadi, D.; Reimann, S.; Keilig, L.; Reichert, C.; Jäger, A.; Bourauel, C. Biomechanical Analysis of Initial Incisor Crowding Alignment in the Periodontally Reduced Mandible Using the Finite Element Method. J. Orofac. Orthop. 2019, 80, 184–193. [Google Scholar] [CrossRef]
  24. Geramy, A.; Adibrad, M.; Sahabi, M. The Effects of Splinting Periodontally Compromised Removable Partial Denture Abutments on Bone Stresses: A Three-Dimensional Finite Element Study. J. Dent. Sci. 2010, 5, 1–7. [Google Scholar] [CrossRef] [Green Version]
  25. Poiate, I.A.V.P.; de Vasconcellos, A.B.; de Santana, R.B.; Poiate, E. Three-Dimensional Stress Distribution in the Human Periodontal Ligament in Masticatory, Parafunctional, and Trauma Loads: Finite Element Analysis. J. Periodontol. 2009, 80, 1859–1867. [Google Scholar] [CrossRef]
  26. Uraba, A.; Nemoto, R.; Nozaki, K.; Inagaki, T.; Omori, S.; Miura, H. Biomechanical Behavior of Adhesive Cement Layer and Periodontal Tissues on the Restored Teeth with Zirconia RBFDPs Using Three-Kinds of Framework Design: 3D FEA Study. J. Prosthodont. Res. 2018, 62, 227–233. [Google Scholar] [CrossRef]
  27. Dommisch, H.; Walter, C.; Difloe-Geisert, J.C.; Gintaute, A.; Jepsen, S.; Zitzmann, N.U. Efficacy of Tooth Splinting and Occlusal Adjustment in Patients with Periodontitis Exhibiting Masticatory Dysfunction: A Systematic Review. J. Clin. Periodontol. 2021, 49, 149–166. [Google Scholar] [CrossRef]
  28. Hellsing, G. On the Regulation of Interincisor Bite Force in Man. J. Oral Rehabil. 1980, 7, 403–411. [Google Scholar] [CrossRef]
  29. Takahashi, J.M.F.K.; Dayrell, A.C.; Consani, R.L.X.; de Arruda Nóbilo, M.A.; Henriques, G.E.P.; Mesquita, M.F. Stress Evaluation of Implant-Abutment Connections under Different Loading Conditions: A 3D Finite Element Study. J. Oral Implantol. 2015, 41, 133–137. [Google Scholar] [CrossRef]
  30. Macedo, J.P.; Pereira, J.; Faria, J.; Pereira, C.A.; Alves, J.L.; Henriques, B.; Souza, J.C.M.; López-López, J. Finite Element Analysis of Stress Extent at Peri-Implant Bone Surrounding External Hexagon or Morse Taper Implants. J. Mech. Behav. Biomed. Mater. 2017, 71, 441–447. [Google Scholar] [CrossRef] [Green Version]
  31. Saquib, S.; Abdullah, A.; Gotam, D.; Talib, N.; Muhammad, S.; Sultana, A. Comparative Evaluation of Flexural Strength and Flexural Modulus of Different Periodontal Splint Materials: An In Vitro Study. Appl. Sci. 2019, 9, 4197. [Google Scholar] [CrossRef] [Green Version]
  32. Jovanović, M.; Živić, M.; Milosavljević, M. A Potential Application of Materials Based on a Polymer and CAD/CAM Composite Resins in Prosthetic Dentistry. J. Prosthodont. Res. 2021, 65, 137–147. [Google Scholar] [CrossRef]
  33. Su, J.; Cai, S. Effects of Quartz Splint Woven Fiber Periodontal Fixtures on Evaluating Masticatory Efficiency and Efficacy. Medicine (Baltimore) 2018, 97, e13056. [Google Scholar] [CrossRef]
  34. Mazzoleni, S.; Meschia, G.; Cortesi, R.; Bressan, E.; Tomasi, C.; Ferro, R.; Stellini, E. In Vitro Comparison of the Flexibility of Different Splint Systems Used in Dental Traumatology. Dent. Traumatol. 2010, 26, 30–36. [Google Scholar] [CrossRef]
  35. Eminkahyagil, N.; Erkut, S. An Innovative Approach to Chairside Provisional Replacement of an Extracted Anterior Tooth: Use of Fiber-Reinforced Ribbon-Composites and a Natural Tooth. J. Prosthodont. 2006, 15, 316–320. [Google Scholar] [CrossRef]
  36. Graetz, C.; Ostermann, F.; Woeste, S.; Sälzer, S.; Dörfer, C.E.; Schwendicke, F. Long-Term Survival and Maintenance Efforts of Splinted Teeth in Periodontitis Patients. J. Dent. 2019, 80, 49–54. [Google Scholar] [CrossRef]
  37. Sonnenschein, S.K.; Betzler, C.; Rütters, M.A.; Krisam, J.; Saure, D.; Kim, T.-S. Long-Term Stability of Splinted Anterior Mandibular Teeth during Supportive Periodontal Therapy. Acta Odontol. Scand. 2017, 75, 475–482. [Google Scholar] [CrossRef]
  38. Ruggiero, M.M.; Soares Gomes, R.; Pedroso Bergamo, E.T.; Freitas, M.I.M.; Bonfante, E.A.; Del Bel Cury, A.A. Resin-Matrix Ceramics for Occlusal Veneers: Effect of Thickness on Reliability and Stress Distribution. Dent. Mater. 2021, 37, e131–e139. [Google Scholar] [CrossRef]
  39. Dejak, B.; Młotkowski, A. A Comparison of MvM Stress of Inlays, Onlays and Endocrowns Made from Various Materials and Their Bonding with Molars in a Computer Simulation of Mastication—FEA. Dent. Mater. 2020, 36, 854–864. [Google Scholar] [CrossRef]
  40. Campaner, L.M.; Silveira, M.P.M.; de Andrade, G.S.; Borges, A.L.S.; Bottino, M.A.; Dal Piva, A.M.d.O.; Lo Giudice, R.; Ausiello, P.; Tribst, J.P.M. Influence of Polymeric Restorative Materials on the Stress Distribution in Posterior Fixed Partial Dentures: 3D Finite Element Analysis. Polymers (Basel) 2021, 13, 758. [Google Scholar] [CrossRef]
  41. Penteado, M.M.; Tribst, J.P.M.; Jurema, A.L.B.; Saavedra, G.S.F.A.; Borges, A.L.S. Influence of resin cement rigidity on the stress distribution of resin-bonded fixed partial dentures. Comput. Methods Biomech. Biomed. Eng. 2019, 22, 953–960. [Google Scholar] [CrossRef] [PubMed]
  42. Alqurashi, H.; Khurshid, Z.; Syed, A.U.Y.; Rashid Habib, S.; Rokaya, D.; Zafar, M.S. Polyetherketoneketone (PEKK): An Emerging Biomaterial for Oral Implants and Dental Prostheses. J. Adv. Res. 2021, 28, 87–95. [Google Scholar] [CrossRef] [PubMed]
Polymers 14 02835 g001 550

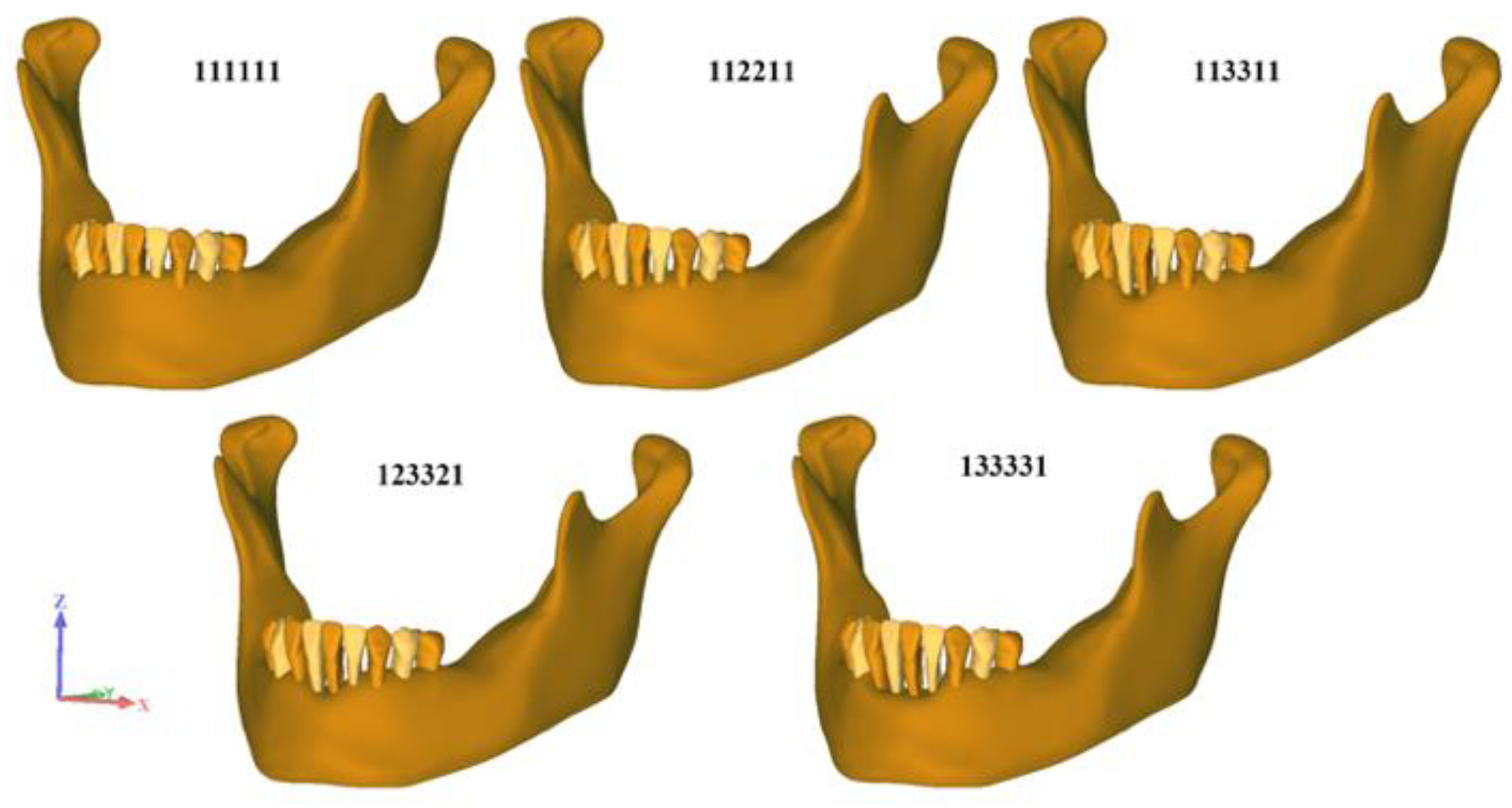

Figure 1. Different levels of horizontal bone loss.
Figure 1. Different levels of horizontal bone loss.
Polymers 14 02835 g001
Polymers 14 02835 g002 550

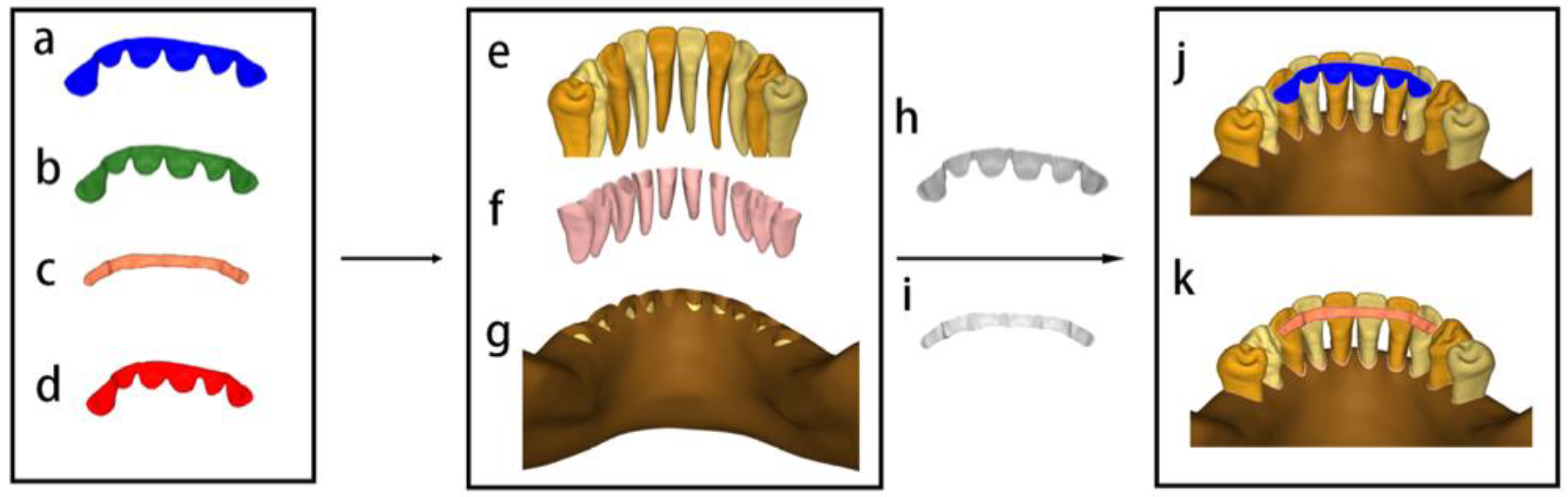

Figure 2. Schematic illustration of the modelled structures used in this study. Different materials were considered for periodontal splinting: (a) PEEK splint with 0.7 mm thickness, (b) PEEK splint with 1.0 mm thickness, (c) FRC splint, and (d) titanium splint. Mandible segmentation contained: (e) premolars, canines, lateral incisors, and incisors, (f) periodontal ligament, (g) cortical bone and spongy bone. The final models with periodontal splinting positioned on the anterior teeth (j,k): (h) cement layer of PEEK or titanium splint, (i) cement layer of FRC.
Figure 2. Schematic illustration of the modelled structures used in this study. Different materials were considered for periodontal splinting: (a) PEEK splint with 0.7 mm thickness, (b) PEEK splint with 1.0 mm thickness, (c) FRC splint, and (d) titanium splint. Mandible segmentation contained: (e) premolars, canines, lateral incisors, and incisors, (f) periodontal ligament, (g) cortical bone and spongy bone. The final models with periodontal splinting positioned on the anterior teeth (j,k): (h) cement layer of PEEK or titanium splint, (i) cement layer of FRC.
Polymers 14 02835 g002
Polymers 14 02835 g003 550

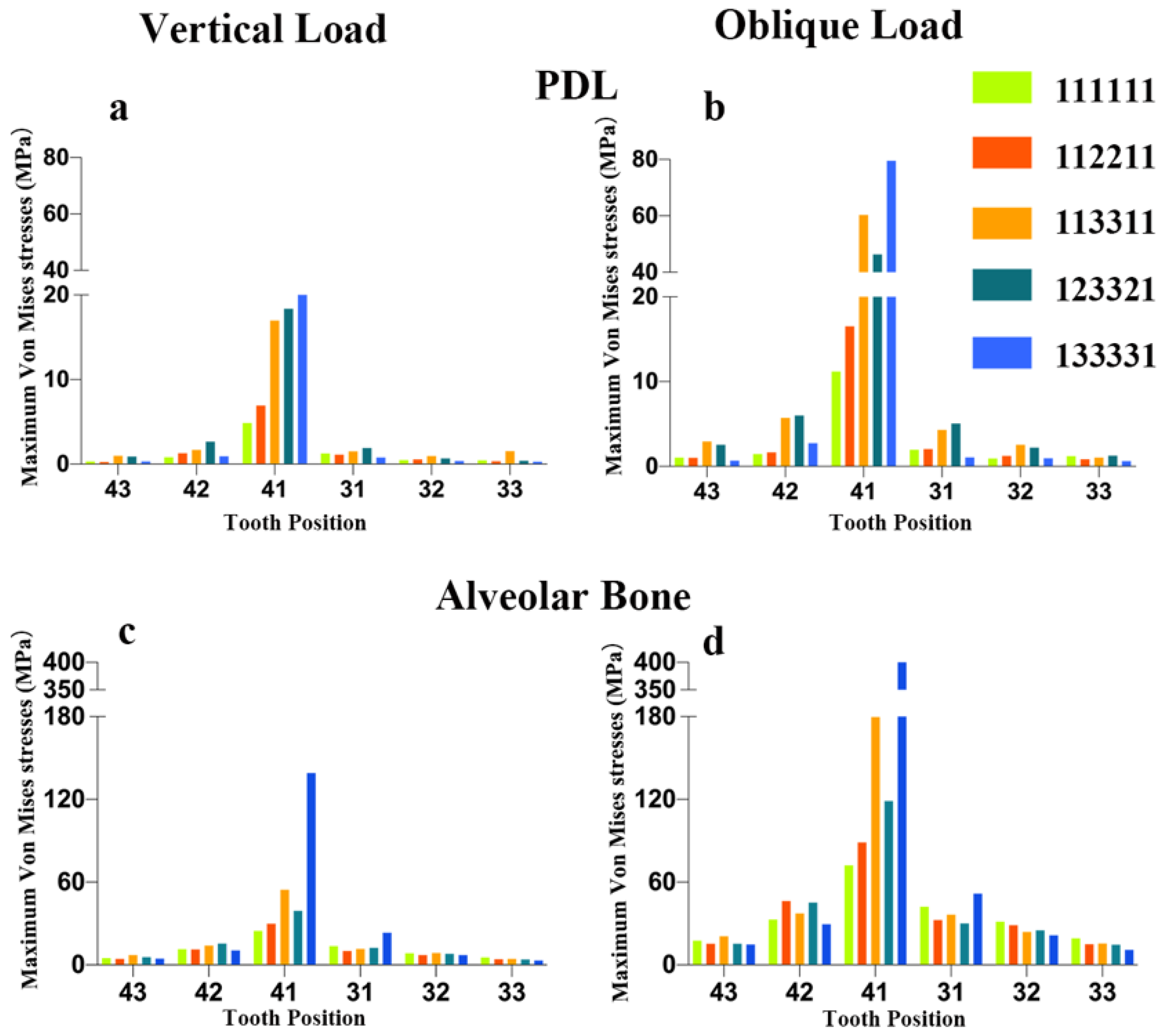

Figure 3. Maximum von Mises stress (MPa) on PDL and alveolar bone in non-splinted group with different bone levels: (a) stress on PDL in non-splinted groups under vertical loading, (b) stress on PDL in non-splinted groups under oblique loading, (c) stress on alveolar bone in non-splinted groups under vertical loading, (d) stress on alveolar bone in non-splinted groups under oblique loading.
Figure 3. Maximum von Mises stress (MPa) on PDL and alveolar bone in non-splinted group with different bone levels: (a) stress on PDL in non-splinted groups under vertical loading, (b) stress on PDL in non-splinted groups under oblique loading, (c) stress on alveolar bone in non-splinted groups under vertical loading, (d) stress on alveolar bone in non-splinted groups under oblique loading.
Polymers 14 02835 g003
Polymers 14 02835 g004 550

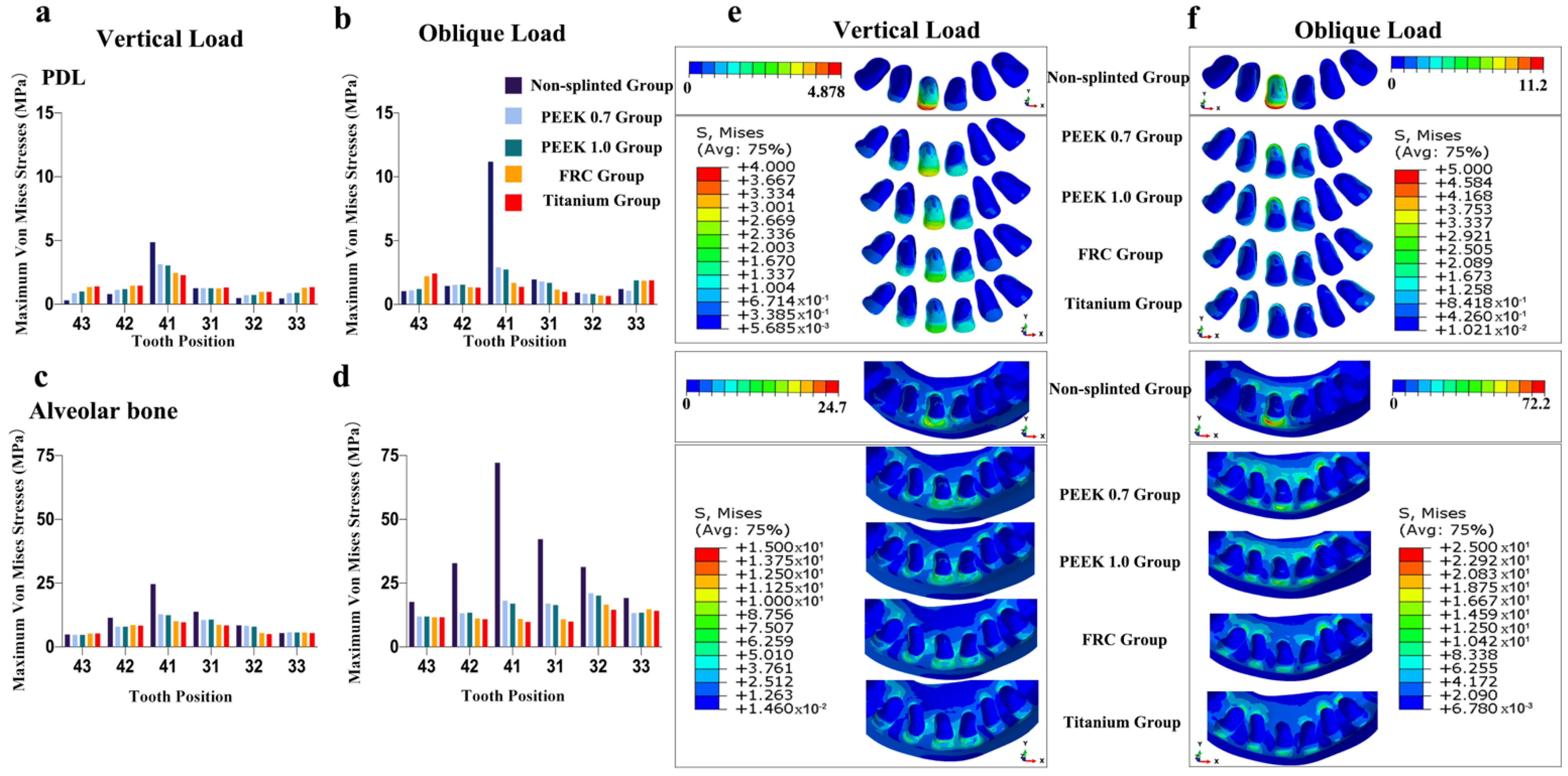

Figure 4. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 111111: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Figure 4. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 111111: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Polymers 14 02835 g004
Polymers 14 02835 g005 550

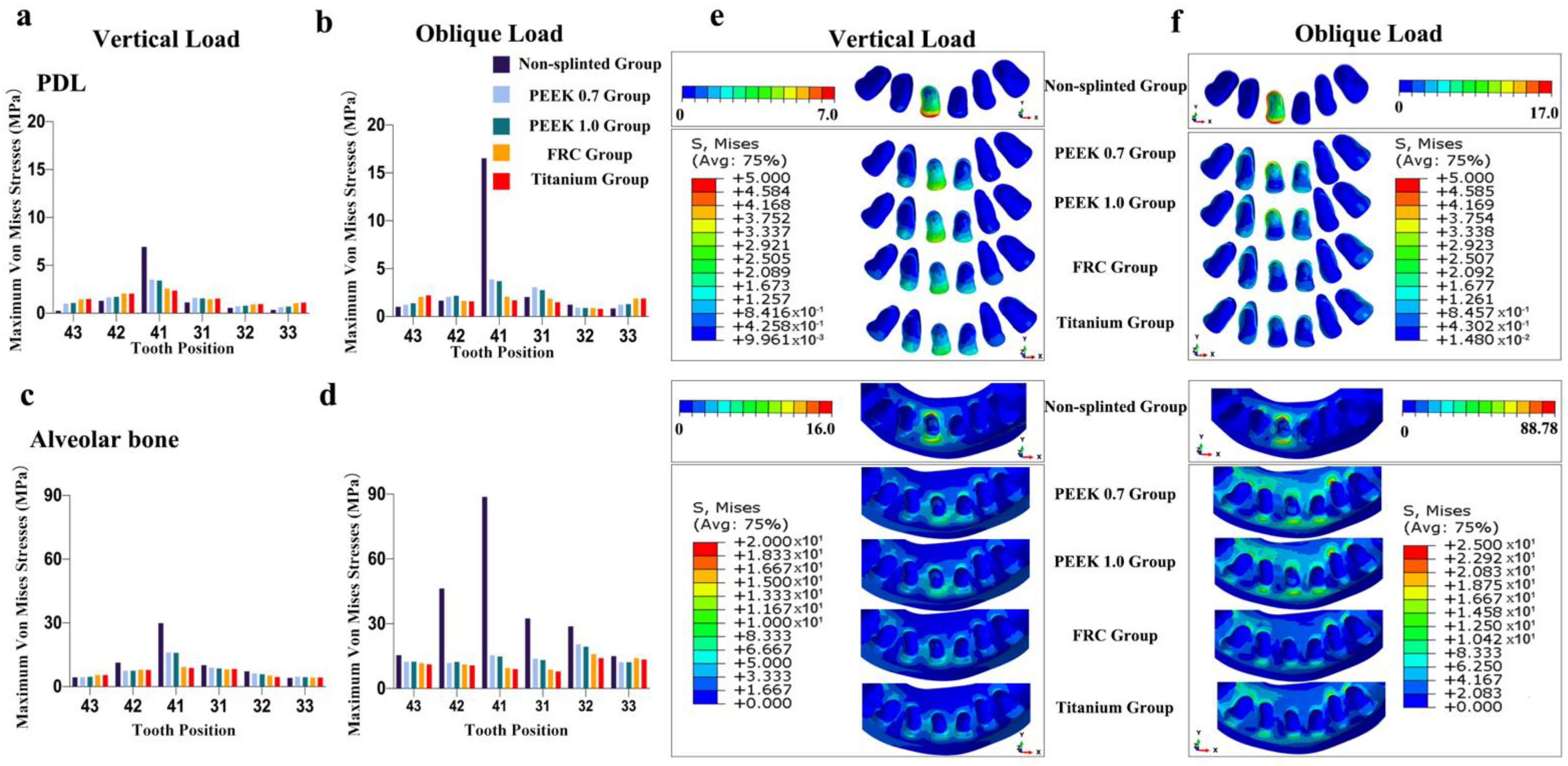

Figure 5. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 112211: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Figure 5. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 112211: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Polymers 14 02835 g005
Polymers 14 02835 g006 550

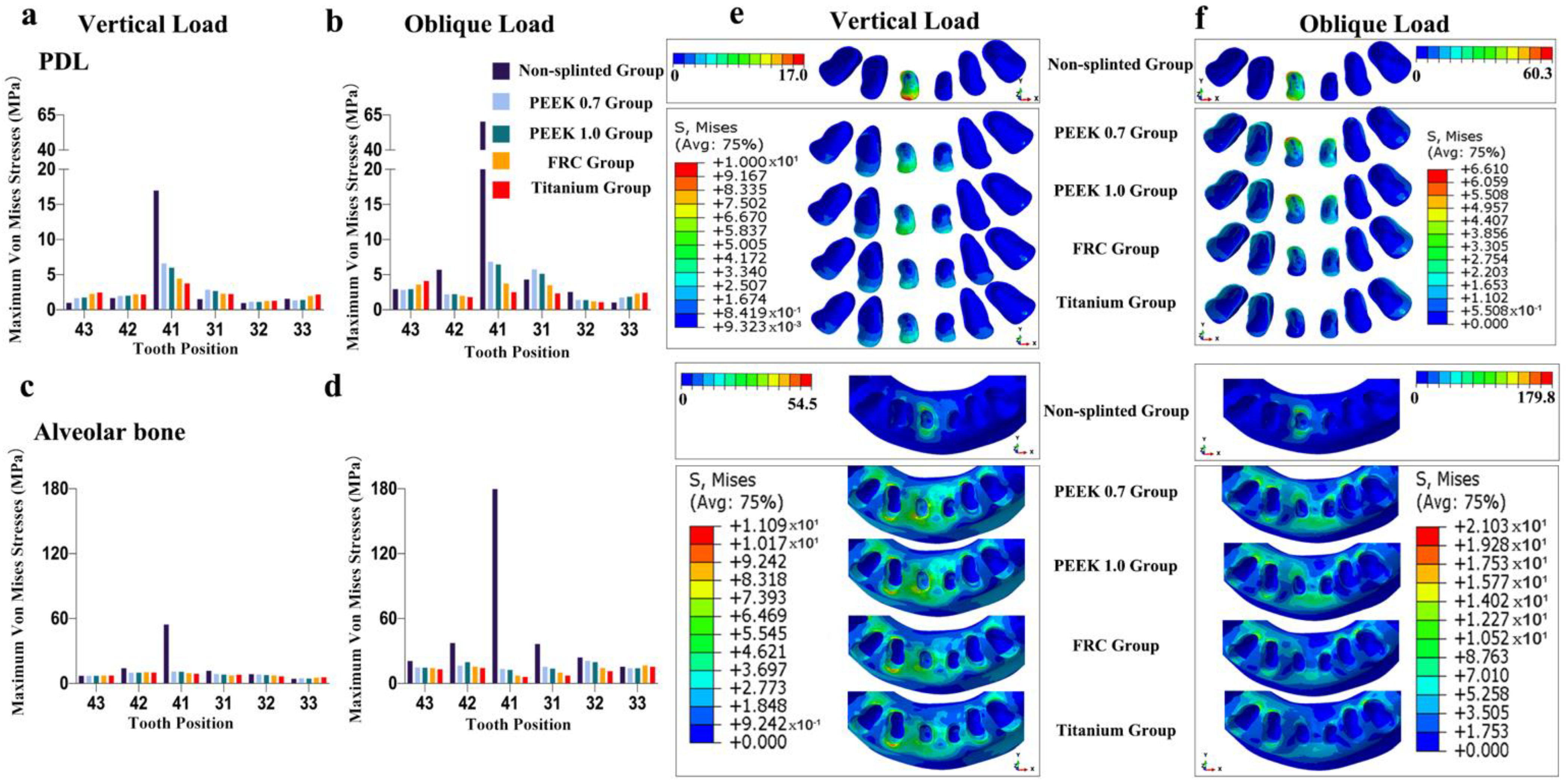

Figure 6. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 113311: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Figure 6. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 113311: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Polymers 14 02835 g006
Polymers 14 02835 g007 550

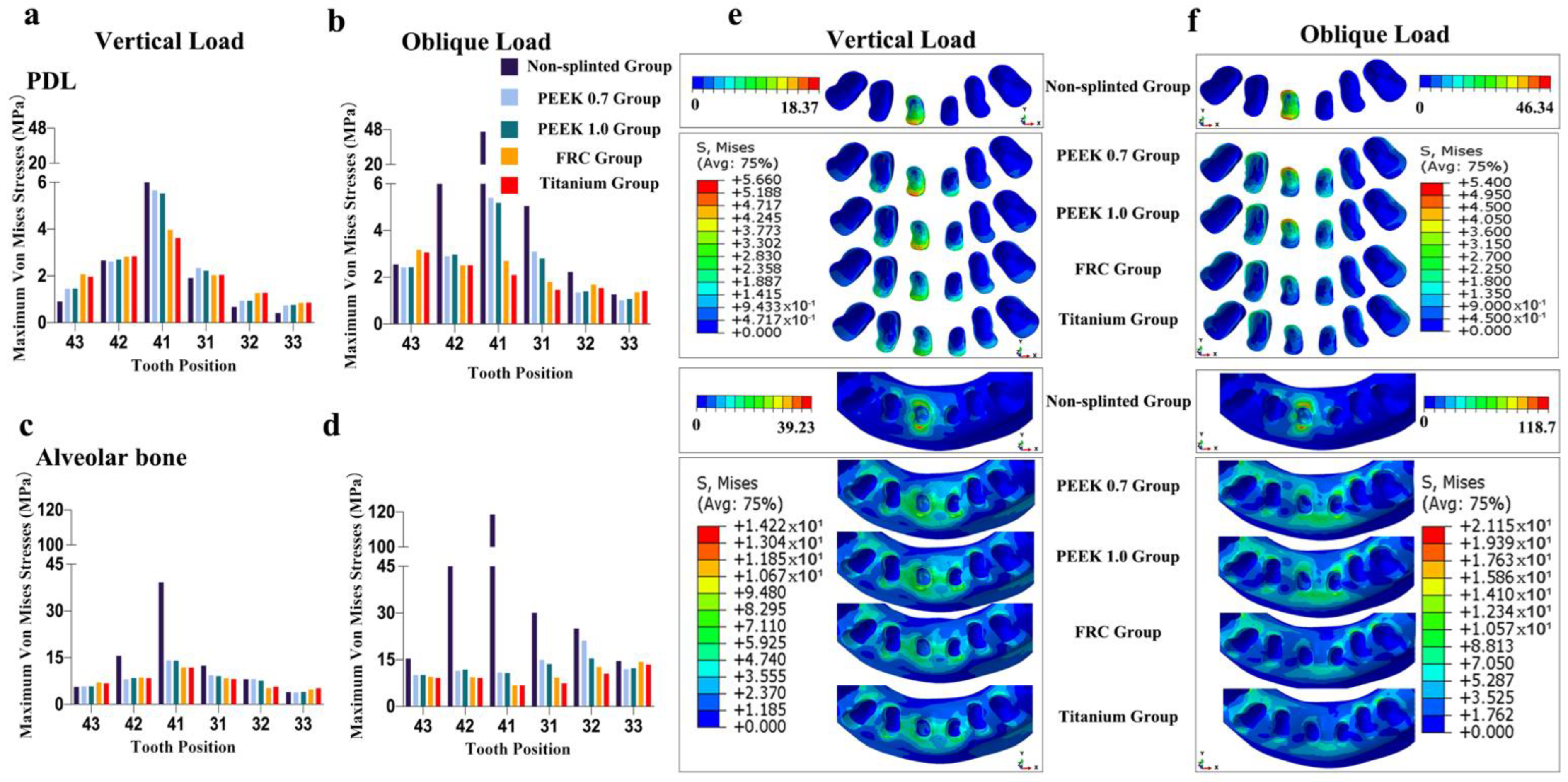

Figure 7. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 123321: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Figure 7. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 123321: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Polymers 14 02835 g007
Polymers 14 02835 g008 550

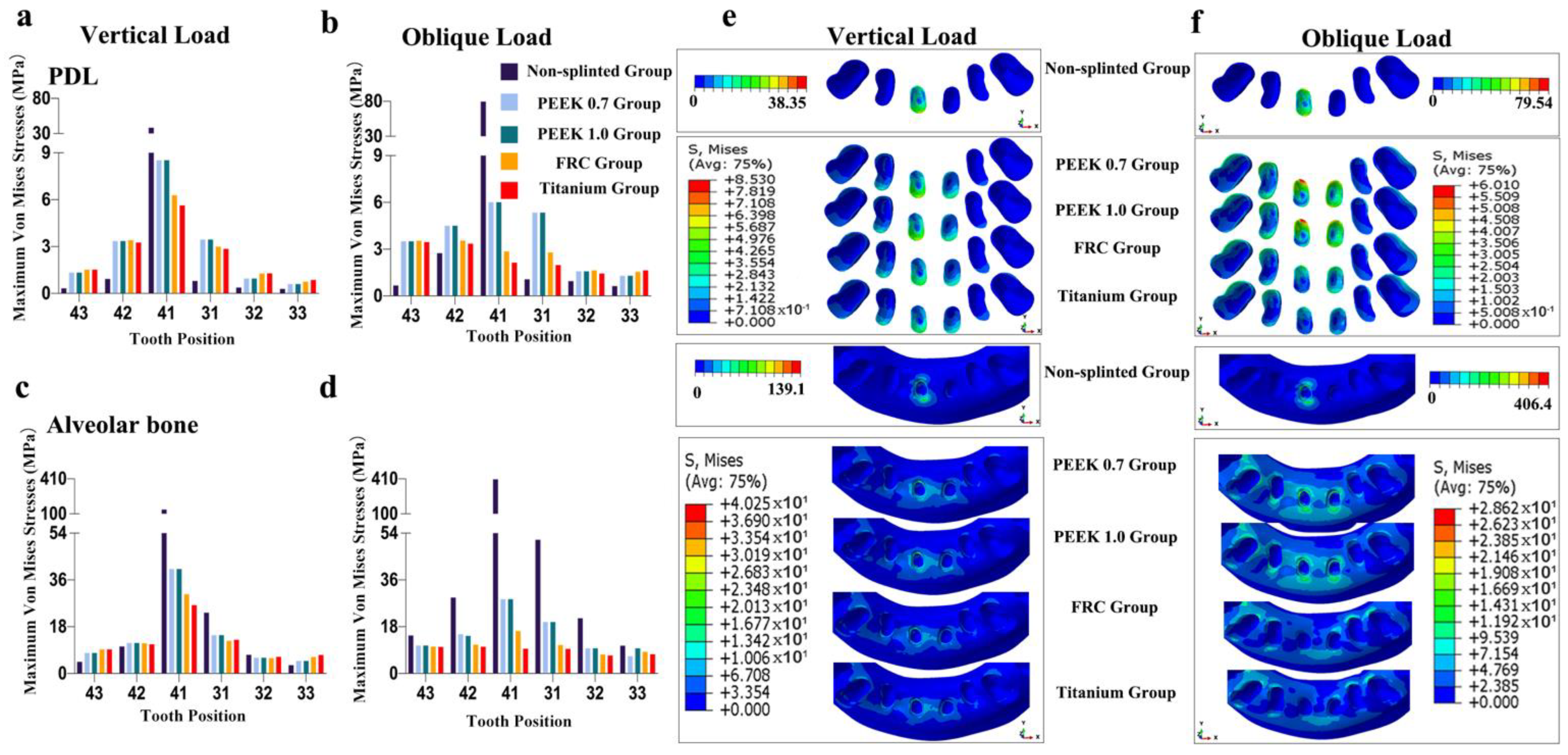

Figure 8. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 133331: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Figure 8. Maximum von Mises stresses and occlusal views of stress distributions in periodontal tissues of different groups for model 133331: (a) stress on PDL under vertical loading, (b) stress on PDL under oblique loading, (c) stress on alveolar bone under vertical loading, (d) stress on alveolar bone under oblique loading, (e) stress distributions in PDL and alveolar bone under vertical loading, and (f) stress distributions in PDL and alveolar bone under oblique loading.
Polymers 14 02835 g008
Polymers 14 02835 g009 550

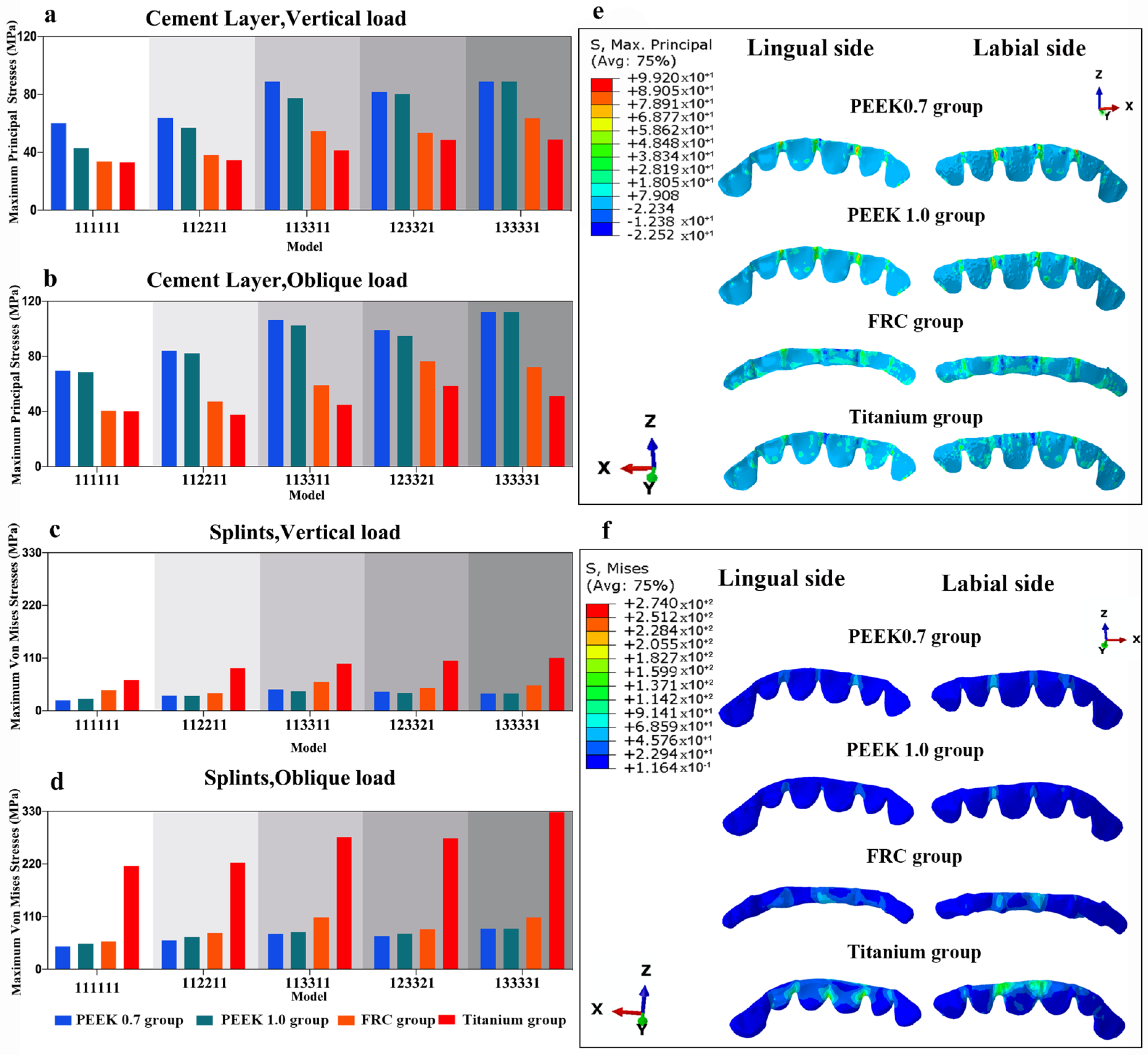

Figure 9. Stresses of different groups and their stress distributions in model 123321: (a) maximum principal stresses on cement layer under vertical loading, (b) maximum principal stresses on cement layer under oblique loading, (c) maximum von Mises stresses on periodontal splints under vertical loading, (d) maximum von Mises stresses on periodontal splints under oblique loading, (e) principal stresses distribution in cement layer under oblique loading in model 123321, and (f) principal stresses distribution in periodontal splints under oblique loading in model 123321.
Figure 9. Stresses of different groups and their stress distributions in model 123321: (a) maximum principal stresses on cement layer under vertical loading, (b) maximum principal stresses on cement layer under oblique loading, (c) maximum von Mises stresses on periodontal splints under vertical loading, (d) maximum von Mises stresses on periodontal splints under oblique loading, (e) principal stresses distribution in cement layer under oblique loading in model 123321, and (f) principal stresses distribution in periodontal splints under oblique loading in model 123321.
Polymers 14 02835 g009
Table
Table 1. Mechanical properties of the materials/structures applied in models of mandibular anterior teeth splinted with different materials.
Table 1. Mechanical properties of the materials/structures applied in models of mandibular anterior teeth splinted with different materials.
Material/StructureThickness (mm)Young’s Modulus (GPa)Poisson’s RatioReferences
PEEK1.0/0.74.10.45[9]
FRC1.0370.3-
Titanium1.21100.35[14]
Resin cement0.17.30.3[15]
Tooth-18.60.3217[16]
Cortical bone213.70.318[14,17]
Spongy bone-1.370.3[17]
Periodontal ligament0.20.0690.45[17,18]
Table
Table 2. Model description, number of elements and nodes for each model.
Table 2. Model description, number of elements and nodes for each model.
ModelBone Level (%)
Tooth434241313233
111111 757575757575
112211 757550507575
113311 757530307575
123321 755030305075
133331 753030303075
