Lyophilic and Sorption Properties of Chitosan Aerogels Modified with Copolymers Based on Glycidyl Methacrylate and Alkyl Methacrylates

by
Vitalia M. Yartseva
1,
Olga A. Makevnina
1,
Ekaterina B. Bryuzgina
1,
Evgeny V. Bryuzgin
1,*,
Viktor V. Klimov
1,2,
Olga V. Kolyaganova
1,
Dmitry E. Nikolitchev
3,
Alexander V. Navrotsky
1 and
Ivan A. Novakov
1
1
Chemical Engineering Faculty, Volgograd State Technical University, Lenin Avenue, 28, 400005 Volgograd, Russia
2
Department of Chemistry, Lomonosov Moscow State University, Leninskiye Gory, 1, Building 3, 119991 Moscow, Russia
3
Department of Physics, N.I. Lobachevsky State University of Nizhny Novgorod, Gagarin Avenue, 23, 603950 Nizhny Novgorod, Russia
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(13), 2711; https://doi.org/10.3390/polym14132711
Submission received: 31 May 2022 / Revised: 16 June 2022 / Accepted: 27 June 2022 / Published: 1 July 2022
(This article belongs to the Section Polymer Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
This paper discusses the influence of the structure of copolymers based on glycidyl methacrylate and alkyl methacrylates with C6–C18 hydrocarbon side groups on the wettability and sorption properties of surface-modified chitosan aerogels. The grafting of copolymers onto the surface of aerogels was confirmed by elemental analysis, X-ray photoelectron spectroscopy, and Fourier-transform infrared spectroscopy. As a result of the modification, with an increase in the amount of the hydrocarbon substituent alkyl methacrylate, the surface of the resulting materials became hydrophobic with contact angles in the range of 146–157°. At the same time, the water absorption of the aerogels decreased by a factor of 30 compared to that for unmodified aerogels, while the sorption capacity for light oil, diesel fuel, and synthetic motor oil remained at the level of more than 30 g/g. Chitosan aerogels with grafted copolymers based on glycidyl methacrylate and alkyl methacrylates retain biodegradation capacity; however, compared to unmodified chitosan, this process has an induction period.

1. Introduction

Chitosan is a natural polysaccharide, a product of deacetylation of chitin contained in the shells of crustaceans and insects; it is a renewable, biocompatible and biodegradable polymer [1,2]. The environmental friendliness of this compound, combined with the film- and fiber-forming capacity, as well as solubility in aqueous acid media [3], make chitosan attractive for obtaining aerogels, i.e., materials with low density, high porosity, and high specific surface area [4,5,6,7,8]. The physical characteristics of porous materials in conjunction with the chitosan properties allow us to use these materials as sorbents for various contaminants including liquid hydrocarbons, oil and oil products.
The amino and hydroxy groups contained in the structure of chitosan make it hydrophilic [9] and limit its use as a petroleum and oil sorbent. However, this structural feature allows chemical modification of chitosan and materials based on it to control the lyophilic properties by performing reactions that are specific to the listed functional groups: N, O–alkylation [10], acylation [11,12], sulfatation [13], phosphorylation [14], quaternization [15], graft copolymerization, and others [16,17,18,19]. In particular, chitosan modification can be performed in solution before the material-forming stage. When implementing such an approach, the solubility of the resulting chitosan derivatives may be altered [20] and film-forming capacity may be decreased [21]. In addition, bulk modification considerably affects the mechanical, optical, and barrier properties of the resulting materials [22]. Another modification approach is the grafting of modifiers onto the surface of the preformed chitosan material, which generally does not result in any changes in the material properties [23]. We have previously investigated the surface modification of chitosan films by low molecular weight aldehydes. However, low-molecular-weight agents with small molecular sizes can penetrate deep into the films and affect not only the surface properties of the material, but also produce changes in the supramolecular structure [24].
Chemical modification of the chitosan surface by grafting synthetic polymers allows us to combine the characteristics of natural and synthetic macromolecules (e.g., adjusting lyophilic characteristics and imparting selective sorption properties) while maintaining the biodegradability of the polymer matrix. Synthetic macromolecules can be grafted onto the chitosan chain by radical polymerization with chemical or physical initiation [23,25], ring-opening polymerization [26], and cationic polymerization [27], as well as by polymer-analogous reactions during the interaction of functional groups of chitosan and preformed polymer [28,29]. The grafting of vinyl [30], acrylic [31], fluorinated [23], organosilicon [32] and other polymers can be used to impart hydrophobicity to chitosan. This paper proposes to use copolymers based on alkyl methacrylates (AlMA) and glycidyl methacrylate (GMA) as modifiers that are capable of forming covalent bonds owing to the interaction of epoxy anchor groups with complementary groups on the surface of chitosan materials, while alkyl methacrylate comonomers will provide hydrophobic and oleophilic properties at the interface.
The purpose of this work was to study the effect of the length of alkyl side groups in glycidyl methacrylate and alkyl methacrylate copolymers on the wettability and sorption properties of surface-modified chitosan aerogels relative to water and liquid hydrocarbons (e.g., oil, diesel fuel, and synthetic motor oil) as well as to evaluate the biodegradability of the chitosan materials after modification by synthetic polymers.

2. Materials and Methods

2.1. Materials

Chitosan (Mw = 200 kDa, degree of deacetylation 83%) was purchased from Bioprogress (Russia). Glacial acetic acid (p.a.), methanol (c.p.), ammonia (25% water solution, p.a.) methyl ethyl ketone (c.p.), and diethylamine (pure) were purchased from Vekton (Russia). Glutaric aldehyde (GA, 25% aqueous solution) was purchased from Acros Organics. Glycidyl methacrylate (GMA, 98%), hexyl methacrylate (HeMA, 97%), decyl methacrylate (DMA, 96%), lauryl methacrylate (LMA, 96%), stearyl methacrylate (SMA, 97%), and azobisisobutyronitrile (AIBN, 98%) were purchased from Aldrich. Tetradecyl methacrylate (TDMA, 96%,) was purchased from J&K Scientific, Beijing, China. Synthetic motor oil (viscosity grade 5W30) produced by Total Quartz, winter diesel fuel produced by Rosneft, light oil (ρ = 0.803 g/cm3), distilled water, and deionized water were used.

2.2. Preparation of the Chitosan Aerogel

A 3% aqueous solution of GA was added to a 1% solution of chitosan in a 1% aqueous solution of acetic acid (at a molar ratio of NH2:C=O of 1:1) and stirred with a magnetic stirrer at 1500 rpm for 30 min at room temperature. The resulting gel was degassed in an ultrasonic bath for 10 min, placed in polypropylene molds and left for 72 h at room temperature. Then, it was frozen at −30 °C for 18 h, followed by complete defrosting at 25 °C. The resulting hydrogel was converted from the salt form to the primary form with an aqueous-alcoholic solution of ammonia (1:1 vol.); further washing to a neutral pH was performed with distilled water. The reduced hydrogels were frozen at −30 °C and then dried at −82 ± 2 °C under reduced pressure in a 2.5-L FreeZone freeze dryer from Labconco Plus (Kansas City, MO, USA).

2.3. Preparation of the Chitosan Films

Chitosan films were formed from 2% chitosan solutions in a 2% aqueous solution of acetic acid according to the previously described procedure [33]. A dispersion of 2.6 g of chitosan in 98 g of water was stirred for 30 min to swelling, after which 2.1 g of glacial acetic acid was added dropwise (to obtain a 2% solution of chitosan in 2% acetic acid). The mixture was stirred for an additional 3 h. The chitosan solution was cast into Petri dishes and dried at 40 °C under reduced pressure. The resulting product was washed with an alcoholic alkali solution (1:1) for 1 h and then repeatedly with distilled water. The films were dried at 40 °C under reduced pressure until constant weight. The dried films had a thickness of 30–40 μm.

2.4. Synthesis of GMA and AlMA Copolymers

The synthesis of GMA and AlMA copolymers was performed by a free-radical mechanism similar to the previously described procedure [34]. The synthesis of copolymers was conducted in MEK for 24 h at 70 °C with a GMA:AlMA mole ratio of 2.3:1. The overall concentration of monomers was 1 mol L−1. AIBN was used as an initiating agent. The copolymer was precipitated in cold methanol and then dried under reduced pressure until constant weight.

2.5. Surface Modification of the Chitosan-Based Materials

The modification of chitosan aerogels was performed by immersing test samples in a poly(GMA-co-AlMA) solution in methyl ethyl ketone with a copolymer concentration of 0.01–1 wt% for 30 min. Afterwards, the samples were removed from the solution, placed on dry glass Petri dishes and heated at 20–160 °C for 60 min. Chitosan aerogels were washed from adsorbed copolymer in a Soxhlet apparatus for 8 h using methyl ethyl ketone as the extractant. The weight gain of the samples determined gravimetrically following the grafting of GMA and AlMA copolymers and washing was ~4 ± 1% (average for a series of samples of n = 30).
Similarly, the modification of chitosan films was performed by immersing samples in a modified solution of poly(GMA-co-AlMA) copolymers in methyl ethyl ketone with a concentration of 3 wt% for 60 min. Afterwards, the samples were removed from the solution and thermostated at 140 °C for 60 min. The samples were purified from unreacted copolymer in a Soxhlet apparatus using methyl ethyl ketone as the solvent.

2.6. Amination of the Free Surface Epoxy Groups of the Obtained Materials

Chitosan films and aerogels modified with poly(GMA-co-TDMA) copolymer were placed in 20 wt% solution of diethylamine in methyl ethyl ketone for 24 h at 70 °C. Then, the materials were washed with methyl ethyl ketone in a Soxhlet apparatus for 8 h.

2.7. Methods

The elemental composition of the copolymers based on glycidyl methacrylate and alkyl methacrylates, original and modified chitosan materials was studied using a CHNOS Vario EL Cube elemental analyzer (Germany) via the 2 mg 70 s method. The analysis time for one sample was 10 min, and the rates of consumption of He and O2 were 230 and 38 mL/min, respectively, with an oxygen supply time of 70 s. The temperatures of the oxidation and reduction columns were 1150 and 850 °C, respectively.
The molecular weight characteristics of the polymers were determined via gel permeation chromatography using a Shimadzu instrument (Japan) with columns filled with polystyrene gel with a pore size of 105 and 104 Å, tetrahydrofuran eluent, at 40 °C. A differential refractometer was used as a detector. Chromatograms were processed using the LCsolution software. Narrow-disperse standards of poly(methyl methacrylate) (PMMA) were used for calibration.
The Fourier-transform infrared (FTIR) spectroscopic studies of original and modified chitosan materials were performed using an InfraLUM FT-08 apparatus (Russia) in the range of 400–4000 cm−1 at a resolution of 0.7 cm−1.
The surface elemental composition was determined by X-ray photoelectron spectroscopy (XPS) using an ultra-high vacuum Multiprobe RM complex (Omicron Nanotechnology GmbH, Taunusstein, Germany) operating at a residual pressure of ~7 × 10−9 mbar. Mg Kα (E = 1253.6 eV, ΔE = 0.75 eV) was used to excite the photoemission. The diameter of the collection area of the hemispherical energy analyzer was 3 mm. We used a constant transmittance function mode with a transmittance energy value of 50 eV. The sampling rate for the O 1s, C 1s, N 1s, and F 1s lines was 0.2 eV, and the accumulation time at each energy point was 1 s. The survey spectrum was recorded at a rate of 1 eV and an accumulation time of 0.5 s at each energy point.
The chitosan aerogel structure was studied by scanning electron microscopy (SEM) using a Versa 3D instrument (FEI, Hillsboro, OR, USA) in low vacuum mode at a water vapor pressure in the chamber of 10–80 Pa and an accelerating voltage of 15–20 kV.
The study of the structural features of the chitosan aerogel involved a transverse fracture of the sample in liquid nitrogen (after a 60-min exposure) by a sharp application of force on the sample edges. To exclude prolonged contact of the prepared sample with laboratory air, the morphological features and elemental composition of the fracture surface were studied immediately after performing the abovementioned procedure.
The porosity (P) of the samples was calculated using the following formula:
P = 1 − p a p p p t r ,
where papp is the apparent density of the sample (g/cm3), and ptr is the true density of the sample (g/cm3).
We determined the apparent density using the cylindrical aerogel samples, the height and diameter of which were measured using a digital caliper. The true density was determined by helium pycnometry using a Micromeritics AccuPyc 1330 pycnometer (Norcross, GA, USA).
The contact angle was measured using an OCA 15EC apparatus from DataPhysics (Filderstadt, Germany) according to the procedure described in [35]. The contact angle measurements were performed by applying 5 µL drops of test liquid on the surface of the material at room temperature in several environments, i.e., air, nonpolar liquid (diesel fuel), and polar liquid (deionized water). The contact angle of a sessile drop was calculated using the Young–Laplace method.
The sorption capacity was evaluated by the mass variation of the samples after placing them in a container with the appropriate liquid according to ASTM F726-12. Prior to testing, chitosan aerogel samples were dried at 110 °C to constant weight (initial weight m0). A sample weighing 0.1 ± 0.01 g was immersed in a 100-mL weighing bottle filled with 50 mL of test liquid. After 15 min and 24 h of testing, the sample was removed from the container and placed on a wire rack for 30 s to drain off excess fluid. The sorption capacity C was calculated according to the following formula:
C = m i − m 0 m 0 ,
where mi is the sample weight after 15 min or 24 h after the start of the test and 30 s of draining off on the wire rack (g), and m0 is the initial weight of the sample (g).
The biodegradability study was performed using the original and modified samples of chitosan films in soil. The 30 × 30 mm samples with a thickness of 35 ± 5 μm were buried at least 5 cm deep in a container filled with soil at a pH of the aqueous extract of 6–7.5, humidity of 60–70%, and temperature of 23 ± 5 °C. Every 15 days, the samples were extracted from the soil, washed with distilled water, dried at 100 °C to constant weight, and weighed. The percent of weight loss was calculated using the following equation:
WL = m i − m 0 m 0 × 100 ,
where mi is the sample weight after contact with soil (g), and m0 is the initial weight of the sample (g).

3. Results and Discussion

3.1. Synthesis and Characterization of Chitosan Materials Modified by GMA and AlMA Copolymers

The surface of chitosan aerogels with GMA and AlMA copolymers was modified by impregnation according to the “grafting onto” approach [36]. The “grafting onto” approach involves the preliminary synthesis of polymers, the functional groups of which react with complementary functional groups on the modified surface. This modification approach preserves such matrix properties as the porous structure and the biodegradability of chitosan. Modification of the chitosan aerogel with GMA and AlMA copolymers using the abovementioned method will yield a surface layer representing chitosan macromolecular chains with randomly distributed graft copolymer branches formed as a result of the reaction between oxirane groups of GMA and hydroxy and amino groups of chitosan (Figure 1).
One advantage of using the “grafting onto” approach is the possibility of determining the molecular characteristics of the modifier polymers. The composition and molecular weight characteristics of poly(GMA-co-AlMA) are shown in Table 1.
Based on elemental analysis, the ratio of monomeric units in the resulting copolymers was found to be similar to the theoretical molar ratio. The copolymers are characterized by a narrow molecular weight distribution and low molecular weights, while the similar values of these indicators allow us to study the effect of the composition and structure of the polymer modifiers on the hydrophobic and sorption properties of the surface of chitosan materials.
To confirm the grafting of GMA and AlMA copolymers on the surface of chitosan aerogels, the FTIR spectroscopic studies were performed using attenuated total reflection (Figure 2). The FTIR spectra of the modified samples have a band at 1728 cm−1, which corresponds to stretching vibrations of the carbonyl group in esters [37] and confirms the grafting of poly(GMA-co-AlMA) copolymers on the chitosan surface. Grafting of copolymers predominantly at the amino group was confirmed by a reduction in the intensity of the absorption band of NH2 groups at 1582 cm−1.
At the stage of aerogel formation, GA is used to create the three-dimensional structure of the material, and the mechanism of its interaction with chitosan is complex and not limited to mere interaction of aldehyde groups with amino groups [38]. Based on the elemental analysis of the carbon to nitrogen ratio (Table 2) for the chitosan film that did not contain GA and the chitosan aerogel crosslinked with GA, the content of the latter was 10.38%, which corresponds to the ratio of functional groups of NH2:C=O equal to 2.1:1 in the resulting chitosan aerogel. Consequently, crosslinking does not involve at least half of the chitosan amino groups, which can be involved in the reaction with epoxy groups of polymer modifiers. The attachment of GMA and AlMA copolymers on the surface of chitosan aerogels results in an increase in the C/N ratio in which the content of polymer modifiers was determined to be 2.5–3%, which is consistent with the gravimetric determination.
To identify free epoxy groups on the surface of chitosan aerogels modified with glycidyl methacrylate copolymers, they were aminated using diethylamine. The use of low-molecular-weight amines with small alkyl substituents provides the highest degree of conversion of epoxy groups in glycidyl methacrylate links owing to the leveling of steric hindrances [39,40,41]. In addition, to increase the availability of epoxy groups, amination was performed in a medium of methyl ethyl ketone, which is a good solvent for modifiers. The amination of chitosan aerogel modified with poly(GMA-co-TDMA) resulted in an increase in carbon and nitrogen content. The content of the reacted diethylamine determined from the elemental composition was 0.13%; the molar ratio of the secondary amino group:epoxy group was 1:4.3, which corresponds to the conversion of epoxy groups in the poly(GMA-co-TDMA) copolymer grafted to the chitosan surface of 23.3%. Thus, up to 76.7% of the epoxy groups contained in poly(GMA-co-TDMA) could be involved in the chitosan aerogel modification.
XPS was used to determine the elemental composition of the surface (Figure 3, Table 3) and the bonding configurations between the elements (Table 4). As shown in Figure 3A, there are four peaks in the photoelectron spectrum of the C 1s region of the original chitosan aerogel: C=O (288.3 eV), C–O (286.3 eV), C–N (286.0 eV), and C–C (284.7 eV) [42,43]. The photoelectron spectrum of the N 1s region also consists of four peaks: –RN+ (402.8 eV), –NH– (400.3 eV), N–C (399.2 eV), and –NH2 (398.5 eV) [43,44,45]. The N/C ratio of 0.08 determined by the XPS method was comparable to the findings of the elemental analysis of the bulk volume of material, which was 0.14. The grafting of poly(GMA-co-TDMA) decreased the nitrogen and oxygen content to 1.0% and 20.4%, respectively, while the carbon content increased to 78.6%. In addition, an increase in the C–C bond intensity was observed in the C 1s region (Figure 3B), which is a consequence of the modifier containing a long hydrocarbon substituent C14H29. As the XPS spectra of the analyzed sample were obtained at a depth of no more than 10 nm, the detection of nitrogen in the spectrum allows us to conclude that the thickness of the formed coating on the aerogel surface was even thinner [46]. Further treatment of the aerogel with diethylamine increased the nitrogen content to 2.3% and increased the C–C bond concentration to 64.9% in the C 1s photoelectron region (Figure 3C). Thus, the XPS method confirms the grafting of poly(GMA-co-TDMA) to the surface of chitosan aerogels and the subsequent attachment of diethylamine to the free epoxy groups of the modifier.
SEM images (Figure 4) show the morphology of chitosan aerogel fractures before and after modification. The resulting chitosan aerogels have high porosity and low density: pore sizes are 100–300 μm, and the pore walls are made of films with a thickness of 0.6–1 μm.
The modification of aerogels using the solutions based on GMA and AlMA copolymers does not alter the morphology and sizes of pores, which indicates the process of modification on the surface of the aerogel walls. The gravimetrically determined weight gain of the samples is only 4 ± 1%, which has almost no effect on the change in apparent density. In addition, there is no effect of modification on pycnometrically determined true density and porosity. The physical characteristics of the resulting chitosan aerogels are presented in Table 5.
The surface modification of porous materials requires determining the optimal modification conditions, such as the concentration of the modifying solution and temperature, which are necessary and sufficient to impart the best hydrophobic properties. The data on evaluating the effect of these parameters on the obtained values of initial contact angles and water absorption of aerogels are presented in Table 6 and Table 7. During the modification of chitosan aerogels with GMA and TDMA copolymer solutions, the required concentration of the modifier was determined to be 0.1 wt%, and the modification temperature was 140 °C. Variation of the abovementioned parameters yielded high values for the initial contact angles of up to 150° and higher. However, not all conditions can ensure the stability of the hydrophobic state of the surface, which is determined from water absorption results.

3.2. Wettability and Sorption Properties of Chitosan Aerogels Modified by GMA and AlMA Copolymers

One way to evaluate the effectiveness of chitosan aerogels for selective sorption of hydrocarbon fractions is to measure surface wetting angles (Table 8). The original chitosan aerogels are characterized by hydrophilicity and instantaneous absorption of a drop of deionized water in air. At the same time, modification of chitosan aerogels with GMA and AlMA copolymers imparts superhydrophobic properties to the surface with contact angles up to 157° (Figure 5a), which are due not only to the chemical composition at the interface, but also to the multilevel surface texture [47,48].
The grafting of copolymers onto the surface of chitosan aerogels provides a directional change in properties at the interface. Of note, organic liquids wet most surfaces in air; thus, the oleophilicity of chitosan aerogels was assessed in deionized water using diesel fuel as a test wetting fluid (and vice versa, water wetting in diesel fuel). Immersion of unmodified aerogels in deionized water demonstrates the absorption of the medium (complete water wetting) owing to the hydrophilic nature of chitosan, with the samples showing superoleophobic properties with contact angles over 160° in diesel fuel. This occurs owing to the formation of an aqueous film on the surface of the unmodified aerogel, which prevents the material from wetting with diesel fuel (Figure 5d). Similarly, unmodified chitosan aerogels are superhydrophobic in diesel fuel (Figure 5e). The aerogel samples modified with GMA and AlMA copolymers are superoleophilic both in the air and in an aqueous medium (Figure 5b,c), but retain superhydrophobic properties when immersed in a nonpolar medium. Thus, the modification of the surface of chitosan aerogels with GMA and AlMA copolymers provides the optimal set of lyophilic properties required for the selective sorption of hydrocarbons.
According to the data presented in Table 9, modification of chitosan aerogels with GMA and AlMA copolymers leads to a decrease in the water absorption index. However, the minimum water absorption of 1.8 g/g is achieved in the case of grafting of GMA and SMA copolymers with the largest alkyl substituent among the modifiers used, which correlates with the values of contact angles in air (Table 8). The HeMA and GMA copolymer with a short alkyl substituent provides water absorption of chitosan aerogels up to 4.6 g/g, thus demonstrating the lowest efficiency among the studied modifiers. DMA, LMA, and TDMA copolymers can be attributed to the group of average indicators, the water absorptions of which were 2.1, 2.2 and 2.1 g/g, respectively, with their water repellency being similar to that of SMA copolymers. Despite the similar values of the initial contact angles for TDMA and SMA, the alkyl substituent length affects the water adsorption during prolonged contact, which indicates a less stable superhydrophobic state of the surface modified with GMA and TDMA copolymers.
The alkyl substituent in the polymeric modifier structure imparts hydrophobic properties to the surface by reducing the free surface energy and shielding hydrophilic fragments in the chitosan aerogel structure. Absorption of water by the modified samples can to some extent be explained by condensation of water vapor in the aerogel pores. Of note, under these experimental conditions, water adsorption by unmodified samples occurs almost instantaneously with the formation of swollen hydrogel, causing drying of the samples with their subsequent shrinkage and loss of the porous structure. Based on our findings (Table 9), it can be concluded that the high sorption rate of the hydrocarbon phase was observed in all chitosan aerogel samples. Even after 15 min of exposure, the sorption capacity almost reached the maximum values; during further contact with the sorbent medium up to 24 h, there was a slight increase in the amount of sorbent liquid (by 1.1 g/g on average). Further exposure does not produce an increase in the amount of sorbed hydrocarbon. Unlike unmodified aerogels, modified aerogels are characterized by lower indices of sorption capacity for diesel fuel, light crude, and synthetic motor oil. The average deviation from the value of the sorption capacity of unmodified aerogels is 3.4 g/g, which may be due to a decrease in the free volume of the aerogel as a result of grafting of copolymers and possible partial overlapping of micropores by the grafted copolymer. Of note, the low density of the samples provides them with buoyancy, which is preserved even when the sorbent is saturated.
For comparison, Table 10 shows some known sorbents and their sorption characteristics in relation to petroleum and petroleum products. We observed that the resulting chitosan aerogels modified with GMA and AlMA copolymers are significantly superior to their known counterparts in terms of sorption properties.

3.3. Biodegradability of Chitosan Materials Modified by GMA and AlMA Copolymers

Imparting hydrophobic properties to chitosan material inhibits hydrolytic processes, which are the basis of biodegradability [57]. One of the principal issues for the performed modification was the preservation of the biodegradability of the resulting materials, which in this study was determined by degrading films in soil (Figure 6 and Figure 7). Unmodified chitosan film loses approximately 90% of its weight when exposed to soil for 4–5 months. It can be assumed that complete biodegradation occurs after soil exposure for 5–6 months. After 65 days from the beginning of the experiment, the unmodified material was characterized by a weight loss of ~30%, whereas the samples modified with GMA and AlMA copolymers during this period showed the onset of destructive processes, which were preceded by an induction period associated with hydration of the modifier attached to the surface. After soil exposure for 5 months, chitosan films modified with poly(GMA-co-DMA) and poly(GMA-co-LMA) showed weight losses of up to 75% and 50%, respectively, which confirmed the preservation of the biodegradability of these materials.

4. Conclusions

This study evaluated the effect of the structure of grafted copolymers based on alkyl methacrylates with C6–C18 hydrocarbon side groups and glycidyl methacrylate on the lyophilic and sorption properties of chitosan aerogels. The unmodified chitosan aerogel was characterized by complete wetting and water absorption of 56.4 g/g, while the modification resulted in superhydrophobic aerogels characterized by wetting angles up to 157°. The copolymers based on alkyl methacrylates and glycidyl methacrylate grafted onto the surface of chitosan aerogels prevented the capillary effect relative to water and allowed the reduction of the material’s water absorption by a factor of 30 down to 1.8 g/g when modified with a GMA and SMA copolymer with the side alkyl group containing 18 carbon atoms. The GMA and HeMA copolymer has the least effective water-repellent effect and allows the reduction of water absorption by a factor of 12 down to 4.6 g/g. The length of the alkyl substituent of 10–14 carbon atoms in alkyl methacrylate yields similar water repellent properties in the water absorption range of 2.1–2.2 g/g. The oleophilic nature of the polymeric modifiers contributes to the sorption capacity of aerogels up to 44 g/g relative to various types of liquid hydrocarbons.
The resulting sorption and hydrophobic characteristics of the modified chitosan aerogels determine the possibility of selective sorption of hydrocarbons from water surfaces, which in conjunction with the preservation of biodegradability opens up prospects for the use of these materials as effective and environmentally friendly petroleum and oil sorbents.

Author Contributions

Conceptualization, A.V.N.; methodology, E.B.B., E.V.B. and A.V.N.; investigation, V.M.Y., O.A.M., E.B.B., O.V.K. and D.E.N.; writing—original draft preparation, V.M.Y. and V.V.K.; writing—review and editing, E.V.B. and A.V.N.; visualization, V.V.K. and O.V.K.; supervision, A.V.N.; project administration, A.V.N. and I.A.N.; funding acquisition, I.A.N. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge funding from the Ministry of Science and Higher Education of the Russian Federation (Agreement No. 075-15-2020-794).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Younes, I.; Rinaudo, M. Chitin and Chitosan Preparation from Marine Sources. Structure, Properties and Applications. Mar. Drugs 2015, 13, 1133–1174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Aranaz, I.; Alcántara, A.R.; Civera, M.C.; Arias, C.; Elorza, B.; Heras Caballero, A.; Acosta, N. Chitosan: An Overview of Its Properties and Applications. Polymers 2021, 13, 3256. [Google Scholar] [CrossRef] [PubMed]
  3. Panda, P.K.; Dash, P.; Chang, Y.-H.; Yang, J.-M. Improvement of Chitosan Water Solubility by Fumaric Acid Modification. Mater. Lett. 2022, 316, 132046. [Google Scholar] [CrossRef]
  4. Wei, S.; Ching, Y.C.; Chuah, C.H. Synthesis of Chitosan Aerogels as Promising Carriers for Drug Delivery: A Review. Carbohydr. Polym. 2020, 231, 115744. [Google Scholar] [CrossRef] [PubMed]
  5. Vedaiyan, R.K.; Thyriyalakshmi, P. Utilization of Biodegradable Chitosan-Derived Sponges as Oil Retainers. Environ. Sci. Pollut. Res. 2020, 27, 28123–28131. [Google Scholar] [CrossRef]
  6. Ganesan, K.; Budtova, T.; Ratke, L.; Gurikov, P.; Baudron, V.; Preibisch, I.; Niemeyer, P.; Smirnova, I.; Milow, B. Review on the Production of Polysaccharide Aerogel Particles. Materials 2018, 11, 2144. [Google Scholar] [CrossRef] [Green Version]
  7. Lee, J.; Patel, R. Wastewater Treatment by Polymeric Microspheres: A Review. Polymers 2022, 14, 1890. [Google Scholar] [CrossRef]
  8. Hsan, N.; Dutta, P.K.; Kumar, S.; Koh, J. Arginine Containing Chitosan-Graphene Oxide Aerogels for Highly Efficient Carbon Capture and Fixation. J. CO2 Util. 2022, 59, 101958. [Google Scholar] [CrossRef]
  9. Kas, H.S. Chitosan: Properties, Preparations and Application to Microparticulate Systems. J. Microencapsul. 1997, 14, 689–711. [Google Scholar] [CrossRef]
  10. Ma, G.; Yang, D.; Zhou, Y.; Xiao, M.; Kennedy, J.F.; Nie, J. Preparation and Characterization of Water-Soluble N-Alkylated Chitosan. Carbohydr. Polym. 2008, 74, 121–126. [Google Scholar] [CrossRef]
  11. Zhang, Z.; Jin, F.; Wu, Z.; Jin, J.; Li, F.; Wang, Y.; Wang, Z.; Tang, S.; Wu, C.; Wang, Y. O-Acylation of Chitosan Nanofibers by Short-Chain and Long-Chain Fatty Acids. Carbohydr. Polym. 2017, 177, 203–209. [Google Scholar] [CrossRef] [PubMed]
  12. Vasnev, V.A.; Tarasov, A.I.; Markova, G.D.; Vinogradova, S.V.; Garkusha, O.G. Synthesis and Properties of Acylated Chitin and Chitosan Derivatives. Carbohydr. Polym. 2006, 64, 184–189. [Google Scholar] [CrossRef]
  13. Shankar, S.; Rhim, J.-W. Preparation of Sulfur Nanoparticle-Incorporated Antimicrobial Chitosan Films. Food Hydrocoll. 2018, 82, 116–123. [Google Scholar] [CrossRef]
  14. Amaral, I.F.; Granja, P.L.; Melo, L.V.; Saramago, B.; Barbosa, M.A. Functionalization of Chitosan Membranes through Phosphorylation: Atomic Force Microscopy, Wettability, and Cytotoxicity Studies. J. Appl. Polym. Sci. 2006, 102, 276–284. [Google Scholar] [CrossRef]
  15. Stepnova, E.A.; Tikhonov, V.E.; Babushkina, T.A.; Klimova, T.P.; Vorontsov, E.V.; Babak, V.G.; Lopatin, S.A.; Yamskov, I.A. New Approach to the Quaternization of Chitosan and Its Amphiphilic Derivatives. Eur. Polym. J. 2007, 43, 2414–2421. [Google Scholar] [CrossRef]
  16. Mourya, V.K.; Inamdar, N.N. Chitosan-Modifications and Applications: Opportunities Galore. React. Funct. Polym. 2008, 68, 1013–1051. [Google Scholar] [CrossRef]
  17. Alves, N.M.; Mano, J.F. Chitosan Derivatives Obtained by Chemical Modifications for Biomedical and Environmental Applications. Int. J. Biol. Macromol. 2008, 43, 401–414. [Google Scholar] [CrossRef] [Green Version]
  18. Bakshi, P.S.; Selvakumar, D.; Kadirvelu, K.; Kumar, N.S. Chitosan as an Environment Friendly Biomaterial—A Review on Recent Modifications and Applications. Int. J. Biol. Macromol. 2020, 150, 1072–1083. [Google Scholar] [CrossRef]
  19. Jaiswal, S.; Dutta, P.K.; Kumar, S.; Koh, J.; Lee, M.C.; Lim, J.W.; Pandey, S.; Garg, P. Synthesis, Characterization and Application of Chitosan-N-(4-Hydroxyphenyl)-Methacrylamide Derivative as a Drug and Gene Carrier. Int. J. Biol. Macromol. 2022, 195, 75–85. [Google Scholar] [CrossRef]
  20. Ma, G.; Yang, D.; Kennedy, J.F.; Nie, J. Synthesize and Characterization of Organic-Soluble Acylated Chitosan. Carbohydr. Polym. 2009, 75, 390–394. [Google Scholar] [CrossRef]
  21. Kulkarni, A.R.; Kulkarni, V.H.; Keshavayya, J.; Hukkeri, V.I.; Sung, H.-W. Anti-Microbial Activity and Film Characterization of Thiazolidinone Derivatives of Chitosan. Macromol. Biosci. 2005, 5, 490–493. [Google Scholar] [CrossRef] [PubMed]
  22. López-Mata, M.A.; Ruiz-Cruz, S.; de Jesús Ornelas-Paz, J.; Del Toro-Sánchez, C.L.; Márquez-Ríos, E.; Silva-Beltrán, N.P.; Cira-Chávez, L.A.; Burruel-Ibarra, S.E. Mechanical, Barrier and Antioxidant Properties of Chitosan Films Incorporating Cinnamaldehyde. J. Polym. Environ. 2018, 26, 452–461. [Google Scholar] [CrossRef]
  23. Lepoittevin, B.; Elzein, T.; Dragoe, D.; Bejjani, A.; Lemée, F.; Levillain, J.; Bazin, P.; Roger, P.; Dez, I. Hydrophobization of Chitosan Films by Surface Grafting with Fluorinated Polymer Brushes. Carbohydr. Polym. 2019, 205, 437–446. [Google Scholar] [CrossRef] [PubMed]
  24. Bryuzgina, E.; Yartseva, V.; Bryuzgin, E.; Tuzhikov, O.; Navrotskiy, A. Surface Modification of Film Chitosan Materials with Aldehydes for Wettability and Biodegradation Control. Polym. Bull. 2022. [Google Scholar] [CrossRef]
  25. Kumar, D.; Gihar, S.; Shrivash, M.K.; Kumar, P.; Kundu, P.P. A Review on the Synthesis of Graft Copolymers of Chitosan and Their Potential Applications. Int. J. Biol. Macromol. 2020, 163, 2097–2112. [Google Scholar] [CrossRef]
  26. Detchprohm, S.; Aoi, K.; Okada, M. Synthesis of a Novel Chitin Derivative Having Oligo(ɛ-Caprolactone) Side Chains in Aqueous Reaction Media. Macromol. Chem. Phys. 2001, 202, 3560–3570. [Google Scholar] [CrossRef]
  27. Yoshikawa, S.; Takayama, T.; Tsubokawa, N. Grafting Reaction of Living Polymer Cations with Amino Groups on Chitosan Powder. J. Appl. Polym. Sci. 1998, 68, 1883–1889. [Google Scholar] [CrossRef]
  28. Tsubokawa, N.; Takayama, T. Surface Modification of Chitosan Powder by Grafting of ‘Dendrimer-like’ Hyperbranched Polymer onto the Surface. React. Funct. Polym. 2000, 43, 341–350. [Google Scholar] [CrossRef]
  29. Yang, D.; Li, L.; Chen, B.; Shi, S.; Nie, J.; Ma, G. Functionalized Chitosan Electrospun Nanofiber Membranes for Heavy-Metal Removal. Polymer 2019, 163, 74–85. [Google Scholar] [CrossRef]
  30. Francis, R.; Baby, D.K.; Gnanou, Y. Synthesis and Self-Assembly of Chitosan-g-Polystyrene Copolymer: A New Route for the Preparation of Heavy Metal Nanoparticles. J. Colloid Interface Sci. 2015, 438, 110–115. [Google Scholar] [CrossRef]
  31. Anbinder, P.; Macchi, C.; Amalvy, J.; Somoza, A. Chitosan-Graft-Poly(n-Butyl Acrylate) Copolymer: Synthesis and Characterization of a Natural/Synthetic Hybrid Material. Carbohydr. Polym. 2016, 145, 86–94. [Google Scholar] [CrossRef] [PubMed]
  32. Enescu, D.; Hamciuc, V.; Ardeleanu, R.; Cristea, M.; Ioanid, A.; Harabagiu, V.; Simionescu, B.C. Polydimethylsiloxane Modified Chitosan. Part III: Preparation and Characterization of Hybrid Membranes. Carbohydr. Polym. 2009, 76, 268–278. [Google Scholar] [CrossRef]
  33. Chernyshova, E.B.; Berezin, A.S.; Tuzhikov, O.I. Hydrophobization of Chitosan-Based Films with Acrolein. Russ. J. Appl. Chem. 2017, 90, 1165–1170. [Google Scholar] [CrossRef]
  34. Klimov, V.V.; Bryuzgin, E.V.; Le, M.D.; Zelenova, E.A.; Nguyen, T.H.; Navrotskii, A.V.; Nishide, H.; Novakov, I.A. An Investigation of the Hydrophobic Property Stability of Grafted Polymeric Coatings on a Cellulose Material Surface. Polym. Sci.-Ser. D 2016, 9, 364–367. [Google Scholar] [CrossRef]
  35. Bryuzgin, E.; Klimov, V.; Le, M.D.; Navrotskiy, A.; Novakov, I. The Superhydrophobic State Stability of Coatings Based on Copolymers of Glycidyl Methacrylate and Alkyl Methacrylates on Cotton Fabric Surface. Fibers Polym. 2020, 21, 1032–1038. [Google Scholar] [CrossRef]
  36. Stamm, M. (Ed.) Polymer Surfaces and Interfaces; Springer: Berlin/Heidelberg, Germany, 2008; ISBN 978-3-540-73864-0. [Google Scholar]
  37. Bellamy, L.J. The Infra-Red Spectra of Complex Molecules; Springer: Dordrecht, The Netherlands, 1975; ISBN 978-94-011-6019-3. [Google Scholar]
  38. Kildeeva, N.R.; Perminov, P.A.; Vladimirov, L.V.; Novikov, V.V.; Mikhailov, S.N. About Mechanism of Chitosan Cross-Linking with Glutaraldehyde. Russ. J. Bioorg. Chem. 2009, 35, 360–369. [Google Scholar] [CrossRef]
  39. Bruchet, A.; Dugas, V.; Laszak, I.; Mariet, C.; Goutelard, F.; Randon, J. Synthesis and Characterization of Ammonium Functionalized Porous Poly(Glycidyl Methacrylate-Co-Ethylene Dimethacrylate) Monoliths for Microscale Analysis and Its Application to DNA Purification. J. Biomed. Nanotechnol. 2011, 7, 415–425. [Google Scholar] [CrossRef]
  40. Druzhinina, T.V.; Nazar’ina, L.A. Chemisorption Fibres Based on Graft Copolymers: Fabrication and Properties. A Review. Fibre Chem. 1999, 31, 252–262. [Google Scholar] [CrossRef]
  41. Druzhinina, T.V.; Nazar’ina, L.A.; Kardash, K.V. Sorption-Active Modified Chemical Fibres. Fibre Chem. 2000, 32, 407–410. [Google Scholar] [CrossRef]
  42. Qian, X.; Fan, H.; Wang, C.; Wei, Y. Preparation of High-Capacity, Weak Anion-Exchange Membranes by Surface-Initiated Atom Transfer Radical Polymerization of Poly(Glycidyl Methacrylate) and Subsequent Derivatization with Diethylamine. Appl. Surf. Sci. 2013, 271, 240–247. [Google Scholar] [CrossRef]
  43. Chastain, J.; King, R.C., Jr. Handbook of X-ray Photoelectron Spectroscopy A Reference Book of Standard Spectra for Identification and Interpretation of XPS Data; Physical Electronics: Eden Prairie, MN, USA, 1995; ISBN 10: 096481241X; ISBN 13: 9780964812413. [Google Scholar]
  44. Lv, L.; Zhang, J.; Yuan, S.; Huang, L.; Tang, S.; Liang, B.; Pehkonen, S.O. Enhanced Adsorption of Cu(II) Ions on Chitosan Microspheres Functionalized with Polyethylenimine-Conjugated Poly(Glycidyl Methacrylate) Brushes. RSC Adv. 2016, 6, 78136–78150. [Google Scholar] [CrossRef]
  45. de Oliveira, A.C.; Vilsinski, B.H.; Bonafé, E.G.; Monteiro, J.P.; Kipper, M.J.; Martins, A.F. Chitosan Content Modulates Durability and Structural Homogeneity of Chitosan-Gellan Gum Assemblies. Int. J. Biol. Macromol. 2019, 128, 114–123. [Google Scholar] [CrossRef] [PubMed]
  46. Stevie, F.A.; Donley, C.L. Introduction to X-ray Photoelectron Spectroscopy. J. Vac. Sci. Technol. A 2020, 38, 063204. [Google Scholar] [CrossRef]
  47. Boinovich, L.B.; Emelyanenko, A.M. Hydrophobic Materials and Coatings: Principles of Design, Properties and Applications. Russ. Chem. Rev. 2008, 77, 583–600. [Google Scholar] [CrossRef]
  48. Boinovich, L.; Emelyanenko, A. A Wetting Experiment as a Tool to Study the Physicochemical Processes Accompanying the Contact of Hydrophobic and Superhydrophobic Materials with Aqueous Media. Adv. Colloid Interface Sci. 2012, 179–182, 133–141. [Google Scholar] [CrossRef] [PubMed]
  49. Bandura, L.; Franus, M.; Józefaciuk, G.; Franus, W. Synthetic Zeolites from Fly Ash as Effective Mineral Sorbents for Land-Based Petroleum Spills Cleanup. Fuel 2015, 147, 100–107. [Google Scholar] [CrossRef]
  50. Mojžiš, M.; Bubeníková, T.; Zachar, M.; Kačíková, D.; Štefková, J. Comparison of Natural and Synthetic Sorbents’ Efficiency at Oil Spill Removal. BioResources 2019, 14, 8738–8752. [Google Scholar] [CrossRef]
  51. Angelova, D.; Uzunov, I.; Uzunova, S.; Gigova, A.; Minchev, L. Kinetics of Oil and Oil Products Adsorption by Carbonized Rice Husks. Chem. Eng. J. 2011, 172, 306–311. [Google Scholar] [CrossRef]
  52. Ceylan, D.; Dogu, S.; Karacik, B.; Yakan, S.D.; Okay, O.S.; Okay, O. Evaluation of Butyl Rubber as Sorbent Material for the Removal of Oil and Polycyclic Aromatic Hydrocarbons from Seawater. Environ. Sci. Technol. 2009, 43, 3846–3852. [Google Scholar] [CrossRef]
  53. Rengasamy, R.S.; Das, D.; Praba Karan, C. Study of Oil Sorption Behavior of Filled and Structured Fiber Assemblies Made from Polypropylene, Kapok and Milkweed Fibers. J. Hazard. Mater. 2011, 186, 526–532. [Google Scholar] [CrossRef]
  54. Nguyen, S.T.; Feng, J.; Le, N.T.; Le, A.T.T.; Hoang, N.; Tan, V.B.C.; Duong, H.M. Cellulose Aerogel from Paper Waste for Crude Oil Spill Cleaning. Ind. Eng. Chem. Res. 2013, 52, 18386–18391. [Google Scholar] [CrossRef]
  55. Shi, M.; Tang, C.; Yang, X.; Zhou, J.; Jia, F.; Han, Y.; Li, Z. Superhydrophobic Silica Aerogels Reinforced with Polyacrylonitrile Fibers for Adsorbing Oil from Water and Oil Mixtures. RSC Adv. 2017, 7, 4039–4045. [Google Scholar] [CrossRef] [Green Version]
  56. Li, A.; Lin, R.; Lin, C.; He, B.; Zheng, T.; Lu, L.; Cao, Y. An Environment-Friendly and Multi-Functional Absorbent from Chitosan for Organic Pollutants and Heavy Metal Ion. Carbohydr. Polym. 2016, 148, 272–280. [Google Scholar] [CrossRef] [PubMed]
  57. Murthy, N.; Wilson, S.; Sy, J.C. Biodegradation of Polymers. In Polymer Science: A Comprehensive Reference; Elsevier: Amsterdam, The Netherlands, 2012; pp. 547–560. [Google Scholar]
Polymers 14 02711 g001 550

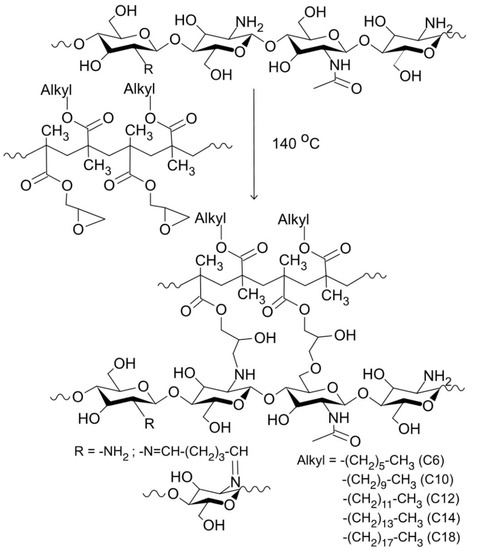

Figure 1. Attachment of GMA and AlMA copolymers on the surface of the chitosan aerogel.
Figure 1. Attachment of GMA and AlMA copolymers on the surface of the chitosan aerogel.
Polymers 14 02711 g001
Polymers 14 02711 g002 550

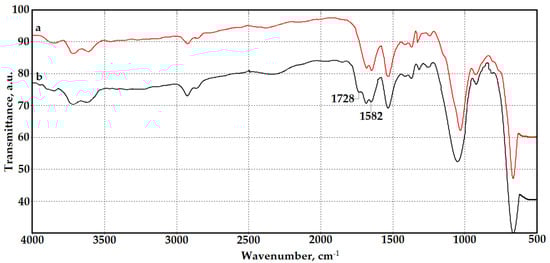

Figure 2. FTIR spectra of the original chitosan aerogel (a) and chitosan aerogel modified with poly(GMA-co-HeMA) copolymers (b).
Figure 2. FTIR spectra of the original chitosan aerogel (a) and chitosan aerogel modified with poly(GMA-co-HeMA) copolymers (b).
Polymers 14 02711 g002
Polymers 14 02711 g003 550

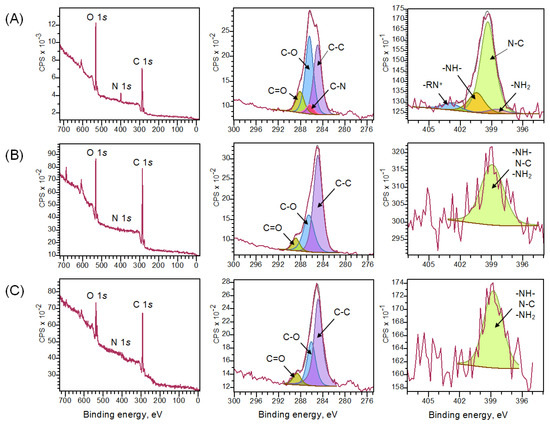

Figure 3. Survey scan, C 1s and N 1s core-level XPS spectra of the original chitosan aerogel (A), chitosan aerogel modified with poly(GMA-co-TDMA) copolymers (B), chitosan aerogel modified with poly(GMA-co-TDMA) copolymer and diethylamine (C).
Figure 3. Survey scan, C 1s and N 1s core-level XPS spectra of the original chitosan aerogel (A), chitosan aerogel modified with poly(GMA-co-TDMA) copolymers (B), chitosan aerogel modified with poly(GMA-co-TDMA) copolymer and diethylamine (C).
Polymers 14 02711 g003
Polymers 14 02711 g004 550
Figure 4. SEM images of fractures of the original chitosan aerogel (a) and chitosan aerogel modified with poly(GMA-co-HeMA) (b).
Figure 4. SEM images of fractures of the original chitosan aerogel (a) and chitosan aerogel modified with poly(GMA-co-HeMA) (b).
Polymers 14 02711 g004
Polymers 14 02711 g005 550
Figure 5. Images of test liquid drops in contact with the surface of chitosan aerogels: panel (a) shows a drop of deionized water in air medium on the surface of the chitosan aerogel modified with poly(GMA-co-DMA) copolymer; panels (b,c) show the process of diesel fuel drop absorption in deionized water medium by chitosan aerogel modified with poly(GMA-co-DMA) copolymer; panel (d) shows a drop of diesel fuel in deionized water medium on the surface of unmodified chitosan aerogel; and panel (e) shows a drop of deionized water in diesel fuel medium on the surface of unmodified chitosan aerogel.
Figure 5. Images of test liquid drops in contact with the surface of chitosan aerogels: panel (a) shows a drop of deionized water in air medium on the surface of the chitosan aerogel modified with poly(GMA-co-DMA) copolymer; panels (b,c) show the process of diesel fuel drop absorption in deionized water medium by chitosan aerogel modified with poly(GMA-co-DMA) copolymer; panel (d) shows a drop of diesel fuel in deionized water medium on the surface of unmodified chitosan aerogel; and panel (e) shows a drop of deionized water in diesel fuel medium on the surface of unmodified chitosan aerogel.
Polymers 14 02711 g005
Polymers 14 02711 g006 550

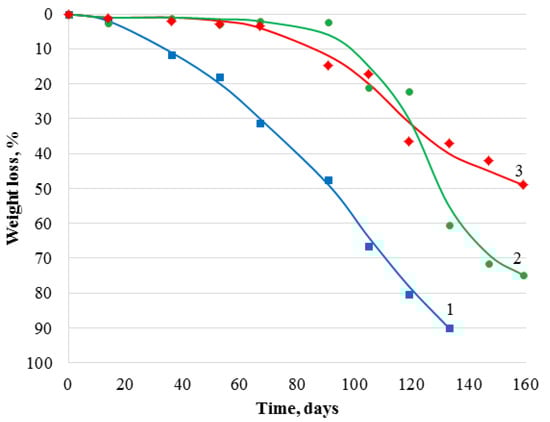

Figure 6. Weight loss of chitosan films under soil degradation conditions: 1-unmodified; 2-modified with poly(GMA-co-DMA); 3-modified with poly(GMA-co-LMA).
Figure 6. Weight loss of chitosan films under soil degradation conditions: 1-unmodified; 2-modified with poly(GMA-co-DMA); 3-modified with poly(GMA-co-LMA).
Polymers 14 02711 g006
Polymers 14 02711 g007 550
Figure 7. Chitosan films before and after soil degradation: 1-unmodified; 2-modified with poly(GMA-co-DMA); 3-modified with poly(GMA-co-LMA).
Figure 7. Chitosan films before and after soil degradation: 1-unmodified; 2-modified with poly(GMA-co-DMA); 3-modified with poly(GMA-co-LMA).
Polymers 14 02711 g007
Table
Table 1. Composition and molecular weight characteristics of GMA and AlMA copolymers.
Table 1. Composition and molecular weight characteristics of GMA and AlMA copolymers.
ModifierMolar RatioMn × 10−3Mw × 10−3Mw/Mn
TheoreticalExperimental
Poly(GMA-co-HeMA)2.3:12.0:139.877.81.9
Poly(GMA-co-DMA)1.9:151.692.81.8
Poly(GMA-co-LMA)2.2:171.1159.52.2
Poly(GMA-co-TDMA)1.9:144.681.81.8
Poly(GMA-co-SMA)2.0:164.6155.72.4
Table
Table 2. Results of elemental analysis of chitosan materials before and after modification (by CHNOS method).
Table 2. Results of elemental analysis of chitosan materials before and after modification (by CHNOS method).
Chitosan MaterialElemental Composition, wt%C/NModifier Content, wt%
CHN
Film44.747.0728.315.38-
Aerogel45.297.0557.266.2410.38 *
Aerogel,
modified by poly(GMA-co-HeMA)		45.676.9447.016.513.04
Aerogel,
modified by poly(GMA-co-DMA)		45.766.9197.076.472.49
Aerogel,
modified by poly(GMA-co-TDMA)		45.516.8957.026.482.50
Aerogel,
modified by poly(GMA-co-TDMA) and diethylamine		45.616.7337.056.470.13 **
* (GA content); ** (diethylamine content).
Table
Table 3. Results of elemental analysis of the surface of chitosan aerogels before and after the modification obtained by the XPS method.
Table 3. Results of elemental analysis of the surface of chitosan aerogels before and after the modification obtained by the XPS method.
Chitosan AerogelElemental Composition, at.%
ONC
Unmodified 28.25.866.0
With grafted poly(GMA-co-TDMA)20.41.078.6
With grafted poly(GMA-co-TDMA) and diethylamine19.32.378.4
Table
Table 4. Concentrations of constituent photoelectron regions of chitosan aerogels before and after modification obtained by the XPS method.
Table 4. Concentrations of constituent photoelectron regions of chitosan aerogels before and after modification obtained by the XPS method.
Chitosan AerogelC 1sN 1s
C–CC–OC=OC–NN–C–RN+–NH––NH2
Unmodified34.943.812.09.272.36.416.94.3
With grafted poly(GMA-co-TDMA)61.032.36.70.0100.00.00.00.0
With grafted poly(GMA-co-TDMA) and diethylamine64.926.38.80.0100.00.00.00.0
Table
Table 5. Physical characteristics of chitosan aerogels.
Table 5. Physical characteristics of chitosan aerogels.
Chitosan Aerogel Apparent Density, g/cm3True Density, g/cm3Porosity, %Pore Diameter, µmPore Wall Thickness, µm
Unmodified0.021 ± 0.0031.357 ± 0.01198.5 ± 0.4100–3000.6–1
With grafted poly(GMA-co-TDMA)0.022 ± 0.0031.364 ± 0.00998.4 ± 0.4
Table
Table 6. Initial contact angle and water absorption of chitosan aerogels modified at 140 °C for 1 h using poly(GMA-co-TDMA) solutions at varying concentrations.
Table 6. Initial contact angle and water absorption of chitosan aerogels modified at 140 °C for 1 h using poly(GMA-co-TDMA) solutions at varying concentrations.
Concentration of the Modifier
in Solution, wt%		Initial Contact Angle, °Water Absorption
(After 24 h), g/g
0.01150 ± 726.4
0.02151 ± 47.6
0.04152 ± 35.5
0.08155 ± 42.4
0.1157 ± 22.1
0.2157 ± 22.2
0.5157 ± 22.2
1157 ± 22.1
Table
Table 7. Initial contact angle and water absorption of chitosan aerogels modified for 1 h using poly(GMA-co-TDMA) solutions with 0.1 wt% concentration at varying temperatures.
Table 7. Initial contact angle and water absorption of chitosan aerogels modified for 1 h using poly(GMA-co-TDMA) solutions with 0.1 wt% concentration at varying temperatures.
Modification Temperature, °CInitial Contact Angle, °Water Absorption (After 24 h), g/g
20149 ± 518.4
40145 ± 718.7
60152 ± 518.1
80154 ± 417.2
100153 ± 43.5
120154 ± 42.8
140157 ± 22.1
150157 ± 22.3
160157 ± 22.2
Table
Table 8. Wettability of chitosan aerogels as a result of modification with GMA and AlMA copolymers.
Table 8. Wettability of chitosan aerogels as a result of modification with GMA and AlMA copolymers.
Chitosan Aerogel with Grafted GMA and AlMA CopolymersContact Angle in the “Wetting Agent/Medium” System, °
Deionized Water in airDeionized Water in Diesel FuelDiesel Fuel in Deionized Water
unmodifiedWetted160 ± 2162 ± 2
Poly(GMA-co-HeMA)146 ± 2162 ± 2Wetted
Poly(GMA-co-DMA)152 ± 2
Poly(GMA-co-LMA)153 ± 3
Poly(GMA-co-TDMA)157 ± 2
Poly(GMA-co-SMA)157 ± 3
Table
Table 9. Sorption capacity of chitosan aerogels as a result of modification with GMA and AlMA copolymer solutions.
Table 9. Sorption capacity of chitosan aerogels as a result of modification with GMA and AlMA copolymer solutions.
Chitosan Aerogel with Grafted GMA and AlMA CopolymersSorption Capacity, g/g
Distilled WaterSynthetic Motor OilDiesel FuelLight Oil
15 min24 h15 min24 h15 min24 h15 min24 h
Unmodified53.756.442.644.337.137.535.736.3
Poly(GMA-co-HeMA)1.34.637.939.635.235.731.832.3
Poly(GMA-co-DMA)1.02.141.443.532.833.530.932.3
Poly(GMA-co-LMA)1.02.235.437.733.433.634.434.7
Poly(GMA-co-TDMA)0.92.142.242.531.531.731.133.1
Poly(GMA-co-SMA)0.81.843.044.034.334.634.334.9
Table
Table 10. Sorption properties of some petroleum and oil sorbents.
Table 10. Sorption properties of some petroleum and oil sorbents.
SorbentType of Sorbent LiquidSorption Capacity, g/gReference
ZeoliteEngine oil0.4–0.9[49]
MossEngine oil28.4[50]
Rice huskGasoline3.7[51]
Diesel5.5
Light crude oil6.0
Motor oil7.5
Heavy crude oil9.2
Butyl rubberToluene17.8[52]
Gasoline16.7
Diesel20.3
Fuel oil15.4
Crude oil23.0
Olive oil7.9
Polypropylene fiberDiesel17.1[53]
High-density oil18.8
Cellulose aerogelCrude oil18.4–20.5[54]
Silica aerogelDiesel oil9.6[55]
Chitosan aerogelCrude oil41.1[56]
Diesel31.1
Chitosan aerogelSynthetic motor oil44.0Current study
Diesel fuel35.7
Light oil34.9
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yartseva, V.M.; Makevnina, O.A.; Bryuzgina, E.B.; Bryuzgin, E.V.; Klimov, V.V.; Kolyaganova, O.V.; Nikolitchev, D.E.; Navrotsky, A.V.; Novakov, I.A. Lyophilic and Sorption Properties of Chitosan Aerogels Modified with Copolymers Based on Glycidyl Methacrylate and Alkyl Methacrylates. Polymers 2022, 14, 2711. https://doi.org/10.3390/polym14132711

AMA Style

Yartseva VM, Makevnina OA, Bryuzgina EB, Bryuzgin EV, Klimov VV, Kolyaganova OV, Nikolitchev DE, Navrotsky AV, Novakov IA. Lyophilic and Sorption Properties of Chitosan Aerogels Modified with Copolymers Based on Glycidyl Methacrylate and Alkyl Methacrylates. Polymers. 2022; 14(13):2711. https://doi.org/10.3390/polym14132711

Chicago/Turabian Style

Yartseva, Vitalia M., Olga A. Makevnina, Ekaterina B. Bryuzgina, Evgeny V. Bryuzgin, Viktor V. Klimov, Olga V. Kolyaganova, Dmitry E. Nikolitchev, Alexander V. Navrotsky, and Ivan A. Novakov. 2022. "Lyophilic and Sorption Properties of Chitosan Aerogels Modified with Copolymers Based on Glycidyl Methacrylate and Alkyl Methacrylates" Polymers 14, no. 13: 2711. https://doi.org/10.3390/polym14132711

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
