Synthesis and Enzymatic Degradation of Sustainable Levoglucosenone-Derived Copolyesters with Renewable Citronellol Side Chains

URD Agro-Biotechnologies Industrielles (ABI), CEBB, AgroParisTech, 3 Rue des Rouges-Terres, 51110 Pomacle, France
Authors to whom correspondence should be addressed.
Polymers 2022, 14(10), 2082;
Received: 21 April 2022 / Revised: 14 May 2022 / Accepted: 16 May 2022 / Published: 20 May 2022
(This article belongs to the Special Issue Advances in Biocompatible and Biodegradable Polymers)


Recently, a renewable five-membered lactone containing citronellol (HBO-citro) was synthesized from levoglucosenone (LGO). A one-pot two-step pathway was then developed to produce a mixture of 5- and 6-membered Lactol-citro molecules (5ML and 6ML, respectively) from HBO-citro. Proton nuclear magnetic resonance (1H NMR) of a mixture of 5ML and 6ML at varying temperatures showed that the chemical shifts of the hydroxyls, as well as the 5ML:6ML ratio, are temperature-dependent. Indeed, a high temperature, such as 65 °C, led to an up-field shielding of the hydroxyl protons as well as a drop in the 5ML:6ML ratio. The monomers 5ML and 6ML were then engaged in polycondensation reactions involving diacyl chlorides. Renewable copolyesters with low glass transition temperatures (as low as −67 °C) and cross-linked citronellol chains were prepared. The polymers were then hydrolyzed using a commercial lipase from Thermomyces lanuginosus (Lipopan® 50 BG). A higher degradation rate was found for the polymers prepared using Lactol-citro molecules, compared to those obtained by the polycondensation reactions of diacyl chlorides with Triol-citro—a monomer recently obtained by the selective reduction of HBO-citro.

Graphical Abstract

1. Introduction

While converting biomass waste into high-performance renewable materials reduces fossil fuel use and greenhouse gas emissions [1,2], it does not solve the environmental problems caused by the accumulation of bioplastic waste [3]. Indeed, the prefix “bio” is likely to be misunderstood by producers/consumers. Bio-based polymers are products that are partially or fully derived from biomass. However, bio-based polymers can be either biodegradable or not [4,5]. Biodegradation is the decomposition of a specific material into final metabolic compounds, such as CO2, through an in vivo or in vitro enzyme-initiated/mediated mechanism [6]. Thus, not all bio-based polymers are biodegradable. For these reasons, it is of utmost importance to consider the biodegradation of polymers obtained from biomass as a primary criterion in the evaluation of the sustainability of the corresponding materials. Pellis et al. have recently highlighted the synergy between chemistry and biotechnology to produce new generations of bio-based polymers with environmental and social benefits [7]. Indeed, the biodegradation of synthesized renewable polymers is barely described in the literature. From a general point of view, the (bio)degradation of a macromolecule/polymer is mainly affected by the following characteristics: optical purity [8], crystallinity [9], molecular weight [10] or chemical structure [11].
Polyesters constitute a highly versatile class of polymers that meet the market requirements in terms of production cost and desirable qualities [12]. For example, polyesters are widely used for making textiles, such as dress materials [13]. On the other hand, polyesters are polymers of repeating units containing ester groups that can undergo hydrolysis under certain circumstances. This facilitates their enzymatic degradation if they are susceptible to it [14]. The presence of aliphatic moieties in polyesters allows their biodegradability. Aromatic-containing polymers, such as bio-polyethylene terephthalate (PET) [15], the leading bioplastic in the market, suffer from their resistance to degradation when accumulated in the environment. In general, biodegradable aromatic/aliphatic polyesters typically contain a large fraction of aliphatic ester groups. Above a threshold, which depends on the properties of each polymer, the presence of aromatic groups decreases, or even suppresses, the biodegradability [16].
On the other hand, one of the key challenges in the field of sustainable polymers is to produce renewable materials that can compete with their fossil fuel-based counterparts [17,18,19]. A discussion was recently held to identify the most important topics that should be addressed over the next 100 years in polymer science [20]. Three major topics were identified: (i) new properties and applications, (ii) new synthetic methods, and (iii) sustainability. In this context, functional polymers offer great potential to be used in widespread applications [21,22]. Allcock et al. took advantage of citronellol, a natural acyclic monoterpenoid found in citronella oil [23], to synthesize polyphosphazenes containing citronellol side groups, as potential candidates for ligament and tendon tissue engineering [24]. Hydrolysis experiments in deionized water at 37 °C showed a mass loss of 8–16% and a decrease in molecular weight in the range of 28–88% over 12 weeks. The same authors prepared polyphosphazenes with pendant amino acid citronellol ester for biomedical applications [25]. Nevertheless, the synthesis of these functional polymers requires non-renewable backbone chains (polyphosphazenes) to hold the citronellol chains. In addition, a chlorine-based hexachlorophosphazene is needed to synthesize polyphosphazenes [26]. Citronellyl, geranyl and neryl methacrylate monomers were also prepared by Worzakowska [27]. Branched polymers were obtained through the UV-photoinitiated polymerization of these functional methacrylated monomers at room temperature. Interestingly, among the polymers obtained, poly(citronellyl methacrylate) was the most thermally stable material [27].
Given our strong expertise in levoglucosenone (LGO), a wood-based functional molecule produced at the scale of several tons per year [28,29,30], we have recently become interested in developing not only renewable functional monomers and polymers from LGO [31,32,33,34,35,36] but also biodegradation protocols to evaluate the end-of-life of our in-house corresponding materials. In this context, we recently reported the first fully renewable citronellol-containing monomers from LGO [34,35]. More precisely, we took advantage of the α,β-conjugated double bond of LGO to perform the acid-catalyzed [37] oxa-Michael addition of citronellol (Scheme 1). This step was followed by the in situ organic solvent-free H2O2-mediated Baeyer-Villiger oxidation to access HBO-citro. From the latter, fully renewable monomers (Triol-citro and Lactols-citro) were prepared through the selective reduction of the HBO lactone moiety. Notably, when NaBH4 was used as a reducing agent, it led to the formation of the tris-hydroxy monomer, Triol-citro. However, when diisobutylaluminum hydride (DIBAL-H) was adopted, a mixture of 5- and 6-membered cyclic forms of Lactol-citro (5ML and 6ML) were obtained (Scheme 1) [34]. Indeed, the ring-chain tautomerism of furanoses (5-membered rings) and pyranoses (6-membered rings) is very common in sugars [38]. These furanose-pyranose interconversions exist in equilibrium which led, in our case, to a mixture of Lactol-citro molecules. In our previous work [34], Triol-citro was selected to prepare renewable polyesters (P1–P4) via its polycondensation reaction with diacyl chlorides having different chain lengths (m = 1–4, respectively). When P1–P4 were exposed to Lipopan® 50 BG, a commercial lipase from Thermomyces lanuginosus, an 80% degradation of P2–P4 was observed after 80 h [34]. Inspired by this work, we decided herein not only to prepare new fully renewable polyesters (P5–P8) that contain two types of lactol rings (5-membered and 6-membered) but also to study and compare the biodegradation of the newly synthesized lactol-based copolyesters (P5–P8) to that of the previously reported triol-based polymers (P1–P4). Furthermore, the equilibrium of 5ML and 6ML was studied by 1H NMR at three temperatures: 25 °C, 50 °C and 65 °C.

2. Materials and Methods

Chemicals and reagents. Levoglucosenone was graciously provided by Circa group. Citronellol (Sigma Aldrich, Saint-Louis, MO, USA), diisobutylaluminum hydride (DIBAL-H) (Acros, Geel, Belgium), malonyl chloride 97% (Sigma Aldrich), succinyl chloride 95% (Sigma Aldrich), adipoyl chloride 98% (Sigma Aldrich), glutaryl chloride 97% (Sigma Aldrich), Lipopan® 50 BG (Novozymes, Bagsværd, Denmark) a purified lipase from Thermomyces lanuginosus expressed in Aspergillus oryzae, were used as received. NMR solvents, including CDCl3 and DMSO-d6, were purchased from Cambridge Isotopes Laboratories. HPLC grade solvents were purchased from Thermofisher Scientific, Waltham, MA, USA, and used as received. Ultra-pure laboratory-grade water was obtained from MilliQ, 18.2 megaOhms. TLC analyses were performed on an aluminum strip coated with Silica Gel 60 F254 from Merck, revealed under UV-light (254 nm), then in the presence of potassium permanganate staining solution. All manipulations with air-sensitive chemicals and reagents were performed using standard Schlenk techniques on a dual-manifold line, on a high-vacuum line.

2.1. Characterization

Nuclear Magnetic Resonance (NMR) spectroscopy. 1H NMR spectra were recorded on a Bruker Fourier 300 MHz (CDCl3 residual signal at 7.26 ppm and DMSO-d6 residual signal at 2.5 ppm). 13C NMR spectra were recorded on a Bruker Fourier 300 (75 MHz) (CDCl3 residual signal at 77.16 ppm and DMSO-d6 residual signal at 39.52 ppm). Data are reported as follows: chemical shift (δ ppm), multiplicity, coupling constant (J Hz), integral, assignment. All NMR assignments were also made using 1H-1H COSY, 1H-13C HMBC and 1H-13C HSQC spectra.
Size exclusion chromatography (SEC) was performed at 50 °C using an Agilent Technologies (Santa Clara, CA, USA) 1260 Infinity Series liquid chromatography system with an internal differential refractive index detector, a viscometer detector, a laser and two PLgel columns (5 µm MIXED-D 300 × 7.5 mm), using 10 mM Lithium Bromide in HPLC grade dimethylformamide as the mobile phase at a flow rate of 1.0 mL/min. Calibration was performed with poly (methyl methacrylate) standards from Agilent Technologies. Typically, ~3 mg of each sample was dissolved in 1 mL of DMF (10 mM LiBr) prior to analysis.
Thermogravimetric Analysis (TGA) was measured with a TGA Q500 (TA Instruments, New Castle, DE, USA). Typically, ~2 mg of each sample was equilibrated at 50 °C for 30 min and was flushed with highly pure nitrogen gas. All the experiments were performed with a heating rate of 10 °C/min up to 500 °C. The reported values Td5% and Td50% represent the temperature at which 5% and 50% of the mass is lost, respectively.
Differential Scanning Calorimetry (DSC) was performed with a DSC Q20 (TA Instruments). Typically, ~8 mg sample was placed in a sealed pan, flushed with highly pure nitrogen gas and passed through a heat-cool-heat cycle at 10 °C/min in a temperature range of −80 °C to 100 °C. Three heat/cool cycles were done for each sample where the last two cycles were dedicated to analyzing the heat flow of the sample after being cooled in controlled conditions. The Tg values recorded in this work are those obtained from the third cycle.
Fourier-transform infrared spectroscopy (FTIR) was recorded on a Cary 630 FTIR Spectrometer by Agilent (Wilmington, DE, USA).

2.2. Synthesis of Monomers

HBO-citro (Scheme 2). A biphasic mixture of LGO (50 g, 0.4 mol), citronellol (512 mL, 1.8 mol) and HCl (5 N, 0.6 mol) was stirred at room temperature for 16 h. The resulting mixture was cooled down with an ice bath followed by the dropwise addition of a 30% solution of H2O2 (2 mL) for 2 h. After completion of the addition, the reaction was heated up to 80 °C and stirred for 12 h. The presence of H2O2 was evaluated with peroxide strips and any residual H2O2 was quenched using sodium sulfite. The reaction was extracted with ethyl acetate (two times). Organic layers were washed with brine, dried over anhydrous MgSO4, filtered and evaporated to dryness. This step was followed by distillation to remove excess citronellol. The crude product after distillation was purified by flash chromatography (gradient 90/10 to 20/80, cyclohexane/ethyl acetate as eluant) to give 62 g of HBO-citro as a pale-yellow oil (58%).
1H NMR (CDCl3), δH: 5.01 (broad t, J = 5.19 Hz, 1H, H13), 4.43 (s, 1H, H3), 4.11 (d, J = 7.0 Hz, 1H, OH), 3.84 (dd, J = 3.3 and 12.4 Hz, 1H, H4), 3.65 (dd, J = 3.3 and 12.4 Hz, 2H, H2), 3.39 (m, 2H, H7), 2.81 (dd, J = 7.0 and 18.1 Hz, 1H, H5a), 2.44 (dd, J = 3.3 and 18.1 Hz, 1H, H5s), 1.90 (m, 2H, H12), 1.61 (s, 3H, H15), 1.53 (s, 3H, H16), 1.27-1.07 (m, 4H, H11, H8), 0.82 (d, J = 6.4 Hz, 3H, H10).
13C NMR (CDCl3), δC: 176.7 (C6), 131.2 (C14), 124.6 (C13), 85.9 (C3), 76.1 (C4), 67.6 (C7), 62.1 (C2), 37.1 (C11), 36.5 (C8), 35.9 (C5), 29.3 (C9), 25.7 (C15), 25.3 (C12), 19.4 (C10) 17.6 (C16).
Lactol-citro (Scheme 3). A 1.2 M solution of DIBAL-H (27.5 mL of DCM, 33 mmol) was added dropwise to a solution of HBO-citro (4.5 g, 15 mmol) in DCM (68 mL) at −50 °C. The reaction mixture was stirred for 30 min at −50 °C then quenched with a 20% aqueous solution of citric acid (30 mL). The reaction was warmed to room temperature then stirred until the aluminum salt disappeared. Layers were separated and the organic layer was washed with brine, dried over anhydrous magnesium sulfate, filtered and evaporated to dryness. The crude product was purified by flash chromatography (gradient 90/10 to 20/80, cyclohexane/ethyl acetate as eluant) to give 3.63 g of Lactol-citro molecules as a colorless oil (89%).
The full interpretation of 1H and 13C NMR (DMSO-d6) is provided in Figures S1–S5 in the Supporting Information (SI).

2.3. Synthesis of Polymers

P5–P8 (Scheme 4). A typical two-step melt polycondensation experiment (run 1, Table 1) was performed as follows. Under N2 atmosphere, Lactol-citro (500 mg) was charged into a 10 mL round bottom flask connected to a vacuum line, equipped with a condensate trap. The flask was cooled down with an ice bath, then 1 equiv. of malonyl chloride (0.18 mL) was added. The mixture was stirred at room temperature for 19 h. The temperature was then increased gradually up to 50 °C. A high vacuum (10−3 bar) was then applied for 3 h. Additional polyesters were prepared with this protocol, employing other diacyl chlorides (succinyl chloride, adipoyl chloride and glutaryl chloride).
1H and 13C NMR (DMSO-d6) of P5–P8 are provided in Figures S6–S13 in the Supporting Information (SI).

2.4. Enzymatic Degradation

Before its use, the activity of the enzyme was assessed using the p-nitrophenyl butyrate colorimetric assay. Absorbance was monitored at 400 nm and the results were compared with a p-nitrophenol calibration curve. P5–P8 were ground using a spatula to yield powdered polyester samples. 50 mg of the ground samples were placed in 4 sealed vials containing phosphate buffer (3 mL, 0.05 M) and 10 mg/mL of Lipopan® 50 BG (50 KLU/g). Lipopan® 50 BG contains lipases from Thermomyces lanuginosus expressed in Aspergillus oryzae commercially used in bakery. The enzyme concentration was adapted from Alejandra et al. [39] The mixtures were then incubated at the pH and temperature optima for the enzyme (37 °C, pH 7) and stirred gently at 50 rpm for 48 h. The reactions were then stopped by immersing the tubes in an ice bath. To remove the enzyme, the hydrolyzed polymers were washed three times with 10 mL of water followed by centrifugation for 10 min at 10 °C and 4750 rpm. The resulting products were freeze-dried to remove all traces of water before being subjected to mass loss measurement and characterization of polyester enzymatic degradation. All isolated powders were analyzed by 1H NMR, SEC, DSC and FTIR. Controls were realized for each polymer in phosphate buffer solution without enzyme and showed no degradation.

3. Results and Discussion

3.1. Lactol-Citro

The synthesis of 5- and 6-membered Lactol-citro (5ML and 6ML, respectively) was performed from HBO-citro according to a recently reported procedure [34]. It is worth mentioning that although the reduction of HBO-ctiro is easy to perform, reaction conditions must be strictly controlled to avoid the formation of Triol-citro (Scheme 1). Anhydrous solvents, a nitrogen atmosphere and a short time period (30 min) are all necessary to promote the complete conversion of HBO-citro to Lactol-citro. Otherwise, in the presence of a trace amount of water, and for durations longer than 30 min, Triol-citro was observed. Although the separation of the two products was not possible, two cyclic structures of Lactol-citro were easily distinguishable by 1H-1H COSY NMR (Figure 1). The major occurrence (65%) of the more stable 6-membered derivative was observed at 6.11 ppm, corresponding to OHa group of 6ML. On the other hand, the proton resonance of OH1 at 6.46 ppm identified the percentage of the less stable 5-membered lactol cycle, which was interestingly found to be 35%. Since the polycondensation using these molecules was performed in two steps (room temperature under N2 and 50 °C under vacuum, vide infra), we decided to study equilibrium of 5ML ⇌ 6ML interconversions at different temperatures (25 °C, 50 °C and 65 °C) using 1H NMR. The percentages of each of the 5ML and 6ML were monitored using the hydroxyl resonances OH1 and H2, and OHa and Hc, respectively. Figure 2 shows that temperature has an impact on the chemical shifts of the aforementioned protons; mainly on the hydroxyl peaks that showed an up-field shifting (to the right) when the temperature was increased from 25 °C to 50 °C and 65 °C. For example, at 25 °C, the chemical shifts of OH1 and OHa are 6.42 ppm and 6.09 ppm, respectively. However, when the NMR measurement was performed at 65 °C, a shift of these two signals to 6.18 ppm and 5.90 ppm was recorded. Interestingly, when integrating the peaks of H2 and Hc we found a 3% and 9% increase of 6ML at 50 °C and 65 °C, respectively. Indeed, the variation of the 5ML:6ML ratio must be finely monitored during the two polymerization steps (vide infra)—especially in the presence of highly reactive co-monomers, such as acyl chloride—to allow the controlled incorporation of the Lactol-citro along the polyester chain. For these reasons, it is more convenient to carry out the polymerization step at 50 °C where only 3%, towards the formation of the more stable pyranose-like derivative, was obtained.

3.2. Polycondensation

The potential of Lactol-citro (5ML–6ML) was then investigated in the synthesis of new renewable functional polyesters. Solvent-free polycondensations were first performed using aliphatic diacyl chlorides as co-monomers with different chain lengths (m = 1–4) (Table 1). The first step of the polycondensation was started at room temperature for 19 h. The temperature was then increased to 50 °C to allow the polymerization of the oligomers formed in the 1st step while also controlling the interconversion of 5ML–6ML. The products isolated in both steps were found to be insoluble in all classical solvents (e.g., tetrahydrofuran, dioxane, chloroform), except in dimethylformamide (DMF) and dimethyl sulfoxide (DMSO), where partial solubility was observed. All our attempts to enhance the solubility of the prepared polyesters were unsuccessful. For example, we tried to use polymerization methods with solvents (e.g., THF) and base (e.g., pyridine) to control the condensation reactions of the first step or after oligomer formation. Furthermore, different times and temperatures were tested; however, only partially or non-soluble polymers could be isolated. Nevertheless, such descent solubility was sufficient to characterize the polymers (vide infra).
The NMR spectra assignment was consistent with the formation of cross-linked copolyesters. First, after the incorporation of acyl chloride co-monomer, the signals of the free hydroxyl groups of 5ML and 6ML in the range of 6.47–5.90 ppm and at 4.96 and 4.38 ppm disappeared (SI, Figures S6–S13). Also, the carbonyl groups of the polyesters formed were clearly detected by 13C NMR in the region of 175.0–169.0 ppm (SI, Figures S7, S9, S11 and S13 for P5, P6, P7 and P8 respectively). On the other hand, no presence of H14 and Hm of the citronellol double bond at 5.07 ppm was observed, demonstrating that the pendent citronellol moieties were possibly cross-linked at a relatively elevated temperature (50 °C) or/and in the presence of diacyl chloride. The crosslinking was more obvious when analyzing the 13C NMR spectra that showed the complete disappearance of C15, Co and C14, Cn signals at 130.9 and 125.0 ppm, respectively. Indeed, this thermally-induced and/or acid-catalyzed complete crosslinking was observed regardless of the co-monomer chain length (acyl chlorides, m = 1–4). FTIR analysis of P5–P8 was performed and showed the disappearance of the OH band of the lactol monomers at 3400 cm−1 as well as the appearance of a carboxyl group band at 1730 cm−1, which corresponds to the newly formed esters (SI, Figure S15).
Size exclusion chromatography (SEC) was used to measure the number-average molecular weight (Mn) as well as the dispersity (Đ). The polymers were partially soluble, or not soluble, in DMF prior to SEC analysis; thus, the results obtained by SEC represent only the soluble portions of the polymers. The copolyesters obtained from the lactol derivatives showed a higher Mn than the recently reported Triol-citro-based branched polyesters (P1–P4), e.g., 25.8 kDa for P8 (run 4, Table 1) vs. 1.6 kDa for the polyester of Triol-citro and glutaryl chloride (P4). Indeed, this is due to the formation of more complex and less soluble cross-linked/branched structures when Triol-citro, which contains three hydroxy groups with different reactivity, was employed.
The thermal analyses of P5–P8 were examined using differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) (SI, Figures S20–S22 and S27–S30, respectively). DSC showed negative glass transition (Tg) values for all polymers. Nevertheless, it is worth mentioning that P5–P8 showed higher Tg (−57 °C to −67 °C) than polyesters prepared using Triol-citro [34] (Figure 3). This confirms the higher mobility/flexibility of the chains contained within the Lactol-citro based structures. Having Tg values in this negative range is attractive for applications that require a Tg below body temperature, such as in the biomedical field. No melting temperature (Tm) was observed for any of the polymers reported in this study. Moreover, no effect of the chain length of the acyl chloride was detected. This is probably due to the effect of the citronellol moiety which outweighs that of the number of carbons in the aliphatic co-monomer unit. This is in agreement with the formation of a more stable branched structure when the Triol-citro was engaged [34]. TGA showed that P5–P8 have lower thermal resistance than P1–P4. For example, P8 exhibited a Td5% of 127 °C and a Td50% of 210 °C, while those of Triol-citro polymer (P4) were 170 and 386 °C, respectively.

3.3. Enzymatic Degradation

Given the promising degradation behavior that we have recently seen for the Triol-based polyesters (P2–P4) [34], we decided to investigate the enzymatic degradation of P5–P8 following the same procedure in the presence of a commercial lipase enzyme from Thermomyces lanuginosus (Lipopan® 50 BG, Novozymes®, Bagsværd, Denmark). Indeed, a lipase-mediated degradation occurs first by a surface erosion process triggered by the adsorption of the large-sized enzyme on the polymer surface. This step is followed by the hydrolysis of the ester bonds to form the corresponding oligomers with terminal hydroxyl and carboxylic acid. In this study, we were able to monitor the hydrolysis of the polymers that occurred during the second stage of the degradation process. Specifically, the hydrolysis of the ester bonds led to the formation of shorter oligomers and/or constituting monomers (Figure 4), the existence of which can be easily monitored by 1H NMR and FTIR, as well as by SEC and DSC. Comparison of the initial analyses of the P5–P8 polymers in Table 1 with the results obtained after treatment with Lipopan® 50 BG (Table 2), demonstrates the effective enzymatic degradation of the copolymers. It is worth mentioning that purification of the degraded cross-linked oligomers and (co-)monomers by simple methods, such as precipitation, was not possible. Nevertheless, due to the presence of hydroxy and carboxylic acid groups in the products after enzymatic degradation (vide infra), they can be engaged as a whole in polycondensation reactions; however, this would lead to the formation of several cross-linked oligomers/polymers with no control of molecular weight or dispersity.
Due to the low solubility of P5–P8, all our attempts to make films by solvent casting failed. Thus, we studied the biodegradation using their powder form, which was collected by grinding at the end of the polymerization reactions. Notably, P5–P8 were degraded at a significantly higher rate (∼80% mass loss in 48 h) compared to Triol-citro based polyesters P2–P4 (∼80% mass loss in 96 h). Indeed, a highly cross-linked/branched structure as in P1–P4, can induce a globular polymer conformation that hinders the accessibility of the enzyme to the inner surface of the chains and delays/prevents the hydrolysis rate of the ester bonds. Therefore, in contrast to the polyester of Triol-citro and malonyl chloride (P1), a successful degradation was observed in the case of P5, as evidenced by the appearance of hydroxyl vibration band by FTIR. Indeed, the hydrolytic step of enzymatic degradation is determined by the hydrolysis time for polymers to form into shorter chains and the diffusion of water through the material, which can be slowed down in the case of a short aliphatic co-monomer chain, such as that of malonyl chloride (m = 1) accompanied by more complex cross-linked structures, as in the case of P1.
Examination of the 1H NMR spectra showed the appearance of new peaks in the region of 5.53–4.59 ppm, which correspond to the hydroxyl protons of the hydrolyzed products (SI, Figure S14). In agreement with the 1H NMR of P5–P8, FTIR showed the appearance of a large hydroxyl vibration band at around 3350 cm−1 after enzymatic degradation (SI, Figure S16). The enzymatic degradation was also checked using SEC to determine the reduction in Mn (SI, Figures S31–S34). Notably, SEC and DSC also showed a considerable degradation of P5–P8. For example, a significant decrease in Mn of P7 from 12.5 kDa (run 7, Table 1) to 0.8 kDa (run 3, Table 2) was observed. The thermal properties of the resulting hydrolyzed products were also analyzed by DSC (SI, Figures S23–S26). A great variation of Tg from −67 °C to 44 °C (ΔTg = 111 °C) was registered. Notably, ΔTg of P5–P8 was found to be much larger than those recorded for P1–P4 (see Figure 5 for more information). Such an increase in Tg can be due to a greater number of polymer chain cleavages that lead to lesser chain entanglement, and in turn a higher degree of crystallinity. The increase of crystalline portions within the oligomer chains can reduce molecular mobility, which causes an increase in Tg and, in turn, ΔTg.

4. Conclusions

Ring-chain tautomerism of furanoses (5-membered rings) and pyranoses (6-membered rings) is very common in sugar chemistry. LGO was used as a starting material to produce new renewable 5- and 6-membered Lactol-citro molecules (5ML and 6ML) with citronellol side chains. The interconversion of both molecules was studied at a temperature ranging from 25 °C to 65 °C and showed the expected higher occurrence of the more stable cycle (6ML) at higher temperatures.
The polycondensation of the Lactol-citro mixture and aliphatic diacyl chlorides was then performed in solvent- and catalyst-free conditions. New LGO-derived copolyesters, with low Tg ranging from −57 °C to −67 °C, were formed. Furthermore, the analyses showed that the citronellol chains were unexpectedly cross-linked during polymerization. The enzymatic degradation of the polyesters, P5–P8, was then investigated in the presence of Lipopan® 50 BG under the same conditions recently reported for P1–P4 polymers obtained with Triol-citro and diacyl chlorides (m = 1–4). 1H NMR, FTIR, SEC and DSC analyses showed a greater tendency to hydrolyze P5–P8 than P1–P4 when a lipase is used. This was probably due to the formation of a less strained structure when 5ML and 6ML were engaged, rather than Triol-citro monomer.

Supplementary Materials

The following supporting information can be downloaded at:, NMR (Figures S1–S14), FTIR (Figures S15–S19), DSC (Figures S20–S26), TGA (Figures S27–S30) and SEC (Figures S31–S34).

Author Contributions

Conceptualization, S.F., Q.C., L.M.M.M. and F.A.; Data curation, S.F. and Q.C.; Formal analysis, S.F.; Funding acquisition, F.A.; Investigation, S.F., A.K., Y.W. and A.A.M.P.; Methodology, S.F. and Q.C.; Supervision, S.F. and Q.C.; Visualization, S.F.; Writing—original draft, S.F.; Writing—review & editing, Q.C., L.M.M.M., M.L. and F.A. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


The authors are grateful to the Circa group for its generous gift of LGO, and to Grand Reims, Département de la Marne and Grand Est region for financial support.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Mecking, S. Nature or Petrochemistry?—Biologically Degradable Materials. Angew. Chem. Int. Ed. 2004, 43, 1078–1085. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Zhu, Y.; Romain, C.; Williams, C.K. Sustainable Polymers from Renewable Resources. Nature 2016, 540, 354–362. [Google Scholar] [CrossRef] [PubMed]
  3. Sidorov, O.F.; Shishov, M.G.; Deryugin, A.A.; Sidelnikov, A.Y. Environmental Impact of Polymer-Waste Disposal. Coke Chem. 2016, 59, 117–121. [Google Scholar] [CrossRef]
  4. Sivan, A. New Perspectives in Plastic Biodegradation. Curr. Opin. Biotechnol. 2011, 22, 422–426. [Google Scholar] [CrossRef]
  5. Nakajima, H.; Dijkstra, P.; Loos, K. The Recent Developments in Biobased Polymers toward General and Engineering Applications: Polymers That Are Upgraded from Biodegradable Polymers, Analogous to Petroleum-Derived Polymers, and Newly Developed. Polymers 2017, 9, 523. [Google Scholar] [CrossRef]
  6. Bahl, S.; Dolma, J.; Jyot Singh, J.; Sehgal, S. Biodegradation of Plastics: A State of the Art Review. Mater. Today Proc. 2021, 39, 31–34. [Google Scholar] [CrossRef]
  7. Pellis, A.; Malinconico, M.; Guarneri, A.; Gardossi, L. Renewable Polymers and Plastics: Performance beyond the Green. New Biotechnol. 2021, 60, 146–158. [Google Scholar] [CrossRef]
  8. Höglund, A.; Odelius, K.; Albertsson, A.-C. Crucial Differences in the Hydrolytic Degradation between Industrial Polylactide and Laboratory-Scale Poly(L-Lactide). ACS Appl. Mater. Interfaces 2012, 4, 2788–2793. [Google Scholar] [CrossRef]
  9. Huang, Y.; Chen, F.; Pan, Y.; Chen, C.; Jiang, L.; Dan, Y. Effect of Hydrophobic Fluoropolymer and Crystallinity on the Hydrolytic Degradation of Poly(Lactic Acid). Eur. Polym. J. 2017, 97, 308–318. [Google Scholar] [CrossRef]
  10. Sevim, K.; Pan, J. A Model for Hydrolytic Degradation and Erosion of Biodegradable Polymers. Acta Biomater. 2018, 66, 192–199. [Google Scholar] [CrossRef][Green Version]
  11. Kijchavengkul, T.; Auras, R.; Rubino, M.; Selke, S.; Ngouajio, M.; Fernandez, R.T. Biodegradation and Hydrolysis Rate of Aliphatic Aromatic Polyester. Polym. Degrad. Stab. 2010, 95, 2641–2647. [Google Scholar] [CrossRef]
  12. Brown, A.E.; Reinhart, K.A. Polyester Fiber: From Its Invention to Its Present Position. Science 1971, 173, 287–293. [Google Scholar] [CrossRef] [PubMed]
  13. Deopura, B.L.; Padaki, N.V. Chapter 5—Synthetic Textile Fibres: Polyamide, Polyester and Aramid Fibres. In Textiles and Fashion; Sinclair, R., Ed.; Woodhead Publishing Series in Textiles; Woodhead Publishing: Sawston, UK, 2015; pp. 97–114. ISBN 978-1-84569-931-4. [Google Scholar]
  14. Rivard, C.; Moens, L.; Roberts, K.; Brigham, J.; Kelley, S. Starch Esters as Biodegradable Plastics: Effects of Ester Group Chain Length and Degree of Substitution on Anaerobic Biodegradation. Enzym. Microb. Technol. 1995, 17, 848–852. [Google Scholar] [CrossRef]
  15. Siracusa, V.; Blanco, I. Bio-Polyethylene (Bio-PE), Bio-Polypropylene (Bio-PP) and Bio-Poly(Ethylene Terephthalate) (Bio-PET): Recent Developments in Bio-Based Polymers Analogous to Petroleum-Derived Ones for Packaging and Engineering Applications. Polymers 2020, 12, 1641. [Google Scholar] [CrossRef]
  16. Larrañaga, A.; Lizundia, E. A Review on the Thermomechanical Properties and Biodegradation Behaviour of Polyesters. Eur. Polym. J. 2019, 121, 109296. [Google Scholar] [CrossRef]
  17. Miller, S.A. Sustainable Polymers: Opportunities for the Next Decade. ACS Macro Lett. 2013, 2, 550–554. [Google Scholar] [CrossRef][Green Version]
  18. Fadlallah, S.; Sinha Roy, P.; Garnier, G.; Saito, K.; Allais, F. Are Lignin-Derived Monomers and Polymers Truly Sustainable? An in-Depth Green Metrics Calculations Approach. Green Chem. 2021, 23, 1495–1535. [Google Scholar] [CrossRef]
  19. Itawi, H.E.; Fadlallah, S.; Allais, F.; Perre, P. Green Assessment of Polymer Microparticles Production Processes: A Critical Review. Green Chem. 2022. [Google Scholar] [CrossRef]
  20. Abd-El-Aziz, A.S.; Antonietti, M.; Barner-Kowollik, C.; Binder, W.H.; Böker, A.; Boyer, C.; Buchmeiser, M.R.; Cheng, S.Z.D.; D’Agosto, F.; Floudas, G.; et al. The Next 100 Years of Polymer Science. Macromol. Chem. Phys. 2020, 221, 2000216. [Google Scholar] [CrossRef]
  21. Gauthier, M.A.; Gibson, M.I.; Klok, H.-A. Synthesis of Functional Polymers by Post-Polymerization Modification. Angew. Chem. Int. Ed. 2009, 48, 48–58. [Google Scholar] [CrossRef]
  22. Seppälä, J.; van Bochove, B.; Lendlein, A. Developing Advanced Functional Polymers for Biomedical Applications. Biomacromolecules 2020, 21, 273–275. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Santos, P.L.; Matos, J.P.S.C.F.; Picot, L.; Almeida, J.R.G.S.; Quintans, J.S.S.; Quintans-Júnior, L.J. Citronellol, a Monoterpene Alcohol with Promising Pharmacological Activities—A Systematic Review. Food Chem. Toxicol. 2019, 123, 459–469. [Google Scholar] [CrossRef] [PubMed]
  24. Nichol, J.L.; Morozowich, N.L.; Decker, T.E.; Allcock, H.R. Crosslinkable Citronellol Containing Polyphosphazenes and Their Biomedical Potential. J. Polym. Sci. Part A Polym. Chem. 2014, 52, 2258–2265. [Google Scholar] [CrossRef]
  25. Nichol, J.L.; Allcock, H.R. Polyphosphazenes with Amino Acid Citronellol Ester Side Groups for Biomedical Applications. Eur. Polym. J. 2015, 62, 214–221. [Google Scholar] [CrossRef]
  26. Singler, R.E.; Schneider, N.S.; Hagnauer, G.L. Polyphosphazenes: Synthesis—Properties—Applications. Polym. Eng. Sci. 1975, 15, 321–338. [Google Scholar] [CrossRef]
  27. Worzakowska, M. High Chemical and Solvent Resistant, Branched Terpene Methacrylate Polymers—Preparation, Thermal Properties, and Decomposition Mechanism. Polym. Adv. Technol. 2018, 29, 1414–1425. [Google Scholar] [CrossRef]
  28. Ariel, M.S.; Maria, M.Z.; Rolando, A.S. Recent Applications of Levoglucosenone as Chiral Synthon. Curr. Org. Synth. 2012, 9, 439–459. [Google Scholar]
  29. Clark, J.H.; Bruyn, M.D.; Budarin, V.L. Method for Producing Levoglucosenone. U.S. Patent 10,774,089, 15 September 2016. [Google Scholar]
  30. Comba, M.B.; Tsai, Y.; Sarotti, A.M.; Mangione, M.I.; Suárez, A.G.; Spanevello, R.A. Levoglucosenone and Its New Applications: Valorization of Cellulose Residues. Eur. J. Org. Chem. 2018, 2018, 590–604. [Google Scholar] [CrossRef]
  31. Fadlallah, S.; Mouterde, L.M.M.; Garnier, G.; Saito, K.; Allais, F. Cellulose-Derived Levoglucosenone, a Great Versatile Chemical Platform for the Production of Renewable Monomers and Polymers. In Sustainability & Green Polymer Chemistry Volume 2: Biocatalysis and Biobased Polymers; ACS Symposium Series; American Chemical Society: Washington, DC, USA, 2020; Volume 1373, pp. 77–97. ISBN 978-0-8412-9852-1. [Google Scholar]
  32. Fadlallah, S.; Peru, A.A.M.; Longé, L.; Allais, F. Chemo-Enzymatic Synthesis of a Levoglucosenone-Derived Bi-Functional Monomer and Its Ring-Opening Metathesis Polymerization in the Green Solvent CyreneTM. Polym. Chem. 2020, 11, 7471–7475. [Google Scholar] [CrossRef]
  33. Fadlallah, S.; Peru, A.A.M.; Flourat, A.L.; Allais, F. A Straightforward Access to Functionalizable Polymers through Ring-Opening Metathesis Polymerization of Levoglucosenone-Derived Monomers. Eur. Polym. J. 2020, 138, 109980. [Google Scholar] [CrossRef]
  34. Kayishaer, A.; Fadlallah, S.; Mouterde, L.M.M.; Peru, A.A.M.; Werghi, Y.; Brunois, F.; Carboué, Q.; Lopez, M.; Allais, F. Unprecedented Biodegradable Cellulose-Derived Polyesters with Pendant Citronellol Moieties: From Monomer Synthesis to Enzymatic Degradation. Molecules 2021, 26, 7672. [Google Scholar] [CrossRef] [PubMed]
  35. Fadlallah, S.; Kayishaer, A.; Annatelli, M.; Mouterde, L.M.M.; Peru, A.A.M.; Aricò, F.; Allais, F. Fully Renewable Photocrosslinkable Polycarbonates from Cellulose-Derived Monomers. Green Chem. 2022, 24, 2871–2881. [Google Scholar] [CrossRef]
  36. Diot-Néant, F.; Mouterde, L.; Fadlallah, S.; Miller, S.A.; Allais, F. Sustainable Synthesis and Polycondensation of Levoglucosenone-Cyrene-Based Bicyclic Diol Monomer: Access to Renewable Polyesters. ChemSusChem 2020, 13, 2613–2620. [Google Scholar] [CrossRef]
  37. Tsai, Y.; Borini Etichetti, C.M.; Cicetti, S.; Girardini, J.E.; Spanevello, R.A.; Suárez, A.G.; Sarotti, A.M. Design, Synthesis and Evaluation of Novel Levoglucosenone Derivatives as Promising Anticancer Agents. Bioorganic Med. Chem. Lett. 2020, 30, 127247. [Google Scholar] [CrossRef] [PubMed]
  38. Mackie, W.; Perlin, A.S. Pyranose–Furanose and Anomeric Equilibria: Influence of Solvent and of Partial Methylation. Can. J. Chem. 1966, 44, 2039–2049. [Google Scholar] [CrossRef][Green Version]
  39. Alejandra, R.-C.; Margarita, C.-M.; María Soledad, M.-C. Enzymatic Degradation of Poly(3-Hydroxybutyrate) by a Commercial Lipase. Polym. Degrad. Stab. 2012, 97, 2473–2476. [Google Scholar] [CrossRef]

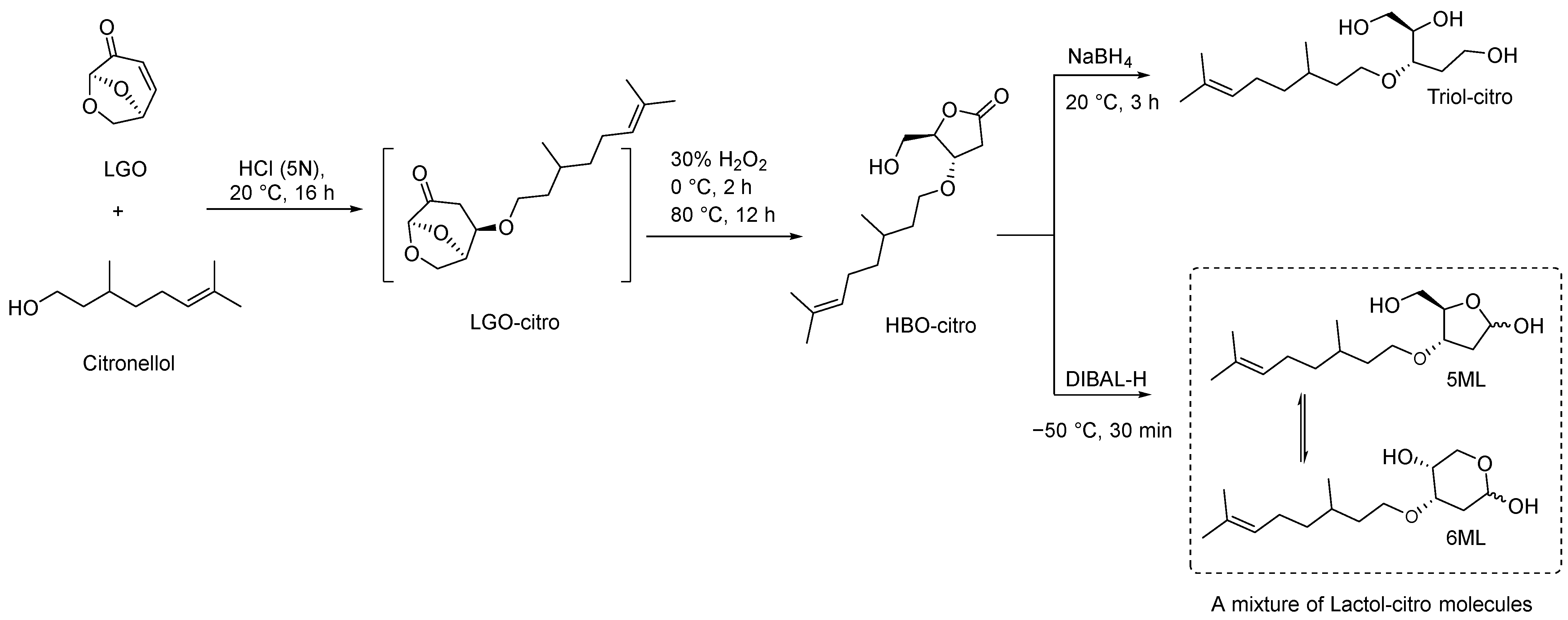

Scheme 1. Recently reported syntheses of Triol-citro and Lactol-citro from LGO.
Scheme 1. Recently reported syntheses of Triol-citro and Lactol-citro from LGO.
Polymers 14 02082 sch001

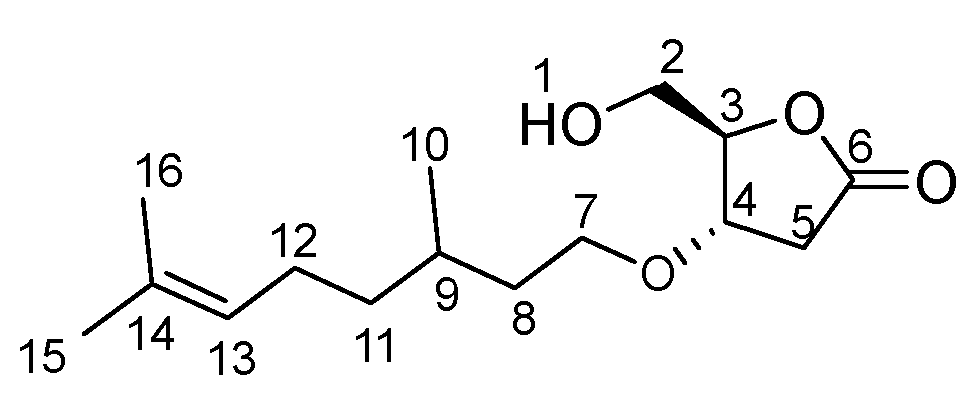

Scheme 2. Structure of HBO-citro.
Scheme 2. Structure of HBO-citro.
Polymers 14 02082 sch002

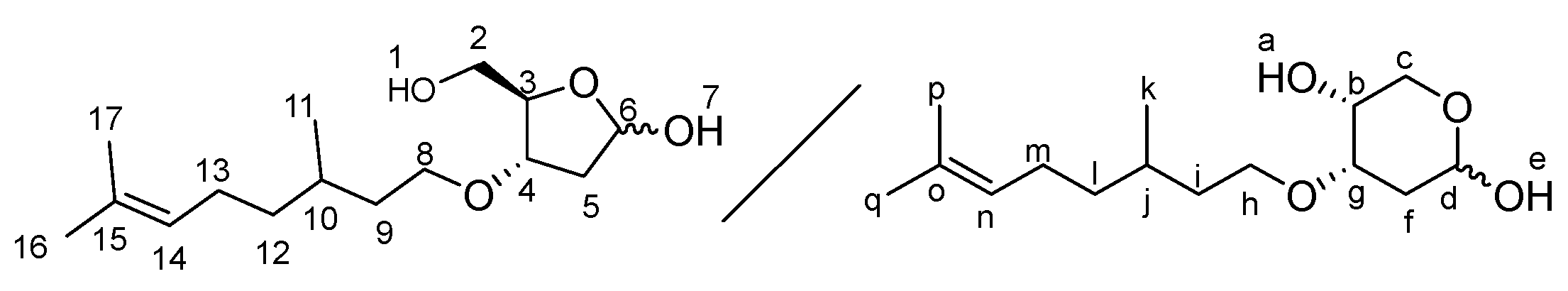

Scheme 3. Structures of 5ML (left) and 6ML (right).
Scheme 3. Structures of 5ML (left) and 6ML (right).
Polymers 14 02082 sch003

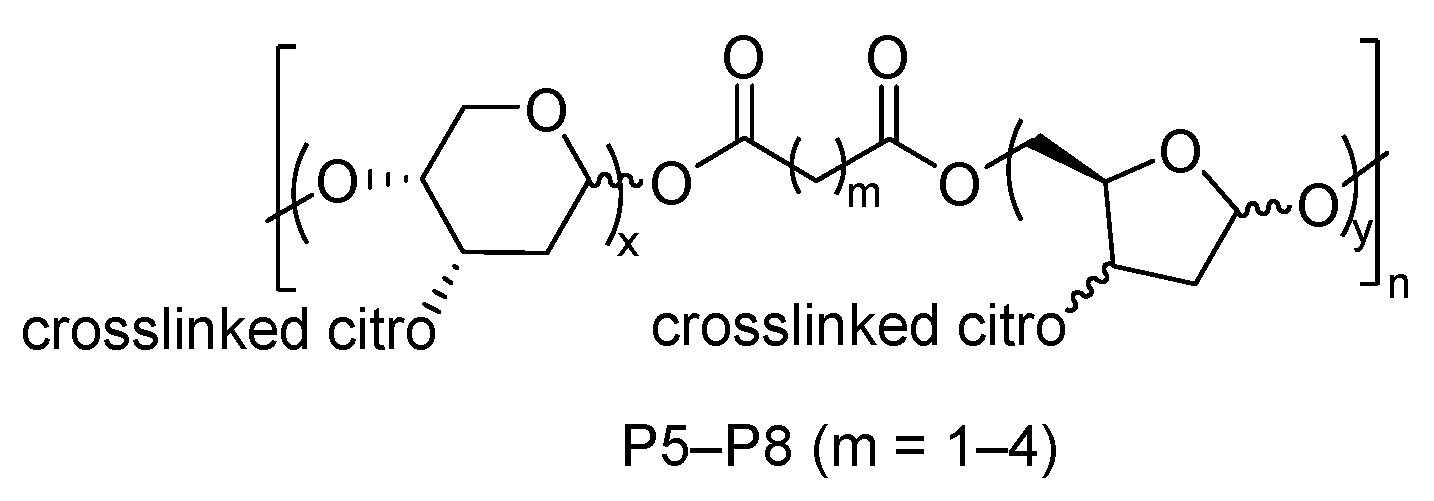

Scheme 4. Structure of P5–P8 obtained from the polycondensation of 5ML, 6ML and diacyl chlorides.
Scheme 4. Structure of P5–P8 obtained from the polycondensation of 5ML, 6ML and diacyl chlorides.
Polymers 14 02082 sch004

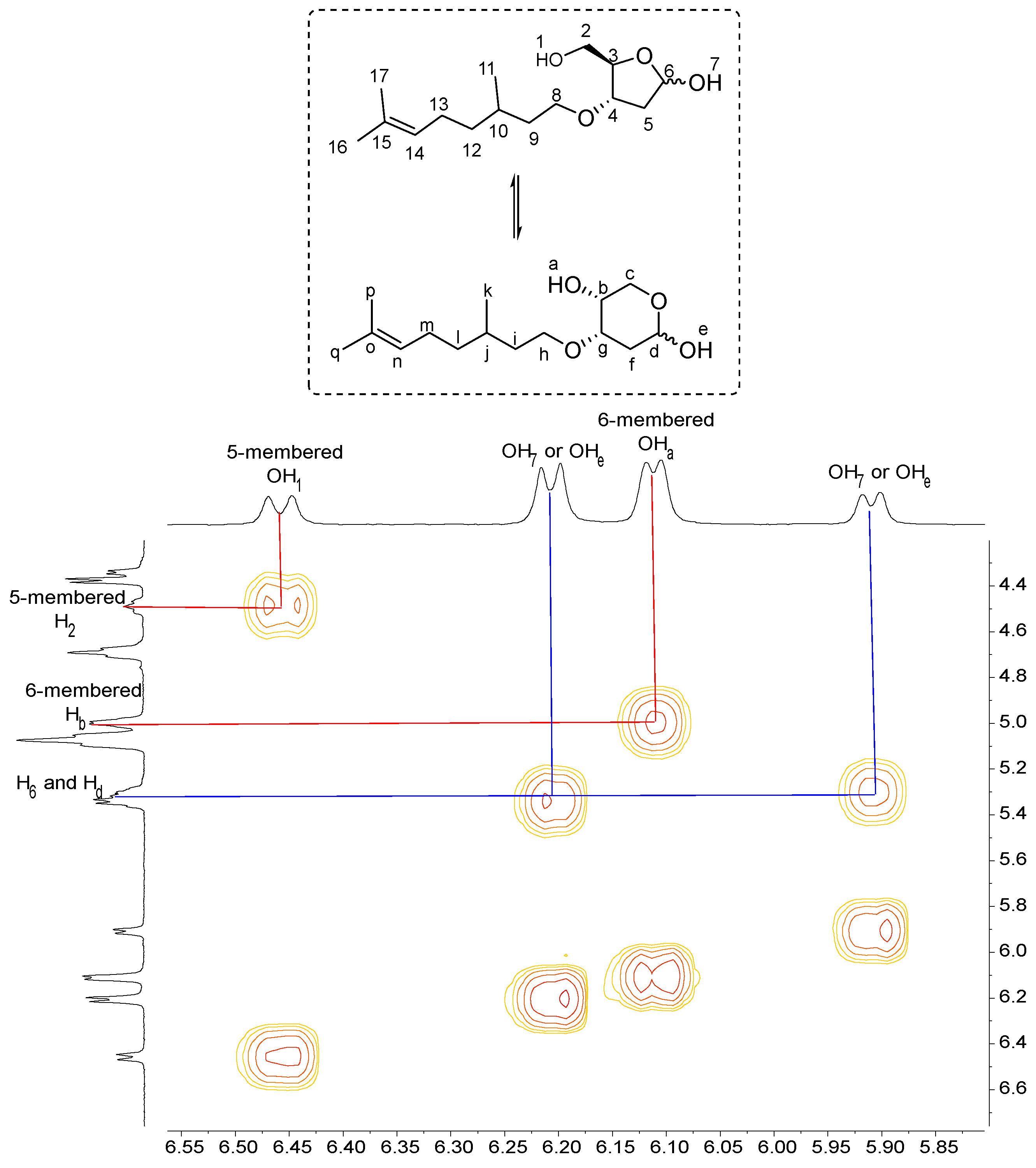

Figure 1. 1H-1H COSY (DMSO-d6) spectrum of 5ML and 6ML mixture.
Figure 1. 1H-1H COSY (DMSO-d6) spectrum of 5ML and 6ML mixture.
Polymers 14 02082 g001

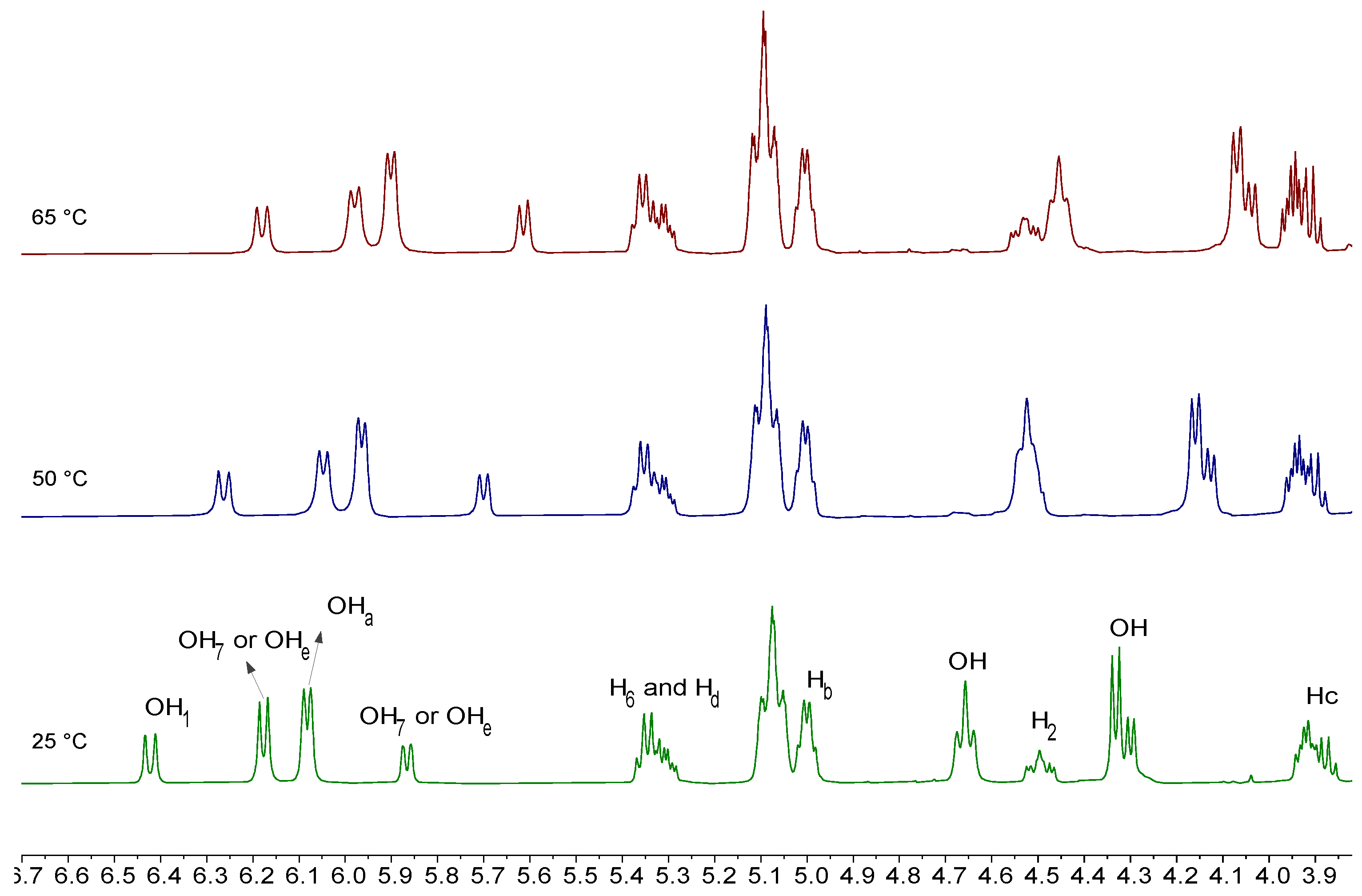

Figure 2. Effect of temperature on the 1H NMR (DMSO-d6) of 5ML ⇌ 6ML interconversion.
Figure 2. Effect of temperature on the 1H NMR (DMSO-d6) of 5ML ⇌ 6ML interconversion.
Polymers 14 02082 g002

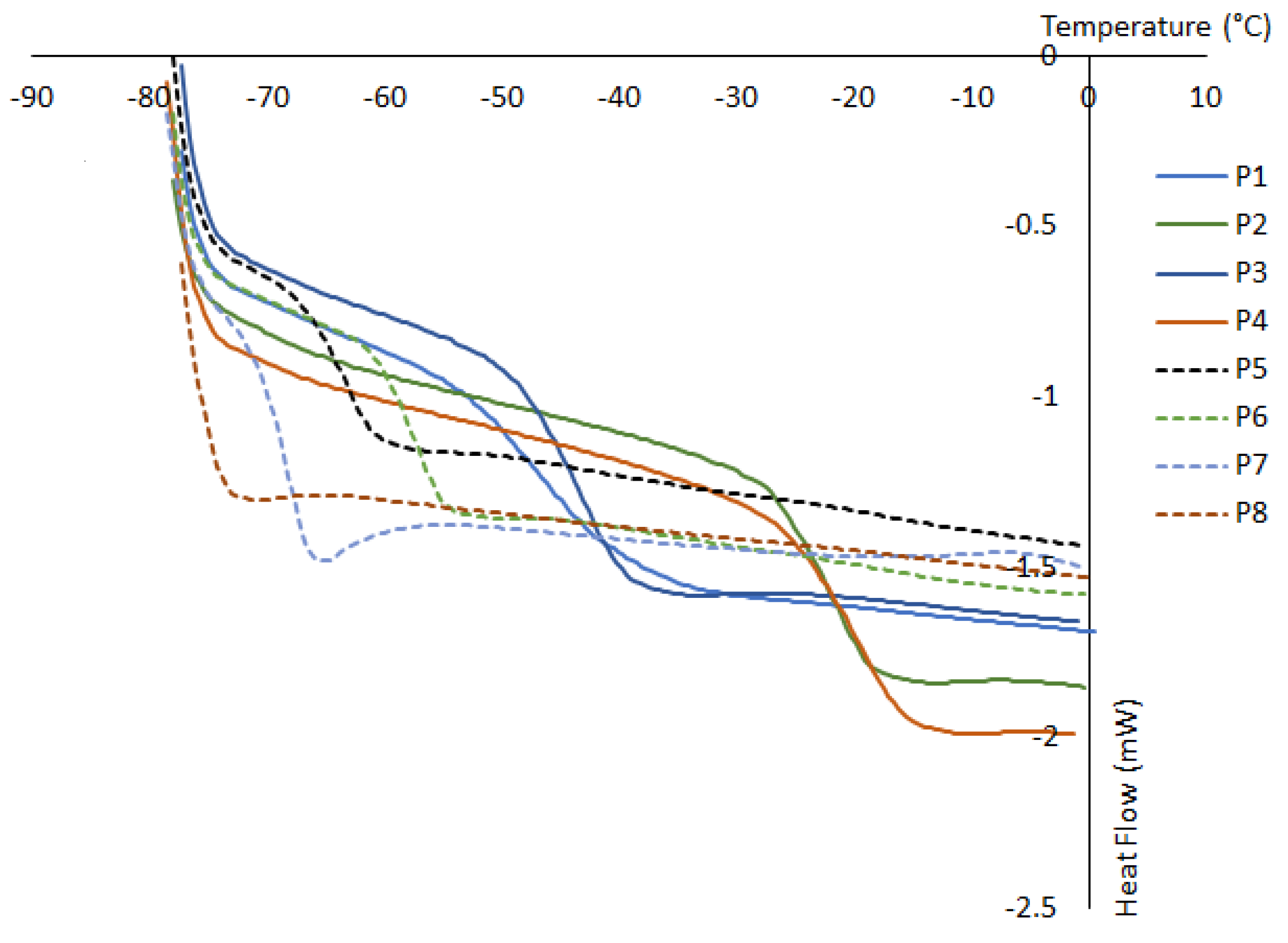

Figure 3. DSC thermograms of P1–P8.
Figure 3. DSC thermograms of P1–P8.
Polymers 14 02082 g003

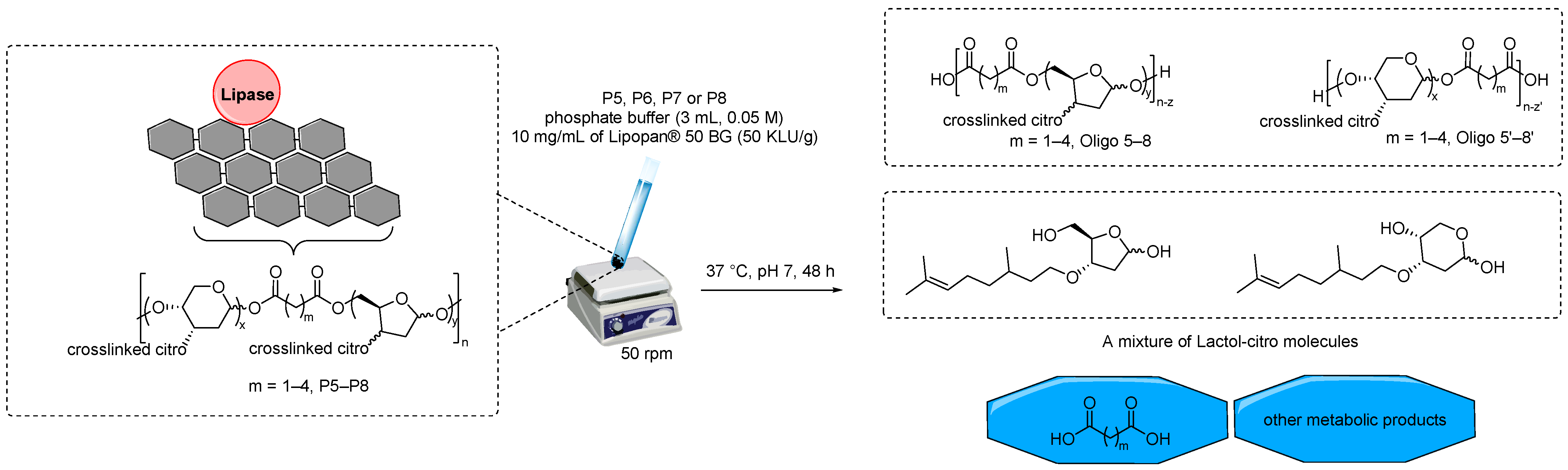

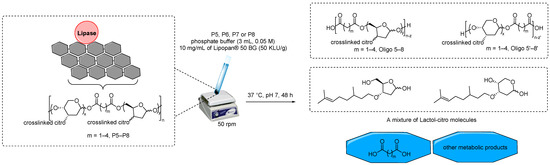

Figure 4. Illustration of the enzymatic degradation of P5–P8 and the corresponding hydrolyzed products.
Figure 4. Illustration of the enzymatic degradation of P5–P8 and the corresponding hydrolyzed products.
Polymers 14 02082 g004

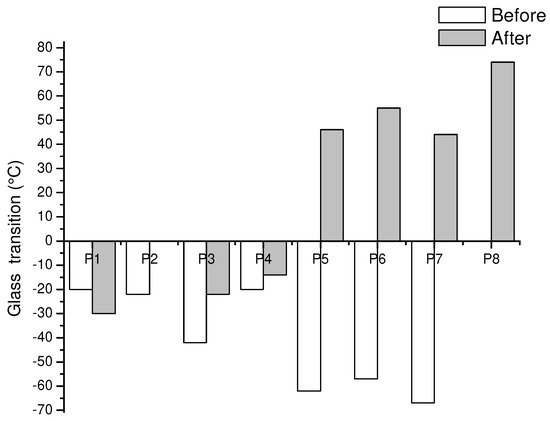

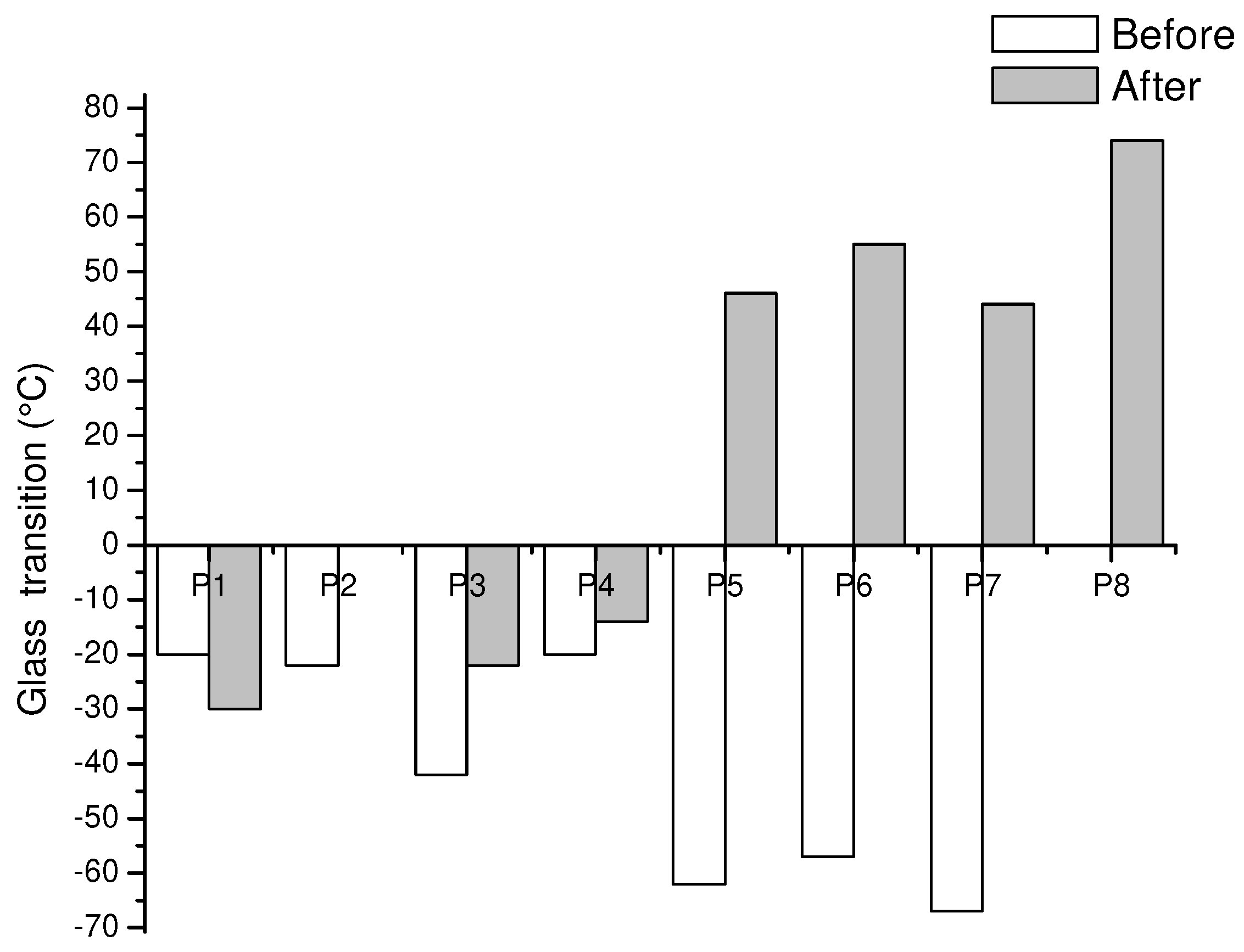

Figure 5. Glass transition temperature (Tg) of P1–P8 before and after enzymatic degradation (No Tg was observed for P8 and P2 before and after degradation, respectively).
Figure 5. Glass transition temperature (Tg) of P1–P8 before and after enzymatic degradation (No Tg was observed for P8 and P2 before and after degradation, respectively).
Polymers 14 02082 g005

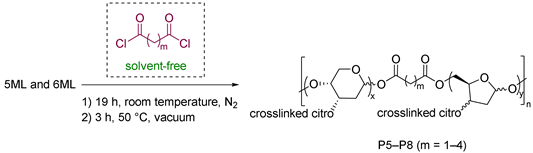

Table 1. Two-step polycondensation of 5ML and 6ML with acyl chloride derivatives.
Table 1. Two-step polycondensation of 5ML and 6ML with acyl chloride derivatives.
Polymers 14 02082 i001
RunPolymerMn (kDa) 1Đ1Tg (°C) 2Td50% (°C) 3
1P5- 4-−62198
2P6- 4-−57205
1 Determined in DMF (10 mM LiBr) at 50 °C, only showed the soluble parts of the polymers. 2 Glass transition determined by DSC. 3 TGA degradation temperature at which 50% (Td50%) mass loss was observed under nitrogen. 4 Completely insoluble in DMF.
Table 2. Characterization of P5-P8 after enzymatic degradation using Lipopan® 50 BG.
Table 2. Characterization of P5-P8 after enzymatic degradation using Lipopan® 50 BG.
Run 1PolymerMn
(kDa) 2
(°C) 3
(°C) 4
4P80.874- 7
1 Runs 1–4 are listed, following the same order as Table 1. 2 Determined in DMF (10 mM LiBr) at 50 °C. 3 Glass transition determined by DSC, temperature ramp 10 °C/min. 4 ΔTg = Tg(after degradation) −Tg(before degradation). 5 1H NMR of the hydrolyzed product in DMSO-d6, ✓: presence of hydroxyl signals. 6 Infra-red of the hydrolyzed product, ✓: presence of hydroxyl band. 7 No Tg was observed for P8 before degradation.
