Article

Functionalization of Single-Walled Carbon Nanotubes with End-Capped Polystyrene via a Single-Step Diels–Alder Cycloaddition

by
Maria-Malvina Stathouraki
1,
Christos Pantazidis
1,
Emmanouil Mygiakis
1,
Apostolos Avgeropoulos
2 and
Georgios Sakellariou
1,*
1
Department of Chemistry, National and Kapodistrian University of Athens, Panepistimiopolis Zografou, 15771 Athens, Greece
2
Department of Materials Science and Engineering, University of Ioannina, 45110 Ioannina, Greece
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(7), 1169; https://doi.org/10.3390/polym13071169
Submission received: 10 March 2021 / Revised: 30 March 2021 / Accepted: 2 April 2021 / Published: 6 April 2021
(This article belongs to the Special Issue State-of-the-Art Polymer Science and Technology in Greece)

Abstract

:
A facile, single-step, [4+2] Diels–Alder cycloaddition reaction for the surface functionalization of single-walled carbon nanotubes (SWNTs) with end-capped polystyrene chains is presented. The thermal cycloaddition reaction took place at high temperature (~230 °C) without any catalyst between the sp2 network of carbon nanotubes, which acted as dienophile, and the diphenylethylene cyclobutene (DPE-CB) terminal group of the polystyrene chain. Anionic polymerization was employed for the synthesis of the polystyrene macromolecule, and successful and quantitative end-capping reaction with the DPE-CB molecule was confirmed by matrix-assisted laser desorption/ionization time of flight mass spectroscopy. Thermogravimetric analysis revealed the wt % of the grafted macromolecule on the CNT surface as well as the grafting density of the polymer chains on the SWNTs (0.027 chains nm−2). Direct evidence for the surface functionalization and the presence of thin polystyrene film was obtained by transmission electron microscopy (TEM) and by atomic force microscopy (AFM).

1. Introduction

Carbon nanotubes (CNTs) are promising nanomaterials due to their extraordinary electronic, and mechanic properties [1,2]. The combination of their high surface area with the strong van der Waals attractive interactions, due to the hexagonal sp2 carbon network, forces CNTs to create aggregated bundles. To realize their potential, efficient and homogeneous dispersion of CNTs in solvents and polymers is required. Homogeneous dispersion of carbon nanotubes in polymer matrices is important to develop ultrahigh strength nanocomposites that would have an efficient load transfer and a good interfacial adhesion between the CNTs and the polymer [3,4,5]. In general, debundling of carbon nanotubes is accomplished through functionalization of CNTs using organic compounds. Over the past few years, great effort has been devoted to covalent and non-covalent functionalization of CNTs. Small molecules as well as macromolecules have been employed for this purpose using a rich variety of different strategies.
The non-covalent polymer functionalization strategy generally involves the interaction of electron rich macromolecules with π–π interactions of carbon nanotubes. Ionic interactions as well as CH–π or OH–π interactions are also possible [6]. On the other hand, covalent grafting of polymers involves two different strategies, “grafting to” [7,8,9,10] and “grafting from” or surface-initiated polymerization methodology [11,12,13]. Several surface covalent functionalization strategies also involve direct addition reaction to the sp2 carbon of the CNTs with (i) nitrenes [14], (ii) diazonium salts [15], (iii) carbenes [16], (iv) azomethine ylides [17], (v) free radicals [18], (vi) fluorine [19], (vii) 1,3 dipolar cycloaddition [20], (viii) bromomalonates [21], and oxidation reactions [22,23]. All the above methodologies require demanding reaction conditions, and multiple steps are necessary to functionalize the carbon nanotubes.
Experimental [24,25,26,27,28,29,30,31] as well as theoretical studies [32] in recent years have shown that the Diels–Alder (DA) reaction is a powerful tool for the covalent functionalization of carbon nanotubes [33]. From the theoretical point of view [32], it has been shown that DA reaction can occur between the dienenophile CNTs and conjugated dienes. Specifically, it was predicted that the DA cycloaddition of ο-quinodimethane on the sidewalls of SWNTs was favored due to the aromatic stabilization of the transition state and the product. Our group studied the reaction of several substituted benzocyclobutenes with the sp2 network of multi-walled carbon nanotubes [34]. We reported that the extent of functionalization can be controlled by the temperature, the mode of addition of the benzocyclobutene derivative, the reaction time, and whether the reaction takes place in bulk vs. solution. A number of initiators based on benzocyclobutene were synthesized by our group and used for the surface-initiated polymerizations after the initiators were covalently attached on the CNT surface through the Diels–Alder thermal cycloaddition [35,36,37,38,39,40]. Benzocyclobutene derivatives were also used for the intramolecular [41,42] and the intermolecular crosslinking reactions for the synthesis of polymer nanoparticles [43].
Herein, we report a facile, single-step covalent strategy for the surface functionalization of SWNTs. A well-defined polystyrene chain with a diphenylethylene cyclobutene end-group was synthesized by anionic polymerization and grafted to the side CNT walls through a thermal [4+2] Diels–Alder cycloaddition reaction in the absence of any catalyst. The structural integrity of the SWNTs was retained, and the reaction did not require any surface pre-modification of the CNTs.

2. Materials and Methods

2.1. Materials

All chemicals were purchased from Sigma Aldrich, Athens, Greece.. The SWNTs (length 1 μm to 3 μm and diameter 1–1.2 nm, 93% purity, Carbon Nanotechnologies, TX) were prepared through the HiPco method and purified by multistage oxidation in moisture air at 225, 325, and 425 °C for 2 h, as reported elsewhere [44]. Single-walled carbon nanotubes (SWCNTs) had approximately 1 mol.% carboxylic acid groups with respect to the carbon atoms of the SWNTs, as determined by titration, X-ray photoelectron spectroscopy (XPS), and prompt-gamma methods. SWNTs were vacuum dried in the oven at 200 °C overnight before being used for surface functionalization. All solvents and monomers were purified according to well-known procedures [45,46]. Dimethylformamide (DMF) was distilled over NaOH. Other solvents such as ethyl acetate, diethyl ether, and hexane were used as received. The 4-bromobenzocyclobutene was distilled under vacuum and stored under N2. sec-butyllithium (s-BuLi), synthesized by the reaction of sec-butyl chloride and lithium metal, was used as the polymerization initiator. The concentration of s-BuLi was determined using standard styrene polymerization under a high vacuum and the measured number average molecular weight of the obtained polystyrene at 100% conversion. The detailed synthesis of diphenylethylene cyclobutene (DPE-CB) is reported elsewhere [30], and 1H NMR spectrum is in the supporting information (Figure S1).

2.2. Physical and Analytical Methods

Size exclusion chromatography (SEC) was used to determine molecular weights and molecular weight distributions (Mw/Mn) of the polymer samples with respect to polystyrene standards. The unit was equipped with an isotactic pump (Knauer K-501), UV detector (Knauer UV-K2501), and RI detector (Knauer RI-K2301). Polymer samples were analyzed using Polymer Standard Service (PSS, Germany) 1 × 100 Å and 1 × liner SDV 5 μm gel columns (60 cm) set or with Polymer Laboratories 2 × mixed-BSDV gel columns (30 cm). THF was used as the mobile phase at a flow rate of 1 mL min−1 at 30 °C. PSS WinGPC software was used to acquire and analyze the chromatograms. In some cases, SEC was performed on an SEC-LS system consisting of an RI detector (Polymer Laboratories), light scattering 15° and 90° (Precision Detectors, λ = 685 nm, 30 Mw), and viscosity (Viscotec) detectors. 1H-NMR (400 MHz) spectrum was recorded on a Brucker AC-400 spectrometer.
Matrix-assisted laser desorption-ionization mass spectra (MALDI-TOF MS) were recorded on a Bruker Autoflex II mass spectrometer (Bruker Daltonics, Billerica, MA, USA) equipped with a nitrogen laser operated at 337 nm, a frequency of 25 Hz, and an acceleration voltage of 20 kV. Trans-2-[3-(4-tert-Butylphenyl)-2-methyl-2-propenylidene]malononitrile (DCTB) (>99%, Fluka) was used as the matrix and silver trifluoroacetate (AgTFA) as the cationizing agent. Solutions of DCTB (20 mg/mL), the analyte (10 mg/mL), and the AgTFA (10 mg/mL) were prepared in THF and then mixed in a 10:2:1 ratio. A volume of 0.5 μL was applied to the target via the dried droplet method. Mass spectra were collected in reflectron mode, and the instrument was externally calibrated with polystyrene standards.
Thermogravimetric analysis was performed using a TA Q50 analyzer in air and N2 atmosphere at a heating rate of 10 °C/min.
FT-IR spectra were recorded using a Bio-Red Win-IR Pro instrument with a resolution of 2 cm−1. KBr was used to prepare sample pellets.
Raman spectra were measured with a Renishaw Invia Raman spectrometer equipped with an integral microscope (Leica DM 2500 M) and a Peltier cooled charged-coupled detector. The 785 (or 514) nm radiation from a 500 mW diode laser was used as excitation source, operated at 25 mW in order to avoid thermal effects. The excitation was performed through a 50× objective lens, and Raman scattering was detected in a backscattering geometry (180°). The spectral resolution using an 1800 grooves/mm grating was approximately 2 cm−1. Spectra were recorded over the range of 100–2000 cm−1 for 10–12 acquisitions (with 20 s/acquisition) and averaged. The spectra were smoothed with a 7 points adjacent averaging smooth function.
Atomic force microscopy (AFM) images were acquired in air, under ambient conditions, using an Asylum Research MFP-3D™ microscope operated in the tapping (non-contact) mode. Silicon probes (Olympus) with tip radius of 10 nm, spring constant of 42 N/m, and resonance frequency 300 kHz were used for imaging. The scan rate was varied between 0.6 and 1 Hz. The scan lines and the scan points were varied between 256 and 512. Typical sample preparation for the AFM imaging involved dispersion of carbon nanotubes in chloroform (at concentrations of 0.5 mg CNTs or less per ml of solvent), spin-coating on silicon substrates, and subsequent drying for 2 h at ambient conditions. The diameters of pristine or grafted CNTs were determined using AFM height measurements and section analysis.
Transmission electron microscopy (TEM) samples were prepared by dropping an ~5 μL solution (SWNTs-g-PS in chloroform) on a freshly glow discharged carbon film supported by a 600 mesh copper grid (Electron Microscopy Sciences, Hatfield, PA, USA). A JEOL 200CX electron microscope (JEOL Ltd., Tokyo, Japan), operated at 200 kV in the bright field mode, was used to examine the samples.

2.3. Synthesis of Diphenylethylene-Cyclobutene End-Capped Polystyrene, 1.

The anionic polymerization of styrene (S) was performed in benzene using standard all-glass high-vacuum techniques, Scheme 1. In a typical reaction, the required amount of S (4 g) was mixed with known amount of s-BuLi (9.3 × 10−4 mol) in benzene at room temperature under high vacuum. Immediately, an orange color developed, indicating the formation of the propagating anion of PSLi+. The polymerization was allowed to proceed for 20 h at 25 °C. A small aliquot was taken and terminated with methanol for molecular weight characterization before the introduction of an appropriate amount of DPE-CB (3 times excess compared to the living PS-Li+, 2.8 × 10−3 mol) for the end-capping reaction (with or without THF). Immediately after mixing of the excess DPE-CB with the “living” PSLi+, the solution color changed to dark red. The reaction was allowed to proceed for a few hours at 25 °C and was terminated with methanol (0.5 mL) under vacuum. The reactor was opened, and the polymer was recovered by precipitation in excess methanol. The end-capped polystyrene was dried under vacuum at 40 °C for 24 h. The yield was 96% (3.85 g). As shown in Figure 1, all samples exhibited narrow molecular weight distributions.

2.4. Synthesis of SWNTs-g-PS

In a typical experiment, 20 mg of pristine SWNTs were dispersed in 10 mL of dibenzyl ether in a glass tube and placed in an ultrasonic bath. After dispersing the solution, the glass tube was introduced in a silicone oil bath at ~230 °C with vigorous stirring under nitrogen atmosphere and left to thermostat for 10 min. A polymer solution, 500 mg in 10 mL of benzyl ether, was added drop-wise into the hot dispersion of SWNTs using a peristaltic pump at a rate of 10 mL/h. After the addition, the mixture was left for 40 more min at the oil bath. In order to be sure that the polystyrene was covalently grafted and not physisorbed on the surface of CNTs, the polymer/CNTs solution after the completion of the grafting reaction was filtered through a Teflon membrane (0.2 μm pore) and washed with copious amount of THF. The washing was repeated (three times/500 mL each time) until the filtrate showed no weight change by thermogravimetric analysis (Scheme 1)

3. Results and Discussion

The end-capping reaction of “living” PSLi+ with the three-fold mol excess of PDE-CB molecule took place in a benzene solution with and without (~1 mL) THF. The orange color of the “living” PSLi+ solution changed instantaneously upon the addition of the excess of DPE-CB to dark red, which was initial evidence of the successful reaction. This reaction was previously thoroughly studied by our group, where seven DPE-CB molecules were introduced at precise positions along a polystyrene chain [47]. The size exclusion chromatography eluogram revealed a monomodal, symmetric, low molecular weight distribution peak after the end-capping reaction without any byproducts.
The quantitative functionalization of PSLi with DPE-CB was confirmed by MALDI-TOF MS, as shown in Figure 2. The MALDI-TOF MS spectrum of the PS sample before the reaction with the DPE-CB revealed a single distribution, which was attributed to unfunctionalized PS (PS-H) where the observed mass of m/z 4228.1 was in good agreement with the calculated average mass of 4228.1 Da for [C4H9(C8H8)39H·Ag]+. After the end-capping reaction with DPE-CB, the molecular weight of the product shifted to higher molecular weight, which was consistent with the addition of DPE-CB unit (calculated average mass 207.3 Da). In the case of PS-(DPE-CB), one distribution was observed, and the peak observed at 4433.8 was in good agreement with the calculated average mass of 4434.2 Da for [C4H9(C8H8)39C16H15·Ag]+. The same shift was observed when PSLi reacted with PS-DPE-CB in the presence of THF. For each sample, the difference between the peaks corresponded to the mass of one styrene repeat unit.
The 1H NMR spectrum of the DPE-CB end-capped polystyrene in Figure 3 revealed the absence of vinyl protons (5.2–5.8 ppm) and the presence of aliphatic (1.0–2.2 ppm), aromatic (6.2–7.4 ppm), and cyclobutene protons (3.0–3.2 ppm), which was additional evidence for the successful end-capping reaction of the “living” PS chains with the DPE-CB molecule.
The chemical functionalization of the SWNTs with the DPE-CB end-capped PS took place in a solution of dibenzyl ether, a good solvent for PS with high boiling temperature, which is critical for the [4+2] Diels–Alder thermal cycloaddition reaction between the dienophile SWNTs and the benzocyclobutene derivative. Benzocyclobutene is a category of dienes that can take part in a Diels–Alder reaction with the sp2 carbons of an aromatic system through an o-quinodimethane intermediate [48]. The strained ring of the benzocyclobutene is susceptible to thermal ring opening to form o-quinodimethane, which can undergo [4+2] Diels–Alder cycloaddition exclusively to 6–6 bonds of fused aromatic rings [48].
Our group studied the reaction of several substituted benzocyclobutenes with the sp2 network of multi-walled carbon nanotubes. We reported that the extent of functionalization can be controlled by the temperature, by the mode of addition of the benzocyclobutene derivative, by the reaction time, and by whether the reaction takes place in bulk vs. solution [34]. For the surface functionalization of the SWNTs with the PS-(DPE-CB), the reaction took place in dibenzyl ether solution at 230 °C for 100 min in total, while the addition of the PS solution to the CNTs dispersion lasted for ten minutes. Thermogravimetric analysis was performed in order to estimate the wt % of grafted polystyrene on the side walls of CNTs and the grafting density of the polymer chain (Figure 4). The grafting density (σ1) in mol g−1 was calculated based on the %weight of the grafted polymer at T(700°C), the molecular weight Mn of the grafted macromolecule, and by assuming that the remaining samples were constituted purely of carbon. Based on the above procedure, the grafting density (σ2) in chains nm−2 was calculated according to the polymer chain molecular weight Mn and the theoretical specific surface of the SWNTs (1315 m2 g−1) [49]. In summary, the different grafting densities are given by the equations below, σ1 = 0.06 mmol g−1 and σ2 = 0.027 chains nm−2.
σ 1 = % wt · polymer M n % wt · remaining   carbon   sample ( mol / g )
σ 2 = σ 1 N A 1315 ( chain / m 2 )
Adsorption peaks at 3060 and 3026 cm−1 due to aromatic C-H stretching vibrations and two peaks at 2928 cm−1 and 2858 cm−1 corresponding to asymmetric and symmetric stretching of methylene groups –CH2 are depicted at the FT-IR spectrum of the PS-g-SWNTs in Figure 5. The three characteristic adsorption peaks at 1635, 1492, and 1452 cm−1 due to aromatic C=C stretching vibration modes were more obvious compared to the spectrum of pristine SWNTs. Additionally, the peaks at 680–750 cm−1 corresponded to the nonaromatic structure of the sample due to the backbone of the PS chain. The peak at 3300 cm−1 corresponded to the O-H stretching vibration mode due to the carboxyl groups present at the open tips and at the defect sites at the surface of the CNTs.
Raman spectroscopy has, for more than two decades, been an exceedingly powerful tool to reveal the exceptional electronic and phonon properties of single-walled carbon nanotubes [50]. The Raman spectrum of SWCNTs mainly consisted of three characteristic peaks. In more detail, the first characteristic (radial breathing mode, RBM) peak was in the area between 100 and 400 cm−1 and was related to the tube diameter and length. A second peak between 1500 and 1600 cm−1 was related to the tangential G-mode of graphite, which occurred at 1582 cm−1. In SWNTs, this peak originated from breaking the symmetry of the tangential vibration when the graphene sheet was rolled into a tube consisting of two components. One located at around 1590 cm−1 (G+) was due to vibration of carbon atoms along the nanotube axis and was sensitive to charge transfer from dopant additions to SWNTs. Another at around 1570 cm−1 (G) was assigned to a vibration of carbon atoms along the circumferential direction of SWNTs. The last characteristic peak around 1350 cm−1, the disorder-induced D-mode, was attributed to a double resonant Raman scattering process involving a defect or disorder in CNTs, such as amorphous carbon, vacancies, and heteroatoms [51]. The RBMs showed changes after grafting of PS where more peaks were present in the area between 100–400 cm−1 after the functionalization reaction. These peaks were attributed to metallic and semiconducting SWNTs, and the presence of more peaks was indirect evidence of CNTs debundling due to polymer functionalization, as reported elsewhere [52]. The structural integrity of the surface grafted MWNTs was confirmed by Raman spectroscopy, which showed both the disorder (D) and the tangential (T) bands at 1334 and 1590 cm−1, respectively. A slight increase in the peak ratio of ID/IT = 0.16 of the functionalized as compared to the pristine SWNTs (ID/IT = 0.13) was attributed to enhanced attachment of PS chains through the Diels–Alder thermal cycloaddition (Figure 6). The increase in the disorder mode band corresponded to the conversion of the hybridization of the C atoms on the nanotubes from sp2 to sp3, which indicated covalent side-wall functionalization.
The direct evidence for the presence of grafted PS on the SWNTs was obtained from TEM and AFM images, as it can be seen in Figure 7 and Figure 8, respectively. A dilute solution of SWNTs-g-PS in chloroform was drop-coated onto a carbon coated copper grid, and the thin film was visualized with TEM. A typical TEM image of SWNTs-g-PS showed amorphous coating on the surface of SWNTs in selected regions (Figure 7). Certain areas of the SWNT surfaces were observed to have no polymer coverage, indicating a non-uniformity of the polymer grafting. The surface of SWNTs was covered with the PS layer inhomogeneously, which suggested a non-uniform grafting of PS chains around the surface of carbon nanotubes.
Atomic force microscopy was performed to visualize the grafted polystyrene chains on the surface of SWNTs. Usually, large CNT bundles were observed before functionalization, however, the PS functionalized SWNTs existed in small aggregates, and even individual SWNTs were observed by AFM. The average height of the pristine SWNTs ranged from 0.8 to 1.5 nm. As shown in Figure 8, the height profile demonstrated the existence of an individual single walled carbon nanotube. It is also clear from the figure that the nanotubes maintained their length (>1 μm), since they did not suffer any surface pre-modification reaction prior to the “grafting to” functionalization. An increase up to ~3 nm of the height profiles of the AFM images taken after the surface functionalization of SWNTs with the polystyrene polymer chains was revealed. This increase could be attributed either to enhanced polymer grafting efficiency or to the existence of small aggregates.
The SWNTs-g-PS exhibited good solubility in common PS organic solvents such as tetrahydrofuran and chloroform, where no precipitation appeared from the homogeneous dispersion even after one week at room temperature (Figure 9).

4. Conclusions

A facile, one-step [4+2] Diels–Alder thermal cycloaddition reaction for the surface modification of single-walled carbon nanotubes without compromising their structural integrity was performed. A well-defined polystyrene with a diphenylethylene cyclobutene terminal group was synthesized by anionic polymerization and grafted on the CNT side walls in a dibenzyl ether solution at 230 °C in the absence of any catalyst and without any previous modification of the SWNT surface. The quantitative end group functionalization of the polystyrene chains was confirmed by MALDI TOF mass and 1H NMR spectroscopies. TEM and AFM microscopy revealed the presence of an inhomogeneous thin film on the CNT surface. The grafting density was also estimated by thermogravimetric analysis, and the SWNTs-g-PS were well dispersed in organic solvents.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/polym13071169/s1, Figure S1. 1H-NMR spectrum of DPE-CB.

Author Contributions

G.S. was responsible for this work and the design of the experiments. M.-M.S. Synthesized and characterized the end-functionalized polystyrene. C.P., and E.M. synthesized and characterized the SWNTs-g-PS. A.A. characterized the SWNTs-g-PS via TEM and AFM. All authors have read and agreed to the published version of the manuscript.

Funding

This research was co-financed by the European Union and Greek national funds through the Operational Program Competitiveness and innovation, under the call RESEARCH–CREATE–INNOVATE (project code: Τ1ΕΔΚ-02576).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in this manuscript and the Supplementary Information Section.

Acknowledgments

This research was co-financed by the European Union and Greek national funds through the Operational Program Competitiveness and innovation, under the call RESEARCH–CREATE–INNOVATE (project code: T1EΔK-02576).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gao, G.; Cagin, T.; Goddard, W.A. Energetics, structure, mechanical and vibrational properties of single-walled carbon nanotubes. Nanotechnology 1998, 9, 184–191. [Google Scholar] [CrossRef] [Green Version]
  2. Huang, Y.Y.; Terentjev, E.M. Tailoring the electrical properties of carbon nanotube-polymer composites. Adv. Funct. Mater. 2010, 23, 4062–4068. [Google Scholar] [CrossRef]
  3. Murakami, H.; Nomura, T.; Nakashima, N. Noncovalent porphyrin-functionalized single-walled carbon nanotubes in solution and the formation of porphyrin–nanotube nanocomposites. Chem. Phys. Lett. 2003, 378, 481–486. [Google Scholar]
  4. Liu, I.-C.; Huang, H.-M.; Chang, C.-Y.; Tsai, H.-C.; Hsu, C.-H.; Tsiang, R.C.-C. Preparing a styrenic polymer composite containing well-dispersed carbon nanotubes:  anionic polymerization of a nanotube-bound p-methylstyrene. Macromolecules 2004, 37, 283–287. [Google Scholar] [CrossRef]
  5. Lu, X.; Hiremath, N.; Hong, K.; Evora, M.C.; Ranson, V.H.; Naskar, A.K.; Bhat, G.S.; Kang, N.G.; Mays, J.W. Improving mechanical properties of carbon nanotube fibers through simultaneous solid-state cycloaddition and crosslinking. Nanotechnology 2017, 28, 145603. [Google Scholar] [CrossRef]
  6. Bilalis, P.; Katsigiannopoulos, D.; Avgeropoulos, A.; Sakellariou, G. Non-covalent functionalization of carbon nanotubes with polymers. RSC Adv. 2014, 4, 2911–2934. [Google Scholar] [CrossRef]
  7. Baskaran, D.; Sakellariou, G.; Mays, J.W.; Bratcher, M.S. Grafting reactions of living macroanions with multi-walled carbon nanotubes. J. Nanosci. Nanotechnol. 2007, 7, 1560–1567. [Google Scholar] [CrossRef]
  8. Li, H.; Cheng, F.; Duft, A.M.; Adronov, A. Functionalization of single-walled carbon nanotubes with well-defined polystyrene by “click” coupling. J. Am. Chem. Soc. 2005, 127, 14518–14524. [Google Scholar] [CrossRef]
  9. Liu, Y.; Yao, Z.; Adronov, A. Functionalization of single-walled carbon nanotubes with well-defined polymers by radical coupling. Macromolecules 2005, 38, 1172–1179. [Google Scholar] [CrossRef]
  10. Baskaran, D.; Dunlap, J.R.; Mays, J.W.; Bratcher, M.S. Grafting efficiency of hydroxy-terminated poly(methyl methacrylate) with multiwalled carbon nanotubes. Macromol. Rapid Commun. 2005, 26, 481–486. [Google Scholar] [CrossRef]
  11. Sakellariou, G.; Priftis, D.; Baskaran, D. Surface-initiated polymerization from carbon nanotubes: Strategies and perspectives. Chem. Soc. Rev. 2013, 42, 677–704. [Google Scholar] [CrossRef] [PubMed]
  12. Barbey, R.; Lavanant, L.; Paripovic, D.; Schuwer, N.; Sugnaux, C.; Tugulu, S.; Klok, H.-A. Polymer brushes via surface-initiated controlled radical polymerization: Synthesis, characterization, properties, and applications. Chem. Rev. 2009, 109, 5437–5527. [Google Scholar] [CrossRef]
  13. Zoppe, J.O.; Ataman, N.C.; Mocny, P.; Wang, J.; Moraes, J.; Klok, H.-A. Surface-initiated controlled radical polymerization: State-of-the-art, opportunities, and challenges in surface and interface engineering with polymer brushes. Chem. Rev. 2017, 117, 1105–1318. [Google Scholar] [CrossRef] [Green Version]
  14. Holzinger, M.; Abraham, J.; Whelan, P.; Graupner, R.; Ley, L.; Hennrich, F.; Kappes, M.; Hirsch, A. Functionalization of single-walled carbon nanotubes with (R-)oxycarbonyl nitrenes. J. Am. Chem. Soc. 2003, 125, 8566–8580. [Google Scholar] [CrossRef] [PubMed]
  15. Bahr, J.L.; Yang, J.; Kosynkin, D.V.; Bronikowski, M.J.; Smalley, R.E.; Tour, J.M. Functionalization of carbon nanotubes by electrochemical reduction of aryl diazonium salts:  A bucky paper electrode. J. Am. Chem. Soc. 2001, 123, 6536–6542. [Google Scholar] [CrossRef] [PubMed]
  16. Holzinger, M.; Vostrowsky, O.; Hirsch, A.; Hennrich, F.; Kappes, M.; Weiss, R.; Jellen, F. Sidewall functionalization of carbon nanotubes. Angew. Chem. Int. Ed. 2001, 40, 4002–4005. [Google Scholar] [CrossRef]
  17. Georgakilas, V.; Kordatos, K.; Prato, M.; Guldi, D.M.; Holzinger, M.; Hirsch, A. Organic functionalization of carbon nanotubes. J. Am. Chem. Soc. 2002, 124, 760–761. [Google Scholar] [CrossRef] [PubMed]
  18. Umek, P.; Seo, J.W.; Hernadi, K.; Mrzel, A.; Pechy, P.; Mihailovic, D.D.; Forro, L. Addition of carbon radicals generated from organic peroxides to single wall carbon nanotubes. Chem. Mater. 2003, 15, 4751–4755. [Google Scholar] [CrossRef]
  19. Mickelson, E.T.; Huffman, C.B.; Rinzler, A.; Smalley, R.E.; Hauge, R.H.; Margrave, J.L. Fluorination of single-wall carbon nanotubes. Chem. Phys. Lett. 1998, 296, 188–194. [Google Scholar] [CrossRef]
  20. Brunetti, F.; Ferrrero, M.; Munoz, J.; Meneghetti, M.; Prato, M.; Vasquez, E. Microwave-induced multiple functionalization of carbon nanotubes. J. Am. Chem. Soc. 2008, 130, 8094–8100. [Google Scholar] [CrossRef] [PubMed]
  21. Coleman, K.S.; Bailey, S.R.; Fogden, S.; Green, M.L.H. Functionalization of single-walled carbon nanotubes via the Bingel reaction. J. Am. Chem. Soc. 2003, 125, 8722–8723. [Google Scholar] [CrossRef]
  22. Tchoul, M.N.; Ford, W.T.; Lolli, G.; Resasco, D.E.; Arepalli, S. Effect of mild nitric acid oxidation on dispersability, size, and structure of single-walled carbon nanotubes. Chem. Mater. 2007, 19, 5765–5772. [Google Scholar] [CrossRef]
  23. Datsyuk, V.; Kalyva, M.; Papagelis, K.; Parthenios, J.; Tasis, D.; Siokou, A.; Kallitsis, I.; Galiotis, C. Chemical oxidation of multiwalled carbon nanotubes. Carbon 2008, 46, 833–840. [Google Scholar] [CrossRef]
  24. Chang, C.M.; Liu, Y.L. Functionalization of multi-walled carbon nanotubes with furan and maleimide compounds through Diels-Alder cycloaddition. Carbon 2009, 47, 3041–3049. [Google Scholar] [CrossRef]
  25. Delgado, J.D.; De La Cruz, P.; Langa, F.; Urbina, A.; Casado, J.; Lόpez Navarrete, J.T. Microwave-assisted sidewall functionalization of single-wall carbon nanotubes by Diels-Alder cycloaddition. Chem. Commun. 2004, 10, 1734–1735. [Google Scholar] [CrossRef]
  26. Zhang, L.; Yang, J.; Edwards, C.L.; Alemany, L.B.; Khabashesku, V.N.; Barron, A.R. Diels-Alder addition to fluorinated single walled carbón nanotubes. Chem. Commun. 2005, 26, 3265–3267. [Google Scholar] [CrossRef] [PubMed]
  27. Ménard-Moyon, C.; Dumas, F.; Doris, E.; Mioskowski, C. Functionalization of single-wall carbon nanotubes by tandem high-pressure/Cr(CO)6 activation of Diels-Alder cycloaddition. J. Am. Chem. Soc. 2006, 128, 14764–14765. [Google Scholar] [CrossRef] [PubMed]
  28. Zydziak, N.; Hübner, C.; Bruns, M.; Barner-Kowollik, C. One-step functionalization of single-walled carbon nanotubes with cyclopentadienyl-capped macromolecules via Diels-Alder chemistry. Macromolecules 2011, 44, 3374–3380. [Google Scholar] [CrossRef]
  29. Bernal, M.; Liras, M.; Verdejo, R.; Lopez-Manchado, M.A.; Quijada-Garrido, I.; Paris, R. Modification of carbon nanotubes with well-controlled fluorescent styrene-based polymers using the Diels-Alder reaction. Polymer 2011, 52, 5739–5745. [Google Scholar] [CrossRef]
  30. Munirasu, S.; Albueme, J.; Boschetti-de-Fierro, A.; Abetz, V. Functionalization of carbon materials using the Diels-Alder reaction. Macromol. Rapid Comm. 2010, 31, 574–579. [Google Scholar] [CrossRef] [Green Version]
  31. Zydziak, N.; Preuss, C.M.; Winkler, V.; Bruns, M.; Hübner, C.; Barner-Kowollik, C. Hetero Diels-Alder chemistry for the functionalization of single-walled carbon nanotubes with cyclopentadienyl end-capped polymer strands. Macromol. Rapid Commun. 2013, 34, 672–680. [Google Scholar] [CrossRef]
  32. Lu, X.; Tian, F.; Wang, N.; Zhang, Q. Organic functionalization of the sidewalls of carbon nanotubes by Diels-Alder reactions: A theoretical prediction. Org. Lett. 2002, 4, 4313–4315. [Google Scholar] [CrossRef]
  33. Zydziak, N.; Yameen, B.; Barner-Kowollik, C. Diels-Alder reactions for carbon material synthesis and surface functionalization. Polym. Chem. 2013, 4, 4072–4086. [Google Scholar] [CrossRef]
  34. Sakellariou, G.; Ji, H.; Mays, J.W.; Hadjichristidis, N.; Baskaran, D. Controlled covalent functionalization of multiwalled carbon nanotubes using [4+2] cycloaddition of benzocyclobutenes. Chem. Mater. 2007, 19, 6370–6372. [Google Scholar] [CrossRef] [Green Version]
  35. Sakellariou, G.; Ji, H.; Mays, J.W.; Baskaran, D. Enhanced polymer grafting from multiwalled carbon nanotubes through living anionic surface-initiated polymerization. Chem. Mater. 2008, 20, 6217–6230. [Google Scholar] [CrossRef] [Green Version]
  36. Priftis, D.; Petzetakis, N.; Sakellariou, G.; Pitsikalis, M.; Baskaran, D.; Mays, J.W.; Hadjichristidis, N. Surface-initiated titanium-mediated coordination polymerization from catalyst-functionalized single and multiwalled carbón nanotubes. Macromolecules 2009, 42, 3340–3346. [Google Scholar] [CrossRef] [Green Version]
  37. Priftis, D.; Sakellariou, G.; Baskaran, D.; Mays, J.W.; Hadjichristidis, N. Polymer grafted Janus multi-walled carbón nanotubes. Soft Matter 2009, 5, 4272–4278. [Google Scholar] [CrossRef]
  38. Priftis, D.; Sakellariou, G.; Hadjichristidis, N.; Penott, E.K.; Lorenzo, A.T.; Muller, A.J. Surface modification of multiwalled carbón nanotubes with biocompatible polymers via ring opening and living anionic surface initiated polymerization. Kinetics and crystallization behavior. J. Polym. Sci. Part A Polym. Chem. 2009, 47, 4379–4390. [Google Scholar] [CrossRef]
  39. Gkikas, M.; Das, B.P.; Tsianou, M.; Iatrou, H.; Sakellariou, G. Surface initiated ring-opening polymerization of L-proline N-carboxy anhydride from single and multi walled carbon nanotubes. Eur. Polym. J. 2013, 49, 3095–3103. [Google Scholar] [CrossRef]
  40. Priftis, D.; Sakellariou, G.; Mays, J.W.; Hadjichristidis, N. Novel diblock copolymer-grafted multiwalled carbon nanotubes via a combination of living and controlled/living surface polymerizations. J. Polym. Sci. Part A Polym. Chem. 2010, 48, 1104–1112. [Google Scholar] [CrossRef]
  41. Harth, E.; Van Horn, B.; Lee, V.Y.; Germack, D.S.; Gonzales, C.P.; Miller, R.D.; Hawker, C.J. A facile approach to architectually defined nanoparticles via intramolecular chain collapse. J. Am. Chem. Soc. 2002, 124, 8656–8660. [Google Scholar] [CrossRef] [PubMed]
  42. Klonos, P.; Patelis, N.; Glynos, E.; Sakellariou, G.; Kyritsis, A. Molecular dynamics in polystyrene single-chain nanoparticles. Macromolecules 2019, 52, 9334–9340. [Google Scholar] [CrossRef]
  43. Sakellariou, G.; Avgeropoulos, A.; Hadjichristidis, N.; Mays, J.W.; Baskaran, D. Functionalized organic nanoparticles from core-crosslinked poly(4-vinylbenzocyclobutene-b-butadiene) diblock copolymer micelles. Polymer 2009, 50, 6202–6211. [Google Scholar] [CrossRef]
  44. Chiag, I.W.; Brinson, B.E.; Huang, A.Y.; Willis, P.A.; Bronikowski, M.J.; Margrave, J.L.; Smalley, R.E.; Huage, R.H. Purification and characterization of single-wall carbon nanotubes (SWNTs) obtained from the gas-phase decomposition of CO (HiPco Process). J. Phys. Chem. B 2001, 105, 8297–8301. [Google Scholar] [CrossRef] [Green Version]
  45. Hadjichristidis, N.; Iatrou, H.; Pispas, S.; Pitsikalis, M. Anionic polymerization: High vacuum techniques. J. Polym. Sci. Part A Polym. Chem. 2000, 38, 3211–3234. [Google Scholar] [CrossRef]
  46. Uhrig, D.; Mays, J.W. Experimental techniques in high-vacuum anionic polymerization. J. Polym. Sci. Part A Polym. Chem. 2005, 43, 6179–6222. [Google Scholar] [CrossRef]
  47. Nega, A.D.; Pefkianakis, E.K.; Vougioukalakis, G.C.; Sakellariou, G. Synthesis of P3HT-b-PS donor-acceptor diblock copolymer carrying pendant fullerenes at precise positions along the PS block. Eur. Polym. J. 2016, 83, 148–160. [Google Scholar] [CrossRef]
  48. Segura, J.L.; Martin, N. o-Quinodimethanes: Efficient intermediates in organic synthesis. Chem. Rev. 1999, 99, 3199–3246. [Google Scholar] [CrossRef]
  49. Peigney, A.; Laurent, C.; Flahaut, E.; Bacsa, R.R.; Rousset, A. Specific Surface area of carbon nanotubes and bundles of carbon nanotubes. Carbon 2001, 39, 507–514. [Google Scholar] [CrossRef] [Green Version]
  50. Dresselhaus, M.D.; Dresselhaus, G.; Saito, R.; Jorio, A. Raman spectroscopy of carbon nanotubes. Phys. Rep. 2005, 409, 47–99. [Google Scholar] [CrossRef]
  51. Thomsen, C.; Reich, S. Double resonant Raman scattering in graphite. Phys. Rev. Lett. 2000, 85, 5214–5217. [Google Scholar] [CrossRef] [PubMed]
  52. Hennrich, F.; Krupke, R.; Lebedkin, S.; Arnold, K.; Fischer, R.; Resasco, D.E.; Kappes, M.M. Raman spectroscopy of individual single-walled carbon nanotubes from various sources J. Phys. Chem. B 2005, 109, 10567–10573. [Google Scholar] [CrossRef] [PubMed]

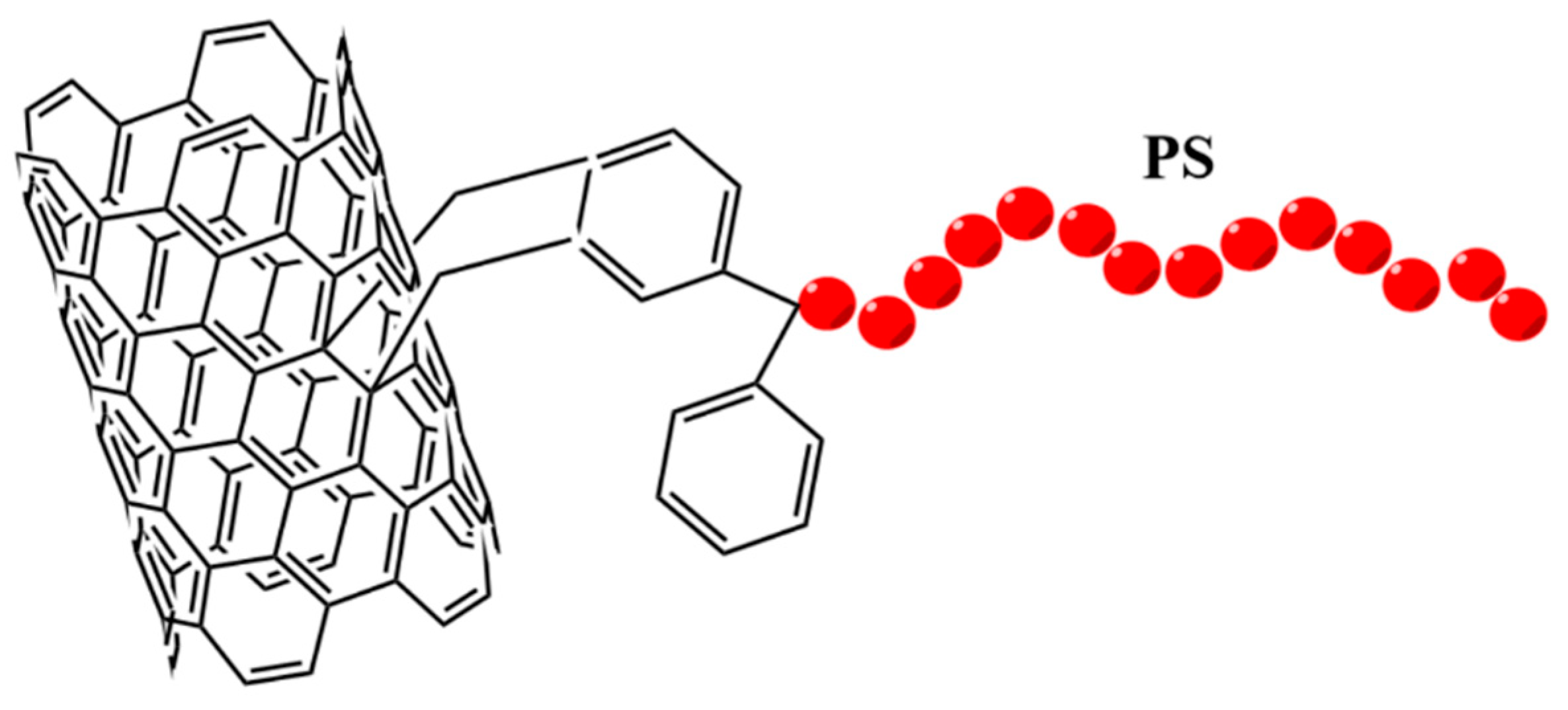

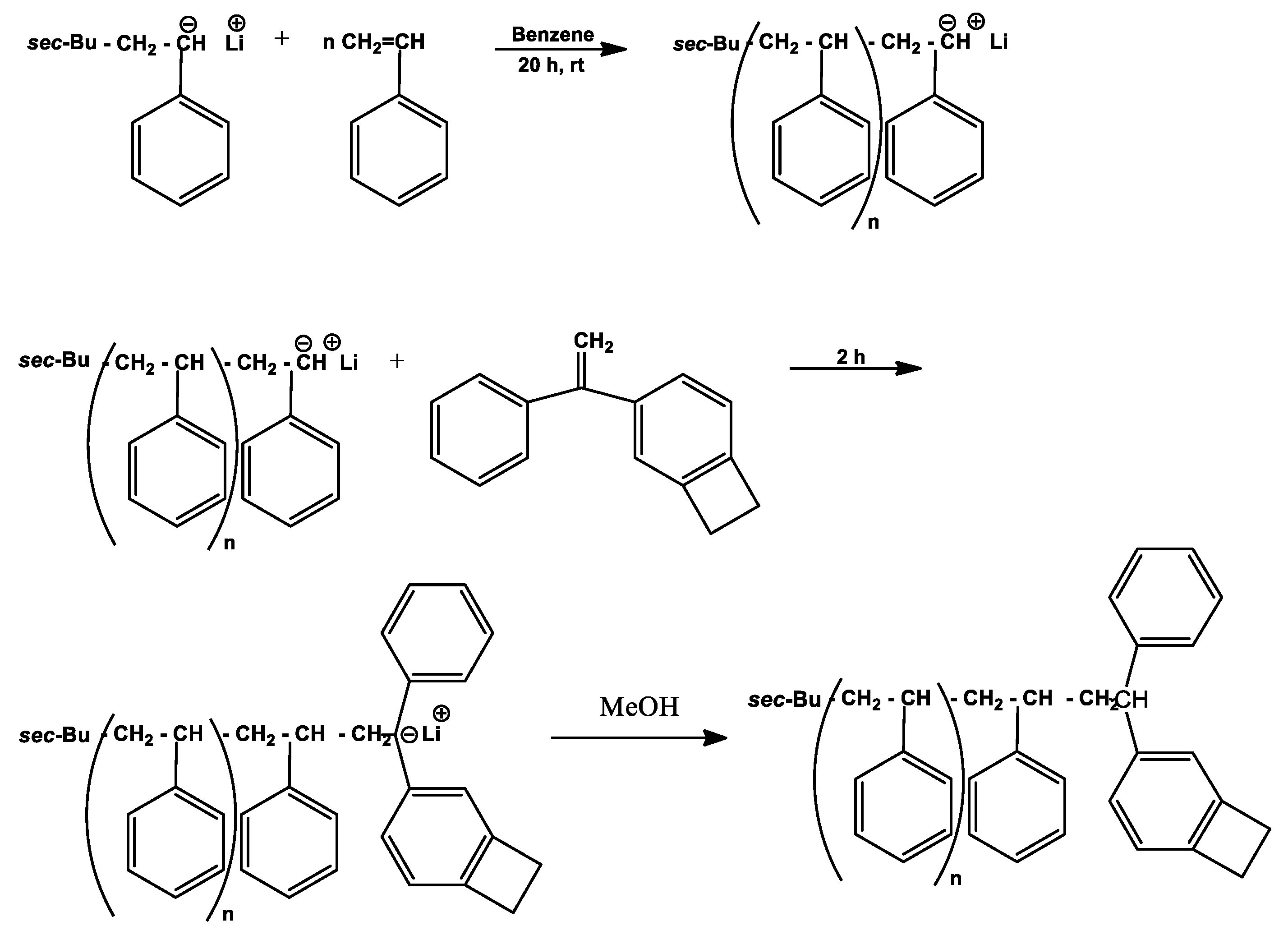

Scheme 1. Synthetic strategy for the synthesis of end-capped PS-(diphenylethylene cyclobutene (DPE-CB)) and the surface functionalization of single-walled carbon nanotubes (SWNTs) with the DPE-CB end-capped polystyrene, 1, through a [4+2] Diels–Alder thermal cycloaddition.
Scheme 1. Synthetic strategy for the synthesis of end-capped PS-(diphenylethylene cyclobutene (DPE-CB)) and the surface functionalization of single-walled carbon nanotubes (SWNTs) with the DPE-CB end-capped polystyrene, 1, through a [4+2] Diels–Alder thermal cycloaddition.
Polymers 13 01169 sch001aPolymers 13 01169 sch001b

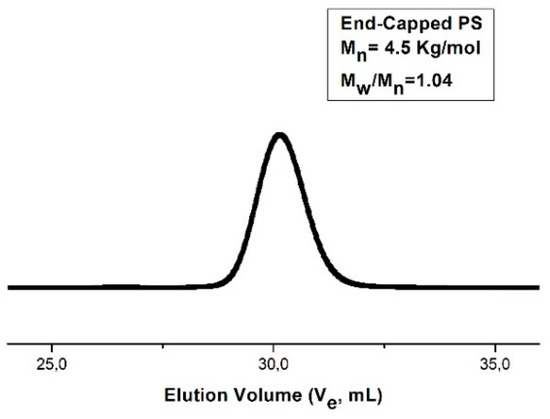

Figure 1. Size exclusion chromatography eluogram of DPE-CB end-capped PS 4.5 Kg/mol.
Figure 1. Size exclusion chromatography eluogram of DPE-CB end-capped PS 4.5 Kg/mol.
Polymers 13 01169 g001

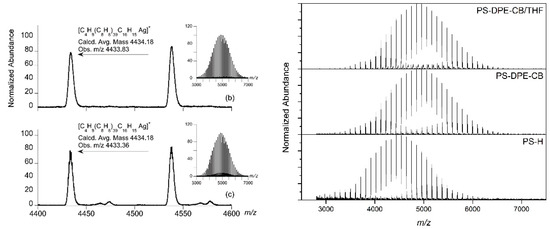

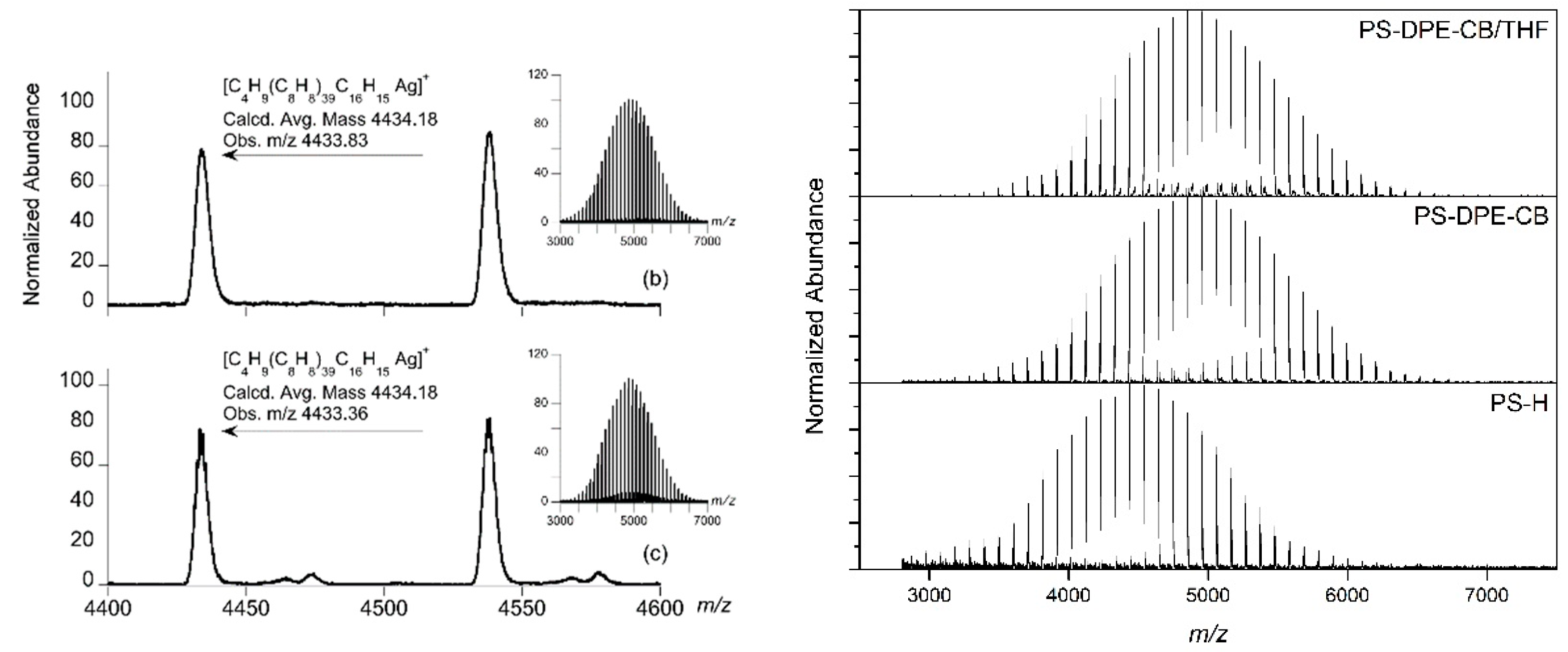

Figure 2. Matrix-assisted laser desorption-ionization mass spectra (MALDI-TOF MS) spectra of the PS-DPE-CB, and the PS-DPE-CB/THF.
Figure 2. Matrix-assisted laser desorption-ionization mass spectra (MALDI-TOF MS) spectra of the PS-DPE-CB, and the PS-DPE-CB/THF.
Polymers 13 01169 g002

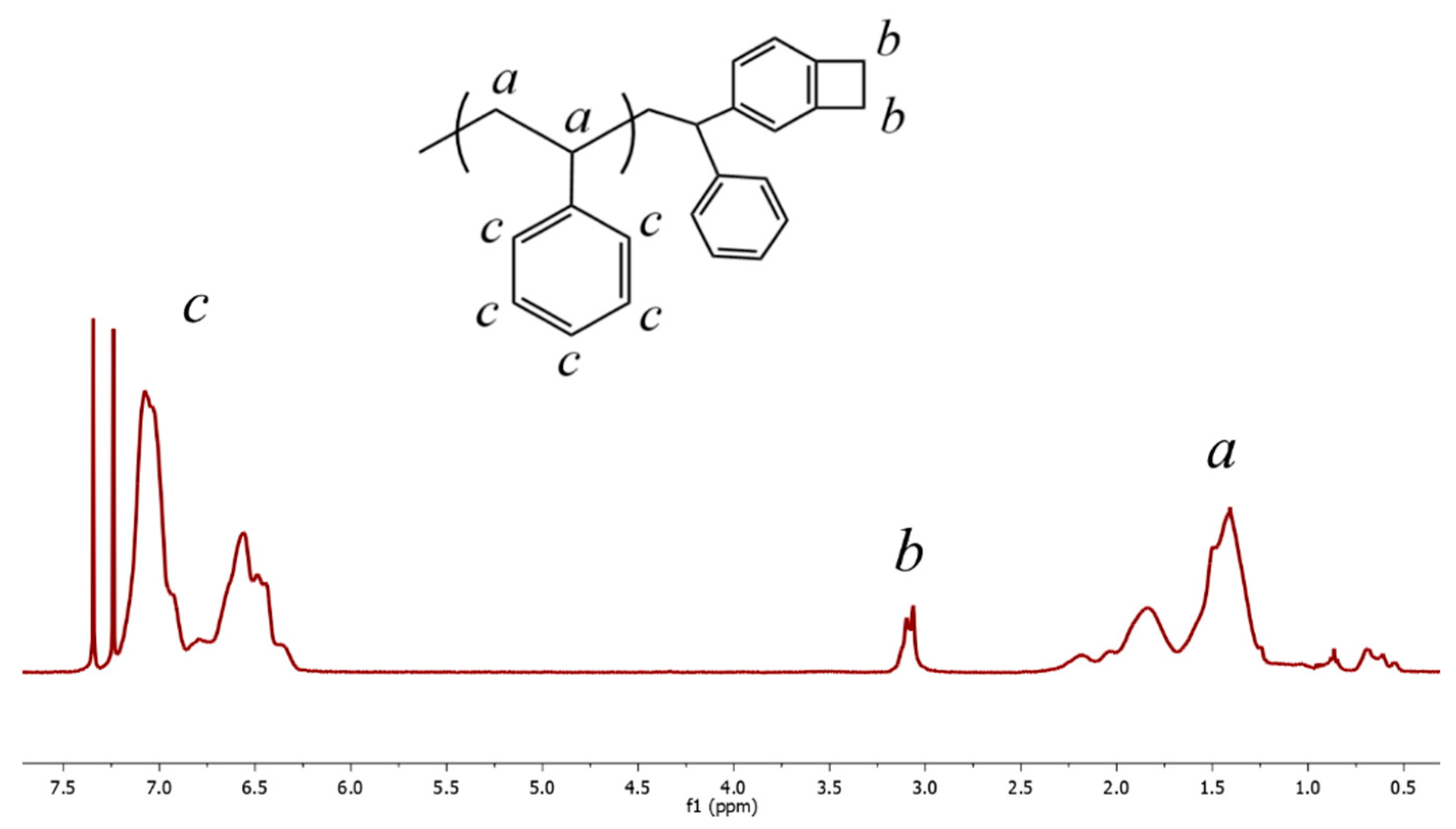

Figure 3. 1H-NMR spectrum of DPE-CB end-capped PS.
Figure 3. 1H-NMR spectrum of DPE-CB end-capped PS.
Polymers 13 01169 g003

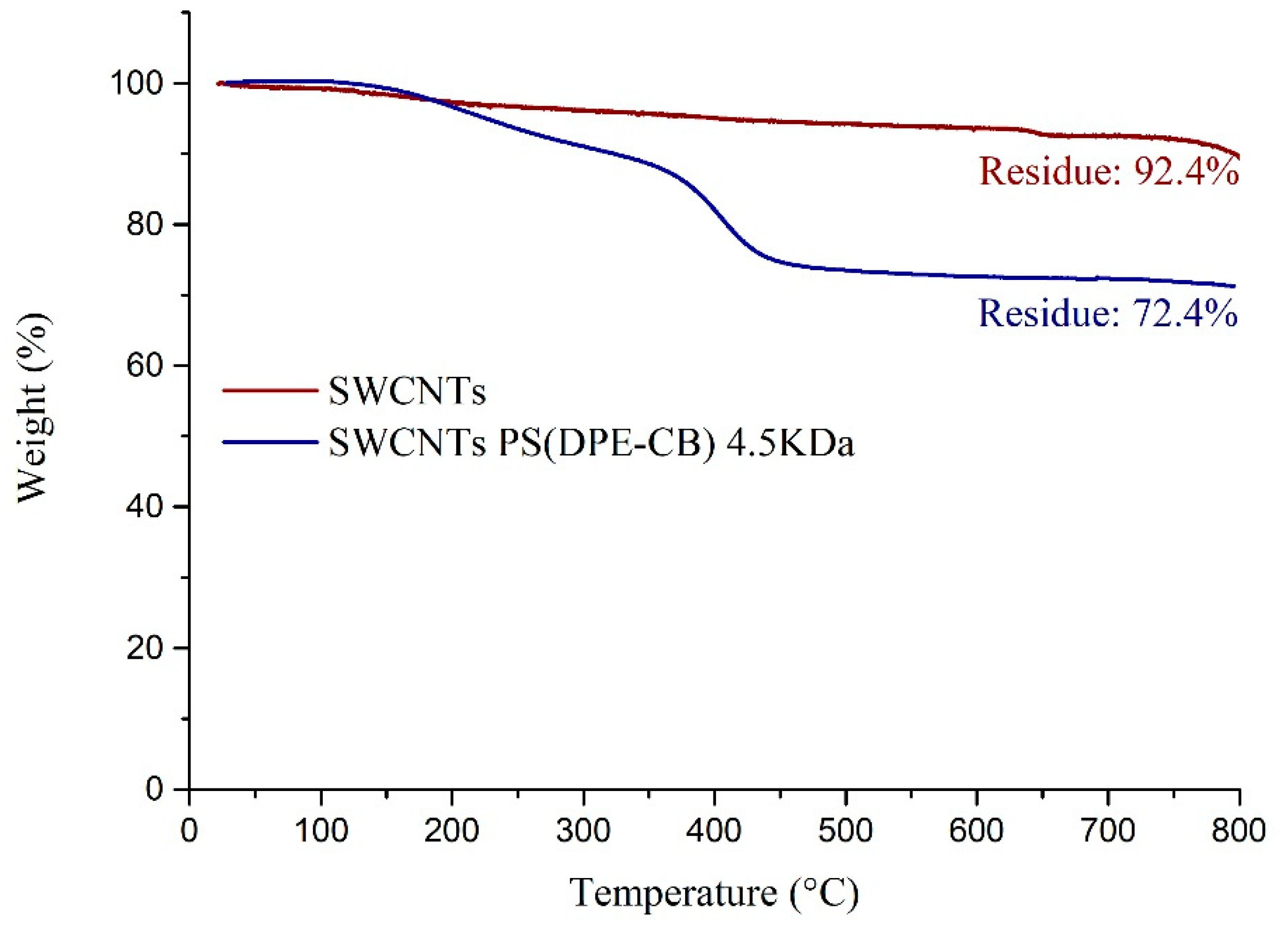

Figure 4. Thermogravimetric analysis under nitrogen atmosphere employing a heating rate of 10 °C/min of pristine SWNTs and SWNTs-g-PS.
Figure 4. Thermogravimetric analysis under nitrogen atmosphere employing a heating rate of 10 °C/min of pristine SWNTs and SWNTs-g-PS.
Polymers 13 01169 g004

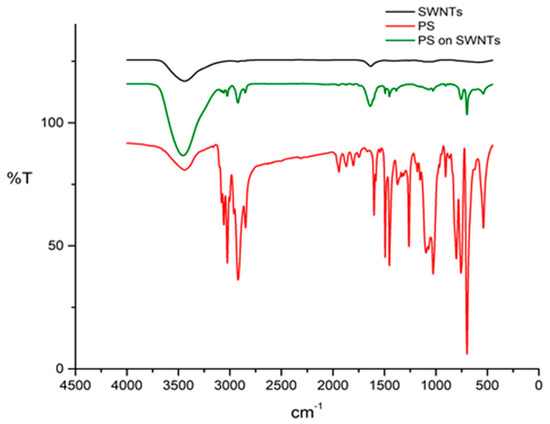

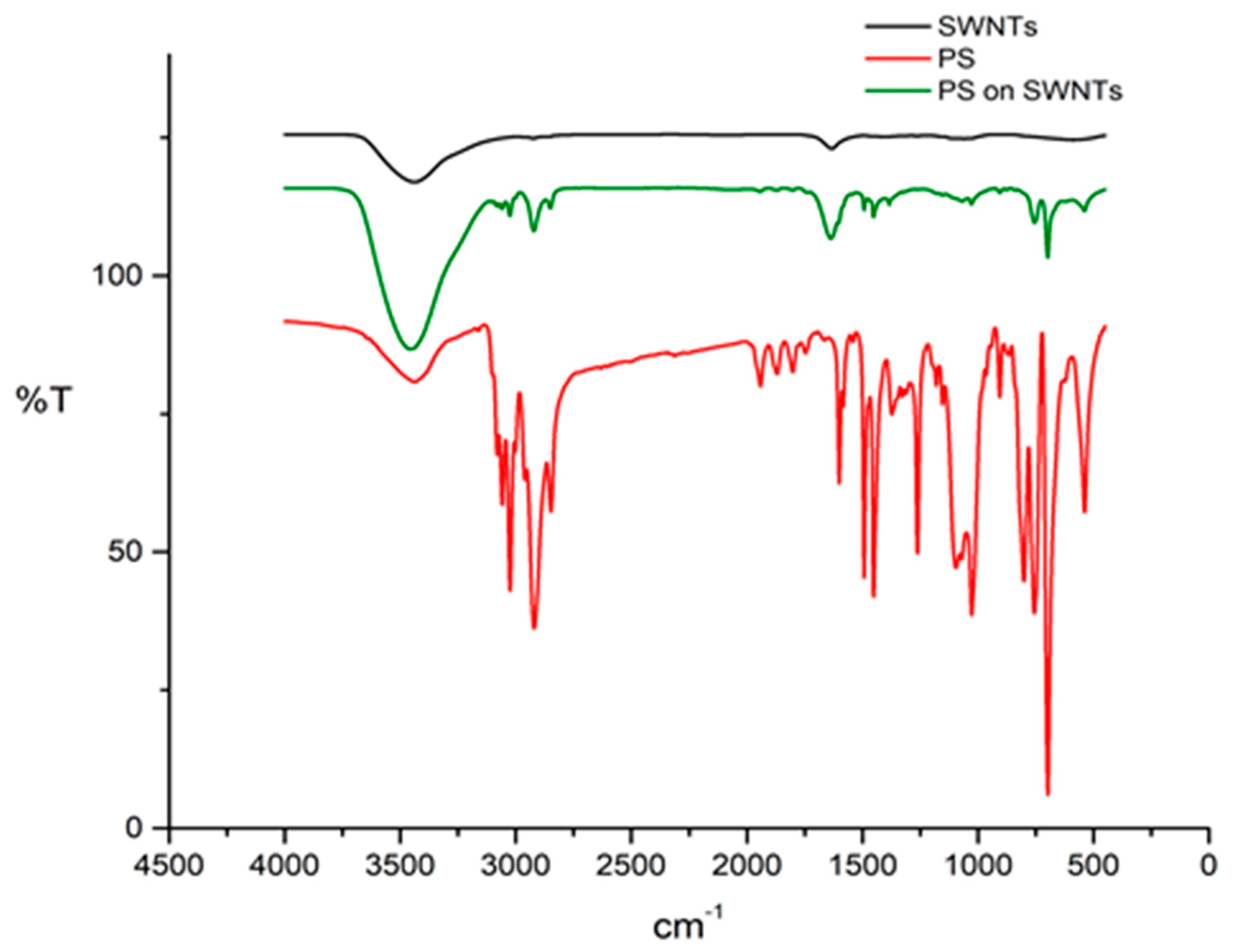

Figure 5. FT-IR spectrum of pristine SWNTs, PS, and PS-g-SWNTs.
Figure 5. FT-IR spectrum of pristine SWNTs, PS, and PS-g-SWNTs.
Polymers 13 01169 g005

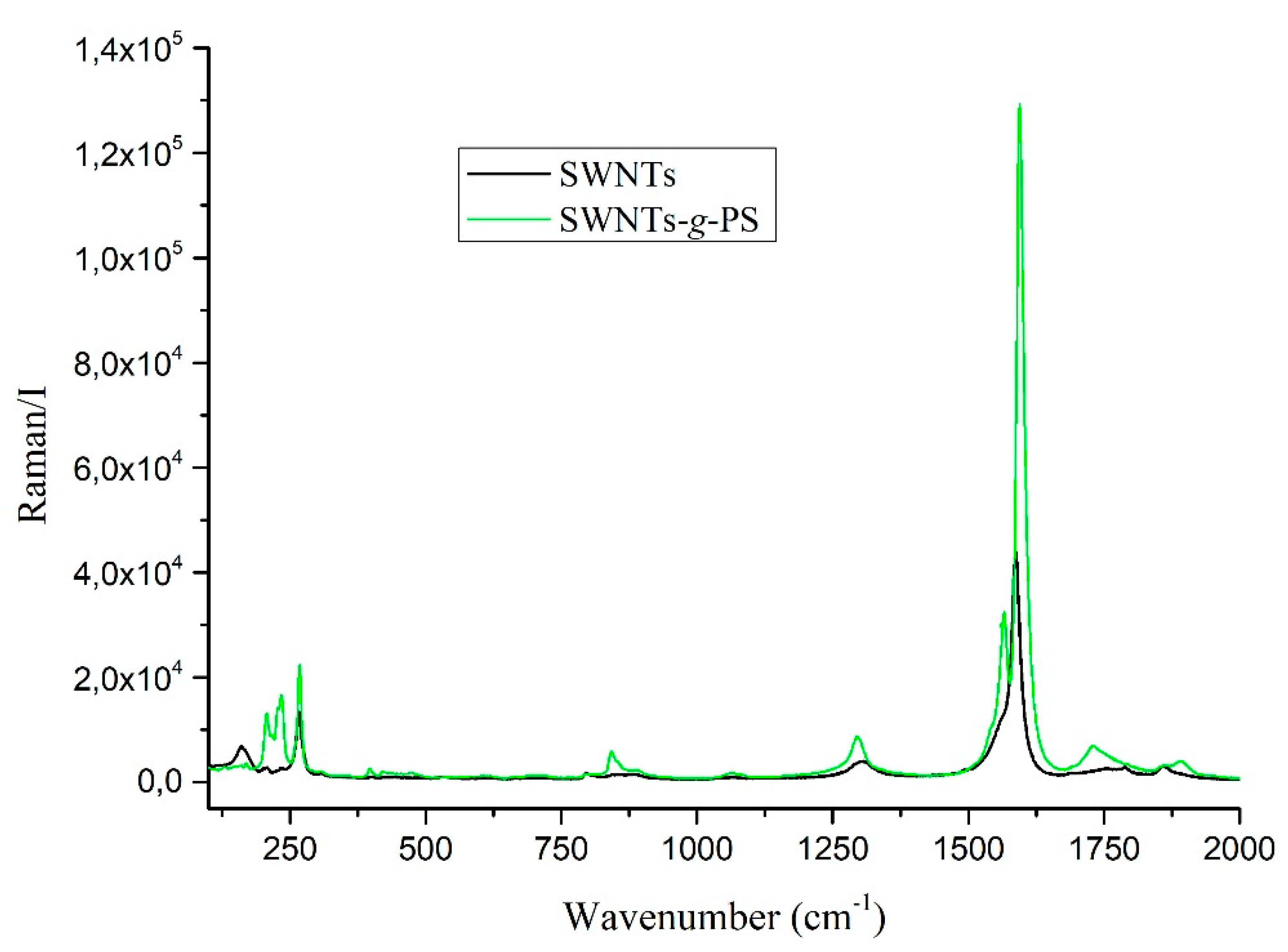

Figure 6. Raman spectra of pristine SWNTs, and SWNTs-g-PS 4.5K.
Figure 6. Raman spectra of pristine SWNTs, and SWNTs-g-PS 4.5K.
Polymers 13 01169 g006
Figure 7. TEM images of SWNTs-g-PS.
Figure 7. TEM images of SWNTs-g-PS.
Polymers 13 01169 g007aPolymers 13 01169 g007b

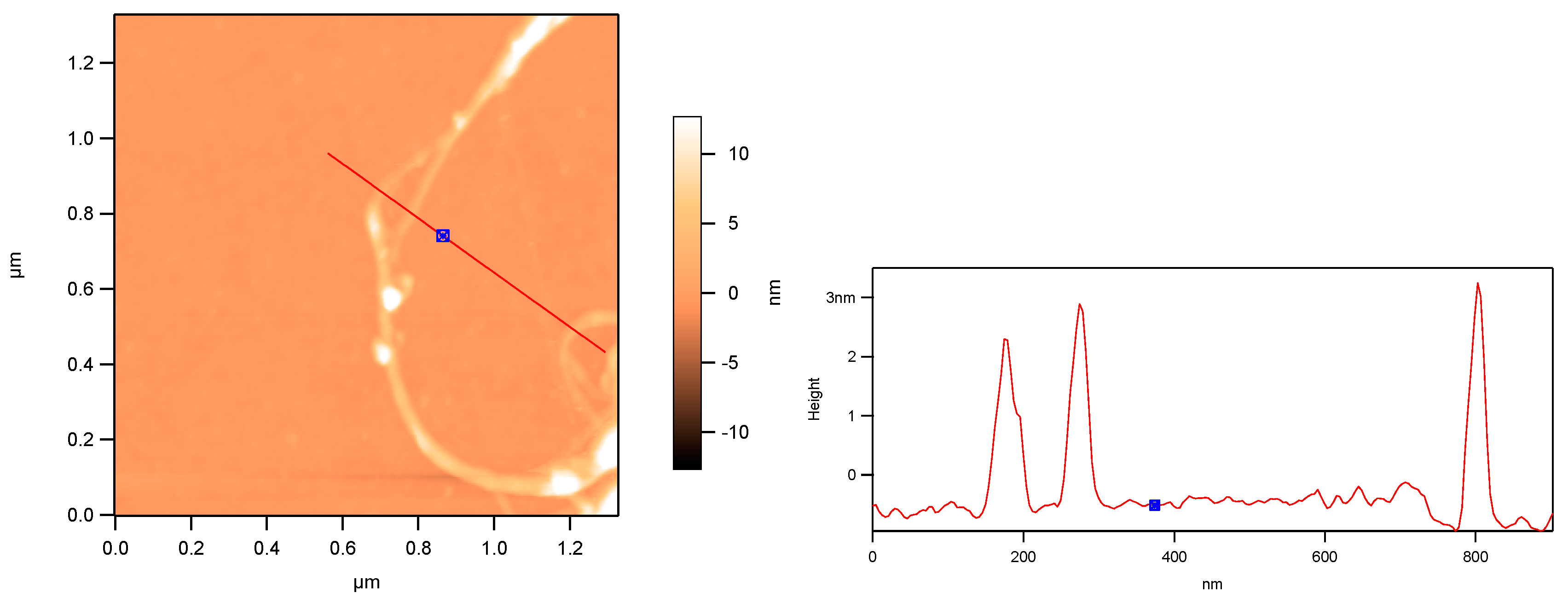

Figure 8. Atomic force microscopy (AFM) image of SWNTs-g-PS.
