Processing, Performance Properties, and Storage Stability of Ground Tire Rubber Modified by Dicumyl Peroxide and Ethylene-Vinyl Acetate Copolymers

Department of Polymer Technology, Faculty of Chemistry, Gdańsk University of Technology, Gabriela Narutowicza 11/12, 80–233 Gdańsk, Poland
Author to whom correspondence should be addressed.
Polymers 2021, 13(22), 4014;
Submission received: 21 October 2021 / Revised: 12 November 2021 / Accepted: 15 November 2021 / Published: 20 November 2021


In this paper, ground tire rubber was modified with dicumyl peroxide and a variable content (in the range of 0–15 phr) of ethylene-vinyl acetate copolymers characterized by different vinyl acetate contents (in the range of 18–39 wt.%). Modification of ground tire rubber was performed via an auto-thermal extrusion process in which heat was generated during internal shearing of the material inside the extruder barrel. The processing, performance properties, and storage stability of modified reclaimed ground tire rubber were evaluated based on specific mechanical energy, infrared camera images, an oscillating disc rheometer, tensile tests, equilibrium swelling, gas chromatography combined with a flame ionization detector, and gas chromatography with mass spectrometry. It was found that the developed formulas of modified GTR allowed the preparation of materials characterized by tensile strengths in the range of 2.6–9.3 MPa and elongation at break in the range of 78–225%. Moreover, the prepared materials showed good storage stability for at least three months and satisfied processability with commercial rubbers (natural rubber, styrene-butadiene rubber).

Graphical Abstract

1. Introduction

According to ASTM D 1566, entitled “Standard terminology relating to rubber”, the term reclaimed rubber is defined as “vulcanized rubber that has been thermally, mechanically, and/or chemically plasticized for use as a rubber diluent, extender, or processing aid”. Standard ASTM D1566 does not define devulcanization or devulcanized rubber. The term devulcanization is defined in the ASTM D 6814 standard, entitled “Standard test method for determination of percent devulcanization of crumb rubber based on crosslink density”. According to this definition, devulcanization is the process of breaking down chemical cross-links in cured rubber.
Different methods of rubber devulcanization (selective scission of cross-links) and reclaiming (scission of cross-links and the main chain degradatio) are comprehensively described in several works [1,2,3].
However, it should be noticed that both mentioned processes allow the conversion of cross-linked rubber into so-called reclaimed rubber, a material suitable for further processing, formulation, and vulcanization [4]. The reclaimed rubber structure is formed by a gel fraction and sol fraction, which indicates that reclaimed rubber can be considered a multicomponent, heterophase composite [5].
The gel fraction is a cross-linked rubber phase (usually filled with carbon black as a reinforcement), which remains after the devulcanization/reclaiming process. The content and size of this phase decrease with a higher reclaiming degree. On the other hand, the sol fraction phase content in reclaimed rubber is a combination of the devulcanized, degraded, or plasticized rubber phase. The higher degree of main chain scission resulted in a decrease in the molecular weight of the polymer and an increase of polydispersity, which usually have a negative effect on the mechanical properties of reclaimed rubber.
In fact, the main difference between rubber reclaiming and devulcanization is based on the subjective assessment related to the analysis of the main chain degradation degree, which is usually supported by using Horikx theory [6,7]. However, it should be mentioned that equilibrium swelling conditions (e.g., initial sample weight, extraction temperature and time, solvent type, etc.) might affect the parameters used in the Horikx theory for the determination of the main chain degradation level [8].
It is well described in the literature that conditions of ground tire rubber (GTR) reclaiming/devulcanization and/or modification affect the processing and performance properties of reclaimed rubbers [9,10,11] and, as a consequence, the interfacial interactions between the matrix and reclaimed rubbers [12,13,14].
Saiwari et al. [15] indicated that for efficient devulcanization of tire rubbers (styrene-butadiene rubber, butadiene rubber, natural rubber, chlorinated butyl rubber) the temperature of the process should be kept as low as possible. Shi et al. [16] studies showed that the recommended GTR reclaiming method should be performed in an oxygen-free atmosphere, without high shear force and at a relatively low temperature.
Research trends showed that low-temperature devulcanization is gaining more and more attention [17,18,19]. The main advantages of low-temperature devulcanization are related to limited main chain scission (the devulcanization mechanism is preferable) and also to significantly reduced levels of volatile organic compounds formulated during rubber reclaiming [20]. Moreover, using low-temperature devulcanization might support the cross-linked rubber self-heating phenomenon [21] related to internal friction of the material, which affects energy consumption of the process [22] and, as a consequence, the final price of the reclaimed rubber.
On the other hand, the processing of cross-linked rubbers at low-temperature devulcanization might cause technological problems, which can be partially resolved, e.g., by using high-torque extruders, reduced throughput, or optimization of screw configuration [23].
Another interesting approach to resolving this issue is the application of thermoplastics, which might act like plasticizers or binders during GTR reclaiming [24,25]. In this field, the most popular additive is a trans-polyoctenamer (tradename: Vestenamer® 8012) that is commercially dedicated to rubber recycling [26].
Recent works showed [27,28] that the application of relatively small amounts (10–25 wt.%) of common and easily available thermoplastics (e.g., low-density polyethylene, polypropylene, ethylene-vinyl copolymers) might enhance the thermal stabilization of extrusion and allow the formulation of reclaimed rubber characterized by a higher sol fraction and/or performance properties. However, in the mentioned research works, the processing temperature during rubber devulcanization was very high (in the range of 210–270 °C). Thermogravimetric analysis of GTR showed that at ~250–260 °C, a loss of 2% of the weight of the sample might be observed (measurements performed in nitrogen and air) [29], which is related to the evaporation of low-molecular compounds (e.g., plasticizers) present in GTR and also partial decomposition of cross-linked rubber. These estimations showed that for GTR devulcanization trials in extruders with a laboratory throughput of 1 kg/h, it might result in the emission of volatile organic compounds (VOCs) at the level of ~20 g/h (this estimation does not include emission during the cooling of extruded material). The information about VOCs’ emission profiles during processing and use of prepared materials is crucial for further up-scaling and commercialization-related procedures.
Our previous work [30] showed that using of a relatively small amount (10 phr) of ethylene-vinyl acetate copolymer during low-temperature devulcanization resulted in the improvement of the tensile properties of the modified reclaimed GTR, which were also higher compared to GTR modified by trans-polyoctenamer (an additive commonly used in waste rubber recycling). Furthermore, the results showed that using of thermoplastics in GTR limits the emission of volatile organic compounds.
However, as presented above, research works regarding the application of thermoplastics as modifiers in low-temperature devulcanization of cross-linked rubber are rather limited. To the best of our knowledge, there is no published information about the processing, performance properties, and storage stability of ground tire rubber modified by dicumyl peroxide and ethylene-vinyl acetate copolymers, which was the subject of our investigation.
In this work, GTR modification by dicumyl peroxide and ethylene-vinyl acetate copolymers was performed via auto-thermal extrusion. The effects of ethylene-vinyl acetate copolymer content (0–15 phr) and thermoplastic modifier structure (vinyl acetate content: 18–39 wt.%) on the processing and performance properties of the obtained modified GTR were investigated by measurement of energy consumption, temperature of GTR after treatment, curing behavior, tensile properties, equilibrium swelling, and volatile organic compounds emission profiles. Moreover, the storage stability of the prepared materials and blends of commercial rubbers (natural rubber, styrene-butadiene rubber) with modified GTR (in a ratio of 75/25; 50/50 and 25/75 wt.%) were also studied.

2. Materials and Methods

2.1. Materials

In order to produce the studied materials, the following components were used:
Ground tire rubber (GTR) obtained from passenger and truck tires, with particle sizes up to 0.6 mm, was received from Grupa Recykl S.A. (Śrem, Poland). The basic components of GTR are natural rubber (NR), styrene-butadiene rubber (SBR), butadiene rubber (BR), additives (curing system, activators, plasticizers, etc.), carbon black, silica, and ash [29].
Escorene Ultra™ FL00218, Escorene Ultra™ UL04533EH2, and Escorene Ultra™ UL05540EH2 are copolymers of ethylene and vinyl acetate (EVA) characterized by different vinyl acetate (VA) content in the range of 18–39 wt.% EVA copolymers were supplied by ExxonMobil Chemical (Machelen, Belgium). For clarity, in this study, EVA copolymers were coded as EVA-18%, EVA-33%, and EVA-39%, respectively. A summary with the characteristics of the used copolymers is presented in Table 1.
Dicumyl peroxide (DCP) is a radical initiator, commercially used in the vulcanization of rubber, cross-linking, and synthesis of copolymer blends, with a molar mass of 270.37 g/mol, a density of 1.56 g/cm3, a melting temperature of 39–41 °C, and a half-life temperature (at 0.1 h) of 162 °C. The peroxide was supplied by Pergan GmbH (Bocholt, Germany).
KER® 1502 styrene-butadiene rubber (SBR), a standard grade of styrene-butadiene rubber, was supplied by Synthos S.A (Oświęcim, Poland). It is obtained by low-temperature emulsion polymerization based on a mixture of fatty acid and resin soaps. It contains approximately 22–25% chemically bound styrene.
Natural rubber (NR), type RSS with a density of 0.92 g/cm3, was kindly supplied by Guma-Pomorska (Głobino, Poland).

2.2. Sample Preparation

2.2.1. GTR Modification and Curing

Reclaimed GTR modified by thermoplastics was prepared using a co-rotating twin-screw extruder model EHP 2 × 20 Sline from Zamak Mercator Sp. z o.o. (Skawina, Poland) with an L/d ratio of 40. The screw’s diameter was 20 mm, and the rotational speed was equal to 150 rpm. The extruder was equipped with eleven heating zones. The temperatures in the individual heating zones (from hopper to extrusion die) on the barrel of the extruder were 60/85/105/115/110/115/130/130/120/120 °C. After process stabilization, the heaters were turned off to provide auto-thermal conditions. Prior to processing, GTR was premixed with dicumyl peroxide in a constant ratio of 100:2 (GTR/DCP). All components, the GTR/DCP premix, and 0–15 phr of the thermoplastics (Escorene Ultra EVA FL00218, 04533EH2, UL05540EH2) were directly introduced into a hopper with a throughput in the range of 5.0–5.75 kg/h (0–15 phr of modifier). The feeding system was provided by Hydrapress Sp. z o.o. (Białe Błota, Poland). For each studied composition, samples were collected for at least 30 min. After extrusion, the material was cooled and formulated into thick sheets using a two-roll mill.
The obtained modified GTR was formed into the shape of 2 mm thick plates by pressing under a pressure of 10 MPa using an electric heated hydraulic press PH-90 manufactured by ZUP Nysa (Nysa, Poland). During compression, approximately 60 g of modified GTR was used to make one plate. All modified GTR was pressed at 170 °C according to the previously determined optimal cure time.

2.2.2. Preparation of Rubber/Modified GTR Blends

Rubber/modified GTR blends were prepared using a two-roll mill model 14201/P2 from Buzuluk (Komalov, Czech Republic). For blend preparation, two types of rubbers commonly used in tire manufacturing were used: styrene-butadiene rubber (SBR) and natural rubber (NR). The rubber/modified GTR blends (without an additional curing system) were prepared in ratios of 75/25; 50/50; 25/75 wt.% The following two-roll mill settings were used: ambient temperature, friction equaling 1.08, and a gap width varying between 0.2 and 3 mm. Rubber/modified GTR blends were vulcanized at temperatures of 180 °C and pressures of 4.9 MPa for the determined optimal vulcanization time.

2.3. Measurements

During the modification of GTR, the energy consumption was determined by two methods. The first was based on the direct measurement of energy consumption using an electrical energy meter installed in the line. This analyzed the consumption of all extruder components; however, the main source of energy consumption was related to the barrel heating and the drive motor. The second method determined the specific mechanical energy (SME), expressed in kWh/kg, and can be calculated using Equation (1):
S M E = N Q
where N is the consumption of drive motor power (kW), and Q is a throughput (kg/h).
The temperature distribution of mGTR was measured using infrared thermal imagining camera model Testo 872 (Testo SE & Co. KGaA, Lenzkirch, Germany), directly from the die of the extruder.
The Mooney viscosity of the rubber compounds was measured at 100 °C using a Mooney viscosimeter MV2000 (Alpha Technologies, Hudson, OH, USA) according to ISO 289-1.
Curing characteristics were investigated according to ISO 3417, using a Monsanto R100S rheometer with an oscillating rotor (Monsanto Company, St. Louis, MO, USA). The cure rate index (CRI) was calculated according to Equation (2):
C R I = 100 t 90 t 1
where t90—optimum vulcanization time, min; t1—scorch time, min.
The aging resistance at elevated temperatures was determined using an R300 parameter [31], which is the percentage reversion degree after a period of 300 s calculated from the time of reaching the maximum torque value. R300 was calculated according to Formula (3):
R 300 = M H M 300 s M H × 100 %
where MH—maximum torque, dNm; M300s—torque 300 s after maximum torque, dNm.
Tensile strength and elongation at break of the obtained samples were tested according to the standard ISO 37 using a Zwick Z020 testing machine (Ulm, Germany) with a load capacity of 20 kN. Tensile tests were performed at a cross-head speed of 500 mm/min. Direct extension measurements were conducted periodically using an extensometer with sensor arms. Hardness was determined using a Zwick 3130 durometer Shore A (Ulm, Germany) in accordance with the standard ISO 7619-1. The reported results of the tensile tests and hardness are the means of at least five measurements per sample.
Abrasion resistance was measured by using an abrasion tester from Gibitre Instruments (Italy) according to the standard ISO 4649. The abrasion resistance value is the average of at least three measurements per sample.
The density of the samples was measured by the Archimedes method in accordance with ISO 2781 while using an analytical balance model AS 110.R2 from Radwag (Radom, Poland). The test was carried out at room temperature, and it consisted of weighing the material in air and then in a methanol medium. The density value is the average of at least three measurements per sample.
The swelling degree of the blends (approx. 0.2 g samples) as a function of time was determined by equilibrium swelling in toluene (at room temperature). The swelling degree was calculated according to Formula (4):
Q = m t m 0 m 0 × 100 %
where Q—swelling degree, %; mt—a mass of the sample swollen after time t, g; m0—an initial mass of the sample, g.
The sol fraction was determined on the basis of the mass difference of the initial sample and the dried sample after extraction according to Equation (5). The remaining part is a gel fraction (6):
F s o l = m 0 m k m 0 × 100 %
F g e l = 100 % F s o l
where Fsol—the content of sol fraction, %; Fgel—the content of gel fraction, %; m0—an initial mass of the sample, g; and mk—a mass of the dried sample after extraction, g.
Cross-link density was determined according to the Flory–Rehner Equation (7) [32]:
V e = [ ln ( 1 V r ) + V r + χ V r 2 ] [ V 1 ( V r 1 3 V r 2 ) ]
The Flory–Rehner equation is correct for non-filled compounds. The presence of rubber waste in the examined materials causes them to have a high content of carbon black. Therefore, the Kraus correction should be included in order to calculate the actual cross-link density [33]. The correction was calculated in accordance with Equations (8) and (9):
ν a f t e r   c o r r e c t i o n = ν e 1 + K × Φ
Φ = ϕ f × ρ r × m 0 ρ f × m d r y
where νe—the measured chemical cross-link density, mol/cm3; νafter correction—the actual chemical cross-link density, mol/cm3; K—constant characteristic of the filler but independent of the solvent; ϕf—the volume fraction of filler in the sample which is calculated; ρr—the density of studied compound, g/cm3; m0—the weight of the sample before extraction, g; ρf—the density of filler, g/cm3; mdry—the weight of the sample after extraction, g.
A sampling of volatile organic compounds (VOCs) emitted to the atmosphere during the reactive extrusion of the modified GTR was performed using a passive sampling technique with a Radiello® diffusing sampling system (Fondazione Salvatore Maugeri, Padova, Italy). Radiello® diffusive passive samplers are based on three main components: a microporous polyethylene diffusion membrane, a plastic tripod dedicated for installation of the sampler, and a cylindrical steel net filled with graphitized charcoal Carbograph 4 as a sorption bed. A sampling of VOCs directly from the extrusion die was performed for 30 min via the Radiello® system. VOCs collected on Radiello® diffusive passive samplers were liberated using a thermal desorption technique (Unity v.2, Markes International Ltd., Pontyclun, UK), connected with gas chromatography (Agilent Technologies 6890) combined with a mass spectrometer (5873 Network Mass Selective Detector, Agilent Technologies). More detailed information about this methodology is presented in the works [34,35,36].
The level of total volatile organic compounds’ (TVOCs) emissions from uncured and cured modified GTR was determined using microscale stationary emission chamber—Markes’ Micro-Chamber/Thermal Extractor™—μ-CTE™ 250 (Markes International Ltd., Llantrisant, UK) in which samples of approx. 2.0 g were conditioned for 20 min at 40 °C. Volatile organic compounds emitted from the modified GTR were collected using stainless steel tubes filled with Tanax TA as a sorption bed (Markes International Ltd., Llantrisant, UK) under the influence of a carrier gas (nitrogen) with a rate of 25 mL/min. Then, the adsorbed analytes were released through a two-stage process of thermal desorption (Markes Series 2 Thermal Desorption Systems; UNITY/TD100, Llantrisant, UK). Quantitative analysis of TVOCs released from modified GTR was performed on a GC-FID system (Agilent 7820A GC, Agilent Technologies, Inc., Santa Clara, California, USA). More detailed information about the equipment and methodology used is presented in the works [37,38,39].
Acetophenone (a by-product of dicumyl peroxide decomposition) concentration was determined using a static headspace and gas chromatography-mass spectrometry (SHS-GC-MS). All experiments were conducted using a Shimadzu GC2010 PLUS GC-MS equipped with a split/splitless inlet. The GC-MS system was equipped with an AOC5000 Headspace Auto-Sampler. During analysis, a vial with 0.5 g of the sample and also with 10 μL of standard (toluene in methanol, concentration: 1000 ppm) was transported by the injection unit from the tray to the agitator. The headspace sample was incubated at 100 °C for 20 min. When the sample reached equilibrium, the headspace sample was drawn from the vial (syringe temp. 110 °C) and injected into the GC injector.
The morphology of the surface created by breaking the samples in the tensile test at the speed of 500 mm/min was observed with a JEOL 5610 scanning electron microscope (SEM) (Tokyo, Japan). Before measurement, the samples were covered with a fine gold layer in order to increase their conductivity in a vacuum chamber.
To highlight the concept of the research, the sample preparation protocol and methodology for each group of materials studied in this work, i.e., modified GTR and rubber/modified GTR blends, are summarized in Table 2.

3. Results and Discussion

3.1. GTR Modification

In order to evaluate the change in temperature distribution in the modified GTR after auto-thermal extrusion, an infrared camera was used, and the obtained images are presented in Figure 1. It was observed that at a higher content of thermoplastic modifier, the EVA copolymer acted like binder or plasticizer, which affected the final temperature of the material formulated in the solid profiles. The temperature and specific mechanical energy consumption measured during the modification of GTR are summarized in Table 3. The measurement of specific mechanical energy (SME) provides information about extrusion process characteristics, which is very useful during up-scaling of research studies (estimation of production energetic costs). The SME parameter is correlated to the mechanical energy dissipated into the heat of the material inside the extruder barrel [40].
The temperature of the modified GTR after extrusion was in the range of 150–174 °C (160 °C for the GTRDCP sample), which indicates that the temperature of the processed material increased for 20–44 °C compared to barrel temperature set on each section before process stabilization (60/85/105/115/110/115/130/130/120/120 °C). This also confirmed that the conducted process is auto-thermal, and heat is generated only by internal friction of the cross-linked GTR inside the extruder barrel.
The lowest temperature of the material after extrusion was measured for samples with 10 phr and 15 phr of EVA-39%, while the highest was for samples with 10 and 15 phr of EVA-18%. This is related to the differences in the melt flow index and melting temperature of the used EVA copolymers. EVA-18% is characterized by the lowest melt flow index and the highest melting temperature among used EVA copolymers (see Table 1), which might enhance the interfacial interactions enforced by shear force during extrusion of GTR with EVA-18%.
As presented in Table 2, for the studied materials, the SME parameter was in the range of 0.120–0.177 kWh/kg (0.131 kWh/kg for the GTRDCP sample). It was observed that changes in the SME values corresponded to the material temperature measurements. The highest values of the SME parameter were determined for the samples characterized by the highest temperature after extrusion—samples modified with 10 and 15 phr of EVA-18%, while the lowest was for samples with 10 phr and 15 phr of EVA-39%.

3.2. Curing Characteristics of Modified GTR

In Figure 2, the curing curves of the modified GTR were a function of A—EVA content (0–15 phr) and B—EVA grade (VA content: 18–39%). All processed materials showed an increase in torque as a function of time related to their cross-linking inside the rheometer chamber. This confirms that the reaction of DCP with the GTR/EVA system was limited during sample preparation by adiabatic extrusion. It was observed that the higher content of EVA-18% resulted in a proportional decrease in minimal torque (ML). The determined ML parameter was 37.8 dNm for the GTRDCP sample, 35.5 dNm for GTRDCP + 2.5 phr EVA-18%, 31.7 dNm for GTRDCP + 5 phr EVA-18%, 29.5 dNm for GTRDCP + 10 phr EVA-18%, and 26.2 dNm for GTRDCP + 15 phr EVA-18%, respectively. This tendency indicates better processing of the GTR modified by the EVA copolymer. As can be observed, increasing the content of vinyl acetate in the EVA copolymer from 18% to 39% shifts ML toward lower values for the sample with 15 phr of EVA-33% (16.2 dNm), and the sample with 15 phr of EVA-39% (14.8 dNm). As presented in Table 1, the increasing content of VA in the EVA copolymer affects its higher melt flow index (in the range: 1.7–60 g/10 min) and lower melting point (from 87 to 48 °C), which improves the processing of the modified GTR. Moreover, the trend of the curing curves showed that higher content of EVA and also the increasing content of vinyl acetate in the EVA copolymer resulted in a decrease in maximal torque (MH) and torque increment (ΔM=MH-ML). However, in the studied conditions, the differences between EVA-33% and EVA-39% were negligible. Regardless of EVA copolymer grade, the scorch time and optimal cure time increased with a higher content of thermoplastic modifier. For example, the scorch time and optimal cure time for the GTRDCP + 2.5 phr EVA-18% sample were 1.7 and 6.6 min, while for the GTRDCP + 15 phr EVA-18% sample, the values of these parameters were 2.6 and 8.2 min, respectively.
For all the studied systems, the scorch time varied in the range of 1.4 min (for the GTRDCP sample) to 3.2 min (for the GTRDCP + 15 phr EVA-39% sample), while the optimal cure time was in the range of 6.5 min (for the GTRDCP sample) to 9.1 min (for the GTRDCP + 15 phr EVA-39% sample). This tendency can be related to co-cross-linking between the GTR and EVA phases in the presence of DCP, characterized by different reaction kinetics. Similar observations were described by Bianchi et al. [41], who studied the cross-linking kinetics of EVA/GTR blends (GTR content from 0 up to 75 wt.%) using an oscillating disc rheometer and differential scanning calorimetry.

3.3. Physico-Mechanical Properties of Modified GTR

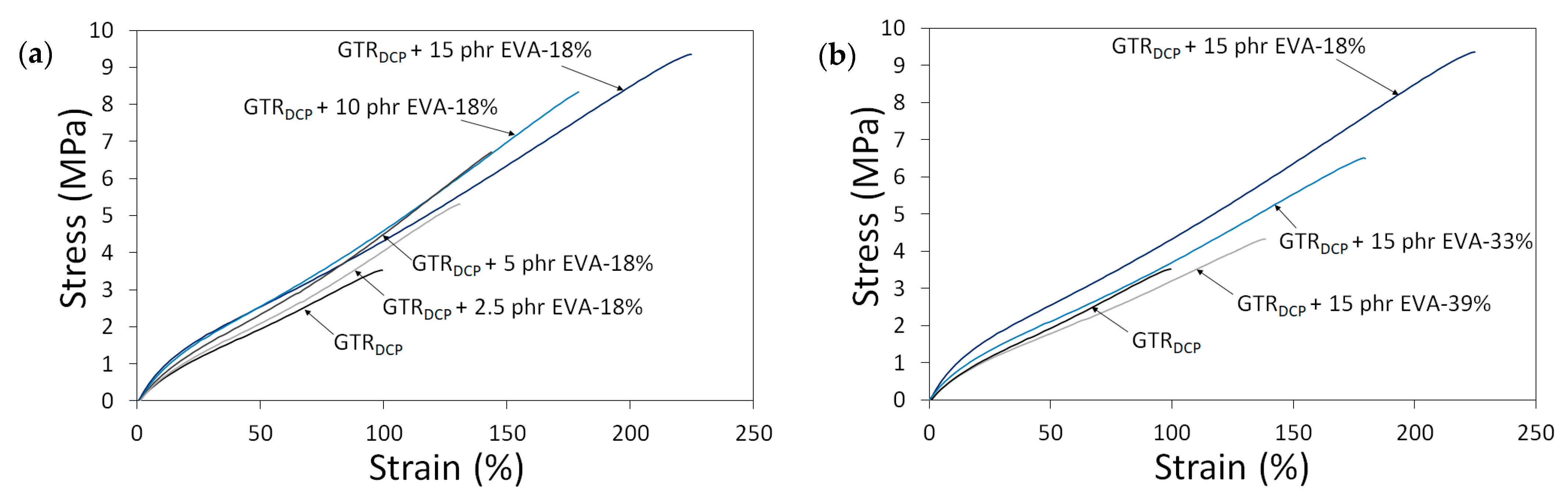

To highlight the differences in the tensile properties of modified GTR as a function of EVA content and EVA grade, stress–strain curves are presented in Figure 3. The trends of the stress–strain curves show that the tensile strength of modified GTR usually increases with a higher content of EVA. Moreover, the tensile parameters decrease for samples containing EVA copolymers with a higher content of vinyl-acetate, which can be related to the lower compatibility of non-polar GTR with EVA-39% characterized by higher polarity.

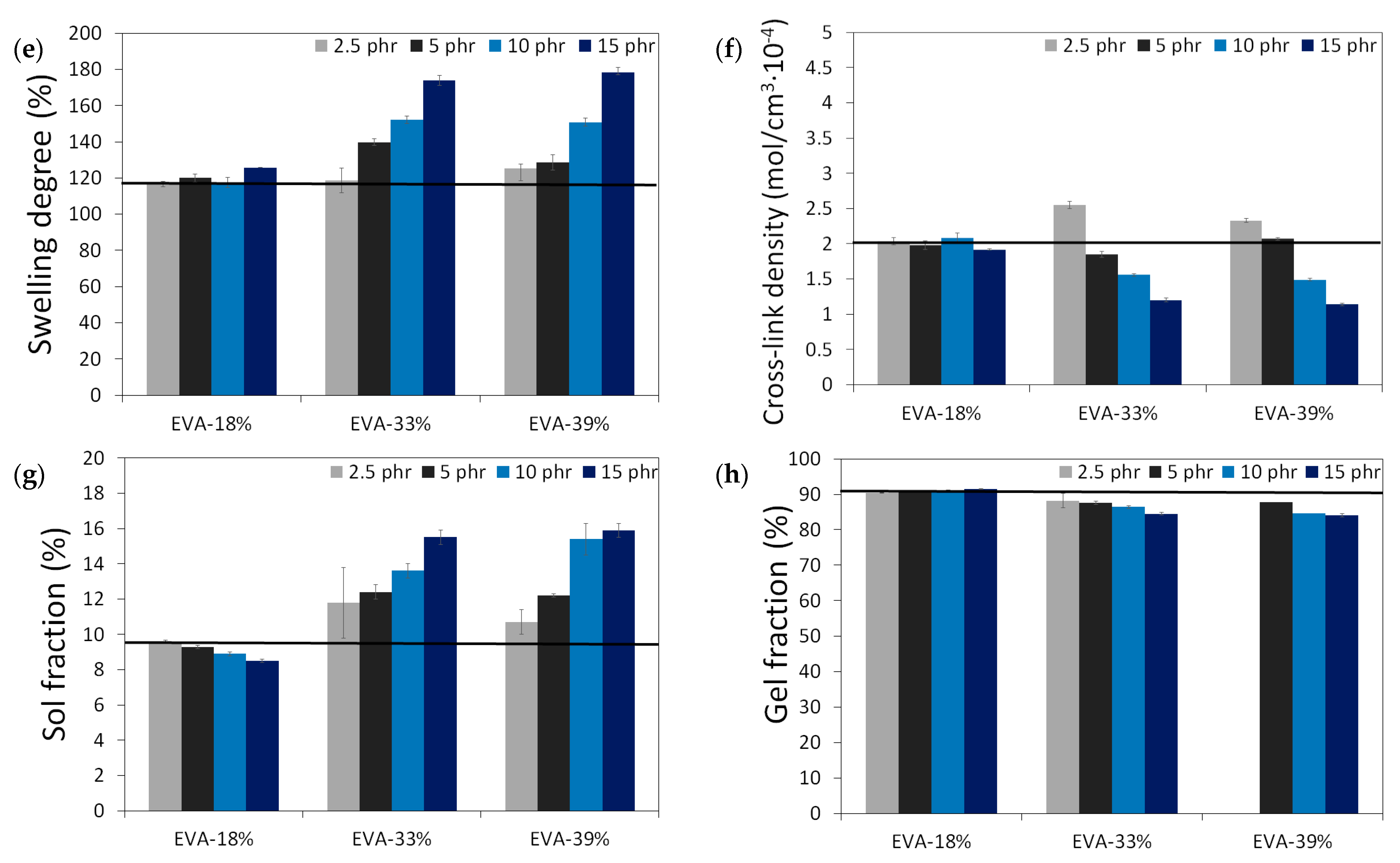

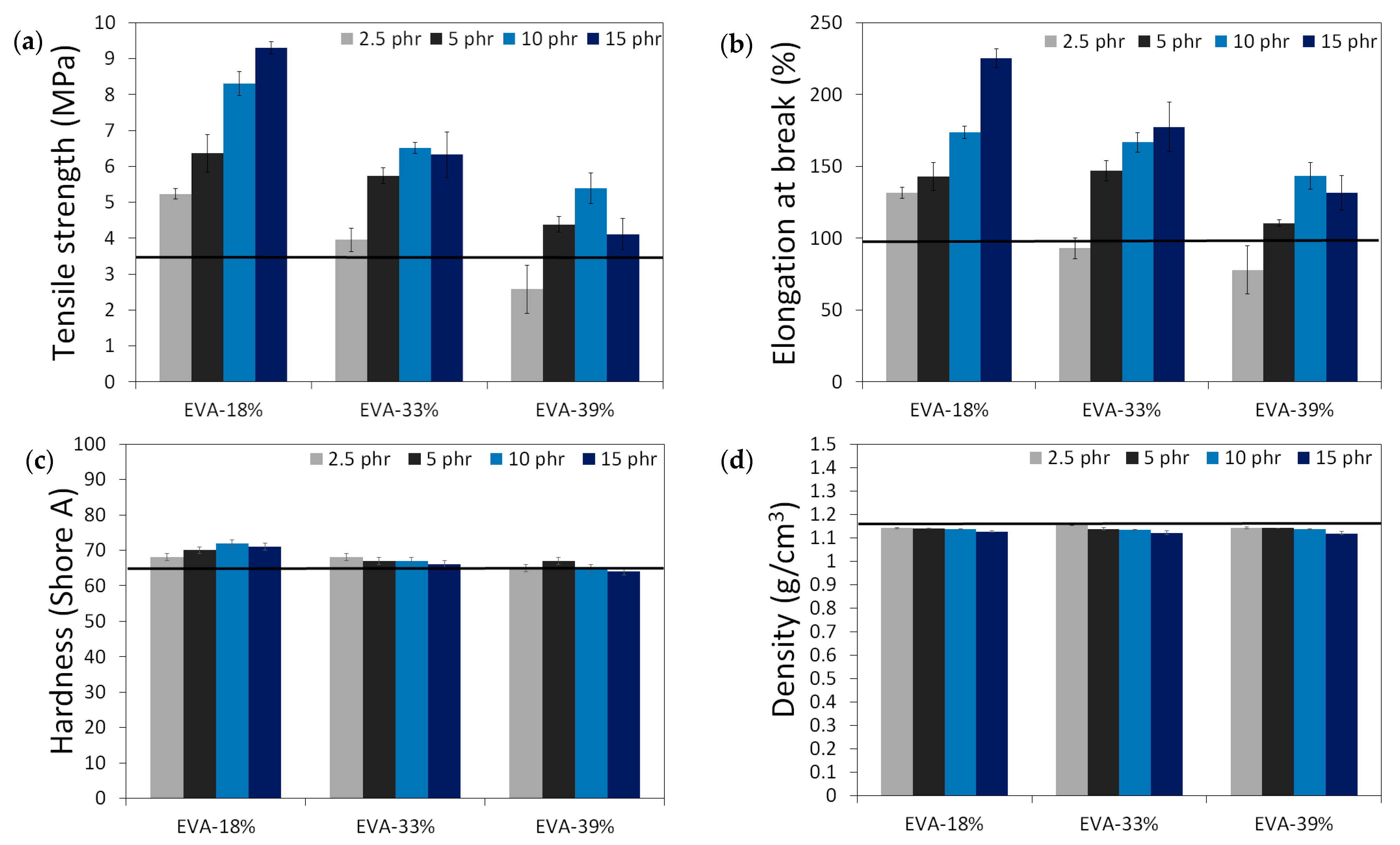

The results of the physico-mechanical properties of modified GTR, including tensile strength (MPa), elongation at break (%), hardness (Shore A), density (g/cm3), swelling degree (%), cross-link density (mol/cm3 10−4), and sol and gel fraction content (%) as a function of EVA content and EVA grade, are summarized in the graphs presented in Figure 4. The black line in the presented graphs represents the reference sample without an EVA copolymer modifier (GTRDCP sample).
Modified GTR was characterized by tensile strength in the range of 2.6–9.3 MPa (3.5 MPa for the GTRDCP sample); elongation at break in the range of 78–225% (98% for the GTRDCP sample); hardness in the range of 64–72 Shore A (65 Shore A for the GTRDCP sample); density in the range of 1.118–1.154 g/cm3 (1.154 g/cm3 for the GTRDCP sample); swelling degree in the range of 117–178% (117% for the GTRDCP sample); cross-link density in the range of 1.14–2.55 mol/cm3 10−4 (2.01 mol/cm3 10−4 for the GTRDCP sample); sol fraction in the range of 8.5–15.9% (9.5% for the GTRDCP sample), and gel fraction in the range of 84.1–91.5% (90.5% for the GTRDCP sample). The tensile properties of the GTR modified EVA copolymers in most compositions an exception was the sample with 2.5 phr of EVA-39%) were higher compared to the reference sample (GTRDCP). Moreover, the prepared modified GTR showed tensile properties comparable or even higher than those of commercially available reclaimed rubbers (~4–5 MPa) [30], which fully justifies the application of GTR modification.

3.4. VOCs’ Emission Profiles Determined for Modified GTR

To determine the emission of volatile organic compounds emitted from modified GTR, three kinds of sampling protocols were used. During extrusion, we used a Radiello® diffusing sampling system, while the emission of uncured and cured samples of modified GTR was evaluated using stationary microchambers and static headspace. The collected samples were analyzed by gas chromatography with a flame ionization detector (GC-FID), and gas chromatography with mass spectrometry (GC-MS). GC-FID analysis provided information about total volatile organic compounds (TVOCs) released from the uncured and cured modified reclaimed rubbers, while the GC-MS allowed for the investigation of the chemical structure of volatile organic compounds emitted from the studied materials during reactive extrusion.
Table 4 presents the chemical structures of the volatile organic compounds collected by Radiello® and determined by GC-MS analysis. The identified compounds are mostly oxidative degradation products of GTR and DCP decomposition by-products. For GTR, they can be classified into three basic groups depending on their source: (i) natural rubber degradation products, which include: methyl isobutyl ketone, undecane, dodecane, tridecane, tetradecane; (ii) aromatic compounds that are decomposition products of styrene-butadiene rubber (benzene, toluene, styrene, xylene, hexylbenzene); and (iii) vulcanization accelerator residue, which is represented by benzothiazole. The presence of this type of substance indicates the occurrence of the reclaiming process, while the intensity of the detected accelerator residues can be an indicator of the degree of devulcanization [20,28]. Volatile organic compounds such as cumene, α-methylstyrene, acetophenone, and α-cumyl alcohol were identified as decomposition by-products of dicumyl peroxide [42,43]. The mechanism of dicumyl peroxide decomposition is shown in Figure 5. The intensity of the emitted DCP decomposition by-products was much higher in the cured materials, which might be due to the partial decomposition of DCP during extrusion of the studied materials and as a consequence of co-cross-linking between GTR and EVA copolymer.

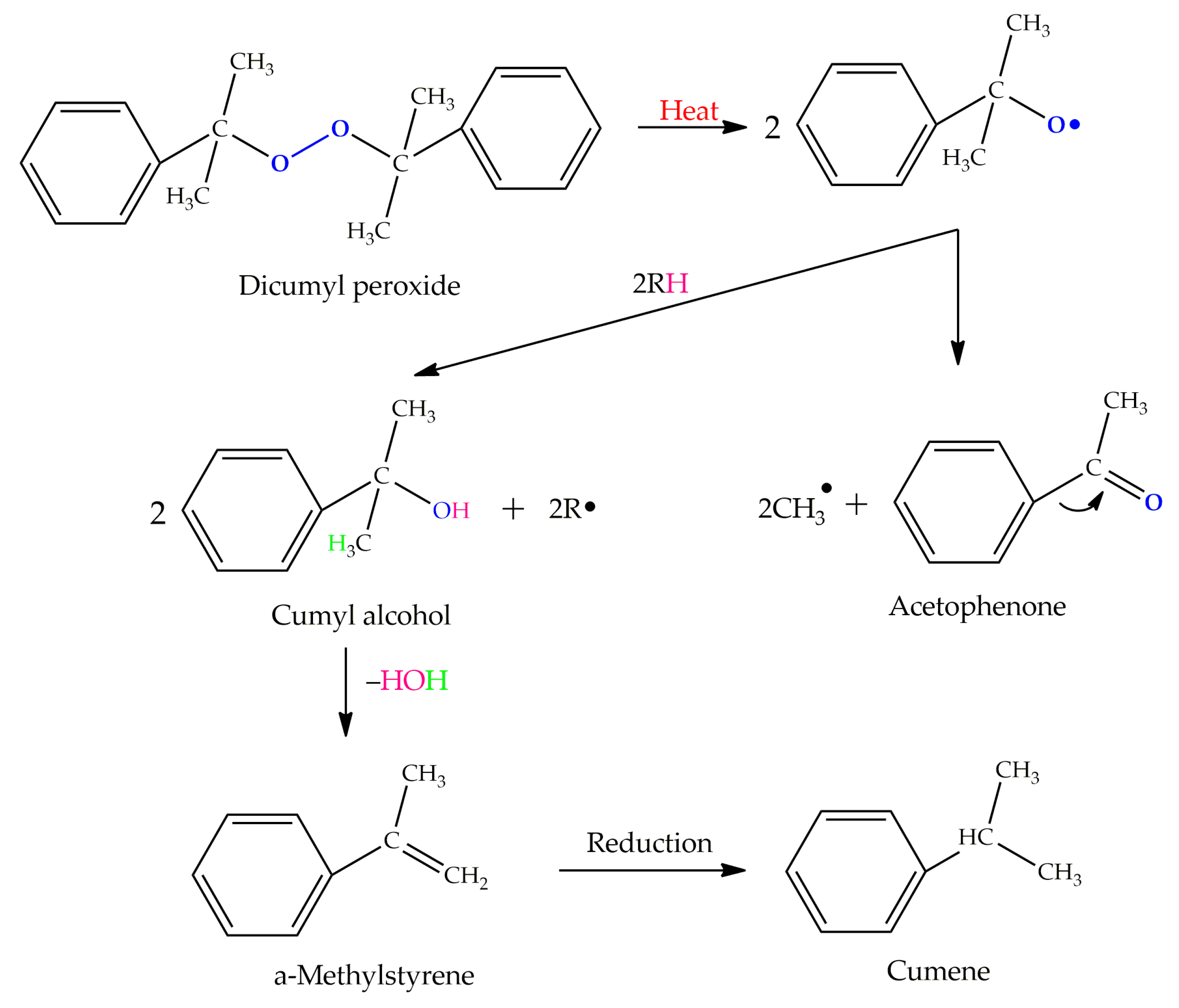

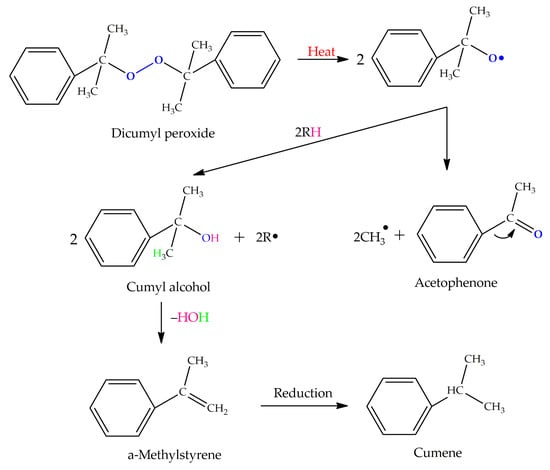

Total volatile organic compounds and acetophenone concentration (a by-product of DCP decomposition) emitted from the modified reclaimed rubber are summarized in Table 5. It should be mentioned that both parameters were investigated by different methodologies. TVOCs were determined using an emission chamber-GC-FID system, while acetophenone concentration was studied by HS-GC-MS.
The TVOC parameter was in the range of 15.0 to 64.6 μg/g. It was estimated that the TVOCs released from the cured materials were on average two times higher as compared to those of uncured modified GTR. Moreover, as could be expected, the concentration of acetophenone in the cured samples was much higher than that of uncured samples. This phenomenon is related to the higher pressing temperature, which contributes to the increased rate of cross-linking. Additionally, some peroxide-induced degradation might simultaneously occur in the studied materials during their cross-linking. Moreover, a part of the volatile organic compounds was released into the atmosphere during processing and curing. The abovementioned factors might have caused there to be no simple correlation between the composition of modified GTR (EVA copolymer content or grade) and the concentration of volatile organic compounds.

3.5. Storage Stability Assessment of Modified GTR

Modified GTR was stored in closed 10L metal containers for 3 months at ambient temperature. For sample preparation, the modified GTR was collected after 1, 2, and 3 months, respectively.
Table 6 summarizes the curing parameters determined shortly after extrusion and after 1, 2, and 3 months. It can be seen from the averaged values that the differences of all parameters measured at different time intervals are insignificant. It is worth mentioning that the measurement was carried out once for each sample, so the observed deviations are fully justified. However, as can be observed for the GTRDCP sample, the results showed the highest variations, especially regarding the minimal torque and torque increment parameters. This can be due to two main factors. The first is the complex composition of the GTR received as a mixture of passenger car tires and truck tires. The second is the form of the studied materials, especially their cohesion and interfacial adhesion, which increased with a higher content of EVA. The studied materials have a form of ribbon; however, for GTRDCP, there was a tendency to separation and agglomerate formulation, which might have an impact on torque values measured by oscillating disc rheometry measurements (the scorch time and optimal cure time parameters were very similar). One solution to this problem is the application of moving die rheometry or a rubber process analyzer, in which the construction of chambers allows measurements of materials with limited flowability.
It was observed that the higher content of EVA copolymers as thermoplastic modifiers resulted in more consistent materials, characterized by enhanced processing (defined as minimal torque).
To summarize this section, the obtained results allow for the conclusion that the storage time did not affect the curing characteristics of the materials modified by EVA, which indicates that the application of a thermoplastic modifier enhances and stabilizes the processing and curing behavior during storage.
The mechanical properties (tensile strength, elongation at break, and hardness) as a function of storage time are shown in Table 7. The determined values of tensile strength, elongation at break, and hardness differ slightly within a given sample. As in the case of curing parameters, these differences are slight and random (they do not follow any trend). This is due to the fact that the basic raw material (GTR) is hardly reproducible. However, the essential result is the preservation of a constant tendency in the properties of the samples determined by the different content and type of copolymer EVA.
Similar observations were described by Lu et al. [48], who proved that the tensile strength and elongation at break of reclaimed rubber remained unchanged during up to 60 days of storage. Moreover, the authors observed that the sol fraction content was reduced and the cross-linking density increased during storage. The authors assumed it was due to slow recombination and aggregation of the molecular fragments with free radicals occurring in the reclaimed rubber.

3.6. Characterization of SBR/Modified GTR and NR/Modified GTR Blends

Taking into account the performance properties and considering the potential costs of modified GTR production, a sample coded as GTRDCP + 2.5 phr EVA-18% was selected for further applications in rubber compounds. The processing and physico-mechanical properties of blends based on styrene-butadiene rubber (SBR) and natural rubber (NR) with modified GTR in ratios of 75/25, 50/50, and 25/75 wt.% were investigated, and the obtained results are summarized in Table 8. SBR and NR were chosen for the blend formulation due to their common application in the tire industry. It should be mentioned that the studied rubber/modified GTR blends were prepared without using any additional curing system in order to verify the possibility of curing the studied blends by dicumyl peroxide present in modified GTR.
It was found that the application of modified GTR has a significant impact on differences in the processing of the studied SBR/modified GTR blends and NR/modified GTR blends. A higher content of modified GTR in the SBR/modified GTR blends resulted in a proportional increase in Mooney viscosity (55.6–124.7 MU) and minimal torque (9.2–19.9 dNm). For the NR/modified GTR blends, the effect of modified GTR content on the values of these processing parameters was negligible. NR/modified GTR was characterized by Mooney viscosity in the range of 21.2–27.6 MU and minimal torque in the range of 4.7–6.2 dNm.
Regardless of the rubber matrix used (SBR or NR), for curing kinetics, the same trends were observed. A higher content of modified GTR resulted in increasing values of maximal torque (for SBR/modified GTR: 22.4–45.3 dNm and for NR/modified GTR: 12.5–34.4 dNm), torque increment (for SBR/modified GTR: 13.2–25.4 dNm and for NR/modified GTR: 7.8–28.2 dNm), and cure rate index (for SBR/modified GTR: 27.1–35.0 min−1 and for NR/modified GTR: 25.4–35.0 min−1), which is due to the higher cross-linking of the studied materials. At the same time, samples with a higher content of modified GTR scorch time (in the range of 0.7–1.5 min) and optimal cure time (in the range o: 3.6–5.4 min) values were reduced. Moreover, it was found that a higher content of modified GTR increases the thermal aging resistance factor, from 0.0% for elastomer/modified GTR in the ratio 75/25 wt.% to 1.3% for blends in the ratio 25/75 wt.% This phenomenon is related to a higher concentration of DCP in the elastomer/modified GTR blends, which changes proportionally with the content of modified GTR.
The results of the physico-mechanical properties measurements showed that, regardless of the rubber matrix used (SBR or NR), a higher amount of modified GTR in the elastomer/modified GTR blends resulted in an increase in tensile strength, modulus at 100%, modulus at 300%, hardness, density, and abrasion resistance. Simultaneously, an opposite trend was observed in the case of such parameters as elongation at break, swelling degree, and sol fraction (for NR/modified GTR blends, the sol fraction parameter was independent of ratio). It can be concluded that the obtained results are mainly related to the cross-linking efficiency of the studied systems. The tensile strength (in the range of 1.7–6.4 MPa) of the prepared rubber/modified GTR values are similar to those described in the literature. Sreeja and Kutty [49] investigated SBR/reclaimed rubber blends, and their results showed that tensile strength for such a system was 1.9 MPa for the sample without reclaimed rubber and 5.1 MPa for the sample with 80 phr of reclaimed rubber. The same authors studied NR/reclaimed rubber blends [50] and found that a higher content of reclaimed rubber in NR resulted in the deterioration of mechanical properties from ~14.8 MPa for the sample with 20 phr of reclaimed rubber to ~12.5 MPa for the sample with 80 phr of reclaimed rubber (the estimated values were read from the figure). Similar observations were described in a recent work by Zhao et al. [51] who studied NR/reclaimed rubber and NR/ground tire rubber blends. The authors demonstrated that the tensile strength parameter for the NR/reclaimed rubber blend in a ratio of 90/10 was ~10.2 MPa, while for the same composition in a ratio of 10/90 it was ~8.1 MPa (the estimated values were read from the figure). Higher deterioration of tensile properties was observed in the case of NR/ground tire rubber blends, for which ~5.0 MPa and ~1.2 MPa (the estimated values were read from the figure) were measured for composition in ratios of 90/10 and 10/90, respectively.
For a better understanding of the breaking mechanism of the studied materials during the tensile test (cross-head speed: 500 mm/min), the scanning electron microscopy images of surface area perpendicular to the direction of strain are presented in Figure 6. As can be observed, regardless of the rubber matrix used (SBR or NR), the increasing content of modified GTR in the rubber/modified GTR blends resulted in a more developed surface and cohesion crack, which indicated partial co-cross-linking between the rubber matrix and modified GTR. The efficacy of this process increases with the modified GTR content a (higher DCP amount in the system). However, it is worth mentioning that for the SBR/modified GTR blend, the surface seems to be more developed compared to the NR/modified GTR blends, which can be related to significant differences in the processing properties of the studied blends. As previously mentioned, the NR/modified GTR blends showed a lower Mooney viscosity (in the range of 21.2–27.6 MU) and minimal torque (in the range of 4.5–6.2 dNm) in comparison to the SBR/modified GTR blends (Mooney viscosity: 55.6–127.3 MU and minimal torque: 9.2–19.9 dNm). This feature has a significant impact on the dispersion level of GTR in the rubber matrix, encapsulation of GTR by the rubber matrix, and co-cross-linking efficiency between rubber and modified GTR. Consequently, the combination of the abovementioned factors affects the morphology and the final performance properties of the prepared materials.

4. Conclusions

In this work, the efficiency of GTR modification in the presence of dicumyl peroxide and EVA copolymer was analyzed as a function of EVA content (0–15 phr) and EVA grade (VA content: 18–39%). Modification of GTR was performed by auto-thermal extrusion at a throughput rate of 5.0–5.75 kg/h. In the studied conditions, the internal friction of the cross-linked GTR particles inside the extruder barrel resulted in an increase in modified GTR above the setpoint (temperature set on the die: 120 °C, the temperature of mGTR after extrusion: 150–174 °C). It has been shown that the EVA copolymer content and structure have a significant impact on processing, curing behavior, and the physical–mechanical properties of modified GTR. The results indicated that GTR modifications using a higher content of EVA with a lower VA content (highest tensile strength and elongation at break) are the most effective.
Among the studied materials, the best mechanical properties were seen in the sample modified with 15 phr of EVA-18% copolymer, which was characterized by a tensile strength of 9.3 MPa and elongation at break of 225%.
The proposed method allows the manufacturing of materials that are stable during storage (for at least three months) with performance properties competitive, or even superior, to commercially available reclaimed rubbers. Moreover, it was found that the obtained modified GTR can be easily mixed with a fresh rubber matrix (SBR, NR), which resulted in co-cross-linking between the two phases without the need for modification of the entire system by an additional curing system.
The results obtained indicate that the modification, by continuous methods, of GTR with thermoplastics has the potential for efficient rubber waste management. It seems that future research in this field should be focused on: (i) suitable selection and optimization of additives (e.g., thermoplastics, curing agents, plasticizers, etc.) used during GTR modification; (ii) investigation of the impact of rubber compound composition (e.g., filler, curing additives, etc.) on rubber matrix-modified GTR interfacial interactions, (iii) up-scaling of the obtained research and its industrial implementation, and (iv) searching for special applications of modified GTR allowing the further development of waste rubber upcycling technologies (e.g., materials dedicated to 3D printing [52], or self-healing [53] and thermo-responsive shape-memory materials [54]).

Author Contributions

Conceptualization, K.F.; methodology, P.W., Ł.Z.; validation, P.W., Ł.Z., and K.F.; formal analysis, K.F.; investigation, P.W., Ł.Z.; data curation, P.W., Ł.Z., and K.F. writing—original draft preparation, K.F.; writing—review and editing, P.W., Ł.Z., and K.F.; supervision, K.F. All authors have read and agreed to the published version of the manuscript.


The financial support of project LIDER/6/0035/L-8/16/NCBR/2017 provided by the National Centre for Research and Development (NCBR, Poland) is gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.


The authors would like thank Mariusz Marć from the Department of Analytical Chemistry, Gdańsk University of Technology, for TVOCs measurements.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Bockstal, L.; Berchem, T.; Schmetz, Q.; Richel, A. Devulcanisation and reclaiming of tires and rubber by physical and chemical processes: A review. J. Clean. Prod. 2019, 236, 117574. [Google Scholar] [CrossRef]
  2. Saputra, R.; Walvekar, R.; Khalid, M.; Mubarak, N.M.; Sillanpää, M. Current progress in waste tire rubber devulcanization. Chemosphere 2021, 265, 129033. [Google Scholar] [CrossRef] [PubMed]
  3. Markl, E.; Lackner, M. Devulcanization technologies for recycling of tire-derived rubber: A review. Materials 2020, 13, 1246. [Google Scholar] [CrossRef] [Green Version]
  4. Schaefer, R.; Isringhaus, R.A. Chapter 18: Reclaimed rubber. In Rubber Technology; Morton, M., Ed.; Springer: Dordrecht, The Netherlands, 1999; pp. 505–517. [Google Scholar]
  5. Zedler, Ł.; Klein, M.; Saeb, M.R.; Colom, X.; Cañavate, J.; Formela, K. Synergistic effects of bitumen plasticization and microwave treatment on short-term devulcanization of ground tire rubber. Polymers 2018, 10, 1265. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Seghar, S.; Asaro, L.; Aït Hocine, N. Experimental validation of the Horikx theory to be used in the rubber devulcanization analysis. J. Polym. Environ. 2019, 27, 2318–2323. [Google Scholar] [CrossRef]
  7. Dierkes, W.K.; Dijkhuis, K.; Hoek, H.V.; Noordermeer, J.W.M.; Reuvekamp, L.A.E.M.; Saiwari, S.; Blume, A. Designing of cradle-to-cradle loops for elastomer products. Plast. Rubber Compos. 2019, 48, 3–13. [Google Scholar] [CrossRef]
  8. Formela, K. Sustainable development of waste tires recycling technologies—Recent advances, challenges and future trends. Adv. Ind. Eng. Polym. Res. 2021, 4, 209–222. [Google Scholar] [CrossRef]
  9. Yazdani, H.; Karrabi, M.; Ghasmi, I.; Azizi, H.; Bakhshandeh, G.R. Devulcanization of waste tires using a twin-screw extruder: The effects of processing conditions and as a consequence the interfacial interactions between matrix and reclaimed rubbers. J. Vinyl Addit. Technol. 2011, 17, 64–69. [Google Scholar] [CrossRef]
  10. Tao, G.; He, Q.; Xia, Y.; Jia, G.; Yang, H.; Ma, W. The effect of devulcanization level on mechanical properties of reclaimed rubber by thermal-mechanical shearing devulcanization. J. Appl. Polym. Sci. 2013, 129, 2598–2605. [Google Scholar] [CrossRef]
  11. Meysami, M.; Tzoganakis, C.; Mutyala, P.; Zhu, S.H.; Bulsari, M. Devulcanization of scrap tire rubber with supercritical CO2: A study of the effects of process parameters on the properties of devulcanized rubber. Int. Polym. Process. 2017, 32, 183–193. [Google Scholar] [CrossRef]
  12. Mangili, I.; Lasagni, M.; Anzano, M.; Collina, E.; Tatangelo, V.; Franzetti, A.; Caracino, P.; Isayev, A.I. Mechanical and rheological properties of natural rubber com-pounds containing devulcanized ground tire rubber from several methods. Polym. Degrad. Stab. 2015, 121, 369–377. [Google Scholar] [CrossRef]
  13. Ali, M.A.M.; Raslan, H.A.; El-Nemr, K.F.; Hassan, M.M. Thermal and mechanical behavior of SBR/devulcanized waste tire rubber blends using mechano-chemical and microwave methods. J. Polym. Eng. 2020, 40, 815–822. [Google Scholar] [CrossRef]
  14. Klajn, K.; Gozdek, T.; Bieliński, D.M.; Siciński, M.; Zarzecka-Napierała, M.; Pędzich, Z. SBR vulcanizates filled with modified ground tire rubber. Materials 2021, 14, 3991. [Google Scholar] [CrossRef]
  15. Saiwari, S.; Dierkes, W.K.; Noordermeer, J.W.M. Comparative investigation of the devulcanization parameters of tire rubbers. Rubber Chem. Technol. 2014, 87, 31–42. [Google Scholar] [CrossRef] [Green Version]
  16. Shi, J.; Jiang, K.; Ren, D.; Zou, H.; Wang, Y.; Lv, X.; Zhang, L. Structure and performance of reclaimed rubber obtained by different methods. J. Appl. Polym. Sci. 2013, 129, 999–1007. [Google Scholar] [CrossRef]
  17. Guo, L.; Wang, C.; Lv, D.; Ren, D.; Zhai, T.; Sun, C.; Liu, H. Rubber reclamation with high bond-breaking selectivity using a low-temperature mechano-chemical devulcanization method. J. Clean. Prod. 2021, 279, 123266. [Google Scholar] [CrossRef]
  18. Guo, L.; Lv, D.; Ren, D.; Qu, L.; Wang, W.; Hao, K.; Guo, X.; Chen, T.; Sun, J.; Wang, C.; et al. Effectiveness of original additives in waste rubbers for revulcanization after reclamation with a low-temperature mechanochemical devulcanization method. J. Clean. Prod. 2021, 297, 126620. [Google Scholar] [CrossRef]
  19. Simon, D.A.; Bárány, T. Effective thermomechanical devulcanization of ground tire rubber with a co-rotating twin-screw extruder. Polym. Degrad. Stab. 2021, 190, 109626. [Google Scholar] [CrossRef]
  20. Gągol, M.; Boczkaj, B.; Haponiuk, J.; Formela, K. Investigation of volatile low molecular weight compounds formed during continuous reclaiming of ground tire rubber. Polym. Degrad. Stab. 2015, 119, 113–120. [Google Scholar] [CrossRef]
  21. Seghar, S.; Asaro, L.; Rolland-Monnet, M.; Hocine, N.A. Thermo-mechanical devulcanization and recycling of rubber industry waste. Resour. Conserv. Recy. 2019, 144, 180–186. [Google Scholar] [CrossRef]
  22. Diaz, R.; Colomines, G.; Peuvrel-Disdier, E.; Deterre, R. Thermo-mechanical recycling of rubber: Relationship between material properties and specific mechanical energy. J. Mater. Process. Technol. 2018, 252, 454–468. [Google Scholar] [CrossRef]
  23. Formela, K.; Cysewska, M.; Haponiuk, J. Thermomechanical reclaiming of ground tire rubber via extrusion at low temperature: Efficiency and limits. J. Vinyl Addit. Technol. 2016, 22, 213–221. [Google Scholar] [CrossRef]
  24. Zhang, Y.; Chen, S.T.; Xu, Z.; Chen, X.; Zhang, M. Process for Devulcanization of Rubber. U.S. Patent Application 2009/0082475A1, 26 March 2009. [Google Scholar]
  25. Wang, Y.-H.; Chen, Y.-K.; Rodrigue, D. Production of thermoplastic elastomers based on recycled PE and ground tire rubber: Morphology, mechanical properties and effect of compatibilizer addition. Int. Polym. Proc. 2018, 33, 525–534. [Google Scholar] [CrossRef]
  26. Zedler, Ł.; Kowalkowska-Zedler, D.; Colom, X.; Cañavate, J.; Saeb, M.R.; Formela, K. Reactive sintering of ground tire rubber (GTR) modified by a trans-polyoctenamer rubber and curing additives. Polymers 2020, 12, 3018. [Google Scholar] [CrossRef] [PubMed]
  27. Nunes, A.T.; dos Santos, R.E.; Pereira, J.S.; Barbosa, R.; Ambrósio, J.D. Characterization of waste tire rubber devulcanized in twin-screw extruder with thermoplastics. Prog. Rubber Plast. Recycl. Technol. 2018, 34, 143–157. [Google Scholar] [CrossRef]
  28. Barbosa, R.; Ambrósio, J.D. Devulcanization of natural rubber compounds by extrusion using thermoplastics and characterization of revulcanized compounds. J. Polym. Res. 2019, 26, 160. [Google Scholar] [CrossRef]
  29. Zedler, Ł.; Kowalkowska-Zedler, D.; Vahabi, H.; Saeb, M.R.; Colom, X.; Cañavate, J.; Wang, S.; Formela, K. Preliminary investigation on auto-thermal extrusion of ground tire rubber. Materials 2019, 12, 2090. [Google Scholar] [CrossRef] [Green Version]
  30. Zedler, Ł.; Burger, P.; Wang, S.; Formela, K. Ground tire rubber modified by ethylene-vinyl acetate copolymer: Processing, physico-mechanical properties, volatile organic compounds emission and recycling possibility. Materials 2020, 13, 4669. [Google Scholar] [CrossRef]
  31. Khang, T.H.; Ariff, Z.M. Vulcanization kinetics study of natural rubber compounds having different formulation variables. J. Therm. Anal. Calorim. 2012, 109, 1545–1553. [Google Scholar] [CrossRef]
  32. Flory, P.J.; Rehner, J. Statistical mechanics of cross-linked polymer networks I. Rubberlike elasticity. J. Chem. Phys. 1943, 1, 512–520. [Google Scholar] [CrossRef]
  33. Kraus, G.J. Swelling of filler-reinforced vulcanizates. J. Appl. Polym. Sci. 1963, 7, 861–871. [Google Scholar] [CrossRef]
  34. Marć, M.; Namieśnik, J.; Zabiegała, B. BTEX concentration levels in urban air in the area of the Tri-City agglomeration (Gdansk, Gdynia, Sopot), Poland. Air Qual. Atmos. Health 2014, 7, 489–504. [Google Scholar] [CrossRef]
  35. Marć, M.; Zabiegała, B.; Namieśnik, J. Application of passive sampling technique in monitoring research on quality of atmospheric air in the area of Tczew, Poland. Int. J. Environ. Anal. Chem. 2014, 94, 151–167. [Google Scholar] [CrossRef]
  36. Hejna, A.; Marć, M.; Korol, J. Modifcation of cellulosic fller with diisocyanates–volatile organic compounds emission assessment and stability of chemical structure over time. Nord. Pulp Paper Res. J. 2021, 36, 353–372. [Google Scholar] [CrossRef]
  37. Klewicz, K.; Marć, M.; Zabiegała, B. Emission profile of butan-2-one oxime from commercially available neutral silicone sealant. Microchem. J. 2020, 156, 104982. [Google Scholar] [CrossRef]
  38. Marć, M.; Tsakovski, S.; Tobiszewski, M. Emissions and toxic units of solvent, monomer and additive residues released to gaseous phase from latex balloons. Environ. Res. 2021, 195, 110700. [Google Scholar] [CrossRef] [PubMed]
  39. Śmiełowska, M.; Marć, M.; Zabiegała, B. Small polymeric toys placed in child-dedicated chocolate food products—Do they contain harmful chemicals? Examination of quality by example of selected VOCs and SVOCs. Expos. Health 2021. [Google Scholar] [CrossRef]
  40. Godavarti, S.; Karwe, M.V. Determination of specific mechanical energy distribution on a twin-screw extruder. J. Agric. Eng. Res. 1997, 67, 277–287. [Google Scholar] [CrossRef]
  41. Bianchi, O.; Fiorio, R.; Martins, J.N.; Zattera, A.J.; Scuracchio, C.H.; Canto, L.B. Crosslinking kinetics of blends of ethylene vinyl acetate and ground tire rubber. J. Elastom. Plast. 2009, 41, 175–189. [Google Scholar] [CrossRef]
  42. Thomas, D.K. Crosslinking efficiency of dicumyl peroxide in natural rubber. J. Appl. Polym. Sci. 1962, 6, 613–616. [Google Scholar] [CrossRef]
  43. Di Somma, I.; Marotta, R.; Andreozzi, R.; Caprio, V. Kinetic and chemical characterization of thermal decomposition of dicumylperoxide in cumene. J. Hazard. Mater. 2011, 187, 157–163. [Google Scholar] [CrossRef] [PubMed]
  44. Kamarulzaman, N.H.; Le-Minh, N.; Stuetz, R.M. Identification of VOCs from natural rubber by different headspace techniques coupled using GC-MS. Talanta 2019, 191, 535–544. [Google Scholar] [CrossRef]
  45. Morand, J.L. Chain scission in the oxidation of polyisoprene. Rubber Chem. Technol. 1977, 50, 373–396. [Google Scholar] [CrossRef]
  46. Ginsberg, G.; Toal, B.; Simcox, N.; Bracker, A.; Golembiewski, B.; Kurland, T.; Hedman, C. Human health risk assessment of synthetic turf fields based upon investigation of five fields in Connecticut. J. Toxicol. Environ. Health Part A 2011, 74, 1150–1174. [Google Scholar] [CrossRef] [PubMed]
  47. Hulse, G.E.; Kersting, R.J.; Warfel, D.R. Chemistry of dicumyl peroxide-induced crosslinking of linear polyethylene. J. Polym. Sci. 1981, 19, 655–667. [Google Scholar] [CrossRef]
  48. Lu, N.; Shen, M.; Liu, J.; Prakashan, K.; Xin, Z. Effects of posttreatments on the storage stability of reclaimed rubber. Adv. Polym. Technol. 2021, 2021, 6617666. [Google Scholar] [CrossRef]
  49. Sreeja, T.D.; Kutty, S.K.N. Styrene butadiene rubber/reclaimed rubber blends. Int. J. Polym. Mater. 2003, 52, 599–609. [Google Scholar] [CrossRef]
  50. Sreeja, T.D.; Kutty, S.K.N. Cure characteristics and mechanical properties of natural rubber/reclaimed rubber blends. Polym. Plast. Technol. Eng. 2000, 39, 501–512. [Google Scholar] [CrossRef]
  51. Zhao, X.; Hu, H.; Zhang, D.; Zhang, Z.; Peng, S.; Sun, Y. Curing behaviors, mechanical properties, dynamic mechanical analysis and morphologies of natural rubber vulcanizates containing reclaimed rubber. e-Polymers 2019, 19, 482–488. [Google Scholar] [CrossRef]
  52. Toncheva, A.; Brison, L.; Dubois, P.; Laoutid, F. Recycled tire rubber in additive manufacturing: Selective laser sintering for polymer-ground rubber composites. Appl. Sci. 2021, 11, 8778. [Google Scholar] [CrossRef]
  53. Hernández Santana, M.; Huete, M.; Lameda, P.; Araujo, J.; Verdejo, R.; López-Manchado, M.A. Design of a new generation of sustainable SBR compounds with good trade-off between mechanical properties and self-healing ability. Eur. Polym. J. 2018, 106, 273–283. [Google Scholar] [CrossRef]
  54. Toczek, K.; Lipińska, M.; Pietrasik, J. Smart TPE materials based on recycled rubber shred. Materials 2021, 14, 6237. [Google Scholar] [CrossRef] [PubMed]

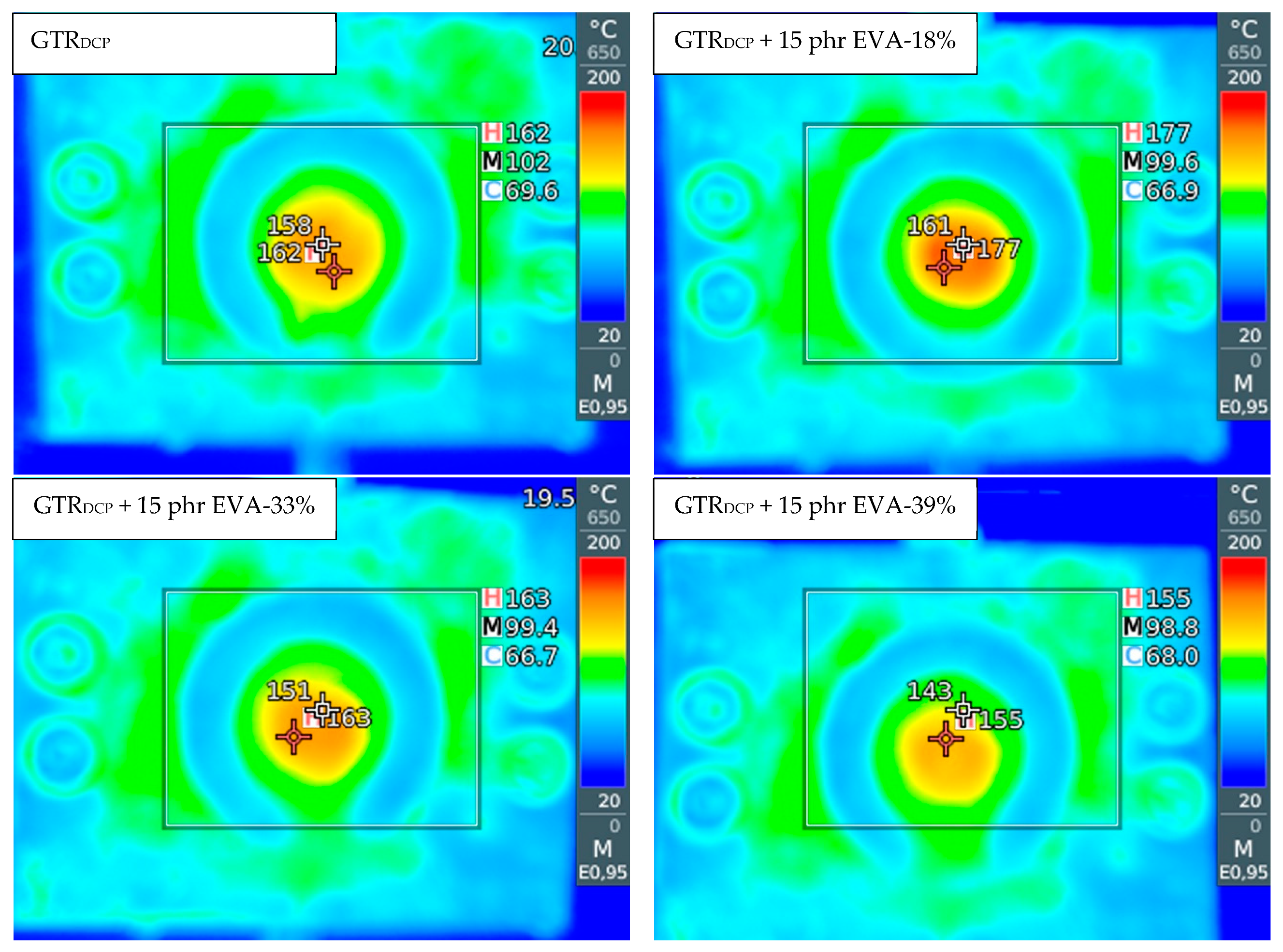

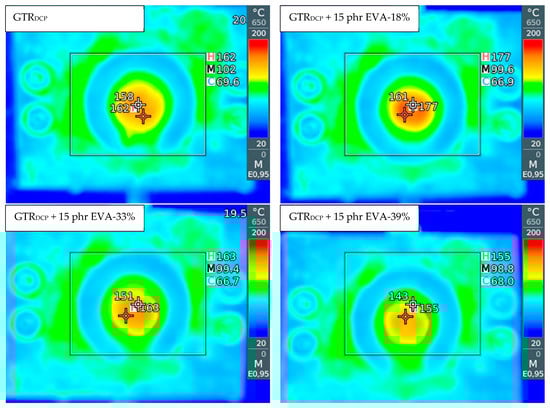

Figure 1. The infrared camera images for samples: GTRDCP; GTRDCP + 15 phr EVA-18%; GTRDCP + 15 phr EVA-33%; GTRDCP + 15 phr EVA-39%.
Figure 1. The infrared camera images for samples: GTRDCP; GTRDCP + 15 phr EVA-18%; GTRDCP + 15 phr EVA-33%; GTRDCP + 15 phr EVA-39%.
Polymers 13 04014 g001

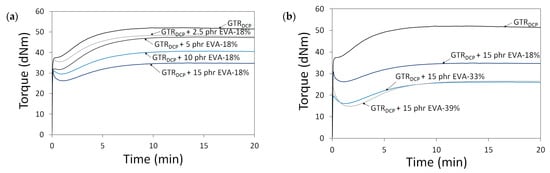

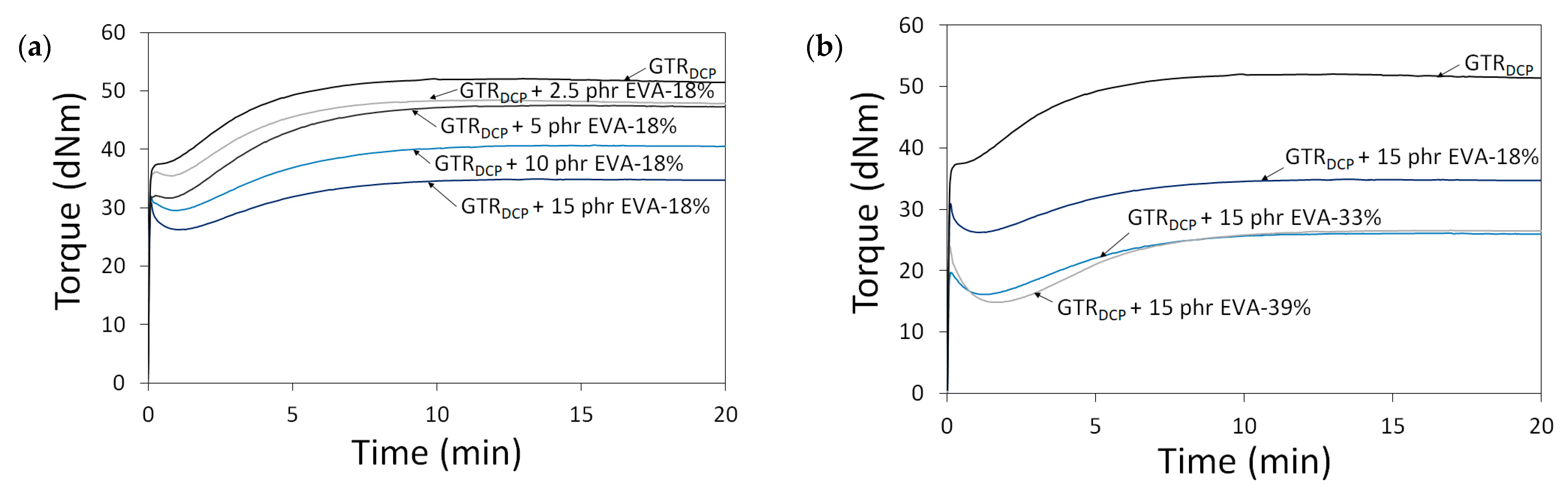

Figure 2. Curing curves for modified GTR determined at 170 °C as a function of: EVA content (0–15 phr) (a) and EVA grade (VA content: 18–39%) (b).
Figure 2. Curing curves for modified GTR determined at 170 °C as a function of: EVA content (0–15 phr) (a) and EVA grade (VA content: 18–39%) (b).
Polymers 13 04014 g002
Figure 3. Stress–strain curves as a function of: EVA content (0–15 phr) (a) and EVA grade (VA content: 18–39%) (b).
Figure 3. Stress–strain curves as a function of: EVA content (0–15 phr) (a) and EVA grade (VA content: 18–39%) (b).
Polymers 13 04014 g003
Figure 4. Physico-mechanical properties of modified GTR (black line represents sample with EVA): tensile strength (MPa) (a); elongation at break (%) (b); hardness (Shore A) (c); density (g/cm3) (d); swelling degree (%) (e), cross-link density (mol/cm3 10−4) (f), sol fraction content (%) (g) and gel fraction content (%) (h).
Figure 4. Physico-mechanical properties of modified GTR (black line represents sample with EVA): tensile strength (MPa) (a); elongation at break (%) (b); hardness (Shore A) (c); density (g/cm3) (d); swelling degree (%) (e), cross-link density (mol/cm3 10−4) (f), sol fraction content (%) (g) and gel fraction content (%) (h).
Polymers 13 04014 g004aPolymers 13 04014 g004b
Figure 5. Mechanism of dicumyl peroxide decomposition.
Figure 5. Mechanism of dicumyl peroxide decomposition.
Polymers 13 04014 g005
Figure 6. SEM images of rubber/modified GTR blend surface areas after tensile tests (magnification x100).
Figure 6. SEM images of rubber/modified GTR blend surface areas after tensile tests (magnification x100).
Polymers 13 04014 g006
Table 1. Properties of the used EVA copolymers.
Table 1. Properties of the used EVA copolymers.
FL00218 *UL04533EH2 *UL05540EH2 *
Abbreviation in this study-EVA-18%EVA-33%EVA-39%
Vinyl acetate content (wt.%)Producer method183339
Density at 25 °C (g/cm3)ASTM D15050.9400.9560.966
MFI190 °C, 2.16 kg (g/10 min)ASTM D12381.74560
Vicat softening temperature (°C)ASTM D15256233-
Melting temperature (°C)Producer method876148
* Information from technical data sheets provided by producer ExxonMobil Chemical.
Table 2. Sample preparation protocol and methodology used for modified GTR and rubber/modified GTR blends.
Table 2. Sample preparation protocol and methodology used for modified GTR and rubber/modified GTR blends.
MethodologyStandardModified GTRRubber/Modified GTR Blends
Sample preparation-Twin-screw extruder
+ compression molding
Two-roll mills
+ compression molding
Processing assessment
Energy consumption + IR camera-X-
Mooney viscosityISO 287-X
Curing characteristicsISO 3417XX
Physico-mechanical properties
DensityISO 2781XX
Swelling behavior-XX
Tensile testsISO 37XX
Abrasion resistanceISO 4649-X
Additional methods
VOCs emission characteristics by GC-MS and GC-FID-X-
Microstructure evaluation by SEM--X
Table 3. Temperature and specific mechanical energy consumption measured during modification of GTR.
Table 3. Temperature and specific mechanical energy consumption measured during modification of GTR.
Sample CodeEVA GradeEVA Content (phr)Temperature at Die (°C)SME (kWh/kg)
GTRDCP-0160 ± 10.131 ± 0.003
GTRDCP + 2.5 phr EVA-18%EVA-18%2.5164 ± 60.125 ± 0.003
GTRDCP + 5 phr EVA-18%5172 ± 30.171 ± 0.010
GTRDCP + 10 phr EVA-18%10174 ± 10.177 ± 0.002
GTRDCP + 15 phr EVA-18%15173 ± 20.171 ± 0.003
GTRDCP + 2.5 phr EVA-33%EVA-33%2.5165 ± 40.160 ± 0.012
GTRDCP + 5 phr EVA-33%5172 ± 50.168 ± 0.004
GTRDCP + 10 phr EVA-33%10164 ± 30.154 ± 0.001
GTRDCP + 15 phr EVA-33%15158 ± 20.146 ± 0.003
GTRDCP + 2.5 phr EVA-39%EVA-39%2.5167 ± 40.147 ± 0.007
GTRDCP + 5 phr EVA-39%5161 ± 40.149 ± 0.004
GTRDCP + 10 phr EVA-39%10150 ± 20.129 ± 0.006
GTRDCP + 15 phr EVA-39%15152 ± 30.120 ± 0.005
Table 4. Volatile organic compounds identified by GC-MS measurement during preparation (reactive extrusion) of modified GTR—sampling via Radiello® diffusing sampling system.
Table 4. Volatile organic compounds identified by GC-MS measurement during preparation (reactive extrusion) of modified GTR—sampling via Radiello® diffusing sampling system.
Retention Time (min)Identified CompoundChemical StructureMolecular Weight
Match Quality (%)SourceReferences
4.34Benzene Polymers 13 04014 i00178.1194styrene-butadiene rubber present in GTR[20]
5.38Methyl Isobutyl Ketone Polymers 13 04014 i002100.1690natural rubber and anti-aging agents present in GTR[44,45]
6.02Toluene Polymers 13 04014 i00392.1495styrene-butadiene rubber present in GTR[20,46]
7.87Xylene Polymers 13 04014 i004106.1797styrene-butadiene rubber present in GTR[20,46]
8.20Styrene Polymers 13 04014 i005104.1597styrene-butadiene rubber present in GTR[20,46]
8.94Cumene Polymers 13 04014 i006120.1991dicumyl peroxide decomposition[41]
10.29α-Methylstyrene Polymers 13 04014 i007118.1893dicumyl peroxide decomposition[47]
11.78Acetophenone Polymers 13 04014 i008120.1597dicumyl peroxide decomposition[47]
12.16α-Cumyl alcohol Polymers 13 04014 i009136.9191dicumyl peroxide decomposition[47]
12.74Undecane Polymers 13 04014 i010156.3194EVA copolymer andnatural rubber present in GTR-
14.25Dodecane Polymers 13 04014 i011168.3295EVA copolymer andnatural rubber present in GTR-
14.41Benzothiazole Polymers 13 04014 i012135.1994vulcanization accelerators present in GTR[5,20,44]
14.98Hexylbenzene Polymers 13 04014 i013162.2795styrene-butadiene rubber present in GTR-
15.49Tridecane Polymers 13 04014 i014184.3696EVA copolymer andnatural rubber present in GTR-
16.57Tetradecane Polymers 13 04014 i015198.3998EVA copolymer andnatural rubber present in GTR-
Table 5. TVOCs and acetophenone level determined for uncured and cured modified GTR.
Table 5. TVOCs and acetophenone level determined for uncured and cured modified GTR.
Sample CodeEVA GradeEVA
TVOCs (μg/g)Acetophenone (mg/kg)
GTRDCP + 2.5 phr EVA-18%EVA-18%2.523.348.93.923.4
GTRDCP + 5 phr EVA-18%518.460.411.0162.2
GTRDCP + 10 phr EVA-18%1025.339.23.638.3
GTRDCP + 15 phr EVA-18%1523.744.5-77.5
GTRDCP + 2.5 phr EVA-33%EVA-33%2.529.249.66.840.1
GTRDCP + 5 phr EVA-33%522.
GTRDCP + 10 phr EVA-33%1022.950.512.868.3
GTRDCP + 15 phr EVA-33%1522.637.912.123.1
GTRDCP + 2.5 phr EVA-39%EVA-39%2.525.064.63.964.6
GTRDCP + 5 phr EVA-39%524.258.03.341.1
GTRDCP + 10 phr EVA-39%1017.863.33.6111.0
GTRDCP + 15 phr EVA-39%1518.464.05.340.0
Techniqueemission chamber-GC-FIDHS-GC-MS
Conditioning temperature40 °C100 °C
Conditioning time20 min20 min
Carrier gas flow rate25 mL/min2 mL/min
Oven temperature
40 °C for 1 min
10 °C/min up to 280 °C
20 °C/min up to 300 °C for 3 min
40 °C for 4.5 min
10 °C/min up to 200 °C
30 °C/min up to 290 °C for 5 min
Table 6. Curing characteristics of modified GTR as a function of storage time.
Table 6. Curing characteristics of modified GTR as a function of storage time.
Sample CodeCuring ParametersCuring Characteristics as a Function of Storage TimeAverage
Few Days1 Month2 Months 3 Months
GTRDCPML (dNm)37.838.515.424.829.1 ± 11.1
ΔM (MH-ML) (dNm) ± 3.7
Scorch time (min) ± 0.3
Optimal cure time (min) ± 0.3
GTRDCP + 2.5 phr EVA-18%ML (dNm)35.537.935.335.636.1 ± 1.2
ΔM (MH-ML) (dNm)12.912.09.911.311.5 ± 1.3
Scorch time (min) ± 0.2
Optimal cure time (min) ± 0.4
GTRDCP + 5 phr EVA-18%ML (dNm)31.735.331.634.233.2 ± 1.8
ΔM (MH-ML) (dNm)15.812.89.89.812.1 ± 2.9
Scorch time (min) ± 0.3
Optimal cure time (min) ± 0.3
GTRDCP + 10 phr EVA-18%ML (dNm)29.535.229.832.231.7 ± 2.6
ΔM (MH-ML) (dNm) ± 1.9
Scorch time (min) ± 0.2
Optimal cure time (min) ± 0.4
GTRDCP + 15 phr EVA-18%ML (dNm)26.230.728.229.728.7 ± 2.0
ΔM (MH-ML) (dNm) ± 1.5
Scorch time (min) ± 0.5
Optimal cure time (min) ± 0.3
GTRDCP + 2.5 phr EVA-33%ML (dNm)29.833.031.031.531.3 ± 1.3
ΔM (MH-ML) (dNm) ± 2.4
Scorch time (min) ± 0.4
Optimal cure time (min) ± 0.2
GTRDCP + 5 phr EVA-33%ML (dNm) ± 0.5
ΔM (MH-ML) (dNm) ± 0.4
Scorch time (min) ± 0.3
Optimal cure time (min) ± 0.3
GTRDCP + 10 phr EVA-33%ML (dNm)21.022.722.622.422.2 ± 0.8
ΔM (MH-ML) (dNm) ± 0.8
Scorch time (min) ± 0.2
Optimal cure time (min) ± 0.2
GTRDCP + 15 phr EVA-33%ML (dNm)16.117.917.217.117.1 ± 0.7
ΔM (MH-ML) (dNm)9.910. ± 0.6
Scorch time (min) ± 0.2
Optimal cure time (min) ± 0.3
GTRDCP + 2.5 phr EVA-39%ML (dNm)33.632.235.032.933.4 ± 1.2
ΔM (MH-ML) (dNm)10.910.510.912.211.1 ± 0.7
Scorch time (min) ± 0.2
Optimal cure time (min) ± 0.3
GTRDCP + 5 phr EVA-39%ML (dNm)27.726.030.329.028.3 ± 1.8
ΔM (MH-ML) (dNm)10.911.811.611.111.4 ± 0.4
Scorch time (min) ± 0.2
Optimal cure time (min) ± 0.5
GTRDCP + 10 phr EVA-39%ML (dNm)19.720.421.820.220.5 ± 0.9
ΔM (MH-ML) (dNm)12.012.812.212.512.4 ± 0.4
Scorch time (min) ± 0.2
Optimal cure time (min) ± 0.1
GTRDCP + 15 phr EVA-39%ML (dNm)14.815.515.714.715.2 ± 0.5
ΔM (MH-ML) (dNm)11.711.811.611.711.7 ± 0.1
Scorch time (min) ± 0.1
Optimal cure time (min) ± 0.3
Table 7. Performance properties of modified GTR as a function of storage time.
Table 7. Performance properties of modified GTR as a function of storage time.
Sample CodePerformance PropertiesPerformance Properties as a Function of Storage TimeAverage
Few Days1 Month2 Months 3 Months
GTRDCPTensile strength (MPa)3.5 ± 0.2 3.6 ± 0.33.4 ± 0.13.0 ± 0.13.4 ± 0.3
Elongation at break (%)98 ± 392 ± 393 ± 590 ± 393 ± 3
Hardness (Shore A)65 ± 168 ± 167 ± 166 ± 167 ± 1
GTRDCP + 2.5 phr EVA-18%Tensile strength (MPa)5.2 ± 0.25.1 ± 0.35.1 ± 0.24.9 ± 0.15.1 ± 0.1
Elongation at break (%)132 ± 4114 ± 7120 ± 3134 ± 3125 ± 10
Hardness (Shore A)68 ± 170 ± 170 ± 168 ± 169 ± 1
GTRDCP + 5 phr EVA-18%Tensile strength (MPa)6.4 ± 0.56.3 ± 0.36.5 ± 0.56.3 ± 0.26.4 ± 0.1
Elongation at break (%)143 ± 10138 ± 7157 ± 8151 ± 6147 ± 8
Hardness (Shore A)70 ± 171 ± 171 ± 170 ± 171 ± 1
GTRDCP + 10 phr EVA-18%Tensile strength (MPa)8.3 ± 0.38.0 ± 0.47.5 ± 0.28.2 ± 0.28.0 ± 0.4
Elongation at break (%)174 ± 4171 ± 10168 ± 9194 ± 9177 ± 12
Hardness (Shore A)72 ± 173 ± 172 ± 172 ± 172 ± 1
GTRDCP + 15 phr EVA-18%Tensile strength (MPa)9.3 ± 0.28.7 ± 0.48.6 ± 0.28.3 ± 0.48.7 ± 0.4
Elongation at break (%)225 ± 7220 ± 10217 ± 4224 ± 10222 ± 4
Hardness (Shore A)71 ± 173 ± 172 ± 171 ± 172 ± 1
GTRDCP + 2.5 phr EVA-33%Tensile strength (MPa)4.0 ± 0.33.9 ± 0.33.6 ± 0.44.1 ± 0.13.9 ± 0.2
Elongation at break (%)93 ± 7103 ± 793 ± 7103 ± 298 ± 6
Hardness (Shore A)68 ± 168 ± 169 ± 168 ± 168 ± 1
GTRDCP + 5 phr EVA-33%Tensile strength (MPa)5.7 ± 0.25.0 ± 0.24.1 ± 0.24.3 ± 0.64.8 ± 0.7
Elongation at break (%)147 ± 7135 ± 5112 ± 6124 ± 15130 ± 15
Hardness (Shore A)67 ± 167 ± 167 ± 165 ± 167 ± 1
GTRDCP + 10 phr EVA-33%Tensile strength (MPa)6.5 ± 0.17.1 ± 0.26.4 ± 0.26.8 ± 0.36.7 ± 0.3
Elongation at break (%)167 ± 7187 ± 5174 ± 5178 ± 9177 ± 8
Hardness (Shore A)67 ± 168 ± 167 ± 167 ± 167 ± 1
GTRDCP + 15 phr EVA-33%Tensile strength (MPa)6.3 ± 0.66.7 ± 0.56.3 ± 0.37.0 ± 0.16.6 ± 0.3
Elongation at break (%)177 ± 17185 ± 11183 ± 6203 ± 2187 ± 11
Hardness (Shore A)66 ± 268 ± 168 ± 167 ± 167 ± 1
GTRDCP + 2.5 phr EVA-39%Tensile strength (MPa)2.6 ± 0.74.1 ± 0.24.0 ± 0.32.6 ± 0.23.3 ± 0.8
Elongation at break (%)78 ± 1796 ± 499 ± 579 ± 788 ± 11
Hardness (Shore A)65 ± 169 ± 168 ± 166 ± 167 ± 2
GTRDCP + 5 phr EVA-39%Tensile strength (MPa)4.4 ± 0.24.8 ± 0.43.5 ± 1.04.2 ± 0.34.2 ± 0.5
Elongation at break (%)111 ± 2120 ± 1195 ± 23115 ± 8110 ± 11
Hardness (Shore A)67 ± 168 ± 168 ± 167 ± 168 ± 1
GTRDCP + 10 phr EVA-39%Tensile strength (MPa)5.4 ± 0.45.8 ± 0.44.7 ± 0.85.2 ± 0.45.3 ± 0.5
Elongation at break (%)143 ± 9147 ± 11131 ± 15148 ± 15142 ± 8
Hardness (Shore A)65 ± 166 ± 167 ± 166 ± 166 ± 1
GTRDCP + 15 phr EVA-39%Tensile strength (MPa)4.1 ± 0.45.6 ± 0.74.9 ± 0.74.9 ± 0.44.9 ± 0.6
Elongation at break (%)132 ± 12171 ± 15160 ± 19163 ± 15157 ± 17
Hardness (Shore A)64 ± 165 ± 164 ± 163 ± 164 ± 1
Table 8. Processing and physico-mechanical properties of rubber/modified GTR blends.
Table 8. Processing and physico-mechanical properties of rubber/modified GTR blends.
PropertySBR/Modified GTR BlendsNR/Modified GTR Blends
75/2550/5025/7575/25 50/5025/75
Processing properties
Mooney viscosity ML(1+4) 100 °C (MU)55.6 ± 0.681.8 ± 1.8123.7 ± 2.026.4 ± 1.021.2 ± 1.027.6 ± 2.2
Minimal torque (dNm)9.213.519.
Maximal torque (dNm)22.436.945.312.521.934.4
ΔM (MH-ML) (dNm)13.223.425.47.817.428.2
Scorch time (min)
Optimal cure time (min)
Cure rate index (min−1)27.132.435.025.430.735.0
Thermal aging resistance (%)
Physico-mechanical properties
Tensile strength (MPa)1.7 ± 0.13.1 ± 0.25.8 ± 0.12.0 ± 0.13.3 ± 0.66.4 ± 0.5
Modulus at 100% (MPa)0.7 ± 0.11.3 ± 0.12.0 ± 0.10.4 ± 0.10.8 ± 0.11.8 ± 0.1
Modulus at 300% (MPa)1.3 ± 0.1--0.9 ± 0.02.8 ± 0.2-
Elongation at break (%)451 ± 51258 ± 15274 ± 13513 ± 9333 ± 41273 ± 11
Hardness (Shore A)38 ± 249 ± 158 ± 125 ± 140 ± 155 ± 1
Density (g/cm3)0.985 ± 0.0021.038 ± 0.0011.091 ± 0.0020.958 ± 0.0011.017 ± 0.0041.081 ± 0.002
Abrasion resistance (mm3)470 ± 66292 ± 12219 ± 3- *844 ± 46377 ± 26
Swelling degree (%)625 ± 5293 ± 2210 ± 2637 ± 8331 ± 4193 ± 1
Sol fraction (%)10.0 ± 0.27.3 ± 0.28.4 ± 0.17.6 ± 0.27.4 ± 0.08.1 ± 0.1
* Not measurable in the studied conditions.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wiśniewska, P.; Zedler, Ł.; Formela, K. Processing, Performance Properties, and Storage Stability of Ground Tire Rubber Modified by Dicumyl Peroxide and Ethylene-Vinyl Acetate Copolymers. Polymers 2021, 13, 4014.

AMA Style

Wiśniewska P, Zedler Ł, Formela K. Processing, Performance Properties, and Storage Stability of Ground Tire Rubber Modified by Dicumyl Peroxide and Ethylene-Vinyl Acetate Copolymers. Polymers. 2021; 13(22):4014.

Chicago/Turabian Style

Wiśniewska, Paulina, Łukasz Zedler, and Krzysztof Formela. 2021. "Processing, Performance Properties, and Storage Stability of Ground Tire Rubber Modified by Dicumyl Peroxide and Ethylene-Vinyl Acetate Copolymers" Polymers 13, no. 22: 4014.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
