Review

Study on Selected Metal-Organic Framework-Based Catalysts for Cycloaddition Reaction of CO2 with Epoxides: A Highly Economic Solution for Carbon Capture and Utilization

by
Suleiman Gani Musa
1,2,
Zulkifli Merican Aljunid Merican
1,3,* and
Omid Akbarzadeh
4
1
Fundamental and Applied Sciences Department, Universiti Teknologi PETRONAS, Bandar Seri Iskandar 32610, Malaysia
2
Department of Chemistry, Al-Qalam University Katsina, PMB 2137, Tafawa Balewa Way, Dutsin-ma Road, Katsina 820252, Nigeria
3
Institute of Contaminant Management for Oil & Gas, Universiti Teknologi PETRONAS, Bandar Seri Iskandar 32610, Malaysia
4
Nanotechnology & Catalysis Research Centre (NANOCAT), University of Malaya, Kuala Lumpur 50603, Malaysia
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(22), 3905; https://doi.org/10.3390/polym13223905
Submission received: 27 January 2021 / Revised: 23 March 2021 / Accepted: 31 March 2021 / Published: 11 November 2021
(This article belongs to the Special Issue Inorganic Polymers: Synthesis and Application)
Browse Figures
Versions Notes

Abstract

:
The level of carbon dioxide in the atmosphere is growing rapidly due to fossil fuel combustion processes, heavy oil, coal, oil shelter, and exhausts from automobiles for energy generation, which lead to depletion of the ozone layer and consequently result in global warming. The realization of a carbon-neutral environment is the main focus of science and academic researchers of today. Several processes were employed to minimize carbon dioxide in the air, some of which include the utilization of non-fossil sources of energy like solar, nuclear, and biomass-based fuels. Consequently, these sources were reported to have a relatively high cost of production and maintenance. The applications of both homogeneous and heterogeneous processes in carbon capture and storage were investigated in recent years and the focus now is on the conversion of CO2 into useful chemicals and compounds. It was established that CO2 can undergo cycloaddition reaction with epoxides under the influence of special catalysts to give cyclic carbonates, which can be used as value-added chemicals at a different level of pharmaceutical and industrial applications. Among the various catalysts studied for this reaction, metal-organic frameworks are now on the frontline as a potential catalyst due to their special features and easy synthesis. Several metal-organic framework (MOF)-based catalysts were studied for their application in transforming CO2 to organic carbonates using epoxides. Here, we report some recent studies of porous MOF materials and an in-depth discussion of two repeatedly used metal-organic frameworks as a catalyst in the conversion of CO2 to organic carbonates.

1. Introduction

The carbon dioxide (CO2) concentration in the atmosphere is becoming alarming due to an increase in anthropogenic activities such as fuel combustion and other energy generation processes (see Figure 1), which may result in global warming [1,2,3,4,5,6]. Carbon capture, storage, and utilization are the most promising alternative among other several processes in reducing CO2 emission [7,8,9]. The process of carbon capture and sequestration (CCS) was employed initially by using classical solid sorbents such as zeolites, porous carbon, porous silica, and mineral carbonation processes [10,11,12]. In recent years, the attention of the researchers has dwelled on utilizing CO2 as C1 feedstock for chemical conversion into various useful products [13,14,15] in the presence of highly selective and task-specific catalysts [8,16,17]. This route has a more beneficial advantage as it allows the utilization of unwanted substances into useful materials [18,19].
One of the possible optimistic approaches to climate-relevant carbon capture and sequestration is the catalyst-mediated reaction of CO2. Industrial and atmospheric CO2 are captured and passed through biochemical, photochemical, thermochemical, or electrochemical conversion process to obtained intermediates such as methanol, dimethyl ether (DME), syngas, polyols, and cyclic organic carbonates, which can be further converted into end products as liquid fuels, aromatics among others, or used in the production of cosmetic and personal care products. The search for specific and specially designed catalysts for CO2 conversion into commercially relevant compounds is indeed a subject of high curiosity these days [16,21,22]. This review focused on the CO2 conversion by cycloaddition reactions with epoxides and the application of different polymeric metal-organic frameworks (MOFs) materials as potential catalysts that give an intermediate that can be converted into different organic chemicals such as diethyl carbonate (DEC), ethyl methyl carbonate (EMC), and dimethyl carbonate (DMC), among others. Over the years, there has been increasing demand for cyclic carbonate intermediates in various end-use industries such as electrolyte solvents in lithium-ion battery, medical, industrial, and personal care. For instance, according to the Research and Markets data statistic forecast report, the global ethylene carbonate market size alone was estimated to be valued at approximately USD 273 million in 2018 and projected to reach over USD 500 million by 2027, at a compound annual growth rate (CAGR) of 8.1% Figure 2A. The market size for dimethyl carbonate (DMC) was valued over USD 410 million in 2015 and was forecast to have gains exceeding 5% CAGR. In the United States of America (USA) alone, it was estimated to grow over USD 100 million by 2024 in its application as solvents, polycarbonates, and in pharmaceutical, and pesticide industries among others as forecast by Global Market Insights, as shown in Figure 2B. The global polycarbonate business was valued at over USD 14 billion in 2015 and was projected to reach USD 22 billion by 2024. Alkylene carbonates in general, which include, ethylene carbonate, propylene carbonate, glycerin carbonate, etc., are cyclic esters of carbonic acid that possess various properties such as low volatile organic content (VOC), low toxicity, being readily biodegradable, high boiling point, low-odor, and all these properties make them an excellent solvent choice. The global alkylene carbonates market share by end use industry (paints and coatings, agriculture, textiles and fabrics, cosmetics and personal care, and others) is shown in Figure 2C.
The revolutionary work in the investigation of metal-organic frameworks (MOFs) as a catalyst for cycloaddition reaction was first discovered in 2009, where the renowned MOF-5 was discovered to have successfully catalyzed CO2 conversion reaction with epoxides in the presence of quaternary ammonium salts such as tetrabutylammonium bromide (TBABr), see (Figure 3). In the last decade, different catalysts were designed to facilitate CO2 conversion reaction into cyclic organic carbonates [24]. The features and composition of post-combustion CO2 indicated that abilities such as high CO2 uptake and selectivity, excellent thermal and chemical stability, good reusability, easy synthesis, and operation at ambient conditions should be given by an ideal adsorbent for better CO2 capture [22].
Catalytic materials such as amines [25,26], alkali metal salts [25,26,27,28,29,30,31], metal oxides [32,33], metal porphyrins [34,35,36], ionic liquids hybrids [37,38,39,40,41,42], zeolites [43,44,45,46,47], coordination metal complexes [47,48,49,50,51], and metal-organic frameworks [5,13,52,53,54,55,56,57,58,59,60,61,62,63,64,65] were reported recently to catalyze the formation of cyclic carbonates from CO2 [66,67,68,69,70,71,72,73,74,75,76,77,78,79,80]. Transition metal ion-based catalysts in conjunction with Lewis-base were also reported as a potential catalyst for the reaction [56,81,82,83]. Although certain conversion and selectivity were achieved, yet many of the reported catalytic system had shown one of the following disadvantages: need for high concentration of catalyst, instability of catalyst, need for co-catalyst, requirement of higher temperature and pressure, longer duration for the completion of reaction, or difficulty in separating the catalyst after the reaction for reuse [84]. Among the different porous materials reported, MIL-101(Cr) and Cu-BTC were among the few MOFs that showed resistance to many of the problems defeating other MOF materials [85,86,87,88].

2. Reaction Mechanism for the Production of Cyclic Carbonates from CO2 and Epoxides

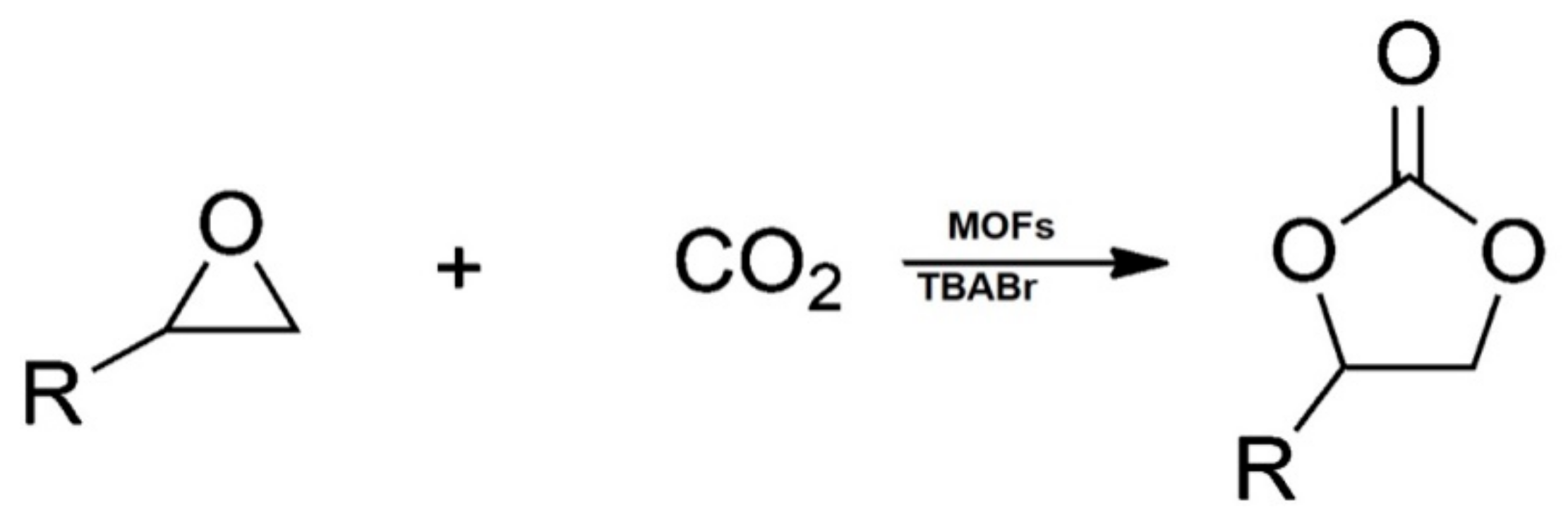

CO2 conversion into cyclic carbonate compounds by cycloaddition reaction to epoxide is regarded as a method with economic advantages to attain a CO2-neutral environment and to serve as a source for value-added chemicals. Various researchers reviewed the mechanism for cycloadding CO2 into epoxides [8,14,17,65,89,90,91,92].
The process requires a robust acid catalyst to stimulate the epoxide substrate and the highly stable CO2 double bond and thermodynamically facilitates the opening of the epoxide ring via nucleophilic co-catalyst (TBABr) attack forming an alkoxide as an intermediate, which subsequently combines with the CO2-adduct to give the desired carbonates (Figure 4). The TBABr co-catalyst functions as a nucleophile to motivate the opening of the epoxide rings. The synergistic effect between the MOF catalyst and TBABr is therefore crucial in attaining high catalytic performance [93,94]. The cycloaddition reaction of CO2 with epoxides was extensively investigated using different potential catalysts [16,22,23,24,95,96,97,98,99,100,101,102].

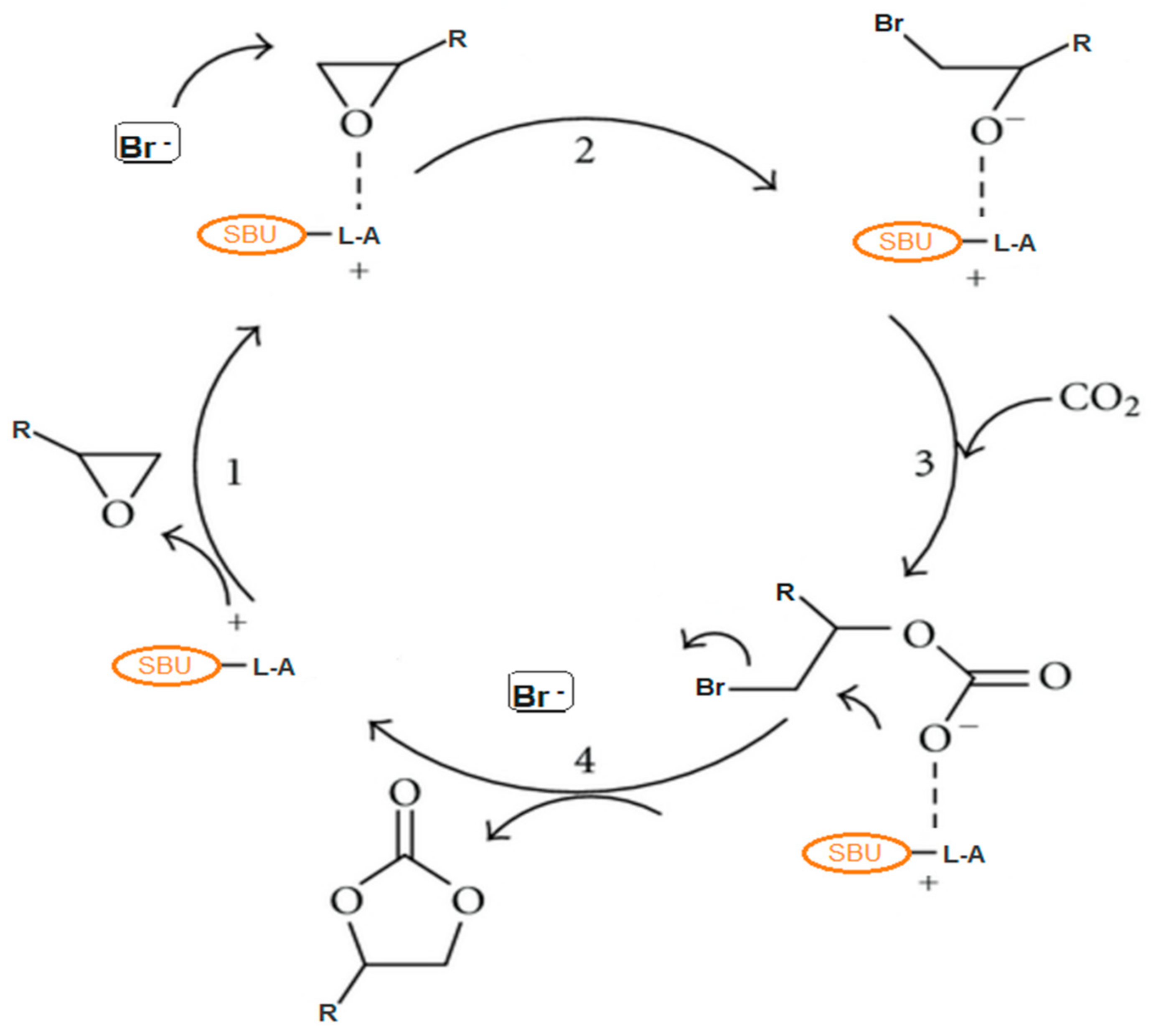

The best route for the mechanism was identified as the one that begins with the epoxides ring opening before the addition of carbon dioxide. This therefore proved that the catalytic system in this process strongly depends on the opening of the epoxide ring [19]. The different method for epoxide activation by the MOF catalyst was categorized into four bases on the features of the MOF catalyst (Figure 5) as follows: (a) MOFs with acidic secondary building units (SBUs) as the only active site, (b) MOFs with acidic linkers as metal active site catalyst, (c) MOFs with Lewis base linkers also acting as a nucleophile and Lewis acidic components, a binary catalytic system (d) MOFs with ionic linkers, where a single-component catalyst is used without the TBABr co-catalyst. The homogenous co-catalyst, tetrabutylammonium bromide (TBABr) would alone promote the epoxide ring-opening in (a and b) and the effort is reinforced in (c). The influence of Lewis-acidic component in SBUs or metal nodes of the MOFs, however, cannot be exempted as indicated (b–d) [102].

3. Metal-Organic Frameworks in CO2 Cycloaddition with Epoxides

Metal-organic frameworks (MOFs) are a class of nanomaterials containing a cluster of metals and organic ligands (Figure 6) that attracted considerable attention because of their diverse topologies, tenability, and application in various fields (Figure 7) [103,104,105,106,107,108]. These nanoporous compounds have outstanding pore sizes of about 2 to 50 nm that have exhibited encouraging applications in adsorption [109,110,111,112,113,114], photocatalysis [115,116], and heterogeneous catalysis [8,87,117,118]. Different MOF materials were synthesized and employed as a catalyst in cycloaddition reaction of CO2 with epoxides and were shown to have reasonable potentiality in their applications [40,47,82,91,91,119,120,121,122,123,124,125,126,127,128,129,130]. The studies in some recent MOF materials employed as a catalyst in the formation of cyclic organic carbonates from CO2 and epoxides are summarized in Table 1.
Recent studies of some metal-organic framework materials as a catalyst for cycloaddition reaction (Table 1) reaffirmed that the cycloaddition reaction in most cases cannot proceed successfully without the presence of a co-catalyst. Tetra-n-butyl ammonium bromide (TBABr) was reported as the most effective co-catalyst among the various nucleophile components, TBAI, TBACl, and KI, and was identified to enhance epoxide ring opening in the reaction [120,131,132,133]. Some certain MOFs, however, were applied without the presence of a co-catalyst (Table 1, entry 17–20). Where this occured, the catalytic activity of MOFs were considered as a single component and were applied without the addition of TBABr. Nonetheless, based on the work studied, this type of reaction can only be successful under harsh reaction conditions of temperature and pressure (Table 1, entry 17–20) [55].
Polymers 13 03905 g007 550

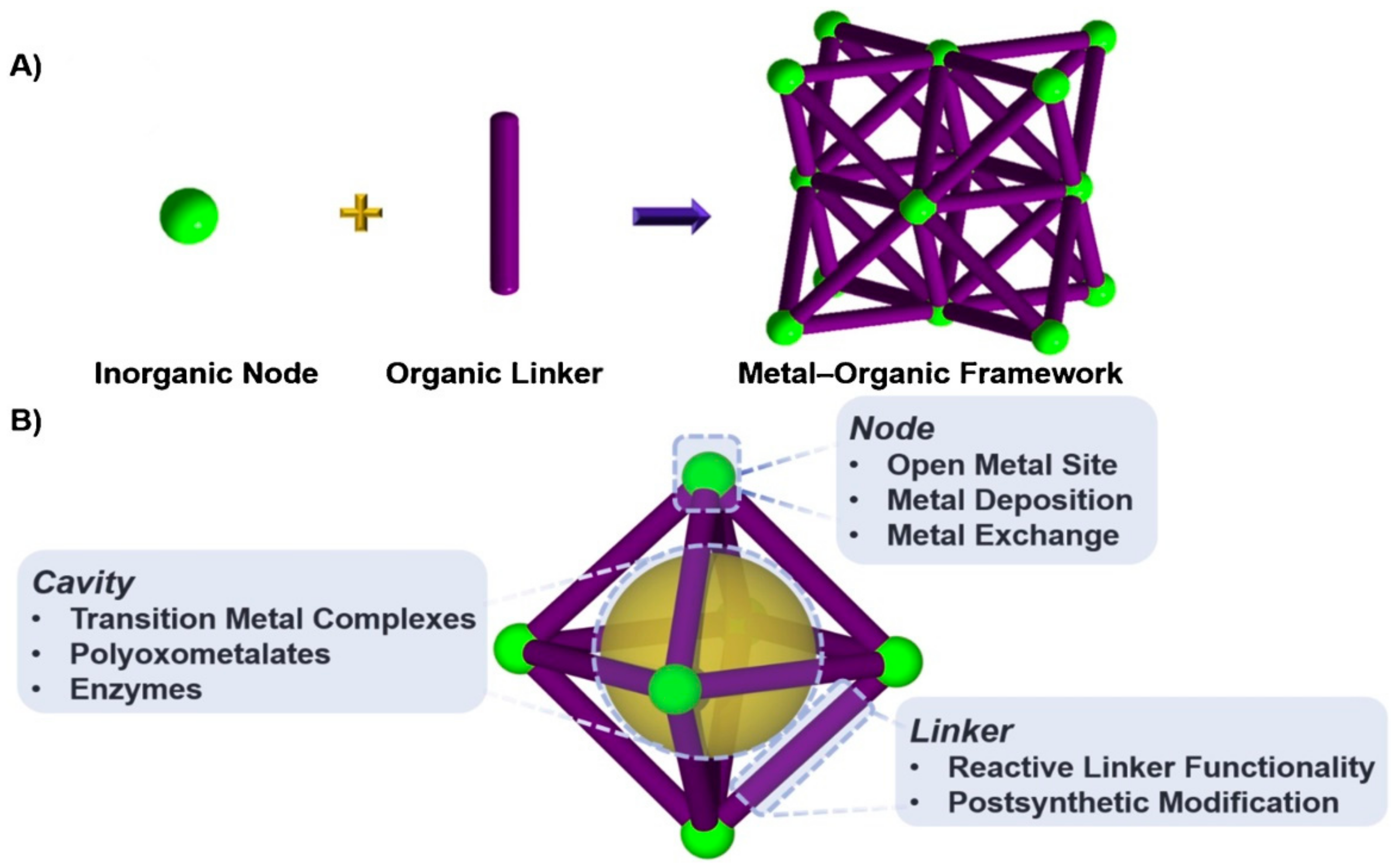

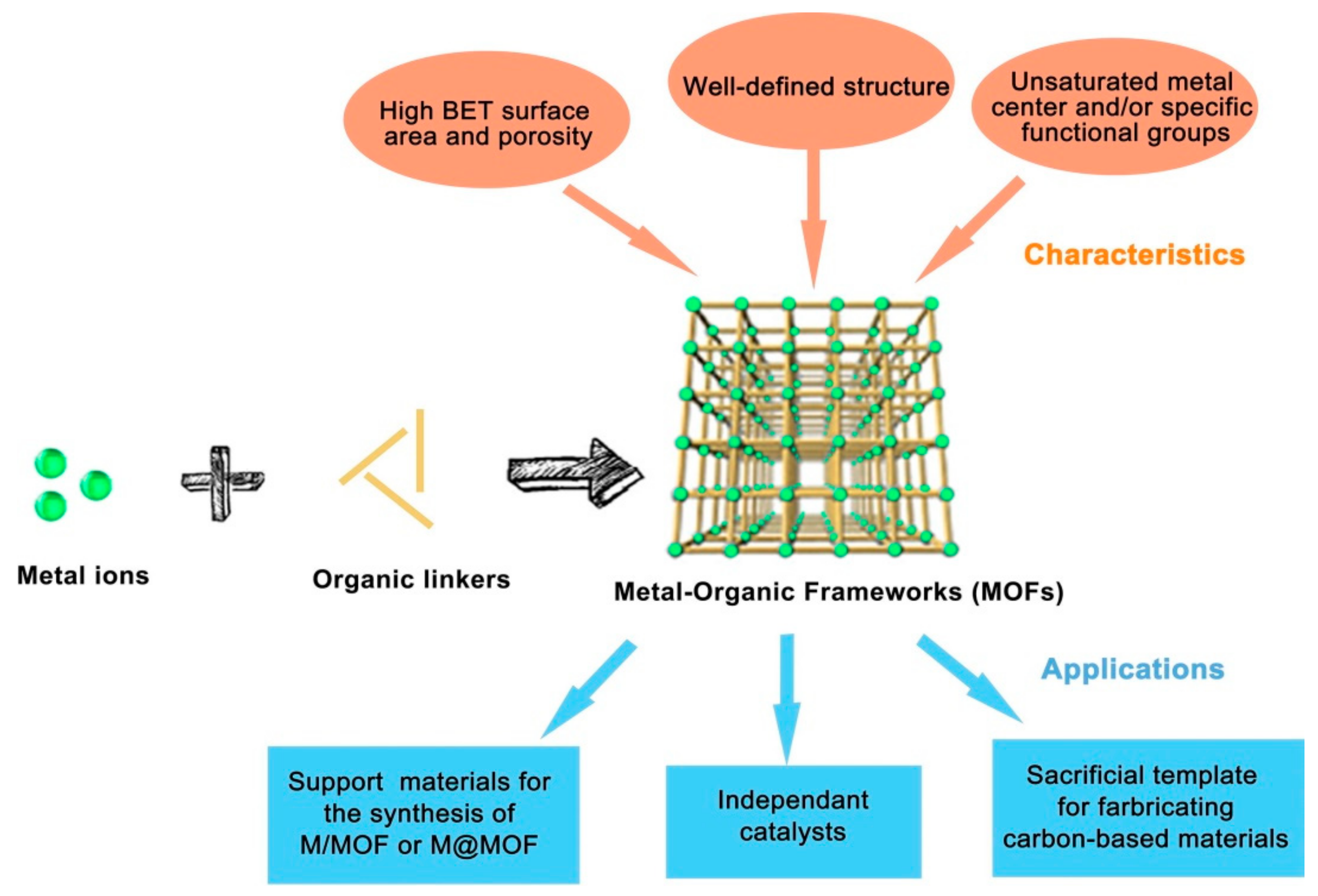

Figure 7. Illustration of MOF components, structure, characteristics, and mode of application. Reprinted with permission from Ref. [132]. Copyright 2018 Elsevier.
Figure 7. Illustration of MOF components, structure, characteristics, and mode of application. Reprinted with permission from Ref. [132]. Copyright 2018 Elsevier.
Polymers 13 03905 g007
The addition of TBABr co-catalyst in most of the reported MOFs (Table 1, entry 1–16) further proved that the catalytic function of MOF catalysts in cycloaddition reaction works concurrently with the co-catalyst for successful conversion. Moreover, the catalyst/co-catalyst loading in the data entries (Table 1) was observed to be in relatively low percentage moles. The MOF catalytic materials were found to be active and were reused for at least three consecutive cycles in each case before losing their activity. All the reported MOFs (Table 1) were found to be effective at moderately ambient conditions, except for entry 17–20, which occured at relatively harsh conditions due to the absence of co-catalyst. Different epoxides such as propylene oxide, styrene oxide, and epichlorohydrin were found to undertake CO2 cycloaddition under the influence of the MOF catalyst, as shown in Table 1.
Table
Table 1. Recent studies of MOF catalysts in CO2 cycloaddition reaction to epoxides with reaction conditions.
Table 1. Recent studies of MOF catalysts in CO2 cycloaddition reaction to epoxides with reaction conditions.
EntryMOF MaterialCo-CatalystCatalyst:
Cocatalyst Loading
(mol%)		SBET
(m2/g)		EpoxidePress
(atm)		Temp. (°C)Time (h)Selectivity (%)Yield
(%)		Isosteric Heat
Qst (Kj/Mol)		ReusabilityReference
1Al(OH) (O2C–CH=CH–CO2)∙nH2OTBABr0.02:0.0021169ECH105069795234 cycles[134]
2Zn2(Py)(Atz)2∙DMF∙2H2OTBABr0.1:0.1764.5PO15604989227.76 cycles[118]
3[In2(L)(OH)2]·2DMF·2H2OTBABr0.5:0.21022EBH170128999-5 cycles[83]
4F-Mn-MOF-74TBABr0.1:0.03120.83SO1010069999-7 cycles[135]
5PCN-222(Co)@MTTBTBABr0.1:0.216 PO/ECH1502098>98-3 cycles[126]
6rho-ZMOFTBABr0.1:1.4871ECH104039898-5 cycles[129]
7Co-MOF-2
{[Co(BDC)(L)]·2H2O.xG}n		TBABr1.8:2.56.8SO/ECH14012999935.06 cycles[119]
8{[Zn(H2O)(HL)]⋅(DMF)2 (H2O)2}nTBABr0.25:0.232945PO1RT48-76--[123]
9MOF-5-MIXTBABr0.5:0.5357ECH125069998-5 cycles[63]
10Ce-NU-1008TBABr0.02:0.002 SO1RT2095 -3 cycles[57]
11Co-MOF-2
{[Co(BDC)(L)]·2H2O·xG}n		KI5.0:0.26.8SEO1408999935.06 cycles[56]
12{[Ni3HL(μ3-OH)(H2O)2]∙3(H2O)∙DMA}nTBABr0.025:1.5743.5ECH101006->99-5 cycles[33]
13[(Cu2 BPDSDC∙4DMF)∙2DMF]nTBABr0.05:0.1-PO258059899-4 cycles[136]
14{[Co6(OH)2(H2O)4 (cpt)9](NO3)(DMF)13}TBABr0.1:2873PO140489797324 cycles[137]
15InDCPN-ClTBABr0.05:5.00997SO180249893305 cycles[96]
16Ce-NU-1008TBABr0.002:0.02910SO1RT2095 --[57]
17MOF-5@Imidazolium iodide--277.9SO101108-92-4 cycles[138]
18[(CH3)2NH2][M(COOH)3]-13.113.11PO20120610098-3 cycles[139]
19Im-MnF
[C3H5N2][Mn(COOH)3]		--81.57ECH1510069995--[140]
20Pt/Mg-MOF-74- 513PO17.515047744-3 cycles[72]
Note: All pressure units are converted to the approximate atm value.

4. MIL-101 Based MOFs in CO2 Cycloaddition with Epoxides

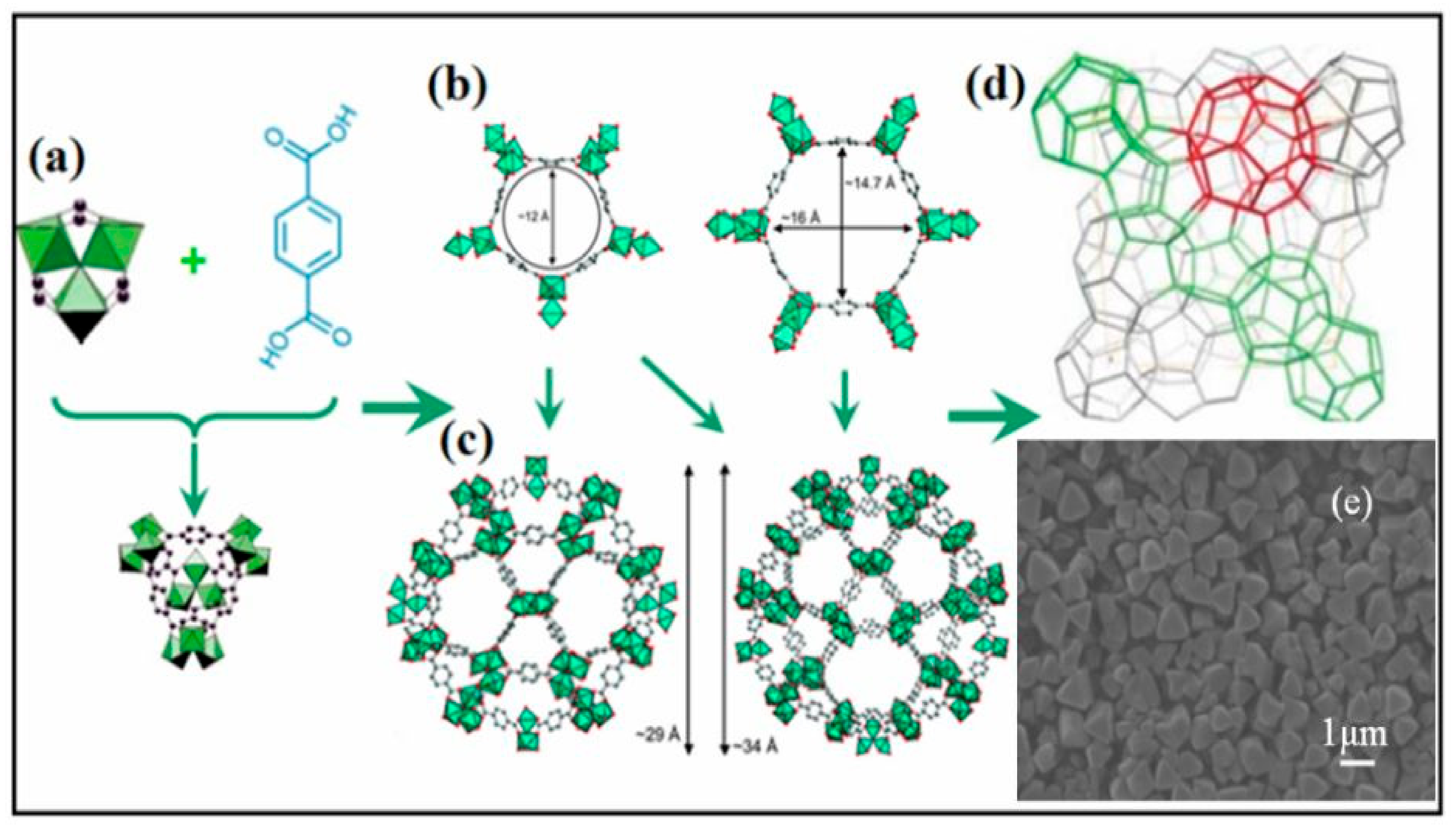

MIL-101 is one of the repeatedly reported MOF materials with a high potential catalytic activity for the conversion of CO2 to cyclic carbonates. This was ascribed to its possession of Lewis-acid sites due to Cr2+, present at the metal center [56] and structural flexibility, which allows its modifications by substituting different functional groups in the organic ligand but maintains the backbone structures. The synthesis and structural elucidation of MIL-101(Cr) was reported by different researchers [85,86,108,141,142,143,144,145,146,147,148,149].
MIL-101 is a three-dimensional structure based on chromium terephthalate that was first synthesized by Fėrey et al. [148], having the empirical formula {Cr3(OH)(H2O)2O[(O2C)C6H4(CO2]3∙nH2O} with the given name MIL: (Materials Institute Lavosier) in 2005 (Figure 8). The material has a very stable structure with excellent water resistibility even under acidic conditions and was proven to have thermal stability up to 300 °C under air. The MIL-101(Cr) structure exhibited a large surface area of approximately 4100 m2 g−1 and contained two different types of cages with diameters of 29 and 34 Å, which had pore openings of 12 and 16 Å, respectively (Figure 9) [148,150,151]. Those special properties made MIL-101 possess superior catalytic activity, which was applied in different applications [110,111,152,153,154,155,156]. The unique porosity of three-dimensional frameworks forms exclusive channels with large surface areas, which can enhance CO2 by providing sufficient reaction spaces. It also allows the encapsulation of other catalytic active materials into the large pores to improve the catalytic activity of the MIL-101 by forming a composites with enhanced activity for application in various fields [143,155]. The MOF was also applied as a catalyst in cycloaddition reaction of CO2 with epoxides as a single component catalyst without the addition of co-catalyst [55].
We report here a series of recently reported MIL-101-based materials used as a catalyst in cycloaddition reaction of CO2 and epoxides.
Recently, research was reported by Akimana et al. [156], where MIL-101(Cr) was used to catalyzed cycloaddition reaction of epichlorohydrin to CO2 under mild reaction conditions without any co-catalyst. MIL-101(Cr) was identified as one of the catalytically active MOFs with excellent properties, chemical stability and flexibility, and strong acid sites due to the presence of metal centers in the framework [85,108,148]. It was gathered that special features of MIL-101(Cr) can facilitates the opening of the epoxide ring substrates in combination with the characteristic surface area and large pore size exhibited by the MOF, and that these are good properties for CO2 adsorption as well are essential features for a superior catalyst that can be applied in the formation of cyclic carbonates from CO2.

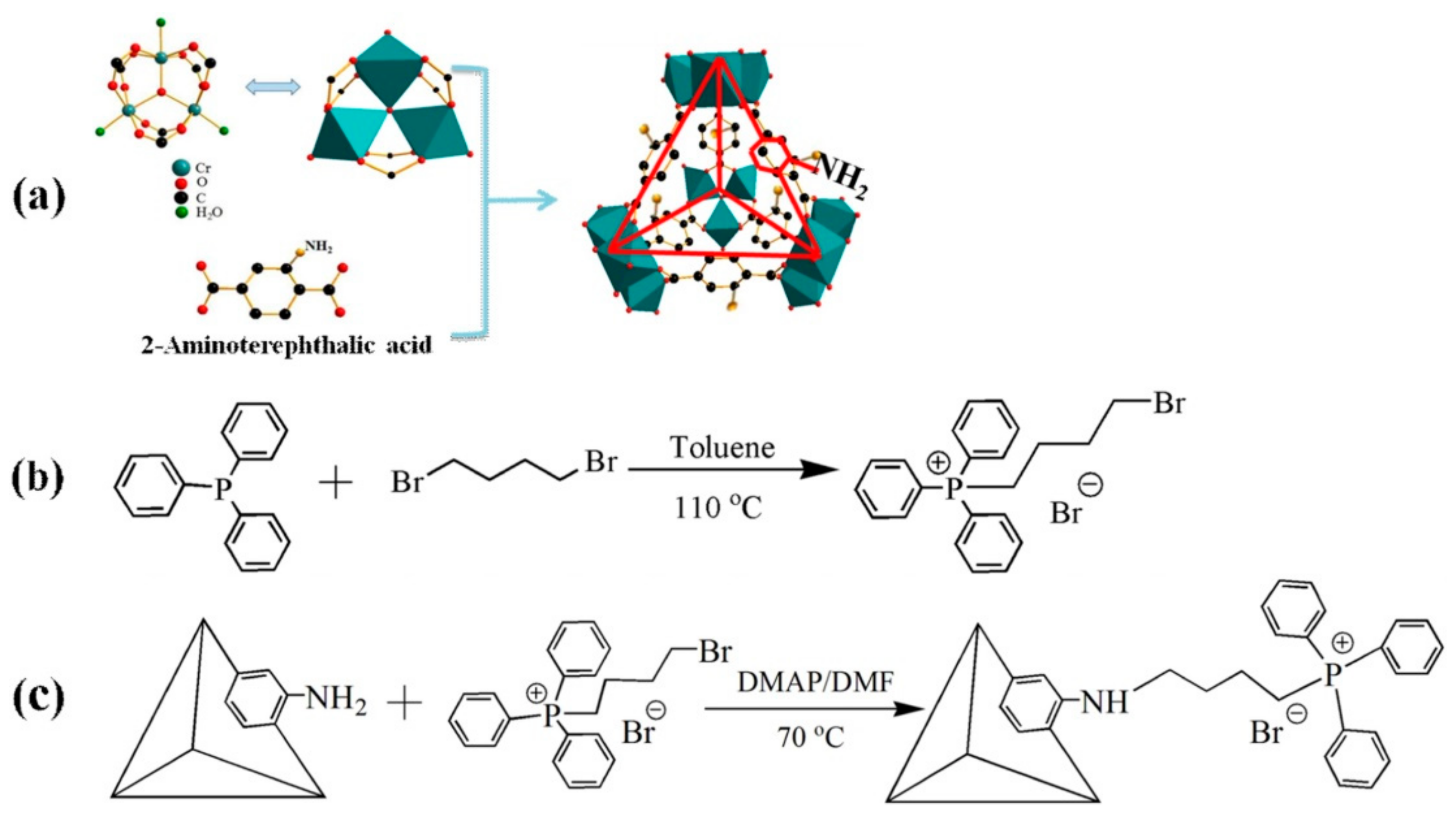

The MOF was synthesized and applied to catalyze CO2 cycloaddition with different epoxides. The acidic or basic characteristic was provided by the metal nodes and the high porosity of the MOF attracts the CO2 gas molecules, which gave the MOF good ability to perform CO2 cycloaddition and produce cyclic carbonate compounds. The catalytic activity was observed by varying the conditions for the reaction using epichlorohydrin (ECH) as a model substrate. To obtain the optimum reaction condition, the various reaction conditions were alternated. Firstly by using a temperature of 35 °C and 4 bar CO2 pressure with no solvent or co-catalyst added (catalyst, 50 mg, ECH, 9.2 mmol). The outcome showed a 100% ECH conversion in 48 h. A CO2 pressure above 1.5 bar while maintaining the condition also exhibited an excellent performance of about 99% conversion in 24 h. The gap between conversion and yield was attributed to the MOF’s adsorption for the product and therefore was not detected in the H-NMR, resulting in low percentage yield. The conversion also decreased with a shorter reaction period or by reducing the catalyst loading amount. However, an average catalytic activity was observed with low catalytic loading under mild reaction conditions (35 °C, 1.5 bar) without the addition of co-catalyst or solvent [156]. The MIL-101(Cr) MOF catalytic activity for CO2 cycloaddition was also investigated with different epoxides and remarkable conversion was obtained Figure 10.
The catalyst shows amazing performance in catalytic activity when compared with other reported catalysts and has good reusability property. The application of MIL-101(Cr) as a heterogeneous catalyst in the conversion of CO2 into organic carbonates revealed high catalytic potentials that are greener and more feasible.
Dai et al. [157] recently synthesized a new MOF catalyst by implanting quaternary phosphonium salt ionic liquid (IL) on MIL-101(Cr) through a flippant post-synthetic modification to obtain (Cr-MIL-101-[BuPh3P]Br). The backbone structure of the parent MIL-101(Cr) was not altered when compared with the Cr-MIL-101-NH2, except for the broad Bragg reflections detected. The Cr-MIL-101-NH2 was then modified further by the addition of phosphonium salt IL through a covalent interaction between the –NH2 and R-Br group and the crystalline structure of the new hybrid was not affected by the post-synthetic modification (Figure 11). The presence of the phosphonium salt IL in the new compound was confirmed by XRD and FT-IR spectra. The new compound also showed more superior performance in its stability and catalytic activity when compared with the amine-functionalized MIL-101-IL reported earlier [158]. Due to their polarity, structural tenability, thermal stability, and excellent acid-basic property, ILs are considered a strong catalyst for CO2 cycloaddition reaction with epoxides. The fabrication of heterogeneous material containing active metal sites together with phosphonium salt IL can give rise to a good catalyst with excellent activity in cycloaddition reaction with epoxides [157].
The catalytic function was utilized by the combined ability of two active sites involving Cr3+ as Lewis acid sites from the MOF and Br- as nucleophile from the IL, which facilitated the epoxide ring-opening by coordination of Cr3+ sites with an oxygen atom and nucleophilic attack of Br- on the carbon atom of epoxide, respectively. The catalyst performed an outstanding activity for the CO2 cycloaddition to propylene oxide under a moderate reaction condition of 120 °C and 2.0 Mpa for 2 h using a small amount of catalyst (0.045 mol%) without the addition of any solvent or co-catalyst (Figure 12). The reaction was found to be catalyzed by the individual sub-components of the catalyst, [BuPh3P]Br, Cr-MIL-101-NH2, Cr-MIL-101-[BuPh3P]Br, and Cr-MIL-101-NH2/[BuPh3P]Br, and each component were separately tested. It was observed that, although there was excellent selectivity in all cases, the conversion was relatively low in the case of [BuPh3P]Br and Cr-MIL-101-NH2 with only 24.3 and 42.8% yield, respectively. The highest yield was obtained by Cr-MIL-101-[BuPh3P]Br with 97.8% and turn over frequency (TOF) of 1087 [157].

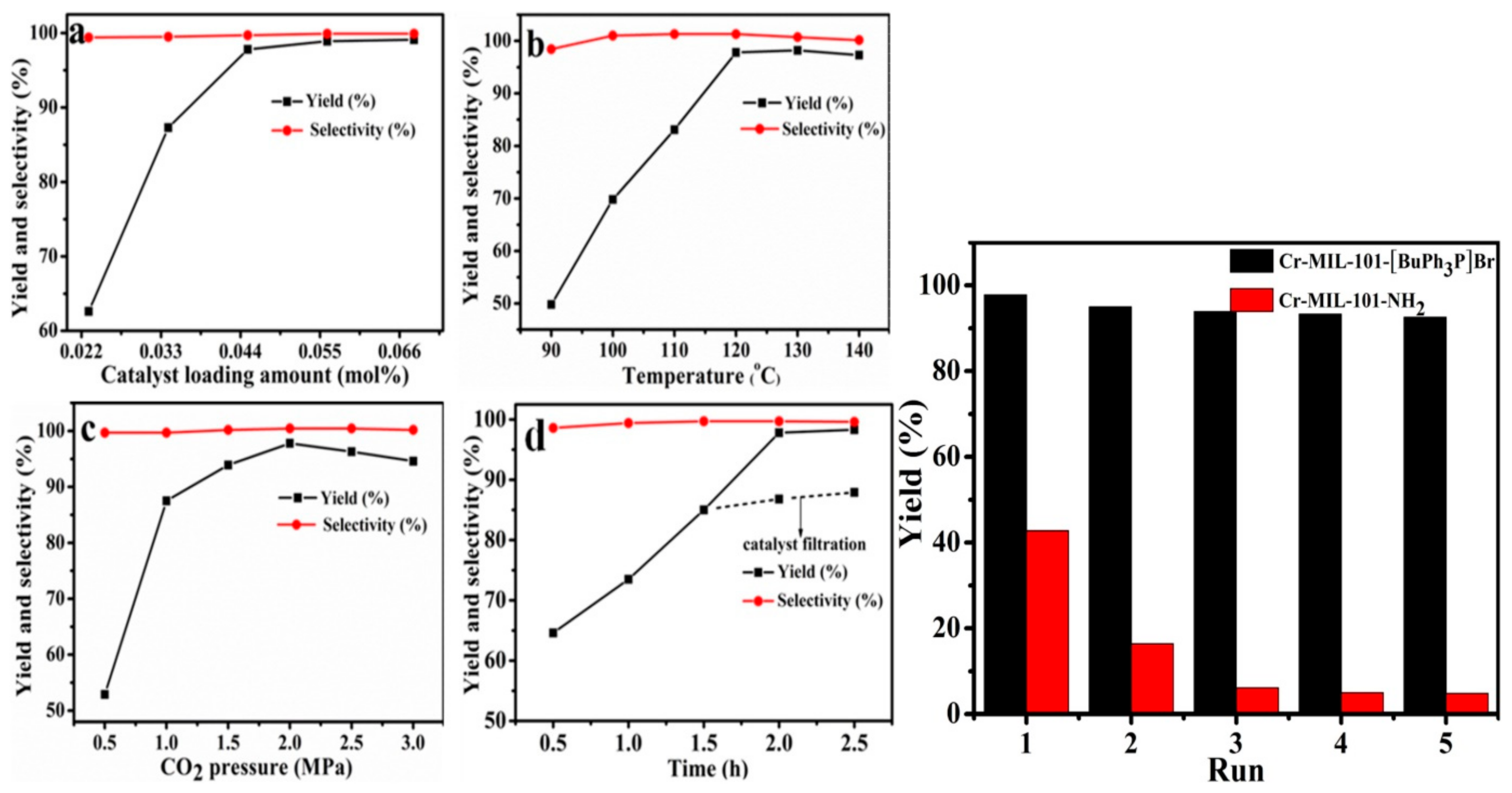

An investigation was carried out to optimize the reaction parameters (catalyst loading, temperature, CO2 pressure, and time) and the outcome is illustrated in Figure 12. A sharp increase in the yield was observed by increasing the concentration of the catalyst, as shown in Figure 12a. The production of propylene carbonate (PC) indicated the need for sufficient energy in the reaction, as shown in Figure 12b, indicating the need for high temperature. The increase in pressure also indicated a significant effect on the reaction up to 2.0 MPa before it begins to have no positive effect on the reaction, as in Figure 12c. Finally, the reaction time showed a significant increase in the formation of PC from 0.5 h to almost 2.5 h (Figure 12d), and after that, extending the time did not affect PC production. Generally, the selectivity of PC was independent in all the parameters involved for the reaction and therefore did not have an effect. The recyclability test for both Cr-MIL-101-[BuPh3P]Br and Cr-MIL-101-NH2 was carried out in the research using similar reaction conditions and Cr-MIL-101-[BuPh3P]Br was reused more than four times without any noticeable reduction in PC production. The catalyst was also tested for the conversion of other epoxides and a significant yield was recorded [157].
Bao et al. [159] reported a green synthesis and cost-effective method for yolk-shell structures of water etching of MOF. The research was carried to fabricate a MOF@mSiO2 as yolk-shell nanoreactors by silica coating method, which was followed by a water-etching approach. The material was fabricated to curtail the stability challenges of MOF catalyst under hydrothermal conditions as a result of weak metal-ligand bonds in their structures. In this regard, a high-density Lewis acid MIL-101 having unique structures and many catalytic advantages, especially for the acid catalytic reaction, was selected to be encapsulated into SiO2 and make a yolk-shell arrangement by engraving the MIL-101(Cr) surfaces with water, as shown in Figure 13. The structure of the nanoreactors MIL-101@mSiO2-YS was studied and characterized by various spectroscopic techniques, which proved the successful formation of MIL-101(Cr)@mSiO2-YS.
The study of the new structure revealed that the MIL-101(Cr) nanostructure will have the ability to maintain its Lewis acid sites and the nanoshell structure will deliver effective paths for bulk movement of reactants and products, while the yolk-shell safeguards the MIL-101 and reduces its disintegration during catalytic reaction processes. Thus, the combined special effects of the MIL-101(Cr) framework and that of SiO2 yolk shells are perfectly brought together to accomplish superior properties and stability that can be used in CO2 cycloaddition reaction. A cycloaddition of CO2 with styrene oxide (SO) was tested using the prepared composites and the outcome showed improved catalytic activity by having more cycles compared to the pristine MIL-101, which began to decrease in its catalytic activity after three cycles by the decrease in the yield of styrene carbonate from 98 to 66% due to collapse in its structure, as in Figure 14. The CO2 reaction was carried in the presence of TBABr co-catalyst using SO in an autoclave charged with 0.22 mmol catalysts; MIL-101@mSiO2-YS, 18 mmol SO, 0.62 mmol TBABr, and 0.8 MPa CO2 pressure under stirring for 48 h at room temperature [159].

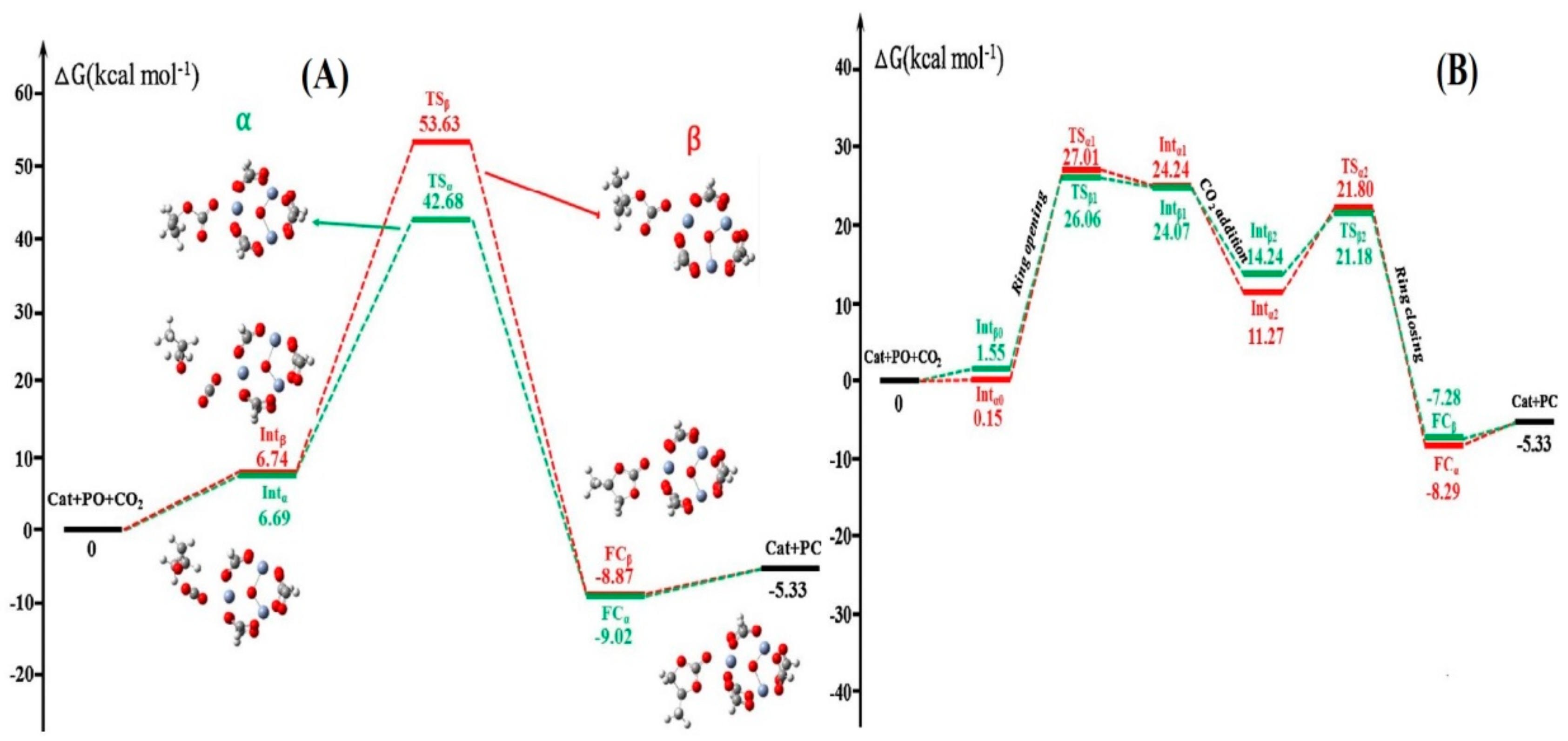

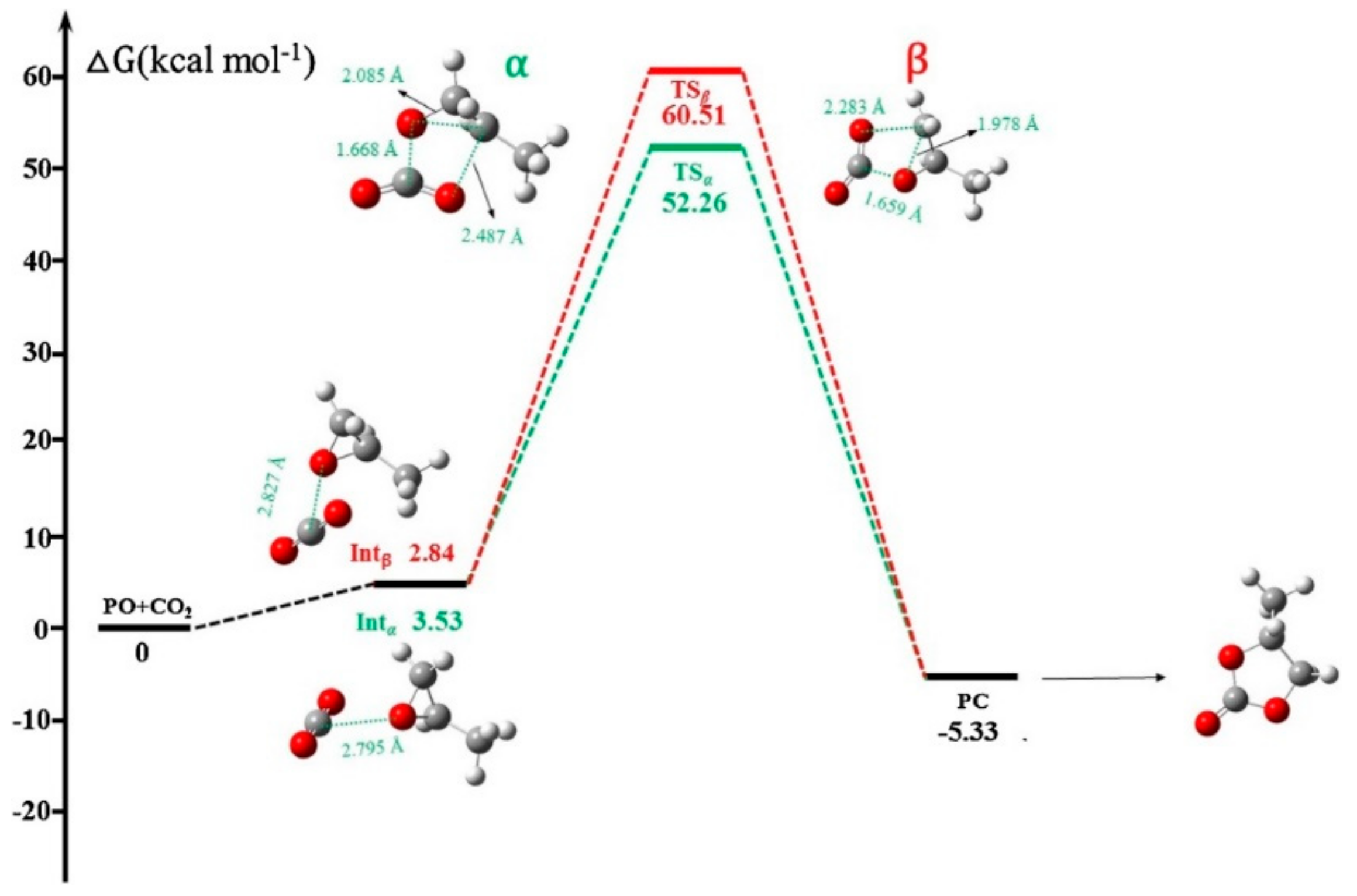

Hu et al. [67] reported a DFT study on the cycloaddition of CO2 to propylene oxide (PO) using binary system MIL-101/TBABr catalyst. A comparative study of non-catalyzed reaction Figure 15, MIL-101-catalyzed reaction as a single component catalyst (Figure 16A) and TBAB-catalyzed reactions (Figure 16B) were analyzed using Gibbs free energy surface profile and the transition states in the conversion processes were illustrated. It was discovered that the reaction in the binary system MIL-101/TBABr proceeded in a much simpler manner with a lower energy barrier (18.11 kcal mol−1) and 90% conversion. On the other hand, the MIL-101-catalysed alone reaction required a minimum energy of (46.89 kcal mol−1) and the TBABr-catalyzed alone required an energy of (26.86 kcal mol−1) with the conversion of 27 and 42%, respectively, while the non-catalyzed reaction, which proceeded under ambient conditions, required a minimum energy of (57.67 kcal mol−1) [67].
The mechanism study for the reaction showed a three-step path involving (i) the epoxide ring-opening, (ii) the carbon dioxide addition, and (iii) the ring-closing of the cyclic carbonate was preferentially established and was more kinetically positive compared to a two-step path, involving the opening of the epoxide ring and closure of the cyclic carbonate ring only. The Gibbs free energy surface profile for the two different routes is illustrated in Figure 17. The outcomes of the computational studies affirmed that in the presence of a binary catalyst (MIL-101/TBABr) the cycloadding of CO2 to PO occurs more easily compared to both non-catalyzed and TBABr-Catalyzed and MIL-101(Cr)-catalyzed pathways [67].
Liu et al. [160] carried an investigation for the coupling of propylene oxide (PO) with CO2 using MIL-101-based MOF composites prepared by post-synthesis and modification of MIL-101(Cr) as Lewis acid site with imidazolium-based ionic liquids to obtained MIL-101-IMBr composite, which fully characterized using different spectroscopic techniques, as in Figure 18. The ionic liquid was functionalized with basic sites that serve as a nucleophile in the reaction by providing halides ions to motivate the opening of the epoxide ring in the cycloaddition reaction. These special features made the composite possess a good catalytic property for cycloaddition reaction at moderately mild condition (80 °C and 0.8 MPa) without the addition of co-catalyst. The PO conversion reached more than 95% with 97% selectivity of propylene carbonate (PC). The catalyst also showed excellent reusability (Figure 19) and had no visible defect in the catalytic activity throughout the circles [160].
Wang, et al. [158] reported similar research by immobilizing ionic liquid (IL) on an amine-functionalized metal-organic framework in their effort to synthesize bifunctional catalyst with acid-base property for application in CO2 cycloaddition reaction. The immobilization between the IL and MIL-101-NH2 was constructed via a post-synthetic procedure to incorporate both amino and carboxylic groups into the material, as shown in Figure 20. The study was supported by density functional theory (DFT) calculations and the hybrid MOF was found to possess acid-base bifunctional futures, and was used as a single catalyst without co-catalyst addition.
The synthesized hybrid MOF (IL/MIL-101-NH2) was applied as a catalyst in the formation of propylene carbonate from CO2. The reaction was carried out in a low pressure of CO2 of 1.3 MPa and 1 h duration at a temperature of 120 °C, resulting in 91% yield. The strategic design and synthesis of the catalyst with characteristic acid-base properties opened a new window in the development of new material that can catalyze cycloaddition reaction of epoxides to CO2. The composite was found to be very stable by recycling up to five times without a change in its structure [158].

5. HKUST-1 for CO2 Cycloaddition with Epoxides

Another group of porous material that attracted the attention of researchers as a potential catalyst for CO2 cycloaddition with epoxides is HKUST-1 (Hong Kong University of Science and Technology) and also referred as MOF-199, a Cu-based of 1,3,5-benzenetricarboxylate (BTC) ligand. HKUST-1 was first synthesized in 1999 using copper(II) ion (Cu2+) as metal center and BTC ligand to give a light blue powder (Figure 21) [87,88,161], it was also reported using other metals with +2 oxidation state such as Cr2+ [162], Ni2+ [163], Zn2+ [164], Fe2+, Co2+ [165,166], and as bimetallic with two different metals at the center while maintaining the structure [167]. HKUST-1 material has a molecular formula [Cu3(BTC)2(H2O)3] and morphological structure with a sound level of thermal stability (Figure 22) and a capacity for chemical functionalization of the channel linings with face-centered-cubic crystals comprising a 3D intersecting system with big square-shaped pores (9 Å by 9 Å) of a continuous network through Cu(OAc)4 paddle wheel SBU, as in Figure 23. The open metal sites in the HKUST-1 structure provides the basis for CO2 adsorption property [7,168]. The large porous structure can also be used to create effective heterogeneous catalysts as templates to construct dynamic heterogeneous system by encapsulation of other nanomaterials to form composites. The resultant composite material can preserve the original properties of the HKUST-1, while gaining additional unique properties that can be applied in different applications [104,169,170,171,172].
In recent years, progress was made by various researchers on the modification and application of HKUST-1-based MOFs as a potential catalyst for CO2 cycloaddition reaction with epoxides. Some of these findings are summarized here.
A series of benzene tricarboxylic acid (btc)-based metal-organic frameworks were synthesized by Rani, et al. [58]. The MOFs were solvothermally synthesized under the same experimental conditions and fully characterized by different analytical methods. The synthesized MOFs included; Zn, Co, Ni, and Cu btc-based MOFs, which were described to exhibit diverse structural and catalytic behaviors [58]. A study on the application of MOFs for CO2 cycloaddition with PO under mild conditions was carried out successfully. For the first time, Zn, Co, and Ni btc-based frameworks were exploited as a catalyst for CO2 cycloaddition reaction with epoxides and displayed remarkable yield under certain reaction conditions. An attempt was made previously with Cu-based (HKUST-1) MOF on this catalytic application, but interestingly, in this study, the Cu-btc was also reported to exhibit higher yield than in the previous reports [54,169]. The research further revealed that among the four synthesized MOF catalysts, Zn-btc was identified to perform higher catalytic performance in the CO2 fixation reaction as compared with other MOFs having a large turnover number (TON) of 3785 mol−1 and a turnover frequency (TOF) of 946 h−1 with more than 99% yield (Figure 24) [58].
The structural features of the synthesized MOFs were critically analyzed to further reveal the chemistry relating to their high catalytic performance. The white crystals of Zn3(btc)3(H2O)6∙2H2O were obtained by reacting zinc nitrate salt with 1,3,5-benzene tricarboxylic acid under solvothermal conditions at a temperature of 85 °C for 24 h. The Zn3(btc)3(H2O)6∙2H2O, (Zn-btc), formed a hexagonal white crystal with the P6522 space group as revealed by XRD analysis. The Zn-btc asymmetric unit contained [Zn2(btc)2(H2O)4] and two molecules of lattice vapor. In the asymmetric unit, there were two types of Zn atoms; each was present in a distorted octahedral geometry and linked in the planar position to three separate btc ligands and two coordinated water molecules in the equatorial position. Two among the three btc ligands acted as bidentate ligands. The Zn2-coordinated bidentate ligand was tentatively coordinated with additional Zn1 and Zn2. The overall coordination of Zn and btc ligands contributed to the creation of 2D sheet structure, as shown in Figure 25 [58].
The Co-btc and Ni-btc crystals were obtained using the same experimental conditions by reacting cobalt nitrate and nickel nitrate with btc ligand, respectively. SXRD was used to interpret the structures of the two MOFs, which contain two distinct metal centers that are isostructural, both in a distorted octahedral geometry. The structure consisted of coordinated metal centers with two molecules in the central position and two water molecules and btc acting as a bidentate ligand in a planer position. Another metal center was coordinated to two monodentate btc ligands in the central position and four water molecules in a planar position. The btc was bidentatively connected on both sides to one metal center and monodentatively to two separate metal centers and vice-versa, forming a zig-zag ID chain through H-bonding, which resulted in forming a 2D-sheet structure with large pores (Figure 26). The resulting structures were reconnected via C-H π bond and O-H weak bond interaction to form 3D structure (Figure 27) [58].
A single crystal structure study for Cu-btc showed the Cu metal in a square pyramidal geometry coordinated with four planar btc carboxylic oxygen molecules and water molecules in an equatorial position. Via four btc ligands, two Cu centers were connected forming a structure resembling paddle wheels, which were interconnected to give a 3D system structure with large pores of ~32 Å as earlier described, see Figure 23.
The recyclability test for all the synthesized MOF catalysts was investigated using the optimum conditions at 120 °C and CO2 pressure of 0.7 MPa for the length of 4 h to explore the catalyst recycling ability of the MOFs. The outcome reveals that Zn-btc had the highest recycling ability, followed by Cu-btc. [58]
Another related research was carried out by Ding et al. [133] who conducted a computational study on a series of HKUST-1(Cu-btc) structures with different metal centers to design a special catalyst for CO2 fixation with epoxides. The catalytic activity of M-HKUST-1(M = Sc, Ti, V, Cr, Mo, Cd, Ru, W, Cu, Fe, Zn) under the influence of TBA salts in a series of four different halogen anions denoted as TBAX (X = F, Cl, Br and I) as co-catalysts in the formation of propylene carbonate from CO2 and PO was investigated. The recent development in computing technology has driven great advancement in designing materials with high accuracy and efficiency and this technology was employed in the development of new catalytic materials for the fixation of CO2, which mainly depends on trials of a different experiment.

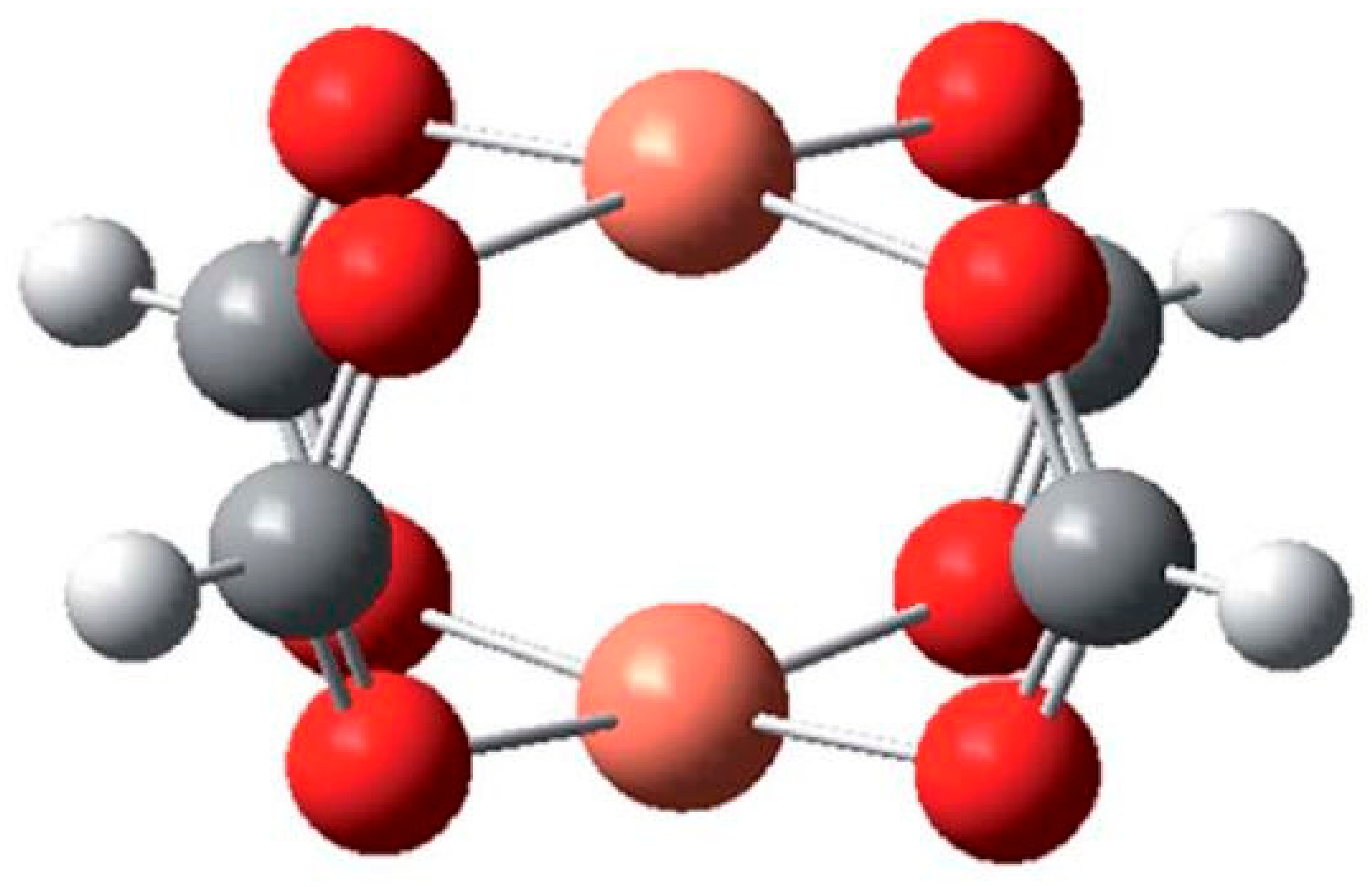

The models for Cr-HKUST-1, Cu-HKUST-1, and Fe-HKUST-1 obtained from the Crystallographic Data Centre (CCDC) of Cambridge University and others through isostructural substitution of the Cu atom having identical crystal environment from the known HKUST-1 MOF. A cluster model with a narrow dimension was utilized for the single-site catalytic reaction, which usually happens inside the HKUST-1 cavities. The study of the mechanism was carried out by using condensed cluster models and the effect of the metal substitution was further studied. The simple cluster was developed to imitate the HKUST-1 framework (Figure 28).
The most generally accepted mechanism for a MOF-based catalyst in CO2 cycloaddition with epoxides can be summarized into four steps, starting with the adsorption of epoxide, epoxide ring opening, CO2 insertion, and finally cyclic carbonate formation by closing the ring. The predicted mechanism for HKUST-1 is illustrated in Figure 29. The study also revealed a similar mechanism to that of regular Cu-HKUST-1 with the ring-opening playing the most critical part, not the insertion of CO2. This was calculated to require moderately lower barrier as defected in the Gibbs free energy barrier (Figure 30) [133].
The M-HKUST-1 computational screening can be depicted by studying the rate-determining step in the reaction. This can be obtained by assessing the activity of the whole M-HKUST-1 systems, thereby discovering the most effective catalyst. The energy barriers for the key step were prescribed as presented in Figure 30. For the M-HKUST-1/Br− catalyst, the rate-determining energy barrier relied primarily on the metal centers. According to the studies, W-HKUST-1 would accomplish a high potential to attain superior activity among the M-HKUST-1 system. Furthermore, TBABr was forecast as the most effective co-catalyst among the TBAX studied for the better catalytic function of M-HKUST-1 [133].
Wu et al. [17] carried a similar analysis in 2018 on btc-based MOF using different metal centers (M = Mn, Ni, Co) with a general formula, [(CH3)2NH2][M3(BTC)(HCOO)4(H2O)] H2O denoted as M-BTC. The MOF was prepared and used under various reaction conditions to catalyzed CO2 cycloaddition with epichlorohydrin (ECH). The catalysts were fully characterized using different analytical methods and highest catalytic activity was recorded in Mn-BTC with over 98% conversions of ECH and 96% selectivity at a temperature of 105 °C, 3.0 MPa CO2 pressure for 9 h. Mn-BTC catalyst also showed remarkable stability and could be reused with a small reduction in its catalytic ability over three times. Moreover, CO2 was added to other epoxides and DFT calculations were performed, and the yields revealed in the order ECH > propene oxide > 1,2-epoxybutane > allyl glycidyl ether [17].
Previously, research was carried out by Kurisingal et al. on two forms of metal-organic frameworks (Cu-BTC and UiO-66) as a binary system, which were synthesized solvothermally for the first time and applied as catalysts for CO2-epoxide cycloaddition without the addition of solvent. The research focused on binary MOF with Cu and Zr metal centers and assessed their catalytic potentials for CO2 conversion into cyclic carbonate compounds with epoxides in the absence of any solvent. The study of the effects of some reaction parameters such as catalyst amount, temperature, reaction time, and CO2 pressure was examined. The synthesized binary MOFs were used for the CO2-epoxide cycloaddition in the presence of TBABr co-catalyst. The catalyst (UiO-66/Cu-BTC) accomplished good conversion for epichlorohydrin (ECH) with over 99% selectivity. The remarkable conversion of ECH by the UiO-66/Cu-BTC/TBAB binary system was promoted by the combined effect of the two metal centers (Cu and Zr) and the bromide ion (Br−) from TBAB. The catalyst reusability was explored by reusing the catalyst six times without losing its catalytic properties [64].

6. Summary and Outlooks

The application of metal-organic framework-based catalytic materials for the CO2 cycloaddition with epoxides in some recent studies was summarized and reported in this review. MIL-101(Cr) and HKUST-1 based MOFs were identified as a high potential MOF catalysts for the conversion of CO2 into cyclic organic carbonates. The two forms of MOF materials, MIL-101(Cr) and HKUST-1, were both identified to possess special features that gave the advantage in catalyzing the reaction of CO2 with epoxides. Both MIL-101(Cr) and HKUST-1 frame works were characterized with Lewis-acid property due to the presence of metal (II) ions at their metal centers and their structural flexibilities. Thus, allowing their modifications by replacing different functional groups in the organic ligand of MIL-101 and substituting the metal centers in HKUST-1 respectively, while maintaining their backbone structures. The large porosity in the structures of the two materials contributed to their adsorption ability in CO2 and can also be utilized in making effective heterogeneous system by encapsulation of other nanomaterials to form composites. The resultant composites would preserve the original properties of the MOFs, while gaining additional unique properties that can be applied in different applications. There is currently on-going research to improve the catalytic properties of the two MOFs (MIL-101(Cr) and HKUST-1) for better performance. The review also shown that MOF-based catalysts operate effectively when coupled with a co-catalyst. The presence of a co-catalyst helps in performing the crucial role of the activation of the epoxide ring-opening in the second step of the reaction chain. Among the several co-catalyst materials, the one with high electrophilic ability served the best in catalyzing the reaction and for this process, tetrabutylammonium bromide (TBABr) was proven to show the highest performance. The continuous modification of the porous MOFs revealed positive results towards increasing their catalytic activity for CO2 cycloaddition with epoxides.

Author Contributions

The authors have contributed in writing this review as follows: Conceptualization, S.G.M. and Z.M.A.M.; writing—original draft, S.G.M.; funding acquisition, S.G.M. and Z.M.A.M.; project administration, Z.M.A.M.; validation, O.A. and Z.M.A.M.; supervision, writing—review & editing, Z.M.A.M. and O.A.; visualization, S.G.M. and O.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded and fully supported by Ministry of Higher Education (MOHE) in Malaysia under the Fundamental Research Grant Scheme (FRGS) with reference code FRGS/1/2018/STG01/UTP/02/3.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors gratefully acknowledge financial support by the Ministry of Higher Education (MOHE) in Malaysia for the Fundamental Research Grant Scheme award and the Centre for Contaminant Control & Utilization (CenCoU), Universiti Teknologi PETRONAS for their relevant support and all stakeholders of the Universiti Teknologi PETRONAS for granting access to the most recent Database from highly reputable journals.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

MOFsMetal-organic frameworks
TBABrTetrabutyl ammonium bromide
SBUSecondary Building Unit
SOStyrene Oxide
POPropylene oxide
PCpropylene Carbonate
ECHEpichlorohydrin
EBHEpibromohydrin
SEOSpiro-Epoxy Oxindole
BPE1,2-bis(4-pyridyl)ethylene ligand
BTC1,3,5-benzenetricarboxylate
HKUSTHong Kong University of Science and Technology
RTRoom temperature
KIpotassium iodide
ÅAperture
CTABCetyltrimethylammonium bromide

References

  1. Ma, Y.; Wang, Z.; Xu, X.; Wang, J. Review on porous nanomaterials for adsorption and photocatalytic conversion of CO2. Chin. J. Catal. 2017, 38, 1956–1969. [Google Scholar] [CrossRef]
  2. Appaturi, J.N.; Adam, F. A facile and efficient synthesis of styrene carbonate via cycloaddition of CO2 to styrene oxide over ordered mesoporous MCM-41-Imi/Br catalyst. Appl. Catal. B Environ. 2013, 136–137, 150–159. [Google Scholar] [CrossRef]
  3. Schoedel, A.; Ji, Z.; Yaghi, O.M. The role of metal–organic frameworks in a carbon-neutral energy cycle. Nat. Energy 2016, 1, 16034. [Google Scholar] [CrossRef]
  4. Gao, W.-Y.; Chen, Y.; Niu, Y.; Williams, K.; Cash, L.; Perez, P.J.; Wojtas, L.; Cai, J.; Chen, Y.-S.; Ma, S. Crystal Engineering of an nbo Topology Metal-Organic Framework for Chemical Fixation of CO2 under Ambient Conditions. Angew. Chem. Int. Ed. 2014, 53, 2615–2619. [Google Scholar] [CrossRef] [PubMed]
  5. Cao, C.-S.; Shi, Y.; Xu, H.; Zhao, B. A multifunctional MOF as a recyclable catalyst for the fixation of CO2 with aziridines or epoxides and as a luminescent probe of Cr(vi). Dalton Trans. 2018, 47, 4545–4553. [Google Scholar] [CrossRef] [PubMed]
  6. Mario, R.; Yuan, Z.; Eden, M.R.; Gani, R. Toward the Development and Deployment of Large-Scale Carbon Dioxide Capture and Conversion Processes. Ind. Eng. Chem. Res. 2016, 55, 3383–3419. [Google Scholar] [CrossRef] [Green Version]
  7. Raganati, F.; Gargiulo, V.; Ammendola, P.; Alfe, M.; Chirone, R. CO2 capture performance of HKUST-1 in a sound assisted fluidized bed. Chem. Eng. J. 2014, 239, 75–86. [Google Scholar] [CrossRef]
  8. Beyzavi, M.H.; Stephenson, C.J.; Eliu, Y.; Ekaragiaridi, O.; Hupp, J.T.; Farha, O.K. Metal-Organic Framework-Based Catalysts: Chemical Fixation of CO2 with Epoxides Leading to Cyclic Organic Carbonates. Front. Energy Res. 2015, 3, 1–10. [Google Scholar] [CrossRef] [Green Version]
  9. Zhu, J.; Wu, L.; Bu, Z.; Jie, S.; Li, B.-G. Polyethyleneimine-Modified UiO-66-NH2(Zr) Metal–Organic Frameworks: Preparation and Enhanced CO2 Selective Adsorption. ACS Omega 2019, 4, 3188–3197. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Kashim, M.Z.; Tsegab, H.; Rahmani, O.; Abu Bakar, Z.A.; Aminpour, S.M. Reaction Mechanism of Wollastonite In Situ Mineral Carbonation for CO2 Sequestration: Effects of Saline Conditions, Temperature, and Pressure. ACS Omega 2020, 5, 28942–28954. [Google Scholar] [CrossRef]
  11. Rahmani, O. Siderite precipitation using by-product red gypsum for CO2 sequestration. J. CO2 Util. 2018, 24, 321–327. [Google Scholar] [CrossRef]
  12. Yu, C.-H.; Huang, C.-H.; Tan, C.-S. A Review of CO2 Capture by Absorption and Adsorption. Aerosol Air Qual. Res. 2012, 12, 745–769. [Google Scholar] [CrossRef] [Green Version]
  13. Chen, C.; Kim, J.; Ahn, W.-S. CO2 capture by amine-functionalized nanoporous materials: A review. Korean J. Chem. Eng. 2014, 31, 1919–1934. [Google Scholar] [CrossRef]
  14. Pentyala, V.; Davydovskaya, P.; Pohle, R.; Urban, G.; Yurchenko, O. Mg-MOF74 and Co-MOF74 as Sensing Layers for CO2 Detection. Procedia Eng. 2014, 87, 1071–1074. [Google Scholar] [CrossRef] [Green Version]
  15. Ding, M.; Flaig, R.W.; Jiang, H.-L.; Yaghi, O.M. Carbon capture and conversion using metal–organic frameworks and MOF-based materials. Chem. Soc. Rev. 2019, 48, 2783–2828. [Google Scholar] [CrossRef] [PubMed]
  16. Huh, S. Direct Catalytic Conversion of CO2 to Cyclic Organic Carbonates under Mild Reaction Conditions by Metal—Organic Frameworks. Catalysts 2019, 9, 34. [Google Scholar] [CrossRef] [Green Version]
  17. Wu, Y.; Song, X.; Li, S.; Zhang, J.; Yang, X.; Shen, P.; Gao, L.; Wei, R.; Zhang, J.; Xiao, G. 3D-monoclinic M–BTC MOF (M = Mn, Co, Ni) as highly efficient catalysts for chemical fixation of CO2 into cyclic carbonates. J. Ind. Eng. Chem. 2018, 58, 296–303. [Google Scholar] [CrossRef]
  18. Liang, J.; Xie, Y.-Q.; Wu, Q.; Wang, X.-Y.; Liu, T.-T.; Li, H.-F.; Huang, Y.-B.; Cao, R. Zinc Porphyrin/Imidazolium Integrated Multivariate Zirconium Metal–Organic Frameworks for Transformation of CO2 into Cyclic Carbonates. Inorg. Chem. 2018, 57, 2584–2593. [Google Scholar] [CrossRef]
  19. Shaikh, R.R.; Pornpraprom, S.; D’Elia, V. Catalytic Strategies for the Cycloaddition of Pure, Diluted, and Waste CO2 to Epoxides under Ambient Conditions. ACS Catal. 2018, 8, 419–450. [Google Scholar] [CrossRef]
  20. Le Quéré, C.; Jackson, R.B.; Jones, M.W.; Smith, A.J.P.; Abernethy, S.; Andrew, R.M.; De-Gol, A.J.; Willis, D.R.; Shan, Y.; Canadell, J.G.; et al. Temporary reduction in daily global CO2 emissions during the COVID-19 forced confinement. Nat. Clim. Chang. 2020, 10, 647–653. [Google Scholar] [CrossRef]
  21. Carreon, M.A. Metal Organic Frameworks as Catalysts in the Conversion of CO2 to Cyclic Carbonates. Indian J. Chem. Sect. A 2012, 51, 1306–1314. [Google Scholar]
  22. Beyzavi, M.H.; Klet, R.C.; Tussupbayev, S.; Borycz, J.; Vermeulen, N.A.; Cramer, C.J.; Stoddart, J.F.; Hupp, J.T.; Farha, O.K. A Hafnium-Based Metal–Organic Framework as an Efficient and Multifunctional Catalyst for Facile CO2 Fixation and Regioselective and Enantioretentive Epoxide Activation. J. Am. Chem. Soc. 2014, 136, 15861–15864. [Google Scholar] [CrossRef] [PubMed]
  23. D’Elia, V.; Dong, H.; Rossini, A.J.; Widdifield, C.M.; Vummaleti, S.V.C.; Minenkov, Y.; Poater, A.; Abou-Hamad, E.; Pelletier, J.D.A.; Cavallo, L.; et al. Cooperative Effect of Monopodal Silica-Supported Niobium Complex Pairs Enhancing Catalytic Cyclic Carbonate Production. J. Am. Chem. Soc. 2015, 137, 7728–7739. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Zhu, J.; Usov, P.M.; Xu, W.; Celis-Salazar, P.J.; Lin, S.; Kessinger, M.C.; Landaverde-Alvarado, C.; Cai, M.; May, A.M.; Slebodnick, C.; et al. A New Class of Metal-Cyclam-Based Zirconium Metal-Organic Frameworks for CO2 Adsorption and Chemical Fixation. J. Am. Chem. Soc. 2018, 140, 993–1003. [Google Scholar] [CrossRef] [PubMed]
  25. Liang, L.; Liu, C.; Jiang, F.; Chen, Q.; Zhang, L.; Xue, H.; Jiang, H.-L.; Qian, J.; Yuan, D.; Hong, M. Carbon dioxide capture and conversion by an acid-base resistant metal-organic framework. Nat. Commun. 2017, 8, 1–10. [Google Scholar] [CrossRef]
  26. Ravi, S.; Puthiaraj, P.; Ahn, W.-S. Cyclic carbonate synthesis from CO2 and epoxides over diamine-functionalized porous organic frameworks. J. CO2 Util. 2017, 21, 450–458. [Google Scholar] [CrossRef]
  27. Kim, H.-G.; Lim, C.-S.; Kim, D.-W.; Cho, D.-H.; Lee, D.-K.; Chung, J.S. Multifunctional alkanolamine as a catalyst for CO2 and propylene oxide cycloaddition. Mol. Catal. 2017, 438, 121–129. [Google Scholar] [CrossRef]
  28. Bondarenko, G.N.; Dvurechenskaya, E.G.; Ganina, O.G.; Alonso, F.; Beletskaya, I.P. Solvent-free synthesis of cyclic carbonates from CO2 and epoxides catalyzed by reusable alumina-supported zinc dichloride. Appl. Catal. B Environ. 2019, 254, 380–390. [Google Scholar] [CrossRef]
  29. Luo, R.; Zhang, W.; Yang, Z.; Zhou, X.; Ji, H. Synthesis of cyclic carbonates from epoxides over bifunctional salen aluminum oligomers as a CO2-philic catalyst: Catalytic and kinetic investigation. J. CO2 Util. 2017, 19, 257–265. [Google Scholar] [CrossRef]
  30. Fu, X.; Zhou, D.; Wang, K.; Jing, H. Pd/C as a high efficient and reusable catalyst for cycloaddition of CO2 to epoxides. J. CO2 Util. 2016, 14, 31–36. [Google Scholar] [CrossRef]
  31. Ma, D.; Zheng, H.; Wan, H.-M.; Chen, Y.; Xu, J.; Xue, B. Nitrogen-containing ordered mesoporous carbon grafted by alkyl bromide: Simple synthesis and its catalytic application in solvent-free cycloaddition of CO2. Microporous Mesoporous Mater. 2018, 258, 244–250. [Google Scholar] [CrossRef]
  32. Zhang, S.; Wang, Q.; Puthiaraj, P.; Ahn, W.-S. MgFeAl layered double hydroxide prepared from recycled industrial solid wastes for CO2 fixation by cycloaddition to epoxides. J. CO2 Util. 2019, 34, 395–403. [Google Scholar] [CrossRef]
  33. Yang, Y.; Guo, Z.; Chen, X.-H.; Liu, J. A Ni3O-cluster based porous MOF for catalytic conversion of CO2 to cyclic carbonates. J. Solid State Chem. 2019, 276, 190–193. [Google Scholar] [CrossRef]
  34. Ahmed, M.; Sakthivel, A. Preparation of cyclic carbonate via cycloaddition of CO2 on epoxide using amine-functionalized SAPO-34 as catalyst. J. CO2 Util. 2017, 22, 392–399. [Google Scholar] [CrossRef]
  35. Jayakumar, S.; Li, H.; Tao, L.; Li, C.; Liu, L.; Chen, J.; Yang, Q. Cationic Zn-Porphyrin Immobilized in Mesoporous Silicas as Bifunctional Catalyst for CO2 Cycloaddition Reaction under Cocatalyst Free Conditions. ACS Sustain. Chem. Eng. 2018, 6, 9237–9245. [Google Scholar] [CrossRef]
  36. Fu, X.; Jing, X.; Jin, L.; Zhang, L.; Zhang, X.; Hu, B.; Jing, H. Chiral basket-handle porphyrin-Co complexes for the catalyzed asymmetric cycloaddition of CO2 to epoxides. Chin. J. Catal. 2018, 39, 997–1003. [Google Scholar] [CrossRef]
  37. Jiang, X.; Gou, F.; Fu, X.; Jing, H. Ionic liquids-functionalized porphyrins as bifunctional catalysts for cycloaddition of carbon dioxide to epoxides. J. CO2 Util. 2016, 16, 264–271. [Google Scholar] [CrossRef]
  38. Dai, W.; Yang, W.; Zhang, Y.; Wang, D.; Luo, X.; Tu, X. Novel isothiouronium ionic liquid as efficient catalysts for the synthesis of cyclic carbonates from CO2 and epoxides. J. CO2 Util. 2017, 17, 256–262. [Google Scholar] [CrossRef]
  39. Mao, P.; Dai, W.; Yang, W.; Luo, S.; Zhang, Y.; Mao, J.; Luo, X.; Zou, J. Polymer nanoparticles grafted zinc-containing ionic liquids: A highly efficient and recyclable catalyst for cooperative cycloaddition of CO2 with epoxides. J. CO2 Util. 2018, 28, 96–106. [Google Scholar] [CrossRef]
  40. Pawar, A.A.; Kim, H. Reaction parameters dependence of the CO2/epoxide coupling reaction catalyzed by tunable ionic liquids, optimization of comonomer-alternating enhancement pathway. J. CO2 Util. 2019, 33, 500–512. [Google Scholar] [CrossRef]
  41. Zheng, D.; Wang, L.; Jiang, J.; Liu, F.; Zhang, J. Effect of cluster of protic pyrazolium ionic liquids or epoxides on the cycloaddition of CO2. J. Mol. Liq. 2019, 295, 111652. [Google Scholar] [CrossRef]
  42. Wang, T.; Ma, Y.; Jiang, J.; Zhu, X.; Fan, B.; Yu, G.; Li, N.; Wang, S.; Ren, T.; Wang, L.; et al. Hydroxyl-functionalized pyrazolium ionic liquids to catalyze chemical fixation of CO2: Further benign reaction condition for the single-component catalyst. J. Mol. Liq. 2019, 293, 111479. [Google Scholar] [CrossRef]
  43. Guglielmero, L.; Mezzetta, A.; Pomelli, C.S.; Chiappe, C.; Guazzelli, L. Evaluation of the effect of the dicationic ionic liquid structure on the cycloaddition of CO2 to epoxides. J. CO2 Util. 2019, 34, 437–445. [Google Scholar] [CrossRef]
  44. Liu, D.; Li, G.; Liu, J.; Wei, Y.; Guo, H. Mesoporous Titanium-Silicalite Zeolite Containing Organic Templates as a Bifunctional Catalyst for Cycloaddition of CO2 and Epoxides. ACS Appl. Mater. Interfaces 2018, 10, 22119–22129. [Google Scholar] [CrossRef]
  45. Liu, D.; Li, G.; Liu, J.; Yi, Y. Organic-inorganic hybrid mesoporous titanium silica material as bi-functional heterogeneous catalyst for the CO2 cycloaddition. Fuel 2019, 244, 196–206. [Google Scholar] [CrossRef]
  46. Kim, H.-G.; Seo, B.; Lim, C.-S. Metal- and halide-free catalysts supported on silica and their applications to CO2 cycloaddition reactions. J. Ind. Eng. Chem. 2019, 75, 202–210. [Google Scholar] [CrossRef]
  47. Hu, L.; Yan, Z.; Mo, X.; Peng, X.; Chen, L. Hierarchical Co/ZIF-8 as an efficient catalyst for cycloaddition of CO2 and epoxide. Microporous Mesoporous Mater. 2020, 294, 109917. [Google Scholar] [CrossRef]
  48. Bhin, K.M.; Tharun, J.; Roshan, K.R.; Kim, D.-W.; Chung, Y.; Park, D.-W. Catalytic performance of zeolitic imidazolate framework ZIF-95 for the solventless synthesis of cyclic carbonates from CO2 and epoxides. J. CO2 Util. 2017, 17, 112–118. [Google Scholar] [CrossRef]
  49. Della Monica, F.; Leone, M.; Buonerba, A.; Grassi, A.; Milione, S.; Capacchione, C. CO2 cycloaddition to epoxides promoted by bis-thioether-phenolate Fe(II) and Fe(III) complexes. Mol. Catal. 2018, 460, 46–52. [Google Scholar] [CrossRef]
  50. Cuesta-Aluja, L.; Campos-Carrasco, A.; Castilla, J.; Reguero, M.; Masdeu-Bultó, A.M.; Aghmiz, A. Highly active and selective Zn(II)-NN′O Schiff base catalysts for the cycloaddition of CO2 to epoxides. J. CO2 Util. 2016, 14, 10–22. [Google Scholar] [CrossRef]
  51. Ullah, H.; Mousavi, B.; Younus, H.A.; Khattak, Z.A.; Suleman, S.; Jan, M.T.; Yu, B.; Chaemchuen, S.; Verpoort, F. ONO pincer type ligand complexes of Al(III) as efficient catalyst for chemical fixation of CO2 to epoxides at atmospheric pressure. J. Catal. 2019, 377, 190–198. [Google Scholar] [CrossRef]
  52. Qu, L.; del Rosal, I.; Li, Q.; Wang, Y.; Yuan, D.; Yao, Y.; Maron, L. Efficient CO2 transformation under ambient condition by heterobimetallic rare earth complexes: Experimental and computational evidences of a synergistic effect. J. CO2 Util. 2019, 33, 413–418. [Google Scholar] [CrossRef]
  53. Pal, T.K.; De, D.; Bharadwaj, P.K. Metal–organic frameworks for the chemical fixation of CO2 into cyclic carbonates. Coord. Chem. Rev. 2020, 408, 213173. [Google Scholar] [CrossRef]
  54. Guo, X.; Zhou, Z.; Chen, C.; Bai, J.; He, C.; Duan, C. New rht-Type Metal–Organic Frameworks Decorated with Acylamide Groups for Efficient Carbon Dioxide Capture and Chemical Fixation from Raw Power Plant Flue Gas. ACS Appl. Mater. Interfaces 2016, 8, 31746–31756. [Google Scholar] [CrossRef] [PubMed]
  55. Kim, J.; Kim, S.-N.; Jang, H.-G.; Seo, G.; Ahn, W.-S. CO2 cycloaddition of styrene oxide over MOF catalysts. Appl. Catal. A Gen. 2013, 453, 175–180. [Google Scholar] [CrossRef]
  56. Parmar, B.; Patel, P.; Pillai, R.S.; Tak, R.K.; Kureshy, R.I.; Khan, N.-U.H.; Suresh, E. Cycloaddition of CO2 with an Epoxide-Bearing Oxindole Scaffold by a Metal–Organic Framework-Based Heterogeneous Catalyst under Ambient Conditions. Inorg. Chem. 2019, 58, 10084–10096. [Google Scholar] [CrossRef] [PubMed]
  57. Lyu, J.; Zhang, X.; Li, P.; Wang, X.; Buru, C.T.; Bai, P.; Guo, X.; Farha, O.K. Exploring the Role of Hexanuclear Clusters as Lewis Acidic Sites in Isostructural Metal–Organic Frameworks. Chem. Mater. 2019, 31, 4166–4172. [Google Scholar] [CrossRef]
  58. Rani, D.; Kumar, R.; Kumar, V.; Singh, M. High yield cycloaddition of carbon dioxide to epoxides catalyzed by metal–organic frameworks. Mater. Today Sustain. 2019, 5, 100021. [Google Scholar] [CrossRef]
  59. Noh, J.; Kim, Y.; Park, H.; Lee, J.; Yoon, M.; Park, M.H.; Kim, Y.; Kim, M. Functional group effects on a metal-organic framework catalyst for CO2 cycloaddition. J. Ind. Eng. Chem. 2018, 64, 478–483. [Google Scholar] [CrossRef]
  60. Xue, Z.; Jiang, J.; Ma, M.-G.; Li, M.-F.; Mu, T. Gadolinium-Based Metal–Organic Framework as an Efficient and Heterogeneous Catalyst to Activate Epoxides for Cycloaddition of CO2 and Alcoholysis. ACS Sustain. Chem. Eng. 2017, 5, 2623–2631. [Google Scholar] [CrossRef]
  61. Kim, S.-H.; Babu, R.; Kim, D.-W.; Lee, W.; Park, D.-W. Cycloaddition of CO2 and propylene oxide by using M (HBTC)(4,4′-bipy)·3DMF (M = Ni, Co, Zn) metal-organic frameworks. Chin. J. Catal. 2018, 39, 1311–1319. [Google Scholar] [CrossRef]
  62. Li, X.; Cheetham, A.K.; Jiang, J. CO2 cycloaddition with propylene oxide to form propylene carbonate on a copper metal-organic framework: A density functional theory study. Mol. Catal. 2019, 463, 37–44. [Google Scholar] [CrossRef]
  63. Kurisingal, J.F.; Rachuri, Y.; Gu, Y.; Choe, Y.; Park, D.-W. Multi-variate metal organic framework as efficient catalyst for the cycloaddition of CO2 and epoxides in a gas-liquid-solid reactor. Chem. Eng. J. 2020, 386, 121700. [Google Scholar] [CrossRef]
  64. Kurisingal, J.F.; Rachuri, Y.; Gu, Y.; Kim, G.-H.; Park, D.-W. Binary metal-organic frameworks: Catalysts for the efficient solvent-free CO2 fixation reaction via cyclic carbonates synthesis. Appl. Catal. A Gen. 2019, 571, 1–11. [Google Scholar] [CrossRef]
  65. Lu, B.-B.; Jiang, W.; Yang, J.; Liu, Y.-Y.; Ma, J.-F. Resorcin [4]arene-Based Microporous Metal–Organic Framework as an Efficient Catalyst for CO2 Cycloaddition with Epoxides and Highly Selective Luminescent Sensing of Cr2O72−. ACS Appl. Mater. Interfaces 2017, 9, 39441–39449. [Google Scholar] [CrossRef] [PubMed]
  66. Olajire, A.A. Synthesis chemistry of metal-organic frameworks for CO2 capture and conversion for sustainable energy future. Renew. Sustain. Energy Rev. 2018, 92, 570–607. [Google Scholar] [CrossRef]
  67. Hu, T.-D.; Sun, Y.-W.; Ding, Y.-H. A quantum-chemical insight on chemical fixation carbon dioxide with epoxides co-catalyzed by MIL-101 and tetrabutylammonium bromide. J. CO2 Util. 2018, 28, 200–206. [Google Scholar] [CrossRef]
  68. Babu, R.; Kim, S.-H.; Kurisingal, J.F.; Kim, H.-J.; Choi, G.-G.; Park, D.-W. A room temperature synthesizable zeolitic imidazolium framework catalyst for the solvent-free synthesis of cyclic carbonates. J. CO2 Util. 2018, 25, 6–13. [Google Scholar] [CrossRef]
  69. Zou, B.; Hu, C. Halogen-free processes for organic carbonate synthesis from CO2. Curr. Opin. Green Sustain. Chem. 2017, 3, 11–16. [Google Scholar] [CrossRef]
  70. Sang, Y.; Huang, J. Benzimidazole-based hyper-cross-linked poly(ionic liquid)s for efficient CO2 capture and conversion. Chem. Eng. J. 2020, 385, 123973. [Google Scholar] [CrossRef]
  71. Li, M.; Abdolmohammadi, S.; Hoseininezhad-Namin, M.S.; Behmagham, F.; Vessally, E. Carboxylative cyclization of propargylic alcohols with carbon dioxide: A facile and Green route to α-methylene cyclic carbonates. J. CO2 Util. 2020, 38, 220–231. [Google Scholar] [CrossRef]
  72. Abdelsayed, V.; Gardner, T.H.; Kababji, A.H.; Fan, Y. Catalytic conversion of CO2 to propylene carbonate over Pt-decorated Mg-substituted metal organic framework. Appl. Catal. A Gen. 2019, 586, 117225. [Google Scholar] [CrossRef]
  73. Peng, J.; Wang, S.; Yang, H.-J.; Ban, B.; Wei, Z.; Wang, L.; Bo, L. Chemical fixation of CO2 to cyclic carbonate catalyzed by new environmental-friendly bifunctional bis-β-cyclodextrin derivatives. Catal. Today 2019, 330, 76–84. [Google Scholar] [CrossRef]
  74. Li, P.; Liu, Y.; Mi, L.; Shi, X.-L.; Duan, P.; Cao, J.; Zhang, W. Bifunctionalized polyacrylonitrile fibers as highly efficient and selective heterogeneous catalysts for cycloaddition of CO2 with epichlorohydrin under mild conditions. Catal. Today 2019, 355, 162–170. [Google Scholar] [CrossRef]
  75. Yu, W.; Gu, S.; Fu, Y.; Xiong, S.; Pan, C.; Liu, Y.; Yu, G. Carbazole-decorated covalent triazine frameworks: Novel nonmetal catalysts for carbon dioxide fixation and oxygen reduction reaction. J. Catal. 2018, 362, 1–9. [Google Scholar] [CrossRef]
  76. Hu, L.; Chen, L.; Peng, X.; Zhang, J.; Mo, X.; Liu, Y.; Yan, Z. Bifunctional metal-doped ZIF-8: A highly efficient catalyst for the synthesis of cyclic carbonates from CO2 cycloaddition. Microporous Mesoporous Mater. 2020, 299, 110123. [Google Scholar] [CrossRef]
  77. Wu, X.; Wang, M.; Xie, Y.; Chen, C.; Li, K.; Yuan, M.; Zhao, X.; Hou, Z. Carboxymethyl cellulose supported ionic liquid as a heterogeneous catalyst for the cycloaddition of CO2 to cyclic carbonate. Appl. Catal. A Gen. 2016, 519, 146–154. [Google Scholar] [CrossRef]
  78. Rehman, A.; Fernández, A.M.L.; Resul, M.G.; Harvey, A. Kinetic investigations of styrene carbonate synthesis from styrene oxide and CO2 using a continuous flow tube-in-tube gas-liquid reactor. J. CO2 Util. 2018, 24, 341–349. [Google Scholar] [CrossRef]
  79. Liu, L.; Wang, S.-M.; Han, Z.-B.; Ding, M.; Yuan, D.-Q.; Jiang, H.-L. Exceptionally Robust In-Based Metal–Organic Framework for Highly Efficient Carbon Dioxide Capture and Conversion. Inorg. Chem. 2016, 55, 3558–3565. [Google Scholar] [CrossRef] [PubMed]
  80. Guan, R.; Zhang, X.; Chang, F.; Xue, N.; Yang, H. Incorporation of flexible ionic polymers into a Lewis acid-functionalized mesoporous silica for cooperative conversion of CO2 to cyclic carbonates. Chin. J. Catal. 2019, 40, 1874–1883. [Google Scholar] [CrossRef]
  81. Wang, Y.; Nie, J.; Lu, C.; Wang, F.; Ma, C.; Chen, Z.; Yang, G. Imidazolium-based polymeric ionic liquids for heterogeneous catalytic conversion of CO2 into cyclic carbonates. Microporous Mesoporous Mater. 2020, 292, 109751. [Google Scholar] [CrossRef]
  82. Lan, J.; Qu, Y.; Xu, P.; Sun, J. Novel HBD-Containing Zn (dobdc) (datz) as efficiently heterogeneous catalyst for CO2 chemical conversion under mild conditions. Green Energy Environ. 2020, 6, 66–74. [Google Scholar] [CrossRef]
  83. Zhang, B.; Guo, P.-Y.; Ma, L.-N.; Liu, B.; Hou, L.; Wang, Y.-Y. Two Robust In(III)-Based Metal–Organic Frameworks with Higher Gas Separation, Efficient Carbon Dioxide Conversion, and Rapid Detection of Antibiotics. Inorg. Chem. 2020, 59, 5231–5239. [Google Scholar] [CrossRef]
  84. Dai, Z.; Sun, Q.; Liu, X.; Bian, C.; Wu, Q.; Pan, S.; Wang, L.; Meng, X.; Deng, F.; Xiao, F.-S. Metalated porous porphyrin polymers as efficient heterogeneous catalysts for cycloaddition of epoxides with CO2 under ambient conditions. J. Catal. 2016, 338, 202–209. [Google Scholar] [CrossRef]
  85. Sankar, M.; Tarte, N.; Manikandan, P. Effective catalytic system of zinc-substituted polyoxometalate for cycloaddition of CO2 to epoxides. Appl. Catal. A Gen. 2004, 276, 217–222. [Google Scholar] [CrossRef]
  86. Alivand, M.S.; Shafiei-Alavijeh, M.; Tehrani, N.H.M.H.; Ghasemy, E.; Rashidi, A.; Fakhraie, S. Facile and high-yield synthesis of improved MIL-101(Cr) metal-organic framework with exceptional CO2 and H2S uptake; the impact of excess ligand-cluster. Microporous Mesoporous Mater. 2019, 279, 153–164. [Google Scholar] [CrossRef]
  87. Niknam, E.; Panahi, F.; Daneshgar, F.; Bahrami, F.; Khalafi-Nezhad, A. Metal–Organic Framework MIL-101(Cr) as an Efficient Heterogeneous Catalyst for Clean Synthesis of Benzoazoles. ACS Omega 2018, 3, 17135–17144. [Google Scholar] [CrossRef] [PubMed]
  88. Peng, L.; Zhang, J.; Xue, Z.; Han, B.; Sang, X.; Liu, C.; Yang, G. Highly mesoporous metal–organic framework assembled in a switchable solvent. Nat. Commun. 2014, 5, 4465. [Google Scholar] [CrossRef] [PubMed]
  89. Lin, K.-S.; Adhikari, A.K.; Ku, C.-N.; Chiang, C.-L.; Kuo, H. Synthesis and characterization of porous HKUST-1 metal organic frameworks for hydrogen storage. Int. J. Hydrogen Energy 2012, 37, 13865–13871. [Google Scholar] [CrossRef]
  90. Tufa, R.A.; Chanda, D.; Ma, M.; Aili, D.; Demissie, T.B.; Vaes, J.; Li, Q.; Liu, S.; Pant, D. Towards highly efficient electrochemical CO2 reduction: Cell designs, membranes and electrocatalysts. Appl. Energy 2020, 277, 115557. [Google Scholar] [CrossRef]
  91. Maina, J.W.; Pozo-Gonzalo, C.; Kong, L.; Schütz, J.; Hill, M.; Dumée, L.F. Metal Organic Framework Based Catalysts for CO2 Conversion. Mater. Horizons 2017, 4, 345–361. [Google Scholar] [CrossRef]
  92. Connolly, B.M.; Mehta, J.P.; Moghadam, P.Z.; Wheatley, A.E.; Fairen-Jimenez, D. From synthesis to applications: Metal–organic frameworks for an environmentally sustainable future. Curr. Opin. Green Sustain. Chem. 2018, 12, 47–56. [Google Scholar] [CrossRef]
  93. Yu, B.; Zou, B.; Hu, C.-W. Recent applications of polyoxometalates in CO2 capture and transformation. J. CO2 Util. 2018, 26, 314–322. [Google Scholar] [CrossRef]
  94. Chen, F.; Dong, T.; Chi, Y.; Xu, Y.; Hu, C. Transition-Metal-Substituted Keggin-Type Germanotungstates for Catalytic Conversion of Carbon Dioxide to Cyclic Carbonate. Catal. Lett. 2010, 139, 38–41. [Google Scholar] [CrossRef]
  95. Ugale, B.; Dhankhar, S.S.; Nagaraja, C.M. Exceptionally Stable and 20-Connected Lanthanide Metal–Organic Frameworks for Selective CO2 Capture and Conversion at Atmospheric Pressure. Cryst. Growth Des. 2018, 18, 2432–2440. [Google Scholar] [CrossRef]
  96. Yuan, Y.; Li, J.; Sun, X.; Li, G.; Liu, Y.; Verma, G.; Ma, S. Indium-Organic Frameworks Based on Dual Secondary Building Units Featuring Halogen-Decorated Channels for Highly Effective CO2 Fixation. Chem. Mater. 2019, 31, 1084–1091. [Google Scholar] [CrossRef]
  97. Nguyen, P.T.K.; Nguyen, H.N.; Trickett, C.A.; Ton, Q.T.; Gutiérrez-Puebla, E.; Monge, M.A.; Cordova, K.E.; Gándara, F. New Metal–Organic Frameworks for Chemical Fixation of CO2. ACS Appl. Mater. Interfaces 2017, 10, 733–744. [Google Scholar] [CrossRef]
  98. Zhou, X.; Zhang, Y.; Yang, X.; Zhao, L.; Wang, G. Functionalized IRMOF-3 as efficient heterogeneous catalyst for the synthesis of cyclic carbonates. J. Mol. Catal. A Chem. 2012, 361–362, 12–16. [Google Scholar] [CrossRef]
  99. Kiatkittipong, K.; Shukri, M.A.A.M.; Kiatkittipong, W.; Lim, J.W.; Show, P.L.; Lam, M.K.; Assabumrungrat, S. Green Pathway in Utilizing CO2 via Cycloaddition Reaction with Epoxide—A Mini Review. Processes 2020, 8, 548. [Google Scholar] [CrossRef]
  100. Calabrese, C.; Giacalone, F.; Aprile, C. Hybrid Catalysts for CO2 Conversion into Cyclic Carbonates. Catalysts 2019, 9, 325. [Google Scholar] [CrossRef] [Green Version]
  101. Di Credico, B.; Redaelli, M.; Bellardita, M.; Calamante, M.; Cepek, C.; Cobani, E.; D’Arienzo, M.; Evangelisti, C.; Marelli, M.; Moret, M.; et al. Step-by-Step Growth of HKUST-1 on Functionalized TiO2 Surface: An Efficient Material for CO2 Capture and Solar Photoreduction. Catalysts 2018, 8, 353. [Google Scholar] [CrossRef] [Green Version]
  102. Liang, J.; Huang, Y.-B.; Cao, R. Metal–organic frameworks and porous organic polymers for sustainable fixation of carbon dioxide into cyclic carbonates. Coord. Chem. Rev. 2019, 378, 32–65. [Google Scholar] [CrossRef]
  103. Rowsell, J.L.C.; Yaghi, O.M. Effects of Functionalization, Catenation, and Variation of the Metal Oxide and Organic Linking Units on the Low-Pressure Hydrogen Adsorption Properties of Metal−Organic Frameworks. J. Am. Chem. Soc. 2006, 128, 1304–1315. [Google Scholar] [CrossRef] [PubMed]
  104. Chen, Y.; Huang, X.; Feng, X.; Li, J.; Huang, Y.; Zhao, J.; Guo, Y.; Dong, X.; Han, R.; Qi, P.; et al. Facile fabrication of magnetically recyclable metal–organic framework nanocomposites for highly efficient and selective catalytic oxidation of benzylic C–H bonds. Chem. Commun. 2014, 50, 8374–8377. [Google Scholar] [CrossRef] [PubMed]
  105. Yang, Y.; Yao, H.-F.; Xi, F.-G.; Gao, E.-Q. Amino-functionalized Zr(IV) metal–organic framework as bifunctional acid–base catalyst for Knoevenagel condensation. J. Mol. Catal. A Chem. 2014, 390, 198–205. [Google Scholar] [CrossRef]
  106. Safaei, M.; Foroughi, M.M.; Ebrahimpoor, N.; Jahani, S.; Omidi, A.; Khatami, M. A review on metal-organic frameworks: Synthesis and applications. TrAC Trends Anal. Chem. 2019, 118, 401–425. [Google Scholar] [CrossRef]
  107. Wasson, M.C.; Buru, C.T.; Chen, Z.; Islamoglu, T.; Farha, O.K. Metal–organic frameworks A tunable platform to access single-site heterogeneous catalysts. Appl. Catal. A Gen. 2019, 586, 117214. [Google Scholar] [CrossRef]
  108. Du, P.D.; Thanh, H.T.M.; To, T.C.; Thang, H.S.; Tinh, M.X.; Tuyen, T.N.; Hoa, T.T.; Khieu, D.Q. Metal-Organic Framework MIL-101: Synthesis and Photocatalytic Degradation of Remazol Black B Dye. J. Nanomater. 2019, 2019, 6061275. [Google Scholar] [CrossRef]
  109. Uba, Z.Z.; Hana, N.; Abu, H.; Soraya, N.; Jumbri, K.; Ain, N.; Abdullah, F.; Abdul, E.; Saad, B. Adsorption of Chrysene in Aqueous Solution onto MIL-88(Fe) and NH2-MIL-88(Fe) Metal-Organic Frameworks: Kinetics, Isotherms, Thermodynamics and Docking Simulation Studies. J. Environ. Chem. Eng. 2019, 88, 103544. [Google Scholar] [CrossRef]
  110. Zhuo, N.; Lan, Y.; Yang, W.; Yang, Z.; Li, X.; Zhou, X.; Liu, Y.; Shen, J.; Zhang, X. Adsorption of three selected pharmaceuticals and personal care products (PPCPs) onto MIL-101(Cr)/natural polymer composite beads. Sep. Purif. Technol. 2017, 177, 272–280. [Google Scholar] [CrossRef]
  111. Zhao, X.; Wei, Y.; Zhao, H.; Gao, Z.; Zhang, Y.; Zhi, L.; Wang, Y.; Huang, H. Functionalized metal-organic frameworks for effective removal of rocephin in aqueous solutions. J. Colloid Interface Sci. 2018, 514, 234–239. [Google Scholar] [CrossRef] [PubMed]
  112. Seo, P.W.; Khan, N.A.; Jhung, S.H. Removal of nitroimidazole antibiotics from water by adsorption over metal–organic frameworks modified with urea or melamine. Chem. Eng. J. 2017, 315, 92–100. [Google Scholar] [CrossRef]
  113. Hasan, Z.; Khan, N.A.; Jhung, S.H. Adsorptive removal of diclofenac sodium from water with Zr-based metal–organic frameworks. Chem. Eng. J. 2016, 284, 1406–1413. [Google Scholar] [CrossRef]
  114. Zango, Z.U.; Sambudi, N.S.; Jumbri, K.; Abu Bakar, N.H.H.; Abdullah, N.A.F.; Negim, E.-S.M.; Saad, B. Experimental and molecular docking model studies for the adsorption of polycyclic aromatic hydrocarbons onto UiO-66(Zr) and NH2-UiO-66(Zr) metal-organic frameworks. Chem. Eng. Sci. 2020, 220, 115608. [Google Scholar] [CrossRef]
  115. Zhang, X.; Zhang, N.; Gan, C.; Liu, Y.; Chen, L.; Zhang, C.; Fang, Y. Synthesis of In2S3/UiO-66 hybrid with enhanced photocatalytic activity towards methyl orange and tetracycline hydrochloride degradation under visible-light irradiation. Mater. Sci. Semicond. Process. 2019, 91, 212–221. [Google Scholar] [CrossRef]
  116. Wu, T.; Yan, T.; Zhang, X.; Feng, Y.; Wei, D.; Sun, M.; Du, B.; Wei, Q. A competitive photoelectrochemical immunosensor for the detection of diethylstilbestrol based on an Au/UiO-66(NH2)/CdS matrix and a direct Z-scheme Melem/CdTe heterojunction as labels. Biosens. Bioelectron. 2018, 117, 575–582. [Google Scholar] [CrossRef] [PubMed]
  117. Rajkumar, T.; Kukkar, D.; Kim, K.-H.; Sohn, J.R.; Deep, A. Cyclodextrin-metal–organic framework (CD-MOF): From synthesis to applications. J. Ind. Eng. Chem. 2019, 72, 50–66. [Google Scholar] [CrossRef]
  118. Lan, J.; Qu, Y.; Zhang, X.; Ma, H.; Xu, P.; Sun, J. A novel water-stable MOF Zn(Py)(Atz) as heterogeneous catalyst for chemical conversion of CO2 with various epoxides under mild conditions. J. CO2 Util. 2020, 35, 216–224. [Google Scholar] [CrossRef]
  119. Patel, P.; Parmar, B.; Pillai, R.S.; Ansari, A.; Khan, N.-U.H.; Suresh, E. CO2 fixation by cycloaddition of mono/disubstituted epoxides using acyl amide decorated Co(II) MOF as a synergistic heterogeneous catalyst. Appl. Catal. A Gen. 2020, 590, 117375. [Google Scholar] [CrossRef]
  120. Gupta, A.K.; Guha, N.; Krishnan, S.; Mathur, P.; Rai, D.K. A Three-Dimensional Cu(II)-MOF with Lewis acid-base dual functional sites for Chemical Fixation of CO2 via Cyclic Carbonate Synthesis. J. CO2 Util. 2020, 39, 101173. [Google Scholar] [CrossRef]
  121. Gallardo-Fuentes, S.; Contreras, R.; Isaacs, M.; Honores, J.; Quezada, D.; Landaeta, E.; Ormazábal-Toledo, R. On the mechanism of CO2 electro-cycloaddition to propylene oxides. J. CO2 Util. 2016, 16, 114–120. [Google Scholar] [CrossRef]
  122. Wu, Y.; Song, X.; Zhang, J.; Xu, S.; Xu, N.; Yang, H.; Miao, Y.; Gao, L.; Zhang, J.; Xiao, G. Zn2(C9H3O6)(C4H5N2)(C4H6N2)3 MOF as a highly efficient catalyst for chemical fixation of CO2 into cyclic carbonates and kinetic studies. Chem. Eng. Res. Des. 2018, 140, 273–282. [Google Scholar] [CrossRef]
  123. Cai, Z.; Qian, J.; Zhao, Y.; Cheng, Y. Microporous MOF with open metal sites for CO2 fixation and protective effect on osteoarthritis by regulating the activation of PI3K/AKT pathway. J. Solid State Chem. 2020, 283, 121169. [Google Scholar] [CrossRef]
  124. Zanon, A.; Chaemchuen, S.; Mousavi, B.; Verpoort, F. 1 Zn-doped ZIF-67 as catalyst for the CO2 fixation into cyclic carbonates. J. CO2 Util. 2017, 20, 282–291. [Google Scholar] [CrossRef]
  125. Ciprian, M.; Ruiz, K.H.; Kassymova, M.; Wang, T.; Zhuiykov, S.; Chaemchuen, S.; Tu, R.; Verpoort, F. 3D derived N-doped carbon matrix from 2D ZIF-L as an enhanced stable catalyst for chemical fixation. Microporous Mesoporous Mater. 2019, 285, 80–88. [Google Scholar] [CrossRef]
  126. Liu, E.; Zhu, J.; Yang, W.; Liu, F.; Huang, C.; Yin, S. PCN-222(Co) Metal–Organic Framework Nanorods Coated with 2D Metal–Organic Layers for the Catalytic Fixation of CO2 to Cyclic Carbonates. ACS Appl. Nano Mater. 2020, 3, 3578–3584. [Google Scholar] [CrossRef]
  127. Dhankhar, S.S.; Ugale, B.; Nagaraja, C.M. Co-Catalyst-Free Chemical Fixation of CO2 into Cyclic Carbonates by using Metal-Organic Frameworks as Efficient Heterogeneous Catalysts. Chem. Asian J. 2020, 15, 2403–2427. [Google Scholar] [CrossRef] [PubMed]
  128. Norouzi, F.; Khavasi, H.R. Diversity-Oriented Metal Decoration on UiO-Type Metal–Organic Frameworks: An Efficient Approach to Increase CO2 Uptake and Catalytic Conversion to Cyclic Carbonates. ACS Omega 2019, 4, 19037–19045. [Google Scholar] [CrossRef] [PubMed]
  129. Zhang, S.; Jang, M.-S.; Lee, J.; Puthiaraj, P.; Ahn, W.-S. Zeolite-Like Metal Organic Framework (ZMOF) with a rho Topology for a CO2 Cycloaddition to Epoxides. ACS Sustain. Chem. Eng. 2020, 8, 7078–7086. [Google Scholar] [CrossRef]
  130. Dhankhar, S.S.S.; Nagaraja, C.M. Construction of 3D lanthanide based MOFs with pores decorated with basic imidazole groups for selective capture and chemical fixation of CO2. New J. Chem. 2020, 44, 9090–9096. [Google Scholar] [CrossRef]
  131. Hwang, G.-Y.; Roshan, R.; Ryu, H.-S.; Jeong, H.-M.; Ravi, S.; Kim, M.-I.; Park, D.-W. A highly efficient zeolitic imidazolate framework catalyst for the co-catalyst and solvent free synthesis of cyclic carbonates from CO2. J. CO2 Util. 2016, 15, 123–130. [Google Scholar] [CrossRef]
  132. Liu, X.; Tang, B.; Long, J.; Zhang, W.; Liu, X.; Mirza, Z. The development of MOFs-based nanomaterials in heterogeneous organocatalysis. Sci. Bull. 2018, 63, 502–524. [Google Scholar] [CrossRef] [Green Version]
  133. Hu, T.-D.; Jiang, Y.; Ding, Y.-H. Computational screening of metal-substituted HKUST-1 catalysts for chemical fixation of carbon dioxide into epoxides. J. Mater. Chem. A 2019, 7, 14825–14834. [Google Scholar] [CrossRef]
  134. Kim, H.S.; Yu, K.; Puthiaraj, P.; Ahn, W.-S. CO2 cycloaddition to epichlorohydrin over an aluminum fumarate metal-organic framework synthesized by a sonochemical route. Microporous Mesoporous Mater. 2020, 306, 110432. [Google Scholar] [CrossRef]
  135. Feng, C.; Qiao, S.; Guo, Y.; Xie, Y.; Zhang, L.; Akram, N.; Li, S.; Wang, J. Adenine-assisted synthesis of functionalized F-Mn-MOF-74 as an efficient catalyst with enhanced catalytic activity for the cycloaddition of carbon dioxide. Colloids Surf. A Physicochem. Eng. ASP 2020, 597, 124781. [Google Scholar] [CrossRef]
  136. Guo, F. A novel 2D Cu(II)-MOF as a heterogeneous catalyst for the cycloaddition reaction of epoxides and CO2 into cyclic carbonates. J. Mol. Struct. 2019, 1184, 557–561. [Google Scholar] [CrossRef]
  137. Chen, D.-M.; Zhang, X.-J. A polyhedron-based metal-organic framework with a rare hexanuclear Co(II) cluster for selective sorption and chemical conversion for CO2. J. Solid State Chem. 2019, 278, 120906. [Google Scholar] [CrossRef]
  138. Mohammadian, R.; Kamyar, N.; Kaffashian, A.; Amini, M.M.; Shaabani, A. Synthesis of Defect-Engineered Homochiral Metal-Organic Frameworks Using L-Amino Acids: A Comprehensive Study of Chiral Catalyst Performance in CO2 Fixation Reaction. ChemistrySelect 2020, 5, 10346–10354. [Google Scholar] [CrossRef]
  139. Wu, Y.; Song, X.; Xu, S.; Yu, T.; Zhang, J.; Qi, Q.; Gao, L.; Zhang, J.; Xiao, G. [(CH3)2NH2][M(COOH)3] (M=Mn, Co, Ni, Zn) MOFs as highly efficient catalysts for chemical fixation of CO2 and DFT studies. Mol. Catal. 2019, 475, 110485. [Google Scholar] [CrossRef]
  140. Wu, Y.; Song, X.; Zhang, J.; Xu, S.; Gao, L.; Zhang, J.; Xiao, G. Mn-based MOFs as efficient catalysts for catalytic conversion of carbon dioxide into cyclic carbonates and DFT studies. Chem. Eng. Sci. 2019, 201, 288–297. [Google Scholar] [CrossRef]
  141. Huang, X.; Hu, Q.; Gao, L.; Hao, Q.; Wang, P.; Qin, D. Adsorption characteristics of metal–organic framework MIL-101(Cr) towards sulfamethoxazole and its persulfate oxidation regeneration. RSC Adv. 2018, 8, 27623–27630. [Google Scholar] [CrossRef] [Green Version]
  142. Yin, D.; Li, C.; Ren, H.; Shekhah, O.; Liu, J.; Liang, C. Efficient Pd@MIL-101(Cr) hetero-catalysts for 2-butyne-1,4-diol hydrogenation exhibiting high selectivity. RSC Adv. 2017, 7, 1626–1633. [Google Scholar] [CrossRef] [Green Version]
  143. Leng, K.; Sun, Y.; Li, X.; Sun, S.; Xu, W. Rapid Synthesis of Metal–Organic Frameworks MIL-101(Cr) Without the Addition of Solvent and Hydrofluoric Acid. Cryst. Growth Des. 2016, 16, 1168–1171. [Google Scholar] [CrossRef]
  144. Chen, M.; Zhou, S.; Xu, Z.; Ding, L.; Cheng, Y. Metal-organic frameworks of MIL-100(Fe, Cr) and MIL-101(Cr) for Aromatic Amines Adsorption from Aqueous Solutions. Molecules 2019, 24, 3718. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  145. Shafiei, M.; Alivand, M.S.; Rashidi, A.; Samimi, A.; Mohebbi-Kalhori, D. Synthesis and adsorption performance of a modified micro-mesoporous MIL-101(Cr) for VOCs removal at ambient conditions. Chem. Eng. J. 2018, 341, 164–174. [Google Scholar] [CrossRef]
  146. Zhao, T.; Jeremias, F.; Boldog, I.; Nguyen, B.; Henninger, S.K.; Janiak, C. High-yield, fluoride-free and large-scale synthesis of MIL-101(Cr). Dalton Trans. 2015, 44, 16791–16801. [Google Scholar] [CrossRef] [Green Version]
  147. Hasan, Z.; Jeon, J.; Jhung, S.H. Adsorptive removal of naproxen and clofibric acid from water using metal-organic frameworks. J. Hazard. Mater. 2012, 209–210, 151–157. [Google Scholar] [CrossRef] [PubMed]
  148. Hupp, J.T.; Poeppelmeier, K.R. CHEMISTRY: Enhanced: Better Living through Nanopore Chemistry. Science 2005, 309, 2008–2009. [Google Scholar] [CrossRef] [PubMed]
  149. Ertas, I.E.; Gulcan, M.; Bulut, A.; Yurderi, M.; Zahmakiran, M. Metal-organic framework (MIL-101) stabilized ruthenium nanoparticles: Highly efficient catalytic material in the phenol hydrogenation. Microporous Mesoporous Mater. 2016, 226, 94–103. [Google Scholar] [CrossRef]
  150. Zhao, Z.; Wang, S.; Liang, R.; Li, Z.; Shi, Z.; Chen, G. Graphene-wrapped chromium-MOF(MIL-101)/sulfur composite for performance improvement of high-rate rechargeable Li–S batteries. J. Mater. Chem. A 2014, 2, 13509–13512. [Google Scholar] [CrossRef]
  151. Sarker, M.; Song, J.Y.; Jhung, S.H. Adsorptive removal of anti-inflammatory drugs from water using graphene oxide/metal-organic framework composites. Chem. Eng. J. 2018, 335, 74–81. [Google Scholar] [CrossRef]
  152. Gordon, J.; Kazemian, H.; Rohani, S. MIL-53(Fe), MIL-101, and SBA-15 porous materials: Potential platforms for drug delivery. Mater. Sci. Eng. C 2015, 47, 172–179. [Google Scholar] [CrossRef] [PubMed]
  153. Song, J.Y.; Jhung, S.H. Adsorption of pharmaceuticals and personal care products over metal-organic frameworks functionalized with hydroxyl groups: Quantitative analyses of H-bonding in adsorption. Chem. Eng. J. 2017, 322, 366–374. [Google Scholar] [CrossRef]
  154. Juan-Alcañiz, J.; Ramos-Fernandez, E.V.; Lafont, U.; Gascon, J.; Kapteijn, F. Building MOF bottles around phosphotungstic acid ships: One-pot synthesis of bi-functional polyoxometalate-MIL-101 catalysts. J. Catal. 2010, 269, 229–241. [Google Scholar] [CrossRef]
  155. Hu, X.; Lu, Y.; Dai, F.; Liu, C.; Liu, Y. Host–guest synthesis and encapsulation of phosphotungstic acid in MIL-101 via “bottle around ship”: An effective catalyst for oxidative desulfurization. Microporous Mesoporous Mater. 2013, 170, 36–44. [Google Scholar] [CrossRef]
  156. Akimana, E.; Wang, J.; Likhanova, N.V.; Chaemchuen, S.; Verpoort, F. MIL-101(Cr) for CO2 Conversion into Cyclic Carbonates, Under Solvent and Co-Catalyst Free Mild Reaction Conditions. Catalysts 2020, 10, 453. [Google Scholar] [CrossRef]
  157. Dai, W.; Mao, P.; Liu, Y.; Zhang, S.; Li, B.; Yang, L.; Luo, X.; Zou, J. Quaternary phosphonium salt-functionalized Cr-MIL-101: A bifunctional and efficient catalyst for CO2 cycloaddition with epoxides. J. CO2 Util. 2020, 36, 295–305. [Google Scholar] [CrossRef]
  158. Wang, T.; Song, X.; Luo, Q.; Yang, X.; Chong, S.; Zhang, J.; Ji, M. Acid-base bifunctional catalyst: Carboxyl ionic liquid immobilized on MIL-101-NH2 for rapid synthesis of propylene carbonate from CO2 and propylene oxide under facile solvent-free conditions. Microporous Mesoporous Mater. 2018, 267, 84–92. [Google Scholar] [CrossRef]
  159. Bao, S.; Li, J.; Guan, B.; Jia, M.; Terasaki, O.; Yu, J. A Green Selective Water-Etching Approach to MOF@Mesoporous SiO2 Yolk-Shell Nanoreactors with Enhanced Catalytic Stabilities. Matter 2020, 3, 498–508. [Google Scholar] [CrossRef]
  160. Liu, D.; Li, G.; Liu, H. Functionalized MIL-101 with imidazolium-based ionic liquids for the cycloaddition of CO2 and epoxides under mild condition. Appl. Surf. Sci. 2018, 428, 218–225. [Google Scholar] [CrossRef]
  161. Mahmoodi, N.M.; Abdi, J. Nanoporous metal-organic framework (MOF-199): Synthesis, characterization and photocatalytic degradation of Basic Blue 41. Microchem. J. 2019, 144, 436–442. [Google Scholar] [CrossRef]
  162. Murray, L.J.; Dinca, M.; Yano, J.; Chavan, S.; Bordiga, S.; Brown, C.M.; Long, J.R. Highly-Selective and Reversible O2 Binding in Cr3(1,3,5-benzenetricarboxylate)2. J. Am. Chem. Soc. 2010, 132, 7856–7857. [Google Scholar] [CrossRef] [PubMed]
  163. Maniam, P.; Stock, N. Investigation of Porous Ni-Based Metal–Organic Frameworks Containing Paddle-Wheel Type Inorganic Building Units via High-Throughput Methods. Inorg. Chem. 2011, 50, 5085–5097. [Google Scholar] [CrossRef] [PubMed]
  164. Feldblyum, J.I.; Liu, M.; Gidley, D.W.; Matzger, A.J. Reconciling the Discrepancies between Crystallographic Porosity and Guest Access as Exemplified by Zn-HKUST-1. J. Am. Chem. Soc. 2011, 133, 18257–18263. [Google Scholar] [CrossRef] [PubMed]
  165. Zhang, Z.; Zhang, L.; Wojtas, L.; Eddaoudi, M.; Zaworotko, M.J. Template-Directed Synthesis of Nets Based upon Octahemioctahedral Cages That Encapsulate Catalytically Active Metalloporphyrins. J. Am. Chem. Soc. 2011, 134, 928–933. [Google Scholar] [CrossRef]
  166. Crane, J.L.; Anderson, K.E.; Conway, S.G. Hydrothermal Synthesis and Characterization of a Metal–Organic Framework by Thermogravimetric Analysis, Powder X-ray Diffraction, and Infrared Spectroscopy: An Integrative Inorganic Chemistry Experiment. J. Chem. Educ. 2014, 92, 373–377. [Google Scholar] [CrossRef]
  167. Gotthardt, M.A.; Schoch, R.; Wolf, S.; Bauer, M.; Kleist, W. Synthesis and characterization of bimetallic metal–organic framework Cu–Ru-BTC with HKUST-1 structure. Dalton Trans. 2014, 44, 2052–2056. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  168. Chen, Y.; Mu, X.; Lester, E.; Wu, T. High efficiency synthesis of HKUST-1 under mild conditions with high BET surface area and CO2 uptake capacity. Prog. Nat. Sci. 2018, 28, 584–589. [Google Scholar] [CrossRef]
  169. Functionalizable, A.C.; Material, N.; Tma, C.; Chui, S.S.; Lo, S.M.; Charmant, J.P.H.; Orpen, A.G.; Williams, I.D.; Ho, C.T.M.A.; Chui, S.S.; et al. Published by American Association for the Advancement of Science Linked References Are Available on JSTOR for This Article. Nanoporous Mater. 2016, 283, 1148–1150. [Google Scholar]
  170. O’Neill, L.D.; Zhang, H.; Bradshaw, D. Macro-/Microporous MOF Composite Beads. J. Mater. Chem. 2010, 20, 5720–5726. [Google Scholar] [CrossRef]
  171. Xin, C.; Jiao, X.; Yin, Y.; Zhan, H.; Li, H.; Li, L.; Zhao, N.; Xiao, F.; Wei, W. Enhanced CO2 Adsorption Capacity and Hydrothermal Stability of HKUST-1 via Introduction of Siliceous Mesocellular Foams (MCFs). Ind. Eng. Chem. Res. 2016, 55, 7950–7957. [Google Scholar] [CrossRef]
  172. MacIas, E.E.; Ratnasamy, P.; Carreon, M.A. Catalytic Activity of Metal Organic Framework Cu3(BTC)2 in the Cycloaddition of CO2 to Epichlorohydrin Reaction. Catal. Today 2012, 198, 215–218. [Google Scholar] [CrossRef]
Polymers 13 03905 g001 550

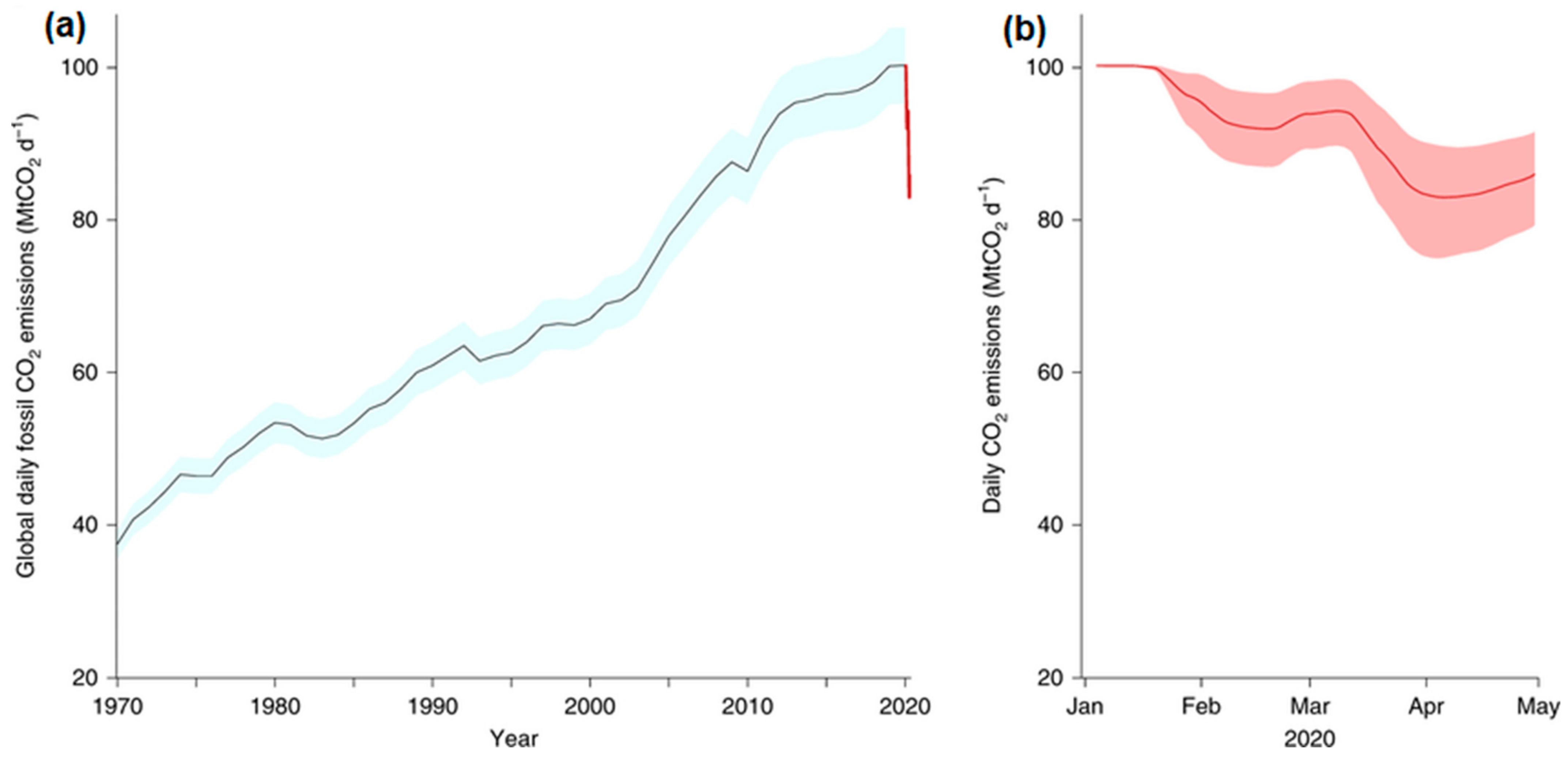

Figure 1. Daily global CO2 emissions: (a) Mean daily annual emissions of CO2 from 1970–2019 (b) Daily CO2 emissions decline in 2020 due to low anthropogenic activities. Reprinted with permission from Ref. [20]. Copyright 2020 Springer Nature.
Figure 1. Daily global CO2 emissions: (a) Mean daily annual emissions of CO2 from 1970–2019 (b) Daily CO2 emissions decline in 2020 due to low anthropogenic activities. Reprinted with permission from Ref. [20]. Copyright 2020 Springer Nature.
Polymers 13 03905 g001
Polymers 13 03905 g002 550

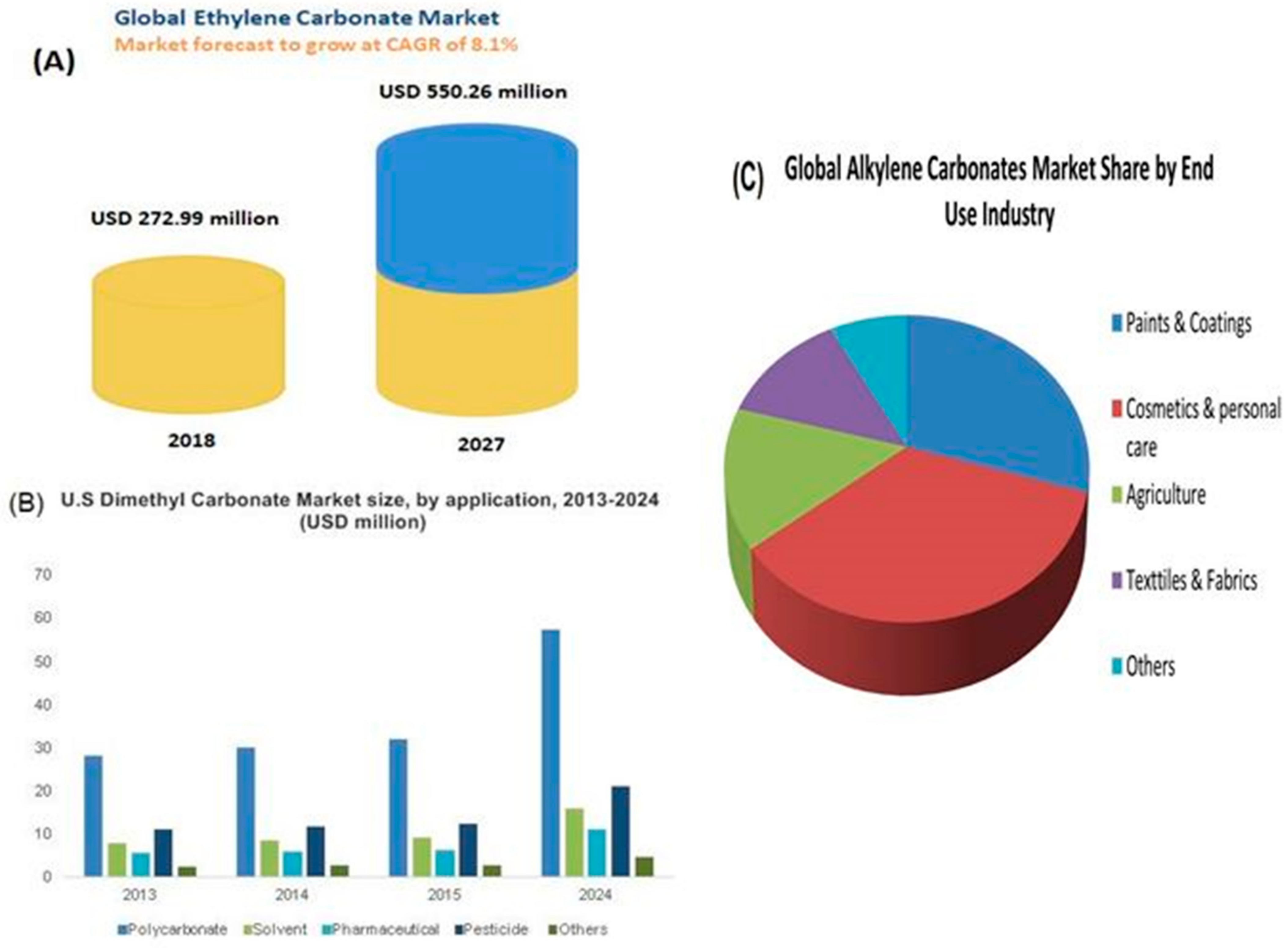

Figure 2. (A) Global ethylene carbonate forecast. (B) United States’ market growth by application for dimethyl carbonate. (C) The global alkylene carbonates market share by end use industry 2023 forecast [23].
Figure 2. (A) Global ethylene carbonate forecast. (B) United States’ market growth by application for dimethyl carbonate. (C) The global alkylene carbonates market share by end use industry 2023 forecast [23].
Polymers 13 03905 g002
Polymers 13 03905 g003 550
Figure 3. General scheme for cycloaddition reaction of CO2 and epoxide using metal-organic frameworks (MOF) catalysts and tetrabutylammonium bromide (TBABr) as co-catalyst.
Figure 3. General scheme for cycloaddition reaction of CO2 and epoxide using metal-organic frameworks (MOF) catalysts and tetrabutylammonium bromide (TBABr) as co-catalyst.
Polymers 13 03905 g003
Polymers 13 03905 g004 550
Figure 4. The general schematic reaction mechanism for CO2 cycloaddition with epoxides catalyzed by a Lewis-acid catalyst MOF and TBABr co-catalyst presence.
Figure 4. The general schematic reaction mechanism for CO2 cycloaddition with epoxides catalyzed by a Lewis-acid catalyst MOF and TBABr co-catalyst presence.
Polymers 13 03905 g004
Polymers 13 03905 g005 550
Figure 5. Epoxide activation modes by different MOF catalysts. (a) MOFs with acidic SBUs, (b) MOFs with acidic linkers, (c) MOFs with Lewis base linkers, (d) MOFs with ionic linkers. Reprinted with permission from Ref. [102]. Copyright 2019 Elsevier.
Figure 5. Epoxide activation modes by different MOF catalysts. (a) MOFs with acidic SBUs, (b) MOFs with acidic linkers, (c) MOFs with Lewis base linkers, (d) MOFs with ionic linkers. Reprinted with permission from Ref. [102]. Copyright 2019 Elsevier.
Polymers 13 03905 g005
Polymers 13 03905 g006 550
Figure 6. Special features of metal-organic frameworks: (A) Typical MOFs synthesis comprising inorganic nodes and organic linkers. (B) The accessibility of MOFs by modifying the node, linker, and content of the cavity. Reproduced with permission Ref. [107]. Copyright 2019 Elsevier.
Figure 6. Special features of metal-organic frameworks: (A) Typical MOFs synthesis comprising inorganic nodes and organic linkers. (B) The accessibility of MOFs by modifying the node, linker, and content of the cavity. Reproduced with permission Ref. [107]. Copyright 2019 Elsevier.
Polymers 13 03905 g006
Polymers 13 03905 g008 550
Figure 8. Synthesis and structural elucidation of MIL-101(Cr): (a) The formation of the hybrid super tetrahedron by the cluster chromium metal building unit and the bdc ligand; (b) Small pentagonal and larger hexagonal window (c) The two mesoporous cages; (d) 3D schematic representation of the MTN zeotype architecture (small cages are highlighted in green and large one is highlighted in red); (e) Morphology, showing clear octahedral shape with an average crystal size of ~1.0 μm [150].
Figure 8. Synthesis and structural elucidation of MIL-101(Cr): (a) The formation of the hybrid super tetrahedron by the cluster chromium metal building unit and the bdc ligand; (b) Small pentagonal and larger hexagonal window (c) The two mesoporous cages; (d) 3D schematic representation of the MTN zeotype architecture (small cages are highlighted in green and large one is highlighted in red); (e) Morphology, showing clear octahedral shape with an average crystal size of ~1.0 μm [150].
Polymers 13 03905 g008

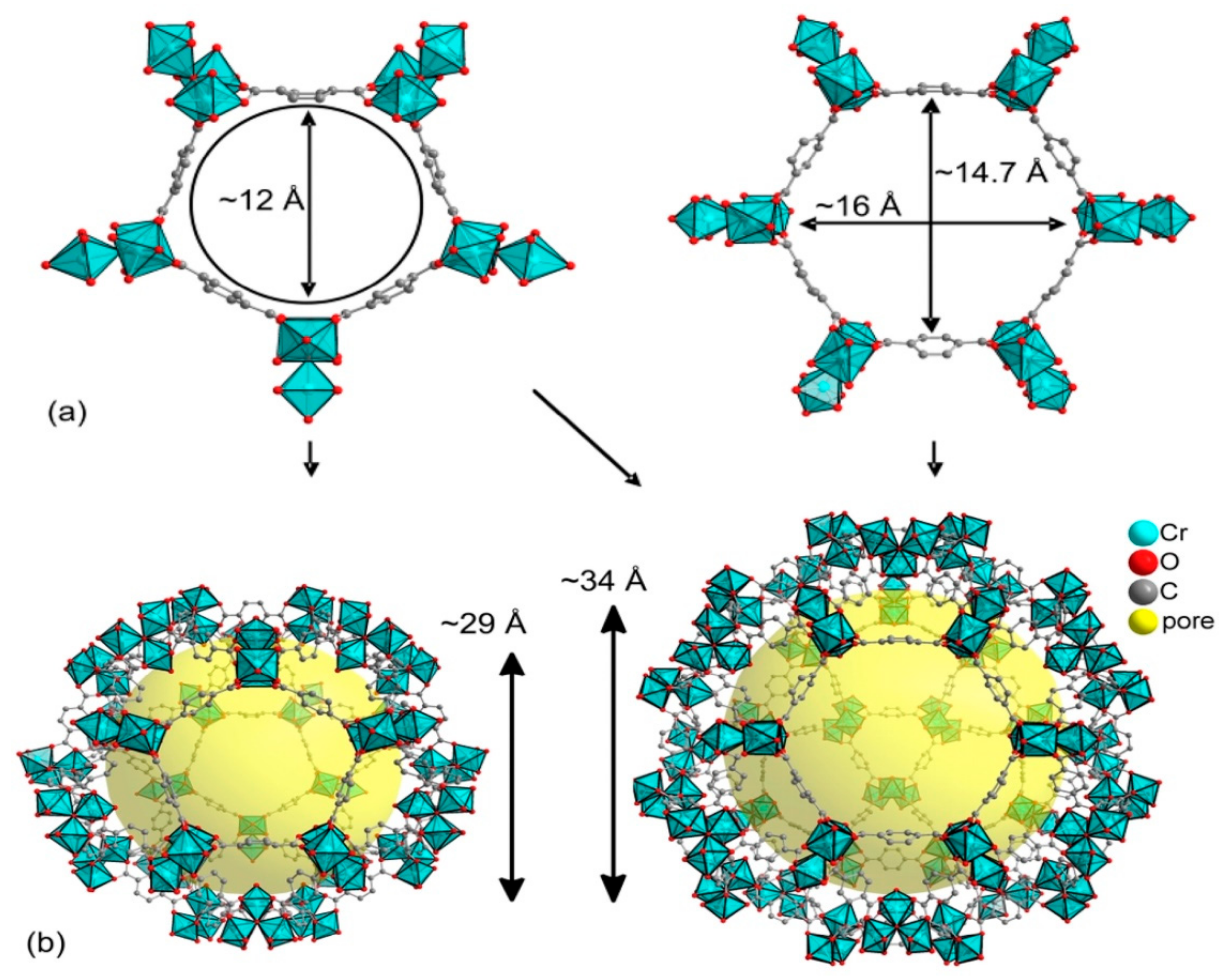

Polymers 13 03905 g009 550
Figure 9. Trinuclear chromium building units and the bridging bdc ligands forming pentagonal and hexagonal rings (a) assembled into mesoporous cages (b) and mesoporous cages of yellow spheres with diameters of 29 or 34 Å, respectively. Reprinted with permission from Ref. [149]. Copyright 2016 Elsevier.
Figure 9. Trinuclear chromium building units and the bridging bdc ligands forming pentagonal and hexagonal rings (a) assembled into mesoporous cages (b) and mesoporous cages of yellow spheres with diameters of 29 or 34 Å, respectively. Reprinted with permission from Ref. [149]. Copyright 2016 Elsevier.
Polymers 13 03905 g009
Polymers 13 03905 g010 550

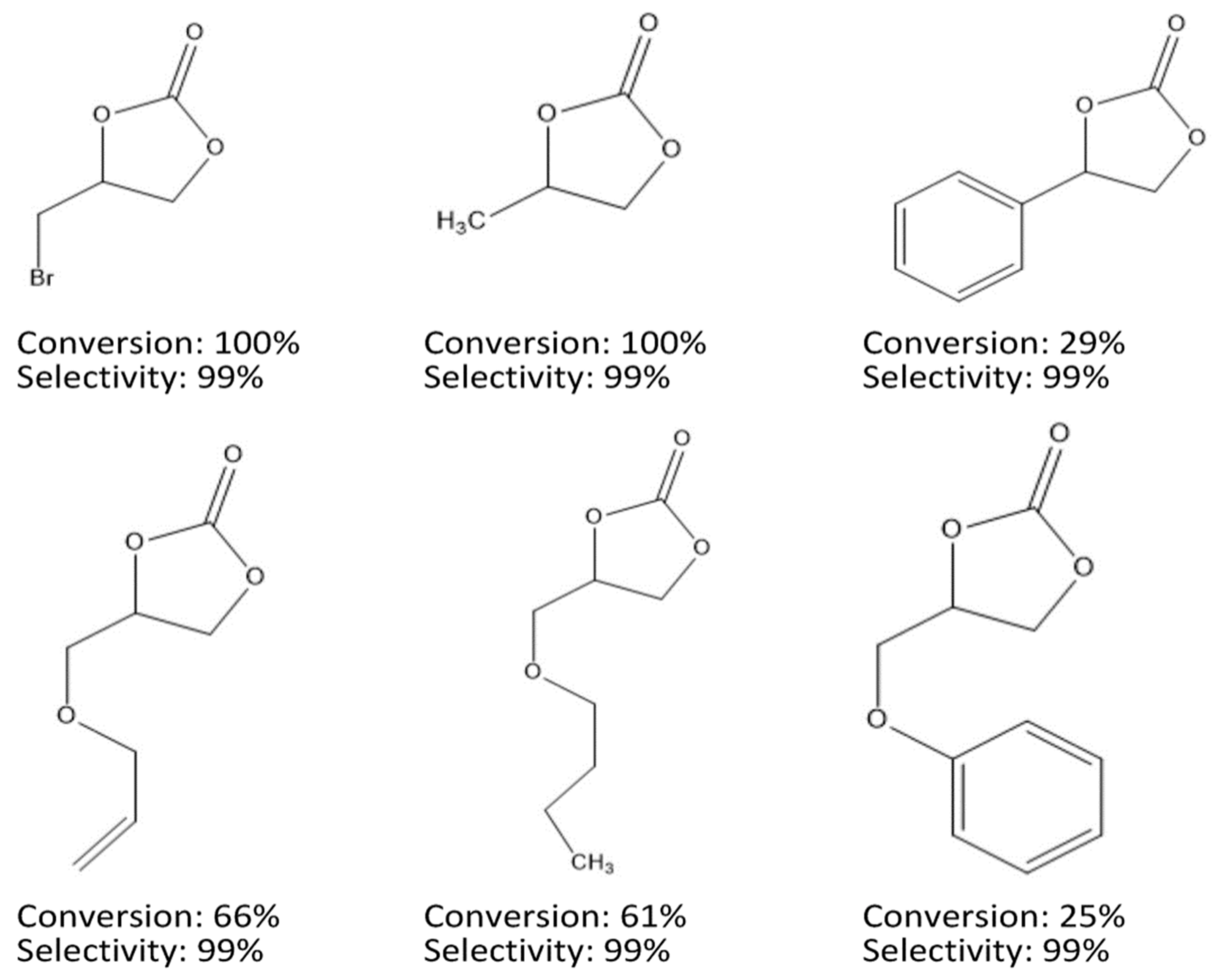

Figure 10. Organic carbonates obtained from MIL-101(Cr) catalyzed reaction. Reaction conditions: catalyst, 0.08 mmol; epoxide, 9.2 mmol; temperature, 35 °C; pressure, 1.5 bar [156].
Figure 10. Organic carbonates obtained from MIL-101(Cr) catalyzed reaction. Reaction conditions: catalyst, 0.08 mmol; epoxide, 9.2 mmol; temperature, 35 °C; pressure, 1.5 bar [156].
Polymers 13 03905 g010
Polymers 13 03905 g011 550
Figure 11. Preparation stages and model structure of Cr-MIL-101-[BuPh3P]Br. (a) Synthesis and activation of Cr-MIL-101-NH2, (b) Synthesis of (4-bromobutyl)triphenylphosphonium bromide, (c) Synthesis of [BuPh3P]Br-functionalized Cr-MIL-101. Reprinted with permission from Ref. [157]. Copyright 2020 Elsevier.
Figure 11. Preparation stages and model structure of Cr-MIL-101-[BuPh3P]Br. (a) Synthesis and activation of Cr-MIL-101-NH2, (b) Synthesis of (4-bromobutyl)triphenylphosphonium bromide, (c) Synthesis of [BuPh3P]Br-functionalized Cr-MIL-101. Reprinted with permission from Ref. [157]. Copyright 2020 Elsevier.
Polymers 13 03905 g011
Polymers 13 03905 g012 550
Figure 12. Effect of reaction parameters on the yield and selectivity (left) and recyclability test (right) under the same reaction condition. (a) temperature 120 °C, CO2 pressure 2.0 MPa, time 2 h; (b) catalyst 0.045 mol%, CO2 pressure 2.0 MPa, time 2 h; (c) catalyst 0.045 mol%, temperature 120 °C, time 2 h; (d) catalyst 0.045 mol%, temperature 120 °C, CO2 pressure 2.0 MPa. Reprinted with permission from Ref. [157]. Copyright 2020 Elsevier.
Figure 12. Effect of reaction parameters on the yield and selectivity (left) and recyclability test (right) under the same reaction condition. (a) temperature 120 °C, CO2 pressure 2.0 MPa, time 2 h; (b) catalyst 0.045 mol%, CO2 pressure 2.0 MPa, time 2 h; (c) catalyst 0.045 mol%, temperature 120 °C, time 2 h; (d) catalyst 0.045 mol%, temperature 120 °C, CO2 pressure 2.0 MPa. Reprinted with permission from Ref. [157]. Copyright 2020 Elsevier.
Polymers 13 03905 g012
Polymers 13 03905 g013 550

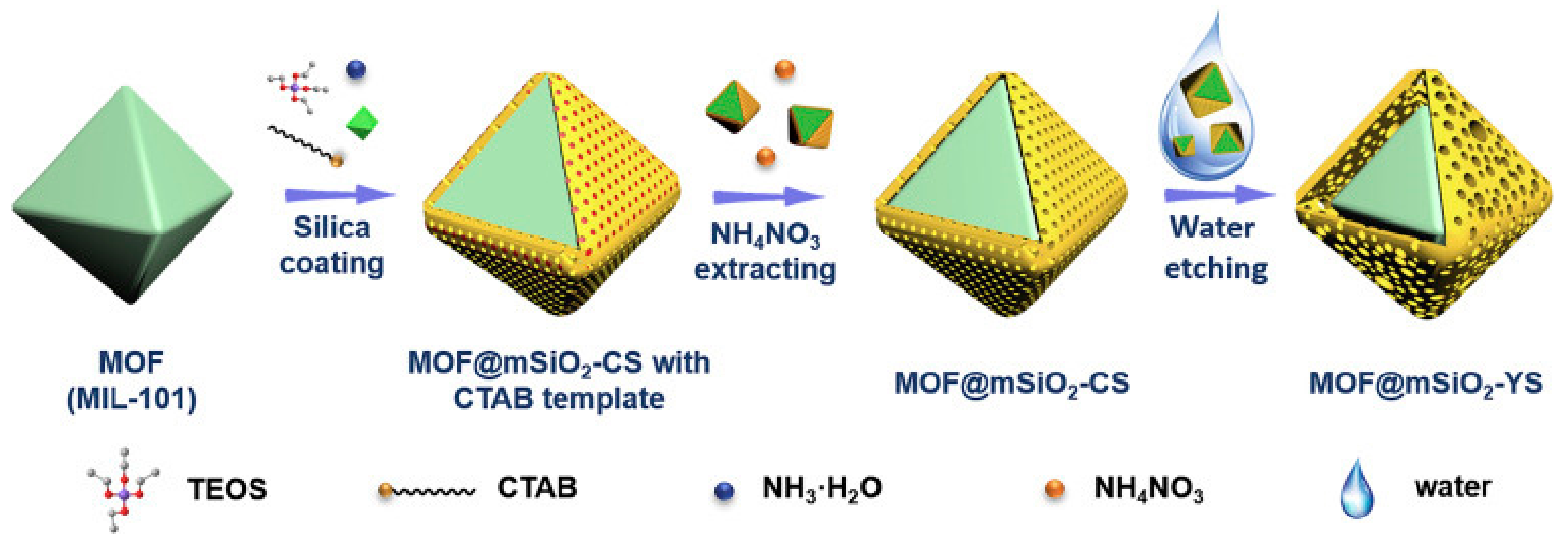

Figure 13. The schematic reaction for the formation of nanoreactors, MOF@mSiO2-YS; Step 1: MIL-101(Cr) encapsulation by SiO2 shell. Step 2: CTAB template removal by extraction give MIL-101@mSiO2-CS. Step 3: etching of MIL-101@mSiO2-CS using hot water. Reprinted with permission from Ref. [159]. Copyright 2020 Elsevier.
Figure 13. The schematic reaction for the formation of nanoreactors, MOF@mSiO2-YS; Step 1: MIL-101(Cr) encapsulation by SiO2 shell. Step 2: CTAB template removal by extraction give MIL-101@mSiO2-CS. Step 3: etching of MIL-101@mSiO2-CS using hot water. Reprinted with permission from Ref. [159]. Copyright 2020 Elsevier.
Polymers 13 03905 g013

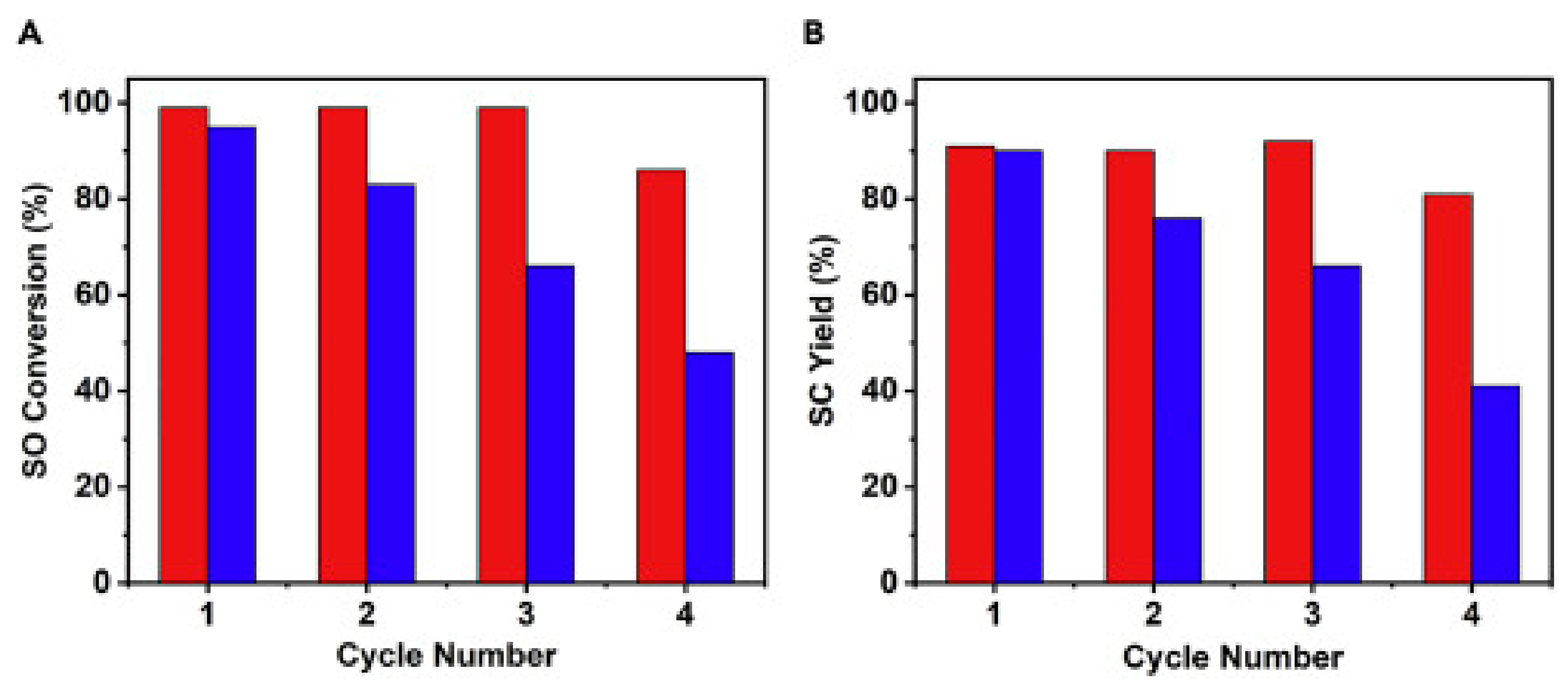

Polymers 13 03905 g014 550
Figure 14. Catalytic performance of MIL-101 (blue) and MOF@mSiO2-YS (red) for cycloaddition reaction of SO with CO2: (A) SO conversion, (B) SC yield. Reprinted with permission from Ref. [159]. Copyright 2020 Elsevier.
Figure 14. Catalytic performance of MIL-101 (blue) and MOF@mSiO2-YS (red) for cycloaddition reaction of SO with CO2: (A) SO conversion, (B) SC yield. Reprinted with permission from Ref. [159]. Copyright 2020 Elsevier.
Polymers 13 03905 g014

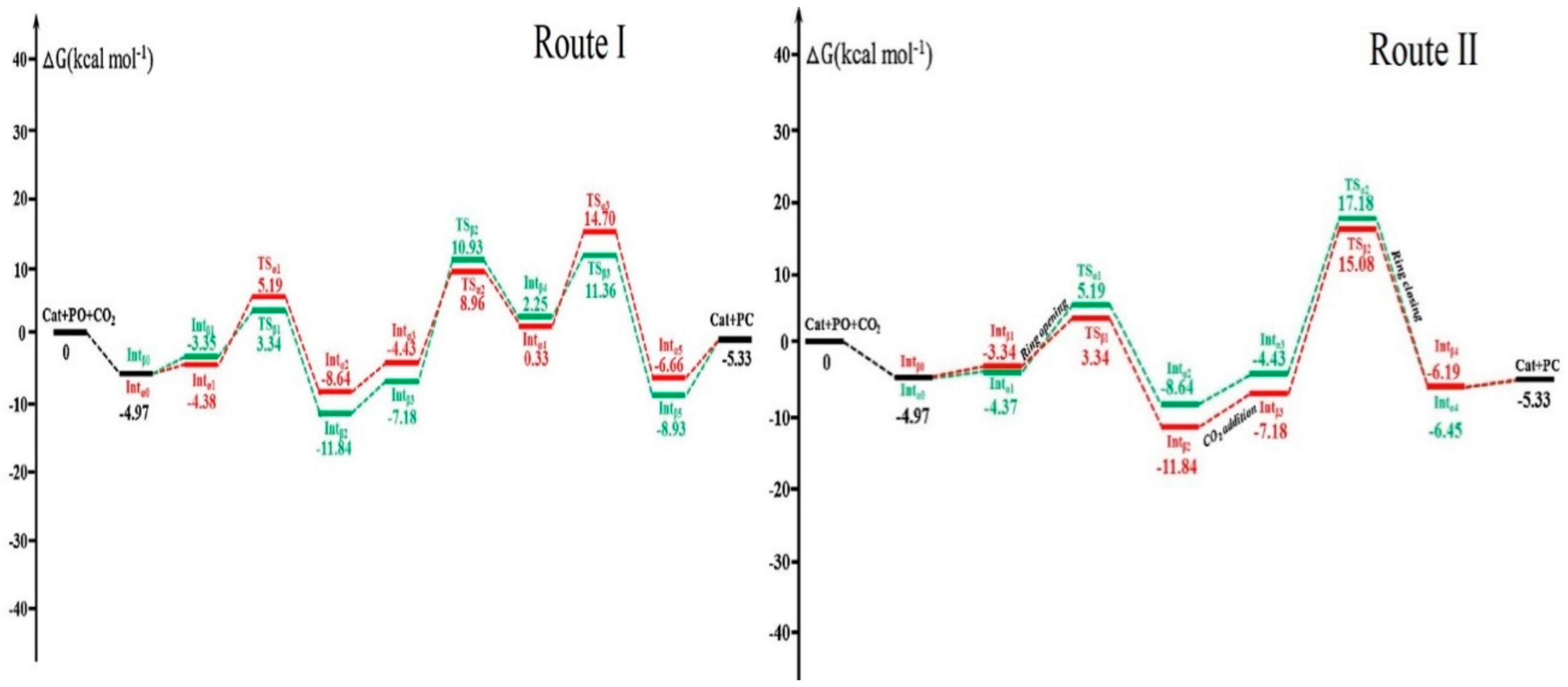

Polymers 13 03905 g015 550
Figure 15. Gibbs free energy surface profile in a non-catalyzed reaction with optimized geometry of intermediates and transition state. Reprinted with permission from Ref. [67]. Copyright 2018 Elsevier.
Figure 15. Gibbs free energy surface profile in a non-catalyzed reaction with optimized geometry of intermediates and transition state. Reprinted with permission from Ref. [67]. Copyright 2018 Elsevier.
Polymers 13 03905 g015
Polymers 13 03905 g016 550
Figure 16. Gibbs free energy surface profile of (A) MIL-101-catalyzed reaction (B) TBABr-catalyzed reaction, with optimized geometries of intermediates and transition states. Reproduced with permission Ref. [67]. Copyright 2018 Elsevier.
Figure 16. Gibbs free energy surface profile of (A) MIL-101-catalyzed reaction (B) TBABr-catalyzed reaction, with optimized geometries of intermediates and transition states. Reproduced with permission Ref. [67]. Copyright 2018 Elsevier.
Polymers 13 03905 g016
Polymers 13 03905 g017 550
Figure 17. Gibbs free energy surface profiles in CO2 cycloaddition of PO catalyzed by MIL-101(Cr)/TBABr. Reprinted with permission from Ref. [67]. Copyright 2018 Elsevier.
Figure 17. Gibbs free energy surface profiles in CO2 cycloaddition of PO catalyzed by MIL-101(Cr)/TBABr. Reprinted with permission from Ref. [67]. Copyright 2018 Elsevier.
Polymers 13 03905 g017
Polymers 13 03905 g018 550
Figure 18. Schematic representation for the synthesis of MIL-101-IMBr. Reprinted with permission from Ref. [160]. Copyright 2018 Elsevier.
Figure 18. Schematic representation for the synthesis of MIL-101-IMBr. Reprinted with permission from Ref. [160]. Copyright 2018 Elsevier.
Polymers 13 03905 g018
Polymers 13 03905 g019 550

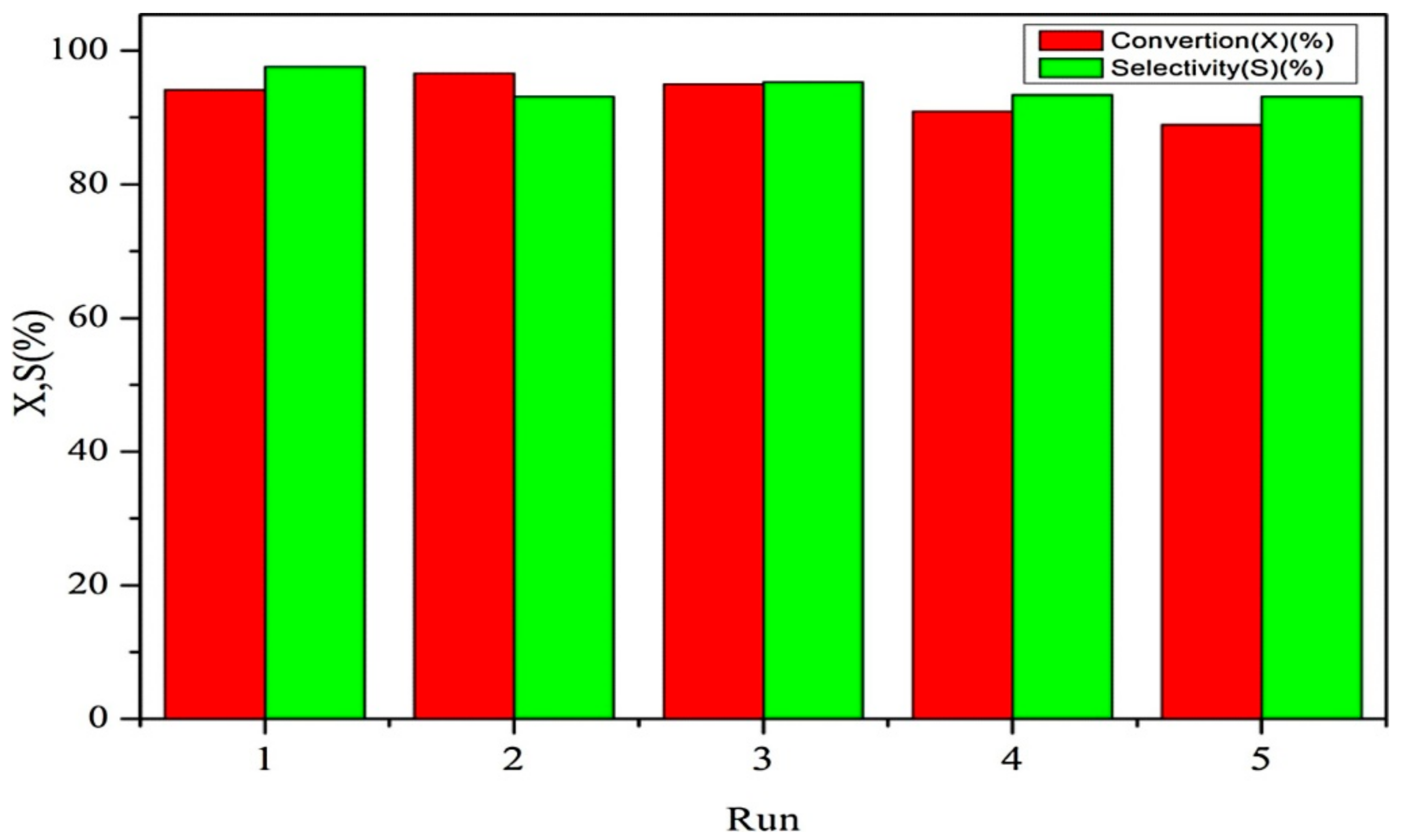

Figure 19. Reusability studies of MIL-101-IMBr-6. Reproduced with permission Ref. [160]. Copyright 2018 Elsevier.
Figure 19. Reusability studies of MIL-101-IMBr-6. Reproduced with permission Ref. [160]. Copyright 2018 Elsevier.
Polymers 13 03905 g019
Polymers 13 03905 g020 550

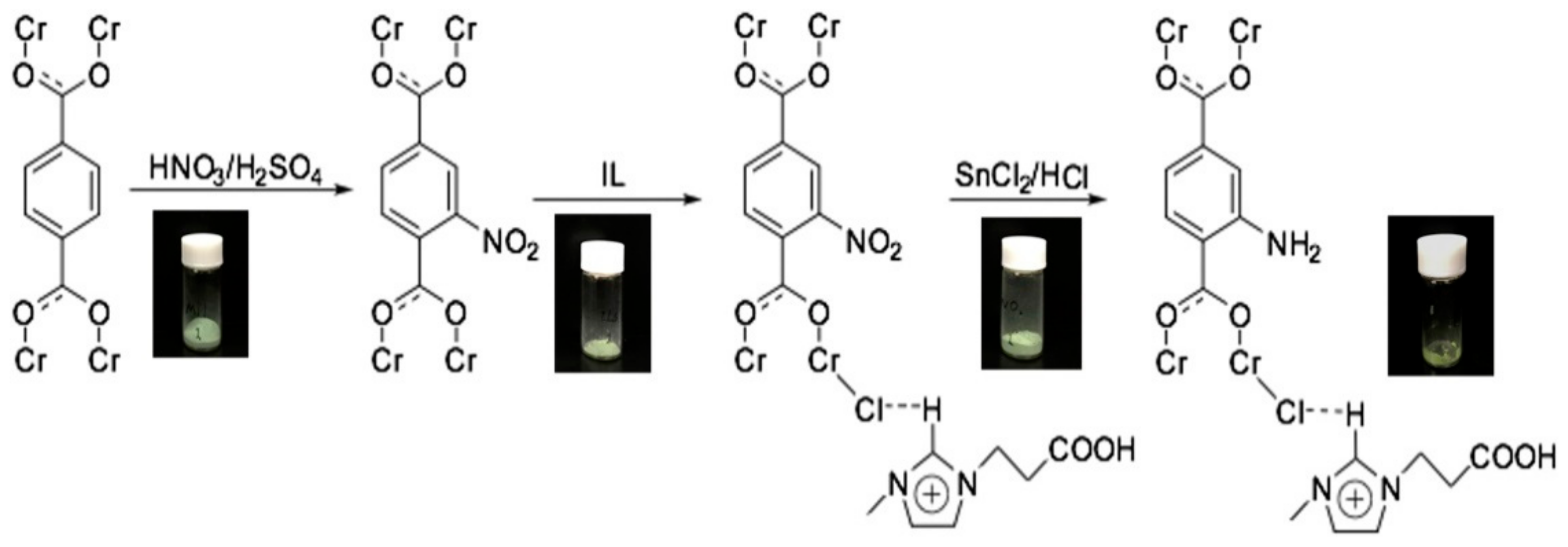

Figure 20. Preparation stages for the synthesis of IL/MIL-101-NH2. Reprinted with permission from Ref. [158]. Copyright 2018 Elsevier.
Figure 20. Preparation stages for the synthesis of IL/MIL-101-NH2. Reprinted with permission from Ref. [158]. Copyright 2018 Elsevier.
Polymers 13 03905 g020
Polymers 13 03905 g021 550
Figure 21. Schematic Procedure of HKUST-1 synthesis and structural elucidation. Reprinted with permission from Ref. [161]. Copyright 2019 Elsevier.
Figure 21. Schematic Procedure of HKUST-1 synthesis and structural elucidation. Reprinted with permission from Ref. [161]. Copyright 2019 Elsevier.
Polymers 13 03905 g021
Polymers 13 03905 g022 550
Figure 22. FESEM micrographs of HKUST-1 in different scales: (a) 2 μm, (b) 500 μm. Reprinted with permission from Ref. [161]. Copyright 2019 Elsevier.
Figure 22. FESEM micrographs of HKUST-1 in different scales: (a) 2 μm, (b) 500 μm. Reprinted with permission from Ref. [161]. Copyright 2019 Elsevier.
Polymers 13 03905 g022
Polymers 13 03905 g023 550
Figure 23. (A) Structure of HKUST-1. (B) Paddle-wheel secondary building unit (SBU). Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Figure 23. (A) Structure of HKUST-1. (B) Paddle-wheel secondary building unit (SBU). Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Polymers 13 03905 g023
Polymers 13 03905 g024 550

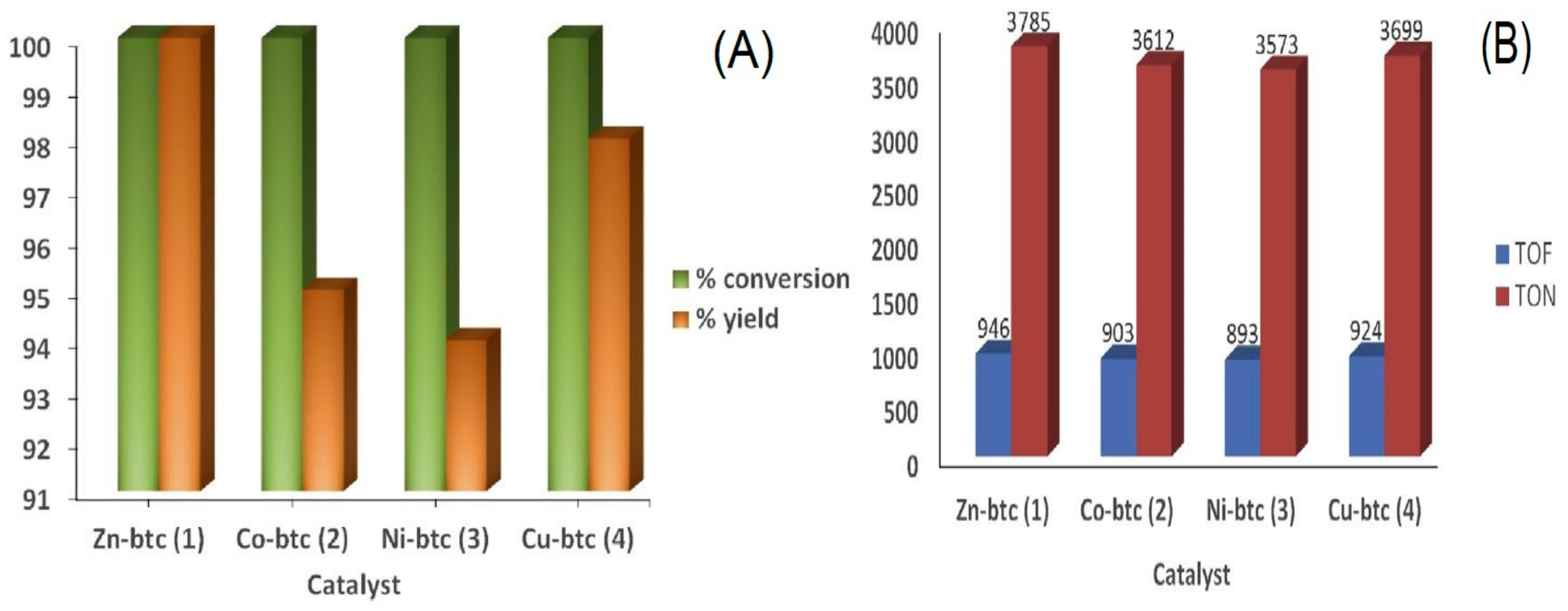

Figure 24. (A) The conversion (%) and yield (%) (B) TON and TOF: for cycloaddition conversion of CO2 to PC using M-btc MOFs (M = Zn, Co, Ni, and Cu). Reaction condition: temperature, 120 °C; CO2 pressure, 0.7 MPa; time, 4 h. Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Figure 24. (A) The conversion (%) and yield (%) (B) TON and TOF: for cycloaddition conversion of CO2 to PC using M-btc MOFs (M = Zn, Co, Ni, and Cu). Reaction condition: temperature, 120 °C; CO2 pressure, 0.7 MPa; time, 4 h. Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Polymers 13 03905 g024
Polymers 13 03905 g025 550
Figure 25. (a) A 2D sheet framework of Zn-btc (b) stacking of the 2D sheets over one another, through C-H ….O bonding. Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Figure 25. (a) A 2D sheet framework of Zn-btc (b) stacking of the 2D sheets over one another, through C-H ….O bonding. Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Polymers 13 03905 g025
Polymers 13 03905 g026 550

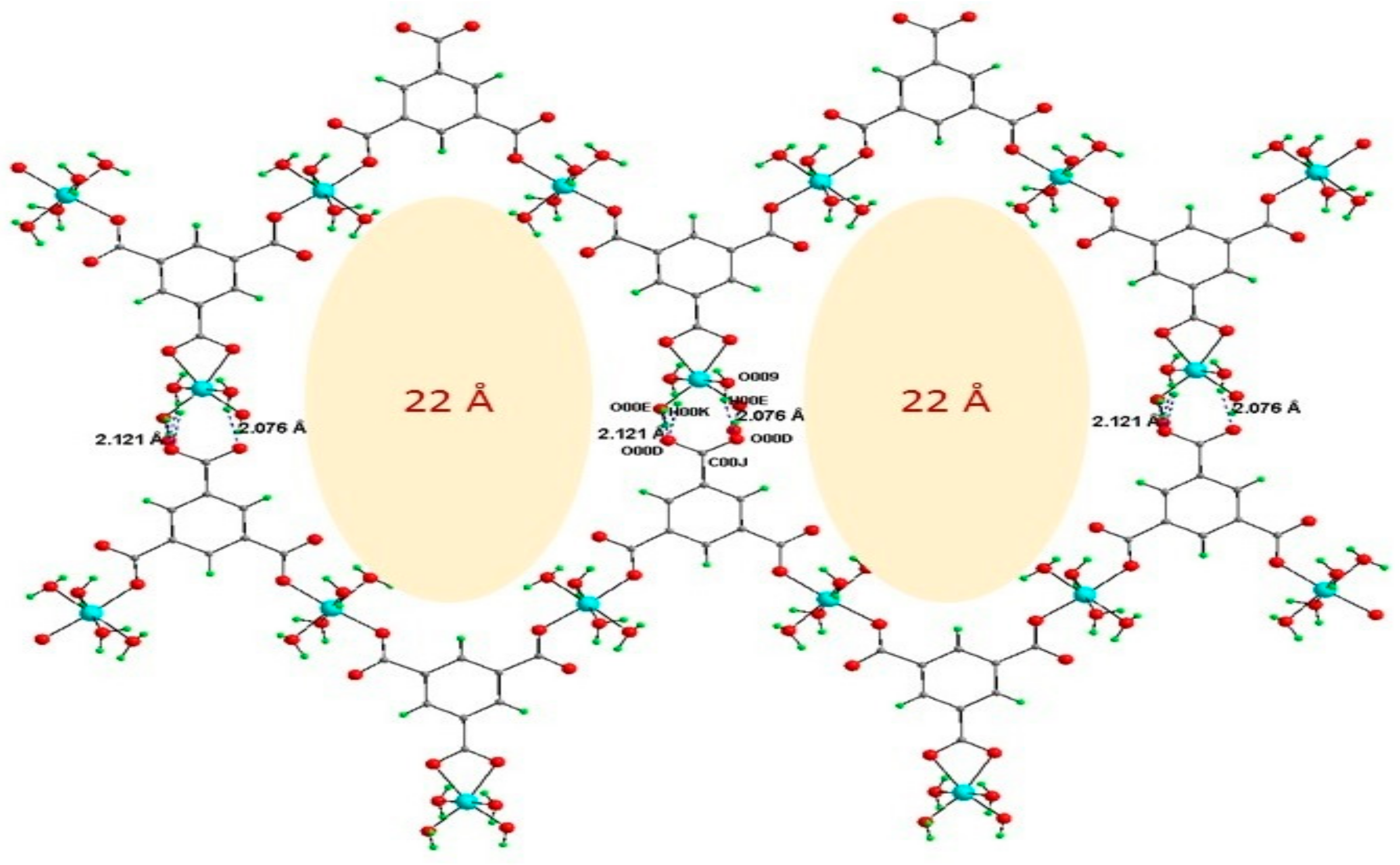

Figure 26. Zig-zag chains in [M3(btc)2(H2O)12] [M = Ni, and Co] are connected via H-bonding forming a 2D sheet with void space of approximately 22 Å. Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Figure 26. Zig-zag chains in [M3(btc)2(H2O)12] [M = Ni, and Co] are connected via H-bonding forming a 2D sheet with void space of approximately 22 Å. Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Polymers 13 03905 g026
Polymers 13 03905 g027 550
Figure 27. 3D framework in [M3(btc)2(H2O)12] [M = Ni and Co]. Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Figure 27. 3D framework in [M3(btc)2(H2O)12] [M = Ni and Co]. Reprinted with permission from Ref. [58]. Copyright 2019 Elsevier.
Polymers 13 03905 g027
Polymers 13 03905 g028 550
Figure 28. Cluster model used for the density functional theory (DFT) calculations of M-HKUST-1. Reprinted with permission from Ref. [133]. Copyright 2019 Royal Society of Chemistry.
Figure 28. Cluster model used for the density functional theory (DFT) calculations of M-HKUST-1. Reprinted with permission from Ref. [133]. Copyright 2019 Royal Society of Chemistry.
Polymers 13 03905 g028
Polymers 13 03905 g029 550
Figure 29. The mechanism study for the reaction of CO2 with PO to obtained cyclic carbonates catalyzed by M-HKUST-1. Reprinted with permission from Ref. [133]. Copyright 2019 Royal Society of Chemistry.
Figure 29. The mechanism study for the reaction of CO2 with PO to obtained cyclic carbonates catalyzed by M-HKUST-1. Reprinted with permission from Ref. [133]. Copyright 2019 Royal Society of Chemistry.
Polymers 13 03905 g029
Polymers 13 03905 g030 550
Figure 30. Gibbs energy barrier for CO2 cycloaddition with PO using M-HKUST-1 as a catalyst. Reprinted with permission from Ref. [133]. Copyright 2019 Royal Society of Chemistry.
Figure 30. Gibbs energy barrier for CO2 cycloaddition with PO using M-HKUST-1 as a catalyst. Reprinted with permission from Ref. [133]. Copyright 2019 Royal Society of Chemistry.
Polymers 13 03905 g030
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Musa, S.G.; Aljunid Merican, Z.M.; Akbarzadeh, O. Study on Selected Metal-Organic Framework-Based Catalysts for Cycloaddition Reaction of CO2 with Epoxides: A Highly Economic Solution for Carbon Capture and Utilization. Polymers 2021, 13, 3905. https://doi.org/10.3390/polym13223905

AMA Style

Musa SG, Aljunid Merican ZM, Akbarzadeh O. Study on Selected Metal-Organic Framework-Based Catalysts for Cycloaddition Reaction of CO2 with Epoxides: A Highly Economic Solution for Carbon Capture and Utilization. Polymers. 2021; 13(22):3905. https://doi.org/10.3390/polym13223905

Chicago/Turabian Style

Musa, Suleiman Gani, Zulkifli Merican Aljunid Merican, and Omid Akbarzadeh. 2021. "Study on Selected Metal-Organic Framework-Based Catalysts for Cycloaddition Reaction of CO2 with Epoxides: A Highly Economic Solution for Carbon Capture and Utilization" Polymers 13, no. 22: 3905. https://doi.org/10.3390/polym13223905

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
