AC Electric-Field Assistant Architecting Ordered Network of [email protected] Microspheres in Epoxy Resin to Enhance Conductivity

Key Laboratory of Optoelectronic Chemical Materials and Devices, Ministry of Education, Jianghan University, Wuhan 430056, China
Flexible Display Materials and Technology Co-Innovation Center of Hubei Province, Jianghan University, Wuhan 430056, China
Key Laboratory of Rubber-Plastics, Ministry of Education, Qingdao University of Science and Technology, Qingdao 266042, China
Authors to whom correspondence should be addressed.
Polymers 2021, 13(21), 3826;
Received: 7 October 2021 / Revised: 3 November 2021 / Accepted: 3 November 2021 / Published: 5 November 2021
(This article belongs to the Special Issue Conducting Polymer Nanocomposites and Their Potential Applications)


By using the low loading of the conductor filler to achieve high conductivity is a challenge associated with electrically conductive adhesion. In this study, we show an assembling of nickel-coated polystyrene ([email protected]) microspheres into 3-dimensional network within the epoxy resin with the assistance of an electric field. The morphology evolution of the microspheres was observed with optical microscopy and scanning electron microscopy (SEM). The response speed of [email protected] microsphere to the electric field were investigated by measuring the viscosity and shear stress variation of the suspension at a low shear rate with an electrorheological instrument. The SEM results revealed that the [email protected] microspheres aligned into a pearl-alike structure. The AC impedance spectroscopy confirmed that the conductivity of this pearl-alike alignment was significantly enhanced when compared to the pristine one. The maximum enhancement in conductivity is achieved at 15 wt. % of [email protected] microspheres with the aligned composites about 3 orders of magnitude as much as unaligned one, typically from ~10−5 S/m to ~10−2 S/m.

1. Introduction

Electrically conductive adhesives have widely applied in electronic devices such as die attachment, solderless interconnection, semiconductor packaging [1,2], interconnection of solar cells [3,4] and touch screens [5]. The conductive adhesives composed of polymer matrices in which conductive fillers are dispersed. The widely used polymer matrix is epoxy resins owing to their high chemical and thermal resistance, excellent mechanical properties, good adhesion to various materials, availability of solvent free formulations, ease of controlling viscosity [6,7]. The conductive fillers include metal fillers (silver, gold, nickel, copper) [8,9], carbon-based fillers (carbon nanotube, carbon black, carbon nanofibers, graphene etc.) [10,11,12], ceramic fillers [13,14], and metal-coated fillers [15,16,17]. In the conductive adhesives, the filler creates a conductive network above its percolation threshold and thus provides electron conductivity paths. For nano or micron-sized metal fillers such as silver or nickel embedded polymer, the required percolation threshold of the filler loading is up to 70–80% by weight or 23–30% by volume fraction [18,19]. The much large fraction of precious metal is a great cost, and same time causes a negative effect on adhesion properties such as brittleness, thermal expansion mismatch between the components. In addition, the density of silver and nickel is about 8–10 times of the epoxy resin, the metal will deposit on the bottom of the adhesive during the epoxy curing.
Compared to the pure metal filler, core-shell conducting fillers are gotten more and more attention due to lower cost and reduced density. The core is usually consisted of polymer such as polystyrene and polymethyl methacrylate microspheres with diameter in nano to micron-meter sizes, whereas the shell is covered by conductive metals with thickness in a few hundred nanometers. Gold and silver layers are excellent conductivity, but gold is high cost. silver layer has some limitations in their end applications such as Ag-migration, poor interface adhesion with the polymer matrix and easy to form Ag2O in the air atmosphere, whereas nickel with outstanding combination property such as its high chemical stability, lower density than gold and silver, and easy to be coated on the surface of polymer core by electroless plating, is continuously to be of great interest as a conductive filler in epoxy resin.
To achieve a high electric conductivity of composites at a conductive filler loading as low as possible, applying magnetic field [20,21,22,23] or electric field [24,25] to assemble particles into ordered structure have proven to be an efficient approach. Such an assembly might produce the continuous conductive pathway at a lower filler loading. Johnsen aligned silver micron powder in epoxy through electric field to enhance the electric conductivity [26]. Sanctuary investigated the alignment of nickel particles in the epoxy matrix by magnetic field, forming adhesive with anisotropic conductivity [27]. In addition, carbon nanotubes [28], carbon nano-cones [29] and metallic micro-coils [30] were aligned into microscopic wires under an alternating-current electric-field, forming one-dimension conductive pathways with conductivity enhancement of at least 2–3 orders of magnitude. In our previous work, electric-field was applied to induce alignment of ceramic nanoparticles to architect three-dimension pathways in poly (dimethyl siloxane) to enhance the ion conductivity [31].
In current study, the Ni coating PS microspheres ([email protected]) were prepared and used as conductive filler of epoxy resin. With the assistant of the electric field, the ordered and continuous pathway composed of the [email protected] microspheres was built-up. Evolution of the morphology of [email protected] microspheres in epoxy was in-situ observed, the response speed of the [email protected] microspheres to the electric field was characterized by measuring the viscosity and shear stress variation of the suspension under electric field at low shear rate. The enhancement of electric conductivity of aligned composites was demonstrated with the AC impedance spectroscopy.

2. Materials and Experiments

2.1. Materials

Polystyrene (PS microspheres with particle an average diameter of 3.8 μm were purchased from Shanghai Chemical Reagent Co. (Shanghai, China). Chromium trioxide (CrO3), H2SO4 (98%), tin (II) chloride dehydrate (SnCl2·2H2O), aqua ammonia (NH3·H2O), HCl, Hydrazine hydrate (N2H4·H2O), absolute ethanol (95%) was supplied by Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China) and used as received. Tin chloride (SnCl2·2H2O), sodium stannate (NaSnO3·3H2O), palladium chloride (PdCl2). Nickel sulfate (NiSO4·6H2O), sodium hypophosphite (NaH2PO4·H2O, 98%). Sodium pyrophosphate dec-hydrate (Na4P2O7·10H2O, 98%), triethanolamine (99.9%), ethylene diamine (99.9%), thiourea (99.9%), ammonia, hydrochloric acid (HCl, 36% by weight, and ethanol (95%). All these chemicals were purchased from Xi’an Chemical Regent company (Xi’an, China) and used as received. Epoxy resin (EP, Diglycidylether of bisphenol-A with an average epoxide equivalent of 0.51 equivalents/100 g), hardener 2-methyl imidazole (99.9%) and diluter allyl 2,3-epoxypropyl ether (98.0%) were provided by Baling Petrochemical Company (Yueyang, China). Copper conductive tapes, ITO conducting glasses and electric tapes were commercially obtained from 3M Co. Ltd (Shenzhen, China).

2.2. Preparation of [email protected] Microspheres

Figure 1a shows the preparation procedure of [email protected] microspheres. Typically, 5 g PS microspheres were immersed in 6M sulfuric acid for 60 min at 30 °C, filtered and washed with deionized water until no sulfate remained. The roughened PS microspheres were dipped in an acid SnCl2 solution (20 g/L SnCl2 and 20 mL/L HCl (37%)) for 60 min at 50 °C and then rinsed with deionized water until no Cl−remained. The deposition reaction of the electroless nickel occurs at palladium catalytic active centers that absorbed on surface of the PS. The activation was carried out in an acid PdCl2 solution composed of SnCl2 (0.343 M/3.414 M HCl), Na2SnO3 (0.026 M M/3.414 M HCl), PdCl2 (0.006 M/3.414 MHCl) for 60 min at 40 °C. The activated PS microspheres were separated, rinsed with deionized water, and dried at 60 °C in vacuum [32,33].
Nickel plating on PS Microspheres: The activated PS microspheres (0.2 g) were immersed in 100 mL of a nickel-plating solution consisting of NiSO4·6H2O (40 g/L), NaH2PO2·H2O (30 g/L), Na4P2O7·10 H2O (80 g/L), CH4N2S (1.5 mg/L) and (CH2CH2OH)3N (100 g/L) with mechanical stirring at 75 °C for 90 min. The gray-black [email protected] microspheres were filtered and rinsed with distilled water, dried at 60 °C.

2.3. Preparation of [email protected]/EP Composites

The [email protected]/EP composites were fabricated using the self-made setup as shown in Figure 1b. [email protected] microspheres were dispersed in the matrix containing EP oligomer, dilute and curing agent using Hielscher UP400S ultrasonic processor and planetary centrifugal mixer (Thinky Mixer ARE-310, Tokyo, Japan). The weight ratio of EP oligomer, dilute and curing agent is 100:10:25. The [email protected] content in the composite is based on the total weight of the matrix. Then suspension was put between two ITO coated glasses. The ITO surface was coated with silicone release tape. The one electrode was fixed onto a hot plate. The oriented structure is obtained by applying AC electric field of 300 V/mm of the for 10 min at 80 °C. The sample was post-cured at 80 °C for another 120 min after removing the electric field. The isotropic [email protected]/EP and blank epoxy are prepared using the same curing cycle without electric field.

2.4. Measurement and Characterization

The infrared spectroscopy was conducted on a Fourier Transform infrared spectrometer Tensor 27 (Bruker, Germany). The thermogravimetric analysis (TG) was performed in N2 atmosphere at a heating rate of 20 °C/min in the temperature range of 30–700 °C with thermogravimetric analyzer (Netzsch TG 209 F1, Selb, Germany). The morphology of original PS, [email protected] microspheres and cross-section of cured [email protected]/EP composites were investigated by scanning electron microscopy (SEM) (Hitachi SU8010, Tokyo, Japan). The cured [email protected]/EP composites were broken at ambient temperature of about 25 °C and coated with Au. The generator was operated at 40 kV and 40 mA with a beam monochromatized to Cu Kα radiation. The chemical compositions of the microspheres were analyzed by energy dispersion X-ray analysis (EDS) instrument (IXRF System 550i, Austin, TX, USA). X-ray diffraction (XRD) with Cu Kα radiation was used to analyze the crystal texture of Ni-coating on a XRD instrument (Rigalcu D/max C, Tokyo, Japan).
The alignment of [email protected] microspheres in EP mixture under AC electric filed was in-situ monitored by optical microscope (Zeiss Axiolab 5, Oberkochen, Germany) equipped with digital camera at room temperature. The suspension was placed onto a glass slide. Two parallel copper tapes were used as the electrodes connecting with the AC electric field. The in-situ images were taken with a DC 290 Kodak Zoom digital camera connected to the optical microscope.
Electrorheology experiments were carried out with rheometer (TA ARES-G2, New Castle, DE, USA) equipped with an EP cell having parallel plates with a diameter of 40 mm. The gap between the parallel plates which served as electrodes, was kept constant at 0.5 mm. The device was connected to the AC electric field-generating apparatus. Transient response of the [email protected] microspheres to an external AC field in EP suspension is recorded by performing time-sweeps at a shear rate of 0.01 s at 30 °C.
The electrical conductivity was measured after the samples curing, locking the aligned chain in a conducting configure ration. The measurement was performed on AC electric impedance analyzer (Beiguang GDAT-S, Beijing, China) with applied frequencies ranging from 100 Hz to 1 MHz.

3. Results and Discussion

3.1. Characterization of [email protected] Microspheres

Figure 2 presents the morphology and composition of the original PS and [email protected] microspheres. The original PS microspheres have a smooth surface and uniform size with diameter about 3.8 μm. The EDS demonstrate that PS microspheres have 51.645 wt.% of carbon and 32.525 wt.% of oxygen. Au of 15.562 wt.% is detected due to spraying of pretreatment. The surface of [email protected] microspheres is rough and composed of tiny solid grains. The element detected from EDS is as following: 86.194 wt.% nickel, 10.086 wt.% phosphorus. 0.192 wt% carbon, 1.525 wt.% of oxygen. The phosphorus is from the nickel-plating process. Carbon and oxygen are attributed to the PS substrate because the depth of the electron beam ripping into the coating is about 1 μm.
Figure 3a shows the thermal decomposition of the PS and [email protected] microspheres. The pure PS starts to decompose at 398 °C and almost loses all the weight before 450 °C. The [email protected] microspheres is more thermal stable than the PS and the initial decomposition temperature moves to 450 °C with the residues of 50.4% obtained at 700 °C. The reason is that the Ni acts as a protecting layer to avoid the heat transferring from the atmosphere to the bulk PS. In XRD spectrum of the microspheres (Figure 3b), the peaks for PS microspheres locate at 2θ = 10° and 20°, respectively. In the XRD of [email protected] microspheres, a peak around 44.40°appearsthat typical diffractive spectrum of pure nickel (PDF No. 04-0850), indicating that Ni has wrapped the whole surface of the PS microspheres. Figure 3c presents the FTIR spectra of original PS and [email protected] microspheres. In the original PS, the absorption peaks at 1450–1600 cm−1 are due to the aromatic ring and the peaks at 700–755 cm−1 are from vibration of -CH2 of PS, while in the FTIR of [email protected] microspheres, the absorptions for PS have disappeared, indicating the PS has been covered by the Ni.

3.2. Alignment of [email protected] in EP Suspension under AC Electric Field

The suspended [email protected] microspheres in the EP matrix will be polarized in the electric field and result in electric dipoles. The dipoles will interact with each other to form the chains. The metallic particles are nearly infinitely polarizable, thus, [email protected] microspheres can align at lower electric field strength in a viscous polymer matrix than non-conductive particles do, as clay, PS microspheres, or semiconductive ceramic particles. The particle concentration and electric field strength are important factors for alignment. They must exceed a threshold value for the chain forming and growing [34].
Figure 4 presents the optical images of the [email protected] microspheres after applying different electric field strength for 10 min. The experiment set-up for investigation of alignment via optical microscope is shown in the Figure 4f. The [email protected] microspheres distribute randomly in the in EP when no electric field is applied. At the 200 V/mm of electric field strength, the chains feature short and irregular. With the electric field strength increasing to 300 V/mm, the chain becomes more regular and chain length increases. At 400 V/mm of electric field strength, the chain slightly distorts and becomes irregular again. At 500 V/mm of electric field strength, the chains branch out in the different direction. In our experiment, the electric field intensity is set at 300 V/mm with the frequency of 1000 Hz for fabricating the composites.
Figure 5 shows the optical morphologies of [email protected] microspheres at different time under 300 V/mm of electric field strength. In the suspension with 1 wt.% and 3 wt.% of [email protected], the microspheres have organized into small chains anchoring to the electrodes or floating in the matrix within 3 min. After 5 min, the length and number of chains are enlarged while the number of isolated microspheres decrease. After applying the electric field for 7 min, chain length on the electrodes don’t change anymore. Meantime, the microspheres, or chains in the matrix become sparse. For the suspension containing 5 wt.% [email protected] microspheres, the chains have spanned the electrodes after 5 min. Results in Figure 5 indicates that microspheres preferentially anchor to the electrode and growing up into chain. This is because that electrostatic forces between the electrode and microspheres are greater than that of microspheres themselves [35].

3.3. Rheology of a [email protected] Microspheres in Epoxy under High AC Electric Fields

Rheology is a promising method to probe the microstructure of [email protected] microspheres in EP oligomer under the electric field. At a low shear rate, the applied shear field is only capable to slightly distort (but not destroy) the microstructures of microspheres and the viscosity of the suspension is approximately constant. Once chains of microspheres span the gap between electrodes, a finite stress, the static yield stress, is required to break the chains and subsequently the viscosity of the suspension increases. To obtain the viscosity curve under a shear rate of allowing to retain structural equilibrium. The steady shear flow tests were performed in controlled shear rate at 0.01/sunder electric field strength of 300 V/mm.
Figure 6a shows the change in the shear viscosity (η) with time of the suspension containing different [email protected] content. In the first 30 s, the suspension shows a Newtonian behavior with the viscosity remaining constant because no voltage is applied. The microspheres exhibit randomly distributed configuration. After 300 V/mm of electric field strength is applied, an abrupt increase in the viscosity is observed which demonstrates the formation of the chain structure. It is known that the viscosity is ratio of shear stress to shear rate. After alignment, the microsphere content within the chain increases dramatically, so the higher yield stress is required, which result in a jump in the viscosity between the aligned and random dispersed microspheres suspension. According to the Walsh and Saar [36] suggestion, yield stress increases as a power growth function of solid microsphere volume fraction for a suspension at a steady shear rate. Therefore, the viscosity variation with [email protected] microsphere content is non-linear, as shown in Figure 6b.
To evaluated how quick the [email protected] microspheres to build up into chain in the EP suspension when subjected to electric field. The shear viscosity with time is fitted with a typical function the sigmoidal-Boltzmann expression [37]:
η = η 0 η E 1 + e x p t t 0 t r e s / 4 + η E
where, t 0 is the time corresponding to a viscosity value [η(0) + η(E)]/2, and tres is the response time required by the suspension to change from η (0) to its final value η(E). The response time, t res demonstrates the speed of the chain buildup, which plotted as functions of the [email protected] content, as shown in the Figure 6b. the t res decreases as [email protected] content increasing. For instance, t res is 29 min for the suspension containing 5 wt.% [email protected], and t res reduce to 16 s when [email protected] content increases to 15 wt.%. however, t res does not change when the [email protected] content above 25 wt.%. At low [email protected] content, the polarized microspheres took a longer journey to attract another one, so a longer time is required for completing the construction of the chain. At high [email protected] content, the distance between microspheres is short, and microspheres easily and quickly attract each other to form the chain, so t res is low.

3.4. Morphology of [email protected]/EP Composites

The morphology of [email protected]/EP composite containing 3 wt.% of [email protected] was characterized by SEM-EDS. The microspheres distribute randomly in film without the application of electric field, as seen in Figure 7a. Short chains are observed in film with the application of 300 V/mm electrical field (Figure 7b). Under the high magnification, it can be noticed that microspheres pile up tightly within the chain. Some of the Ni has peeled off from microspheres, as evidenced by the red circle morphology for the mapping of Ni element in the EDS (Figure 7d).
Figure 8 presents the SEM morphology of the composites with [email protected] content from 5 wt.% to 20 wt.%. The chains are discontinuous within the films containing 5 wt.% of [email protected], as marked in red in the Figure 8a, which is different from the image under optical microscopy that chains are continuous along the electric field direction in the suspension containing 5 wt.% [email protected] (Figure 5). The reason is that the optical image is a superposition of microspheres of different layer along the thickness direction of the film (electric field direction). SEM image gives the information of the film surface where the only microspheres exposed at the surface can be observed. Therefore, the number of microspheres looks fewer, and chains feature interrupted in the SEM morphology. In the films containing 10 wt.% of [email protected], the chains are denser and exhibit a cone structure. The cone structure results from the gravitational force acting on each microsphere (or microsphere clusters) during electric-field induced alignment. The small microspheres can overcome the gravitational pull, while the larger microsphere clusters are too heavy and migrate toward the bottom of the suspension during the dielectrophoretic process and created the base portion of the cone. In the film containing 15 wt.% and 20 wt.% of [email protected] the chains are distorted, and chains crosslinked slightly forming the 3D network. Comparing with the aligned composites, the microspheres disperse disorderly and isolated each other in the unaligned ones (Figure 8a’–d’).
As the [email protected] content increasing to 25 wt.%, the chains have linked with each other. In the composites containing 25 wt.% [email protected], microspheres arrange more regular in the network with application of the electric field than that without electric field (Figure 9a,a’). In the film containing 30 wt.% of [email protected], the anisotropic chain structures can be barely seen (Figure 9b,b’). The microspheres with or without applying the electric field show similar network configuration within the film. The reason is that at such high microspheres content and high spatial density, the movement of microspheres is frustrated in the viscous matrix and alignment process was interrupted.

3.5. Electrical Conductivity of [email protected]/EP Composites

The electrical conductivity of cured [email protected]/EP composites with different [email protected] content was measured along the thickness direction. Log–log plots of the AC conductivity of neat epoxy and [email protected]/EP composites as a function of frequency at room temperature are shown in Figure 10a,b. The conductivity is both frequency and [email protected] content dependent. The conductivity of neat epoxy and the samples with low [email protected] content present curves similarities. For example, the unaligned samples with 5–15 wt.% [email protected] or the aligned sample with 5 wt.% [email protected], the conductivity tends to be constant values in frequency range about 20–1000 Hz, then increases in the frequency between 1000–0.1 M Hz. Moreover, as the [email protected] content increases, the onset of the frequency dependent area shifts to higher value. When the [email protected] content is above 20 wt.% for the unaligned samples and above 10 wt.% for the aligned samples, the conductivity spectra exhibit plateau in the whole range of applied frequency.
In the Figure 10, plateau of nearly frequency-independent conductivity is referred to as the DC conductivity. At a given temperature, the response of conductivity with frequency could be expressed by the empirical power law, that first described by Jonscher [38], as shown below:
σ A C ω = σ D C + A 2 π f n
where f is the frequency applied, A and n are parameters dependent temperature, morphology, movement of polymer chains, and composition. For the nanotubes filled epoxy composites [39], the critical frequency ( f c) value that switching DC conductivity ( σ D C ) to AC conductivity ( σ A C ) dominant increases with the filler content. It was found that f c increases from 10 Hz to 1.45 MHz as the nanotube content increases from 0.1 to 1.0 wt%. In our study, there is no frequency-independent conductivity appearing in the spectra for the samples with high [email protected] content because the f c value is beyond the permissible limit of applied frequency 1 MHz [40].
It can be noticed from Figure 10a,b that the conductivity of all the samples at lower frequency (<1000 Hz) is frequency-independence. To investigate the effect of alignment of [email protected] on the conductivity without considering the contribution of the frequency. The values of electrical conductivity of the samples with different [email protected] content obtained at frequency of 1000 Hz was plotted, as shown in Figure 10c.
The conductivity of pure EP and [email protected] microspheres is 1.4 × 10−7 S/m and 1 S/m, respectively. The conductivity increases with [email protected] content for both aligned and nonaligned composites. The aligned composites (red curve) exhibit higher electrical conductivity than nonaligned ones (black curve) at all filler loading. For instant, the aligned composite containing 5 wt.% [email protected] has a same electrical conductivity level as that of the nonaligned composite containing 15 wt.% [email protected] The conductivity of aligned composite is 1000 times of the unaligned one when the [email protected] content is at 15 wt.%.
The increase in conductivity stems from the microsphere aggregation and emerging conductive pathways. There should be a percolation content of the conductive fillers and a significant enhancement in the electrical conductivity could appear around this doping amount based on the formation of a 3D network of the conductive fillers. In our experiment, a conductivity percolation threshold ( φ c ) of the [email protected] is evaluated by fitting the experimental data to a Kirkpatrick’s equation [41,42,43,44]:
σ     σ 0 φ   φ c   p
where σ is conductivity of the samples, σ 0 and p are constants, φ is the filler concentration by volume. Figure 10d,e is log σ plotted against log ( φ φ c ) for the [email protected]/EP composites with randomly dispersed and aligned [email protected], respectively. The conductivity percolation threshold is estimated as 9.72 vol% (11.92 wt.%) for aligned composites and 15.63 vol% (19.14 wt.%) for unaligned one. The φ c of the aligned composites is reduced by 37.72% based on the mass fraction, compared to unaligned composites with randomly dispersed [email protected] Thus, these results clearly demonstrate that applying the electric field could significantly reduce the content of [email protected] necessary to achieve percolation.
In the study by Untereker [45], the conductivity of various particle filled polymers never exceeded 1% of that of the pure particle material itself when filler loading at percolation threshold value. The conductivity of [email protected] microspheres is about 1 S/m. The maximum conductivity for both the aligned and unaligned composite is about 10−2 S/m, which is agree with the conclusion from Untereker’s report.
In addition, the conductivity gap between the aligned and unaligned composite becomes small at [email protected] content above 25 wt.%. The reason is that at high [email protected] content, spatial density of microspheres became too high leading to interruption of alignment.

4. Conclusions

In summary, Nickel coated PS ([email protected]) conductivity microspheres have been successively prepared and uses as the conductor filler for the epoxy adhesive. By applying alternating electric field, [email protected] microspheres assemble and align into continuous conductive pathway in epoxy. In-situ optical microscopy observation indicate that microspheres chains grow up at electrodes and extend to the opposite electrode by attracting the isolated microspheres. Rheology test showed that tres decrease with [email protected] content increasing to 20 wt.%. The tres does not change after [email protected] content beyond 25 wt.%. The SEM morphology shows that well-organized 3D network was formed at 15 wt.% of [email protected] under 300 V/mm of the electric field strength. However, the alignment of microspheres is stunted as the [email protected] content reaching to 30 wt.% due to a lack of free space. The aligned composites have an enhanced electric conductivity with conductivity 1000 times of unaligned one at 15 wt.% of [email protected] Moreover, a higher conductivity level may be obtained by optimizing thickness of Ni layer, adopting different metal, and changing interfacial properties between conductive microspheres, and between microspheres and the electrodes.

Author Contributions

X.L., J.L. and Y.C.: Proposed the original idea and defined research topic; Z.H.: carried out the experiments preparation and writing of the manuscript. J.W. and Q.Y.: helped with experiments and analysis. B.X. and Z.L.: contributed to the discussion of the results. All authors have read and agreed to the published version of the manuscript.


This has received financial support from Team Innovation Foundation of Hubei province (T201935). National Natural Science Foundation of China (Grant no. 22139001,51872127, 51803103) and the Opening Project of Key Laboratory of Optoelectronic Chemical Materials and Devices of Ministry of Education, Jianghan University (JDGD-202001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Prunet, G.; Pawula, F.; Fleury, G.; Cloutet, E.; Pakdel, A. A review on conductive polymers and their hybrids for flexible and wearable thermoelectric applications. Mater. Today Phys. 2021, 18, 100402. [Google Scholar] [CrossRef]
  2. Fan, B.; Mei, X.; Sun, K.; Ouyang, J.Y. Conducting polymer/carbon nanotube composite as counter electrode of dye-sensitized solar cells. Appl. Phys. Lett. 2008, 93, 143103. [Google Scholar] [CrossRef]
  3. Nagai, T.; Aoki, N.; Ochiai, Y.; Hoshino, K. Electric Conductivity-tunable transparent flexible nanowire-filled polymer composites: Orientation control of nanowires in a magnetic field. ACS Appl. Mater. Inter. 2011, 3, 2341–2348. [Google Scholar] [CrossRef] [PubMed]
  4. Yu, Z.; Xia, Y.; Du, D.; Ouyang, J.Y. PEDOT: PSS films with metallic conductivity through a treatment with common organic solutions of organic salts and their application as a transparent electrode of polymer solar cells. ACS Appl. Mater. Inter. 2016, 8, 11629–11638. [Google Scholar] [CrossRef]
  5. Durairaj, R.; SeowPheng, L.; Jian Ping, L. Investigation on the mechanical and electrical properties of multiwall carbon nanotubes (MWNCTs) based isotropic conductive adhesives. Pigm. Resin. Technol. 2016, 240–245. [Google Scholar] [CrossRef]
  6. Ruchi Aradhana, A.; Mohanty, S.; Kumar Nayak, S. A review on epoxy-based electrically conductive adhesives. Int. J. Adhes. 2020, 99, 102596–102613. [Google Scholar] [CrossRef]
  7. Lei, Z.; Ying, H.; Gao, L. Electrical conduction and reliability of anisotropic conductive adhesives filled with Ag/Cu-coated epoxy composite particles. In Proceedings of the 2006 8th International Conference on Solid-State and Integrated Circuit Technology Proceedings, Shanghai, China, 23–26 October 2006; pp. 1034–1036. [Google Scholar] [CrossRef]
  8. Oh, Y.; Chun, K.Y.; Lee, E.; Kimab, Y.; Baik, S. Functionalized nano-silver particles assembled on one-dimensional nanotube scaffolds for ultra-highly conductive silver/polymer composites. J. Mater. Chem. 2010, 20, 3579–3582. [Google Scholar] [CrossRef]
  9. Ren, H.M.; Zhang, K.; Matthew, M.Y.; Fu, X.Z.; Sun, R.; Wong, C.P. Preparation and performance of Ag-coated Cu flakes filled epoxy as electrically conductive adhesives. J. Solid State Light. 2014, 1, 10. [Google Scholar] [CrossRef][Green Version]
  10. Martin-Gallego, M.; Lopez-Manchado, M.A.; Calza, P.; Roppolo, I.; Sangermano, M. Gold-functionalized graphene as conductive filler in UV-curable epoxy resin. J. Mater. Sci. 2015, 50, 605–610. [Google Scholar] [CrossRef][Green Version]
  11. Li, W.; Dichiara, A.; Bai, J. Carbon nanotube-graphene nanoplatelet hybrids as high-performance multifunctional reinforcements in epoxy composites. Compos. Sci. Technol. 2013, 74, 221–227. [Google Scholar] [CrossRef]
  12. Earp, B.; Phillips, J.; Grbovic, D.; Vidmar, S.; Porter, M.; Luhrs, C.C. Impact of current and temperature on extremely low loading epoxy-CNT conductive composites. Polymers 2020, 12, 867. [Google Scholar] [CrossRef]
  13. Pa, B.; Ra, B.; Jsra, B. Effective use of nanocarbons in controlling the electrical conductivity of epoxy composites. Compos. Sci. Technol. 2021, 202, 108554–108561. [Google Scholar] [CrossRef]
  14. Hussain, W.A.; Hussein, A.A.; Khalaf, J.M.; Al-Mowali, A.H.; Sultan, A.A. Dielectric properties and A.C. conductivity of epoxy/alumina silicate NGK composites. Adv. Chem. Eng. Sci. 2015, 5, 282–289. [Google Scholar] [CrossRef][Green Version]
  15. Zhao, J.C.; Hu, J.D.; Jiao, D.N.; Tosto, S. Application of face centered cubic TiB powder as conductive filler for electrically conductive adhesives. Trans. Nonferrous Met. Soc. China 2014, 24, 1773–1778. [Google Scholar] [CrossRef]
  16. Chao, C.; Tang, Y.; Yun, S.Y.; Xue, Z.G.; Xue, Y.; Xie, X.L.; Mai, Y.W. High-performance epoxy/silica coated silver nanowire composites as under fill material for electronic packaging. Compos. Sci. Technol. 2014, 105, 80–85. [Google Scholar] [CrossRef]
  17. Kim, J.Y.; Choi, S.H.; An, J.H.; Lee, S.J. Facile and affordable process to control shell thickness of polydopamine-assisted polystyrene/silver core-shell particles. Macromol. Res. 2019, 27, 1104–1109. [Google Scholar] [CrossRef]
  18. Sunday Aigbodion, V.; Akpan John, J. Explicit microstructure and electrical conductivity of epoxy/carbon nanotube and green silver nanoparticle enhanced hybrid dielectric composites. Nanocomposites 2021, 7, 989–1004. [Google Scholar] [CrossRef]
  19. Cooper, D.W.; Peters, M.H.; Miller, R.J. Predicted deposition of sub-micrometer particles due to diffusion and electrostatics in viscous axisymmetric stagnation-point flow. Aerosol Sci. Technol. 1989, 11, 133–143. [Google Scholar] [CrossRef]
  20. Zhang, R.; Moon, K.S.; Lin, W.; Agar, J.C.; Wong, C.P. A simple, low-cost approach to prepare flexible highly conductive polymer composites by in situ reduction of silver carboxylate for flexible electronic applications. Compos. Sci. Technol. 2011, 71, 528–534. [Google Scholar] [CrossRef]
  21. Xu, S.; Liu, H.; Li, Q.M.; Mu, Q.W.; Wen, H.Y. Influence of magnetic alignment and layered structure of BN&Fe/EP on thermal conducting performance. J. Mater. Chem. C 2016, 4, 872–878. [Google Scholar] [CrossRef]
  22. Shi, Y.D.; Yu, H.O.; Li, J.; Tan, Y.J.; Chen, F.Y.; Wang, M.; Wu, H.; Guo, S.Y. Low magnetic field-induced alignment of nickel particles in segregated poly(l-lactide)/poly(ε-caprolactone)/multi-walled carbon nanotube nanocomposites: Towards remarkable and tunable conductive anisotropy. Chem. Eng. J. 2018, 347, 472–482. [Google Scholar] [CrossRef]
  23. Steinert, B.W.; Dean, D.R. Magnetic field alignment and electrical properties of solution cast PET–carbon nanotube composite films. Polymer 2009, 50, 898–904. [Google Scholar] [CrossRef]
  24. Smith, P.A.; Nordquist, C.D.; Jackson, T.N.; Mayera, T.S.; Martin, B.R.; Mbindyo, J.; Mallouk, T.E. Electric-field assisted assembly and alignment of metallic nanowires. Appl. Phys. Lett. 2000, 77, 1399–1401. [Google Scholar] [CrossRef][Green Version]
  25. Prasse, T.; Cavaillé, J.Y.; Bauhofer, W. Electric anisotropy of carbon nanofibre/epoxy resin composites due to electric field induced alignment. Compos. Sci. Technol. 2003, 63, 1835–1841. [Google Scholar] [CrossRef]
  26. Johnsen, G.K.; Knaapila, M.; Martinsen, G.; Helgesen, G. Conductivity enhancement of silver filled polymer composites through electric field alignment. Compos. Sci. Technol. 2012, 72, 1841–1847. [Google Scholar] [CrossRef]
  27. Sancaktar, E.; Dilsiz, N. Anisotropic alignment of nickel particles in a magnetic field for electronically conductive adhesives applications. J. Adhes. Sci. Technol. 1997, 11, 155–166. [Google Scholar] [CrossRef]
  28. Felisberto, M.; Arias-Durán, A.; Ramos, J.A. Influence of filler alignment in the mechanical and electrical properties of carbon nanotubes/epoxy nanocomposites. Phys. B Condens. Matter. 2012, 407, 3181–3183. [Google Scholar] [CrossRef]
  29. Knaapila, M.; Pinheiro, J.P.; Buchanan, M.; Skjeltorp, A.T.; Helgesen, G. Directed assembly of carbon nanocones into wires with an epoxy coating in thin films by a combination of electric field alignment and subsequent pyrolysis. Carbon 2011, 49, 3171–3178. [Google Scholar] [CrossRef]
  30. Li, X.; Cai, J.; Shi, Y.; Yue, Y.; Zhang, D. Remarkable conductive anisotropy of metallic microcoil/PDMS Composites Made by Electric Field Induced Alignment. ACS Appl. Mater. Inter. 2016, 9, 1593–1601. [Google Scholar] [CrossRef]
  31. Liu, X.; Peng, S.; Gao, S.; Cao, Y.; You, Q.; Zou, L.; Liu, Z.; Liu, J. Electric-field directed parallel alignment architecting 3D lithium-ion pathways within solid composite electrolyte. ACS Appl. Mater. Interfaces 2018, 10, 15691–15696. [Google Scholar] [CrossRef]
  32. Wen, Z.; Zhang, Q.; Zhang, J.; Gu, J.W.; Guo, F.G. Preparation, and characterization of core-shell PS/Ni composite microspheres. Polym. Compos. 2008, 30, 1099–1105. [Google Scholar] [CrossRef]
  33. Ma, Y.; Zhang, Q.; Li, Y. Role of La in PS/Ni composite microspheres prepared by electroless plating. J. Electrochem. Soc. 2012, 159, 119–123. [Google Scholar] [CrossRef]
  34. Pethig, R. Dielectrophoresis: Theory, Methodology and Biological Applications; John Wiley & SonsInc: New York, NY, USA, 2017; pp. 31–48. [Google Scholar]
  35. Hermanson, K.D.; Lumsdon, S.O.; Williams, J.P.; Kaler, E.W.; Velev, O.D. Dielectrophoretic assembly of electrically functional microwires from nanoparticle suspensions. Science 2001, 294, 1082–1086. [Google Scholar] [CrossRef] [PubMed]
  36. Walsh, S.D.; Saar, M.O. Numerical models of stiffness and yield stress growth in crystal-melt suspensions. Earth Planet Sci. Lett. 2008, 267, 32–44. [Google Scholar] [CrossRef]
  37. Espín, M.J.; Delgado, A.V.; González-Caballero, F. Structural explanation of the rheology of a colloidal suspension under high dc electric fields. Phys. Rev. E 2006, 73, 041503. [Google Scholar] [CrossRef] [PubMed]
  38. Jonscher, A.K. A new understanding of the dielectric relaxation of solids. J. Mater. Sci. 1981, 16, 2037–2060. [Google Scholar] [CrossRef]
  39. Greenhoe, B.M.; Hassan, M.K.; Wiggins, J.S.; Mauritz, K.A. Universal power law behavior of the ac conductivity versus frequency of agglomerate morphologies in conductive carbon nanotube-reinforced epoxy networks. J. Polym. Sci. Part B Polym. Phys. 2016, 54, 1918–1923. [Google Scholar] [CrossRef]
  40. Tsangaris, G.M.; Psarras, G.C.; Manolakaki, E. DC and AC conductivity in polymeric particulate composites of epoxy resin and metal particles. Adv. Compos. Lett. 1999, 8, 25–29. [Google Scholar] [CrossRef][Green Version]
  41. Vavouliotis, A.; Fiamegou, E.; Karapappas, P.; Psarras, G.C.; Kostopoulos, V. DC and AC conductivity in epoxy resin/multiwall carbon nanotubes percolative system. Polym. Compos. 2010, 31, 1874–1880. [Google Scholar] [CrossRef]
  42. Ruschau, G.R.; Yoshikawa, S.; Newnham, R.E. Resistivities of conductive composites. J. Appl. Phys. 1992, 72, 953–959. [Google Scholar] [CrossRef]
  43. Guo, Y.; Chen, Y.; Wang, E.; Cakmak, M. Roll-to-roll continuous manufacturing multifunctional nanocomposites by electric-field-assisted “Z” direction alignment of graphite flakes in poly(dimethylsiloxane). ACS Appl. Mater. Inter. 2016, 9, 919–929. [Google Scholar] [CrossRef]
  44. Vikulova, M.; Tsyganov, A.; Bainyashev, A.; Artyukhov, D.; Gorokhovsky, A.; Muratov, D.; Gorshkov, N. Dielectric properties of PMMA/KCTO (H) composites for electronics components. J. Appl. Polym. Sci. 2021, 138, 51168. [Google Scholar] [CrossRef]
  45. Untrekked, D.; Lyu, S.; Schley, J.; Martinez, G.; Lohstreter, L. Maximum conductivity of packed nanoparticles and their polymer composites. ACS Appl. Mater. Inter. 2009, 1, 97–101. [Google Scholar] [CrossRef]

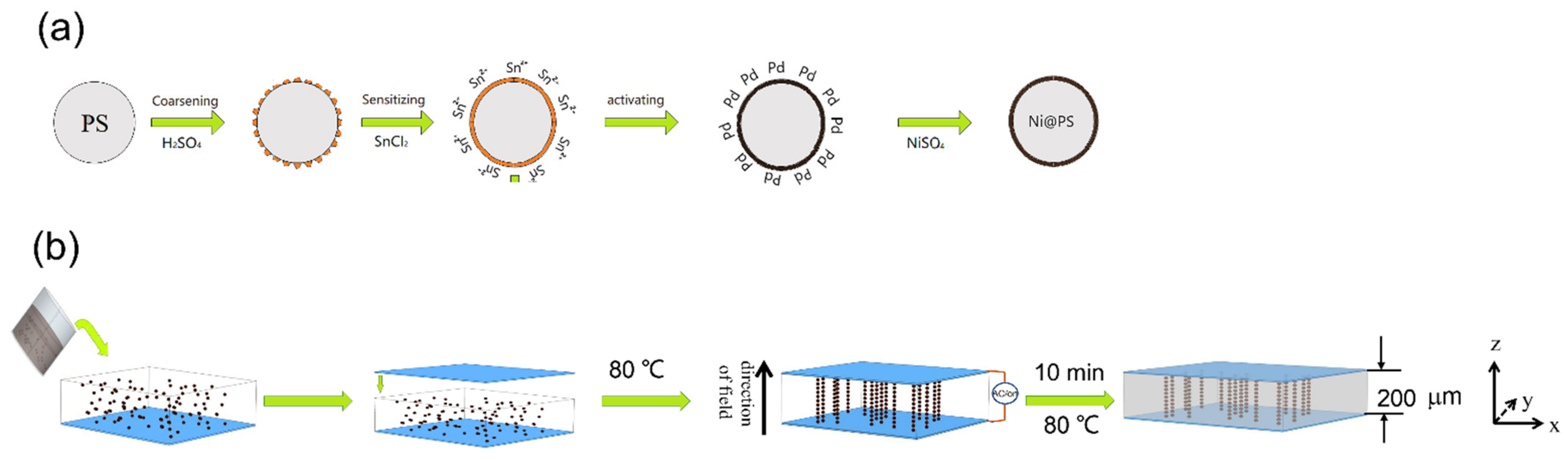

Figure 1. Schematics of preparing of [email protected] microspheres (a) and aligned [email protected]/EP composites (b).
Figure 1. Schematics of preparing of [email protected] microspheres (a) and aligned [email protected]/EP composites (b).
Polymers 13 03826 g001

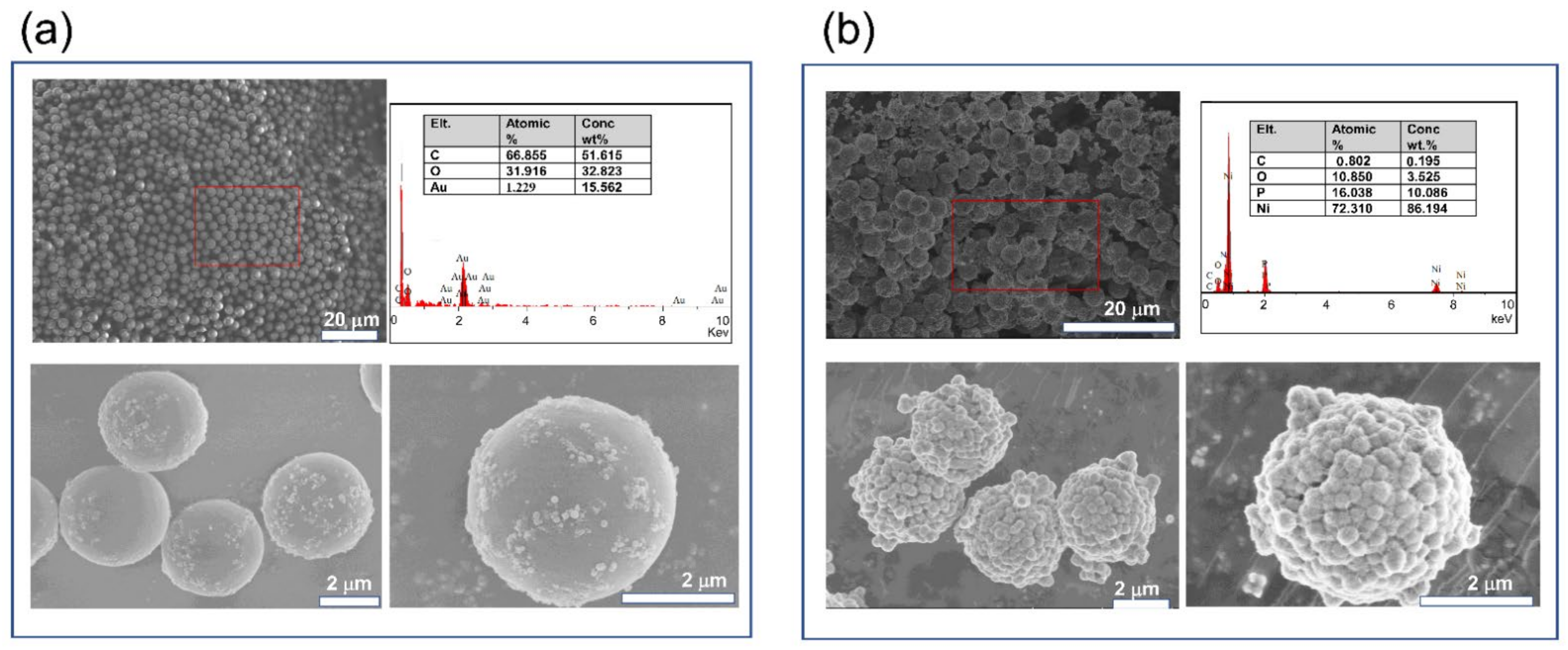

Figure 2. Surface morphology of (a) original PS, and (b) [email protected] microspheres by SEM.
Figure 2. Surface morphology of (a) original PS, and (b) [email protected] microspheres by SEM.
Polymers 13 03826 g002

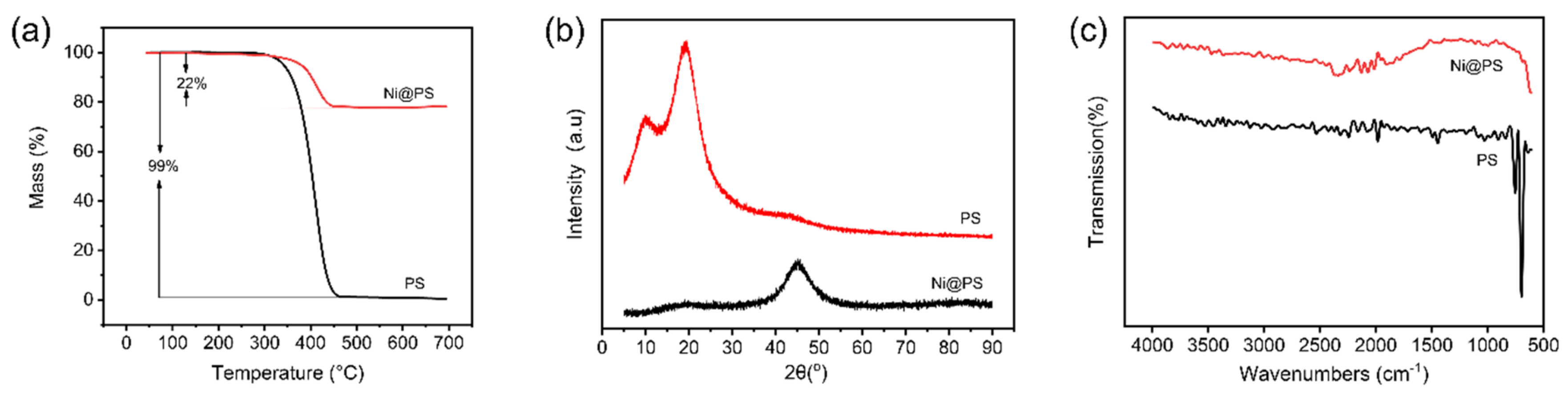

Figure 3. (a) TG curves, (b) XRD spectra, and (c) FTIR spectra of original PS and [email protected] microspheres.
Figure 3. (a) TG curves, (b) XRD spectra, and (c) FTIR spectra of original PS and [email protected] microspheres.
Polymers 13 03826 g003

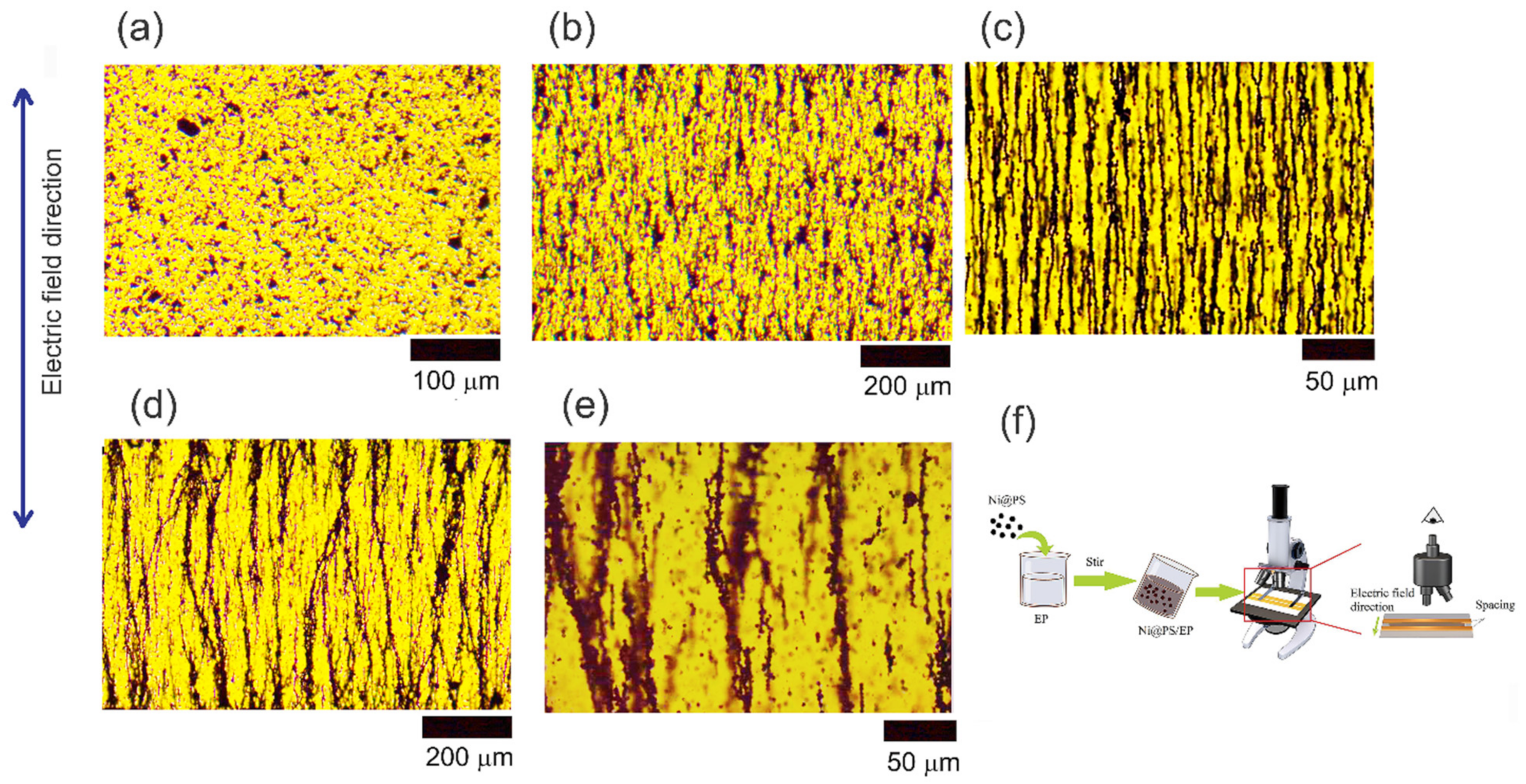

Figure 4. Optical microscopy of [email protected] microspheres in EP oligomer under different electric field strength (V/mm): (a) 0, (b) 200, (c) 300, (d) 400, (e) 500 (frequency 1000 Hz, aligning time10 min, temperature 30 °C). (f) The set-up for monitoring alignment of [email protected] microspheres in EP with optical microscope.
Figure 4. Optical microscopy of [email protected] microspheres in EP oligomer under different electric field strength (V/mm): (a) 0, (b) 200, (c) 300, (d) 400, (e) 500 (frequency 1000 Hz, aligning time10 min, temperature 30 °C). (f) The set-up for monitoring alignment of [email protected] microspheres in EP with optical microscope.
Polymers 13 03826 g004

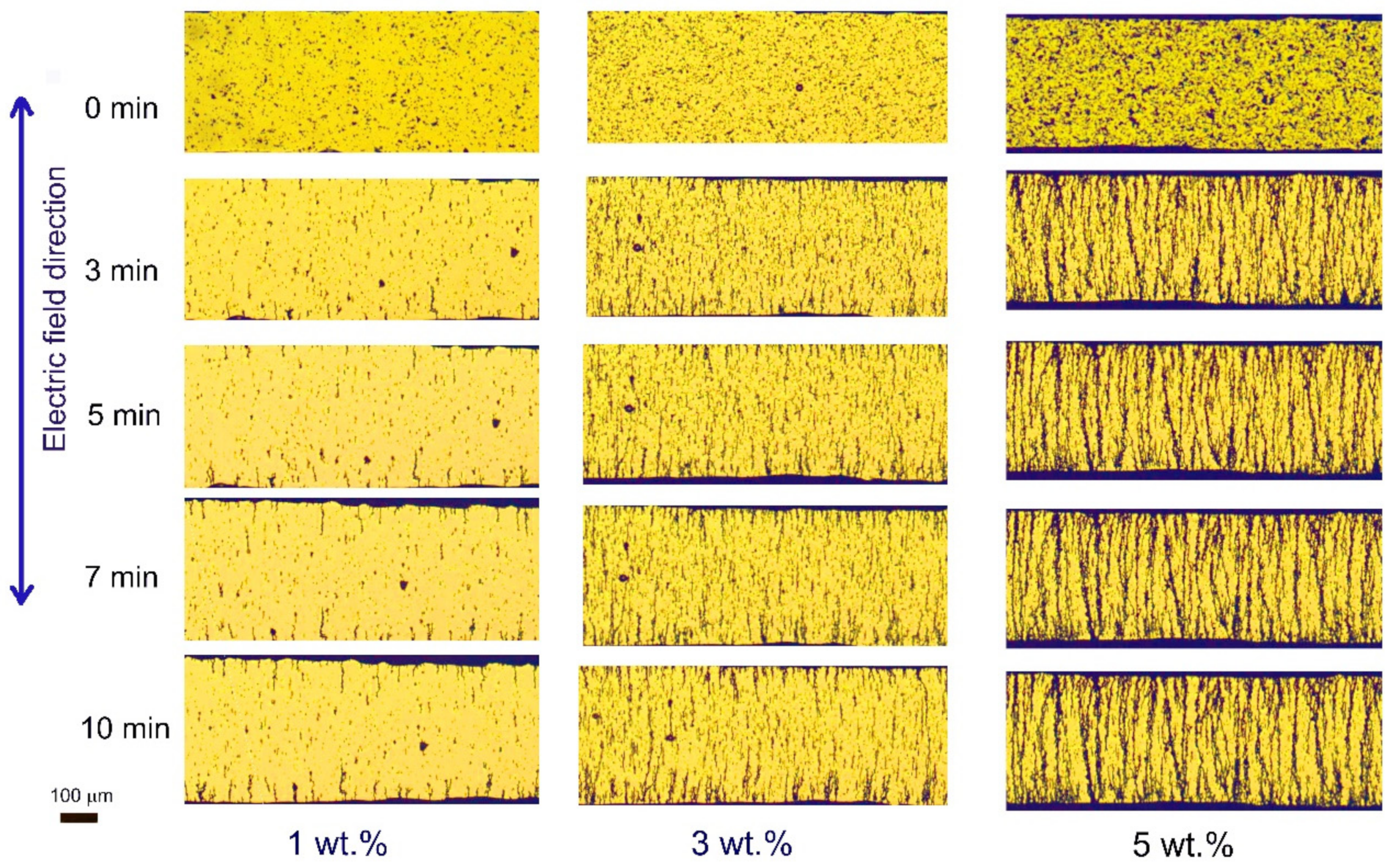

Figure 5. Effects of the concentration of the [email protected] microspheres on the alignment.
Figure 5. Effects of the concentration of the [email protected] microspheres on the alignment.
Polymers 13 03826 g005

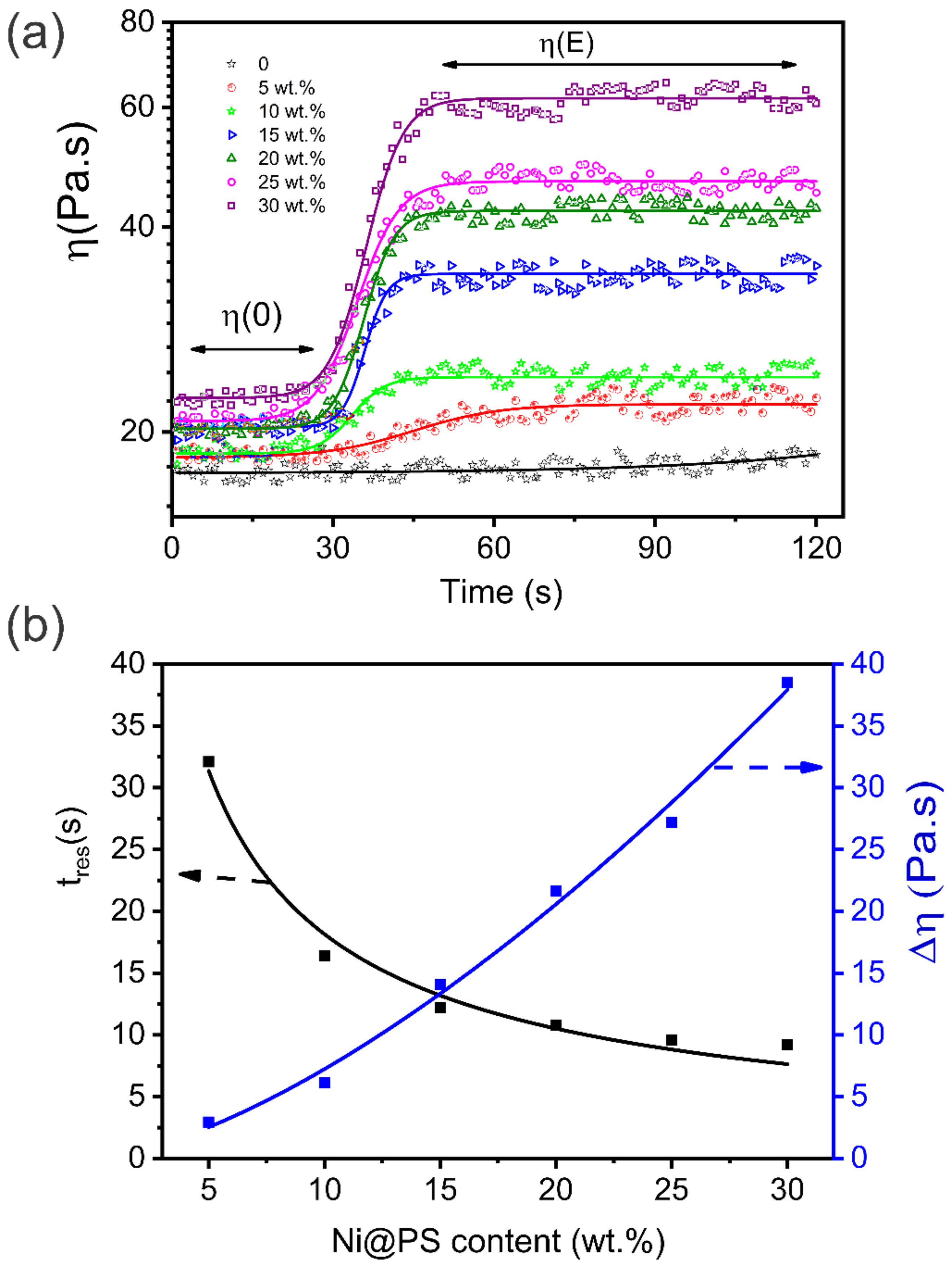

Figure 6. (a) Plots of the shear viscosity vs. time at constant shear rate, as a function time under different electric field strength. The field is applied at t = 30 s. Lines correspond to the best fit to a Sigmoidal-Boltzmann curve. (b) Viscosity increases Δ η and response time t r e s vs. [email protected] content.
Figure 6. (a) Plots of the shear viscosity vs. time at constant shear rate, as a function time under different electric field strength. The field is applied at t = 30 s. Lines correspond to the best fit to a Sigmoidal-Boltzmann curve. (b) Viscosity increases Δ η and response time t r e s vs. [email protected] content.
Polymers 13 03826 g006

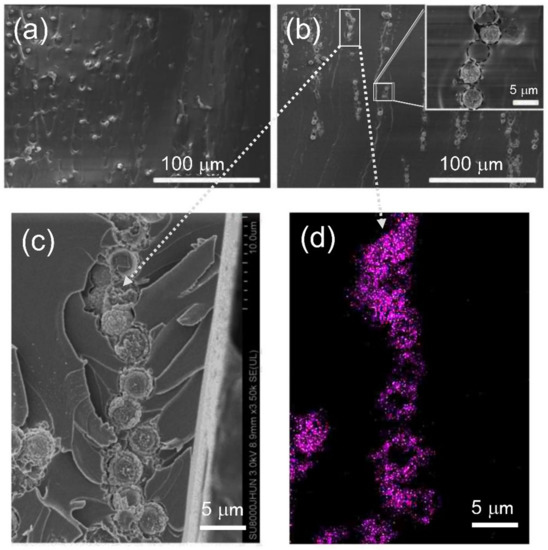

Figure 7. Cross-sectional SEM morphology of 3 wt.% [email protected]/EP composites (a) unaligned, (b,c) aligned under 300 V/mm electric field strength, (d) EDS mapping of Ni corresponding to the graph.
Figure 7. Cross-sectional SEM morphology of 3 wt.% [email protected]/EP composites (a) unaligned, (b,c) aligned under 300 V/mm electric field strength, (d) EDS mapping of Ni corresponding to the graph.
Polymers 13 03826 g007

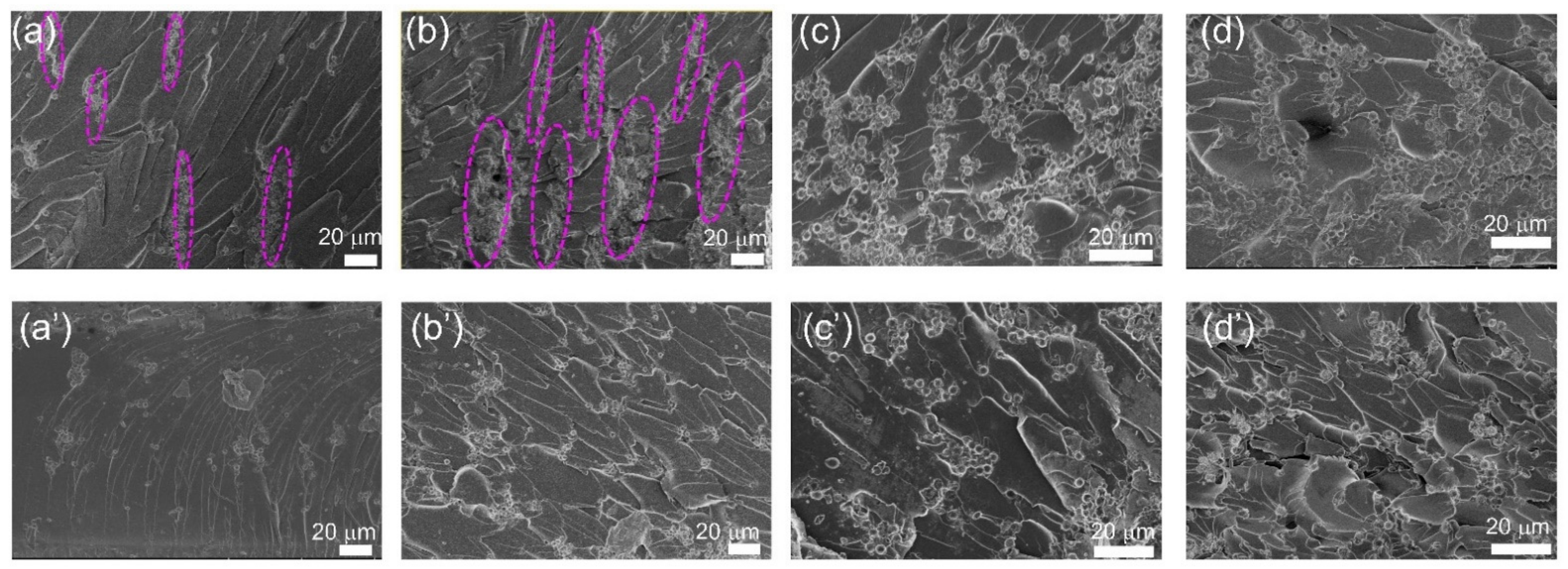

Figure 8. Cross-sectional morphology of [email protected]/EP composites obtained with 300 V/mm of electric field strength at different [email protected] content (wt.%): (a) 5, (b) 10, (c) 15, (d) 20. (a’d’) Corresponding to the composites containing 5 wt.%, 10 wt.%, 15 wt.%, and 20 wt.% of [email protected] without application of electric field.
Figure 8. Cross-sectional morphology of [email protected]/EP composites obtained with 300 V/mm of electric field strength at different [email protected] content (wt.%): (a) 5, (b) 10, (c) 15, (d) 20. (a’d’) Corresponding to the composites containing 5 wt.%, 10 wt.%, 15 wt.%, and 20 wt.% of [email protected] without application of electric field.
Polymers 13 03826 g008

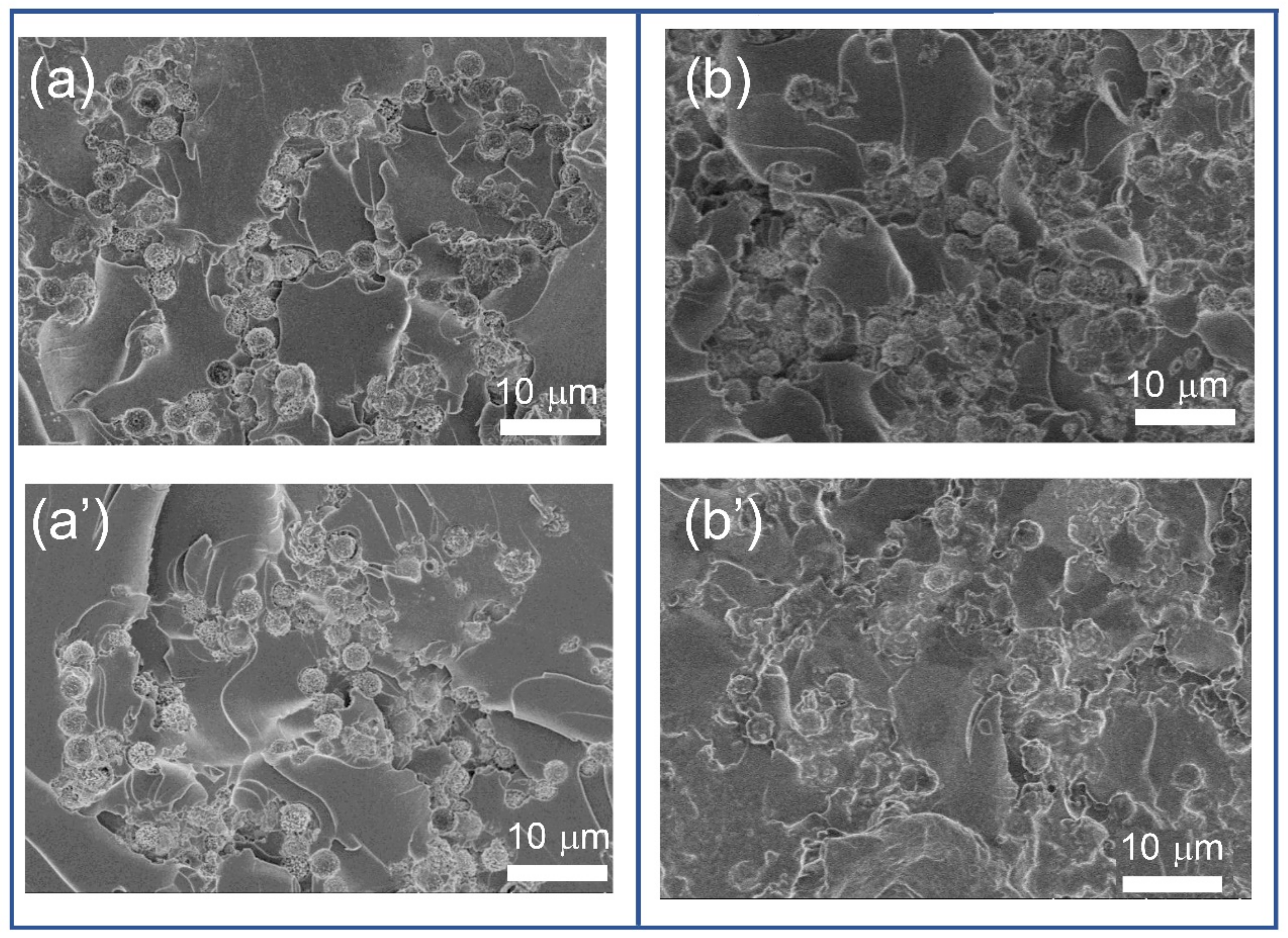

Figure 9. Cross-sectional morphology of [email protected]/EP composite containing 25 wt.% (a,a’) and 30 wt.% (b,b’) of [email protected] microspheres (a,b) with 300 V/mm of electric field strength, (a’,b’) without application of electric field.
Figure 9. Cross-sectional morphology of [email protected]/EP composite containing 25 wt.% (a,a’) and 30 wt.% (b,b’) of [email protected] microspheres (a,b) with 300 V/mm of electric field strength, (a’,b’) without application of electric field.
Polymers 13 03826 g009

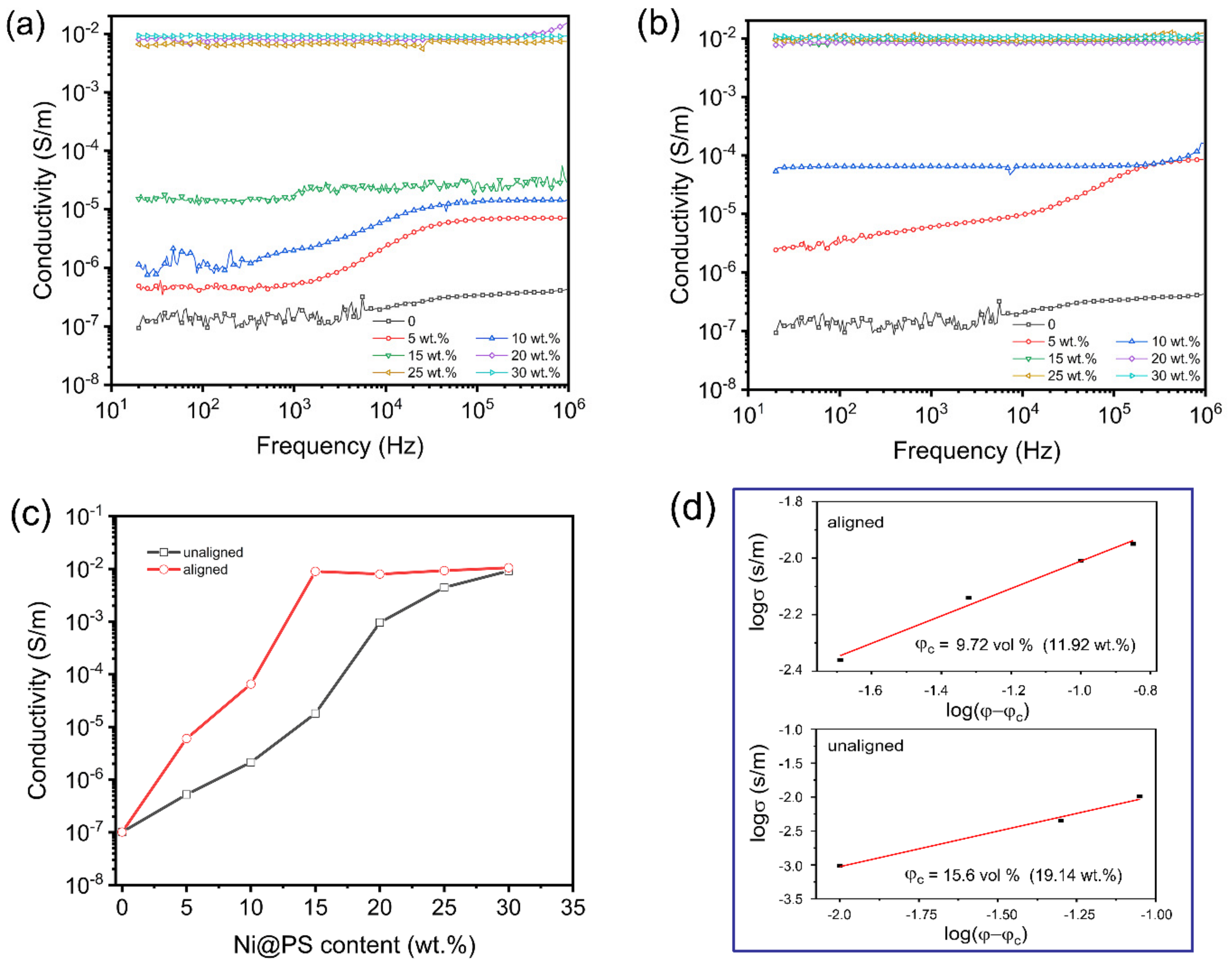

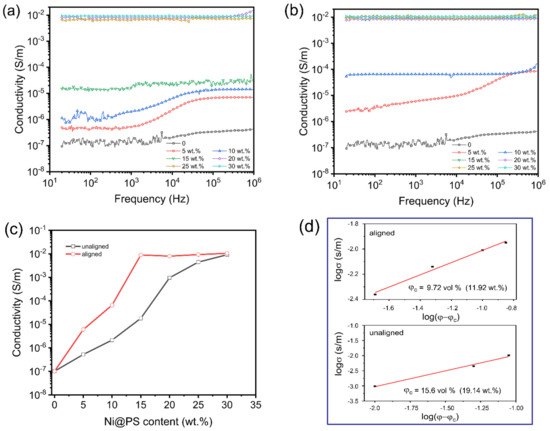

Figure 10. Dependence of electrical conductivity of [email protected]/EP composites on the frequency at room temperature: (a)without application of electric field, (b) with 300 V/mm of electric field strength. (c) Electrical conductivity of [email protected]/EP composites with different [email protected] content at 1000 Hz. (d) log σ plotted against log ( φ φ c ) for the [email protected]/EP composites with unaligned and aligned [email protected], respectively.
Figure 10. Dependence of electrical conductivity of [email protected]/EP composites on the frequency at room temperature: (a)without application of electric field, (b) with 300 V/mm of electric field strength. (c) Electrical conductivity of [email protected]/EP composites with different [email protected] content at 1000 Hz. (d) log σ plotted against log ( φ φ c ) for the [email protected]/EP composites with unaligned and aligned [email protected], respectively.
Polymers 13 03826 g010
