Biopolymer Nanocomposite Materials Based on Poly(L-lactic Acid) and Inorganic Fullerene-like WS₂ Nanoparticles

Abstract

In the current study, inorganic fullerene (IF)-like tungsten disulphide (WS₂) nanoparticles from layered transition metal dichalcogenides (TMDCs) were introduced into a poly(L-lactic acid) (PLLA) polymer matrix to generate novel bionanocomposite materials through an advantageous melt-processing route. The effectiveness of employing IF-WS₂ on the morphology and property enhancement of the resulting hybrid nanocomposites was evaluated. The non-isothermal melt–crystallization and melting measurements revealed that the crystallization and melting temperature as well as the crystallinity of PLLA were controlled by the cooling rate and composition. The crystallization behaviour and kinetics were examined by using the Lui model. Moreover, the nucleating effect of IF-WS₂ was investigated in terms of Gutzow and Dobreva approaches. It was discovered that the incorporation of increasing IF-WS₂ contents led to a progressive acceleration of the crystallization rate of PLLA. The morphology and kinetic data demonstrate the high performance of these novel nanocomposites for industrial applications.

1. Introduction

Biodegradable polymers can be classified as natural or synthetic polymers according to the source. Synthetic biodegradable polymers based on polyesters, poly(amides), poly(phosphoesters), poly(phosphazenes), poly(orthoesters) and polyanhydride have been widely used and have greatly promoted the development of biomedical fields because of their biocompatibility and biodegradability. Novel polyesters with specific properties have found diverse biomedical applications in drug delivery devices, prosthetics, implants and tissue engineering owing to their tailorable designs or modifications [1,2]. In particular, the use of poly(L-lactic acid) (PLLA), copolymers of lactide/glycolide and lactide/caprolactone (PLGA and PCL-PLLA) to target bio-related applications is highly desirable for practical applications, where the biodegradability of PLLA will allow the incorporation of native tissue into the material over time. The correlation between the morphology, interconnectivity, ability to reabsorb, and interfacial bonding can influence the long-term integrity of the developed material and can control the interaction and integration of new tissue. The mechanical properties, crystallinity, degradation rates and biocompatibility can be controlled by adjusting the monomer ratios [3]. These polyesters and their monomers are endogenous to human metabolism. As with polyesters, polymer hydrophilicity is a key factor that influences the degradation rate. In general, the relative degradation rate of a polyester increases with its hydrophilicity. Polyesters contain the ester linkage between monomer units and degrade by hydrolysis. In particular, PGA is hydrophilic in nature, and it rapidly degrades in vitro aqueous solution and in vivo. PLA is characterized by a slower hydrolysis because it is more hydrophobic than PGA. However, to obtain intermediate degradation rates between PGA and PLA, copolymers of PLGA have been developed [3]. Furthermore, high-performance PLLA can be processed by a wide range of processing techniques such as film casting, extrusion, blow moulding, and fibre spinning due to its better thermal processability [4]. However, its commercial viability has historically been limited by high production costs and poor ability to crystallize [5].

Today, tungsten disulphide (WS₂) and molybdenum disulphide (MoS₂) are two of the most popular inorganic nanostructures of transition-metal dichalcogenides (TMDCs), which are promising substances as potential building blocks for high technology applications [6]. They are high-band gap semiconductors with well-known structural anisotropy, such as zero-dimensional (0D), one-dimensional (1D) and two-dimensional (2D) structural anisotropies. The first synthesis of WS₂ and MoS₂ inorganic nanotubes (INT, 1D) and fullerene-like nanoparticles (IF, 0D) was reported by Tenne in 1992 and 1993, respectively [7,8]. Since then, a number of engineered inorganic fullerene and nanotubes have been developed to mimic structural reinforcement for polymer blends and nanocomposite components, lubrication, catalysis, rechargeable batteries, solar cells, electronics [9,10] and, more recently, for antiballistic applications [11].

In particular, a great benefit of WS₂ (and of other TMDCs) nanostructures over their carbon equivalents is their low toxicity and biocompatibility, enabling their use for environmental [12] and medical applications [13,14]. Multiple literature sources have reviewed the promising tribological, mechanical and barrier properties of TMDC WS₂ making them an excellent alternative to carbon nanotubes and graphene as additives for the mechanical reinforcement of polymeric matrices [15,16,17,18]. Coupled with these promising properties, TMDC WS₂ nanoparticles demonstrate great potential for reinforcement of a variety of biopolymers, showing good manufacturability and performance, as well as reduced manufacturing costs of nanoclays, carbon nanotubes etc. [19,20,21,22,23]. In particular, the incorporation of a low concentration of WS₂ inorganic nanotubes (0.1 wt%) allowed the crystallization of PLLA at a cooling rate of 10 °C/min, and the crystallization temperature (T_c) increased by up to 17 °C. This value corresponds to the highest value observed for PLLA nanocomposite materials using MWCNT, SCWCNT, C60 and GO among others [24]. However, the addition of WS₂ nanosheets into the biopolymer matrix slows down the crystallization rate of PLLA due to the inactive nucleating role of the 2D-WS₂ [25], whereas the degradation rate of PLLA accelerates markedly on the crystalline PLLA/2D-WS₂ nanocomposites with the presence of 2D-WS₂, which is likely related to the accelerated release of degradation products [25].

The aim of this paper is to demonstrate the potential of the use inorganic fullerene-like WS₂ nanoparticles to prepare novel PLLA nanocomposites using a simple melt extrusion. The objective is to analyse the effect of IF-WS₂ on the crystallization and melting behaviour of pure PLLA.

2. Experimental Section

2.1. Materials and Processing

The poly(L-lactic acid) (PLLA) purchased from Goodfellow Ltd. (Huntingdon, UK) was used as the base polymer in this study. The IF-WS₂ nanoparticles (NanoLub) were kindly supplied by Nanomaterials from NanoMaterials Ltd. (Yavne, Israel). They exhibit a quasi-spherical shape with an average aspect ratio of 1.4 and a mean diameter of 80 nm [26]. A range of PLLA/IF-WS₂ nanocomposites containing 0, 0.1, 0.5 and 1.0, 2.0 wt% IF-WS₂ were prepared via melt compounding using a micro-extruder (Thermo-Haake Minilab system) at 190 °C with a screw speed of 100 rpm.

2.2. Measurements

The dispersion morphology of the PLLA/IF-WS₂ nanocomposites was observed using an ultra-high field-emission scanning microscope (FESEM), JEOL-JSM7600F (Tokyo, Japan), and a transmission electron microscope (TEM), JEOL-JEM 2100 (Tokyo, Japan).

Non-isothermal melt–crystallization of the PLLA/IF-WS₂ nanocomposites was measured using a TA Instrument Discovery Differential Scanning Calorimeter DSC 25 (Waters Chromatography, Madrid, Spain). Data were evaluated using the TRIOS software (Waters Chromatography, Madrid, Spain). The samples were heated up to 225 °C and held there for 5 min to eliminate small residual nuclei that might act as seed crystals. Then, the sample was cooled to crystallize at selected constant rates φ (in the range from 1 to 20 °C/min). Subsequently, the melting of the samples was conducted using a heating cycle of 10 °C/min over the interval of temperatures between 40 and 225 °C. The exothermic and endothermic curves of heat flow as a function of temperature were recorded and investigated. The degree of crystallinity was calculated as the ratio between the crystallization enthalpy (ΔH_c) and enthalpy of melting for perfect crystals (ΔH⁰_m= 93 J/g) [27]. All operations were performed under a nitrogen purge of 50 mL/min. Sample weight varied between 2–5 mg.

3. Results

3.1. Morphology

To elucidate the dispersion of IF-WS₂ in the nanocomposites in detail, Figure 1 illustrates the TEM micrographs of neat IF-WS₂, PLLA/IF-WS₂ (0.5 wt%) and PLLA/IF-WS₂ (1.0 wt%) nanocomposites. Firstly, the IF nanoparticles are closed-cage hollow multi-layered polyhedral nanoparticles with a shape ranging from spheres to ellipsoids. As observed from our previous investigation [26], the particle aspect ratio varies between 1 (spheres) and 2.3, with a mean value of 1.4 and a standard deviation of 0.3. Most visible nanoparticles are quasi-spherical in shape with a diameter in the range of 40–180 nm (mean value of 80 nm). Secondly, all images exhibit highly dispersed IF-WS₂ nanoparticles with observed dark spots within the PLLA matrix. The TEM analysis reveals that the IF-WS₂ nanoparticles appear as small aggregates of only a few particles.

Figure 1. TEM micrographs for (a) neat IF-WS₂ nanoparticles, (b) PLLA/IF-WS₂ (0.1 wt%) and (c) PLLA/IF-WS₂ (1.0 wt%) nanocomposites.

Figure 2 shows the morphology of fracture surface of cryogenic-fractured specimens for PLLA/IF-WS₂ nanocomposites, in which the bright spots are the cross-section of the IF-WS₂ nanoparticles in the whole examined area. In particular, a uniform distribution of light spots was also observed in all cases of this study (not shown here for brevity), implying that the IF-WS₂ nanoparticles were well dispersed even without the help of a compatibilizer or modifier, which is in good agreement with the observation made earlier during the TEM assessment.

Figure 2. High-resolution SEM micrograph for PLLA/IF-WS₂ (1.0 wt%) nanocomposites. The white arrows indicate the IF-WS₂.

3.2. Non-Isothermal Crystallization and Melting Behaviour

It was important to investigate the non-isothermal crystallization to obtain information useful for the industrial applications of PLLA. The DSC cooling and second-run heating curves of pure PLLA and PLLA/IF-WS₂ nanocomposites are illustrated in Figure 3. The parameters of interest for both crystallization and melting behaviour, that is, melt–crystallization temperature (T_c), crystallinity (1−λ)_c, cold-crystallization temperature (T_cc), cold crystallinity (1−λ)_cc, melting temperature (T_m), and melting crystallinity (1−λ)_m, are summarized in Table 1. For all samples, the crystallization peak became wider and shifted to lower temperatures by increasing the cooling rate. This means that at lower cooling rates, the biopolymer matrix and nanocomposites spent a longer time within the temperature range that promotes sufficient mobility of segments for the growth of crystallization. The addition of IF-WS₂ nanoparticles to PLLA induces an increase in the crystallization temperature even at the low cooling rate used. Furthermore, if the cooling rate is too high (i.e., 20 °C/min), there will not be enough time for a conformational arrangement allowing for the chains to progress into the crystalline state, and, therefore, they will be amorphous (see the melting curves). Such results indicate that IF-WS₂ served as a nucleating agent for the crystallization and increased the overall crystallization rate of PLLA.

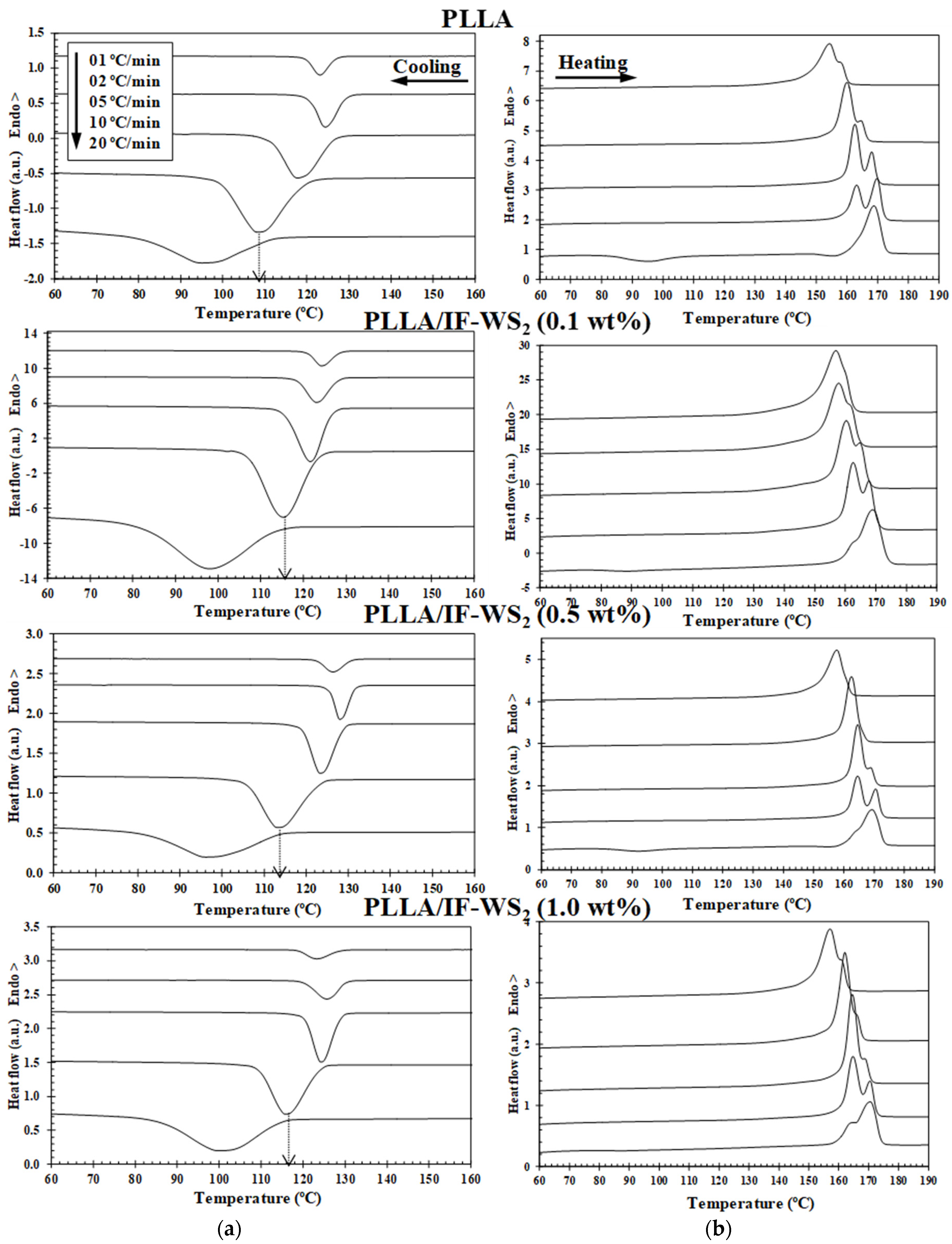

Figure 3. (a) Differential scanning calorimetry (DSC) melt–crystallization thermograms of PLLA and PLLA/IF-WS₂ nanocomposites with nanofiller loadings of 0.1, 0.5 and 1.0 wt% obtained at the indicated cooling rates and (b) second-run heating curves obtained at a constant heating rate of 10 °C/min.

Table 1. Melt–crystallization and melting parameters of the neat PLLA and PLLA/IF-WS₂ nanocomposites.

IF-WS2 (wt%)	φc (°C/min)	Tc (°C)	(1−λ)c (%)	Tcc (°C)	(1−λ)cc (%)	Tm1 (°C)	Tm2 (°C)	(1−λ)m (%)
0.0	1 2 5 10 20	123.1 124.3 117.7 108.1 94.7	58.1 57.5 53.8 49.7 28.0	- - - - 95.0	- - - - 19.7	154.2 159.0 162.5 163.0 -	157.2 164.8 168.1 169.7 168.7	66.7 65.6 64.5 62.9 52.2
0.1	1 2 5 10 20	124.2 122.9 121.5 115.1 97.9	56.1 57.0 55.8 49.8 33.6	- - - - 88.8	- - - - 1.8	- 157.8 160.3 162.5 163.2	156.8 162.0 164.5 167.5 168.9	63.3 64.6 64.4 61.0 47.7
0.5	1 2 5 10 20	126.3 127.9 123.2 113.1 96.0	55.8 57.0 51.8 43.4 22.5	- - - - 92.1	- - - - 5.7	- - 164.5 164.5 -	157.6 162.5 169.1 170.3 169.2	60.8 62.8 57.1 50.1 41.9
1.0	1 2 5 10 20	126.3 127.9 123.2 113.0 95.9	55.7 57.0 51.8 43.6 23.6	- - - - 92.0	- - - - 5.9	157.6 161.6 164.9 164.5 165.0	160.5 165.9 168.6 170.3 169.2	61.7 62.8 56.7 50.5 41.9

In order to support the previous observations, Figure 4 illustrates the variation in T_c with cooling rate and composition, and two clear trends were observed. Firstly, higher cooling rates induced a downward shift in T_c to the low-temperature range (Figure 4a). Secondly, the addition of highly compatible IF-WS₂ with the PLLA matrix may favour the formation of the critical crystal nuclei. This effect was clearly observed to be a function of the composition showing an increase of 7 °C in T_c, for example, with only 0.1 wt.% IF-WS₂ at a cooling rate of 10 °C/min (Figure 4b). This highlights the effective nucleating role of IF-WS₂ in PLLA crystallization, which induces rapid growth of the PLLA crystals on the nanoparticles surface, as suggested in previous literature for PLLA composites reinforced by 1D-WS₂ inorganic nanotubes [24] as well as other fillers [5,28]. In particular, the effect of the size and shape of nanoparticles on the nucleation of polymer/IFs was deeply explored by Enyashin et al. using a mesoscopic model of Van der Waals’ force field [29]. It was found that in the absence of chemical interaction, the size of the nanoparticle is a dominating factor for the adhesion strength, while the number of sulphide layers composing the cage is not critical. In contrast, 2D-WS₂ nanosheets were recently found to be ineffective in the crystallization process of PLLA [25]. This was due to the PLLA chains not being able to easily adsorb on the WS₂ nanosheets, hindering crystal growth. Such differences suggest that the structural anisotropy of layered transition-metal dichalcogenides (0D-, 1D- and 2D-TMDC WS₂) plays a fundamental role in PLLA crystallization. In the same way, the effect of cooling on the crystallinity (1−λ)_c of PLLA and its PLLA/IF-WS₂ nanocomposites is to be expected, because, at lower rates, macromolecules theoretically have more time for crystallization, which results in fewer defects and thus higher crystal formation (Table 1). However, the influence of IF-WS₂ on the variation of (1−λ)c values of PLLA appears to only be relevant at a high cooling rate.

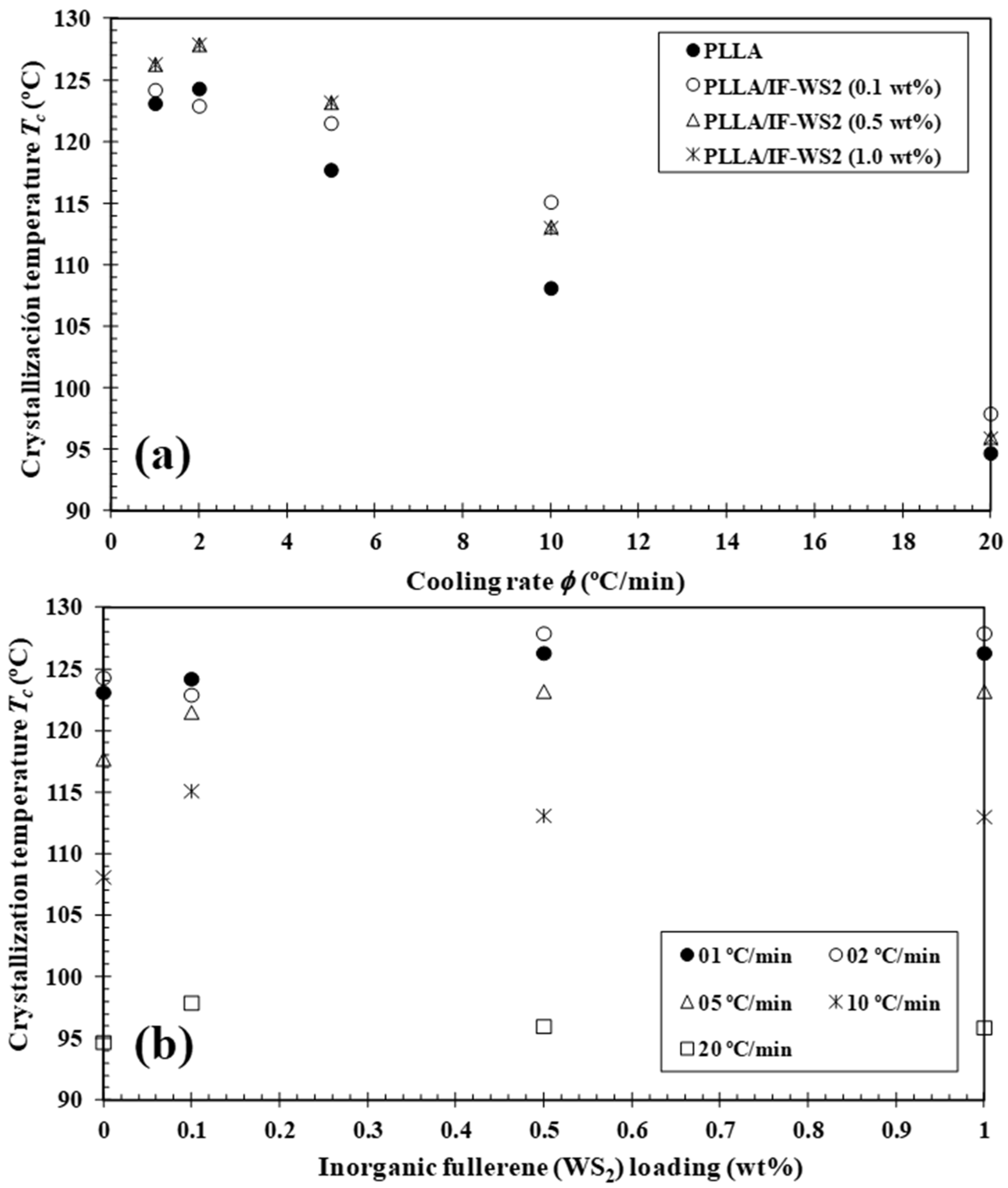

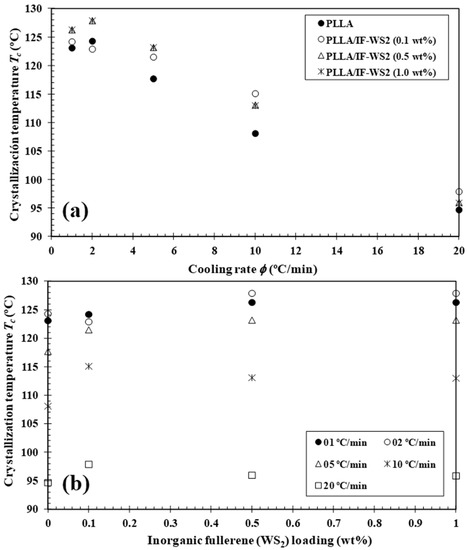

Figure 4. Variation of the melt–crystallization temperature (T_c) for PLLA/IF-WS₂ nanocomposites with (a) cooling rate and (b) composition.

The cooling rate also has a significant effect on the melting behaviour of semicrystalline polymers (Figure 3). Two kinds of different melting behaviours could be identified with the cooling rate increasing from 1 to 20 °C/min. As can be seen, the double melting peaks (T_m1 and T_m2) appears at around 154 and 157 °C, and the appearance of a double melting endotherm is closely related to IF-WS₂ concentration and cooling rate. It is necessary to note that the double-melting behaviour of the samples is mainly derived from the melting–recrystallization–remelting processes upon heating [24,30]. During heating, the exothermic peaks related to the cold crystallization process appear for the samples crystallized at higher cooling rates, which suggests that the melt–crystallization process of the samples is incomplete during the cooling. In particular, it was observed that the presence of inorganic fullerene-like WS₂ nanoparticles induces a decrease in the T_cc value of PLLA (e.g., T_cc,PLLA = 95.0 °C and T_{cc,PLLA/IF-WS2 (0.5 wt%)} = 88.8 °C), confirming the fact that the addition of IF-WS₂ enhances the cold crystallization process of PLLA. Figure 5 shows the evolution of the crystallinity (1−λ)_m of PLLA/IF-WS₂ nanocomposites calculated from the double endothermic curves with the cooling rate and composition. In particular, it was noted that the dependence of crystallinity (1−λ)_m of PLLA/IF-WS₂ nanocomposites, shown in Figure 5 both as a function of φ and IF-WS₂ concentration, is consistent with the previously mentioned observation of crystallization temperature curves. This behaviour is expected, because, at slower φ, the polymer chains have more time to organize into crystalline domains with fewer defects and, thus, higher (1−λ)_m. However, the addition of WS₂ inorganic fullerenes showed a similar trend as a function of φ, but a much lower (1−λ)_m was observed. These results also confirm that the role of IF-WS₂ in the variation in the (1−λ)_m values of PLLA appears to be only relevant at a high cooling rate.

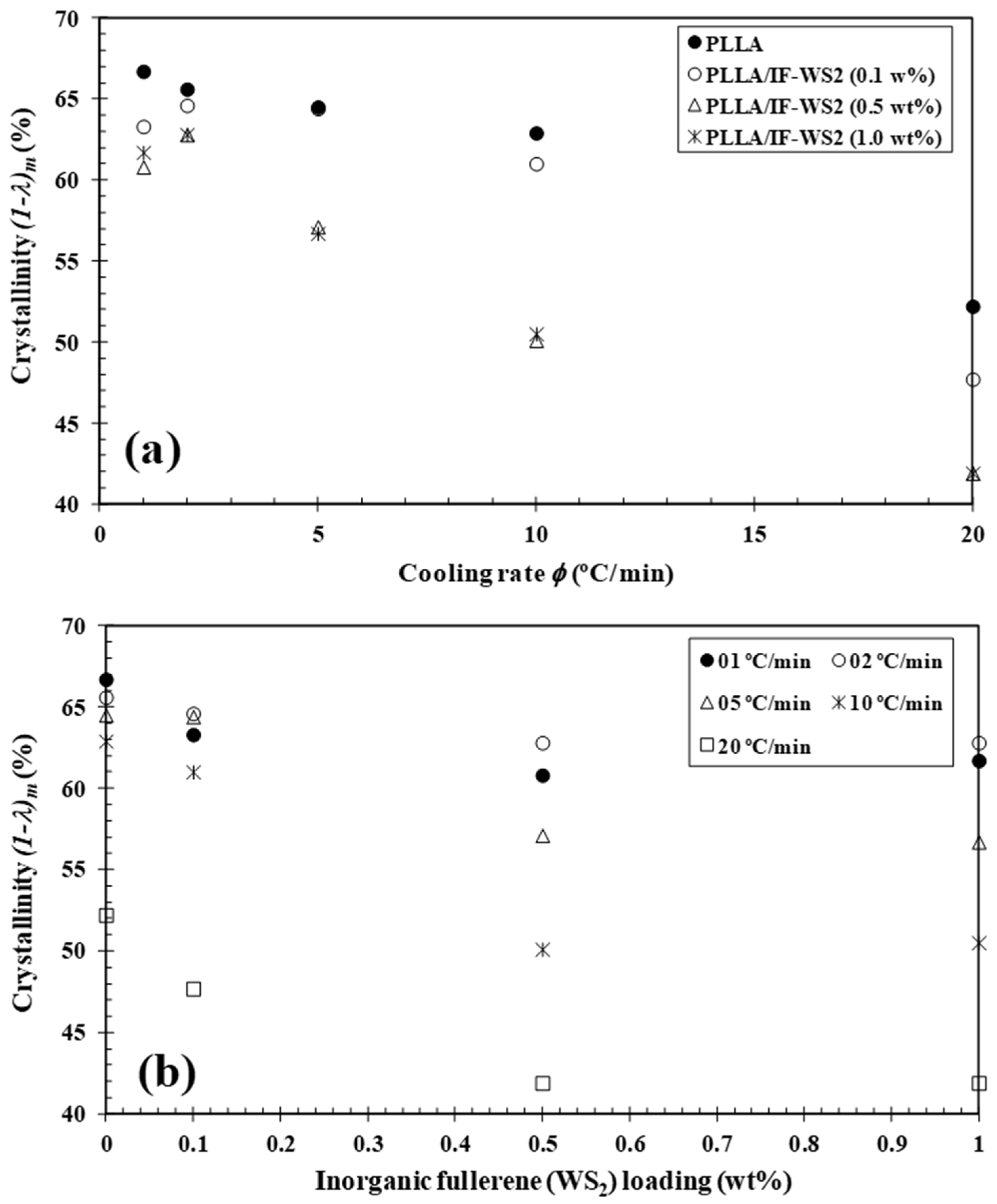

Figure 5. Variation in the melting crystallinity (1−λ)_m of PLLA/IF-WS₂ nanocomposites with (a) cooling rate and (b) IF-WS₂ concentration.

3.3. Lui Analysis

The polymer non-isothermal crystallization process can be described by the Lui model [31] by combining the well-known Avrami equation [32] with the Ozawa equation, [33] and it can successfully address the non-isothermal crystallization behaviour of PLLA [5,30]; its final form is given below:

$$\ln \phi =\ln f\left(T\right)-\alpha \ln t$$

(1)

where the kinetic parameter f(T)= [k′(T)/k]^1/m refers to the value of the cooling rate that has to be chosen at the unit crystallization time when the measured system amounts to a certain degree of crystallinity; α is the ratio of the Avrami exponent n to the Ozawa exponent m (α = n/m). According to Equation (1), at a given degree of conversion, the f(T) parameters of the linear relationship between the plots of lnφ vs. lnt are obtained (Figure 6). This indicates that the Lui model fits well with the experimental data of the new PLLA/IF-WS₂ nanocomposites. From the slopes and the intercepts of these lines, the values of α and f(T) could be obtained (Table 2). As can be seen, the values of f(T) for PLLA and its PLLA/IF-WS₂ nanocomposites progressively increases with the increase in the relative crystallinity, which indicates that at unit crystallization time, a higher cooling rate should be used to obtain a higher degree of crystallinity. In all cases, the values of α are almost constant (i.e., about 1.0–1.1). However, the most relevant observation was the influence of IF-WS₂ concentration on the value of f(T) of PLLA for a particular degree of conversion. In particular, it was observed that the value of f(T) for PLLA is higher than that for the PLLA/IF-WS₂ nanocomposites, suggesting that the nanocomposites require a lower heating rate to approach an identical degree of crystalline transformation. This implies the acceleration of the crystallization rate of PLLA due to the nucleation effect of IF-WS₂, while the crystallization mechanism of PLLA remained unchanged in spite of nanoparticle loading. This is because the values of the α parameter are approximately the same for both PLLA and the PLLA/IF-WS₂ nanocomposites (1.0–1.1).

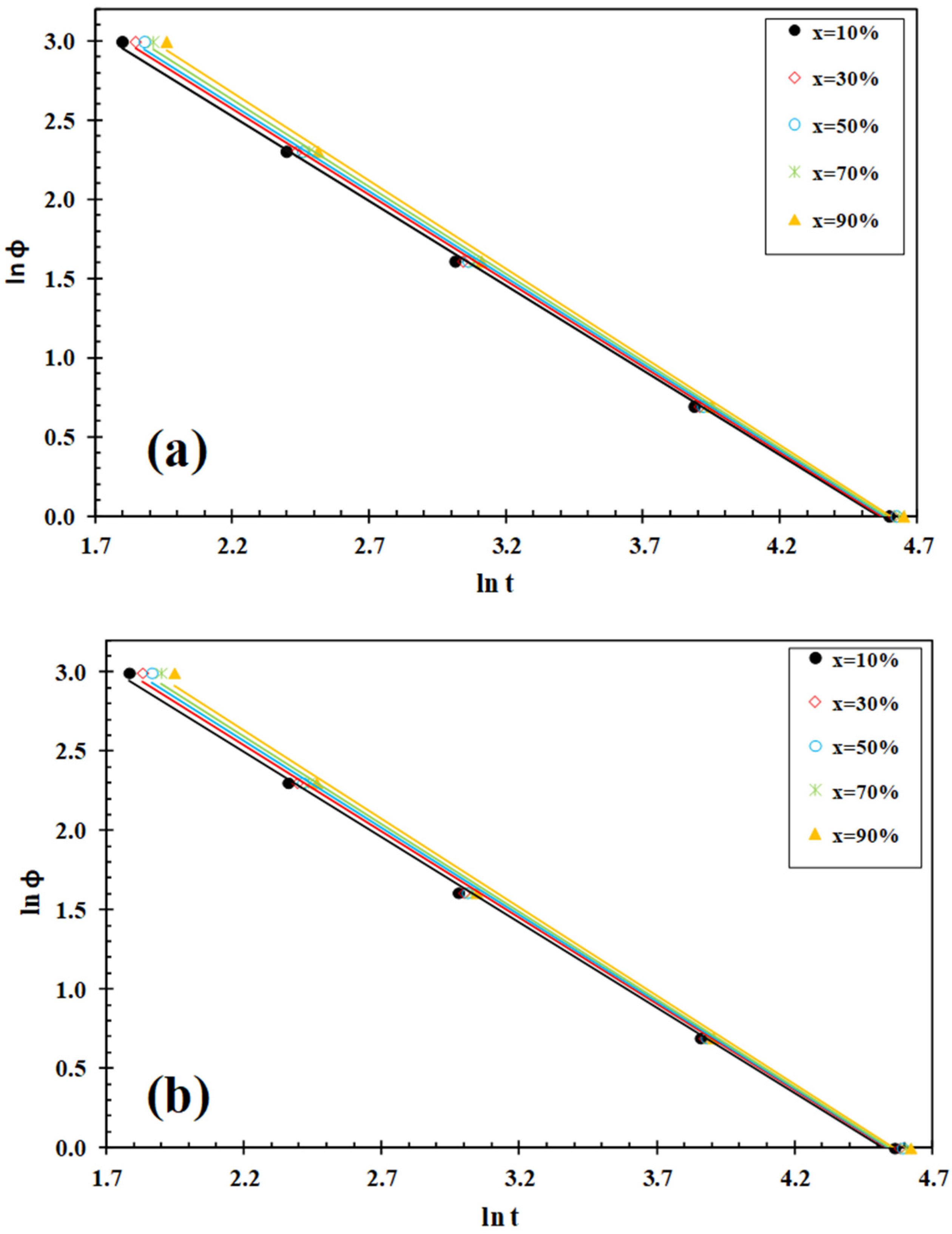

Figure 6. Liu plots for melt–crystallization of (a) PLLA and (b) PLLA/IF-WS₂ (0.5 wt%).

Table 2. Values of α and f(T) vs. conversion (x) based on the Liu model for pure PLLA and PLLA/IF-WS₂ nanocomposites.

IF-WS2 (wt%)	x (%)	α	f(T)
0.0	10 30 50 70 90	1.07 1.08 1.09 1.10 1.11	4.88 4.96 5.00 5.05 5.12
0.1	10 30 50 70 90	1.06 1.07 1.08 1.09 1.10	4.83 4.90 4.94 4.98 5.04
0.5	10 30 50 70 90	1.07 1.09 1.10 1.10 1.11	4.86 4.92 4.97 5.01 5.08
1.0	10 30 50 70 90	1.06 1.07 1.07 1.08 1.08	4.81 4.86 4.90 4.93 4.98

3.4. Nucleation Activity

The addition of reinforcing transition-metal dichalcogenides (TMDCs) in polymers can enhance their mechanical properties and thermal stability [10,24,25]. Furthermore, in many cases, substrates such as IF-WS₂ can act as active or inactive nucleating agents depending on polymer matrix and concentration [34]; therefore, the magnitude of the effect of nucleating activity should be measured. Dobreva and Gutzow [35,36] have developed a simple method to measure the effect of nucleating agents, denominating nucleating activity (φ) as follows:

$$\phi =\frac{{\mathit{B}}^{*}}{\mathit{B}}$$

(2)

where B* stands for the parameter during heterogeneous nucleation, while B stands for that in homogeneous nucleation. If the foreign substrate is extremely active, φ approaches 0, while for inert particles, φ approaches 1. B and B* can both be experimentally determined from the slope of the following equation:

$$\ln \phi =\mathit{A}-\frac{\mathit{B}\left(\mathrm{or} {\mathit{B}}^{*}\right)}{\Delta {\mathrm{T}}_{\mathrm{p}}^2}$$

(3)

where φ is the cooling rate, A is a constant, and ΔT_c denotes the degree of supercooling (T⁰_m−T_c). Plots of lnφ vs. 1/ΔT_c for pure PLLA and PLLA/IF-WS₂ nanocomposites are shown in Figure 7. It is apparent that a linear relationship is obtained for each sample, assuming the equilibrium melting point T⁰_m of PLLA as 195 °C [37]. The values of B and B* are obtained from the slope of the fitted lines, and the nucleation activity is calculated from their ratio. The corresponding φ values are 1.07, 0.80 and 0.81 for PLLA/IF-WS₂ (0.1 wt%), PLLA/IF-WS₂ (0.5 wt%) and PLLA/IF-WS₂ (1.0 wt%), respectively. These results indicate that IF-WS₂ behaves as an effective nucleating agent when the concentration of IF-WS₂ is set between 0.5 and 1.0 wt%. However, the excellent nucleation-promoting effect was achieved when the WS₂ nanoparticles were added as nanotube-like nanoparticles (φ = 0.22–0.25) [24]. In contrast, the incorporation of WS₂ nanosheets induced a significant reduction in the crystallization rate of PLLA due to the inactive nucleating role of WS₂ [25]. Such differences again suggest that the nanoparticle shape plays a fundamental role in PLLA crystallization.

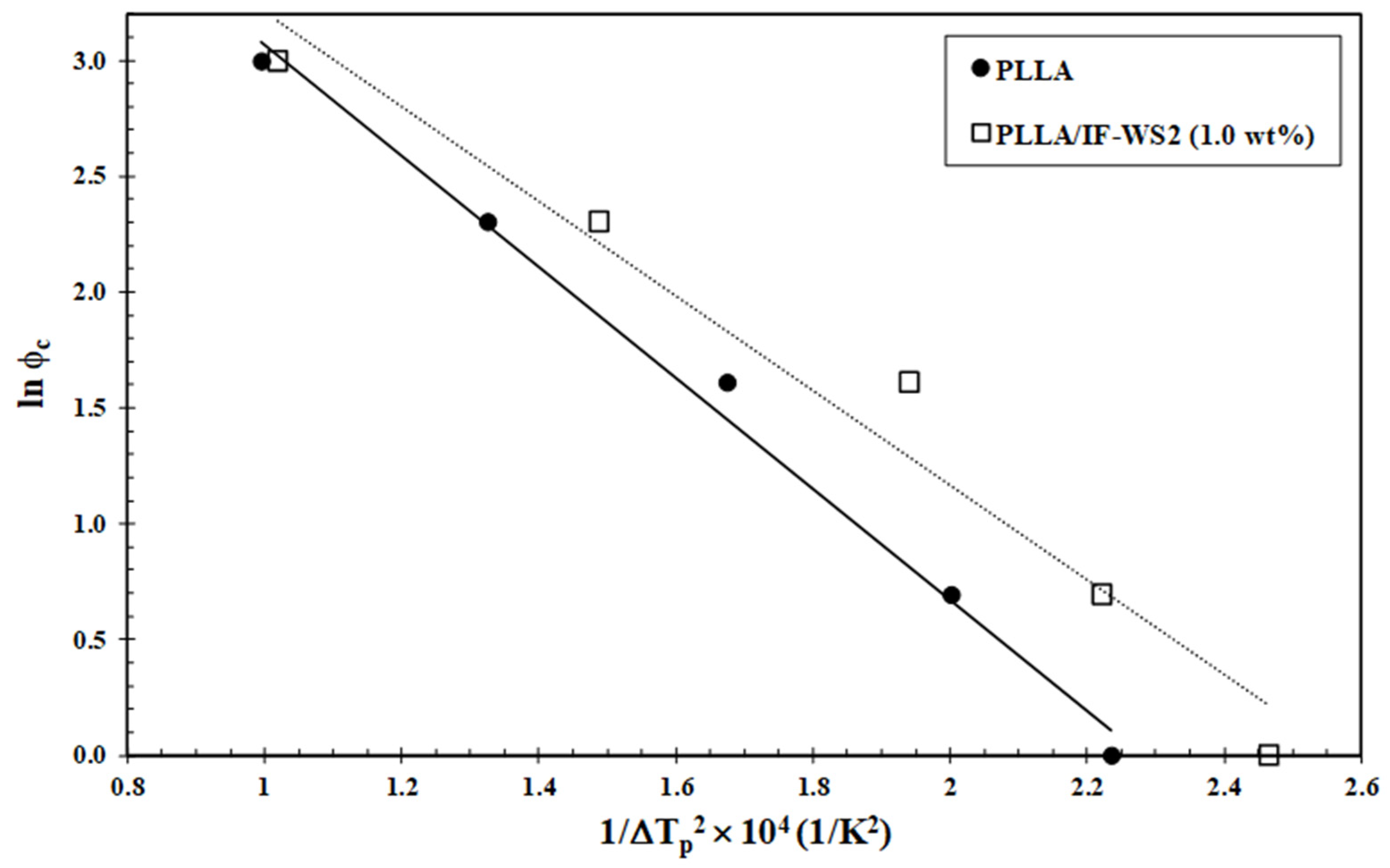

Figure 7. Dobreva plots for evaluating nucleation activity of IF-WS₂ in PLLA/IF-WS₂ (1.0 wt%) nanocomposites.

4. Conclusions

In the present work, a series of melt-processable PLLA/inorganic fullerene-like WS₂ nanoparticles were successfully prepared at various IF-WS₂ loadings ranging from 0.1 to 1. wt%. TEM and SEM results indicate that IF-WS₂ is well dispersed in the PLLA matrix without the help of a compatibilizer or modifier. The experimental DSC data show that non-isothermal melt–crystallization peak temperatures are slightly higher in the nanocomposites than in neat PLLA; moreover, the overall non-isothermal melt–crystallization rates are significantly greater in the nanocomposites than in neat PLLA, indicating that IF-WS₂ acts as a nucleating agent for PLLA. A convenient Lui model appeared to be helpful in elucidating the complex kinetics of PLLA/IF-WS₂ nanocomposites occurring during continuous cooling. All rate parameters (i.e., f(T)) suggested that the addition of IF-WS₂ is an effective approach to speed up the crystallization of PLLA. On the other hand, the study of the nucleation activity using the Gutzow and Dobreva model revealed that the shape of TMDCs nanostructures (0D-, 1D- and 2D-WS₂) plays a fundamental role in the promotion and/or retardation of PLLA crystallization. In particular, IF-WS₂ nanoparticles exhibited nucleation activity when the concentration of IF-WS₂ was set between 0.5 and 1.0 wt%. On subsequent heating, double-melting peaks for PLLA and its nanocomposites can be attributed to a melt–recrystallization mechanism. The addition of IF-WS₂ appears to have slight influence on the crystallinity value of PLLA, becoming higher as the cooling rate is increased. These results have considerable practical significance for technological processing of PLLA-based materials. PLLA/layered transition metal dichalcogenide (TMDC) nanocomposites can be employed as low-cost biodegradable materials for many eco-friendly and medical implant applications.
