Synergistic Effects of Black Phosphorus/Boron Nitride Nanosheets on Enhancing the Flame-Retardant Properties of Waterborne Polyurethane and Its Flame-Retardant Mechanism

by
Sihao Yin
1,2,3,
Xinlin Ren
1,2,3,*,
Peichao Lian
1,2,3,
Yuanzhi Zhu
1,2,3 and
Yi Mei
1,2,3,*
1
Faculty of Chemical Engineering, Kunming University of Science and Technology, Kunming 650500, China
2
The Higher Educational Key Laboratory for Phosphorus Chemical Engineering of Yunnan Province, Kunming University of Science and Technology, Kunming 650500, China
3
Yunnan Provincial Key Laboratory of Energy Saving in Phosphorus Chemical Engineering and New Phosphorus Materials, Kunming 650500, China
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(7), 1487; https://doi.org/10.3390/polym12071487
Submission received: 4 February 2020 / Revised: 19 June 2020 / Accepted: 2 July 2020 / Published: 3 July 2020
(This article belongs to the Special Issue Advanced Polymer Nanocomposites)
Browse Figures
Versions Notes

Abstract

:
We applied black phosphorene (BP) and hexagonal boron nitride (BN) nanosheets as flame retardants to waterborne polyurethane to fabricate a novel black phosphorus/boron nitride/waterborne polyurethane composite material. The results demonstrated that the limiting oxygen index of the flame-retarded waterborne polyurethane composite increased from 21.7% for pure waterborne polyurethane to 33.8%. The peak heat release rate and total heat release of the waterborne polyurethane composite were significantly reduced by 50.94% and 23.92%, respectively, at a flame-retardant content of only 0.4 wt%. The superior refractory performances of waterborne polyurethane composite are attributed to the synergistic effect of BP and BN in the gas phase and condensed phase. This study shows that black phosphorus-based nanocomposites have great potential to improve the fire resistance of polymers.

Graphical Abstract

1. Introduction

Polymeric materials have been widely used in electronic devices, construction, and transportation. However, most of the polymeric materials have been intrinsically inflammable [1,2]. Therefore, flame-retardant additives are important to mitigate the risk of fire [3,4]. Some halogen-based flame retardants have been banned because they form carcinogens during combustion [5,6,7]. Compared to traditional halogenated flame retardants, phosphorus-containing flame retardants have attracted much attention due to the advantages of having low smoke and low halogen content as well as being non-toxic [8,9,10]. Phosphorus flame retardants can be divided into inorganic phosphorus flame retardants and organophosphorus flame retardants. Organophosphorus flame retardants have low cost and good compatibility with polymers, but they have high volatility and poor thermal stability [11]. Inorganic phosphorus flame retardants have high phosphorus content, high flame retardant efficiency and low toxicity, but their particles are usually large, thus resulting in poor compatibility with polymer materials and uneven dispersion [12]. For example, red phosphorus needs to be modified or coated to increase its compatibility with polymer materials [13,14].
Black phosphorus (BP) is a new kind of 2D layered material that is only composed of the phosphorus element [15,16,17]. Recently, BP has been demonstrated to be a good flame retardant [18,19,20]. The high specific surface area of the layered structure can result in an efficient barrier effect in the process of polymer combustion. Compared with volatile white phosphorus and amorphous red phosphorus, BP also exhibits higher thermal stability and phase-dispersion, which could improve the flame-retardant performance and reduce damage to the mechanical properties of the polymers. In previous research, we reported that BP can effectively enhance the thermal stability and fire resistance of polymers [21]. Yuan Hu, et al. synthesized the BP/carbon nanotube composite and demonstrated its synergistic flame retardant performance for epoxy resin [22]. However, some key indicators of flame-retardant property, such as the limit oxygen index (LOI), for the reported BP-based composite materials need to be further improved.
Hexagonal boron nitride (BN) nanosheet is a widely studied 2D material with high thermal stability, good mechanical strength, and large surface area. It has been found to be a good flame retardant for several polymers [23,24,25]. Considering the fact that the flame-retardant mechanism of BP materials has been mainly attributed to the formed radicals in the gas phase while the BN nanosheet mainly works in the condensed phase, the combination of BP and BN may have a good synergistic effect to further improve the flame-retardant performance and decrease the additive amount of the flame retardants.
Thus, in this paper, we designed a series of experiments to analyze the synergistic effect and flame-retardant mechanism of BP and BN by filling them into waterborne polyurethane (WPU). Through systematic characterization, we found that adding only 0.4 wt% BP/BN nanosheet could significantly raise the LOI of WPU from 21.7% to 33.8%. The improvement of flame retardancy involves the combination of the condensed phase and gas phase effects during combustion. In addition, such a small additive amount of BP/BN showed negligible color effect on the WPU (Figure 1), which broadens its real application range.

2. Materials and Methods

2.1. Materials

In this study, BP was prepared by a mineralization transformation method from red phosphorus with the help of iodine and tin in a quartz tube under argon atmosphere. The prepared BP crystals were washed with toluene to remove residual mineralizer, followed by washing with water and acetone. The utilized red phosphorus, iodine, tin, toluene and acetone were analytically pure. The BN was purchased from Shanghai Huayi Group Huayuan Fine Chemicals Co., Ltd., Shanghai, China with a particle size lower than 30 µm. The WPU latex with a solid content of 25 wt% was purchased from Anhui Huatai New Material co. Ltd., Hefei, China The water used was deionized water.

2.2. Fabrication of BP and BN Nanosheets

BP was ground for 2 h into powder, and then 0.5 g of the powder was added into a conical flask with 500 mL of deionized water. The conical flask was sealed with argon gas to stop oxidation of the BP. Then the dispersion was added to a working ultrasonic device (50 Hz, 200 W) for 24 h with the temperature controlled below 30 °C. Afterwards, the dispersed liquid was centrifuged at 3500 rpm for 15 min by a centrifugal machine (TGL-16C, Shanghai Anting Scientific Instrument Factory, Shanghai, China). Finally, the supernatant liquid was collected and condensed by suction filtration. An argon atmosphere should be used to prevent the oxidation of phosphorene throughout the whole experimental process. The dispersion of boron nitride was also obtained by liquid phase stripping. In order to calculate the concentration of the dispersion, freeze drying was used to remove the moisture. Then the remaining solid was weighed.

2.3. Preparation of BP/BN/WPU Composite Materials

The obtained BP and h-BN dispersion were added into a beaker with WPU. After stirring for a few minutes, the beaker was sealed by filling with an argon atmosphere. The mixture was ultrasonicated for 2 h at low temperature with an ice bath. Then the obtained suspension was poured onto a plate of the size of 120 × 120 mm and dried under vacuum at 22 °C. After it was dried completely, the BP/BN/WPU material was formed. The additive amount of BP/BN is 0.2%/0.2%. For comparison, the BP/WPU with 0.4% BP and BN/WPU with 0.4% BN were synthesized using the same method (Table 1).

2.4. Analytical Test

2.4.1. Structure Characterizations

Transmission electron microscopy (TEM, Philips CM100, Amsterdam, The Netherlands) was conducted to observe the BP and BN nanosheets at an acceleration voltage of 100 kV.
An X-ray diffraction device (XRD, PANalytical Empyrean, Almelo, The Netherlands) was used to analyze the BP, BN powders, as well as the WPU and its composite materials, respectively.
Raman spectra were obtained on a LabRAM-HR Confocal Raman Microprobe (HORIBA Scientific Co., Palaiseau, France) with excitation provided in backscattering geometry by a 633 nm argon laser line.
Scanning electron microscopy (SEM, Bruker Nano, Bruker, Karlsruhe, Germany) was used to analyze the microstructure of the materials and the charred residue. The WPU and its composite materials with BP and BN nanosheets were fractured by liquid nitrogen, then the fracture surfaces of the samples were uniformly coated with a layer of gold and then observed by SEM. In order to present the distribution of phosphorene in the polymers, elemental mapping tests were also conducted on another two specimens without a coating of a gold layer. In addition, An EDS test of the charred residue was applied to determine the content of BP and BN in the condensed phase.
X-ray photoelectron spectroscopy (XPS) analysis was performed using Al radiation as a probe (K-alpha, Thermo Fisher Scientific, Waltham, MA, USA) to measure the valence states and chemical composition of the residue of BP/BN/WPU.

2.4.2. Thermal Properties Measurement

Thermogravimetric analysis (TG) of the materials was performed on a thermal analyzer (NETZSCH STA449F3, NETZSCH, Selb, Germany) with a gas flow rate of 80 mL/min under nitrogen atmosphere. The heating rate was 10 °C/min and the temperature ranged from 40 °C to 800 °C.
Thermogravimetric analysis–Fourier transform infrared spectroscopy (TG–FTIR) was performed via a TGA/DSC3 thermogravimetric analyzer (METTLER TOLEDO, Greifensee, Switzerland) linked with a Nicolet FTIR IS50 spectrometer (Thermo Fisher) at a heating rate of 10 °C/min within a temperature range of 40 °C to 800 °C under a N2 flow of 50 mL/min. The temperature of the transfer line in the TG–FTIR system was 200 °C.

2.4.3. Flammability Property Measurement

The limiting oxygen index (LOI) values were measured according to the standard oxygen index test ASTM D2863-77 by using the device of COI from Motis combustion technology co. LTD (Kunshan, China).
In order to study the combustion behavior, cone calorimetry (CC, PX-07-007, Suzhou phoenix quality inspection instrument co. LTD, Suzhou, China) was performed at a heat flux of 35 kW/m2. The material specimens were made into a square with the size of 100 × 100 × 3 mm. After wrapping in a piece of aluminum film, the specimens were set on fire on the CC.

3. Results and Discussion

3.1. Characterization of BP/BN/WPU

The TEM images reveal the micromorphology of BP and BN nanosheets prepared by liquid phase stripping. As shown in Figure 1a,b, it can be clearly seen that the bulk black phosphorus and BN were peeled into a few layers of nanoflakes. We suggest that the BP nanosheets are arranged on the BN nanosheets surface, which were fully stripped with clear edges with a length of several micrometers. The Energy Dispersive Spectrometer (EDS) results (Figure 1c) confirmed the elements’ distribution in the BP/BN nanosheets. Raman spectra and X-ray diffraction (XRD) were carried out for BP, BN powder, pure WPU and BP/BN/WPU composite, respectively. As shown in the Raman spectra (Figure 1d), the BP nanosheets show three characteristic peaks of Ag1, Bg2, and Ag2, corresponding to the crystal orientation [26], thickness [27], and angle [28]. The BN shows the in-plane ring vibration peak of BN (E2g vibration mode) at 1365 cm−1 [29]. The BP/BN/WPU composite shows four new peaks in comparison with pure WPU, indicating the successful introduction of BP and BN nanosheets into the WPU matrix. The XRD spectrum of BP reveals three obvious diffraction peaks (Figure 1e), corresponding to the (020), (040), and (060) plane, respectively [30,31]. The spectrum of BN also has three obvious diffraction peaks, indicating the good crystallinity of BN. The XRD spectrum of BP/BN/WPU retains the main peaks of BP and BN, which is consistent with the Raman results.
The SEM images of pure WPU (Figure 1f) are observed on the fractured surface. It is shown to be homogeneous and without any additive particles due to the typical fracture behavior of a homogeneous material. Compared with the pure WPU, BP/BN/WPU composite shows several white nanosheets (Figure 1g), which could be attributed to the additives BP and BN. As shown in Figure 1h–i, both the P and B elements distribute uniformly over a large region for the BP/BN/WPU sample. These results indicated that the BP and BN nanosheets were uniformly distributed into the WPU.

3.2. Thermal Stability of BP/BN/WPU and Its Nanocomposite

The TG analysis of the specimens was carried out in a N2 atmosphere to analyze the decomposition behavior in a real fire scenario. As shown in Figure 2a, the TG curves of pure BP have an obvious mass loss starting at 420 °C, while the BN only shows negligible mass loss over the whole temperature range. These results show that the BP turns into the gas phase after 420 °C, and the BN is very stable even at higher temperature. From Figure 2b,c, we can see that the WPU shows two major mass loss stages over the selected temperature range. This is caused by the difference in thermal stability between the hard segment and soft segment of WPU. The first mass loss stage is mainly caused by the breakage of urethane bonds in the amine and isocyanate while the second stage is assigned to the decomposition of residual polyols. In contrast to pure WPU, the BP/WPU, BN/WPU and BP/BN/WPU exhibited three main mass loss stages. The third stage of the composite occurred in the range of 440–500 °C, which indicates that the mass loss became slower at this temperature after the addition of BP and BN nanosheets. The residue char of BP/BN/WPU reached 10.11%, which is also higher than that of WPU (0.93%), BP/WPU (8.11%), and BN/WPU (6.44%). These results revealed that the BP and BN nanosheets can synergistically improve the thermal stability of WPU and promote the formation of residue char [32].

3.3. Fire Safety Properties of BP/BN/WPU

The limiting oxygen index (LOI) test is used to determine the flammability of the samples. As depicted in Figure 3, the LOI of pure WPU is 21.8%, indicating that the polymeric matrix is a flammable material. Adding 0.4 wt% of BP or BN increased the LOI to 24.5% for 0.4%BP/WPU and 26.7% for 0.4%BN/WPU, respectively. Interestingly, simultaneous addition of 0.2% of BP and BN into WPU significantly increase the LOI to 33.8% and reached the V0 of fire resistance. That is to say, BP and BN have a synergistic effect in enhancing the self-extinguishing ability of WPU in a real fire scenario.
The cone calorimeter (CC) tests were applied to simulate a real fire scenario. The results are shown in Figure 4 and detailed data are given in Table 2. The total heat release (THR) and the peak of heat release rate (PHRR) of pure WPU are 84.20 MJ/m2 and 452.5 kW/m2, respectively, indicating that pure WPU released a large amount of heat and made it easy to cause the “flashover” phenomenon. The BP/BN/WPU exhibits the best flame-retardant properties, with a 50.94% decrease in PHRR (Figure 4a) and 23.92% decrease in THR (Figure 4b), respectively. The introduction of BP and BN nanosheets into WPU significantly reduced heat release and restricted the “flashover” phenomenon. The time to PHRR (TPHRR) and time to ignition (TTI) values of the materials are also shown in Table 2. The TPHRR of BP/BN/WPU arrived last of all. That is to say the burning time of the material was increased, which is a benefit for escaping, rescuing, and firefighting. The TTI of pure WPU and BN/WPU have bigger values than pure BN/WPU and BP/BN/WPU, which indicates that the addition of BP makes the polymer matrix easy to ignite. This phenomenon is a common feature of phosphorus-based flame retardants [33,34]. The reason may be that the addition of phosphorus results in the composite polymers having a lower decomposition temperature, leading them to release inflammable gases and ignite earlier. The average of the effective heat of combustion (av-EHC) reveals the volatiles dilution in the gas phase, and usually also discloses the inhibition of gas phase combustion by flame retardants. As shown in Table 2, the av-EHC of WPU and BN/WPU are not much different. This indicates that BN mainly plays a role in the condensed phase rather than the gas phase. Compared with WPU, the av-EHC of BP/WPU and BP/BN/WPU is much lower. The low av-EHC is due to the capture of gas phase radicals by black phosphorus during combustion.
The CO2 release (Figure 4c) and the CO release (Figure 4d) curves indicate that CO2 is the main released gas, with little difference in release amount during the burning process. However, the CO release amount of BP/WPU is the highest, and the CO/CO2 ratio was increased due to added BP, which indicates that BP works in the gas phase with the ability to restrict the complete combustion of polymer.
The flame retardant effectivity (EFF) and synergistic effectivity (SE) are used to numerically evaluate the synergistic effect of multi-component flame retardant systems [35,36]. Flame retardant effectivity (EFF) and synergistic effectivity (SE) were calculated from CC data as follows: EFF = (PHRRpolymer − PHRRcomposite)/Flame-retardant content; SE = EFFFlame-retardant + synergists/EFFFlame-retardant. BP/BN/WPU has the highest EEF value, indicating that compared with the single flame retardant, BP and BN synergistic flame retardant has the highest flame retardant efficiency. The SE values of BP/WPU and BN/WPU materials are 1.15 and 1.5, respectively, indicating that BP and BN can synergistically improve the flame retardancy of WPU.

3.4. Flame-Retardant Mechanism of BP/BN/WPU

3.4.1. Products Analysis of Carbon Residue

The residues after the CC tests were used to analyze the products after combustion, and the corresponding results are summarized in Table 3. The SEM images were used to observe the microstructure of the residues (Figure 5). The pure WPU left scarcely any residue (Table 3). Both the addition of BP and BN could enhance the residues of WPU, and the BP/BN/WPU further increase the residues up to 10.34%. This result was also confirmed by the digital images of residues in Figure 5a1–d1. Figure 5a2 shows the residue of the pure WPU presents a lot of large cracks and ~10 µm holes. The enlarged image (Figure 5a3) shows that the residue of WPU is shaggy in shape with discontinuous particles. This structure usually facilitates heat transformation and the release of inflammable gas. After the addition of BP and BN, the BP/WPU and BN/WPU show obvious structure difference with relatively smaller holes and smoother surface (Figure 5b3,c3). The residue of BP/BN/WPU exhibited a completely dense surface without small holes, which indicates the good synergistic effect between the BP and BN nanosheets in triggering the catalytic carbonization and constructing a barrier.
EDS analysis was carried out to confirm the different roles of BP and BN in the flame retardant. As shown in Table 3, the element P content in the residue of BP/WPU was only 0.0086 g, indicating that 90.25% of BP is consumed during combustion. The element B in the residue of BP/BN/WPU was 0.060 g. which means most BN was retained and functioned in the condensed phase. According to a previous study on the flame retardant properties of phosphorus [37], BP may also play a key role in the gas phase because it can be converted into P–O radicals and diffuse in the surrounding gas, which can then react with the H or OH radicals generated by polymers under the burning conditions, consequently reducing the energy of the flame. BN is stable and will accumulate in the condensed phase, which can form a physical barrier to reduce heat transfer and release of combustible gases [38,39,40].
In order to further analyze the component of BP in the residue after the CC test, XPS was conducted on the residue powder of BP/BN/WPU. The high-resolution P1s XPS of BP/BN/WPU (Figure 6a) can be deconvoluted into three peaks with binding energies at 132.3, 134.0 and 134.8 eV, corresponding to P–C, P–O–C and phosphoric anhydride (P2O5) [41], respectively. Figure 6b shows the high-resolution XPS spectra of B 1s, which was deconvoluted into two peaks with binding energies at 190.7 and 192.2 eV corresponding to the B–N, B–O–C. Boron element mainly exists in BN form in the residue, and a small amount of B forms chemical bonds with C. This result indicates that BP can be converted into phosphoric acid and phosphoric anhydride at high temperature, which can promote the polymers to produce a carbon layer. In addition, BN also play a catalytic role in carbon formation. The generated carbon layer and the amount of BN left behind will form an insulating layer to prevent the materials from contacting with oxygen and heat transferring, consequently weakening the fire [42,43].

3.4.2. The Product Analysis of the Gas Phase

In order to determine the pyrolytic mechanism, the decomposition process of BP/BN/WPU was analyzed by Thermogravimetric analysis–Fourier transform infrared spectroscopy (TG–FTIR). The 3D map of the FTIR spectra shows BP/BN/WPU releases CO2 earlier than pure WPU (Figure 7a,b). The results indicated that the addition of BP/BN can release non-combustible gas in the initial thermal decomposition of WPU, which can dilute the oxygen from the air and dilute combustible gases from the material.
To further study the thermal degradation process, the chemical structure changes of the BP/BN/WPU at different pyrolysis temperatures were investigated (Figure 7c). The changes in characteristic peaks reflect the detailed decomposition process of WPU and WPU composites. The peak at 2800–3100 cm−1 could be attributed to the stretching vibration of C–H [44,45]. The peaks at 2250–2400 cm−1, 2190 cm−1 and 1650–1810 cm−1 are related to CO2, CO, and carbonyl compound, respectively. The peak at 915 cm−1 corresponds to the bending vibration of the NH3, and peaks at 1320–1550 cm−1 refer to the stretching vibration of NOx (such as N2O, NO and NO2) [46], indicating WPU combustion has two main stages: Before the combustion, the WPU decomposed to give flammable gases such as hydrocarbon and carbonyl compounds. With the increase of temperature, a large amount of combustible gas was ignited and the WPU began to burn violently. The FT-IR spectra of the BP/BN/WPU sample (Figure 7d) show a significant enhancement at 1290, 1130 and 1080 cm−1 compared to WPU, which could be explained by the P=O, PO2– and P–O groups [47,48]. The presence of phosphorus-containing gas should be attributed to the formation of phosphorus-containing radicals from the decomposition of BP, which demonstrates the significant role of BP in the gas-phase flame retardancy.

3.4.3. Synergistic Flame-Retardant Mechanisms

Based on the above flame-retardant performances and analyses, a possible flame retardant mechanism is proposed in Figure 8. At high temperature or in a real fire scenario, BP starts to decompose at about 240 °C. When the temperature reaches 420 °C or higher, most of the BP begins to enter the gas phase. The BP nanosheets work in both of the gaseous and condense phases for fire restriction. On the one hand, most of the BP will form radicals in the gas phase by absorbing surrounding oxygen and hydrogen atoms, which react with the pyrolytic radicals of the matrix polymers to inhibit the chain reaction. At the same time, the liberated incombustible gases will dilute the combustible gases and reduce their contact with oxygen. On the other hand, the residual BP will capture the oxygen in the polymers and transform it into phosphoric anhydride, which will promote the formation of a char layer and prevent the release of carbon-containing gas. BN nanosheets mainly remain in the condensed phase, synergistically catalyze carbon, and build a nano-barrier formation with black phosphorus due to the fact that they have good thermo-stability and a peculiar spatial three-dimensional network structure. Therefore, the high efficiency flame retardant performance of BP/BN can be attributed to the synergy effects of the gas phase mechanism of black phosphorus and the condensation phase mechanism of boron nitride during the combustion process.

4. Conclusions

BP and BN nanosheets were used as a flame retardant for WPU. The SEM and mapping results indicated that the BP and BN nanosheets were distributed uniformly in the matrix WPU. The flame-retardant tests demonstrated that the PHRR of WPU decreases by 50.94% and the THR decreases by 23.92% at a BP/BN content of only 0.4 wt%. The LOI of the BP/BN/WPU composite increased from 21.7% to 33.8%, compared with pure WPU. The residue of BP/BN/WPU after the CC test was denser and approximately 10 times more than the residue of pure WPU, according to TG, SEM, XPS, TG-IR analysis of WPU during the combustion process. Efficient flame retardancy is due to the synergistic effects of BP and BN. To conclude, BP/BN nanosheets can provide a good flame retardant effect with very low addition amount, and have a good application prospect in the field of flame retardancy.

Author Contributions

Conceptualization: X.R., Y.M., P.L., and S.Y.; formal analysis: X.R.; investigation, S.Y. and X.R.; project administration: S.Y.; resources: Y.M.; supervision: Y.M.; writing—original draft: S.Y. and X.R.; writing—review and editing: Y.Z. and P.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Cultivation Fund for Yunling (No. 10978195, Yunnan, China), the Higher Educational Key Laboratory for Phosphorus Chemical Engineering of Yunnan Province (No. 14058501, Yunnan, China), Yunnan Provincial Key Laboratory of Energy Saving in Phosphorus Chemical Engineering and New Phosphorus Materials (No. 20190002, Yunnan, China), Natural Science Foundation of China (No. 21968012).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Laoutid, F.; Bonnaud, L.; Alexandre, M.; Lopez-Cuesta, J.M.; Dubois, P. New prospects in flame retardant polymer materials: From fundamentals to nanocomposites. Mater. Sci. Eng. R Rep. 2009, 63, 100–125. [Google Scholar] [CrossRef]
  2. Chattopadhyay, D.K.; Webster, D.C. Thermal stability and flame retardancy of polyurethanes. Prog. Polym. Sci. 2009, 34, 1068–1133. [Google Scholar] [CrossRef]
  3. Chattopadhyay, D.K.; Raju, K.V.S.N. Structural engineering of polyurethane coatings for high performance applications. Prog. Polym. Sci. 2007, 32, 352–418. [Google Scholar] [CrossRef]
  4. Engels, H.W.; Pirkl, H.G.; Albers, R.; Albach, R.W.; Krause, J.; Hoffmann, A.; Casselmann, H.; Dormish, J. Polyurethanes: Versatile materials and sustainable problem solvers for todays challenges. Angew. Chem. 2013, 52, 9422–9441. [Google Scholar] [CrossRef]
  5. de Wit, C.A. An overview of brominated flame retardants in the environment. Chemosphere 2002, 46, 583–624. [Google Scholar] [CrossRef]
  6. Alaee, M.; Arias, P.; Sjodin, A.; Bergman, A. An overview of commercially used brominated flame retardants, their applications, their use patterns in different countries/regions and possible modes of release. Environ. Int. 2003, 29, 683–689. [Google Scholar] [CrossRef]
  7. Birnbaum, L.S.; Staskal, D.F. Brominated flame retardants: Cause for concern? Environ. Health Perspect. 2004, 112, 9–17. [Google Scholar] [CrossRef]
  8. Tabatabaee, F.; Khorasani, M.; Ebrahimi, M.; Gonzalez, A.; Irusta, L.; Sardon, H. Synthesis and comprehensive study on industrially relevant flame retardant waterborne polyurethanes based on phosphorus chemistry. Prog. Org. Coat. 2019, 131, 397–406. [Google Scholar] [CrossRef]
  9. Yan, Y.; Liang, B. Synthesis of phosphorus-nitrogen flame retardant and its application in epoxy resin. Fine Chem. 2019, 36, 316–321. [Google Scholar]
  10. Lu, S.Y.; Hamerton, I. Recent developments in the chemistry of halogen-free flame retardant polymers. Prog. Polym. Sci. 2002, 27, 1661–1712. [Google Scholar] [CrossRef]
  11. Zhang, S.; Horrocks, A.R. A review of flame retardant polypropylene fibres. Prog. Polym. Sci. 2003, 28, 1517–1538. [Google Scholar] [CrossRef]
  12. van der Veen, I.; de Boer, J. Phosphorus flame retardants: Properties, production, environmental occurrence, toxicity and analysis. Chemosphere 2012, 88, 1119–1153. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, Y.; Wang, Q. Melamine cyanurate-microencapsulated red phosphorus flame retardant unreinforced and glass fiber reinforced polyamide 66. Polym. Degrad. Stabil. 2006, 91, 3103–3109. [Google Scholar] [CrossRef]
  14. Wang, B.B.; Sheng, H.B.; Shi, Y.Q.; Hu, W.Z.; Hong, N.N.; Zeng, W.R.; Ge, H.; Yu, X.J.; Song, L.; Hu, Y. Recent advances for microencapsulation of flame retardant. Polym. Degrad. Stabil. 2015, 113, 96–109. [Google Scholar] [CrossRef]
  15. Liu, H.; Neal, A.T.; Zhu, Z.; Luo, Z.; Xu, X.F.; Tomanek, D.; Ye, P.D. Phosphorene: An unexplored 2d semiconductor with a high hole mobility. ACS Nano 2014, 8, 4033–4041. [Google Scholar] [CrossRef] [Green Version]
  16. Li, L.; Yu, Y.; Ye, G.J.; Ge, Q.; Ou, X.; Wu, H.; Feng, D.; Chen, X.H.; Zhang, Y. Black phosphorus field-effect transistors. Nat. Nanotechnol. 2014, 9, 372–377. [Google Scholar] [CrossRef] [Green Version]
  17. Qiao, J.; Kong, X.; Hu, Z.-X.; Yang, F.; Ji, W. High-mobility transport anisotropy and linear dichroism in few-layer black phosphorus. Nat. Commun. 2014, 5, 1–7. [Google Scholar] [CrossRef] [Green Version]
  18. Qiu, S.L.; Zhou, Y.F.; Zhou, X.; Zhang, T.; Wang, C.Y.; Yuen, R.K.K.; Hu, W.Z.; Hu, Y. Air-stable polyphosphazene-functionalized few-layer black phosphorene for flame retardancy of epoxy resins. Small 2019, 15, 13. [Google Scholar] [CrossRef]
  19. Qu, Z.; Wu, K.; Jiao, E.; Chen, W.; Hu, Z.; Xu, C.; Shi, J.; Wang, S.; Tan, Z. Surface functionalization of few-layer black phosphorene and its flame retardancy in epoxy resin. Chem. Eng. J. 2020, 328, 122991. [Google Scholar] [CrossRef]
  20. Ren, X.; Mei, Y.; Lian, P.; Xie, D.; Deng, W.; Wen, Y.; Luo, Y. Fabrication and application of black phosphorene/graphene composite material as a flame retardant. Polymers 2019, 11, 193. [Google Scholar] [CrossRef] [Green Version]
  21. Ren, X.; Mei, Y.; Lian, P.; Xie, D.; Yang, Y.; Wang, Y.; Wang, Z. A novel application of phosphorene as a flame retardant. Polymers 2018, 10, 227. [Google Scholar] [CrossRef] [Green Version]
  22. Zou, B.; Qiu, S.; Ren, X.; Zhou, Y.; Zhou, F.; Xu, Z.; Zhao, Z.; Song, L.; Hu, Y.; Gong, X. Combination of black phosphorus nanosheets and mcnts via phosphoruscarbon bonds for reducing the flammability of air stable epoxy resin nanocomposites. J. Hazard. Mater. 2020, 383, 121069. [Google Scholar] [CrossRef] [PubMed]
  23. Qiu, S.L.; Hou, Y.B.; Xing, W.Y.; Ma, C.; Zhou, X.; Liu, L.X.; Kan, Y.C.; Yuen, R.K.K.; Hu, Y. Self-assembled supermolecular aggregate supported on boron nitride nanoplatelets for flame retardant and friction application. Chem. Eng. J. 2018, 349, 223–234. [Google Scholar] [CrossRef]
  24. Zhang, Q.R.; Li, Z.W.; Li, X.H.; Yu, L.G.; Zhang, Z.J.; Wu, Z.S. Zinc ferrite nanoparticle decorated boron nitride nanosheet: Preparation, magnetic field arrangement, and flame retardancy. Chem. Eng. J. 2019, 356, 680–692. [Google Scholar] [CrossRef]
  25. Feng, Y.Z.; Han, G.J.; Wang, B.; Zhou, X.P.; Ma, J.M.; Ye, Y.S.; Liu, C.T.; Xie, X.L. Multiple synergistic effects of graphene-based hybrid and hexagonal born nitride in enhancing thermal conductivity and flame retardancy of epoxy. Chem. Eng. J. 2020, 379, 13. [Google Scholar] [CrossRef]
  26. Wu, J.X.; Mao, N.N.; Xie, L.M.; Xu, H.; Zhang, J. Identifying the crystalline orientation of black phosphorus using angle-resolved polarized raman spectroscopy. Angew. Chem. Int. Ed. 2015, 54, 2366–2369. [Google Scholar] [CrossRef]
  27. Favron, A.; Gaufres, E.; Fossard, F.; Phaneuf-L’Heureux, A.L.; Tang, N.Y.W.; Levesque, P.L.; Loiseau, A.; Leonelli, R.; Francoeur, S.; Martel, R. Photooxidation and quantum confinement effects in exfoliated black phosphorus. Nat. Mater. 2015, 14, 826–832. [Google Scholar] [CrossRef]
  28. Zhang, S.; Yang, J.; Xu, R.J.; Wang, F.; Li, W.F.; Ghufran, M.; Zhang, Y.W.; Yu, Z.F.; Zhang, G.; Qin, Q.H.; et al. Extraordinary photoluminescence and strong temperature/angle-dependent raman responses in few-layer phosphorene. ACS Nano 2014, 8, 9590–9596. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Yu, X.X.; Cai, R.R.; Jiao, J.L.; Fan, Y.L.; Gao, Q.; Li, J.W.; Pan, N.; Wu, M.Z.; Wang, X.P. Enhanced thermal stability of boron nitride-coated au nanoparticles for surface enhanced raman spectroscopy. J. Alloys Compd. 2018, 730, 487–492. [Google Scholar] [CrossRef]
  30. Chen, L.; Zhou, G.M.; Liu, Z.B.; Ma, X.M.; Chen, J.; Zhang, Z.Y.; Ma, X.L.; Li, F.; Cheng, H.M.; Ren, W.C. Scalable clean exfoliation of high-quality few-layer black phosphorus for a flexible lithium ion battery. Adv. Mater. 2016, 28, 510–517. [Google Scholar] [CrossRef]
  31. Zhao, M.; Qian, H.L.; Niu, X.Y.; Wang, W.; Guan, L.; Sha, J.; Wang, Y.W. Growth mechanism and enhanced yield of black phosphorus microribbons. Cryst. Growth Des. 2016, 16, 1096–1103. [Google Scholar] [CrossRef]
  32. Yu, B.; Xing, W.; Guo, W.; Qiu, S.; Wang, X.; Lo, S.; Hu, Y. Thermal exfoliation of hexagonal boron nitride for effective enhancements on thermal stability, flame retardancy and smoke suppression of epoxy resin nanocomposites via sol–gel process. J. Mater. Chem. A 2016, 4, 7330–7340. [Google Scholar] [CrossRef]
  33. Zhou, F.; Zhang, T.; Zou, B.; Hu, W.; Wang, B.; Zhan, J.; Ma, C.; Hu, Y. Synthesis of a novel liquid phosphorus-containing flame retardant for flexible polyurethane foam: Combustion behaviors and thermal properties. Polym. Degrad. Stabil. 2020, 171, 109029. [Google Scholar] [CrossRef]
  34. Rao, W.-H.; Liao, W.; Wang, H.; Zhao, H.-B.; Wang, Y.-Z. Flame-retardant and smoke-suppressant flexible polyurethane foams based on reactive phosphorus-containing polyol and expandable graphite. J. Hazard. Mater. 2018, 360, 651–660. [Google Scholar] [CrossRef]
  35. Lewin, M. Synergistic and catalytic effects in flame retardancy of polymeric materials—An overview. J. Fire Sci. 1999, 17, 3–19. [Google Scholar] [CrossRef]
  36. Lewin, M. Synergism and catalysis in flame retardancy of polymers. Polym. Adv. Technol. 2001, 12, 215–222. [Google Scholar] [CrossRef]
  37. Pecht, M.; Deng, Y.L. Electronic device encapsulation using red phosphorus flame retardants. Microelectron. Reliab. 2006, 46, 53–62. [Google Scholar] [CrossRef]
  38. Cai, W.; Guo, W.W.; Pan, Y.; Wang, J.L.; Mu, X.W.; Feng, X.M.; Yuan, B.H.; Wang, B.B.; Hu, Y. Polydopamine-bridged synthesis of ternary h-BN@PDA@SNO2 as nanoenhancers for flame retardant and smoke suppression of epoxy composites. Compos. Pt. A Appl. Sci. Manuf. 2018, 111, 94–105. [Google Scholar] [CrossRef]
  39. Qu, T.; Yang, N.; Hou, J.; Li, G.; Yao, Y.; Zhang, Q.; He, L.; Wu, D.; Qu, X. Flame retarding epoxy composites with poly(phosphazene-co-bisphenol a)-coated boron nitride to improve thermal conductivity and thermal stability. RSC Adv. 2017, 7, 6140–6151. [Google Scholar] [CrossRef] [Green Version]
  40. Dong, W.; Xiaowei, M.; Wei, C.; Lei, S. Constructing phosphorus, nitrogen, silicon-co-contained boron nitride nano-sheets to reinforce flame retardant properties of unsaturated polyester resin. Compos. Part A Appl. Sci. Manuf. 2018, 109, 546–554. [Google Scholar]
  41. Ryder, C.R.; Wood, J.D.; Wells, S.A.; Yang, Y.; Jariwala, D.; Marks, T.J.; Schatz, G.C.; Hersam, M.C. Covalent functionalization and passivation of exfoliated black phosphorus via aryl diazonium chemistry. Nat. Chem. 2016, 8, 597–602. [Google Scholar] [CrossRef] [PubMed]
  42. Kuo, P.L.; Chang, J.M.; Wang, T.L. Flame-retarding materials—I. Syntheses and flame-retarding property of alkylphosphate-type polyols and corresponding polyurethanes. J. Appl. Polym. Sci. 1998, 69, 1635–1643. [Google Scholar] [CrossRef]
  43. Horold, S. Phosphorus flame retardants in thermoset resins. Polym. Degrad. Stabil. 1999, 64, 427–431. [Google Scholar] [CrossRef]
  44. Hedrick, S.A.; Chuang, S.S.C. Temperature programmed decomposition of polypropylene: In situ ftir coupled with mass spectroscopy study. Thermochim. Acta 1998, 315, 159–168. [Google Scholar] [CrossRef]
  45. Yu, B.; Wang, X.; Qian, X.D.; Xing, W.Y.; Yang, H.Y.; Ma, L.Y.; Lin, Y.; Jiang, S.H.; Song, L.; Hu, Y.; et al. Functionalized graphene oxide/phosphoramide oligomer hybrids flame retardant prepared via in situ polymerization for improving the fire safety of polypropylene. RSC Adv. 2014, 4, 31782–31794. [Google Scholar] [CrossRef]
  46. Zhang, P.K.; He, Y.Z.; Tian, S.Q.; Fan, H.J.; Chen, Y.; Yan, J. Flame retardancy, mechanical, and thermal properties of waterborne polyurethane conjugated with a novel phosphorous-nitrogen intumescent flame retardant. Polym. Compos. 2017, 38, 452–462. [Google Scholar] [CrossRef]
  47. Yuan, B.H.; Fan, A.; Yang, M.; Chen, X.F.; Hu, Y.; Bao, C.L.; Jiang, S.H.; Niu, Y.; Zhang, Y.; He, S.; et al. The effects of graphene on the flammability and fire behavior of intumescent flame retardant polypropylene composites at different flame scenarios. Polym. Degrad. Stabil. 2017, 143, 42–56. [Google Scholar] [CrossRef]
  48. Zhou, S.; Song, L.; Wang, Z.Z.; Hu, Y.; Xing, W.Y. Flame retardation and char formation mechanism of intumescent flame retarded polypropylene composites containing melamine phosphate and pentaerythritol phosphate. Polym. Degrad. Stabil. 2008, 93, 1799–1806. [Google Scholar] [CrossRef]
Polymers 12 01487 g001 550

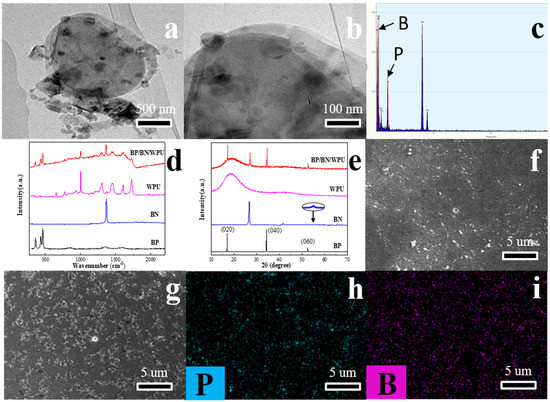

Figure 1. (a,b) TEM image of BP/BN nanosheets; (c) The EDS of BP/BN nanosheets; (d) Raman spectra of BP, BN, WPU and BP/BN/WPU; (e) XRD spectra of BP, BN, WPU and BP/BN/WPU; (f) and (g) SEM image of WPU and BP/BN/WPU; (h) phosphorus mapping in BP/BN/WPU and (i) boron mapping in BP/BN/WPU.
Figure 1. (a,b) TEM image of BP/BN nanosheets; (c) The EDS of BP/BN nanosheets; (d) Raman spectra of BP, BN, WPU and BP/BN/WPU; (e) XRD spectra of BP, BN, WPU and BP/BN/WPU; (f) and (g) SEM image of WPU and BP/BN/WPU; (h) phosphorus mapping in BP/BN/WPU and (i) boron mapping in BP/BN/WPU.
Polymers 12 01487 g001
Polymers 12 01487 g002 550

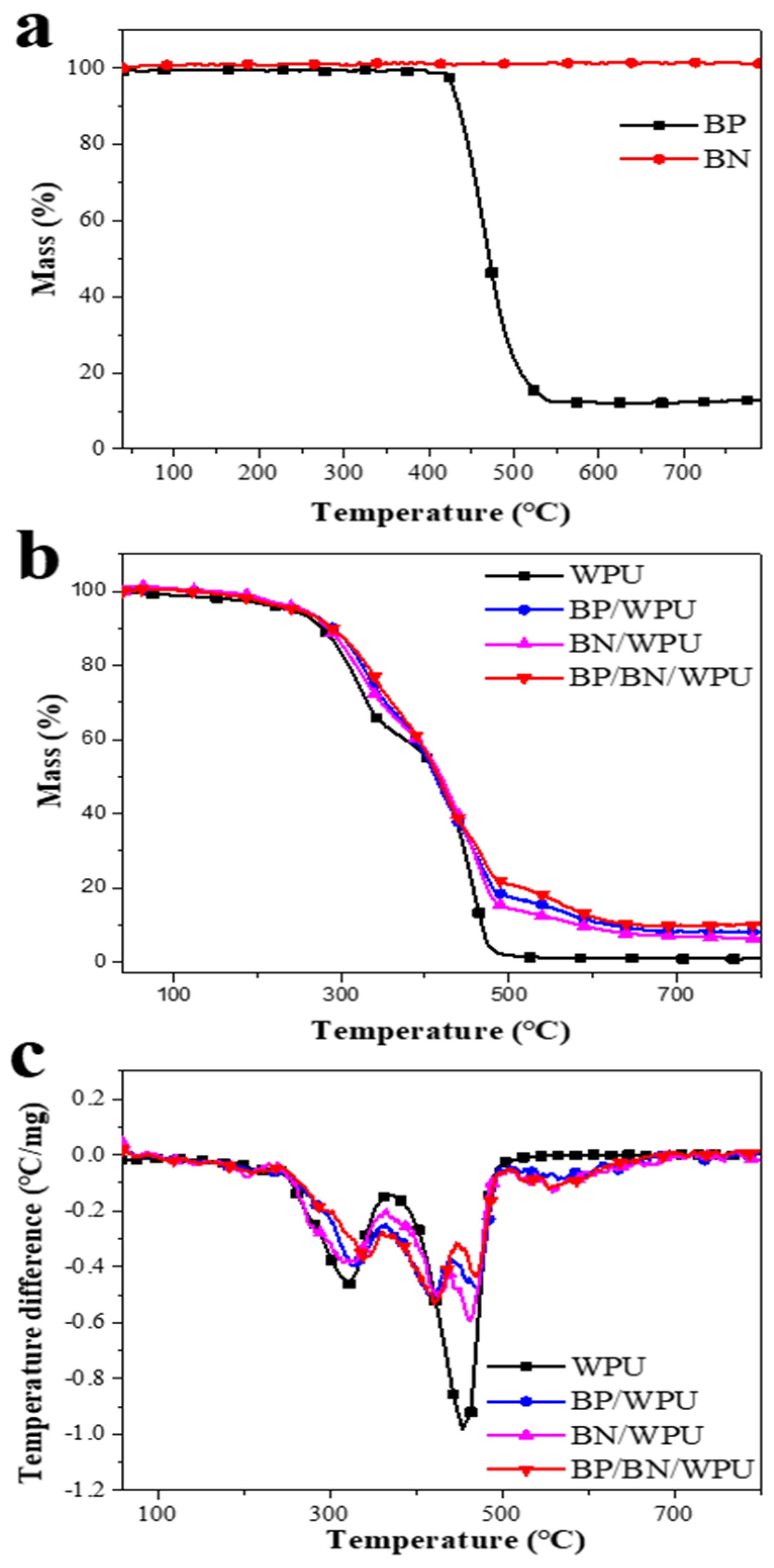

Figure 2. (a) the TGA curves of BP and BN; (b) the TGA curves of WPU, BP/WPU, BN/WPU and BP/BN/WPU; and (c) the resulted DTG curves of WPU, BP/WPU, BN/WPU and BP/BN/WPU.
Figure 2. (a) the TGA curves of BP and BN; (b) the TGA curves of WPU, BP/WPU, BN/WPU and BP/BN/WPU; and (c) the resulted DTG curves of WPU, BP/WPU, BN/WPU and BP/BN/WPU.
Polymers 12 01487 g002
Polymers 12 01487 g003 550

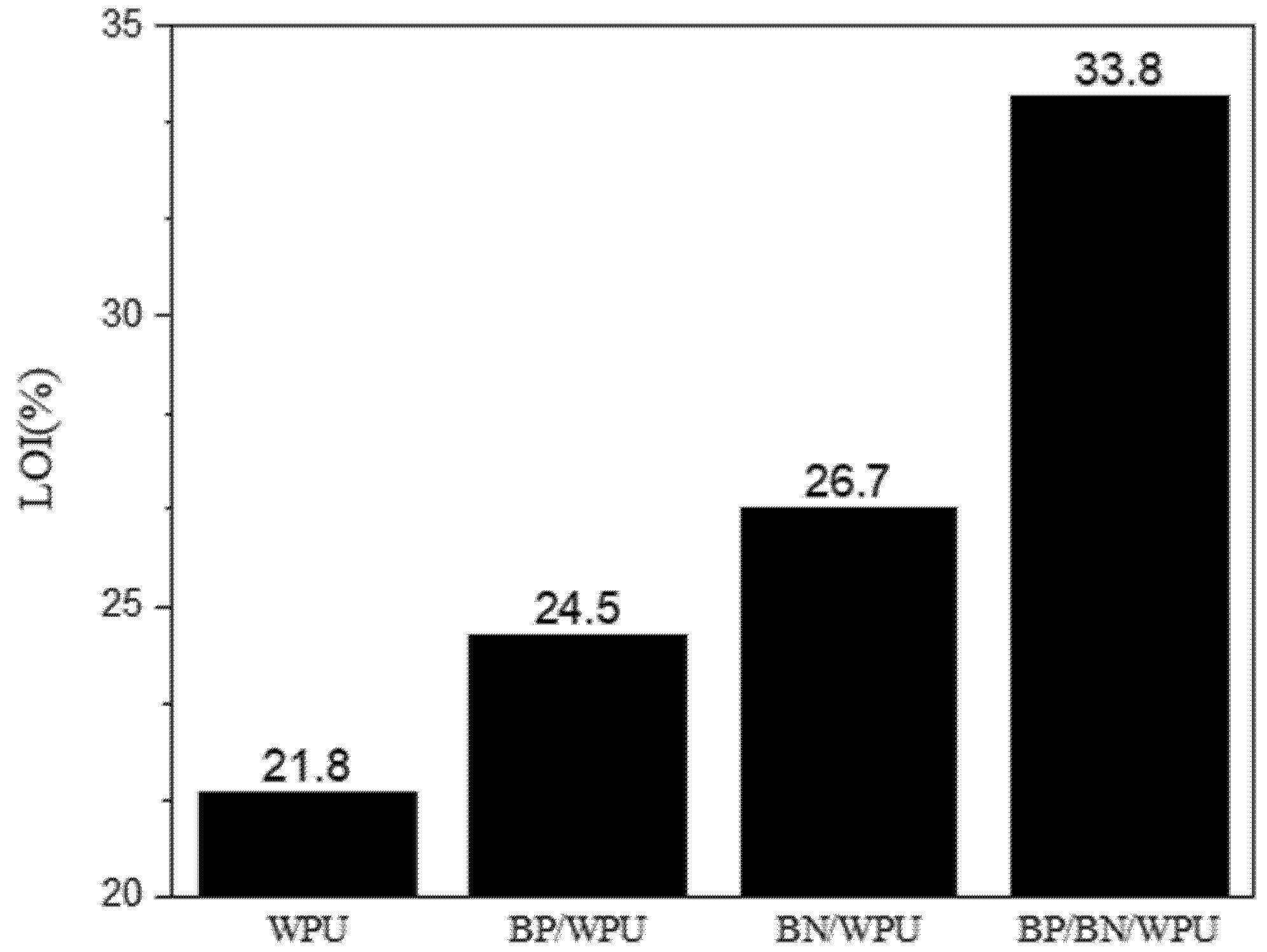

Figure 3. The additive amount of the flame retardant and values of the limit oxygen index (LOI) of the samples.
Figure 3. The additive amount of the flame retardant and values of the limit oxygen index (LOI) of the samples.
Polymers 12 01487 g003
Polymers 12 01487 g004 550

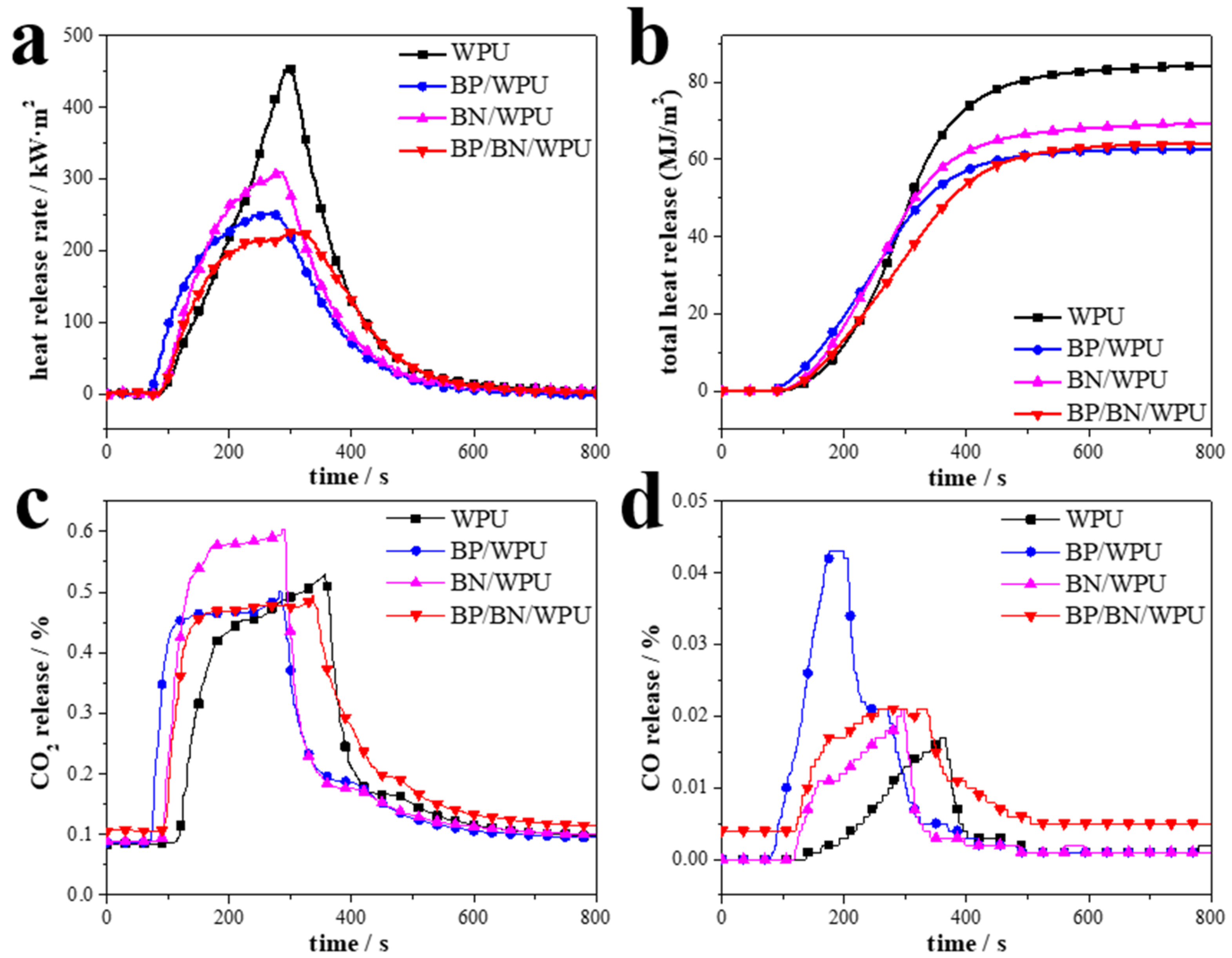

Figure 4. Cone calorimeter test of the samples: (a) HRR curves; (b) THR curves; (c) CO2 release curves; (d) CO release curves.
Figure 4. Cone calorimeter test of the samples: (a) HRR curves; (b) THR curves; (c) CO2 release curves; (d) CO release curves.
Polymers 12 01487 g004
Polymers 12 01487 g005 550
Figure 5. The images of the residues after the CC test: (a1,b1,c1,d1) the real picture of the pure WPU, BP/WPU, BN/WPU, BP/BN/WPU, respectively; (a2,b2,c2,d2) SEM image of the pure WPU, BP/WPU, BN/WPU, BP/BN/WPU, respectively; (a3,b3,c3,d3) the enlarged SEM image of the pure WPU, BP/WPU, BN/WPU, BP/BN/WPU.
Figure 5. The images of the residues after the CC test: (a1,b1,c1,d1) the real picture of the pure WPU, BP/WPU, BN/WPU, BP/BN/WPU, respectively; (a2,b2,c2,d2) SEM image of the pure WPU, BP/WPU, BN/WPU, BP/BN/WPU, respectively; (a3,b3,c3,d3) the enlarged SEM image of the pure WPU, BP/WPU, BN/WPU, BP/BN/WPU.
Polymers 12 01487 g005
Polymers 12 01487 g006 550

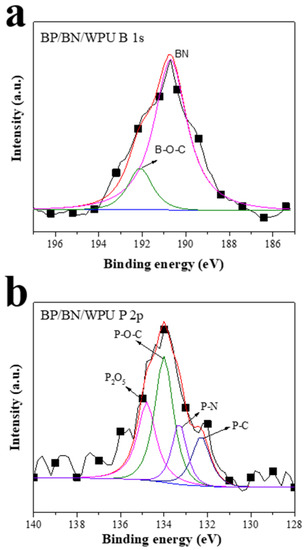

Figure 6. XPS spectra of the residue of BP/BN/WPU composite material after CC test; (a) high-resolution XPS spectra of B 1s of the residue of BP/BN/WPU composite material; (b) high-resolution XPS spectra of P 2p of the residue of BP/BN/WPU composite material.
Figure 6. XPS spectra of the residue of BP/BN/WPU composite material after CC test; (a) high-resolution XPS spectra of B 1s of the residue of BP/BN/WPU composite material; (b) high-resolution XPS spectra of P 2p of the residue of BP/BN/WPU composite material.
Polymers 12 01487 g006
Polymers 12 01487 g007 550

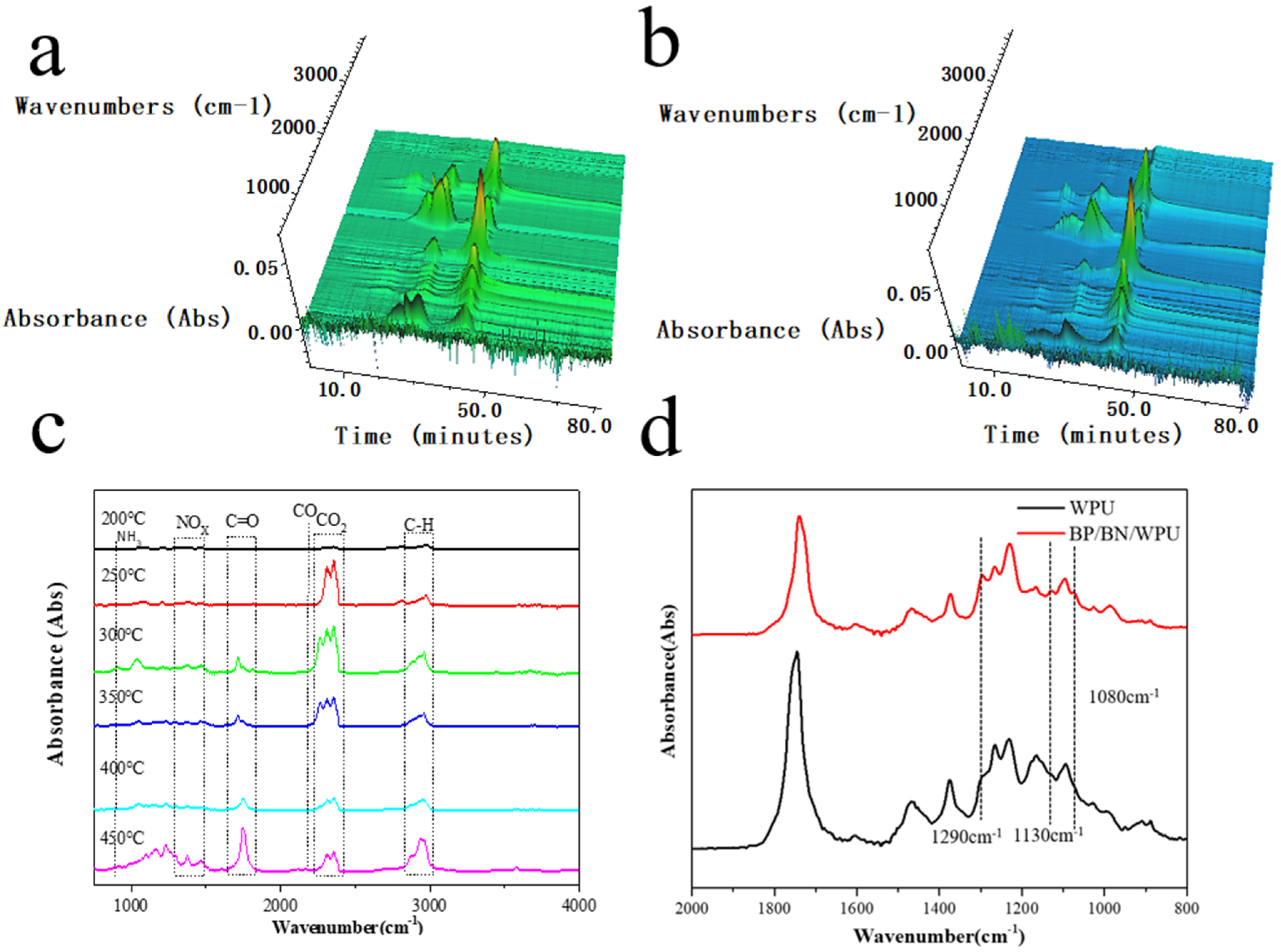

Figure 7. (a) 3D image of FTIR spectra of the WPU; (b) 3D image of FTIR spectra of the BP/BN/WPU; (c) The FTIR spectra of BP/BN/WPU obtained at different temperatures; (d) The enlarged image for comparison of the biggest mass loss in the second TG stages of the pure WPU and BP/BN/WPU.
Figure 7. (a) 3D image of FTIR spectra of the WPU; (b) 3D image of FTIR spectra of the BP/BN/WPU; (c) The FTIR spectra of BP/BN/WPU obtained at different temperatures; (d) The enlarged image for comparison of the biggest mass loss in the second TG stages of the pure WPU and BP/BN/WPU.
Polymers 12 01487 g007
Polymers 12 01487 g008 550

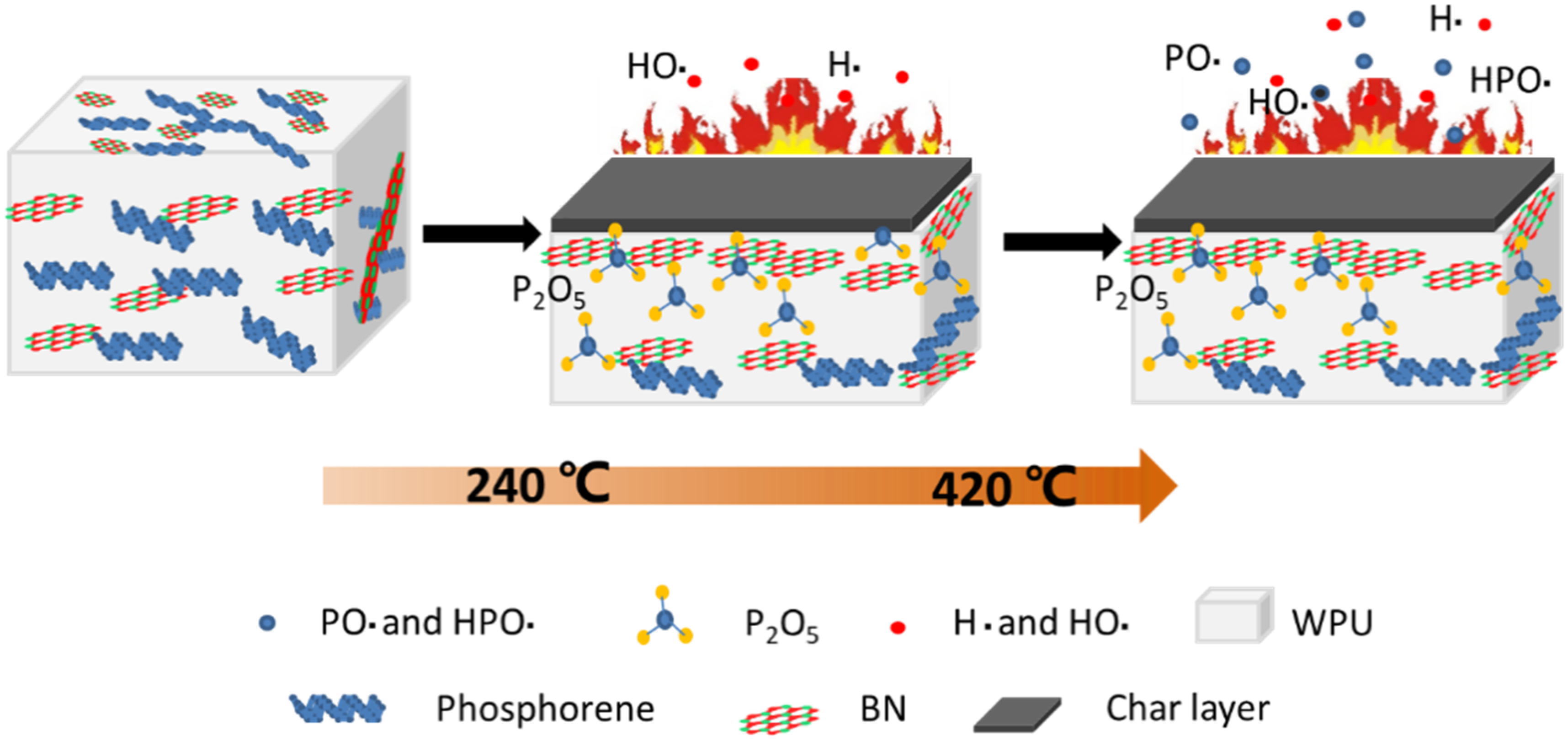

Figure 8. Schematic illustration of the flame-retardant mechanism.
Figure 8. Schematic illustration of the flame-retardant mechanism.
Polymers 12 01487 g008
Table
Table 1. The additive amount of the BP and BN nanosheets in the samples.
Table 1. The additive amount of the BP and BN nanosheets in the samples.
SamplesWeight (g)Percentage of BP (%)Percentage of BN (%)Content of BP (g)Content of BN (g)
WPU22.10000
0.4BP/WPU220.4000.08800
0.4BN/WPU22.400.4000.0896
0.2/0.2BP/BN/WPU22.20.200.200.04440.0444
Table
Table 2. The cone calorimeter test data of WPU, G/WPU, and BP/G/WPU.
Table 2. The cone calorimeter test data of WPU, G/WPU, and BP/G/WPU.
SampleTTI (s)TPHRR (s)PHRR (kW/m2)THR (MJ/m2)Av-EHC (MJ/kg)CO/CO2EFFSE
WPU65297452.584.2031.070.021
BP/WPU40257252.762.5729.290.056499.51.15
BN/WPU62264308.372.2531.300.027360.51.5
BP/BN/WPU51305222.064.0627.90.037576.25
Table
Table 3. The content of BP and BN nanosheets in the residues after the CC test.
Table 3. The content of BP and BN nanosheets in the residues after the CC test.
Residue SamplesWeight (g)Total Residues (%)Condensed Phase of P (%)Condensed Phase of BN (%)Gas Phase of P (%)Gas Phase of BN (%)
WPU0.200.10000
0.4%BP/WPU1.36.349.75090.250
0.4%BN/WPU2.17.38066.96033.04
0.2%/0.2%BP/BN/WPU2.410.3419.4668.6980.5431.31
