Next Article in Journal
Multi-Responsive Polysiloxane/Poly(N-isopropylacrylamide) Interpenetrating Networks Containing Urea and Thiourea Groups
Next Article in Special Issue
An Insight into the Structural Diversity and Clinical Applicability of Polyurethanes in Biomedicine
Previous Article in Journal
Chitosan Grafted with Biobased 5-Hydroxymethyl-Furfural as Adsorbent for Copper and Cadmium Ions Removal
Previous Article in Special Issue
Water-Soluble Photoinitiators in Biomedical Applications
Open AccessArticle

Dental Composition Modified with Aryloxyphosphazene Containing Carboxyl Groups

D.Mendeleev University of Chemical Technology of Russia, Miusskaya sq. 9, 125047 Moscow, Russia
Trade House VladMiVa, 308015 Belgorod, Russia
Belgorod National Research University, 308015 Belgorod, Russia
Author to whom correspondence should be addressed.
Polymers 2020, 12(5), 1176;
Received: 24 April 2020 / Revised: 18 May 2020 / Accepted: 18 May 2020 / Published: 20 May 2020
(This article belongs to the Special Issue Biomedical Polymer Materials II)

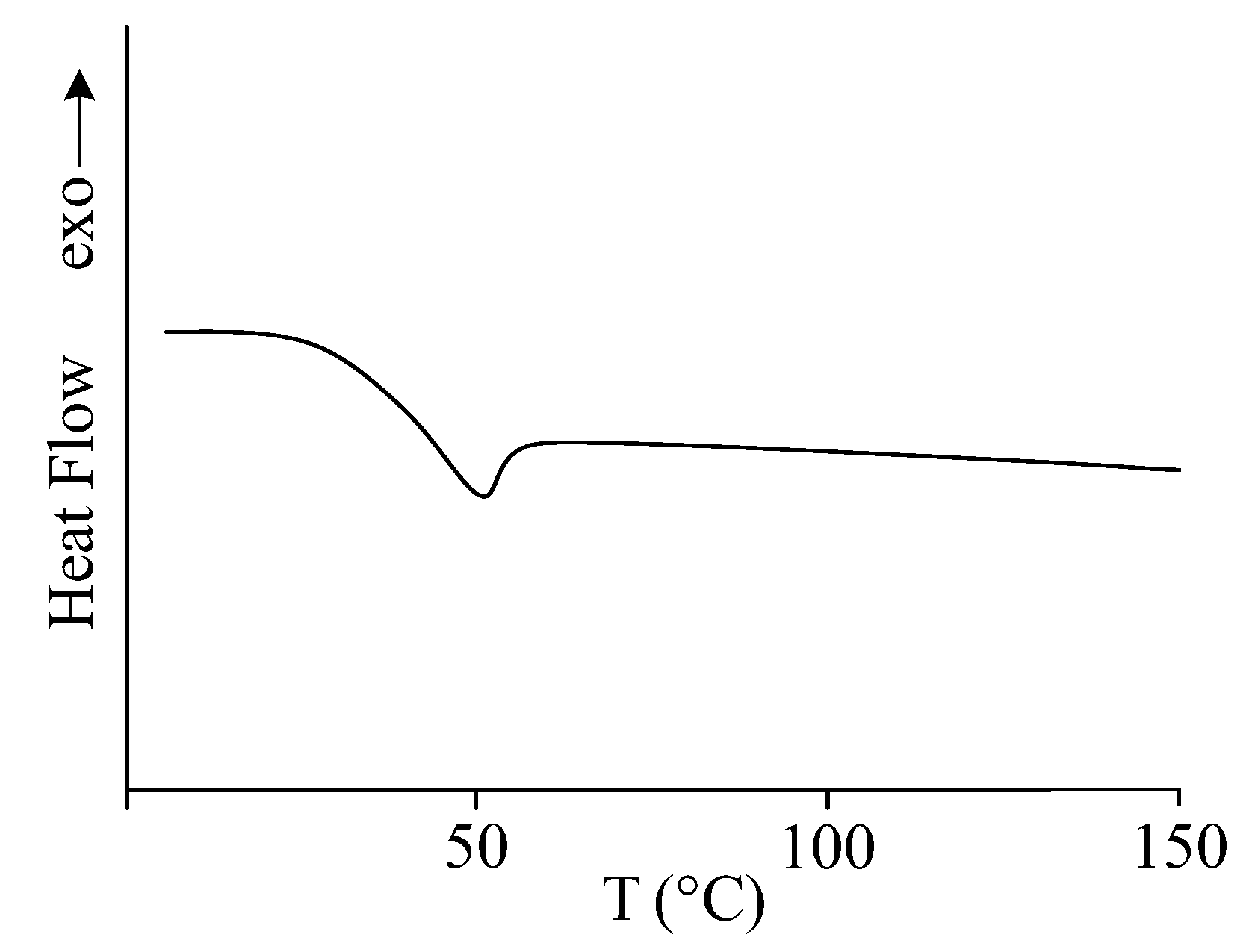

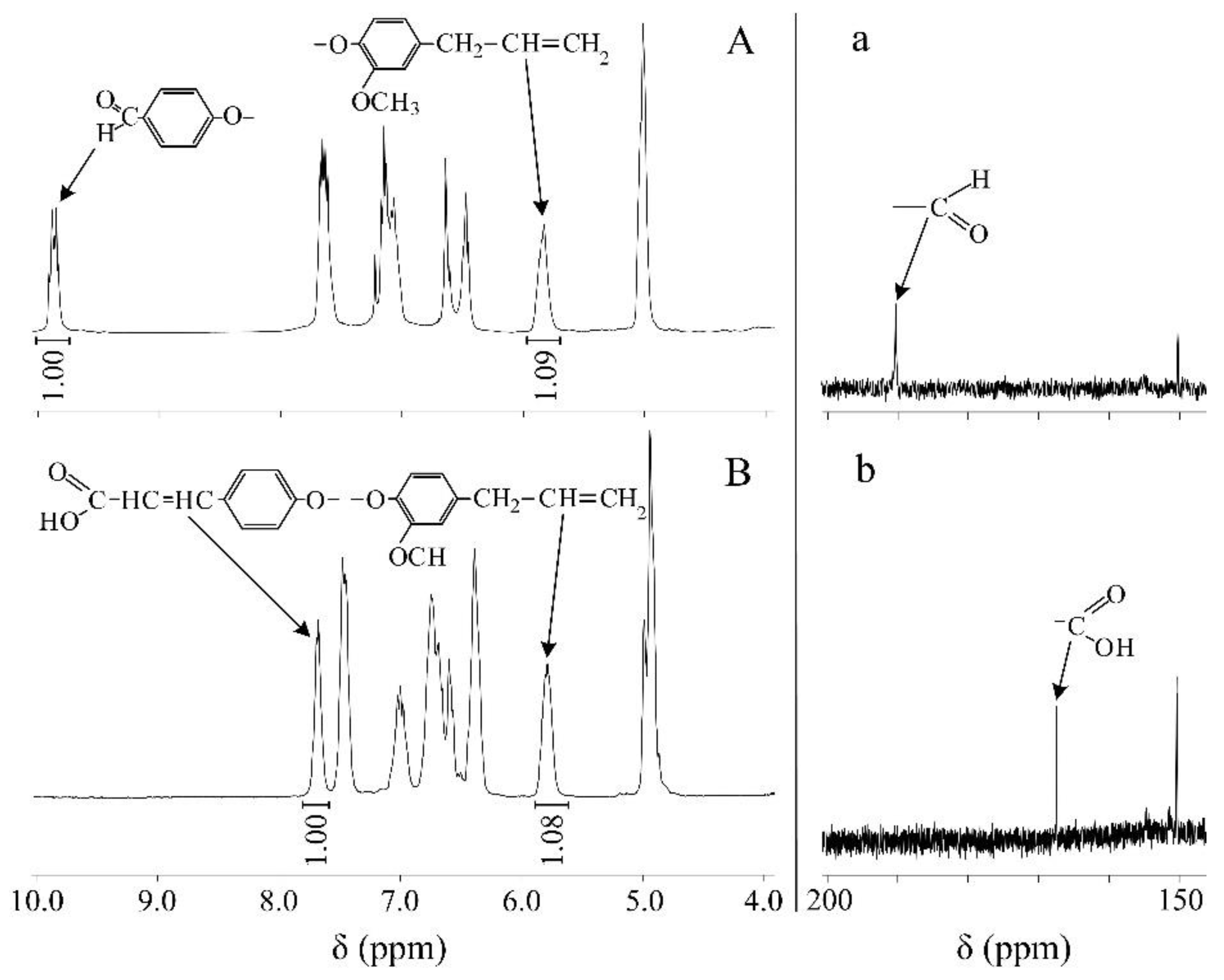

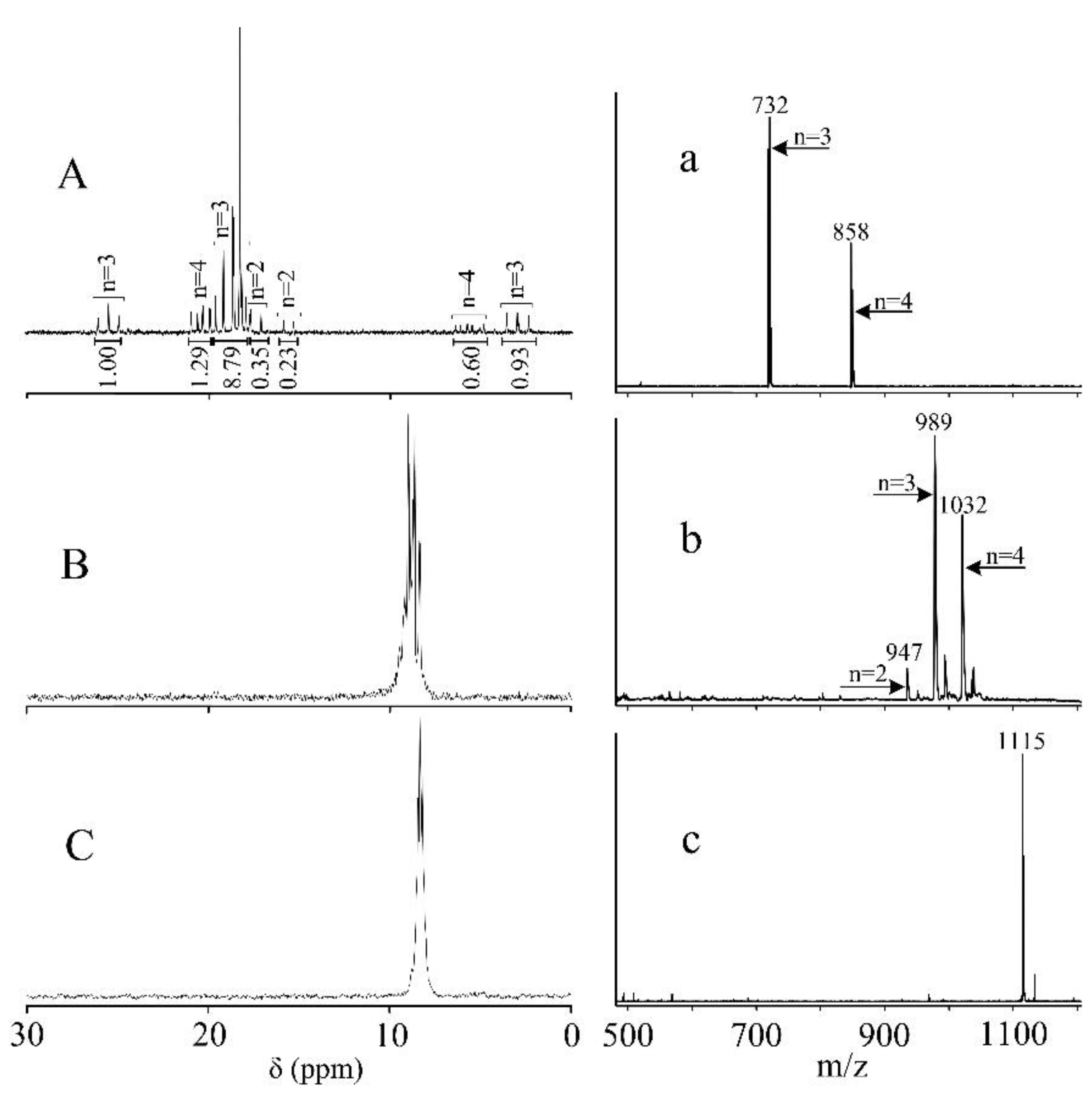

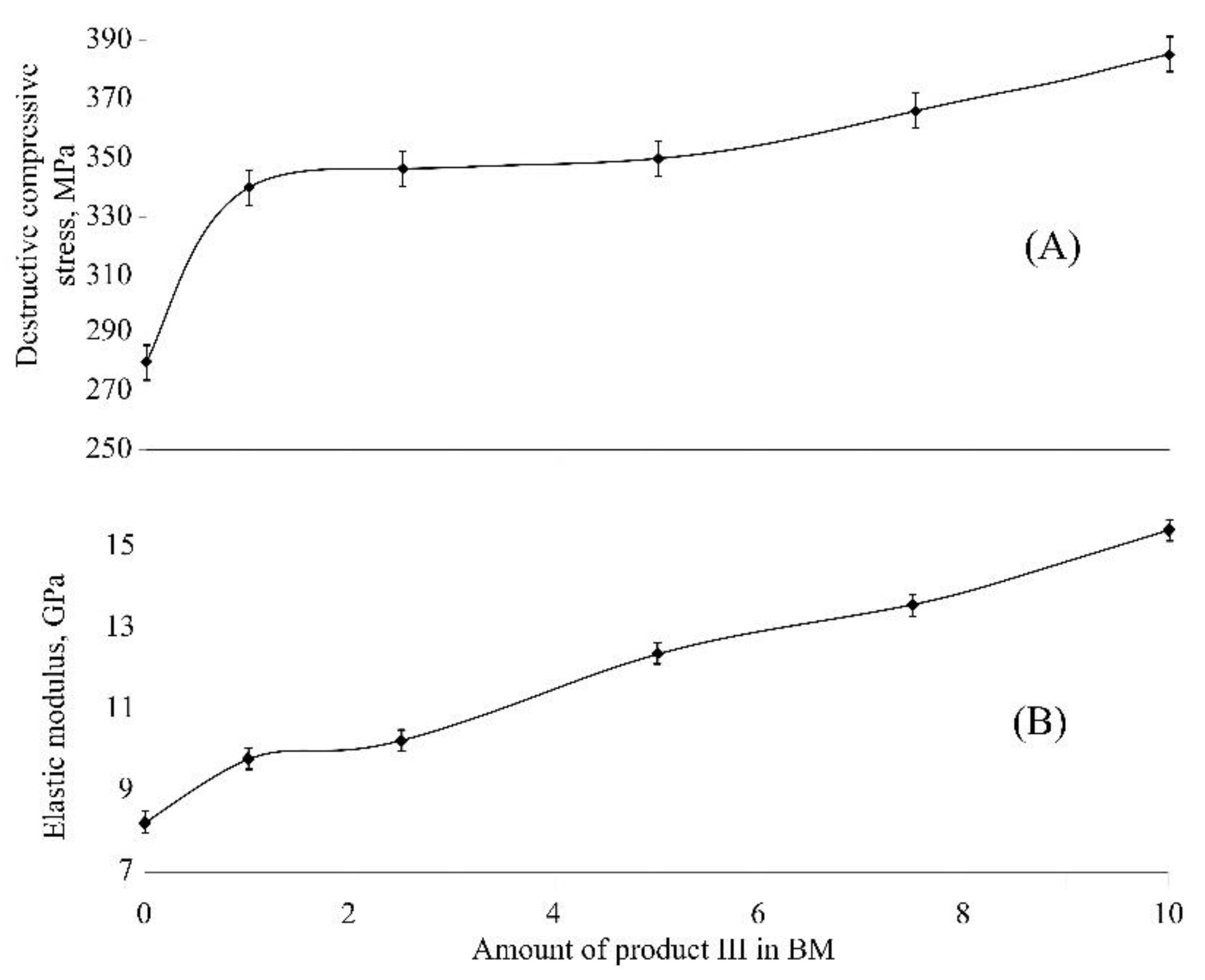

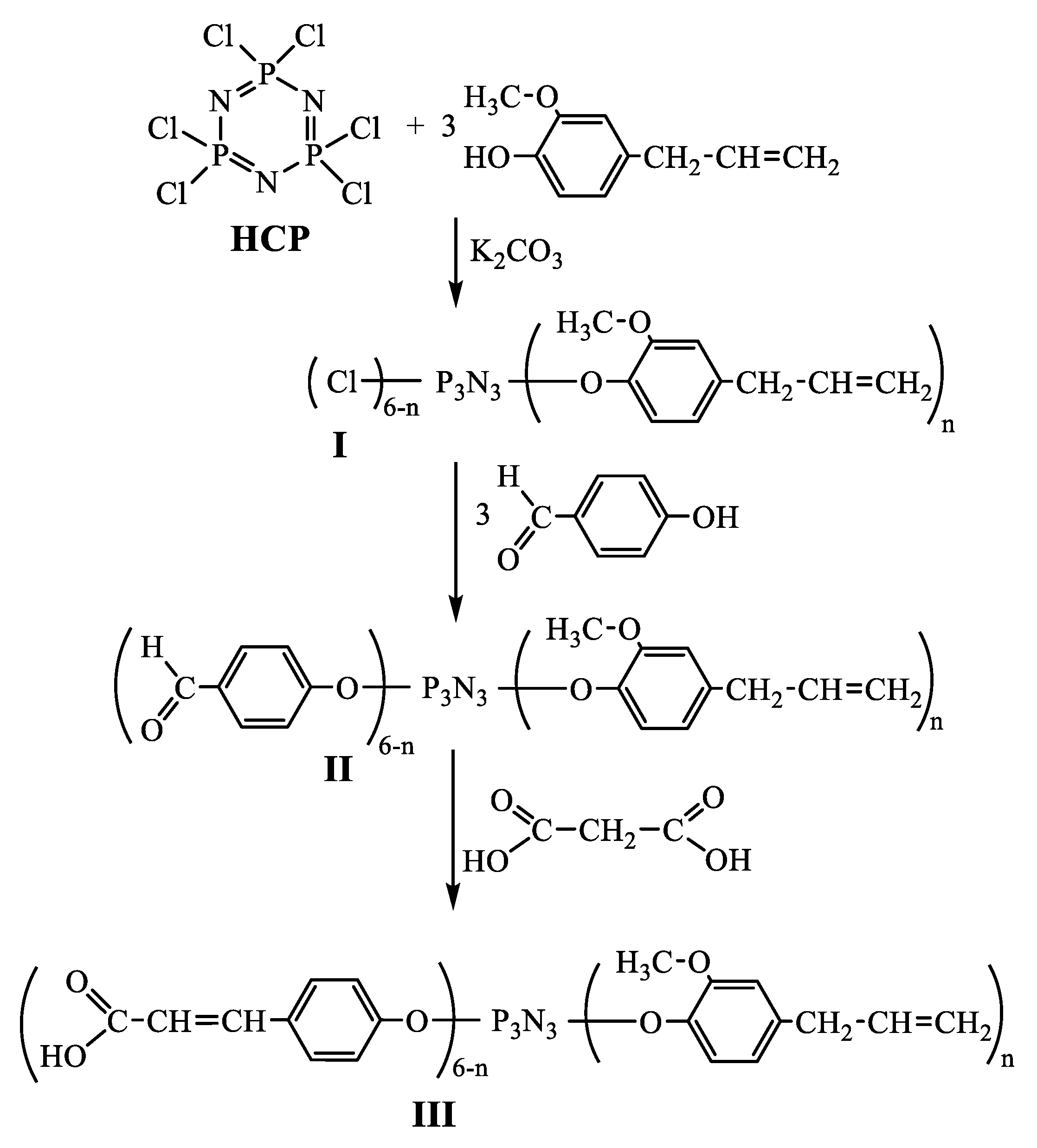

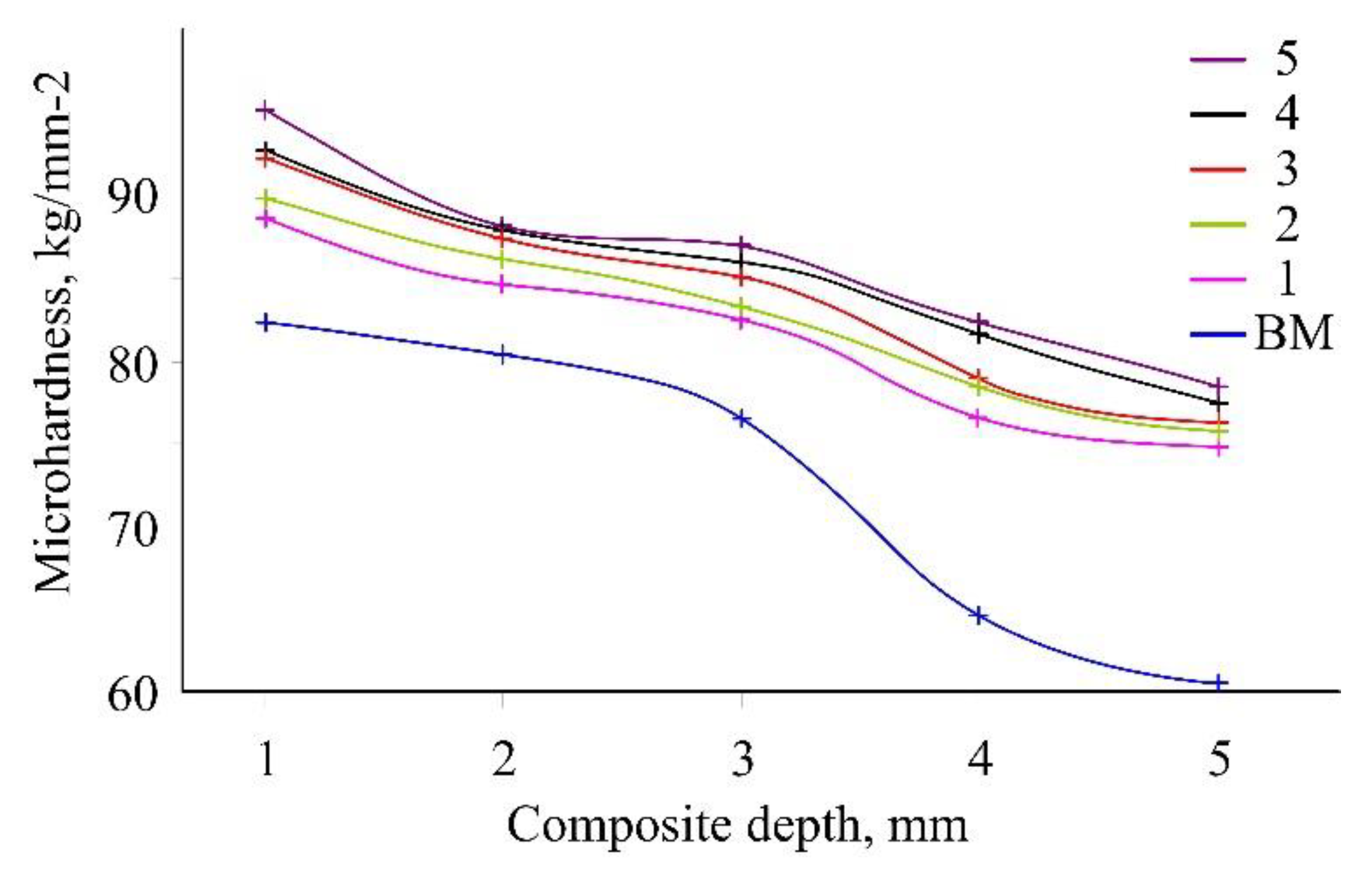

A modifier consisting of the mixture of cyclotriphosphazenes containing 4-allyl-2-methoxyphenoxy and β-carboxyethenylphenoxy moieties was developed for administration with acrylate dental restorative compositions. The synthesized compounds were characterized by 1H and 13C NMR spectroscopy and MALDI-TOF mass spectrometry. The optimal conditions to combine the modifier with the starting dental mixture consisting of bis-GMA and TGM-3 were revealed by differential scanning calorimetry (DSC) method. Properties of the cured modified compositions were evaluated for the compliance with requirements of ISO 4049:2019. It was found that these compositions possess the increased adhesion to dental tissues and cure depth and the decreased water sorption and water solubility. The values of elastic modules, destructive compressive stress and microhardness were also increasing along with the increased content of the modifier in the composition. View Full-Text
Keywords: phosphazene; restorative dentistry; adhesion; composite material; modification phosphazene; restorative dentistry; adhesion; composite material; modification
Show Figures

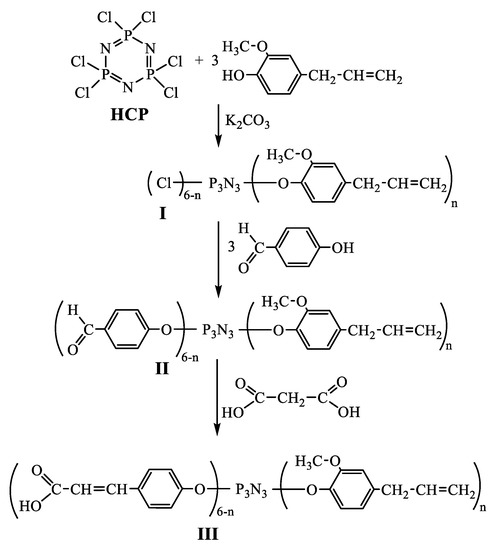

Graphical abstract

MDPI and ACS Style

Chistyakov, E.M.; Kolpinskaya, N.; Posokhova, V.; Chuev, V. Dental Composition Modified with Aryloxyphosphazene Containing Carboxyl Groups. Polymers 2020, 12, 1176.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Search more from Scilit
Back to TopTop
