Effect of Ionic Radius in Metal Nitrate on Pore Generation of Cellulose Acetate in Polymer Nanocomposite

by
Woong Gi Lee
1,
Younghyun Cho
2,* and
Sang Wook Kang
1,3,*
1
Department of Chemistry, Sangmyung University, Seoul 03016, Korea
2
Department of Energy Systems Engineering, Soonchunhyang University, Asan 31538, Korea
3
Department of Chemistry and Energy Engineering, Sangmyung University, Seoul 03016, Korea
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(4), 981; https://doi.org/10.3390/polym12040981
Submission received: 27 March 2020 / Revised: 20 April 2020 / Accepted: 21 April 2020 / Published: 23 April 2020
(This article belongs to the Special Issue Metal Nanoparticles-Polymer Hybrid Materials)
Browse Figures
Versions Notes

Abstract

:
To prepare a porous cellulose acetate (CA) for application as a battery separator, Cd(NO3)2·4H2O was utilized with water-pressure as an external physical force. When the CA was complexed with Cd(NO3)2·4H2O and exposed to external water-pressure, the water-flux through the CA was observed, indicating the generation of pores in the polymer. Furthermore, as the hydraulic pressure increased, the water-flux increased proportionally, indicating the possibility of control for the porosity and pore size. Surprisingly, the value above 250 LMH (L/m2h) observed at the ratio of 1:0.35 (mole ratio of CA: Cd(NO3)2·4H2O) was of higher flux than those of CA/other metal nitrate salts (Ni(NO3)2 and Mg(NO3)2) complexes. The higher value indicated that the larger and abundant pores were generated in the cellulose acetate at the same water-pressure. Thus, it could be thought that the Cd(NO3)2·4H2O salt played a role as a stronger plasticizer than the other metal nitrate salts such as Ni(NO3)2 and Mg(NO3)2. These results were attributable to the fact that the atomic radius and ionic radius of the Cd were largest among the three elements, resulting in the relatively larger Cd of the Cd(NO3)2 that could easily be dissociated into cations and NO3− ions. As a result, the free NO3− ions could be readily hydrated with water molecules, causing the plasticization effect on the chains of cellulose acetate. The coordinative interactions between the CA and Cd(NO3)2·4H2O were investigated by IR spectroscopy. The change of ionic species in Cd(NO3)2·4H2O was analyzed by Raman spectroscopy.

Graphical Abstract

1. Introduction

Nanoporous materials have received much attention for their possibilities of being utilized for gas separation, catalysis, battery separators, medicine, and water treatment [1,2]. Currently, the preparation or synthesis of nanoporous materials has been explosively explored due to showing various and unique characteristics. For instance, the Lei Qian group suggested a special method to generate nanoparticles into porous materials with the evaporation phenomena of solvents [3]. On the other hand, the Dubinsky group showed that polymerization-induced phase separation could generate the hybrid porous material [4]. Recently, unique structures such as porous polymer networks (PPNs), porous organic polymers (POPs), metal-organic frameworks (MOFs) and porous aromatic frameworks (PAFs) have been investigated due to their gas storage characteristics [5,6,7,8]. On the other hand, Yiming et al. reported enhanced CO2 uptake through microporous carbon material [9]. Additionally, Atsushi Takase et al. evaluated the SF6 and N2 separation ability of nanoporous carbons using an adsorption mechanism [10]. Moreover, porous materials as separators to improve the efficiency of batteries have been receiving attention. Specifically, porous organic materials have made promising candidates for highly efficient battery separators due to their easily tunable morphology by using smart functional materials and chemistry [11,12,13,14]. In detail, the lithium ion battery separator was prepared generally with polymers such as polyethylene (PE) or polypropylene (PP) because of their attractive physical and electrochemical stability. However, PP and PE separators have some drawbacks, which would show low wettability, resulting in the low ionic conductivity. Furthermore, low thermal stability played a role as an obstacle for practical applications. To overcome these drawbacks, porous inorganic material, nanoparticle, high thermal-resistance polymer and separator coated thermal material have been used as separator [15,16,17]. Especially, Meinan et al. developed the thermally stable separator with high performance by using the pure inorganic material [18]. Furthermore, the Lee group reported the thermally stable polyimide nanofiber with Al oxide particles as separator [19].
To date, porous materials have been formed through a variety of methods such as thermally induced phase separation, evaporation induced phase separation, phase inversion and track-etching [20,21,22]. For example, Jian Zhao et al. proposed a method to fabricate microporous material using the solvent evaporation-including separation. This method used a ternary solution, such as a liquid silicone rubber precursor of liquid paraffin and hexane, and this solution was cast to form a film. When the hexane and liquid paraffin was removed, micropores from less than 300 to over 1200 µm were generated in the silicone rubber film [23]. Hermsdorf et al. suggested the fabrication of porous polyimide film onto a silicon support coated with an oxide layer. Polyimide membranes are used as a starting material for a sample preparation based on the high energy of ion irradiation. As a result, the pore size in the membrane was an average of 73 nm and the pore shape was conical [24]. However, some problems of these methods are the complications and the high-cost of the process. To solve these drawbacks, our group reported the method to fabricate pores using the ionic liquid and solvated inorganic complex [25,26]. The nickel nitrate (Ni(NO3)2·6H2O) as inorganic complex was well dissolved in water or acetone and it can be applied to cellulose acetate solution dissolved acetone/water (w/w 8/2). As a result, the pore size and volume of the polymer matrix increased by water pressure and the pores were uniformly distributed [26]. In this study, we suggested the environment-friendly and energy-efficient method to synthesize the pores, which is close to the straight type in a cellulose acetate (CA) polymer matrix [27], using a combination of inorganic complex (Cd(NO3)2·4H2O) and isostatic water pressure. Especially, we investigated the effect of the ionic radius in metal nitrate on both the pore generation and pore control of cellulose acetate.

2. Experimental

Separator fabrication: polymer (cellulose acetate, Sigma-Aldrich Co. Milwaukee, WI, USA) was dissolved into acetone/water co-solvents. Then, cadmium (II) nitrate hexahydrate (Cd(NO3)2·4H2O, Sigma-Aldrich Co. Milwaukee, WI, USA) was incorporated into polymer solution by the mole ratio of the Cd salts to the monomeric unit of polymer. The prepared mixture was stirred for one hour at room temperature, and then casted for the free-standing film on the plate. Finally, the free-standing films were dried at atmosphere pressure for 30 min. The dried polymer films with Cd(NO3)2·4H2O were placed into cells such that water molecules could be passed through the composite films. Then, the various water-pressures ranging from 2 to 8 bar were applied to the cells equipped with the polymer composites containing Cd(NO3)2·4H2O. The water flux of the films for varying porosity was measured and expressed as L/m2h.

3. Results and Discussion

Scanning electron microscopy (SEM JSM-5600LV, JEOL, Tokyo, Japan) was utilized to observe the pore formation on and in polymers with the Cd(NO3)2·4H2O additive after being exposed to external water-pressures. Figure 1a,b represents the surface morphology of the CA matrix which was dissolved in acetone/water co-solvents with the Cd(NO3)2·4H2O additive. The SEM image clearly exhibited that there were abundant pores on the surface when the CA polymer with Cd(NO3)2·4H2O was exposed to water-molecules, while the pores were not observed in the neat CA polymer even when the water-pressure was applied as in a previous study [28]. Furthermore, the cross-section images of the CA matrix containing the Cd(NO3)2·4H2O additive shown in Figure 1c,d indicate that that pores were well fabricated in the polymers. In contrast, when the neat CA was dissolved in pure acetone, there were no pores on the surface of the polymer. In order to precisely control the pore size and porosity, we introduced the new method to utilize the Cd(NO3)2·4H2O in acetone/water co-solvent. The resulting SEM image clearly implies that the pore size and porosity of polymer matrix could be controllable by inorganic salts and water-molecules. It was noted that there were two major plausible explanations for these phenomena: (1) the Cd(NO3)2·4H2O aggregates solvated in the polymer matrix during the solidification while the volatile acetone rapidly evaporated, resulting in the remaining Cd(NO3)2·4H2O aggregates forming well-defined pores in the CA polymer matrix; or (2) that there were ionic associations between the ions generated from the Cd(NO3)2 and the water molecules. These strong interactions delayed the evaporation of the water molecules in the CA polymer matrix, resulting in the formation of pores on the surface.
The water flux through the porous CA polymer containing different ratios of Cd(NO3)2·4H2O is shown in Figure 2. The water flux was not observed up to 2 bar, indicating that pores in CA polymer were not formed. However, the water flux gradually increased for 1:0.35 and 1:0.40 mol ratios CA/Cd(NO3)2·4H2O polymer matrix at 3 bar. An explanation for these phenomena is that the water-channel was generated through weakened regions in the CA polymer, resulting in the observation of water-flux. However, the flux of neat CA polymer was not observed up to 7-bar water pressure and the low flux of 2.55 L/m2h was observed only in the 8-bar water pressure [26]. From these results, it was thought that the CA polymer without Cd(NO3)2·4H2O was confirmed not to have pores capable of being penetrated for water molecules through the polymer chains. Even though the amounts of Cd(NO3)2·4H2O beyond the aforesaid ratios could be added, the increase in flux was not observed since the interactions between polymer chains were strengthened by crosslinking phenomena in CA polymer chains. Therefore, the best performance capable of being easily controllable for pores was the ratio of 1:0.35 for CA/Cd salts. Especially, the value above 250 LMH (L/m2 h) observed at the ratio of 1:0.35 was higher flux than those of CA/other metal nitrate salts (Ni(NO3)2 and Mg(NO3)2) complexes. The higher value indicated that the larger and abundant pores were generated in the cellulose acetate with the same physical external forces. Thus, it could be thought that Cd(NO3)2·4H2O salt played a role as a stronger plasticizing agent than the other metal nitrate salts such as Ni(NO3)2 and Mg(NO3)2.
Table 1 showed the comparison of atomic radius and ionic radius of Cd, Ni and Mg utilized in previous with this study to use Cd salts. As shown in Table 1, the atomic radius and ionic radius of Cd was largest among the three elements. Thus, it was thought that the Cd(NO3)2 that had relatively larger Cd could easily be dissociated into Cd ions and NO3− ions. As a result, the free NO3− ions could be readily hydrated with water molecules, resulting in the plasticization effect on the chains of cellulose acetate. Therefore, when the cellulose acetate containing the Cd(NO3)2 salts were exposed to high-intensive water-pressure, the pores could be generated more easily than in the other complexes containing Ni or Mg salts.
To understand the role of Cd(NO3)2·4H2O solvates during the water pressure process, we performed Fourier transform infrared (FT-IR) spectra. Figure 3a shows the IR spectra of pristine polymer and 1/0.35 CA/Cd(NO3)2·4H2O from 0 bar and 8 bar water pressures, respectively. The pristine polymer in IR spectra was observed at 3500 cm−1, corresponding to the hydroxyl group of the CA polymer. In contrast, the CA polymer matrix with Cd(NO3)2·4H2O showed the absorption bands for CA/Cd(NO3)2·4H2O at 3400 cm−1, resulting as the abundance of water molecules for Cd(NO3)2·4H2O caused the intensity of the OH adsorption peak to be increased. The CA/Cd(NO3)2·4H2O composites exposed to 8 bar were observed at the 3400 cm−1, which decreased in intensity and shifted to 3500 cm−1, indicating that a considerable amount of Cd(NO3)2·4H2O was removed by high water-pressure process. The peak observed at the 1748 cm−1 as shown Figure 3b was shifted to 1731 cm−1 for polymer containing Cd(NO3)2·4H2O. This result indicated that the carbonyl group of polymers interacted with the Cd ion. When the polymer matrix containing CA/Cd(NO3)2·4H2O was exposed to external physical forces, most of the Cd(NO3)2·4H2O was removed from the polymer matrix and recovered to 1748 cm−1. Furthermore, the peak observed at the 1460 cm−1 as shown in Figure 3b disappeared when the polymer was exposed to external physical forces. It was also thought that the Cd(NO3)2·4H2O was removed by physical pressure and the peak of 1460 cm−1 disappeared.
The thermal degradation pattern for polymers was observed by thermogravimetric analysis (TGA). Figure 4 showed that most of the pristine polymer and CA with Cd(NO3)2·4H2O exposed at 8 bar were decomposed at around 300 °C. On the other hand, about 60 wt % of polymer with Cd(NO3)2·4H2O at 0 bar was degraded at between 200 to 350 °C, and 40 wt % was degraded at between 350 to 800 °C. Since the boiling point of Cd(NO3)2·4H2O was known to be 132 °C, it was thought that the chains in polymer were loosened by solvated cadmium nitrate. Thus, the loss of about 60 wt % CA with Cd(NO3)2·4H2O was attributable to the degradation of solvated Cd(NO3)2·4H2O and loosened polymer chain. However, the thermal stability of the polymer matrix increased after water-pressure treatment. The change in the thermal stability was generated as most of the Cd(NO3)2∙4H2O were removed in the polymer. As a result, the thermal stability of the polymer matrix (with Cd(NO3)2·4H2O removed) by water-pressure treatment was similar to the neat polymer matrix.
To investigate the ionic species such as ion aggregates, ion pairs and free ions in NO3− ions for pristine Cd(NO3)2 and Cd(NO3)2 in the polymer, Raman spectra were acquired as shown in Figure 5. Since the ionic species of NO3− at 1034 (free ions), 1040 (ion pairs) and 1045 (ionic aggregates) cm−1 was observed, the spectra were focused in the range of 1000 to 1080 cm−1. As shown in Figure 5, the peak of pristine Cd(NO3)2 was observed at 1051.5 cm−1.
When Cd(NO3)2 was incorporated to the polymer, the peak was shifted from 1051.5 to 1040 cm−1 and was broadened as shown Figure 5, indicating that the Cd(NO3)2 incorporated into the CA polymer existed as free ions and ion pairs as well as aggregates. In the case of the Cd(NO3)2 incorporated into the CA, the relative percentages for various ionic species were shown in Figure 6. Surprisingly, new peaks were observed at 1034.2 and 1045.6 cm−1, indicating the free ions and ion aggregates. Deconvoluted results were shown for each of the regions in Figure 6.
Based on these results, the Cd(NO3)2 incorporated into the polymer existed as abundant free ions in the polymer chain as shown in Table 2.

4. Conclusions

A porous polymer matrix was successfully fabricated by Cd(NO3)2·4H2O and external physical forces as shown in Scheme 1. When water pressure as physical force was applied to the polymer matrix, pore size gradually increased. Furthermore, it was observed the water flux increased as the water pressure increased. These results indicated that the water molecule that penetrated into the polymer caused the chains to be weakened by solvated Cd(NO3)2·4H2O. Surprisingly, most of Cd(NO3)2·4H2O in the polymer was extracted by the external forces. Furthermore, the relationship between radius characteristics in the metal salts and pore generation in the polymer was also investigated. It was found that since Cd(NO3)2 had relatively bigger Cd, it could easily be dissociated into Cd ions and NO3− ions and the free NO3− ions could be readily hydrated with water molecules, resulting in the plasticization effect on the chains of cellulose acetate. Therefore, when the cellulose acetate containing Cd(NO3)2 salts were exposed to high-intensive water-pressure, the pores could be more easily generated than other complexes containing Ni or Mg salts. Thus, these results were expected to be utilized for designing porous materials with specific pore-sizes.

Author Contributions

W.G.L. collected the experimental data and wrote the paper. Y.C. and S.W.K. analyzed the data and reviewed the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Basic Science Research Program (2017R1D1A1B03032583) through the National Research Foundation of Korea (NRF), funded by the Ministry of Science, ICT, and Future Planning. This work was also supported by the Soonchunhyang University Research Fund (No. 20181002).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fehrmann, R.; Riisager, A.; Haumann, M. Supported Ionic Liquids: Fundamentals and Applications; Willey-VCH: Weinheim, Germany, 2014. [Google Scholar]
  2. Prajapati, A.K.; Mondal, M.K. Hazardous As(III) removal using nanoporous activated carbon of waste garlic stem as adsorbent: Kinetic and mass transfer mechanisms. Korean J. Chem. Eng. 2019, 36, 1900–1914. [Google Scholar] [CrossRef]
  3. Qian, L.; Ahmed, A.; Zhang, H. Formation of organic nanoparticles by solvent evaporation within porous polymeric materials. Chem. Commun. 2011, 47, 10001–10003. [Google Scholar] [CrossRef]
  4. Dubinsky, S.; Petukhova, A.; Gourevich, I.; Kumacheva, E. Hybrid porous material produced by polymerization-induced phase separion. Chem. Commun. 2010, 46, 2578–2580. [Google Scholar] [CrossRef] [PubMed]
  5. Kumar, P.; Vejerano, E.; Khan, A.; Lisak, G.; Ahn, J.H.; Kim, K.-H. Metal organic frameworks (MOFs): Current trends and challenges in control and management of air quality. Korean J. Chem. Eng. 2019, 36, 1839–1853. [Google Scholar] [CrossRef]
  6. Li, W.; Zhang, G.; Zhang, C.; Meng, Q.; Fan, Z.; Gao, C. Synthesis of trinity metal-organic framework membranes for CO2 capture. Chem. Commun. 2014, 50, 3214–3216. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Zhu, J.-H.; Chen, Q.; Sui, Z.-Y.; Pan, L.; Yu, J.; Han, B.-H. Preparation and adsorption performance of crosslinked porous polycarbazoles. Chem. Commun. 2014, 2, 16181–16189. [Google Scholar]
  8. Çalhan, A.; Deniz, S.; Romero, J.; Hasanoğlu, A. Development of metal organic framework filled PDMS/PI composite membranes for biobutanol recovery. Korean J. Chem. Eng. 2019, 36, 1489–1498. [Google Scholar] [CrossRef]
  9. Zhang, Y.; Li, B.; Williams, K.; Gao, W.-Y.; Ma, S. A new microporous carbon material synthesized via thermolysis of a porous aromatic framework embedded with an extra carbon source for low-pressure CO2 uptake. Chem. Commun. 2013, 49, 10269–10271. [Google Scholar] [CrossRef]
  10. Takase, A.; Kanoh, H.; Ohba, T. Wide carbon nanopores as efficient sites for the separation of SF6 from N2. Sci. Rep. 2015, 5, 11994–11998. [Google Scholar] [CrossRef] [Green Version]
  11. Xu, Q.; Kong, Q.; Liu, Z.; Zhang, J.; Wang, X.; Yue, R.L.L.; Cui, G. Polydopamine-coated cellulose microfibrillated membrane as high performance lithium-ion battery separator. RSC Adv. 2014, 4, 7845–7850. [Google Scholar] [CrossRef]
  12. Lee, M.J.; Kim, J.H.; Lim, H.-S.; Lee, S.Y.; Yu, H.K.; Kim, J.H.; Lee, J.S.; Sun, Y.-K.; Guiver, M.D.; Suh, K.D.; et al. Highly lithium-ion conductive battery separators from thermally rearranged polybenzoxazole. Chem. Commun. 2015, 51, 2068–2071. [Google Scholar] [CrossRef]
  13. Peng, K.; Wang, B.; Li, Y.; Ji, C. Magnetron sputtering deposition of TiO2 particles on polypropylene separators for lithium-ion batteries. RSC Adv. 2015, 5, 81468–81473. [Google Scholar] [CrossRef]
  14. Zhao, M.; Wang, J.; Chong, C.; Yu, X.; Wang, L.; Shi, Z. An electrospun lignin/polyacrylonitrile nonwoven composite separator with high porosity and thermal stability for lithium-ion batteries. RSC Adv. 2015, 5, 101115–101120. [Google Scholar] [CrossRef]
  15. Sun, L.; Tang, S. Synthesis of bi-functionalized ionic liquid mesoporous alumina composite material and its CO2 capture capacity. Korean J. Chem. Eng. 2019, 36, 1708–1715. [Google Scholar] [CrossRef]
  16. Scrosati, B.; Hassoun, J.; Sun, Y.-K. Lithium-ion batteries. A look into the future. Energy Environ. Sci. 2011, 4, 3287–3295. [Google Scholar] [CrossRef]
  17. Chung, S.-H.; Manthiram, A. High-performance Li-S batteries with an ultra-lightweight MWCNT-coated separator. J. Phys. Chem. Lett. 2014, 5, 1978–1983. [Google Scholar] [CrossRef]
  18. He, M.; Zhang, X.; Jiang, K.; Wang, J.; Wang, Y. Pure inorganic separator for lithium ion batteries. ACS Appl. Mater. Interfaces 2015, 7, 738–742. [Google Scholar] [CrossRef]
  19. Lee, J.; Lee, C.L.; Park, K.; Kim, I.D. Synthesis of an Al2O3-coated polyimide nanofiber mat and its electrochemical charateristics as a separator for lithium ion batteries. Power Source 2014, 248, 1211–1217. [Google Scholar] [CrossRef]
  20. Lloyd, D.R.; Kim, S.S.; Kinzer, K.E. Microporous membrane formation via thermally-induced phase separation. II. Liquid-Liquid phase separation. J. Membr. Sci. 1990, 52, 239–250. [Google Scholar] [CrossRef]
  21. Mo, D.; Liu, J.D.; Duan, J.L.; Yao, H.J.; Latif, H.; Cao, D.L.; Chen, Y.H.; Zhang, S.X.; Zhai, P.F.; Liu, J. Fabrication of different pore shapes by multi-step etching technique in ion-irradiated PET membranes. J. Membr. Sci. 2014, 333, 58–63. [Google Scholar] [CrossRef]
  22. Apeal, P.Y.; Ramirez, P.; Blonskaya, I.V.; Orelovitch, O.L.; Sartowska, B.A. Accurate characterization of single track-etched, conical nanopores. Chem. Commun. 2014, 16, 15214–15223. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Zhao, J.; Luo, G.; Wu, J.; Xia, H. Preparation of microporous silicone rubber membrane with tunable pore size via solvent evaporation-induced phase separation. ACS Appl. Mater. Interfaces 2013, 5, 2040–2046. [Google Scholar] [CrossRef] [PubMed]
  24. Hermsdorf, N.; Sahre, K.; Volodin, P.; Stamm, M.; Eichhorn, K.J.; Cunis, S.; Gehrke, R.; Panagiotou, P.; Titz, T.; Muller-Buschbaum, P. Supported particle track eyched polyimide membranes: A grazing incidence small-angle X-ray scattering study. Langmuir 2004, 20, 10303–10310. [Google Scholar] [CrossRef] [PubMed]
  25. Lee, W.G.; Hwang, J.; Kang, S.W. Control of nanoporous polymer matrix by an ionic liquid and water pressure for applications to water-treatment and separator. J. Chem. Eng. 2016, 284, 37–40. [Google Scholar] [CrossRef]
  26. Lee, W.G.; Kim, D.H.; Jeon, W.C.; Kwak, S.K.; Kang, S.J.; Kang, S.W. Facile control of nanoporosity in Cellulose Acetate using Nickel(II) nitrate additive and water pressure treatment for highly efficient battery gel separators. Sci. Rep. 2017, 7, 1287–1295. [Google Scholar] [CrossRef] [Green Version]
  27. Klemm, D.; Heublein, B.; Fink, H.P.; Bohn, A. Cellulose: Fascinating biopolymer and sustainable raw material. Angew. Chem. Int. Ed. Engl. 2005, 44, 3358–3393. [Google Scholar] [CrossRef]
  28. Lee, W.G.; Kang, S.W. Control of Pore in Cellulose Acetate containing Mg salt by Water Pressure Treatment for Applications to Separators. J. Ind. Eng. Chem. 2019, 70, 103–106. [Google Scholar] [CrossRef]
Polymers 12 00981 g001 550
Figure 1. SEM images: (a) plane view of porous CA polymer exposed to external water-pressures (scale bar = 200 μm), (b) the enlarged red-dot square in plane view (scale bar = 10 μm), (c) cross-section view (scale bar = 50 μm) and (d) enlarged view of cross-section (scale bar = 5 μm).
Figure 1. SEM images: (a) plane view of porous CA polymer exposed to external water-pressures (scale bar = 200 μm), (b) the enlarged red-dot square in plane view (scale bar = 10 μm), (c) cross-section view (scale bar = 50 μm) and (d) enlarged view of cross-section (scale bar = 5 μm).
Polymers 12 00981 g001
Polymers 12 00981 g002 550

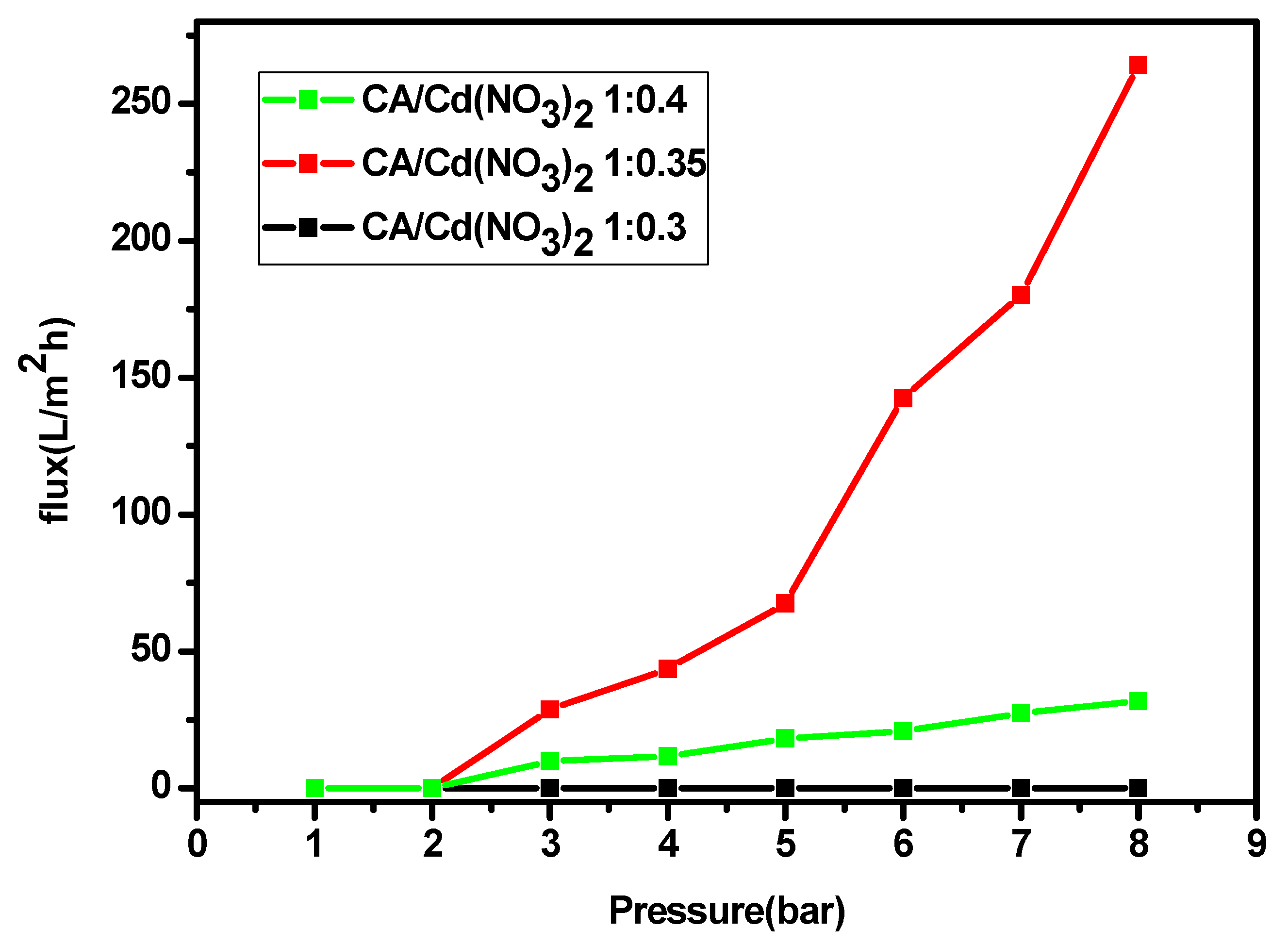

Figure 2. Flux measured through neat CA and CA with Cd(NO3)2·4H2O at various water pressures.
Figure 2. Flux measured through neat CA and CA with Cd(NO3)2·4H2O at various water pressures.
Polymers 12 00981 g002
Polymers 12 00981 g003 550

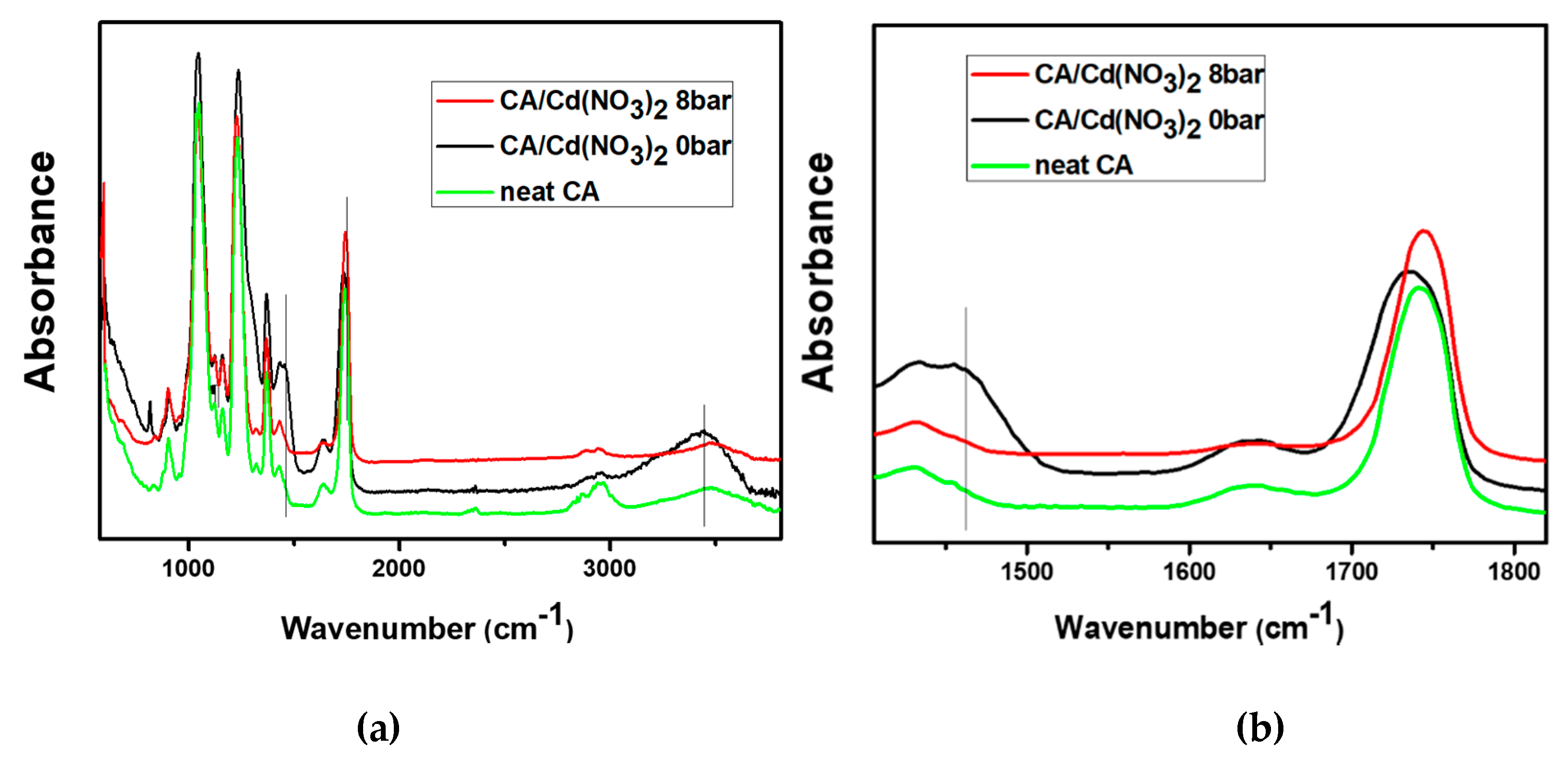

Figure 3. FT-IR spectra of neat CA and 1/0.35 CA/Cd(NO3)2·4H2O polymer matrix at 0 bar and 8 bar water pressures: (a) total range and (b) enlarged specific region.
Figure 3. FT-IR spectra of neat CA and 1/0.35 CA/Cd(NO3)2·4H2O polymer matrix at 0 bar and 8 bar water pressures: (a) total range and (b) enlarged specific region.
Polymers 12 00981 g003
Polymers 12 00981 g004 550

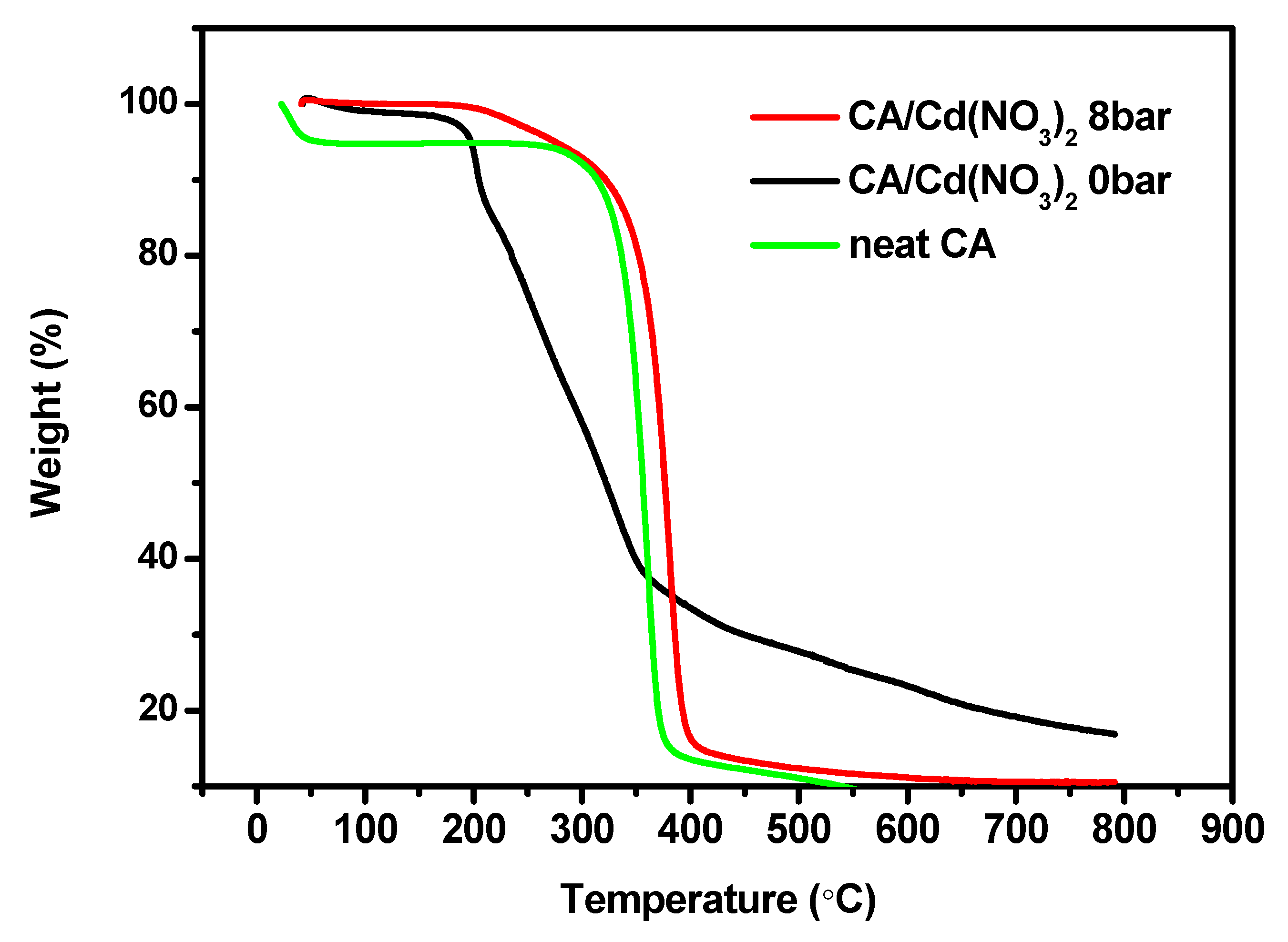

Figure 4. TGA analysis of neat CA and CA/Cd(NO3)2·4H2O polymer matrix at 0 bar and 8 bar.
Figure 4. TGA analysis of neat CA and CA/Cd(NO3)2·4H2O polymer matrix at 0 bar and 8 bar.
Polymers 12 00981 g004
Polymers 12 00981 g005 550

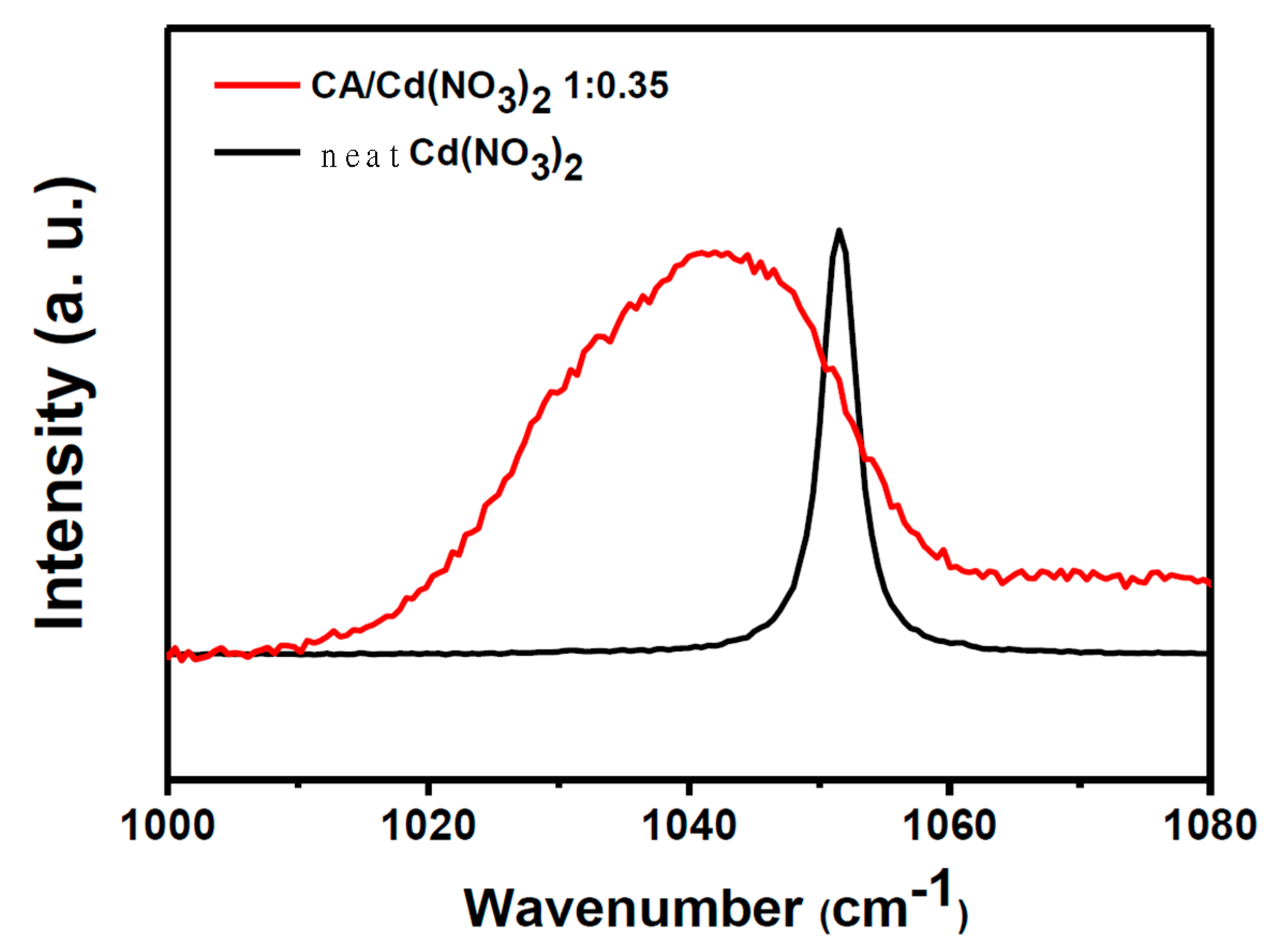

Figure 5. Raman spectra of neat Cd(NO3)2·4H2O and CA/Cd(NO3)2·4H2O polymer matrix.
Figure 5. Raman spectra of neat Cd(NO3)2·4H2O and CA/Cd(NO3)2·4H2O polymer matrix.
Polymers 12 00981 g005
Polymers 12 00981 g006 550

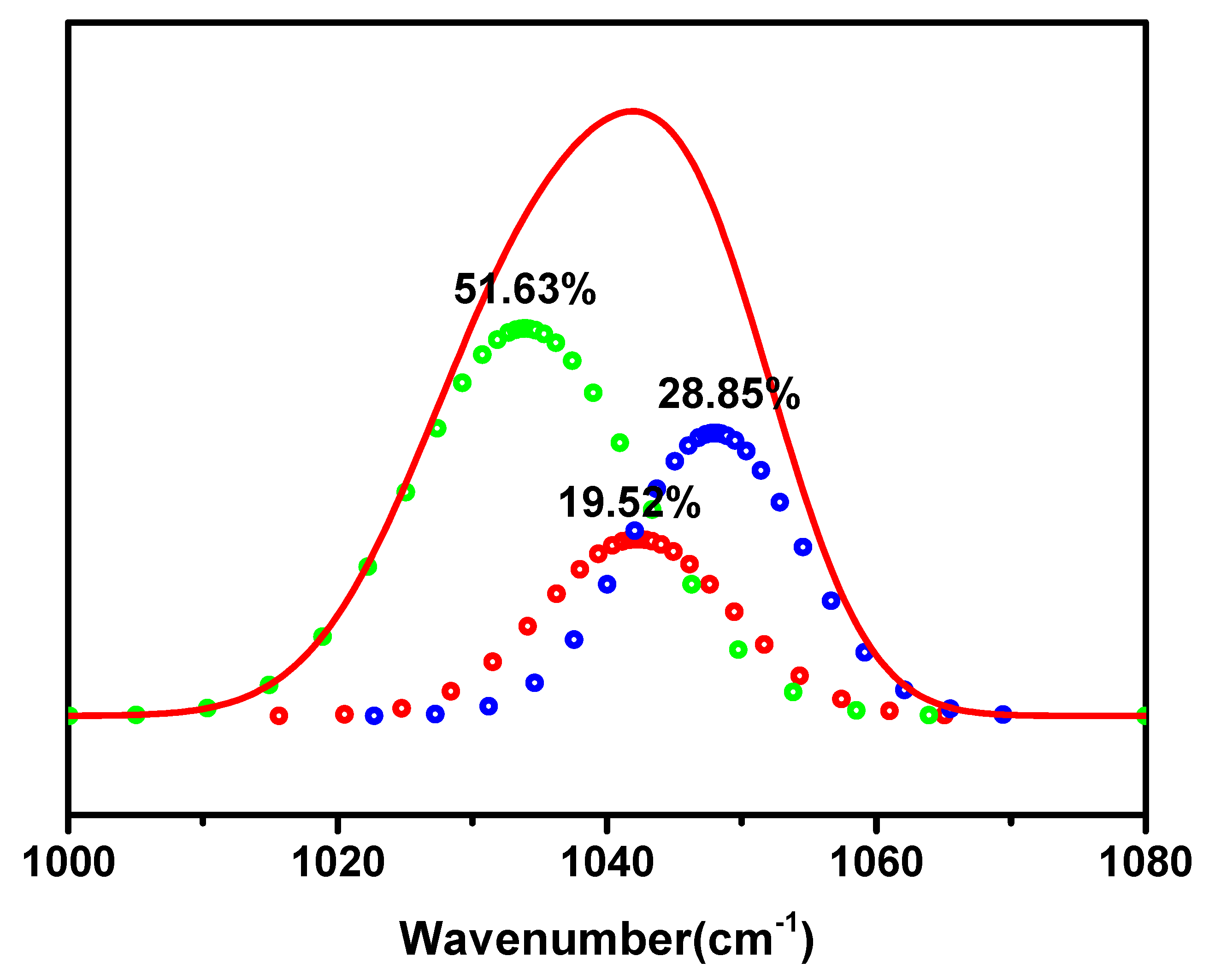

Figure 6. Deconvoluted Raman spectra for NO3− in the CA/Cd(NO3)2·4H2O composite.
Figure 6. Deconvoluted Raman spectra for NO3− in the CA/Cd(NO3)2·4H2O composite.
Polymers 12 00981 g006
Polymers 12 00981 sch001 550
Scheme 1. Comparison of pore generation by species of metal salts in cellulose acetate.
Scheme 1. Comparison of pore generation by species of metal salts in cellulose acetate.
Polymers 12 00981 sch001
Table
Table 1. Atomic radius and ionic radius of various elements utilized.
Table 1. Atomic radius and ionic radius of various elements utilized.
ElementsAtomic Radius (pm)Ionic Radius (pm)
Cd155109
Ni13583
Mg15086
Zn13588
Table
Table 2. Comparison of free ions, ion pair, and ionic aggregates % for NO3− in Cd(NO3)2 in CA.
Table 2. Comparison of free ions, ion pair, and ionic aggregates % for NO3− in Cd(NO3)2 in CA.
Free ions %Ion Pair %Ionic Aggregates %
Cd(NO3)2 in CA51.63%19.52%28.85%
