Article

Poly (Ethylene Oxide)-Based Block Copolymer Electrolytes Formed via Ligand-Free Iron-Mediated Atom Transfer Radical Polymerization

by
Sibo Li
1,2,
Mengying Tian
1,
Jirong Wang
2,
Feipeng Du
1,
Liang Li
1,* and
Zhigang Xue
2,*
1
School of Materials Science and Engineering, Wuhan Institute of Technology, Wuhan 430074, China
2
Key Laboratory for Material Chemistry of Energy Conversion and Storage, Ministry of Education, School of Chemistry and Chemical Engineering, Huazhong University of Science and Technology, Wuhan 430074, China
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(4), 763; https://doi.org/10.3390/polym12040763
Submission received: 1 February 2020 / Revised: 2 March 2020 / Accepted: 10 March 2020 / Published: 1 April 2020
(This article belongs to the Special Issue Innovative Polymer Electrolytes)
Browse Figures
Review Reports Versions Notes

Abstract

:
The Br-terminated poly (ethylene oxide) (PEO-Br) is used as a green and efficient macroinitiator in bulk Fe-catalyzed atom transfer radical polymerization (ATRP) without the addition of any organic ligands. The polymerization rate is able to be mediated by PEO-Br with various molecular weights, and the decrease in redox potential of FeBr2 in cyclic voltammetry (CV) curves indicates that an increased coordination effect is deteriorated with the depressing reaction activity in the longer ethylene oxide (EO) chain in PEO-Br. In combination with the study of different catalysts and catalytic contents, the methyl metharylate (MMA) or poly (ethylene glycol) monomethacrylate (PEGMA) was successfully polymerized with PEO-Br as an initiator. This copolymer obtained from PEGMA polymerization can be further employed as a polymer matrix to form the polymer electrolyte (PE). The higher ionic conductivity of PE was obtained by using a high molecular weight of copolymer.

Graphical Abstract

1. Introduction

Atom transfer radical polymerization (ATRP) has been extensively used in the synthesis of different functional polymer materials with predictable molecular weights, abundant topology structures as well as low-molecular-weight distributions [1,2,3,4,5,6,7,8,9,10]. Among all the catalyst species in the ATRP process, iron attracts great interests thanks to its considerable availability, less toxicity and relatively lower cost [11,12,13,14,15,16,17,18]. Numerous organic complexes, such as phosphines or amines [17,19,20,21,22], polar solvents [23,24,25] and deep eutectic solvents (DESs) [26,27,28], are employed in order to fulfill the rapid transition of FeII/FeIII by facilitating the iron dissolution and by tuning the metal redox potential. However, such organic ligands are either relatively expensive or toxic, which is detrimental to the environment and biomedical applications.
Low-molecular-weight polyethylene glycols (PEGs) are one kind of environmentally friendly and promising solvents because of their excellent biocompatibility, low cost, nonvolatility and easy degradability [29,30,31,32,33]. The electron-donating ethylene oxide (EO) group endows PEG the ability to coordinate with metal, and thus forms stable complexes and can be applied in organic synthesis, biphasic catalysis and phase-transfer catalysis [34,35,36,37]. Recently, PEG as both the solvent and the ligand in iron-catalyzed ATRP was reported by several groups [38,39]. Fabio di Lena reported on an iron (II) chloride-catalyzed ATRP process in combination with various PEGs, where the homogeneous, “green” catalytic mixtures promoted the well-controlled ATRP of methyl methacrylate in the absence of any additional ligands or solvents [40]. The effects of the polyether structure, molecular weight and chain-end functionality on the polymerization kinetics were also investigated. Afterward, the use of PEG-400 in a FeCl3•6H2O-mediated activator generated by electron-transfer ATRP (AGET ATRP) was constructed by Zhu and co-workers [41]. PEGs with various molecular weights showed different coordination ability and catalytic activity with an iron catalyst center.
Except for the ligand, initiator species are also essential elements in iron-mediated ATRP, which provide an initiating radical species via homolytic cleavage of its labile carbon-halogen bond. The most widely used initiator includes halo alkanes, alkyl halides, halo ketones or halo esters [42]. Compared with small molecule initiators, the macroinitiator, such as Br-terminated PEO (PEO-Br), is more convenient for the synthesis of AB-type or ABA-type block copolymers, and the obtained PEO-based materials are promising candidates of polymer hosts in solid-state electrolytes for high-energy-density secondary lithium batteries [43,44,45,46,47,48,49,50,51]. Living anionic polymerization and coordination polymerization are the most widely used methods for synthesizing PEO-based copolymer. However, anionic polymerization methods require rigid low temperature and anhydrous and oxygen-free conditions, as well as extreme purity requirements for monomers, solvents and other reagents [52,53]. Thus ATRP is a welcome polymerization method owing to its mild operating conditions. For instance, bromine-terminated diblock copolymer (PEO-b-PS-Br) (PS refers to polystyrene) was synthesized by using PEO-Br as the macroinitiator and then converted into azido-terminated PEO-b-PS-N3 diblock copolymer [54]. In Charleux’s publication, PEO-Br was also used as a reactive surfactant for miniemulsion AGET ATRP of n-butyl acrylate, and stable polymer latexes containing polymers with a low-poly-dispersity index were thus obtained [55]. In all these conventional ATRP systems, no system was implemented with one species that combined both the function of the ligand and the initiator [56,57]. The EO group in PEO-Br can coordinate with the iron catalyst. These intriguing properties prompted us to investigate the possibility of using PEO-Br simultaneously as the initiator and the ligands for iron-mediated ATRP.
Herein, PEO-Br was applied as both the ligand and the initiator for the iron-catalyzed ATRP in the absence of any external initiators and organic ligands (Scheme 1). The polymerization rate and controllability were influenced by PEO-Br with different molecular weights (PEO750-Br, PEO1000-Br, PEO2000-Br and PEO5000-Br), and well-controlled polymerizations were realized when catalyzed by FeBr2. In addition, block copolymer with the water-soluble monomer PEGMA was obtained and could be further used in a polymer electrolyte.

2. Experimental Section

2.1. Materials

Methyl methacrylate (MMA, 98%, Sinpharm, Wuhan, China) was passed through a column filled with neutral alumina, dried over calcium hydride (CaH2), distilled under reduced pressure and stored in a freezer under argon. Triethylamine (TEA, 99%, Sinpharm, Wuhan, China) was dried over calcium hydride (CaH2) and distilled under reduced pressure. Tetrahydrofuran (THF, 99+%, Sinpharm, Wuhan, China) was dried over Na and benzophenone and distilled under reduced pressure. Poly (ethylene glycol) monomethacrylate (PEGMA, Mn = 300 g mol−1) was passed through a column filled with neutral alumina and then stored in a freezer. Iron bromide (FeBr2, 98+%, Alfa Aesar, Ward Hill, MA, USA), iron tribromide (FeBr3, 98+%, Alfa Aesar, Ward Hill, MA, USA), poly(vinylidene fluoride) (PVDF,99%, Aladdin, Shanghai, China), 2-bromoisobutyryl bromide (99.9%, Adamas, Wuhan, China), polyethylene glycol mono-methyl ether (mPEG, 99.9%, Aladdin, Shanghai, China), polyethylene glycol (PEG, 99%, Aladdin, Shanghai, China), sodium ascorbate (AsAcNa, >99%, TCI, Tokyo, Japan), lithium perchlorate (LiClO4, 99%, Aladdin, Shanghai, China), and tetraethyl tetrafluoroborate (Et4NBF4, Aladdin, Shanghai, China) were used without further purification.

2.2. Instrumentation

Cyclic voltammetry (CV): All cyclic voltammetry experiments were conducted in a 25 mL four-neck flask with an Autolab PGSTAT302N potentiostat under an Ar atmosphere. The three-electrode system was composed of a Pt sheet (Alfa Aesar, 99.9% metals basis, estimated geometrical area: ~6 cm2, Ward Hill, MA, USA) working electrode (WE), a Pt sheet (2 mm diameter, Aldrich, ≥99.9%) counter electrode (CE) and a Ag|AgCl in saturated KCl reference electrode (RE). Prior to each experiment, the Pt electrode was sonicated in ethanol for 5 min.
The electrochemical test system (Autolab PGSTAT302N, Utrecht, The Netherlands) was run to determine the ionic conductivity with temperatures ranging from 30 to 80 °C at 10 °C intervals. The polymer electrolytes (PEs) films were sandwiched between two stainless steel (SS) electrodes, and SS/PEs/SS cells were held at the specified test temperature at least 30 min before measurement. The equation σ = L/(SR) was employed to calculate the ionic conductivity of the PEs. L, S and R are the thickness of electrolyte film, the contact area between the electrode and the PEs, and the bulk resistance, respectively.
The thermal stability was measured by a thermogravimetric analyzer (TGA, PerkinElmer 4000, Wellsley, MA, USA) from 30 to 800 °C under the nitrogen atmosphere with a scanning rate of 10 °C min−1.
Gel permeation chromatography (GPC) was selected to obtain the molecular weights and the dispersity of polymers. In this GPC system, a Waters 515 HPLC Pump and a Waters 2414 refractive index detector using polymer standards service columns (7.5 × 300 mm, 10 μm bead size) were assembled. Polystyrene (Mn = 376~2,570,000) and THF were used as a standard sample and an eluent (a flow rate of 1 mL min−1 at 30 °C), respectively.

2.3. Preparation of PEO-Br Macroinitiator and Br-PEO2000-Br

mPEG (10 mmol) was dissolved into a reaction bottle with the dry THF as the solvent, then the triethylamine (20 mmol) was added at room temperature and the mixture was stirred at 0 °C. The 2-bromoisobutyryl bromide (10 mmol) was added dropwise to the mixed solution and stirred at room temperature for 24 h. The THF solution was added dropwise to excess of cold diethyl ether by filtration under vacuum. The crude white product was obtained and washed three times. The macroinitiator (PEO-Br) was collected and dried in a vacuum. PEO750-Br, PEO1000-Br, PEO2000-Br and PEO5000-Br was synthesized by mPEG with different molecular weights (Mw = 750, 1000, 2000 and 5000), respectively. 1H NMR (CDCl3, ppm): 4.10–4.20 (CH2O, 2H), 3.2 (CH3O, 3H) and 1.7–1.8 (C(CH3)2Br, 6H). The preparation procedure of Br-PEO2000-Br was similar to PEO-Br.

2.4. Polymerization Procedures

A typical ATRP procedure with the molar ratio of [MMA]0:[PEO2000-Br]0:[FeBr2]0 = 200:1:1 in the absence of air was as follows: a mixture was obtained by adding PEO2000-Br (0.4046 g) and FeBr2 (0.0406 g) to a dried ampule in the glovebox. Degassed THF (1.3 mL) and MMA (4 mL) were then added to the flask through degassed syringes. The mixture was stirred for several minutes, then cooled with liquid nitrogen and cycled three times between a vacuum and argon (Ar) to remove oxygen. The solution was defrosted and stirred at room temperature, then the flask was immersed in a thermostated oil bath at 60 °C. The samples were withdrawn from the reaction flask after the desired polymerization time and removed the unconverted monomer and solvent under reduced pressure for calculating the monomer conversion. Tetrahydrofuran (THF) was used as the solvent to dilute the obtained polymers, and the solution was then filtered through a column filled with neutral aluminum oxide to remove the iron catalyst. The block copolymer obtained from the polymerization of MMA (PEO-b-PMMA) solution was then precipitated using an excess of n-hexane and then washed with water to remove the residual small molecules. These polymers were dried under a vacuum overnight at 60 °C for GPC characterization.

2.5. Chain Extension Using PEO-PMMA-Br as the Macroinitiator

A predetermined quantity of PEO-PMMA-Br (obtained by ATRP of MMA) was added to a dried ampule, then a predetermined quantity of MMA and FeBr2 was added. The polymerization molar ratio was [MMA]0:[PEO-PMMA-Br]0:[FeBr2]0 = 800:1:1. The rest of the procedure was the same as described above. The chain extension polymerization was carried out under stirring at 60 °C.

2.6. Preparation of Polymer Electrolyte Membrane

The polymer electrolyte membranes were prepared according to our previous works [58]. PVDF powder, P(EO-PEGMA) copolymer and LiClO4 were dissolved in N-methyl-2-pyrrolidone (NMP) (solvent) to form a homogeneous solution by stirring at room temperature for 12 h. Then the mixed solution was poured into a circular mold. These polymer electrolyte membranes were dried under a vacuum for 24 h at 80 °C.

3. Results and Discussion

3.1. Bulk MMA Polymerization with Different PEO-Br as the Initiator and Ligand

In an iron-mediated ATRP process, both the catalyst complexes and initiators have an effect on the polymerization activity. The coordination ability of PEO-Br depends on the electron-donating EO groups, and the number of EO groups in PEO-Br also exerts an influence on initiation activity [40,59]. PEO has the ability to chelate metals, and it can host several catalytic centers when its chain is sufficiently long. Therefore, the ligand-free iron-mediated ATRP process was built using the PEO-Br as both the ligand and the initiator. The 1H NMR spectrum of the synthesized PEO750-Br and PEO2000-Br is shown in Figure S1. The effects of the PEO-Br with different molecular weight and chain-end functionality on the polymerization kinetics were investigated under comparable experimental conditions.
The bulk MMA polymerization was implemented with PEO-Br as both the ligand and the initiator, and the polymerization molar ratio was [MMA]0:[FeBr2]0:[PEOx-Br]0 = 200:1:1, x = 750, 1000, 2000 and 5000, respectively. All polymerizations were with linear first-order plots, and the polymerization rate increased with the molecular weight of PEO-Br (Figure 1a). The relative higher monomer conversion (62.1% after 4.5 h) was obtained with PEO5000-Br. This means there was a well-coordinated effect between FeBr2 and the EO group of PEO-Br, and endowed an improved reaction activity for the catalyst species. The increasing number of EO groups from PEO750-Br to PEO5000-Br also had a positive effect on the polymerization rate. Linear-molecular-weights growth with the conversion and low-molecular-weight distributions (Ð < 1.30) of the PEOx-PMMA copolymer were also obtained (Figure 1b). But for the polymerization processes initiated by PEO1000-Br and PEO5000-Br, the resultant PEO-PMMA polymer showed deviated molecular weights from theoretical ones, which means a radical termination and low initiation efficiency. In addition, the polymerization with less content of catalyst was also implemented in the same condition, and the ratio was [MMA]0:[FeBr2]0:[PEOx-Br]0 = 200:0.5:1. The polymerization kinetic in Figure S2a was still with linear first-order, and Mn described in Figures S2b and S3 were slightly higher than the theoretical ones due to the less FeBr2 content.
The coordination effect between FeBr2 and PEO-Br was further confirmed by cyclic voltammetry, and the results are recorded in Figure 2. The CVs of FeBr2 using different PEO-Br exhibited a quasi-reversible peak couple. The half-wave potentials (E1/2) of catalyst complexes under specific circumstances can be expressed as E1/2 = (Epa + Epc)/2 [60]. From the CV curves we can see that when PEO2000-Br was used as the additive, the reduction potential of iron complex shifted in a negative direction. And as the molecular weight of PEO-Br increased (PEO5000-Br), the more negative reduction potential was obtained. The decrease of reduction potential with PEO-Br added means a coordination effect between FeBr2 and PEO-Br, which is in agreement with the observed polymerization rate enhancement shown in Figure 1a. In brief, the polymerization results and the CV curves indicate that PEO-Br can replace the conventional organic ligand and the initiator in the iron-catalyzed ATRP process.

3.2. Effect of Different Catalysts in Bulk MMA Polymerization with PEO2000-Br as the Initiator and the Ligand

In view of both the polymerization rate and controllability, PEO2000-Br was chosen as the initiator for the following study. As shown in Figure 3, the effect of different iron catalysts (FeBr2, FeCl2 and FeCl2•4H2O) was studied in the bulk MMA polymerization with PEO2000-Br as both the ligand and the initiator. The kinetic exhibited the first-order plots, and the polymerization rate decreased in the order FeBr2 > FeCl2 > FeCl2•4H2O. Although the molecular weights in FeCl2 and the FeCl2•4H2O-catalyzed polymerization system were slightly higher than the theoretical values, the values increased linearly with monomer conversion. The relative slower polymerization rate and higher molecular weight with the chlorine salts as the catalyst may be due to the fact that a halogen exchange occurred and it generated less active C–Cl. The RCl bond is stronger than RBr, thus the KATRP is lower than RBr. In addition, the coordination ability between FeBr2 and PEO2000-Br is different from that between FeCl2 or FeCl2•4H2O and PEO2000-Br, thus leading to the different reducing power of the iron complex and deteriorative controllability.

3.3. Chain Extension of PMMA

Compared with the conventional radical polymerization method, the crucial advantages of reversible deactivation radical polymerization (RDRP) techniques are that it can synthesize the polymer with active chain-ends, which can be functionalized or reinitiated to afford complex macromolecular structures. In order to confirm the activity of the polymer chain-end obtained in this system, the chain extension experiment was carried out using the resulting polymer as the macroinitiator. The macroinitiator PEO-PMMA-Br (Mn,GPC = 28,400, Mw/Mn = 1.22) came from the ATRP with a ratio of MMA:FeBr2:PEO2000-Br = 200:1:1, 60 °C, and the chain-extended polymer was obtained from the ATRP with a ratio of [MMA]0:[PEO-PMMA-Br]0:[ FeBr2]0 = 500:1:1, 60 °C. The GPC trace is shown in Figure 4. A peak shift can be seen from the original macroinitiator to the chain-extended PEO-PMMA with increased molecular weight. The successful chain-extension reaction confirmed the activity of the polymer chain-end and the controlled features of ATRP.

3.4. Synthesis of the Triblock Copolymer and Water-Soluble Block Copolymer.

Except for the monobromo-terminated PEO-Br, diBr-terminated Br-PEO2000-Br was also synthesized for the iron-mediated ATRP process, and the results are listed in Table 1 (entries 1–3). Triblock copolymer PMMA-PEO-PMMA was synthesized, and the monomer conversion gradually increased over time (10.5 h, 42.1%) while maintaining good controllability.
In order to avoid the sensitivity of FeBr2 to water and oxygen, the air-stable FeBr3 together with the reducing agent AsAcNa were used to synthesize the block copolymer PEO-b-PMMA (Table 1, entry 4) with improved controllability, which makes the system more applicable in industrialization.
In addition, the chain length or the number of EO groups in a PEO-based polymer is the essential factor for the material performance, so the water-soluble block polymer P(EO-PEGMA) was also synthesized using PEO2000-Br and Br-PEO2000-Br as both the ligand and the initiator (Table 2). The diblock copolymer was poorly controlled with higher molecular weight and dispersity (Mn = 580,800 g/mol, Ð = 1.88) in the absence of solvent (Table 2, entry 4). Maybe it was the high viscosity and self-coordination ability of PEGMA that generated a relatively higher concentration of free radicals, thus accelerating the polymerization rate and the extent of termination. Then THF was used as the solvent to improve the homogeneity of the reaction system, thus reducing the concentration of free radicals and avoiding the unnecessary side reactions (Table 2, entries 1–3). The addition of solvent significantly improved the polymerization controllability with lower-molecular-weight distributions, although the molecular weights of the obtained polymer were still a little bit higher than the theoretical ones. However, the diluted effect of THF still cannot compensate the extra self-coordination ability of PEGMA, so the molecular weights of the obtained polymer were much higher than the theoretical ones due to the high instantaneous radical concentration and low initiation efficiency.

3.5. The Obtained P(EO-PEGMA) Copolymer for the Application in Polymer Electrolyte.

The PEO-based polymer can complex with lithium salts to form a polymer electrolyte because of its high dielectric constant, strong Li+ solvating ability, high donor number for Li+ and chain flexibility for promoting ion transport. As mentioned above, the iron-mediated ATRP with PEO-Br as both the ligand and the initiator can be used to polymerize the water-soluble monomer, such as PEGMA. The obtained P(EO-PEGMA) polymer was used as the polymer electrolyte for the electrochemical performance test. As shown in Figure S4, the decomposition temperature of the obtained PMMA, PMMA-PEO2000 and PPEGMA-PEO2000 was 356, 306 and 252 °C, respectively. Although the stability of the polymers decreased with the increased and flexible EO chain segment, the obtained PPEGMA-PEO2000 was still stable enough for the application in polyelectrolyte. In order to suppress the crystalline of the pure PEO-based polymer electrolyte and to let the ion conduction mainly occur in the amorphous phases, PVDF was blended with the obtained block polymer. Table 3 presents the different compositions between the obtained polymer electrolytes and the PVDF, and that the polymer electrolyte material was doped with LiClO4.
Figure 5 presents the temperature-dependence ionic conductivity for the P(EO-PEGMA)/PVDF polymer electrolyte doped with LiClO4 (EO/Li+ = 15). The effect of different molecular weights of P(EO-PEGMA) polymer was studied (the composition of the polymer electrolyte is shown in Table 3, entries 1–3). The original AC impedance spectra are shown in Figure S5. From the results we can see that the ionic conductivities of the polymer electrolyte increased directly proportional to the molecular weight of the P(EO-PEGMA) due to the improved mobility of the polymer segments with the incremental number of EO groups.
In addition, the proportion effect of P(EO-PEGMA) in P(EO-PEGMA)/PVDF polymer electrolyte was also studied and the result was shown in Figure 6 (The composition of the polymer electrolyte was shown in Table 3, entries 3–5). When a relatively higher ratio of P(EO-PEGMA) was used, the ionic conductivities of polymer electrolyte also increased, which was the similarity with traditional solid polymer electrolyte. [43,45,57] All the results in Figure 5 and Figure 6 indicated that the obtained P(EO-PEGMA) polymer from iron-mediated ATRP system with PEO-Br as both the ligand and initiator can act as a potential candidate for application in polymer electrolyte.

4. Conclusions

PEO-Br was employed both as the macroinitiator and the ligand in the ATRP system due to its intelligent coordination ability to metal catalyst, which thus fabricated the ligand-free Fe-catalyzed ATRP system. The coordination effect of PEO-Br with different molecular weights (PEO750-Br, PEO1000-Br, PEO2000-Br, PEO5000-Br and Br-PEO2000-Br) was confirmed by the polymerization rate and the CV. The polymerization process was well controlled and successfully used in the synthesis of block polymer or tri-block polymer. Compared with the synthesis method of traditional block copolymers, this system is more convenient and environmentally friendly and has a lower cost. The block polymer P(EO-PEGMA) obtained from the water-soluble monomer PEGMA was blended with PVDF and can be successfully used as a solid polymer electrolyte.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/4/763/s1.

Author Contributions

S.L., M.T. and J.W. conceived the idea and designed the experiments. M.T. performed the electrochemical measurements. F.D., L.L. and Z.X. analyzed the data and wrote the paper. All authors discussed the results and commented on the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (Grant No. 51973073 and 51703080), and the Natural Science Foundation of Hubei Scientific Committee (2018CFA059), and the Applied and Fundamental Frontier Program of Wuhan (2019010701011409).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Matyjaszewski, K.; Xia, J. Atom transfer radical polymerization. Chem. Rev. 2001, 101, 2921–2990. [Google Scholar] [CrossRef] [PubMed]
  2. Di Lena, F.; Matyjaszewski, K. Transition metal catalysts for controlled radical polymerization. Prog. Polym. Sci. 2010, 35, 959–1021. [Google Scholar] [CrossRef]
  3. Matyjaszewski, K.; Tsarevsky, N.V. Macromolecular engineering by atom transfer radical polymerization. J. Am. Chem. Soc. 2014, 136, 6513–6533. [Google Scholar] [CrossRef] [PubMed]
  4. Matyjaszewski, K. Atom Transfer Radical Polymerization (ATRP): Current Status and Future Perspectives. Macromolecules 2012, 45, 4015–4039. [Google Scholar] [CrossRef]
  5. Boyer, C.; Corrigan, N.A.; Jung, K.; Nguyen, D.; Nguyen, T.-K.; Adnan, N.N.M.; Oliver, S.; Shanmugam, S.; Yeow, J. Copper-Mediated Living Radical Polymerization (Atom Transfer Radical Polymerization and Copper (0) Mediated Polymerization): From Fundamentals to Bioapplications. Chem. Rev. 2016, 116, 1803–1949. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Anastasaki, A.; Nikolaou, V.; Nurumbetov, G.; Wilson, P.; Kempe, K.; Quinn, J.F.; Davis, T.P.; Whittaker, M.R.; Haddleton, D.M. Cu (0)-Mediated Living Radical Polymerization: A Versatile Tool for Materials Synthesis. Chem. Rev. 2016, 116, 835–877. [Google Scholar] [CrossRef]
  7. Ouchi, M.; Terashima, T.; Sawamoto, M. Transition Metal-Catalyzed Living Radical Polymerization: Toward Perfection in Catalysis and Precision Polymer Synthesis. Chem. Rev. 2009, 109, 4963–5050. [Google Scholar] [CrossRef]
  8. Ran, J.; Wu, L.; Zhang, Z.; Xu, T. Atom transfer radical polymerization (ATRP): A versatile and forceful tool for functional membranes. Prog. Polym. Sci. 2014, 39, 124–144. [Google Scholar] [CrossRef]
  9. Lutz, J.-F.; Lehn, J.-M.; Meijer, E.W.; Matyjaszewski, K. From precision polymers to complex materials and systems. Nat. Rev. Mater. 2016, 1, 16024–16038. [Google Scholar] [CrossRef]
  10. Krys, P.; Matyjaszewski, K. Kinetics of Atom Transfer Radical Polymerization. Eur. Polym. J. 2017, 89, 482–523. [Google Scholar] [CrossRef] [Green Version]
  11. Poli, R.; Alland, L.E.N.; Shaver, M.P. Iron-mediated reversible deactivation controlled radical polymerization. Prog. Polym. Sci. 2014, 39, 1827–1845. [Google Scholar] [CrossRef]
  12. Xue, Z.; He, D.; Xie, X. Iron-catalyzed atom transfer radical polymerization. Polym. Chem. 2015, 6, 1660–1687. [Google Scholar] [CrossRef]
  13. Wang, J.; Han, J.; Xie, X.; Xue, Z.; Fliedel, C.; Poli, R. FeBr2-Catalyzed Bulk ATRP Promoted by Simple Inorganic Salts. Macromolecules 2019, 52, 5366–5376. [Google Scholar] [CrossRef]
  14. Simakova, A.; Mackenzie, M.; Averick, S.E.; Park, S.; Matyjaszewski, K. Bioinspired iron-based catalyst for atom transfer radical polymerization. Angew. Chem. Int. Ed. Engl. 2013, 52, 12148–12151. [Google Scholar] [CrossRef]
  15. Pan, X.; Malhotra, N.; Zhang, J.; Matyjaszewski, K. Photoinduced Fe-Based Atom Transfer Radical Polymerization in the Absence of Additional Ligands, Reducing Agents, and Radical Initiators. Macromolecules 2015, 48, 6948–6954. [Google Scholar] [CrossRef]
  16. Bauer, I.; Knolker, H.J. Iron catalysis in organic synthesis. Chem. Rev. 2015, 115, 3170–3387. [Google Scholar] [CrossRef]
  17. Schroeder, H.; Matyjaszewski, K.; Buback, M. Kinetics of Fe-Mediated ATRP with Triarylphosphines. Macromolecules 2015, 48, 4431–4437. [Google Scholar] [CrossRef]
  18. Fliedel, C.; Rosa, V.; Falceto, A.; Rosa, P.; Alvarez, S.; Braunstein, P. Unsymmetrical Chelation of N-Thioether-Functionalized Bis (diphenylphosphino) amine-Type Ligands and Substituent Effects on the Nuclearity of Iron (II) Complexes: Structures, Magnetism, and Bonding. Inorg. Chem. 2015, 54, 6547–6559. [Google Scholar] [CrossRef]
  19. Yang, D.; Wang, J.; Han, J.; Khan, M.Y.; Xie, X.; Xue, Z. Initiator-free atom transfer radical polymerization of methyl methacrylate based on FeBr3(PPh3)n system. J. Polym. Sci. Part A Polym. Chem. 2017, 55, 3842–3850. [Google Scholar] [CrossRef]
  20. Xue, Z.; Linh, N.T.B.; Noh, S.K.; Lyoo, W.S. Phosphorus-Containing Ligands for Iron (III)-Catalyzed Atom Transfer Radical Polymerization. Angew. Chem. Int. Ed. Engl. 2008, 47, 6426–6429. [Google Scholar] [CrossRef]
  21. Xue, Z.; Noh, S.K. Iron Catalyzed Atom Transfer Radical Polymerization of Methyl Methacrylate Using Diphenyl-2-pyridylphosphine as a Ligand. Macromol. Res. 2007, 15, 302–307. [Google Scholar] [CrossRef]
  22. Grishin, D.; Grishin, I. Iron-based catalytic systems in atom-transfer controlled-radical-polymerization processes. Polym. Sci. Ser. C. 2015, 57, 32–64. [Google Scholar] [CrossRef]
  23. Xue, Z.; Zhou, J.; He, D.; Wu, F.; Yang, D.; Ye, Y.S.; Liao, Y.; Zhou, X.; Xie, X. Iron-catalyzed AGET ATRP of methyl methacrylate using an alcohol as a reducing agent in a polar solvent. Dalton. Trans. 2014, 43, 16528–16533. [Google Scholar] [CrossRef]
  24. Yang, D.; He, D.; Liao, Y.; Xue, Z.; Zhou, X.; Xie, X. Iron-mediated AGET ATRP of methyl methacrylate in the presence of polar solvents as ligands. J. Polym. Sci. Part A Polym. Chem. 2014, 52, 1020–1027. [Google Scholar] [CrossRef]
  25. Tian, M.; Wang, J.; Zhou, J.; Han, J.; Du, F.; Xue, Z. Hydrogen bonding improved atom transfer radical polymerization of methyl methacrylate with a glycerol/1,3-dimethyl-2-imidazolidinone green system. J. Polym. Sci. Part A Polym. Chem. 2018, 56, 282–289. [Google Scholar] [CrossRef]
  26. Wang, J.; Han, J.; Khan, M.Y.; He, D.; Peng, H.; Chen, D.; Xie, X.; Xue, Z. Deep eutectic solvents for green and efficient iron-mediated ligand-free atom transfer radical polymerization. Polym. Chem. 2017, 8, 1616–1627. [Google Scholar] [CrossRef]
  27. Pereira, V.A.; Mendonça, P.V.; Coelho, J.F.J.; Serra, A.C. Liquid salts as eco-friendly solvents for atom transfer radical polymerization: A review. Polym. Chem. 2019, 10, 4904–4913. [Google Scholar] [CrossRef]
  28. Maximiano, P.; Mendonça, P.V.; Santos, M.R.E.; Costa, J.R.C.; Guliashvili, T.; Serra, A.C.; Coelho, J.F.J. Eutectic mixtures as a green alternative for efficient catalyst recycling in atom transfer radical polymerizations. J. Polym. Sci. Part A Polym. Chem. 2016. [Google Scholar] [CrossRef]
  29. Wagle, D.V.; Zhao, H.; Baker, G.A. Deep eutectic solvents: Sustainable media for nanoscale and functional materials. Acc. Chem. Res. 2014, 47, 2299–2308. [Google Scholar] [CrossRef]
  30. Xu, P.; Zheng, G.; Zong, M.; Li, N.; Lou, W. Recent progress on deep eutectic solvents in biocatalysis. Bioresour. Bioprocess. 2017, 4, 34–52. [Google Scholar] [CrossRef]
  31. Wang, J.; Tian, M.; Li, S.; Wang, R.; Du, F.; Xue, Z. Ligand-free iron-based electrochemically mediated atom transfer radical polymerization of methyl methacrylate. Polym. Chem. 2018, 9, 4386–4394. [Google Scholar] [CrossRef]
  32. Zhang, Q.; Vigier, K.D.O.; Royer, S.; Jérôme, F. Deep eutectic solvents: Syntheses, properties and applications. Chem. Soc. Rev. 2012, 41, 7108–7146. [Google Scholar] [CrossRef] [PubMed]
  33. Smith, E.L.; Abbott, A.P.; Ryder, K.S. Deep eutectic solvents (DESs) and their applications. Chem. Rev. 2014, 114, 11060–11082. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Ra, J.; Spear, S.K.; Huddleston, J.G.; Rogers, R.D. Polyethylene glycol and solutions of polyethylene glycol as green reaction media. Green. Chem. 2005, 7, 64–83. [Google Scholar]
  35. Chandrasekhar, S.; Narsihmulu, C.; Shameem, S.S.; Reddy, N.R. Poly (ethylene glycol) (PEG) as a Reusable Solvent Medium for Organic Synthesis. Application in the Heck Reaction. Org. Lett. 2002, 4, 4399–4401. [Google Scholar] [CrossRef]
  36. Heldebrant, D.J.; Jessop, P.G. Liquid Poly (ethylene glycol) and Supercritical Carbon Dioxide: A Benign Biphasic Solvent System for Use and Recycling of Homogeneous Catalysts. J. Am. Chem. Soc. 2003, 125, 5600–5601. [Google Scholar] [CrossRef]
  37. Jagtap, S.V.; Deshpande, R.M. PdCl2 (bipy) complex-An efficient catalyst for Heck reaction in glycol-organic biphasic medium. Catal. Today 2008, 131, 353–359. [Google Scholar] [CrossRef]
  38. Haddleton, D.M.; Perrier, S.; Bon, S.A. Copper(I)-Mediated Living Radical Polymerization in the Presence of Oxyethylene Groups: Online 1H NMR Spectroscopy to Investigate Solvent Effects. Macromolecules 2000, 33, 8248–8251. [Google Scholar] [CrossRef]
  39. Hu, Z.; Shen, X.; Qiu, H.; Lai, G.; Wu, J.; Li, W. AGET ATRP of methyl methacrylate with poly (ethylene glycol) (PEG) as solvent and TMEDA as both ligand and reducing agent. Eur. Polym. J. 2009, 45, 2313–2318. [Google Scholar] [CrossRef]
  40. Ng, Y.-H.; di Lena, F.; Chai, C.L.L. Atom transfer radical polymerization (ATRP) of methyl methacrylate mediated by iron(II) chloride in the presence of polyethers as both solvents and ligands. Macromol. Res. 2012, 20, 552–558. [Google Scholar] [CrossRef]
  41. Ding, M.; Jiang, X.; Peng, J.; Zhang, L.; Cheng, Z.; Zhu, X. An atom transfer radical polymerization system: Catalyzed by an iron catalyst in PEG-400. Green Chem. 2015, 17, 271–278. [Google Scholar] [CrossRef]
  42. Isse, A.A.; Gennaro, A.; Lin, C.Y.; Hodgson, J.L.; Coote, M.L.; Guliashvili, T. Mechanism of carbon-halogen bond reductive cleavage in activated alkyl halide initiators relevant to living radical polymerization: Theoretical and experimental study. J. Am. Chem. Soc. 2011, 133, 6254–6264. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, X.-L.; Mei, A.; Li, X.-L.; Lin, Y.-H.; Nan, C.-W. Novel polymer electrolytes based on triblock poly (ethylene oxide)-poly (propylene oxide)-poly (ethylene oxide) with ionically active SiO2. J. Power Sources 2007, 171, 913–916. [Google Scholar] [CrossRef]
  44. Yuan, R.; Teran, A.A.; Gurevitch, I.; Mullin, S.A.; Wanakule, N.S.; Balsara, N.P. Ionic Conductivity of Low Molecular Weight Block Copolymer Electrolytes. Macromolecules 2013, 46, 914–921. [Google Scholar] [CrossRef]
  45. Nakano, H.; Dokko, K.; Sugaya, J.-i.; Yasukawa, T.; Matsue, T.; Kanamura, K. All-solid-state micro lithium-ion batteries fabricated by using dry polymer electrolyte with micro-phase separation structure. Electrochem. Commun. 2007, 9, 2013–2017. [Google Scholar] [CrossRef]
  46. Bouchet, R.; Phan, T.N.T.; Beaudoin, E.; Devaux, D.; Davidson, P.; Bertin, D.; Denoyel, R. Charge Transport in Nanostructured PS-PEO-PS Triblock Copolymer Electrolytes. Macromolecules 2014, 47, 2659–2665. [Google Scholar] [CrossRef]
  47. Young, N.P.; Devaux, D.; Khurana, R.; Coates, G.W.; Balsara, N.P. Investigating polypropylene-poly (ethylene oxide)-polypropylene triblock copolymers as solid polymer electrolytes for lithium batteries. Solid State Ionics 2014, 263, 87–94. [Google Scholar] [CrossRef] [Green Version]
  48. Xue, Z.; He, D.; Xie, X. Poly (ethylene oxide)-based electrolytes for lithium-ion batteries. J. Mater. Chem. A 2015, 3, 19218–19253. [Google Scholar] [CrossRef]
  49. Li, S.; Jiang, K.; Wang, J.; Zuo, C.; Jo, Y.H.; He, D.; Xie, X.; Xue, Z. Molecular Brush with Dense PEG Side Chains: Design of a Well-Defined Polymer Electrolyte for Lithium-Ion Batteries. Macromolecules 2019, 52, 7234–7243. [Google Scholar] [CrossRef]
  50. Xiao, Z.; Zhou, B.; Wang, J.; Zuo, C.; He, D.; Xie, X.; Xue, Z. PEO-based electrolytes blended with star polymers with precisely imprinted polymeric pseudo-crown ether cavities for alkali metal ion batteries. J. Membrane. Sci. 2019, 576, 182–189. [Google Scholar] [CrossRef]
  51. Hu, J.; Wang, W.; Zhou, B.; Feng, Y.; Xie, X.; Xue, Z. Poly (ethylene oxide)-based composite polymer electrolytes embedding with ionic bond modified nanoparticles for all-solid-state lithium-ion battery. J. Membrane. Sci. 2019, 575, 200–208. [Google Scholar] [CrossRef]
  52. Nikos, H.; Marinos, P.; Stergios, P.; Iatrou, H. Polymers with Complex Architecture by Living Anionic Polymerization. Chem. Rev. 2001, 101, 3747–3792. [Google Scholar]
  53. Gitsov, I.; Simonyan, A.; Vladimirov, N.G. Synthesis of novel asymmetric dendritic-linear-dendritic block copolymers via “living” anionic polymerization of ethylene oxide initiated by dendritic macroinitiators. J. Polym. Sci. Part A Polym. Chem. 2007, 45, 5136–5148. [Google Scholar] [CrossRef]
  54. He, X.; Liang, L.; Xie, M.; Zhang, Y.; Lin, S.; Yan, D. Synthesis of Novel Linear PEO-b-PS-b-PCL Triblock Copolymers by the Combination of ATRP, ROP, and a Click Reaction. Macromol. Chem. Phys. 2007, 208, 1797–1802. [Google Scholar] [CrossRef]
  55. Li, W.; Charleux, B.; Ke, M.; Krzysztof, M.; Stoffelbach, F. PEO-Based Block Copolymers and Homopolymers as Reactive Surfactants for AGET ATRP of Butyl Acrylate in Miniemulsion. Macromolecules 2008, 41, 6387–6392. [Google Scholar] [CrossRef]
  56. Oh, J.K.; Dong, H.; Zhang, R.; Matyjaszewski, K.; Schlaad, H. Preparation of nanoparticles of double-hydrophilic PEO-PHEMA block copolymers by AGET ATRP in inverse miniemulsion. J. Polym. Sci. Part A Polym. Chem. 2007, 45, 4764–4772. [Google Scholar] [CrossRef]
  57. Du, J.; Chen, Y. Atom-Transfer Radical Polymerization of a Reactive Monomer: 3-(Trimethoxysilyl)propyl Methacrylate. Macromolecules 2004, 37, 6322–6328. [Google Scholar] [CrossRef]
  58. Deng, F.; Wang, X.; He, D.; Hu, J.; Gong, C.; Ye, Y.S.; Xie, X.; Xue, Z. Microporous polymer electrolyte based on PVDF/PEO star polymer blends for lithium ion batteries. J. Membrane. Sci. 2015, 491, 82–89. [Google Scholar] [CrossRef]
  59. Neumann, R.; Sawn, Y. Poly (ethylene glycol) s as phase transfer catalysts in the alkoxylation of halobenzenes of alkyl aryl ethers. Tetrahedron 1983, 39, 3437–3440. [Google Scholar] [CrossRef]
  60. Qiu, J.; Matyjaszewski, K.; Thouin, L.; Amatore, C. Cyclic voltammetric studies of copper complexes catalyzing atom transfer radical polymerization. Macromol. Chem. Phys. 2000, 201, 1625–1631. [Google Scholar] [CrossRef]
Polymers 12 00763 sch001 550

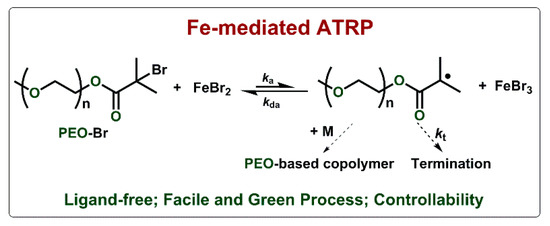

Scheme 1. Mechanism of ligand-free Fe-mediated atom transfer radical polymerization (ATRP) with Br-terminated poly (ethylene oxide) (PEO-Br).
Scheme 1. Mechanism of ligand-free Fe-mediated atom transfer radical polymerization (ATRP) with Br-terminated poly (ethylene oxide) (PEO-Br).
Polymers 12 00763 sch001
Polymers 12 00763 g001 550

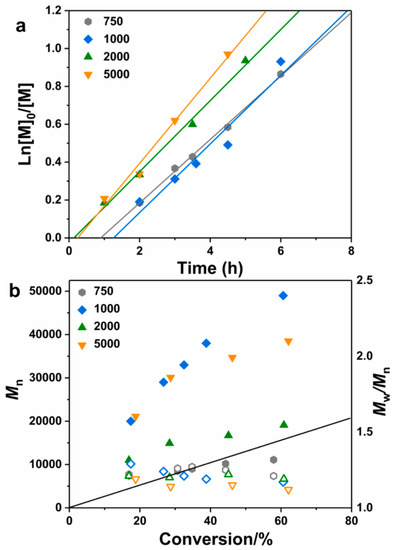

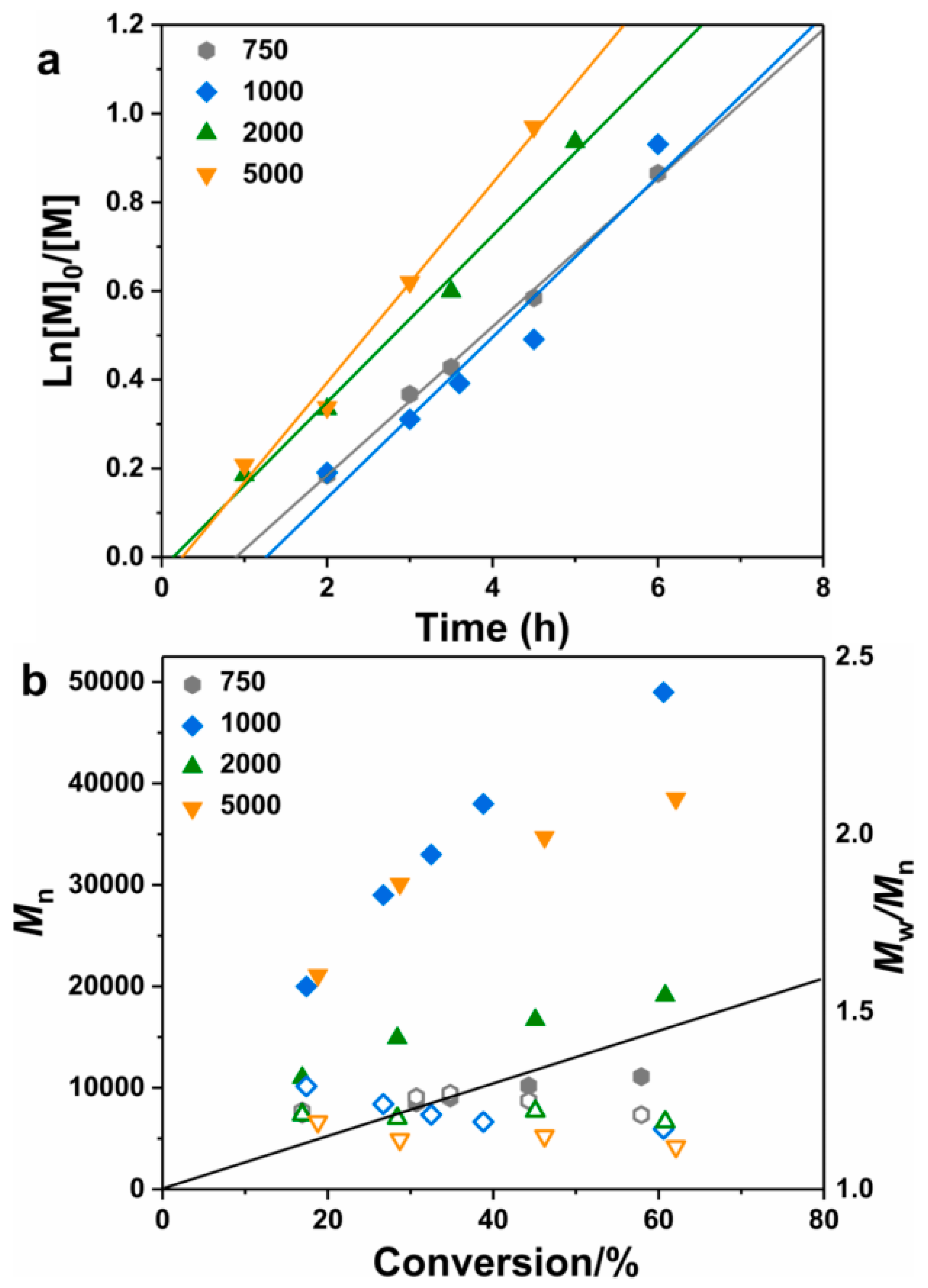

Figure 1. First-order plots (a) and evolution of Mn and Đ with conversion (b) for the bulk FeBr2-catalyzed methyl methacrylate (MMA) polymerization in the presence of PEO-Br with different molecular weights (PEO750-Br, PEO1000-Br, PEO2000-Br and PEO5000-Br). [MMA]:[FeBr2]:[PEO-Br] = 200:1:1, T = 60 °C.
Figure 1. First-order plots (a) and evolution of Mn and Đ with conversion (b) for the bulk FeBr2-catalyzed methyl methacrylate (MMA) polymerization in the presence of PEO-Br with different molecular weights (PEO750-Br, PEO1000-Br, PEO2000-Br and PEO5000-Br). [MMA]:[FeBr2]:[PEO-Br] = 200:1:1, T = 60 °C.
Polymers 12 00763 g001
Polymers 12 00763 g002 550

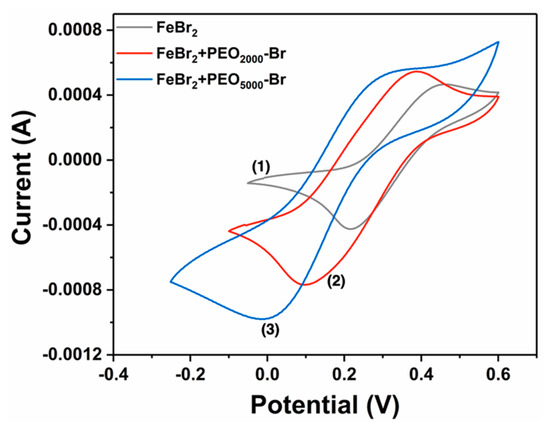

Figure 2. Cyclic voltammetry (CV) curves of 10 mM FeBr2 with different additives: (1) No additive; (2) 5 mM PEO2000-Br; (3) 5 mM PEO5000-Br under the electrolyte solution of 0.1 M Et4NBF4 in MeCN, recorded at a scan rate (V) of 50 mV s−1.
Figure 2. Cyclic voltammetry (CV) curves of 10 mM FeBr2 with different additives: (1) No additive; (2) 5 mM PEO2000-Br; (3) 5 mM PEO5000-Br under the electrolyte solution of 0.1 M Et4NBF4 in MeCN, recorded at a scan rate (V) of 50 mV s−1.
Polymers 12 00763 g002
Polymers 12 00763 g003 550

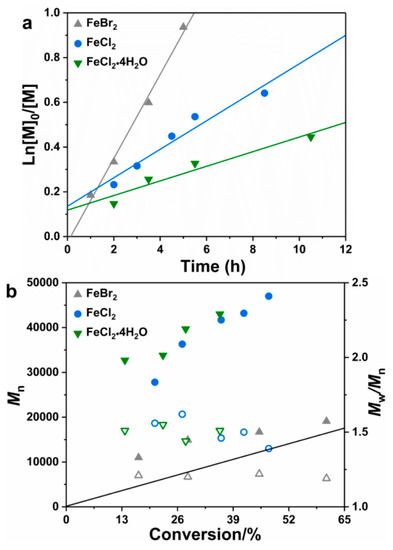

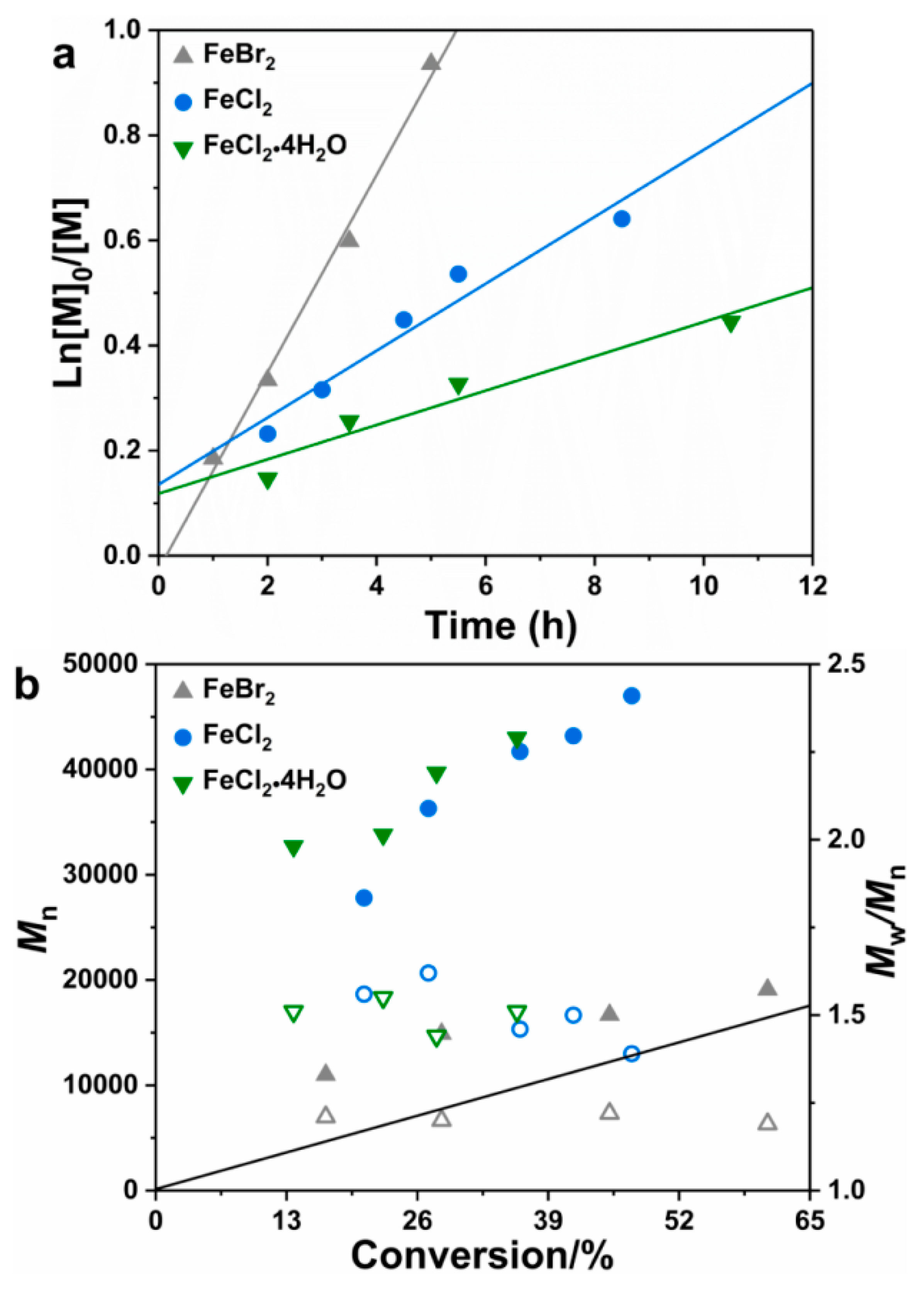

Figure 3. First-order plots (a) and evolution of Mn and Đ with conversion (b) for the bulk iron-catalyzed MMA polymerization in the presence of different iron catalyst. [MMA]:[x]:[PEO2000-Br] = 200:1:1, x = FeBr2, FeCl2 or FeCl2•4H2O, T = 60 °C.
Figure 3. First-order plots (a) and evolution of Mn and Đ with conversion (b) for the bulk iron-catalyzed MMA polymerization in the presence of different iron catalyst. [MMA]:[x]:[PEO2000-Br] = 200:1:1, x = FeBr2, FeCl2 or FeCl2•4H2O, T = 60 °C.
Polymers 12 00763 g003
Polymers 12 00763 g004 550

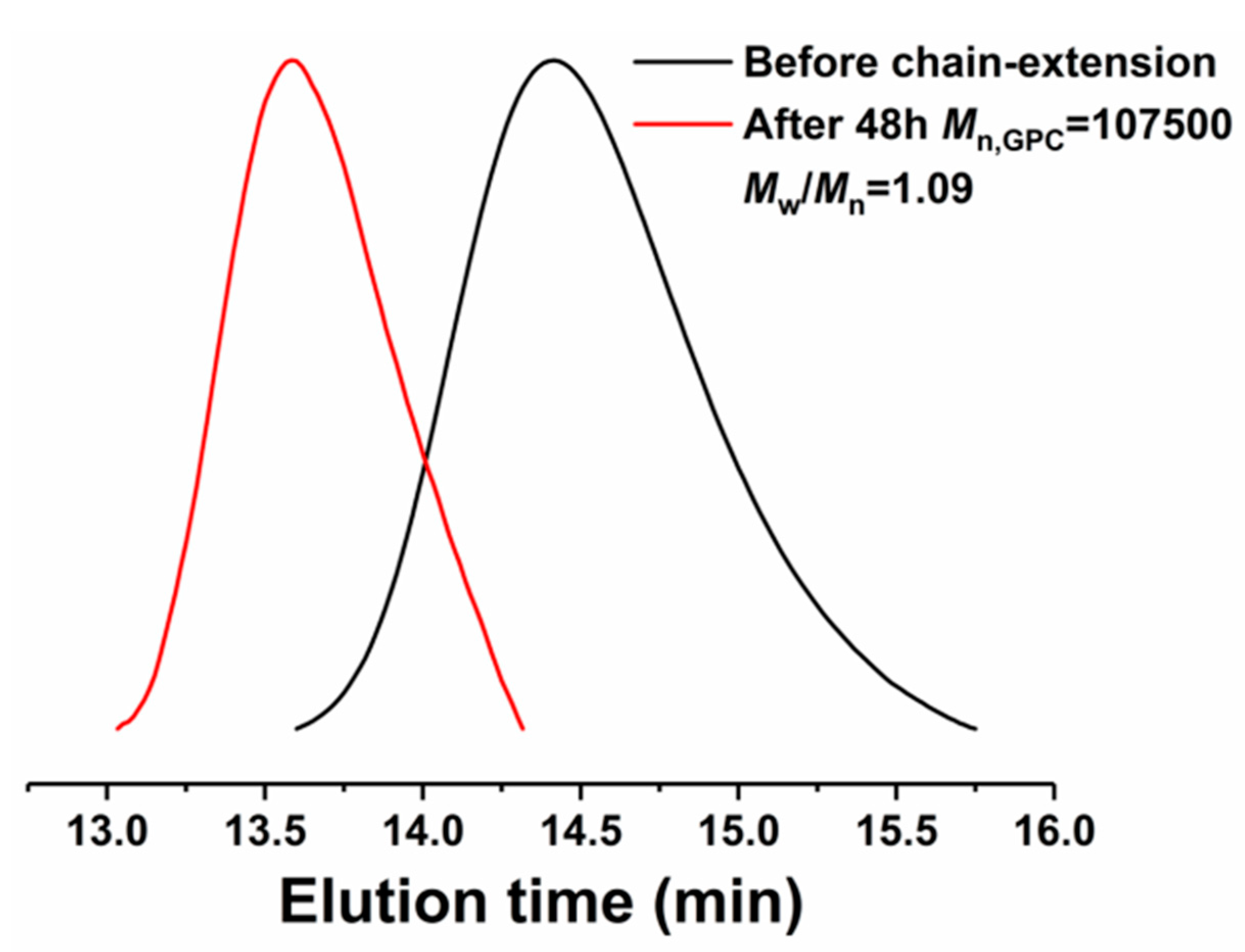

Figure 4. Gel permeation chromatography (GPC) traces of polymers obtained from chain-extension experiment.
Figure 4. Gel permeation chromatography (GPC) traces of polymers obtained from chain-extension experiment.
Polymers 12 00763 g004
Polymers 12 00763 g005 550

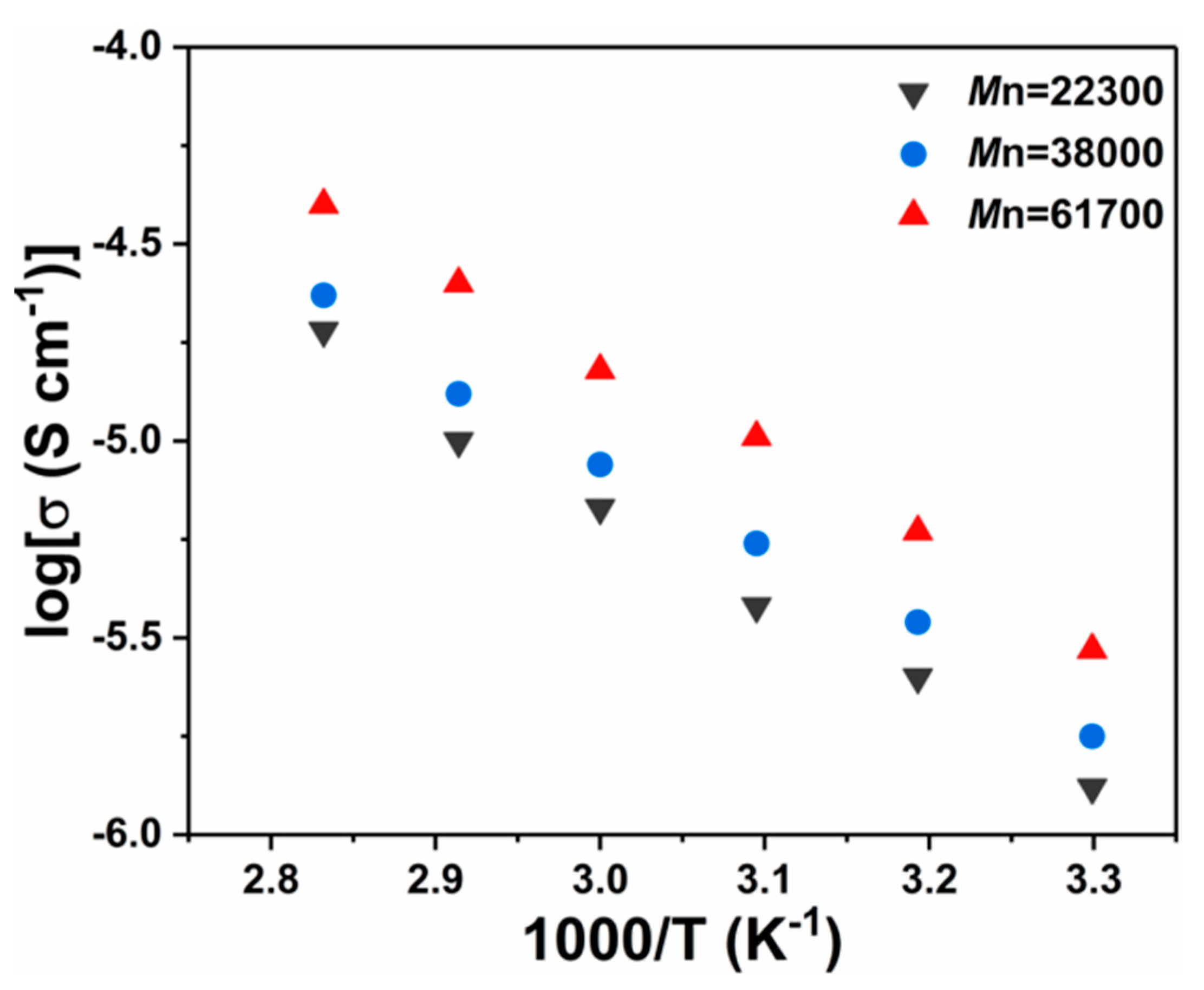

Figure 5. Ionic conductivity of P(EO-PEGMA)/PVDF polymer electrolyte with P(EO-PEGMA) with different molecular weights.
Figure 5. Ionic conductivity of P(EO-PEGMA)/PVDF polymer electrolyte with P(EO-PEGMA) with different molecular weights.
Polymers 12 00763 g005
Polymers 12 00763 g006 550

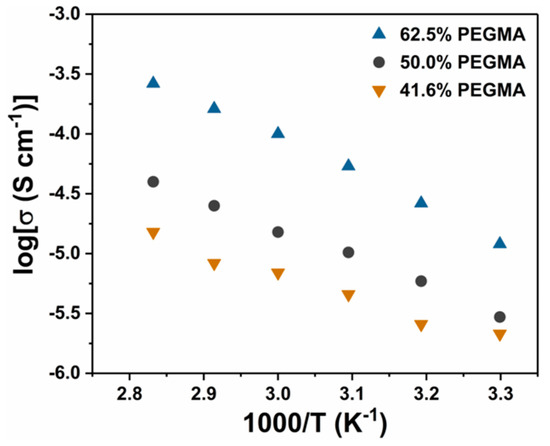

Figure 6. Ionic conductivity of P(EO-PEGMA)/PVDF polymer electrolyte with different P(EO-PEGMA) content.
Figure 6. Ionic conductivity of P(EO-PEGMA)/PVDF polymer electrolyte with different P(EO-PEGMA) content.
Polymers 12 00763 g006
Table
Table 1. Synthesis of triblock copolymer with Br-PEO2000-Br as the initiator.
Table 1. Synthesis of triblock copolymer with Br-PEO2000-Br as the initiator.
EntryTime
(h)		Conv.
(%)		Mn,th
(g mol−1)		Mn,GPC
(g mol−1)		Ð
1 a4.512.8480082001.13
2 a8.029.2800017,3001.15
3 a10.542.110,60020,6001.14
4 b19.037.3960047,0001.07
Polymerization conditions: (a) MMA:FeBr2:Br-PEO2000-Br = 200:1:1; (b) MMA:PEO2000-Br:FeBr3:AsAcNa = 200:1:1:3, 60 °C.
Table
Table 2. Synthesis of the water-soluble block copolymer.
Table 2. Synthesis of the water-soluble block copolymer.
EntryTime
(h)		Conv.
(%)		Mn,th
(g mol−1)		Mn,GPC
(g mol−1)		Ð
1 a11.010.1625057,4001.26
2 a19.015.6780087,7001.23
3 a23.020.19200112,0001.21
4 b18.025.615,300580,8001.88
Polymerization conditions: (a) PEGMA300:PEO2000-Br:FeBr2 = 100:1:1, PEGMA300:tetrahydrofuran (THF) = 1:3 (v/v); (b) PEGMA300:Br-PEO2000-Br:FeBr2 = 200:1:1, 60 °C.
Table
Table 3. Component of P(EO-PEGMA)/PVDF polymer electrolyte.
Table 3. Component of P(EO-PEGMA)/PVDF polymer electrolyte.
EntryP(EO-PEGMA)/PVDF
(m/m)		Mn,GPC
(g/mol)		Ð
11:1.022,3001.12
21:1.038,0001.41
31:1.061,7001.22
41:0.661,7001.22
51:1.461,7001.22
Polymerization condition: poly (ethylene glycol) monomethacrylate (PEGMA)300:PEO2000-Br:FeBr2 = 200:1:1, PEGMA300:THF = 1:3 (v/v). Mn,GPC and Ð of the obtained polymer PEO-PEGMA, LiClO4 as Li salt.

Share and Cite

MDPI and ACS Style

Li, S.; Tian, M.; Wang, J.; Du, F.; Li, L.; Xue, Z. Poly (Ethylene Oxide)-Based Block Copolymer Electrolytes Formed via Ligand-Free Iron-Mediated Atom Transfer Radical Polymerization. Polymers 2020, 12, 763. https://doi.org/10.3390/polym12040763

AMA Style

Li S, Tian M, Wang J, Du F, Li L, Xue Z. Poly (Ethylene Oxide)-Based Block Copolymer Electrolytes Formed via Ligand-Free Iron-Mediated Atom Transfer Radical Polymerization. Polymers. 2020; 12(4):763. https://doi.org/10.3390/polym12040763

Chicago/Turabian Style

Li, Sibo, Mengying Tian, Jirong Wang, Feipeng Du, Liang Li, and Zhigang Xue. 2020. "Poly (Ethylene Oxide)-Based Block Copolymer Electrolytes Formed via Ligand-Free Iron-Mediated Atom Transfer Radical Polymerization" Polymers 12, no. 4: 763. https://doi.org/10.3390/polym12040763

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
