Open AccessArticle

Time-Dependent Mechanical Properties in Polyetherimide 3D-Printed Parts Are Dictated by Isotropic Performance Being Accurately Predicted by the Generalized Time Hardening Model

Grup d’Enginyeria en Producte Industrial, (GEPI), Institut Químic de Sarrià, Universitat Ramon Llull, Via Augusta 390, 08017 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(3), 678; https://doi.org/10.3390/polym12030678
Received: 13 February 2020 / Revised: 6 March 2020 / Accepted: 15 March 2020 / Published: 19 March 2020
(This article belongs to the Special Issue Mechanical Behavior of Polymers)

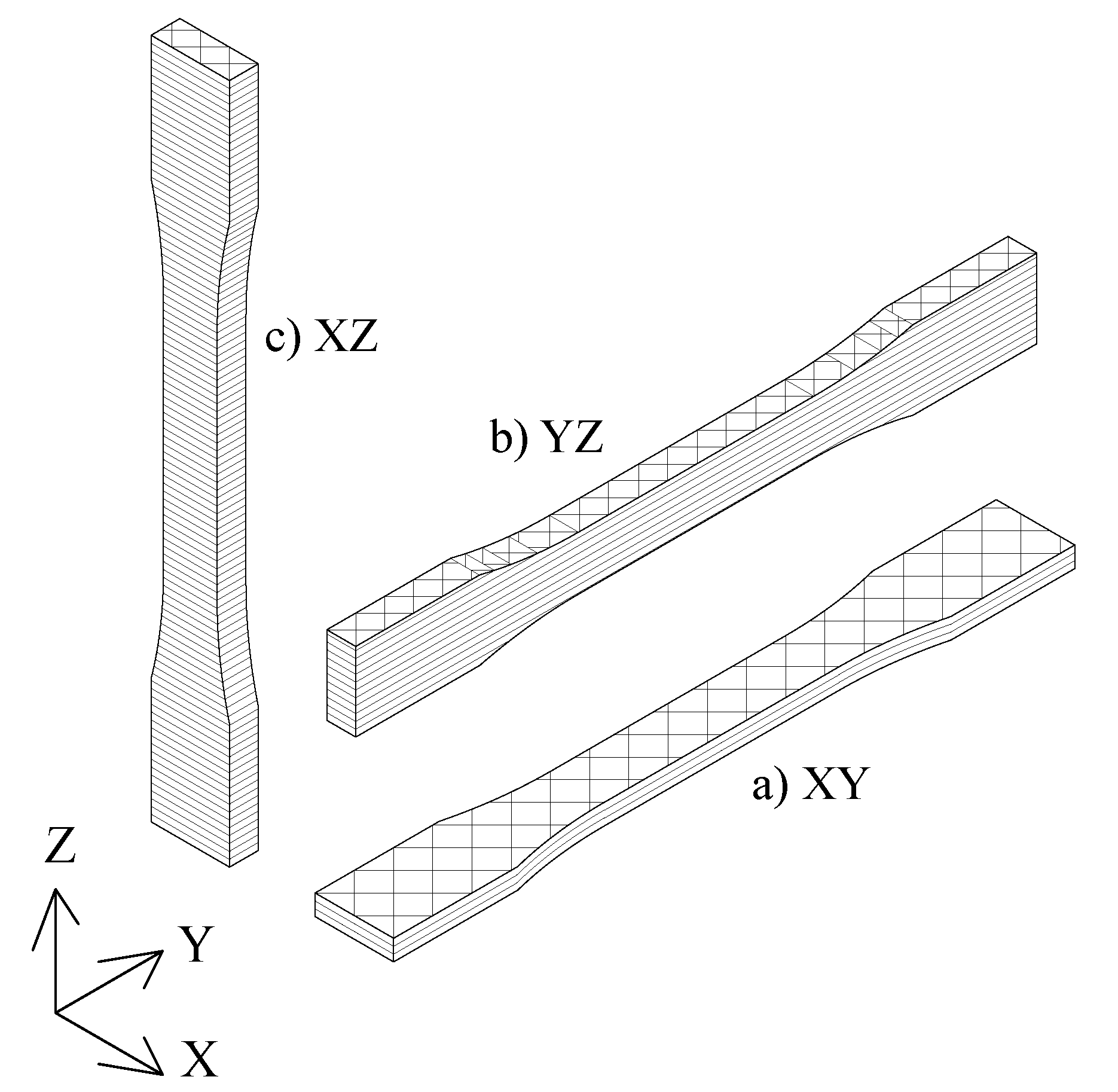

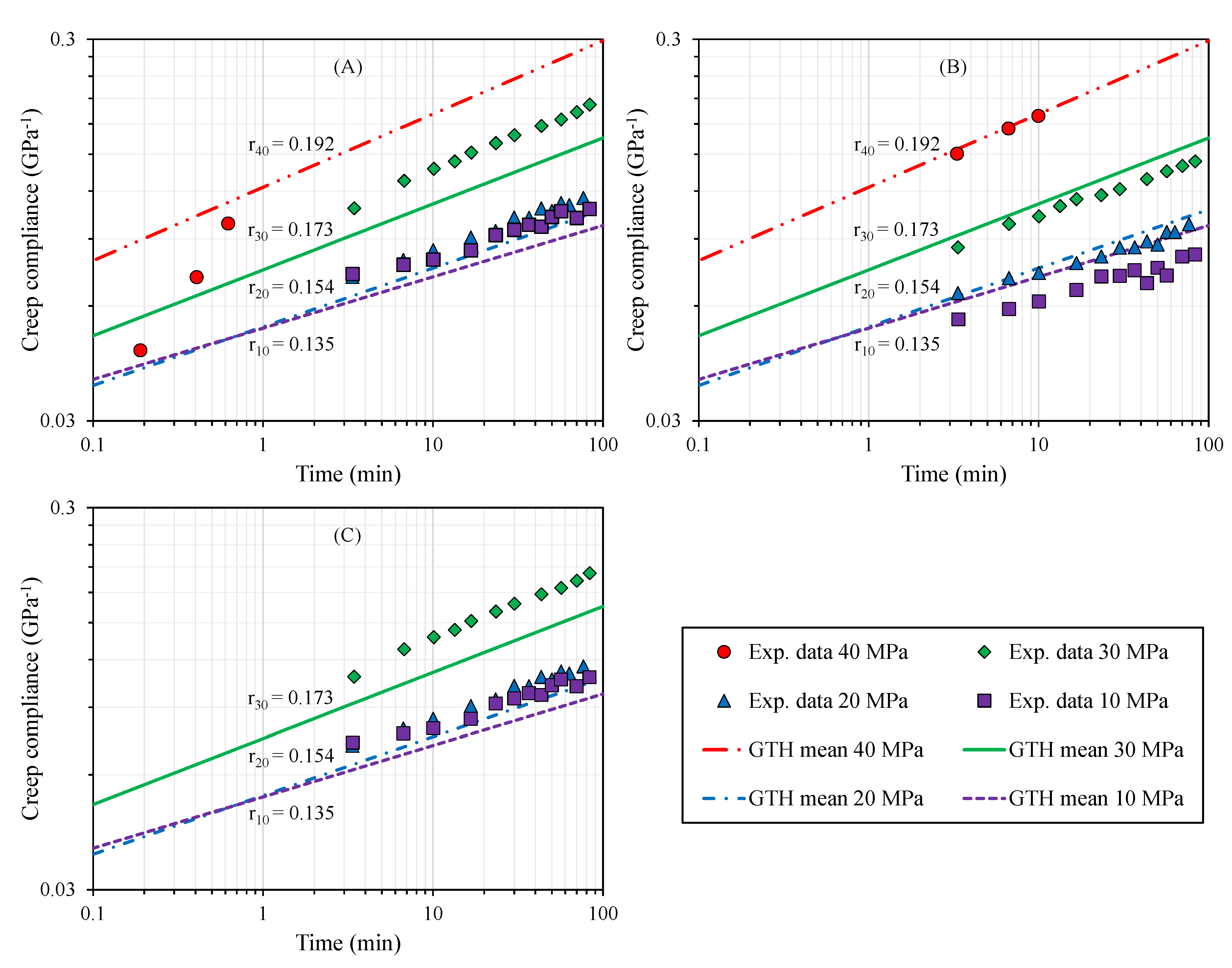

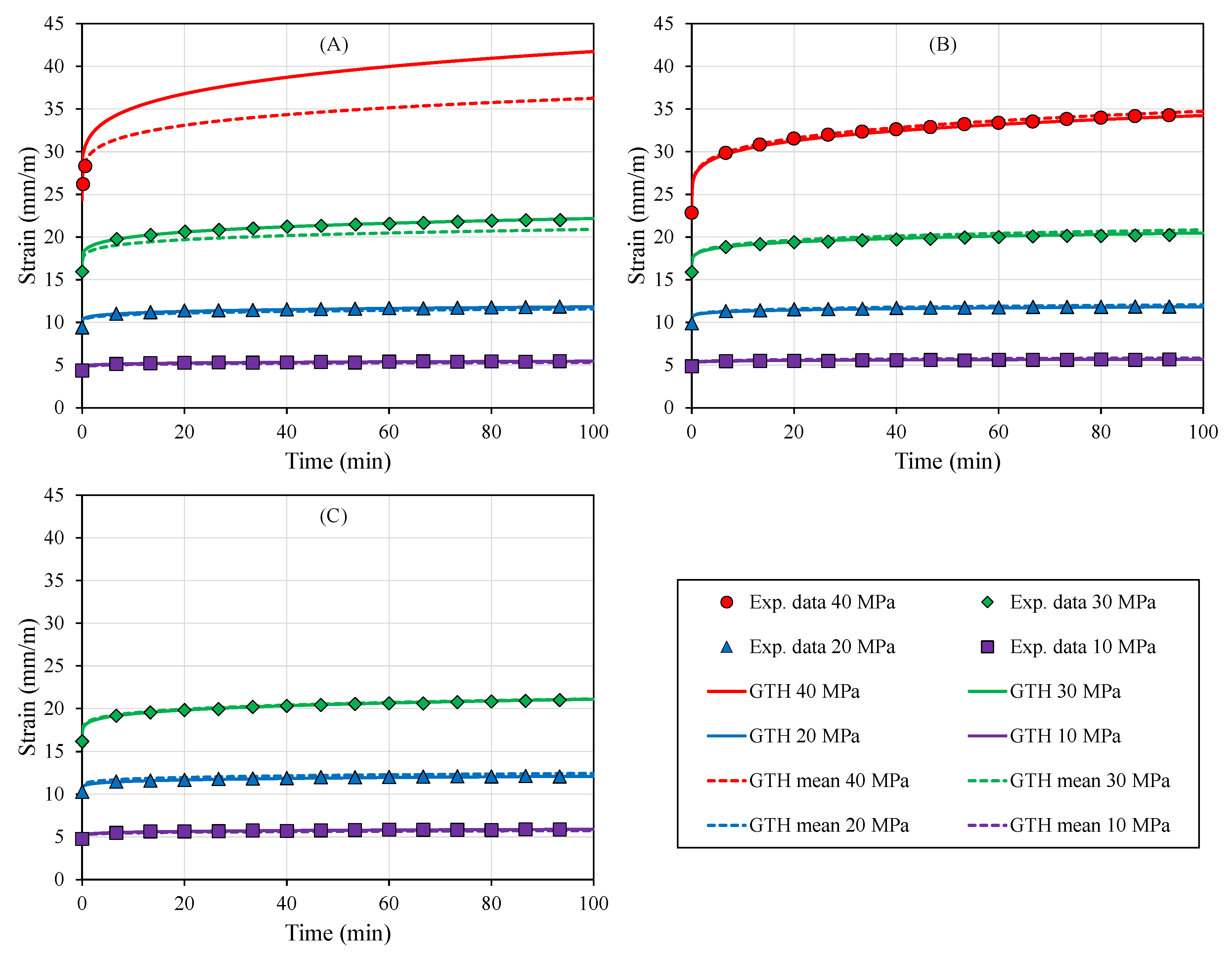

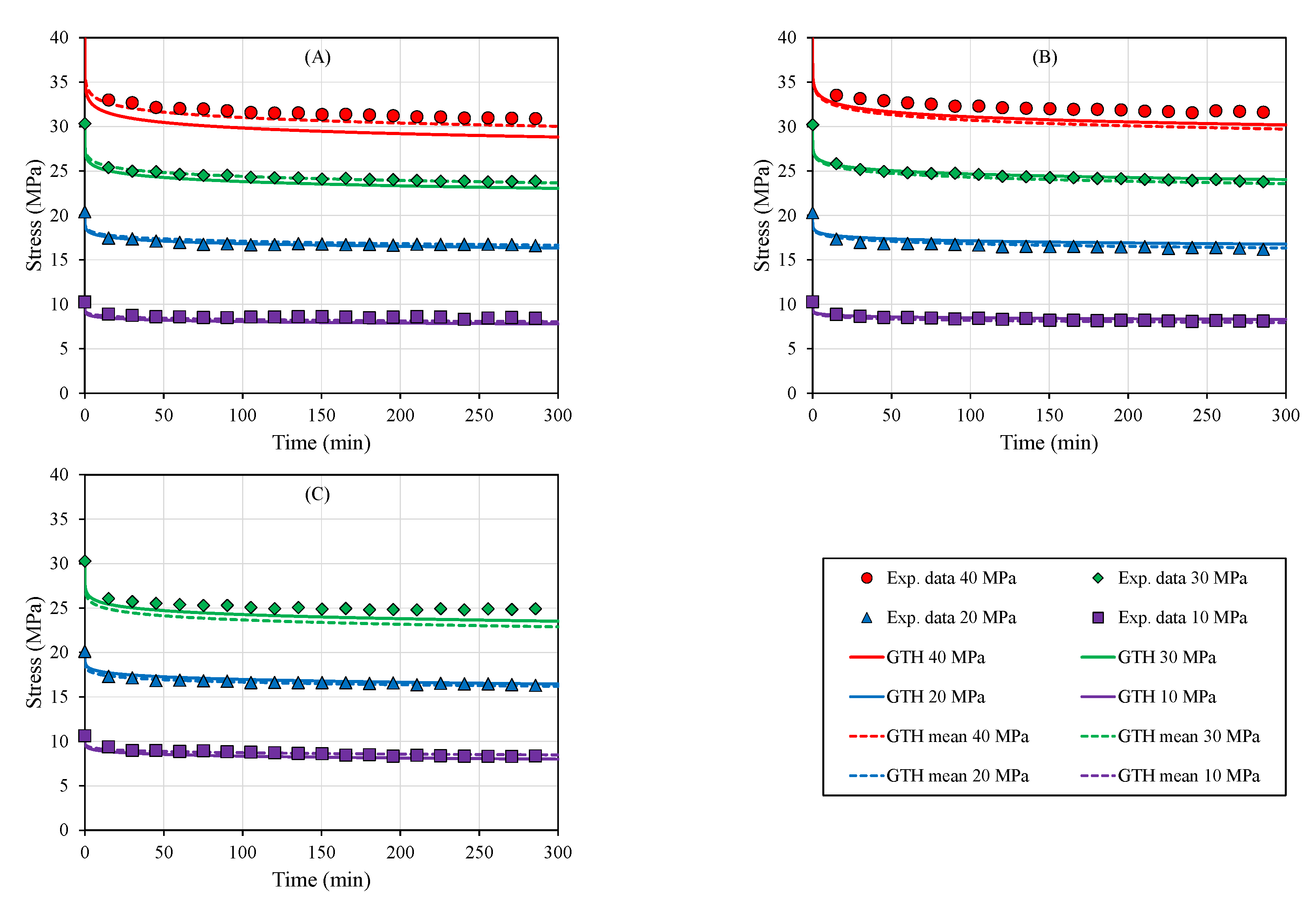

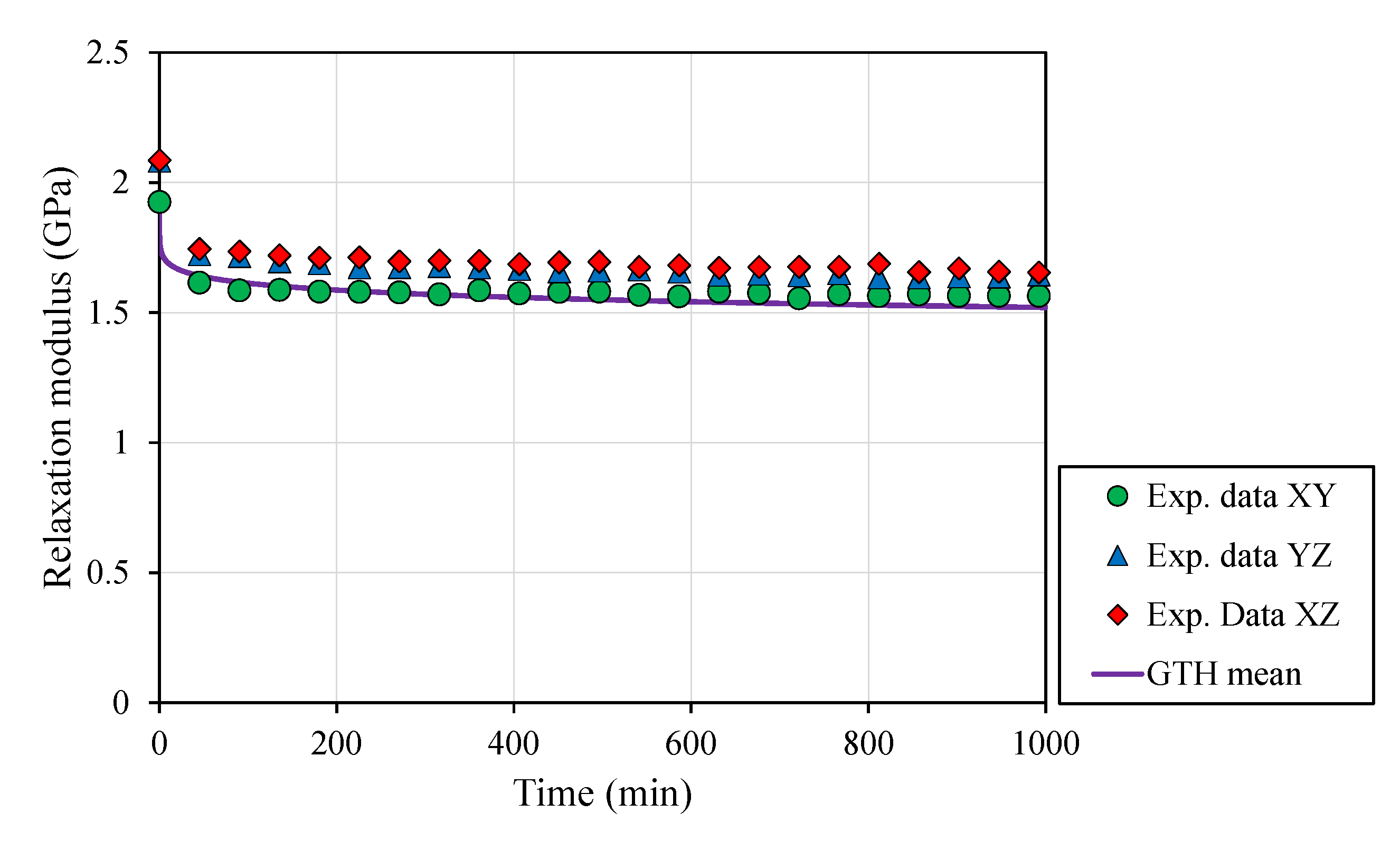

The Fused-Deposition Modelling (FDM) technique has transformed the manufacturing discipline by simplifying operational processes and costs associated with conventional technologies, with polymeric materials being indispensable for the development of this technology. A lack of quantification of viscoelastic/plastic behavior has been noted when addressing FDM parts with Polyetherimide (PEI), which is currently being investigated as a potential material to produce functional end-products for the aerospace and health industry. Primary and secondary creep along with stress relaxation tests have been conducted on FDM PEI specimens by applying stresses from 10 to 40 MPa for 100 to 1000 min. Specimens were 3D printed by varying the part build orientation, namely XY, YZ, and XZ. Creep results were fitted to the Generalized Time Hardening equation (GTH), and then this model was used to predict stress relaxation behavior. FDM PEI parts presented an isotropic creep and stress relaxation performance. The GTH model was proven to have a significant capacity to fit viscoelastic/plastic performances for each single build orientation (r > 0.907, p < 0.001), as well as a tight prediction of the stress relaxation behavior (r > 0.998, p < 0.001). Averaged-orientation coefficients for GTH were also closely correlated with experimental creep data (r > 0.958, p < 0.001) and relaxation results data (r > 0.999, p < 0.001). FDM PEI parts showed an isotropic time-dependent behavior, which contrasts with previous publications arguing the significant effect of part build orientation on the mechanical properties of FDM parts. These findings are strengthened by the high correlation obtained between the experimental data and the averaged-coefficient GTH model, which has been proven to be a reliable tool to predict time-dependent performance in FDM parts.
View Full-Text
Keywords: creep; stress relaxation; fused deposition modelling; polyetherimide; process parameters; mathematical characterization; generalized time hardening model creep; stress relaxation; fused deposition modelling; polyetherimide; process parameters; mathematical characterization; generalized time hardening model
Show Figures

Figure 1

MDPI and ACS Style

Salazar-Martín, A.G.; García-Granada, A.A.; Reyes, G.; Gomez-Gras, G.; Puigoriol-Forcada, J.M. Time-Dependent Mechanical Properties in Polyetherimide 3D-Printed Parts Are Dictated by Isotropic Performance Being Accurately Predicted by the Generalized Time Hardening Model. Polymers 2020, 12, 678.
