A Cellulosic Fruit Derived from Nerium oleander Biomaterial: Chemical Characterization and Its Valuable Use in the Biosorption of Methylene Blue in a Batch Mode

Abstract

Cellulose substrate waste has demonstrated great potential as a biosorbent of pollutants from contaminated water. In this study, Nerium oleander fruit, an agricultural waste biomaterial, was used for the biosorption of methylene blue from synthetic solution. Fourier-transform infrared (FTIR) spectroscopy indicated the presence of the main absorption peak characteristics of cellulose, hemicellulose, and lignin compositions. X-ray diffraction (XRD) pattern exhibited peaks at 2θ = 14.9° and 2θ = 22°, which are characteristics of cellulose I. Scanning electron microscopy (SEM) showed a rough and heterogeneous surface intercepted by some cavities. Thermogravimetric analysis (TGA) showed more than a thermal decomposition point, suggesting that Nerium fruit is composed of cellulose and noncellulosic matters. The pH_pzc value of Nerium surface was experimentally determined to be 6.2. Nerium dosage, pH, contact time, dye concentration, and temperature significantly affected the adsorption capacity. The adsorption capacity reached 259 mg/g at 19 °C. The mean free energy ranged from 74.53 to 84.52 KJ mol⁻¹, suggesting a chemisorption process. Thermodynamic parameters define a chemical, exothermic, and nonspontaneous mechanism. The above data suggest that Nerium fruit can be used as an excellent biomaterial for practical purification of water without the need to impart chemical functionalization on its surface.

1. Introduction

Contaminated water can be successfully treated by either physical or chemical processes. This can be accomplished using inexpensive and biodegradable alternative adsorbents that decrease the treatment cost of contaminant elimination. In this framework, agricultural waste biomaterials received much attention due to their high availability in nature and low cost. Many biosorbents have been used to remove dyes from water, such as cotton stalks [1], potato wastes [2], peach shells [3], almond shells [4], mandarin peels [5], wood apple shells [6], grape fruit peels [7], peanut hulls [8], peats [9], rice husks [10], wood sawdust [11], peanut husks [12], pine sawdust [13], orange peels [14], banana peels, and coconut mesocarp [15].

Indeed, there are huge amounts of agricultural wastes that are produced on a daily basis. Nerium oleander plant, having a wide geographical distribution, has attracted the attention of researchers due to its use in various applications [16,17,18]. The fruits of Nerium are narrow capsules with a length of 5–23 cm. After maturing, they release soft seed fibers. The use of Nerium fruits and seed fibers as biosorbents of pollutants have not been reported in the literature. In this sense, only the work of Rajab et al. [19] has carried out such study; however, it was restricted to the possibility of utilizing oleander tissues as sorbent material. Our recent studies on Nerium oleander focused on the use of seeds modified with ethylenediamine and hydrazine for the sorption of acid dyes [20]. In addition, we studied the chemical characteristics, dyeing behavior, and abilities of these seed fibers to adsorb cationic dyes [21,22]. Recently, we used Nerium oleander leaves for the ecological synthesis of CuO nanoparticles, and the prepared particles were applied for the adsorption of methylene blue [23]. Here, the main purpose of the current work was, first, to characterize Nerium oleander fruit and, second, to further evaluate its adsorption capacity for methylene blue under several experimental conditions. Its adsorption performance was checked in relation to that reported in previously published agricultural biosorbents. FTIR, SEM, XRD, and TGA analyses were used to elucidate the functional group characteristics, crystallinity, morphology, and thermal behavior of Nerium fruit. Kinetic theoretical equations were used to understand the affinity between methylene blue as adsorbate and Nerium fruit as adsorbent. The biosorption mechanism on the biomaterial surface was evaluated using the common isotherms of Langmuir, Freundlich, Temkin, and Dubinin.

2. Experimental

2.1. Materials and Reagents

All chemical reagents used in the current work were of pure grade and used without further purification. Methylene blue, with a molecular weight of 319.85 g mol⁻¹, was supplied by a Sigma-Aldrich market. Deionized water was used in diluted colored solutions.

2.2. Preparation of Nerium oleander Fruit

Ripe Nerium oleander fruit was cultivated during the period of May–June (Figure 1). Before being characterized and used as adsorbent, the biomass was thoroughly washed with water in order to remove adhering impurities, like sand particles and debris. The dried fruits were further washed with distilled water and dried in an oven at a temperature of 70 °C for a period of 24 h. The fruits were ground to small powders, washed with distilled water, and finally dried under the abovementioned conditions. Before adsorption investigation, the powdered fruits were stored in airtight bottles.

2.3. Characterization Instruments

To elucidate the chemical group characteristics of Nerium oleander fruit, an FTIR spectrum was obtained using a PerkinElmer model (Monastir, Tunisia). A SEM Hitachi S-2360N apparatus (Monastir, Tunisia) was used to observe the morphology of the studied powdered fruit, which was coated with Au by a vacuum sputter coater with a 20 kV accelerating voltage. X-ray powder diffraction was performed at ambient temperature using a PANalytical X’Pert PRO MPD apparatus (Malvern, UK). Thermogravimetric analysis (TGA) was performed in air flow at a heating level of 10°/min using a NETZSCH STA 449F3 equipment (Selb, Germany).

The point of zero charge (pH_PZC) of powdered Nerium fruit was obtained by the addition of KNO₃ solution: 0.1 g of solid biosorbent was immersed in 10⁻¹ M KNO₃ solutions (50 mL) at different pH values. The initial pH was maintained in the range 2–11 by the addition of either HCl or NaOH under magnetic agitation for 48 h. The final pH value was plotted versus the initial pH value. The pH_PZC was registered when the point pH_final = pH_initial [24].

2.4. Biosorption Experiments

Batch biosorption experiments were performed in Erlenmeyer flasks using 20 mL of methylene blue solution and 0.025 g of powdered Nerium fruit. The biosorbent dosages were studied in the range 1.25–7.5 g/L. The isotherm experiments were conducted at 19, 40, and 55 °C. The kinetic essays were studied in the range 0–120 min. After each experiment, the solutions were filtered through filter papers, and the absorbance of the remaining solution was determined spectrophotometrically at λ_max = 665 nm corresponding to the maximum absorbance of methylene blue. The adsorption capacity was calculated using the following equation:

$$q\left(mg/g\right)=\frac{\left(\mathrm{c}0-\mathrm{ce}\right)}{\mathrm{m}}\times \mathrm{V}$$

(1)

where c0 is the initial dye concentration, ce is the remaining solution, V is the used volume of dye for each experiment, and m is the mass of the used biosorbent.

To describe the biosorption mechanism of methylene blue using powdered Nerium fruit, the experimental results were correlated with the theoretical isotherms of Langmuir, Freundlich, Temkin, and Dubinin, which are generally used to clarify the mechanism of biosorption as well as the heterogeneity of the biosorbent surface [24].

3. Results and Discussion

3.1. Characterization of Nerium oleander Fruit

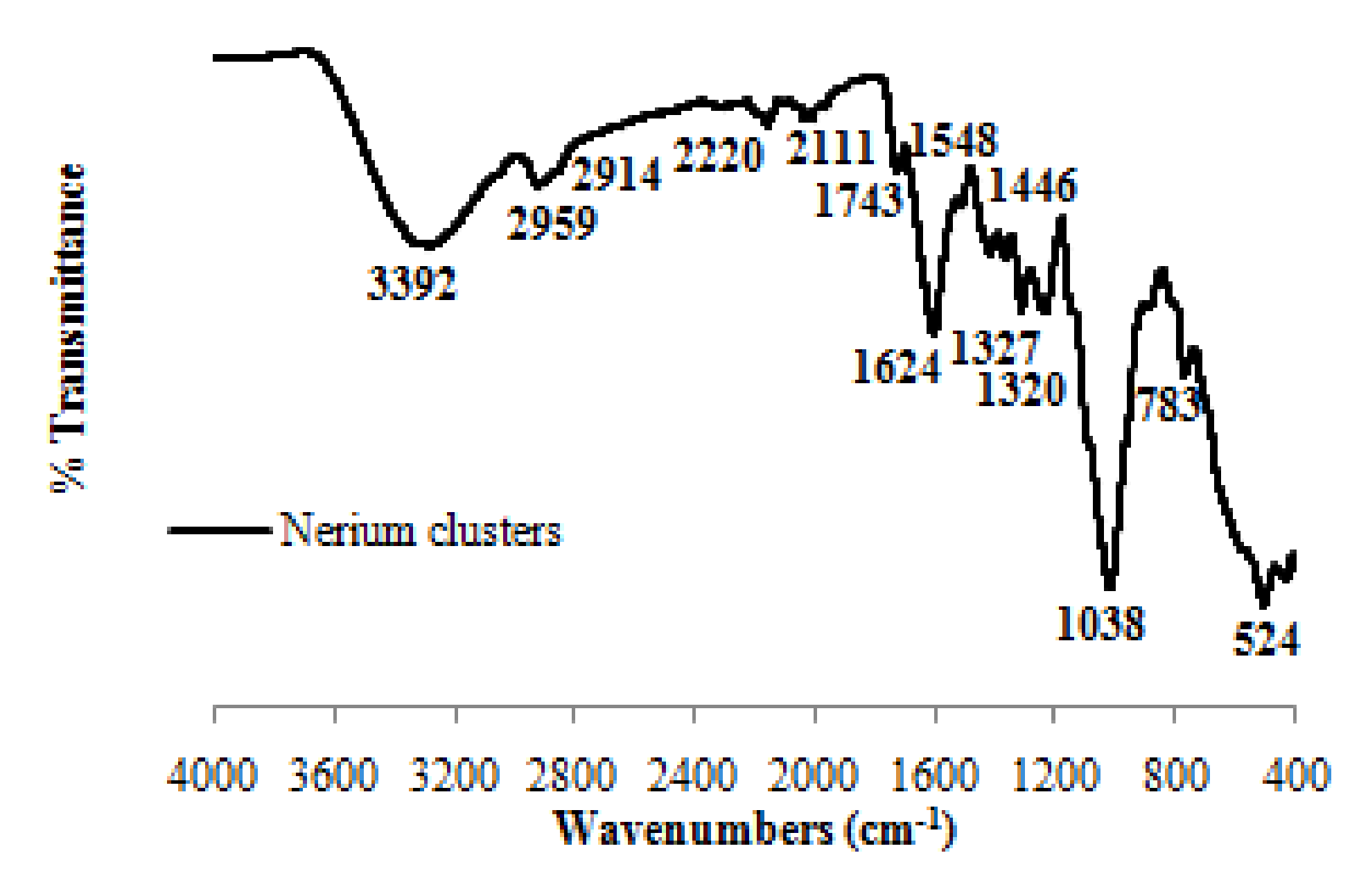

FTIR spectroscopy can afford information about the reactive groups existing on the surface of Nerium fruit that provide adsorptive sites for methylene blue molecules. Figure 2 displays the main absorption peaks registered within the studied biomaterial. The broad intense absorption peak around 3392 cm⁻¹ is attributed to the hydroxyl groups. The bands at 2959 and 2914 cm⁻¹ correspond to C–H stretching of the –CH₃ and –CH₂ groups, respectively [25,26]. The peaks at 2100–2200 cm⁻¹ show the presence of CO₂ in normal air. The peak at 1743 cm⁻¹ confirms the functional C=O group present in hemicelluloses [25,26]. The absorption peaks registered at 1624–1548 cm⁻¹ are attributed to the C=C aromatic groups in the lignin [27,28]. The absorption peak at 1446 cm⁻¹ is assigned to the angular deformation of the –CH groups in the cellulose structure [27]. The peak observed at 1320–1327 cm⁻¹ corresponds to the angular deformation of the –CH groups in hemicelluloses [28]. The peak at 1038 cm⁻¹ may be assigned to the C–O symmetric or asymmetric vibration (–C–O–C– ring) of the cellulose. The peak at 783 cm⁻¹ is related to the out-of-plane angular deformation of the –CH groups in substituted aromatic rings [29]. The majority of these peaks indicate that Nerium oleander fruit is rich in massive oxygenous groups on its surface [26], which could be responsible for the interaction between methylene blue and the biomaterial through hydrogen bonding. In Scheme 1, a suggested mechanistic pathway for interactions between methylene blue and Nerium oleander fruit surface is depicted. Indeed, the hydroxyl groups of the biomaterial could easily react to the nitrogen atom of methylene blue through hydrogen bonding.

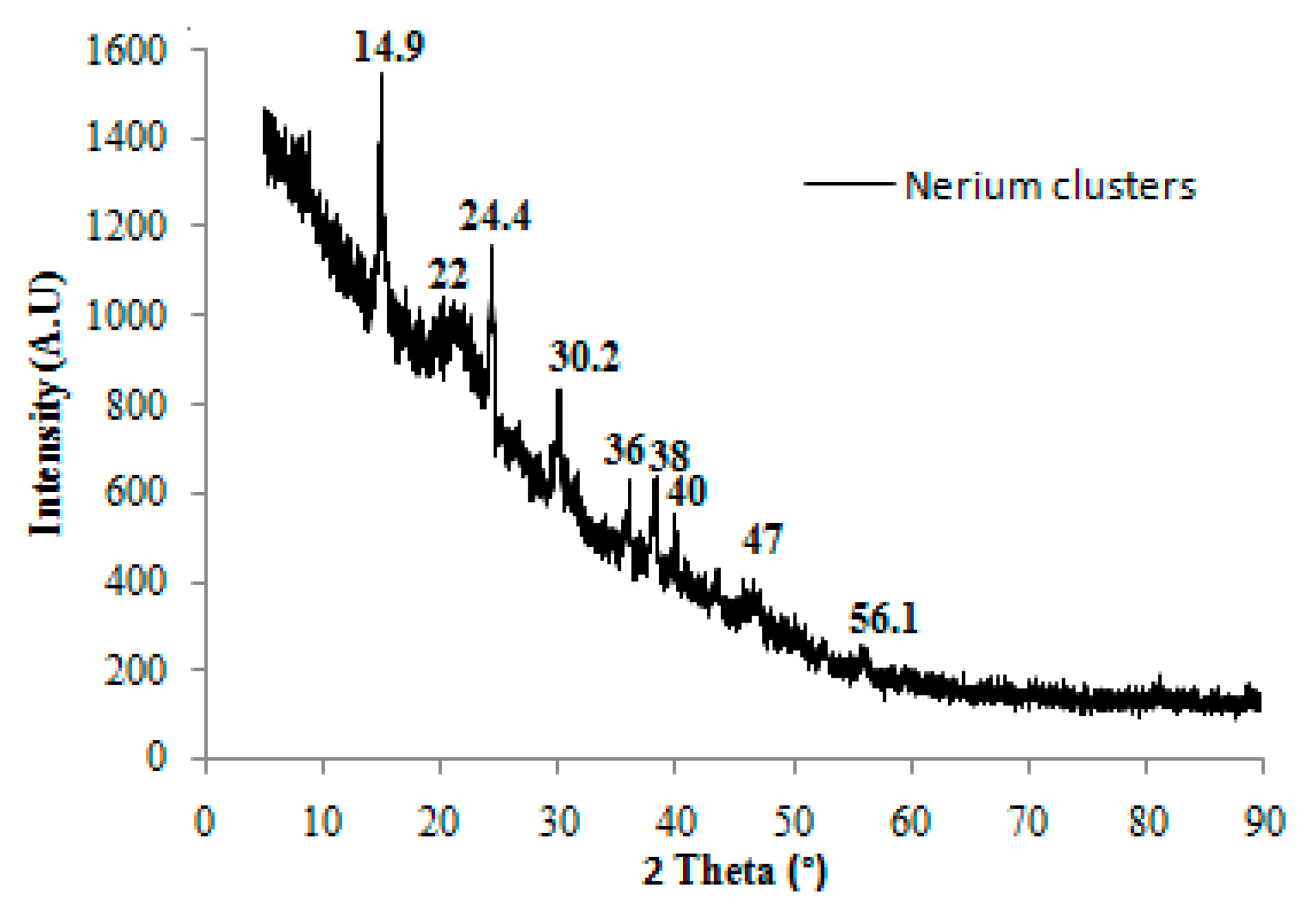

Powder X-ray diffraction was used to describe the powdered Nerium oleander fruit by scanning in the range 10°–90° (2θ°) (Figure 3). The biomaterial exhibited the characteristic diffraction peaks at 2θ = 14.9° (amorphous phase) and 2θ = 22° (crystalline phase). According to the literature, these peaks are characteristics of crystal planes (110) and (200) of cellulose I [30,31]. The strong peak observed at 2θ = 14.9° indicates the presence of a high proportion of noncellulose compositions [32,33]. These main peaks were also observed in our previous paper [22] when reporting XRD patterns of the seed fibers encapsulated in the narrow capsules of Nerium oleander plant. The presence of other small peaks could be attributed to the existence of inorganic matters.

SEM images (Figure 4), given at different higher magnifications (×500 and ×1600), showed a rough and heterogeneous surface of Nerium oleander fruit with the existence of some cavities. These precise morphological characteristics could easily facilitate the interaction between the studied solid biomaterial as biosorbent and methylene blue as adsorbate.

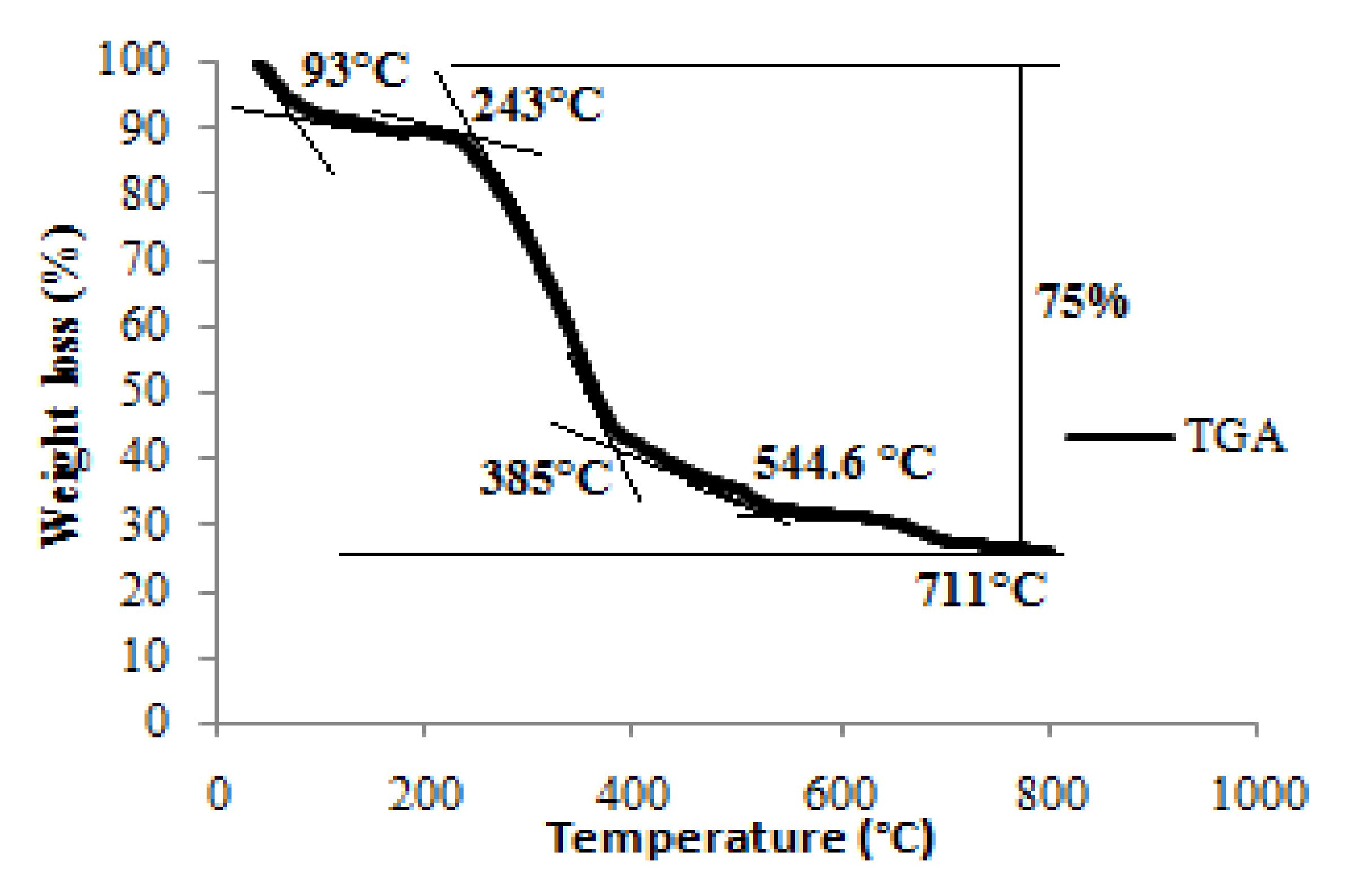

Thermal analysis was carried out to study the decomposition pattern and thermal stability of Nerium fruit. The TGA curve of Nerium fruit is depicted in Figure 5. Many thermal decomposition points were observed at different temperature values. The maximum mass loss reached 75%. This indicates that the studied biomaterial was composed of cellulose and noncellulosic matters. This behavior agrees well with the results gleaned from FTIR, XRD, and SEM analyses. A weight loss of 8% was observed at 93 °C, which could generally be ascribed to the moisture evaporation on the surface and inside the biomaterial [34,35]. The thermal decomposition observed at 243 °C could be assigned to the decomposition of the organic compounds, including cellulose and noncellulosic matters, found in the biomaterial [36,37]. The thermal decomposition at 385 °C could be due to the depolymerization and decomposition of glycosyl units [38]. The slight decomposition observed at 544–711 °C may be associated with the degradation of inorganic compounds existing in native fruits.

3.2. Factors Affecting the Adsorption of Methylene Blue

3.2.1. Effect of Experimental Parameters on Adsorption Performance

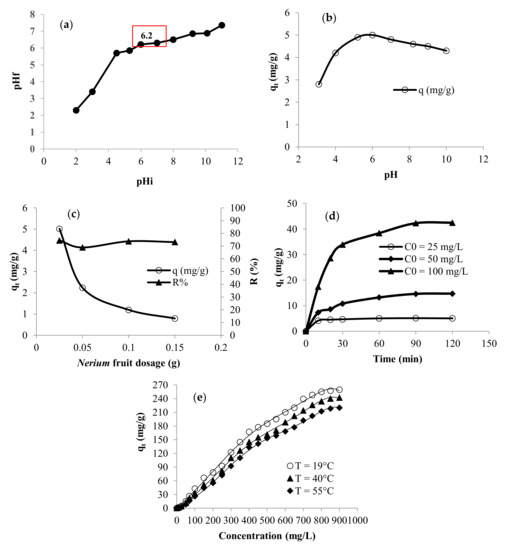

Figure 6a gives a plot of the initial pH against the final pH. The pH_pzc value of Nerium oleander fruit was determined to be 6.2. This finding suggests that the surface of the biomaterial was positive at pH < 6.2 [39]. However, it became negatively charged at pH > 6.2, therefore permitting an electrostatic attraction with the cationic methylene blue. Indeed, methylene blue dye can easily dissociate in water, giving MB⁺ and Cl⁻ ions [40].

The biosorption of methylene blue using Nerium oleander fruit was investigated in the pH range 3–11 (Figure 6b). The results indicate that a low biosorption capacity was reached at high acidic conditions. The highest adsorption capacity was achieved at pH 6, above which a decrease was observed. This finding agrees well with the pH_pzc determined experimentally (Figure 6a). Based on FTIR and XRD results, Nerium fruit has many oxygenous groups as adsorption sites on the surface, therefore allowing different trends at different pH values. Positive charges were acquired by the Nerium surface at an acidic pH due to protonation, and a negative charge was acquired due to deprotonation of oxygenous groups at alkaline conditions. At acidic pH values, the positively charged methylene blue ions opposed the positively charged Nerium surface, leading to low biosorption amounts. At higher pH values, the biosorbent surface became negative, favoring an electrostatic interaction with methylene blue. In this case, it was observed that the biosorption tendency of Nerium fruit increased with an increase in pH due to an increase in the deprotonation of the oxygenous groups of the adsorbent. Quite similar behaviors were observed and reported in other previous published works [24,41,42,43].

Figure 6c indicates that the adsorption of methylene blue using Nerium fruit was affected by the change of adsorbent dosages ranging from 1 to 6 g L⁻¹. The maximum adsorbed amount of methylene blue was observed with 1 g L⁻¹ of Nerium fruit, and further added biosorbent decreased the adsorption of methylene blue. The high degree of removal of methylene blue registered at the lowest adsorbent dosage may be attributed to the large adsorption sites of the Nerium fruit surface [44].

The plots representing the evolution of adsorbed methylene blue versus contact time (Figure 6d) indicate that about 80% of dye molecules were removed within the first 30 min and attained equilibrium at 90 min. The explanation of this behavior is that, at the initial period of time, many vacant active sites were available at the surface of Nerium fruit, which were responsible for the rapid adsorption of methylene blue molecules. But after this stage, the surface of the biosorbent became partially filled, and therefore, the number of available active sites on the surface of the adsorbent decreased [45].

Figure 6e shows that Nerium fruit has good adsorption capacities at low concentrations of methylene blue. This trend suggests that large active sites on the adsorbents are accessible at this stage. At high dye concentration, the adsorption capacity reached approximately its maximum. This suggests that the interstitial spaces in the solid adsorbent became more saturated. Indeed, the adsorption occurred synchronously on the surface and in the inner section of the adsorbent. Due to prior contact, adsorption proceeded on the surface during the first stage. Then, the active sites on the surface of the adsorbent reacted with the liquid to reach saturation. Consequently, high dye concentrations could easily saturate the surface adsorption sites. At 19 °C, the maximum adsorbed amount of methylene blue was reached at 259 mg/g. Compared with other studied biosorbents published in the literature (

Table 1. A comparison of the biosorption capacities of methylene blue using some biomaterials published in the literature.

Adsorbent	Target	Maximum Adsorption Capacity (mg g−1)	Reference
Nerium fruits	Methylene blue	259	Current work
Pineapple stem	Methylene blue	119	[46]
Lotus leaf	Methylene blue	221.7	[47]
Palm tree waste	Methylene blue	39.47	[48]
Pinus durangensis	Methylene blue	85	[49]
Salix babylonica leaves	Methylene blue	60.97	[50]
Kenaf core fibers	Methylene blue	131.6	[51]
Almond shell	Methylene blue	84.9	[4]
Prickly (peel) bark of cactus fruit	Methylene blue	222	[52]
Algae Sargassum muticum	Methylene blue	279.2	[53]
Broad been peals	Methylene blue	192.7	[54]
Algae Gelidium	Methylene blue	171	[55]
Rejected tea	Methylene blue	147	[56]
Mango seed kernel	Methylene blue	142.9	[57]
Empty fruit bunch	Methylene blue	50.76	[58]
Rice husk	Methylene blue	40.6	[59]
Orange peel	Methylene blue	18.6	[60]
Jute processing waste	Methylene blue	22.47	[61]
Garlic peel	Methylene blue	82.64	[62]
Date pits	Methylene blue	80.31	[63]
Walnut shell powder	Methylene blue	178.9	[64]
Dead Typha angustifolia (L.) leaves	Methylene blue	106.75	[24]
Peach shells	Methylene blue	183.6	[3]

), this level is too high, and the studied biomaterial could be valorized as an excellent biosorbent to treat colored solutions.

The adsorption of methylene blue using Nerium fruit is also affected by a change in temperature (Figure 6e). Results obtained indicate a decrease in methylene blue adsorption capacity with an increase in temperature. This trend is due to the escape of the adsorbed methylene blue ions with increasing energy or temperature.

3.2.2. Kinetic Modeling

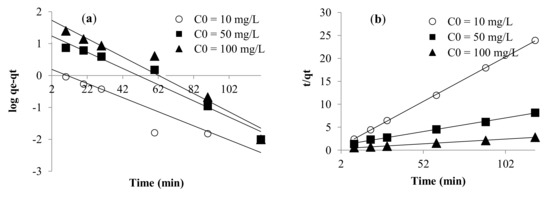

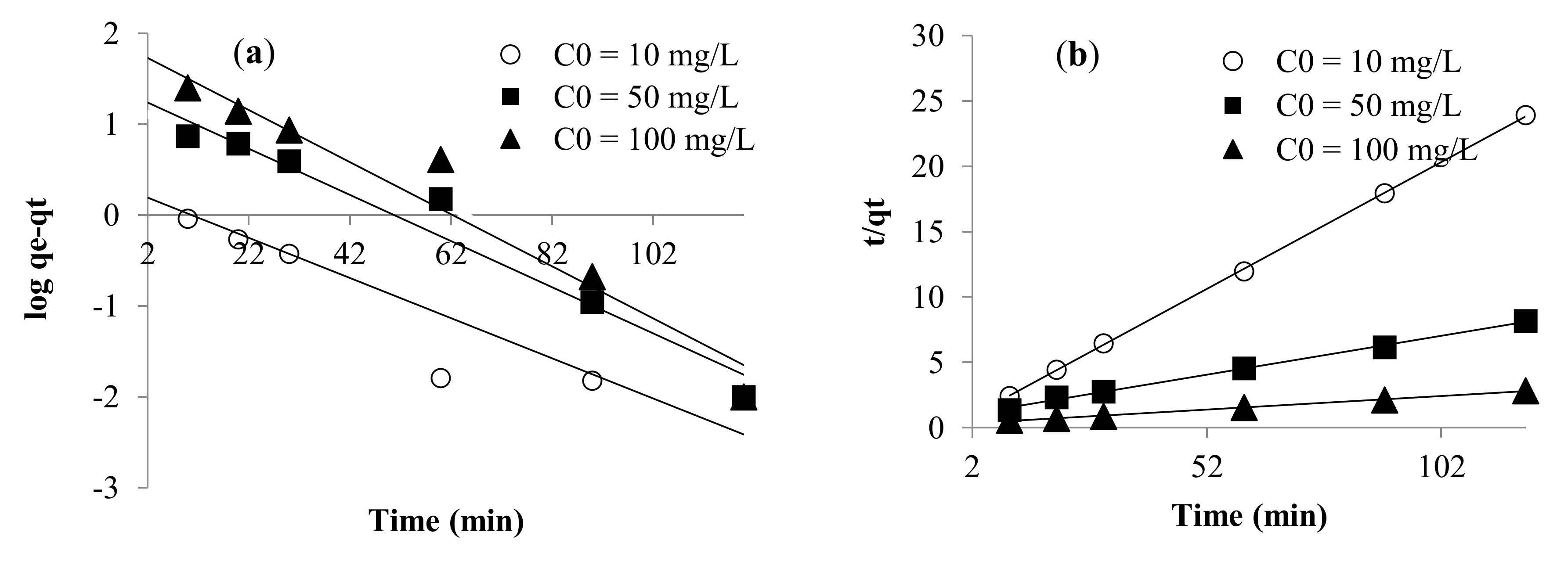

Kinetic data are important to understanding the affinity between methylene blue as adsorbate and Nerium fruit as adsorbent at equilibrium. In fact, this study could provide sufficient information on the biosorption mechanism, and it suggests whether it is physical and/or chemical and mass transport. The adsorption of methylene blue using Nerium fruit was analyzed using the pseudo-first-order (Figure 7a), pseudo-second-order (Figure 7b), Elovich (Figure 7c), and intraparticular diffusion (Figure 7d) equations. With reference to the obtained curves, the kinetic parameters were computed and are summarized in

Table 2. Summarized kinetic constants, Langmuir, Freundlich, Temkin, and Dubinin parameters for the adsorption of methylene blue using powdered fruit derived from Nerium oleander.

Kinetic equations	Constants	Dye concentration (mg/L)			Isotherms	Parameters	Temperature (°C)
Pseudo-first-order		10	50	100			19	40	55
	K1 (min−1)	0.022	0.025	0.028		qm (mg g−1)	769.23	1111.11	1666.67
	q (mg g−1)	1.716	19.40	61.23	Langmuir	KL (L g−1)	0.000623	0.000331	0.00018
	R2	0.86	0.96	0.95		R2	0.91	0.74	0.61
Pseudo-second-order	K2	0.0735	0.0037	0.0014	Thermodynamic parameters	ΔH° (KJ mol−1)	−27.05
	q (mg g−1)	5.154	16.806	48.309		ΔS° (J mol−1)	−153.75
	h	1.954	1.052	3.245		ΔG° (KJ mol−1)	17.84	21.07	23.37
	R2	0.999	0.997	0.997	Freundlich	KF (L g−1)	0.185	0.135	0.080
Elovich	(mg g−1 min−1)	2656.25	2.807	7.648		n	0.902	0.878	0.831
	β (mg g−1 min−1)	2.65	0.305	0.1011		R2	0.98	0.98	0.98
	R2	0.938	0.978	0.948	Temkin	B (J/mol)	68.407	62.665	57.173
Intraparticular diffusion	K (mg g−1 min1/2)	0.606	1.583	4.645		A (L g−1)	0.0314	0.0296	0.0287
						bt (J/mol)	35.48	41.53	47.69
	R2	0.339	0.876	0.848		R2	0.87	0.85	0.84
					Dubinin	q (mg g−1)	115.85	100.35	87.11
						E (KJ/mol)	74.536	79.057	84.52
						KDR (mol2/kJ2)	9 × 10−5	8 × 10−5	7 × 10−5
						R2	0.55	0.54	0.53

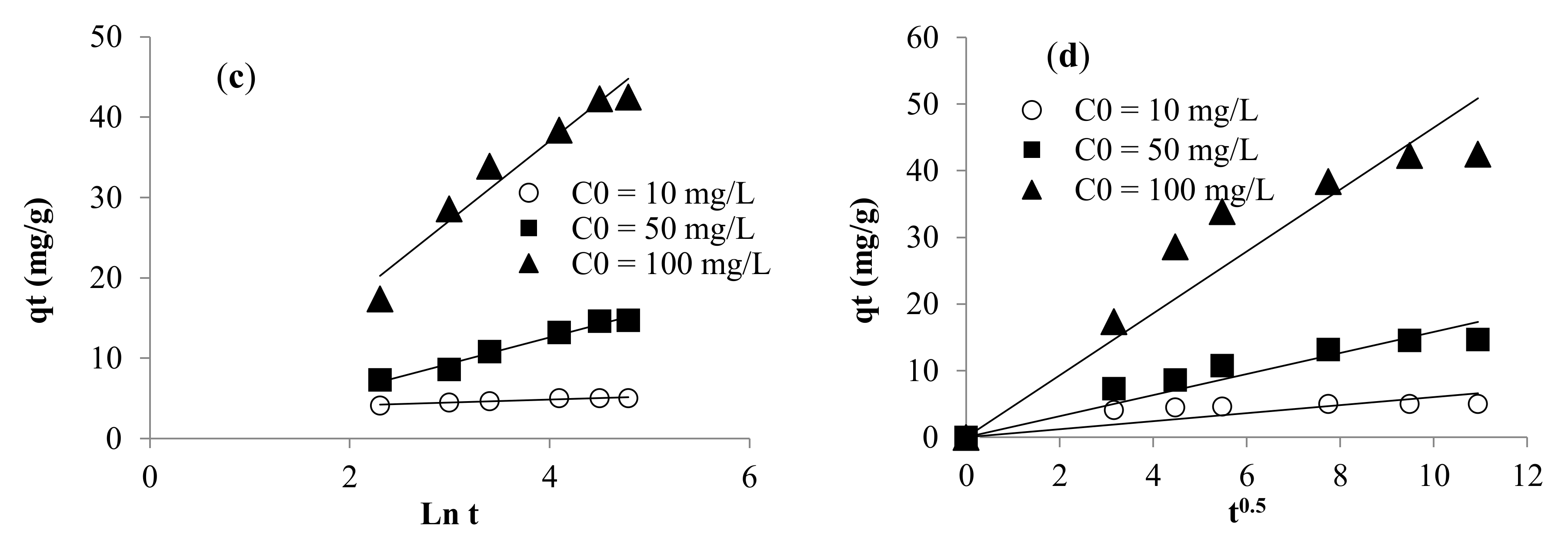

. Following the data registered within the pseudo-first-order equation, we observed that the R² values ranged from 0.86 to 0.95. These low values suggest that this equation cannot describe the kinetic data perfectly. Indeed, this equation does not follow well the whole range of time, and it was valid only during the initial stage of adsorption [65]. However, the correlation coefficients obtained within the pseudo-second-order equation were greater than 0.99, which suggests that the adsorption of methylene blue using Nerium fruit can be considered a chemisorption process [66]. In addition, the high regression coefficient values (0.94 < R² < 0.98) registered in the case of the Elovich equation suggest a chemisorption with heterogeneous pores on the surface of the adsorbent. The plots for the intraparticle diffusion model are obviously diverged from the origin, suggesting that this equation is not the sole rate-controlling step but that other kinetic processes could occur during the adsorption [67].

3.2.3. Isotherm Study and Thermodynamic Parameter Calculation

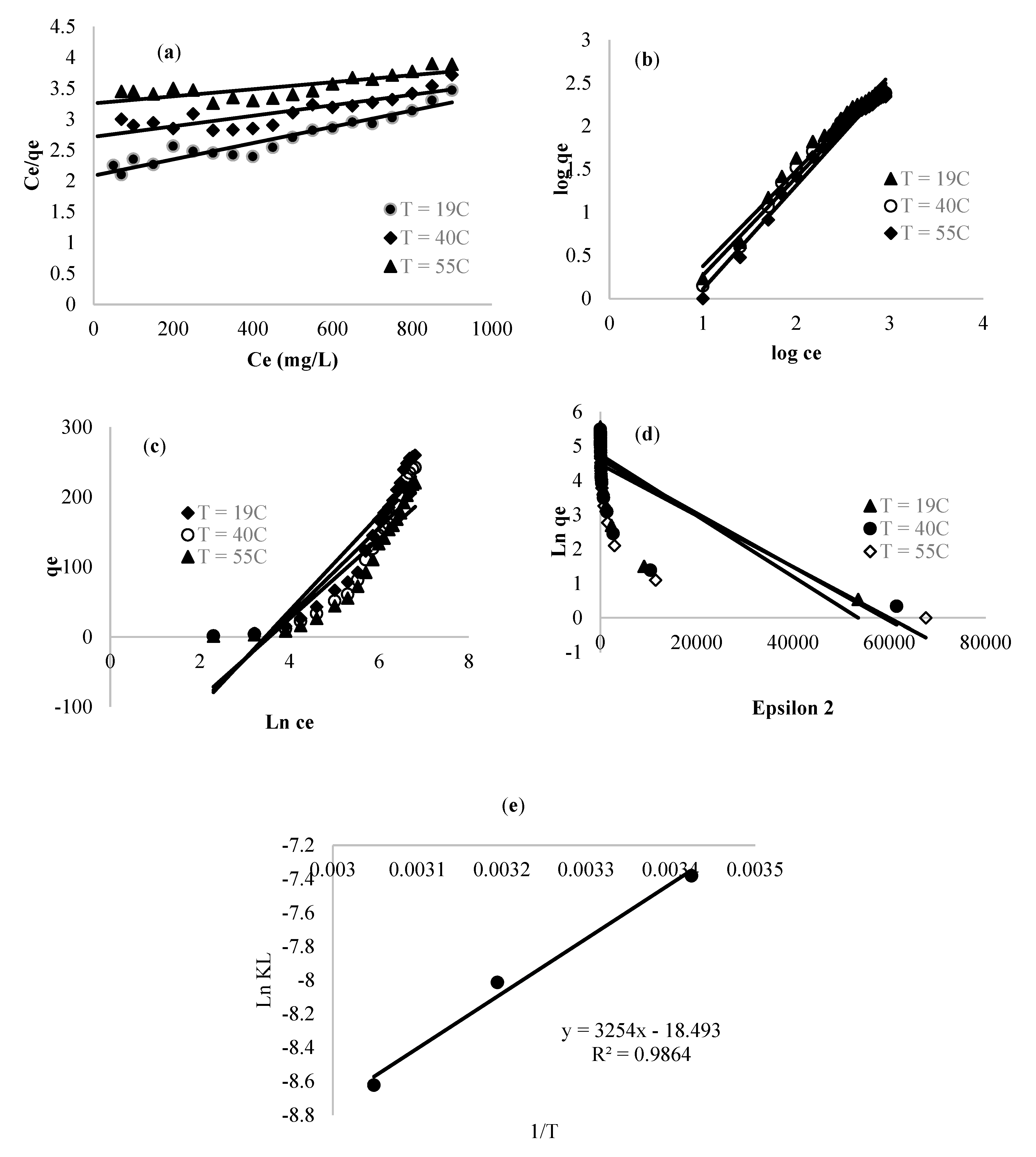

The relationship between Nerium oleander fruit and methylene blue was analyzed using the isotherms of Langmuir, Freundlich, Temkin, and Dubinin–Radushkevich (Figure 8a–d). The fitting parameters are summarized in Table 2. As observed, the equation of Freundlich fitted better the adsorption data (0.98 ≤ R²) compared with the other studied equations. The consistency of the Freundlich equation with the data revealed that the adsorption may occur in the heterogeneous adsorption sites. The adsorption energy constant (B) determined from the Temkin equation decreased from 68.4 to 57.2 when the temperature rose from 19 to 55 °C. This decrease of the adsorbed quantity of methylene blue with an increase in temperature agrees with the data described above. The values of the heat of sorption were high (bt = 35.48.5–47.69 J/mol), suggesting a chemical adsorption process [68]. The mean free energy values, calculated from the Dubinin equation, ranged from 74.53 to 84.52 KJ mol⁻¹. These values are greater than 40 KJ mol⁻¹, suggesting a chemisorption mechanism [69].

The negative value of the enthalpy (ΔH° = −27.05 kJ/mol) proves that the interaction between Nerium fruit and methylene blue is exothermic. This result agrees with the decrease of the adsorbed capacity with temperature. The negative value of the entropy change (ΔS° = −153.75 J/mol) suggests a decrease of the disorder and randomness at the solid–solution interface of methylene blue with Nerium oleander clusters. The positive values of the free energy (ΔG° = 17.84–23.37 kJ/mol) indicate that the biosorption mechanism is nonspontaneous.

4. Conclusions

The results presented herein focused on the characterization and application of Nerium oleander fruit as a biomaterial for the adsorption of methylene blue from aqueous solution. FTIR spectroscopy indicated the presence of the main absorption peak characteristics of cellulose and noncellulose compositions. XRD patterns showed the characteristics of cellulose I composition. SEM features showed a rough and heterogeneous Nerium surface. TGA analysis indicated that Nerium fruit is composed of cellulose and noncellulosic matters. The adsorption capacity reached 259 mg/g at room temperature, which constitutes a high level of capacity compared with other published biosorbents. The values of the mean free energy calculated by the Dubinin isotherm were 74.53 to 84.52 KJ mol⁻¹, suggesting a chemisorption mechanism. It was found that adsorption capacity depends on several experimental parameters, including pH, adsorbent dosage, temperature, etc. The thermodynamic study indicates that the adsorption process was chemical, exothermic, and nonspontaneous. Future work will concern the design of biocomposites based on this material for versatile applications.
