3D Printing of Oil Paintings Based on Material Jetting and Its Reduction of Staircase Effect

1
State Key Laboratory of Pulp and Paper Engineering, South China University of Technology, Guangzhou 510640, China
2
Institute for Visualization and Data Analysis, Karlsruhe Institute of Technology, 76131 Karlsruhe, Germany
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(11), 2536; https://doi.org/10.3390/polym12112536
Received: 19 August 2020 / Revised: 26 October 2020 / Accepted: 27 October 2020 / Published: 29 October 2020
(This article belongs to the Special Issue Functional Polymers in Additive Manufacturing)

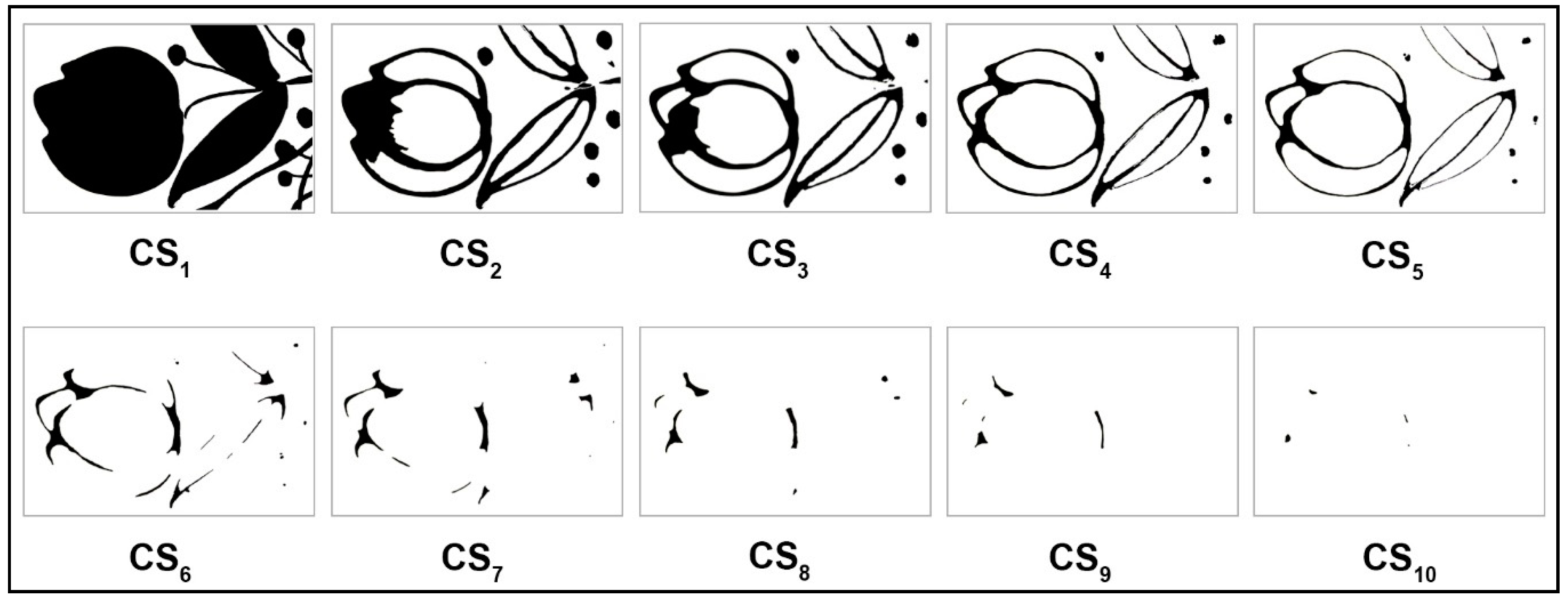

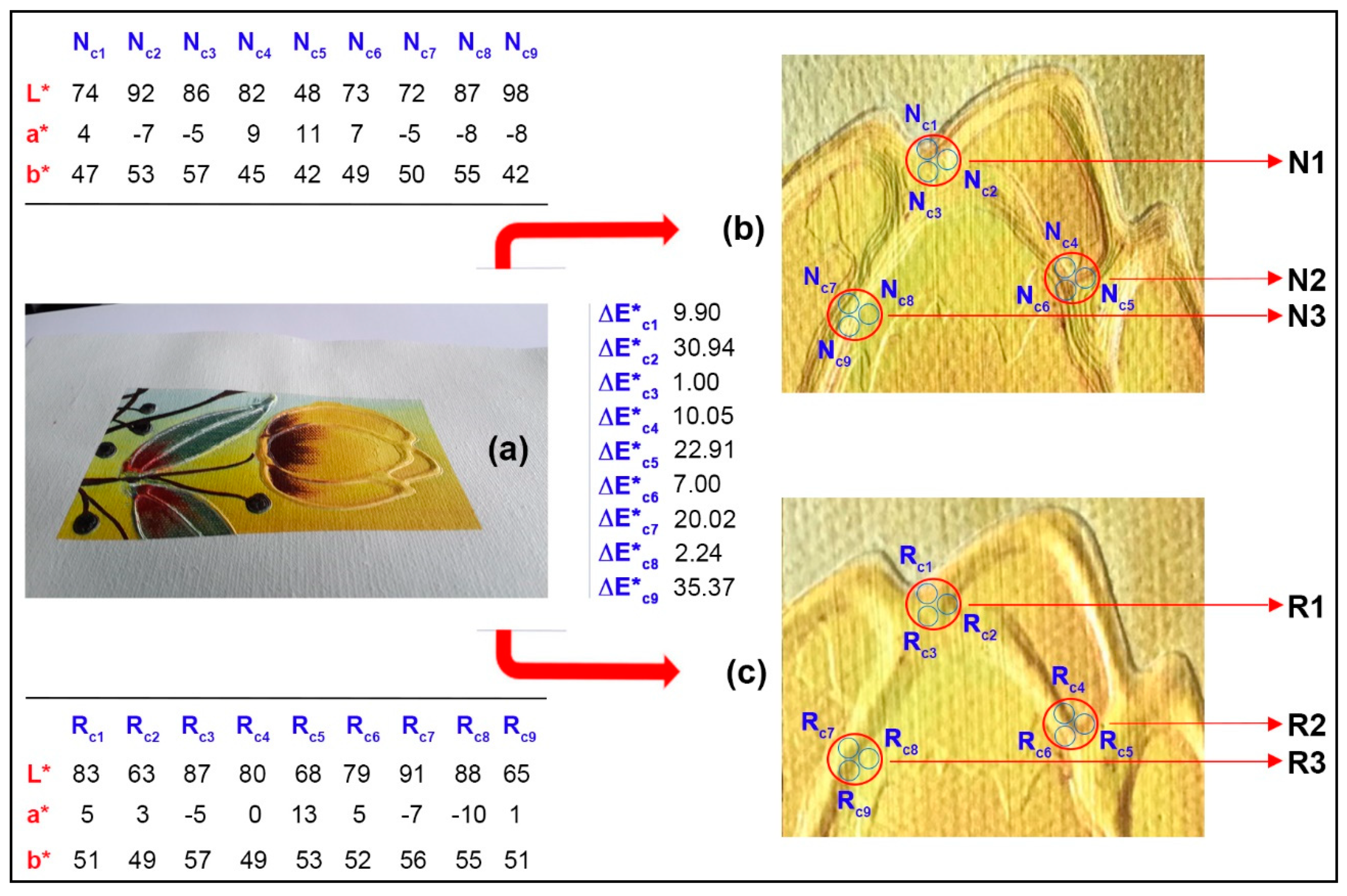

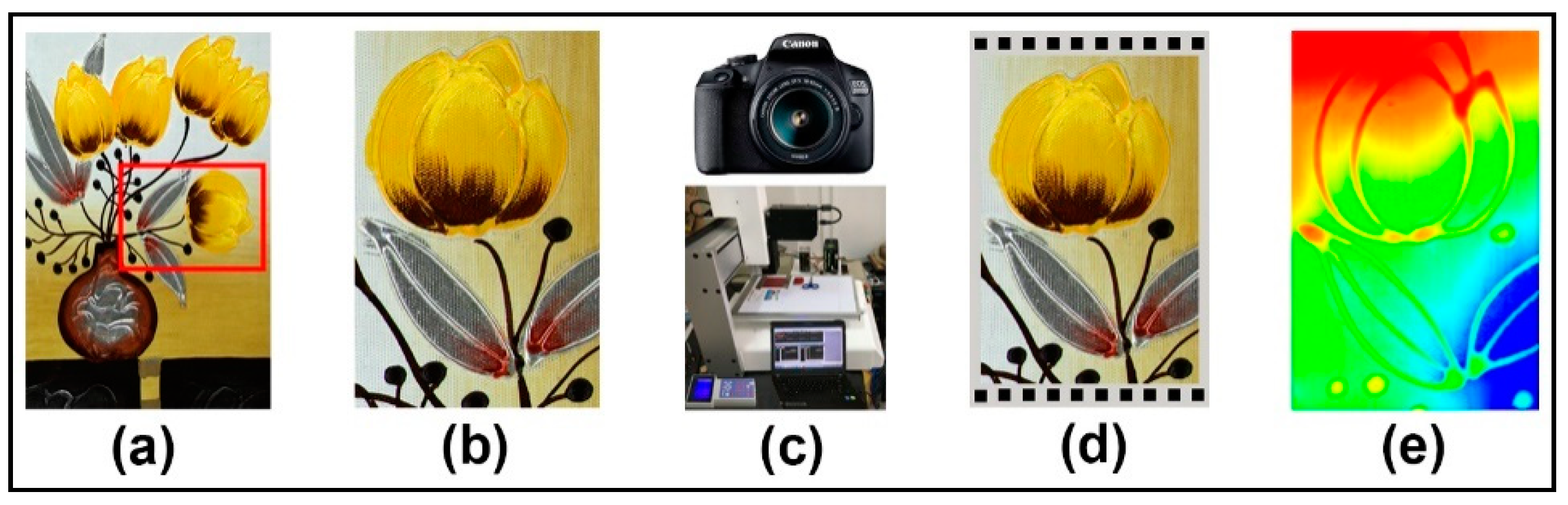

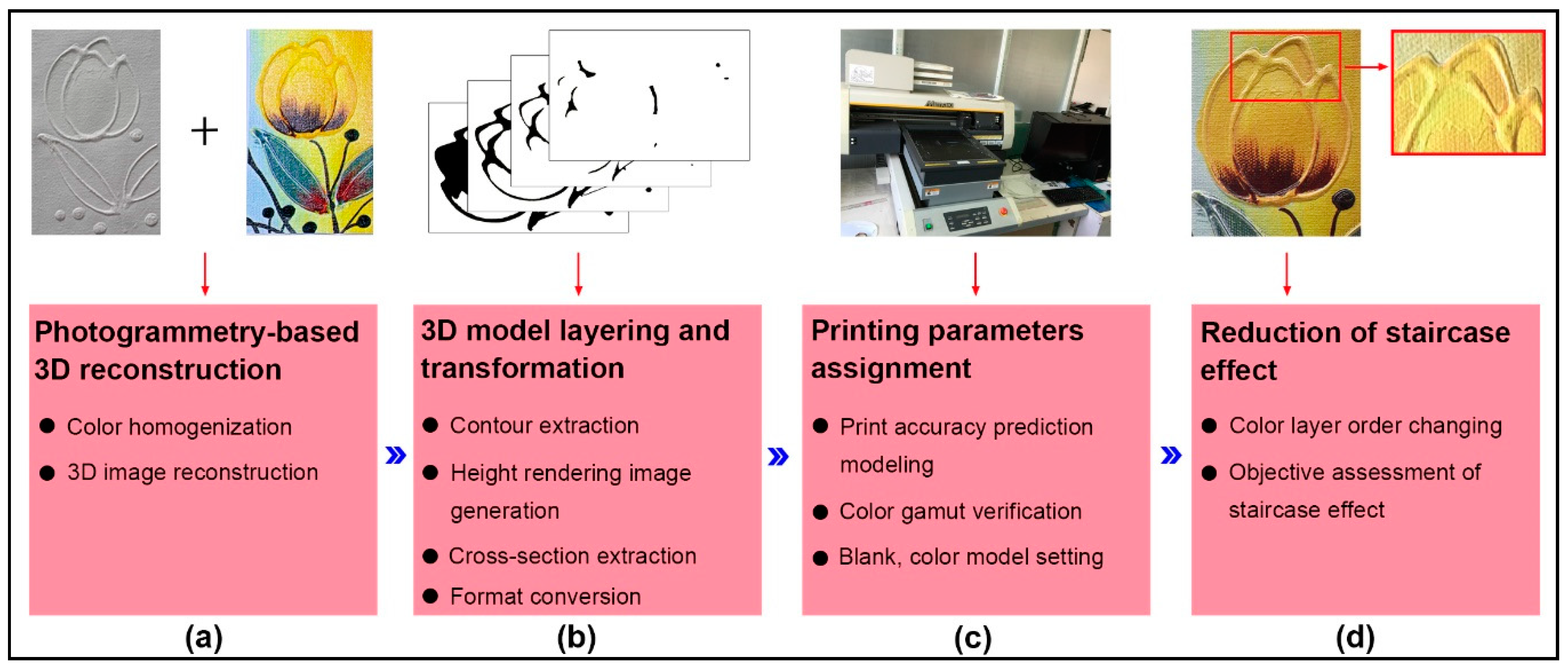

Material jetting is a high-precision and fast 3D printing technique for color 3D objects reproduction, but it also suffers from color accuracy and jagged issues. The UV inks jetting processes based on the polymer jetting principle have been studied from printing materials regarding the parameters in the default layer order, which is prone to staircase effects. In this work, utilizing the Mimaki UV inks jetting system with a variable layer thickness, a new framework to print a photogrammetry-based oil painting 3D model has been proposed with the tunable coloring layer sequence to improve the jagged challenge between adjacent layers. Based on contour tracking, a height-rendering image of the oil painting model is generated, which is further segmented and pasted to the corresponding slicing layers to control the overall printing sequence of coloring layers and white layers. The final results show that photogrammetric models of oil paintings can be printed vividly by UV-curable color polymers, and that the proposed reverse-sequence printing method can significantly improve the staircase effect based on visual assessment and color difference. Finally, the case of polymer-based oil painting 3D printing provides new insights for optimizing color 3D printing processes based on other substrates and print accuracy to improve the corresponding staircase effect. View Full-Text
Keywords: material jetting; 3D printing; oil painting reproduction; staircase effect; surface quality material jetting; 3D printing; oil painting reproduction; staircase effect; surface quality
