# Adsorption of a Helical Filament Subject to Thermal Fluctuations

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Simulations

#### 2.1. Model

#### 2.2. Simulation Results: H-Filaments Confined by a Harmonic Potential

#### 2.3. Simulation Results: H-Filaments Adsorbed in a Localized Surface Potential

#### 2.3.1. Adsorption of H-Filaments, $\gamma >1$

#### 2.3.2. Adsorption of H-Filaments, $\gamma <1$

## 3. Theory

#### 3.1. Instability of the 2D Configuration

- -
- For $B{\omega}_{1}^{2}<C{\omega}_{3}^{2}$, only the largest root ${q}_{1}^{\star}$ is positive. All long wavelength $q<{q}_{1}^{\star}$ are unstable. This corresponds to the case where wavy shapes are favored over circular ones in 2D.
- -
- For $B{\omega}_{1}^{2}>C{\omega}_{3}^{2}$, the two roots ${q}_{1}^{\star},{q}_{2}^{\star}$ are positive. The low q-modes are stable. Intermediate wavelength ${q}_{2}^{\star}<q<{q}_{1}^{\star}$ are unstable. This suggests (it is only a linear stability study) that, when the helical chain goes on the surface, it does so by forming loops of intermediate length. This corresponds to the case where circular shapes are favored over wavy ones in 2D.

#### 3.2. H-Filaments Maintained by a Harmonic Surface Potential

#### 3.3. Stability of a Finite Helical Strand

#### 3.4. H-Filaments Adsorbed in a Localized Surface Potential

## 4. Conclusions

- (a)
- Wavy shapes or 3D loops which avoid self-crossing of the chain, where the frustration of the configuration is mainly localized at some spots along the chain.
- (b)
- Spiral shapes, where the frustration is smeared out and terminal sections escape into 3D tails.

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Simulation Method

**Figure A1.**(

**a**) DOS $g(E,\overline{{z}^{2}})$ of WLCT under various strength of harmonic potential $V\left(z\right)=\frac{1}{2}k{z}^{2}$, $k=0,0.05$ (weak confinement) and $k=0.5$ (strong confinement). (

**b**) Loops of WLCT at various k. (

**c**) $\langle {z}^{2}\rangle $ of WLCT in harmonic potential confinement in log-log scale for $k=0.05,0.1,0.2,0.4$, and $1.0$ from top to bottom. The line is used to guide the eye and represents $\langle {z}^{2}\rangle \propto {k}^{-3/4}$.

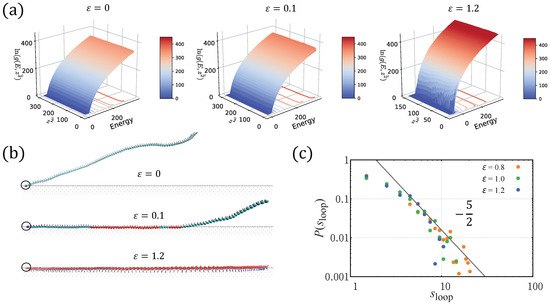

**Figure A2.**(

**a**) DOS $g(E,\overline{{z}^{2}})$ of WLCT filament interacting with short range attractive potential. (

**b**) Representative conformation of WLCT at weak ($\u03f5=0.1$) and strong ($\u03f5=1.2$) adsorption regime. (

**c**) Loop length distribution $P\left(s\right)$. The line represent the scale of adsorption loop length distribution $P\left(s\right)\propto {s}^{-5/2}$.

## Appendix B. Derivation of Partition Sum

## References and Notes

- Fleer, G.; Stuart, M.C.; Scheutjens, J.; Cosgrove, T.; Vincent, B. Polymers at Interfaces; Springer: London, UK, 1993. [Google Scholar]
- Granick, S. Perspective: Kinetic and mechanical properties of adsorbed polymer layers. Eur. Phys. J. E
**2002**, 64, 421–424. [Google Scholar] [CrossRef] [PubMed] - Torchilin, V.P.; Trubetskoy, V.S.; Whiteman, K.R.; Ferruti, P.; Veronese, F.M.; Celiceti, P. New Synthetic Amphiphilic Polymers for Steric protection of Liposomes In Vivo. J. Pharm. Sci.
**1995**, 84, 1049–1053. [Google Scholar] [CrossRef] [PubMed] - Torchilin, V.P.; Trubetskoy, V.S. Which Polymer can Make nanoparticulate drug delivery carriers long-circulating. Adv. Drug Deliv. Rev.
**1995**, 16, 141–155. [Google Scholar] [CrossRef] - Andreeva, D.V.; Fix, J.; Möhwald, H.; Shchukin, D.G. Self-Healing Anticorrosion Coatings Based on pH-Sensitive Polyelectrolyte/Inhibitor Sandwichlike Nanostructures. Adv. Mater.
**2008**, 20, 2789–2794. [Google Scholar] [CrossRef] [PubMed] - Sinden, R.R. DNA Structure and Function; Elsevier: San Diego, CA, USA, 1994. [Google Scholar]
- Holmes, K.C.; Popp, D.; Gebhard, W.; Kabsch, W. Atomic model of the actin filament. Nature
**1990**, 347, 37–44. [Google Scholar] [CrossRef] [PubMed] - Venier, P.; Maggs, A.C.; Carlier, M.F.; Pantaloni, D. Analysis of microtubule rigidity using hydrodynamic flow and thermal fluctuations. J. Biol. Chem.
**1994**, 269, 13353. [Google Scholar] - Volodin, A.; Ahlskog, M.; Seynaeve, E.; Van Haesendonck, C. Imaging the Elastic Properties of Coiled Carbon Nanotubes with Atomic Force Microscopy. Phys. Rev. Lett.
**2000**, 84, 3342. [Google Scholar] [CrossRef][Green Version] - Bassen, D.M.; Hou, Y.; Bowser, S.S.; Banavali, N.K. Maintenance of electrostatic stabilization in altered tubulin lateral contacts may facilitate formation of helical filaments in foraminifera. Sci. Rep.
**2016**, 6, 31723. [Google Scholar] [CrossRef][Green Version] - Li, X.; Holmes, C.K.; Lehman, W.; Jung, H.; Fischer, S. The Shape and Flexibility of Tropomyosin Coiled Coils: Implications for Actin Filament Assembly and Regulation. J. Mol. Biol.
**2010**, 395, 327. [Google Scholar] [CrossRef] - Yogurtcu, O.; Wolgemuth, C.; Sun, S. Mechanical Response and Conformational Amplification in a-Helical Coiled Coils. Biophys. J.
**2010**, 99, 3895–3904. [Google Scholar] [CrossRef][Green Version] - Wada, H.; Netz, R. Hydrodynamics of helical-shaped bacterial motility. Phys. Rev. E
**2009**, 80, 021921. [Google Scholar] [CrossRef] [PubMed] - Kühn, M.; Schmidt, F.; Eckhardt, B.; Thormann, K.M. Bacteria exploit a polymorphic instability of the flagellar filament to escape from traps. Proc. Natl. Acad. Sci. USA.
**2017**, 114, 6340–6345. [Google Scholar] [CrossRef] [PubMed][Green Version] - Wolgemuth, C.W.; Inclan, Y.; Quan, J.; Mukherjee, S.; Oster, G.; Koehl, M.A.R. How to make a spiral bacterium. Phys. Biol.
**2005**, 2, 189. [Google Scholar] [CrossRef] [PubMed] - Taute, K.M.; Pampaloni, F.; Frey, E.; Florin, E.L. Microtubule Dynamics Depart from the Wormlike Chain Model. Phys. Rev. Lett.
**2008**, 100, 028102. [Google Scholar] [CrossRef] [PubMed][Green Version] - Mohrbach, H.; Johner, A.; Kulić, I. Cooperative lattice dynamics and anomalous fluctuations of microtubules. Eur. Biophys. J.
**2012**, 41, 217. [Google Scholar] [CrossRef][Green Version] - Grosberg, A.Y.; Khokhlov, A. Statistical Physics of Macromolecules; AIP: New York, NY, USA, 1994. [Google Scholar]
- Köster, S.; Pfohl, T. An in vitro model system for cytoskeletal confinement. Cell. Motil. Cycloskeleton
**2009**, 66, 771. [Google Scholar] [CrossRef] - Nödig, B.; Köster, S. Intermediate Filaments in Small Configuration Spaces. Phys. Rev. Lett.
**2012**, 108, 088101. [Google Scholar] [CrossRef] - Bouzar, L.; Mueller, M.M.; Messina, R.; Noeding, B.; Koester, S.; Mohrbach, H.; Kulic, I.M. Helical Superstructure of Intermediate Filaments. Phys. Rev. Lett.
**2019**, 122, 098101. [Google Scholar] [CrossRef][Green Version] - Sanchez, T.; Kulić, I.M.; Dogic, Z. Circularization, photomechanical switching, and a supercoiling transition of actin filaments. Phys. Rev. Lett.
**2010**, 104, 098103. [Google Scholar] [CrossRef][Green Version] - Riveline, D. Études du FIlament D’actine et du Moteur Actine-Myosine Sous L’action de Forces Extérieures. Ph.D. Thesis, Paris, France, 1997. Available online: https://www.theses.fr/1997PA066758 (accessed on 9 January 2020).
- Nam, G.; Lee, N.-K.; Mohrbach, H.; Johner, A.; Kulić, I.M. Helices at interfaces. EPL
**2012**, 100, 28001. [Google Scholar] [CrossRef][Green Version] - Chae, M.-K.; Kim, Y.; Johner, A.; Lee, N.-K. Super-helical filaments at surfaces: Dynamics and elastic responses. Soft Matter
**2018**, 48, 2346–2356. [Google Scholar] [CrossRef] [PubMed] - De Gennes, P.G. Polymers at an interface; a simplified view. Adv. Colloid Interface Sci.
**1987**, 27, 189. [Google Scholar] [CrossRef] - Semenov, A.N.; Bonet-Avalos, J.; Johner, A.; Joanny, J.F. Adsorption of Polymer Solutions onto a Flat Surface. Macromolecules
**1996**, 29, 2179. [Google Scholar] [CrossRef] - Lee, N.-K.; Johner, A. Defects on Semiflexible Filaments: Kinks and Twist-kinks. J. Korean Phys. Soc.
**2016**, 68, 923–928. [Google Scholar] [CrossRef] - Fierling, J.; Johner, A.; Kulić, I.M.; Mohrbach, H.; Müller, M.M. How bio-filaments twist membranes. Soft Matter
**2016**, 12, 5747. [Google Scholar] [CrossRef] - Quint, D.A.; Gopinathan, A.; Grason, G.M. Conformational collapse of surface-bound helical filaments. Soft Matter
**2012**, 8, 9460. [Google Scholar] [CrossRef][Green Version] - Aggeli, A.; Nyrkova, I.; Bell, M.; Harding, R.; Carrick, L.; McLeish, T.; Semenov, A.; Boden, N. Hierarchical self-assembly of chiral rod-like molecules as a model for peptide beta-sheet tapes, ribbons, fibrils, and fibers. Proc. Natl. Acad. Sci. USA
**2001**, 98, 11857–11862. [Google Scholar] [CrossRef][Green Version] - Friedhoff, P.; von Bergen, M.; Mandelkow, E.M.; Mandelkow, E. Structure of tau protein and assembly into paired helical filaments. Biochim. Biophys. Acta (BBA) Mol. Basis Dis.
**2000**, 1502, 122–132. [Google Scholar] [CrossRef] - Wang, F.; Landau, D.P. Efficient, Multiple-Range RandomWalk Algorithm to Calculate the Density of States. Phys. Rev. Lett.
**2001**, 86, 2050–2053. [Google Scholar] [CrossRef][Green Version] - Wang, F.; Landau, D.P. Determining the density of states for classical statistical models: A random walk algorithm to produce a flat histogram. Phys. Rev. E
**2001**, 64, 056101. [Google Scholar] [CrossRef][Green Version] - Yan, Q.; Faller, R.; de Pablo, J.J. Density-of-states Monte Carlo method for simulation of fluids. J. Chem. Phys.
**2002**, 116, 8745–8749. [Google Scholar] [CrossRef][Green Version] - Rathore, N.; de Pablo, J.J. Monte Carlo simulation of proteins through a random walk in energy space. J. Chem. Phys.
**2002**, 116, 7225–7230. [Google Scholar] [CrossRef][Green Version] - Chirico, G.; Langowski, J. Kinetics of DNA supercoiling studied by Brownian dynamics simulation. Biopolymers
**1994**, 34, 415. [Google Scholar] [CrossRef] - Here we reproduce relations expressing the radius and pitch of a helix as a function of its curvature and torsion. One possible representation of the helix in terms of the Euler angles defined below is: ψ = π/2, tanθ = ω
_{1}/ω_{3}, ϕ^{′}= ω_{3}/cosθ. - Bouzar, L.; Muller, M.M.; Gosselin, P.; Kulic, I.M.; Mohrbach, H. Squeezed helical elastica. Eur. Phys. J. E
**2016**, 39, 114. [Google Scholar] [CrossRef] [PubMed] - Kim, Y.; Chae, M.-K.; Lee, N.-K.; Jung, Y.; Johner, A. Irreversible Adsorption of Wormlike Chains: Alignment Effects. Macromolecules
**2017**, 50, 6285–6292. [Google Scholar] [CrossRef] - Eslami, H.; Müller-Plathe, F. How thick is the interphase in an ultrathin polymer film Coarse-grained molecular dynamics simulations of polyamide-6, 6 on graphene. J. Phys. Chem. C
**2013**, 117, 5249–5257. [Google Scholar] [CrossRef] - Baschnagel, J.; Meyer, H.; Wittmer, J.; Kulić, I.M.; Mohrbach, H.; Ziebert, F.; Nam, G.; Lee, N.-K.; Johner, A. Semiflexible Chains at Surfaces: Worm-Like Chains and beyond. Polymers
**2016**, 8, 286. [Google Scholar] [CrossRef][Green Version] - Lee, N.-K.; Jung, Y.; Johner, A. Irreversible Adsorption of Worm-Like Chains. Macromolecules
**2015**, 48, 7681–7688. [Google Scholar] [CrossRef] - Zhou, C.; Schulthess, T.C.; Torbrügge, S.; Landau, D.P. Wang-Landau Algorithm for Continuous Models and Joint Density of States. Phys. Rev. Lett.
**2006**, 96, 120201. [Google Scholar] [CrossRef][Green Version] - We may for example impose the constraint that the square of the sums vanish by a common “Lagrange multiplier” λ, but unlike the usual technique let λ go to infinity. It is then enough to keep the leading quadratic term in lambda, which sets the determinant apart from an unimportant numerical prefactor.

**Figure 1.**Various shapes of super-Helical filaments. (

**a**) The helical shape of the ground state conformation of H-filaments (${\omega}_{1}=0.81{\sigma}^{-1}$, ${\omega}_{2}=0$, and ${\omega}_{3}=0.10{\sigma}^{-1}$). The local twist and curvature are represented by a set of orthogonal vectors $\{\overrightarrow{u},\overrightarrow{f},\overrightarrow{v}\}$ along the filament backbone. $\overrightarrow{f},\overrightarrow{v}$ are defined in the material frame orthogonal to the local tangent vector $\overrightarrow{u}$. Top panels in (

**b**–

**d**) show H-filaments with $\gamma >1$, (${\omega}_{1}=0.81{\sigma}^{-1}$, ${\omega}_{2}=0$, and ${\omega}_{3}=0.10{\sigma}^{-1}$), where circular shapes are ground states when squeezed. Bottom panels in (

**b**–

**d**) show H-filaments with $\gamma <1$, (${\omega}_{1}=0.09{\sigma}^{-1}$, ${\omega}_{2}=0$, and ${\omega}_{3}=0.19{\sigma}^{-1}$), where wavy shapes are ground states when squeezed. The localized parts of H-filaments ($\left|z\right|<0.2\sigma $) are shown in red. (

**b**) Bulk conformations subject to thermal fluctuations. (

**c**) Typical conformations of H-filaments confined by harmonic potential $V\left(z\right)=\frac{1}{2}k{z}^{2}$ and (

**d**) adsorbed under a localized surface potential ${U}_{ads}\left(z\right)=4\u03f5[{(\sigma /z)}^{12}-{(\sigma /z)}^{6}]$. The numbers are the strength of harmonic potential k and the surface potential $\u03f5$. The figures with horizontal lines indicating the line of $z=0$ are side views. The flexural modulus $B=50\sigma $k${}_{B}$T and twist modulus $C=B/2$.

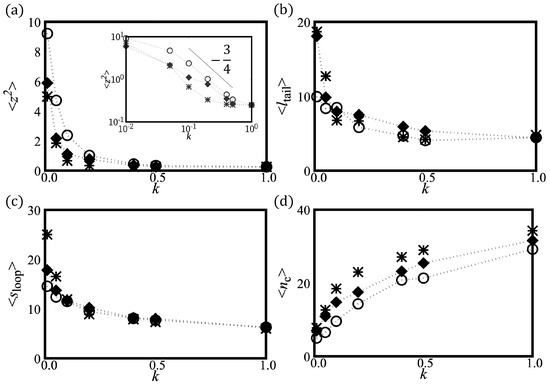

**Figure 2.**Various measured properties of H-filaments, consisting of N = 90 monomers, confined by a harmonic potential $V\left(z\right)=\frac{1}{2}k{z}^{2}$. One end is anchored at $z=0$. Symbols ∘, filled ⋄, and *, respectively, stand for: (i) $\gamma >1$; (ii) $\gamma <1$; and WLCT (${\omega}_{1}={\omega}_{2}={\omega}_{3}=0$). (

**a**) The height fluctuation $\langle {z}^{2}\rangle $ as the function of the stiffness k of the harmonic potential. The solid line represents analytical calculation in weak fluctuation limit (Equation (11)) for Case (i), ${\omega}_{1}=0.18{\sigma}^{-1}$, and ${\omega}_{3}=0.10{\sigma}^{-1}$. The inset shows mean squared height $\langle {z}^{2}\rangle $ as a function k on log-log scale. The solid line is used to guide the eye for the exponent in relation $\langle {z}^{2}\rangle \propto {k}^{-3/4}$ expected for the WLC. (

**b**) Average tail length $\langle {l}_{\mathrm{tail}}\rangle $; (

**c**) average loop length $\langle {s}_{\mathrm{loop}}\rangle $; and (

**d**) mean number of confined monomers $\langle {n}_{\mathrm{c}}\rangle $.

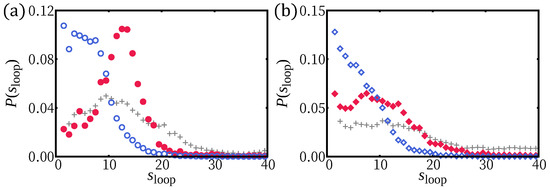

**Figure 3.**The loop length distributions for: (

**a**) $\gamma >1$ (∘); and (

**b**) $\gamma <1$ (⋄). Loop length is defined as the segment length that consecutively belongs to $\left|z\right|>0.2$. Two representative regimes, weak confinement regime k = 0.05 and strong confinement regime $k=1.0$, are shown by filled and empty symbols, respectively. The loop distribution with $k=0$ is shown as gray symbols (+) for comparison. For $\gamma >1$, the loop length making half of the 3D helical period is most prevalent at weak confinement. Smaller loops are equally common for $\gamma <1$, where the H-filament is more confined (see Figure 1a). Strongly confined segments show almost flat distributions for $\gamma >1$ and two sub-populations for $\gamma <1$.

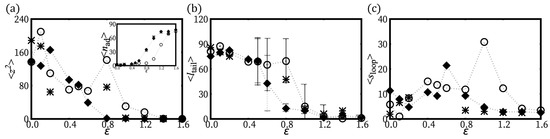

**Figure 4.**H-filaments adsorbed in a localized surface potential ${U}_{ads}$. Various properties are measured for a H-filament of length $S=90\sigma $ with one of its ends anchored at $z=0$. Symbols ∘ and filled ⋄ stand for the case of $\gamma >1$ and $\gamma <1$, respectively. WLCT case at strong/weak adsorption regimes are represented as *. (

**a**) $\langle {z}^{2}\rangle $ at various strengths of surface potential $\u03f5$. The inset shows the average number of the adsorbed monomers ($\left|z\right|<0.2$). (

**b**) Average tail length $\langle {l}_{\mathrm{tail}}\rangle $; and (

**c**) average loop length $\langle {s}_{\mathrm{loop}}\rangle $ at various $\u03f5$.

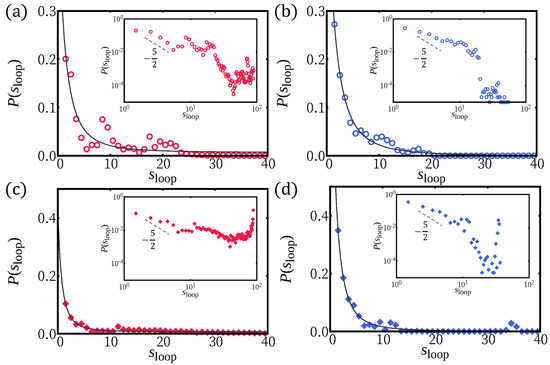

**Figure 5.**The loop length distributions of H-filament $\gamma >1$ (

**a**,

**b**) and $\gamma <1$ (

**c**,

**d**) for the two representative values of $\u03f5$: weak adsorption regime ($\u03f5$ = 0.1) (

**a**,

**c**); and strong adsorption regime ($\u03f5$ = 1.0) (

**b**,

**d**). The envelop of distributions in general follows WLC statistics ${s}^{-5/2}$ (with an offset $\lesssim 1$ in s), which is represented as solid line.

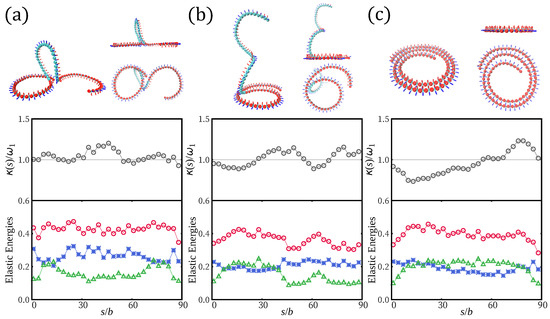

**Figure 6.**Three representative shapes of adsorbed H-filaments ($\gamma >1$) at: (

**a**) $\u03f5$ = 0.4; (

**b**) $\u03f5$ = 0.8; and (

**c**) $\u03f5$ =1.6. The localized parts are shown in red. The middle panels show measured local curvatures $\kappa \left(s\right)$ relative to the preferred curvature ${\omega}_{1}=0.181$. Local curvatures $\kappa \left(s\right)=\sqrt{{\mathsf{\Omega}}_{1}^{2}+{\mathsf{\Omega}}_{2}^{2}}$ (∘) are averaged over several similar conformations along the contour s. Lower panels show twist energy density (green ▵), bending energy density (blue *), and the sum of these two (red ∘).

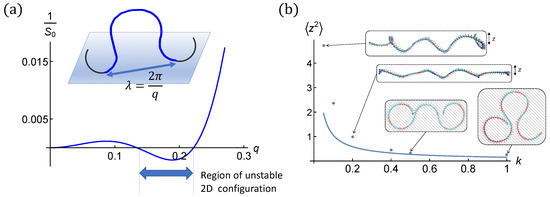

**Figure 7.**(
