Polymers 2019, 11(9), 1475; https://doi.org/10.3390/polym11091475

Article
Polystyrene Nanocomposites Reinforced with Novel Dumbbell-Shaped Phenyl-POSSs: Synthesis and Thermal Characterization
1
Department of Civil Engineering and Architecture and INSTM UdR, University of Catania, V.le A. Doria 6, 95125 Catania, Italy
2
Department of Chemical Science, University of Catania, V.le A. Doria 6, 95125 Catania, Italy
3
Department of Pharmaceutical Sciences University of Catania, V.le A. Doria 6, 95125 Catania, Italy
*
Authors to whom correspondence should be addressed.
Received: 22 August 2019 / Accepted: 4 September 2019 / Published: 9 September 2019

Abstract

:
Two series of novel dumbbell-shaped polyhedral oligomeric silsesquioxanes (POSSs), fully functionalized with phenyl groups at the corner of the silicon cages, were used to prepare polystyrene (PS) nanocomposites through the method of in situ polymerization. The percentage of the molecular filler reinforcement was set as 5% w/w of POSS and was checked by 1H-NMR spectroscopy. The obtained nanocomposites were characterized by thermogravimetric analysis (TGA), differential scanning calorimetry (DSC), Fourier transform infrared spectroscopy (FTIR) and scanning electron microscopy (SEM). Thermal and morphological properties were evaluated and compared among the nanocomposites obtained using the two different series of dumbbell-shaped POSSs and with the net PS. The thermal parameters for the prepared nanocomposites were very high when compared with those of neat PS, and they evidenced significant differences when an aliphatic or aromatic bridge was used to link the silicon cages. SEM analysis results allow us to hypothesize a justification for the different resistance to thermal degradation showed by the two series of molecular reinforcement.
Keywords:
polyhedral oligomeric silsesquioxanes; nanocomposites; POSS; polystyrene; thermal behavior; SEM analysis

1. Introduction

Since the middle of the last century, from common household goods to the important biomedical devices, by way of food packaging or building materials, polymers have made our lives easier and safer [1,2,3,4,5]. More recently, both for improving their properties and for reducing their environmental impact, eco-friendly inorganic materials have been added to polymeric matrices, thus leading to the production and commercialization of new polymer-based hybrid systems [6,7,8]. Literature has evidenced that property improvements cannot be obtained by a simple addition of an inorganic filler to the matrix [9], but a nanometric dispersion of the particles [10,11,12] and a good compatibility, obtainable via filler particle functionalization [13,14] are necessary. In the last few years, following these suggestions and by looking at the use of particular molecules like polyhedral oligomeric silsesquioxanes (POSSs) [15,16,17], our research group has been engaged in the design, synthesis and utilization of polymers reinforcement (polystyrene in particular) of POSSs [18,19,20]. This particular filler presents a hybrid nature due to its inorganic cage of silicon and oxygen atoms linked to organic groups by covalent bonds, thus making them molecules with the resulting advantages [21]. This aspect allows researchers to best use their nano-sized cage structures, dimensionally comparable to the most common polymer segments, thus producing an innovative chemical composition [22,23,24,25]. Starting from these considerations, we studied in the past several families of POSSs containing isobutyl, cyclopentyl and phenyl groups, with the aim of investigating whether and to what extent the physical properties of POSSs were modified by the introduction of these groups on the silicon cage [20,26,27]. We found that for phenyl-substituted POSSs, a higher resistance to the thermal degradation than cyclopentyl derivatives, and, for these last ones, a higher thermal stability than isobutyl-substituted POSSs. However, it has been well known in literature that the presence of phenyl groups increases the thermal stability of silicon cages [28,29], but their presence in a matrix decreases their compatibility, in comparison with aliphatic groups [30]. Hence, we had the need to verify how our POSSs, differently functionalized, behaved in a polymeric matrix—in particular in the polystyrene (PS) selected by us for this purpose. This need, combined with the aspiration to synthesize innovative POSS systems, which the literature has dealt with in the meantime, called “bridged” or “dumbbell-shaped” POSSs [31,32,33], induced us to verify the compatibility of this typology of hyper functionalized POSSs with a polystyrene matrix. Dumbbell-shaped POSSs aroused our interest because their change of organic bridge leads to a change of geometry, rigidity and symmetry of the obtained POSS, thus affecting their ability to be dispersed at a nanometric level [12,13,21].
In the present work, we synthesized the PS-based nanocomposites which had two different series of novel dumbbell-shaped POSS molecules (as fillers), fully phenyl functionalized in the periphery of the cage but linked with different aliphatic and aromatic bridges. The prepared PS/POSS nanocomposites were subjected to 1H NMR to check if the filler content fit with the desired one, whilst thermal stability was evaluated by means of thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC). Finally, scanning electron microscopy (SEM) was performed to gain information about the POSSs dispersion within the polystyrene (PS) matrix, whilst Fourier transform infrared spectroscopy (FTIR) was used to analyze the residue obtained from the TGA experiments.

2. Experimental

2.1. Materials and Methods

1,2-bis(triethoxysilyl)ethane and 4,4′-bis(triethoxysilyl)biphenyl have been acquired from Aldrich Co. (St. Gallen, Switzerland) and used without further purification. A Na-benzophenone mixture was employed to distill the tetrahydrofuran (THF). 1,6-bis(triethoxysilyl)hexane, 1,10-bis(triethoxysilyl)decane and 4,4′-bis(triethoxysilyl)phenyl ether were obtained by using an excess of tetraethoxysilane (TEOS) in dry THF and the Grignard reagent according to the description reported elsewhere [34]. Trisilanolphenyl POSS was acquired from Hybrid Plastics Co. (Hattiesburg, MS, USA) and used without further purification. Styrene, 2,2-azobis (isobutyronitrile) (AIBN), methanol and toluene were acquired from Aldrich Co. (St. Gallen, Switzerland) and purified in our laboratory: Styrene was purified in an inhibitor removal column; AIBN was re-crystallised twice from dry ethanol at temperatures less than 40 °C and in a dark light condition; toluene was stirred over calcium hydride for 24 h and distilled in a nitrogen flow.
Dumbbell-shaped POSSs, (Table 1 and Table 2), were synthesized according with the procedure reported elsewhere [35]. A 5% w/w POSS/styrene mixture, in toluene, was used for in situ free-radical polymerization: After being dissolved in toluene, AIBN was added to the POSS/styrene mixture, and then we proceeded to freeze everything using liquid nitrogen; after degassing by using a vacuum pump, we thawed it. This procedure was repeated three times, and thus the tube was sealed under vacuum and heated at 70 °C for 24 h under stirring. Finally, we obtained a solution that was poured in methanol, from which we collected, by filtration, the PS/POSS nanocomposite. The samples were then dried at 40 °C, under vacuum, obtaining yields of 82%, 83%, 88%, 86% and 79% for samples 1, 2, 3, 4 and 5, respectively. PS, used for comparison, was prepared by using the same procedure.

2.2. 1H NMR Spectroscopy

Varian Unity INOVA equipment (1H 500 MHz, Varian, Palo Alto, CA, USA) was employed to check the exact filler content. Measurements were performed by using CDCl3 as a solvent and tetramethylsilane (TMS) as an internal standard. The evaluation was carried out by taking into account the ratio in the 1H NMR spectra among the POSS aromatic hydrogens and the polystyrene ones.

2.3. Scanning Electron Microscopy (SEM)

The nanocomposites morphology was studied by SEM (ZEISS EVO MA 15, EVO-ZEISS, Cambridge, UK). In order to perform the analysis, an accelerating voltage of 15,000 KV was used. All the samples were treated overnight in an oven at 120 °C to remove any traces of toluene (Figure 1). Scans were carried out at different magnifications ranging from 500× to 25,000×.

2.4. Fourier Transform Infrared Spectroscopy (FTIR)

A Perkin Elmer Spectrum 100 spectrometer was employed in the determination of the FTIR spectra of the solid residues obtained from the TGA experiments at 700 °C. Spectra were carried out, without treatments, directly on samples at room temperature. For this purpose, we used an attenuated total reflectance (ATR) sampling accessory. Measurements were performed in the range from 4000 to 650 cm−1, with a resolution of 4.0 cm−1.

2.5. Differential Scanning Calorimetry (DSC)

Calorimetric investigations were performed, by using a Mettler DSC 1 Star System (Greifensee, Swizterland), for the determination of the glass transition temperatures (Tg) of PS and PS/POSSs nanocomposites. The calibration of the DSC apparatus was carried out following a consolidated procedure [36], showing a very good agreement with the literature values of indium and tin [36,37]. The DSC scans were carried out from room temperature up to 200 °C, at a heating rate of 10 °C·min−1, on samples of about 6.0 × 10−3 g, held in sealed aluminum crucibles.

2.6. Thermogravimetric Analysis (TGA)

Thermal degradations were carried out in a Mettler Thermogravimetric Analyzer TGA 1 Star System (Mettler, Greifensee, Swizterland). For the equipment calibration, we considered the magnetic properties change of three metal standards (Isatherm, Nickel-alloy and Trafoperm 86, Mettler, Greifensee, Swizterland) at their Curie points (148, 355 and 750 °C), and we followed a consolidated procedure [38]. TGA scans were carried out by using 5 × 10−3 g of the sample at 10 °C·min−1 in the temperature range of 25–700 °C in a nitrogen (flow = 0.02 L·min−1) and a static air atmosphere. The International Confederation for Thermal Analysis and Calorimetry (ICTAC) Kinetics Committee recommendations were followed to correct the error in mass determination due to the reduction of the buoyancy (Archimedes) force with the temperature increase [39]. The percentage of the non-degraded sample, (1 − D)%, was reported as a function of the temperature, where D = (WoW)/Wo, and Wo and W were the weights at the starting point and during the experiment, respectively. TGA scans were performed in triplicate, and the average value was considered.

3. Results and Discussion

After the in situ polymerization of styrene in the presence of 5% of POSS, the obtained composites were subjected to 1H NMR spectroscopy, with the aim to verify if the POSS percentage corresponded to the desired one.
A difference between the actual POSS contents in the obtained samples and the theoretical content was observed, which could be explained by an oligomers formation in the reactant mixtures [40]. These oligomers, which are soluble in methanol, remained in the solution, thus resulting in a richer POSS. This occurrence justified the yields obtained and the POSS percentage in nanocomposites that are reported in Table 3 together with the thermal parameters.
Thermogravimetric (TG) experiments on PS and prepared nanocomposites were performed in dynamic heating conditions in the temperature range of 25–700 °C by using a scanning rate of 10 °C min-1, selected among the values normally used in this typology of experiments.
The degradations in inert environments were first performed, and the corresponding TG curves are reported in Figure 2 and Figure 3, whilst the TG curves obtained in oxidative conditions are reported in Figure 4 and Figure 5. Two parameters were considered for the assessment of the resistance to the thermal degradation, namely the temperature at 5% mass loss (T5%) and the solid residue at 700 °C.
Both in the inert atmosphere and in the oxidizing one, the net PS reached complete degradation more quickly in air than in nitrogen, whilst all the nanocomposites evidenced the formation of a stable residue up to 700 °C (Figure 2, Figure 3, Figure 4 and Figure 5), ranging from about 10% for PS-reinforced with aliphatic bridged POSSs to about 20% for PS-reinforced by using phenyl bridged POSSs. The presence of a residue at 700 °C, a temperature at which PS was completely degraded in a quantity higher than the percentage of POSS in the matrix (Table 3) allowed us to speculate about a good dispersion of the POSS molecules in the matrix that resulted in an active interaction among the molecular filler and the PS.
SEM investigation confirmed this hypothesis, showing a good dispersion of the functionalized silicon cages within the polymer (Figure 6). Probably due to the higher flexibility of the aliphatic bridges in respect to the aromatic ones that joint the POSS cages used to reinforce the polymer, a better dispersion of POSS 13 then for POSS 4 and 5 was observed within the matrix (Figure 7).
POSS 4 and 5, with their spatially blocked aromatic bridges, probably did not permit the same freedom of movement of the silicon cages in the dumbbell-shaped POSSs with aliphatic bridges, thus leading to a different symmetric/asymmetric structure that facilitated POSS auto-aggregation phenomena for samples 4 and 5 (Figure 7), which formed large block aggregates.
The nanocomposites evidenced, both in nitrogen and in air, values of T5% higher than those of the pristine polymer, ΔT5% ≈ +35 °C in nitrogen and ΔT5% ≈ +60 °C in air (Table 3). These high values of T5%, indicative of a good resistance to the thermal degradation, highlighted an increment of the thermal stability of the various nanocomposites in respect to the PS following the introduction of dumbbell-shaped POSSs in the matrix.
The degradations in oxidative and in inert environments proceeded similarly—both in the shape of TG curves and in the values at a temperature of 5% mass loss—that were comparable each other, meaning that the different atmosphere did not affect the degradation mechanism. Derivative thermogravimetric (DTG) curves are reported in Figure 8, Figure 9, Figure 10 and Figure 11 and show a main degradation step along with a second, smaller one at higher temperatures (550–600 °C) that was more evident for the nanocomposites reinforced with the phenyl bridged POSS, thus leading us to think that this stage may be due to POSS degradation.
In order to gain information on the nature of the solid residue obtained at the end of TGA scans in both used atmospheres, we performed FTIR analysis, which evidenced only the presence of the silica characteristics peaks at about 1100 cm−1 (Figures S1 and S2).
Finally, the glass transition temperature was calorimetrically determined to better characterize the obtained compounds. DSC curves are reported in Figure 12, and the Tg values are reported in Table 3, showing a very small increment of the glass transition temperature for the nanocomposites in respect to virgin PS. This behavior could be attributed, in our hypothesis, to the nature of the groups at the POSS cage vertex. On considering that the incorporation of the POSSs on the polymeric chains change the matrix topology and alter its dynamics [41], the use of a less reactive phenyl-substituted POSSs during in situ polymerization may have had a mild effect on the reaction rate, thus not greatly altering the degree of crosslinking [42] and keeping the Tg values of composites quite constant in respect to that of neat polymer.

4. Conclusions

The novel dumbbell-shaped POSSs, easily synthesized by a well-established methodology, have been proven as a valid reinforcement for the polystyrene matrix, showing a considerable improvement of the resistance to the thermal degradation of the prepared nanocomposites. We have shown encouraging SEM images regarding a good dispersion of the POSSs within the matrix, which has not always been reported in the literature for POSSs with a completely phenyl functionalized cage′s periphery. Finally, the environment in which degradation was performed (inert or oxidative) seemed to not influence the degradation mechanism that proceeded with two different stages, the first relevant one at a lower temperature than the second little one; this was attributed to the POSS degradation.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/9/1475/s1.

Author Contributions

I.B. and F.A.B. conceived and designed the experiments; F.A.B. synthesized the materials and interpreted HNMR; M.A.C. performed HNMR; I.B. performed the TGA and DSC experiments; G.O. performed SEM experiments; I.B., L.A. and G.C. analyzed the data; I.B. and L.A. wrote the paper.

Funding

This research was funded by the University of Catania within the “Piano della Ricerca Dipartimentale 2016-2018” of the Department of Civil Engineering and Architecture, grant name project: MATErials LIfe foreCAst (MATELICA).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Langer, R.; Tirrell, D.A. Designing materials for biology and medicine. Nature 2004, 428, 487. [Google Scholar] [CrossRef] [PubMed]
  2. Siracusa, V.; Blanco, I.; Romani, S.; Tylewicz, U.; Dalla Rosa, M. Gas permeability and thermal behavior of polypropylene films used for packaging minimally processed fresh-Cut potatoes: A case study. J. Food Sci. 2012, 77, 264. [Google Scholar] [CrossRef]
  3. Thakur, V.K.; Thakur, M.K.; Gupta, R.K. Review: Raw Natural Fiber–Based Polymer Composites. Int. J. Polym. Anal. Charact. 2013, 18, 495. [Google Scholar] [CrossRef]
  4. Peplow, M. The plastics revolution: How chemists are pushing polymers to new limits. Nature 2016, 536, 266. [Google Scholar] [CrossRef] [PubMed]
  5. Członka, S.; Strąkowska, A.; Strzelec, K.; Adamus-Włodarczyk, A.; Kairytė, A.; Vaitkus, S. Composites of Rigid Polyurethane Foams Reinforced with POSS. Polymers 2019, 11, 336. [Google Scholar] [CrossRef]
  6. Cavallaro, G.; Grillo, I.; Gradzielski, M.; Lazzara, G. Structure of Hybrid Materials Based on Halloysite Nanotubes Filled with Anionic Surfactants. J. Phys. Chem. C 2016, 120, 13492. [Google Scholar] [CrossRef]
  7. Cavallaro, G.; Lazzara, G.; Konnova, S.; Fakhrullin, R.; Lvov, Y. Composite films of natural clay nanotubes with cellulose and chitosan. Green Mater. 2014, 2, 232–242. [Google Scholar] [CrossRef]
  8. Catauro, M.; Bollino, F.; Veronesi, P.; Lamanna, G. Influence of PCL on mechanical properties and bioactivity of ZrO2-Based hybrid coatings synthesized by sol-Gel dip coating technique. Mater. Sci. Eng. C 2014, 39, 344. [Google Scholar] [CrossRef]
  9. Rong, M.Z.; Zhang, M.Q.; Zheng, Y.X.; Walter, R.; Friedrich, K. Structure–Property relationships of irradiation grafted nano-Inorganic particle filled polypropylene composites. Polymer 2001, 42, 167. [Google Scholar] [CrossRef]
  10. Shvartzman-Cohen, R.; Nativ-Roth, E.; Baskaran, E.; Szleifer, I.; Yerushalmi-Rozen, R. Selective dispersion of single-Walled carbon nanotubes in the presence of polymers: The role of molecular and colloidal length scales. J. Am. Chem. Soc. 2004, 126, 14850. [Google Scholar] [CrossRef]
  11. Monticelli, O.; Fina, A.; Ullah, A.; Waghmare, P. Preparation, Characterization, and Properties of Novel PSMA−POSS Systems by Reactive Blending. Macromolecules 2009, 42, 6614. [Google Scholar] [CrossRef]
  12. Blanco, I.; Bottino, F.A.; Cicala, G.; Cozzo, G.; Latteri, A.; Recca, A. Synthesis and thermal characterization of new dumbbell shaped POSS/PS nanocomposites: Influence of the symmetrical structure of the nanoparticles on the dispersion/aggregation in the polymer matrix. Polym. Compos. 2015, 36, 1394. [Google Scholar] [CrossRef]
  13. Blanco, I.; Abate, L.; Bottino, F.A.; Bottino, P. Synthesis, characterization and thermal stability of new dumbbell-shaped isobutyl-Substituted POSSs linked by aromatic bridges. J. Therm. Anal. Calorim. 2014, 117, 243. [Google Scholar] [CrossRef]
  14. Yue, Y.; Wang, X.; Wu, Q.; Han, J.; Jiang, J. Assembly of Polyacrylamide-Sodium Alginate-Based Organic-Inorganic Hydrogel with Mechanical and Adsorption Properties. Polymers 2019, 11, 1239. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Y.; Dong, X.H.; Zou, Y.; Wang, Z.; Yue, K.; Huang, M.; Liu, H.; Feng, X.; Lin, Z.; Zhang, W.; et al. Polyhedral oligomeric silsesquioxane meets “click” chemistry: Rational design and facile preparation of functional hybrid materials. Polymer 2017, 125, 303–329. [Google Scholar] [CrossRef]
  16. Cha, C.G.; Yu, Y.G.; Seo, H.B.; Kim, M.J.; Grubbs, R.H.; Lee, J.S. Experimental Formulation of Photonic Crystal Properties for Hierarchically Self-Assembled POSS–Bottlebrush Block Copolymers. Macromolecules 2018, 51, 3458–3466. [Google Scholar] [CrossRef]
  17. Li, Z.; Fu, Y.; Li, Z.; Nan, N.; Zhu, Y.; Li, Y. Froth flotation giant surfactants. Polymer 2019, 162, 58–62. [Google Scholar] [CrossRef]
  18. Blanco, I.; Bottino, F.A.; Cicala, G.; Latteri, A.; Recca, A. Synthesis and characterization of differently substituted phenyl hepta isobutyl-Polyhedral oligomeric silsesquioxane/polystyrene nanocomposites. Polym. Compos. 2014, 35, 151. [Google Scholar] [CrossRef]
  19. Blanco, I.; Bottino, F.A.; Abate, L. Influence of n-Alkyl substituents on the thermal behaviour of Polyhedral Oligomeric Silsesquioxanes (POSSs) with different cage’s periphery. Thermochim. Acta 2016, 623, 50. [Google Scholar] [CrossRef]
  20. Blanco, I.; Abate, L.; Bottino, F.A. Mono substituted octaphenyl POSSs: The effects of substituents on thermal properties and solubility. Thermochim. Acta 2017, 655, 117. [Google Scholar] [CrossRef]
  21. Blanco, I. The Rediscovery of POSS: A Molecule Rather than a Filler. Polymers 2018, 10, 904. [Google Scholar] [CrossRef] [PubMed]
  22. Lichtenhan, J.D. Polyhedral Oligomeric Silsesquioxanes: Building Blocks for Silsesquioxane-Based Polymers and Hybrid Materials. Comments Inorg. Chem. 1995, 17, 115–130. [Google Scholar] [CrossRef]
  23. Haddad, T.S.; Lichtenhan, J.D. Hybrid organic-Inorganic thermoplastics: Styryl-Based polyhedral oligomeric silsesquioxane polymers. Macromolecules 1996, 29, 7302–7304. [Google Scholar] [CrossRef]
  24. Kalia, S.; Pielichowski, K. Polymer/POSS Nanocomposites and Hybrid Materials. In Preparation, Properties, Applications; Springer Nature: Basel, Switzerland, 2019. [Google Scholar]
  25. Wei, W.; Zhang, Y.; Liu, M.; Zhang, Y.; Yin, Y.; Gutowski, W.S.; Deng, P.; Zheng, C. Improving the Damping Properties of Nanocomposites by Monodispersed Hybrid POSS Nanoparticles: Preparation and Mechanisms. Polymers 2019, 11, 647. [Google Scholar] [CrossRef] [PubMed]
  26. Blanco, I.; Abate, L.; Bottino, F.A.; Bottino, P.; Chiacchio, M.A. Thermal degradation of differently substituted Cyclopentyl Polyhedral Oligomeric Silsesquioxane (CP-POSS) nanoparticles. J. Therm. Anal. Calorim. 2012, 107, 1083–1091. [Google Scholar] [CrossRef]
  27. Blanco, I.; Abate, L.; Bottino, F.A.; Bottino, P. Hepta isobutyl polyhedral oligomeric silsesquioxanes (hib-POSS): A thermal degradation study. J. Therm. Anal. Calorim. 2012, 108, 807–815. [Google Scholar] [CrossRef]
  28. Puglisi, C.; Sturiale, L.; Montaudo, G. Thermal Decomposition Processes in Aromatic Polycarbonates Investigated by Mass Spectrometry. Macromolecules 1999, 327, 2194–2203. [Google Scholar] [CrossRef]
  29. Deshpande, G.; Rezac, M.E. The effect of phenyl content on the degradation of poly(dimethyl diphenyl) siloxane copolymers. Polym. Degrad. Stabil. 2001, 74, 363–370. [Google Scholar] [CrossRef]
  30. Fina, A.; Tabuani, D.; Carniato, F.; Frache, A.; Boccaleri, E.; Camino, G. Polyhedral oligomeric silsesquioxanes (POSS) thermal degradation. Thermochim. Acta 2006, 440, 36. [Google Scholar] [CrossRef]
  31. Shea, K.J.; Loy, D.A. Bridged polysilsesquioxanes. Molecular-Engineered hybrid organic–Inorganic materials. Chem. Mater. 2001, 13, 3306–3319. [Google Scholar] [CrossRef]
  32. Araki, H.; Naka, K. Syntheses and properties of dumbbell-Shaped POSS derivatives linked by luminescent π-conjugated units. J. Polym. Sci. Part A 2012, 50, 4170–4181. [Google Scholar] [CrossRef]
  33. Araki, H.; Naka, K. Syntheses and properties of star- and dumbbell-shaped POSS derivatives containing isobutyl groups. Polym. J. 2012, 44, 340–346. [Google Scholar] [CrossRef]
  34. Hunks, W.J.; Ozin, G.A. Periodic mesoporous phenylenesilicas with ether or sulfide hinge groups—A new class of PMOs with ligand channels. Chem. Commun. 2004, 21, 2426–2427. [Google Scholar] [CrossRef] [PubMed]
  35. Blanco, I.; Abate, L.; Bottino, F.A. Synthesis and thermal behaviour of phenyl-substituted POSSs linked by aliphatic and aromatic bridges. J. Therm. Anal. Calorim. 2018, 131, 843. [Google Scholar] [CrossRef]
  36. Badea, E.; Blanco, I.; Della Gatta, G. Fusion and solid-To-Solid transitions of a homologous series of alkane α, ω dinitriles. J. Chem. Thermodyn. 2007, 39, 1392–1398. [Google Scholar] [CrossRef]
  37. Della Gatta, G.; Richardson, M.J.; Sarge, S.M.; Stølen, S. Standards, calibration, and guidelines in microcalorimetry. Part 2. Calibration standards for differential scanning calorimetry (IUPAC Technical Report). Pure Appl. Chem. 2006, 78, 1455–1476. [Google Scholar] [CrossRef]
  38. Abate, L.; Blanco, I.; Cicala, G.; Recca, G.; Scamporrino, A. The influence of chain-Ends on the thermal and rheological properties of some 40/60 PES/PEES copolymers. Polym. Eng. Sci. 2009, 49, 1477. [Google Scholar] [CrossRef]
  39. Vyazovkin, S.; Chrissafis, K.; Di Lorenzo, M.L.; Koga, N.; Pijolat, M.; Roduit, B.; Sbirrazzuoli, N.; Suñol, J.J. ICTAC Kinetics Committee Recommendations for Collecting Experimental Thermal Analysis Data for Kinetic Computations. Thermochim. Acta 2014, 590, 1. [Google Scholar] [CrossRef]
  40. Blanco, I.; Abate, L.; Bottino, F.A.; Chiacchio, M.A. Synthesis and Thermal Behaviour of Novel Aliphatic/Aromatic Hepta-Cyclopentyl Bridged Polyhedral Oligomeric Silsesquioxanes (POSSs)/Polystyrene (PS) Nanocomposites. J. Inorg. Organomet. Polym. Mater. 2015, 25, 1456. [Google Scholar] [CrossRef]
  41. Raftopoulos, K.N.; Pielichowski, K. Segmental dynamics in hybrid polymer/POSS nanomaterials. Prog. Polym. Sci. 2016, 52, 36. [Google Scholar] [CrossRef]
  42. Blanco, I.; Bottino, F.A. Thermal characterization of a series of novel hepta cyclopentyl bridged POSS/PS nanocomposites. J. Therm. Anal. Calorim. 2016, 125, 637. [Google Scholar] [CrossRef]
Figure 1. SEM images of polystyrene before (left) and after (right) drying in a stove.
Figure 1. SEM images of polystyrene before (left) and after (right) drying in a stove.
Polymers 11 01475 g001

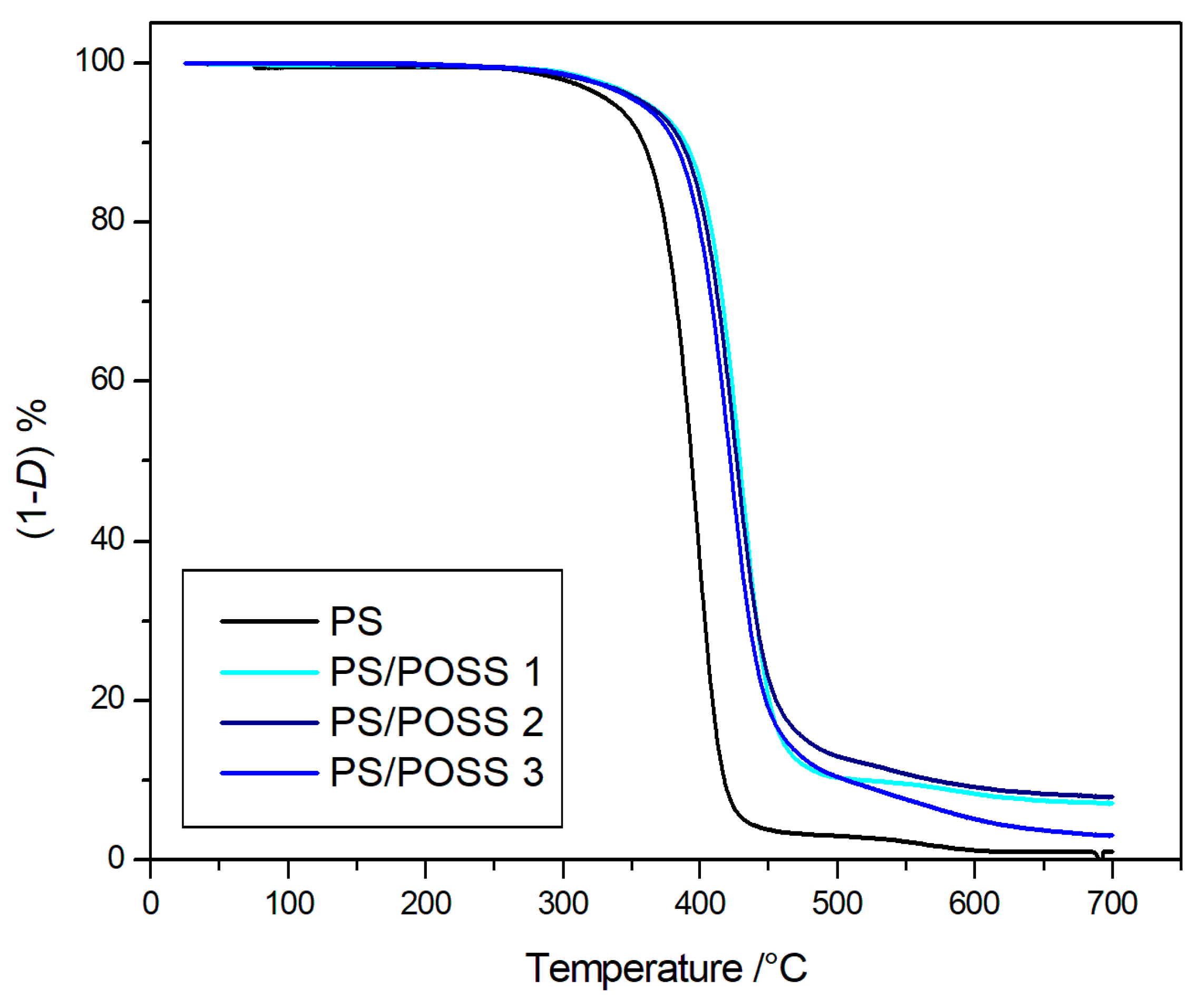

Figure 2. Thermogravimetric curves, in an inert atmosphere, for PS and samples 1, 2 and 3.
Figure 2. Thermogravimetric curves, in an inert atmosphere, for PS and samples 1, 2 and 3.
Polymers 11 01475 g002
Figure 3. Thermogravimetric curves, in an inert atmosphere, for PS and samples 4 and 5.
Figure 3. Thermogravimetric curves, in an inert atmosphere, for PS and samples 4 and 5.
Polymers 11 01475 g003

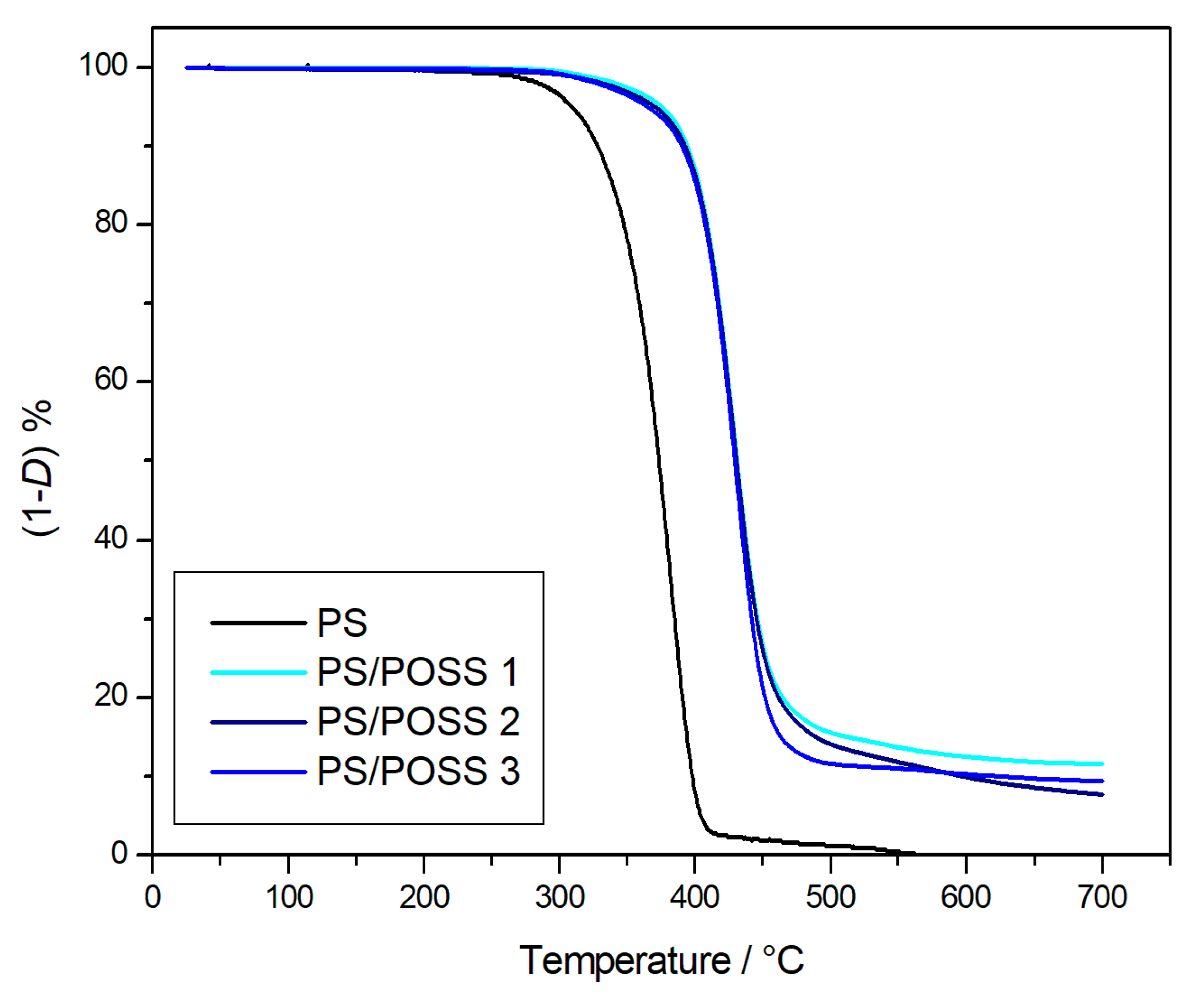

Figure 4. Thermogravimetric curves, in an oxidative atmosphere, for PS and samples 1, 2 and 3.
Figure 4. Thermogravimetric curves, in an oxidative atmosphere, for PS and samples 1, 2 and 3.
Polymers 11 01475 g004

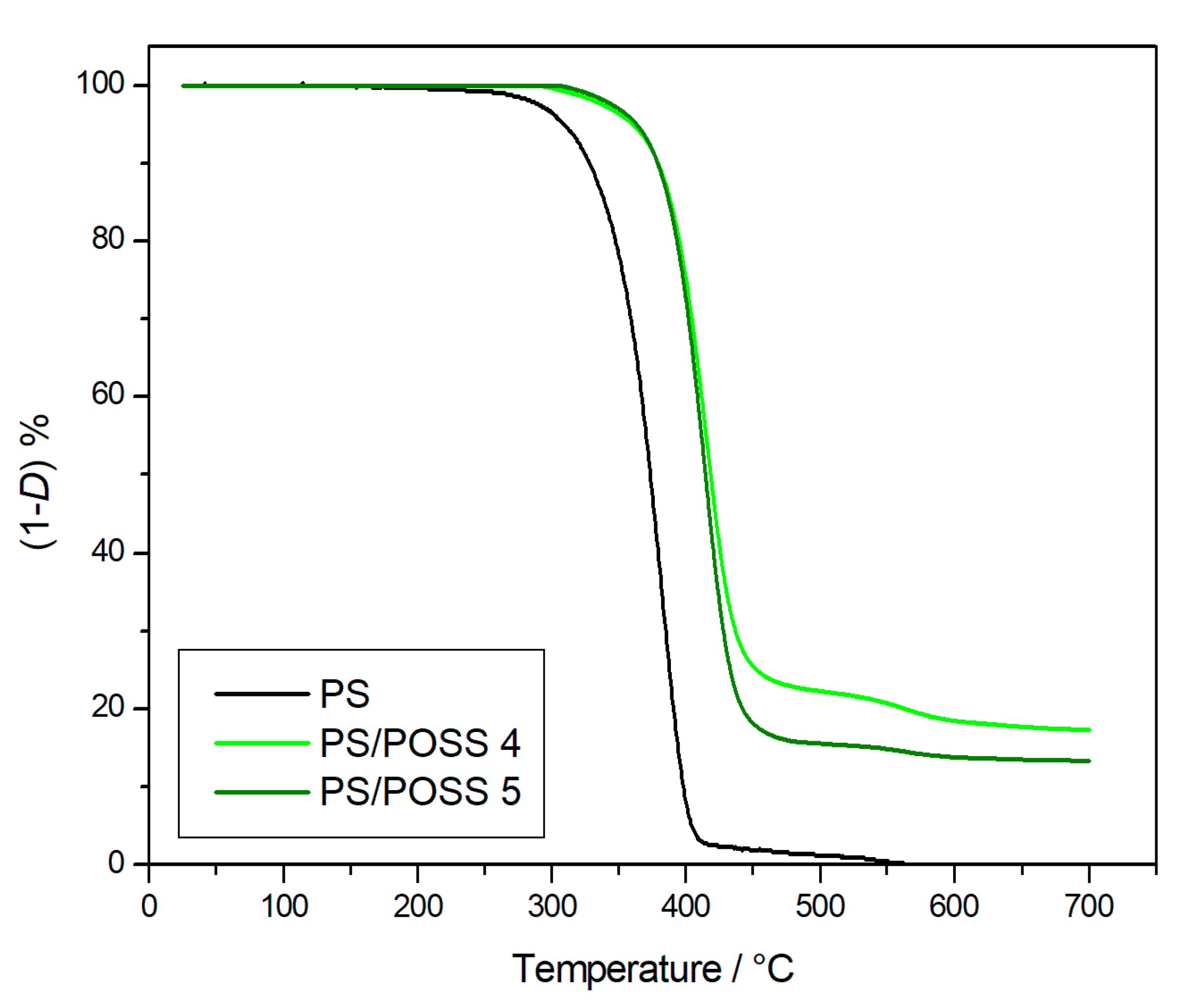

Figure 5. Thermogravimetric curves, in an oxidative atmosphere, for PS and samples 4 and 5.
Figure 5. Thermogravimetric curves, in an oxidative atmosphere, for PS and samples 4 and 5.
Polymers 11 01475 g005
Figure 6. SEM images of PS/POSS 2 nanocomposites.
Figure 6. SEM images of PS/POSS 2 nanocomposites.
Polymers 11 01475 g006
Figure 7. SEM images of PS/POSS 5 nanocomposites.
Figure 7. SEM images of PS/POSS 5 nanocomposites.
Polymers 11 01475 g007

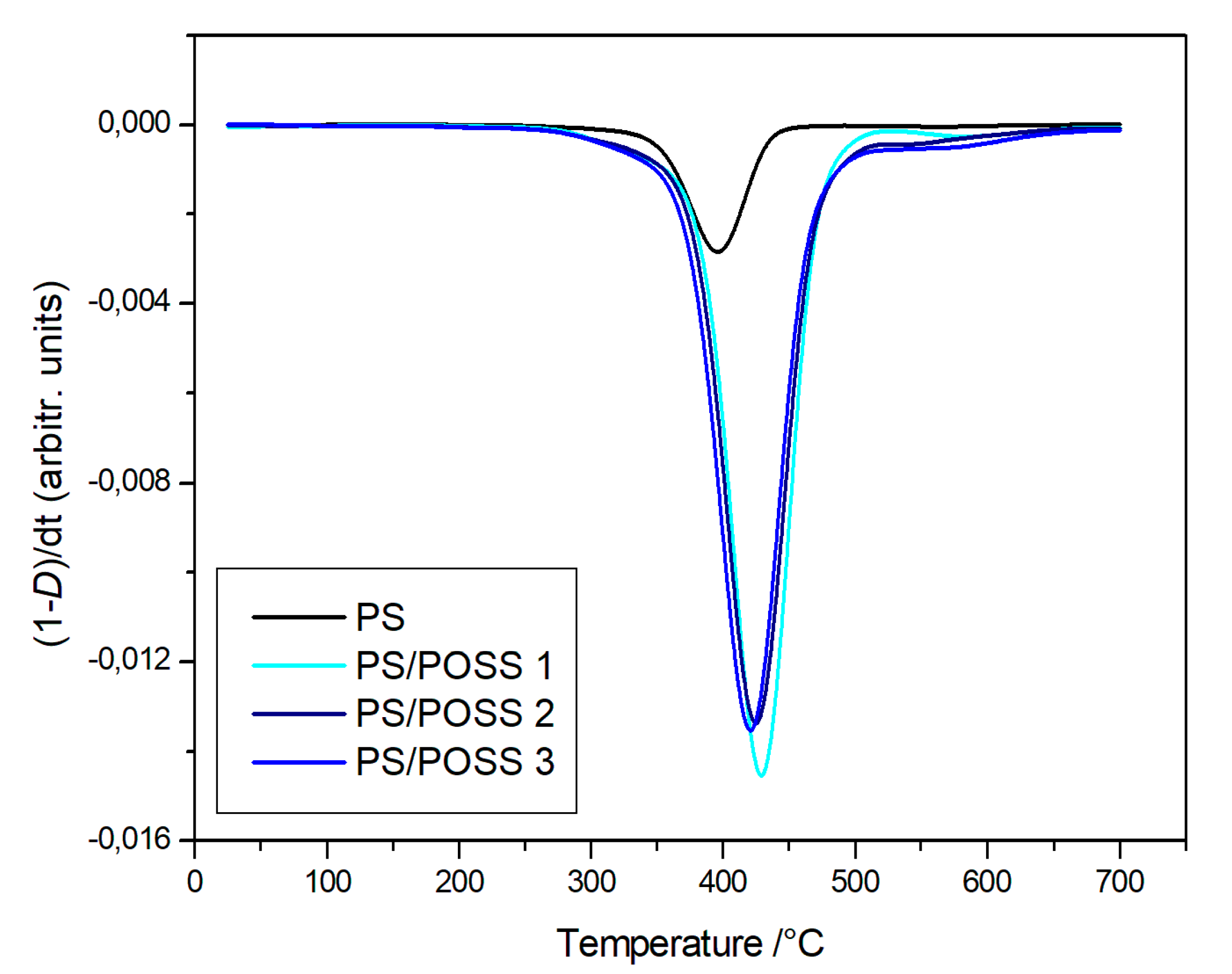

Figure 8. Differential thermogravimetric curves, in an inert atmosphere, for PS and samples 1, 2 and 3.
Figure 8. Differential thermogravimetric curves, in an inert atmosphere, for PS and samples 1, 2 and 3.
Polymers 11 01475 g008

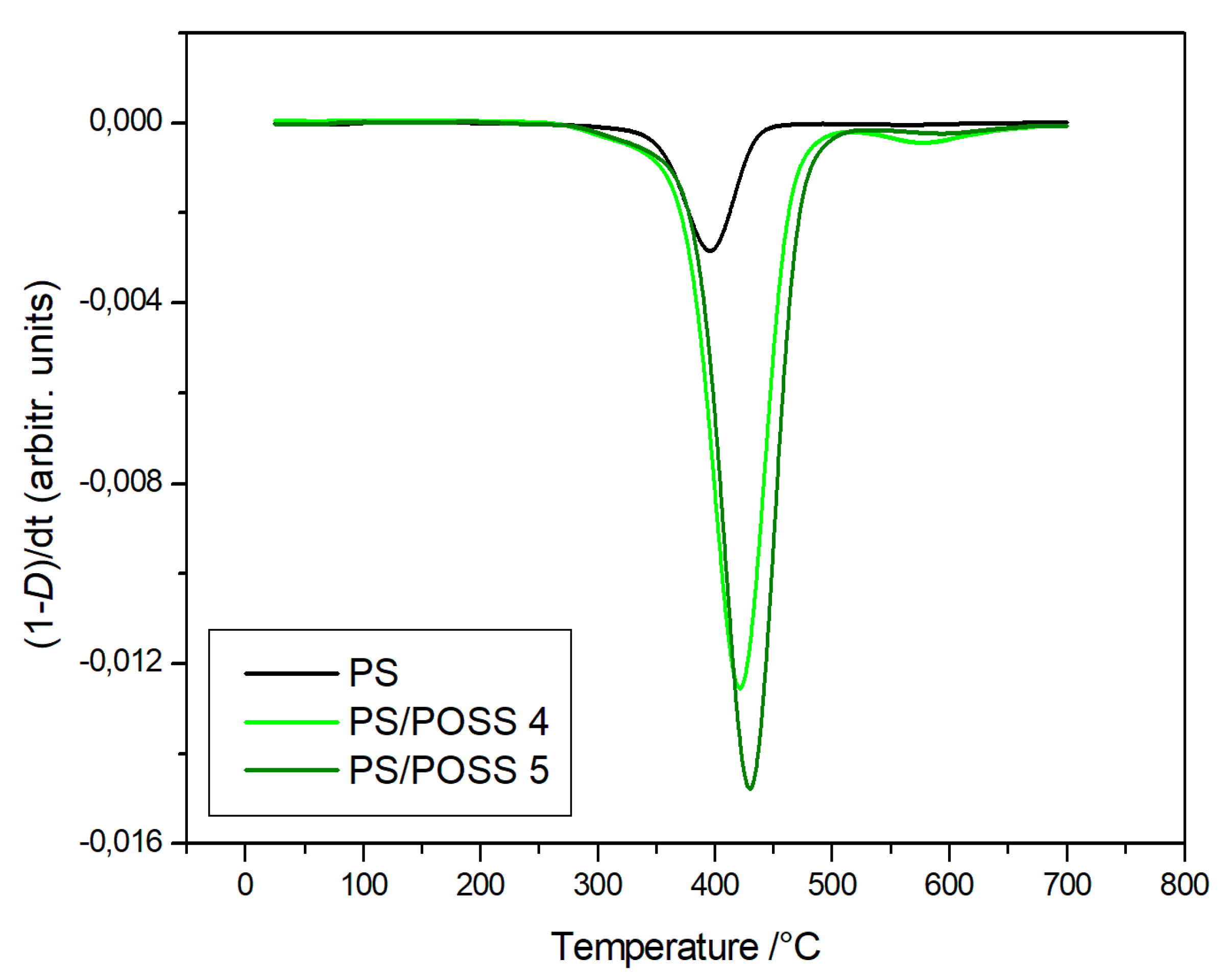

Figure 9. Differential thermogravimetric curves, in an inert atmosphere, for PS and samples 4 and 5.
Figure 9. Differential thermogravimetric curves, in an inert atmosphere, for PS and samples 4 and 5.
Polymers 11 01475 g009

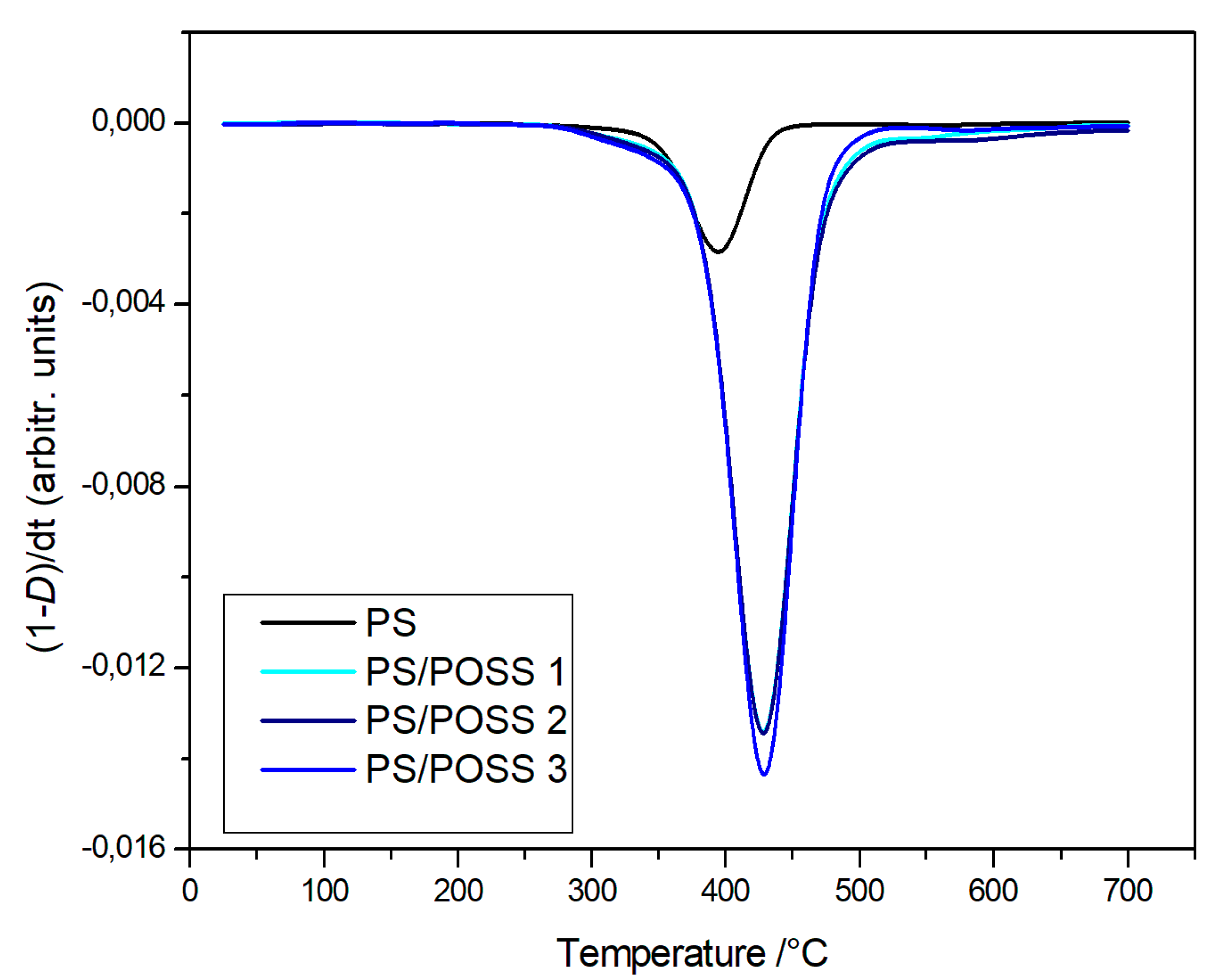

Figure 10. Differential thermogravimetric curves, in an inert atmosphere, for PS and samples 1, 2 and 3.
Figure 10. Differential thermogravimetric curves, in an inert atmosphere, for PS and samples 1, 2 and 3.
Polymers 11 01475 g010
Figure 11. Differential thermogravimetric curves, in an inert atmosphere, for PS and samples 4 and 5.
Figure 11. Differential thermogravimetric curves, in an inert atmosphere, for PS and samples 4 and 5.
Polymers 11 01475 g011

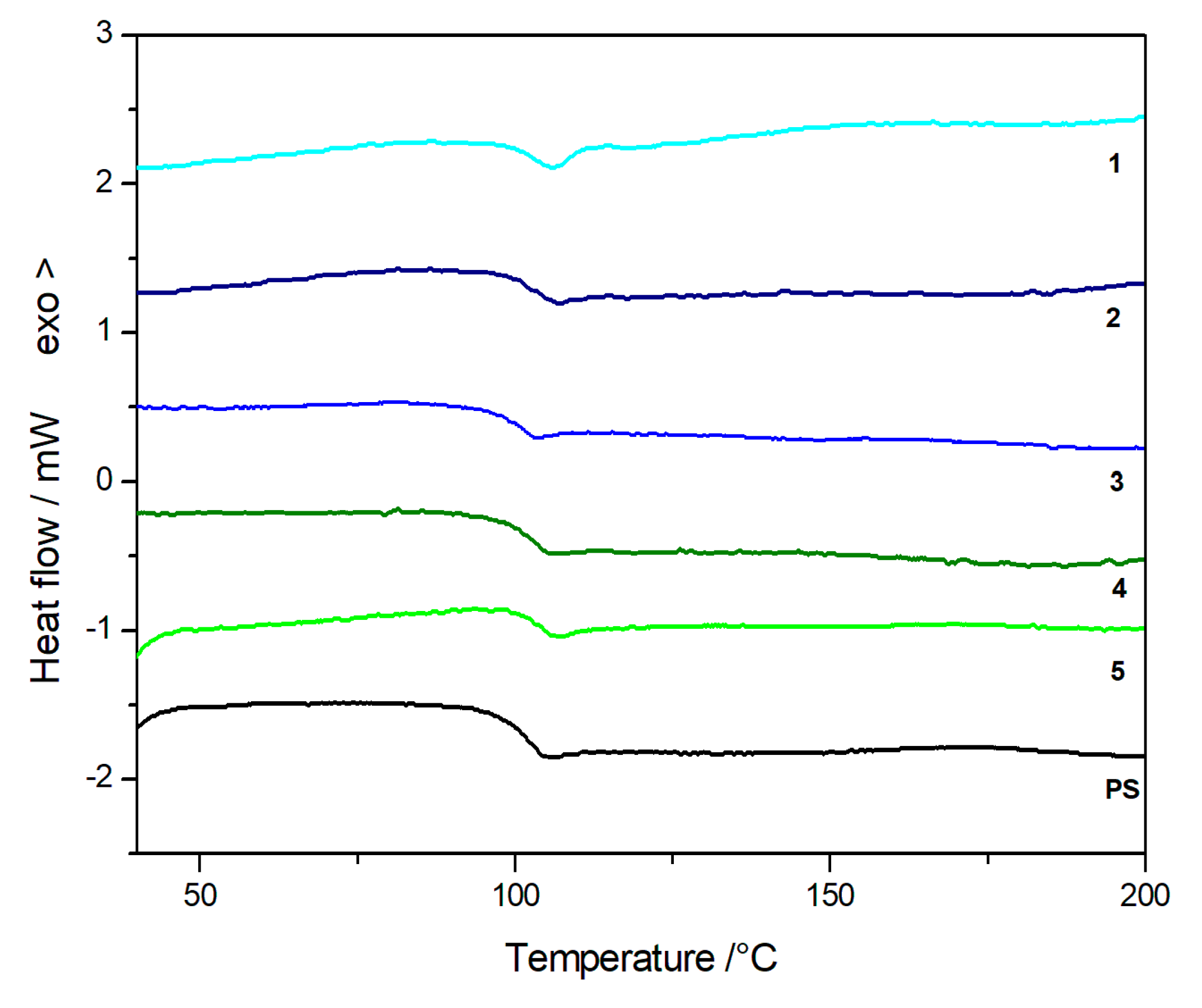

Figure 12. Differential scanning calorimetry curves for PS and PS/POSS nanocomposites.
Figure 12. Differential scanning calorimetry curves for PS and PS/POSS nanocomposites.
Polymers 11 01475 g012
Table 1. (1), (2) and (3) dumbbell-shaped octaphenyl polyhedral oligomeric silsesquioxanes (POSSs) structures, with aliphatic bridge, used in polystyrene (PS) nanocomposites.
Table 1. (1), (2) and (3) dumbbell-shaped octaphenyl polyhedral oligomeric silsesquioxanes (POSSs) structures, with aliphatic bridge, used in polystyrene (PS) nanocomposites.
C86H74Si16O24 (1)C90H82 Si16O24 (2)
Polymers 11 01475 i001 Polymers 11 01475 i002
C94H90 Si16O2 (3)
Polymers 11 01475 i003
Table 2. (4) and (5) dumbbell-shaped octaphenyl POSS structures, with aromatic bridge, used in PS nanocomposites.
Table 2. (4) and (5) dumbbell-shaped octaphenyl POSS structures, with aromatic bridge, used in PS nanocomposites.
C96H78 Si16O25 (4)
Polymers 11 01475 i004
C96H78 Si16O24 (5)
Polymers 11 01475 i005
Table 3. POSS content (w/w), glass transition temperatures (Tg), temperatures at 5% mass loss (T5%), residue percentage at 700 °C of PS, and nanocomposites in a static air atmosphere and in flowing nitrogen.
Table 3. POSS content (w/w), glass transition temperatures (Tg), temperatures at 5% mass loss (T5%), residue percentage at 700 °C of PS, and nanocomposites in a static air atmosphere and in flowing nitrogen.
CompoundsPOSS%Tg% °CStatic AirNitrogen Flow
T5%
°C
Residue
%
T5%
°C
Residue
%
PS/101.2309.00341.30
15.96102.6375.711.6360.07.1
25.82103.5370.37.8359.37.9
35.12101.7364.79.4355.33.1
46.01103.5363.213.3374.810.4
55.60102.5360.317.3375.719.3
