Preparation, Stabilization and Carbonization of a Novel Polyacrylonitrile-Based Carbon Fiber Precursor

Institute of Low-dimensional Materials Genome Initiative, College of Chemistry and Environmental Engineering, Shenzhen University, Shenzhen 518060, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Polymers 2019, 11(7), 1150; https://doi.org/10.3390/polym11071150
Received: 29 May 2019 / Revised: 25 June 2019 / Accepted: 28 June 2019 / Published: 4 July 2019
  |
PDF [5423 KB, uploaded 4 July 2019]
  |

Abstract

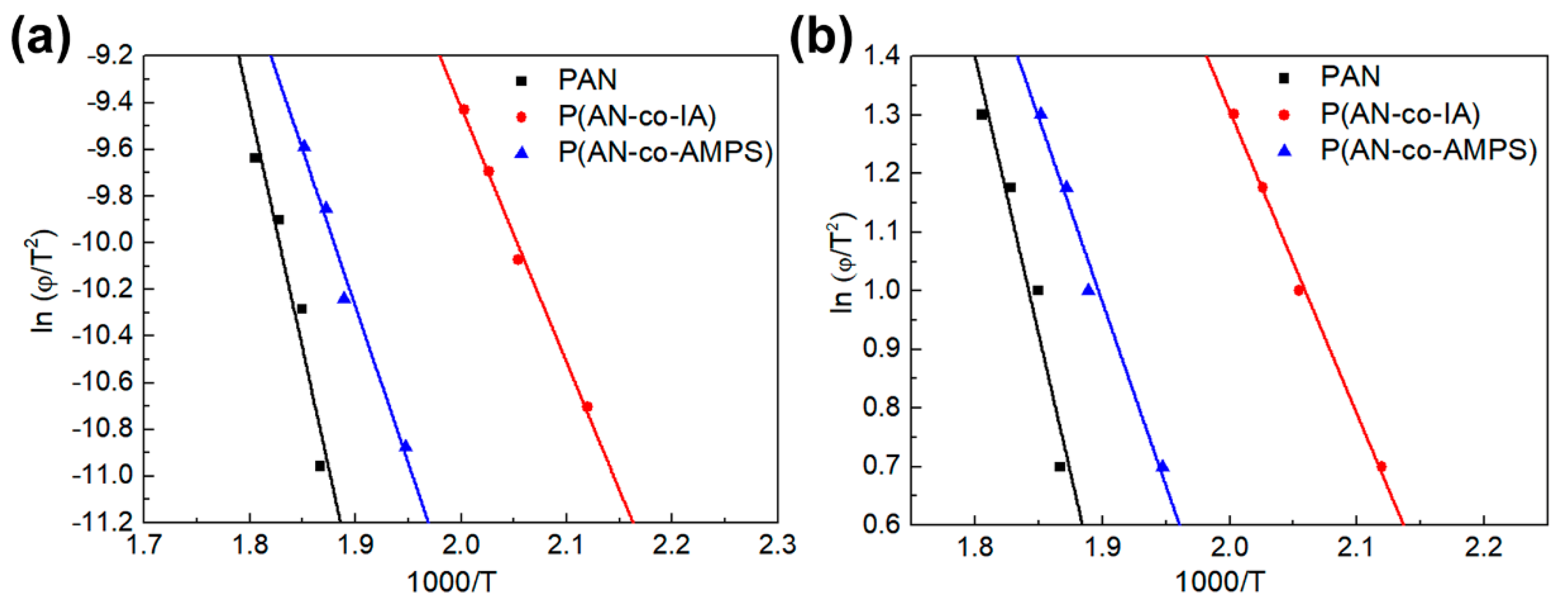

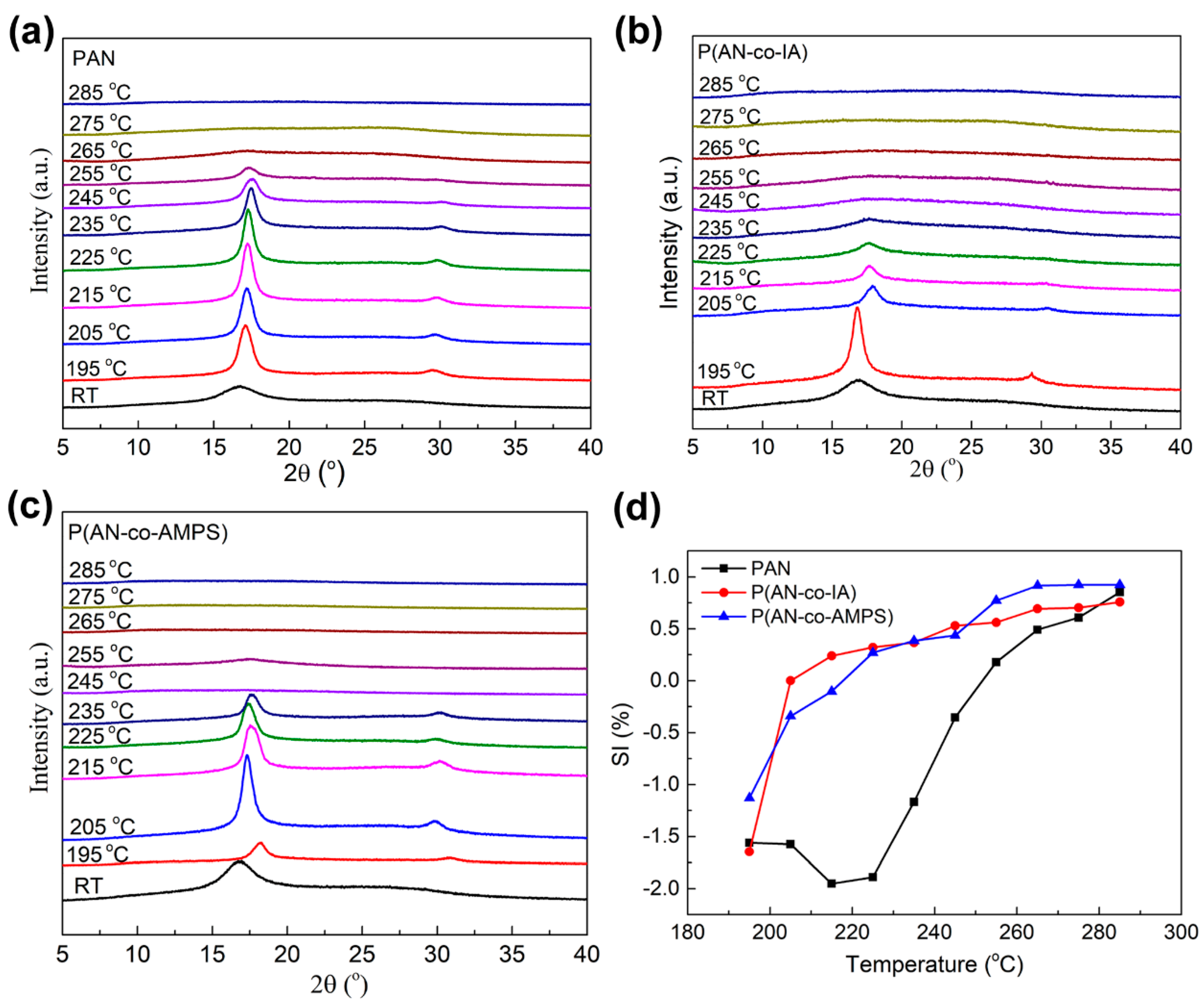

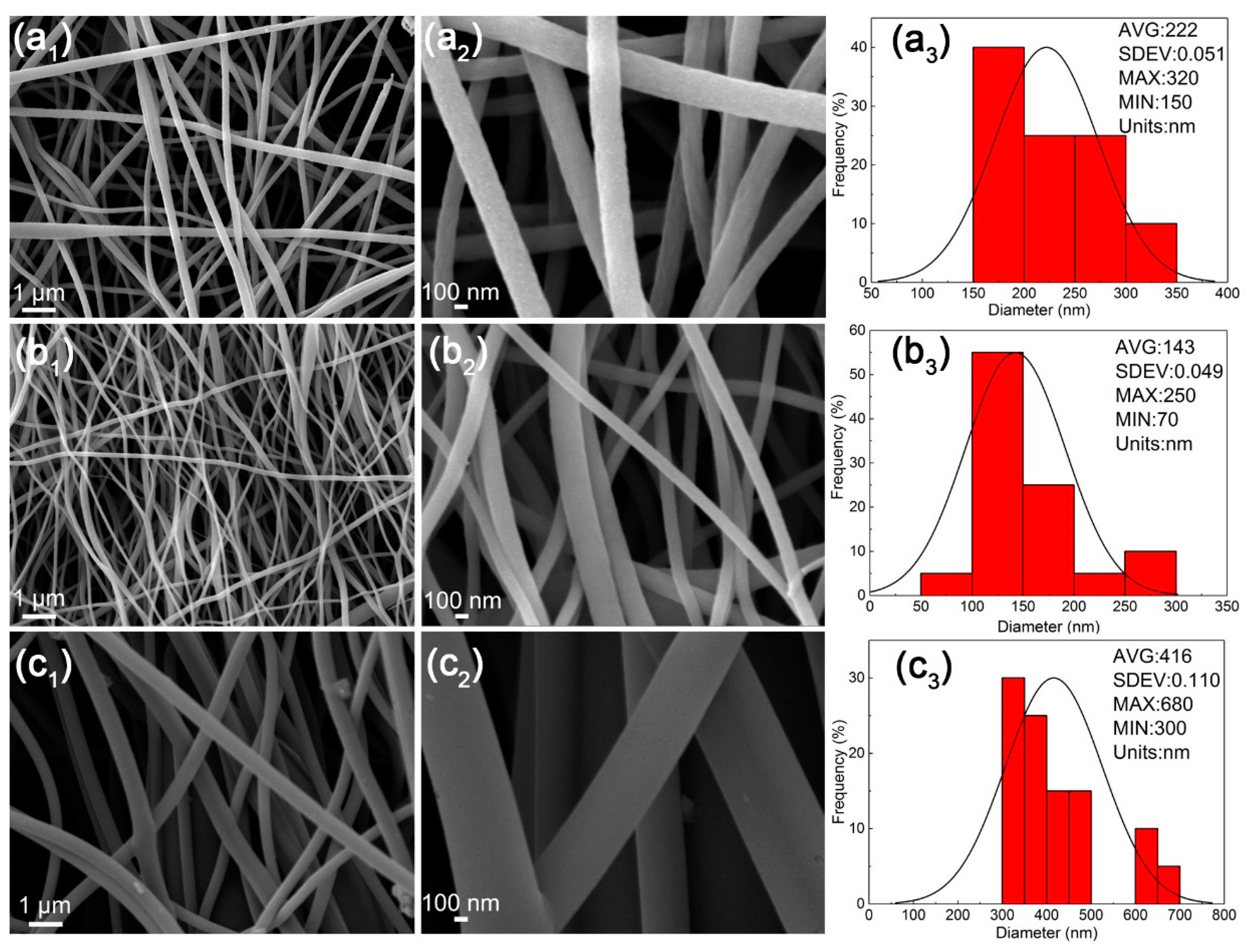

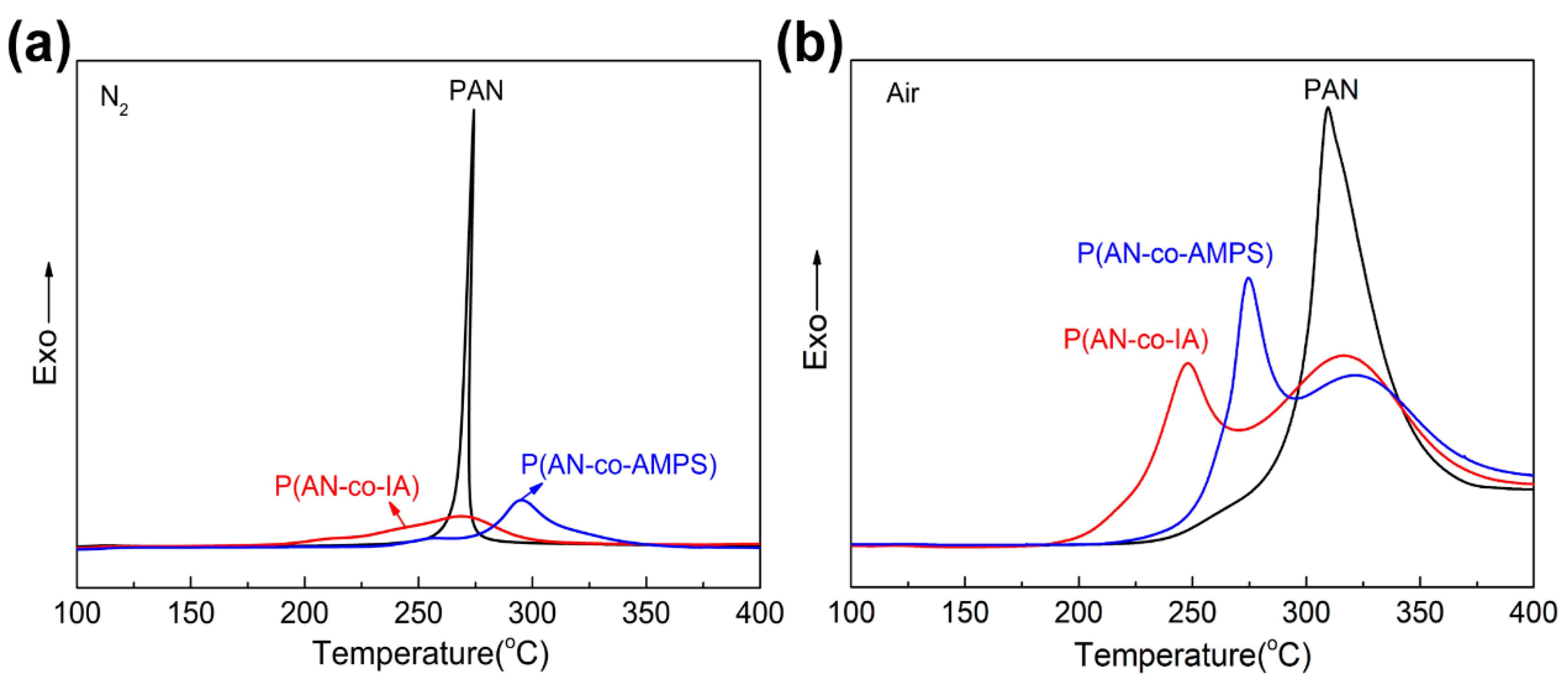

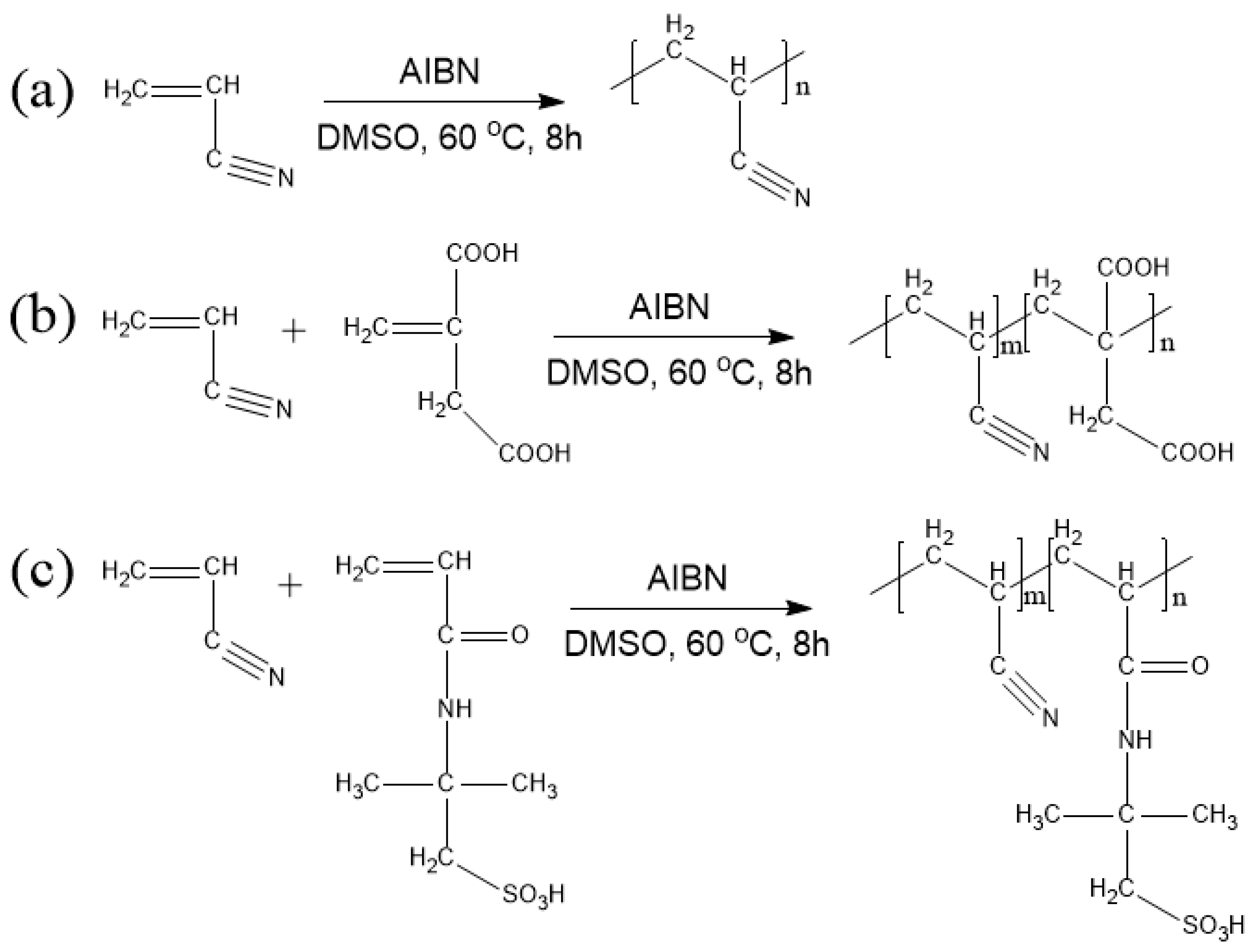

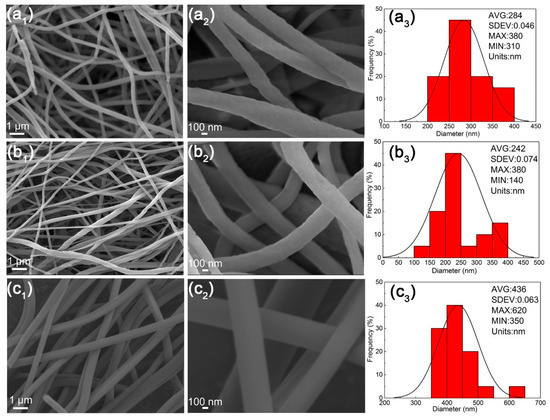

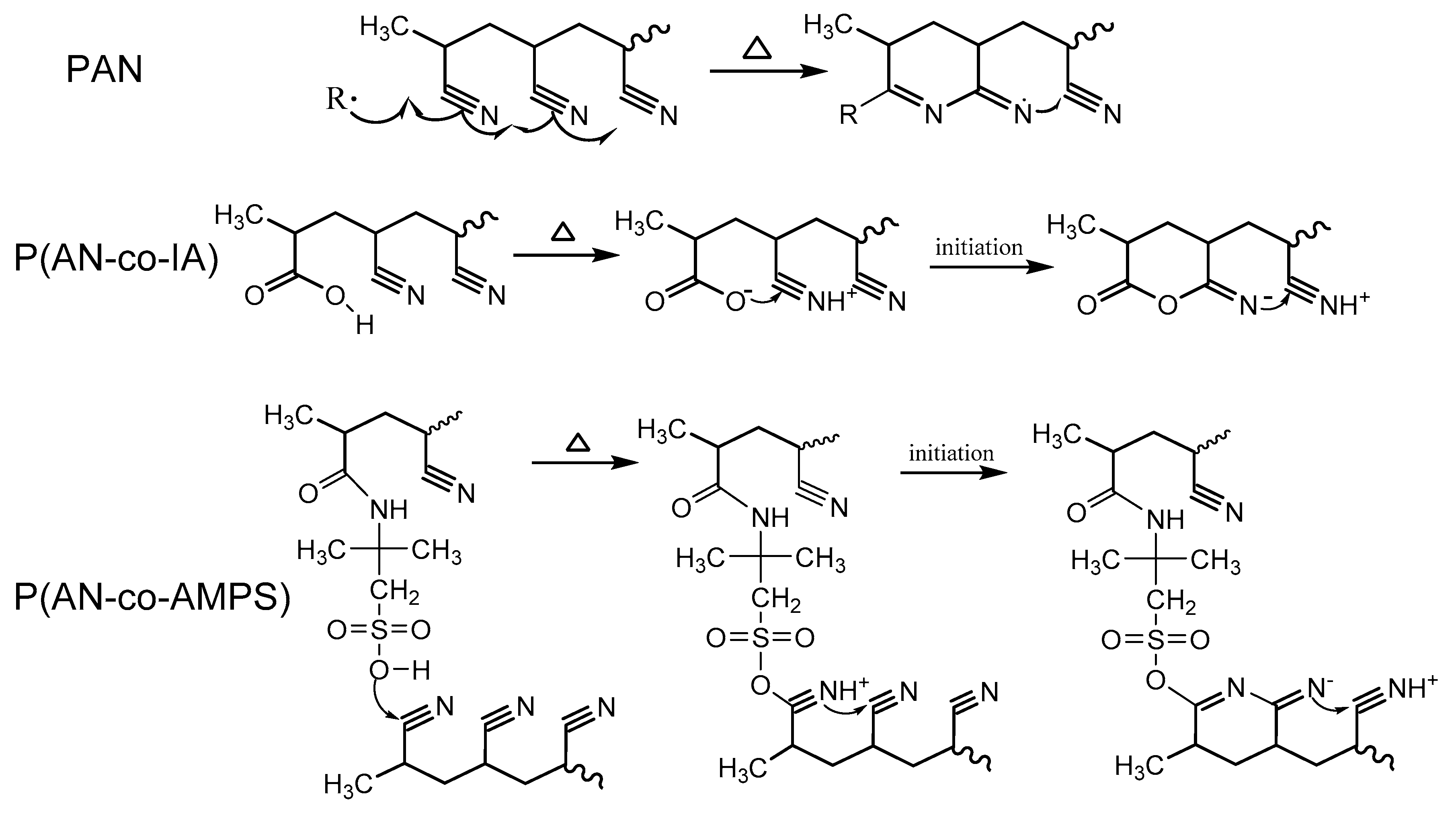

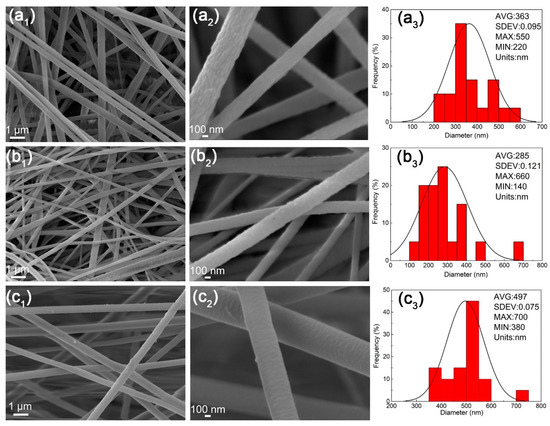

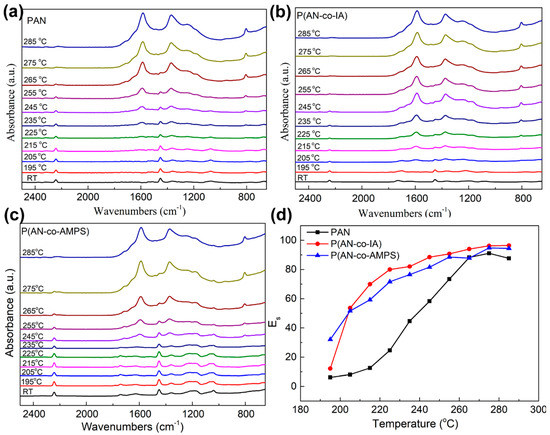

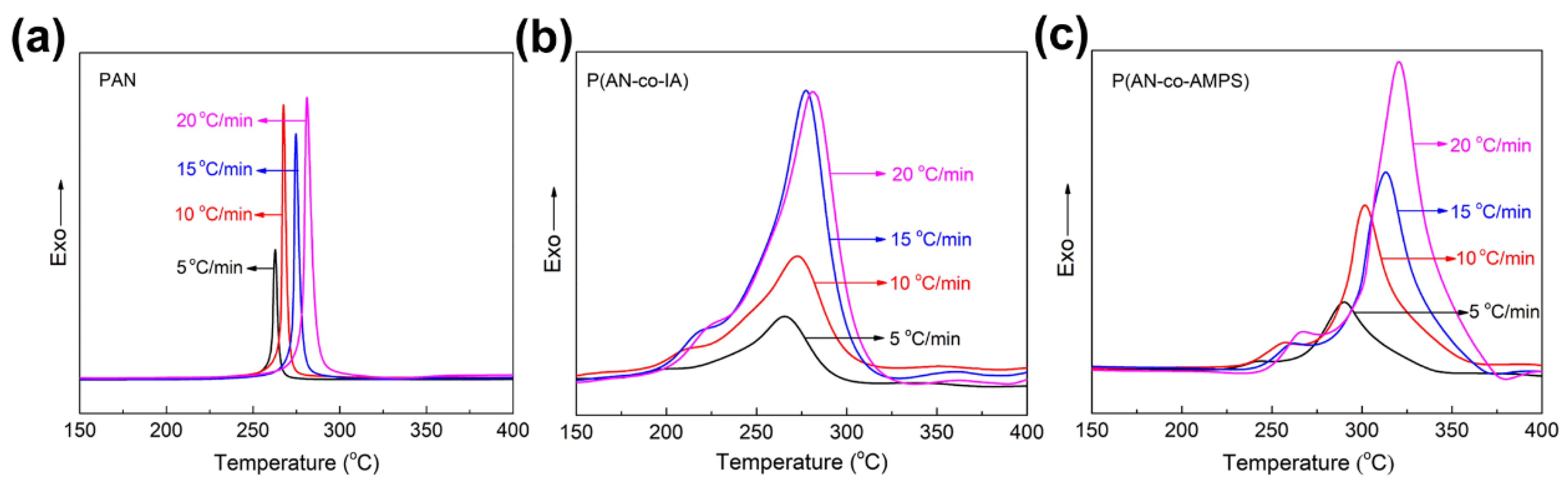

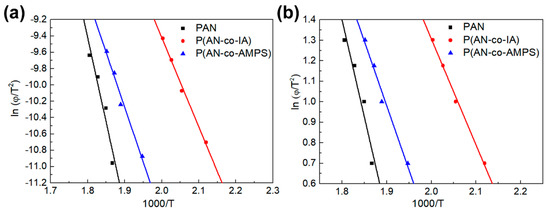

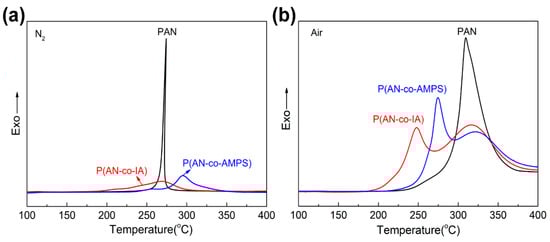

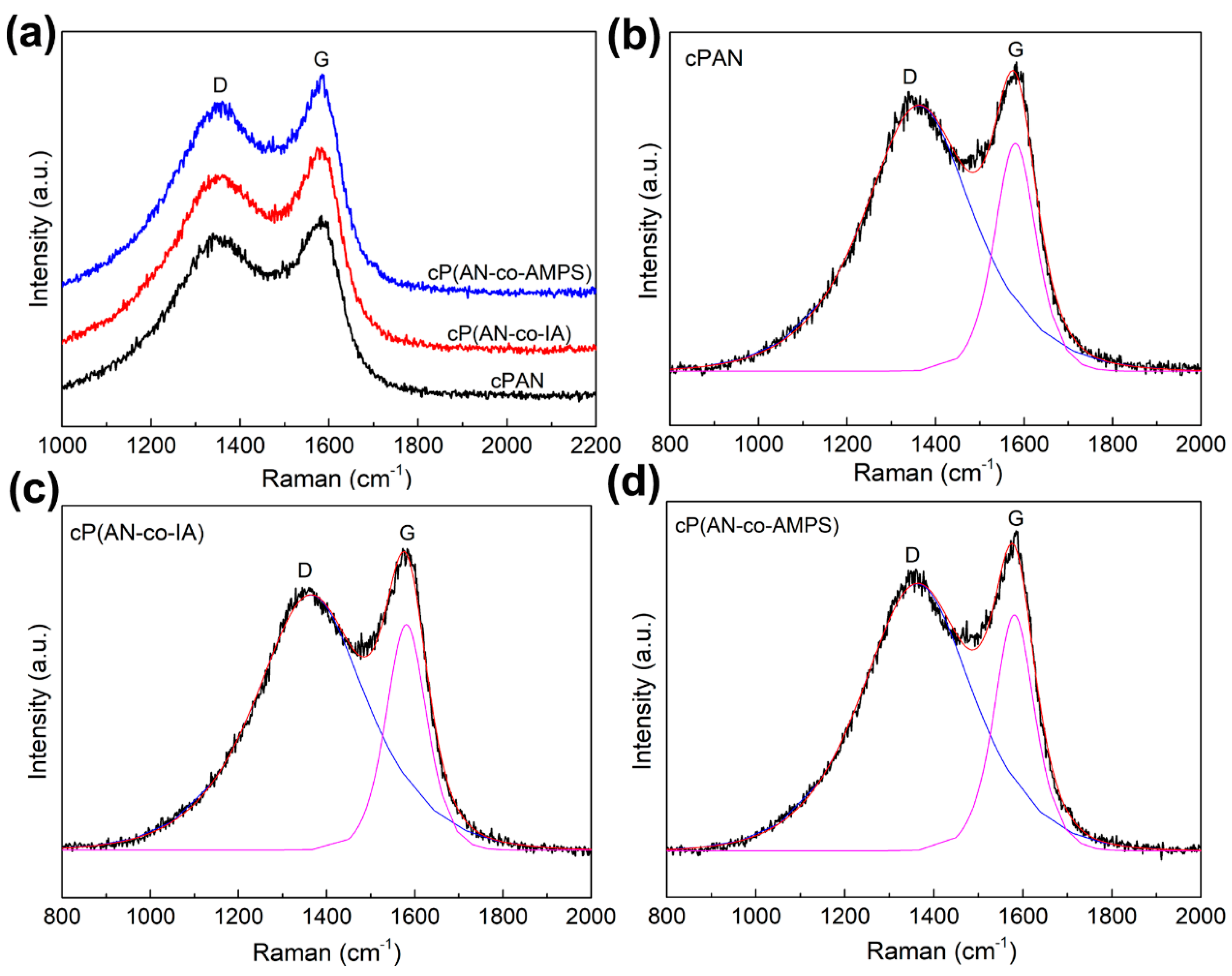

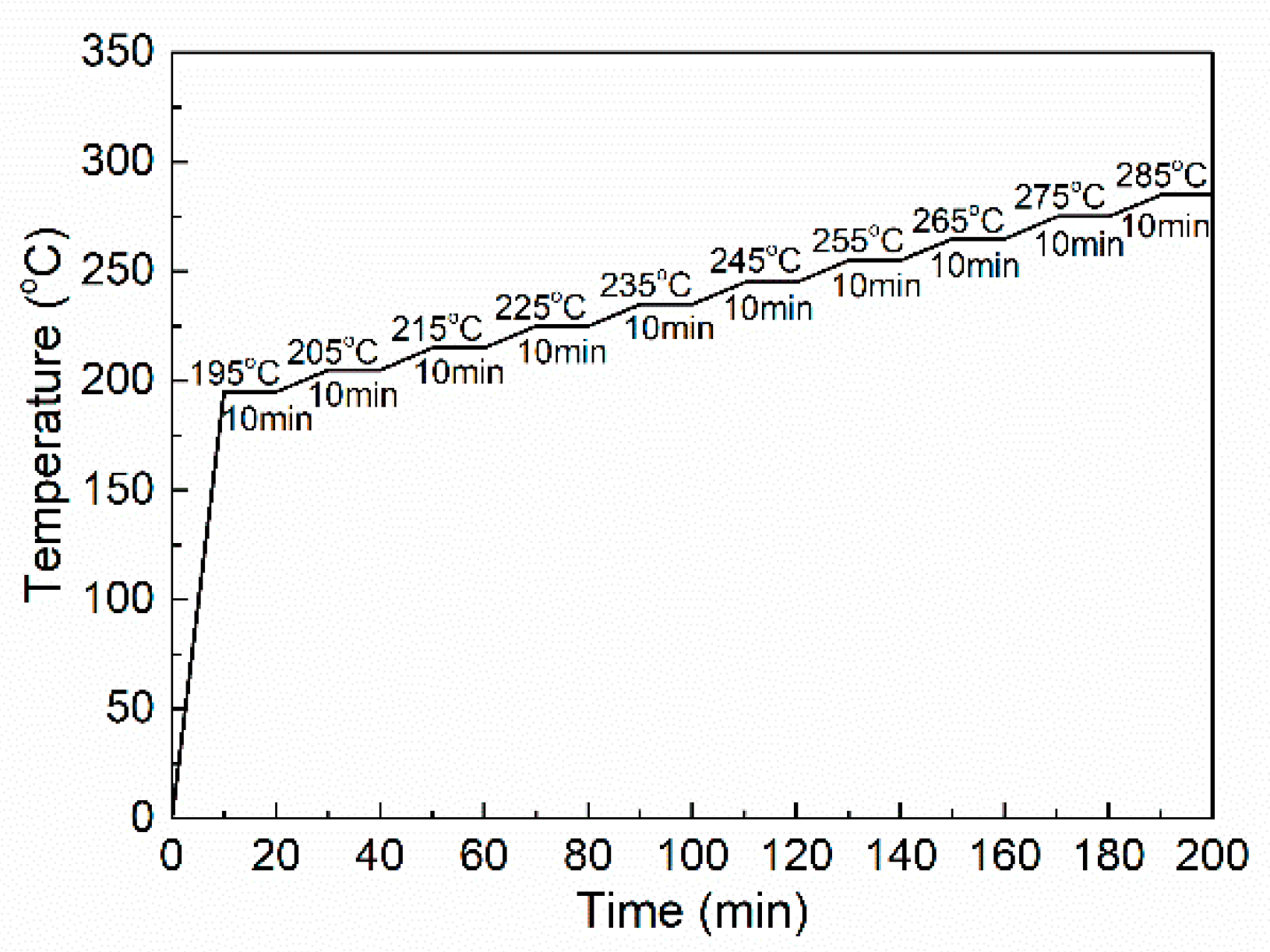

The quality of polyacrylonitrile (PAN) precursor has a great influence on the properties of the resultant carbon fibers. In this paper, a novel comonomer containing the sulfonic group, 2-acrtlamido-2-methylpropane acid (AMPS), was introduced to prepare P(AN-co-AMPS) copolymers using itaconic acid (IA) as the control. The nanofibers of PAN, P(AN-co-IA), and P(AN-co-AMPS) were prepared using the electrospinning method. The effect of AMPS comonomer on the carbon nanofibers was studied using scanning electron microscopy (SEM), differential scanning calorimetry (DSC), Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), thermogravimetric analysis (TGA) and Raman spectrum. The structural evolutions of PAN-based nanofibers were quantitatively tracked by FTIR and XRD during the thermal oxidative stabilization (TOS) process. The results suggested that P(AN-co-AMPS) nanofibers had the lower heat release rate (ΔH/ΔT = 26.9 J g−1 °C−1), the less activation energy of cyclization (Ea1 = 26.6 kcal/mol and Ea2 = 27.5 kcal/mol), and the higher extent of stabilization (Es and SI) during TOS process, which demonstrated that the AMPS comonomer improved the efficiency of the TOS process. The P(AN-co-AMPS) nanofibers had the better thermal stable structures. Moreover, the carbon nanofibers derived from P(AN-co-AMPS) precursor nanofibers had the better graphite-like structures (XG = 46.889). Therefore, the AMPS is a promising candidate comonomer to produce high performance carbon fibers. View Full-Text
Keywords: carbon fiber; PAN-based precursor; 2-acrtlamido-2-methylpropane acid; thermal oxidative stabilization carbon fiber; PAN-based precursor; 2-acrtlamido-2-methylpropane acid; thermal oxidative stabilization
Figures

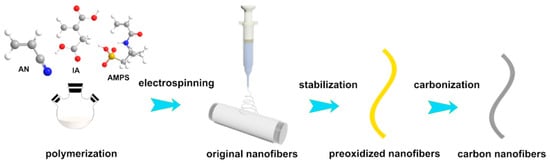

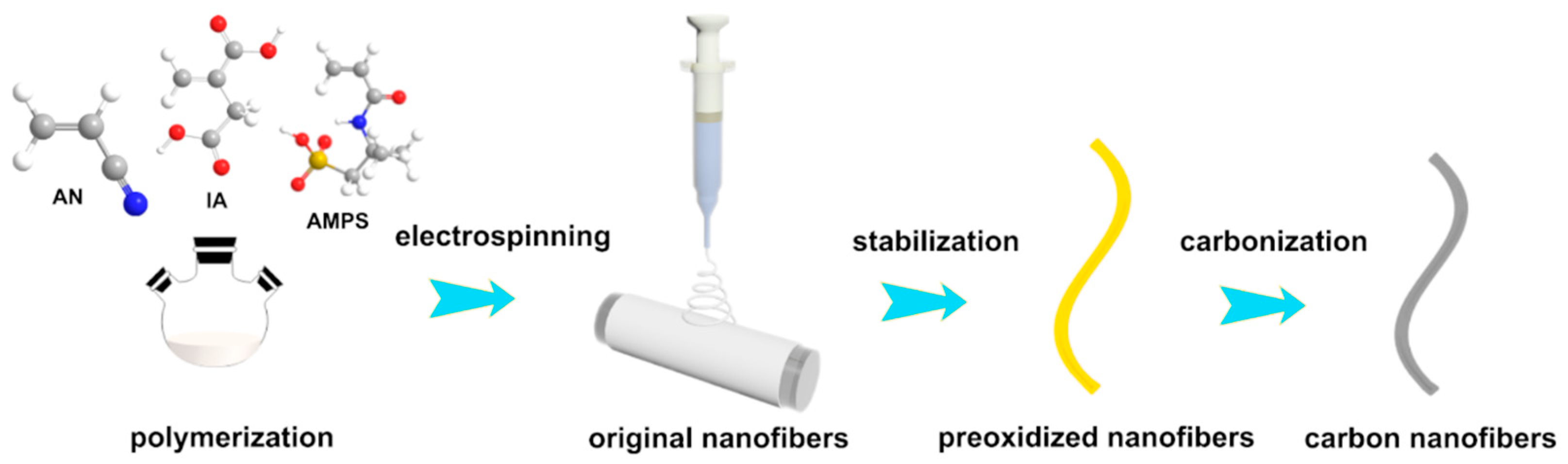

Graphical abstract
