Thermotropic Liquid Crystalline Polymers with Various Alkoxy Side Groups: Thermal Properties and Molecular Dynamics

by
Gi Tae Park
1,
Jin-Hae Chang
1,* and
Ae Ran Lim
2,3,*
1
Department of Polymer Science and Engineering, Kumoh National Institute of Technology, Gumi 39177, Korea
2
Analytical Laboratory of Advanced Ferroelectric Crystals, Jeonju University, Jeonju 55069, Korea
3
Department of Science Education, Jeonju University, Jeonju 55069, Korea
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(6), 992; https://doi.org/10.3390/polym11060992
Submission received: 4 May 2019 / Revised: 24 May 2019 / Accepted: 1 June 2019 / Published: 4 June 2019
(This article belongs to the Special Issue High Performance Liquid Crystalline Polymers)
Browse Figures
Review Reports Versions Notes

Abstract

:
Two series of thermotropic liquid-crystalline polymers (TLCPs) were synthesized by reacting various dialkoxy terephthalate units with hydroquinone (HQ) and 2,6-naphthalene diol (Naph). The dialkoxy terephthalate moieties used in this study include 2,5-diethoxyterephthalate, 2,5-dibutoxyterephthalate, and 2,5-dihexyloxy-terephthalate. All the TLCPs synthesized in this study formed nematic phases. The molecular motions according to the length of the dialkoxy side groups in the TLCPs were evaluated by 13C cross-polarization/magic angle spinning nuclear magnetic resonance spectroscopy. The thermal properties and molecular dynamics of the TLCPs are found to be affected by the length of the dialkoxy side group and the aromatic diol unit in the main chain. Further, the thermal behaviors, liquid crystalline mesophases, and degree of crystallinity of the two series of TLCPs, i.e., HQ- and Naph-TLCPs, are compared.

Graphical Abstract

1. Introduction

Liquid crystals (LCs) are materials that exhibit partially ordered states, with their molecular order lying between those of three-dimensionally ordered crystals and disordered or isotropic liquids. As a consequence of the molecular order, LC phases are anisotropic, i.e., they have directional properties. Formation of LC states is a consequence of either structures with rigid-rod type units with a high axial ratio or of disc-like structures. These structural units are often called mesogenic units. The LC states of polymers were discovered with the discovery of aramids such as poly(p-phenylene terephthalamide) (Kevlar) and poly(p-benzamide) by DuPont de Nemours Co. in 1970s [1,2]. These aromatic polyamides form LC states when dissolved in a solvent (lyotropic) such as sulfuric acid. In addition, commercialization of aromatic polyesters (e.g., Xydar® and Vectra®) that form LC states in melts (thermotropic) in the 1980s has sparkled continued and unabated growth of the field of LC polymers (LCPs) [3,4].
Thermotropic liquid crystalline polymers (TLCPs) represent a class of high-performance polymers that have excellent thermo-mechanical properties combined with a low density, resulting in excellent specific properties [5,6]. This unique feature of TLCPs arises from the rigidity of the polymer backbone and/or the pendant groups on the main polymer chain in symmetric rigid sequences that are classified as mesogens [7,8,9]. They are typically applied in electronic devices, protective coatings, and sports equipment, as automotive part composites, etc. [10,11,12].
Many TLCPs contain a completely aromatic backbone, which maximizes their thermo-mechanical properties [13,14]. The mesogenic structures are mainly synthesized from terephthalic acid (TPA), 2,6-naphthalene-dicarboxylic acid, p-hydroxybenzoic acid (p-HBA), hydroquinone (HQ), 2,6-naphthalene diol (Naph), and p,p′-biphenol in their unsubstituted or substituted forms [11,13,14,15,16]. However, rigid rod-type TLCPs often have very high melting points, which make their processing difficult. Such TLCPs also have low solubility in common solvents [17].
Wholly aromatic LCPs, especially when they are homopolymers, are highly crystalline, very-high melting, and very often interactive materials. Two representative examples are poly(p-hydroxybenzoate) and poly(p-phenylene terephthalate). These polymers have a very high melting temperature, and thus, they cannot be readily processed by melt spinning or injection molding. In contrast, copolyesters such as those (Xydar produced from Amoco, Chicago, Illinois, USA) prepared from p-HBA, TPA, and p,p′-biphenol are injection moldable at temperatures in the vicinity of 400 °C, which is not compatible with common melt spinning equipment. Thermal degradation of the copolyester at 400 °C, however, makes stable fiber production difficult. The other classes of wholly aromatic LCPs contain bent structural moieties such as resorcinol and bisphenol-A in addition to para-linked aromatic structures. Inclusion of asymmetrically substituted units such as chloro- or methylphenylene units can further depress the melting temperature. Further, the class of aliphatic-aromatic LCPs consists of mesogenic groups sequenced in a regular fashion with flexible, aliphatic segments of different lengths [18,19,20].
However, TLCPs should be structurally modified to lower their melting temperatures for overcoming the processing issues and prevent their thermal degradation before melting. The most common method for structural modification is to combine different mesogenic monomers such as bulky side substituents, flexible alkyl side groups, or kink (non-linear)-structured monomers [21,22,23]. Lenz et al. [3] demonstrated a shift in the transition temperatures to lower values by attaching substituents with different structures and varying chain lengths to the main polymer chain, which allowed a systematic study of the processing of TLCP systems. Griffin and Kricheldorf [24,25] used kinked monomers such as m-hydroxybenzoic acid (m-HBA) or various diols; these researchers lowered the melting temperatures of TLCPs by including flexible alkyl groups into the polymer main chain. In addition, various studies have been carried out using TLCPs having alkyl side chains. Recently, microphase separation was studied using an LC copolymer containing alkyl side groups [26,27,28].
Further, 13C nuclear magnetic resonance (NMR) has proven to be a powerful technique for studying the local dynamic motions of molecules [29]. The 13C spin-lattice relaxation time (T1ρ) in the rotating frame is an important experimental variable for probing the dynamic processes of a molecule [30]. By studying the relaxation of the nuclei in different environments of the chain, it is possible to obtain a detailed picture of the motion of different parts of the chain in a polymer. The measured relaxation data can be used to obtain information regarding the dynamic processes occurring in different parts of the chain.
In this study, the thermal and physical properties of two new TLCP series were evaluated. TLCPs with dialkoxy side groups were synthesized from dialkoxy-TPA and two diols, HQ and Naph. The thermal properties of the two series of TLCPs were then studied comparatively. The characteristics of each TLCP were compared according to the variation in the side group length, with the number of carbons in the dialkoxy group varied as 2, 4, and 6.
In addition, the structures of the TLCPs with various alkoxy side groups were confirmed by 13C NMR spectroscopy. The spin-lattice relaxation time, T1ρs, in the rotating frame for each carbon of the dialkoxy side group and main chain in the HQ- and Naph-TLCPs was measured to understand the molecular dynamics. The effect of the length of the dialkoxy side groups on the carbon mobility was evaluated. In addition, the molecular motions according to the length of the dialkoxy groups in the TPA moiety were compared using the relaxation times.

2. Experimental

2.1. Synthesis of 2,5-Dialkoxylterephthaloyl Chloride

The chemical structures of the precursors are shown in Figure 1. 2,5-Dialkoxyterephthaloyl chloride (product C in Figure 1) was synthesized by the reaction of dialkyl 2,5-dihydroxy-terephthalate with the respective normal alkyl bromide in multiple steps [22].

2.2. Synthesis of TLCPs

All TLCPs were prepared in solutions. The synthetic procedures for all TLCPs are similar. Herein, the preparation of 2,5-diethoxyterephthaloyl chloride/HQ TLCP is provided as a representative example. In a typical synthesis, a solution of 0.2 mol (58.226 g) of 2,5-diethoxyterephthaloyl chloride (C in Figure 1) and an equivalent amount of HQ in 600 mL of tetrachloroethane (TCE) was taken in a three-neck flask fitted with a dropping funnel and magnetic stirrer. Then, an excess of pyridine was added slowly at room temperature under N2 and the mixture was stirred at 120 °C for 14 h. Thereafter, the solution was diluted and poured into excess methanol. The precipitated product was filtered and washed several times with methanol, and then dried in vacuum. The reaction route is shown in Figure 1. The inherent viscosity of the resulting TLCPs in phenol/p-chlorophenol/TCE = 25/40/35 (w/w/w) is 0.83–0.99 dL/g, as measured at a concentration of 0.1 g/dL (see Table 1). The products of diethoxy-TPA, dibutoxy-TPA, and dihexyloxy-TPA with HQ are denoted as HQ-2, HQ-4, and HQ-6, respectively, and the products of diethoxy-TPA, dibutoxy-TPA, and dihexyloxy-TPA with Naph are denoted as Naph-2, Naph-4, and Naph-6, respectively. All chemical structures are shown in Figure 2.

2.3. Characterization

Differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) of the TLCPs were carried out under a N2 atmosphere using DuPont 910 equipment (DuPont, New Castle, DE, USA). The samples were heated and cooled at the rate of 20 °C/min.
A polarizing microscope (Leitz, Ortholux) (Lahn-Dill-Kreis, Wetzlar, Germany) equipped with a Mettler FP-5 hot stage was used to examine the liquid crystalline behavior of the TLCPs. The photographs of the liquid crystals were obtained as follows: A small amount of the sample was placed on a slide glass and the nematic mesophase was observed by slowly increasing the temperature after covering it with a cover glass. The liquid crystalline phase was obtained at Tm or more and Ti or less, and the magnification was 100×. LC photographs were obtained after heat treatment at a constant temperature for 30 min to better observe the nematic structure for all samples. However, in the case of HQ-4, heat treatment was performed for 2 h.
Wide-angle X-ray diffraction (WAXD) was performed at room temperature on a Rigaku (D/Max-IIIB) X-ray diffractometer (Rigaku, Tokyo, Japan) using Ni-filtered Cu-Kα radiation. The patterns were recorded over the range of 2θ = 2°–35° at a scanning rate of 2°/min. The ChemDraw program was used for generating the 3D chemical structures.

2.4. NMR Spectroscopy

The 13C chemical shifts and T1ρ for the HQ- and Naph-TLCPs were obtained by 13C cross-polarization/magic angle spinning (CP/MAS) NMR at Larmor frequencies of ω0/2π = 100.61 MHz using Bruker 400 MHz NMR spectrometers at the Korea Basic Science Institute, Western Seoul Center. The chemical shifts were referenced to tetramethylsilane (TMS). Powdered samples were placed in a 4-mm CP/MAS probe and the MAS rate was set to 10 kHz for all 13C measurements to minimize the spinning sideband overlap. The 13C T1ρ values were measured by varying the duration of the 13C spin-locking pulse applied after the CP preparation period. The width of the π/2 pulse used for measuring T1ρ of 13C was 3.3 μs. The decay of the 13C magnetization in the spin-locking field was followed for spin-locking times of up to 200 ms.

3. Results and Discussion

3.1. Thermal Properties of the TLCPs

The DSC thermograms of the TLCPs containing HQ and Naph moiety are shown in Figure 3. The thermal properties of HQ-TLCPs were compared with those of the Naph-TLCPs. All the TLCPs exhibited a clear glass transition temperature (Tg), melt transition temperature (Tm), and isotropic transition temperature (Ti), regardless of the structure of the different dialkoxy mesogenic units.
The key differences in the structural units of the TLCPs under investigation are based on different lengths of the dialkoxy side groups. For the HQ-TLCPs, the Tg decreased with increasing chain length of the dialkoxy side groups, and HQ-2 showed the highest Tg (71 °C), which is 60 °C higher than that of HQ-6 (11 °C), as shown in Table 1. This could be because of the higher rigidity of the diethoxy side groups than that of the dihexyloxy substituents in the terephthaloyl moiety. The Tg of a polymer is closely related to the flexibility of its chain; a high Tg is generally attributed to relatively high energy barriers to bond rotations. The increase in Tg is likely due to two factors: (1) the significant effect of the rigid rod-like monomer structure on the free volume of the polymer, and (2) the confinement of the inter-reacted polymer chains within the polymers, which prevent the segmental motion of the chains [31,32].
The low Tg (11 °C) of the HQ-6 TLCP is possibly because the long dialkoxy substituents disturb its linearity and thus increase the flexibility of its backbone. It is generally accepted that the introduction of a long alkoxy side group into a polymer structure deteriorates its thermal properties [31].
The Tm and Ti of the HQ-TLCPs containing diethoxy-side groups were also found to be higher than those of the TLCPs containing dibutoxy and dihexyloxy side groups. For example, Tm and Ti decreased gradually from 279 to 164 °C and 325 to 200 °C, respectively, with an increase in the chain length of the alkoxy groups from ethoxy to hexyloxy. This trend is attributed to the length of the dialkoxy side groups in the TLCP structures. The TLCP containing a diethoxy group has a more linear structure, whereas the TLCPs containing dibutoxy- and dihexyloxy-side groups are non-linear. The interlocking effect of the diethoxy units favors linearity of the molecular shape in the mesophase formation, whereas similar interlocking effects are not anticipated from the long alkoxy-substituent structures. This effect could explain why the thermal transition temperatures of the structures with diethoxy group are higher than those of the structures with dibutoxy and dihexyloxy groups [31,32,33].
Similar thermal behaviors were observed for the Naph-TLCPs. In particular, Naph-2 is composed of two continuous benzene rings and the shortest ethoxy substituents, and has better thermal stability than other structures. For example, the Tg, Tm, and Ti of Naph-TLCPs decreased from 76 to 38 °C, 282 to 164 °C, and 329 to 227 °C, respectively, with an increase in the side chain length of the side groups from ethoxy to hexyloxy, as seen in Table 1. These results suggest that introducing various alkoxy substituents into rigid rod-type main-chain TLCPs could diminish their thermal properties and even the problems such as their decomposition at high temperatures during their processing can thus be solved.
The TGA thermograms of the two series of TLCPs are shown in Figure 2; the curve in the temperature range of 300 to 400 °C is enlarged in the inset of Figure 4. The comparative TGA results for the HQ- and Naph-TLCPs with various side groups are also listed in Table 1. The data in Table 1 indicate that the initial thermal degradation temperature (TDi) of the two series decreases with an increase in the length of the alkoxy substituents, as they show the same trend in Tg, Tm, and Ti. Further, TDi at 2% weight loss varied from 357 to 342 °C as the chain length of the alkoxy group in the side substituents increased from ethyl to hexyl. This decrease in the thermal stability could be attributed to the low thermal stability of the alkoxy group. The weight of the residue at 600 °C (wtR600) of the HQ-series TLCPs decreased from 27 to 20% as the alkoxy length increased from ethoxy to hexyloxy (see Table 1). This decrease in the char formed is because of the low heat of resistance of the alkoxy moiety. Table 1 also lists the thermal stabilities of the Naph series with various alkoxy lengths. TDi of the Naph series also decreases from 365 °C to 348 °C as the chain length of the alkoxy group in the side substituents increased from ethyl to hexyl. The wtR600 for the Naph-TLCPs also decreases linearly from 48% to 26% as the alkoxy substituent chain length increases up to hexyloxy.
It is evident from Table 1 that all the thermal properties (Tg, Tm, Ti, TDi, and wtR600) of the Naph-TLCPs are better than those of the HQ-series TLCPs. The high axial ratio (length to diameter) of the Naph-TLCPs resulted in higher transition temperatures than those of the HQ-TLCPs. This could be explained by the presence of more phenyl rings in the main chain of Naph-TLCPs [34,35].
To understand the origin of the differences in the thermal properties of the HQ- and Naph-TLCPs, the molecular geometry of HQ-6 and Naph-6 are shown in Figure 5. A comparison of the molecular shape of the two series reveals that the Naph-6 chain is more linear when compared with the chain structure of the HQ-6 conformer. It is also evident that the degree of bending and agglomeration of the HQ-6 polymer is more severe than that of the Naph-6 polymer. The specific chain conformations of all HQ- and Naph-TLCPs appear to lead to the same degree of linearity of the molecular shape (see Figure 5). The possible interlocking of the extruding Naph-series units favors mesophase formation, whereas a similar interlocking effect is less likely for the HQ-series TLCPs.

3.2. LC Mesophases

All the TLCPs containing the HQ- and Naph moiety formed LC mesophases above the respective Tm or in the fluid melt state, regardless of the length of the dialkoxy side groups [36,37,38]. This implies that when a polyester chain consists on average of one diol unit and one terephthaloyl group, i.e., two consecutive linear monomeric structures in its repeating unit, it is able to form a liquid crystalline mesophase even when a long dialkoxy side group, such as the hexyloxy moiety, is included in the main chain.
Typical optical micrographs of the optical textures of the LC structures obtained using a polarizing microscope are shown in Figure 6. All the TLCPs with different lengths of dialkoxy groups exhibited a threaded Schlieren texture typical of nematogens. The mesogenic LC textures of the Naph-series TLCPs exhibited a fine mesophase texture perpendicular to the shear direction and showed more threaded and developed textures than those of the HQ-series TLCPs. Based on these results, we conclude that the molecular geometry of the naphthalene unit affects the LC texture (see Figure 5) [38].
The stability of the mesophase is affected by the rigidity and aspect ratio of the mesogenic molecule. The aromatic rigid-rod mesogens stabilize the mesophase of the formed LC, owing to the increase in the geometrical anisotropy [39,40]. The ester linkage stabilizes the mesophase of the TLCP through mutual conjugation between the ester units, regardless of the length of the dialkoxy side groups.

3.3. WAXD Analyses

The WAXD patterns of the TLCPs are shown in Figure 7. Although their crystal structures are different, the X-ray diffraction patterns of these TLCPs have common crystalline features: strong and sharp peaks between 2θ = 6 and 2θ = 26°, indicating a stable semi-crystalline character. Further, the degree of crystallinity (DC) is calculated as, Crystallinity% = [Ic/(Ic + Ia)] × 100, where Ic is the intensity of the crystalline area, and Ia is the intensity of the amorphous area [41]. The approximate DCs estimated from the diffractograms are listed in Table 1.
In Figure 7, the intensity and shape of the peaks are very different depending on the alkoxy chain length in HQ- and Naph-series TLCPs. However, the peak pattern and peak intensity are similar for the HQ- and Naph series at the same length of the dialkoxy side groups. For example, HQ-2 and Naph-2 show strong peaks at almost similar positions because of their short side groups. Likewise, similarly results are obtained for HQ-4 and Naph-4, and for HQ-6 and Naph-6. Overall, HQ-6 and Naph-6 with dihexyloxy side groups show an amorphous peak in the diffractograms compared to those of HQ-2 and Naph-2 with ethoxy side groups. This is because the length of the alkyl side group has a significant effect on the crystallinity.
Compared with that of HQ-4, the sharper peak at 2θ = 8.32° (d = 10.63 Å) in the diffraction pattern of Naph-4, indicates that it has higher crystallinity (24%) and a different crystal structure. Therefore, the dibutoxy unit in Naph-4 favors linearity in mesophase formation, whereas a similar molecular mesophase effect in the HQ-4 structure (19%) is not anticipated. The TLCP containing a dibutoxy group in the Naph moiety has a more linear structure, whereas the HQ-TLCP containing the dibutoxy side group is non-linear. The DC of the HQ-series TLCPs decreased from 25 to 18% with increasing length of the dialkoxy side groups. However, the DC of the Naph-series TLCPs ranged between 20 and 30% depending on the dialkoxy moieties (see Table 1). Based on the results in Figure 7, the d- and 2θ-values of each XRD peak are summarized in Table 2.
In order to investigate the change in the morphological behavior, XRD patterns were obtained at each temperature showing the LC mesogenic phase (see Figure 8). The XRD patterns obtained between Tm and Ti are very different from those obtained at room temperature. That is, in the molten state, all the sharp peaks observed at room temperature disappeared and only a broad peak is observed. As a result, in the molten state, only an amorphous ordered structure formed.

3.4. 13C Chemical Shifts and Relaxation Times

Structural analyses of the dialkoxy side group and main chain in HQ- and Naph-series TLCPs were carried out by solid state 13C CP/MAS NMR. The 13C chemical shifts of the HQ-series TLCPs were obtained at room temperature. The chemical shifts for CH3, CH2, CH2, CH2, CH2, and CH2 for HQ-6 are observed at 14.23, 22.96, 26.16, 30.09, 31.99, and 68.77 ppm, respectively, as shown in Figure 9. The spinning sidebands are marked with an asterisk. Here, the signals at 151.87, 148.99, 123.56, and 116.78 ppm are assigned to the phenyl ring and HQ moiety in the main chain, and the chemical shift of C=O is 164.98 ppm. The resonance peak for the carbon of the C=O bond has a weaker intensity. The chemical shifts of all carbons are consistent with the structures shown in Figure 9.
In addition, the 13C chemical shifts for the phenyl ring and HQ moiety in the main chain and C=O in HQ-2 and HQ-4 are similar to those of HQ-6, and the chemical shifts for the side groups differed according to the length of the alkoxy groups.
For the Naph-series TLCPs, the peaks of 13C in CH3, CH2, CH2, CH2, CH2, and CH2 for Naph-6 are observed at 14.02, 22.69, 26.08, 29.96, 31.71, and 68.98 ppm, respectively, as shown in Figure 10. The 13C signal at 164.97 ppm corresponds to C=O, and the signals at 151.96, 148.66, 131.94, 129.03, 122.16, and 117.09 ppm are attributable to the phenyl ring and naphthalene moiety in the main chain. The spinning sidebands are marked with an asterisk. In addition, the 13C chemical shifts for phenyl, naphthalene, and C=O in Naph-2 and Naph-4 are similar to those of Naph-6, and the chemical shifts for the alkoxy groups differed based on the length of the alkoxy group.
The T1ρ values for each carbon of the HQ- and Naph-series TLCPs were measured at room temperature. The traces obtained for carbons in the HQ- and Naph-TLCPs are fitted with a single exponential function, Mz(t)/M(0) = a exp(-t/T1ρ), where Mz and M(0) are the loss of magnetization and total nuclear magnetization of 13C at thermal equilibrium, respectively [42,43]. From the results, the T1ρ values for various carbons are listed in Table 3. The relaxation times of carbon in the HQ- and Naph-TLCPs are compared according to the length of the dialkoxy groups. The T1ρ values of the -CH3 and -CH2- groups of HQ-2 are 30.7 and 3.1 ms, respectively (Table 3). Further, the T1ρ values of -CH3 in HQ-4 and HQ-6 are longer than the T1ρ values of other alkoxy groups, -CH2-. This suggests that the side groups have additional mobility from internal rotation. The CH3 group has a longer relaxation time than other carbons of the side groups, which is consistent with the fact that dipolar relaxation is more efficient based on the number of bonded protons.
In general, longer T1ρ values are observed for the carbons of the alkoxy groups attached to the main chain. This results from the greater mobility of the side substituents at the free end. The T1ρ values for the Naph-TLCPs show a similar trend as those of HQ-TLCPs. The T1ρ values for the HQ- and Naph-TLCPs represent mobility according to the length of the dialkoxy groups. The dialkoxy groups of the HQ-TLCPs have higher mobility than those of the Naph-TLCPs. In addition, the carbonyl carbons (C=O) have longer T1ρ than any of the carbon of the dialkoxy side group and main chain. The T1ρs of carbons i and j in HQ-TLCP (see Figure 9) and carbon l and m in Naph-TLCP (see Figure 10) are longer than the relaxation times of other carbons in the main chain, as shown in Table 3. The longer T1ρ values indicate a higher rigidity for main chains in HQ-TLCPs and Naph-TLCPs, which is ascribed to strong interfacial interactions between the alkoxyl groups and main chains.

4. Conclusions

In this study, the thermal properties and molecular dynamic behaviors of new TLCPs derived from HQ or Naph and various dialkoxy terephthalate units by solution polymerization were evaluated. All the synthesized TLCPs are thermotropic and nematic, indicating that the linear and rigid aromatic esters are sufficiently long enough to induce mesophase formation. The thermal property and degree of crystallinity decreased with the increasing length of the dialkoxy side groups in the terephthaloyl moiety. The various alkoxy substituents in the rigid rod-type main-chain TLCPs diminished the thermal properties of the TLCPs and thus helped resolve the processing problems associated with their decomposition at high temperatures. These results show that the processing temperature is dependent on the loading level of the monomer containing the side group, with a linear dependency. The thermal properties, liquid crystalline mesophase textures, and degree of crystallinity of the Naph-series TLCPs are better than those of the HQ-series TLCPs, at the same length of the dialkoxy side groups.
Each carbon was distinguished based on the 13C CP/MAS NMR chemical shifts, and the effect of the length of the dialkoxy side groups on the carbon mobility was evaluated. The motions of the dialkoxy groups were enhanced at the opposing ends of the main chain because this group was bound to the aromatic moiety through C=O bonds. The 13C T1ρ was dominated by the fluctuation of the anisotropic chemical shift, and it became longer with larger-amplitude molecular motions. This implies that the amplitude of the motion of the alkoxy group is enhanced at the C-end. The T1ρ values of CH3 varied and were observed to be longer for dialkoxy groups with a longer chain length. CH3 from the additional alkoxy groups had additional mobility arising from internal rotation. Consequently, the mobility determined by the T1ρ values differed according to the length of the alkoxy substituents. The dialkoxy groups of HQ-TLCP have higher mobility than those of Naph-TLCP.

Author Contributions

J.-H.C. designed the project and wrote the manuscript. G.T.P. prepared the samples and participated in the data analysis. A.R.L. performed NMR experiments. All authors reviewed the manuscript.

Funding

This research was supported by the Ministry of Trade, Industry & Energy (MOTIE, Korea) under the Industrial Technology Innovation Program (No. 10063420, Development of high strengthen thermotropic liquid crystal polyester fiber). This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Education (2018R1D1A1B07041593).

Conflicts of Interest

The authors declare no conflict of interests.

References

  1. Kumar, S. Liquid Crystals: Experimental Study of Physical Properties and Phase Transitions; Cambridge University Press: Cambridge, UK, 2001. [Google Scholar]
  2. Somma, E.; Nobile, M.R. Rheology of a semi-rigid thermotropic liquid crystalline polymer. Macromol. Symp. 2005, 228, 71–79. [Google Scholar] [CrossRef]
  3. Lenz, R.W. Synthesis and properties of thermotropic liquid crystal polymers with main chain mesogenic units. Polym. J. 1985, 17, 105–115. [Google Scholar] [CrossRef]
  4. Zeng, L.; Li, R.; Chen, P.; Xu, J.; Liu, P. Synthesis and characterization of thermotropic liquid crystalline polyarylate with ether ether ketone segments in the main chain. J. Appl. Polym. Sci. 2016, 133, 43800. [Google Scholar] [CrossRef]
  5. Beers, D.E.; Ramirez, J.E. Vectran high-performance fibre. J. Text. Inst. 1990, 81, 561–574. [Google Scholar] [CrossRef]
  6. Gong, X.; Chen, X.; Zhou, Y. Advanced weaving technologies for high-performance fabrics. In High-Performance Apparel; McLoughlin, J., Sabir, T., Eds.; Woodhead Publishing Series in Textiles; Woodhead Publishing: Duxford, UK, 2018; Chapter 5; pp. 75–112. [Google Scholar]
  7. Wolfe, J.F.; Loo, B.H.; Arnold, F.E. Rigid-rod polymers. 2. Synthesis and thermal properties of para-aromatic polymers with 2,6-benzobisthiazole units in the main chain. Macromolecules 1981, 14, 915–920. [Google Scholar] [CrossRef]
  8. Wilsens, C.H.R.M.; Noordover, B.A.J.; Rastogi, S. Aromatic thermotropic polyester based on 2,5-furandicarboxylic acid and vanillic acid. Polymer 2014, 55, 2432–2439. [Google Scholar] [CrossRef]
  9. Seo, B.-S.; Chang, J.-H. 4-Synthesis, characterization, and applications of liquid crystalline polymer-based microfibrillar and nanofibrillar composites. In Micro and Nano Fibrillar Composites (MFCs and NFCs) from Polymer Blends; Mishra, R.K., Thomas, S., Kalarikkal, N., Eds.; Woodhead Publishing Series in Composites Science and Engineering; Woodhead Publishing: Duxford, UK, 2017; Chapter 4; pp. 73–95. [Google Scholar]
  10. Komatsu, S.; Wetzel, B.; Friedrich, K. Novel liquid crystal polymers with tailored chemical structure for high barrier, mechanical and tribological performance. In Liquid Crystalline Polymers: Volume 2—Processing and Applications; Thakur, V.K., Kessler, M.R., Eds.; Springer International Publishing: Berlin, Germany, 2015; pp. 15–39. [Google Scholar]
  11. Wilsens, C.H.R.M.; Deshmukh, Y.S.; Liu, W.; Noordover, B.A.J.; Yao, Y.; Meijer, H.E.H.; Rastogi, S. Processing and performance of aromatic-aliphatic thermotropic polyesters based on vanillic acid. Polymer 2015, 60, 198–206. [Google Scholar] [CrossRef] [Green Version]
  12. Schaller, R.; Peijs, T.; Tervoort, T.A. High-performance liquid-crystalline polymer films for monolithic composites. Compos. Part A Appl. Sci. Manuf. 2016, 81, 296–304. [Google Scholar] [CrossRef]
  13. Bertolini, G.; Montani, E.; Pedretti, U.; Sortino, G.; Scaffaro, R.; La Mantia, F.P. Synthesis and characterization of a new fully aromatic LCP. Mol. Cryst. Liq. Cryst. Sci. Technol. Sect. A Mol. Cryst. Liq. Cryst. 1996, 290, 77–85. [Google Scholar] [CrossRef]
  14. Sloan, F. 5-Liquid crystal aromatic polyester-arylate (LCP) fibers: Structure, properties, and applications. Struct. Prop. High-Perform. Fibers 2017, 2017, 113–140. [Google Scholar]
  15. Jackson, W.J. Liquid crystalline polymers. 5. Liquid crystalline polyesters containing naphthalene rings. Macromolecules 1983, 16, 1027–1033. [Google Scholar] [CrossRef]
  16. Hirano, H.; Kadota, J.; Agari, Y.; Harada, T.; Tanaka, M.; Hasegawa, K. Linear polymers with sulfur in the main chain. IV. Synthesis of thermotropic liquid-crystalline polythioesters based on 4,4′-biphenyldithiol with excellent adhesive properties. Polym. Eng. Sci. 2007, 47, 262–269. [Google Scholar] [CrossRef]
  17. Antoun, S.; Lenz, R.W.; Jin, J.-I. Liquid crystal polymers. IV. Thermotropic polyesters with flexible spacers in the main chain. J. Polym. Sci. Part A Polym. Chem. 1981, 19, 1901–1920. [Google Scholar] [CrossRef]
  18. Jackson, W.J.; Kuhfuss, H.F. Liquid crystal polymers. I. Preparation and properties of p-hydroxybenzoic acid copolyesters. J. Polym. Sci. Part A Polym. Chem. 1976, 14, 2043–2058. [Google Scholar] [CrossRef]
  19. Ophir, Z.; Ide, Y. Injection molding of thermotropic liquid crystal polymers. Polym. Eng. Sci. 1983, 23, 792–796. [Google Scholar] [CrossRef]
  20. Uzman, M.; Kuhnpast, K.; Springer, J. Orientational behavior of polymer blends containing a liquid crystalline component. Die Makromol. Chem. 1989, 190, 3185–3194. [Google Scholar] [CrossRef]
  21. Martínez-Gómez, A.; Encinar, M.; Fernández-Blázquez, J.P.; Rubio, R.G.; Pérez, E. Relationship between composition, structure and dynamics of main-chain liquid crystalline polymers with biphenyl mesogens. In Liquid Crystalline Polymers: Volume 1—Structure and Chemistry; Thakur, V.K., Kessler, M.R., Eds.; Springer International Publishing: New York, NY, USA, 2016; pp. 453–476. [Google Scholar]
  22. Damman, S.B.; Mercx, F.P.M.; Kootwijk-Damman, C.M. Liquid-crystalline main-chain polymers with a poly(p-phenylene terephthalate) backbone: 1. Synthesis, characterization and rheology of polyesters with alkoxy side chains. Polymer 1993, 34, 1891–1897. [Google Scholar] [CrossRef] [Green Version]
  23. Chang, J.-H.; Jo, B.-W. Blends of PBT with rigid thermotropic LCP having flexible side groups: Comparison of their tensile properties with semirigid main-chain TLCP blends. J. Appl. Polym. Sci. 1996, 60, 939–946. [Google Scholar] [CrossRef]
  24. Griffin, A.C.; Samulski, E.T. Dimer vs. polymer liquid crystals: Alkyl chain flexibility via deuterium NMR. J. Am. Chem. Soc. 1985, 107, 2975–2976. [Google Scholar] [CrossRef]
  25. Kricheldorf, H.R.; Berl, M.; Scharnagl, N. Poly(lactones). 9. Polymerization mechanism of metal alkoxide initiated polymerizations of lactide and various lactones. Macromolecules 1988, 21, 286–293. [Google Scholar] [CrossRef]
  26. Wang, T.; Li, X.; Dong, Z.; Huang, S.; Yu, H. Vertical orientation of nanocylinders in liquid -crystalline block copolymers directed by light. ACS Appl. Mater. Interfaces 2017, 9, 24864–24872. [Google Scholar] [CrossRef]
  27. Chen, Y.; Huang, S.; Wang, T.; Dong, Z.; Yu, H. Confined self-assembly enables stabilization and patterning of nanostructures in liquid-crystalline block copolymers. Macromolecules 2019, 52, 1892–1898. [Google Scholar] [CrossRef]
  28. Huang, S.; Chen, Y.; Ma, S.; Yu, H. Hierarchical self-assembly in liquid -crystalline block copolymers enabled by chirality transfer. Angew. Chem. Int. Ed. 2018, 57, 12524–12528. [Google Scholar] [CrossRef] [PubMed]
  29. Koenig, J.L. Spectroscopy of Polymers; Elsevier: New York, NY, USA, 1999; Chapter 6; pp. 255–313. [Google Scholar]
  30. Lim, A.R. Effect on local structure and phase transition of perovskite-type [N(CH3)4]2 Zn1−xCuxBr4 (x = 0, 0.5, 0.7, and 1). Sci. Rep. 2018, 8, 14095–14114. [Google Scholar] [CrossRef] [PubMed]
  31. Ballauff, M. Rigid rod polymers having flexible side chains, 1. Thermotropic poly(1,4-phenylene 2,5-dialkoxyterephthalate)s. Die Makromol. Chem. Rapid Commun. 1986, 7, 407–414. [Google Scholar] [CrossRef]
  32. Majnusz, J.; Lenz, R.W. Liquid crystal polymers-22. Synthesis and properties of monomers for the preparation of poly(2-alkyl-1,4-phenylene terephthalates). Eur. Polym. J. 1985, 21, 565–568. [Google Scholar] [CrossRef]
  33. Barclay, G.G.; Ober, C.K. Liquid crystalline and rigid-rod networks. Prog. Polym. Sci. 1993, 18, 899–945. [Google Scholar] [CrossRef]
  34. Jin, J.-I.; Kang, C.-S. Thermotropic main chain polyesters. Prog. Polym. Sci. 1997, 22, 937–973. [Google Scholar] [CrossRef]
  35. Song, J.-Y.; Yun, Y.-K.; Jin, J.-I. Synthesis and characterization of a series of wholly aromatic copolyesters containing 2-(α-phenylisopropyl)hydroquinone moiety. J. Polym. Sci. Part A Polym. Chem. 1999, 37, 881–889. [Google Scholar] [CrossRef]
  36. Rubin, S.F.; Kannan, R.M.; Kornfield, J.A.; Boeffel, C. Effect of mesophase order and molecular weight on the dynamics of nematic and smectic side-group liquid-crystalline polymers. Macromolecules 1995, 28, 3521–3530. [Google Scholar] [CrossRef]
  37. Cai, R.; Preston, J.; Samulski, E.T. Liquid crystalline aromatic polyesters derived from 2,5-thiophene. Macromolecules 1992, 25, 563–568. [Google Scholar] [CrossRef]
  38. Khan, N.; Price, D.M.; Bashir, Z. Synthesis and mesophase characterization of liquid crystalline polyesters with bulky, rigid, lateral substituents. J. Polym. Sci. Part B Polym. Phys. 1994, 32, 2509–2518. [Google Scholar] [CrossRef]
  39. Elias, F.; Clarke, S.M.; Peck, R.; Terentjev, E.M. Equilibrium textures in main-chain liquid crystalline polymers. Europhys. Lett. 1999, 47, 442–448. [Google Scholar] [CrossRef] [Green Version]
  40. Elias, F.; Clarke, S.M.; Peck, R.; Terentjev, E.M. Nematic order drives phase separation in polydispersed liquid crystalline polymers. Macromolecules 2000, 33, 2060–2068. [Google Scholar] [CrossRef]
  41. Kavesh, S.; Schultz, J.M. Meaning and measurement of crystallinity in polymers: A Review. Polym. Eng. Sci. 1969, 9, 331–338. [Google Scholar] [CrossRef]
  42. Abragam, A. The Principles of Nuclear Magnetism; Oxford University Press: Oxford, UK, 1961; Chapter IX; pp. 354–423. [Google Scholar]
  43. Lim, A.R.; Joo, Y.L. Cation dynamics by 1H and 13C MAS NMR in hybrid organic-inorganic (CH3CH2NH3)2 CuCl4. RSC Adv. 2018, 8, 34110–34115. [Google Scholar] [CrossRef]
Polymers 11 00992 g001 550
Figure 1. Synthetic routes of the thermotropic liquid-crystalline polymers (TLCPs).
Figure 1. Synthetic routes of the thermotropic liquid-crystalline polymers (TLCPs).
Polymers 11 00992 g001
Polymers 11 00992 g002 550

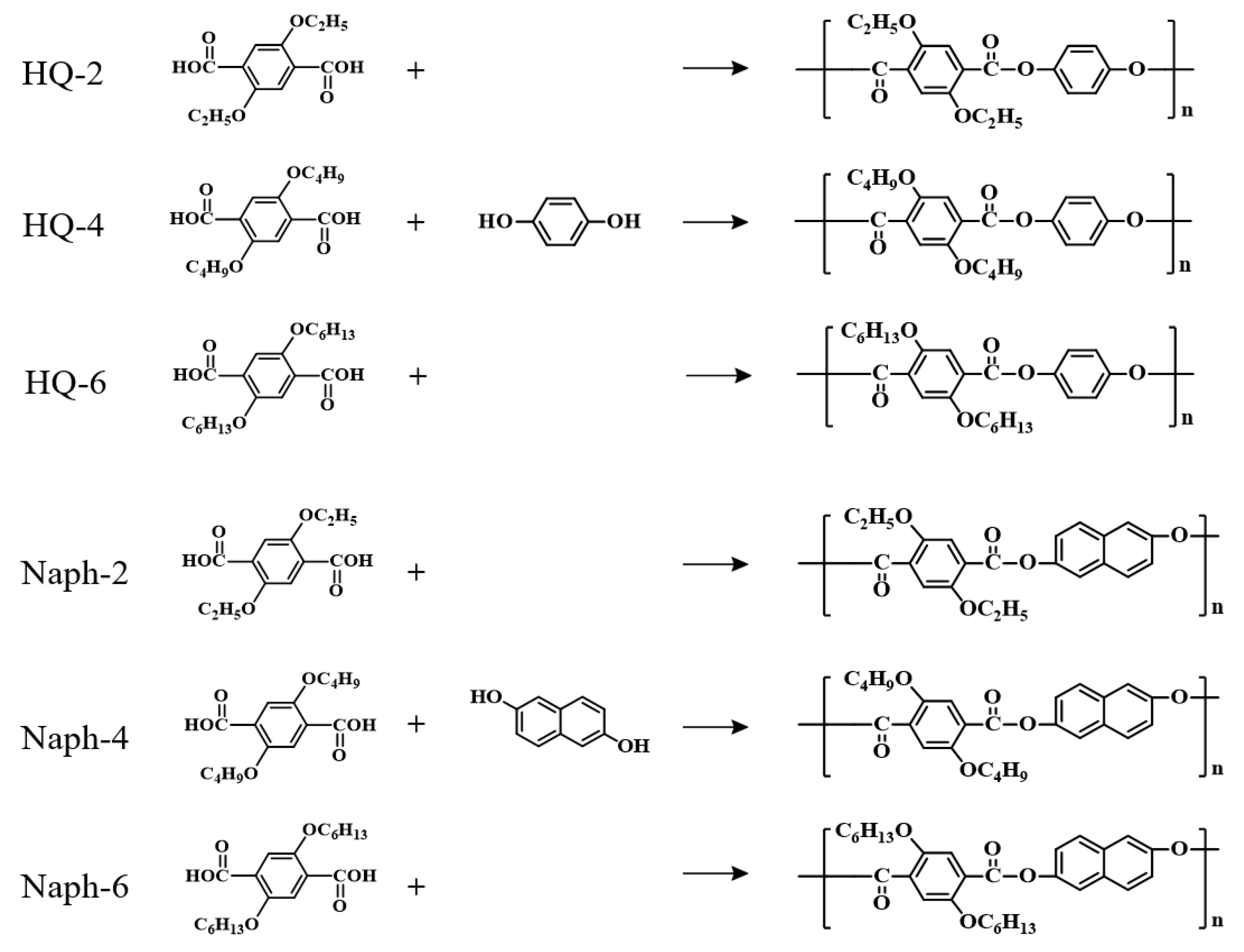

Figure 2. Chemical structures of hydroquinone (HQ)- and Naph-TLCPs.
Figure 2. Chemical structures of hydroquinone (HQ)- and Naph-TLCPs.
Polymers 11 00992 g002
Polymers 11 00992 g003 550
Figure 3. Differential scanning calorimetry (DSC) thermograms of HQ- and Naph-TLCPs.
Figure 3. Differential scanning calorimetry (DSC) thermograms of HQ- and Naph-TLCPs.
Polymers 11 00992 g003
Polymers 11 00992 g004 550
Figure 4. Thermogravimetric analysis (TGA) thermograms of HQ- and Naph-TLCPs.
Figure 4. Thermogravimetric analysis (TGA) thermograms of HQ- and Naph-TLCPs.
Polymers 11 00992 g004
Polymers 11 00992 g005 550
Figure 5. Comparison of the 3D chemical structures of (a) HQ-6 and (b) Naph-6.
Figure 5. Comparison of the 3D chemical structures of (a) HQ-6 and (b) Naph-6.
Polymers 11 00992 g005
Polymers 11 00992 g006 550
Figure 6. Polarized optical micrographs of (a) HQ-2 at 310 °C, (b) HQ-4 at 255 °C, (c) HQ-6 at 190 °C, (d) Naph-2 at 310 °C, (e) Naph-4 at 290 °C, and (f) Naph-6 at 200 °C (magnification 100×).
Figure 6. Polarized optical micrographs of (a) HQ-2 at 310 °C, (b) HQ-4 at 255 °C, (c) HQ-6 at 190 °C, (d) Naph-2 at 310 °C, (e) Naph-4 at 290 °C, and (f) Naph-6 at 200 °C (magnification 100×).
Polymers 11 00992 g006
Polymers 11 00992 g007 550

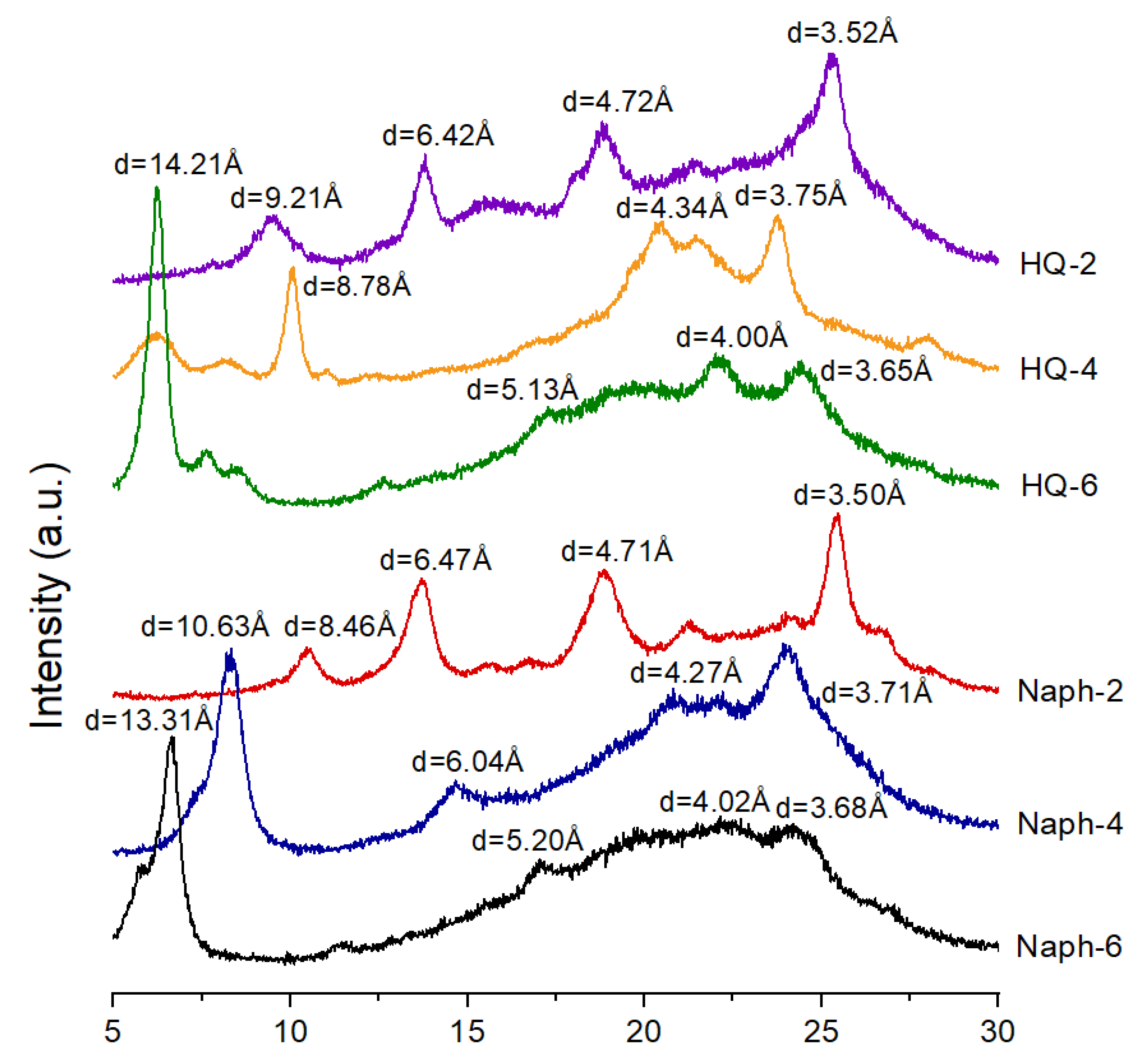

Figure 7. XRD patterns of HQ- and Naph-TLCPs.
Figure 7. XRD patterns of HQ- and Naph-TLCPs.
Polymers 11 00992 g007
Polymers 11 00992 g008 550

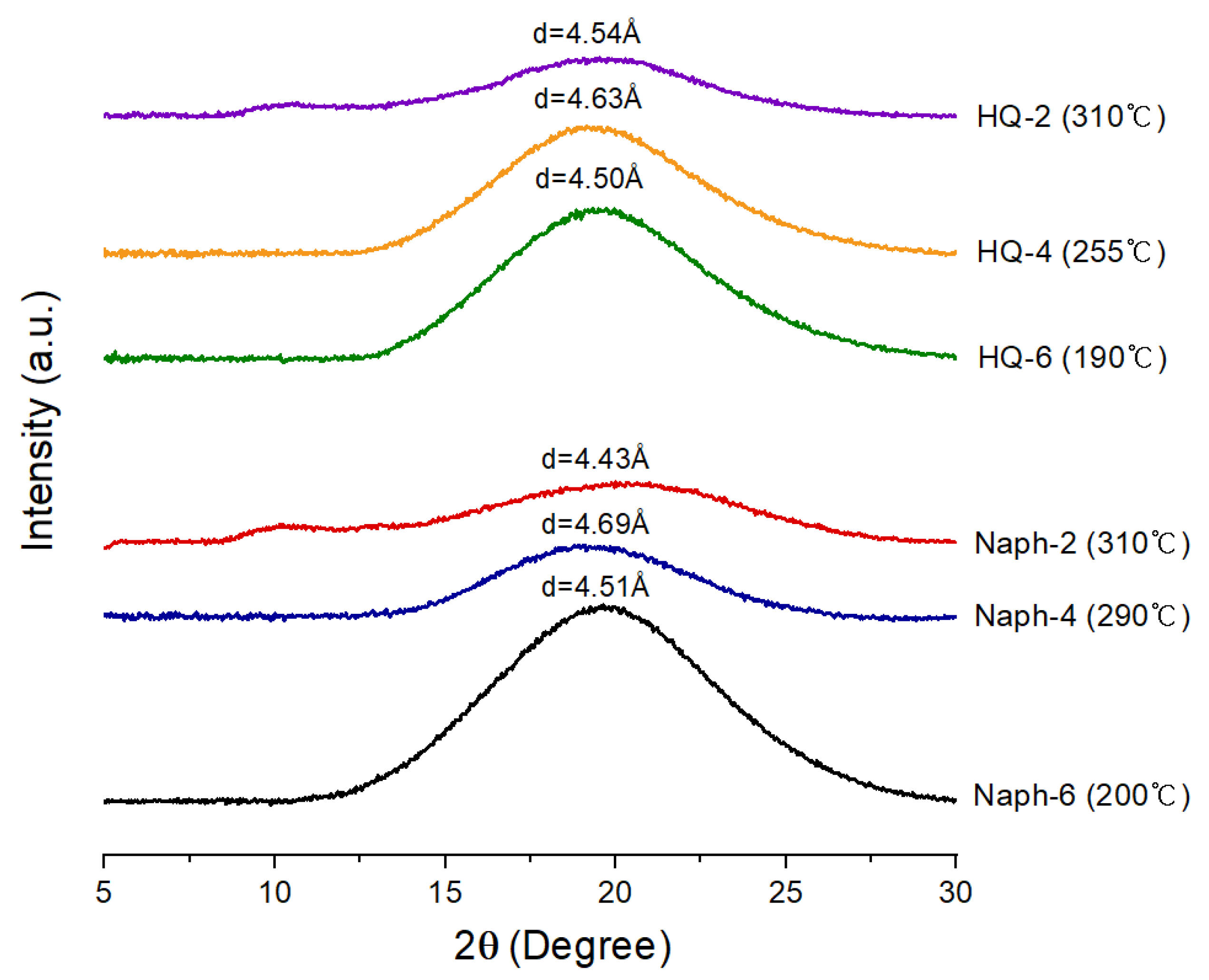

Figure 8. XRD patterns of HQ- and Naph-TLCPs in the LC mesogenic temperature ranges. The temperature in parentheses is the temperature at which the XRD patterns were collected.
Figure 8. XRD patterns of HQ- and Naph-TLCPs in the LC mesogenic temperature ranges. The temperature in parentheses is the temperature at which the XRD patterns were collected.
Polymers 11 00992 g008
Polymers 11 00992 g009 550
Figure 9. Solid state 13C CP/MAS NMR spectrum of HQ-6 at room temperature. The spinning sidebands are marked with asterisks.
Figure 9. Solid state 13C CP/MAS NMR spectrum of HQ-6 at room temperature. The spinning sidebands are marked with asterisks.
Polymers 11 00992 g009
Polymers 11 00992 g010 550

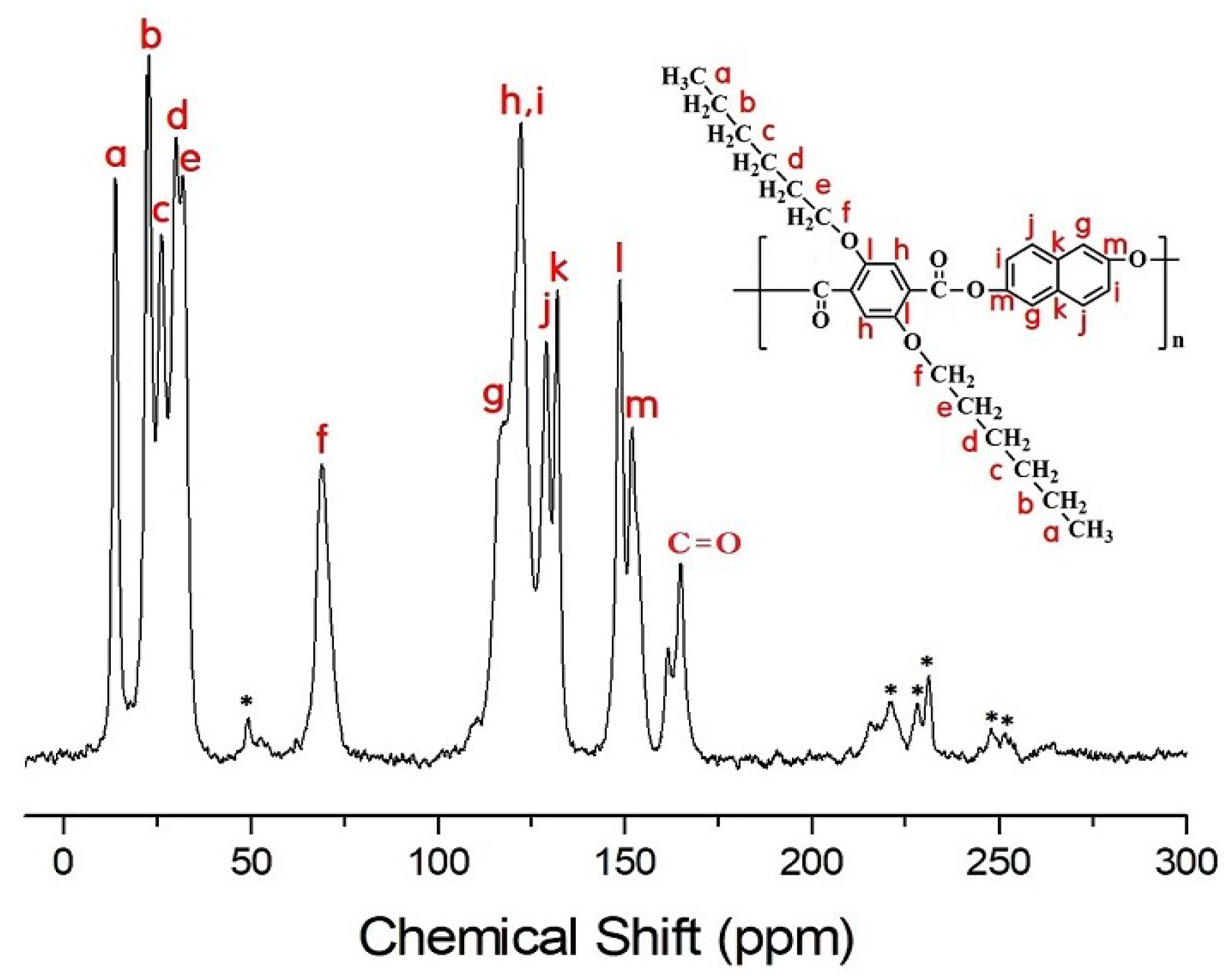

Figure 10. Solid state 13C CP/MAS NMR spectrum of Naph-6 at room temperature. The spinning sidebands are marked with asterisks.
Figure 10. Solid state 13C CP/MAS NMR spectrum of Naph-6 at room temperature. The spinning sidebands are marked with asterisks.
Polymers 11 00992 g010
Table
Table 1. General properties of hydroquinone (HQ)- and Naph- thermotropic liquid-crystalline polymers (TLCPs).
Table 1. General properties of hydroquinone (HQ)- and Naph- thermotropic liquid-crystalline polymers (TLCPs).
TLCPIV 1Tg
(°C)		Tm
(°C)		Ti
(°C)		TDi 2
(°C)		wtR600
(%) 3		LC PhaseDC 4
(%)
HQ-20.997127932535727Nematic25
HQ-40.833424926934321Nematic19
HQ-6Insol. 51116420034220Nematic18
Naph-20.957628232936548Nematic30
Naph-4Insol.5425831236234Nematic24
Naph-6Insol.3816422734826Nematic20
1 Inherent viscosity was measured at a concentration of 0.1 g/dL in phenol/p-chlorophenol/TCE = 25/40/35 (w/w/w) at 25 °C. 2 2% initial weight-loss temperature. 3 Weight percent of the residue at 600 °C. 4 Degree of crystallinity. 5 Insoluble.
Table
Table 2. d values corresponding to the XRD peaks of HQ- and Naph-TLCPs.
Table 2. d values corresponding to the XRD peaks of HQ- and Naph-TLCPs.
TLCPDistance (Å)
HQ-29.21 (9.6) 16.42 (13.8)4.72 (18.8)3.52 (25.28)
HQ-414.21 (6.22)8.78 (10.08)4.34 (20.48)3.75 (23.74)
HQ-614.21 (6.22)5.13 (17.28)4.00 (22.2)3.65 (24.38)
Naph-28.46 (10.46)6.47 (13.68)4.71 (18.86)3.50 (25.46)
Naph-410.63 (8.32)6.04 (14.66)4.27 (20.82)3.71 (23.98)
Naph-613.31 (6.64)5.20 (17.04)4.02 (22.14)3.68 (24.20)
1 2θ values are shown in parentheses.
Table
Table 3. Spin-lattice relaxation time T1ρ (ms) in the rotating frame for each carbon in the TLCPs at room temperature.
Table 3. Spin-lattice relaxation time T1ρ (ms) in the rotating frame for each carbon in the TLCPs at room temperature.
TLCPHQ-2HQ-4HQ-6Naph-2Naph-4Naph-6
CH3-a30.770.296.825.153.350.0
CH2-b3.113.424.51.99.910.6
CH2-c 7.912.8 7.15.8
CH2-d 3.36.8 3.24.6
CH2-e 5.3 3.5
CH2-f 3.8 2.4
g8.78.010.719.126.76.6
h45.244.547.251.435.820.5
i107.9147.3124.8
j105.1115.2108.5120.2106.1149.9
k 51.238.896.6
l 158.4140.596.1
m 102.6125.869.1
C=O118.5163.3144.7179.3193.4104.7

Share and Cite

MDPI and ACS Style

Park, G.T.; Chang, J.-H.; Lim, A.R. Thermotropic Liquid Crystalline Polymers with Various Alkoxy Side Groups: Thermal Properties and Molecular Dynamics. Polymers 2019, 11, 992. https://doi.org/10.3390/polym11060992

AMA Style

Park GT, Chang J-H, Lim AR. Thermotropic Liquid Crystalline Polymers with Various Alkoxy Side Groups: Thermal Properties and Molecular Dynamics. Polymers. 2019; 11(6):992. https://doi.org/10.3390/polym11060992

Chicago/Turabian Style

Park, Gi Tae, Jin-Hae Chang, and Ae Ran Lim. 2019. "Thermotropic Liquid Crystalline Polymers with Various Alkoxy Side Groups: Thermal Properties and Molecular Dynamics" Polymers 11, no. 6: 992. https://doi.org/10.3390/polym11060992

APA Style

Park, G. T., Chang, J.-H., & Lim, A. R. (2019). Thermotropic Liquid Crystalline Polymers with Various Alkoxy Side Groups: Thermal Properties and Molecular Dynamics. Polymers, 11(6), 992. https://doi.org/10.3390/polym11060992

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
