Next Article in Journal
Preparation, Structure and Properties of Acid Aqueous Solution Plasticized Thermoplastic Chitosan
Next Article in Special Issue
The Role of Surfaces in Gas Transport Through Polymer Membranes
Previous Article in Journal
Stabilization of Pickering Emulsions by Hairy Nanoparticles Bearing Polyanions
Article Menu

Export Article

Open AccessArticle

Effects of Gas Adsorption on the Mechanical Properties of Amorphous Polymer

School of Mechanical Engineering, Yonsei University, 50, Yonsei-ro, Seodaemun-gu, Seoul 03722, Korea
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(5), 817; https://doi.org/10.3390/polym11050817
Received: 21 March 2019 / Revised: 12 April 2019 / Accepted: 5 May 2019 / Published: 7 May 2019
(This article belongs to the Special Issue Gas Transport Behavior of Polymer Films)
  |
PDF [3920 KB, uploaded 7 May 2019]
  |

Abstract

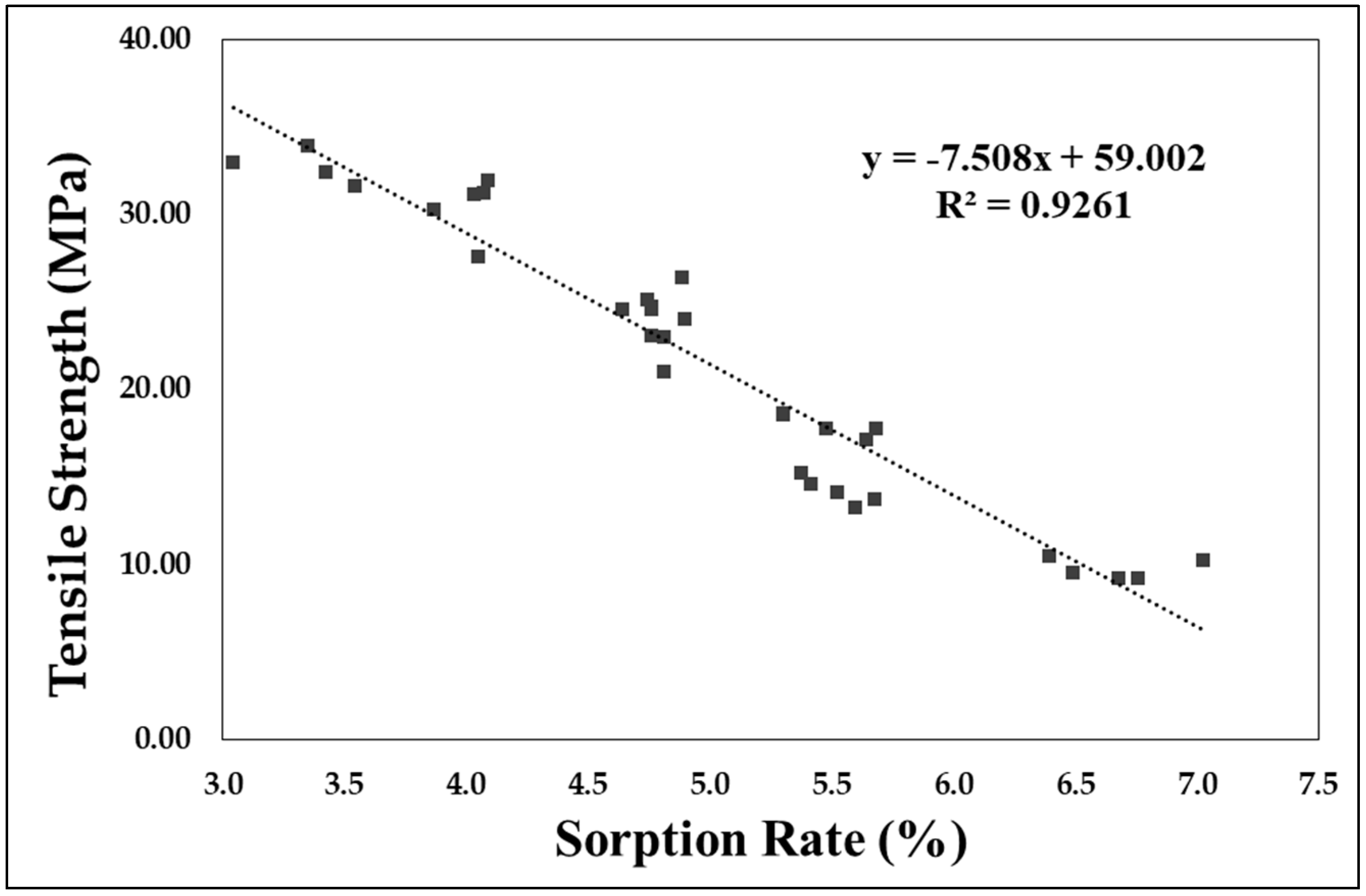

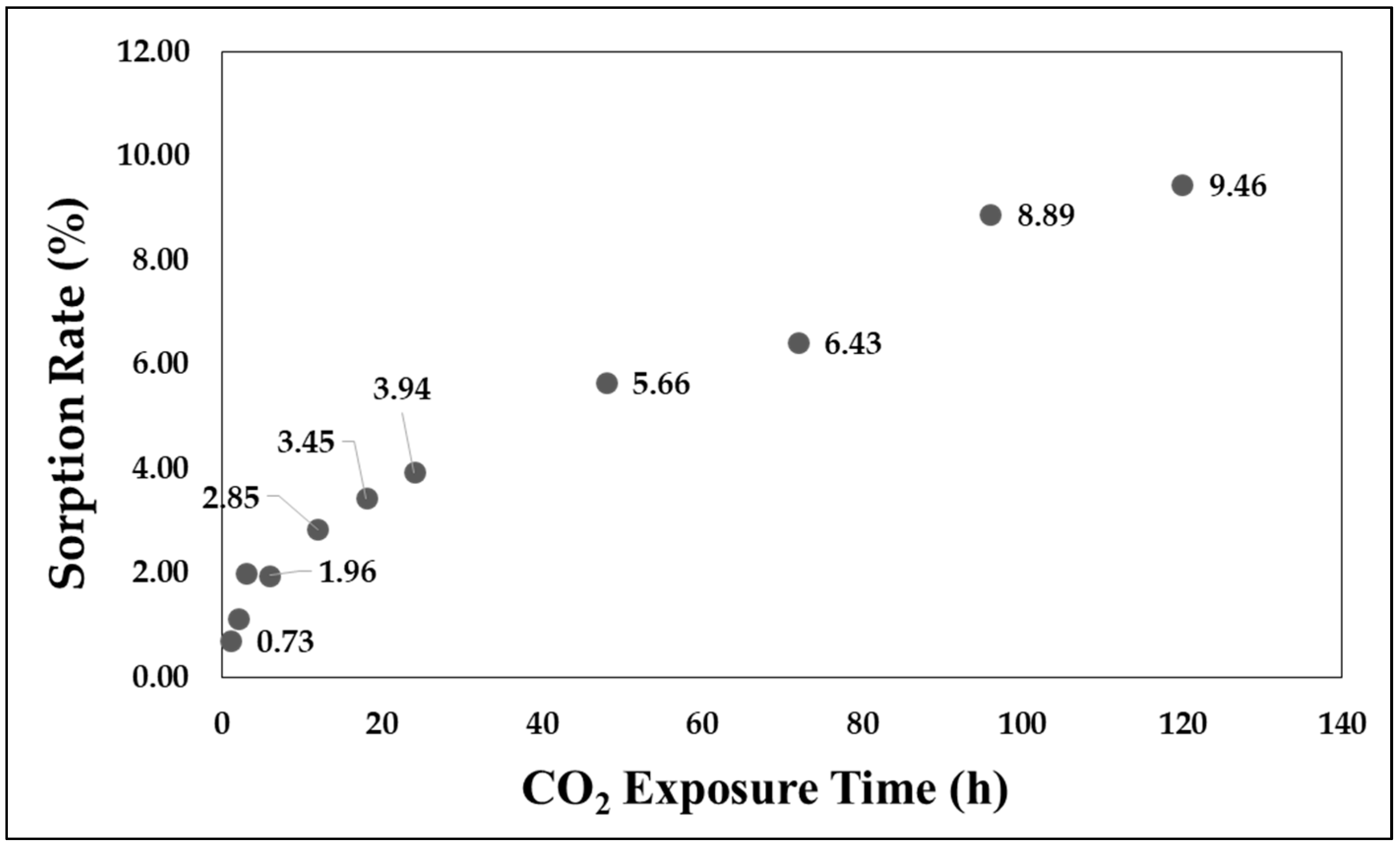

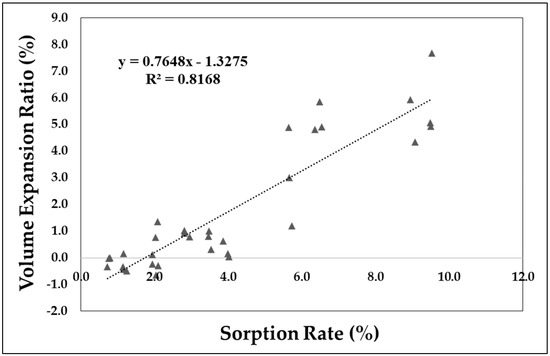

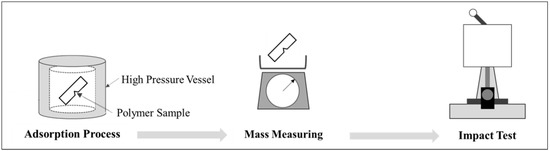

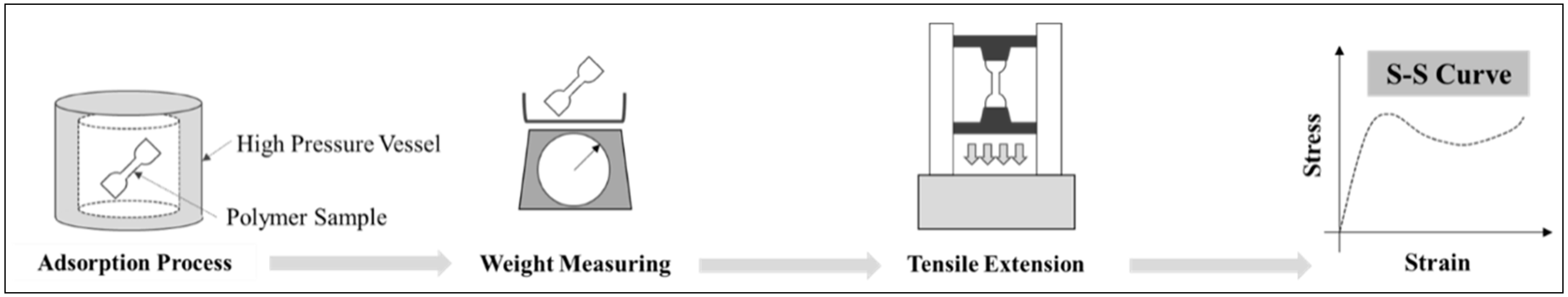

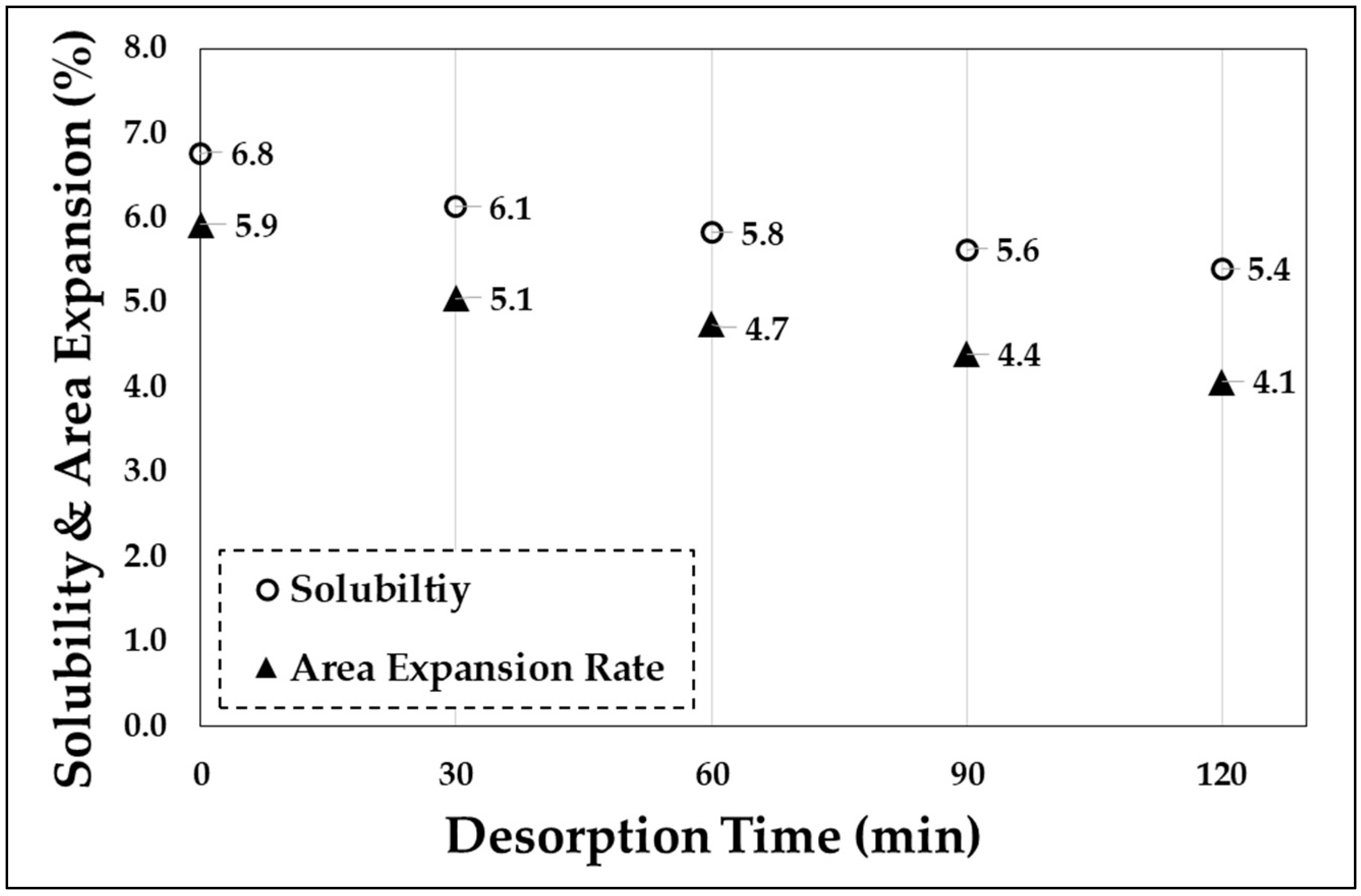

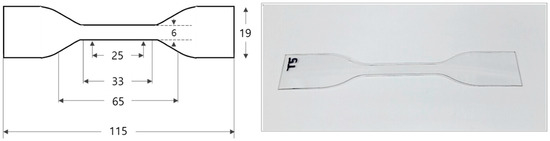

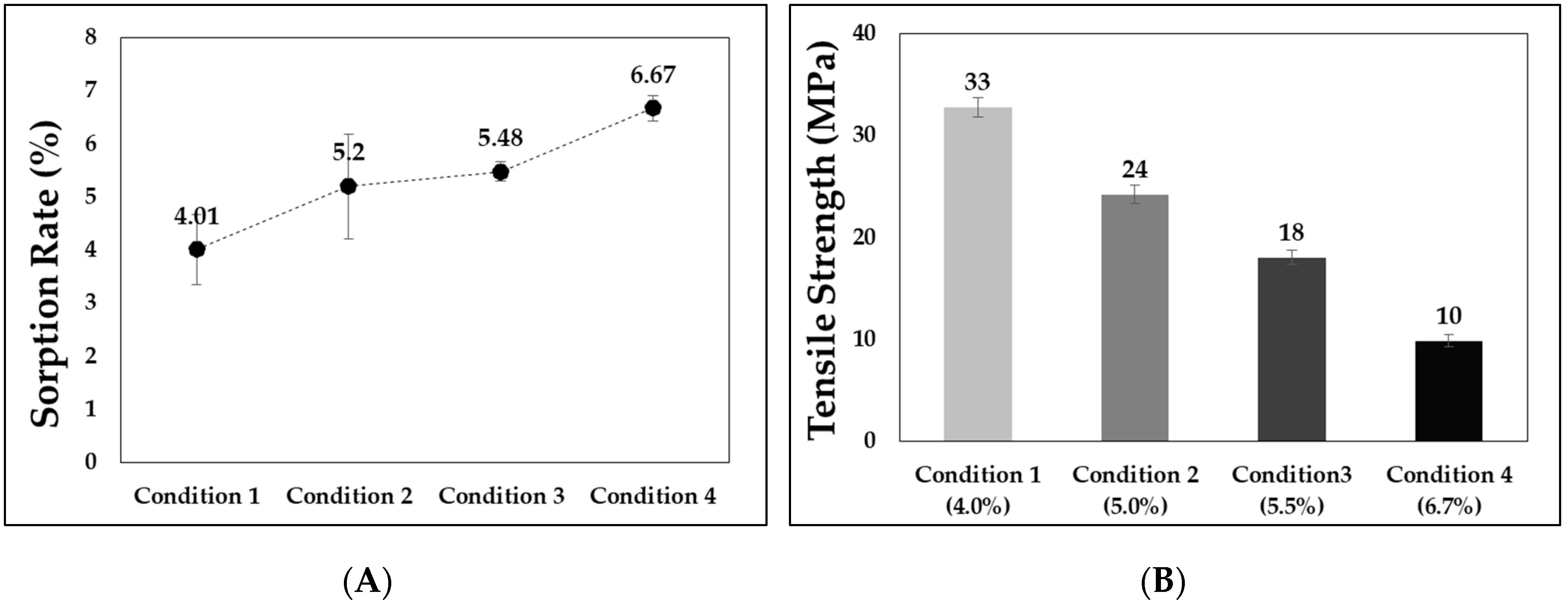

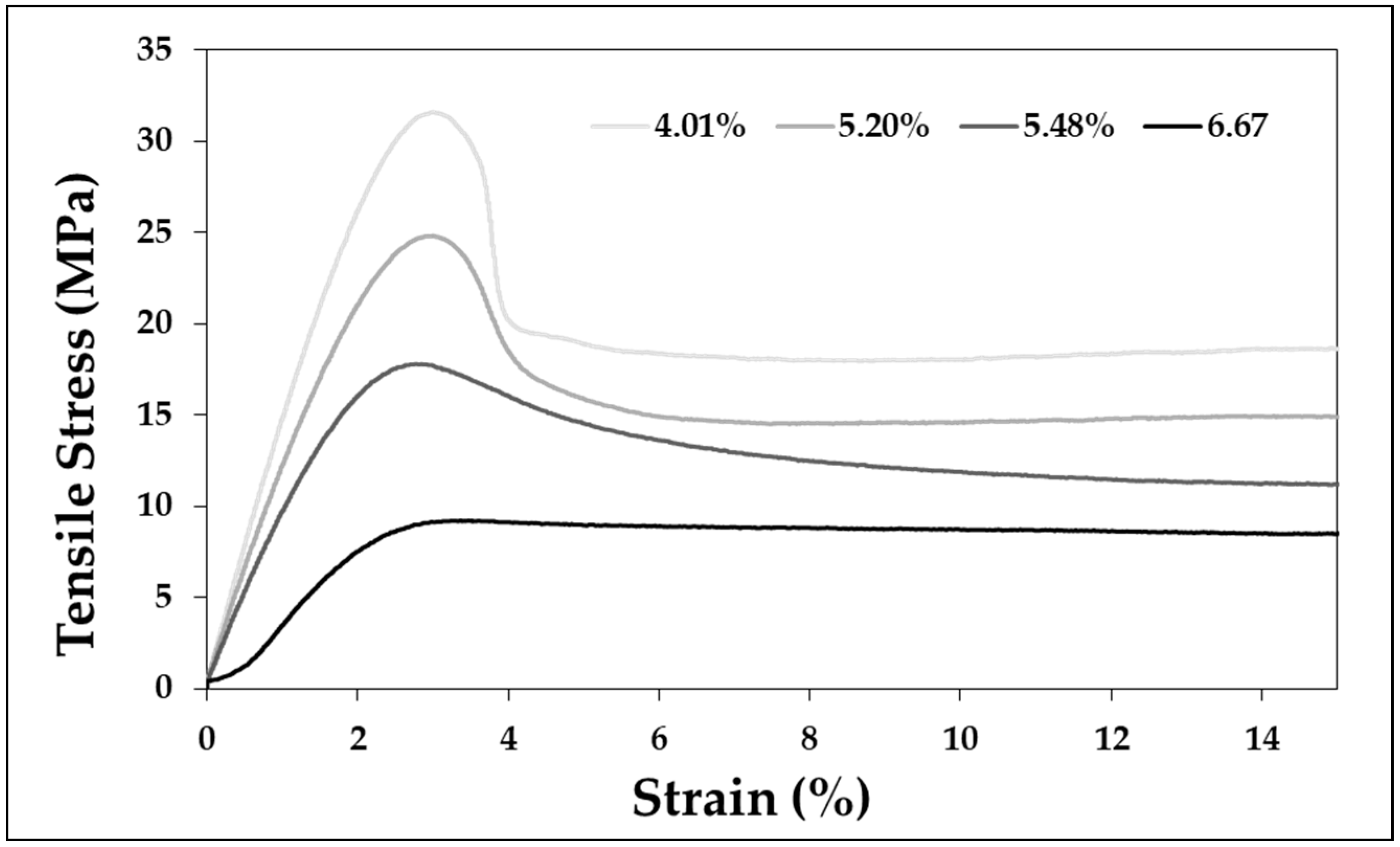

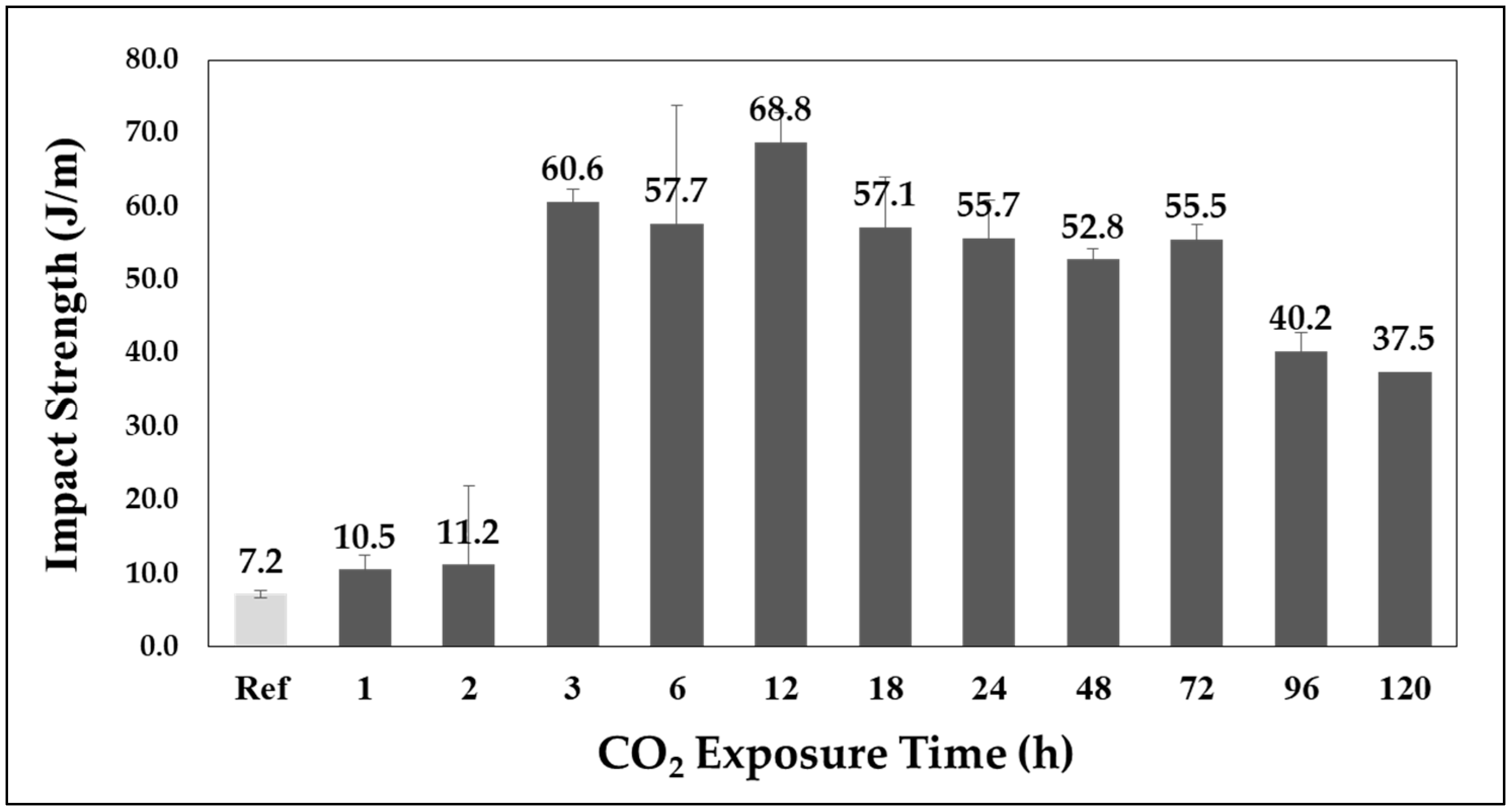

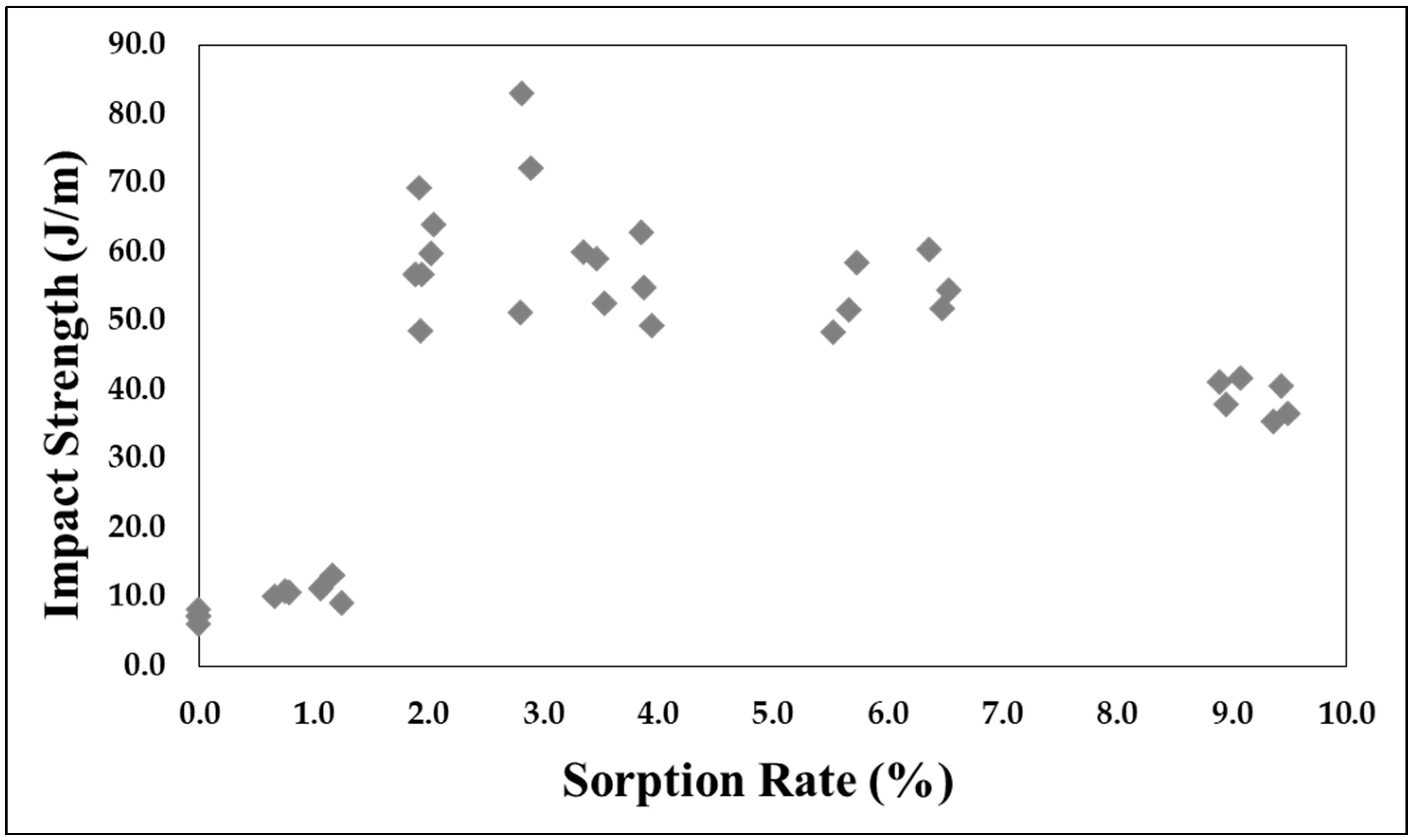

This study investigates the properties of a polymer–gas mixture formed through diffusion, based on the changes in the partial pressure and observed changes in the impact and tensile strengths owing to the gas dissolution. The high-pressure gas dissolves into a solid-state polymer through diffusion based on the difference in the partial pressure. This dissolved gas is present in the amorphous region within the polymeric material temporarily, which results in the polymer exhibiting different mechanical properties, while the gas remains dissolved in the polymer. In this study, the mechanical properties of amorphous polyethylene terephthalate (APET) specimens prepared by dissolving CO2 using a high-pressure vessel were investigated, and the resulting impact and tensile strengths were measured. These experiments showed that the increase in sorption rate of CO2 caused an increase in the impact strength. At 2.9% CO2 absorption, the impact strength of APET increased 956% compared to that of the reference specimen. Furthermore, the tensile strength decreased by up to 71.7% at 5.48% CO2 sorption; the stress–strain curves varied with the gas sorption rate. This phenomenon can be associated with the change in the volume caused by CO2 dissolution. When the APET absorbed more than 2.0% CO2 gas, sample volume increased. A decrease in the network density can occur when the volume is increased while maintaining constant mass. The CO2 gas in the polymer acted as a cushion in impact tests which have sorption rates above 2%. In addition to the reduction in the network density in the polymer chain, Van Der Waals forces are decreased causing a decrease in tensile strength only while CO2 is present in the APET. These observations only occur prior to CO2 desorption from the polymer. View Full-Text
Keywords: polymer; amorphous region; carbon dioxide; polymer-gas mixture; impact strength; tensile strength; gas adsorption; network density polymer; amorphous region; carbon dioxide; polymer-gas mixture; impact strength; tensile strength; gas adsorption; network density

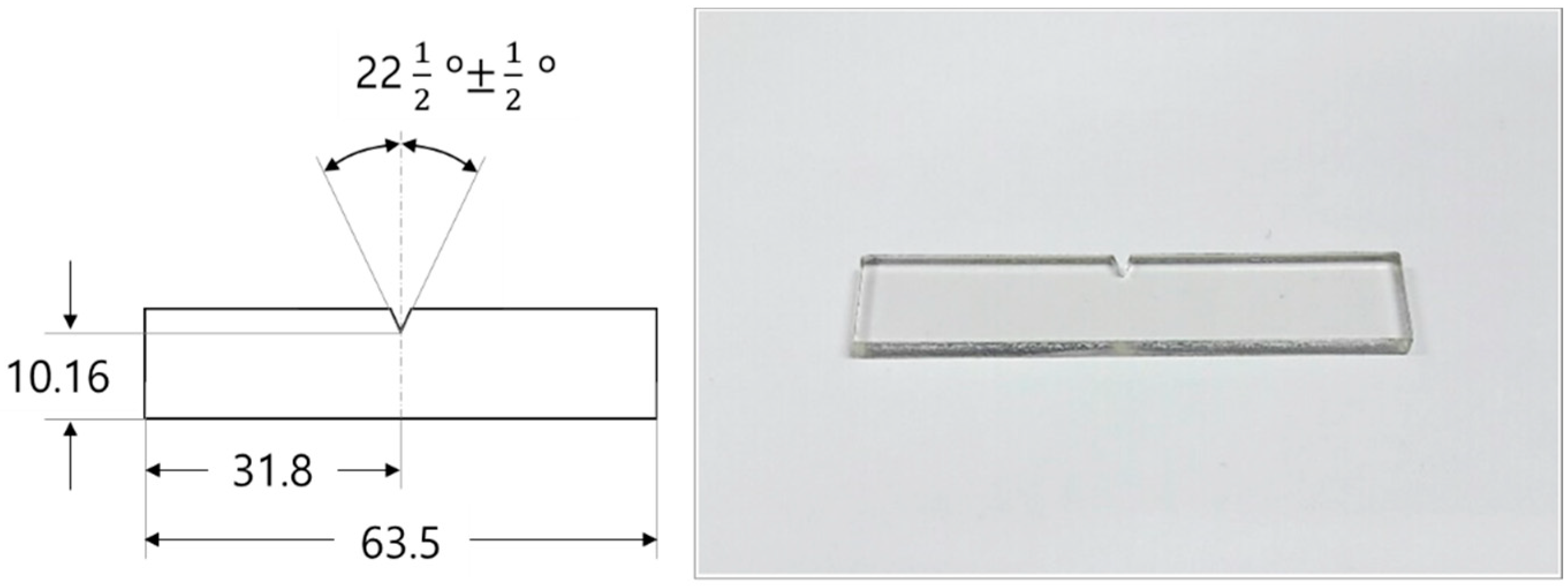

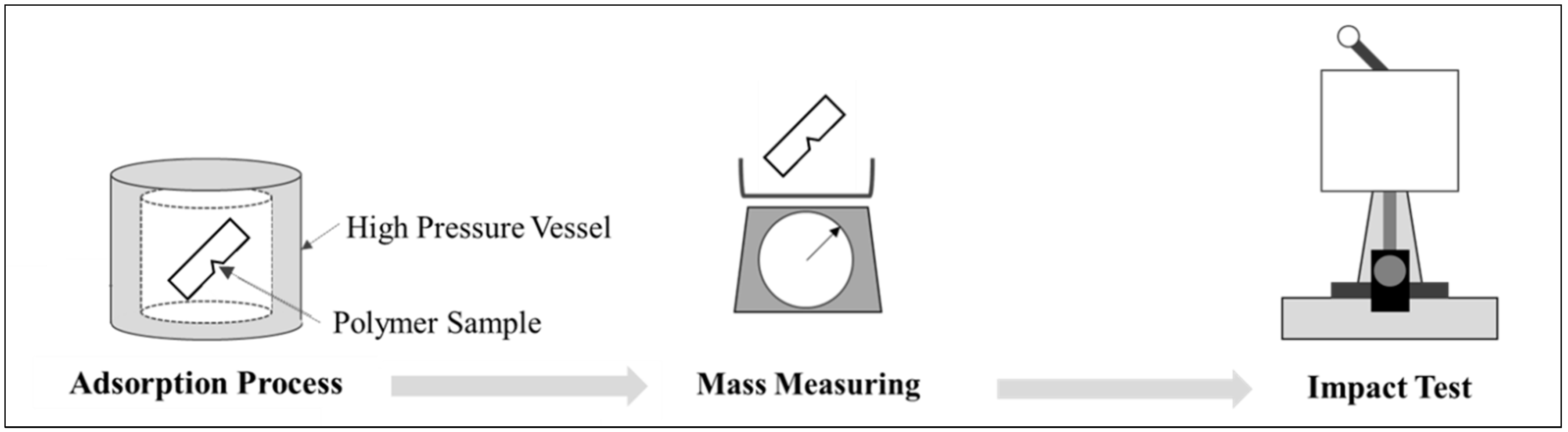

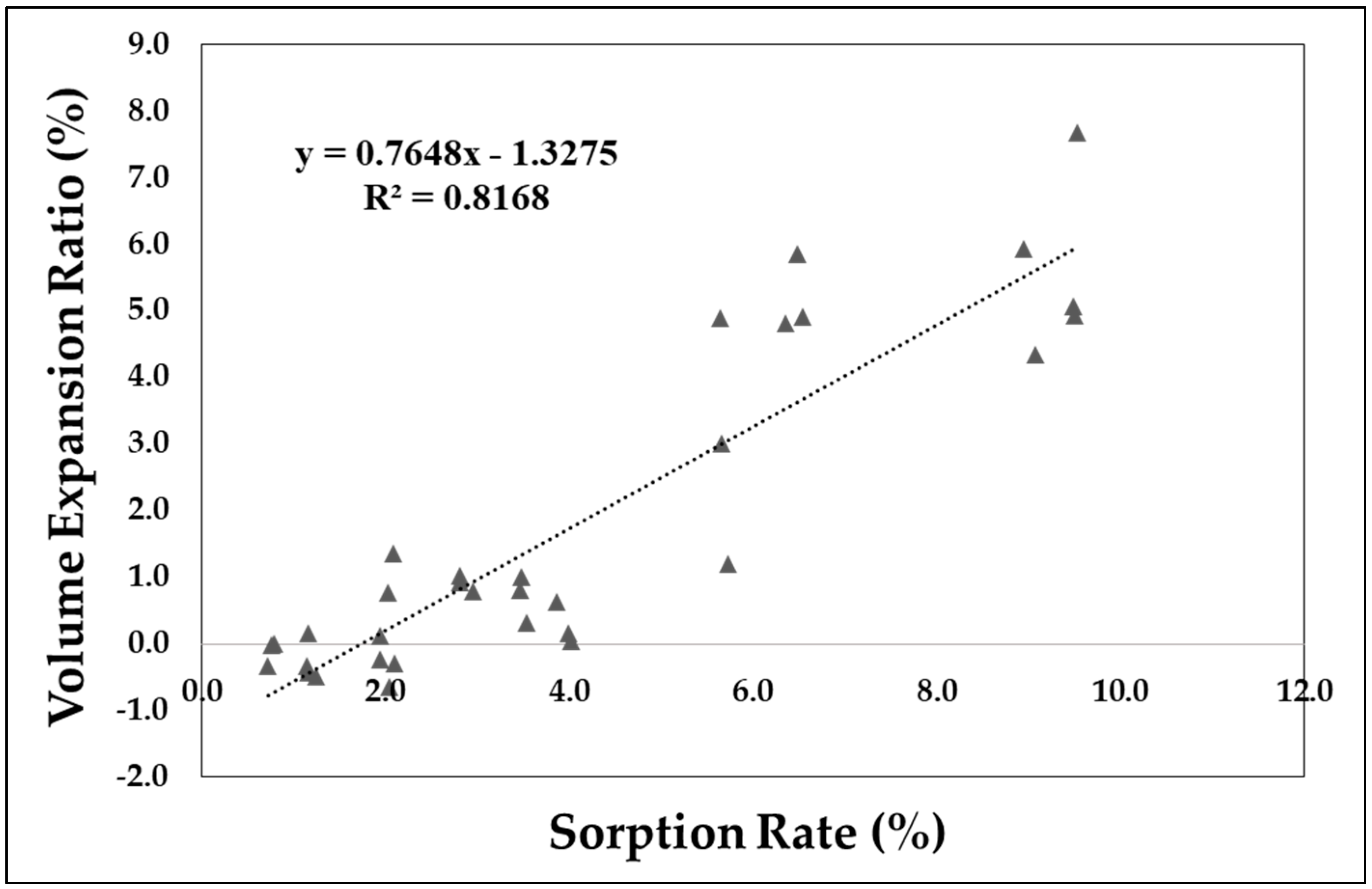

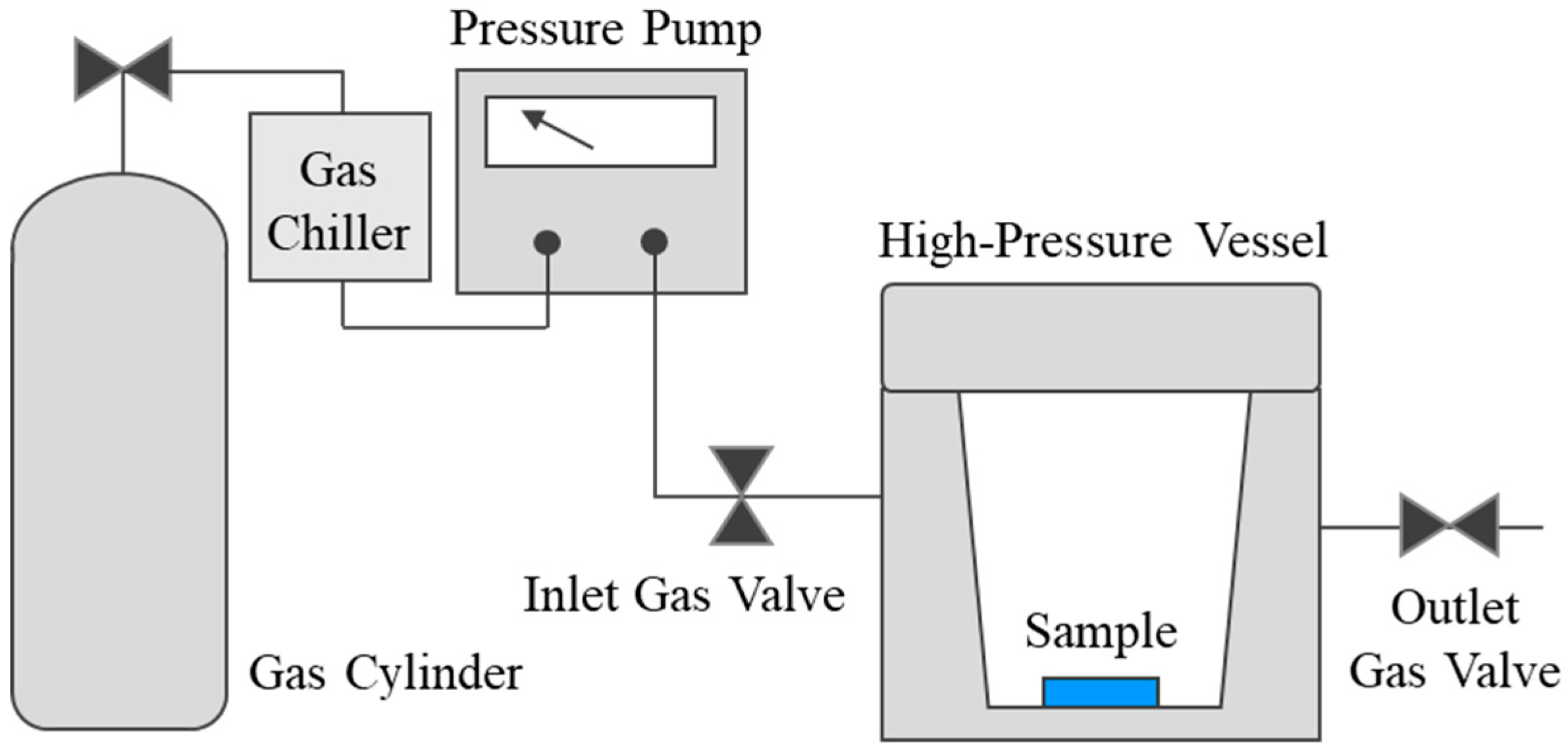

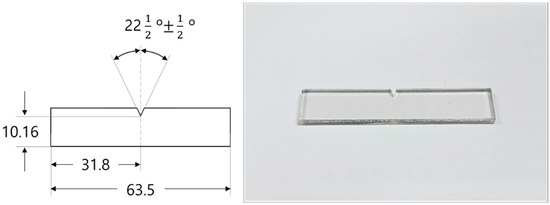

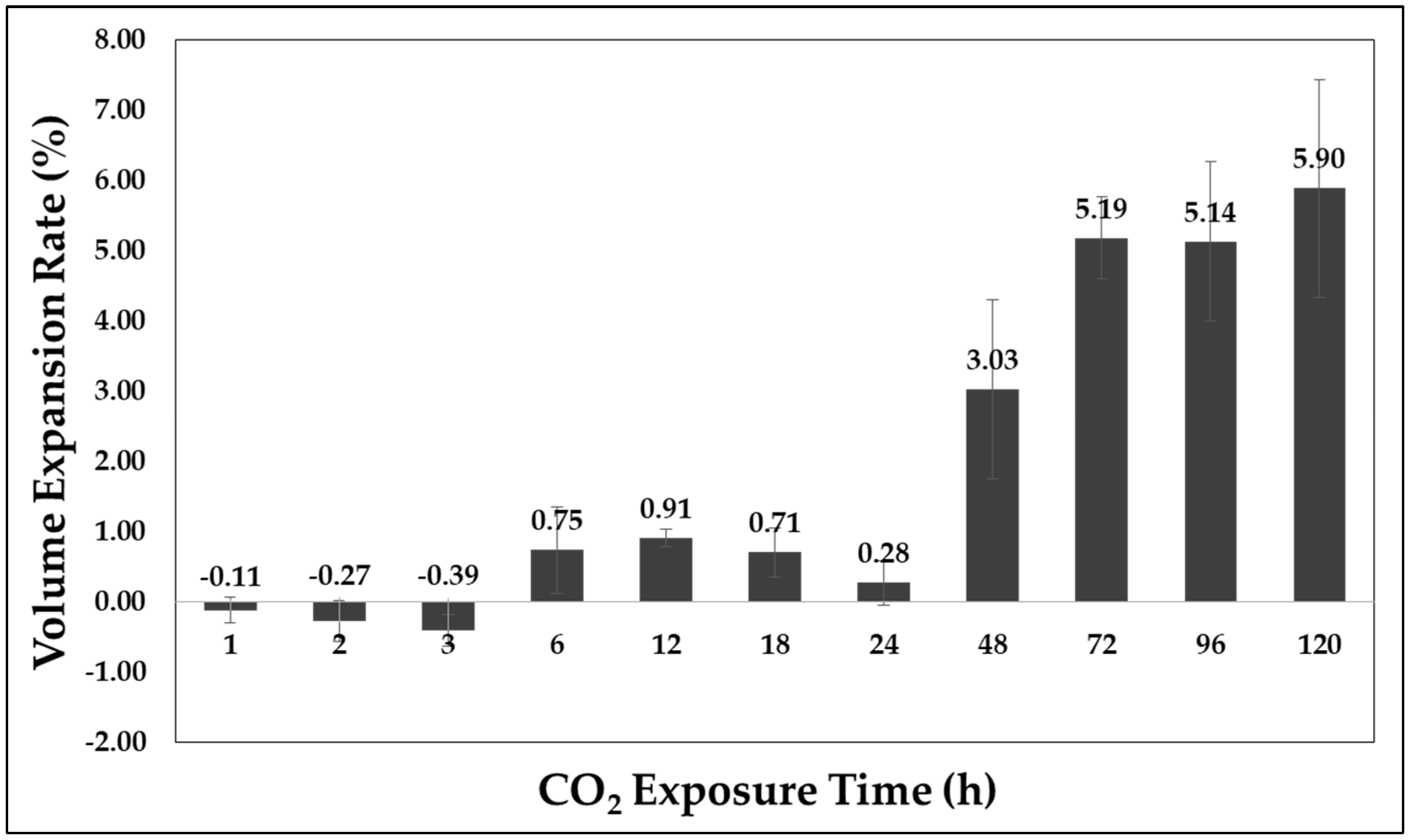

Figures

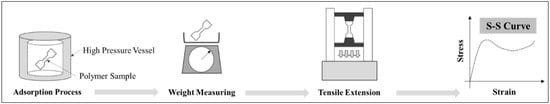

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Kim, S.W.; Sohn, J.S.; Kim, H.K.; Ryu, Y.; Cha, S.W. Effects of Gas Adsorption on the Mechanical Properties of Amorphous Polymer. Polymers 2019, 11, 817.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
