Next Article in Journal
Toughening of Epoxy Resin: The Effect of Water Jet Milling on Worn Tire Rubber Particles
Next Article in Special Issue
A Novel Approach of Promoting Adhesion of Reinforcing Cord to Elastomers by Plasma Polymerization
Previous Article in Journal
Preparation of Butadiene-Isoprene Copolymer with High Vinyl Contents by Al(OPhCH3)(i-Bu)2/MoO2Cl2∙TNPP
Previous Article in Special Issue
Online Rheometry Investigation of Flow/Slip Behavior of Powder Injection Molding Feedstocks
Open AccessArticle

Thermal and Mechanical Analysis of Polyethylene Homo-Composites Processed by Rotational Molding

Department of Engineering for Innovation—University of Salento, Via per Monteroni, 73100 Lecce, Italy
Author to whom correspondence should be addressed.
Polymers 2019, 11(3), 528;
Received: 18 January 2019 / Revised: 27 February 2019 / Accepted: 15 March 2019 / Published: 20 March 2019
(This article belongs to the Special Issue Materials and Methods for New Technologies in Polymer Processing)

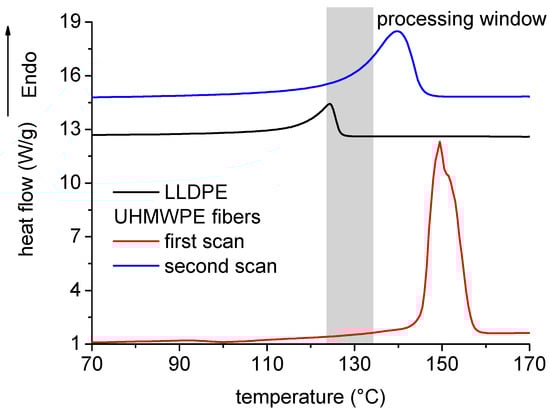

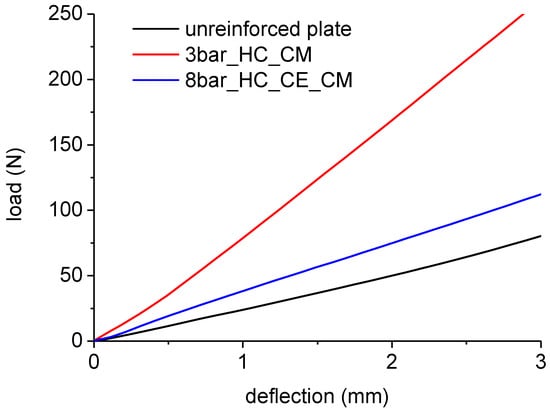

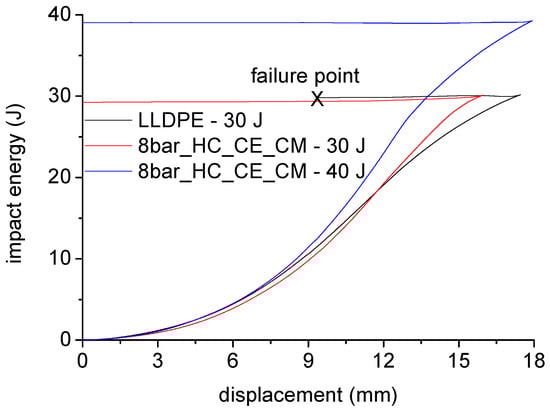

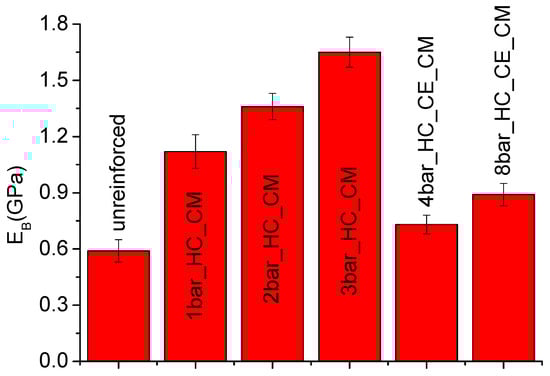

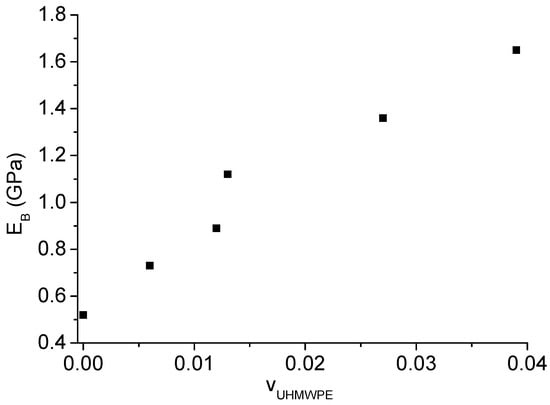

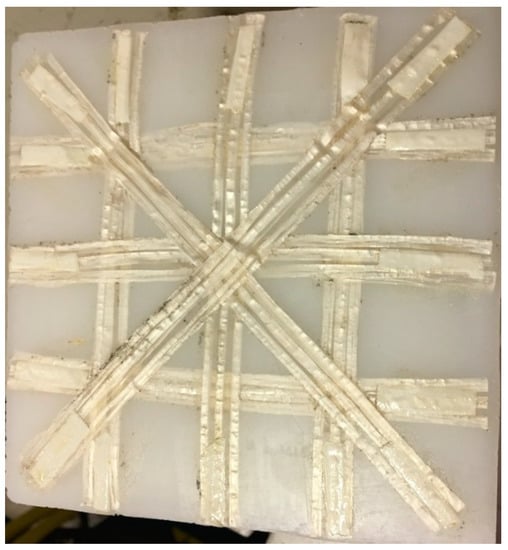

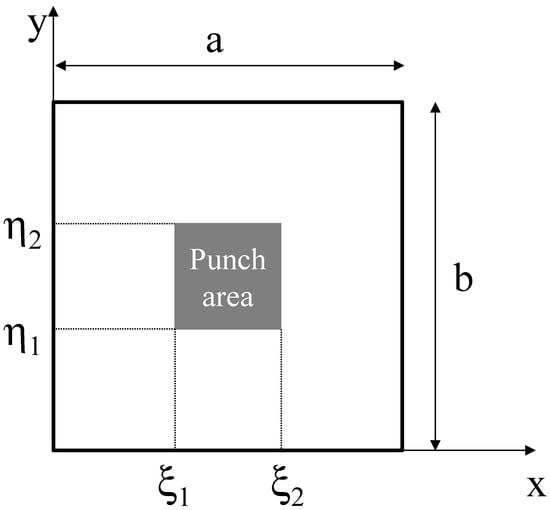

This work is aimed at studying the suitability of ultra-high molecular weight polyethylene (UHMWPE) fibers for the production of polyethylene homo-composites processed by rotational molding. Initially pre-impregnated bars were produced by co-extrusion and compression molding of UHMWPE fibers and linear low-density polyethylene (LLDPE). A preliminary screening of different processing routes for the production of homo-composite reinforcing bars was performed, highlighting the relevance of fiber impregnation and crystalline structure on the mechanical properties. A combination of co-extrusion and compression molding was found to optimize the mechanical properties of the reinforcing bars, which were incorporated in the LLDPE matrix during a standard rotational molding process. Apart from fiber placement and an increase in processing time, processing of homo-composites did not require any modification of the existing production procedures. Plate bending tests performed on rotational molded homo-composites showed a modulus increase to a value three times higher than that of neat LLDPE. This increase was obtained by the addition of 4% of UHWMPE fibers and a negligible increase of the weight of the component. Dart impact tests also showed an increased toughness compared to neat LLPDE. View Full-Text
Keywords: rotational molding; homo-composite; crystalline structure; mechanical properties rotational molding; homo-composite; crystalline structure; mechanical properties
Show Figures

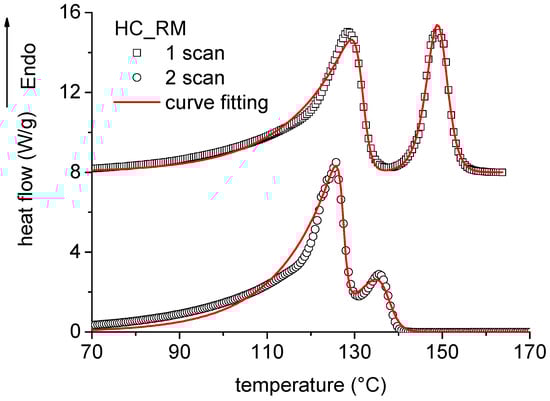

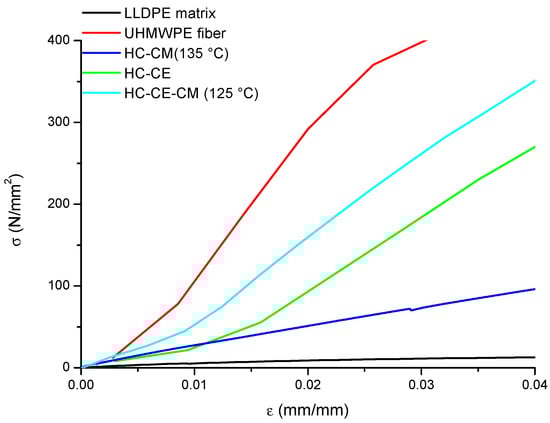

Figure 1

MDPI and ACS Style

Greco, A.; Ferrari, F.; Buccoliero, M.G.; Trono, G. Thermal and Mechanical Analysis of Polyethylene Homo-Composites Processed by Rotational Molding. Polymers 2019, 11, 528.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Search more from Scilit
Back to TopTop
