Open AccessArticle

Effect of Ultrasonic Vibration on Interlayer Adhesion in Fused Filament Fabrication 3D Printed ABS

Department of Mechanical Engineering, University of Louisville, Louisville, KY 40292, USA
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(2), 315; https://doi.org/10.3390/polym11020315
Received: 9 January 2019 / Revised: 6 February 2019 / Accepted: 8 February 2019 / Published: 13 February 2019
(This article belongs to the Special Issue Materials and Methods for New Technologies in Polymer Processing)
  |
PDF [2001 KB, uploaded 13 February 2019]
  |

Abstract

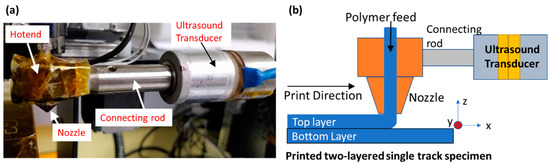

One of the fundamental issues in the Fused Filament Fabrication (FFF) additive manufacturing process lies in the mechanical property anisotropy where the strength of the FFF-3D printed part in the build-direction can be significantly lower than that in other directions. The physical phenomenon that governs this issue is the coupled effect of macroscopic thermal mechanical issues associated with the thermal history of the interface, and the microscopic effect of the polymer microstructure and mass transfer across interfaces. In this study it was found that the use of 34.4 kHz ultrasonic vibrations during FFF-3D printing results in an increase of up to 10% in the interlayer adhesion in Acrylonitrile Butadiene Styrene (ABS), comparing the printing in identical thermal conditions to that in conventional FFF printing. This increase in the interlayer adhesion strength is attributed to the increase in polymer reptation due to ultrasonic vibration-induced relaxation of the polymer chains from secondary interactions in the interface regions. View Full-Text
Keywords: fused deposition modeling; Fused Filament Fabrication; ultrasonic vibrations; inter-layer strength; inter-layer adhesion fused deposition modeling; Fused Filament Fabrication; ultrasonic vibrations; inter-layer strength; inter-layer adhesion
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
