Next Article in Journal
Mitigating the Impact of Cellulose Particles on the Performance of Biopolyester-Based Composites by Gas-Phase Esterification
Next Article in Special Issue
Glass Transition Behaviors of Poly (Vinyl Pyridine)/Poly (Vinyl Phenol) Revisited
Previous Article in Journal
Synthesis of Uniform Alkane-Filled Capsules with a High Under-Cooling Performance and Their Real-Time Optical Properties
Previous Article in Special Issue
Preparation of PVDF/Hyperbranched-Nano-Palygorskite Composite Membrane for Efficient Removal of Heavy Metal Ions
Open AccessArticle

Flexible Epoxy Resins Formed by Blending with the Diblock Copolymer PEO-b-PCL and Using a Hydrogen-Bonding Benzoxazine as the Curing Agent

1
Department of Materials and Optoelectronic Science, Center of Crystal Research, National Sun Yat-Sen University, Kaohsiung 804, Taiwan
2
Hubei Key Laboratory of Polymer Materials, Key Laboratory for the Green Preparation and Application of Functional Materials (Ministry of Education), Hubei Collaborative Innovation Center for Advanced Organic Chemical Materials, School of Materials Science and Engineering, Hubei University, Wuhan 430062, China
3
Department of Chemical Engineering, National Chung Hsing University, 145 Xingda Road, Taichung 402-27, Taiwan
4
Department of Material Science and Engineering, Fujian Provincial Key Laboratory of Fire Retardant Materials, College of Materials, Xiamen University, Xiamen, Fujian 361005, China
5
Department of Medicinal and Applied Chemistry, Kaohsiung Medical University, Kaohsiung 807, Taiwan
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(2), 201; https://doi.org/10.3390/polym11020201
Received: 5 January 2019 / Revised: 20 January 2019 / Accepted: 21 January 2019 / Published: 24 January 2019
(This article belongs to the Special Issue Hydrogen Bonding in Polymeric Materials)

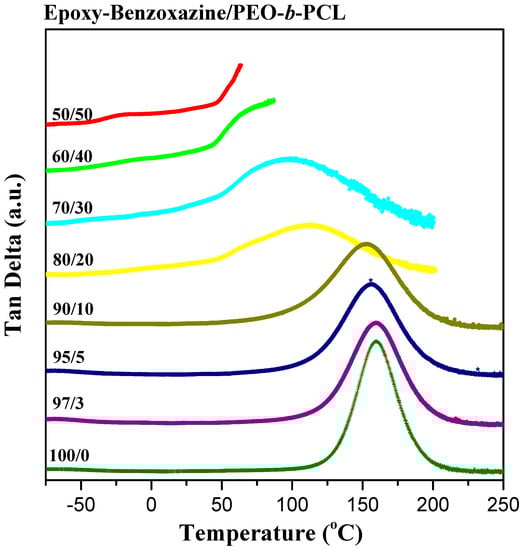

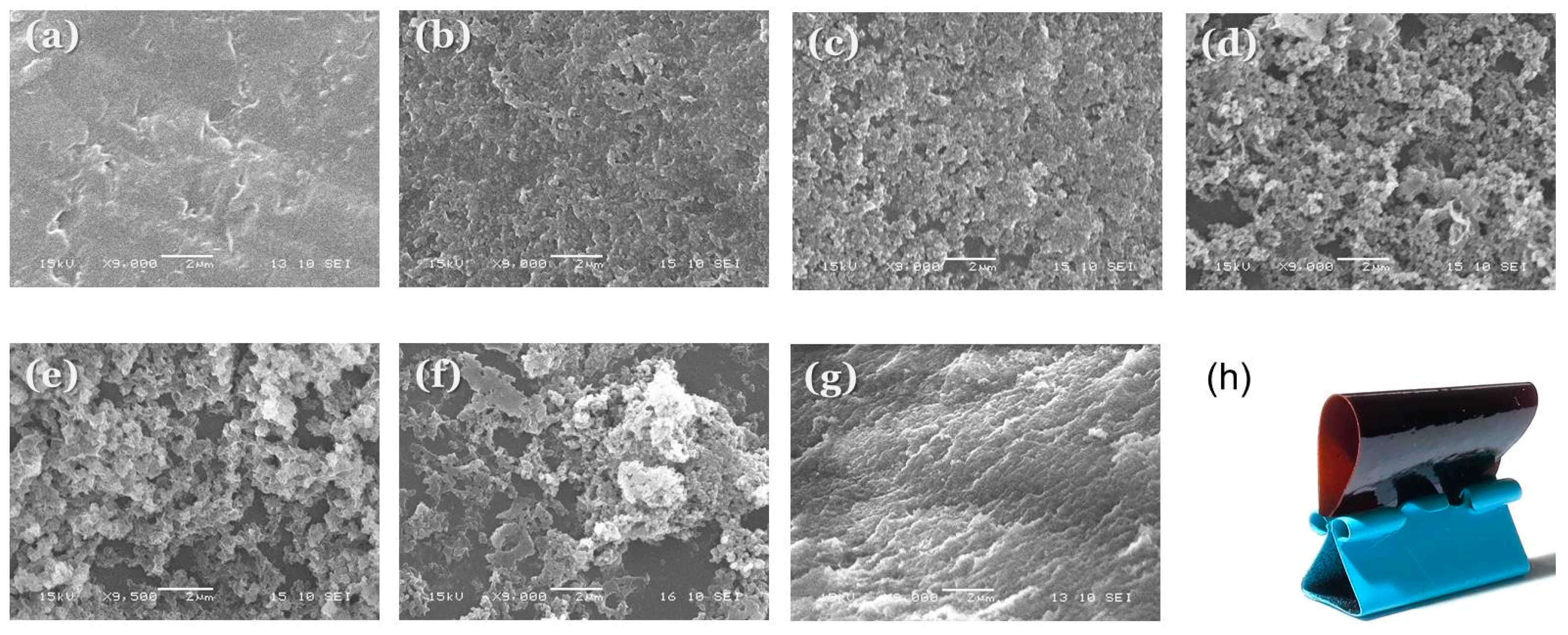

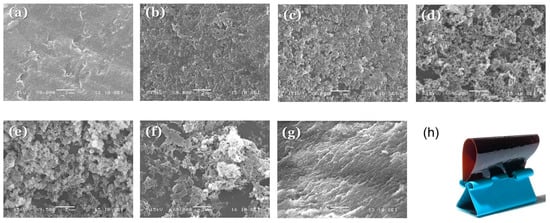

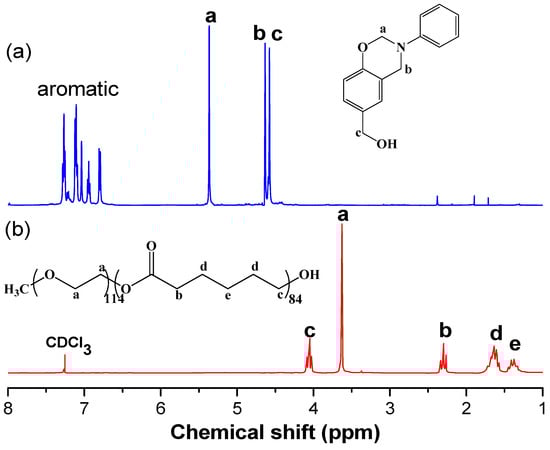

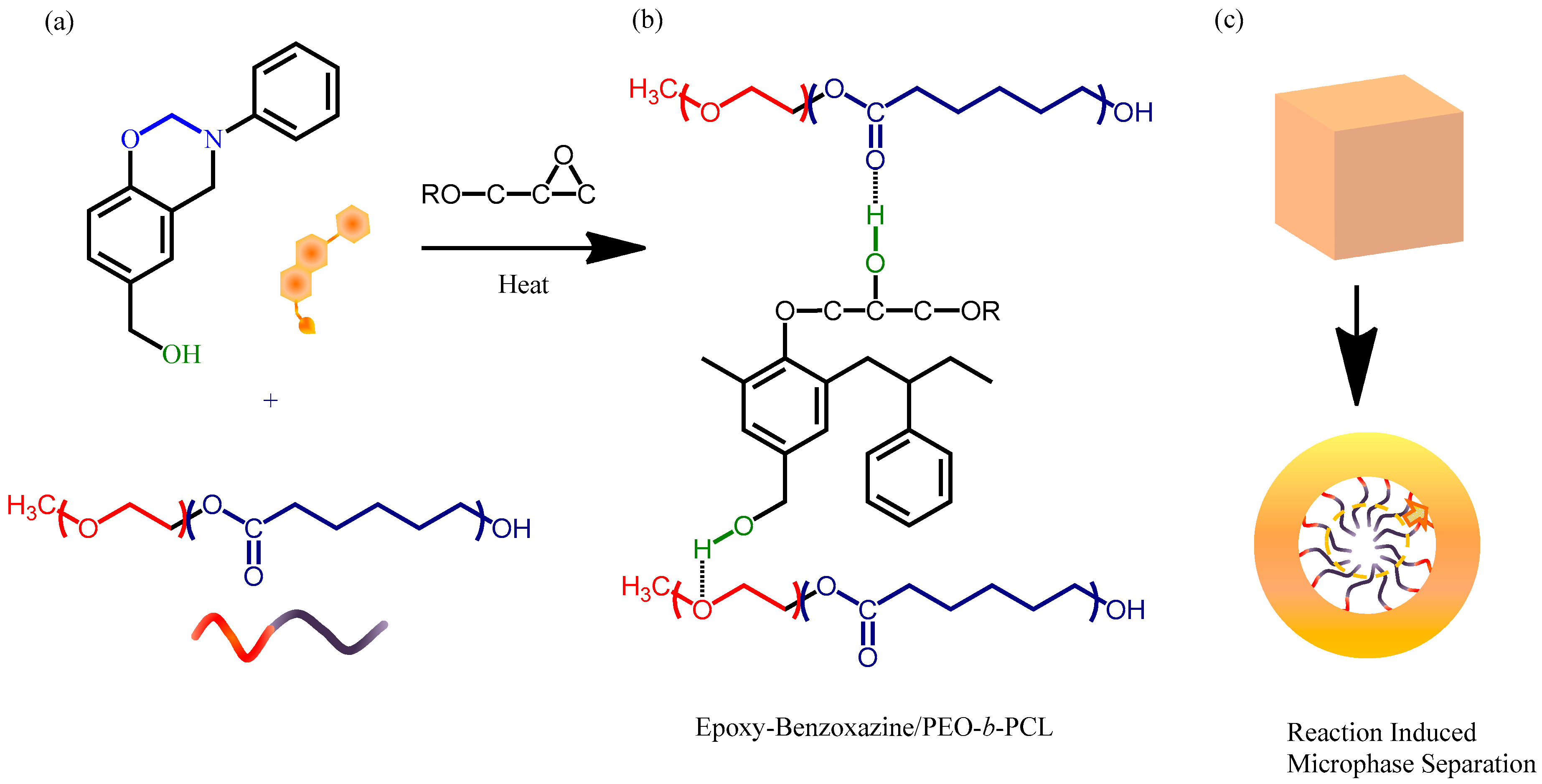

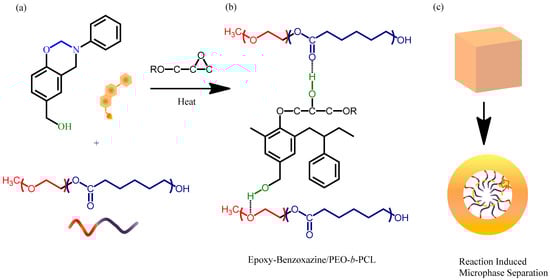

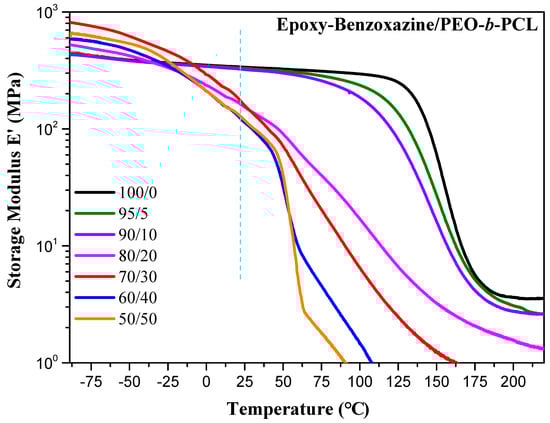

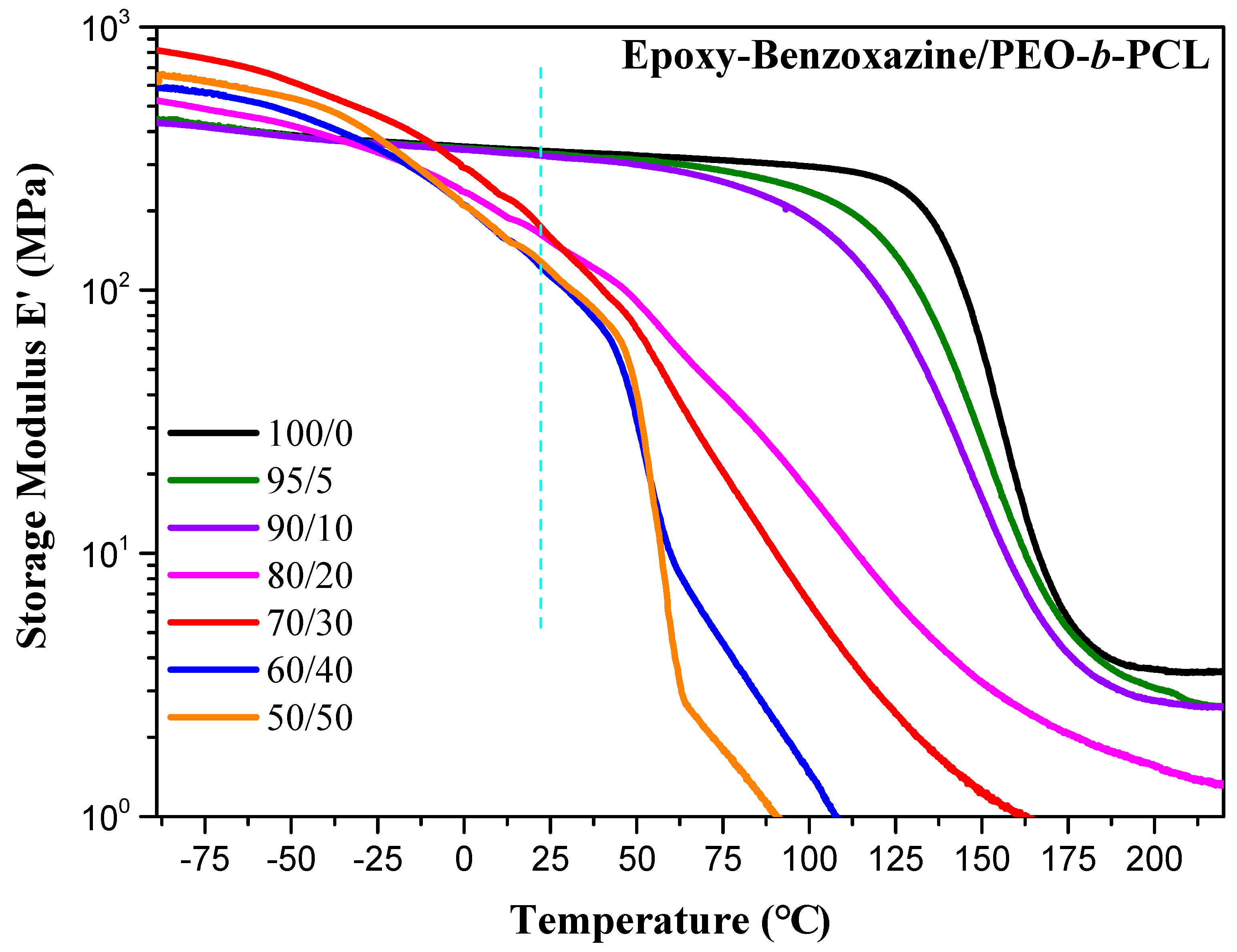

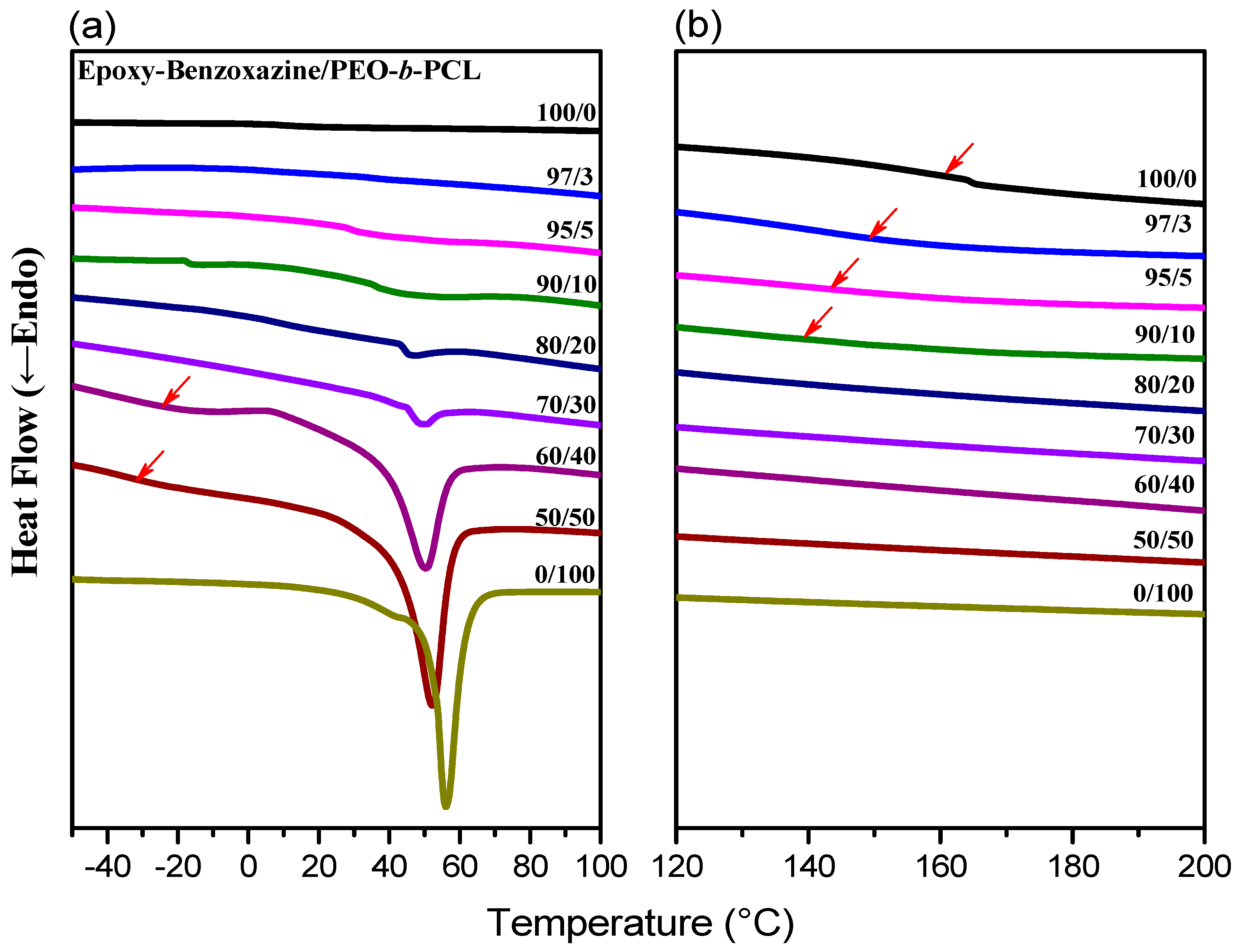

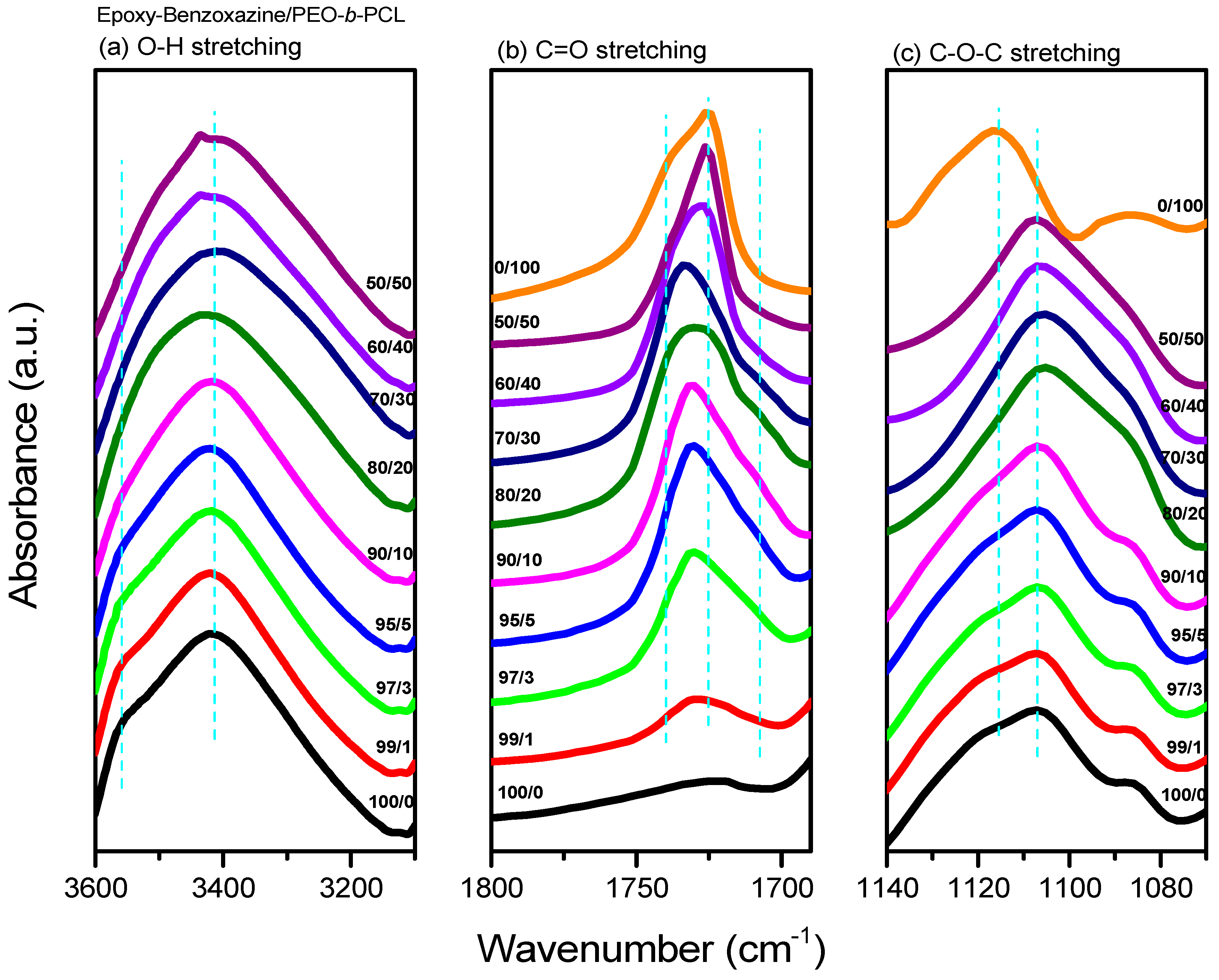

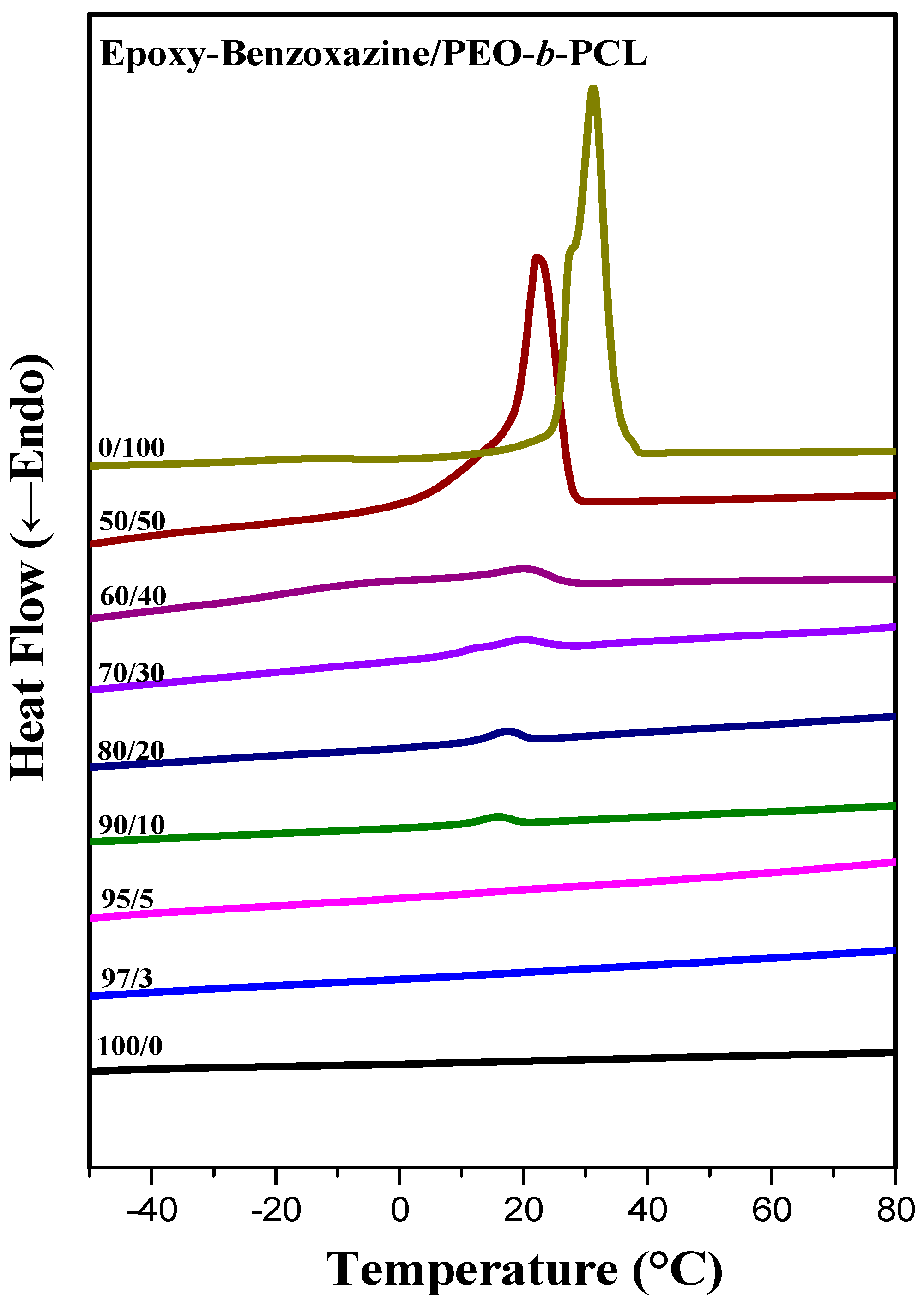

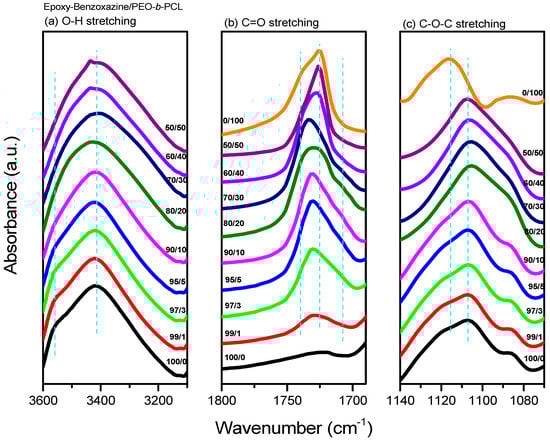

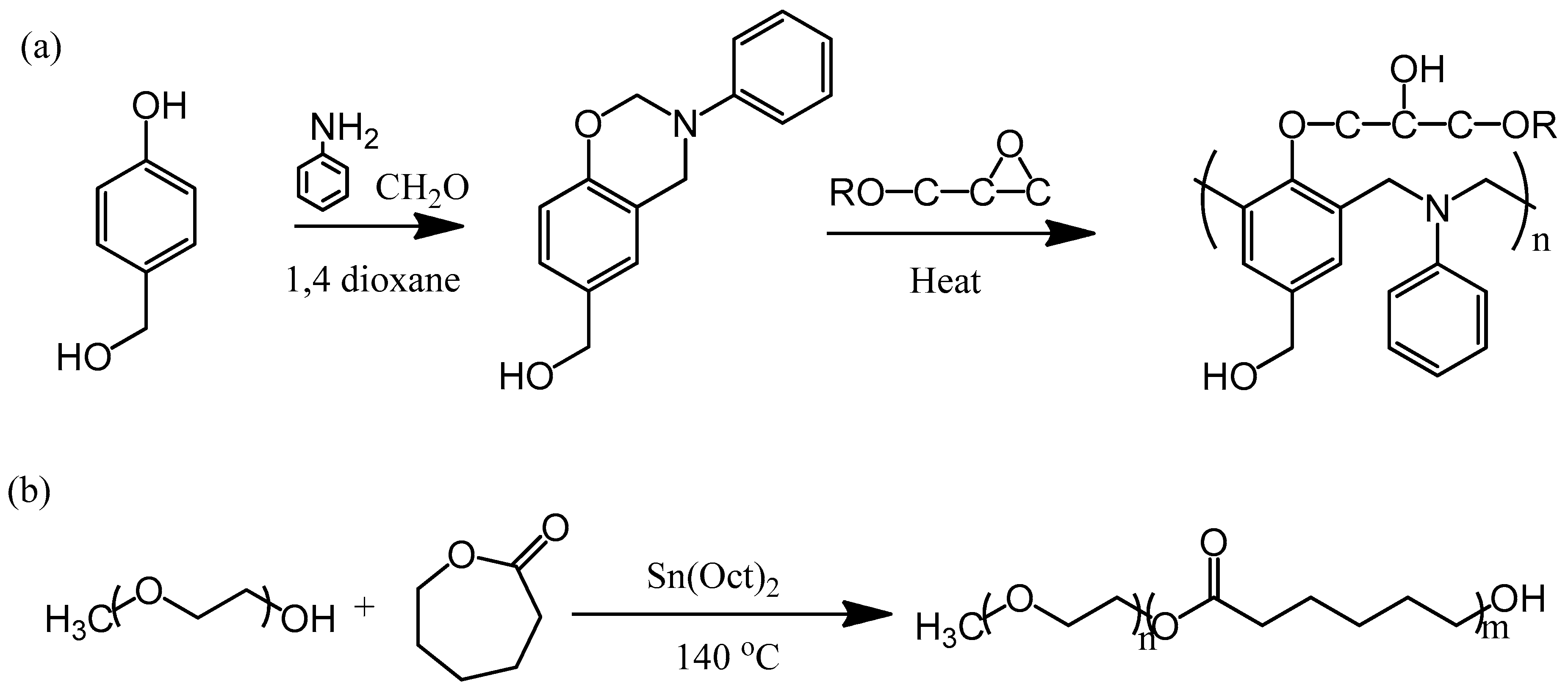

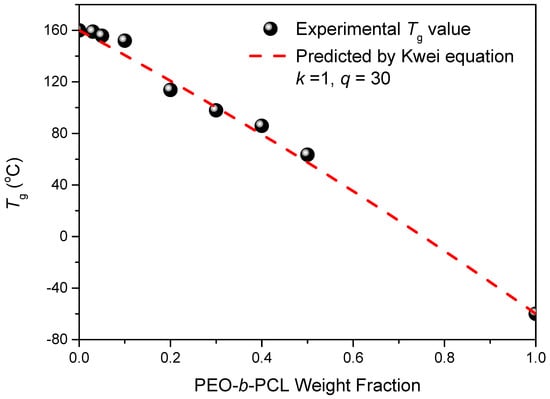

In this study, we enhanced the toughness of epoxy resin by blending it with the diblock copolymer poly(ethylene oxide–b–ε-caprolactone) (PEO-b-PCL) with a benzoxazine monomer (PA-OH) as the thermal curing agent. After thermal curing, Fourier transform infrared spectroscopy revealed that intermolecular hydrogen bonding existed between the OH units of the epoxy–benzoxazine copolymer and the C–O–C (C=O) units of the PEO (PCL) segment. Differential scanning calorimetry and dynamic mechanical analysis revealed that the glass transition temperature and storage modulus of the epoxy–benzoxazine matrix decreased significantly upon increasing the concentration of PEO-b-PCL. The Kwei equation predicted a positive value of q, consistent with intermolecular hydrogen bonding in this epoxy–benzoxazine/PEO-b-PCL blend system. Scanning electron microscopy revealed a wormlike structure with a high aspect ratio for PEO-b-PCL as the dispersed phase in the epoxy–benzoxazine matrix; this structure was responsible for the improved toughness. View Full-Text
Keywords: hydrogen bonding; epoxy; benzoxazine; block copolymer; toughness hydrogen bonding; epoxy; benzoxazine; block copolymer; toughness
Show Figures

Graphical abstract

MDPI and ACS Style

Su, W.-C.; Tsai, F.-C.; Huang, C.-F.; Dai, L.; Kuo, S.-W. Flexible Epoxy Resins Formed by Blending with the Diblock Copolymer PEO-b-PCL and Using a Hydrogen-Bonding Benzoxazine as the Curing Agent. Polymers 2019, 11, 201.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map

1
Back to TopTop
