Article

Syntheses, Structures, and Magnetic Properties of a Series of Heterotri-, Tetra- and Pentanuclear LnIII–CoII Compounds

by
Yun Xu
1,2,
Feng Luo
1 and
Ji-Min Zheng
1,*
1
Department of Chemistry, Nankai University, Tianjin 300071, China
2
College of Chemistry and Materials Science, HuaiBei Normal University, Huaibei 235000, China
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(2), 196; https://doi.org/10.3390/polym11020196
Submission received: 5 December 2018 / Revised: 29 December 2018 / Accepted: 8 January 2019 / Published: 23 January 2019
(This article belongs to the Special Issue Magnetic Field in Polymer Research)
Browse Figures
Versions Notes

Abstract

:
Three types of Ln(III)–Co(II) heterometallic compounds, LnCo2(L1)7(bipy)2 (Ln = Pr-1, Eu-2, Sm-3, Gd-4, Tb-5, Dy-6) (L1 = 4-chlorobenzoate, bipy = 2,2′-bipyridine), Ln2Co2(L2)10(bipy)2 (Ln = Sm-7, Gd-8, Tb-9, Dy-10, Ho-11, Er-12, Yb-13), (L2 = 2,4-dichlorobenzoate, bipy = 2,2′-bipyridine, phen = 1,10-phenanthroline), and Ln2Co3(L1)12(bipy)2 (Ln = Ho-14, Er-15, Yb-16), were synthesized under hydrothermal conditions and characterized by single crystal X-ray diffraction, IR spectroscopy and magnetic measurements. Structural analyses revealed that 14–16 take on a unique linear pentanuclear structural motif. Interestingly, the Ho-containing compound 14 exhibits magnetic relaxation behavior.

Graphical Abstract

1. Introduction

Heterometallic compounds containing both d-block transition and f-block lanthanide metal ions have been intensively investigated due to their impressive structural diversity and their exploitable applications in magnetism, luminescent materials and molecular adsorption [1,2,3,4,5,6]. Because of the the different nature between lanthanide and transition metal ions, the synthesis of a compound containing both of them is difficult compared with the synthesis of a compound containing only one of them. With respect to lanthanide ions, they have a high affinity for binding to hard donors like the O atom. While most transition metal ions prefer to coordinate to soft donors like the N atom, many strategies are used for synthesizing compounds containing both lanthanide and transition metal ions, for example, selecting proper multidentate ligands containing both N- and O-donor atoms, such as pyridine-2,5-dicarboxylic acid, pyridine-2,6-dicarboxylic acid, nicotinic acid, isonicotinic acid and iminodiacetate ligand [7,8,9,10]. The use of polycarboxylate and bipyridyl ligands has also proved to be a constructive way to synthesis the 3d–4f heterometallic compounds [11]. The magnetic property of the 3d–4f heterometallic compound is also a challenge—because the orbital contributions of most f electron pairs and the influence of the crystal field effects have to be considered, the analyses of magnetic interactions among Ln(III) and transition metal ions become very difficult [12,13,14]. As the ground state of the Gd(III)ion is 8S7/2, the spin-orbit coupling effect is absent, and the influence of the ligand field can be neglected. As a consequence, most studies on 3d–4f structures have involved Gd(III)–M(II) or Gd(III)–M(III) systems [15,16,17,18,19], with examples of the Ln(III)–Co(II) system being much less documented [20].
Inspired by the above mentioned information, we successfully synthesized three series of trinuclear, tetranuclear and pentanuclear Ln(III)–Co(II) ions under hydrothermal conditions by selecting 4-chlorobenzoic acid/2,4-dichlorobenzoic acid (L1/L2), bipy as ligands.

2. Experimental Section

2.1. Materials and Physical Measurements

All reagents and solvents used for synthesis and analysis are commercially available and were used as received. IR spectra were taken on a Perkin–Elmer spectrum. One FT-IR spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) was used in the 4000–400 cm−1 region with KBr pellets. Elemental analyses for C, H and N were carried out on a Model 2400II, Perkin–Elmer elemental analyzer (Perkin Elmer, Akron, OH, USA). The magnetic susceptibility measurements of the polycrystalline samples were measured over the temperature range of 2–300 K with a Quantum Design MPMSXL7 SQUID magnetometer (Quantum Design, San Diego, CA, USA) using an applied magnetic field of 1000 Oe. The ac magnetic data were measured on a PPMS-9 ACMS magnetometer (Quantum Design, San Diego, CA, USA).

2.2. Preparation

All starting materials, except for LnCl3·6H2O, are commercially available and were used without further purification. LnCl3·6H2O was prepared from the reaction of lanthanide oxide with a concentrated hydrochloric acid solution.

2.2.1. Preparation of PrCo2(L1)7(bipy)2 (1)

A mixture containing PrCl3·6H2O (0.07 g, 0.2 mmol) Co(NO3)2·6H2O (0.06 g, 0.2 mmol), 4-chlorobenzoate (L1; 0.16 g, 1.0 mmol), bipy (0.03 g, 0.2 mmol), Na2CO3 (0.05 mg, 0.5 mmol), water (10 mL) and ethanol (5 mL) was sealed in a Teflon-lined stainless steel vessel (23 mL), which was heated at 160 °C for 3 days and then cooled to room temperature at a rate of 5 °C/h. Red block crystals of 1 were obtained and picked out, washed with distilled water and dried in air. Yield: 32% (based on Co(II)). Elemental analysis for C69H44Cl7Co2N4O14Pr (%) Calcd.: C 49.92, H 2.67, N 3.38. Found: C 49.96, H 2.66, N 3.39. IR (KBr, cm−1): 1611(vs), 1563(m), 1409(vs), 1166(m), 1094(m), 1010(m), 846(m), 768(s).

2.2.2. Preparation of LnCo2(L1)7(bipy)2 (Ln = Eu, Sm, Gd, Tb, Dy) (2–6)

The same synthetic procedure as that of 1 was used except that PrCl3·6H2O was replaced by LnCl3·6H2O (0.06–0.08 g, 0.2 mmol) (Ln = Eu, Sm, Gd, Tb, Dy). Red block crystals of 2–6 were obtained and picked out, washed with distilled water and dried in air. Yield: 41% of 2. (based on Co(II)). Elemental analysis for C69H44Cl7Co2N4O14Eu (%): Calcd.: C 49.59, H 2.65, N 3.35; Found: C 49.54, H 2.67, N 3.32. IR (KBr, cm−1): 1610(vs), 1560(m), 1409(vs), 1165(m), 1093(m), 1011(m), 847(m), 768(s). Yield: 46% of 3 (based on Co(II)). Elemental analysis for C69H44Cl7Co2N4O14Sm(%) Calcd.: C 49.64, H 2.66, N 3.36. Found: C 49.67, H 2.65, N 3.38. IR (KBr, cm−1): 1611(vs), 1561(m), 1409(vs), 1165(m), 1094(m), 1010(m), 846(m), 768(s). Yield: 52% of 4 (based on Co(II)). Elemental analysis for C69H44Cl7Co2N4O14Gd (%): Calcd.: C, 49.44; H, 2.65; N, 3.34. Found: C, 49.48; H, 2.69; N, 3.36. IR (KBr, cm−1): 1610(vs), 1560(m), 1408(vs), 1165(m), 1093(m), 1011(m), 847(m), 768(s). Yield: 47% of 5 (based on Co(II)). Elemental analysis for C69H44Cl7Co2TbN4O14 (%) Calcd.: C, 49.39; H, 2.64; N, 3.34. Found: C, 49.44; H, 2.61; N, 3.37. IR (KBr, cm−1): 1611(vs), 1561(m), 1408(vs), 1165(m), 1093(m), 1011(m), 846(m), 768(s). Yield: 47% of 6 (based on Co(II)). Elemental analysis for C69H44Cl7Co2N4O14Dy (%) Calcd.: C49.28, H 2.64, N 3.33. Found: C 49.29, H 2.64, N 3.31. IR (KBr, cm−1): 1611(vs), 1561(m), 1407(vs), 1165(m), 1095(m), 1010(m), 846(m), 770(s).

2.2.3. Preparation of Ln2Co2(L2)10(bipy)2 (Ln = Sm, Gd, Tb, Dy, Ho, Er, Yb) (7–13)

The same synthetic procedure as that for 1 was used except that PrCl3·6H2O was replaced by LnCl3·6H2O (0.07–0.09 g, 0.2 mmol), L1 was replaced by 2,4-dichlorobenzoate (L2; 0.19 g, 1.0 mmol). Red block crystals of 7–13 were obtained and picked out, washed with distilled water and dried in air. Yield: 37% of 7 (based on Co(II)). Elemental analysis for 7, C90H46Cl20Co2N4O20Sm2 (%) Calcd.: C, 41.09; H, 1.76; N, 2.13. Found: C, 41.03; H, 1.74; N, 2.11. IR (KBr, cm−1): 3090(m), 1593(vs), 1476(m), 1418(s), 1105(m), 1053(m), 863(m), 790(m). Yield: 58% of 8 (based on Co(II)). Elemental analysis for 8, C90H46Cl20Co2N4O20Gd2 (%) Calcd.: C, 40.87; H, 1.75; N, 2.12. Found: C, 40.83; H, 1.71; N, 2.17. IR (KBr, cm−1): 3090(m), 1593(vs), 1476(m), 1418(s), 1097(m), 1046(m), 863(m), 790(s). Yield: 46% of 9 (based on Co(II)). Elemental analysis for 9, C90H46Cl20Co2N4O20Tb2 (%) Calcd.: C, 40.82; H, 1.75; N, 2.12. Found: C, 40.79; H, 1.71; N, 2.14. IR (KBr, cm−1): 3090(m), 1593(vs), 1476(m), 1418(s), 1097(m), 1046(m), 863(m), 790(s). Yield: 45% of 10 (based on Co(II)). Elemental analysis for 10 C90H46Cl20Co2N4O20Dy2 (%) Calcd.: C, 40.71; H, 1.75; N, 2.11. Found: C, 40.67; H, 1.71; N, 2.14. IR (KBr, cm−1): 3090(m), 1593(vs), 1476(m), 1418(s), 1097(m), 1046(m), 863(m), 789(s). Yield: 48% of 11(based on Co(II)). Elemental analysis for 11, C90H46Cl20Co2N4O20Ho2 (%) Calcd.: C, 40.64; H, 1.74; N, 2.11. Found: C, 40.61; H, 1.69; N, 2.15. IR (KBr, cm−1): 3090(m), 1593(vs), 1475(m), 1418(s), 1104(m), 1053(m), 863(m), 784(m). Yield: 51% of 12 (based on Co(II)). Elemental analysis for 12, C90H46Cl20Co2N4O20Er2 (%) Calcd.: C, 40.56; H, 1.74; N, 2.10. Found: C, 40.52; H, 1.71; N, 2.13. IR (KBr, cm−1): 3090(m), 1593(vs), 1476(m), 1418(s), 1097(m), 1046(m), 863(m), 789(s). Yield: 36% of 13 (based on Co(II)). Elemental analysis for 13, C90H46Cl20Co2Yb2N4O20 (%)Calcd.: C 40.39, H 1.73, N2.09. Found: C 40.35, H 1.77, N 2.13. IR (KBr, cm−1): 3090(m), 1593(vs), 1476(m), 1417(s), 1097(m), 1046(m), 865(m), 790(s).

2.2.4. Preparation of Ln2Co3(L1)12(bipy)2 (Ln = Ho, Er, Yb) (14–16)

The same synthetic procedure as that for 1 was used except that PrCl3·6H2O was replaced by LnCl3·6H2O (Ln = Ho, Er, Yb; 0.09 g, 0.2 mmol). Red block crystals of 14–16 were obtained and picked out, washed with distilled water and dried in air. Yield: 51% of 14 (based on Co(II)). Elemental analysis for 14, C104H64Cl12Co3Ho2N4O24 (%) Calcd.: C46.51, H 2.40, N 2.09; Found: C 46.53, H 2.39, N 2.11. IR (KBr, cm−1): 1593(vs), 1540(m), 1407(vs), 1281(m), 1171(m), 1093(m), 1011(m), 858(m), 774(m). Yield: 55% of 15 (based on Co(II)). Elemental analysis for 15, C52H32Cl6Co1.5ErN2O12 (%) Calcd.: C 46.43, H 2.40, N 2.08. Found: C 46.41, H 2.43, N 2.12. IR (KBr, cm−1): 1593(vs), 1540(m), 1411(vs), 1280(m), 1171(m), 1094(m), 1010(m), 858(m), 773(m). Yield: 38% of 16 (based on Co(II)). Elemental analysis for 16, C104H64Cl12Co3Yb2N4O24 (%) Calcd.: C 46.23, H 2.39, N 2.07; Found: C 46.25, H 2.32, N 2.04. IR (KBr, cm−1): 1593(vs), 1540(m), 1413(s), 1276(m), 1173(m), 1089(m), 1010(m), 857(m), 768(s).

2.3. X-ray Crystallographic Determinations

Single crystal analyses were performed on the RAXIS-RAPID AUTO CCD diffractometer systems (MoKα radiation, λ = 0.71073 Å) for 1–18. All data were corrected for absorption by the semiempirical method using the SADABS program. The program SAIN was applied for integration of the diffraction profiles [21]. Data analyses were carried out with the program XPREP. The structures were solved with the direct method using SHELXS-2014 followed by structure refinement on F2 with the program SHELXL-2014 [22]. All nonhydrogen atoms were refined anisotropically. Aromatic hydrogen atoms were assigned to calculated positions with isotropic thermal parameters. Crystal data and experimental details are summarized in Table 1, Table 2, Table 3, Table 4 and Table 5. Selected bonds and angles are listed in Tables S1–S3.

3. Result and Discussion

3.1. Description of the Structures

3.1.1. Crystal Structures of Compounds 1–6

The single crystal X-ray analysis revealed that compounds 1–6 are isostructural. They crystallize in the triclinic P 1 − space group and consist of quasi linear trinuclear metal ions. Hence, only the structure of 5 is described in detail. As described in Figure 1a, the structure of 5 contains one Tb(III) ion (Tb1), two crystallographically independent Co(II) ions (Co1 and Co2), and seven 4-chlorobenzoate ligands and two crystallographically independent bipy ligands. The coordination environment of the metal ions (Tb1, Co1 and Co2) in 5 is presented in Figure 1b. Co1 is six-coordinated with distorted octahedron geometry, composed of four carboxylic O atoms (O1, O3, O5, O6) from three different L1 ligands and two N atoms (N1, N2) from one bipy ligand (Co1–O = 2.026(2)–2.370(3) Å, Co1–N = 2.094(3)–2.154(3) Å). The Co2 ion is also six-coordinated with a slightly distorted octahedral coordination environment, composed of four carboxylic O atoms (O7, O9, O11, O12) from three different L1 ligands and two N atoms (N3, N4) from one bipy ligand (Co2–O = 1.980(3)–2.401(3) Å, Co2–N = 2.098(3)–2.128(3) Å). The Tb1 ion is located on the crystallographic inversion centre and is eight-coordinated with the distorted dodecahedron coordination geometry, as depicted in Figure 2, composed of eight carboxylic O atoms from seven different L1 ligands (Tb1-O = 2.326(2)–2.497(2) Å). Two bridging μ-1,2 [bis(monodentate)] carboxylate groups and one μ-1,1,2 [bidentate-monodentate] carboxylate group link the Tb(III) ion and Co(II) together (Tb1–Co = 3.7977(13)–3.8508(9) Å, Co1–Tb1–Co2 = 150.573(13)°). There are three coordinated modes of the L1 ligands in 5: two bridging (a) μ-1,2 [bis(monodentate)] and (b) μ-1,1,2 [bidentate-monodentate] and chelating (c) bidentate, as depicted in Scheme 1. Two bipy ligands are located on the two ends as the terminal ligands.

3.1.2. Crystal Structures of Compounds 7–13

The single crystal X-ray analysis revealed that compounds 7–13 are isostructural. They crystallize in the triclinic P 1 − space group and consist of linear tetranuclear metal ions. Hence, only the structure of 8 is described in detail. As presented in Figure 3a, the structure of 8 contains two symmetry related Gd(III) ions (Gd1, Gd1a) (a = −x, −y, 1 − z), two symmetry related Co(II) ions (Co1 and Co1a) and ten symmetry related L2 ligands and two symmetry related bipy ligands. The coordination environment of the metal ions (Gd1, Gd1a, Co1 and Co1a) in 8 is presented in Figure 3b. Co1 is six-coordinated with distorted octahedron geometry, composed of four carboxylic O atoms (O1, O2, O8, O9) from three different L2 ligands and two N atoms (N1, N2) from one bipy ligand (Co1–O = 2.0096(19)–2.1374(19) Å, Co1–N = 2.073(2)–2.144(2) Å). The Gd1 ion is seven-coordinated with the distorted mono-capped trigonal prismatic coordination geometry, as depicted in Figure 4, and is composed of seven carboxylic O atoms from seven different L2 ligands (Gd1–O = 2.304(2)–2.3752(19) Å). Two bridging μ-1,2 [bis(monodentate)] carboxylate groups and one μ-1,1,2 [bidentate-monodentate] carboxylate group link the Gd1(III) ion and Co1(II) ion together (Gd1–Co1 = 4.0404(20) Å). Four bridging μ-1,2 [bis(monodentate)] carboxylate groups link two symmetry related Gd1 and Gd1a together (Gd1-Gd1a = 4.3862(20) Å); two symmetry related Co(II) ions are located at the two sides of the two symmetry related Gd(III) ion (Co1–Co1a = 12.4559(59) Å, Co1–Gd1–Gd1a = 174.907(14)°). Co1–Gd1–Gd1a–Co1a is arranged almost linearly, and the paddlewheel type of ligand can be seen when the molecules are viewed along the Co1–Gd1–Gd1a–Co1a (a = −x, −y, 1 − z) axis (Figure 5). The two symmetry-related bipy ligands are located on the two ends as the terminal ligands.

3.1.3. Crystal Structures of Compounds 14–16

The single crystal X-ray analysis reveals that compounds 14–16 are isostructural. They crystallize in the triclinic P 1 − space group and consist of quasi-linear pentanuclear metal ions. Hence, only the structure of 14 is described in detail. As presented in Figure 6a, the asymmetric unit of 14 contains two symmetry related Ho(III) ions (Ho1, Ho1a), three Co(II) ions (Co1, Co1a and Co2) and twelve symmetry related L1 ligands and two symmetry related bipy ligands. The coordination environment of the metal ions (Ho1, Ho1a, Co1, Co1a and Co2) in 14 is presented in Figure 6b. The Co2(II) ion is located on the crystallographic inversion center, which is six-coordinated with distorted octahedron geometry, composed of six carboxylic O atoms (O7, O7a, O9, O9a, O11, O11a) from six different L1 ligands (Co2–O = 2.010(3)–2.167(3) Å). The Ho1 ion is eight-coordinated with a distorted square anti-prism coordination geometry, as depicted in Figure 7, and is composed of eight carboxylic O atoms from six different L1 ligands (Ho1–O = 2.239(4)–2.580(3) Å). One bridging μ-1,2 [bis(monodentate)] carboxylate group and two μ-1,1,2 [bidentate-monodentate] carboxylate groups link the Ho1(III) ion and Co2(II) ion together (Ho–Co2 = 3.6673(17) Å, Ho1–Co2–Ho1a = 180.00°). Co1 is six-coordinated with distorted octahedron geometry, and is composed of three carboxylic O atoms (O1, O3, O5) from three different L1 ligands and two N atoms (N1, N2) from one bipy ligand (Co1–O = 2.010(3)–2.051(3) Å, Co1–N = 2.077(4)–2.142(4) Å). The three bridging μ-1,2 [bis(monodentate)] carboxylate group links Ho1 and Co1 together (Ho1–Co1 = 4.0210(22) Å, Co1–Ho1–Co2 = 162.073(18)°). Co1–Ho1–Co2–Ho1a–Co1a is arranged almost linearly; the paddlewheel type of ligand can be seen when the molecules are viewed along the Co1–Ho1–Co2–Ho1a–Co1a (a = 2 − x, 1 − y, 1 − z) axis (Figure S1). The two symmetry related bipy ligands are located on the two ends as the terminal ligands. The pentanuclear compounds reported in the literature are mostly concentrated in the 3d metal region [23,24,25,26], and the pentanuclear compounds of 3d–4f heterometallic metals are relatively few [27,28,29]. In the reported 3d–4f pentanuclear compounds, the arrangement shapes of pentanuclear metals can be roughly divided into the following types: (a) Trigonal-bipyramidal type [30], (b) Goblet-like [31], (c) Butterfly-shaped [32], (d) Open-book type [33], (e) T-shaped [34] and (f) Sandwich-type [35]. Only one case is similar to the linear structure reported in this paper [36].
The differences between the three types of structures may be ascribed to the stereo-hindrance effect of the carboxylate ligands and the different radii of Ln(III) ions.

3.2. Magnetic Properties

Magnetic susceptibility measurements were carried out on polycrystalline samples of 3–18 in the temperature range of 2–300 K at 1000 Oe. The basic magnetic data derived from these measurements are listed in Table 6. The small discrepancies between the calculated and theoretical values of χmT might be ascribed to the orbital contribution of the metal ion. This phenomenon is quite common in the literature [37,38,39,40,41]. Their calculated χmT values are also close to those of compounds with similar structures [42].

3.2.1. Magnetic Properties of Compounds 3–6

The experimental χmT values at 300 K for the series of heterotrinuclear compounds 3–6 are 5.16, 13.05, 18.52 and 17.54 cm3·K·mol−1, which are close to those expected for two uncoupled Co(II) ions (S = 3/2, g = 2) and one lanthanide metal ion: one Sm(III) (gJ = 2/7, 6H5/2) for 3, one Gd(III) (gJ = 2, 8S7/2) for 4, one Dy(III) (gJ = 4/3, 6H15/2) for 5, one Tb(III) (gJ = 3/2, 7F6) for 6. As shown in Figure 8, the magnetic properties of the four compounds are relatively different when studied as a function of the temperature. When the temperature is decreased, the χmT value of 3 at 1000 Oe progressively decreases to reach 3.53 cm3·K·mol−1 at 2 K. In this situation, it is very difficult to interpret the magnetic properties of 3, because Sm(III) ions of this system have an orbital degenerate ground state which can cause the same feature.23 On the other hand, the χmT values of 4, 5 and 6 at 1000 Oe continuously increase upon lowering the temperature to reach 13.53, 19.52 and17.90 cm3·K·mol−1, respectively, at 94 K, 50 K and 124 K. For 4, the Gd(III) ion, whose f-f spin-orbit coupling effect is absent in the first order (for the 8S7/2 ground state), the influence of the ligand field can be safely neglected, and the increase of χmT value can be ascribed to the ferromagnetic interactions in this trinuclear compounds. For 5 and 6, the ground states of the Dy(III) and Tb(III) ions are 6H15/2 and 7F6, respectively. Upon lowering the temperature, progressive depopulation of these levels occurs, and the increase of these χmT values may be ascribed to the ferromagnetic interactions among Dy(III)/Tb(III) and Co(II) ions in these trinuclear compounds [37]. At lower temperatures, χmT decreases in these cases. This is probably the result of magnetic anisotropy or weak antiferromagnetic interactions between trinuclear compounds.

3.2.2. Magnetic Properties of Compounds 7–13

The plots of χmT vs T for the heterotetranuclear compounds 7–13 are presented in Figure 9. The experimental χmT values at room temperature are 4.74, 20.23, 28.76, 32.24, 33.40, 26.82 and 9.28 cm3·K·mol−1, which are close to those expected for noninteracting metal ions of two Co(II) ions (S = 3/2, g = 2) and two lanthanide metal ions [3.93, 19.51, 27.39, 32.09, 31.89, 27.71 and 8.89 cm3·K·mol−1 for 7–13 respectively]. As shown in Figure 9, the magnetic properties of the eight compounds are relatively different when studied as a function of the temperature. When the temperature is decreased, the χmT values of 7, 9, 10 and 12 at 1000 Oe continuously increase upon lowering the temperature to reach 5.30, 20.89, 34.10, 32.80 and 27.30 cm3·K·mol−1, respectively, at 89 K, 99 K, 48.9 K, 134 K and 48.9 K. For 8, the Gd(III) ion, whose f-f spin-orbit coupling effect is absent in the first order (for the 8S7/2 ground state), the influence of the ligand field can be safely neglected, and the increase of χmT value can be ascribed to the ferromagnetic interactions in the these tetranuclear compounds. For 7, 9, 10 and 12, the ground states of the Sm(III), Tb(III), Dy(III) and Er(III) ions are 6H5/2, 7F6, 6H15/2 and 4I15/2, respectively. Upon lowering the temperature, progressive depopulation of these levels occurs, and the increase of these χmT values may be ascribed to the ferromagnetic interactions among Ln(III) (Ln = Sm, Dy, Tb, Er) and Co(II) ions in these tetranuclear compounds [37]. At lower temperatures, χmT decreases in these cases, probably as the result of magnetic anisotropy or weak antiferromagnetic interactions between tetranuclear compounds. On the other hand, when the temperature is decreased, the χmT values of 11 and 13 at 1000 Oe progressively decrease to reach 24.68 and 7.18 cm3·K·mol−1, respectively, at 2 K and 5.9 K. In this situation, it is very difficult to interpret the magnetic properties of 11 and 13, because the Ho(III) and Yb(III) ions of these systems have an orbital degenerate ground state which can cause the same feature.
We also synthesized the corresponding Y(III)–Co(II) heterometallic compounds (compound of 17 trinuclear and tetranuclear compound of 18) to do the accurate diamagnetic correction with the 4-chlorobenzoic acid and 2,4-dichlorobenzoic acid as ligands, respectively [43]. The crystal data of compounds 17 and 18 are listed in Table S4 in the Supporting Information. The plots of χmT vs T for 17 and 18 are shown in Figures S2 and S3 in the Supporting Information. The comparison between the isostructural Ln–Co and Y–Co compounds, which is defined as the function Δ(χmT) = (χmT)Ln-Co − (χmT)Y-Co, may eliminate the crystal field contribution of Co ions. Thus, according to the change trend of Δ(χmT) in the 2–300 K temperature range (Figures S4 and S5 in the Supporting Information), the ferromagnetic or antiferromagnetic coupling of Ln3+ would be clearly concluded. However, it is difficult to comment on the interactions of Co–Ln in these compounds, with the Co2+ and Ln3+ ions both having intrinsic complicated magnetic characteristics which include the presence of spin–orbit coupling and magnetic anisotropy.

3.2.3. Magnetic Properties of Compounds 14–16

The experimental χmT values at room temperature for the series of heteropentanuclear compounds [33.78, 30.23 and 11.33 cm3·K·mol−1 for 14–16, respectively] are close to those expected for noninteracting metal ions of the three Co(II) ions (S = 3/2, g = 2) and two lanthanide metal ions [33.77 cm3·K·mol−1 for 14 (Ho), 28.59 cm3·K·mol−1 for 15 (Er) and 10.76 for 16 (Yb)]. As shown in Figure 10, the magnetic properties of the three compounds are relatively different when studied as a function of the temperature. When the temperature is decreased, the χmT values of 14 and 16 at 1000 Oe continuously increase upon lowering the temperature to reach 41.78 and 12.04m3·K·mol−1, respectively, at 22.9 K and 24.9 K. For 14, and 16, the ground states of the Ho(III) and Yb(III) ions are 5I8 and 2F7/2, respectively. Upon lowering the temperature, progressive depopulation of these levels occurs, and the increase of these χmT value may be ascribed to the ferromagnetic interactions among Ho(III), Yb(III) and Co(II) ions in these pentanuclear compounds. At lower temperatures, χmT decreases in these cases, probably as the result of magnetic anisotropy or weak antiferromagnetic interactions between pentanuclear compounds. On the other hand, when the temperature is decreased, the χmT value of 15 at 1000 Oe progressively decreases to reach 21.27cm3·K·mol−1 at 2 K. In this situation, it is very difficult to interpret the magnetic properties of 15, because Er(III) ions of this system have an orbital degenerate ground state which can cause the same feature [37].
To probe the presence of slow dynamics in these molecular systems and thus the presence of SMM behaviour, ac susceptibility measurements were performed systematically for compounds 5, 9 and 14. The measurements were collected at zero direct-current (dc) field with an ac field of 3 Oe. Unfortunately, only compound 14 displayed nonzero and rather smaller frequency-dependent out-of-phase signals (Figures S6 and S7 in the Supporting Information). Even so, this phenomenon should not be neglected, because the frequency-dependent out-of-phase signals often occur in Dy(III)-containing systems and are often suppressed by applying a static dc field [37], which is rarely reported in Ho(III)-containing compounds in a zero direct-current (dc) field.

4. Conclusions

In summary, eighteen 3d–4f heterometallic coordination compounds were successfully synthesized under hydrothermal conditions. Structural analyses revealed that the eighteen compounds including three types, the compounds 1–6 and 17, are isostructural heterotrinuclear compounds, the compounds 7–13 and 18 are isostructural heterotetranuclear compounds and 14–16 are isostructural heteropentanuclear compounds. It is noteworthy that compound 14, which contains Ho(III) ions, presented field-induced slow magnetic relaxation. The successful preparation of these series of compounds provides valuable information for further construction of more 3d–4f materials with novel magnetic properties.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/2/196/s1, CCDC-1887007 (for 1), 1887008 (for 2), 1887009 (for 3), 1887010 (for 4) 1887011 (for 5), 1887012 (for 6), 1887013 (for 7), 1887014 (for 8), CCDC-1887015 (for 9), 1887016 (for 10), 1887278 (for 11) and 1887279 (for 12), 1887280 (for 13), 1887501 (for 14), 1887500 (for 15) 1887502 (for 16), 1887282 (for 17), and 1887283 (for 18) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.

Author Contributions

Y.X. performed all the syntheses, control experiments, characterization, and she also summarized the data and the first draft of the article. F.L. proposed constructive amendments to the paper. This research project comes from J.-M.Z.’s thought. In addition, J.-M.Z. was responsible for the testing of single crystal structure and molecular magnetism. All authors have discussed the results presented and commented on the paper.

Funding

The authors would like to thank the National Natural Science Foundation of China (50872057) and the Natural Science Foundation of Anhui Educational Bureau (No. KJ2017A380) for the financial supports.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sakamoto, M.; Manseki, K.; Ohkawa, H. d–f Heteronuclear complexes: Synthesis, structures and physicochemical aspects. Coord. Chem. Rev. 2001, 219–221, 379–414. [Google Scholar] [CrossRef]
  2. Gu, Z.G.; Sevov, S.C. Syntheses, structures, and magnetic properties of heterometallic coordination polymers with carboxyphosphonate linkers. J. Mater. Chem. 2009, 19, 8442–8447. [Google Scholar] [CrossRef]
  3. Mori, F.; Nyui, T.; Ishida, T.; Nogami, T.; Choi, K.Y.; Nojiri, H. Oximate-Bridged Trinuclear Dy−Cu−Dy Complex Behaving as a Single-Molecule Magnet and Its Mechanistic Investigation. J. Am. Chem. Soc. 2006, 128, 1440–1441. [Google Scholar] [CrossRef] [PubMed]
  4. Prasad, T.K.; Rajasekharan, M.V.; Costes, J.P. A Cubic 3d–4f Structure with Only Ferromagnetic Gd–Mn Interactions. Angew. Chem. Int. Ed. 2007, 46, 2851–2854. [Google Scholar] [CrossRef] [PubMed]
  5. Heras Ojea, M.J.; Milway, V.A.; Velmurugan, G.; Thomas, L.H.; Coles, S.J.; Wilson, C.; Wernsdorfer, W.; Rajaraman, G.; Murrie, M. Enhancement of TbIII–CuII Single-Molecule Magnet Performance. Chem. Eur. J. 2016, 22, 1–11. [Google Scholar] [CrossRef]
  6. Xin, N.; Sun, Y.Q.; Zheng, Y.F.; Xu, Y.Y.; Gao, D.Z.; Zhang, G.Y. Seven 3d-4f coordination polymers of macrocyclic oxamide with polycarboxylates: Syntheses, crystal structures and magnetic properties. J. Solid State Chem. 2016, 243, 267–275. [Google Scholar] [CrossRef]
  7. Zhang, J.W.; Ren, Y.N.; Li, J.X.; Liu, B.Q.; Dong, Y.P. Syntheses, structures, and magnetic properties of two series of 3d-4f heterometallic coordination polymers derived from pyrazine-2,3-dicarboxylic acid. Eur. J. Inorg. Chem. 2018, 2018, 1099–1106. [Google Scholar] [CrossRef]
  8. Cheng, J.W.; Zhang, J.; Zheng, S.T.; Zhang, M.B.; Yang, G.Y. Lanthanide–Transition-Metal Sandwich Framework Comprising {Cu3} Cluster Pillars and Layered Networks of {Er36} Wheels. Angew. Chem. Int. Ed. 2005, 45, 73–77. [Google Scholar] [CrossRef]
  9. Zhang, S.W.; Cheng, P. Magnetocaloric Effect of Two Isostructural Heterometallic Organic Frameworks Based on {MIIGdIII2} Clusters (where MII = Mn and Ni). ChemPlusChem 2016, 81, 811–816. [Google Scholar] [CrossRef]
  10. Ren, Y.P.; Long, L.S.; Mao, B.W.; Yuan, Y.Z.; Huang, R.B.; Zheng, L.S. Nanoporous Lanthanide–Copper(II) Coordination Polymers: Syntheses and Crystal Structures of [{M2(Cu3(iminodiacetate)6)}⋅8 H2O]n (M=La, Nd, Eu). Angew. Chem. Int. Ed. 2003, 42, 532–535. [Google Scholar] [CrossRef]
  11. Zhou, Y.F.; Jiang, F.L.; Yuan, D.Q.; Wu, B.L.; Wang, R.H.; Lin, Z.Z.; Hong, M.C. Copper Complex Cation Templated Gadolinium(III)–Isophthalate Frameworks. Angew. Chem. Int. Ed. 2004, 43, 5665–5668. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, X.Q.; Zhao, B.; Wei, S.; Cheng, P. Synthesis, Structures, and Luminescent and Magnetic Properties. Inorg. Chem. 2009, 48, 11048–11057. [Google Scholar] [CrossRef] [PubMed]
  13. Tian, C.B.; Yuan, D.Q.; Han, Y.H.; Li, Z.H.; Lin, P.; Du, S.W. Synthesis, structures, and magnetic properties of a series of new heterometallic hexanuclear Co2Ln4 (Ln = Eu, Gd, Tb and Dy) clusters. Inorg. Chem. Front. 2014, 1, 695–704. [Google Scholar] [CrossRef]
  14. Du, P.W.; Schneider, J.; Luo, G.G.; Brennessel, W.W.; Eisenberg, R. Visible Light-Driven Hydrogen Production from Aqueous Protons Catalyzed by Molecular Cobaloxime Catalysts. Inorg. Chem. 2009, 48, 4952–4962. [Google Scholar] [CrossRef] [PubMed]
  15. Piquer, L.R.; Sañudo, E.C. Heterometallic 3d–4f single-molecule magnets. Dalton Trans. 2015, 44, 8771–8780. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Wang, H.S.; Yang, F.J.; Long, Q.Q.; Huang, Z.Y.; Chen, W.; Pan, Z.Q. Syntheses, crystal structures, and magnetic properties of a family of heterometallic octanuclear [Cu6Ln2] (Ln = Dy(III), Tb(III), Ho(III), Er(III), and Gd(III)) complexes. New J. Chem. 2017, 41, 5884–5892. [Google Scholar] [CrossRef]
  17. Yamaguchi, T.; Sunatsuki, Y.; Kojima, M.; Akashi, H.; Tsuchimoto, M.; Re, N.; Osae, S.; Matsumotoe, N. Ferromagnetic NiII–GdIII interactions in complexes with NiGd, NiGdNi, and NiGdGdNi cores supported by tripodal ligands. Chem. Commun. 2004, 9, 1048–1049. [Google Scholar] [CrossRef]
  18. Singha, S.K.; Rajaraman, G. Decisive interactions that determine ferro/antiferromagnetic coupling in {3d–4f} pairs: A case study on dinuclear {V(IV)–Gd(III)} complexes. Dalton Trans. 2013, 42, 3623–3630. [Google Scholar] [CrossRef]
  19. Manna, S.C.; Konar, S.; Zangrando, E.; Ribas, J.; Chaudhuri, N.R. 3D Heterometallic (3d–4f) coordination polymers: A ferromagnetic interaction in a Gd(III)–Cu(II) couple. Polyhedron 2007, 26, 2507–2516. [Google Scholar] [CrossRef]
  20. Goura, J.; Chakraborty, A.; Walsh, J.P.S.; Tuna, F.; Chandrasekhar, V. Hexanuclear 3d–4f Neutral CoII2LnIII4 Clusters: Synthesis, Structure, and Magnetism. Cryst. Growth Des. 2015, 15, 3157–3165. [Google Scholar] [CrossRef]
  21. Bruker AXS. SAINT Software Reference Manual; Bruker: Madison, WI, USA, 1998. [Google Scholar]
  22. Sheldrick, G.M. SHELXT–Integrated space-group and crystal-structure determination. Acta Cryst. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  23. Yeh, C.Y.; Chiang, Y.L.; Lee, G.H.; Peng, S.M. Unsymmetrical Linear Pentanuclear Nickel String Complexes: [Ni5(tpda)4(H2O)(BF4)](BF4)2 and [Ni5(tpda)4(SO3CF3)2](SO3CF3). Inorg. Chem. 2002, 41, 4096–4098. [Google Scholar] [CrossRef]
  24. Chakraborty, A.; Ghosh, B.K.; Ribas-Arino, J.; Ribas, J.; Maji, T.K. A Heterometallic (Ni-II-Cu-II) Decanuclear Cluster Containing Two Distorted Cubane-like Pentanuclear Cores: Synthesis, Structure, and Magnetic Properties. Inorg. Chem. 2012, 51, 6440–6442. [Google Scholar] [CrossRef] [PubMed]
  25. Ikeda, K.; Ohba, M.; Ōkawa, H. Dinuclear CuII and NiII complexes of 3-formylsalicylic acid oxime: Cis/trans topology and extension of a cis-CuII2 complex to a pentanuclear CuIICuIIMnIICuIICuII complex. J. Chem. Soc. Dalton Trans. 2001, 20, 3119–3124. [Google Scholar] [CrossRef]
  26. Wang, B.C.; Chen, X.L.; Hu, H.M.; Yao, H.L.; Xue, G.L. Two novel Zn(II) coordination polymers based on trigonal ligand: 40-(4-pyridyl)-3,20:60,300-terpyridine. Inorg. Chem. Commun. 2009, 12, 856–859. [Google Scholar] [CrossRef]
  27. Modak, R.; Sikdar, Y.; Cosquer, G.; Chatterjee, S.; Yamashita, M.; Goswami, S. Heterometallic CuII−DyIII Clusters of Different Nuclearities with Slow Magnetic Relaxation. Inorg. Chem. 2016, 55, 691–699. [Google Scholar] [CrossRef] [PubMed]
  28. Li, H.; Shi, W.; Niu, Z.; Zhou, J.M.; Xiong, G.; Li, L.L.; Cheng, P. Remarkable LnIII3FeIII2 clusters with magnetocaloric effect and slow magnetic relaxation. Dalton Trans. 2015, 44, 468–470. [Google Scholar] [CrossRef] [PubMed]
  29. Li, C.; Li, H.D.; Xie, J.; Yang, M.; Wang, X.F.; Li, L.C. {[Ln(hfac)3]2[Cu(hfac)2]3(NIT-Pyrim)2(H2O)2} (LnIII = Gd, Ho, Er): Unique nitronyl nitroxide-bridged 3d-4f heterometallic clusters. Eur. J. Inorg. Chem. 2018, 31, 525–530. [Google Scholar] [CrossRef]
  30. Wang, X.Q.; Li, Z.Y.; Zhu, Z.X.; Zhu, J.; Liu, S.Q.; Ni, J.; Zhang, J.J. Pentanuclear {Cr(2)Ln(3)} (Ln = Dy, Tb) Heterometallic Clusters Based on an Amino Acid Ligand: Slow Relaxation of Magnetization and Substitution Reactions. Eur. J. Inorg. Chem. 2013, 2013, 5153–5160. [Google Scholar] [CrossRef]
  31. Zhu, Q.L.; Xiang, S.C.; Sheng, T.L.; Yuan, D.Q.; Shen, C.J.; Tan, C.H.; Hu, S.M.; Wu, X.T. A series of goblet-like heterometallic pentanuclear [Ln(III)Cu(4)(II)] clusters featuring ferromagnetic coupling and single-molecule magnet behavior. Chem. Commun. 2012, 48, 10736–10738. [Google Scholar] [CrossRef]
  32. Saha, S.; Sarkar, A.; Das, S.; Panda, T.K.; Harms, K.; Nayek, H.P. The Missing Link in Ni(II)-Ln(III) System: Design and Synthesis of a Dinuclear [Ni2] and Three Pentanuclear [Ni3Ln2] (Ln = La, Ce, Eu) Complexes of a Schiff Base Ligand. ChemistrySelect 2017, 2, 7865–7872. [Google Scholar] [CrossRef]
  33. Bag, P.; Chakraborty, A.; Rogez, G.; Chandrasekhar, V. Pentanuclear Heteronnetallic {Mn(2)(III)Ln(3)} (Ln = Gd, Dy, Tb, Ho) Assemblies in an Open-Book Type Structural Topology: Appearance of Slow Relaxation of Magnetization in the Dy(III) and Ho(III) Analogues. Inorg. Chem. 2014, 53, 6524–6533. [Google Scholar] [CrossRef] [PubMed]
  34. Ke, H.S.; Zhao, L.; Guo, Y.; Tang, J.K. Polydentate-ligand-supported self-assembly of heterometallic T-shaped Co4RE (RE = Gd, Tb, Y) clusters: Synthesis, structure and magnetism. Dalton Trans. 2012, 41, 9760–9765. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, P.P.; Wang, C.Y.; Zhang, M.; Song, X.Q. Pentanuclear Sandwich-type ZnII-LnIII clusters based on a new Salen-like salicylamide ligand: Structure, near-infraed emission and magnetic properties. Polyhedron 2017, 129, 133–140. [Google Scholar] [CrossRef]
  36. Voronkova, V.K.; Galeev, R.T.; Shova, S.; Novitchi, G.; Turta, C.I.; Caneschi, A.; Gatteschi, D.; Lipkowski, J.; Simonov, Y.A. Exchange Interaction and Spin Dynamics in Pentanuclear Clusters, Cu3Ln2(CICH2COO)12(H2O)(Ln = Nd 3+, Sm3+, Pr3+). Appl. Magn. Reson. 2003, 25, 227–247. [Google Scholar] [CrossRef]
  37. Zhao, X.Q.; Liu, X.H.; Kang, X.M.; Zhao, B. Self-Assembly of Heterometallic LnIII-CoII Coordination Polymers: Syntheses, Structures, and Magnetic Studies. Dalton Trans. 2015, 44, 18856–18863. [Google Scholar] [CrossRef]
  38. Gómez, V.; Vendier, L.; Corbella, M.; Costes, J.P. Tetranuclear [Co−Gd]2 Complexes: Aiming at a Better Understanding of the 3d-Gd Magnetic Interaction. Inorg. Chem. 2012, 51, 6396–6404. [Google Scholar] [CrossRef]
  39. Li, Z.Y.; Dai, Y.; Zhang, H.; Zhu, J.; Zhang, J.J.; Liu, S.Q.; Duan, C.Y. Square and Butterfly Tetranuclear [Co2Ln2] Clusters Built from the Same Building Blocks but Displaying Different Magnetic Properties: Structural Variation by Means of Solvent and the Radii of Ln3+ Ions. Eur. J. Inorg. Chem. 2014, 2014, 384–391. [Google Scholar] [CrossRef]
  40. Costes, J.P.; Vendiera, L.; Wernsdorferc, W. Structural and magnetic studies of original tetranuclear CoII–LnIII complexes (LnIII = Gd, Tb, Y). Dalton Trans. 2011, 40, 1700–1706. [Google Scholar] [CrossRef]
  41. Li, C.J.; Lin, Z.J.; Peng, M.X.; Leng, J.D.; Yang, M.M.; Tong, M.L. Novel three-dimensional 3d–4f microporous magnets exhibiting selective gas adsorption behavior. Chem. Commun. 2008, 47, 6348–6350. [Google Scholar] [CrossRef]
  42. Zhu, Y.; Luo, F.; Feng, X.F.; Liao, Z.W.; Song, Y.M.; Huang, H.X.; Tian, X.Z.; Sun, G.M.; Luo, M.B. Simple Method and Materials to Target Co(II)-Dy(III) Multi-Nuclear Magnetic Compounds and Single Molecule Magnets (SMMs): Synthesis, Structure, and Magnetic Studies. Aust. J. Chem. 2013, 66, 75–83. [Google Scholar] [CrossRef]
  43. Gao, H.L.; Zhao, B.; Zhao, X.Q.; Song, Y.; Cheng, P.; Liao, D.Z.; Yan, S.P. Structures and Magnetic Properties of Ferromagnetic Coupling 2D Ln-M Heterometallic Coordination Polymers (Ln) Ho, Er; M) Mn, Zn). Inorg. Chem. 2008, 47, 11057–11061. [Google Scholar] [CrossRef]
Polymers 11 00196 g001a 550Polymers 11 00196 g001b 550

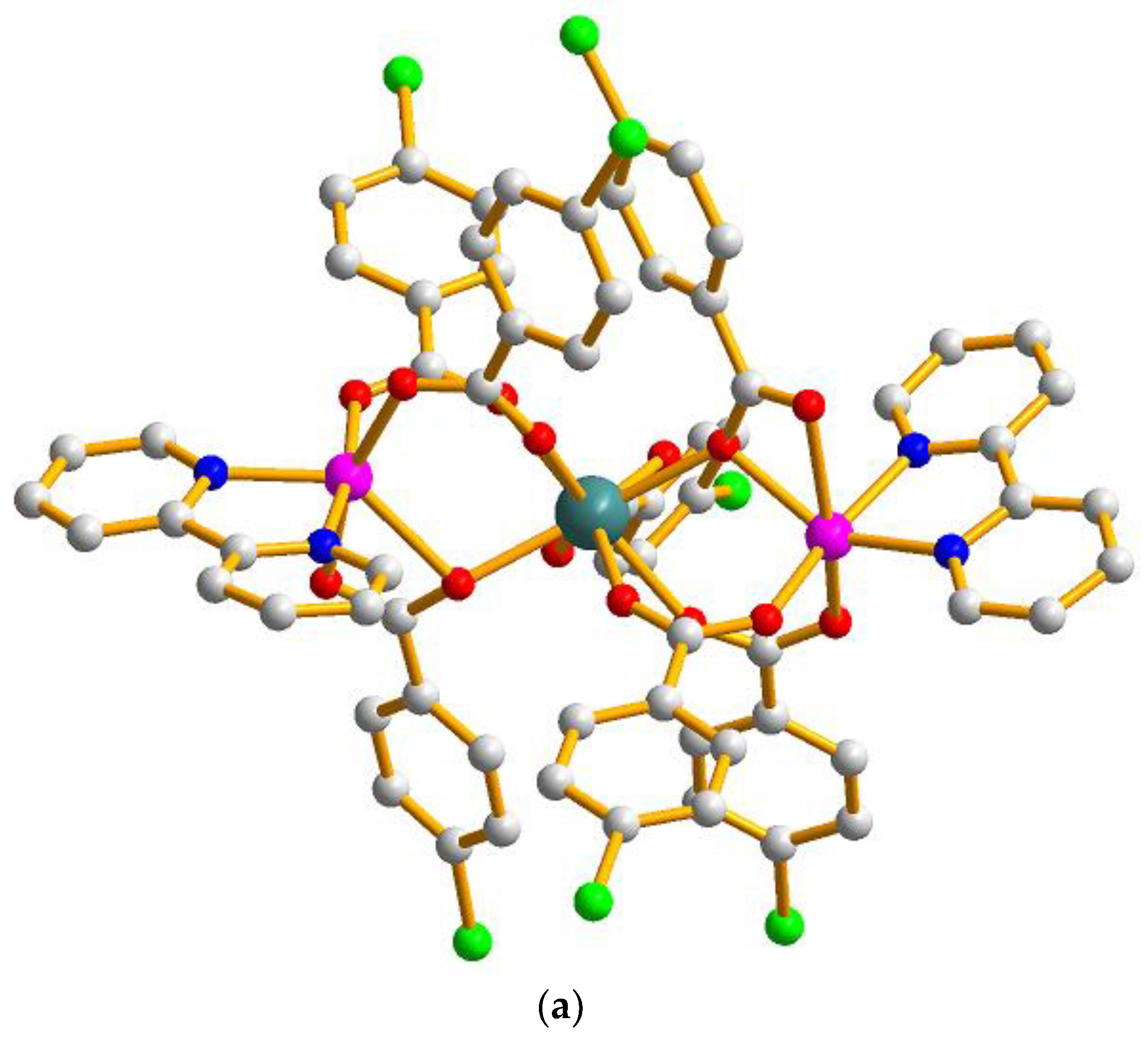

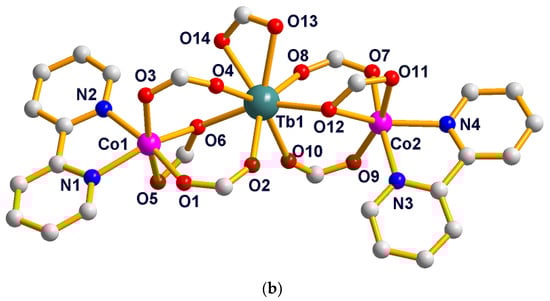

Figure 1. (a) The molecule structure of the trinuclear [TbCo2(L1)7(bipy)2] of 5. Hydrogen atoms are omitted for clarity. (b) The coordination environments of the metal centers in 5.
Figure 1. (a) The molecule structure of the trinuclear [TbCo2(L1)7(bipy)2] of 5. Hydrogen atoms are omitted for clarity. (b) The coordination environments of the metal centers in 5.
Polymers 11 00196 g001aPolymers 11 00196 g001b
Polymers 11 00196 g002 550

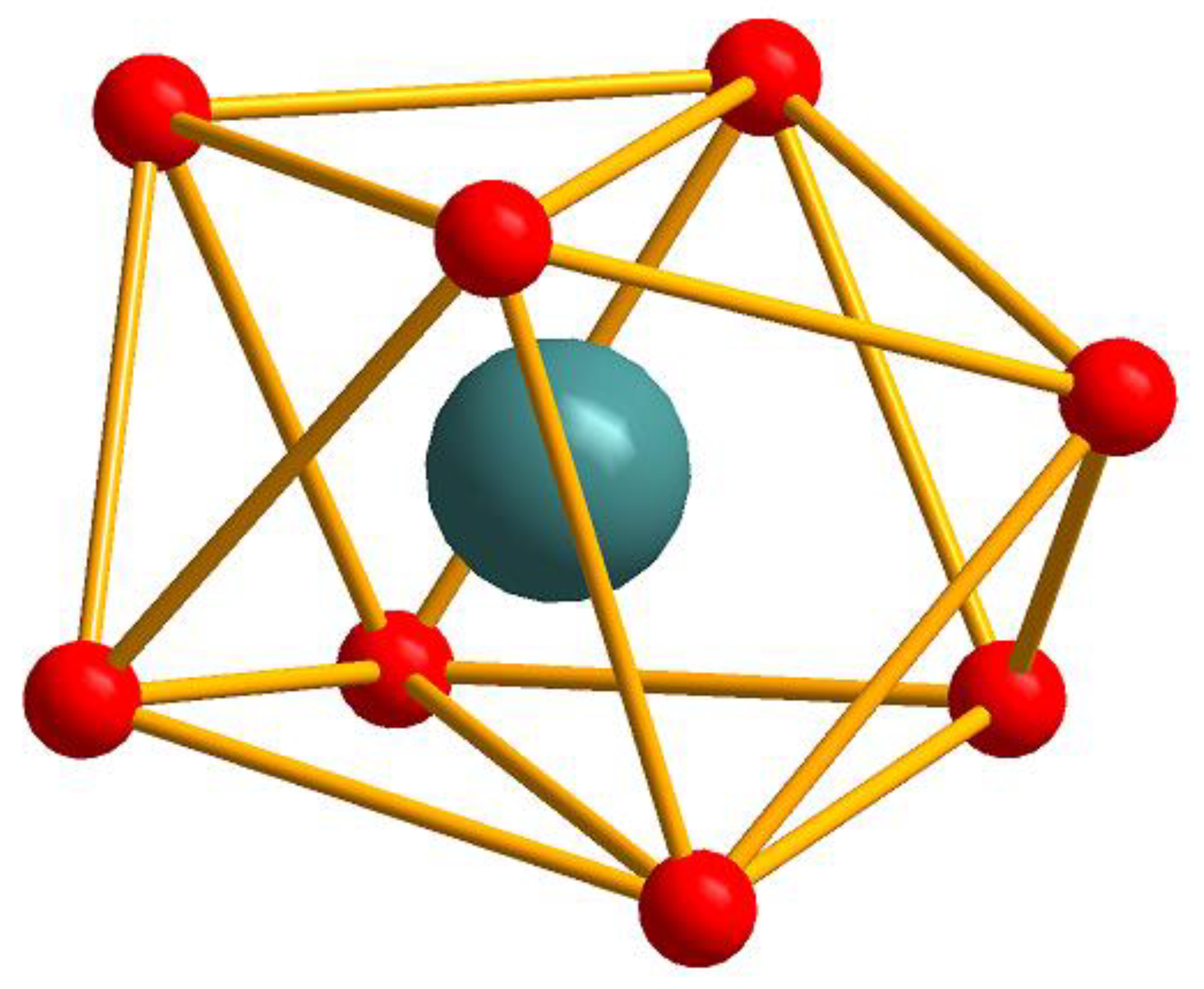

Figure 2. The distorted dodecahedron coordination geometry of Tb(III) ion in 5 with the TbO8 sphere.
Figure 2. The distorted dodecahedron coordination geometry of Tb(III) ion in 5 with the TbO8 sphere.
Polymers 11 00196 g002
Polymers 11 00196 sch001 550
Scheme 1. The coordinated modes of the L1 ligands in 5.
Scheme 1. The coordinated modes of the L1 ligands in 5.
Polymers 11 00196 sch001
Polymers 11 00196 g003 550

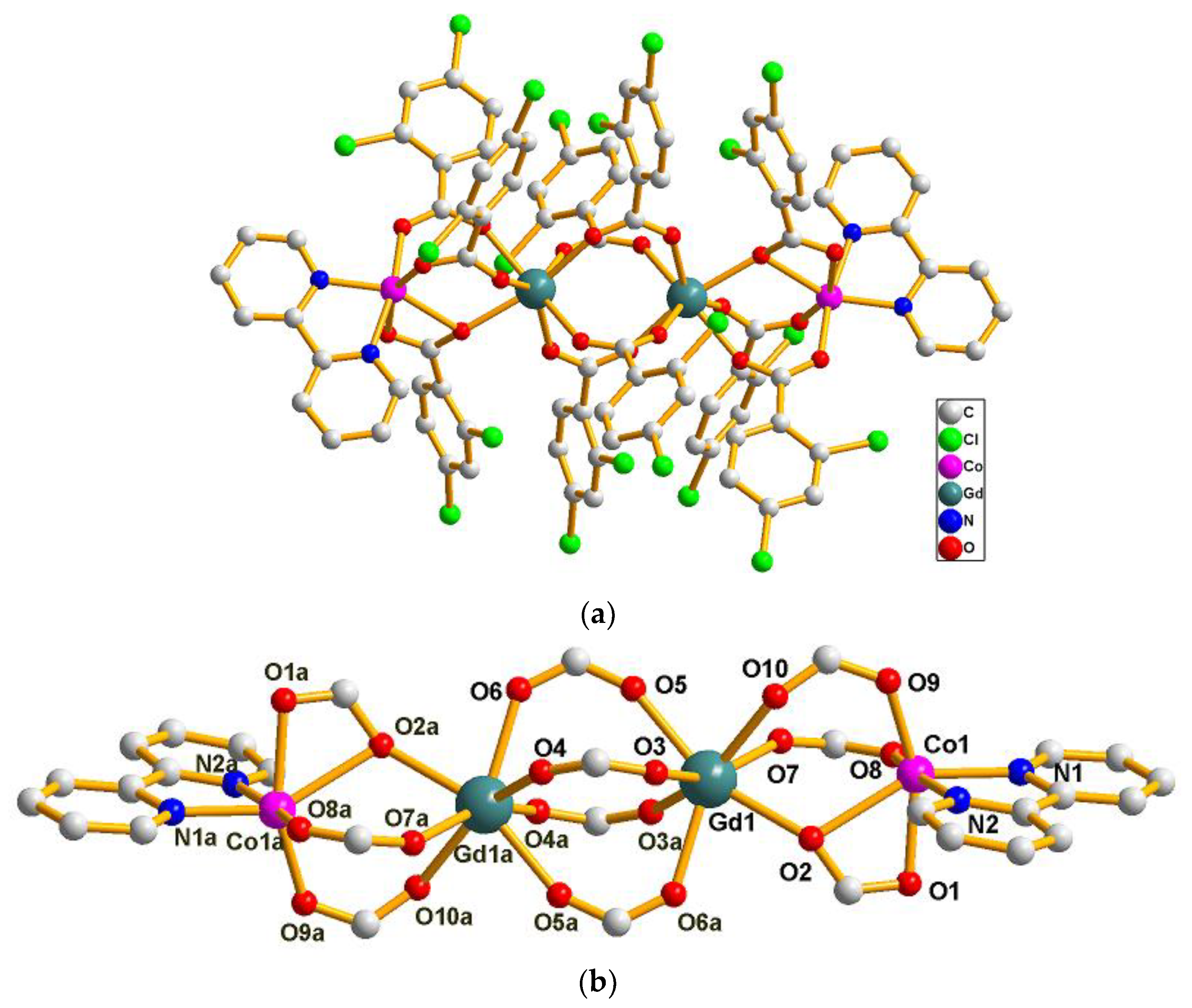

Figure 3. (a) The molecule structure of the tetranuclear [Gd2Co2(L2)10(bipy)2] of 8. Hydrogen atoms are omitted for clarity. (b) The coordination environments of the metal centers in 8.
Figure 3. (a) The molecule structure of the tetranuclear [Gd2Co2(L2)10(bipy)2] of 8. Hydrogen atoms are omitted for clarity. (b) The coordination environments of the metal centers in 8.
Polymers 11 00196 g003
Polymers 11 00196 g004 550

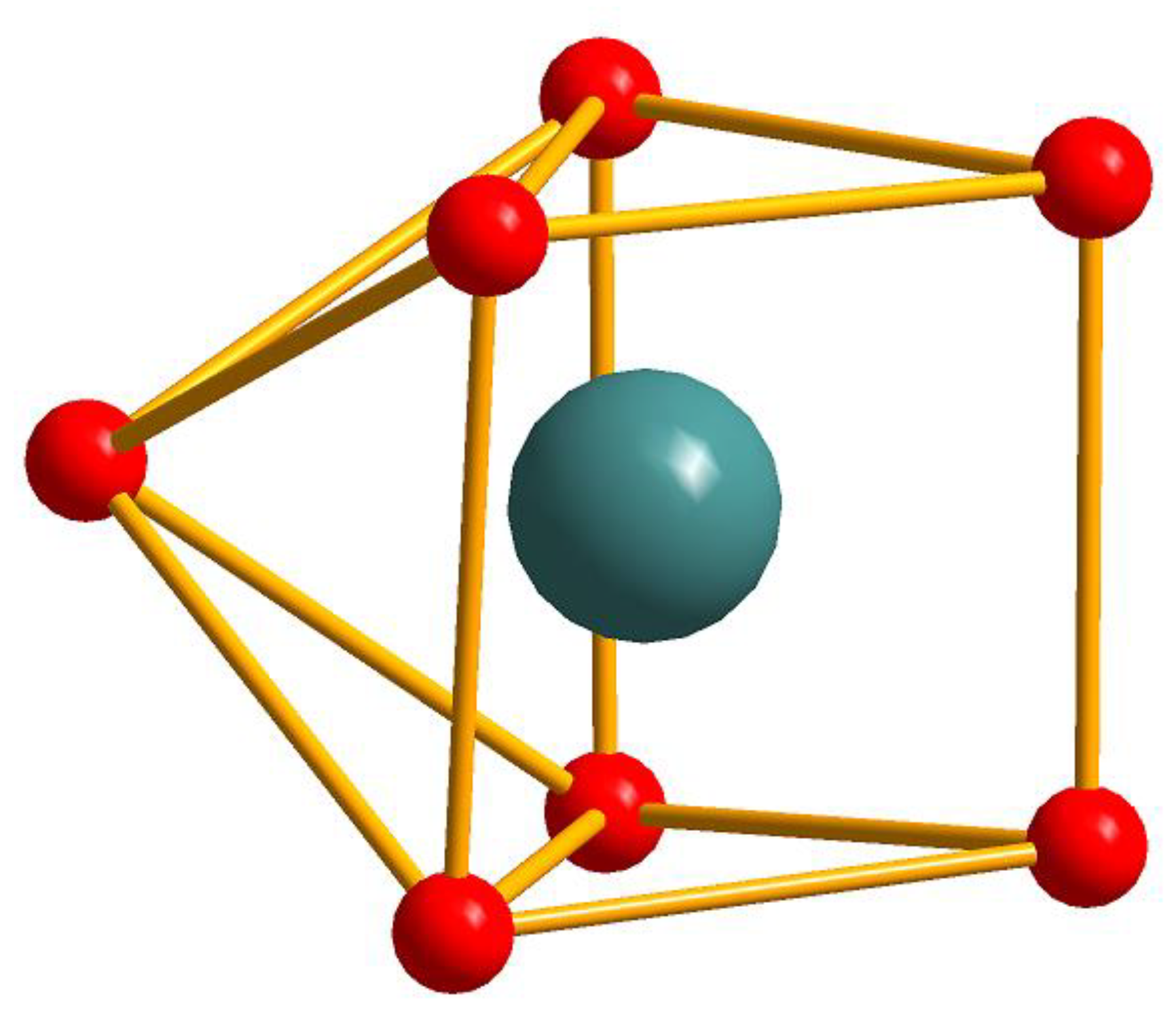

Figure 4. The distorted Capped Trigonal Prismatic coordination geometry of the Gd(III) ion in 8 with the GdO7 sphere.
Figure 4. The distorted Capped Trigonal Prismatic coordination geometry of the Gd(III) ion in 8 with the GdO7 sphere.
Polymers 11 00196 g004
Polymers 11 00196 g005 550

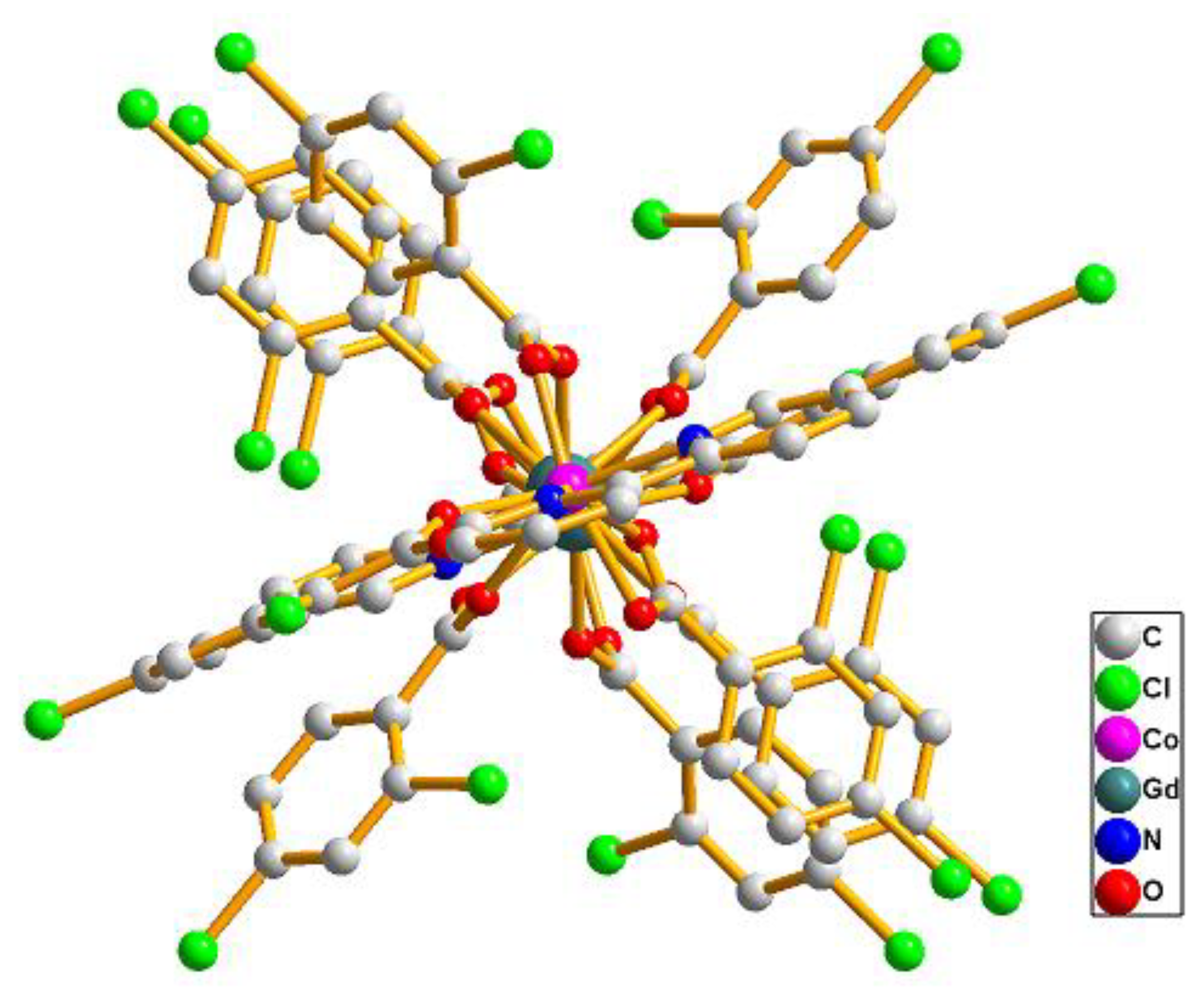

Figure 5. The paddlewheel arrangement of the ligands viewed along the Co1–Gd1–Gd1a–Co1a axis in 8.
Figure 5. The paddlewheel arrangement of the ligands viewed along the Co1–Gd1–Gd1a–Co1a axis in 8.
Polymers 11 00196 g005
Polymers 11 00196 g006 550

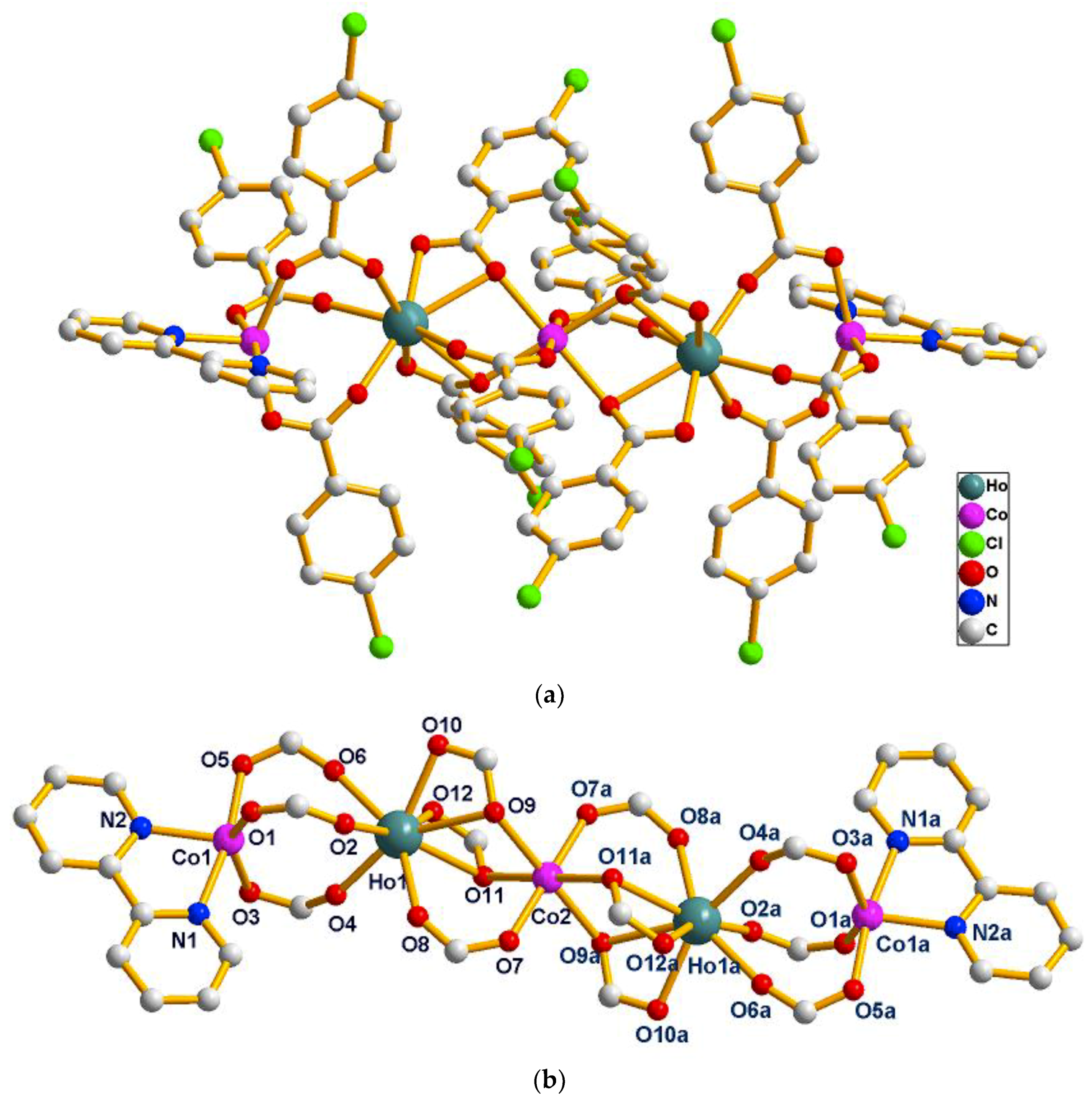

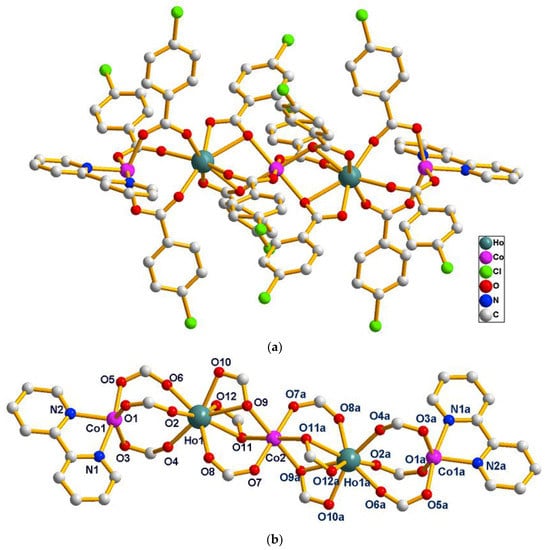

Figure 6. (a) The molecule structure of the pentanuclear [Ho2Co3(L1)12(bipy)2] of 14. Hydrogen atoms are omitted for clarity. (b) The coordination environments of the metal centers in 14.
Figure 6. (a) The molecule structure of the pentanuclear [Ho2Co3(L1)12(bipy)2] of 14. Hydrogen atoms are omitted for clarity. (b) The coordination environments of the metal centers in 14.
Polymers 11 00196 g006
Polymers 11 00196 g007 550

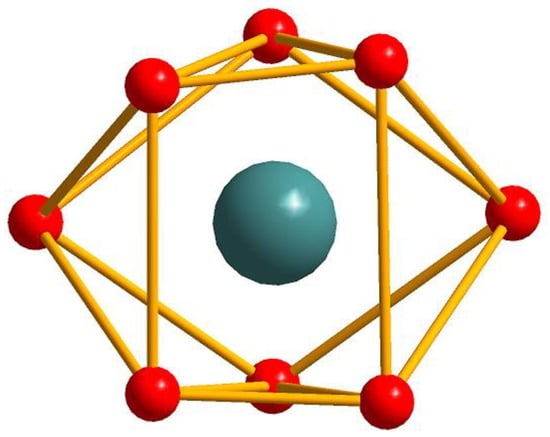

Figure 7. The distorted square antiprism coordination geometry of Ho(III) ion in 14 with the HoO8 sphere.
Figure 7. The distorted square antiprism coordination geometry of Ho(III) ion in 14 with the HoO8 sphere.
Polymers 11 00196 g007
Polymers 11 00196 g008 550

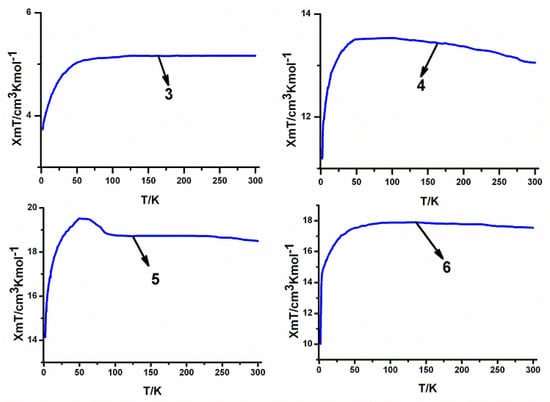

Figure 8. Temperature dependence of the χmT curves at 1000 Oe for the series of heterotrinuclear compounds 3–6.
Figure 8. Temperature dependence of the χmT curves at 1000 Oe for the series of heterotrinuclear compounds 3–6.
Polymers 11 00196 g008
Polymers 11 00196 g009 550

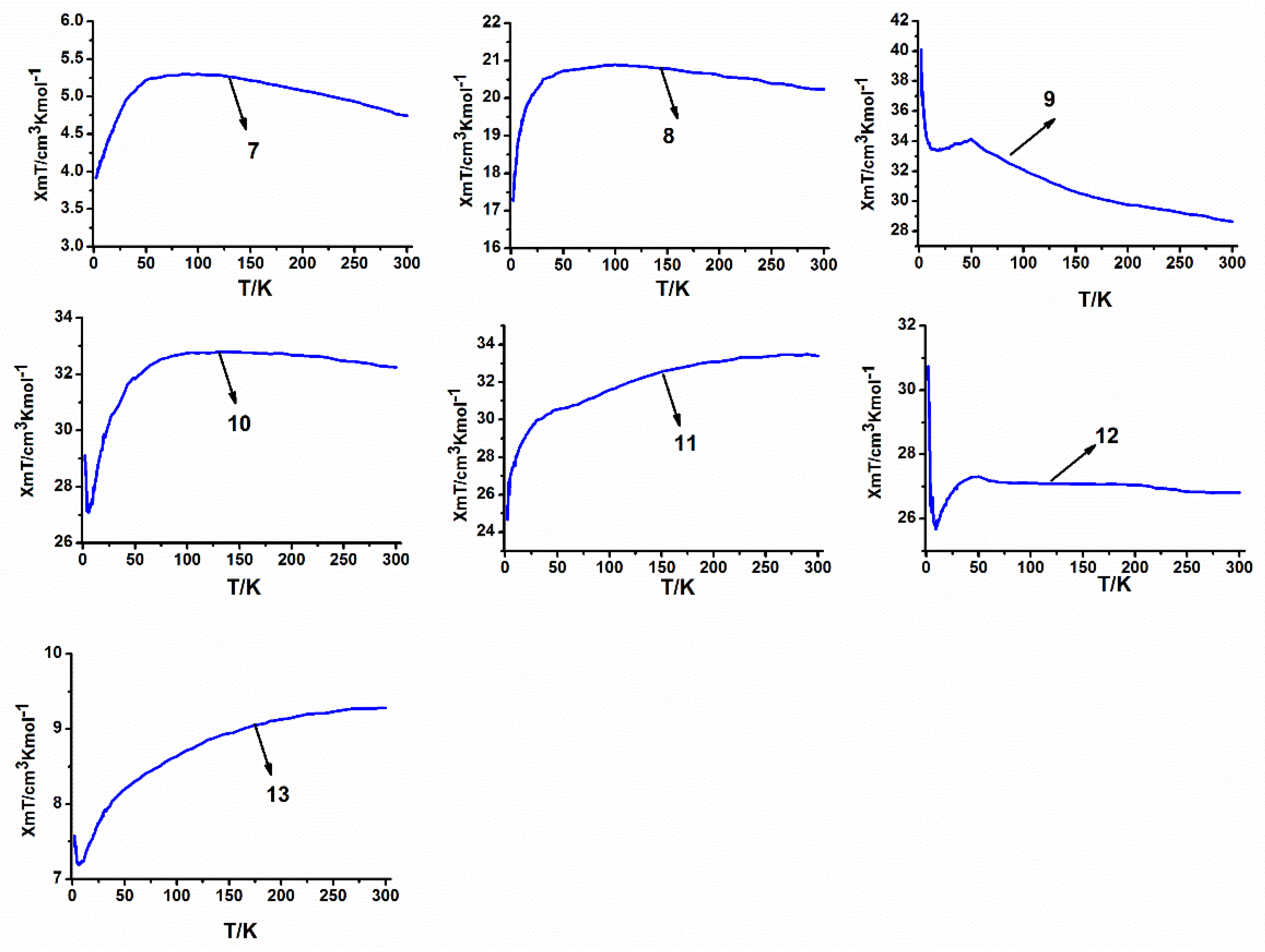

Figure 9. Temperature dependence of the χmT curves at 1000 Oe for the series of heterotetranuclear compounds 7–13.
Figure 9. Temperature dependence of the χmT curves at 1000 Oe for the series of heterotetranuclear compounds 7–13.
Polymers 11 00196 g009
Polymers 11 00196 g010 550

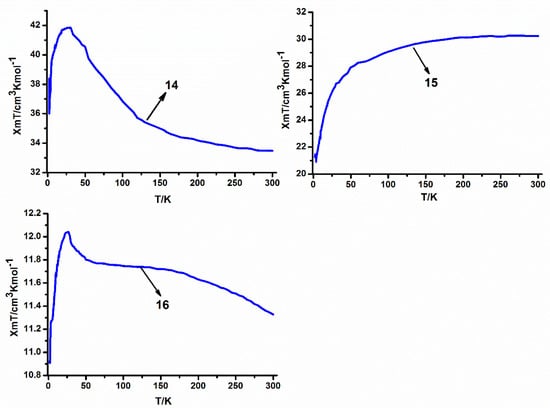

Figure 10. Temperature dependence of the χmT curves at 1000 Oe for the series of heteropentanuclear compounds 14–16.

Figure 10. Temperature dependence of the χmT curves at 1000 Oe for the series of heteropentanuclear compounds 14–16.
Polymers 11 00196 g010
Table
Table 1. Crystal data and structure refinement information for 1–3.
Table 1. Crystal data and structure refinement information for 1–3.
Compound123
Empirical formulaC69H44Cl7Co2N4O14PrC69H44Cl7Co2N4O14EuC69H44Cl7Co2N4O14Sm
Fw1660.001671.051669.45
Temperature (K)293(2)293(2)293(2)
Crystal systemTriclinicTriclinicTriclinic
Space groupP 1 − P 1 − P 1 −
a(Å)11.476(2)11.545(2)11.734(2)
b(Å)13.762(3)13.651(3)13.617(3)
c(Å)21.363(4)21.169(4)21.542(4)
α (°)80.87(3)99.16(3)80.12(3)
β (°)89.82(3)90.04(3)89.88(3)
γ (°)89.18(3)90.98(3)89.99(3)
V (Å3)3330.8(11)3293.2(11)3391.0(11)
Z222
F(000)166016681666
D (Mg/m3)1.6551.6851.635
Abs coeff (mm−1)1.5621.7931.682
Data/restraints/params15,554/0/87415,461/0/87415,927/486/920
GOF0.9991.0041.031
R1 a (I = 2σ(I))0.07340.03980.0582
WR2 a (all data)0.16690.10040.1373
a R1 = Σ||Fo| − |Fc||/|Fo|, wR2 = [Σw(Fo2 − Fc2)2/Σw(Fo2)2]1/2.
Table
Table 2. Crystal data and structure refinement information for 4–6.
Table 2. Crystal data and structure refinement information for 4–6.
Compound456
Empirical formulaC69H44Cl7Co2N4O14GdC69H44Cl7Co2N4O14TbC69H44Cl7Co2N4O14Dy
Fw1676.341678.021681.59
Temperature (K)293(2)293(2)293(2)
Crystal systemTriclinicTriclinicTriclinic
Space groupP 1 − P 1 − P 1 −
a(Å)11.769(2)11.783(2)11.608(2)
b(Å)13.587(3)13.584(3)13.596(3)
c(Å)21.539(4)21.484(4)21.107(4)
α (°)80.09(3)80.06(3)99.23(3)
β (°)89.73(3)89.77(3)90.12(3)
γ (°)89.97(3)89.95(3)90.94(3)
V (Å3)3392.8(11)3387.1(11)3287.5(11)
Z222
F(000)167016721674
D (Mg/m3)1.6411.6451.699
Abs coeff (mm−1)1.7931.8611.978
Data/restraints/params11,687/1512/92015,502/0/92015,419/0/874
GOF1.0081.0390.979
R1a (I = 2σ(I))0.07850.04290.0461
WR2a (all data)0.16840.09140.1001
a R1 = Σ||Fo| − |Fc||/|Fo|, wR2 = [Σw(Fo2 − Fc2)2/Σw(Fo2)2]1/2.
Table
Table 3. Crystal data and structure refinement information for 7–10.
Table 3. Crystal data and structure refinement information for 7–10.
Compound78910
Empirical formulaC90H46Cl20Co2Sm2N4O20C90H46Cl20Co2Gd2N4O20C90H46Cl20Co2Tb2N4O20C90H46Cl20Co2Dy2N4O20
Fw2630.872644.672648.012655.17
Temperature (K)293(2)293(2)293(2)293(2)
Crystal syst.TriclinicTriclinicTriclinicTriclinic
Space groupP 1 − P 1 − P 1 − P 1 −
a(Å)12.998(3)13.411(3)13.421(3)13.048(3)
b(Å)13.914(3)13.804(3)13.786(3)13.774(3)
c(Å)14.241(3)13.809(3)13.806(3)13.809(3)
α (°)101.41(3)98.96(3)99.04(3)99.20(3)
β (°)97.92(3)107.45(3)95.86(3)95.81(3)
γ (°)106.52(3)95.93(3)107.45(3)107.60(3)
V (Å3)2368.3(9)2378.3(9)2376.2(9)2305.5(9)
Z1111
F(000)1292129612981300
D (Mg/m3)1.8451.8471.8501.912
Abs coeff (mm−1)2.2032.3532.4482.610
Data/restraints/params11,077/0/62311,128/0/62311,077/0/62311,038/0/623
GOF0.9531.0140.9530.886
R1a (I = 2σ(I))0.03260.02940.03260.0274
WR2a (all data)0.07040.06340.07040.0668
a R1 = Σ||Fo| − |Fc||/|Fo|, wR2 = [Σw(Fo2 − Fc2)2/Σw(Fo2)2]1/2.
Table
Table 4. Crystal data and structure refinement information for 11–13.
Table 4. Crystal data and structure refinement information for 11–13.
Compound111213
Empirical formulaC90H46Cl20Co2Ho2N4O20C90H46Cl20Co2Er2N4O20C90H46Cl20Co2Yb2N4O20
Fw2660.032664.692676.25
Temperature (K)293(2)293(2)293(2)
Crystal syst.TriclinicTriclinicTriclinic
Space groupP 1 − P 1 − P 1 −
a(Å)13.425(3)13.397(3)13.503(3)
b(Å)13.774(3)13.741(3)13.801(3)
c(Å)13.821(3)13.802(3)13.877(3)
α (°)99.27(3)99.44(3)99.98(3)
β (°)95.79(3)95.77(3)95.65(3)
γ (°)107.66(3)107.65(3)107.71(3)
V (Å3)2372.8(9)2357.7(9)2394.5(9)
Z111
F(000)130213041308
D (Mg/m3)1.8621.8771.856
Abs coeff (mm−1)2.6292.7472.905
Data/restraints/params11,021/0/62311,051/0/62310,813/0/622
GOF0.9930.9871.036
R1a (I = 2σ(I))0.04020.03170.0379
WR2a (all data)0.09080.07100.0874
a R1 = Σ||Fo| − |Fc||/|Fo|, wR2 = [Σw(Fo2 − Fc2)2/Σw(Fo2)2]1/2.
Table
Table 5. Crystal data and structure refinement information for 14–16.
Table 5. Crystal data and structure refinement information for 14–16.
Compound141516
Empirical formulaC104H64Cl12Co3Ho2N4O24C104H64Cl12Co3Er2N4O24C104H64Cl12Co3Yb2N4O24
Fw2685.642690.302701.86
Temperature (K)293(2)293(2)293(2)
Crystal syst.TriclinicTriclinicTriclinic
Space groupP 1 − P 1 − P 1 −
a(Å)13.900(3)13.893(3)13.702(3)
b(Å)14.772(3)14.824(3)14.600(3)
c(Å)16.034(3)16.073(3)15.895(3)
α (°)105.01(3)105.25(3)105.13(3)
β (°)103.74(3)103.61(3)103.46(3)
γ (°)113.66(3)113.49(3)113.30(3)
V (Å3)2687.0(16)2703.9(9)2608.9(9)
Z111
F(000)132713291333
D (Mg/m3)2.2801.6521.720
Abs coeff (mm−1)2.4482.3542.624
data/restraints/params12,585/0/68312,603/0/68312,324/6/683
GOF1.0010.9981.006
R1a (I = 2σ(I))0.05000.04610.0468
WR2a (all data)0.11270.11110.1056
a R1 = Σ||Fo| − |Fc||/|Fo|, wR2 = [Σw(Fo2 − Fc2)2/Σw(Fo2)2]1/2.
Table
Table 6. Summary of static magnetic properties of the three series of heterometallic compounds 3–14.
Table 6. Summary of static magnetic properties of the three series of heterometallic compounds 3–14.
3 (SmCo2)4 (GdCo2)5 (DyCo2)6 (TbCo2)7 (Sm2Co2)
Ground state of Ln(III)6H5/28S7/26H15/27F66H5/2
χmT (theoretical)3.8411.6317.9215.573.93
χmT (observed)5.1613.0518.5217.544.74
C (emu mol−1 K)5.1612.8318.4817.384.32
θ (K)−0.337.052.033.8929.09
8 (Gd2Co2)9 (Tb2Co2)10 (Dy2Co2)11 (Ho2Co2)12 (Er2Co2)
Ground state of Ln(III)8S7/27F66H15/25I84I15/2
χmT (theoretical)19.5127.3932.0931.8926.71
χmT (observed)20.2328.7632.2433.4026.82
C (emu mol−1 K)19.8127.3832.1834.5826.66
θ (K)7.1415.492.36−9.292.11
13 (Yb2Co2)14 (Ho2Co3)15 (Er2Co3)16 (Yb2Co3)
Ground state of Ln(III)2F7/25I84I15/22F7/2
χmT (theoretical)8.8933.7728.5910.76
χmT (observed)9.2833.7830.2311.33
C (emu mol−1 K)9.6633.0430.9711.11
θ (K)−11.8712.54−6.238.01
