Synthesis of a TEMPO-Substituted Polyacrylamide Bearing a Sulfonate Sodium Pendant and Its Properties in an Organic Radical Battery

1
Shaanxi Key Laboratory of Chemical Additives for Industry, College of Chemistry and Chemical Engineering, Shaanxi University of Science and Technology, Xi’an 710021, China
2
Shaanxi Collaborative Innovation Center of Industrial Auxiliary Chemistry and Technology, Shaanxi University of Science & Technology, Xi’an 710021, China
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(12), 2076; https://doi.org/10.3390/polym11122076
Received: 24 November 2019 / Revised: 8 December 2019 / Accepted: 10 December 2019 / Published: 12 December 2019
(This article belongs to the Section Polymer Synthesis)

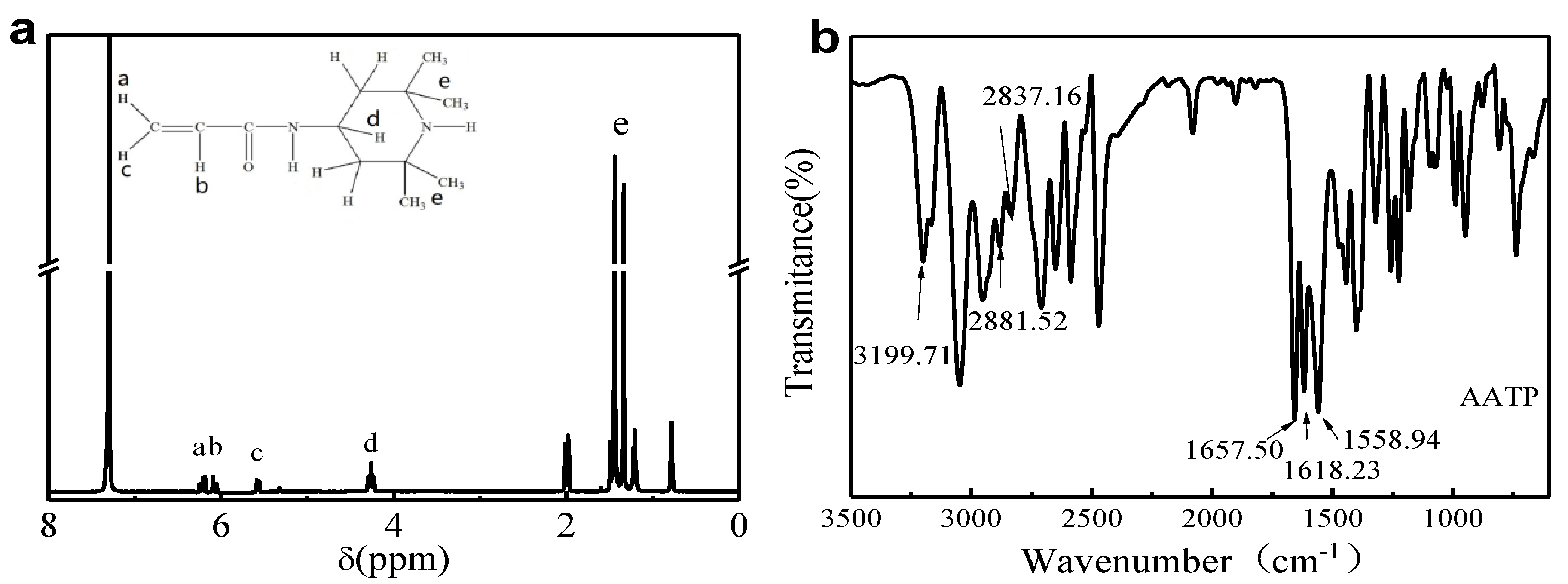

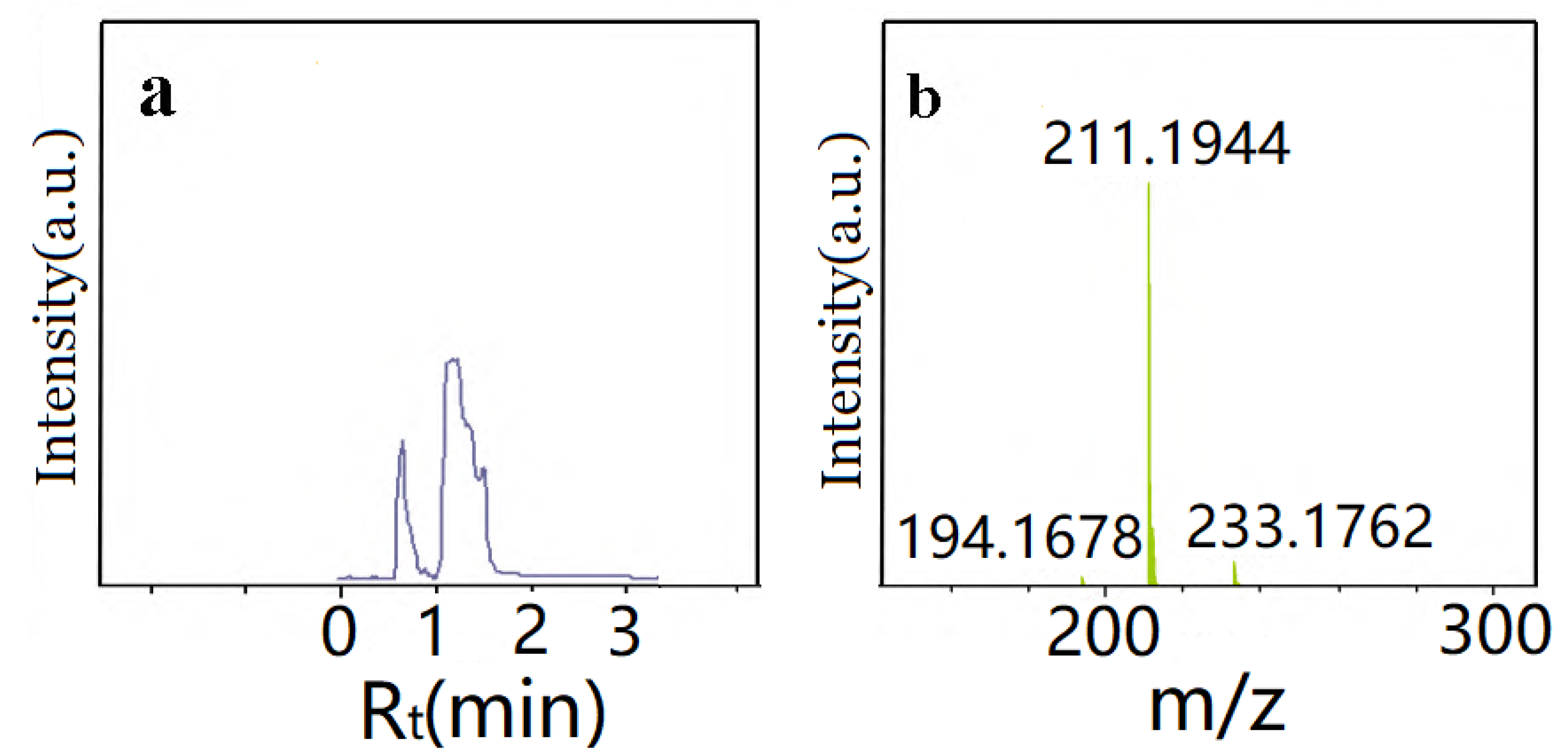

A novel nitroxyl radical polymer poly(TEMPO-acrylamide-co-sodium styrene sulfonate) (abbreviated as poly(TAm-co-SSS)) was synthesized using 4-acrylamido-2,2,6,6- tetramethylpiperidine (AATP) copolymerized with styrene sulfonate sodium (SSS). AATP was synthesized through a substitution reaction of acryloyl chloride. Meanwhile, poly(4-acrylamido-2,2,6,6-tetramethylpiperidine-1-nitroxyl radical) (PTAm) was prepared as a control sample. Then, the structures of products were characterized by nuclear magnetic resonance spectroscopy (1H-NMR), Fourier transform infrared spectroscopy (FT-IR), high performance liquid chromatography-mass spectrometry (HPLC-MS), differential scanning calorimetry (DSC), X-Ray photoelectron spectroscopy (XPS), and electron paramagnetic resonance (EPR), respectively. Additionally, the electrochemical impedance spectra (EIS) and the charge-discharge cycling properties were studied. The results demonstrated that the poly(TAm-co-SSS) with the side group of sodium sulfonate adjacent to TEMPO group exhibits a better charge-discharge cycling stability than that of the PTAm. Moreover, the charge specific capacity of the poly(TAm-co-SSS) is larger than that of the PTAm. Besides, the first coulombic efficiency of poly(TAm-co-SSS) is higher in comparison with that of PTAm. These superior electrochemical performances were ascribed to the synergistic effect of sulfonate ions group and nitroxyl radical structure, which benefits the improvement of charge carrier transportation of the nitroxyl radical polymers. Consequently, the nitroxyl radical poly(TAm-co-SSS) is promising for use in organic radical battery materials, based on the good electrochemical properties. View Full-Text
Keywords: nitroxyl radical polymer; poly(TEMPO-acrylamide-co-sodium styrene sulfonate); electrochemical properties; cathode material; organic radical battery nitroxyl radical polymer; poly(TEMPO-acrylamide-co-sodium styrene sulfonate); electrochemical properties; cathode material; organic radical battery
Show Figures

Graphical abstract

MDPI and ACS Style

Zhu, J.; Zhu, T.; Tuo, H.; Zhang, W. Synthesis of a TEMPO-Substituted Polyacrylamide Bearing a Sulfonate Sodium Pendant and Its Properties in an Organic Radical Battery. Polymers 2019, 11, 2076.
