Review

Recent Advancements in the Synthesis of Covalent Triazine Frameworks for Energy and Environmental Applications

by
Ying Zhang
and
Shangbin Jin
*
School of Chemistry and Chemical Engineering, Huazhong University of Science and Technology, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(1), 31; https://doi.org/10.3390/polym11010031
Submission received: 25 November 2018 / Revised: 14 December 2018 / Accepted: 17 December 2018 / Published: 26 December 2018
(This article belongs to the Special Issue Microporous Organic Polymers: Synthesis, Characterization and Applications)
Browse Figures
Versions Notes

Abstract

:
Covalent triazine frameworks (CTFs) are a unique type of porous materials, comprised of triazine units. Owing to the strong linkage of triazine, the most important advantage of CTFs lies in their high chemical and thermal stabilities and high nitrogen content as compared to other porous organic polymers (POPs). Therefore, CTFs are one of the most promising materials for practical applications. Much research has been devoted to developing new methods to synthesize CTFs and explore their potential applications. Nowadays, energy and environmental issues have attracted enormous attention. CTFs are particular promising for energy- and environment-related applications, due to their nitrogen-rich scaffold and robust structure. Here, we selected some typical examples and reviewed recent advancements in the synthesis of CTFs and their applications in gas adsorption, separation, and catalysis in relation to environment and energy issues.

Graphical Abstract

1. Introduction

Porous organic polymers (POPs) are a new class of nanoporous materials which were discovered in recent decades. Their highly porous nature and covalent bonding structures endow them with large surface areas and high stability. These characteristics make them useful in a number of advanced functional applications, reason for which they are receiving large research attention nowadays in materials science [1,2]. POPs can be divided into several representative subtypes, namely, conjugated microporous polymers (CMPs) [3], covalent organic frameworks (COFs) [4,5], covalent triazine frameworks (CTFs) [6], porous aromatic frameworks (PAFs) [7], hypercrosslinked polymers (HCPs) [8], and polymer of intri nsic microporosities (PIMs) [9]. Among them, CTFs, structurally comprised of triazine units, are a unique type of porous materials. The aromatic C=N bond in triazine units endows CTFs with high stability and allows their applications in harsh conditions. Structurally, CTFs present as either crystalline or amorphous materials. Currently, most CTFs are amorphous, because of the high stability of the triazine linkage and low reversibility of the polymerization procedure. Several methods have been developed for the synthesis of CTFs, which are ionothermal synthesis [6], superacid catalysis [10], transition metal coupling reactions [11], and polycondensation method [12]. CTFs are reported to be practicable in a number of functional applications, such as gas adsorption and storage [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29], heterogeneous catalysis [14,30,31,32,33,34,35,36,37,38,39,40,41,42,43], energy storage and conversion [44,45,46,47], photocatalysis [12,48,49,50,51,52]. In this review, we selected typical examples of CTFs reported in the literature and reviewed the recent development in their synthesis and application in gas adsorption and catalysis in relation to energy and environment issues.

2. Structural Characteristic and Synthesis Routes

CTFs are comprised of triazine units; therefore, they are structurally nitrogen-abundant materials. Such kind of structure endows them with properties useful in many promising applications (Figure 1). The triazine units are very stable, and therefore the materials can endure harsh conditions such as acid or basic conditions, which cannot be tolerated by other porous organic polymers. CTFs bear very highly conjugated structures, which confer semiconductive properties. The structure of CTFs can be either crystalline or amorphous. It is desirable to achieve high crystalline CTFs, however, most of the CTFs currently available are amorphous. The difficulty in obtaining crystallinities lies in the low reversibility of the linkage.
Limited methods have been developed for CTFs synthesis (Figure 2). The first method was reported by Thomas et al., who used ionothermal conditions to synthesize CTFs from nitrile monomers [6]. This method was conducted at high temperature, usually over 400 °C, and needed to be carried out in a sealed ampoule tube. These very harsh conditions do not allow large-scale synthesis. However, CTFs synthesized by ionothermal condition can achieve a very high surface area, which can be attributed to the template effect of the Lewis catalyst and partial carbonization of the materials. The nitrogen-rich frameworks can also be achieved through the introduction of nitrogen-rich building blocks (i.e., bipyridine [53], porphyin [54], phthalazinone [28], acetylacetone [55], etc.), which are good supports for various metal nanoparticles and metal complexes. This is very important for the applications of CTFs in catalysis and adsorption. Later, Cooper et al. developed a method for CTF synthesis requiring mild conditions, in which trifluorosulfonic acid was employed as a catalyst to polymerize nitrile monomers, allowing CTF synthesis at room temperature or in microwave conditions [10]. Along this superacid method, recently, Xu et al. reported the use of interfacial conditions by which CTFs were synthesized with layered structures and crystallinity [56]. The above methods are all based on the trimerization of nitrile monomers. CTFs from other monomers are less developed. Recently, we reported a polycondensation reaction from aldehyde and amidine, which is a useful method to synthesize CTFs at relatively low temperature [12]. The CTFs prepared by this polycondenstaion method avoided partial carbonization and exhibited semiconductive structures and high surface areas. This method is also expected to lead to CTFs with more structural diversity, since the polycondensation involves two types of monomers, broadening the possibilities of structural design. Another method based on amide monomers was also reported, where P2O5 was used as a catalyst and reaction medium. However, the polymerization was performed at a rather high temperature [57]. Microwave has also been used to synthesize CTFs. Wang et al. reported a microwave-enhanced ionothermal synthesis method to prepare CTFs with surface area up to 2390 m 2 g−1 [58]. Recently, Tang et al. also reported that a high crystalline CTF-1 was prepared by the microwave method in a very short term, just tens of minutes [59]. Therefore, more and more methods are emerging for CTF synthesis.

3. Energy- and Environment-Related Applications

The large surface area and semiconductive structures provide CTFs with an enormous potential for applications in many areas, such as gas adsorption and storage, heterogenerous catalysis, energy storage and conversion, and photocatalysis. Combining these properties with a high stability, CTFs appear as a potential material for practical applications in the field of energy and environment. Here, we focus on the recent advances in the application of CTFs in areas related to energy and environment.

3.1. Hydrogen Storage and CO2 Capture

Hydrogen is the most promising energy source to achieve a sustainable society. However, hydrogen storage is the critical step for the practical applications of hydrogen energy. Therefore, the development of materials for hydrogen storage is the most important task in the field. On the other hand, CO2 is the most typical greenhouse gas, which is due to the usage of the fossil fuels. Thus, it is also urgent to decrease CO2 levels in the atmosphere. One solution to alleviate these problems is the employment of porous organic polymers to capture and storage these gases.

3.1.1. Hydrogen Storage

CTFs are particularly promising for the adsorption and storage of hydrogen (Table 1). Thomas et al. originally presented the synthesis of CTFs and investigated the applications of CTFs in hydrogen storage [6]. They showed that the CTF synthesized from 4,4-dicycnobiphenyl (DCBP) monomers has a high surface area of 2475 m2 g−1, which can storage 1.55 wt % hydrogen in the condition of 1 bar and 77 K [6]. The performance is comparable to that of many other porous materials. Han et al. reported that hierarchical traizine-based porous carbon is a promising material for hydrogen storage. A surface aera of 1200 m2 g−1 can be obtained, and the hydrogen uptake can reach 2.34 wt % at 77 K and 1 bar. They concluded that hierarchical porous structures can be good for small-molecule diffusion and thus benefit gas uptake [60]. Janiak et al. synthesized porous covalent triazine-based organic frameworks (PCTFs) from a supramolecular tetranitrile building block, which resulted in a high surface area of 2235 m2 g−1 and, more importantly, to hydrogen storage reaching a high capacitance of 1.86 wt % at 77 K and 1 bar [61]. Lotsch et al. reported a fluorine-based CTF (fl-CTF-400) which could uptake 1.95 wt %, which is higher than the uptake of CTF-1 (1.55 wt %), PCTF (1.86 wt %), and PCTF-2 (0.9 wt %) [62]. They further increased the pressure up to 20 bar, achieving an adsorption of 4.36 wt % [62]. In 2017, Coskun et al. developed a chemical activation approach to enhance the textural property of CTF. They found that the activated CTF-1 at 700 °C could result in a significantly enhanced surface area up to 2367 m2g−1, with a hydrogen uptake ability up to 2.46 wt % at 77 K and 1 bar [26]. These reports showed that it is important to achieve high surface area and suitable pore size of CTFs for hydrogen storage. However, most of the reported CTFs are focused on hydrogen adsorption, while the hydrogen desorption process is also important but is less studied.
Theoretical calculation is also a powerful tool to investigate the application of CTFs for hydrogen storage. In 2013, Yu et al. showed that CTF-1 can storage hydrogen by introducing various metal, i.e., Li, Na, K, Mg, Ca, through ab initio density functional calculation [63]. The theoretical calculation demonstrated that Li, Na, K, and Ca can be introduced into CTF-1 as a result of charge transfer interaction between the introduced atoms and the supported framework. It was shown that a highest uptake of 12.3 wt % can be achieved in a CTF–Li complex, theoretically. He et al. further showed that transition metals, such as Sc, Ti, V, Cr, Mn, can be supported in CTFs by using ab initio density functional theory (DFT) calculation [64]. Their calculation results showed that the absorbed metals can exist without forming clusters. Interestingly, they found that V, Cr, and Mn are not proper metals because of the large binding energy for hydrogen, but Sc and Ti are promising metals for hydrogen uptake at ambient conditions. These works showed that CTFs are potential materials for hydrogen storage by incorporation of metals in the frameworks.

3.1.2. Carbon Dioxide Capture

Cooper et al. investigated the carbon dioxide adsorption of CTFs prepared by the catalysis of superacids. They revealed an exceptional adsorption capacity up to 4.17 mmol g−1 for CTFs [10]. In their work, P6M had the highest adsorption capacity for carbon dioxide even though it was not the polymer with the highest Brunauer-Emmett-Teller (BET) surface area. They also studied the adsorption selectivity over nitrogen, for which P1M had the highest CO2/N2 selectivity of 31.2, although it had the lowest surface area. Janiak et al. reported a new adamantine-based CTF in 2013, which was prepared in high yields using either ZnCl2 or CF3SO3H as catalysts. They optimized the synthetic conditions and Lewis acid catalysis conditions. Under the optimized conditions, the highest BET surface of 2235 m2 g−1 and an adsorption of 73 cm3 g−1 CO2 were obtained. They also found that the CTF has high gas adsorption selectivity corresponding to 41:1 for CO2/N2 and 7:1 for CO2/CH4 [65]. Han et al. designed perfluorinated CTFs (FCTF-1) and showed the introduction of fluorine has an obvious positive effect on CO2 adsorption and separation [66]. The FCTF-1 can uptake 1.76 mmol g−1 CO2 at low pressure (0.1 bar) and 273 K. They also found that FCTF-1 has a high selectivity of 77 for CO2/N2 separation, which is due to its ultramicropores. Interestingly, due to the hydrophobic nature of fluorine, the TCTF-1 is tolerant to water in gas separation. The good gas adsorption ability of CTFs is partially due to the high nitrogen content. Therefore, it is critical to introduce nitrogen in the framework of CTFs. Indeed, Lotsch et al. introduced a series of nitrogen atoms in the CTFs and achieved high CO2 adsorption and selectivity [67]. They showed that bipyridine–CTFs have the highest CO2 uptake up to 5.58 mmol g−1 at 273 K and have a high CO2/N2 selectivity up to 189. They revealed that microporosity was the main factor for high CO2 uptake, and the N content was the main contributor for high selectivity. Janiak et al. developed a new strategy to synthesize CTFs with two linkers [68], which showed better CO2 adsorption and separation performance than the individual linkers [69]. The higher CO2 adsorption of mixed-nitrile CTFs was attributed to the higher micropore content and microporous volume. Tuci et al. developed a new N-doped CTFs with microporosity (CTF-py) showing excellent CO2 adsorption ability at 0.1 bar, with 2.03 and 1.12 mmol g−1 at 273 K and 298 K, respectively, which is better than that of TCTF-1. They also showed high CO2 adsorption at 1 bar, with 5.97 and 4.22 mmol g−1 at 273 K and 298 K, respectively [70]. Voort et al. designed N-heteroaromatic structures as polymerization monomers for CTFs and synthesized CTFs by optimization of the catalyst and monomer ratios and polymerization temperatures. They found that CTF-20-400 had the highest CO2 uptake ability in the series, with a capacity of 3.48 mmol g−1 at 1 bar and 273 K [71]. Yu et al. also introduced N-heteroacyclic units (carbazole) for CTFs, which can capture and fix CO2. They synthesized CTF–CSUs (CSU: Central South University) using carbazole nitriles monomers using a bottom-up strategy, with a highest BET surface area of 982 m2 g−1 and a good CO2 uptake ability of 12.9 wt % at 273 K and 1 bar. They further showed that CO2 can be fixed into cyclic carbonate with high yields [72]. Voort et al. recent reported an acetylacetone CTF (acac-CTF), introducing dual N and O sites in the CTFs. The acac-CTF can achieve a BET surface area as high as 1626 m2g−1 and can exhibit a high CO2 upake of 3.3 mmol g−1 at 273 K and 1 bar. Good selectivity towards N2 was also shown, with a CO2/N2 up to 46 at 298 K [55]. On the other hand, porous carbon based on CTFs was also developed for CO2 adsorption. For example, Han et al. reported a series of triazine-based porous carbon materials (TPCs) which were constructed from fluorinated aromatic nitrile building blocks using the ionothermal synthesis method, resulting in triaizne-based porous carbon materials. The highest achievable BET surface area was 1940 m2g−1, and the best CO2 adsorption ability could be up to 4.9 mmol g−1 at 273 K, 1.0 bar [73].
Besides heteroatom introduction, adoption of charge units in the frameworks can also be a promising strategy to capture and fix CO2. To this end, Coskun et al. designed a dicationic viologen structure as a building block for CTFs and prepared CTFs at ionothermal conditions. The highest surface area reached was up to 1247 m2 g−1, and the CO2 uptake could reach 133 mmol g−1 at 1 bar and 273 K. More interestingly, CO2 can be fixed to cyclic carbonates [27]. There are also some other reports of triazine-based porous materials, such as triaizne-based covalent organic framework (COF) with BET surface area of 609 m2 g−1, which can uptake 57.07 wt % CO2 at 273 K and 5 bar [74].
These reports showed that CTFs can be well designed (Table 2). We can either introduce a series of heteroatoms or design the structures of the monomers to achieve higher uptake abilities. These traits endow CTFs with promising potentials in CO2 capture and storage.

3.2. Photocatalytic Water Splitting and Carbon Dioxide Reduction

3.2.1. Photocatalytic Water Splitting

CTFs have highly conjugated structures, which can be tunable through structural design and synthesis. Their semiconductive structure and the energy levels can be finely tuned. In addition, they mostly have good absorption in the visible light. Therefore, CTFs are promising photocatalysts for various applications.
Zhao et al. firstly conducted the theoretical calculation of CTFs using the first-principle method. They foresaw that CTFs having layered structures are promising photocatalyts for water splitting [75]. As mentioned above, CTFs synthesized by the ionothermal method are generally not suitable for photocatalysis, while CTFs prepared by the superacid catalysis method can avoid carbonization and remain the inherent band gap of CTFs. Indeed, Wu et al. demonstrated that CTF-T1 prepared by trifluorosulfonic acid has good photocatalytic hydrogen evolution performance in the visible light; however, the photocatalytic hydrogen evolution is low and it is only comparable with that of bulk carbon nitride [48]. Heteroatom doping can also improve the photocatalytic performance. Su et al. reported that sulfur can be doped in CTF-1 and showed greatly enhanced hydrogen evolution rates up to 2000 μmol h−1 g−1 [76]. Wu et al. further showed that CTF can be hybridized with MoS2 and achieved an enhanced photocatalytic hydrogen evolution performance, which was explained by the enhanced interfacial charge transfer and separation [51]. Although the high-temperature ionothermal method may cause partial carbonization of CTF, Lotsch et al. showed that CTF oligomers prepared at 300 °C exhibited good photocatalytic hydrogen evolution [49]. Thomas et al. recently further showed that CTF prepared by the ionothermal method also present good photocatalytic performance for hydrogen evolution [77]. The key for the success lies in the control of the reaction time in the ionothermal stage, which could reduce the carbonization degree of the materials.
Recently, Tang et al. reported a microwave-assisted synthetic method to prepare CTF-1, which showed high crystallinity [59]. The resulted materials were reported to exhibit good hydrogen evolutions as high as 5500 μmol h−1 g−1. They also reported high quantum yields, which could be up to 6% at 420 nm. More interestingly, the resulting crystalline CTF-1 also showed high photocatalytic performance for oxygen evolution. Because photocatalytic oxygen evolution has a slower dynamic than hydrogen evolution, it is challenging to find effective photocatalysts. Wang et al. recently found that CTFs can be a good platform to tune the band structures and achieve optimal photocatalytic oxygen evolution rates. They showed that the variation of the length of the monomers can modulate the properties of CTFs for oxygen evolution and therefore provided a new strategy to design CTFs for oxygen photocatalysis [78].
Since most of the present CTFs are synthesized by trimerization of nitrile building blocks, structure diversity is somewhat limited. We recently developed CTFs synthesized by polycondensation showing high photocatalytic performance for hydrogen evolution as compared to many reported CTFs [12]. The high catalytic activity can be attributed to the layered morphologies and crystalline structures of the resulting CTFs. We further found that photocatalytic hydrogen evolution can be dramatically improved by increasing the crystallinity of CTFs (Figure 3) [79]. We expect that the design and synthesis of CTFs by polycondensation will result in much higher photocatalytic performance and great promising applications.

3.2.2. Photocatalytic Carbon Dioxide Reduction

In addition to hydrogen evolution, CTFs were also reported to be potential photocatalysts for carbon dioxide conversion into value-added fuels. In 2016, Baeg et al. firstly reported 2D CTFs based on the condensation of cyanuric chloride and perylenediimide monomers (Figure 4) [80], which were prepared into a film and applied for the photocatalytic reduction of carbon dioxide for the first time. The results showed that formic acid could be produced from the reduction of CO2 by artificial photosynthesis. They reported that the CTF photocatalyst could have an activity of 881.3 × 106 nmol g cat−1 h−1, which is about 3.7 times higher than that of films fabricated only with the monomer. The CTF photocatalyst also showed a good stability which and could be reused for three cycles. In addition, CTFs can allow post-modifications and function as photocatalysts. For example, Cao et al. recently reported that a CTF modified with Rhenium can work as an efficient photocatalyst for CO2 conversion into CO [42]. They found that the photocatalyst could achieve a CO evolution rate as high as 353 μmol h−1 g−1 in a solid–gas system [42]. This solid–gas system and supported catalysts have advantages in avoiding of dimerization and leaching of Re species which were proposed to cause loss of the activity.

3.3. Electrocatalysis for Energy Storage and Conversion

3.3.1. Oxygen Reduction and Methane Oxidation

CTFs are abundant in nitrogen. In addition, the building blocks are designable. Therefore, CTFs have promising applications in electrocatalysts. However, one of the disadvantages of CTFs for electrocatalysis is their low conductivity. To mitigate this deficiency, Nakanishi et al. developed a new strategy to prepare CTFs in the presence of carbon nanoparticles (Figure 5) [30]. By this strategy, the conductivity was improved, and the electrocatalyst was prepared by supporting platinum on the CTF. They successfully applied it in an oxygen reduction reaction and found that the resulting new material was inactive in methanol oxidation and thus is a promising cathode material in methanol fuel cells. Beside precious metals, non-precious metals, such as copper, can also be introduced to enhance oxygen reduction reaction (ORR) performance. Kamiya et al. showed copper-modified CTFs together with carbon nanoparticles are good electrocatalysts [81]. The onset potential of the resulting electrode material is as high as 810 mV (vs. RHE, pH 7), which is the highest value for copper-based electrocatalysts in neutral conditions reported so far in the literature.
Besides allowing modifications of metal sites in the electrocatalysts, CTFs may also serve as metal-free electrocatalysts. For example, Hao et al. developed a bottom-up approach to construct CTFs as metal-free electrocatalysts for ORR (Figure 6) [82]. They synthesized CTF-1 at different temperatures, which allowed them to adjust the nitrogen content as well as the conductivity of the materials. They further showed that other heteroatoms such as B or F could be incorporated in the CTF, and different heteroatoms conferred disparate activities. When B was introduced in the CTF, a good selectivity was obtained, while F gave a higher activity [82].
The same strategy can be used to prepare metal complex-modified catalysts in other oxidation reactions, such as methane oxidation to methanol. The work by Schüth et al. developed a type of solid catalysts which can selectively oxidize methane to methanol at a low temperature. The stable catalysts complexed with Pt show a high activity with a TON of 300 even after five catalytic cycles [83]. Recently, these authors further studied the effect of the local platinum environments in solid catalysts on the catalytic performance in methane oxidation in the presence of sulfuric acid and compared it to that of the molecular Periana catalyst [84]. These results demonstrate that CTFs are a powerful and potential platform for the design of supported catalysts for various useful transformations.

3.3.2. Supercapactiors and Batteries

The research of the use of organic materials in energy storage applications, such as for supercapacitors and batteries, is an important task. In organic materials for supercapacitor applications, the heteroatom and surface area are important factors to be considered for achieving high performance in energy storage. In these regards, the nitrogen-rich structure of CTFs is a particular interesting platform for supercapacitors because they have high nitrogen content and large surface areas, and these factors vary considerably.
Zhi et al. studied the structural evolution of high-performance energy storage for supercapacitors in CTFs [45,85]. They selected 2D CTFs with microporous structures and investigated the correlation of nitrogen content and micropores with supercapacitance performance. It was revealed that not only the heteroatom affects the performance, but also the micropores may contribute to a high performance. Zhu et al. developed a new strategy to construct CTF-1 and graphene hybridized materials with a sandwich-type structure, which can maintain a high surface area and a two-dimensional morphology [46]. The resulting materials exhibit excellent supercapacitor performance compared to porous carbon materials. Deng et al. recently reported a series of highly porous CTFs (TCNQ–CTFs) based on 7,7,8,8-tetracyanoquinodimethane (TCNQ) building blocks (Figure 7) [58]. TCNQ–CTFs were prepared at different temperatures varying from 400 to 900 °C at ionothermal conditions. They found that TCNQ–CTF-800 provided the highest nitrogen content of 8.13% and the highest BET surface area of 3663 m2 g−1. The supercapacitance measurement showed that a high capacitance of 383 F g−1 was achieved in alkaline conditions. These results may provide principles for the future design and synthesis of materials. The importance of the heteroatom, the pore size distribution in the materials, and the choice of the building blocks need to be considered in the design of materials for supercapacitors.
CTFs were also developed as electrode materials for metal ion batteries by using their nitrogen-rich and high surface area structures. Wang et al. reported that CTF-1 is a potential material to trap polysulfide, and thus the resulting cathode materials have a positive effect on the retention performance of lithium–sulfur batteries [86]. CTF-1/S@155 °C could even exhibit a high capacity of 541 mA h g−1 at a high current density of 1 C. The good performance was explained by the crystalline and nanoporous structure of CTF-1, which increased the conductivity of sulfur and allowed the transportation of the electrolyte. Coskun et al. also developed a sulfur-doped CTF, which was synthesized by the elemental sulfur-mediated method. The resulted S-CTF-1 exhibited a high performance and cyclic stability. It could retain 90.6, 83.9, 76.1, 68.7, and 59.8% of the initial capacity (670 mAhg−1) at 0.1 C, 0.2 C, 0.5 C, 1 C, and 2 C, respectively [87]. Shan et al. further showed that incorporation of graphene into the CTFs could be a promising strategy to improve the charge transfer and electronic conduction in the lithium–sulfur battery. They found that graphene-directed 2D nitrogen doped porous carbon framework (GPF)–sulfur nanocomposites exhibited a capacity as high as 962 mA h g−1 at 2 A g−1 and even a high capacity of 591 mA h g−1 at 20 A g−1 [88]. On the other hand, the separator is an important element that influences lithium–sulfur batteries. For this purpose, Stoeck et al. implemented CTF-1 as a conductive separator coating. Due to its nitrogen-rich and porous structure, it enhanced the cell performance, with the capacity improving by 2.5 times from 405 to 1016 mAh g−1 at C/5 charging rate [89]. By using the same method developed by Coskun and coworkers, Xu et al. demonstrated that fluorinated CTFs can by prepared with sulfur and show much higher capacity than non-fluorinated CTF in lithium–sulfur batteries. They concluded that introducing fluorine supplies strong anchoring sites, which can alleviate the dissolution and migration of polysulfides [90].

3.3.3. Electrocatalytic Carbon Dioxide Reduction

The electrocatalytic conversion of CO2 to useful chemicals or value-added chemicals is also a promising route to address environmental and energy issues. However, most materials have still low efficiencies, such as low faradaic efficiencies and large overpotentials. Recently, using CTFs in electrocatalysis to reduce CO2 has received attention. Su et al. have adopted a pyridine-containing CTF to work as ab efficient electrocatalsyt for CO2 reduction to CO (Figure 8) [91]. They introduced a pyridine unit in the CTF and provided coordination sites for various metals, i.e., Co, Ni, Cu. Then, they investigated the influence of different metal atoms on the electrocatalysis performance. It was shown that Ni–CTF gave the best performance as compared to other metals. It also showed better performance than metal-porphyin structures. They further used theoretical calculation to reveal the mechanism of the enhanced performance, and attributed it to the low coordination of the CTF structure, which gave lower free-energy barriers for the adsorption of COOH on the coordination sites [91].
The selectivity of the products is an important factor that is meaningful to the catalytic performance. More recently, Wang et al. developed a new strategy which introduced abundant fluorine in the CTF structure for electrocatalytic CO2 reduction to methane [92]. They found that the high selectivity was ascribed to fluorine which affected N activity for CH4 evolution, by an electrochemical study and a theoretical investigation. Therefore, CTFs could be useful platforms to introduce heteroatoms, halogen elements, or metal sites for a high electrocatalysis performance in CO2 reduction. These strategies may provide opportunities for the design and synthesis of efficient photocatalysts for CO2 reduction.

4. Outlook

In summary, CTFs are a promising platform to create a variety of materials to address environment and energy issues by using their intrinsic nitrogen-rich scaffold and conjugated semiconductive structures. Recent advancements have shown that new synthesis methods are becoming available for more structural designs and practical application. Particularly, CTFs have shown an enormous potential for water splitting and carbon dioxide reduction, irrespective of the use photocatalysis or electrocatalysis. Thus, we can expect that the application of CTFs in the environment and energy fields will become more widespread. However, we also face some challenges. Once their synthesis is achieved, how to further enhance their surface area for gas adsorption and storage and how to develop a more general strategy to obtain high-crystalline CTFs for photocatalysis or electrocatalysis applications remain open questions. These questions still impel us to find new solutions. For energy- and environment-related applications, performance can largely be improved, and this goal will provide future research opportunities.

Acknowledgments

This work was financially supported by funding from the National Natural Science Foundation of China (Grant No. 21875078, 21708010 and 21604028), the International S&T Cooperation Program of China (Grant No. 2016YFE0124400), and the Program for HUST Interdisciplinary Innovation Team (Grant No. 2016JCTD104).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Das, S.; Heasman, P.; Ben, T.; Qiu, S.L. Porous organic materials: Strategic design and structure-function correlation. Chem. Rev. 2017, 117, 1515–1563. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, D.C.; Xu, F.; Sun, B.; Fu, R.W.; He, H.K.; Matyjaszewski, K. Design and preparation of porous polymers. Chem. Rev. 2012, 112, 3959–4015. [Google Scholar] [CrossRef] [PubMed]
  3. Xu, Y.H.; Jin, S.B.; Xu, H.; Nagai, A.; Jiang, D.L. Conjugated microporous polymers: Design, synthesis and application. Chem. Soc. Rev. 2013, 42, 8012–8031. [Google Scholar] [CrossRef] [PubMed]
  4. Ding, S.Y.; Wang, W. Covalent organic frameworks (COFs): From design to applications. Chem. Soc. Rev. 2013, 42, 548–568. [Google Scholar] [CrossRef] [PubMed]
  5. Feng, X.; Ding, X.S.; Jiang, D.L. Covalent organic frameworks. Chem. Soc. Rev. 2012, 41, 6010–6022. [Google Scholar] [CrossRef] [PubMed]
  6. Kuhn, P.; Antonietti, M.; Thomas, A. Porous, covalent triazine-based frameworks prepared by ionothermal synthesis. Angew. Chem. Int. Ed. 2008, 47, 3450–3453. [Google Scholar] [CrossRef] [PubMed]
  7. Ben, T.; Qiu, S.L. Porous aromatic frameworks: Synthesis, structure and functions. CrystEngComm 2013, 15, 17–26. [Google Scholar] [CrossRef]
  8. Tsyurupa, M.P.; Davankov, V.A. Hypercrosslinked polymers: basic principle of preparing the new class of polymeric materials. React. Funct. Polym. 2002, 53, 193–203. [Google Scholar] [CrossRef]
  9. McKeown, N.B.; Budd, P.M.; Msayib, K.J.; Ghanem, B.S.; Kingston, H.J.; Tattershall, C.E.; Makhseed, S.; Reynolds, K.J.; Fritsch, D. Polymers of intrinsic microporosity (PIMs): Bridging the void between microporous and polymeric materials. Chem. Eur. J. 2005, 11, 2610–2620. [Google Scholar] [CrossRef]
  10. Ren, S.; Bojdys, M.J.; Dawson, R.; Laybourn, A.; Khimyak, Y.Z.; Adams, D.J.; Cooper, A.I. Porous, fluorescent, covalent triazine-based frameworks via room-temperature and microwave-assisted synthesis. Adv. Mater. 2012, 24, 2357–2361. [Google Scholar] [CrossRef]
  11. Meier, C.B.; Sprick, R.S.; Monti, A.; Guiglion, P.; Lee, J.M.; Zwijnenburg, M.A.; Cooper, A.I. Structure-property relationships for covalent triazine-based frameworks: The effect of spacer length on photocatalytic hydrogen evolution from water. Polymer 2017, 126, 283–290. [Google Scholar] [CrossRef]
  12. Wang, K.W.; Yang, L.M.; Wang, X.; Guo, L.P.; Cheng, G.; Zhang, C.; Jin, S.B.; Tan, B.; Cooper, A. Covalent triazine frameworks via a low-temperature polycondensation approach. Angew. Chem. Int. Ed. 2017, 56, 14149–14153. [Google Scholar] [CrossRef] [PubMed]
  13. Zhu, X.; Tian, C.; Mahurin, S.M.; Chai, S.H.; Wang, C.; Brown, S.; Veith, G.M.; Luo, H.; Liu, H.; Dai, S. A Superacid-catalyzed synthesis of porous membranes based on triazine frameworks for CO2 separation. J. Am. Chem. Soc. 2012, 134, 10478–10484. [Google Scholar] [CrossRef] [PubMed]
  14. Katekemol, P.; Roeser, J.; Bojdys, M.J.; Weber, J.; Thomas, A. Covalent triazine frameworks prepared from 1,3,5-tricyanobenzene. Chem. Mater. 2013, 25, 1542–1548. [Google Scholar] [CrossRef]
  15. Gomes, R.; Bhanja, P.; Bhaumik, A. A triazine-based covalent organic polymer for efficient CO2 adsorption. Chem. Commun. 2015, 51, 10050–10053. [Google Scholar] [CrossRef] [PubMed]
  16. Gu, C.Y.; Liu, D.Y.; Huang, W.; Liu, J.; Yang, R.Q. Synthesis of covalent triazine-based frameworks with high CO2 adsorption and selectivity. Polym. Chem. 2015, 6, 7410–7417. [Google Scholar] [CrossRef]
  17. Puthiaraj, P.; Cho, S.M.; Lee, Y.R.; Ahn, W.S. Microporous covalent triazine polymers: Efficient Friedel-Crafts synthesis and adsorption/storage of CO2 and CH4. J. Mater. Chem. A 2015, 3, 6792–6797. [Google Scholar] [CrossRef]
  18. Saleh, M.; Baek, S.B.; Lee, H.M.; Kim, K.S. Triazine-based microporous polymers for selective adsorption of CO2. J. Phys. Chem. C 2015, 119, 5395–5402. [Google Scholar] [CrossRef]
  19. Bhunia, A.; Esquivel, D.; Dey, S.; Fernandez-Teran, R.; Goto, Y.; Inagaki, S.; Voort, P.V.D.; Janiak, C. A photoluminescent covalent triazine framework: CO2 adsorption, light-driven hydrogen evolution and sensing of nitroaromatics. J. Mater. Chem. A 2016, 4, 13450–13457. [Google Scholar] [CrossRef]
  20. Dey, S.; Bhunia, A.; Esquivelb, D.; Janiak, C. Covalent triazine-based frameworks (CTFs) from triptycene and fluorene motifs for CO2 adsorption. J. Mater. Chem. A 2016, 4, 6259–6263. [Google Scholar] [CrossRef]
  21. Puthiaraj, P.; Kim, S.S.; Ahn, W.S. Covalent triazine polymers using a cyanuric chloride precursor via Friedel-Crafts reaction for CO2 adsorption/separation. Chem. Eng. J. 2016, 283, 184–192. [Google Scholar] [CrossRef]
  22. Tao, L.M.; Niu, F.; Liu, J.G.; Wang, T.M.; Wang, Q.H. Troger’s base functionalized covalent triazine frameworks for CO2 capture. RSC Adv. 2016, 6, 94365–94372. [Google Scholar] [CrossRef]
  23. Tao, L.M.; Niu, F.; Wang, C.; Liu, J.G.; Wang, T.M.; Wang, Q.H. Benzimidazole functionalized covalent triazine frameworks for CO2 capture. J. Mater. Chem. A 2016, 4, 11812–11820. [Google Scholar] [CrossRef]
  24. Wang, K.; Huang, H.; Liu, D.; Wang, C.; Li, J.; Zhong, C. Covalent triazine-based frameworks with ultramicropores and high nitrogen contents for highly selective CO2 capture. Environ. Sci. Technol. 2016, 50, 4869–4876. [Google Scholar] [CrossRef] [PubMed]
  25. Zhu, X.; Tian, C.; Veith, G.M.; Abney, C.W.; Dehaudt, J.; Dai, S. In situ doping strategy for the preparation of conjugated triazine frameworks displaying efficient CO2 capture performance. J. Am. Chem. Soc. 2016, 138, 11497–11500. [Google Scholar] [CrossRef] [PubMed]
  26. Lee, Y.J.; Naidu, S.N.; Coskun, A. Chemically activated covalent triazine frameworks with enhanced textural properties for high capacity gas storage. ACS Appl. Mater. Interf. 2017, 9, 30679–30685. [Google Scholar] [CrossRef]
  27. Buyukcakir, O.; Je, S.H.; Talapaneni, S.N.; Kim, D.; Coskun, A. Charged covalent triazine frameworks for CO2 capture and conversion. ACS Appl. Mater. Interf. 2017, 9, 7209–7216. [Google Scholar] [CrossRef]
  28. Yuan, K.Y.; Liu, C.; Han, J.; Yu, G.P.; Wang, J.; Duan, H.; Wang, Z.; Jian, X.G. Phthalazinone structure-based covalent triazine frameworks and their gas adsorption and separation properties. RSC Adv. 2016, 6, 12009–12020. [Google Scholar] [CrossRef]
  29. Liebl, M.R.; Senker, J. Microporous functionalized triazine-based polyimides with high CO2 capture capacity. Chem. Mater. 2013, 25, 970–980. [Google Scholar] [CrossRef]
  30. Kamiya, K.; Kamai, R.; Hashimoto, K.; Nakanishi, S. Platinum-modified covalent triazine frameworks hybridized with carbon nanoparticles as methanol-tolerant oxygen reduction electrocatalysts. Nat. Commun. 2014, 5, 5040–5047. [Google Scholar] [CrossRef]
  31. Artz, J.; Mallmann, S.; Palkovits, R. Selective aerobic oxidation of HMF to 2,5-Diformylfuran on covalent triazine frameworks-supported Ru catalysts. ChemSusChem 2015, 8, 672–679. [Google Scholar]
  32. Chan-Thaw, C.E.; Villa, A.; Wang, D.; Santo, V.D.; Biroli, A.O.; Veith, G.M.; Thomas, M.; Prati, L. PdHx entrapped in a covalent triazine framework modulates selectivity in glycerol oxidation. ChemCatChem 2015, 7, 2149–2154. [Google Scholar] [CrossRef]
  33. Chan-Thaw, C.E.; Villa, A.; Katekomo, P.; Su, D.; Thomas, A.; Prati, L. Covalent Triazine Framework as Catalytic Support for Liquid Phase Reaction. Nano Lett. 2010, 10, 537–541. [Google Scholar] [CrossRef] [PubMed]
  34. Puthiaraj, P.; Lee, Y.R.; Zhang, S.Q.; Ahn, W.S. Triazine-based covalent organic polymers: Design, synthesis and applications in heterogeneous catalysis. J. Mater. Chem. A 2016, 4, 16288–16311. [Google Scholar] [CrossRef]
  35. Roeser, J.; Kailasam, K.; Thomas, A. Covalent triazine frameworks as heterogeneous catalysts for the synthesis of cyclic and linear carbonates from carbon dioxide and epoxides. ChemSusChem 2012, 5, 1793–1799. [Google Scholar] [CrossRef] [PubMed]
  36. Gunasekar, G.H.; Park, K.; Ganesan, V.; Lee, K.; Kim, N.K.; Jung, K.D.; Yoon, S. A covalent triazine framework, functionalized with Ir/N-heterocyclic carbene sites, for the efficient hydrogenation of CO2 to formate. Chem. Mater. 2017, 29, 6740–6748. [Google Scholar] [CrossRef]
  37. Artz, J. Covalent triazine-based frameworks tailor-made catalysts and catalyst supports for molecular and nanoparticulate species. ChemCatChem 2018, 10, 1753–1771. [Google Scholar] [CrossRef]
  38. Cui, Y.Z.; Du, J.F.; Liu, Y.C.; Yu, Y.; Wang, S.; Pang, H.; Liang, Z.Q.; Yu, G.H. Design and synthesis of a multifunctional porous N-rich polymer containing s-triazine and Troger’s base for CO2 adsorption, catalysis and sensing. Polym. Chem. 2018, 9, 2643–2649. [Google Scholar] [CrossRef]
  39. Iwase, K.; Kamiya, K.; Miyayama, M.; Hashimoto, K.; Nakanishi, S. Sulfur-linked covalent triazine frameworks doped with coordinatively unsaturated Cu(I) as electrocatalysts for oxygen reduction. ChemElectroChem. 2018, 5, 805–810. [Google Scholar] [CrossRef]
  40. Kann, A.; Hartmann, H.; Besmehn, A.; Hausoul, P.J.C.; Palkovits, R. Hydrogenation of CO2 to formate over ruthenium immobilized on solid molecular rhosphines. ChemSusChem 2018, 11, 1857–1865. [Google Scholar]
  41. Xu, N.; Wang, R.L.; Li, D.P.; Meng, X.; Mu, J.L.; Zhou, Z.Y.; Su, Z.M. A new triazine-based covalent organic polymer for efficient photodegradation of both acidic and basic dyes under visible light. Dalton Trans. 2018, 47, 4191–4197. [Google Scholar] [CrossRef]
  42. Xu, R.; Wang, X.S.; Zhao, H.; Lin, H.; Huang, Y.B.; Cao, R. Rhenium-modified porous covalent triazine framework for highly efficient photocatalytic carbon dioxide reduction in a solid-gas system. Catal. Sci. Technol. 2018, 8, 2224–2230. [Google Scholar] [CrossRef]
  43. Zhu, G.; Shi, S.; Liu, M.; Zhao, L.; Wang, M.; Zheng, X.; Gao, J.; Xu, J. Formation of strong basicity on covalent triazine frameworks as catalysts for the oxidation of methylene compounds. ACS Appl. Mater. Interfaces 2018, 10, 12612–12617. [Google Scholar]
  44. Hao, L.; Li, X.L.; Zhi, L.J. Carbonaceous electrode materials for supercapacitors. Adv. Mater. 2013, 25, 3899–3904. [Google Scholar] [CrossRef] [PubMed]
  45. Hao, L.; Ning, J.; Luo, B.; Wang, B.; Zhang, Y.; Tang, Z.; Yang, J.; Thomas, A.; Zhi, L. Structural evolution of 2D microporous covalent triazine-based framework toward the study of high-performance supercapacitors. J. Am. Chem. Soc. 2015, 137, 219–225. [Google Scholar]
  46. Zhu, J.H.; Zhuang, X.D.; Yang, J.; Feng, X.L.; Hiranod, S. Graphene-coupled nitrogen-enriched porous carbon nanosheets for energy storage. J. Mater. Chem. A 2017, 5, 16732–16739. [Google Scholar] [CrossRef]
  47. Bhanja, P.; Das, S.K.; Bhunia, K.; Pradhan, D.; Hayashi, T.; Hijikata, Y.; Irle, S.; Bhaumik, A. A new porous polymer for highly efficient capacitive energy storage. ACS Sustain. Chem. Eng. 2018, 6, 202–209. [Google Scholar] [CrossRef]
  48. Bi, J.H.; Fang, W.; Li, L.Y.; Wang, J.Y.; Liang, S.J.; He, Y.H.; Liu, M.H.; Wu, L. Covalent triazine-based frameworks as visible light photocatalysts for the splitting of water. Macromol. Rapid Commun. 2015, 36, 1799–1805. [Google Scholar] [CrossRef]
  49. Schwinghammer, K.; Hug, S.; Mesch, M.B.; Senkerd, J.; Lotsch, B.V. Phenyl-triazine oligomers for light-driven hydrogen evolution. Energy Environ. Sci. 2015, 8, 3345–3353. [Google Scholar] [CrossRef] [Green Version]
  50. Huang, W.; Byun, J.; Rörich, I.; Ramanan, C.; Blom, P.W.M.; Lu, H.; Wang, D.; da Caire, S.L.; Li, R.; Wang, L.; et al. Asymmetric covalent triazine framework for enhanced visible-light photoredox catalysis via energy transfer cascade. Angew. Chem. Int. Ed. 2018, 57, 8316–8320. [Google Scholar] [CrossRef]
  51. Jiang, Q.; Sun, L.; Bi, J.; Liang, S.; Li, L.; Yu, Y.; Wu, L. MoS2 quantum dots-modified covalent triazine-based frameworks for enhanced photocatalytic hydrogen evolution. ChemSusChem. 2018, 11, 1108–1113. [Google Scholar] [CrossRef] [PubMed]
  52. Huang, W.; Wang, Z.J.; Ma, B.C.; Ghasimi, S.; Gehrig, D.; Laquai, F.; Landfester, K.; Zhang, K. Hollow nanoporous covalent triazine frameworks via acid vapor-assisted solid phase synthesis for enhanced visible light photoactivity. J. Mater. Chem. A 2016, 4, 7555–7559. [Google Scholar] [CrossRef] [Green Version]
  53. Hug, S.; Tauchert, M.E.; Li, S.; Pachmayr, U.E.; Lotsch, B.V. A functional triazine framework based on N-heterocyclic building blocks. J. Mater. Chem. 2012, 22, 13956–13964. [Google Scholar] [CrossRef]
  54. Ma, H.; Ren, H.; Meng, S.; Sun, F.; Zhu, G. Novel porphyrinic porous organic frameworks for high performance separation of small hydrocarbons. Sci. Rep. 2013, 3, 2611. [Google Scholar] [CrossRef] [PubMed]
  55. Jena, H.S.; Krishnara, C.; Wang, G.; Leus, K.; Schmidt, J.; Chaoui, N.; Voort, P.V.D. Acetylacetone covalent triazine framework: An efficient carbon capture and storage material and a highly stable heterogeneous catalyst. Chem. Mater. 2018, 30, 4102–4111. [Google Scholar] [CrossRef]
  56. Liu, J.J.; Zan, Z.; Li, L.; Yang, Y.; Bu, F.X.; Xu, Y.X. Solution synthesis of semiconducting two-dimensional polymer via trimerization of carbonitrile. J. Am. Chem. Soc. 2017, 139, 11666–11669. [Google Scholar] [CrossRef] [PubMed]
  57. Yu, S.Y.; Mahmood, J.; Noh, H.J.; Seo, J.M.; Jung, S.M.; Shin, S.H.; Im, Y.K.; Jeon, I.Y.; Baek, J.B. Direct synthesis of a covalent triazine-based framework from aromatic amides. Angew. Chem. Int. Ed. 2018, 57, 8438–8442. [Google Scholar] [CrossRef] [PubMed]
  58. Li, Y.J.; Zheng, S.H.; Liu, X.; Li, P.; Sun, L.; Yang, R.X.; Wang, S.; Wu, Z.S.; Bao, X.H.; Deng, W.Q. Conductive microporous covalent triazine-Based framework for high-performance electrochemical capacitive energy storage. Angew. Chem. Int. Ed. 2018, 57, 7992–7996. [Google Scholar] [CrossRef] [PubMed]
  59. Xie, J.J.; Shevlin, S.A.; Ruan, Q.S.; Moniz, S.J.A.; Liu, Y.R.; Liu, X.; Li, Y.M.; Lau, C.C.; Guo, Z.X.; Tang, J.W. Efficient visible light-driven water oxidation and proton reduction by an ordered covalent triazine-based framework. Energy Environ. Sci. 2018, 11, 1617–1624. [Google Scholar] [CrossRef] [Green Version]
  60. Hu, X.M.; Chen, Q.; Zhao, Y.C.; Laursen, B.W.; Han, B.H. Facile synthesis of hierarchical triazine-based porous carbons for hydrogen storage. Microporous Microporous Mater. 2016, 224, 129–134. [Google Scholar] [CrossRef]
  61. Bhunia, A.; Vasylyeva, V.; Janiak, C. From a supramolecular tetranitrile to a porous covalent triazine-based framework with high gas uptake capacities. Chem. Commun. 2013, 49, 3961–3963. [Google Scholar] [CrossRef]
  62. Hug, S.; Mesch, M.B.; Oh, H.; Popp, N.; Hirscher, M.; Senker, J.; Lotsch, B.V. A fluorene based covalent triazine framework with high CO2 and H2 capture and storage capacities. J. Mater. Chem. A 2014, 2, 5928–5936. [Google Scholar] [CrossRef]
  63. Chen, X.W.; Yuan, F.; Gu, Q.F.; Yu, X.B. Light metals decorated covalent triazine-based frameworks as a high capacity hydrogen storage medium. J. Mater. Chem. A 2013, 1, 11705–11710. [Google Scholar] [CrossRef]
  64. He, H.; Chen, X.; Zou, W.; Li, R. Transition metal decorated covalent triazine-based frameworks as a capacity hydrogen storage medium. Int. J. Hydrogen. Energ. 2018, 43, 2823–2830. [Google Scholar] [CrossRef]
  65. Bhunia, A.; Boldog, I.; Moller, A.; Janiak, C. Highly stable nanoporous covalent triazine-based frameworks with an adamantane core for carbon dioxide sorption and separation. J. Mater. Chem. A 2013, 1, 14990–14999. [Google Scholar] [CrossRef]
  66. Zhao, Y.F.; Yao, K.X.; Teng, B.Y.; Zhang, T.; Han, Y. A perfluorinated covalent triazine-based framework for highly selective and water-tolerant CO2 capture. Energy Environ. Sci. 2013, 6, 3684–3692. [Google Scholar] [CrossRef]
  67. Hug, S.; Stegbauer, L.; Oh, H.; Hirscher, M.; Lotsch, B.V. Nitrogen-rich covalent triazine frameworks as high-performance platforms for selective carbon capture and storage. Chem. Mater. 2015, 27, 8001–8010. [Google Scholar] [CrossRef]
  68. Dey, S.; Bhunia, A.; Boldog, I.; Janiak, C. A mixed-linker approach towards improving covalent triazine-based frameworks for CO2 capture and separation. Microporous Microporous Mater. 2017, 241, 303–315. [Google Scholar] [CrossRef]
  69. Dey, S.; Bhunia, A.; Breitzke, H.; Groszewicz, P.B.; Buntkowskyb, G.; Janiak, C. Two linkers are better than one: Enhancing CO2 capture and separation with porous covalent triazine-based frameworks from mixed nitrile linkers. J. Mater. Chem. A. 2017, 5, 3609–3620. [Google Scholar] [CrossRef]
  70. Tuci, G.; Pilaski, M.; Ba, H.; Rossin, A.; Luconi, L.; Caporali, S.; Pham-Huu, C.; Palkovits, R.; Giambastiani, G. Unraveling surface basicity and bulk morphology relationship on covalent triazine frameworks with unique catalytic and gas adsorption properties. Adv. Funct. Mater. 2017, 27, 1605672. [Google Scholar] [CrossRef]
  71. Wang, G.; Leus, K.; Zhao, S.; Voort, P.V.D. Newly designed covalent triazine framework based on novel N-heteroaromatic building blocks for efficient CO2 and H2 capture and storage. ACS Appl. Mater. Interfaces 2018, 10, 1244–1249. [Google Scholar] [CrossRef] [PubMed]
  72. Yu, W.; Gu, S.; Fu, Y.; Xiong, S.; Pan, C.; Liu, Y.; Yu, G. Carbazole-decorated covalent triazine frameworks: Novel nonmetal catalysts for carbon dioxide fixation and oxygen reduction reaction. J. Catal. 2018, 362, 1–9. [Google Scholar] [CrossRef]
  73. Hu, X.M.; Chen, Q.; Zhao, Y.C.; Laursen, B.W.; Han, B.H. Straightforward synthesis of a triazine-based porous carbon with high gas-uptake capacities. J. Mater. Chem. A 2014, 2, 14201–14208. [Google Scholar] [CrossRef]
  74. Gomes, R.; Bhaumik, A. A new triazine functionalized luminescent covalent organic framework for nitroaromatic sensing and CO2 storage. RSC Adv. 2016, 6, 28047–28054. [Google Scholar] [CrossRef]
  75. Jiang, X.; Wang, P.; Zhao, J.J. 2D covalent triazine framework: A new class of organic photocatalyst for water splitting. J. Mater. Chem. A 2015, 3, 7750–7758. [Google Scholar] [CrossRef]
  76. Li, L.; Fang, W.; Zhang, P.; Bi, J.; He, Y.; Wang, J.; Su, W. Sulfur-doped covalent triazine-based frameworks for enhanced photocatalytic hydrogen evolution from water under visible light. J. Mater. Chem. A 2016, 4, 12402–12406. [Google Scholar] [CrossRef]
  77. Kuecken, S.; Acharjya, A.; Zhi, L.; Schwarze, M.; Schomäcker, R.; Thomas, A. Fast tuning of covalent triazine frameworks for photocatalytic hydrogen evolution. Chem. Commun. 2017, 53, 5854–5857. [Google Scholar] [CrossRef] [PubMed]
  78. Lan, Z.A.; Fang, Y.; Zhang, Y.; Wang, X. Photocatalytic oxygen evolution from functional triazine-based polymers with tunable band structures. Angew. Chem. Int. Ed. 2018, 130, 479–483. [Google Scholar] [CrossRef]
  79. Liu, M.Y.; Huang, Q.; Wang, S.L.; Li, Z.Y.; Li, B.Y.; Jin, S.B.; Tan, B. Crystalline covalent triazine frameworks by in situ oxidation of alcohols to aldehyde monomers. Angew. Chem. Int. Ed. 2018, 57, 11968–11972. [Google Scholar] [CrossRef]
  80. Yadav, R.K.; Kumar, A.; Park, N.J.; Kong, K.J.; Baeg, J.O. A highly efficient covalent organic framework film photocatalyst for selective solar fuel production from CO2. J. Mater. Chem. A 2016, 4, 9413–9418. [Google Scholar] [CrossRef]
  81. Iwase, K.; Yoshioka, T.; Nakanishi, S.; Hashimoto, K.; Kamiya, K. Copper-modified covalent triazine frameworks as non-noble-metal electrocatalysts for oxygen reduction. Angew. Chem. Int. Ed. 2015, 54, 11068–11072. [Google Scholar]
  82. Hao, L.; Zhang, S.S.; Liu, R.J.; Ning, J.; Zhang, G.J.; Zhi, L.J. Bottom-up construction of triazine-based frameworks as metal-free electrocatalysts for oxygen reduction reaction. Adv. Mater. 2015, 27, 3190–3195. [Google Scholar] [CrossRef] [PubMed]
  83. Palkovits, R.; Antonietti, M.; Kuhn, P.; Thomas, A.; Schüth, F. Solid catalysts for the selective low-temperature oxidation of methane to methanol. Angew. Chem. Int. Ed. 2009, 48, 6909–6912. [Google Scholar] [CrossRef] [PubMed]
  84. Soorholtz, M.; Jones, L.C.; Samuelis, D.; Weidenthaler, C.; White, R.J.; Titirici, M.M.; Cullen, D.A.; Zimmermann, T.; Antonietti, M.; Maier, J.; et al. Local platinum environments in a solid analogue of the molecular periana catalyst. ACS Catal. 2016, 6, 2332–2340. [Google Scholar] [CrossRef]
  85. Hao, L.; Luo, B.; Li, X.L.; Jin, M.H.; Fang, Y.; Tang, Z.H.; Jia, Y.Y.; Liang, M.H.; Thomas, A.; Yang, J.H.; et al. Terephthalonitrile-derived nitrogen-rich networks for high performance supercapacitors. Energy Environ. Sci. 2012, 5, 9747–9751. [Google Scholar]
  86. Liao, H.; Ding, H.; Li, B.; Ai, X.; Wang, C. Covalent-organic frameworks: Potential host materials for sulfur impregnation in lithium–sulfur batteries. J. Mater. Chem. A 2014, 2, 8854–8858. [Google Scholar] [CrossRef]
  87. Talapaneni, S.N.; Hwang, T.H.; Je, S.H.; Buyukcakir, O.; Choi, J.W.; Coskun, A. elemental-sulfur-mediated facile synthesis of a covalent triazine framework for high-performance lithium–sulfur batteries. Angew. Chem. Int. Ed. 2016, 55, 3106–3111. [Google Scholar] [CrossRef]
  88. Shan, J.; Liu, Y.; Su, Y.; Liu, P.; Zhuang, X.; Wu, D.; Zhang, F.; Feng, X. Graphene-directed two-dimensional porous carbon frameworks for high-performance lithium–sulfur battery cathodes. J. Mater. Chem. A 2016, 4, 314–320. [Google Scholar] [CrossRef]
  89. Stoeck, U.; Balach, J.; Klose, M.; Wadewitz, D.; Ahrens, E.; Eckert, J.; Giebeler, L. Reconfiguration of lithium sulphur batteries: “Enhancement of Li–S cell performance by employing a highly porous conductive separator coating”. J. Power Sources 2016, 309, 76–81. [Google Scholar] [CrossRef]
  90. Xu, F.; Yang, S.; Jiang, G.; Ye, Q.; Wei, B.; Wang, H. Fluorinated, sulfur-rich, covalent triazine frameworks for enhanced confinement of polysulfides in lithium–sulfur batteries. ACS Appl. Mater. Interfaces 2017, 9, 37731–37738. [Google Scholar] [CrossRef]
  91. Su, P.; Iwase, K.; Harada, T.; Kamiya, K.; Nakanishi, S. Covalent triazine framework modified with coordinatively-unsaturated Co or Ni atoms for CO2 electrochemical reduction. Chem. Sci. 2018, 9, 3941–3947. [Google Scholar] [CrossRef] [PubMed]
  92. Wang, Y.S.; Chen, J.X.; Wang, G.X.; Li, Y.; Wen, Z.H. Perfluorinated covalent triazine framework derived hybrids for the highly selective electroconversion of carbon dioxide into methane. Angew. Chem. Int. Ed. 2018, 57, 13120–13124. [Google Scholar] [CrossRef] [PubMed]
Polymers 11 00031 g001 550

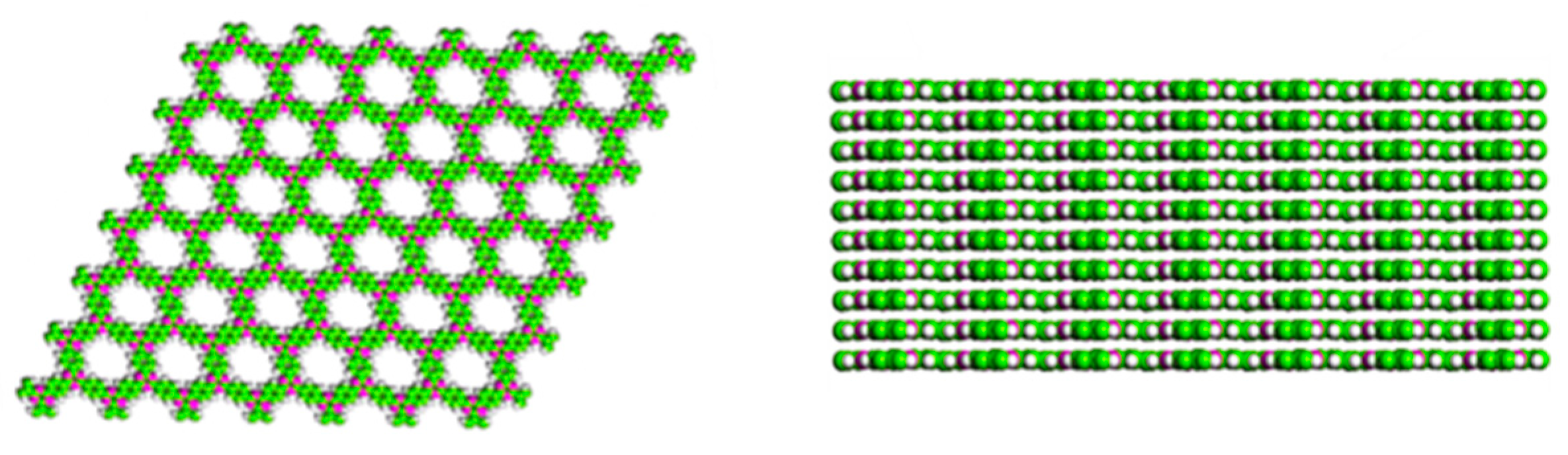

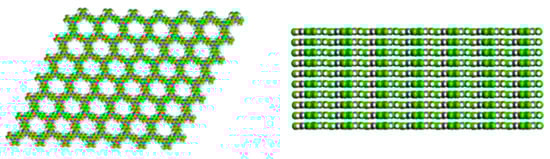

Figure 1. Top-down and side view of covalent triazine frameworks (CTF)-1, with a crystalline ordered structure [6].
Figure 1. Top-down and side view of covalent triazine frameworks (CTF)-1, with a crystalline ordered structure [6].
Polymers 11 00031 g001
Polymers 11 00031 g002 550

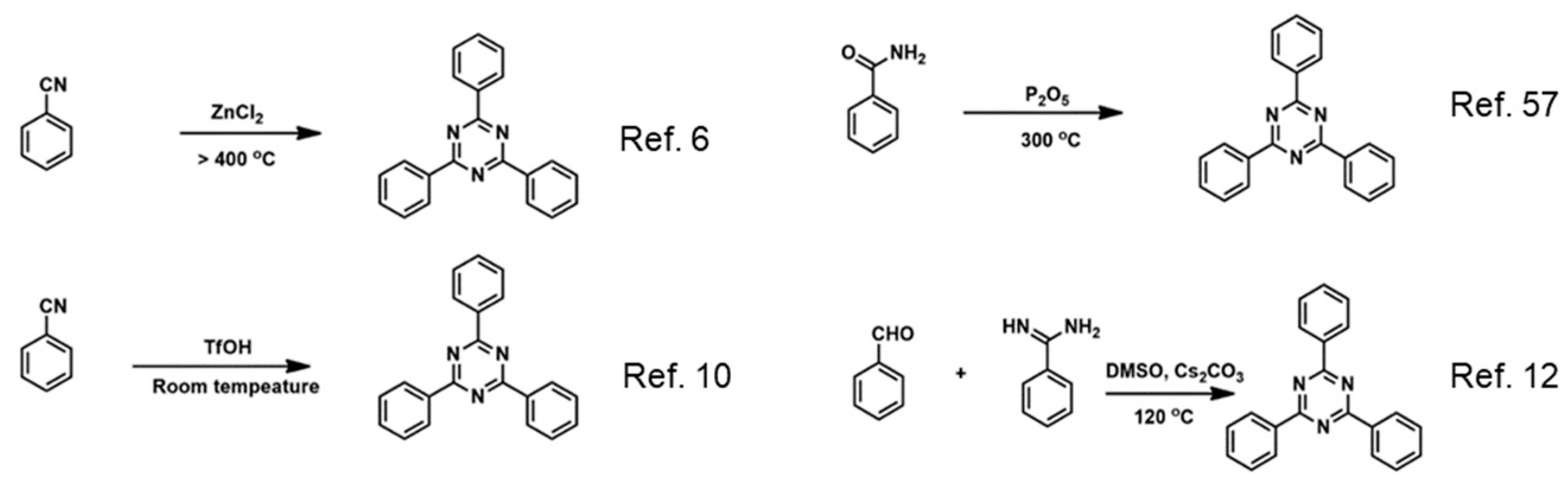

Figure 2. Typical reactions for the synthesis of CTFs.
Figure 2. Typical reactions for the synthesis of CTFs.
Polymers 11 00031 g002
Polymers 11 00031 g003 550

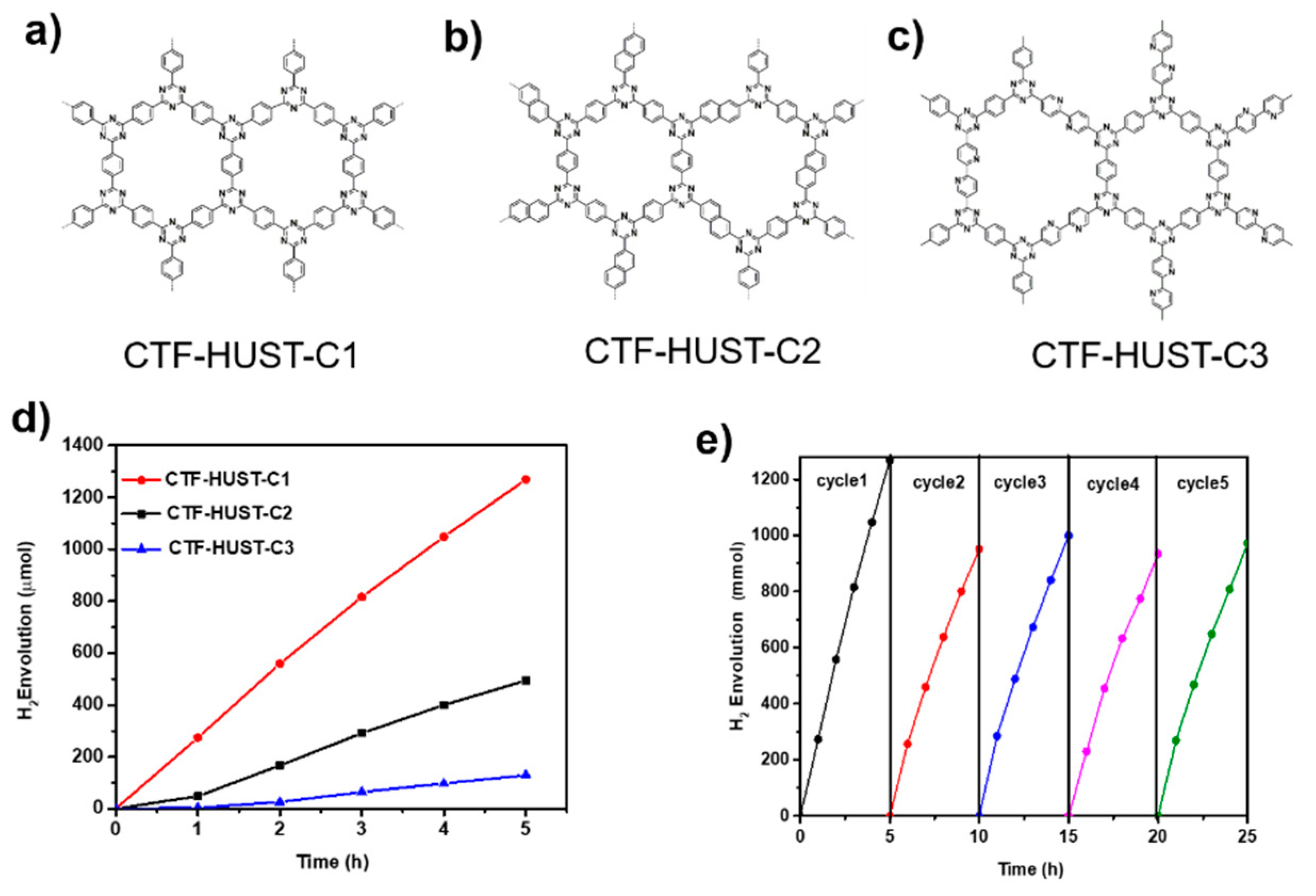

Figure 3. (a–c) Structure of highly crystalline CTFs obtained by the polycondensation method, (d) time course of photocatalytic hydrogen evolution and (e) recycle experiment of a CTF-HUST-C1 sample. (adapted from reference 79). Reprinted with permission from [79]. Copyright 2018, Wiley-VCH.
Figure 3. (a–c) Structure of highly crystalline CTFs obtained by the polycondensation method, (d) time course of photocatalytic hydrogen evolution and (e) recycle experiment of a CTF-HUST-C1 sample. (adapted from reference 79). Reprinted with permission from [79]. Copyright 2018, Wiley-VCH.
Polymers 11 00031 g003
Polymers 11 00031 g004 550

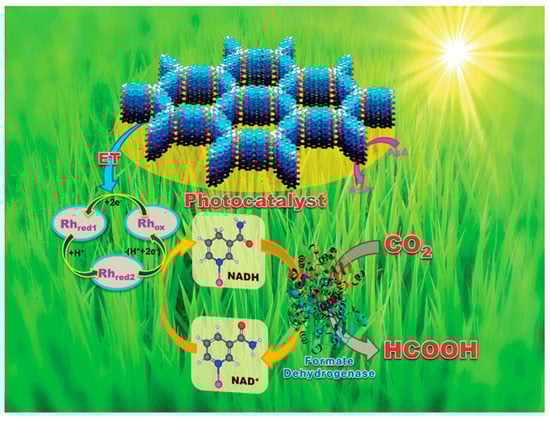

Figure 4. Photocatalytic carbon dioxide reduction to formic acid by CTFs. Reprinted with permission from [80]. Copyright 2016, The Royal Society of Chemistry.
Figure 4. Photocatalytic carbon dioxide reduction to formic acid by CTFs. Reprinted with permission from [80]. Copyright 2016, The Royal Society of Chemistry.
Polymers 11 00031 g004
Polymers 11 00031 g005 550

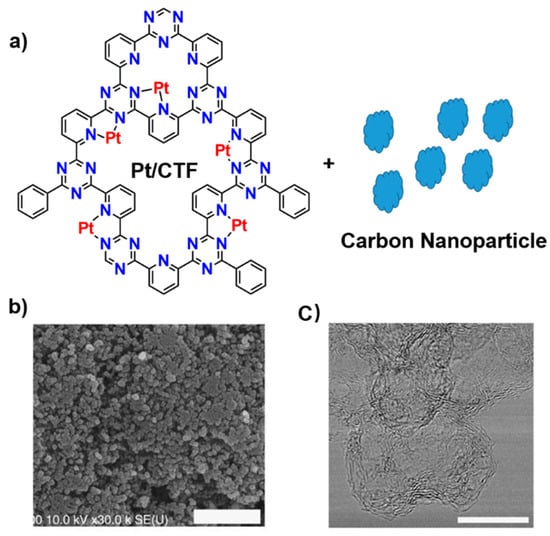

Figure 5. (a) Structure of Pt–CTF–CP (carbon particles), (b) SEM image and (c) TEM image of Pt–CTF–CP (Adapted from Reference 30) [30] (Copyright, Nature Publishing Group).
Figure 5. (a) Structure of Pt–CTF–CP (carbon particles), (b) SEM image and (c) TEM image of Pt–CTF–CP (Adapted from Reference 30) [30] (Copyright, Nature Publishing Group).
Polymers 11 00031 g005
Polymers 11 00031 g006 550

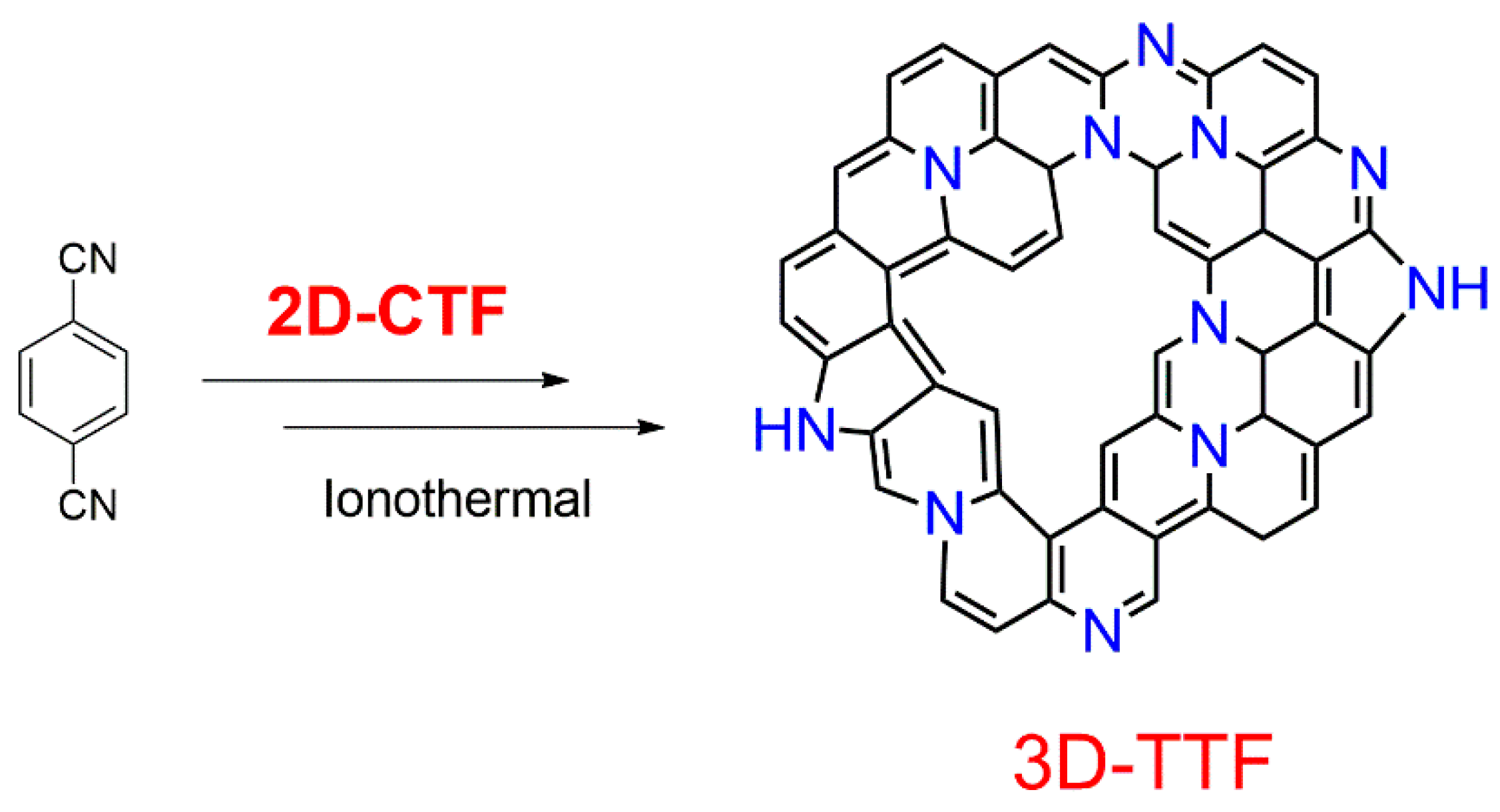

Figure 6. Bottom-up strategy to prepare 3D TTF (thermalized triazine-based framework) catalysts for oxygen reduction reaction by trimerization of terephthalonitrile at high temperatures (adapted from [82]). Reprinted with permission from [82]. Copyright 2015, Wiley-VCH.
Figure 6. Bottom-up strategy to prepare 3D TTF (thermalized triazine-based framework) catalysts for oxygen reduction reaction by trimerization of terephthalonitrile at high temperatures (adapted from [82]). Reprinted with permission from [82]. Copyright 2015, Wiley-VCH.
Polymers 11 00031 g006
Polymers 11 00031 g007 550

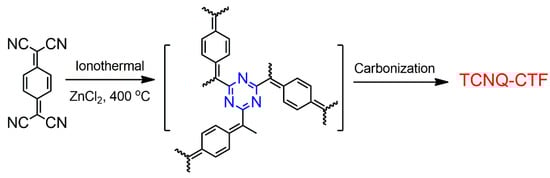

Figure 7. Procedure for the preparation of TCNQ–CTF [58].
Figure 7. Procedure for the preparation of TCNQ–CTF [58].
Polymers 11 00031 g007
Polymers 11 00031 g008 550

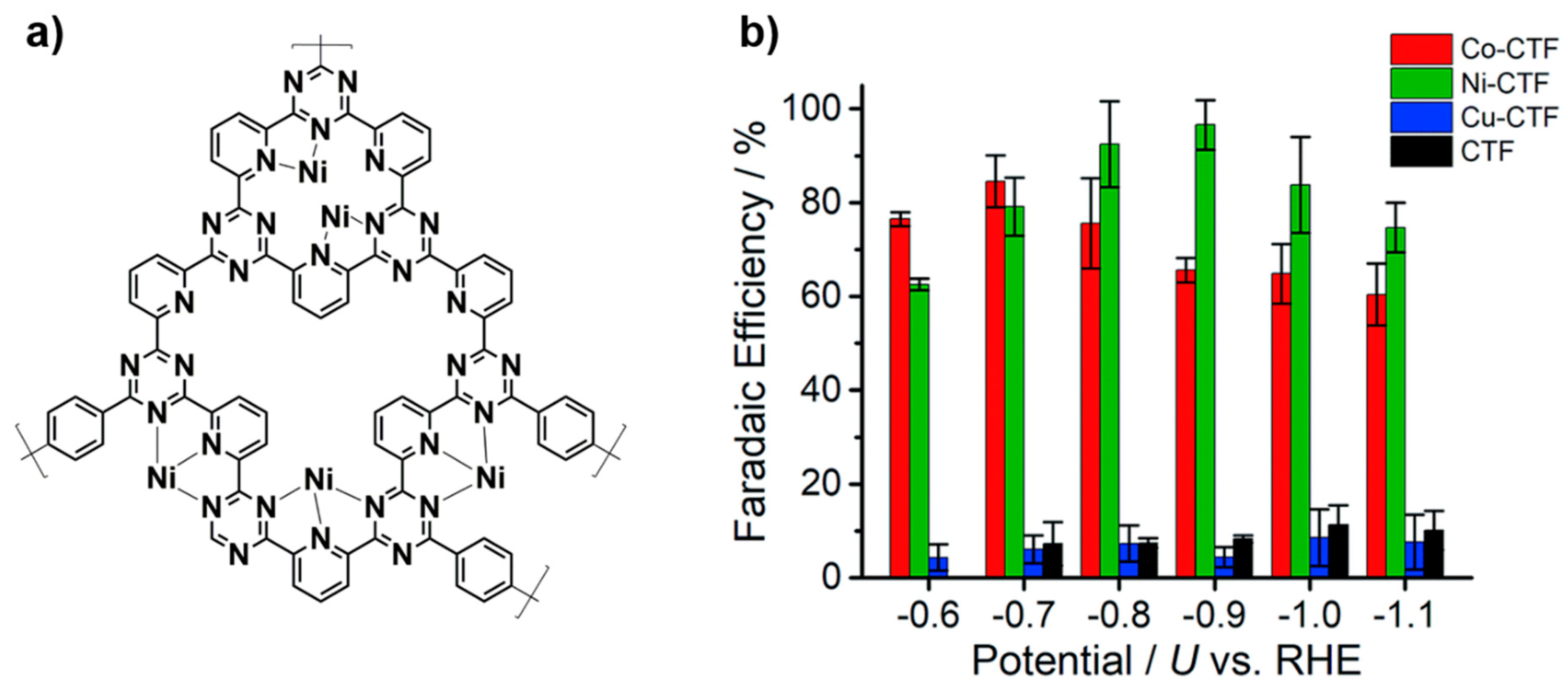

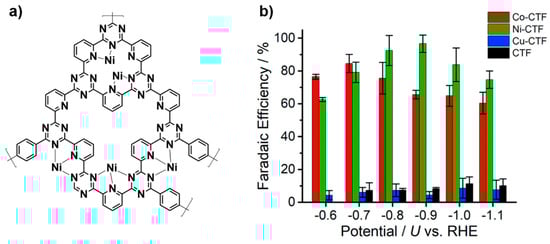

Figure 8. (a) Representative Structure of Ni–CTFs. (b) The faradaic efficiency of different metal coordinated CTFs at different potentials. (Adapted from reference 91) [91] (Copyright 2018, The Royal Society of Chemistry).
Figure 8. (a) Representative Structure of Ni–CTFs. (b) The faradaic efficiency of different metal coordinated CTFs at different potentials. (Adapted from reference 91) [91] (Copyright 2018, The Royal Society of Chemistry).
Polymers 11 00031 g008
Table
Table 1. Summary of the recent results of hydrogen uptake reported in the literature. CTFs: covalent triazine frameworks.
Table 1. Summary of the recent results of hydrogen uptake reported in the literature. CTFs: covalent triazine frameworks.
CTFsSurface Area (m2 g−1)ConditionHydrogen Uptake (wt %)References
DCBP network24751.00 bar, 77 K1.55[6]
TPC-212501.00 bar, 77 K2.34[60]
TPC-315301.00 bar, 77 K1.84[60]
PCTF-122351.0 bar, 77 K1.86[61]
fl-CTF40028621.0 bar, 77 K1.95[62]
fl-CTF400286220 bar, 77 K4.36[62]
caCTF-1-700236777, 1 bar2.46[26]
caCTF-1-700236787 K, 1 bar1.66[26]
CTF–Li6--12.3[63]
CTF–Na6--10.3[63]
CTF–Ca6--8.8[63]
Notes: DCBP: 4,4-dicycnobiphenyl; TPC: triazine-based porous carbon; fl: fluorine; ca: chemical activation.
Table
Table 2. Summary of the results of the CO2 uptake reported in the literatures showing the recent progress in the field. Acac-CTF: acetylacetone CTF.
Table 2. Summary of the results of the CO2 uptake reported in the literatures showing the recent progress in the field. Acac-CTF: acetylacetone CTF.
CTFsSurface Area (m2 g−1)ConditionCO2 UptakeReferences
P6M947273 K and 1 bar4.17 mmol g−1[10]
PCTF-12235273 K, 1 bar73.0 cm g−1[65]
PCTF-51183273 K, 1 bar58.1 cm g−1[65]
PCTF-7613273 K, 1 bar48.9 cm g−1[65]
CTF-1-6001553273 K, 1 bar3.83 mmol g−1[66]
F-CTF-1-6001535273 K, 1 bar5.53 mmol g−1[66]
pym-CTF-500208273 K, 1 bar2.75 mmol g−1[67]
Bipy-CTF6002479273 K, 1 bar5.58 mmol g−1[67]
Ad4L11617273 K, 1 bar76.33 cm3 g−1[68]
Ad4L31341273 K, 1 bar74.58 cm3 g−1[68]
MM11800273 K, 1 bar83.5 cm3 g−1
(3.68 mmol g−1)		[69]
MM21360273 K, 1 bar106.8 cm3 g−1
(4.70 mmol g−1)		[69]
CTF-Ph1991273 K, 1 bar3.05 mmol g−1[70]
CTF-Py1239273 K, 1 bar3.79 mmol g−1[70]
CTF-20-4001458273 K, 1 bar3.48 mmol g−1[71]
CTF-5-500853273 K, 1 bar3.02 mmol g−1[71]
CTF-CSU1685273 K, 1 bar15.1 wt %[72]
CTF-CSU19982273 K, 1 bar12.9 wt %[72]
Acac-CTF-10-5001556273 K, 1 bar3.30 mmol g−1[55]
TPC-11940273 K, 1 bar4.90 mmol g−1[73]
cCTF-400744273 K, 1 bar126 mg g−1[26]
cCTF-5001247273 K, 1 bar133 mg g−1[26]
TRIPTA-COF609273 K, 5 bar12.97 mmol g−1[74]
Notes: Pym-pyrimidine; Bipy-bipyridine; TRIPTA-1,3,5-tris(4-aminophenyl)triazine.

Share and Cite

MDPI and ACS Style

Zhang, Y.; Jin, S. Recent Advancements in the Synthesis of Covalent Triazine Frameworks for Energy and Environmental Applications. Polymers 2019, 11, 31. https://doi.org/10.3390/polym11010031

AMA Style

Zhang Y, Jin S. Recent Advancements in the Synthesis of Covalent Triazine Frameworks for Energy and Environmental Applications. Polymers. 2019; 11(1):31. https://doi.org/10.3390/polym11010031

Chicago/Turabian Style

Zhang, Ying, and Shangbin Jin. 2019. "Recent Advancements in the Synthesis of Covalent Triazine Frameworks for Energy and Environmental Applications" Polymers 11, no. 1: 31. https://doi.org/10.3390/polym11010031

APA Style

Zhang, Y., & Jin, S. (2019). Recent Advancements in the Synthesis of Covalent Triazine Frameworks for Energy and Environmental Applications. Polymers, 11(1), 31. https://doi.org/10.3390/polym11010031

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
