Open AccessArticle
Polymers 2018, 10(8), 871;

Novel Dihydroxy-Containing Ammonium Phosphate Based Poly(Lactic Acid): Synthesis, Characterization and Flame Retardancy

Fujian Provincial Key Laboratory of Polymer Materials, College of Chemistry and Materials Science, Fujian Normal University, Fuzhou 350007, China
IMDEA Materials Institute, C/Eric Kandel, 2, 28906 Getafe, Spain
Author to whom correspondence should be addressed.
Received: 11 July 2018 / Revised: 1 August 2018 / Accepted: 2 August 2018 / Published: 5 August 2018
(This article belongs to the Special Issue Multi-functional Polymer Composites and Structures)
Full-Text   |   PDF [4013 KB, uploaded 5 August 2018]   |

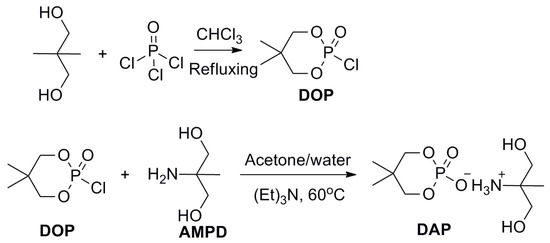

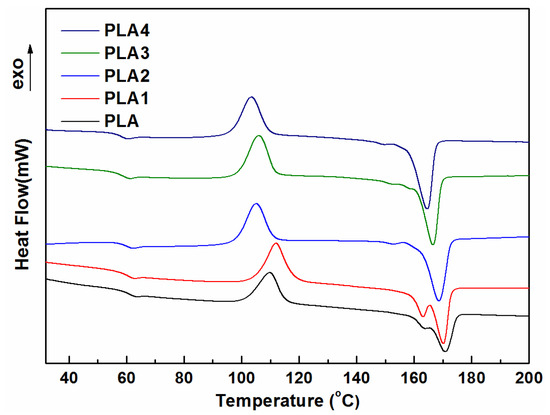

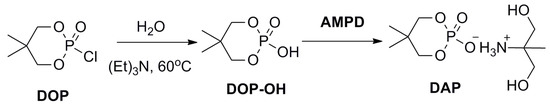

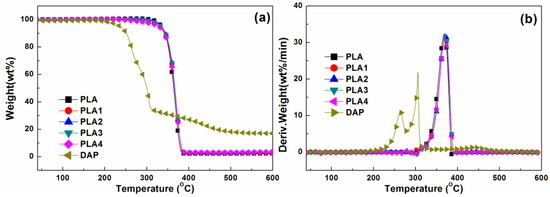

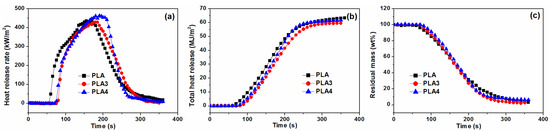

The aim of this work is to prepare flame-retardant biobased poly(lactic acid) materials through incorporating a novel flame retardant dihydroxy-containing ammonium phosphate (DAP) derived from 2-chloro-5,5-dimethyl-1,3,2-dioxaphosphinane-2-oxide (DOP) and 2-amino-2-methyl-1,3-propanediol (AMPD). Interestingly, PLA modified with only 0.5% DAP passed UL-94 V-0 rating, and possessed a limiting oxygen index (LOI) value of 24.6%, which would further increase with the increasing loading of DAP. PLA/DAP did not exhibit obviously improved results in terms of heat release rate (HRR), as the loading of DAP was relatively low. It was found that DAP showed little effect on the thermal stability of PLA and the onset decomposition temperatures of PLA and PLA/DAP blends were very close. Besides, the degree of crystallization increased because of the plasticized effect of DAP. Based on the analyses of flame-retardant mechanism of DAP, it disclosed that DAP decomposed to generate incombustible compounds, such as water and ammonia, to dilute the concentration of oxygen and fuels, and then release some phosphorus-containing fragments that could produce phosphorus-containing free radicals to interrupt free-radical reactions, and finally noncombustible melt dripping was produced so as to bring away large amount of heat and stop the feedback of heat to the matrix. View Full-Text
Keywords: poly(lactic acid); flame retardancy; thermal stability; mechanism poly(lactic acid); flame retardancy; thermal stability; mechanism

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Jian, R.-K.; Xia, L.; Ai, Y.-F.; Wang, D.-Y. Novel Dihydroxy-Containing Ammonium Phosphate Based Poly(Lactic Acid): Synthesis, Characterization and Flame Retardancy. Polymers 2018, 10, 871.
