Next Article in Journal
Thermal Decomposition of Kraft Lignin under Gas Atmospheres of Argon, Hydrogen, and Carbon Dioxide
Next Article in Special Issue
Protective Bleaching of Camel Hair in a Neutral Ethanol–Water System
Previous Article in Journal
Structural Characterization of Lignocresols from Transgenic and Wild-Type Switchgrass
Previous Article in Special Issue
Application of the Products from the Maillard Reaction of Polyglutamic Acid and Glucose to Prepare Colored and Bioactive Silk
Article Menu
Issue 7 (July) cover image

Export Article

Open AccessArticle
Polymers 2018, 10(7), 728; https://doi.org/10.3390/polym10070728

Dopamine-Dyed and Functionally Finished Silk with Rapid Oxidation Polymerization

National Engineering Laboratory for Modern Silk, Soochow University, Suzhou 215123, China
*
Author to whom correspondence should be addressed.
Received: 2 June 2018 / Revised: 21 June 2018 / Accepted: 29 June 2018 / Published: 3 July 2018
(This article belongs to the Special Issue Polymer Processing for Enhancing Textile Application)
Full-Text   |   PDF [3840 KB, uploaded 3 July 2018]   |

Abstract

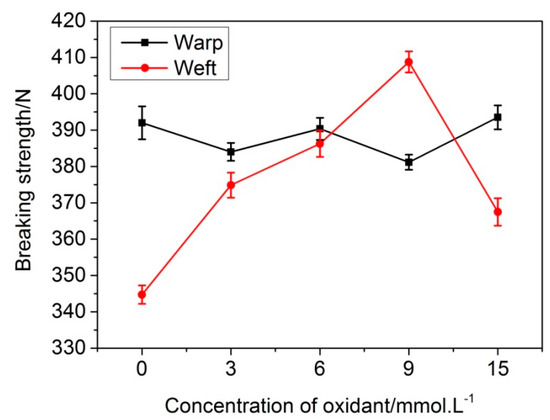

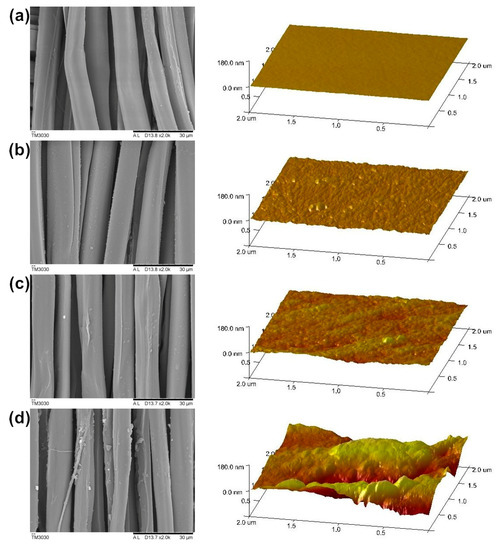

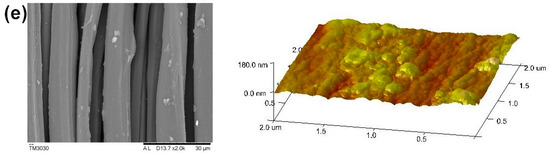

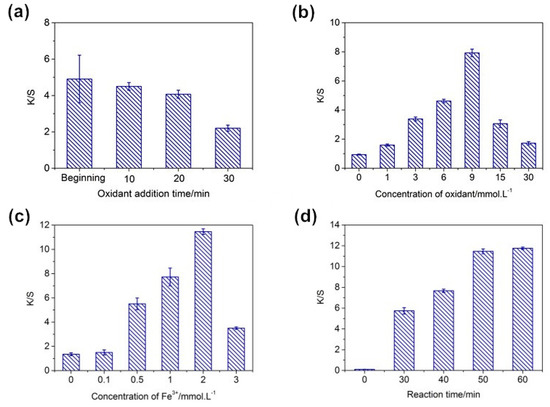

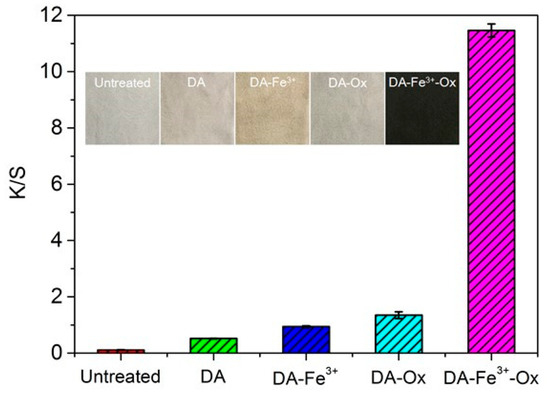

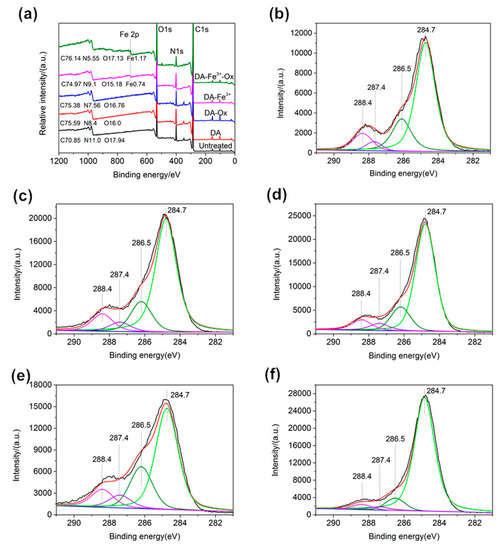

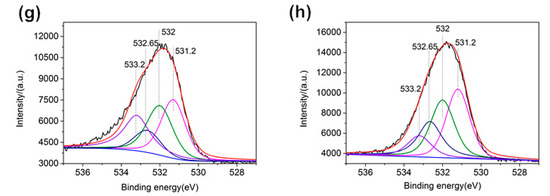

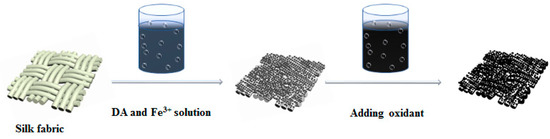

Nowadays, more and more attention has been paid to ecological environment problems, and the dyeing and finishing field is no exception. Environmentally friendly dyeing and finishing methods have been extensively studied. Inspired by the bioadhesive force of marine mussels, dopamine (DA) was applied as a dyestuff and investigated in textile dyeing. In this work, dopamine was dyed on silk with a rapid oxidation polymerization in the presence of metal ions (Fe3+) and sodium perborate oxidant (Ox). The polydopamine (PDA) was rapidly deposited on silk fabric and the dyeing process was optimized as follows: the concentration of DA was 2 g·L−1, and that of Fe3+ was 2 mmol·L−1; the total reaction time was 50 min and reacted at 50 °C; 9 mmol·L−1 Ox was added at 20 min. The K/S value of the treated silk fabric reached 11.46. The color fastness of dyed fabric to light fastness reached Level 4. The SEM and AFM tests showed that the particles attached to the fabric surface and increased the roughness. The XPS test further proved that polydopamine (PDA) was deposited on the fabric. The treated fabric also had a good anti-UV property with a UPF >30 and UVA <4%. The water contact angle of treated fabric attained 142.6°, showing better hydrophobicity, and the weft breaking strength was also improved. This environmentally friendly dyeing and finishing method can be applied and extended to other fabrics. View Full-Text
Keywords: silk fabric; dopamine; rapid oxidation polymerization; dyeing; anti-UV; hydrophobicity silk fabric; dopamine; rapid oxidation polymerization; dyeing; anti-UV; hydrophobicity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yan, B.; Zhou, Q.; Xing, T.; Chen, G. Dopamine-Dyed and Functionally Finished Silk with Rapid Oxidation Polymerization. Polymers 2018, 10, 728.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
