Article

Metal(II) Coordination Polymers Derived from Mixed 4-Imidazole Ligands and Carboxylates: Syntheses, Topological Structures, and Properties

by
Wei-Dong Li
1,
Jia-Le Li
1,
Xing-Zhe Guo
1,
Zhi-You Zhang
1 and
Shui-Sheng Chen
1,2,*
1
School of Chemistry and Chemical Engineering, Fuyang Normal University, Fuyang 236041, China
2
Coordination Chemistry Institute, State Key Laboratory of Coordination Chemistry, Nanjing University, Nanjing 210093, China
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(6), 622; https://doi.org/10.3390/polym10060622
Submission received: 6 May 2018 / Revised: 27 May 2018 / Accepted: 31 May 2018 / Published: 6 June 2018
(This article belongs to the Special Issue Advances in Coordination Polymers)
Browse Figures
Versions Notes

Abstract

:
Four new metal–organic coordination polymers [Cu(L)(mpa)]·3H2O (1), [Co(L)(mpa)]·H2O (2), [Zn(L)(mpa)]·H2O (3), and [Cd(L)(mpa)(H2O)]·H2O (4) were synthesized by reactions of the corresponding metal(II) salts based on mixed ligands of 1,4-di(1H-imidazol-4-yl)benzene (L) and 4-methylphthalic acid (H2mpa), respectively. The structures of the complexes were characterized by elemental analysis, FT-IR spectroscopy, and single-crystal X-ray diffraction. Compound 1 exhibits a binodal 4-connected three dimensional (3D) architecture with (65·8)-CdSO4 topology, while complexes 2 and 3 are isostructural and have two-dimensional (2D) layer structure with (4, 4) sql topology based on the binuclear metal subunits. Complex 4 has the same 2D layer structure with (4, 4) sql topology as complexes 2 and 3, but the inclined interpenetration of parallel sets of layers result in the formation with 2D + 2D → 3D framework. The activated sample 1 shows selective CO2 uptake over N2. The photoluminiscent properties together with quantum yield (QY) and luminescence lifetime are also investigated for complexes 3 and 4 in the solid state at room temperature.

Graphical Abstract

1. Introduction

The design and construction of coordination polymers (CPs), and especially the subclass of metal−organic frameworks (MOFs), can be regarded nowadays as one of the most active research areas in recent years, not only due to their fascinating structural diversities, but also because of their interesting properties and potential applications as functional materials in many fields [1,2,3,4,5,6,7,8,9,10]. In principle, the assembly of MOFs can be influenced by several factors, such as the reaction condition, coordination geometry of the metal ions, nature of anions, flexibility, and coordination modes of the ligands, temperature, solvent, and so on [11,12,13]. Particularly, the key to design of MOFs with such outstanding features mainly depends on the judicious and rational choice of the bridging ligand because it greatly influences the molecular packing arrangement of the compound [14,15,16,17]. The N-donor ligands as well as the polycarboxylates, as two most commonly used organic linkers in the assembly of MOFs, have been widely designed and selected for their various coordination modes, and modifiable backbones. The N-donor ligands with rod-type two-connector between the two terminal coordination groups, for example, 4,4′-bipyridine(bpy), 1,2-bis(4-pyridyl)ethane(bpe), or their analogues, can be employed as ‘pillars’ together with the carboxylate ligand to meet the requirement of coordination geometries of metal ions in the assembly process [18,19,20,21]. More recently, we have designed a novel type of 4-imidazol-containing ligands with versatile coordination modes such as 1,4-di(1H-imidazol-4-yl)benzene and 1,3,5-tri(1H-imidazol-4-yl)benzene, and successfully constructed a series of porous metal-imidazolate complexes, which exhibit exceptional gas adsorption properties [22,23]. On the other hand, the polycarboxylates are the most extensively studied organic ligands in the construction of MOFs because the carboxylate groups have a high affinity for metal ions and may offer the possibility of incorporating more metal atoms into high-nuclearity clusters [24,25,26]. It is noteworthy that the polycarboxylates and N-donors show different coordination preferences when coordinating with metal ions owing to the different electron configurations of N and O atoms [27,28]. Therefore, the mixed system including multi-N donor and carboxylate ligands can be effectively employed to build diverse coordination polymers due to their favorable compatibility. Following the mixed ligand strategy, we have focused our attention on the reactions of rigid 4-imidazole-containing ligands, together with different carboxylate ligands and different metal salts and synthesized a series of novel MOFs based on the N and O donor mixed spacers [29,30,31,32]. In this contribution, we focus our attention on the study on reactions of ligand 1,4-di(1H-imidazol-4-yl)benzene (L) together with 4-methylphthalic acid (H2mpa) ligand and metal salts for the assembly of MOFs as an extension of our work. Herein, we report the synthesis and crystal structure of four new coordination polymers [Cu(L)(mpa)]·3H2O (1), [Co(L)(mpa)]·H2O (2), [Zn(L)(mpa)]·H2O (3), and [Cd(L)(mpa)(H2O)]·H2O (4) obtained by reactions of L and H2mpa, with corresponding metal salts under hydrothermal conditions, respectively. The scheme of coordination modes of H2mpa and L ligands in complexes 1–4 is exhibited in Scheme 1; the various coordination modes of L ligand is also described in detail [32].

2. Materials and Methods

2.1. Materials and Physical Techniques

The ligand 1,4-di(1H-imidazol-4-yl)benzene (L) was prepared as previously described [33]. Other chemical reagents and solvents were purchased commercially and were used as received without further purification. Elemental analyses were performed using a Perkin-Elmer 2400 elemental analyzer (Perkin-Elmer, Inc., Billerica, MA, USA). The infrared spectrum was recorded on a Nicolet Fourier Transform IR (Nicolet Instrument Inc., Madison, WI, USA), and a Nicolet MAGNA-IR 500 spectrometer (Nicolet Instrument Inc., Madison, WI, USA) in the range of 500–4000 cm−1 using the KBr disc technique. Thermogravimetric analyses (TGA) were performed on a computer-controlled Perkin-Elmer 7 Series/UNIX TGA7 analyzer (Perkin-Elmer, Inc., Billerica, MA, USA). Gas adsorption experiments were carried out on an Autosorb-iQ gas sorption instrument in Quantachrome Instruments U.S (Quantachrome, Delray Beach, FL, USA). The sample was activated by using the “outgas” function of the surface area analyzer (Quantachrome, Delray Beach, FL, USA) for 24 h at 160 °C. Photoluminescence spectra for the solid samples were recorded with a HORIBA FluoroMax-4 fluorescence spectrophotometer at room temperature. The decay lifetimes were measured with an FLS920P fluorescence spectrometer (Edinburgh Instruments, Edinburgh, UK) in the solid state at room temperature.

2.2. Synthesis of [Cu(L)(mpa)]·3H2O (1)

Reaction mixture of L (21.2 mg, 0.1 mmol), Cu(NO3)2·3H2O (24.2 mg, 0.1 mmol), H2mpa (18.0 mg, 0.1 mmol), and H2O (8 mL) was adjusted to pH = 7 with 0.5 mol·L−1 NaOH solution. The mixture was then sealed into a 16 mL Teflon-lined stainless steel container and heated at 160 °C for 3 days. After cooling to the room temperature, green block crystals of 1 were collected by filtration and washed by water and ethanol for several times with a yield of 72%. Anal. calcd. for C21H22N4O7Cu (%): C, 49.85; H, 4.38; N, 11.07. Found: C, 49.68; H, 4.49; N, 10.89. IR (KBr pellet, cm−1): 3427 (m), 3140 (m), 1567 (vs), 1544 (vs), 1510 (m), 1396 (vs), 1367 (m), 1221 (w), 1141 (m), 1077 (m), 952 (w), 844 (s), 808 (m), 796 (m), 678 (w), 647 (w), 625 (w), 535 (w), 438 (w).

2.3. Synthesis of [Co(L)(mpa)]·H2O (2)

Complex 2 was obtained by the same hydrothermal procedure as that used for the preparation of 1 using Co(NO3)2·6H2O (29.1 mg, 0.1 mmol) instead of Cu(NO3)2·3H2O. After the reaction mixture was cooled down to room temperature, purple crystals of 2 were collected with a yield of 65%. Anal. calcd. for C21H18N4O5Co(%): C, 54.20; H, 3.90; N, 12.04. Found: C, 54.01; H, 4.12; N, 11.92. IR (KBr pellet, cm−1): 3488 (m), 3394 (m), 3145 (m), 2851 (m), 1645 (m), 1577(s), 1540 (vs.), 1496 (s), 1415 (vs.), 1362 (s), 1268 (m), 1176 (w), 1166 (w), 1139(s), 1129(s), 1079 (m), 970 (m), 840 (s), 823 (s), 801 (m), 685 (w), 650 (s), 637 (m), 529 (w), 461 (w).

2.4. Synthesis of [Zn(L)(mpa)]·H2O (3)

Complex 3 was obtained by the same hydrothermal procedure as that used for the preparation of 1 using Zn(NO3)2·6H2O (29.7 mg, 0.1 mmol) instead of Cu(NO3)2·3H2O. After the reaction mixture was cooled down to room temperature, colorless crystals of 3 were collected with a yield of 72%. Anal. calcd. for C21H18N4O5Zn(%): C, 53.46; H, 3.85; N, 11.88. Found: C, 53.31; H, 3.96; N, 11.42. IR (KBr pellet, cm−1): 3485 (m), 3390 (w), 3134 (m), 2852 (m), 1647 (w), 1587 (vs.), 1546 (vs.), 1479 (s), 1415 (vs.), 1356 (s), 1270 (w), 1140 (s), 1081 (m), 971 (m), 949 (m), 840 (s), 799 (s), 685 (w), 649 (s), 529 (m), 476 (w), 485 (m).

2.5. Synthesis of [Cd(L)(mpa)(H2O)]·H2O (4)

A mixture of CdCl2·2.5H2O (22.8 mg, 0.1 mmol), L (21.0 mg, 0.1 mmol), 4-H2mpa (18.0 mg, 0.1 mmol) and NaOH (12.0 mg, 0.3 mmol) in 10 mL H2O was sealed in a 16 ml Teflon lined stainless steel container and heated at 180 °C for 3 d. Brown block crystals of 4 were collected in 68% yield after being washed with water and ethanol several times. Anal. calcd for C21H20N4O6Cd (%): C, 46.99; H, 3.76; N, 10.44. Found: C, 46.81; H, 3.90; N, 11.42. IR (KBr pellet, cm−1): 3135 (m), 2362 (w), 1593 (m), 1552 (vs), 1505 (m), 1395 (vs), 1270 (w), 1221 (w), 1172 (w), 1138(s), 1074 (m), 945 (s), 842 (s), 800 (m), 719 (w), 680 (w), 649 (m), 618 (m), 563 (w), 416 (w).

2.6. Crystallographic Data Collection and Refinements

The data collections for 1–4 were carried out on a Bruker Smart Apex CCD (Charge Coupled Device) area-detector diffractometer using graphite-monochromated Mo Kα radiation (λ = 0.71073 Å) at 23(2) °C. The diffraction data was integrated by using the SAINT program [34]. Semi-empirical absorption corrections were applied using the SADABS program [35]. The structures were solved by direct methods and all nonhydrogen atoms were refined anisotropically on F2 by the full-matrix least-squares technique using the SHELXL-97 crystallographic software package [36]. The hydrogen atoms were generated geometrically. The details of the crystal parameters, data collection, and refinements for the complexes are summarized in Table 1, selected bond lengths and angles with their estimated standard deviations are listed in Table S1. The hydrogen atoms of solvent water molecules in 1 and 2 were found directly from the differential Fourier map. All the other hydrogen atoms were generated geometrically except that the hydrogen atoms that were part of water molecules were not identified. Crystal data and details of the data collection and structure refinements for 1–4 are summarized in Table 1. CCDC (Cambridge Crystallographic Data Centre)-1836731, 1836732, 1836733 and 1836734 for 1, 2, 3, and 4, respectively. These data can be obtained free of charge at www.ccdc.cam.ac.uk/conts/retrieving.html or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambridge CB2 1EZ, UK; fax: (internet) +44-1223/336-033; email: [email protected].

3. Results

3.1. Structural Descriptions

3.1.1. Structure of [Cu(L)(mpa)]·3H2O (1)

The result of X-ray diffraction analysis revealed that complex 1 crystallizes in a triclinic form with space group of P-1 (Table 1), and the asymmetric unit consists of two kinds of Cu(II) atoms, namely, both of Cu(II) atoms sitting on a special position with a half of occupancy, two halves of the L ligand, one completely deprotonated mpa2− ligand, and three free water molecules as shown in Figure 1a. The Cu1 atom is four-coordinated in square-planar coordination geometry, which is surrounded by two carboxylate oxygen atoms (O1, O1A) from two individual mpa2− ligands, and two nitrogen atoms (N1, N1A) from two different L ligands. The Cu2 atom exhibits a distorted octahedral environment in which the basal plane consists of the four O atoms (O3, O4, O3B, and O4B) from carboxylate groups of mpa2− ligands while the axial position is filled by two symmetrical 4-imidazolyl N atoms (N3 and N3B) from two different L ligands. When the connections via the L ligands (containing N1 and N2 atoms) are ignored, the Cu(II) atoms are linked through the other L ligands (containing N3 and N4 atoms) together with mpa2− ligands, leading to the formation of a two-dimensional (2D) coordination network (Figure 1b). The just ignored L ligands acts as two-connector pillars to link Cu(II) atoms of adjacent 2D nets to form three-dimensional (3D) pillar-layered frameworks with void channels along the c axis (Figure 1c). The total void value of the channel without water guests is estimated (by PLATON) [37] to be 187.1 Å, approximately 17.2% of the total crystal volume of 1090.1 Å. Topological analysis was carried out to analyze the structure of 1. As discussed above, each mpa2− and L ligand link two Cu(II) atoms, respectively, and accordingly, the mpa2− and L can be regarded as 2-connected nodes, respectively. As for Cu1 and Cu2 atoms, both of them in turn link two mpa2− and two L ligands; hence, they can be treated as 4-connectors. According to the simplification principle, the resulting structure of the complex 1 is a bimodal (4, 4)-connected net with a Schläfli symbol (65·8), which has been referred to by O’Keeffe and Wells as the CdSO4 notation (Figure 1d) [38].

3.1.2. Structures of [Co(L)(mpa)]·H2O (2) and [Zn(L)(mpa)]·H2O (3)

As Co(NO3)2·6H2O and Zn(NO3)2·6H2O, instead of Cu(NO3)2·3H2O, was used in the reaction of 1, respectively, 2 and 3 with different structures were isolated. Complexes 2 and 3 crystallize in the same monoclinic P21/n space group with similar cell parameters (Table 1), and the results of X-ray crystallographic analysis indicate that they are isomorphous and isostructural. Thus, as a typical example, only the structure of 2 is described here in detail. The asymmetric unit of 2 contains one unique Co(II) atom coordinated by two nitrogen atoms (N1 and N3B) from two different L ligands and two carboxylate oxygen atoms (O1 and O3A) from two different mpa2− ligands, thereby forming a four-coordinated tetrahedral coordination geometry with a N2O2 donor set (Figure 2a). The Co–O bond lengths are 1.974(19) and 2.002(18) Å, and Co–N ones are 2.036(2) and 2.015(2) Å (Table S1), which are consistent with the reported four-coordinated Co(II) complexes with O and N donors [39]. The mpa2− ligand connects two Co(II) atoms using its two adjacent carboxylate groups with µ1-η1:η0-monodentate coordination mode. Interestingly, four carboxylate groups from two different mpa2− ligands together with two Co(II) atoms form a Co2(COO)2 binuclear SBU with a Co···Co distance of 5.45 Å. Each such SBU links four identical ones through four L ligands via Co–N coordination leading to formation of a 2D network with (4, 4) sql topology by taking the binuclear SBUs as 4-connecting nodes and the L ligands as linkers (Figure 2b,c). The 2D layers are further linked together via extensive intermolecular N–H···O, O–H···O and C–H···O hydrogen bonds to generate a 3D structure (Figure 2d).

3.1.3. Structure of [Cd(L)(mpa)(H2O)]·H2O (4)

To further investigate the effect of metal salt, the Cu(NO3)2·3H2O was changed to CdCl2·2.5H2O, and complex 4 with a different structure was obtained. The asymmetric unit of 1 contains one Cd(II) ion, one L ligand, one mpa2− ligand, one coordinated, and one lattice water molecules. The Cd1 atom is seven-coordinated by two N atoms (N1, N3B) from two different L ligands, four O atoms (O1, O2, O3A, and O4A) from two pairs of chelating carboxylate groups of two different mpa2− ligands and one O atom (O5) from coordinated water molecule (Figure 3a). The average Cd1−O and Cd1−N distances are 2.462(3) and 2.293(3) Å, respectively, and the coordination angles around Cd1 varies from 53.39(9) to 169.70(10)° (Table S1). Similar to the complexes 2 and 3, both of adjacent carboxylate groups from the mpa2− ligand connect two Cd(II) atoms in µ1-η1:η1-chelating coordination mode, and four carboxylate groups from two different mpa2− ligand connect two Cd(II) atoms to form a Cd2(COO)2 binuclear SBU with Cd···Cd distance of 5.24 Å. The binuclear SBUs is employed as a 4-connecting node to connect other four identical ones by four linear L ligands, forming the 2D network with (4, 4) topology by taking the binuclear SBUs as 4-connecting nodes and the L ligands as linkers (Figure 3b,c). In 4, two L ligands and two Cd(II) ions form a macrocycle through the coordination bonds, where the lateral distances of Cd2(COO)2 binuclear SBU is 18.74 Å, and the through-space apertures within a single layer submotif measure 13.88 × 34.82 Å, with the angles among SBU nodes of 43.45° and 136.55°. Thus, the shape of this macrocycle is a rhombus. The large rectangular windows within the layers permit mutual inclined interpenetration of parallel sets of layers, forming the 2D + 2D → 3D framework (Figure 3d,e) [40,41].

3.2. Thermal Analyses and X-ray Powder Diffraction Analyses

Thermogravimetric analysis (TGA) was employed on complexes 1–4 in order to ascertain the stability, and the results are shown in Supporting Information Figure S1. A total weight loss of 10.25% was observed for 1 in the temperature range of 75–140 °C, which is attributed to the loss of three lattice water molecules (calc. 10.67%), and the decomposition of the residue occurred at 235 °C. For 2, the first weight loss of 3.62% in 200–275 °C indicated the exclusion of one free lattice water molecule (calc. 3.87%), and the residue is stable up to about 330 °C. A total weight loss of 3.95% was observed for 3 in the temperature range of 180–230 °C, which is attributed to the loss of three coordinated and one free water molecules (calc. 3.82%), and the residue is stable up to about 260 °C. A total weight loss of 6.55% was observed for 4 in the temperature range of 50–105 °C, which is attributed to the loss of water molecules (calc. 6.71%), and the residue is stable up to about 305 °C. The pure phase of coordination polymers was proved by the powder X-ray diffraction (PXRD), where the patterns of, as-synthesized, 1–4 are consistent with the corresponding simulated ones (Figure S3), indicating the phase purity of the sample. The further stability information about the porous structure is required in order to make gas adsorption measurements for the porous materials of 1. After heating of 1 at 160 °C for 24 h in vacuum, the guest water molecules were removed. The PXRD patterns at varied temperature show that the framework of 1 is retained (Figure S2), indicating that complex 1 has permanent porosity after evacuation.

3.3. Diffuse Reflectance Spectra

The solid state diffuse reflectance UV-Vis (Ultraviolet-visible) spectra at room temperature were recorded for the as-synthesized samples of 1–4 (Figure 4a). To study the conductivity of the complexes, the solid state diffuse reflectance UV-Vis spectrum of complexes were applied to calculate the band gap Eg, which was determined as the intersection point between the energy axis (hν) and the line derived from the linear portion of the absorption edge in a plot of the K–M (Kubelka–Munk) theory F vs. the incident photon energy hν [42]. UV-visible spectra of coordination polymers 1−2 have absorptions in the UV region as well as in the visible region, absorptions in the UV region are due to ligand, and in the visible region are due to d−d transitions (2Eg to 2T2g) of copper(II) compounds [43,44]. Coordination polymers 3 and 4 shows an absorption in UV-region due to a ligand, and it does not absorb in the visible region because of the A1g ground state. As shown in Figure 4b, the optical band gaps obtained by extrapolation of the linear portion of the diffuse reflectance spectra are estimated as 3.32, 3.55, 3.91, and 3.90 eV for complexes 1–4, respectively, indicating the existence of optical direct band gap and the characteristic of semiconductivity, which have potential application in the field of semiconductor [45,46,47].

3.4. Photoluminescent Property

Inorganic−organic hybrid coordination polymers have been reported to have the ability to adjust the emission wavelength of organic materials through incorporation of metal centers, especially for d10 metal centers [48,49]. The fluorescence properties of the crystalline materials 3 and 4, as well as the free L ligand have been investigated in the solid state, as depicted in Figure 5. The free L ligand shows emission band at 450 nm upon excitation at 370 nm, which may be attributed to π* → π transition of the intraligands [50,51]. As previously reported [52,53], the fluorescence emission of solid-state benzenecarboxylate ligands can be assigned to the π* → n transition. Comparatively, the fluorescent emission of benzene–dicarboxylate ligands resulting from the π* → n transition is weak in comparison to that of the π* → π transition of the conjugated aromatic ligands such as the L ligand, so benzene–carboxylate ligands almost have little contribution to the fluorescent emission of d10 complexes [54,55]. Figure 6 shows that compounds 3 and 4 exhibit blue photoluminescence with emission maxima at 446 and 424 nm upon excitation at 370 and 357 nm, respectively. In contrast to the free L ligand, the emission bands of complexes 3 and 4 are 4nm red-shifted and 22 nm blue-shifted respectively. The emissions of these complexes may be assigned to the cooperative effects of intraligand transition and differences in the coordination environments [56,57]. In addition, it is noteworthy that the enhancement of luminescence for the complex 4 compared with the free ligand and 3 under the same conditions may mainly originate from the coordination interactions between the metal Cd(II) atom and the ligand, which enhanced its conformational rigidity and then decreased the nonradiative energy loss [58].
In order to further study the luminescence properties, study of the corresponding quantum yield (QY) and decay lifetimes were carried out for compounds 3 and 4 together with L ligand. The QY values of compounds 4 (QY4 = 5.12%) was higher than complex 3 (QY3 = 0.27%). The high QY values of compounds 4 is probably attributed to the immobilization of the L ligand as it is strongly coordinated to metal Cd(II) ions that effectively increase the rigidity of the ligands and to the low-dimensional structure with a π-conjugated system that decreases the molecular band gap [59,60]. In addition, the luminescence decay curves can be fitted by an exponential function as I(t) = A exp(−t/τ). The longest luminescence lifetime of compound 4 reaches 178 ns, higher than complex 3, but much shorter than the ones resulting from a triplet state (>10−3 s), so the emissions should arise from a singlet state [61,62]. Therefore, the good photoluminescence property of 4 indicates that it could be potentially used as luminescent material.

3.5. Gas Sorption Property

Crystal structure analysis shows that the 3D framework structure in 1 has 17.2% void volume resided by lattice water molecules. The framework of 1 can maintain its porous framework after evacuation, as can be confirmed by TGA and PXRD measurements (Figures S1 and S2). The desolvated solid with 17.2% free void volume in 1 can be employed as microporous material to adsorb gases. Therefore, a further study was subsequently undertaken to investigate the gas adsorption property of the desolvated sample 1′. The N2 and CO2 sorption isotherms in Figure 7 shows the microporous material of 1′ exhibit CO2 adsorption property, but no N2 uptake was observed at 77 K for 1′ in the low-pressure region, and only shows 28.73 cm3/g at 1 atm, which exhibits type III sorption profiles, suggesting that only surface adsorption occurs [63]. The CO2 gas adsorption isotherms of 1′ display a steep rise at the relative low pressure region which can be categorized as reversible type-I, exhibiting a typical permanent microporosity, while the CO2 gas desorption isotherm of 1′ shows pronounced hysteresis as illustrated in Figure 7. The adsorption amount, 9.7 wt% of CO2 at 195 K and 1 atm (49.71 cm3/g at standard temperature and pressure (STP)), corresponds to 1.1 CO2 molecule per formula unit of the solid 1′. The distinct difference of adsorption capacity between CO2 and N2 for 1′ must be mainly associated with the smaller kinetic diameters of CO2 (3.3 Å) than that of N2 (3.64 Å), and the Quadrupole Moment of CO2 (−1.4 × 10−39 cm2) is the important factor that affects the distinct difference in adsorption capacity [64,65].

4. Conclusions

The coordination polymers based on mixed multi-N-donor and polycarboxylate auxiliary ligands were synthesized by reactions of the different metal salts under hydrothermal methods. The nature of different metal centers are key factors to construct diverse frameworks. The complex 1 is a rare binodal (4, 4)-connected 3D CdSO4 architecture. Complexes 2 and 3 are isomorphous and isostructural, possessing 2D networks with (4, 4) sql topology based on the [M(COO)2] SBUs, while complex 4 has 2D sql layer motifs which aggregate into a 2D + 2D → 3D mutually inclined interpenetrated framework. The UV-vis absorption spectra of 1–4 are discussed. Moreover, complexes 3 and 4 exhibit intense fluorescence emission and 1 shows CO2 gas sorption property. The results imply that not only the N-donor imidazolyl ligands as well as the carboxylate ligand possess variable coordination modes in construction of MOFs, but also show the nature of metal ions and reaction conditions play crucial roles in modulating the formation of the resulting coordination complexes; the combination of rigid N-donor ligand with multi-carboxylate is a good choice for the construction of MOFs with specific structures and properties.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/10/6/622/s1, Figure S1: TGA, Figure S2: PXRD, Table S1: Selected bond lengths and bond angles.

Author Contributions

W.-D.L. reviewed literature and performed the experiments. X.-Z.G. and Z.-Y.Z. carried out the measurements and analyzed the data. J.-L.L. assisted W.-D.L. to perform the experiment. S.-S.C. designed the experimental section, analyzed the data, and wrote the paper. All the authors reviewed and approved the paper.

Acknowledgments

We are grateful to the National Natural Science Foundation of China (Grant no. 21171040) and Natural Science Foundation of Colleges of Anhui Province (KJ2017ZD29) for their support and we are also grateful for the help from the Anhui Provincial Key Laboratory for Degradation and Monitoring of Pollution of The Environment.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhu, L.; Liu, X.Q.; Jiang, H.L.; Sun, L.B. Metal-organic frameworks for heterogeneous basic catalysis. Chem. Rev. 2017, 117, 8129–8176. [Google Scholar] [CrossRef] [PubMed]
  2. Schoedel, A.; Li, M.; Li, D.; O’Keeffe, M.; Yaghi, O.M. Structures of metal-organic framewroks with rod secondary building units. Chem. Rev. 2016, 116, 12466–12535. [Google Scholar] [CrossRef] [PubMed]
  3. Bao, Z.; Xie, D.; Chang, G.; Wu, H.; Li, L.; Zhou, W.; Wang, H.; Zhang, Z.; Xing, H.; Yang, Q.; et al. Fine Ttuning and specific binding sites with a porous hydrogen-bonded metal-complex framework for gas selective separations. J. Am. Chem. Soc. 2018, 140, 4596–4603. [Google Scholar] [CrossRef] [PubMed]
  4. Rieth, A.J.; Dincă, M. Controlled gas uptake in metal−organic frameworks with record ammonia sorption. J. Am. Chem. Soc. 2018, 140, 3461–3466. [Google Scholar] [CrossRef] [PubMed]
  5. Zhao, D.; Liu, X.H.; Zhao, Y.; Wang, P.; Liu, Y.; Azam, M.; Al-Resayes, S.I.; Lu, Y.; Sun, W.Y. Luminescent Cd(II)-organic frameworks with chelating NH2 sites for selective detection of Fe(III) and antibiotics. J. Mater. Chem. A 2017, 5, 15797–15807. [Google Scholar] [CrossRef]
  6. Chen, J.J.; Chang, Y.T.; Wu, C.J.; Hsu, Y.F.; Lin, C.H.; Proserpio, D.M.; Chen, J.D. Highly interpenetrated diamondoid nets of Zn(II) and Cd(II) coordination networks from mixed ligands. CrystEngComm 2012, 14, 537–543. [Google Scholar] [CrossRef]
  7. Mori, W.; Sato, T.; Kato, C.N.; Takei, T.; Ohmura, T. Discovery and development of microporous metal carboxylates. Chem. Rec. 2005, 5, 336–351. [Google Scholar] [CrossRef] [PubMed]
  8. Doonan, C.; Riccò, R.; Bradshaw, D.; Falcaro, P. Metal–organic frameworks at the biointerface: Synthetic strategies and applications. Acc. Chem. Res. 2017, 50, 1423–1432. [Google Scholar] [CrossRef] [PubMed]
  9. Chen, W.; Wu, C. Synthesis, functionalization, and applications of metal–organic frameworks in biomedicine. Dalton Trans. 2018, 47, 2114–2133. [Google Scholar] [CrossRef] [PubMed]
  10. Chu, Y.; Hou, J.; Boyer, C.; Richardson, J.J.; Liang, K.; Xu, J. Biomimetic synthesis of coordination network materials: Recent advances in MOFs and MPNs. Appl. Mater. Today 2018, 10, 93–105. [Google Scholar] [CrossRef]
  11. Ye, R.P.; Zhang, X.; Zhang, L.; Zhang, J.; Yao, Y.G. Solvent and pH driven self-assembly of isomeric or isomorphic complexes: Crystal structure and luminescent change upon desolvation. Cryst. Growth Des. 2016, 16, 4012–4020. [Google Scholar] [CrossRef]
  12. Chang, M.N.; Yang, X.K.; Chhetri, P.M.; Chen, J.D. Metal and ligand effects on the construction of divalent coordination polymers based on bis-pyridyl-bis-amide and polycarboxylate ligands. Polymers 2017, 9, 691. [Google Scholar] [CrossRef]
  13. Zhang, Z.Y.; Xiao, L.; Chen, S.S.; Qiao, R.; Yang, S. A novel Zn(II) complex with 4-connected umc topology: Synthesis, crystal structure and luminescent property. Chin. J. Struct. Chem. 2017, 36, 819–824. [Google Scholar]
  14. Zhang, Y.B.; Furukawa, H.; Ko, N.; Nie, W.; Park, H.J.; Okajima, S.; Cordova, K.E.; Deng, H.; Kim, J.; Yaghi, O.M. Introduction of functionality, selection of topology, and enhancement of gas adsorption in multivariate metal–organic framework-177. J. Am. Chem. Soc. 2015, 137, 2641–2650. [Google Scholar] [CrossRef] [PubMed]
  15. Doonan, C.J.; Sumby, C.J. Metal–organic framework catalysis. CrystEngComm 2017, 19, 4044–4048. [Google Scholar] [CrossRef]
  16. King, S.C.; Lin, R.B.; Wang, H.; Arman, H.D.; Chen, B. Two-dimensional metal–organic frameworks for selective separation of CO2/CH4 and CO2/N2. Mater. Chem. Front. 2017, 1, 1514–1519. [Google Scholar] [CrossRef]
  17. Chang, Z.; Zhang, D.S.; Chen, Q.; Li, R.F.; Hu, T.L.; Bu, X.H. Rational construction of 3D pillared metal-organic frameworks: Synthesis, structures, and hydrogen adsorption properties. Inorg. Chem. 2011, 50, 7555–7562. [Google Scholar] [CrossRef] [PubMed]
  18. Zhou, H.; Chen, Q.; Yuan, A.H.; Zhou, H.B.; Shen, X.P.; Chen, L.; Song, Y. A series of lanthanide(III)-bpdo-octacyanotungstate(V) compounds (bpdo = 4,4′-Bipyridine-N,N′-dioxide) involving the structural transformation from ion pair to three-dimensional pillared layer via a two-dimensional layer. Cryst. Growth Des. 2017, 17, 6523–6530. [Google Scholar] [CrossRef]
  19. Tehrani, A.A.; Ghasempour, H.; Morsali, A.; Makhloufi, G.; Janiak, C. Effects of extending the π-electron system of pillaring linkers on fluorescence sensing of aromatic compounds in two isoreticular metal−organic frameworks. Cryst. Growth Des. 2015, 15, 5543–5547. [Google Scholar] [CrossRef]
  20. Lee, C.H.; Wu, J.Y.; Lee, G.H.; Peng, S.M.; Jiang, J.C.; Lu, K.L. Correlation of mesh size of metal−carboxylate layer with degree of interpenetration in pillared-layer frameworks. Cryst. Growth Des. 2014, 14, 5608–5616. [Google Scholar] [CrossRef]
  21. Chen, S.S.; Qiao, R.; Sheng, L.Q.; Zhao, Y.; Yang, S.; Chen, M.M.; Liu, Z.D.; Wang, D.H. Cadmium(II) and zinc(II) complexes with rigid 1-(1H-imidazol-4-yl)-3-(4H-tetrazol-5-yl) benzene and varied carboxylate ligands. CrystEngComm 2013, 15, 5713–5725. [Google Scholar] [CrossRef]
  22. Chen, S.S.; Chen, M.; Takamizawa, S.; Chen, M.S.; Su, Z.; Sun, W.Y. Temperature dependent selective gas sorption of the microporous metal-imidazolate framework [Cu(L)] [H2L=1,4-di(1H-imidazol-4-yl)benzene]. Chem. Commun. 2011, 47, 752–754. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, S.S.; Chen, M.; Takamizawa, S.; Wang, P.; Lv, G.C.; Sun, W.Y. Porous cobalt(II)-imidazolate supramolecular isomeric frameworks with selective gas sorption property. Chem. Commun. 2011, 47, 4902–4904. [Google Scholar] [CrossRef] [PubMed]
  24. Jiang, Z.Q.; Jiang, G.Y.; Hou, D.C.; Wang, F.; Zhao, Z.; Zhang, J. Urothermal synthesis of photoluminescent lanthanide–organic frameworks with unusual topologies. CrystEngComm 2013, 15, 315–323. [Google Scholar] [CrossRef]
  25. He, Y.C.; Yang, J.; Kan, W.Q.; Ma, J.F. An ideal metal–organic rhombic dodecahedron for highly efficient adsorption of dyes in an aqueous solution. CrystEngComm 2013, 15, 848–851. [Google Scholar] [CrossRef]
  26. Jia, J.H.; Athwal, H.S.; Blake, A.J.; Champness, N.R.; Hubberstey, P.; Schröder, M. Increasing nuclearity of secondary building units in porous cobalt(II) metal–organic frameworks: Variation in structure and H2 adsorption. Dalton Trans. 2011, 40, 12342–12349. [Google Scholar] [CrossRef] [PubMed]
  27. Du, M.; Li, C.P.; Liu, C.S.; Fang, S.M. Design and construction of coordination polymers with mixed-ligand synthetic strategy. Coord. Chem. Rev. 2013, 257, 1282–1305. [Google Scholar] [CrossRef]
  28. Sun, Y.X.; Sun, W.Y. Zinc(II)– and cadmium(II)–organic frameworks with 1-imidazole-containing and 1-imidazole-carboxylate ligands. CrystEngComm 2015, 17, 4045–4063. [Google Scholar] [CrossRef]
  29. Chen, S.S.; Sheng, L.Q.; Zhao, Y.; Liu, Z.D.; Qiao, R.; Yang, S. Syntheses, structures, and properties of a series of polyazaheteroaromatic core-based Zn(II) coordination polymers together with carboxylate auxiliary ligands. Cryst. Growth Des. 2016, 16, 229–241. [Google Scholar] [CrossRef]
  30. Qiao, R.; Chen, S.S.; Sheng, L.Q.; Yang, S.; Li, W.D. Syntheses, crystal structures, and properties of four complexes based on polycarboxylate and imidazole ligands. J. Solid State Chem. 2015, 228, 199–207. [Google Scholar] [CrossRef]
  31. Chen, S.S.; Chen, Z.H.; Fan, J.; Okamura, T.-A.; Bai, Z.S.; Lv, M.F.; Sun, W.Y. Synthesis and characterization of metal complexes with mixed 4-imidazole-containing tripodal ligand and varied dicarboxylic acid. Cryst. Growth Des. 2012, 12, 2315–2326. [Google Scholar] [CrossRef]
  32. Chen, S.S.; Zhao, Y.; Fan, J.; Okamura, T.-A.; Bai, Z.S.; Chen, Z.H.; Sun, W.Y. Construction of coordination frameworks based on 4-imidazolyl tecton 1,4-di(1H-imidazol-4-yl)benzene and varied carboxylic acids. CrystEngComm 2012, 14, 3564–3576. [Google Scholar] [CrossRef]
  33. Ten Have, R.; Huisman, M.; Meetsma, A.; van Leusen, A.M. Novel synthesis of 4(5)-monosubstituted imidazoles via cycloaddition of tosylmethyl isocyanide to aldimines. Tetrahedron 1997, 53, 11355–11368. [Google Scholar] [CrossRef]
  34. SAINT, version 6.2; Bruker AXS, Inc.: Madison, WI, USA, 2001.
  35. G.M. Sheldrick SADABS; University of Göttingen: Göttingen, Germany, 1997.
  36. G.M. Sheldrick, SHELXTL; Version 6.10; Bruker Analytical Xray Systems: Madison, WI, USA, 2001.
  37. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7. [Google Scholar] [CrossRef]
  38. Chen, S.S.; Lv, G.C.; Fan, J.; Okamura, T.-A.; Chen, M.; Sun, W.Y. Entangled coordination frameworks with 1,4-di(1H-imidazol-4-yl)benzene. Cryst. Growth Des. 2011, 11, 1082–1090. [Google Scholar] [CrossRef]
  39. Arici, M.; Yeşilel, O.Z.; Taş, M.; Demiral, H. CO2 and iodine uptake properties of Co(II)-coordination polymer constructed from tetracarboxylic acid and flexible bis(imidazole) linker. Cryst. Growth Des. 2017, 17, 2654–2659. [Google Scholar] [CrossRef]
  40. Wang, C.Y.; Wilseck, Z.M.; LaDuca, R.L. 1D + 1D → 1D polyrotaxane, 2D + 2D → 3D interpenetrated, and 3D self-penetrated divalent metal terephthalate bis(pyridylformyl)piperazine coordination polymers. Inorg. Chem. 2011, 50, 8997–9003. [Google Scholar] [CrossRef] [PubMed]
  41. Xu, B.; Lü, J.; Cao, R. Anion-assisted structural variation of cadmium coordination polymers: From 2D → 3D inclined polycatenation to 2D → 3D polythreading. Cryst. Growth Des. 2009, 9, 3003–3005. [Google Scholar] [CrossRef]
  42. Yang, Y.J.; Wang, M.J.; Zhang, K.L. A novel photoluminescent Cd(II)–organic framework exhibiting rapid and efficient multi-responsive fluorescence sensing for trace amounts of Fe3+ ions and some NACs, especially for 4-nitroaniline and 2-methyl-4-nitroaniline. J. Mater. Chem. C 2016, 4, 11404–11418. [Google Scholar] [CrossRef]
  43. Han, L.L.; Wang, S.N.; Jagličić, Z.; Zeng, S.Y.; Zheng, J.; Li, Z.H.; Chen, J.S.; Sun, D. Synthesis, structural versatility and magnetic properties of a series of copper(II) coordination polymers based on bipyrazole and various dicarboxylate ligands. CrystEngComm 2015, 17, 1405–1415. [Google Scholar] [CrossRef]
  44. Nath, J.K.; Mondal, A.; Powell, A.K.; Baruah, J.B. Structures, Magnetic Properties, and Photoluminescence of Dicarboxylate Coordination Polymers of Mn, Co, Ni, Cu Having N-(4-Pyridylmethyl)-1,8-naphthalimide. Cryst. Growth Des. 2014, 14, 4735–4748. [Google Scholar] [CrossRef]
  45. Bordiga, S.; Lamberti, C.; Ricchiardi, G.; Regli, L.; Bonino, F.; Damin, A.; Zecchina, A. Electronic and vibrational properties of a MOF-5 metal–organic framework: ZnO quantum dot behavior. Chem. Commun. 2004, 20, 2300–2301. [Google Scholar] [CrossRef] [PubMed]
  46. Alvaro, M.; Carbonell, E.; Ferrer, B.; Llabrés, F.X.; Xamena, I.; Garcia, H. Semiconductor Behavior of a Metal-Organic Framework (MOF). Chem. Eur. J. 2007, 13, 5106–5112. [Google Scholar] [CrossRef] [PubMed]
  47. Su, J.; Yao, L.; Zhao, M.; Wang, H.; Zhang, Q.; Cheng, L.; Tian, Y. Structural induction effect of a zwitterion pyridiniumolate for metal–organic frameworks. Inorg. Chem. 2015, 54, 6169–6175. [Google Scholar] [CrossRef] [PubMed]
  48. Wang, C.C.; Ke, S.Y.; Cheng, C.W.; Wang, Y.W.; Chiu, H.S.; Ko, Y.C.; Sun, N.K.; Ho, M.L.; Chang, C.K.; Chuang, Y.C.; et al. Four mixed-ligand Zn(II) three-dimensional metal-organic frameworks: Synthesis, structural diversity, and photoluminescent property. Polymers 2017, 9, 644. [Google Scholar] [CrossRef]
  49. Zhu, M.A.; Guo, X.Z.; Chen, S.S. Synthesis, crystal structure and luminescent property of a Zn(II) complex based on 4-imidazole-carboxylate ligand. Chin. J. Struct. Chem. 2017, 36, 1348–1354. [Google Scholar]
  50. Shi, Z.; Pan, Z.; Jia, H.; Chen, S.; Qin, L.; Zheng, H. Zn(II)/Cd(II) terephthalate coordination polymers incorporating bi-, tri-, and tetratopic phenylamine derivatives: Crystal structures and photoluminescent properties. Cryst. Growth Des. 2016, 16, 2747–2755. [Google Scholar] [CrossRef]
  51. Liu, Y.Y.; Liu, H.Y.; Ma, J.F.; Yang, Y.; Yang, J. Syntheses, structures and photoluminescent properties of Zn(II) and Cd(II) coordination polymers with flexible tripodal triazole-containing ligands. CrystEngComm 2013, 15, 1897–1907. [Google Scholar] [CrossRef]
  52. Han, Y.F.; Zhou, X.H.; Zheng, Y.X.; Shen, Z.; Song, Y.; You, X.Z. Syntheses, structures, photoluminescence, and magnetic properties of nanoporous 3D lanthanide coordination polymers with 4,4′-biphenyldicarboxylate ligand. CrystEngComm 2008, 10, 1237–1242. [Google Scholar] [CrossRef]
  53. Wang, X.; Qin, C.; Wang, E.; Li, Y.; Hao, N.; Hu, C.; Xu, L. Syntheses, structures, and photoluminescence of a novel class of d10 metal complexes constructed from pyridine-3,4-dicarboxylic acid with different coordination architectures. Inorg. Chem. 2004, 43, 1850–1856. [Google Scholar] [CrossRef] [PubMed]
  54. Hua, J.A.; Zhao, Y.; Liu, Q.; Zhao, D.; Chen, K.; Sun, W.Y. Zinc(II) coordination polymers with substituted benzenedicarboxylate and tripodal imidazole ligands: Syntheses, structures and properties. CrystEngComm 2014, 16, 7536–7546. [Google Scholar] [CrossRef]
  55. Li, Y.W.; Ma, H.; Chen, Y.Q.; He, K.H.; Li, Z.X.; Bu, X.H. Structure modulation in Zn(II)–1,4-bis(imidazol-1-yl)benzene frameworks by varying dicarboxylate anions. Cryst. Growth Des. 2012, 12, 189–196. [Google Scholar] [CrossRef]
  56. Sun, Y.; Sun, Y.; Zheng, H.; Wang, H.; Han, Y.; Wang, L. Four calcium(II) coordination polymers based on 2,5-dibromoterephthalic acid and different N-donor organic species: Syntheses, structures, topologies, and luminescence properties. CrystEngComm 2016, 18, 8664–8671. [Google Scholar] [CrossRef]
  57. Gu, Z.G.; Liu, Y.T.; Hong, X.J.; Zhan, Q.G.; Zheng, Z.P.; Zheng, S.R.; Li, W.S.; Hu, S.J.; Cai, Y.P. Construction of metal-imidazole-based dicarboxylate networks with topological diversity: Thermal stability, gas adsorption, and fluorescent emission properties. Cryst. Growth Des. 2012, 12, 2178–2186. [Google Scholar] [CrossRef]
  58. Zhang, L.Y.; Zhang, J.P.; Lin, Y.Y.; Chen, X.M. Syntheses, structures, and photoluminescence of three coordination polymers of cadmium dicarboxylates. Cryst. Growth Des. 2006, 6, 1684–1689. [Google Scholar] [CrossRef]
  59. Zhang, M.; Feng, G.; Song, Z.; Zhou, Y.P.; Chao, H.Y.; Yuan, D.; Tan, T.T.; Guo, Z.; Hu, Z.; Tang, B.Z.; et al. Two-dimensional metal–organic framework with wide channels and responsive turn-on fluorescence for the chemical sensing of volatile organic compounds. J. Am. Chem. Soc. 2014, 136, 7241–7244. [Google Scholar] [CrossRef] [PubMed]
  60. Ye, R.P.; Zhang, X.; Zhai, J.Q.; Qin, Y.Y.; Zhang, L.; Yao, Y.G.; Zhang, J. N-donor ligands enhancing luminescence properties of seven Zn/Cd(II) MOFs based on a large rigid π-conjugated carboxylate ligand. CrystEngComm 2015, 17, 9155–9166. [Google Scholar] [CrossRef]
  61. Yang, D.L.; Zhang, X.; Yao, Y.G.; Zhang, J. Structure versatility of coordination polymers constructed from a semirigid ligand and polynuclear metal clusters. CrystEngComm 2014, 16, 8047–8057. [Google Scholar] [CrossRef]
  62. Liu, Y.Y.; Ma, J.F.; Yang, J.; Ma, J.C.; Su, Z.M. Versatile frameworks constructed from divalent metals and 1,2,3,4-butanetetracarboxylate anion: Syntheses, crystal structures, luminescence and magnetic properties. CrystEngComm 2008, 10, 894–904. [Google Scholar] [CrossRef]
  63. Chen, M.S.; Chen, M.; Okamura, T.-A.; Sun, W.Y.; Ueyama, N. Porous zinc(II) frameworks with 5-(isonicotinamido)isophthalate: Syntheses, structures and properties. Microporous Mesoporous Mater. 2011, 139, 25–30. [Google Scholar] [CrossRef]
  64. Bhunia, A.; Vasylyeva, V.; Janiak, C. From a supramolecular tetranitrile to a porous covalent triazine-based framework with high gas uptake capacities. Chem. Commun. 2013, 49, 3961–3963. [Google Scholar] [CrossRef] [PubMed]
  65. Mondal, S.S.; Dey, S.; Baburin, I.A.; Kelling, A.; Schilde, U.; Seifert, G.; Janiak, C.; Holdt, H.-J. Syntheses of two imidazolate-4-amide-5-imidate linker-based hexagonal metal–organic frameworks with flexible ethoxy substituent. CrystEngComm 2013, 15, 9394–9399. [Google Scholar] [CrossRef]
Polymers 10 00622 sch001 550
Scheme 1. The scheme of coordination modes of H2mpa and L ligands in 1–4.
Scheme 1. The scheme of coordination modes of H2mpa and L ligands in 1–4.
Polymers 10 00622 sch001
Polymers 10 00622 g001 550
Figure 1. (a) The coordination environment of the Cu(II) atoms in 1 with the ellipsoids drawn at the 30% probability level. The hydrogen atoms and free water molecules are omitted for clarity. Symmetry code: A -x, 2 - y, 1 - z, B -x, 2 - y, -z; (b) 2D network of 1; (c) 3D structure of 1 constructed from the 2D networks (yellow) pillared by L ligands (blue); (d) schematic representation of the binodal (4, 4)-connected 3D framework of 1 with CdSO4 topology with Schläfli symbol (65·8).
Figure 1. (a) The coordination environment of the Cu(II) atoms in 1 with the ellipsoids drawn at the 30% probability level. The hydrogen atoms and free water molecules are omitted for clarity. Symmetry code: A -x, 2 - y, 1 - z, B -x, 2 - y, -z; (b) 2D network of 1; (c) 3D structure of 1 constructed from the 2D networks (yellow) pillared by L ligands (blue); (d) schematic representation of the binodal (4, 4)-connected 3D framework of 1 with CdSO4 topology with Schläfli symbol (65·8).
Polymers 10 00622 g001
Polymers 10 00622 g002 550
Figure 2. (a) The coordination environment of the Co(II) atoms in 2 with the ellipsoids drawn at the 30% probability level. The hydrogen atoms and free water molecules are omitted for clarity. Symmetry code: A -x, 2 - y, 2 - z, B -0.5 - x, 0.5 + y, 0.5 - z; (b) 2D network of 2; (c) schematic representation of 2D network with (4, 4) topology in complex 2; (d) 3D framework of 2 linked by hydrogen bonds indicated by a dashed line (different color represents 2D layer).
Figure 2. (a) The coordination environment of the Co(II) atoms in 2 with the ellipsoids drawn at the 30% probability level. The hydrogen atoms and free water molecules are omitted for clarity. Symmetry code: A -x, 2 - y, 2 - z, B -0.5 - x, 0.5 + y, 0.5 - z; (b) 2D network of 2; (c) schematic representation of 2D network with (4, 4) topology in complex 2; (d) 3D framework of 2 linked by hydrogen bonds indicated by a dashed line (different color represents 2D layer).
Polymers 10 00622 g002
Polymers 10 00622 g003 550

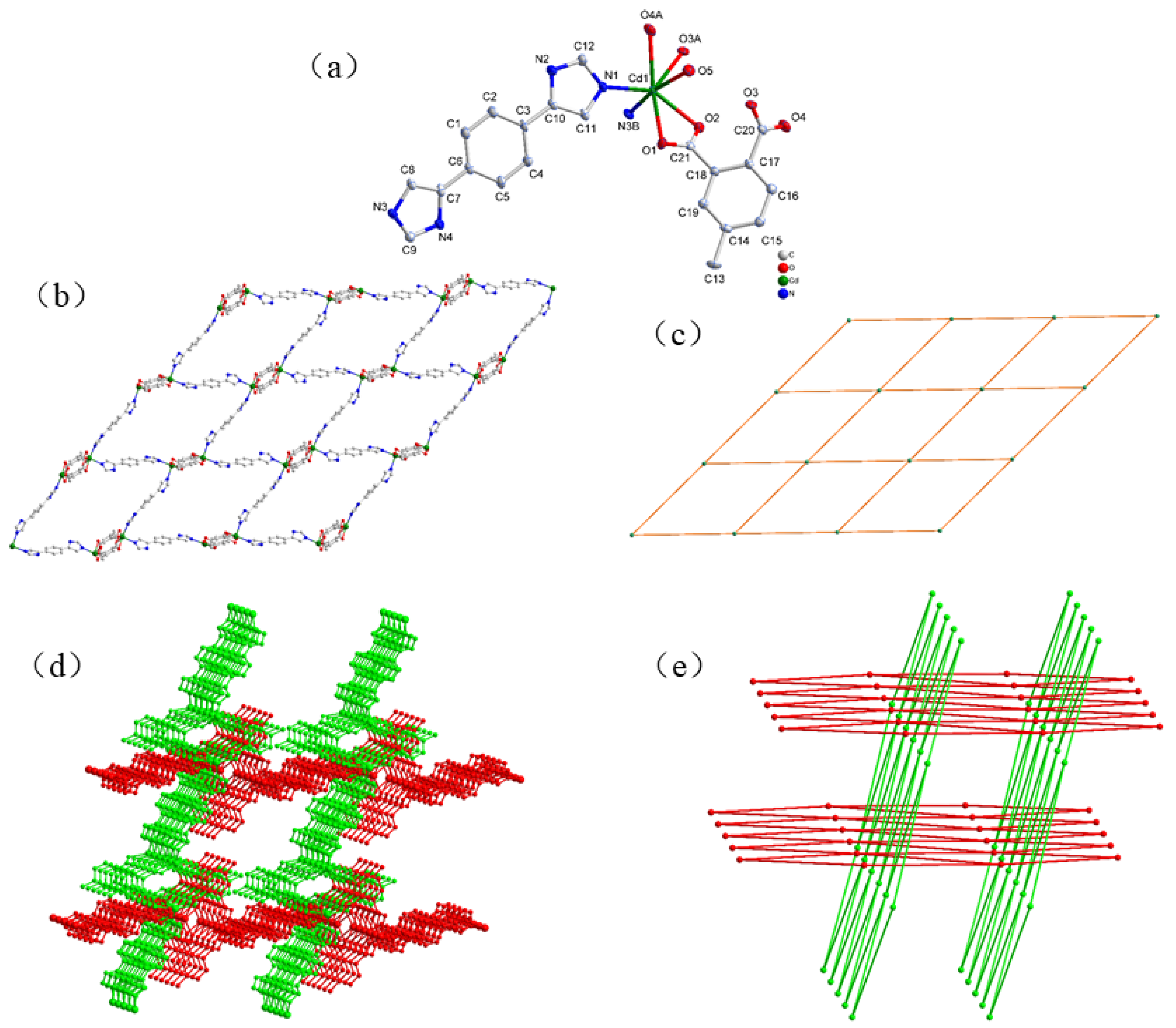

Figure 3. (a) The coordination environment of the Cd(II) atoms in 4 with the ellipsoids drawn at the 30% probability level. The hydrogen atoms and water molecules are omitted for clarity. Symmetry code: A 1 − x, −0.5 + y, 0.5 − z, B −x, −y, 1 − z; (b) 2D network of 4; (c) schematic representation of 2D network with (4, 4) topology in complex 4; (d) mutual interpenetration of parallel sets of layers in 4 (different color represents 2D layer); (e) schematic illustration of 2D + 2D → 3D mutual inclined interpenetration in 4 (different color represents schematic illustration of 2D).
Figure 3. (a) The coordination environment of the Cd(II) atoms in 4 with the ellipsoids drawn at the 30% probability level. The hydrogen atoms and water molecules are omitted for clarity. Symmetry code: A 1 − x, −0.5 + y, 0.5 − z, B −x, −y, 1 − z; (b) 2D network of 4; (c) schematic representation of 2D network with (4, 4) topology in complex 4; (d) mutual interpenetration of parallel sets of layers in 4 (different color represents 2D layer); (e) schematic illustration of 2D + 2D → 3D mutual inclined interpenetration in 4 (different color represents schematic illustration of 2D).
Polymers 10 00622 g003
Polymers 10 00622 g004 550

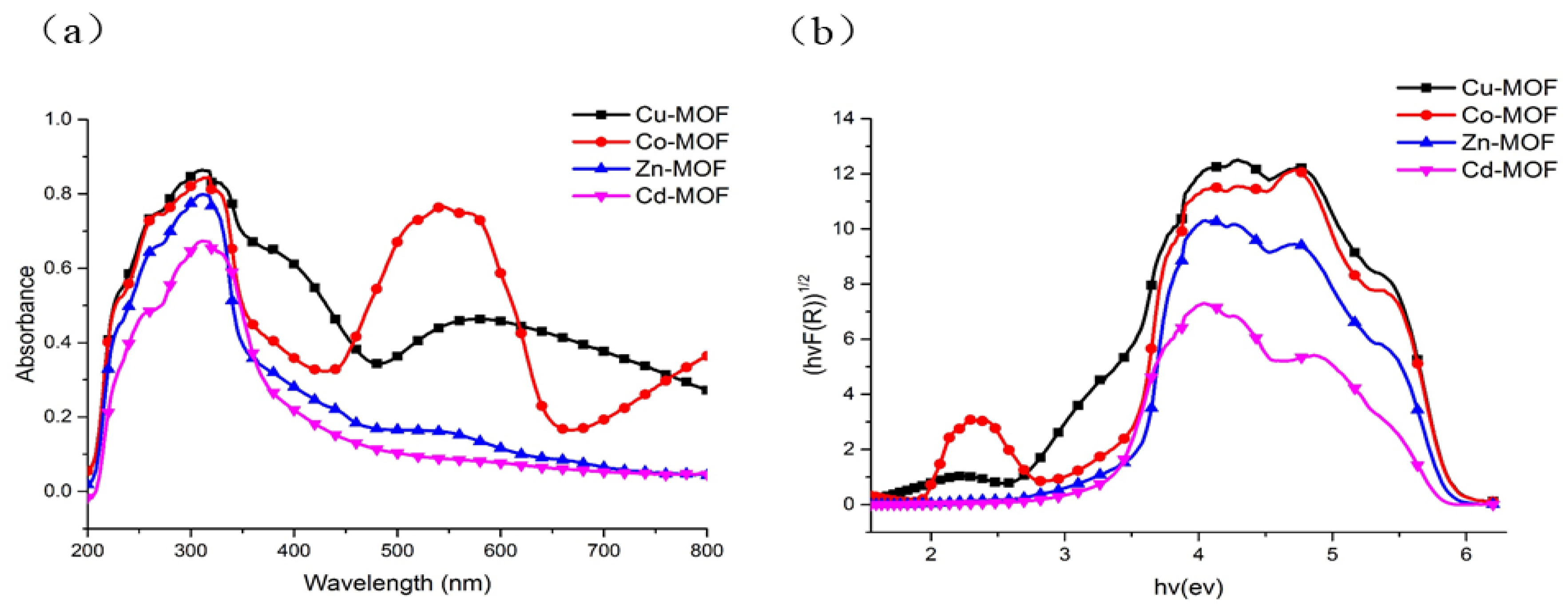

Figure 4. (a) The solid-state diffuse reflectance UV-Vis spectra for the complexes 1–4; (b) The result of the right picture was treated with the Kubelka–Munk function.
Figure 4. (a) The solid-state diffuse reflectance UV-Vis spectra for the complexes 1–4; (b) The result of the right picture was treated with the Kubelka–Munk function.
Polymers 10 00622 g004
Polymers 10 00622 g005 550
Figure 5. Emission spectra of complexes 3 and 4 together with L ligand.
Figure 5. Emission spectra of complexes 3 and 4 together with L ligand.
Polymers 10 00622 g005
Polymers 10 00622 g006 550
Figure 6. The QY and decay curves of compounds 3 (a and b) and 4 (c and d).
Figure 6. The QY and decay curves of compounds 3 (a and b) and 4 (c and d).
Polymers 10 00622 g006
Polymers 10 00622 g007 550
Figure 7. Gas adsorption isotherms of 1′: filled shape, adsorption; open shape, desorption.
Figure 7. Gas adsorption isotherms of 1′: filled shape, adsorption; open shape, desorption.
Polymers 10 00622 g007
Table
Table 1. Crystallographic data and structure refinement details for complexes 1–4.
Table 1. Crystallographic data and structure refinement details for complexes 1–4.
1234
Empirical formulaC21H22N4O7CuC21H18N4O5CoC21H18N4O5ZnC21H20N4O6Cd
Formula weight505.97465.32471.75536.78
Temperature/K296(2)296(2)296(2)296(2)
Crystal systemTriclinicMonoclinicMonoclinicOrthorhombic
Space groupP-1P21/nP21/nPbca
a/Å10.1312(4)11.6926(10)11.8456(13)10.8135(5)
b/Å10.7982(4)16.4817(14)16.6553(18)13.8757(7)
c/Å11.7947(5)11.8661(10)11.8476(11)27.2928(12)
α/°105.8050(10)909090
β/°113.9580(10)112.9970(10)114.445(3)90
γ/°97.6470(10)909090
V (Å3)1090.14(7)2105.0(3)2127.9(4)4095.1(3)
Z, Dcalc/(Mg/m3)2, 1.5414, 1.4684, 1.4668, 1.728
F(000)5229569602128
θ range/°2.97–27.592.07–27.462.25–26.022.40–26.02
Reflections collected22902125812541646938
Independent reflections5040473841664030
Goodness-of-fit on F21.0531.0191.0591.096
R1 [I > 2σ (I)] a505.97465.32471.75536.78
wR2 [I > 2σ (I)] b296(2)296(2)296(2)296(2)
aR1 = Σ||Fo| − |Fc||/Σ|Fo|; b wR2 = |Σw(|Fo|2 − |Fc|2)|/Σ|w(Fo)2|1/2, where w = 1/[σ2(Fo2) + (aP)2 + bP]. P = (Fo2 + 2Fc2)/3.

Share and Cite

MDPI and ACS Style

Li, W.-D.; Li, J.-L.; Guo, X.-Z.; Zhang, Z.-Y.; Chen, S.-S. Metal(II) Coordination Polymers Derived from Mixed 4-Imidazole Ligands and Carboxylates: Syntheses, Topological Structures, and Properties. Polymers 2018, 10, 622. https://doi.org/10.3390/polym10060622

AMA Style

Li W-D, Li J-L, Guo X-Z, Zhang Z-Y, Chen S-S. Metal(II) Coordination Polymers Derived from Mixed 4-Imidazole Ligands and Carboxylates: Syntheses, Topological Structures, and Properties. Polymers. 2018; 10(6):622. https://doi.org/10.3390/polym10060622

Chicago/Turabian Style

Li, Wei-Dong, Jia-Le Li, Xing-Zhe Guo, Zhi-You Zhang, and Shui-Sheng Chen. 2018. "Metal(II) Coordination Polymers Derived from Mixed 4-Imidazole Ligands and Carboxylates: Syntheses, Topological Structures, and Properties" Polymers 10, no. 6: 622. https://doi.org/10.3390/polym10060622

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
