Next Article in Journal
High Performance Soluble Polyimides from Ladder-Type Fluorinated Dianhydride with Polymorphism
Next Article in Special Issue
Polymorphic Behavior and Phase Transition of Poly(1-Butene) and Its Copolymers
Previous Article in Journal
Hybrid Materials Based on Poly-3-amine-7-methylamine-2-methylphenazine and Magnetite Nanoparticles Immobilized on Single-Walled Carbon Nanotubes
Previous Article in Special Issue
Crystalline Modification and Its Effects on Dielectric Breakdown Strength and Space Charge Behavior in Isotactic Polypropylene
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Polymers 2018, 10(5), 545;

Lamellae Assembly in Dendritic Spherulites of Poly(l-lactic Acid) Crystallized with Poly(p-Vinyl Phenol)

Department of Chemical Engineering, Institut Teknologi Sepuluh Nopember, Surabaya 60111, Indonesia
Department of Chemical Engineering, National Cheng Kung University, Tainan 701-01, Taiwan
State Key Laboratory of High-Efficiency Coal Utilization and Green Chemical Engineering, Ningxia University, Yinchuan 750021, China
Department of Chemical Engineering, Indian Institute of Technology Guwahati, Assam 781039, India
Author to whom correspondence should be addressed.
Received: 19 April 2018 / Revised: 8 May 2018 / Accepted: 14 May 2018 / Published: 18 May 2018
(This article belongs to the Special Issue Phase Behavior in Polymers)
Full-Text   |   PDF [12549 KB, uploaded 22 May 2018]   |

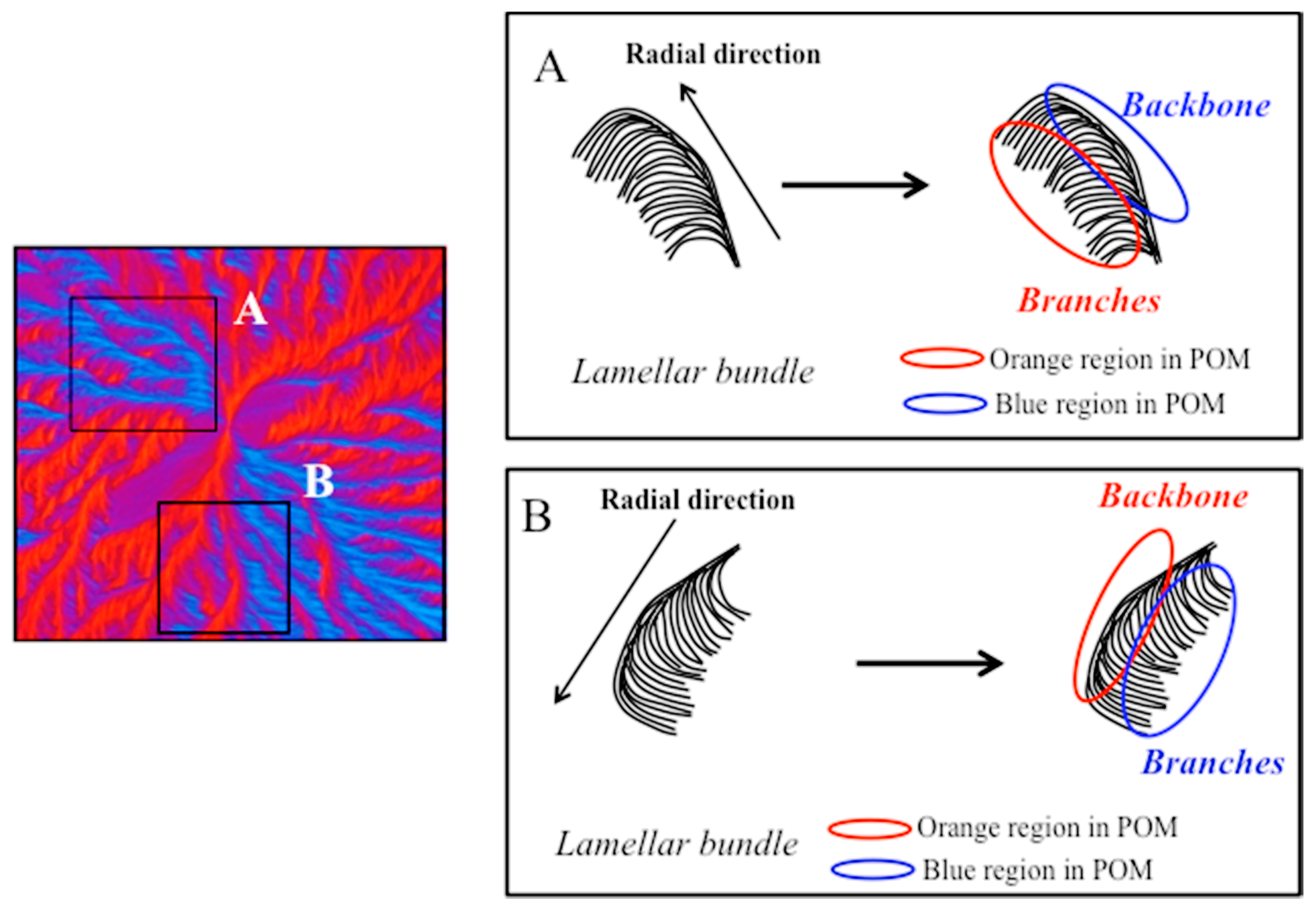

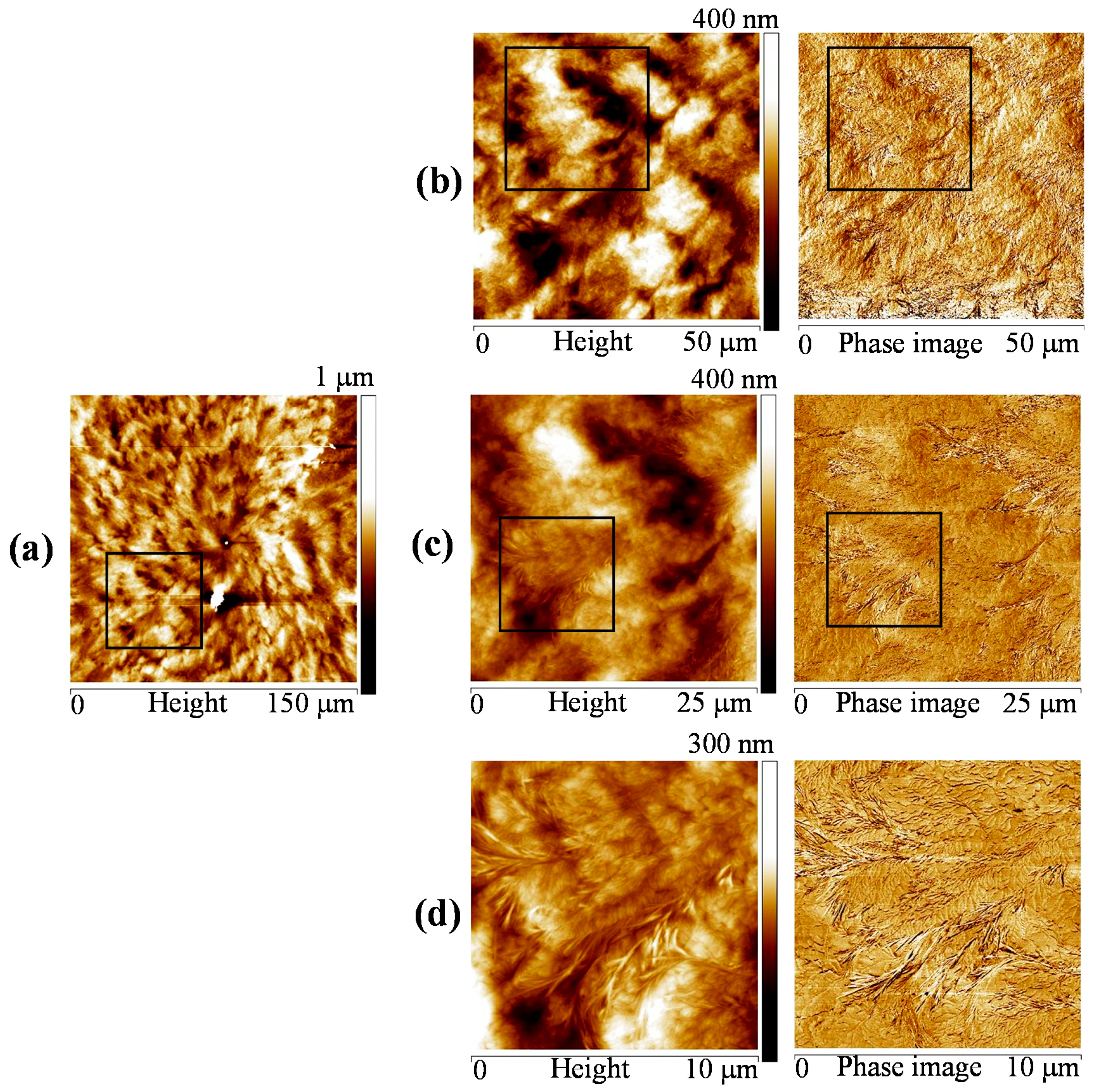

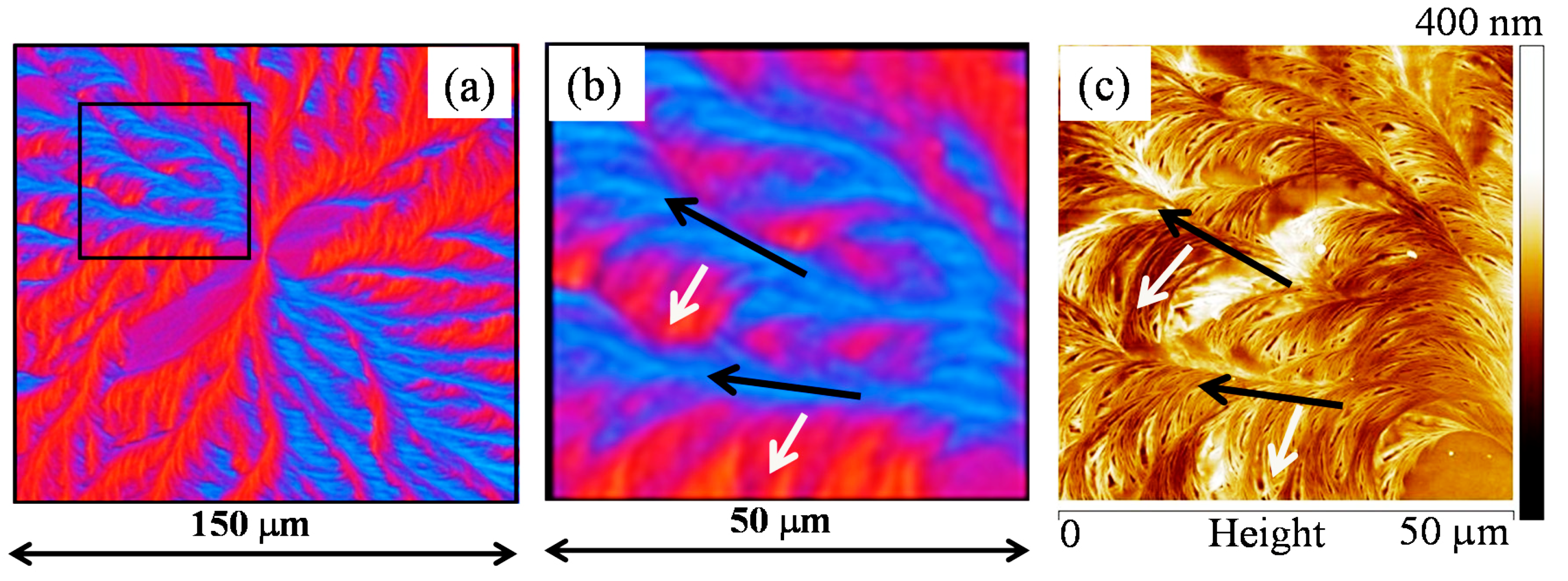

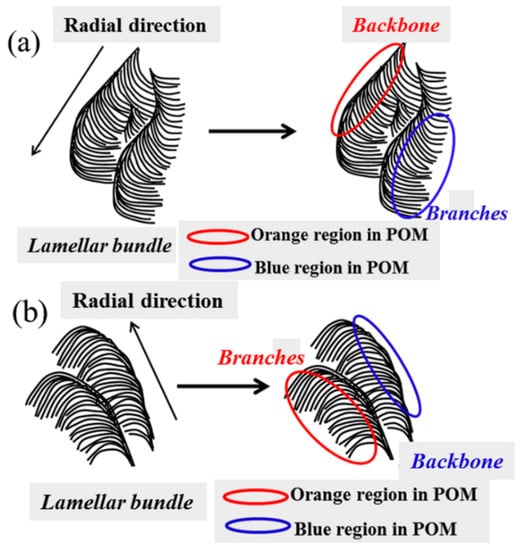

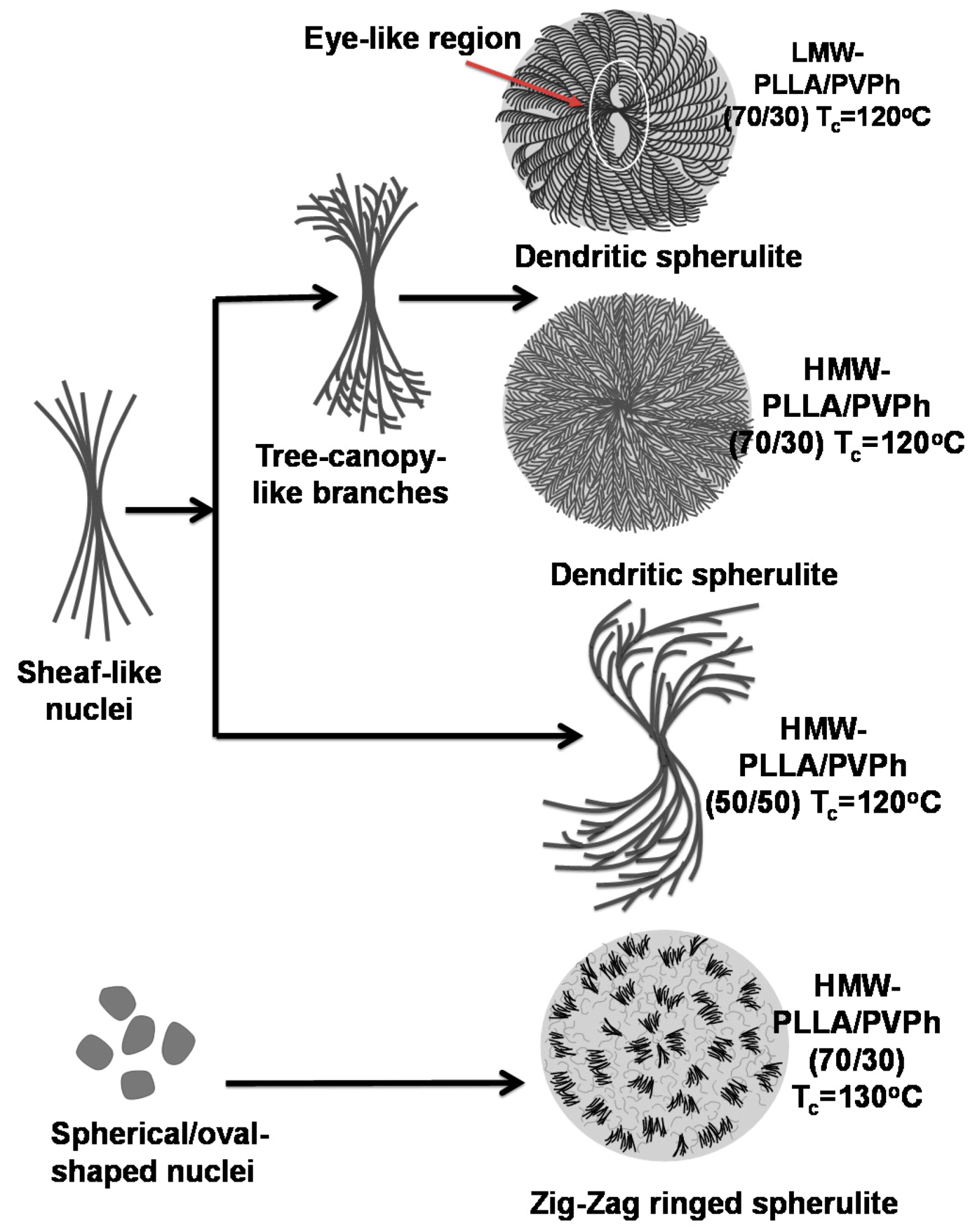

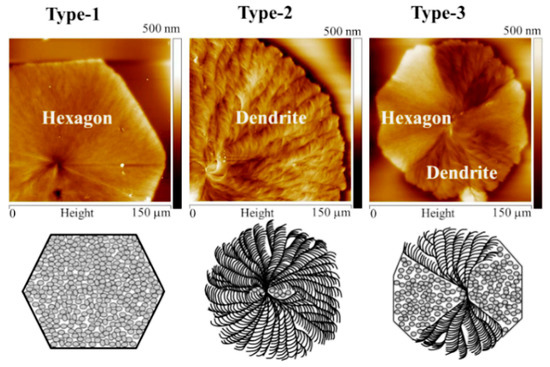

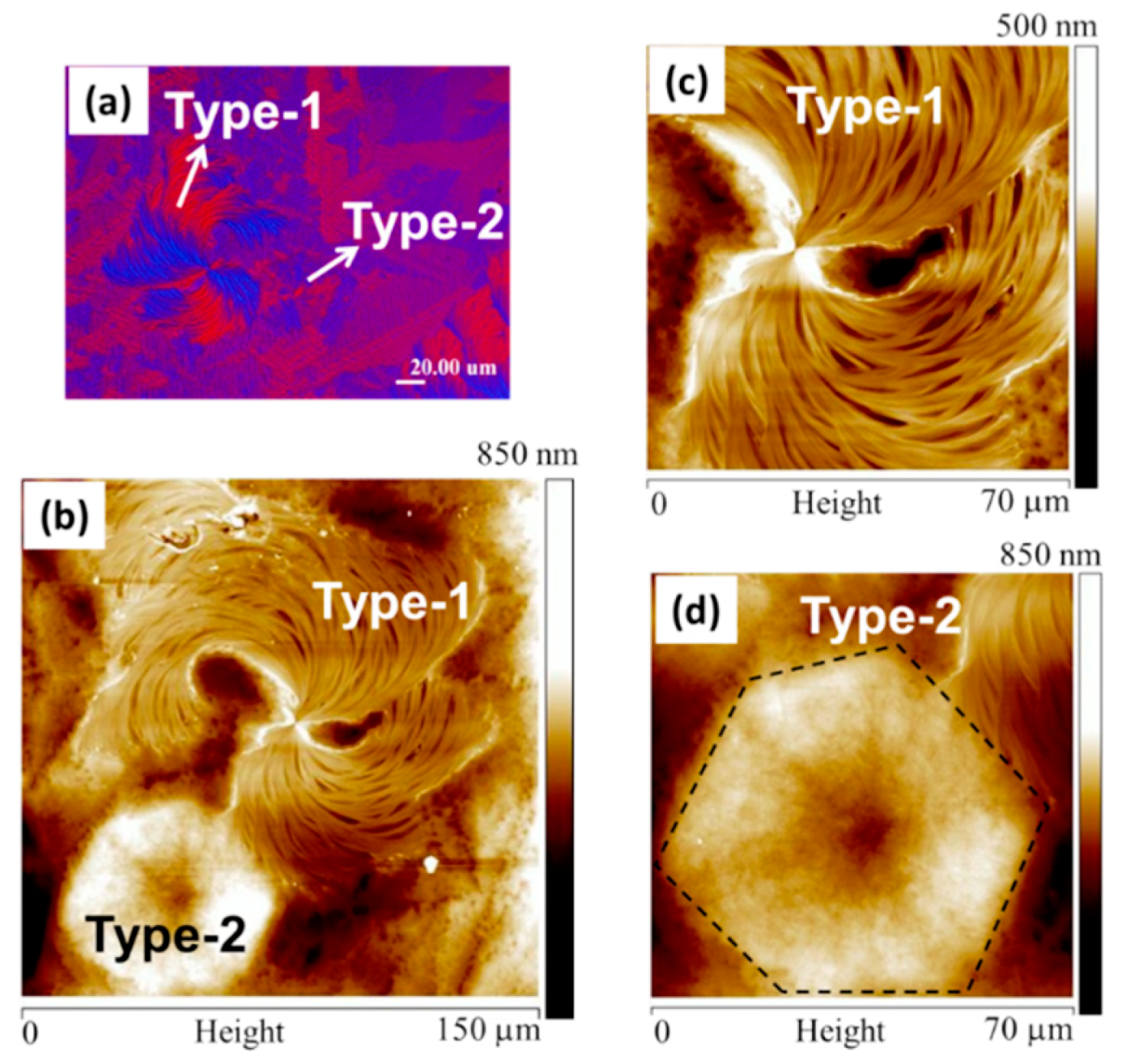

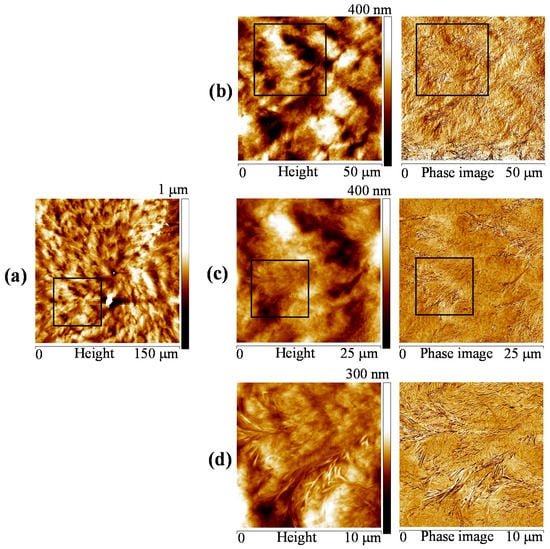

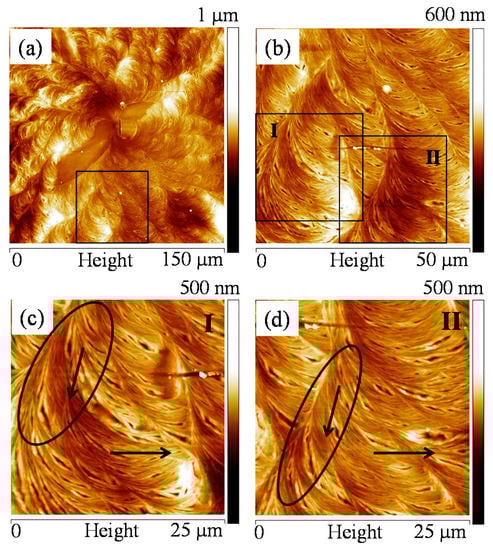

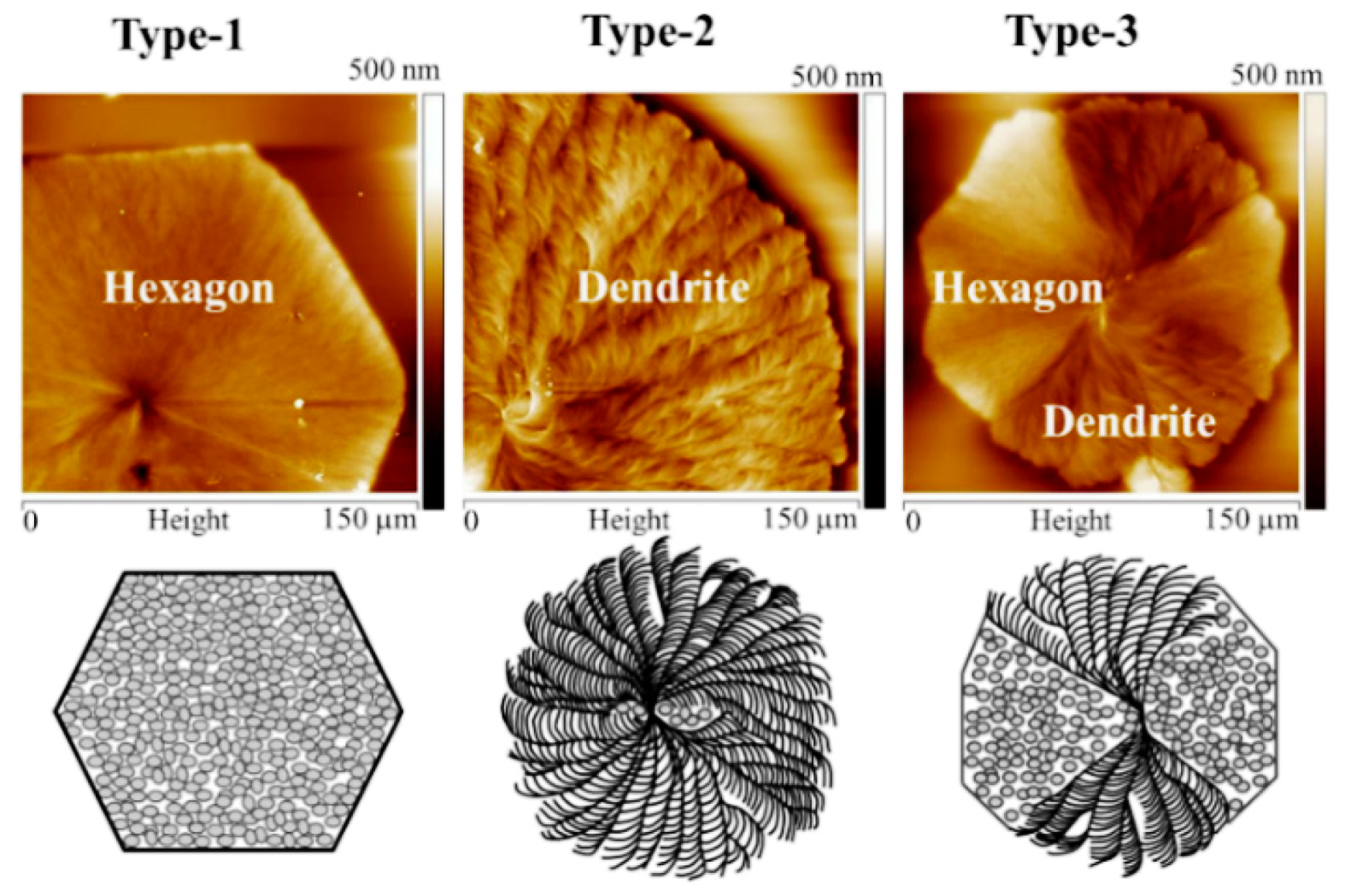

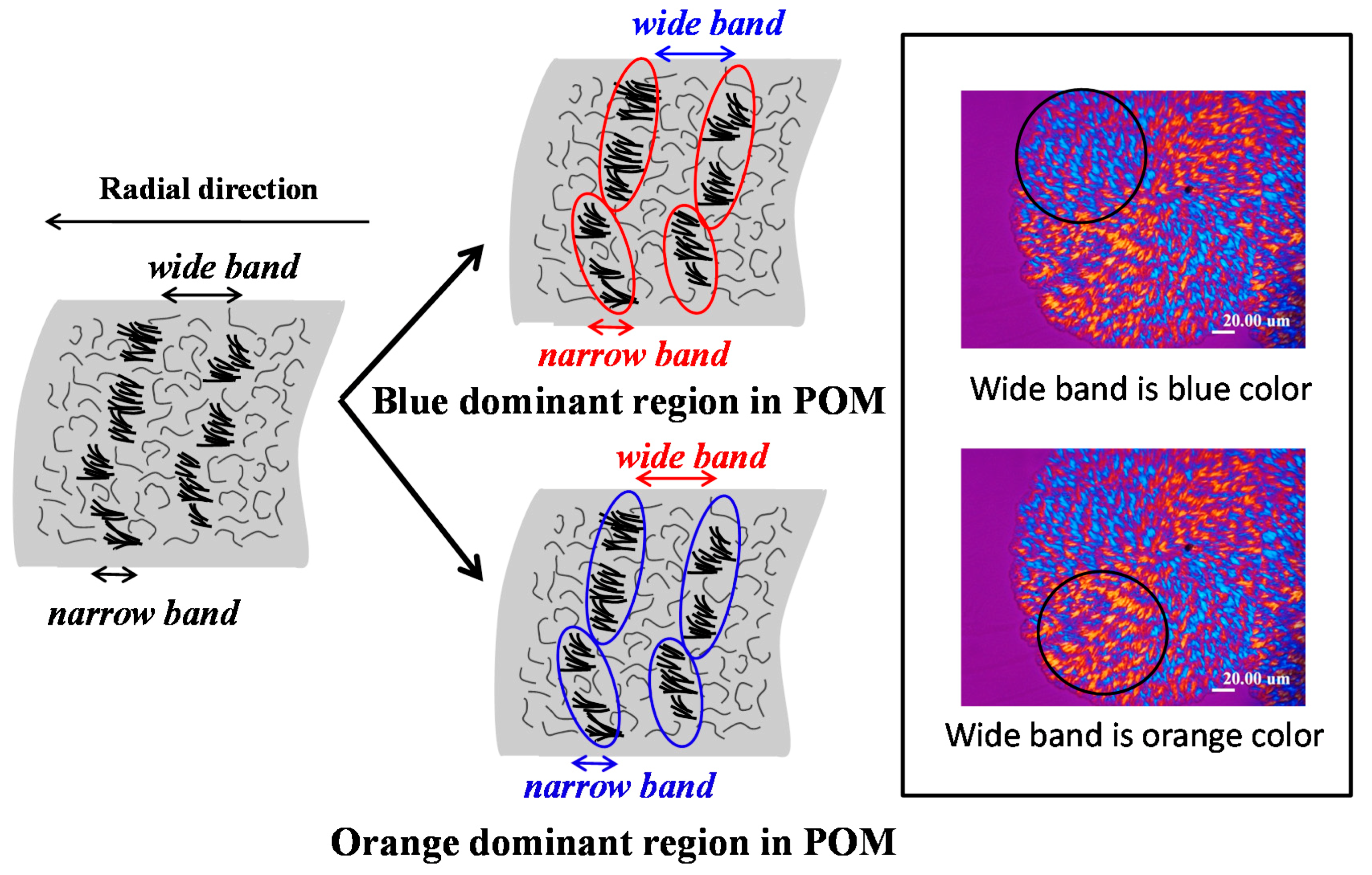

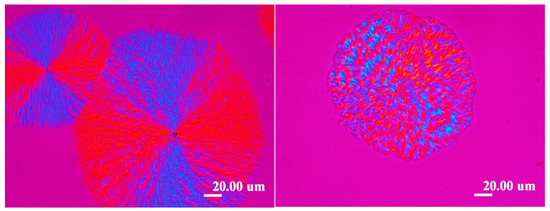

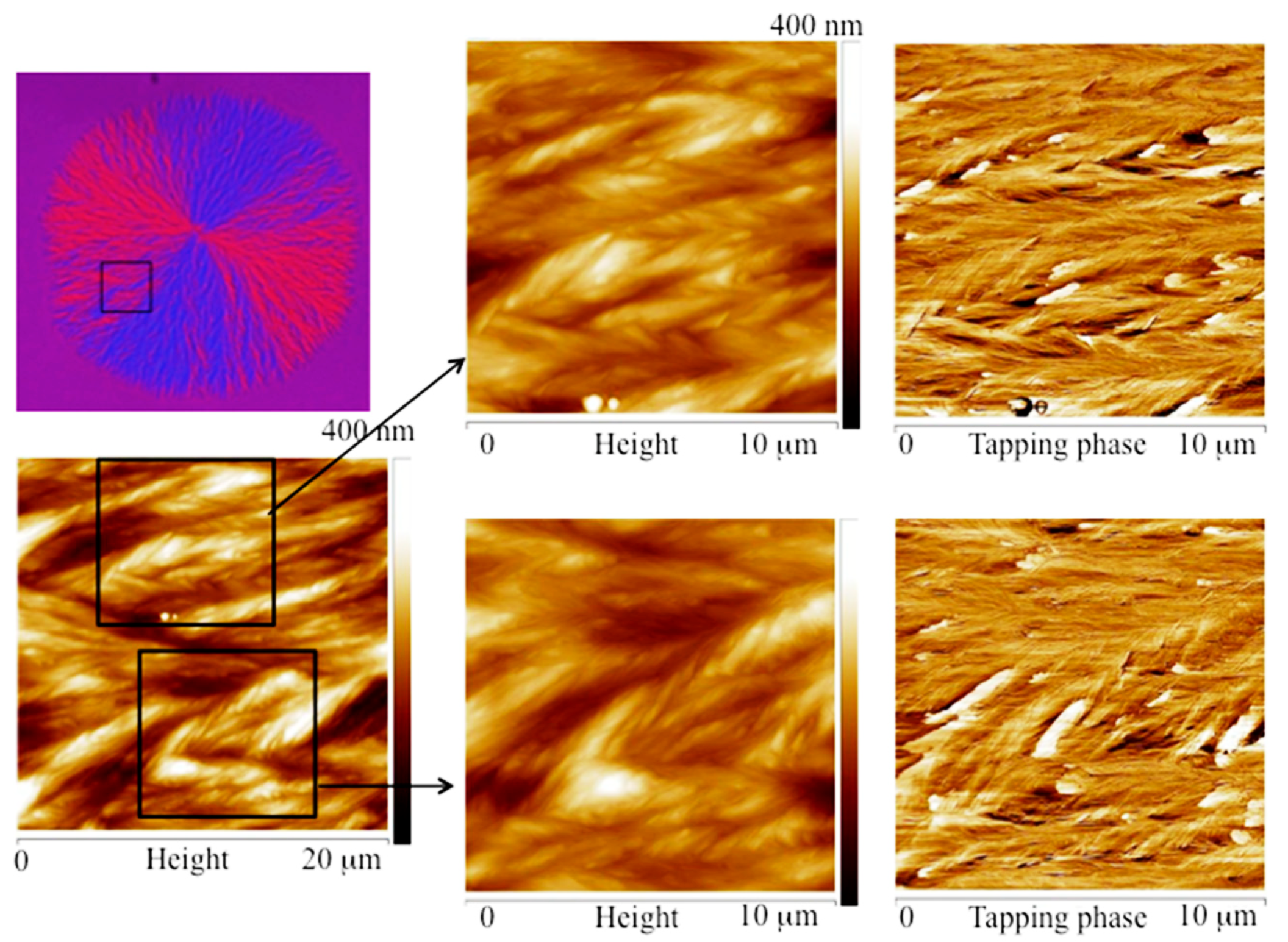

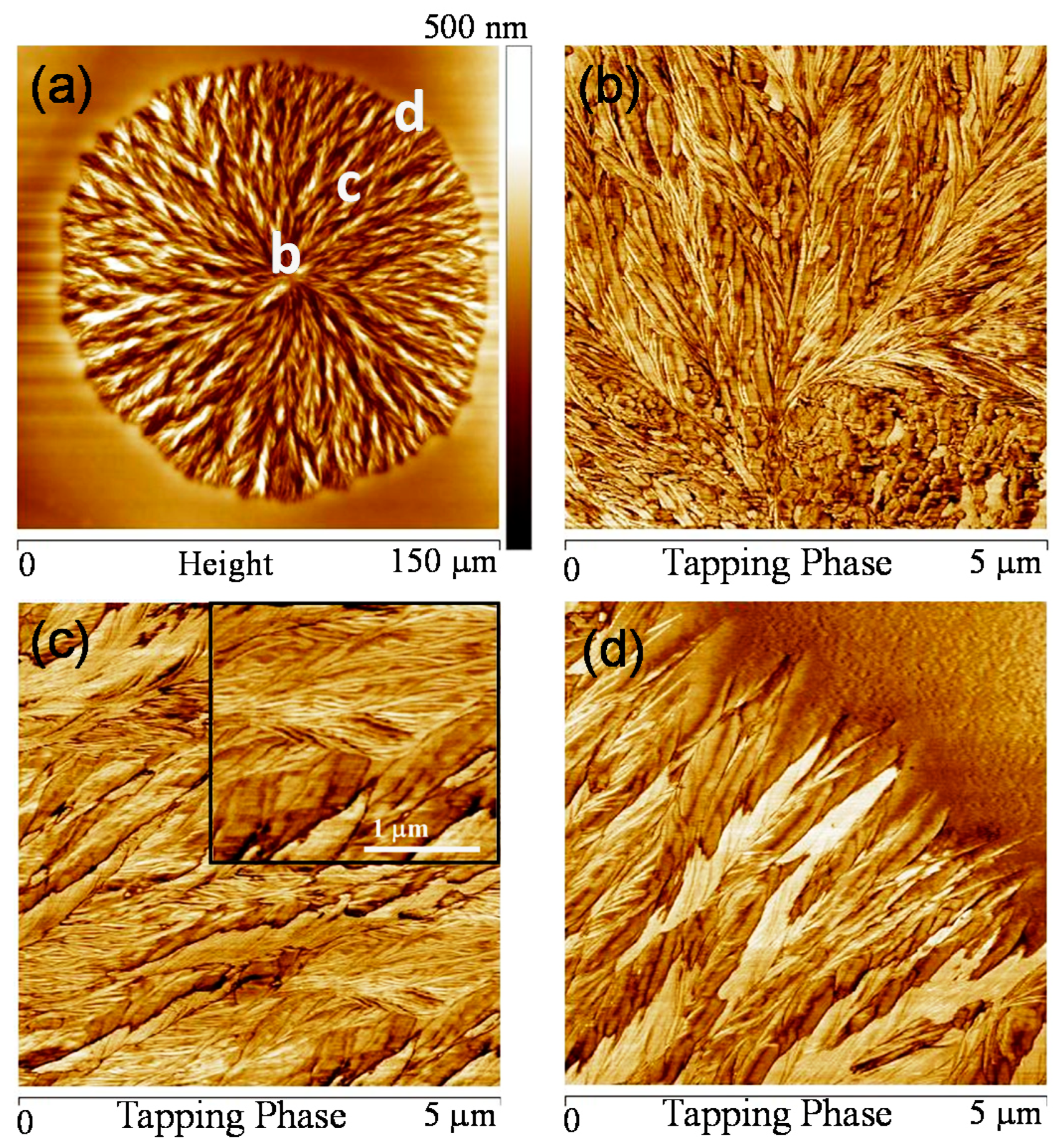

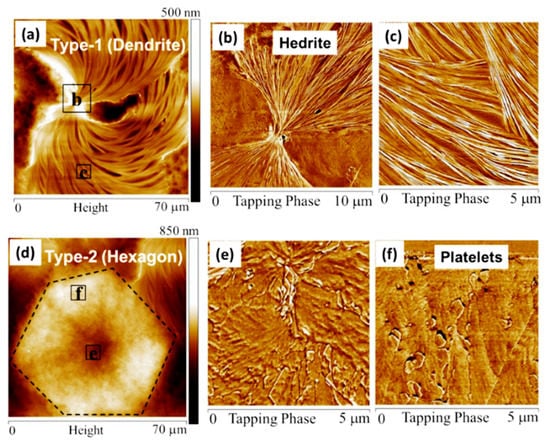

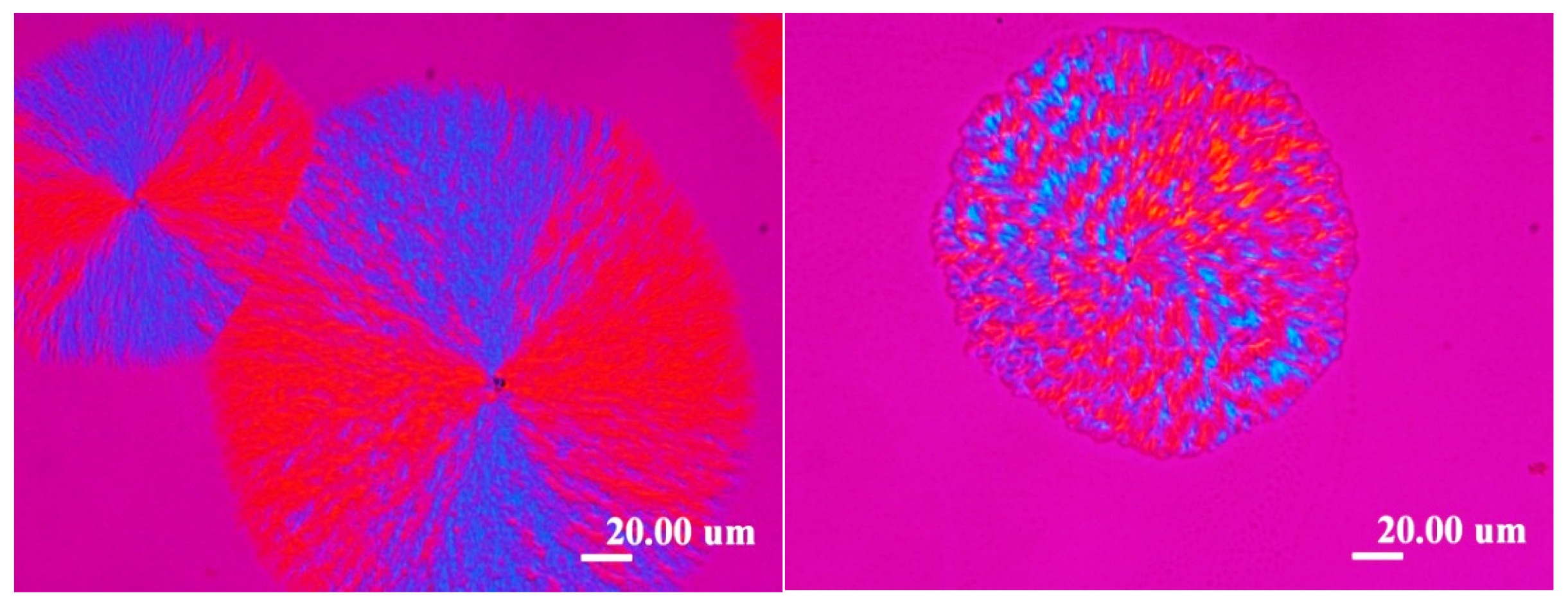

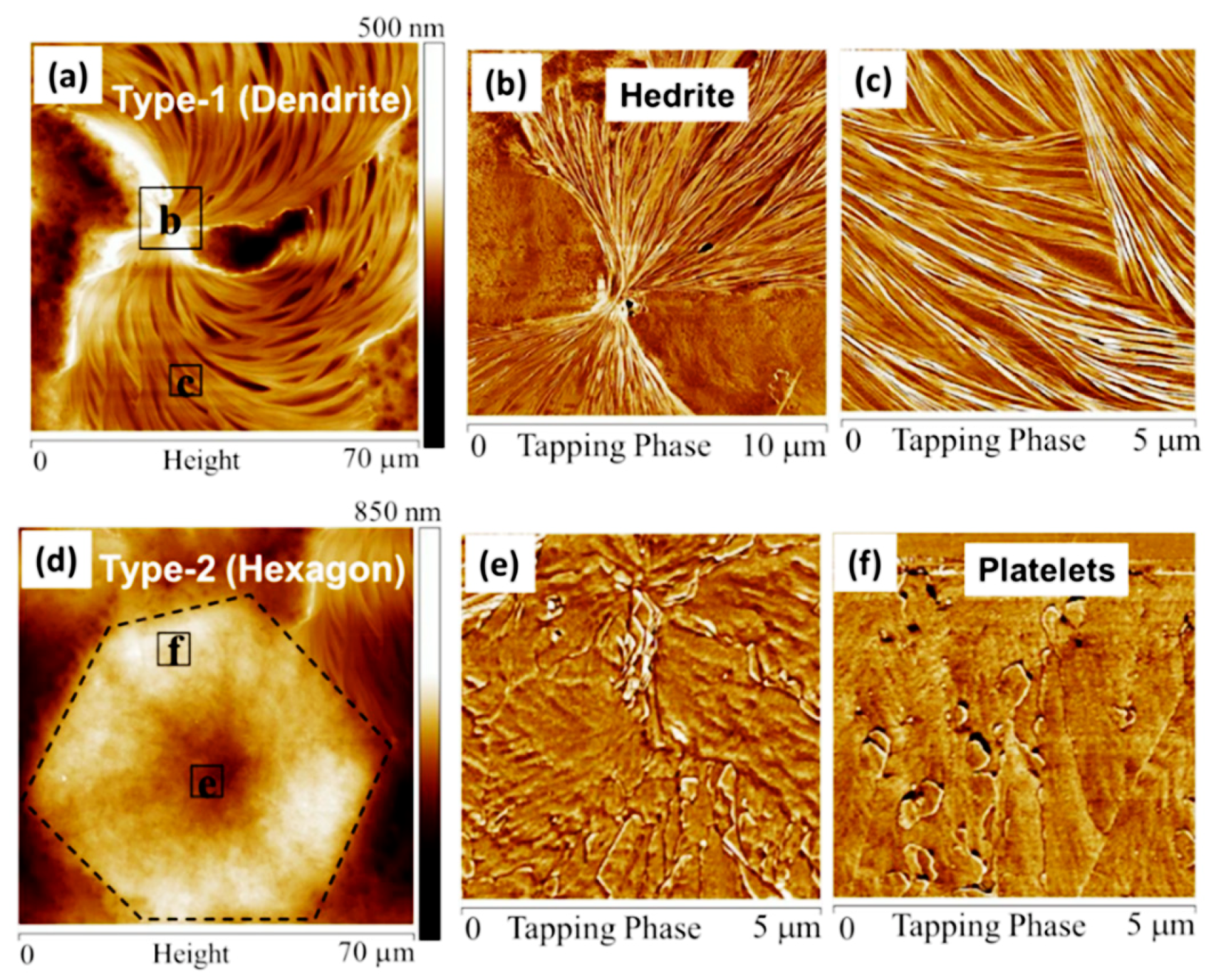

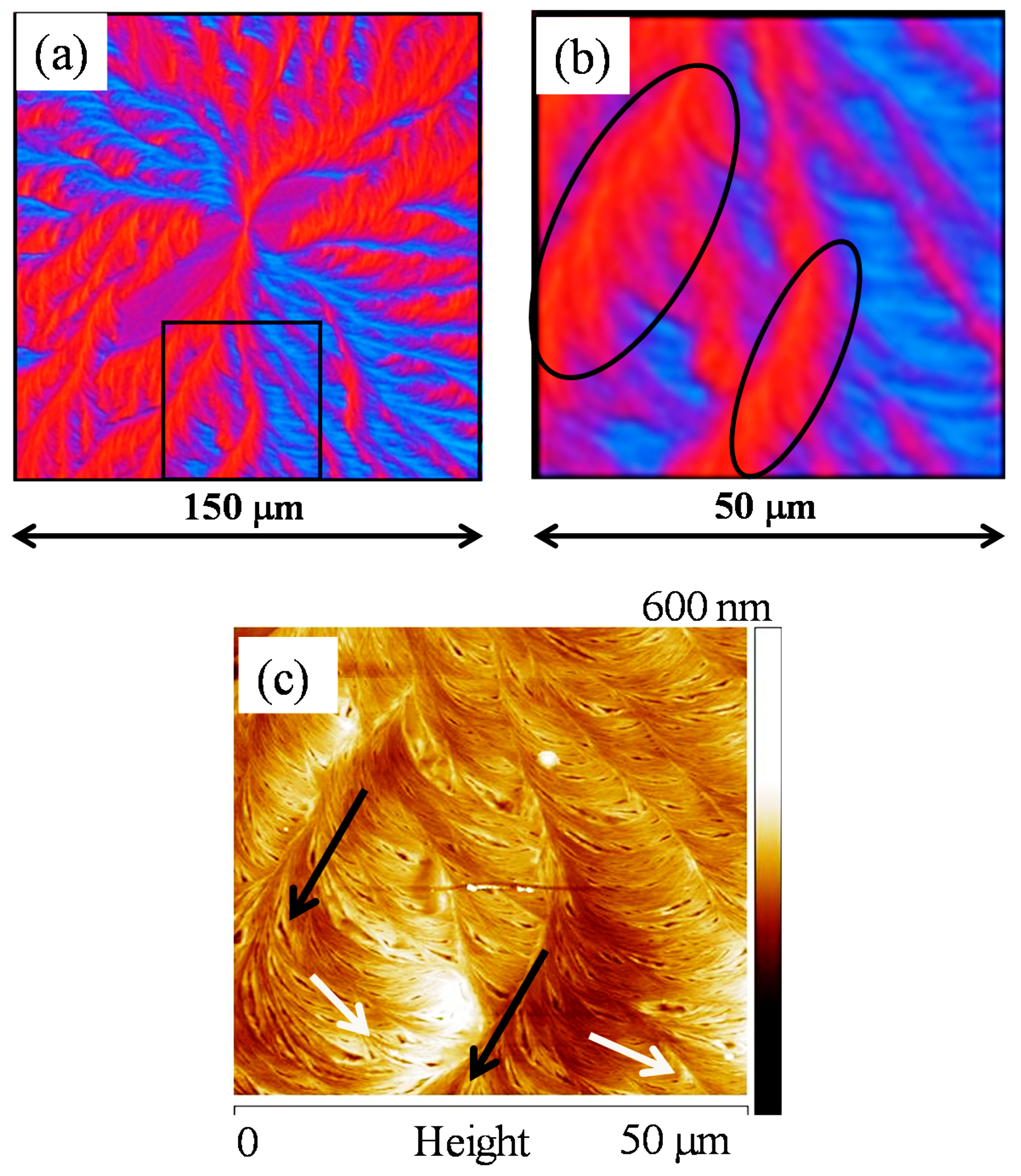

Lamellar assembly with fractal-patterned growth into dendritic and ringed spherulites of crystallized poly(l-lactic acid) (PLLA), of two molecular weight (MW) grades and crystallized at (temperature of crystallization) Tc = 120 and 130 °C, respectively, are evaluated using optical and atomic-force microscopies. The results of surface-relief patterns in correlation with interior microscopy analyses in this work strongly indicate that the observed birefringence changes in PLLA polymer dendritic or ringed spherulites (from blue to orange, or to optical extinction) need not be definitely associated with the continuous helix twisting of lamellae; they can be caused by sudden and discontinuous lamellae branching at intersected angles with respect to the original main lamellae, as proven in the case of dendritic and zig-zag rough-ringed spherulites. Intersection angles between the main stalks and branches tend to be governed by polymer crystal lattices; for PLLA, the orthorhombic lattice (α-form) usually gives a 60° angle of branching and hexagonal growth. The branching lamellae then further bend to convex or concave shapes and finally make a 60–90° angle with respect to the main stalks. Such mechanisms are proven to exist in the straight dendritic/striped high-molecular weight (HMW)-PLLA spherulites (Tc = 120 °C); similar mechanisms also work in circularly ringed (Tc = 130 °C) HMW-PLLA spherulites. View Full-Text
Keywords: poly(l-lactic acid); birefringence; dendrites; ringed spherulites poly(l-lactic acid); birefringence; dendrites; ringed spherulites

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Siti, N.; Woo, E.M.; Yeh, Y.-T.; Luo, F.; Katiyar, V. Lamellae Assembly in Dendritic Spherulites of Poly(l-lactic Acid) Crystallized with Poly(p-Vinyl Phenol). Polymers 2018, 10, 545.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
