Next Article in Journal
Magnetic Nanoparticles Coated with a Thermosensitive Polymer with Hyperthermia Properties
Next Article in Special Issue
Renewable, Eugenol—Modified Polystyrene Layer for Liquid Crystal Orientation
Previous Article in Journal
Recent Development in ITO-free Flexible Polymer Solar Cells
Previous Article in Special Issue
Cardanol Groups Grafted on Poly(vinyl chloride)—Synthesis, Performance and Plasticization Mechanism
Open AccessArticle

Crystallization and Stereocomplexation of PLA-mb-PBS Multi-Block Copolymers

Grupo de Polímeros USB, Departamento de Ciencia de los Materiales, Universidad Simón Bolívar, Apartado 89000, 1080-A Caracas, Venezuela
Laboratory of Polymeric and Composite Materials, Center of Innovation and Research in Materials & Polymers (CIRMAP), University of Mons-Hainaut, Place du Parc 20, B-7000 Mons, Belgium
Instituto de Ciencia y Tecnología de Polímeros, CSIC, c/Juan de la Cierva 3, 28006 Madrid, Spain
Polymat and Polymer Science and Technology Department, Faculty of Chemistry, University of the Basque Country UPV/EHU, Paseo Manuel de Lardizabal 3, 20018 Donostia-San Sebastián, Spain
Ikerbasque, Basque Foundation for Science, 48013 Bilbao, Spain
Author to whom correspondence should be addressed.
Polymers 2018, 10(1), 8;
Received: 29 November 2017 / Revised: 13 December 2017 / Accepted: 20 December 2017 / Published: 22 December 2017
(This article belongs to the Special Issue Polymers from Renewable Resources)

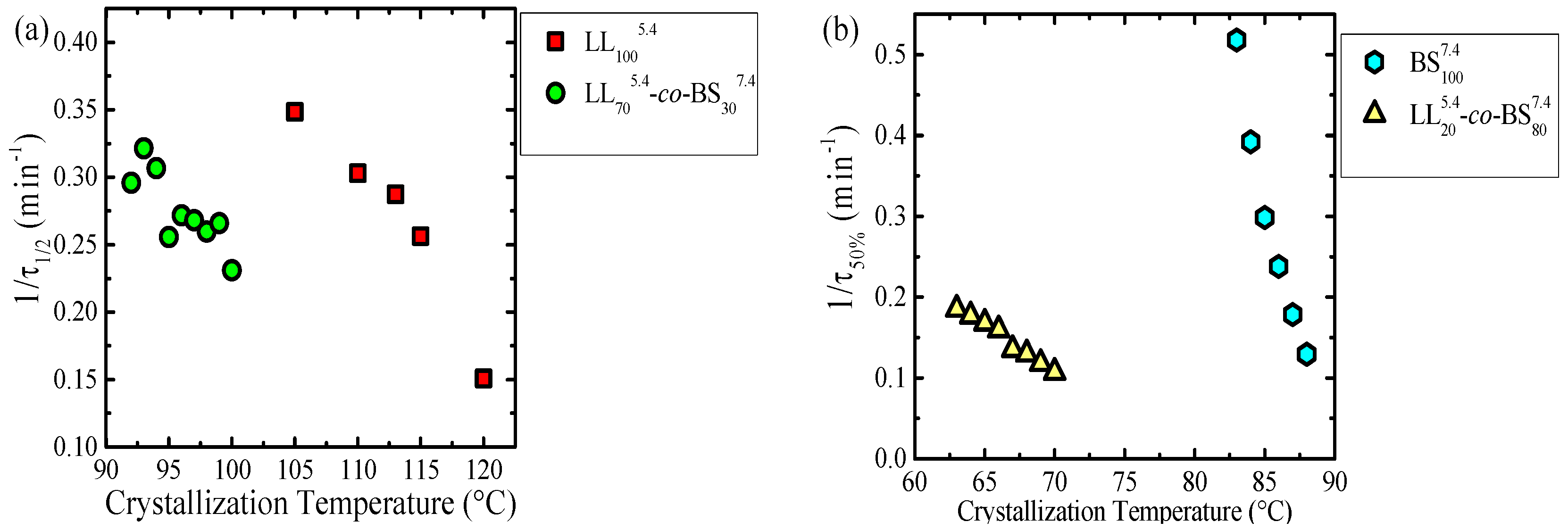

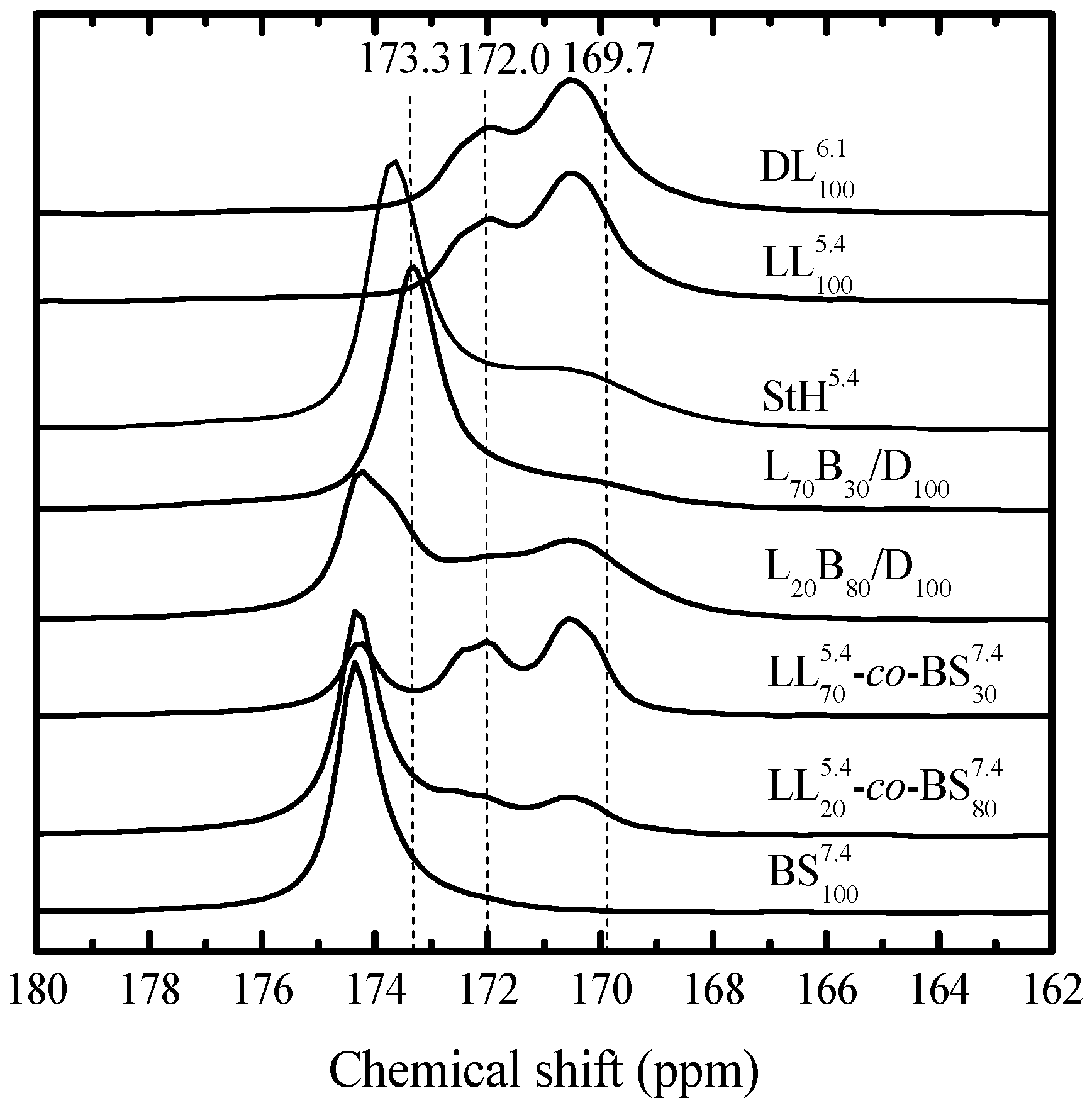

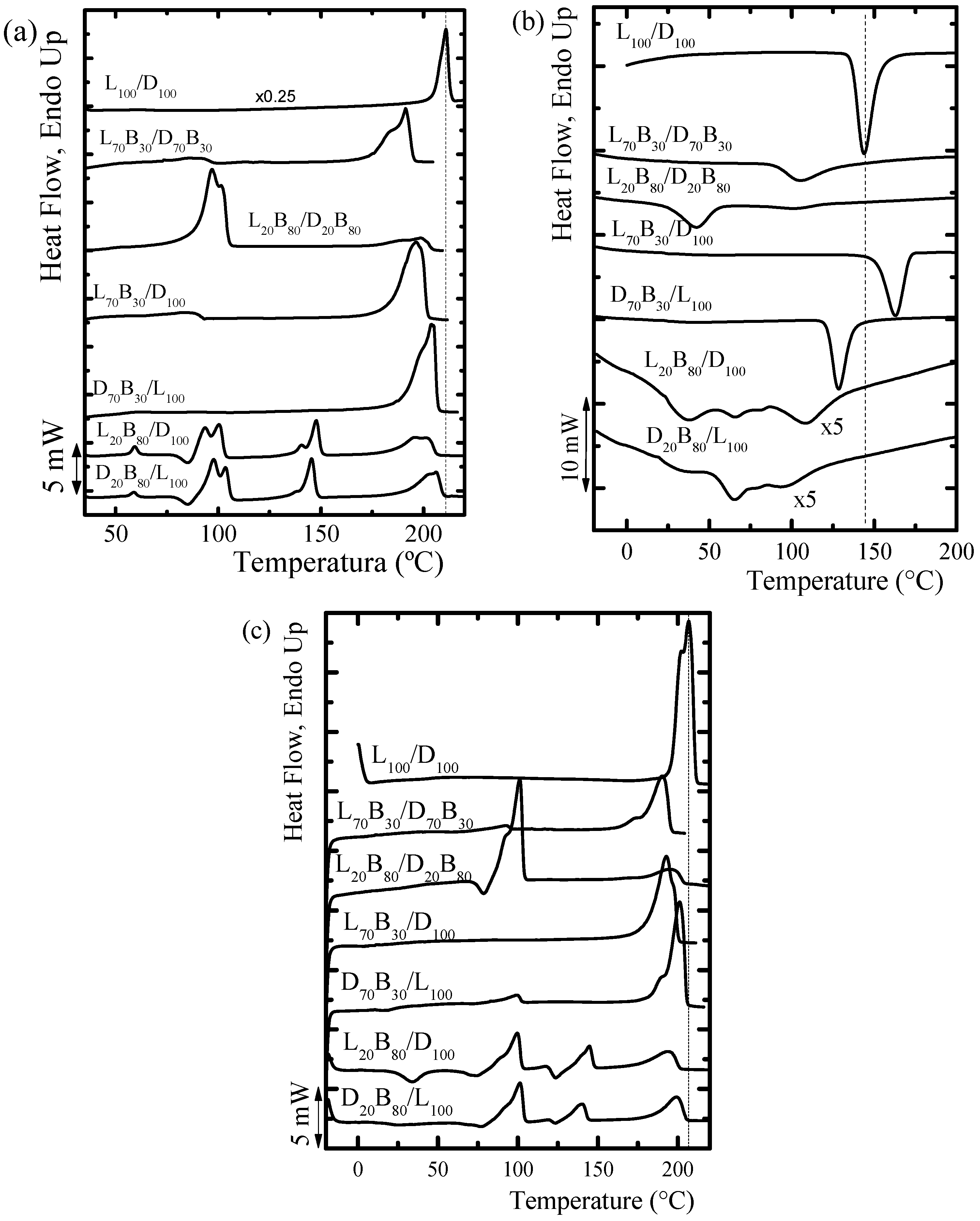

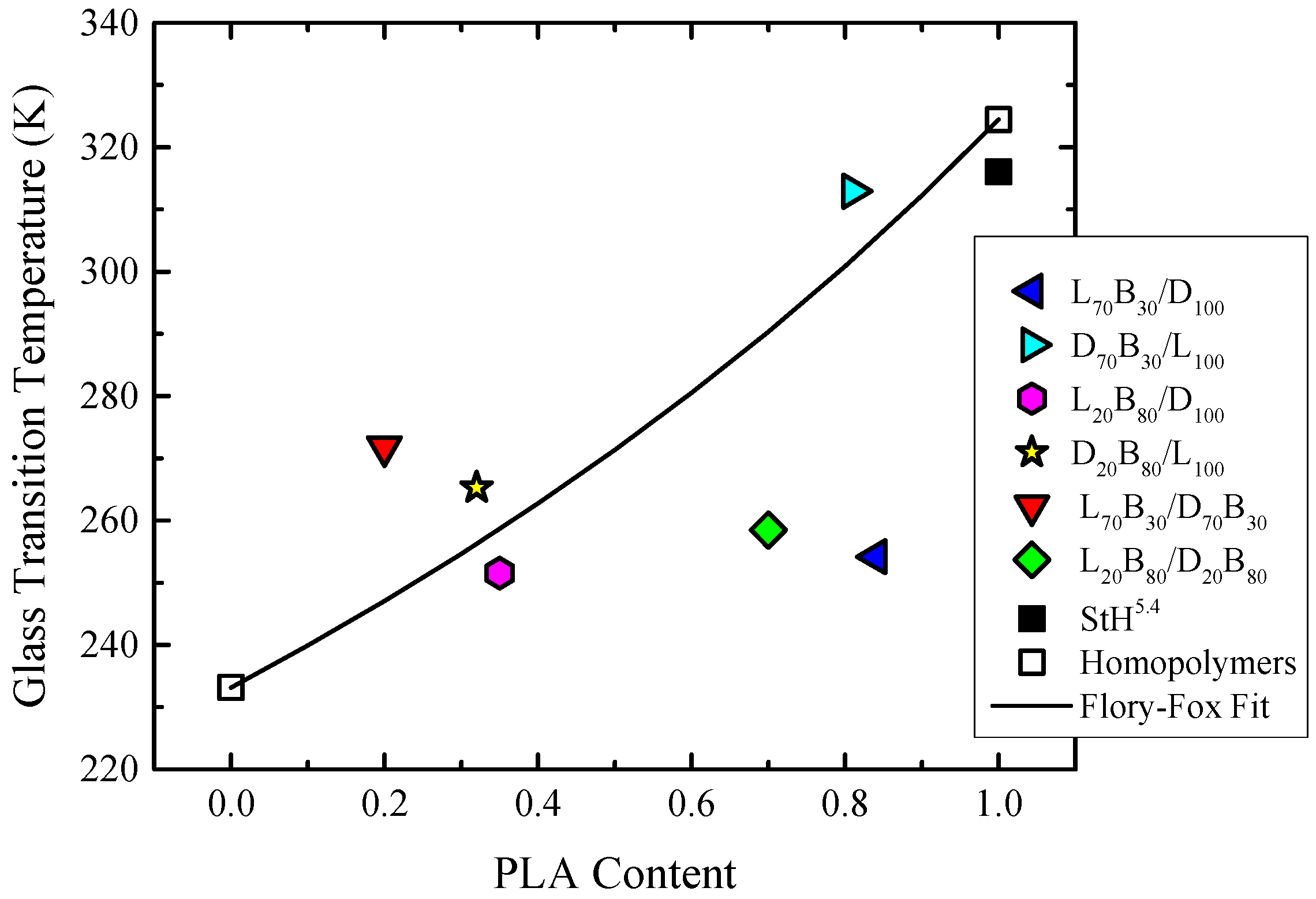

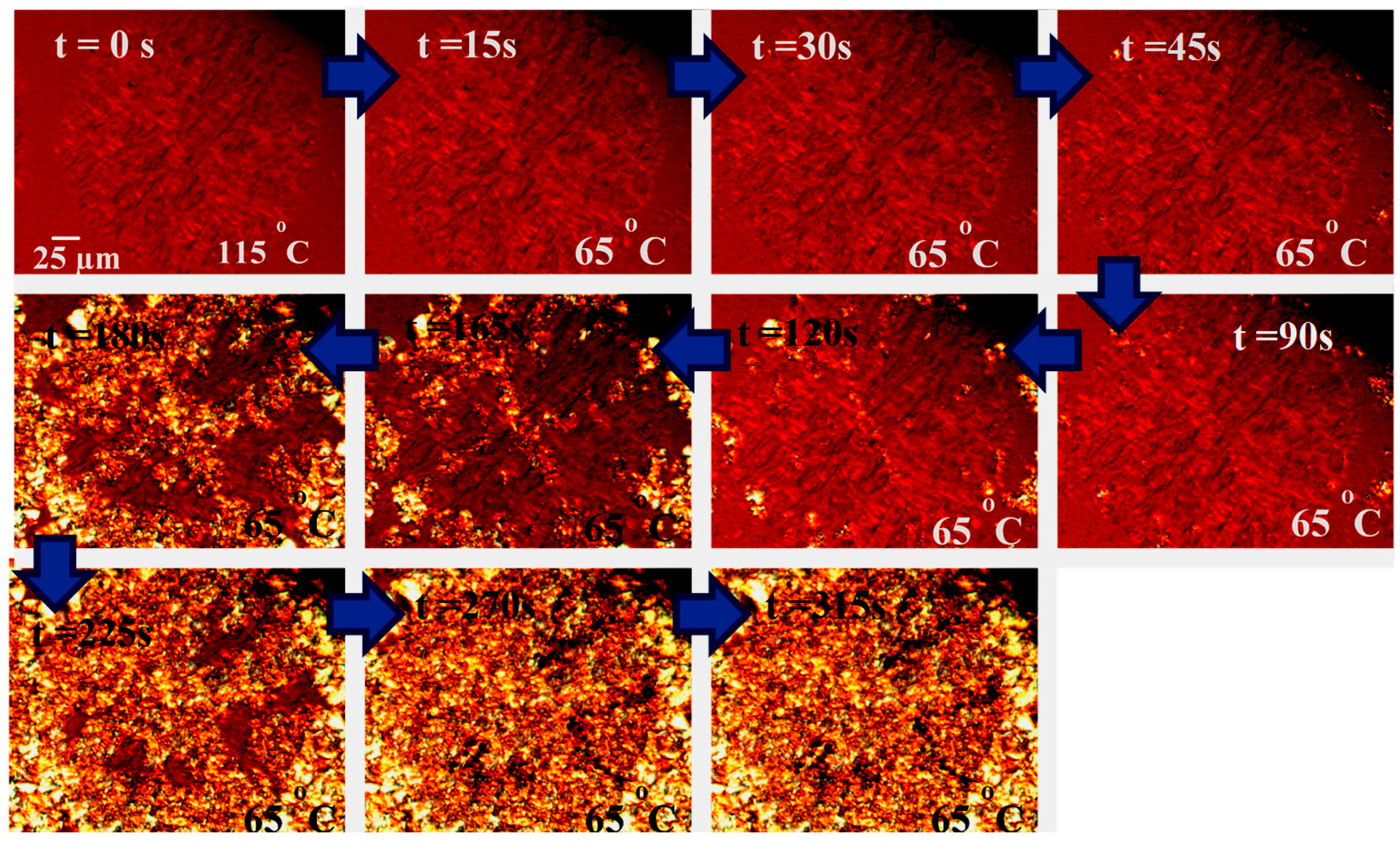

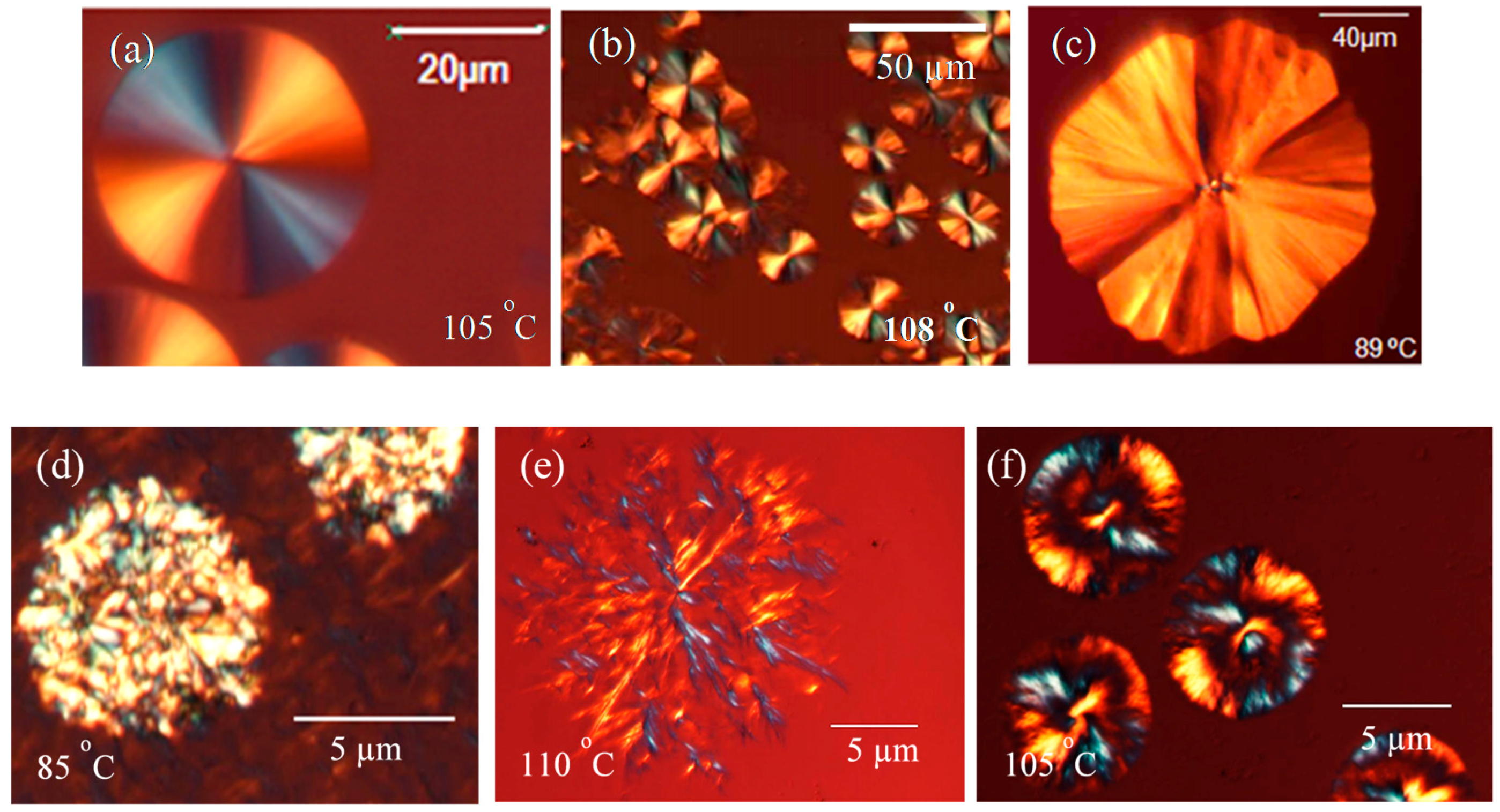

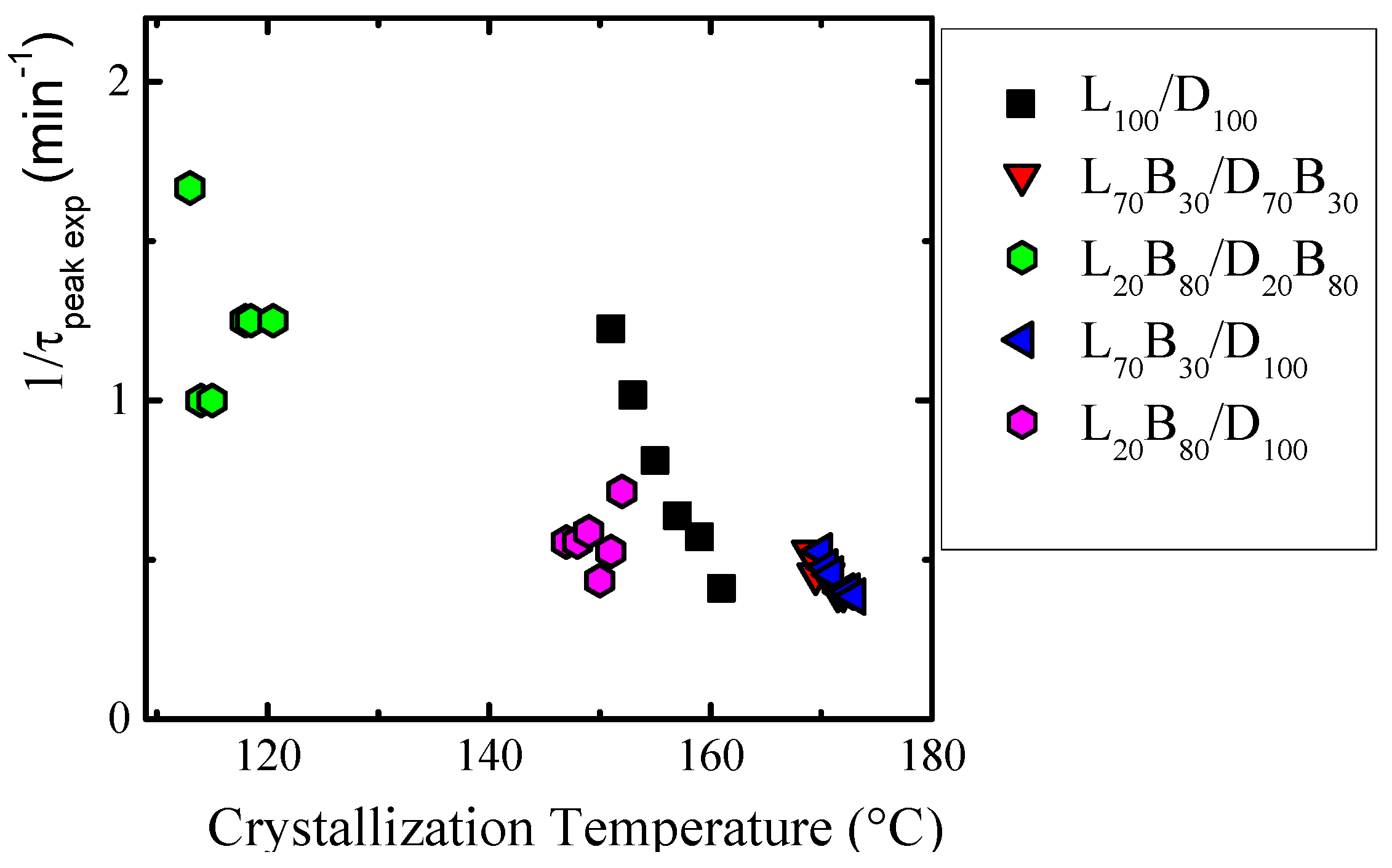

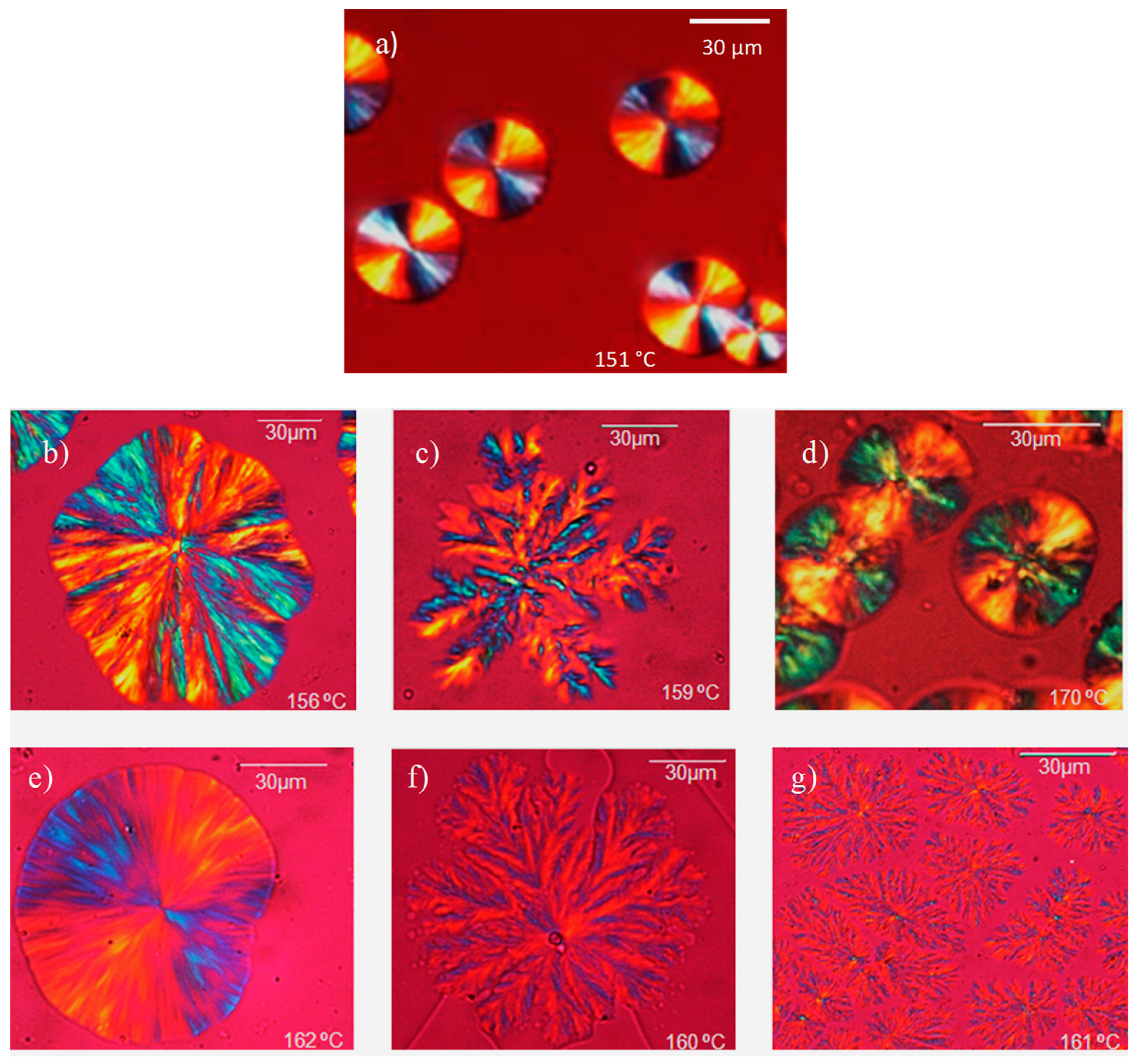

The crystallization and morphology of PLA-mb-PBS copolymers and their corresponding stereocomplexes were studied. The effect of flexible blocks (i.e., polybutylene succinate, PBS) on the crystallization of the copolymers and stereocomplex formation were investigated using polarized light optical microscopy (PLOM), differential scanning calorimetry (DSC), infrared spectroscopy (FTIR), and carbon-13 nuclear magnetic resonance spectroscopy (13C-NMR). The PLA and PBS multiple blocks were miscible in the melt and in the glassy state. When the PLA-mb-PBS copolymers are cooled from the melt, the PLA component crystallizes first creating superstructures, such as spherulites or axialites, which constitute a template within which the PBS component has to crystallize when the sample is further cooled down. The Avrami theory was able to fit the overall crystallization kinetics of both semi-crystalline components, and the n values for both blocks in all the samples had a correspondence with the superstructural morphology observed by PLOM. Solution mixtures of PLLA-mb-PBS and PLDA-mb-PBS copolymers were prepared, as well as copolymer/homopolymer blends with the aim to study the stereocomplexation of PLLA and PDLA chain segments. A lower amount of stereocomplex formation was observed in copolymer mixtures as compared to neat L100/D100 stereocomplexes. The results show that PBS chain segments perturb the formation of stereocomplexes and this perturbation increases with the amount of PBS in the samples. However, when relatively low amounts of PBS in the copolymer blends are present, the rate of stereocomplex formation is enhanced. This effect dissappears when higher amounts of PBS are present. The stereocomplexation was confirmed by FTIR and solid state 13C-NMR analyses. View Full-Text
Keywords: poly(lactic acid) (PLA); crystallization kinetics; stereocomplexes; crystallization in multi-block copolymers; polybutylene succinate (PBS) poly(lactic acid) (PLA); crystallization kinetics; stereocomplexes; crystallization in multi-block copolymers; polybutylene succinate (PBS)
Show Figures

Graphical abstract

MDPI and ACS Style

D’Ambrosio, R.M.; Michell, R.M.; Mincheva, R.; Hernández, R.; Mijangos, C.; Dubois, P.; Müller, A.J. Crystallization and Stereocomplexation of PLA-mb-PBS Multi-Block Copolymers. Polymers 2018, 10, 8.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Search more from Scilit
Back to TopTop
