Raman Characterization of Carrier Concentrations of Al-implanted 4H-SiC with Low Carrier Concentration by Photo-Generated Carrier Effect

1
State Key Laboratory of Precision Measuring Technology & Instruments, Centre of Micro/Nano Manufacturing Technology, Tianjin University, Tianjin 300072, China
2
Fraunhofer Institute for Integrated Systems and Device Technology IISB, Schottkystrasse 10, 91058 Erlangen, Germany
3
State Key Laboratory of Separation Membranes and Membrane Processes, School of Materials Science and Engineering, Tianjin Polytechnic University, Tianjin 300387, China
4
School of Physics, Nankai University, Tianjin 300071, China
*
Authors to whom correspondence should be addressed.
Crystals 2019, 9(8), 428; https://doi.org/10.3390/cryst9080428
Received: 20 July 2019 / Revised: 16 August 2019 / Accepted: 16 August 2019 / Published: 17 August 2019
(This article belongs to the Special Issue Raman Spectroscopy of Crystals)

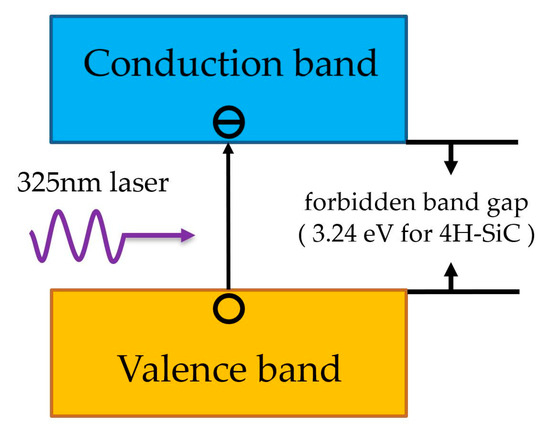

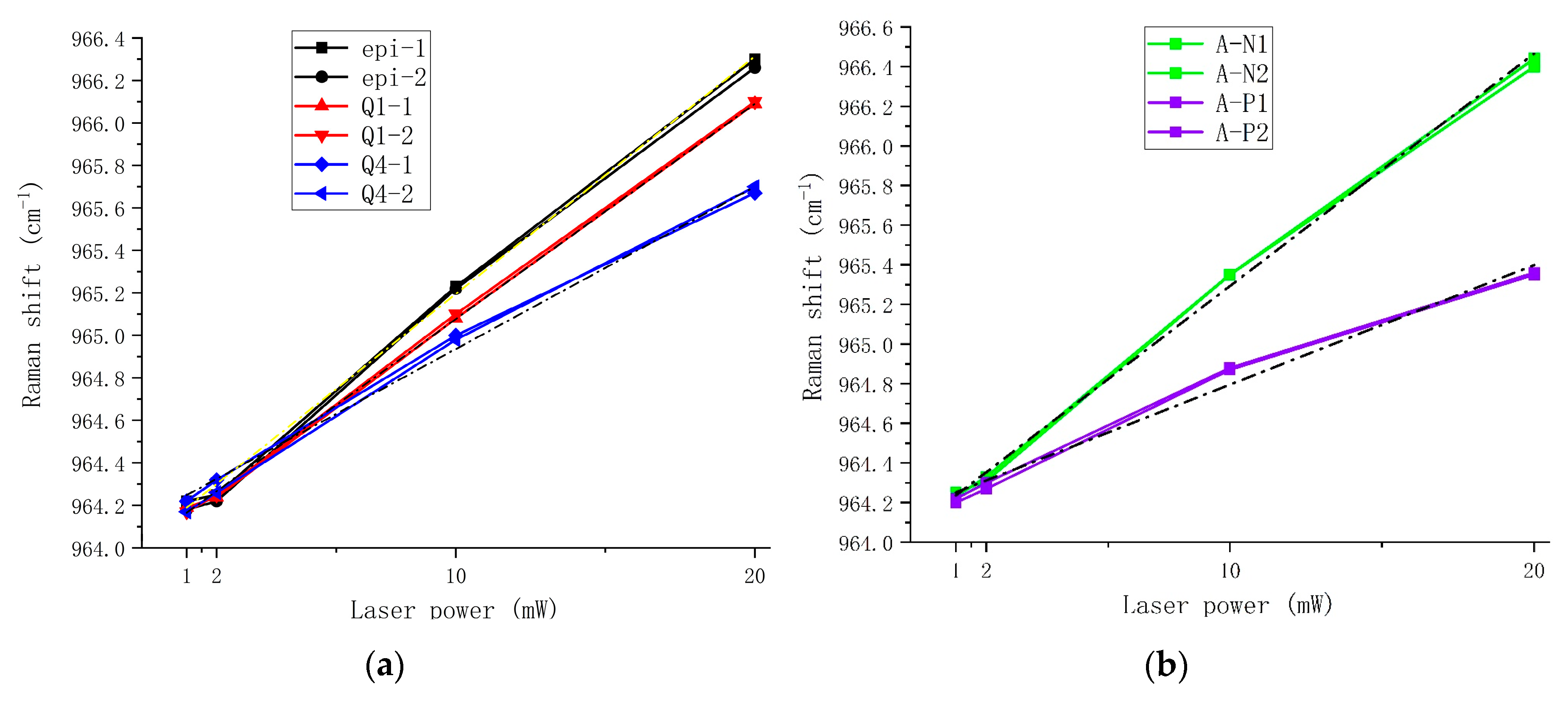

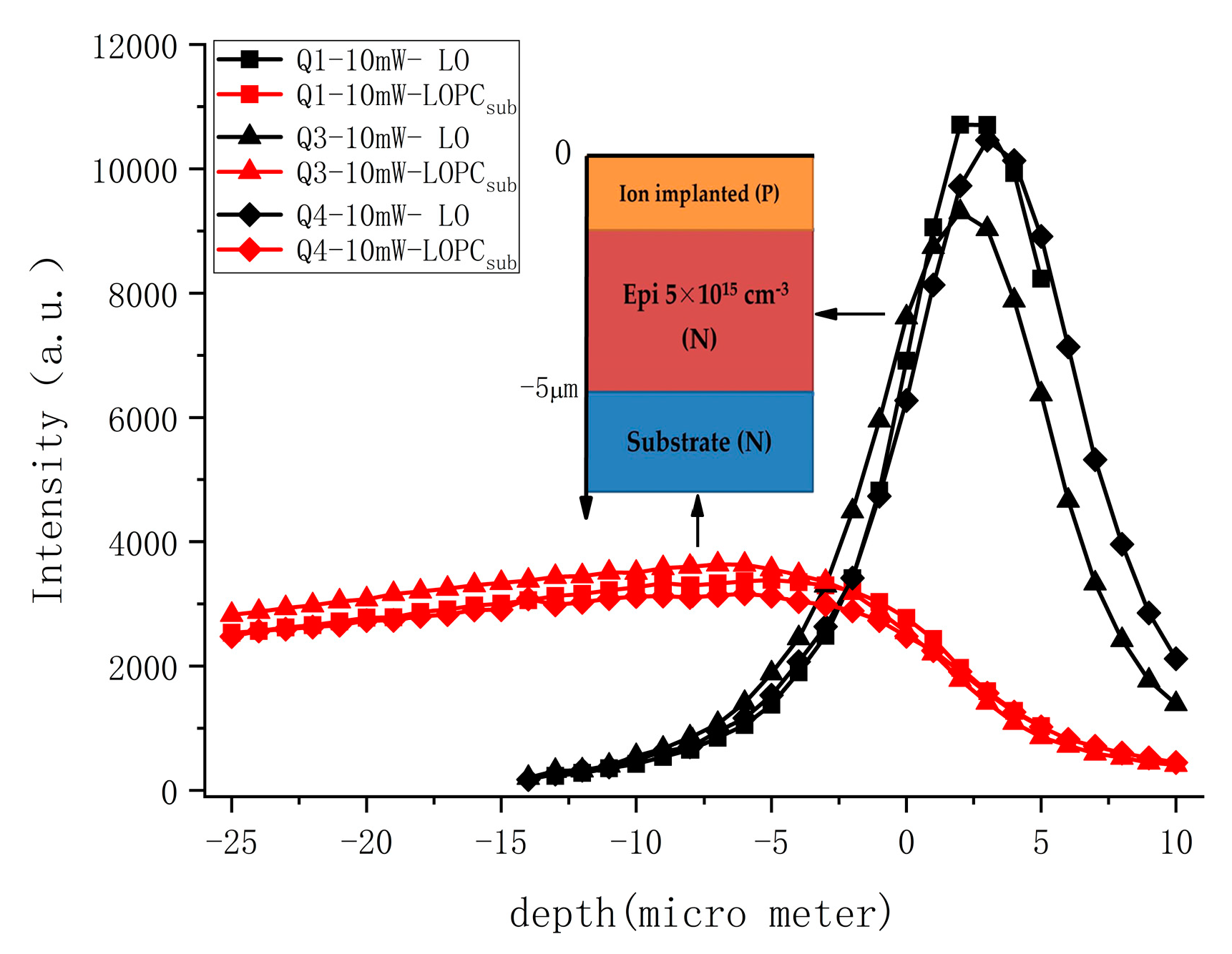

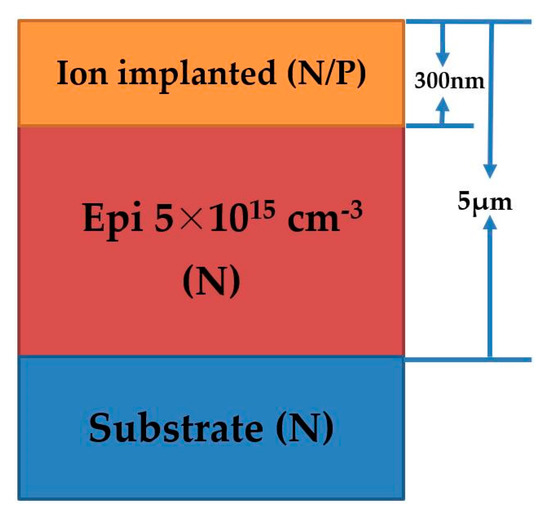

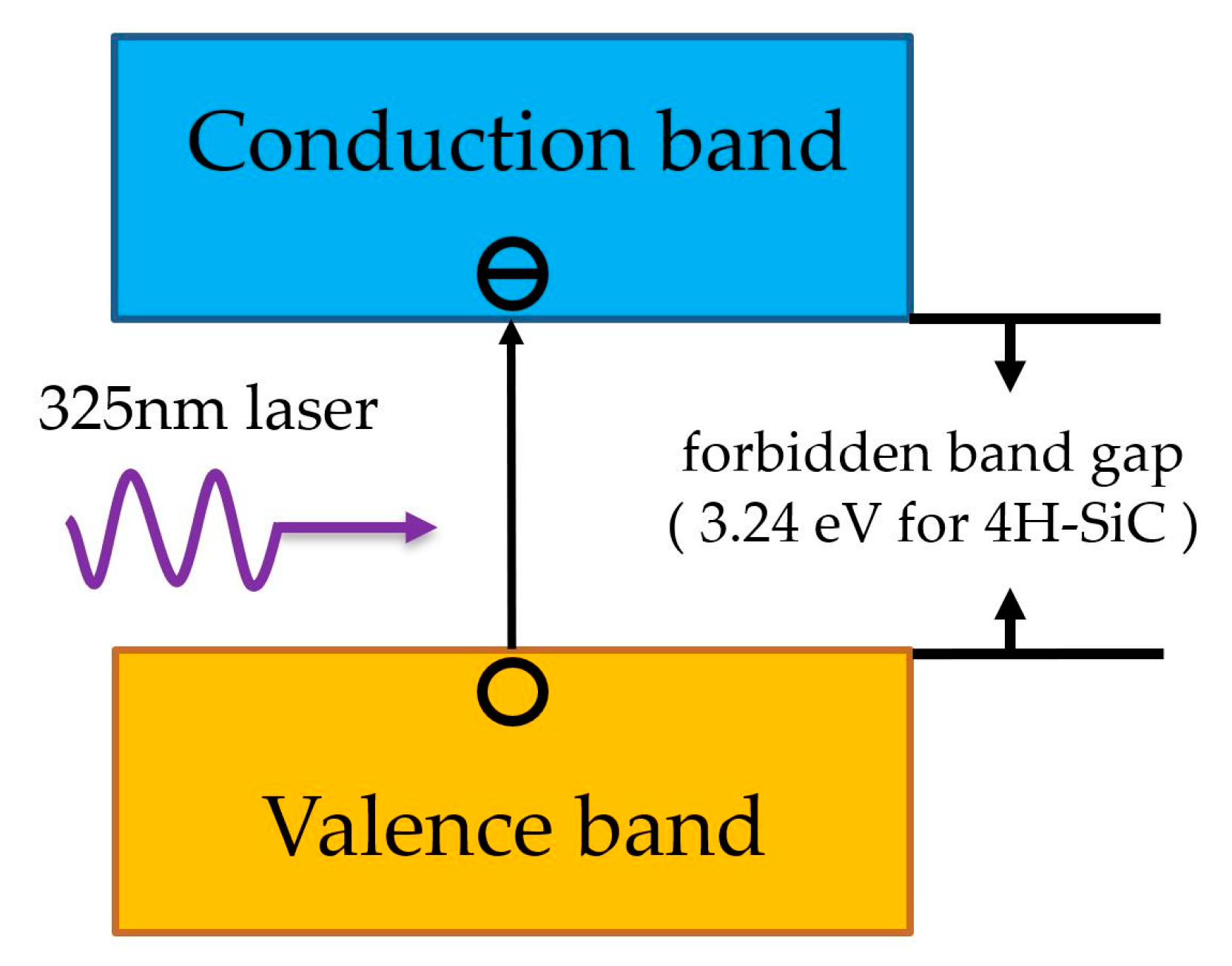

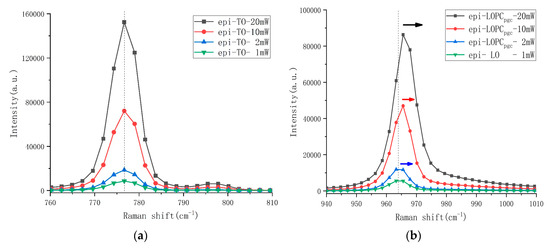

In this work, 4H SiC samples with a multilayer structure (shallow implanted layer in a lowly doped n-type epitaxial layer grown on a highly doped thick substrate) were investigated by Raman scattering. First, Raman depth profiling was performed to identify characteristic peaks for the different layers. Then, Raman scattering was used to characterize the carrier concentration of the samples. In contrast to the conventional Raman scattering measuring method of the Longitudinal Optical Plasmon Coupled (LOPC) mode, which is only suitable to characterize carrier concentrations in the range from 2 × 1016 to 5 × 1018 cm−3, in this work, Raman scattering, which is based on exciting photons with an energy above the band gap of 4H-SiC, was used. The proposed method was evaluated and approved for different Al-implanted samples. It was found that with increasing laser power the Al-implanted layers lead to a consistent redshift of the LOPC Raman peak compared to the peak of the non-implanted layer, which might be explained by a consistent change in effective photo-generated carrier concentration. Besides, it could be demonstrated that the lower concentration limit of the conventional approach can be extended to a value of 5 × 1015 cm−3 with the approach presented here. View Full-Text
Keywords: Raman spectroscopy; silicon carbide; LOPC (Longitudinal Optical Plasmon Coupled) mode; carrier concentration; photo-generated carriers Raman spectroscopy; silicon carbide; LOPC (Longitudinal Optical Plasmon Coupled) mode; carrier concentration; photo-generated carriers
Show Figures

Figure 1

MDPI and ACS Style

Liu, T.; Xu, Z.; Rommel, M.; Wang, H.; Song, Y.; Wang, Y.; Fang, F. Raman Characterization of Carrier Concentrations of Al-implanted 4H-SiC with Low Carrier Concentration by Photo-Generated Carrier Effect. Crystals 2019, 9, 428.
