Electro-Optical Properties of a Polymer Dispersed and Stabilized Cholesteric Liquid Crystals System Constructed by a Stepwise UV-Initiated Radical/Cationic Polymerization

1
Department of Materials Physics and Chemistry, School of Materials Science and Engineering, University of Science and Technology Beijing, Beijing 100083, China
2
State Key Laboratory of Metastable Materials Science and Technology, Yanshan University, Qinhuangdao 066004, China
3
Department of Materials Science and Engineering, College of Engineering, Peking University, Beijing 100871, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Crystals 2019, 9(6), 282; https://doi.org/10.3390/cryst9060282
Received: 20 March 2019 / Revised: 8 May 2019 / Accepted: 22 May 2019 / Published: 29 May 2019
(This article belongs to the Special Issue Advances in Cholesteric Liquid Crystals)
  |
PDF [2071 KB, uploaded 29 May 2019]
  |

Abstract

Polymer-dispersed liquid crystal (PDLC) and polymer-stabilized liquid crystal (PSLC) are two typical liquid crystal (LC)/polymer composites. PDLCs are usually prepared by dispersing LC droplets in a polymer matrix, while PSLC is a system in which the alignment of LC molecules is stabilized by interactions between the polymer network and the LC molecules. In this study, a new material system is promoted to construct a coexistence system of PDLC and PSLC, namely PD&SChLC. In this new material system, a liquid-crystalline vinyl-ether monomer (LVM) was introduced to a mixture containing cholesteric liquid crystal (ChLC) and isotropic acrylate monomer (IAM). Based on the different reaction rates between LVM and IAM, the PD&SChLC architecture was built using a stepwise UV-initiated polymerization. During the preparation of the PDS&ChLC films, first, the mixture was irradiated with UV light for a short period of time to induce the free radical polymerization of IAMs, forming a phase-separated microstructure, PDLC. Subsequently, an electric filed was applied to the sample for long enough to induce the cationic polymerization of LVMs, forming the homeotropically-aligned polymer fibers within the ChLC domains, which are similar to those in a PSLC. Based on this stepwise UV-initiated radical/cationic polymerization, a PD&SChLC film with the advantages of a relatively low driving voltage, a fast response time, and a large-area processability is successful prepared. The film can be widely used in flexible displays, smart windows, and other optical devices. View Full-Text
Keywords: cholesteric liquid crystals; polymer; radical polymerization; cationic polymerization; electro-optical property; microstructure cholesteric liquid crystals; polymer; radical polymerization; cationic polymerization; electro-optical property; microstructure
Figures

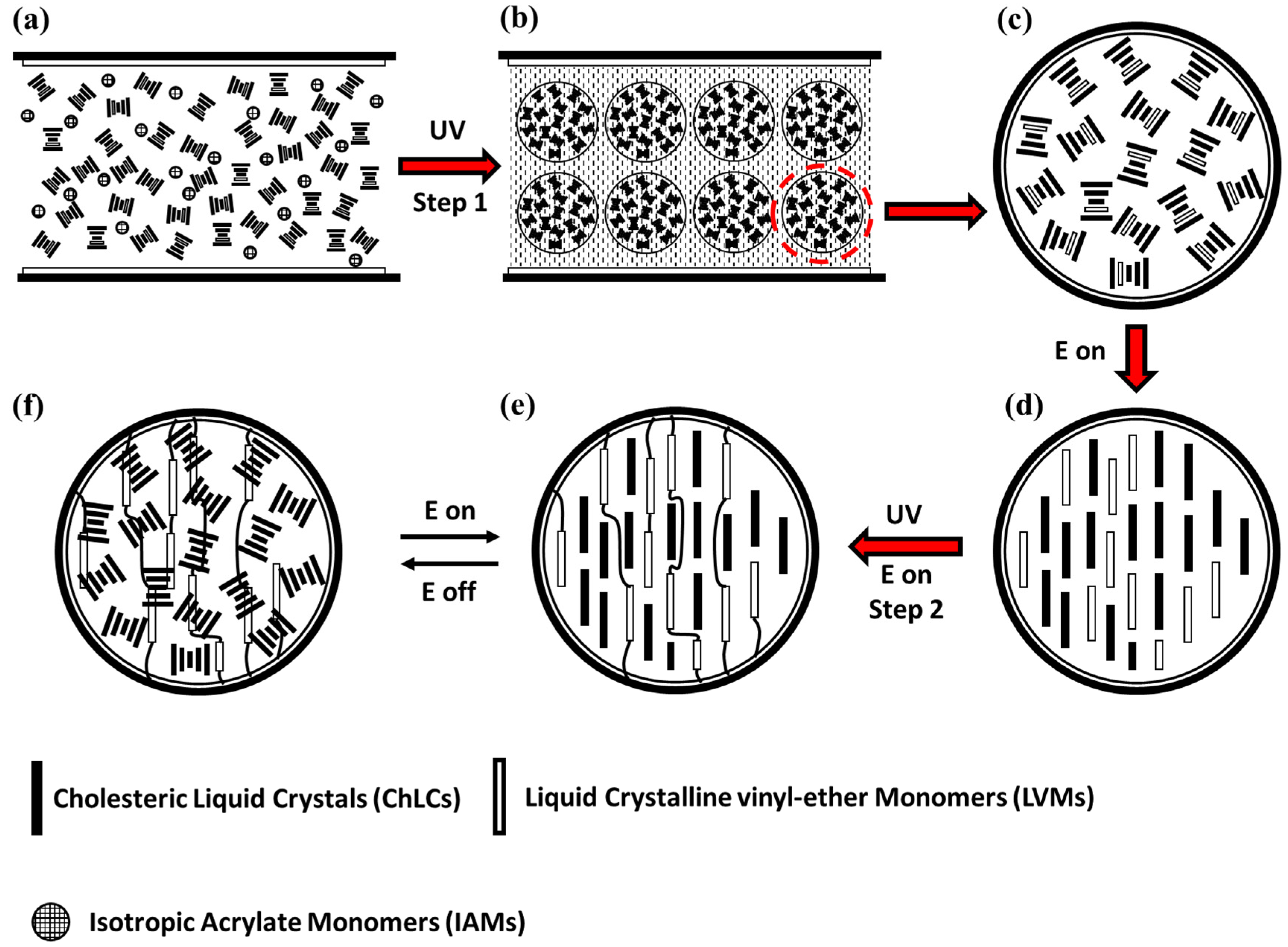

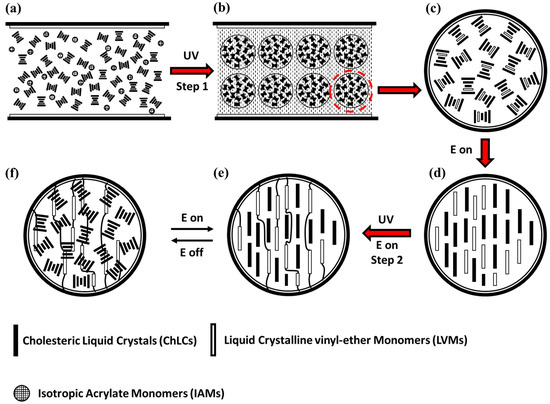

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
