Open AccessArticle
Crystals 2019, 9(3), 156; https://doi.org/10.3390/cryst9030156

Two-Layer Erbium-Doped Air-Core Circular Photonic Crystal Fiber Amplifier for Orbital Angular Momentum Mode Division Multiplexing System

1
State Key Laboratory of Information Photonics and Optical Communications, Beijing University of Posts and Telecommunications, Beijing 100876, China
2
School of Ethnic Minority Education, Beijing University of Posts and Telecommunications, Beijing 100876, China
3
Institute of Electronics, Chinese Academy of Sciences, Beijing 100190, China
4
School of Sciences, Beijing University of Posts and Telecommunications, Beijing 100876, China
*
Authors to whom correspondence should be addressed.
Received: 25 February 2019 / Revised: 11 March 2019 / Accepted: 12 March 2019 / Published: 15 March 2019
(This article belongs to the Special Issue Sonic and Photonic Crystals)
  |
PDF [2143 KB, uploaded 15 March 2019]
  |

Abstract

Orbital angular momentum (OAM) mode-division multiplexing (MDM) has recently been under intense investigations as a new way to increase the capacity of fiber communication. In this paper, a two-layer Erbium-doped fiber amplifier (EDFA) for an OAM multiplexing system is proposed. The amplifier is based on the circular photonic crystal fiber (C-PCF), which can maintain a stable transmission for 14 OAM modes by a large index difference between the fiber core and the cladding. Further, the two-layer doped region can balance the amplification performance of different modes. The relationship between the performance and the parameters of the amplifier is analyzed numerically to optimize the amplifier design. The optimized amplifier can amplify 18 modes (14 OAM modes) simultaneously over the C-band with a differential mode gain (DMG) lower than 0.1 dB while keeping the modal gain over 23 dB and noise figure below 4 dB. Finally, the fabrication tolerance and feasibility are discussed. The result shows a relatively large fabrication tolerance in the OAM EDFA parameters. View Full-Text
Keywords: mode-division multiplexing; Erbium-doped fiber amplifier; photonic crystal fibers; orbital angular momentum mode-division multiplexing; Erbium-doped fiber amplifier; photonic crystal fibers; orbital angular momentum
Figures

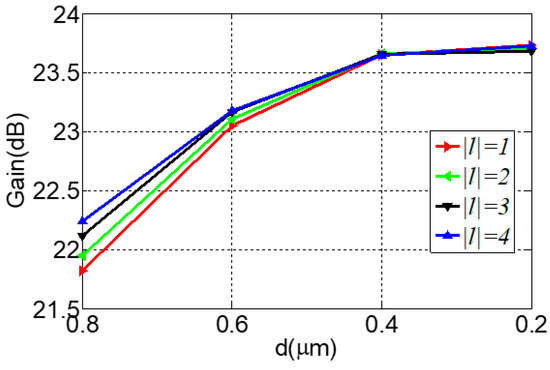

Figure 1
