Article
A Cd(II) Coordination Polymer Based on Mixed Ligands: Synthesis, Crystal Structure, and Properties
College of Chemistry and Chemical Engineering, Fuyang Normal University, Fuyang 236041, China
*
Author to whom correspondence should be addressed.
Received: 11 November 2019 / Accepted: 25 November 2019 / Published: 27 November 2019

Abstract

:
A new coordination polymer, namely, [Cd(L)(frda)(H2O)]·0.5L·H2O (1) was synthesized by hydrothermal reaction based on mixed multi-N donor 1-(4-(1H-imidazol-5-yl) phenyl)-1H-1,2,4-triazole (L) and O-donor 2,5-furandicarboxylic acid ligands (H2frda) with CdCl2·2.5H2O. Compound 1 was characterized by single-crystal x-ray diffraction, elemental analysis, and IR spectroscopy. In 1, both the multi-N donor and O-donor frda2− ligands act as linear two-connectors to bridge Cd(II) atoms, forming a two-dimensional (2D) layer. Interestingly, the parallel 2D layers stack in an AAA···mode, and the infinite one-dimensional (1D) channels formed along the a-axis direction, where the uncoordinated L molecules were embedded in the void. Furthermore, the weak interactions including the rich hydrogen bonding and π−π stacking interactions progress the 2D structure into a three-dimensional (3D) supramolecular polymer. Diffuse reflectance spectra and the luminescent property were also investigated.
Keywords:
coordination polymer; characterization; optical property

1. Introduction

Coordination polymers (CPs) consisting of organic ligands and metal ions have attracted an upsurge in research during the past decades, due to their charming structures and their possibly applied domain of luminescence [1,2,3,4], gas adsorption/separation [5,6], proton conductivity [7], chemical separations [8], catalysis [9], and so on. Generally speaking, organic ligands act as linkers while metal ions act as connectors, and therefore, their orientation of the interacting sites for ligands and coordination numbers for metal ions, respectively, are the most fundamental two factors to decide the framework and properties of CPs [10,11,12,13]. In addition to these two core factors, other conditions such as the ligand−metal ratio, reaction solvent, template, pH value, and counteranion also have effects on the resulting structure [14,15]. Essentially, multidentate organic ligands with definite linking coordination sites result in the spatial arrangement for metal connectors in the final framework. Several important factors such as the length of organic ligands, their flexibility/ rigidity, decorated functional groups, varied coordination modes, or substituent groups of organic ligands have substantial effects on the resulting frameworks of CPs [16,17]. Therefore, the design and synthesis for organic compounds are key jobs to construct desirable CPs with specific structures, topologies, and functionalities. In this context, the effective ‘reticular synthesis’ put forward by Yaghi et al. was confirmed to be the most effective method to direct the assembly of desired frameworks with rigid organic linkers [18]. However, the flexible ligands are an important part in the assembly of interpenetrated structure by adopting fickle conformations and geometries via rotating, bending, or twisting transformation [19,20] because these flexible backbones often facilitate the stabilization of the framework through interpenetration to avoid the void within the structure. Generally speaking, the multi-N donor and O-donor carboxylic acids are two types of extensively used ligands because of their diverse coordination abilities [21,22]. For example, N-donor polyazaheteroaromatic organic molecules are often used to form multipodal anions employed as chelating, bridging, and also acting as charge balance anionic building units for assembling polynuclear species. In our previous work, we deliberately designed a series of 4-imidazoly-containing organic molecules such as 1,3,5-tri(1H-imidazol-4-yl)benzene and 1,4-di(1H-imidazol-4-yl)benzene, which have been successfully employed to build metal-imidazolate CPs with favorable gas adsorption properties for CO2 gas [23,24,25]. Apart from the polyazaheteroaromatic linkers, the aromatic polycarboxylate compounds are another kind of important O-donor ligands due to their diverse coordination modes for carboxyl groups, which can display chelating, mono/bis-bridging modes. Due to their good bridging abilities, a high connector of polynuclear metal centers can easily be formed, which can be employed to build higher node frameworks. Interestingly, we employed the mixed 4-imidazoly-containing ligands and various carboxylic acids to build diverse frameworks including cage structure, one-dimensional tube chain, two-dimensional layer structures, and three-dimensional interpenetrating and non-interpenetrating structures with different topologies, because the N-donor ligands can effectively adjust the coordination modes of polycarboxylate acids [26,27,28]. By virtue of their suitable adjustability for the mixed polyazaheteroaromatic and carboxylic ligands, we synthesized the multi-N donor ligand 1-(4-(1H-imidazol-5-yl)phenyl)-1H-1,2,4-triazole (L) (see Supplementary Materials), together with O-donor 2,5-furandicarboxylic acid ligand (H2frda) to react with CdCl2·2.5H2O, and obtained a new Cd(II) coordination polymer [Cd(L)(frda)(H2O)]·0.5L·H2O (1) as a continual work. The diffuse reflectance spectra and luminescent property of 1 were also investigated.

2. Experimental Section

2.1. Materials and Instrumentation

The chemicals in this experiment were of reagent grade. The 1-(4-(1H-imidazol-5-yl) phenyl)-1H-1,2,4-triazole organic molecule was synthesized according to the related literature [29]. Infrared spectra was executed on a FT-IR spectrophotometer (Instrument Inc., Karlsruhe, Germany) using KBr pellets. Elemental analyses were analyzed on a Perkin-Elmer 240C Elemental Analyzer (PerkinElmer, Waltham, USA). Photoluminescence spectra were used with a HORIBA FluoroMax-4 (Edinburgh Instruments, Edinburgh, UK).

2.2. Synthesis of [Cd(L)(frda)(H2O)]·0.5L·H2O (1)

A mixture of L (0.042 g, 0.2 mmol), H2frda (0.032 g, 0.2 mmol), CdCl2·2.5H2O (0.0456 g, 0.2 mmol), and NaOH (0.016 g, 0.4 mmol) in 8 mL H2O was sealed in a Pyrex bottle (16 mL) and heated at 120 °C for 48 h. Colorless block crystals of 1 were isolated by filtration, with a yield of 68 %. Anal. Calcd. (%) for C22H16N8O7Cd: C, 47.30; H, 3.26; N, 18.39. Found (%): C, 47.16; H, 3.19; N, 18.48. IR(KBr): 3700−3050(s), 1581(m), 1399(m), 1373(m), 1278(w), 1158(w), 1066(m), 977(w), 837(w), 818(w), 786(w), 669(w), 636(w), 577(w), 487(w) cm−1.

2.3. Crystal Structure Determination

The single crystal data of [Cd(L)(frda)(H2O)]·0.5L·H2O (1) suitable for analysis were selected and collected on a Rikaku XtaLAB Synergy diffractometer. The structure was solved and refined using the OLEX2 program suite, equipped with the ShelXT and ShelXL program [30]. The crystallographic refine data are displayed in Table 1.

3. Results and Discussion

3.1. Structural of [Cd(L)(frda)(H2O)]·0.5L·H2O (1)

X-ray crystallographic analysis shows that CP 1 crystallizes in the triclinic P1 space group (Table 1), and the asymmetric unit of 1 contains one unique Cd(II) atom, one coordinated L organic ligand, one deprotonated frda2- molecule, one coordinated water molecule, a half of uncoordinated L ligand, and one lattice water molecule. The unsymmetrical polyazaheteroaromatic ligand of N2 and C8, N5 and C7, and N4 and C10 atoms can be defined according to their different atomic displacement parameters. The lattice of L lies an inversion center. The center Cd(II) atom is linked by two nitrogen atoms (N1 and N3A) from two different L ligands and four oxygen atoms (O1, O2, and O3B, O4B) from two pairs of carboxyl groups and one oxygen atom (O6) from the coordinated water ligand, thereby forming a seven-coordinated coordination geometry with a N2O5 donor set (Figure 1). The Cd–O bond lengths varied from 2.346(2) to 2.5866(18) Å and the Cd–N ones were 2.281(2) and 2.288(2) Å (Table 2), and the coordination angles were around the Cd1 range from 52.90(6) to 175.41(7)°. The L ligands adopt linear bidentate bridging mode to combine Cd(II) ions to form one-dimensional (1D) chains. The adjacent 1D chains are connected by frda2- ligands to form a two-dimensional (2D) layer (Figure 2). From a topological perspective, the 2D layers can be simplified to 4-connected sql nets with point symbol (44·62). The parallel 2D layers are stacked in an AAA···mode, and the infinite 1D channels are created along the a-axis, where the uncoordinated L molecules are embedded in the void of 1 (Figure 3). The solvent-accessible volume of these channels without considering guest L molecules was estimated to be 387.8 A3, approximately 32.5% of the total crystal volume of 1194.1 A3, calculated with the PLATON program [31]. It is noteworthy that the nitrogen and oxygen atoms from multi-N donor or carboxyl groups, can easily be employed as acceptors of hydrogen bonding, and as a return, the weak interaction can easily benefit the formation of a supramolecular polymer. In the packing diagram, rich hydrogen bonding interaction are found in CP 1, and the C−H···O, O−H···O hydrogen bonding including (C(2)···O(2)c 3.142(3) Å, C(2)–H(2)···O(2) 148°; C(10)···O(2)c 3.101(4) Å, C(10)–H(10)···O(2) 155°; C(11)···O(6) 3.410(4) Å, C(11)–H(11)···O(6) 151°; C(6)···O(6) 2.738(3) Å, C(6)–H(6B)···O(6) 169°; O(6)···O(5) 2.872(4) Å, O(6)–H(6A)···O(5) 167°; C(9)···O(4) 3.086(3) Å, C(9)–H(9)···O(4) 118°) exist among the adjacent 2D layers (Table 3). In addition to the rich hydrogen bonding, classic weak π−π stacking interactions could also be found between the neighboring 2D packing layers. The five-membered furan rings of the frda2- ligands were completely parallel with the centroid−centroid distance of 3.49 Å, indicating the existence of strong π−π stacking interactions [32,33]. On the whole, the weak interactions including the hydrogen bonding and π−π stacking interactions progress adjacent 2D layers into a three-dimensional (3D) supramolecular polymer (Figure 4).

3.2. Thermal Analysis and Powder X-Ray Diffraction Analysis

Figure 5 shows that a 6.28% weight loss corresponds to one coordinated and one lattice water molecule in a temperature range of 185−245 °C (calcd: 6.32%), and the framework collapsed at about 350 °C. Powder x-ray diffraction (PXRD) data can be used to testify the purity of as-synthesized samples. Therefore, the PXRD data of CP 1 were directly collected at room temperature. The diffraction peaks of the as-synthesized 1 were consistent with the simulated PXRD patterns from the single crystal results. The result confirms that the as-synthesized crystals of 1 were phase purities as shown in Figure 6.

3.3. Diffuse Reflectance Spectra

The UV–Vis spectra in the solid-state were investigated for the CP 1 together with the organic compound L (Figure 7). The CP 1 and L molecules showed the same absorption peaks ranging from 275 to 345 nm in the UV region, which belongs to π → π* and n → π* transitions of the ligand. Furthermore, the diffuse reflectance data obtained were transformed into a Kubelka–Munk function to get their band gaps (Eg), which can be employed to evaluate the semiconductivity of the CPs. The values of Eg for 1 and L were estimated as 3.55 and 3.35 ev (Figure 8), which can be determined by the theory of optical absorption for the direct band gap semiconductor: (Ahν)2 = B(hν − Eg) [34], indicating that the as-synthesized crystalline material is an optical semiconductor [35].

3.4. Photoluminescent Property

Luminescent coordination polymers containing a d10 metal center and π-conjugated organic ligands can often exhibit favorable photoluminescent properties because of their tunable factors between metal and ligands [36,37]. Therefore, we carried out the relevant studies on the Cd(II) coordination polymer in the solid-state together with the L organic ligand (Figure 9). The L ligand showed no fluorescence, however, compound 1 appeared as a strong broad emission band at 415 nm upon excitation at 361 nm on complexation of the ligands with Cd(II) atoms, which may be attributable to the coordination interactions between the ligand and central metal Cd(II) atom [38].
The good photoluminescent property of CP 1 provided the impetus to further investigate the quantum yield (QY) and corresponding decay lifetimes. The QY value of CP 1 was 4.28 % (Figure 10), similar to some reported CPs [39]. Furthermore, the luminescence decay curve was fitted by exponential function as I(t) = A exp(−t/τ), and the luminescence lifetime of CP 1 was 48.87 ns. The value of luminescence lifetime for CP 1 was fairly shorter than a triplet state (>10−3 s), in this context, the luminescence emission of CP 1 should derive from a singlet state [40].

4. Conclusions

In summary, a new CP of [Cd(L)(frda)(H2O)]·0.5L·H2O (1) was obtained by the reaction of CdCl2·2.5H2O salt with mixed multi-N-donor and auxiliary polycarboxylate ligands. The coordination polymer was a 2D layer structure with a large 1D void filled with uncoordinated L ligands. CP 1 showed absorption peaks at 304 nm in the UV region with the value Eg of 3.55 eV. The crystalline material exhibited the maximal emission peak at 415 nm, upon excitation at 361 nm. Additionally, the QY and luminescence lifetime of CP 1 were 4.28 % and 48.87 ns, respectively. The study further confirmed that the mixed multi-N donor and carboxylate ligands are an effective moiety to generate desired architectures in self-assembly coordination polymers.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4352/9/12/625/s1. Scheme S1. The synthesis method of 1-(4-(1H-imidazol-5-yl) phenyl)-1H-1,2,4-triazole.

Author Contributions

S.-S.H. and Z.-W.H. synthesized the organic molecule and CP 1, and tested the properties of CP 1. L.L. characterized the Cd(II) coordination polymer. S.-S.C. guided the project.

Funding

This research received no external funding.

Acknowledgments

This project was supported by the Youth Talent Support Program of Anhui Province (gxbjZD19) and the cooperative project (XDHX201707).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, Z.C.; Deibert, B.J.; Li, J. Luminescent metal−organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815–5840. [Google Scholar] [CrossRef] [PubMed]
  2. Zhao, Y.; Yang, X.G.; Lu, X.M.; Yang, C.D.; Fan, N.N.; Yang, Z.T.; Wang, L.Y.; Ma, L.F. {Zn6} Cluster based metal–organic framework with enhanced room-temperature phosphorescence and optoelectronic performances. Inorg. Chem. 2019, 58, 6215–6221. [Google Scholar] [CrossRef]
  3. Liu, Z.Q.; Zhao, Y.; Zhang, X.D.; Kang, Y.S.; Lu, Q.Y.; Azam, M.; Al-Resayes, S.I.; Sun, W.Y. Metal−organic frameworks with 1,4-di(1H-imidazol-4-yl)benzene and varied carboxylate ligands for selectively sensing Fe(III) ions and ketone molecules. Dalton Trans. 2017, 46, 13943–13951. [Google Scholar] [CrossRef] [PubMed]
  4. Yang, X.G.; Ma, L.F.; Yan, D.P. Facile synthesis of 1D organic–inorganic perovskite micro-belts with high water stability for sensing and photonic applications. Chem. Sci. 2019, 10, 4567–4572. [Google Scholar] [CrossRef] [PubMed]
  5. Karmakar, A.; Samanta, P.; Desai, A.V.; Ghosh, S.K. Guest responsive metal−organic frameworks as scaffolds for separation and sensing applications. Acc. Chem. Res. 2017, 50, 2457–2469. [Google Scholar] [CrossRef]
  6. Zhao, Y.; Wang, L.; Fan, N.N.; Han, M.L.; Yang, G.P.; Ma, L.F. Porous Zn(II)-based metal–organic frameworks decorated with carboxylate groups exhibiting high gas adsorption and separation of organic dyes. Cryst. Growth Des. 2018, 18, 7114–7121. [Google Scholar] [CrossRef]
  7. Zhang, K.; Xie, X.; Li, H.; Gao, J.; Nie, L.; Pan, Y.; Xie, J.; Tian, D.; Liu, W.; Fan, Q.; et al. Highly water-stable lanthanide–oxalate MOFs with remarkable proton conductivity and tunable luminescence. Adv. Mater. 2017, 29, 1701804. [Google Scholar] [CrossRef]
  8. Macreadie, L.K.; Mensforth, E.J.; Babarao, R.; Konstas, K.; Telfer, S.G.; Doherty, C.M.; Tsanaktsidis, J.; Batten, S.R.; Hill, M.R. CUB-5: A contoured aliphatic pore environment in a cubic framework with potential for benzene separation applications. J. Am. Chem. Soc. 2019, 141, 3828–3832. [Google Scholar] [CrossRef]
  9. Kang, Y.S.; Lu, Y.; Chen, K.; Zhao, Y.; Wang, P.; Sun, W.Y. Metal-organic frameworks with catalytic centers: From synthesis to catalytic application. Coord. Chem. Rev. 2019, 378, 262–280. [Google Scholar] [CrossRef]
  10. Cook, T.R.; Stang, P.J. Recent developments in the preparation and chemistry of metallacycles and metallacages via coordination. Chem. Rev. 2015, 115, 7001. [Google Scholar] [CrossRef]
  11. Li, N.; Feng, R.; Zhu, J.; Chang, Z.; Bu, X.H. Conformation versatility of ligands in coordination polymers: From structural diversity to properties and applications. Coord. Chem. Rev. 2018, 375, 558–586. [Google Scholar] [CrossRef]
  12. Zhu, M.A.; Guo, X.Z.; Xiao, L.; Chen, S.S. A new Cd(II) coordination compound based on 4-(1,2,4-triazol-4-yl)phenylacetic acid: Synthesis, structure and photoluminescence property. Chin. J. Struct. Chem. 2018, 37, 437–444. [Google Scholar]
  13. Wu, Y.P.; Tian, J.W.; Liu, S.; Li, B.; Zhao, J.; Ma, L.F.; Li, D.S.; Lan, Y.Q.; Bu, X. Bi-microporous metal-organic-frameworks with cubane [M4(OH)4] (M = Ni, Co) clusters and pore space partition for electrocatalytic methanol oxidation reaction. Angew. Chem. Int. Ed. 2019, 58, 12185–12189. [Google Scholar] [CrossRef]
  14. Zhou, Z.; Han, M.L.; Fu, H.R.; Ma, L.F.; Luo, F.; Li, D.S. Engineering design toward exploring the functional group substitution in 1D channels of Zn-organic frameworks upon nitro explosives and antibiotics detection. Dalton Trans. 2018, 47, 5359–5365. [Google Scholar] [CrossRef]
  15. Zhao, X.; Bu, X.H.; Nguyen, E.T.; Zhai, Q.G.; Mao, C.Y.; Feng, P.Y. Multivariable modular design of pore space partition. J. Am. Chem. Soc. 2016, 138, 15102–15105. [Google Scholar] [CrossRef] [PubMed]
  16. Guo, X.Z.; Li, J.L.; Shi, S.S.; Zhou, H.; Han, S.S.; Chen, S.S. Synthesis, structure and luminescent property of a Zn(II) complex with mixed multi-N donor and 2,5-dihydroxy-terephthalic acid ligands. Chin. J. Struct. chem. 2018, 37, 1117–1124. [Google Scholar]
  17. Han, L.J.; Yan, W.; Chen, S.G.; Shi, Z.Z.; Zheng, H.G. Exploring the detection of metal ions by tailoring the coordination mode of V-shaped thienylpyridyl ligand in three MOFs. Inorg. Chem. 2017, 56, 2936–2940. [Google Scholar] [CrossRef]
  18. Furukawa, H.; Cordova, K.E.; O’Keeffe, M.; Yaghi, O.M. The chemistry and applications of metal-organic frameworks. Science 2013, 341, 974. [Google Scholar] [CrossRef]
  19. Dong, X.Y.; Si, C.D.; Fan, Y.; Hu, D.C.; Yao, X.Q.; Yang, Y.X.; Liu, J.C. Effect of N-donor ligands and metal ions on the coordination polymers based on a semirigid carboxylic acid ligand: Structures analysis, magnetic properties, and photoluminescence. Cryst. Growth Des. 2016, 16, 2062–2073. [Google Scholar] [CrossRef]
  20. Roztocki, K.; Jedrzejowski, D.; Hodorowicz, M.; Senkovska, I.; Kaskel, S.; Matoga, D. Effect of linker substituent on layers arrangement, stability, and sorption of Zn-isophthalate/acylhydrazone frameworks. Cryst. Growth Des. 2018, 18, 488–497. [Google Scholar] [CrossRef]
  21. Yang, G.P.; Hou, L.; Ma, L.F.; Wang, Y.Y. Investigation on the prime factors influencing the formation of entangled metal−organic frameworks. CrystEngComm 2013, 15, 2561–2578. [Google Scholar] [CrossRef]
  22. Singh, R.; Bharadwaj, P.K. Coordination polymers built with a linear bis-imidazole and different dicarboxylates: Unusual entanglement and emission properties. Cryst. Growth Des. 2013, 13, 3722–3733. [Google Scholar] [CrossRef]
  23. Chen, S.S.; Chen, M.; Takamizawa, S.; Wang, P.; Lv, G.C.; Sun, W.Y. Temperature dependent selective gas sorption of the microporous metal-imidazolate framework [Cu(L)][H2L = 1, 4-di (1H-imidazol-4-yl) benzene]. Chem. Commun. 2011, 47, 752–754. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, S.S.; Chen, M.; Takamizawa, S.; Wang, P.; Lv, G.C.; Sun, W.Y. Porous cobalt(II)-imidazolate supramolecular isomeric frameworks with selective gas sorption property. Chem. Commun. 2011, 47, 4902–4904. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, S.S.; Wang, P.; Takamizawa, S.; Okamura, T.A.; Chen, M.; Sun, W.Y. Zinc (II) and cadmium(II) metal−organic frameworks with 4-imidazole containing tripodal ligand: Sorption and anion exchange properties. Dalton Trans. 2014, 43, 6012–6020. [Google Scholar] [CrossRef]
  26. Chen, S.S.; Sheng, L.Q.; Zhao, Y.; Liu, Z.D.; Qiao, R.; Yang, S. Syntheses, structures, and properties of a series of polyazaheteroaromatic core-based Zn (II) coordination polymers together with carboxylate auxiliary ligands. Cryst. Growth Des. 2016, 16, 229–241. [Google Scholar] [CrossRef]
  27. Chen, S.S. The roles of imidazole ligands in coordination supramolecular systems. CrystEngComm 2016, 18, 6543–6565. [Google Scholar] [CrossRef]
  28. Chen, S.S.; Qiao, R.; Sheng, L.Q.; Zhao, Y.; Yang, S.; Chen, M.M.; Liu, Z.D.; Wang, D.H. Cadmium(II) and zinc(II) complexes with rigid 1-(1H-imidazol-4-yl)-3-(4H-tetrazol-5-yl)benzene and varied carboxylate ligands. CrystEngComm 2013, 15, 5713–5725. [Google Scholar] [CrossRef]
  29. Ten Have, R.; Huisman, M.; Meetsma, A.; van Leusen, A.M. Novel Synthesis of 4(5)-Monosubstituted Imidazoles via Cycloaddition of Tosylmethyl Isocyanide to Aldimines. Tetrahedron 1997, 53, 11355–11368. [Google Scholar] [CrossRef]
  30. Sheldrick, G.M. A short history of SHELX. Acta Cryst. 2008, A64, 112–122. [Google Scholar] [CrossRef]
  31. Blatov, V.A. TOPOS, A Multipurpose Crystallochemical Analysis with the Program Package; Samara State University: Samara, Russia, 2009. [Google Scholar]
  32. Chen, S.S.; Liu, Q.; Zhao, Y.; Qiao, R.; Sheng, L.Q.; Liu, Z.D.; Yang, S.; Song, C.F. New metal−organic frameworks constructed from the 4-imidazole-carboxylate ligand: Structural diversities, luminescence, and gas adsorption properties. Cryst. Growth Des. 2014, 14, 3727–3741. [Google Scholar] [CrossRef]
  33. Li, J.L.; Li, W.D.; He, Z.W.; Han, S.S.; Chen, S.S. Synthesis, crystal structure, and properties of a Zn(II) coordination polymer based on a difunctional ligand containing triazolyl and carboxyl groups. Crystals 2018, 8, 424. [Google Scholar] [CrossRef]
  34. Yang, Y.J.; Wang, M.J.; Zhang, K.L. A novel photoluminescent Cd(II)–organic framework exhibiting rapid and efficient multi-responsive fluorescence sensing for trace amounts of Fe3+ ions and some NACs, especially for 4-nitroaniline and 2-methyl-4-nitroaniline. J. Mater. Chem. C 2016, 4, 11404–11418. [Google Scholar] [CrossRef]
  35. Su, J.; Yao, L.; Zhao, M.; Wang, H.; Zhang, Q.; Cheng, L.; Tian, Y. Structural induction effect of a zwitterion pyridiniumolate for metal–organic frameworks. Inorg. Chem. 2015, 54, 6169–6175. [Google Scholar] [CrossRef] [PubMed]
  36. Sun, Y.X.; Sun, W.Y. Zinc(II)– and cadmium(II)–organic frameworks with 1-imidazole-containing and 1-imidazolecarboxylate ligands. CrystEngComm 2015, 17, 4045–4063. [Google Scholar] [CrossRef]
  37. Zou, J.Y.; Gao, H.L.; Shi, W.; Cui, J.Z.; Cheng, P. Auxiliary ligand-assisted structural diversities of three metal-organic frameworks with potassium 1H-1,2,3-triazole-4,5-dicarboxylic acid: Syntheses, crystal structures and luminescence properties. CrystEngComm 2013, 15, 2682–2687. [Google Scholar] [CrossRef]
  38. Zhang, L.Y.; Zhang, J.P.; Lin, Y.Y.; Chen, X.M. Syntheses, structures, and photoluminescence of three coordination polymers of cadmium dicarboxylates. Cryst. Growth Des. 2006, 6, 1684. [Google Scholar] [CrossRef]
  39. Ye, R.P.; Zhang, X.; Zhai, J.Q.; Qin, Y.Y.; Zhang, L.; Yao, Y.G.; Zhang, J. N-donor ligands enhancing luminescence properties of seven Zn/CdIJII) MOFs based on a large rigid π-conjugated carboxylate ligand. CrystEngComm 2015, 17, 9155–9166. [Google Scholar] [CrossRef]
  40. Wang, D.Z.; Fan, J.Z.; Jia, D.Z.; Du, C.C. Zinc and cadmium complexes based on bis-(1Htetrazol-5-ylmethyl/ylethyl)-amine ligands: Structures and photoluminescence properties. CrystEngComm 2016, 18, 6708–6723. [Google Scholar] [CrossRef]

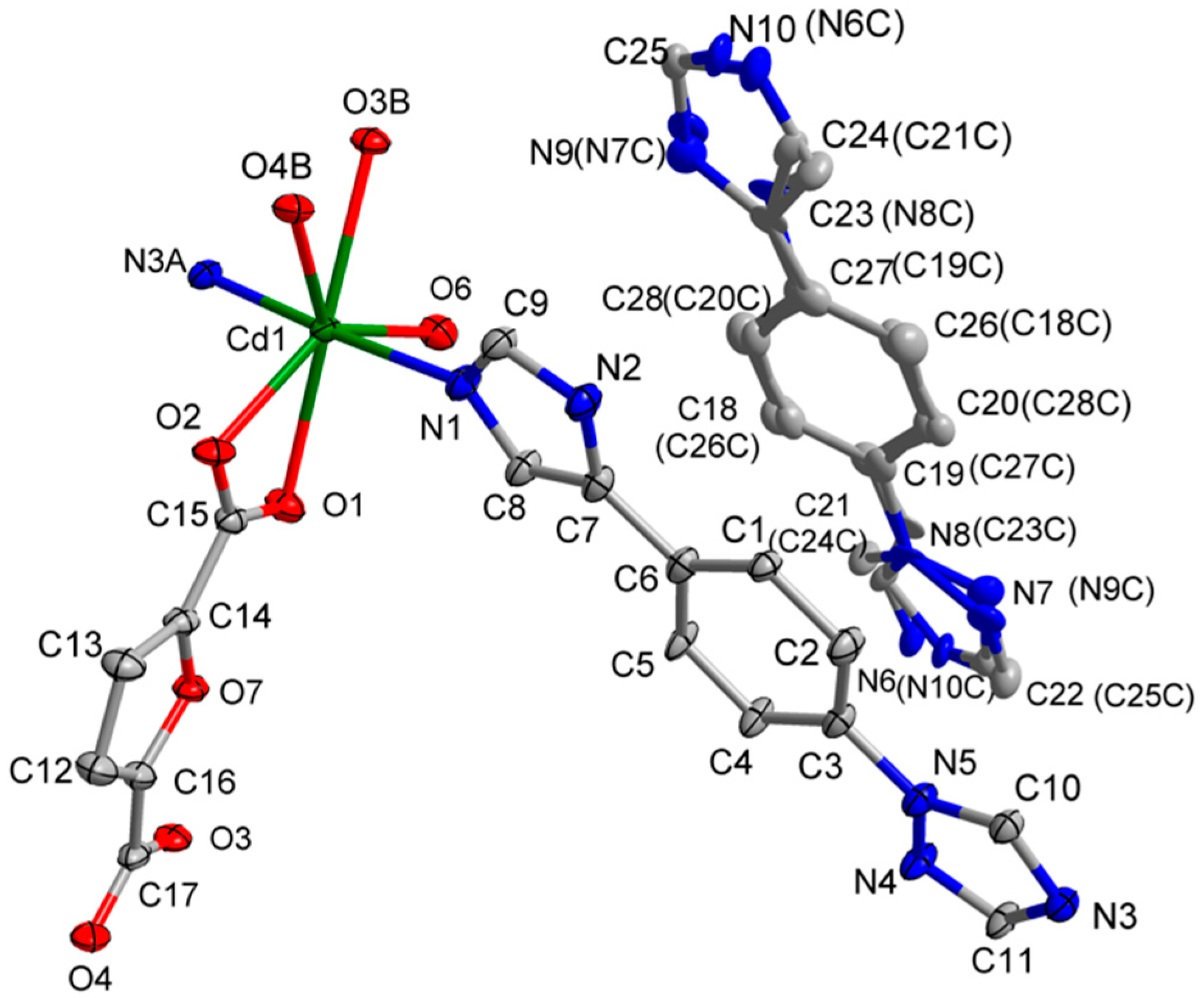

Figure 1. The coordination environment of Cd(II) ion and free L ligand in 1. Symmetry code: A x, y, 1 + z, B x, 1 + y, z, C 1 − x, 2 − y, 1 − z.
Figure 1. The coordination environment of Cd(II) ion and free L ligand in 1. Symmetry code: A x, y, 1 + z, B x, 1 + y, z, C 1 − x, 2 − y, 1 − z.
Crystals 09 00625 g001

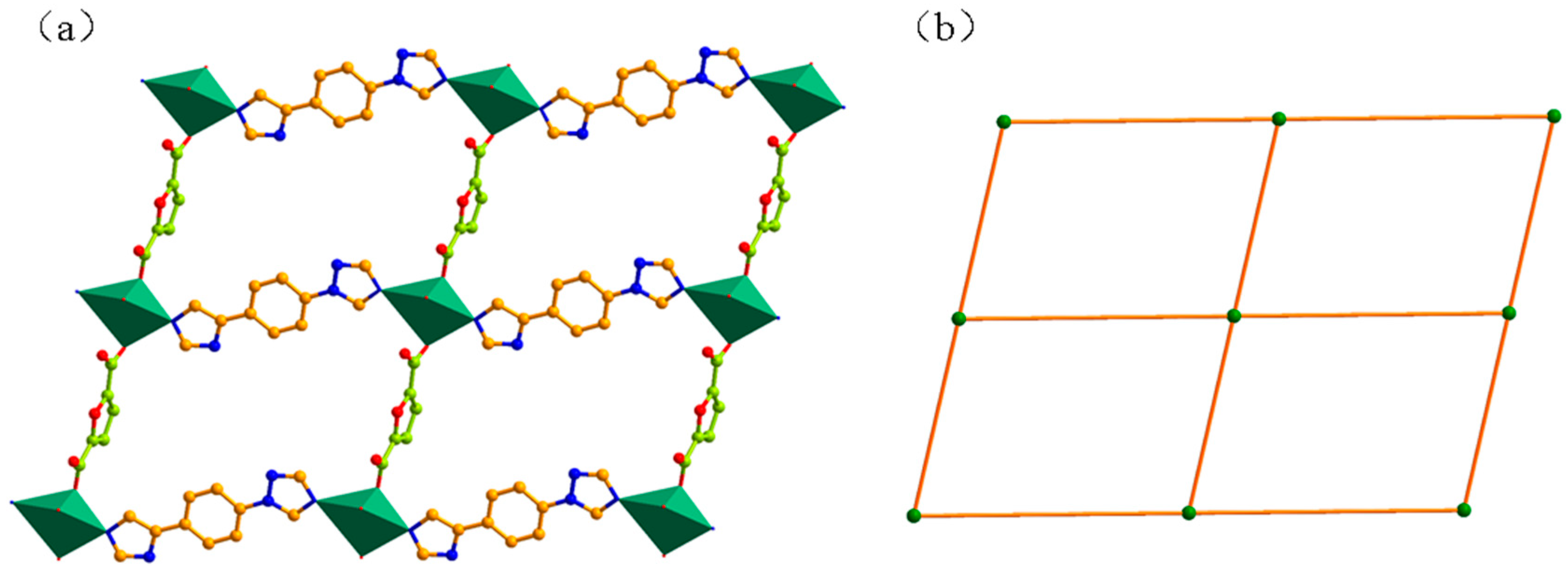

Figure 2. (a) 2D layer of [Cd(L)(frda)(H2O)]. (b) 2D network of (4, 4) topology in CP 1.
Figure 2. (a) 2D layer of [Cd(L)(frda)(H2O)]. (b) 2D network of (4, 4) topology in CP 1.
Crystals 09 00625 g002

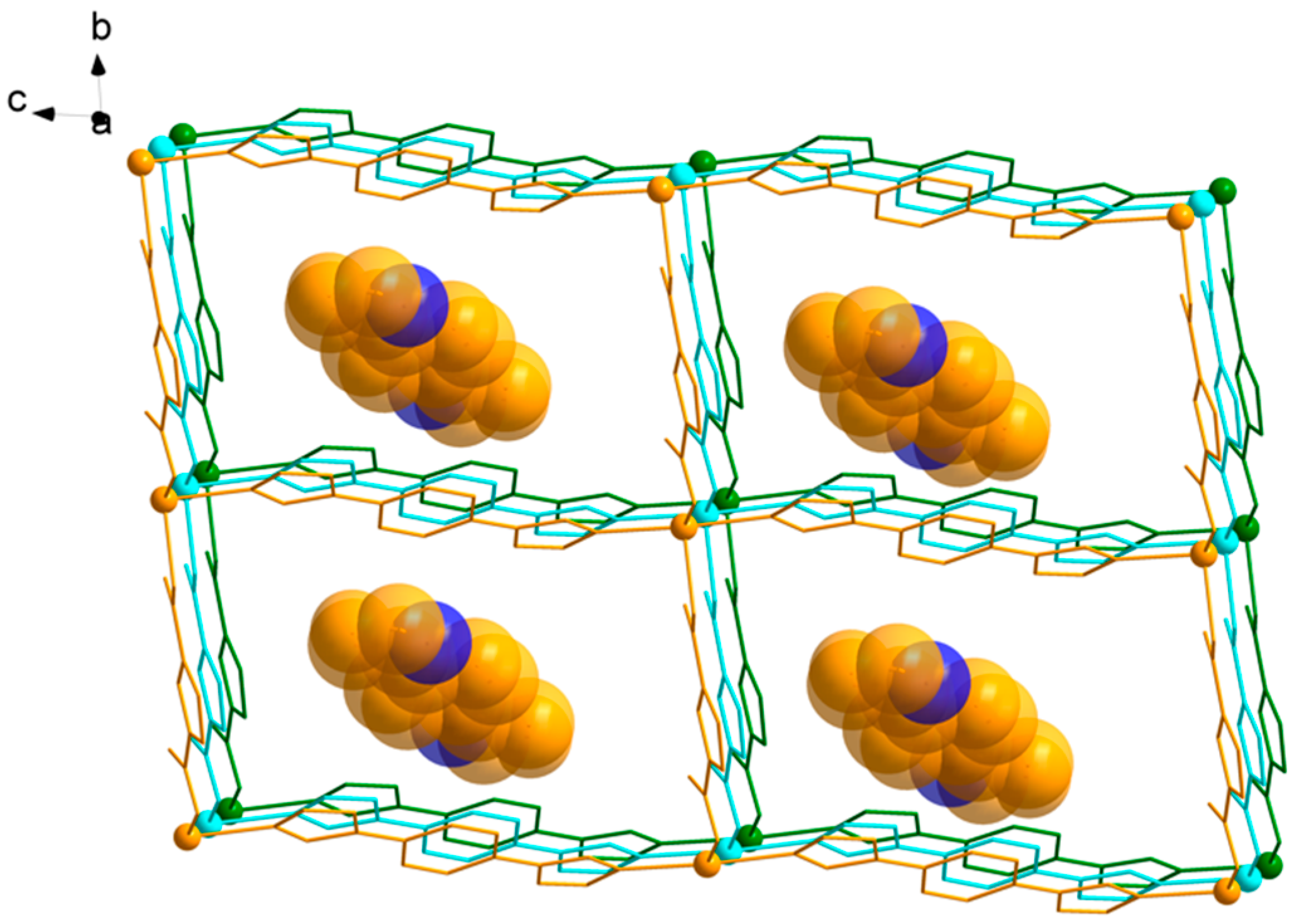

Figure 3. The 2D parallel packing layers with infinite 1D void channels embedded with uncoordinated L guest molecules.
Figure 3. The 2D parallel packing layers with infinite 1D void channels embedded with uncoordinated L guest molecules.
Crystals 09 00625 g003
Figure 4. 3D supramolecular structure of 1 packed by π···π stacking interactions.
Figure 4. 3D supramolecular structure of 1 packed by π···π stacking interactions.
Crystals 09 00625 g004

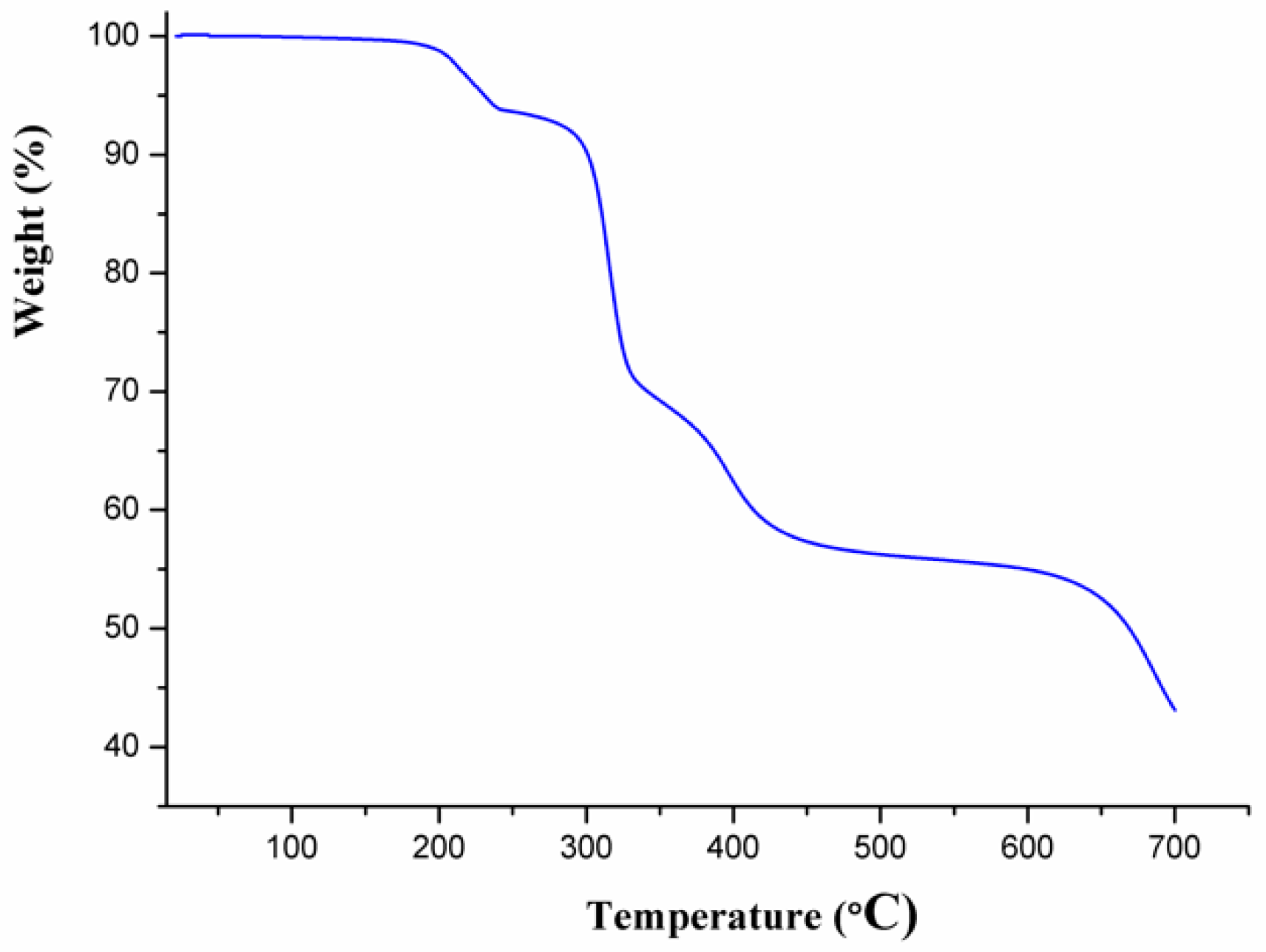

Figure 5. Thermal analysis curve of CP 1.
Figure 5. Thermal analysis curve of CP 1.
Crystals 09 00625 g005

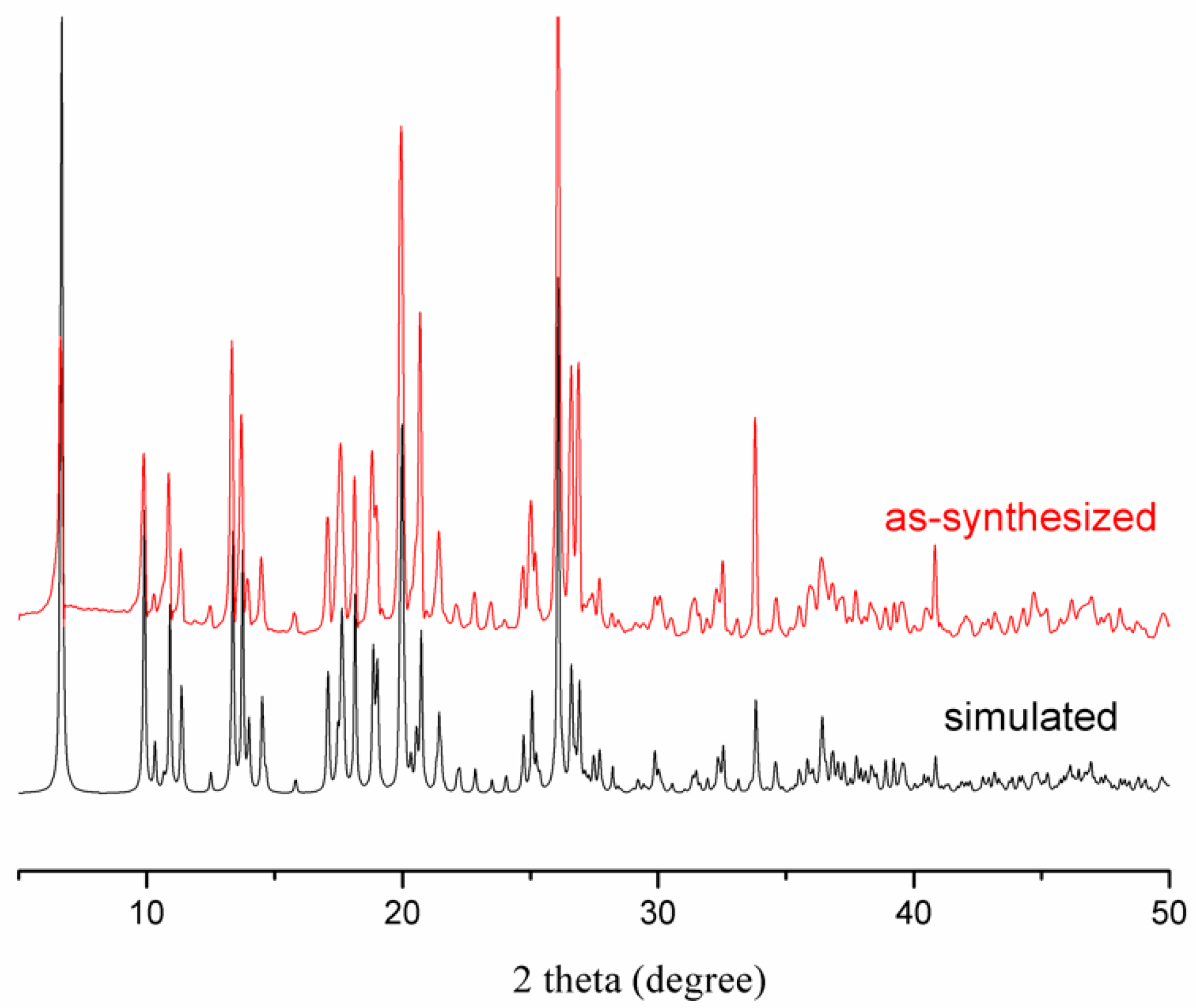

Figure 6. Simulated and experimental powder X-Ray diffraction patterns of CP 1.
Figure 6. Simulated and experimental powder X-Ray diffraction patterns of CP 1.
Crystals 09 00625 g006

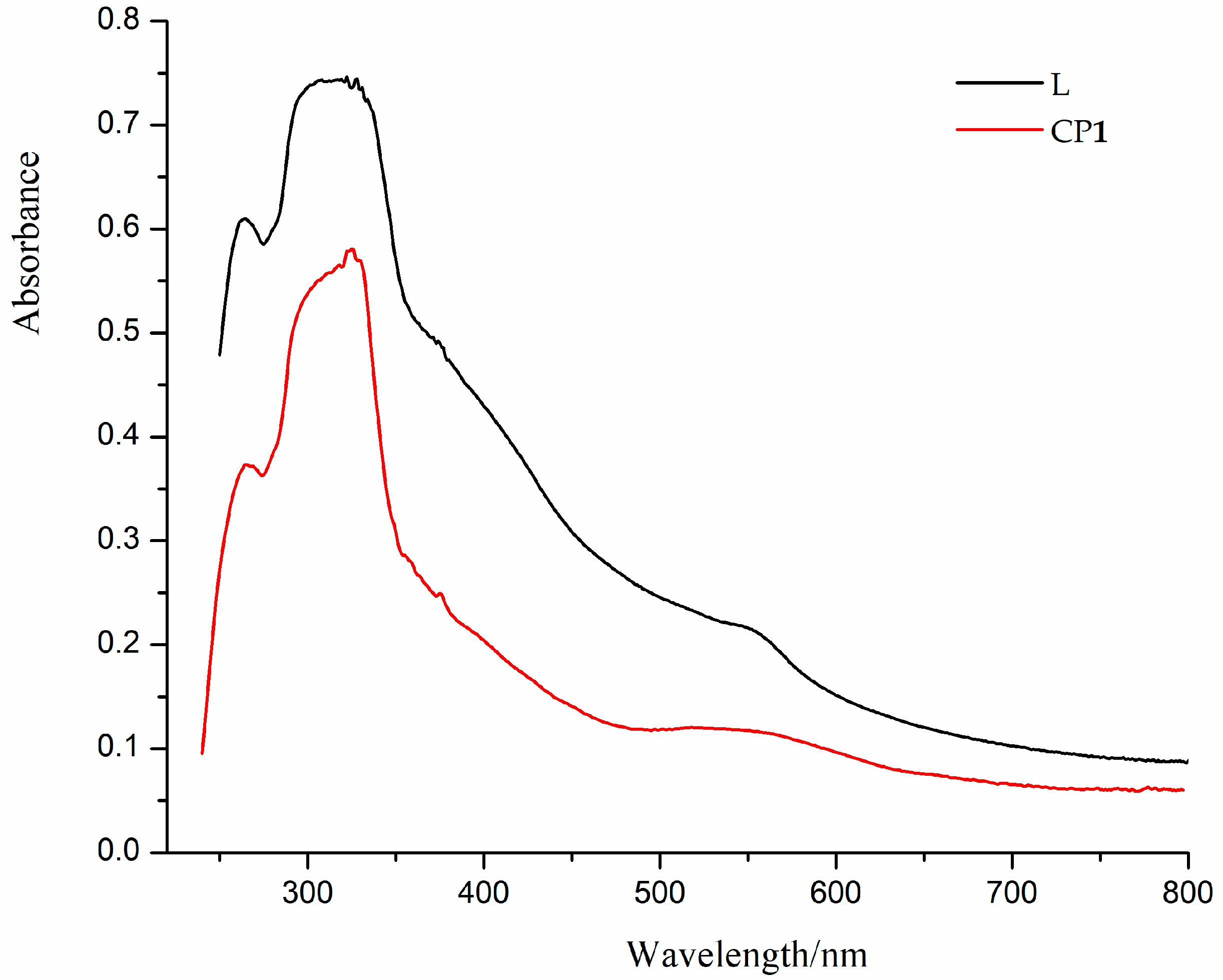

Figure 7. The UV–Vis spectra in the solid-state of the L ligand and CP 1.
Figure 7. The UV–Vis spectra in the solid-state of the L ligand and CP 1.
Crystals 09 00625 g007

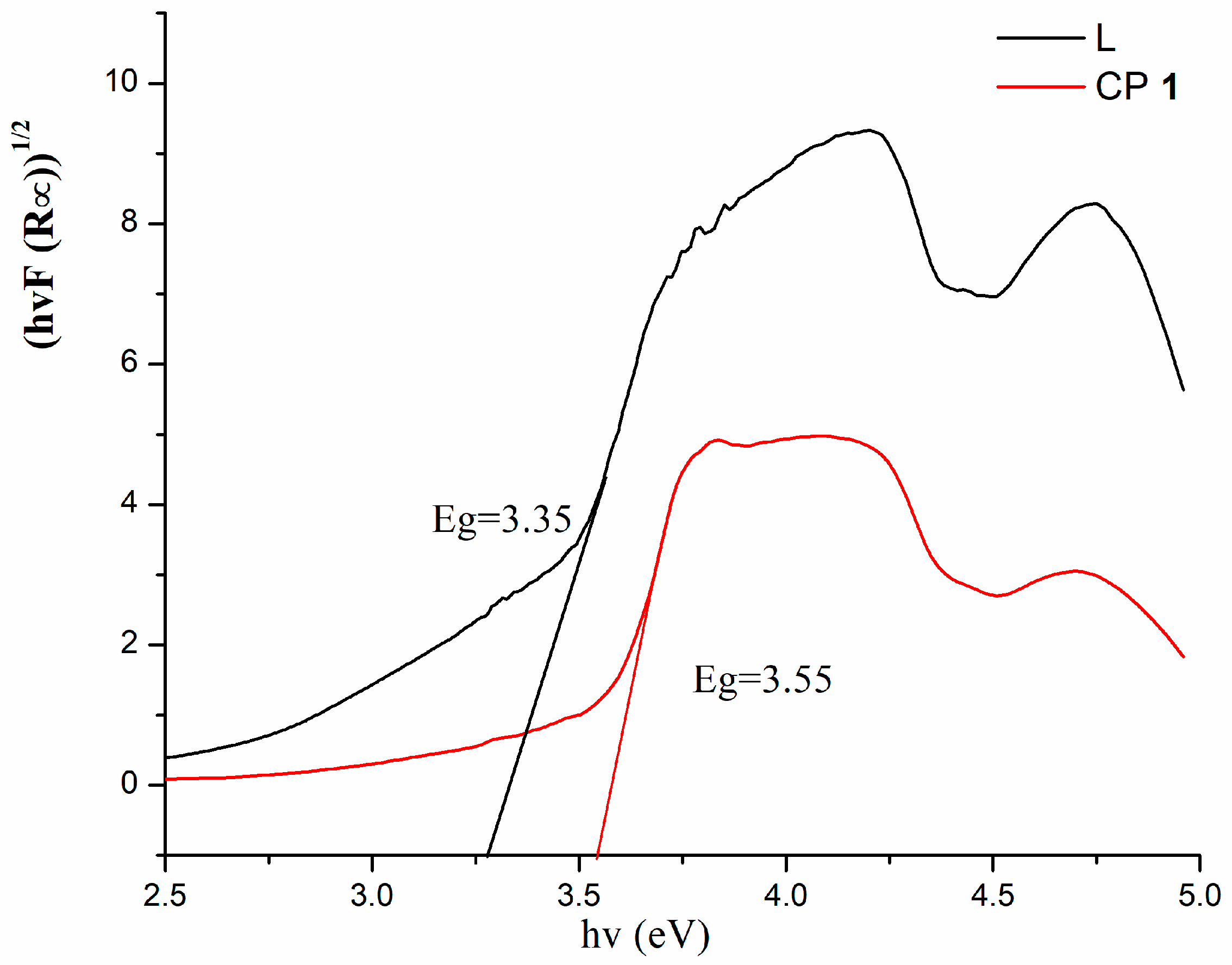

Figure 8. The band gap Eg values for L and CP 1.
Figure 8. The band gap Eg values for L and CP 1.
Crystals 09 00625 g008

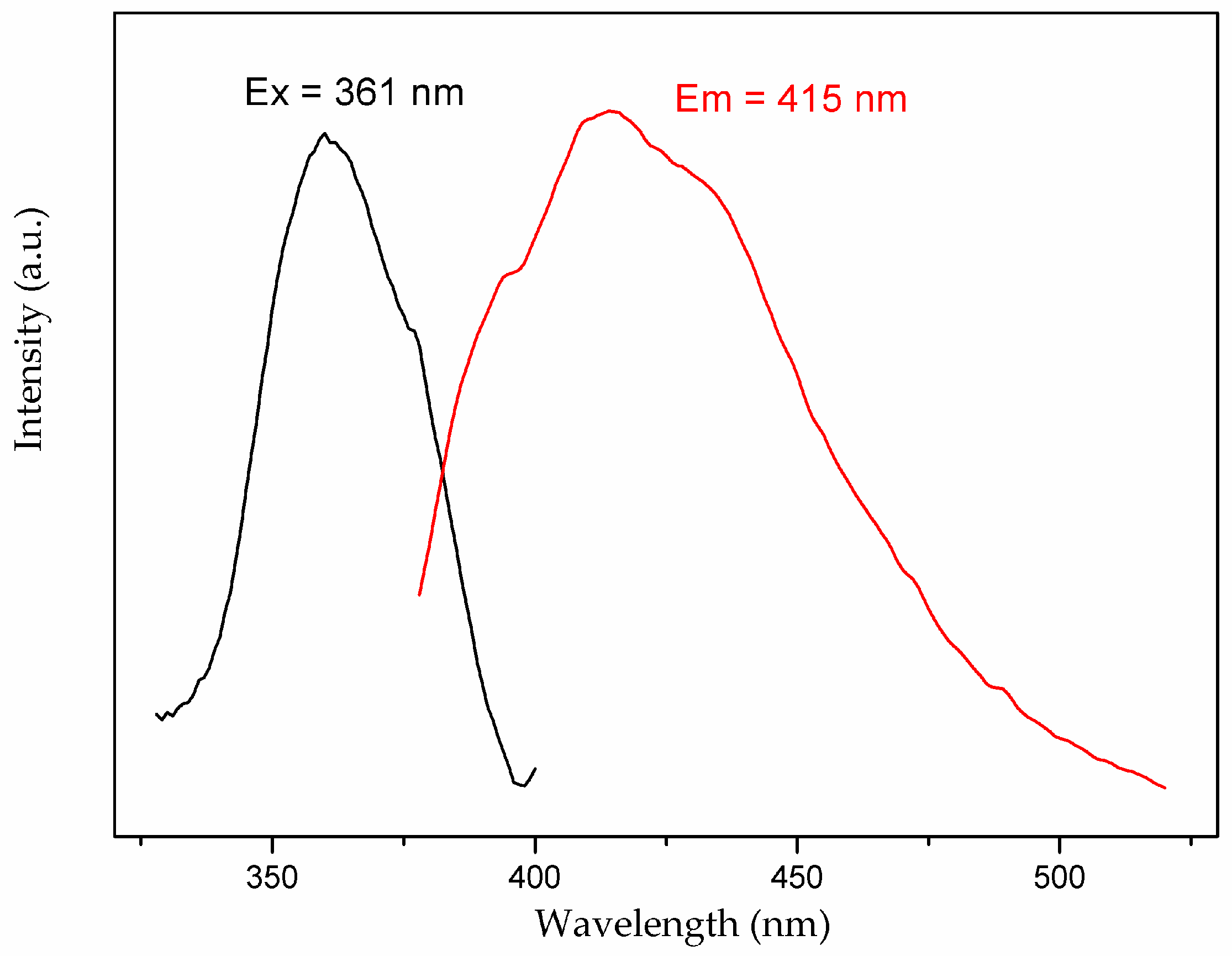

Figure 9. Photoluminescent spectra of CP 1.
Figure 9. Photoluminescent spectra of CP 1.
Crystals 09 00625 g009

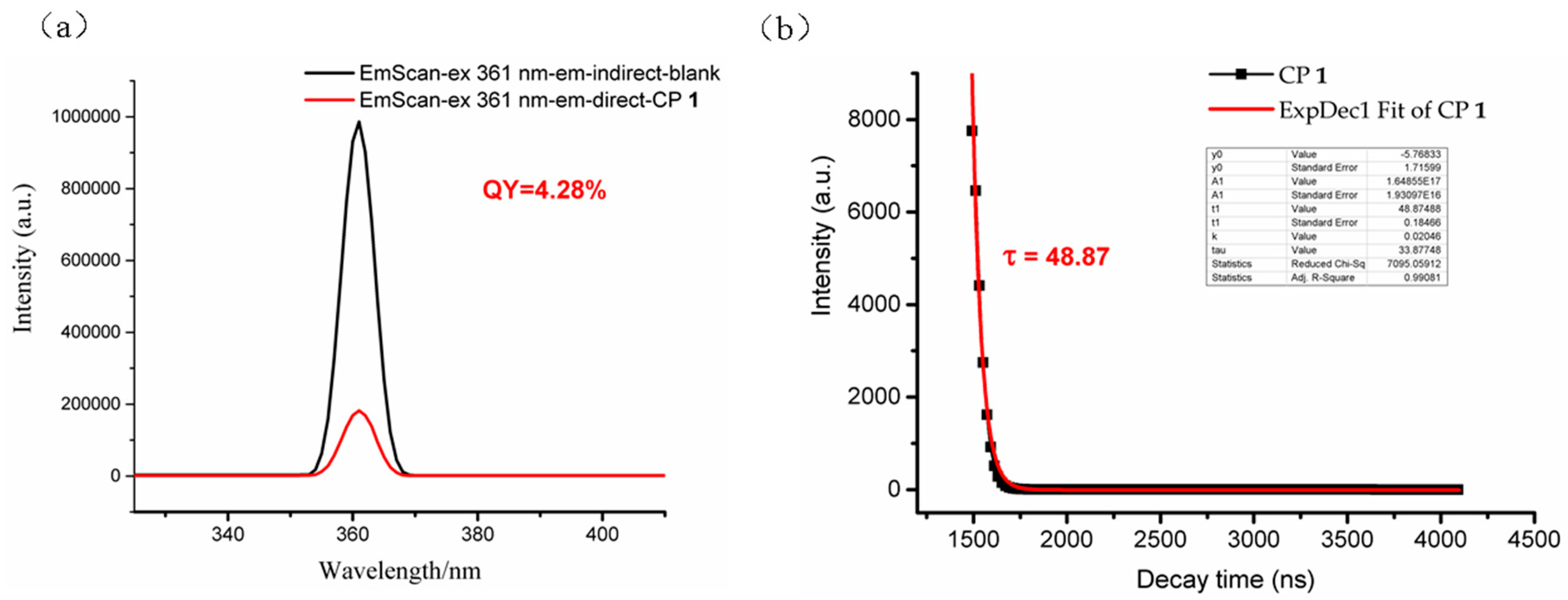

Figure 10. (a) The quantum yield curves and (b) luminescence decay curve for CP 1 (black line: experimental data; red line: fitting result).
Figure 10. (a) The quantum yield curves and (b) luminescence decay curve for CP 1 (black line: experimental data; red line: fitting result).
Crystals 09 00625 g010
Table 1. Crystallographic data and structure refinement for CP 1.
Table 1. Crystallographic data and structure refinement for CP 1.
Empirical FormulaC45H39N15O14Cd2
Formula weight1238.73
Temperature/K293(2)
Crystal systemTriclinic
Space groupP-1
a10.0552(2)
b10.1437(2)
c14.1937(2)
α/°75.690(10)
β/°69.664(2)
γ/°62.167(2)
Volume/Å31194.13(4)
Z1
ρcalcmg/mm31.723
μ/mm−10.976
F(000)622
Index ranges−12 ≤ h ≤ 13,
−12 ≤ k ≤ 12,
−13 ≤ l ≤ 18
Reflections collected14832
Independent reflections4980
Data/restraints/parameters5560/0/396
Goodness-of-fit on F21.030
Final R indexes [I ≥ 2σ(I)]R1 = 0.0310, wR2 = 0.0709
Final R indexes [all data]R1 = 0.0361, wR2 = 0.0742
Largest diff. peak/hole / e Å30.470/−0.460
The CCDC number is 1957742 for 1, deposited with the Cambridge Crystallographic Data Center. The data can be obtained on application to the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK.
Table 2. Selected bond lengths (Å) and bond angles (°) for CP 1.
Table 2. Selected bond lengths (Å) and bond angles (°) for CP 1.
BonddBondd
Cd(1)-N(1) 2.288(2)Cd(1)-N(3) i 2.281(2)
Cd(1)-O(6) 2.346(2)Cd(1)-O(2) 2.3470(16)
Cd(1)-O(4) ii 2.3871(19)Cd(1)-O(3) ii 2.5427(18)
Cd(1)-O(1) 2.5866(18)
AngleωAngle ω
N(3) i-Cd(1)-N(1) 175.41(7) N(3) i-Cd(1)-O(6) 90.86(8)
N(1)-Cd(1)-O(6) 84.94(8)N(3) i-Cd(1)-O(2) 93.45(6)
N(1)-Cd(1)-O(2) 90.84(7)O(6)-Cd(1)-O(2) 135.86(7)
N(3) i-Cd(1)-O(4) ii 99.08(7)N(1)-Cd(1)-O(4) ii 82.57(7)
O(6)-Cd(1)-O(4) ii 133.33(7) O(2)-Cd(1)-O(4) ii 89.19(6)
N(3) i-Cd(1)-O(3) ii 83.11(7)N(1)-Cd(1)-O(3) ii 94.58(7)
O(6)-Cd(1)-O(3) ii 83.62(7)O(2)-Cd(1)-O(3) ii 140.50(6)
O(4) ii-Cd(1)-O(3) ii 53.03(6)N(3) i-Cd(1)-O(1) 87.07(7)
N(1)-Cd(1)-O(1) 94.26(7)O(6)-Cd(1)-O(1) 83.57(7)
O(2)-Cd(1)-O(1) 52.90(6)O(4) ii-Cd(1)-O(1) 142.01(6)
O(3) ii-Cd(1)-O(1) 163.71(6)
Symmetry codes: (i) x, y, z + 1; (ii) x, y + 1, z.
Table 3. Hydrogen bond lengths (Å) and bond angles (°) for 1.
Table 3. Hydrogen bond lengths (Å) and bond angles (°) for 1.
D–H···Ad(D–H)d(H···A)d(D···A)∠DHA
O(6)–H(6A)···O(5) a 0.70(4)2.18(4)2.872(4)167(5)
C(6)–H(6B)···O(6) b 0.79(4)1.96(4)2.738(3)169(5)
C(2)–H(2)···O(2) c 0.93002.3200 3.142(3)148.00
C(4) –H(4)···N(4) 0.93002.5100 2.826(4)100.00
C(9)–H(9)···O(4) a 0.93002.54003.086(3)118.00
C(10)–H(10)···O(2) c 0.9300 2.2300 3.101(4)155.00
C(11)–H(11)···O(6) d 0.93002.57003.410(4) 151.00
Symmetry codes: a x, 1 + y, z; b 1 − x, 1 − y, 2 − z; c 2 − x, 1 − y, 1 − z; d 1 − x, 1 − y, 1 − z.
