Next Article in Journal
Effect of Noncovalent Dispersion of Poly(Ethylene Oxide) in Columnar Polyether-Based Discotic Liquid Crystal on the Ionic Conductivity and Dynamics of Lithium Ions
Previous Article in Journal
A Cd(II) Coordination Polymer Based on Mixed Ligands: Synthesis, Crystal Structure, and Properties
Open AccessArticle

The Potential Application of MnZn Ferrite Nanofluids for Wettability Alteration and Oil-Water Interfacial Tension Reduction

Fundamental and Applied Sciences Department, Universiti Teknologi PETRONAS, Seri Iskandar 32610, Perak, Malaysia
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(12), 626; https://doi.org/10.3390/cryst9120626
Received: 18 October 2019 / Revised: 24 November 2019 / Accepted: 24 November 2019 / Published: 27 November 2019

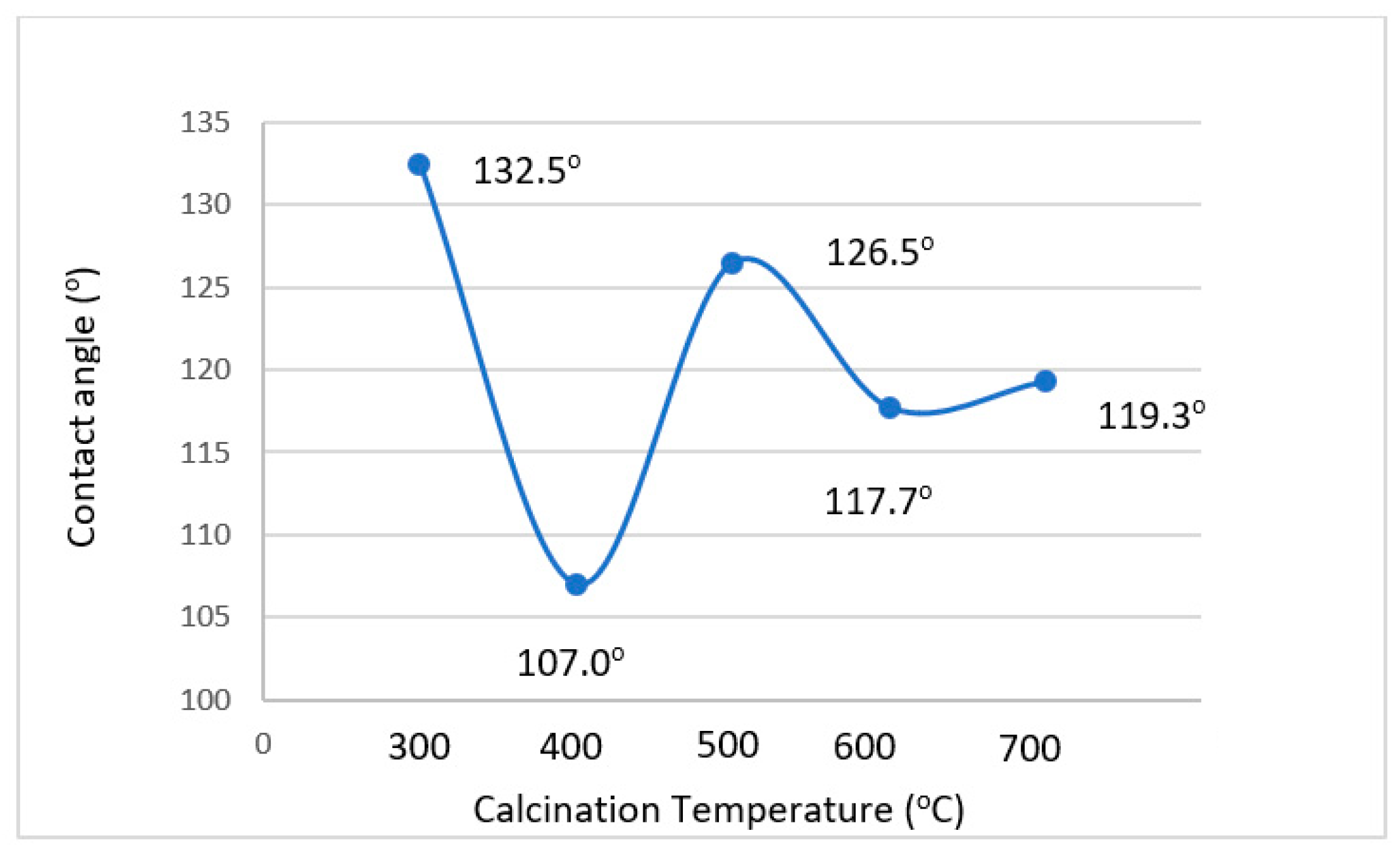

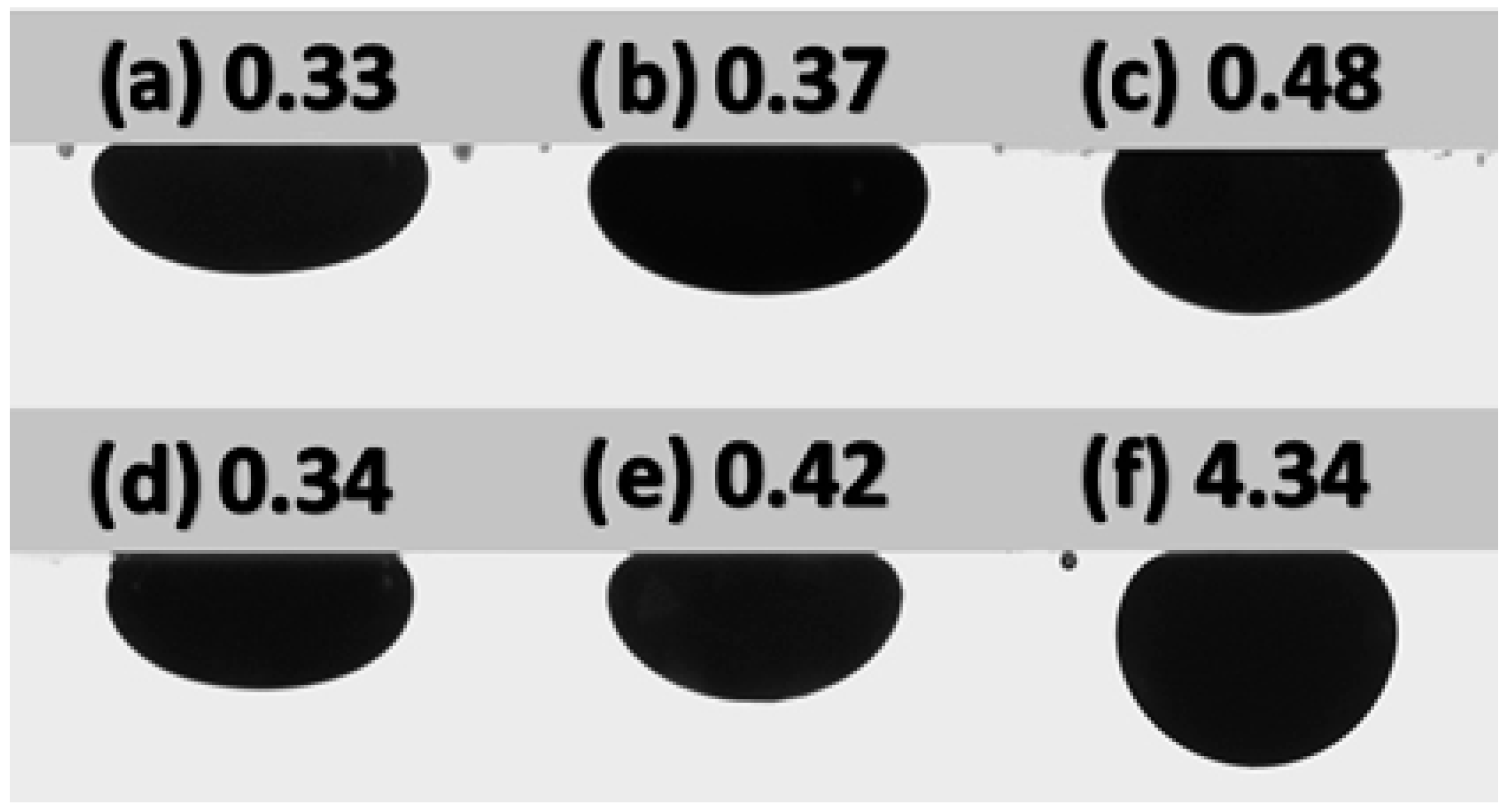

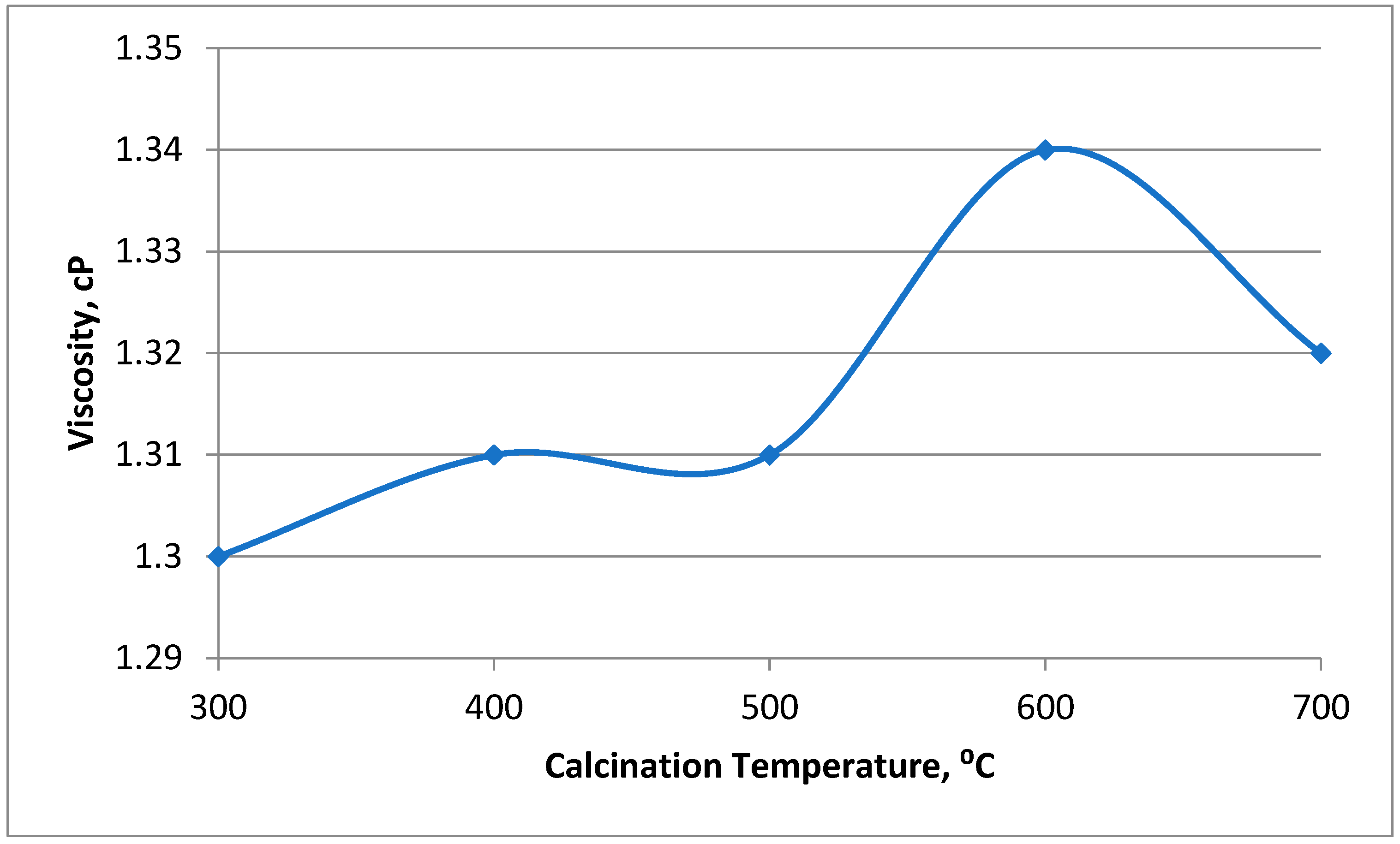

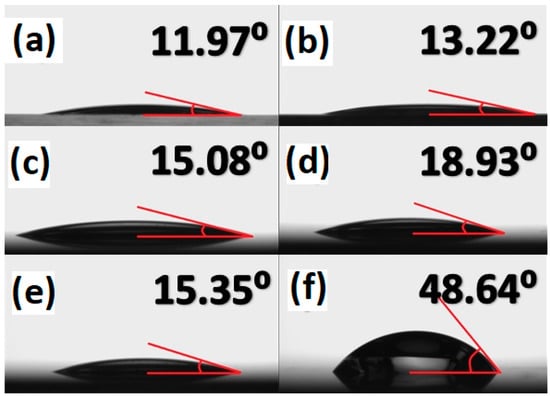

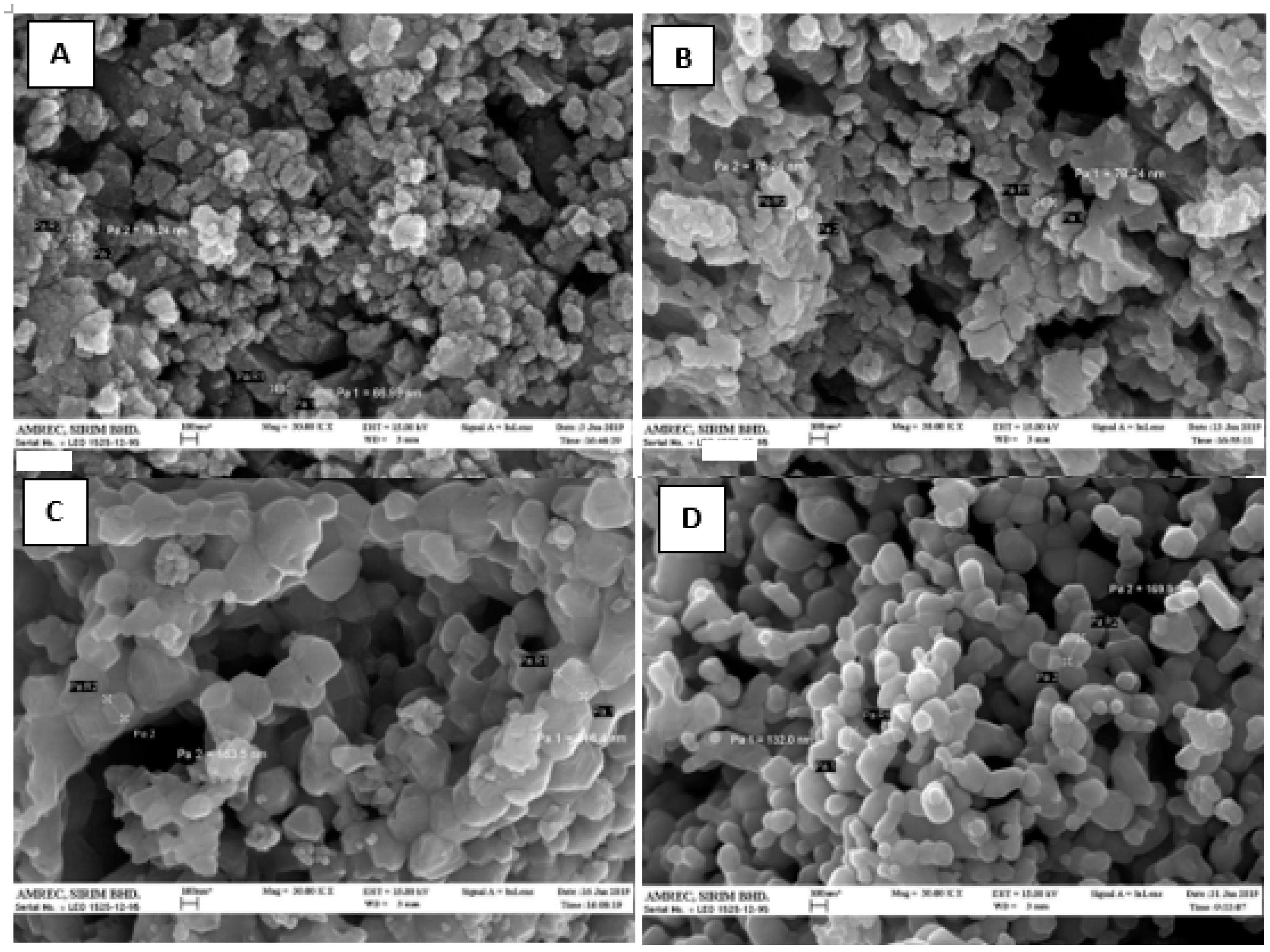

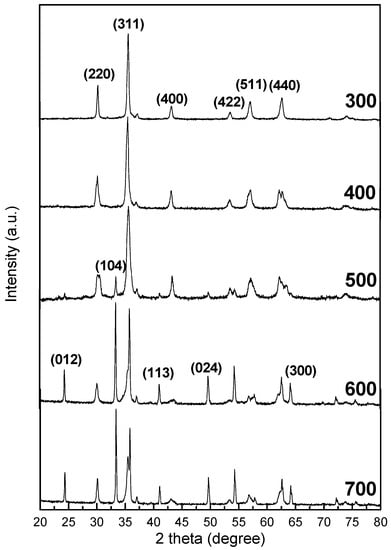

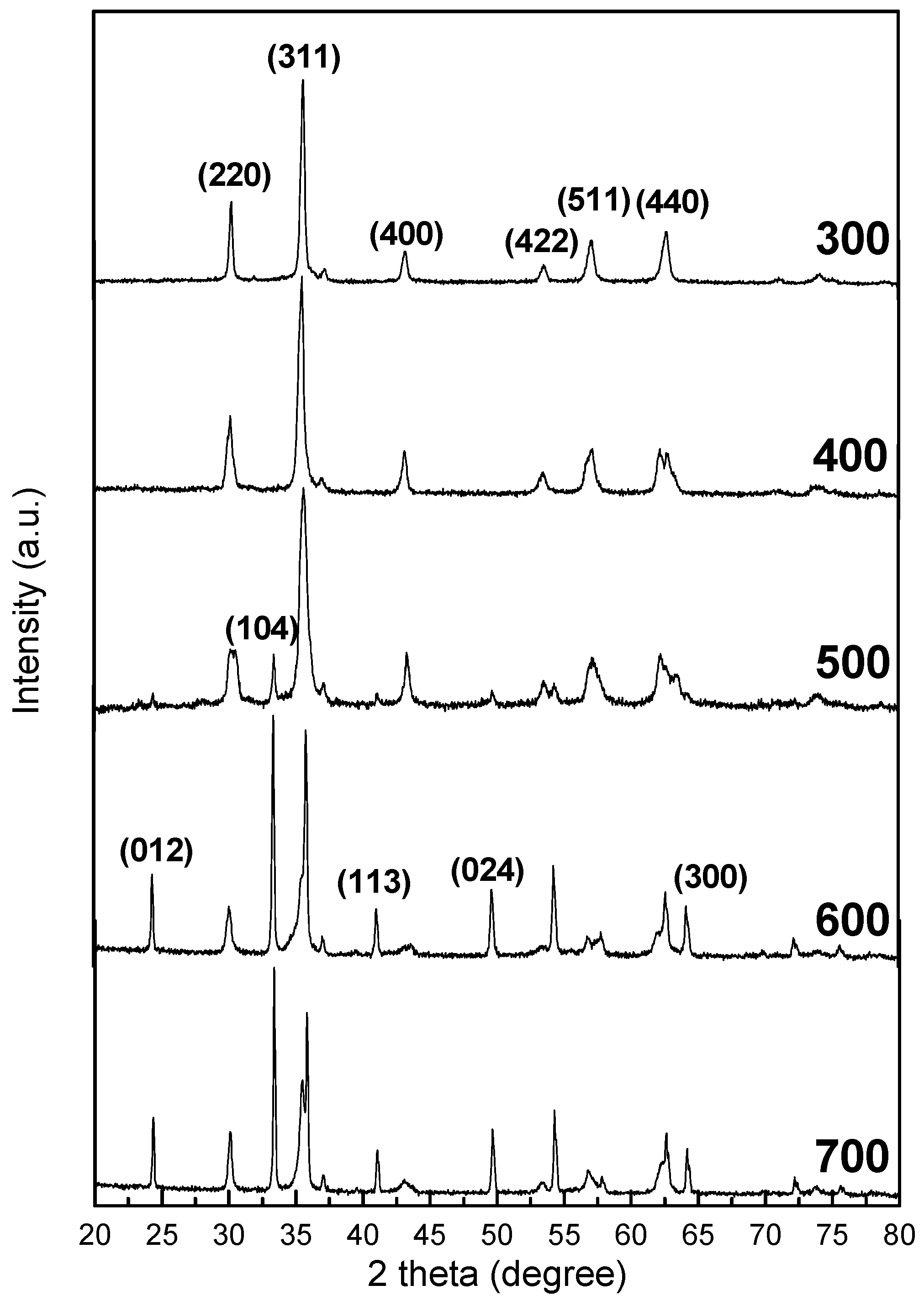

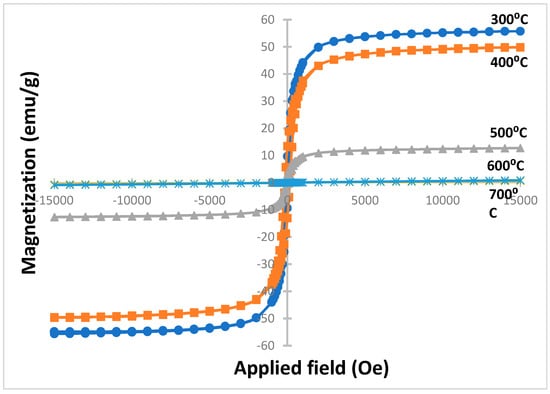

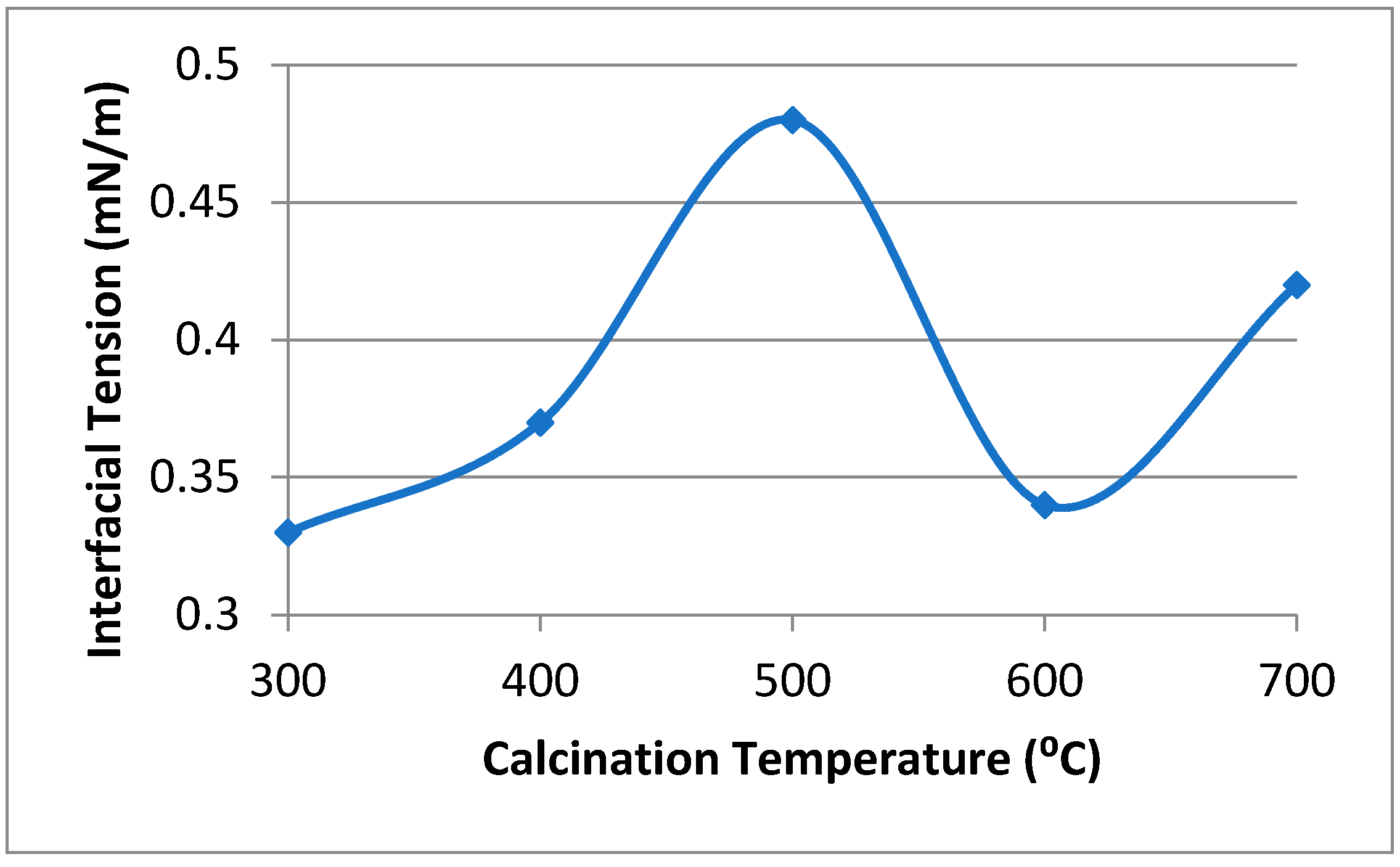

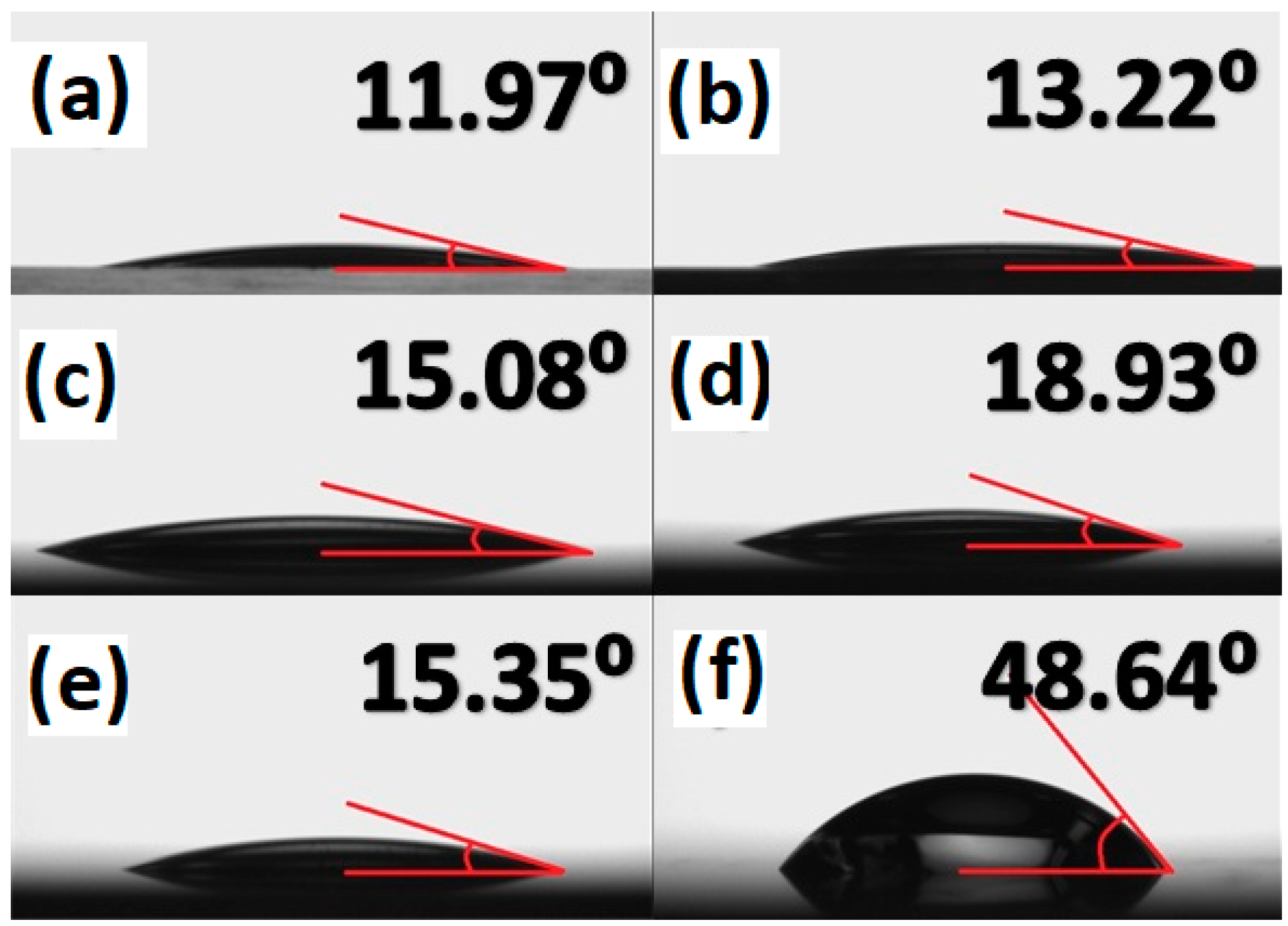

Recently, a non-invasive method of injecting magnetic/dielectric nanofluids into the oil reservoir was used for oil recovery application. The use of magnetic nanofluids in Enhanced Oil Recovery (EOR) has been reported to improve oil recovery. It is believed that the magnetic properties of nanoparticles (NPs) have a direct influence on the viscosity and wettability of nanofluid, and on oil-water interfacial tension (IFT). Thus, Mn0.5Zn0.5Fe2O4 (MnZn) ferrites may be a good candidate to be used in nanofluids for wettability alteration and oil-water IFT reduction due to their excellent magnetic properties, such as a high initial permeability and low magnetic losses. Therefore, this work investigated the potential of MnZn ferrite NPs to alter viscosity, wettability, and oil-water IFT. MnZn Ferrite NPs have been synthesized by a sol-gel auto-combustion process. The effects of calcination temperature varying from 300 °C to 700 °C on the phase formation, microstructures such as surface morphology, and magnetic characterizations were studied. MnZn ferrite nanofluids were prepared using synthesized MnZn NPs that dispersed into brine along with sodium dodecylbenzenesulfonate (SDBS) as a dispersant, and their effects on the wettability and oil-water IFT were studied. X-ray diffraction (XRD) measurements revealed that MnZn ferrite calcined at 300 °C and 400 °C were single phase. The average crystallite size calculated through Scherrer’s equation differed from 32.0 to 87.96 nm. The results showed that the nanofluid with MnZn particles calcined at 300 °C is the best nanofluid in terms of IFT reduction and base nanofluid’s wettability alteration. Moreover, the overall results proved that nanofluid with MnZn ferrite NPs can alter the wettability of base nanofluid, oil-nanofluid IFT, and nanofluid viscosity. This study provides insights towards a better understanding of the potential application of MnZn Ferrite nanofluids to Wettability Alteration and IFT Reduction in Enhanced Oil Recovery.
Keywords: Ferrite; Nanoparticles; Nanofluid; Contact Angle Ferrite; Nanoparticles; Nanofluid; Contact Angle
MDPI and ACS Style

Mohd Mokhtar, N.A.; Beh, H.G.; Lee, K.C. The Potential Application of MnZn Ferrite Nanofluids for Wettability Alteration and Oil-Water Interfacial Tension Reduction. Crystals 2019, 9, 626.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
