Thermal Conductivity of an AZ31 Sheet after Accumulative Roll Bonding

Abstract

Accumulative roll bonding (ARB) is one of the methods of severe plastic deformation which is relevant for industrial production of sheets. While mechanical properties of several magnesium alloys subjected to the ARB process have been studied, the physical properties have been reported only for some magnesium alloys. These properties are influenced by the texture developed during the ARB process and the temperature load. In the presented contribution, we studied thermal conductivity of an AZ31 magnesium alloy after one and two passes through the rolling mill. Thermal diffusivity was measured with the laser-flash method in the temperature range between 20 and 350 °C. Thermal conductivity depends on the number of rolling passes. The microstructure and texture of sheets are significant factors influencing thermal properties.

1. Introduction

Mg-Al-Zn alloys, due to their low density and high specific strength, belong to the most used magnesium materials. The strength of these alloys increases with increasing the Al content. An AZ31 alloy can be applied as wrought alloy. The mechanical properties of Mg-Al-Zn alloys can be improved using methods of severe plastic deformation (SPD) due to Hall–Petch strengthening. Several SPD methods have been described among them methods based on the rolling process as differential speed rolling (DSR) [1,2], single roller drive rolling (SRDR) [3] or accumulative roll bonding (ARB) [4,5,6]. ARB allows preparing big sheets with a predetermined thickness. On the other hand, such materials exhibit developed planar anisotropy of mechanical properties as a consequence of the texture formed during the rolling process. The texture influence on properties of hexagonal magnesium materials is significant due to large anisotropy of magnesium itself. The anisotropy of mechanical properties has been reported several times in the literature [7,8,9]. Furthermore, the developed texture affects not only mechanical properties (strength, modulus) but also physical properties (thermal expansion coefficient, internal friction, electrical resistivity). The effect of the texture on thermal properties was studied only rarely [10,11,12,13].

Thermal properties of alloys belong to the important characteristics of structural materials. Dimensional stability and distribution of the heat in the thermally loaded devices are problems of the highest priority. Thermal properties of a material influence the chilling effect (a sudden decrease of surface temperature after contact with rollers) observed during the rolling process. This chilling effect is relatively high in magnesium alloys due to their low specific heat capacity. Temperature distribution in the rolled sheets is affected by heat produced by plastic deformation, inside conduction, friction heat, convection and radiation to the environment. These factors may lead to the heterogeneous temperature distribution in a material (cit. [14,15]). Furthermore, plastic deformation mechanisms strongly depend on temperature; thus the inhomogeneous temperature field in the sheet leads also to non-uniform strain. In this study the temperature dependence of the thermal conductivity of a magnesium alloy AZ31 is measured with the aim to estimate the effect of the ARB process on thermal conductivity.

2. Materials and Methods

AZ31 (commercial purity) magnesium alloy sheets with initial thickness of 2 mm were used in this study.

Table 1. Chemical composition of the alloy in wt%.

Al	Zn	Mn	Si	Ce	Fe	Mg
3.16	1.29	0.41	0.015	0.055	0.02	Bal.

shows the chemical composition of the used AZ31 alloy. Before the rolling, the surfaces of the sheets were wire brushed and clean with acetone in order to obtain oxide free surface with appropriate roughness for high-quality joints. The sheets were riveted along one side to bring the cleaned surfaces in contact. Then the sheets were annealed at 400 °C for 15 min. Four-high rolling mill configuration with the rolling speed of 0.4 ms⁻¹ and 50% rolling reduction in each pass was used. We performed one and two passes through the rolling mill. ARB_1 and ARB_2, respectively indicate the samples subjected to one or two passes of the ARB process. ARB_0 stands for the as-received sheet.

Laser flash method LINSEIS LFA 1000 was applied for the thermal diffusivity and specific heat measurements ranging from 20 up to 350 °C under vacuum environment. The dimensions of the specimens were 12.7 mm in diameter and 2 mm in thickness and the measurement was performed across the sample thickness. The samples were coated with graphite on both sides to ensure homogenous absorption of the laser energy. Four samples were measured simultaneously three times; for each sample the median of the three values was taken and then the mean value and the standard deviation was calculated. The main principle of the thermal diffusivity measurements is to measure the temperature rise on the rear side of the samples with liquid-nitrogen cooled infrared detector after the laser pulse. Then, the thermal diffusivity coefficient a is calculated according to the formula: a = 0.1388·ℓ²/t_0.5, where ℓ is the thickness of the specimen and t_0.5 is the time at 50% of temperature increase. For the specific heat measurement, comparison method was used. Pure Molybdenum (3N8) was used as a reference sample. Then, the specific heat coefficient corresponds to the total temperature increase according to the formula: c_p = c_pr(ΔT_r/ΔT)(m_r/m), where c_p, c_pr are the specific heats of the sample and reference sample; ΔT, ΔT_r are temperature increases induced by the laser pulse; m, m_r are the masses of the sample and reference sample, respectively.

The thermal expansion coefficient, α, was measured using a LINSEIS L75PT-1600 dilatometer at heating and cooling rates of 1 K/min in a resistance furnace in an argon protective atmosphere. Length changes were measured by linear variable differential transformer (LVDT) sensor through quartz push-rods. Al₂O₃ reference was used for correction measurements.

Density of the samples was estimated by the hydrostatic weighing at room temperature. Microstructure characteristics and the texture of samples were studied using light microscopes (OLYMPUS and NEOPHOT) and by a FEI Quanta 200 FX scanning electron microscope equipped with EDAX EBSD system; orientation imaging map software was utilized for EBSD observations. The step size used for EBSD measurements was 0.8 μm.

3. Results

3.1. Microstructure of Samples

Light micrographs taken from the sheets surface of the ARB_0, ARB_1 and ARB_2 samples are depicted in Figure 1, Figure 2 and Figure 3. Non-uniform grain structure consisting of bigger grains surrounded by small grains was found in the rolled sheet (Figure 1). After the first ARB process the grain structure was refined as it is obvious from Figure 2, nevertheless it remained still non-uniform. The result of the second ARB pass is shown in Figure 3. As can be seen the microstructure is nearly uniform with fine grains.

Particles visible in Figure 1, Figure 2 and Figure 3 were analyzed using EDX line spectroscopy. Particles represent an Al–Mn binary phase. In the literature, these particles were identified as Al₈Mn₅ and/or Al₁₁Mn₄ phases [16,17]. A new interface formed in the ARB process is visible in the light micrograph presented in Figure 4.

3.2. Thermal Measurements

The thermal conductivity κ (W/(m K)) can be calculated according to known relationship

κ = a·ρ·c_p,

(1)

where a is the thermal diffusivity (cm²/s), ρ is the density (kg m⁻³), c_p is the specific heat capacity (J/kg/K) at constant pressure. Taking into account the thermal expansivity of the sample thickness and volume

ℓ = ℓ₂₀ [1 + α·(T − 20)],

(2)

we obtained for the sample density the following relationship

ρ = ρ₂₀/[1 + α·(T − 20)]³.

(3)

The thermal conductivity can be calculated according to formula:

$$\kappa =\frac{0.1388·{\mathcal{\ell }}_{20}^2}{t_{0.5}\left(T\right)}{\rho }_{20}{c}_p\left(T\right)/\left[1+\alpha ·\left(T-20\right)\right]$$

(4)

Experimental values of the specific heat, c_p, and the thermal expansion coefficient, α, used for the calculation, are reported in

Table 2. Specific heat, c_p, and thermal expansion coefficient, α, estimated at various temperatures.

Material	ARB_0		ARB_1		ARB_2
T (°C)	cp (Jkg−1K−1)	α × 10−6 (K−1)	cp (Jkg−1K−1)	α × 10−6 (K−1)	cp (Jkg−1K−1)	α × 10−6 (K−1)
20	1010	26.53	1002	26.27	1036	25.73
50	1012	26.72	1037	26.47	1087	25.94
100	1060	27.04	1070	26.80	1101	26.31
150	1090	27.36	1107	27.12	1133	26.67
200	1112	27.68	1120	27.45	1159	27.04
250	1130	27.99	1113	27.77	1186	27.40
300	1161	28.31	1146	28.10	1186	27.77
350	1184	28.63	1166	28.43	1203	28.13

.

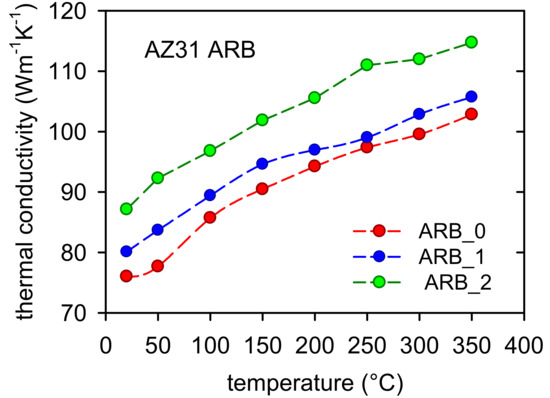

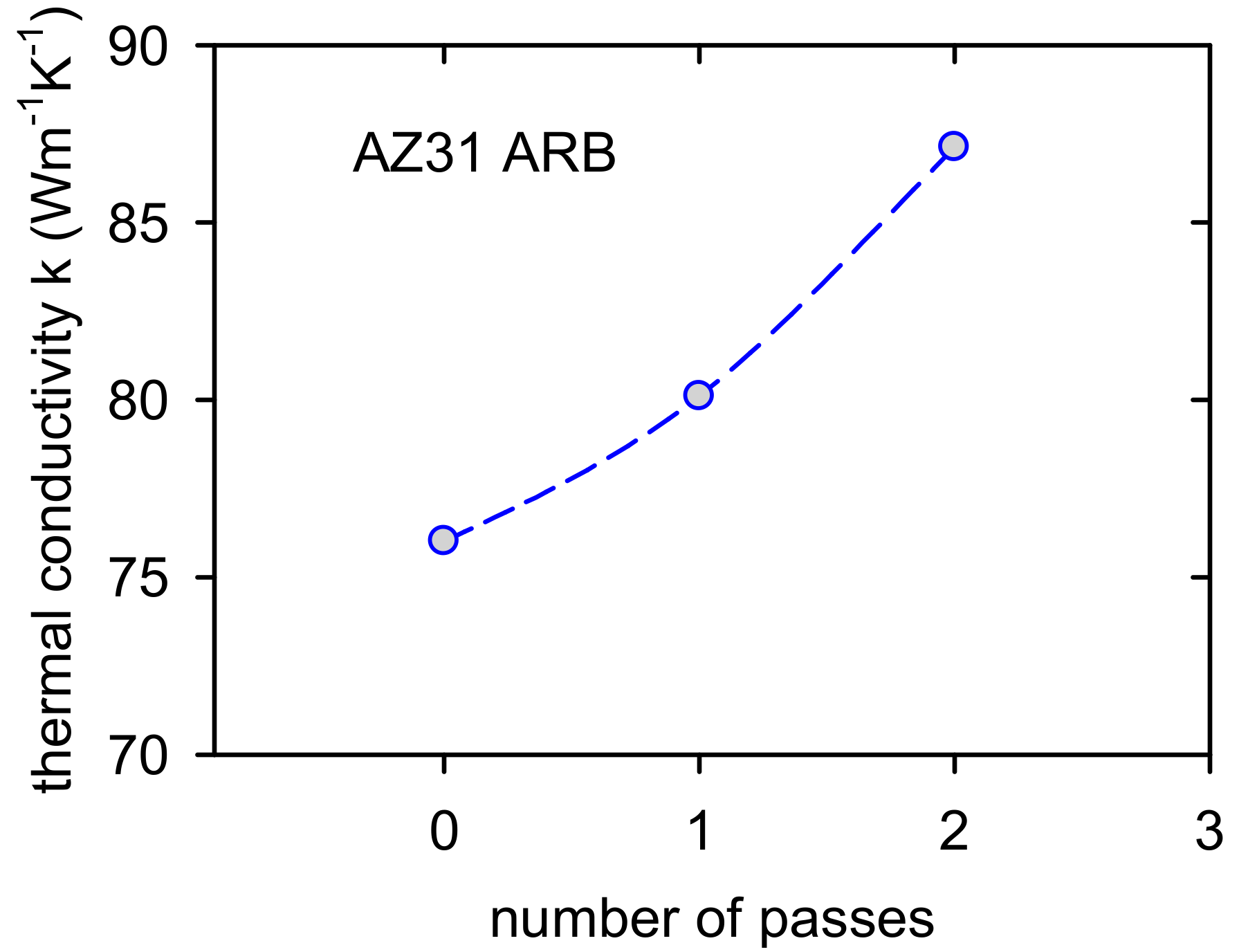

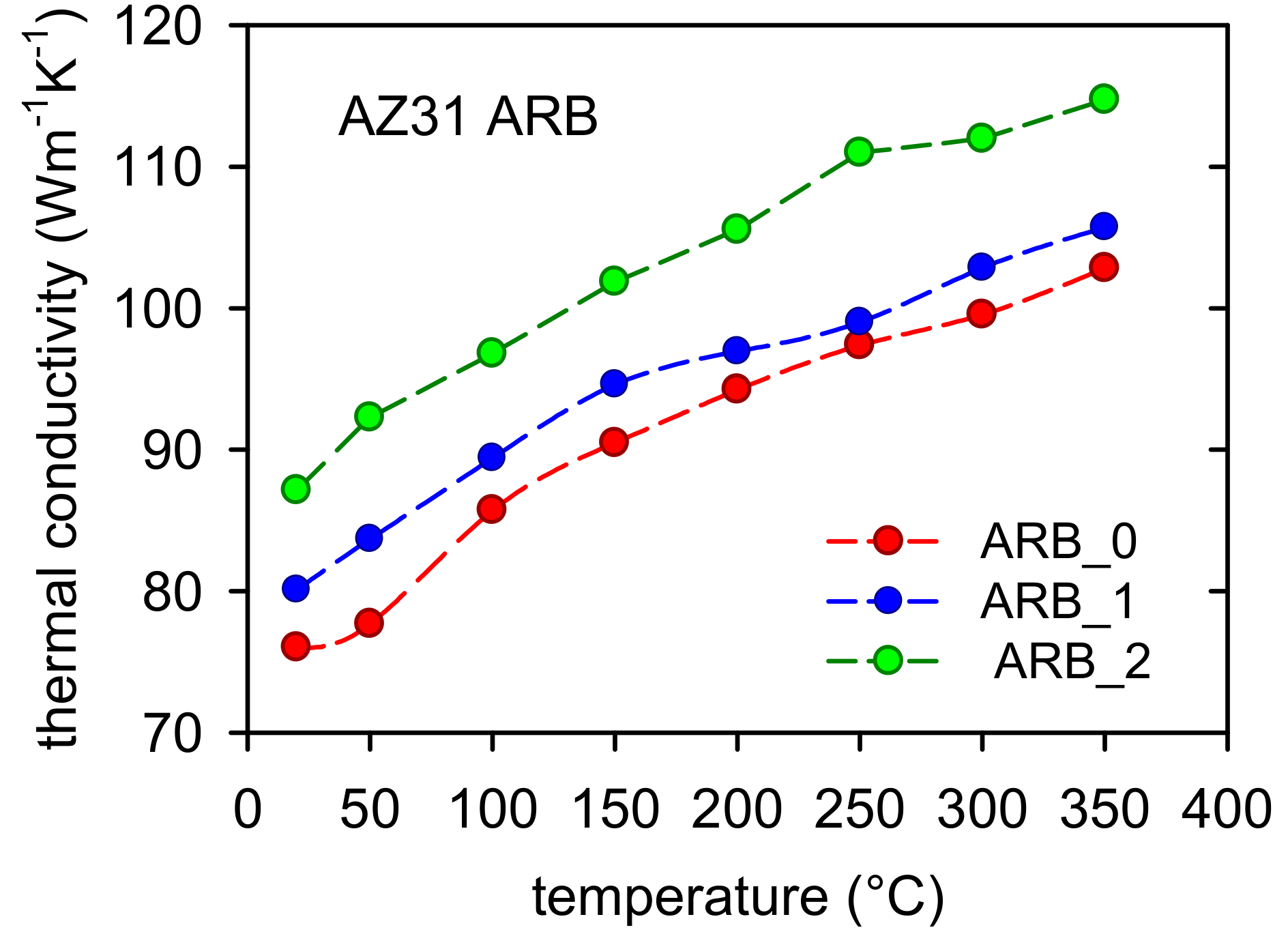

The temperature dependence of the thermal conductivity is shown in Figure 5. The thermal conductivity increases with increasing number of passes at all temperatures. This is better seen in Figure 6 where the thermal conductivity, measured at room temperature, rapidly increases with increasing number of passes.

4. Discussion

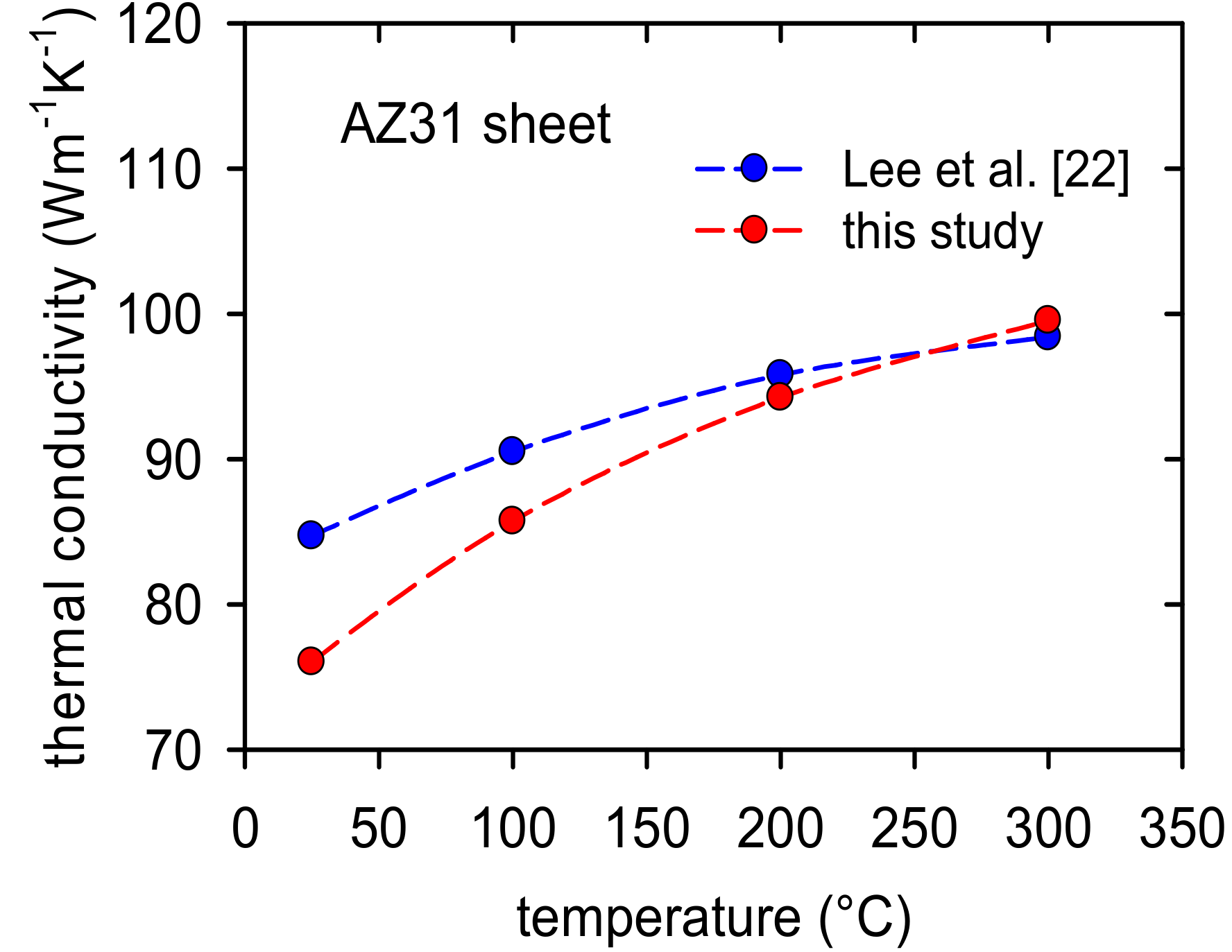

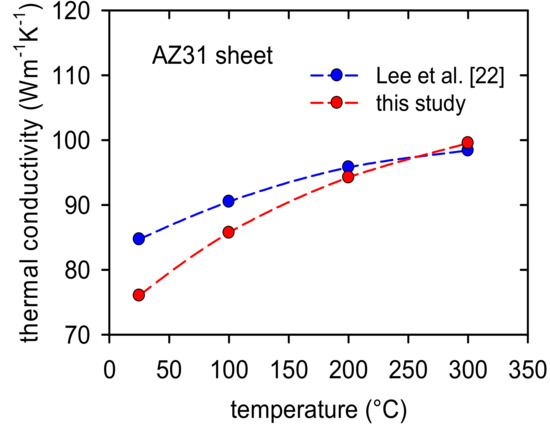

The conductivity of magnesium alloys has been reported in many papers. Mostly, binary and ternary magnesium alloys consist of α-grains containing the solid solution of the alloying elements in Mg and various phases. Generally, the thermal conductivity depends on their composition and thermal history [9,11,13,18,19,20,21,22,23,24,25,26,27,28,29]. Results of these studies were ambiguous. Ying et al. [9] studied extruded Mg-Al alloys in the temperature interval ranging from room temperature up to 250 °C. Presented results show that thermal conductivity of pure Mg and Mg-0.5at.%Al decreases with increasing temperature, while the thermal conductivity of Mg-0.9at.%Al remains almost unchanged, and the thermal conductivity of Mg-1.5at.%Al increases with increasing temperature. Similar results were found for Mg-Zn alloys [11]. For Zn contents higher than 1wt.%, thermal conductivity increases with increasing temperature from 30 up to 240 °C. Precipitation of the second phase particles increases thermal conductivity due to purification of the matrix [23]. Thermal conductivity of an AZ31 alloy prepared by twin roll casting was measured in a wide temperature range from −125 °C up to 400 °C [23]. Thermal conductivities estimated by Lee et al. in [22] and our results of ARB_0 are shown in Figure 7. It can be seen that the obtained results are very close, even if different processing conditions were used.

As it was shown in several papers, the microstructure and microstructure changes influence the thermal conductivity [12,13,18,19,20,21,22,23,24,25,26,27,28,29]. The main changes in the microstructure occurred during the ARB process are grain refinement and development of the texture. While the grain refinement influence on the thermal conductivity was according to authors knowledge not systematically studied, the influence of texture was observed by several authors [10,11,12,13,28]. Ying et al. studied extruded Mg and Mg-Zn alloys. They estimated that thermal conductivity of the pure Mg and Mg-x%Zn (x = 0.5–5% Zn) is lower in the extrusion direction comparing with the transversal direction [11]. The orientation effect was significant for pure Mg and weaker in the Mg+5%Zn alloy. Thermal conductivity of cast and extruded ZM51 alloy was studied by Yuan et al. at room temperature [29]. They estimated distinctive influence of the texture on thermal conductivity developed during the extrusion procedure. The thermal conductivity value estimated in the extrusion direction was lower than values measured in both transversal and normal directions. The isotropic value found for the cast sample was the highest. It is very probably due to influence of the grain size. Increased density of grain boundaries in the extruded samples restricts the mean free path of electrons and decreases thermal conductivity. The same effect must be considered in the AZ31 sheets after the ARB procedure. There are two competitive processes: decreased grain size (and hence increased density of the gain boundaries) and the rolling texture. Presented experimental results documented that the influence of the material anisotropy is stronger.

Rolled sheets from magnesium materials exhibit a typical texture, where basal planes (0001) are mostly parallel to the sheet surface. It is due to operation of various slip systems during the rolling deformation. Basal and prismatic slip can operate parallel to the rolling direction and width direction, but not parallel to the thickness direction.

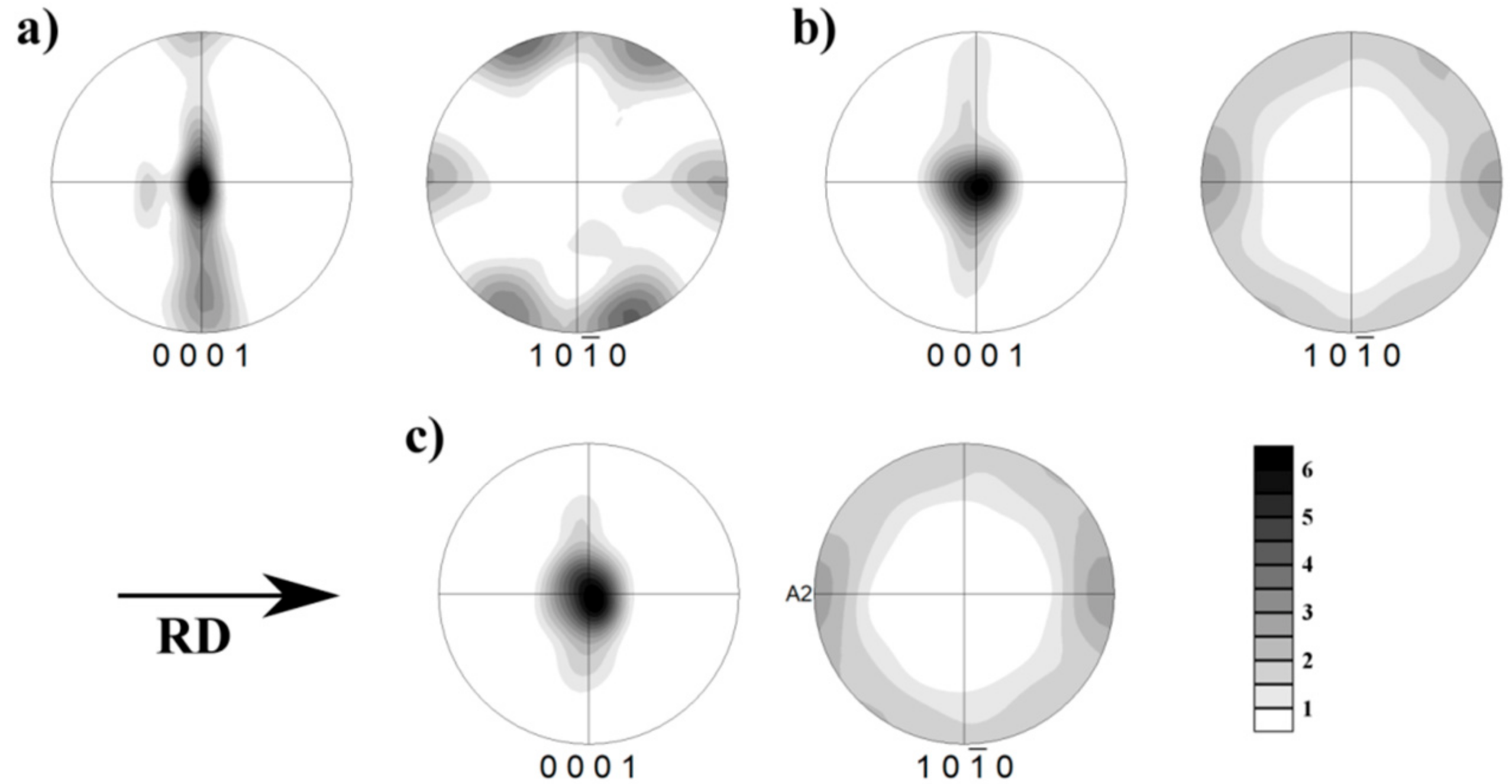

Observed textures of our samples are presented in Figure 8a for ARB_0, Figure 8b (ARB_1) and Figure 8c (ARB_2).

After the repeated rolling in the first and second pass, the grain refinement occurred in a continuous rotational dynamic recrystallization (RRX) process. This mechanism involves dynamic polygonization of rotated lattice regions adjacent to the grain boundaries [30,31]. The texture after the first and the second pass is nearly perfect (Figure 8), i.e., most grains are oriented with their basal planes parallel to the sheet surface. The estimated texture indicates that thermal conductivity of the rolled samples cannot be explained considering samples as the isotropic materials.

Thermal conductivity can be attributed to the heat transport by electrons and by phonons. When both can be considered as independent then: κ = κ_e + κ_ph. The maximum in the phonon part κ_ph is typically at temperature about 0.1θ_D, θ_D is the Debye temperature of a material (θ_D(Mg) = 318 K) [32]. It means that the measured thermal conductivity in our case can be attributed to the electronic contribution κ_e. According to the Wiedemann–Franz law [33]

κ_e = L₀·σ·T,

(5)

where σ is the electrical conductivity and L₀ is the standard Lorentz number and T absolute temperature. For highly degenerated systems such as metals L₀ = 2.45 × 10⁻⁸ W Ω K⁻² [34]. Supposing a weak temperature dependence of electrical conductivity due to temperature independent scattering on impurities and defects [34], we can simply explain the measured increasing temperature dependence of the thermal conductivity (Figure 5).

In a conductor, the electronic conductivity κ_e (either electric or thermal) is defined as

J = κ_e·E,

(6)

where J is the flow density (electric current density or heat flow density) and E the field (electric field or temperature gradient). Generally the conductivity is a tensor. Non scalar conductivity can be found also in materials with hexagonal symmetry. Bass [35] estimated that the electrical conductivity of a magnesium single crystal along the <c> axis is higher than that in the <a> direction, i.e., we can also expect for the thermal conductivity, κ(c)/κ(a) > 1.

In the textured sheet, the hexagonal cells are preferentially oriented such that the <c> axis is perpendicular to the sheet surface. Thermal conductivity was measured in the same orientation, i.e., in directions preferentially close to the <c> direction. The texture strengthening after the first and second passes increased the number of grains oriented with the <c> axis perpendicular to the sheet surface, therefore, resulting in an increase in thermal conductivity. In Mg, where basal planes are close packed, the mean free path of electrons is higher in the <c> direction than in the basal plane. It should be mentioned that the anisotropy of electrical conductivity of hexagonal metals increases with increasing the <c>/<a> ratio [35].

5. Conclusions

Thermal conductivity of AZ31 magnesium alloy was measured in the temperature range from room temperature up to 350 °C. Samples for the conductivity measurements were prepared by accumulative roll bonding. The conductivity measurements were performed in the direction perpendicular to the sheet surface.

• ARB process refined the sheets microstructure.
• Rolled sheets exhibit developed texture where basal planes (0001) are preferentially parallel to the sheet surface.
• Thermal conductivity increases with temperature and increasing number of rolling passes.
• The observed increase of thermal conductivity with the increasing number of rolling passes can be explained with the texture improvement and anisotropy of thermal properties of magnesium.
• This anisotropy can be of advantage in cases where the heat dissipation occurs in one direction.
