# Dislocation Structure and Mobility in Hcp Rare-Gas Solids: Quantum versus Classical

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods Outline

#### 2.1. Classical Simulations

#### 2.2. Analysis Methods

#### 2.2.1. Differential Displacement Analysis (DD)

#### 2.2.2. Nearest Neighbor Analysis (NN)

#### 2.2.3. Common Neighbor Analysis (CNA)

## 3. Results and Discussion

#### 3.1. Edge Dislocation Structure

#### 3.2. The Peierls Stress

#### 3.2.1. Method A: Fixed Boundary Conditions

#### 3.2.2. Method B: Periodic Boundary Conditions

#### 3.3. Dislocation Mobility: Finite-T Simulations

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Hirth, J.P.; Lothe, J. Theory of Dislocations, 2nd ed.; John Wiley: New York, NY, USA, 1982. [Google Scholar]
- Hull, D.; Bacon, D.J. Introduction to Dislocations, 5th ed.; Elsevier: Amsterdam, The Netherlands, 2011. [Google Scholar]
- Bulatov, V.V.; Cai, W. Computer Simulations of Dislocations; Oxford University Press: Oxford, UK, 2006. [Google Scholar]
- Nabarro, F.; Kubin, L.; Hirth, J. Dislocations in Solids; Elsevier: Amsterdam, The Netherlands, 2009; Volumes 1–13, pp. 14–16. [Google Scholar]
- Cazorla, C.; Boronat, J. Simulation and understanding of atomic and molecular quantum crystals. Rev. Mod. Phys.
**2017**, 89, 035003. [Google Scholar] [CrossRef] - Ceperley, D.M. Path integrals in the theory of condensed helium. Rev. Mod. Phys.
**1995**, 67, 279. [Google Scholar] [CrossRef] - McMahon, J.M.; Morales, M.A.; Pierleoni, C.; Ceperley, D.M. The properties of hydrogen and helium under extreme conditions. Rev. Mod. Phys.
**2012**, 84, 1607. [Google Scholar] [CrossRef] - Herrero, C.P.; Ramírez, R. Path-integral simulation of solids. J. Phys. Condens. Matter
**2014**, 26, 233201. [Google Scholar] [CrossRef] [PubMed] - Cazorla, C.; Boronat, J. First-principles modeling of quantum nuclear effects and atomic interactions in solid
^{4}He at high pressure. Phys. Rev. B**2015**, 91, 024103. [Google Scholar] [CrossRef] - Haziot, A.; Rojas, X.; Fefferman, A.D.; Beamish, J.R.; Balibar, S. Giant plasticity of a quantum crystal. Phys. Rev. Lett.
**2013**, 110, 035301. [Google Scholar] [CrossRef] [PubMed] - Landinez-Borda, E.J.; Cai, W.; de Koning, M. Dislocation Structure and Mobility in hcp
^{4}He. Phys. Rev. Lett.**2016**, 117, 045301. [Google Scholar] [CrossRef] [PubMed] - Khater, H.A.; Bacon, D.J. Dislocation core structure and dynamics in two atomic models of α-zirconium. Acta Mater.
**2010**, 58, 2978–2987. [Google Scholar] [CrossRef] - Kamimura, Y.; Edagawa, J.; Takeuchi, S. Experimental evaluation of the Peierls stresses in a variety of crystals and their relation to the crystal structure. Acta Mater.
**2013**, 61, 294–309. [Google Scholar] [CrossRef] - Fefferman, A.D.; Souris, F.; Haziot, A.; Beamish, J.R.; Balibar, S. Dislocation networks in
^{4}He crystals. Phys. Rev. B**2014**, 89, 014105. [Google Scholar] [CrossRef] - Balibar, S.; Beamish, J.; Fefferman, A.D.; Haziot, A.; Rojas, X.; Souris, F.C.R. Dislocations in a quantum crystal: Solid helium: A model and an exception. Physique
**2016**, 17, 264–275. [Google Scholar] [CrossRef][Green Version] - Fenichel, H.; Serin, B. Low-temperature specific heats of solid neon and solid xenon. Phys. Rev.
**1966**, 142, 490. [Google Scholar] [CrossRef] - Plimpton, S. LAMMPS Molecular Dynamics Simulator. J. Comput. Phys.
**1995**, 117, 1. Available online: http://lammps.sandia.gov (accessed on 13 December 2017). [CrossRef] - Packard, J.R.; Swenson, C.A. An experimental equation of state for solid xenon. J. Phys. Chem. Solids
**1963**, 24, 1405–1418. [Google Scholar] [CrossRef] - Pollack, G.L. The solid state of rare gases. Rev. Mod. Phys.
**1964**, 36, 748. [Google Scholar] [CrossRef] - Bernades, N. Quantum Mechanical Law of Corresponding States for Van der Waals Solids at 0° K. Phys. Rev.
**1960**, 120, 807. [Google Scholar] [CrossRef] - Osetsky, Y.N.; Bacon, D.J. An atomic-level model for studying the dynamics of edge dislocations in metals. Model. Simul. Mater. Sci. Eng.
**2003**, 11, 427. [Google Scholar] [CrossRef] - Vitek, V. Structure of dislocation cores in metallic materials and its impact on their plastic behaviour. Prog. Mater. Sci.
**1992**, 36, 1–27. [Google Scholar] [CrossRef] - Stukowski, A. Structure identification methods for atomistic simulations of crystalline materials. Model. Simul. Mater. Sci. Eng.
**2012**, 20, 045021. [Google Scholar] [CrossRef] - Honeycutt, J.D.; Andersen, H.C. Molecular dynamics study of melting and freezing of small Lennard-Jones clusters. J. Phys. Chem.
**1987**, 91, 4950–4963. [Google Scholar] [CrossRef] - Bacon, D.J.; Vitek, V. Atomic-scale modeling of dislocations and related properties in the hexagonal-close-packed metals. Metall. Mater. Trans. A
**2002**, 33, 721–733. [Google Scholar] [CrossRef] - Boninsegni, M.; Kuklov, A.B.; Pollet, L.; Prokofev, N.V.; Svistunov, B.V.; Troyer, M. Luttinger liquid in the core of a screw dislocation in helium-4. Phys. Rev. Lett.
**2007**, 99, 035301. [Google Scholar] [CrossRef] [PubMed] - Ackland, G.J.; Wooding, S.J.; Bacon, D.J. Defect, surface and displacement-threshold properties of α-zirconium simulated with a many-body potential. Philos. Mag. A
**1995**, 71, 553–565. [Google Scholar] [CrossRef] - Mendelev, M.I.; Ackland, G.J. Development of an interatomic potential for the simulation of phase transformations in zirconium. Philos. Mag. Lett.
**2007**, 87, 349–359. [Google Scholar] [CrossRef] - Keyse, R.J.; Venables, J.A. Stacking fault energy and crystal stability of solid krypton and xenon. J. Phys. C Sol. Stat. Phys.
**1985**, 18, 4435. [Google Scholar] [CrossRef] - Cazorla, C.; Boronat, J. Atomic kinetic energy, momentum distribution, and structure of solid neon at zero temperature. Phys. Rev. B
**2008**, 77, 024310. [Google Scholar] [CrossRef] - Boronat, J.; Cazorla, C.; Colognesi, D.; Zoppi, M. Quantum hydrogen vibrational dynamics in LiH: Neutron-scattering measurements and variational Monte Carlo simulations. Phys. Rev. B
**2004**, 69, 174302. [Google Scholar] [CrossRef] - Shin, I.; Carter, E.A. Possible origin of the discrepancy in Peierls stresses of fcc metals: First-principles simulations of dislocation mobility in aluminum. Phys. Rev. B
**2013**, 88, 064106. [Google Scholar] [CrossRef] - Cazorla, C. The role of density functional theory methods in the prediction of nanostructured gas-adsorbent materials. Coord. Chem. Rev.
**2015**, 300, 142–163. [Google Scholar] [CrossRef] - Wang, G.; Strachan, A.; Cagin, T.; Goodard, W.A., III. Calculating the Peierls energy and Peierls stress from atomistic simulations of screw dislocation dynamics: application to bcc tantalum. Model. Simul. Mater. Sci. Eng.
**2004**, 12, S371. [Google Scholar] [CrossRef] - Born, M.; Huang, K. Dynamical Theory of Crystal Lattices; Oxford University Press: New York, NY, USA, 1954. [Google Scholar]
- Cazorla, C.; Lutsyshyn, Y.; Boronat, J. Elastic constants of solid
^{4}He under pressure: Diffusion Monte Carlo study. Phys. Rev. B**2012**, 85, 024101. [Google Scholar] [CrossRef] - Cazorla, C.; Lutsyshyn, Y.; Boronat, J. Elastic constants of incommensurate solid
^{4}He from diffusion Monte Carlo simulations. Phys. Rev. B**2013**, 87, 214522. [Google Scholar] [CrossRef] - Olmsted, D.; Hardikar, K.Y.; Phillips, R. Lattice resistance and Peierls stress in finite size atomistic dislocation simulations. Model. Simul. Mater. Sci. Eng.
**2001**, 9, 215. [Google Scholar] [CrossRef] - Yadav, S.K.; Ramprasad, R.; Misra, A.; Liu, X.-Y. Core structure and Peierls stress of edge and screw dislocations in TiN: A density functional theory study. Acta Mater.
**2014**, 74, 268–277. [Google Scholar] [CrossRef] - Balasubramanian, N. The temperature dependence of the dislocation velocity-stress exponent. Scr. Metall.
**1996**, 3, 21–24. [Google Scholar] [CrossRef] - Fitzgerald, S.P. Kink pair production and dislocation motion. Sci. Rep.
**2016**, 6, 39708. [Google Scholar] [CrossRef] [PubMed]

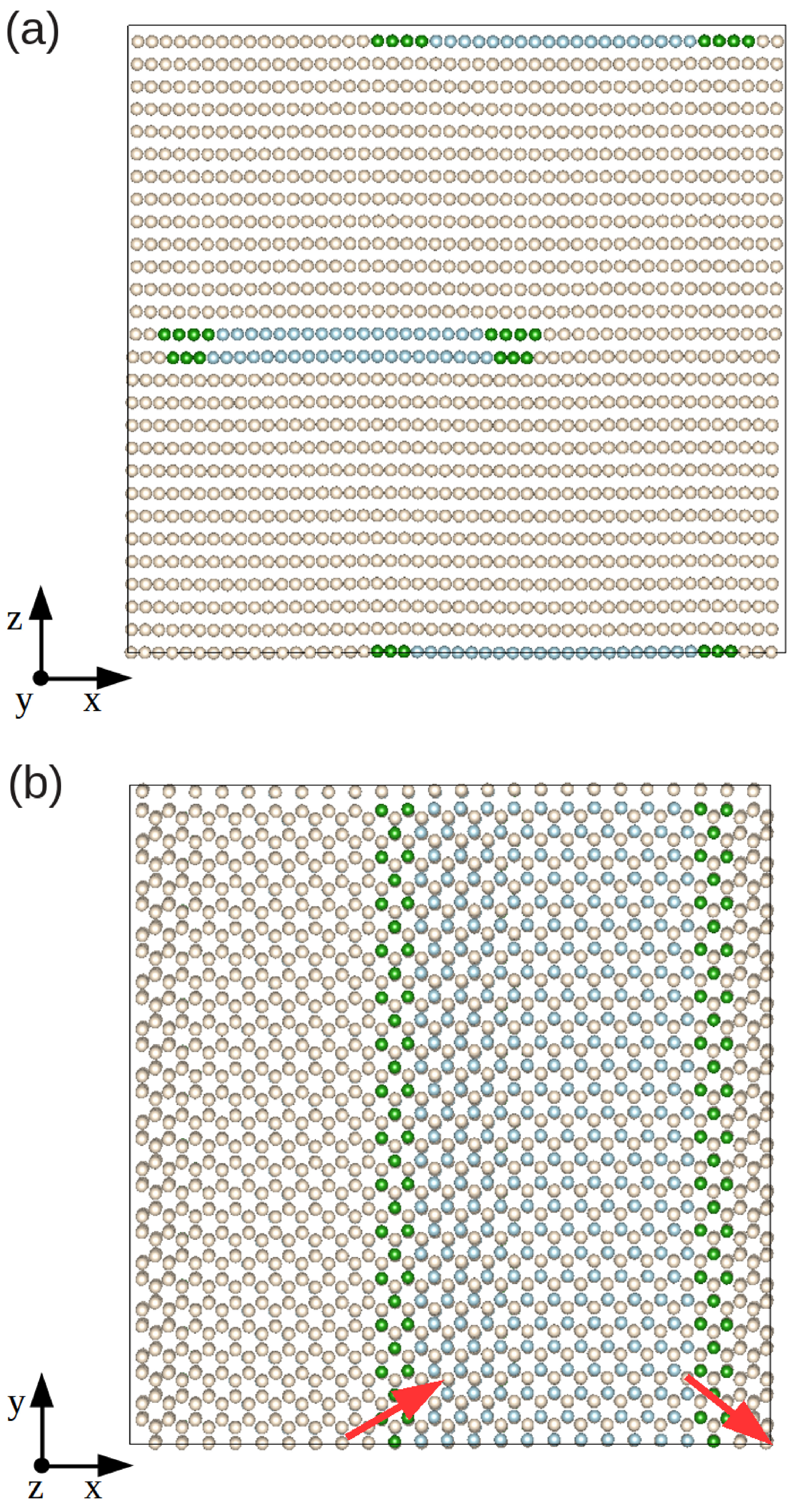

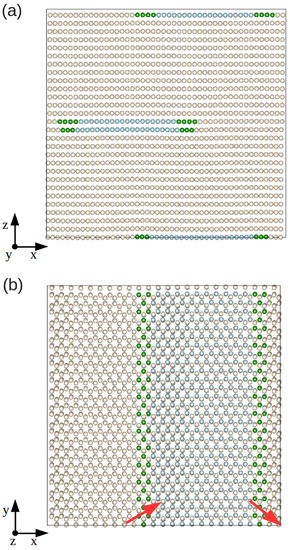

**Figure 1.**Sketch of a fully relaxed system containing an edge dislocation from different views. Green spheres represent atoms belonging to the dislocation core, blue spheres atoms belonging to the fcc-like stacking fault, and yellow spheres atoms with common hcp atomic coordination features. Red arrows represent the Burgers vectors of the partial dislocations. (

**a**,

**b**) represent different views of the simulation cell.

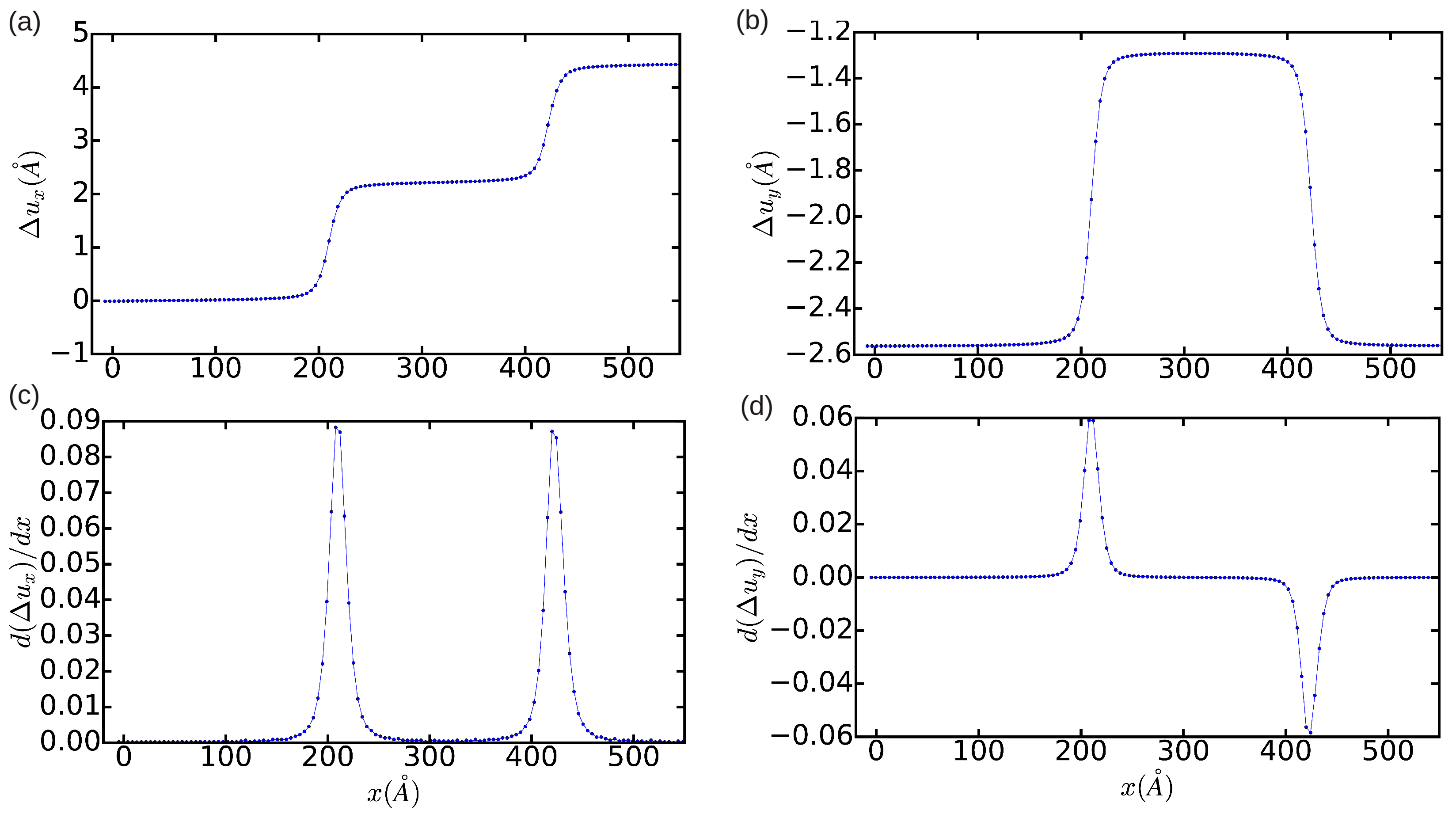

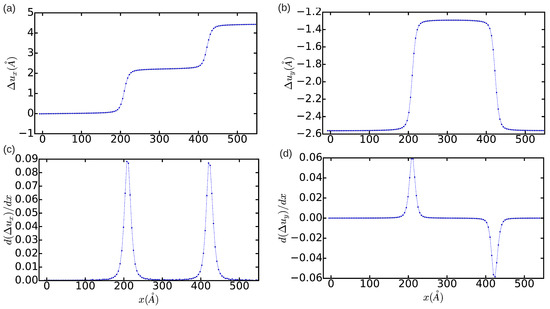

**Figure 2.**Relative displacement (

**a**,

**b**) and differential displacement (

**c**,

**d**) of the atoms above and below the glide plane of the edge dislocation in the x- and y-directions. The simulation cell contains n = 344,544 atoms and is fully relaxed.

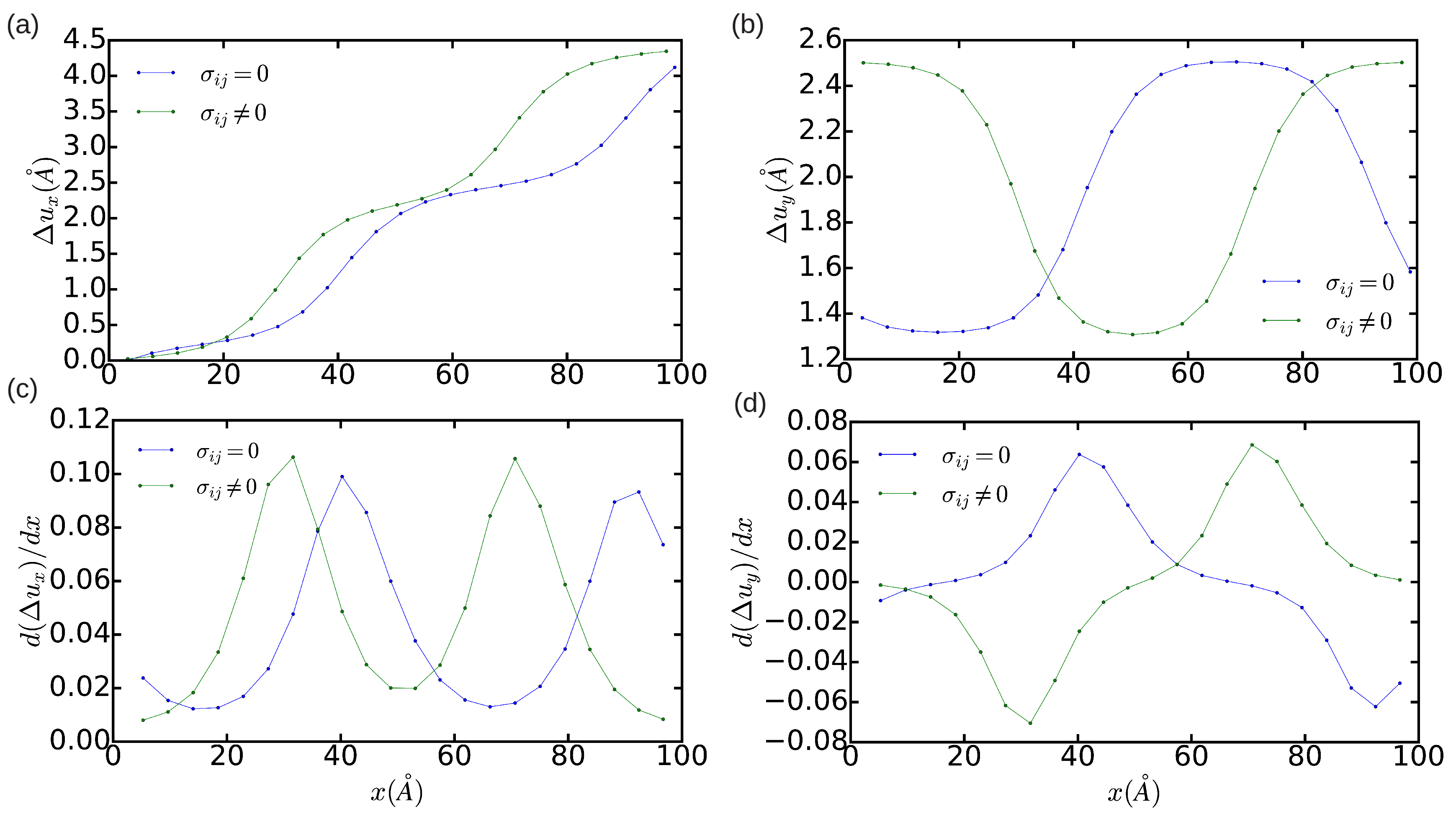

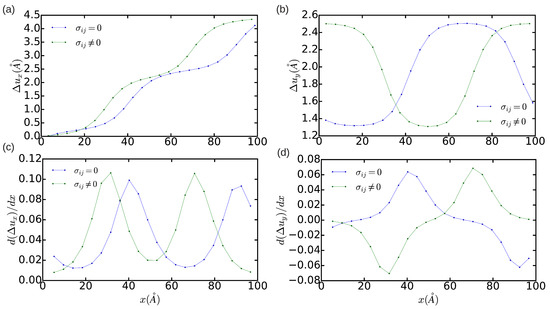

**Figure 3.**Relative displacement (

**a**,

**b**) and differential displacement (

**c**,

**d**) of the atoms above and below the glide plane of the edge dislocation in the x and y directions. The simulation cell contains n = 18,424 atoms. Green and blue lines represent the results obtained in a non-relaxed (${\sigma}_{ij}\ne 0$) and a fully relaxed (${\sigma}_{ij}=0$) simulation cell, respectively.

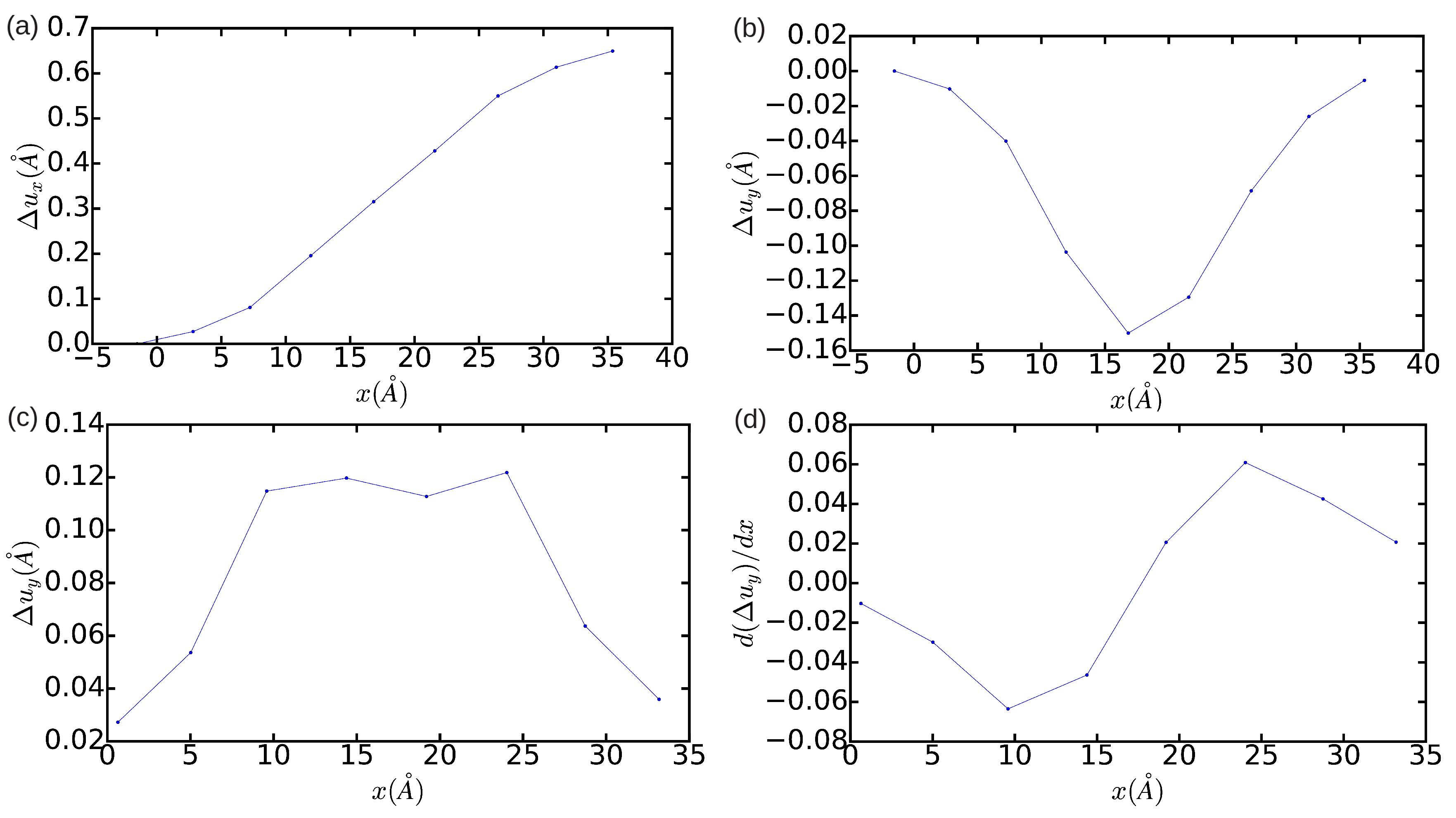

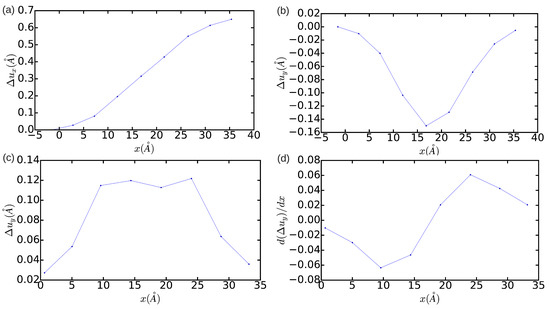

**Figure 4.**Relative displacement (

**a**,

**b**) and differential displacement (

**c**,

**d**) of the atoms above and below the glide plane of the edge dislocation in the x- and y-directions. The simulation cell contains $n=1368$ atoms and is fully relaxed.

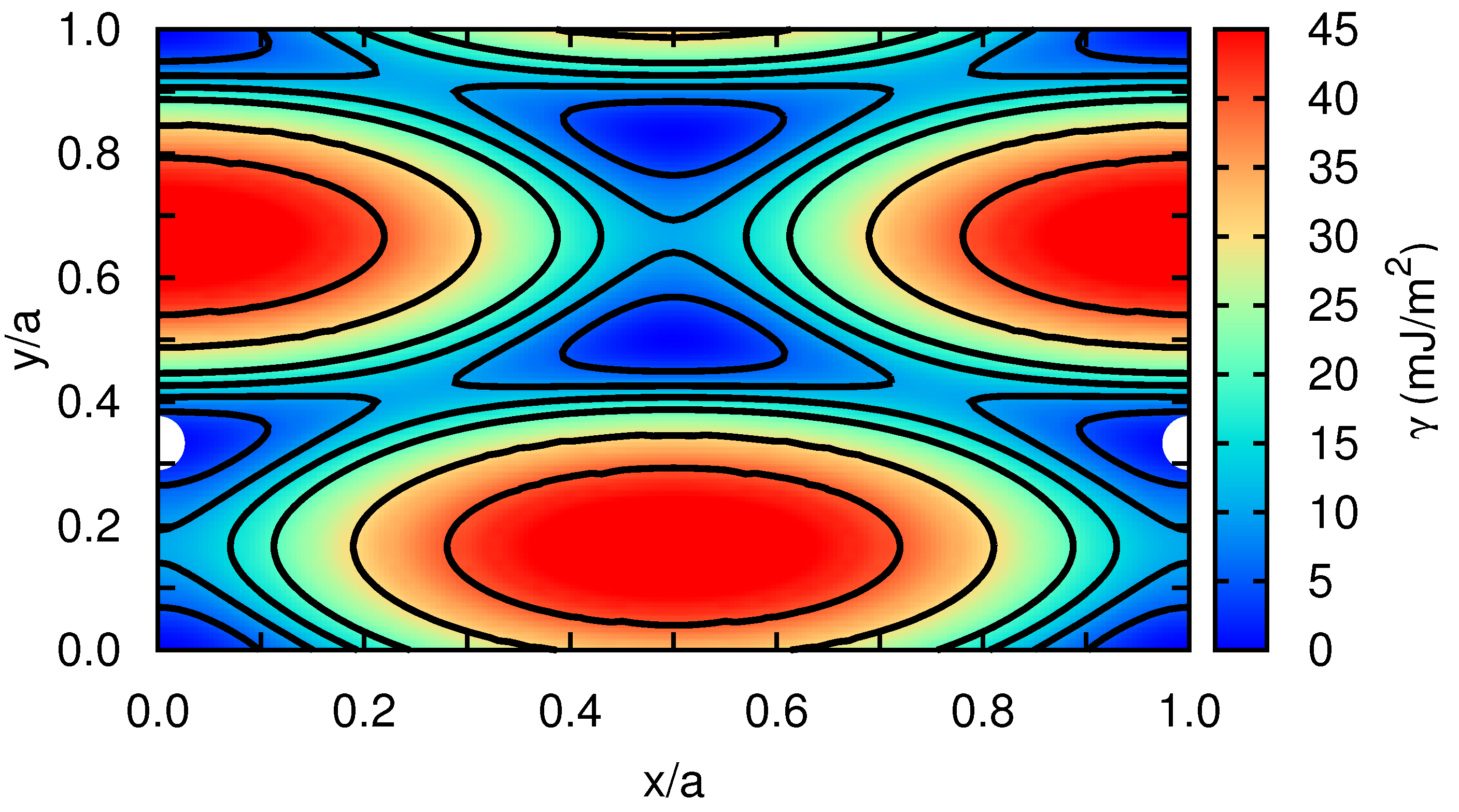

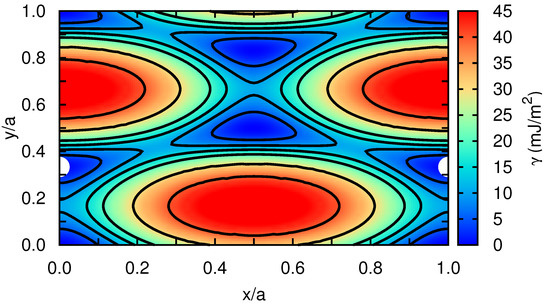

**Figure 5.**The $\gamma $-surface of the analyzed classical hcp rare-gas crystal. Perfect hcp stacking positions correspond to the four corners of the plot while large white spheres indicate metastable fault positions. Iso-$\gamma $ curves are represented with solid black lines at 5 and 10 mJ/m${}^{2}$ intervals.

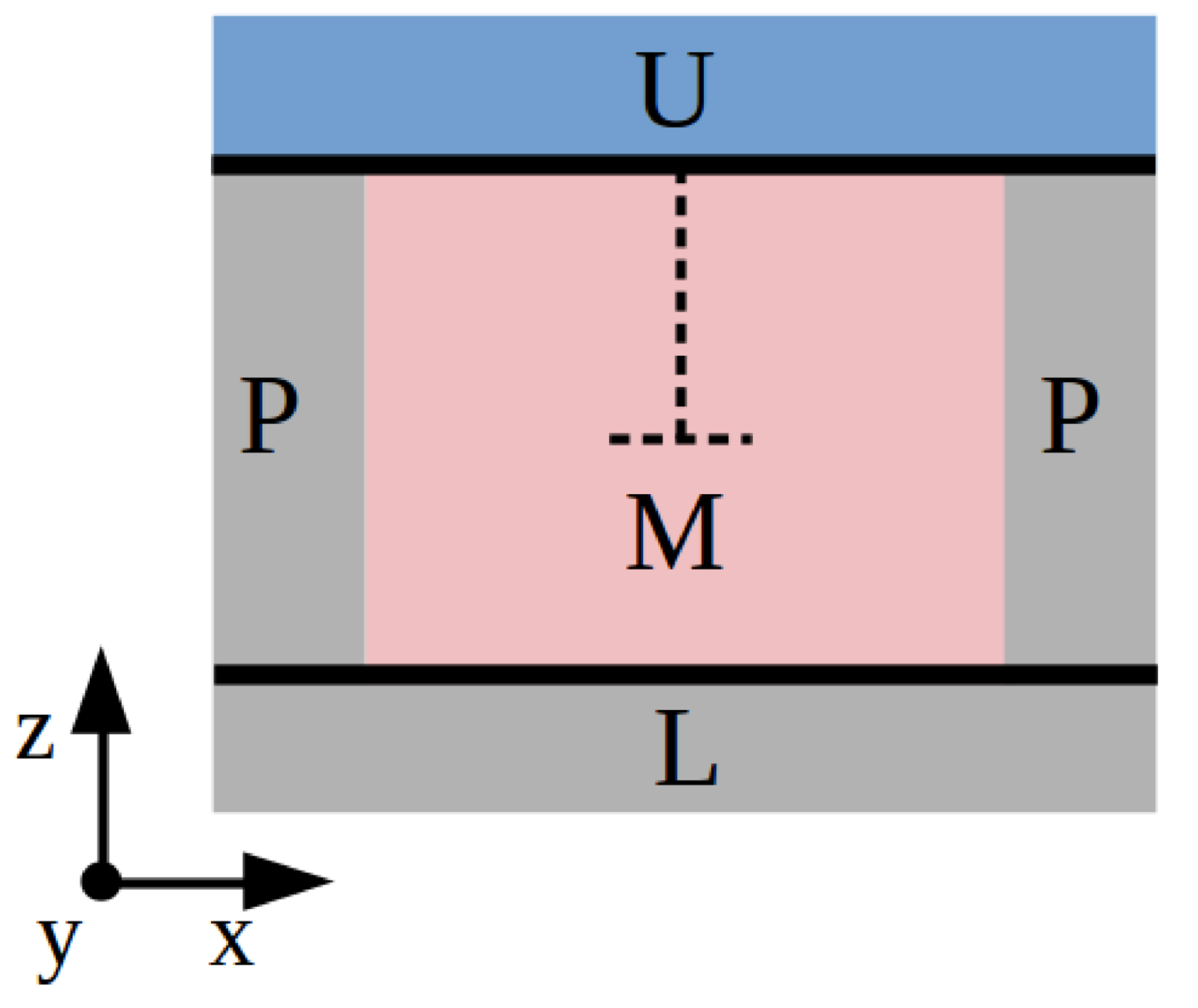

**Figure 6.**Sketch of the system used to estimate the Peierls stress with Method A. Three main parts are differentiated: the upper part “U”, the lower part “L”, and the region with mobile atoms “M”. “P” indicates application of periodic boundary conditions and the dashed line the orientation of the edge dislocation.

**Figure 7.**Evolution of the shear stress expressed as a function of strain for a simulation cell containing n = 344,544 atoms in which the thickness of the “U” region is taken to be ${d}_{U}=5c$. Results obtained with $\Delta \eta =8\times {10}^{-4}$ and $1\times {10}^{-4}$ are shown in (

**a**,

**b**), respectively (see text).

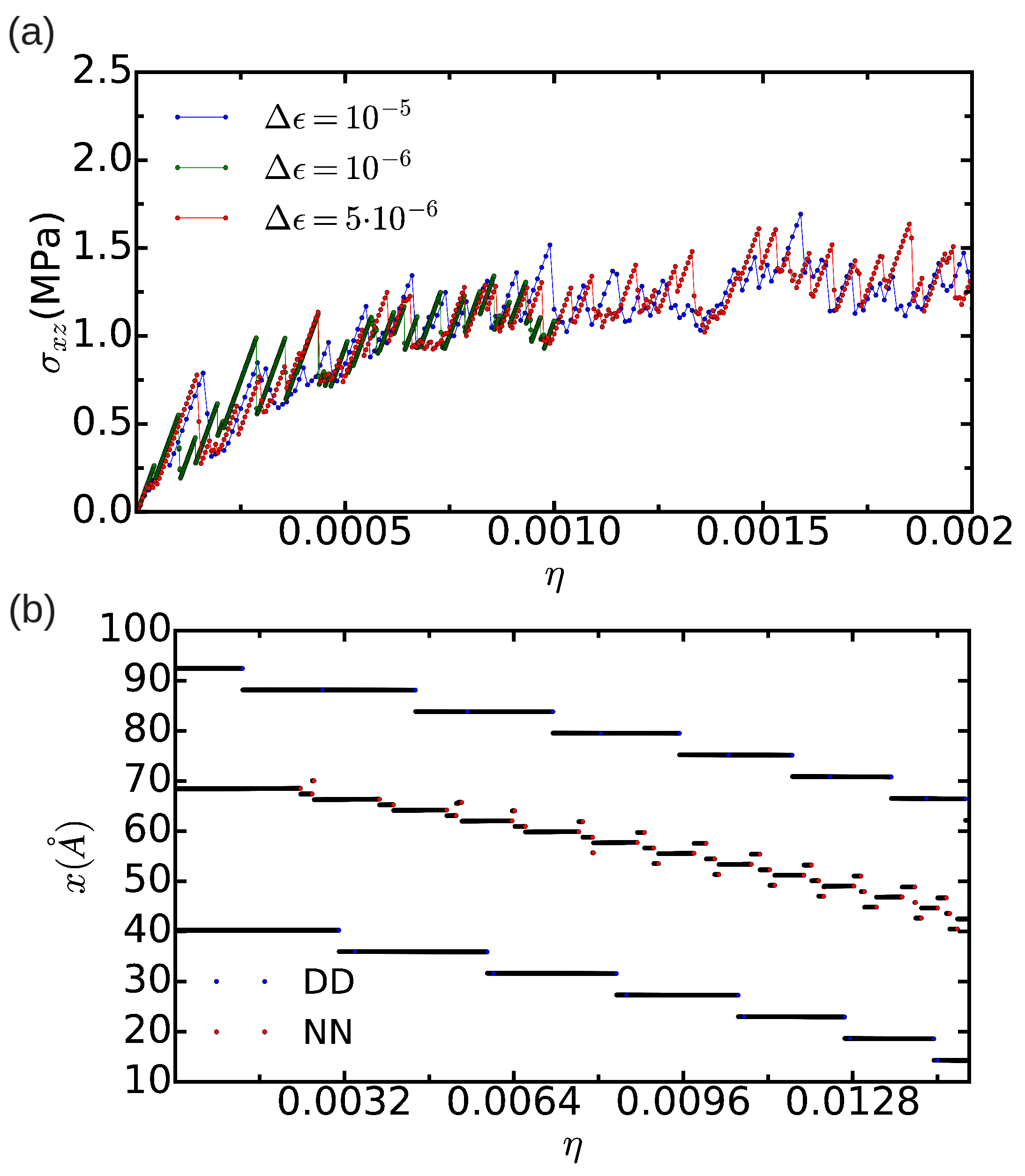

**Figure 8.**(

**a**) evolution of the shear stress expressed as a function of strain for a simulation cell containing n = 18,424 atoms in which the thickness of the “U” part is equal to ${d}_{U}=2.5c$. Several mechanical strain steps, $\Delta \u03f5$, are considered; (

**b**) position of the corresponding dissociated edge dislocation expressed as a function of strain. “DD” and “NN” stand for the analysis methods of differential displacement and nearest neighbors, respectively.

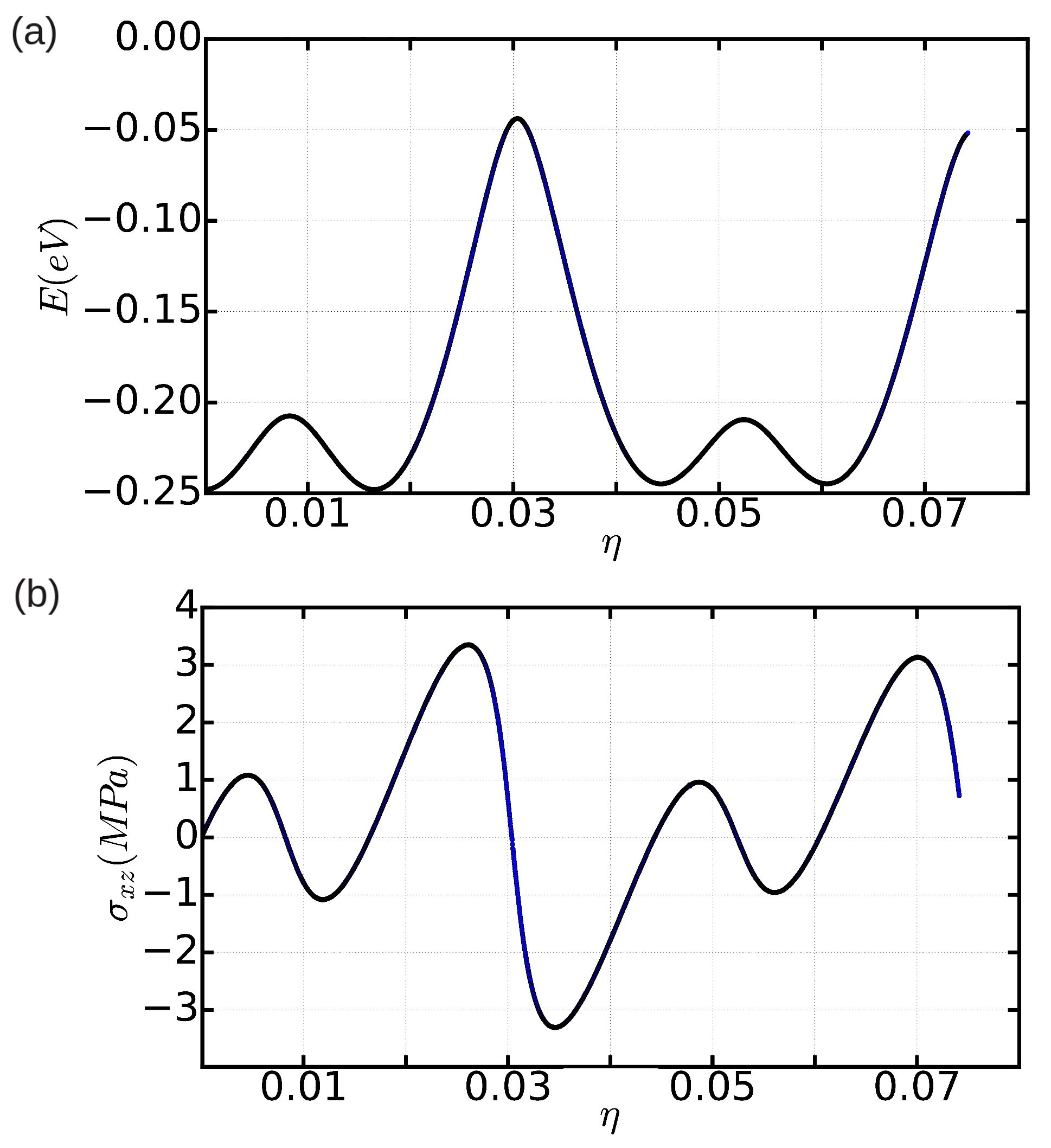

**Figure 9.**Energy (

**a**) and shear stress (

**b**) expressed as a function of shear strain for a simulation cell containing n = 18,424 atoms in which periodic boundary conditions are applied along the three Cartesian directions.

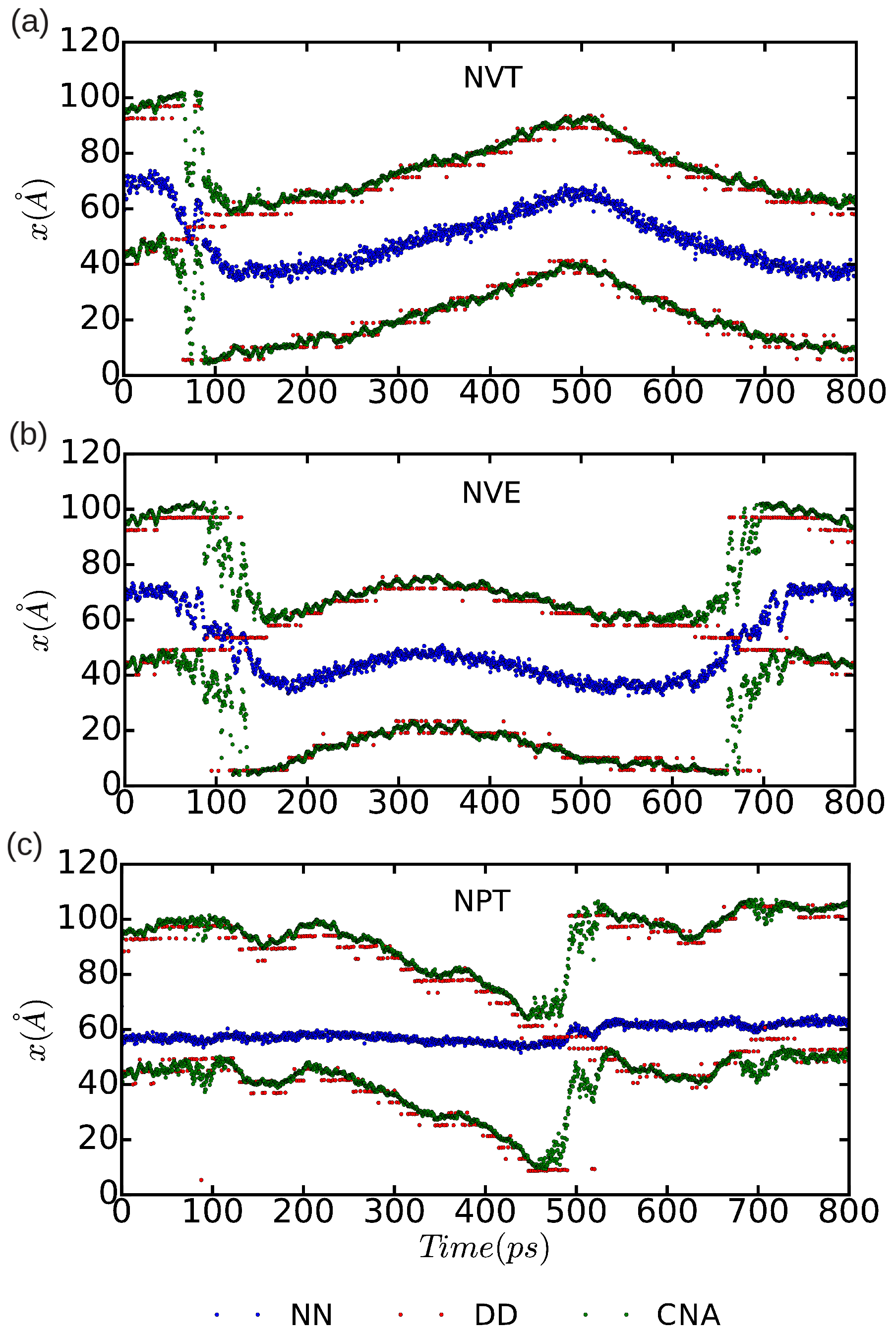

**Figure 10.**Position of the dissociated edge dislocation expressed as a function of time for a simulation cell containing n = 18,424 atoms. Molecular dynamics simulations have been performed in the three thermodynamic ensembles (

**a**) $NVT$, (

**b**) $NVE$, and (

**c**) $NPT$; the temperature has been fixed to 25 K, the pressure to zero, and the volume to the equilibrium one. In the $NVE$ case, an equilibrium temperature of $12.5$ K is reached. “DD”, “NN”, and “CNA” stand for the analysis methods of differential displacement, nearest neighbors, and common neighbor, respectively.

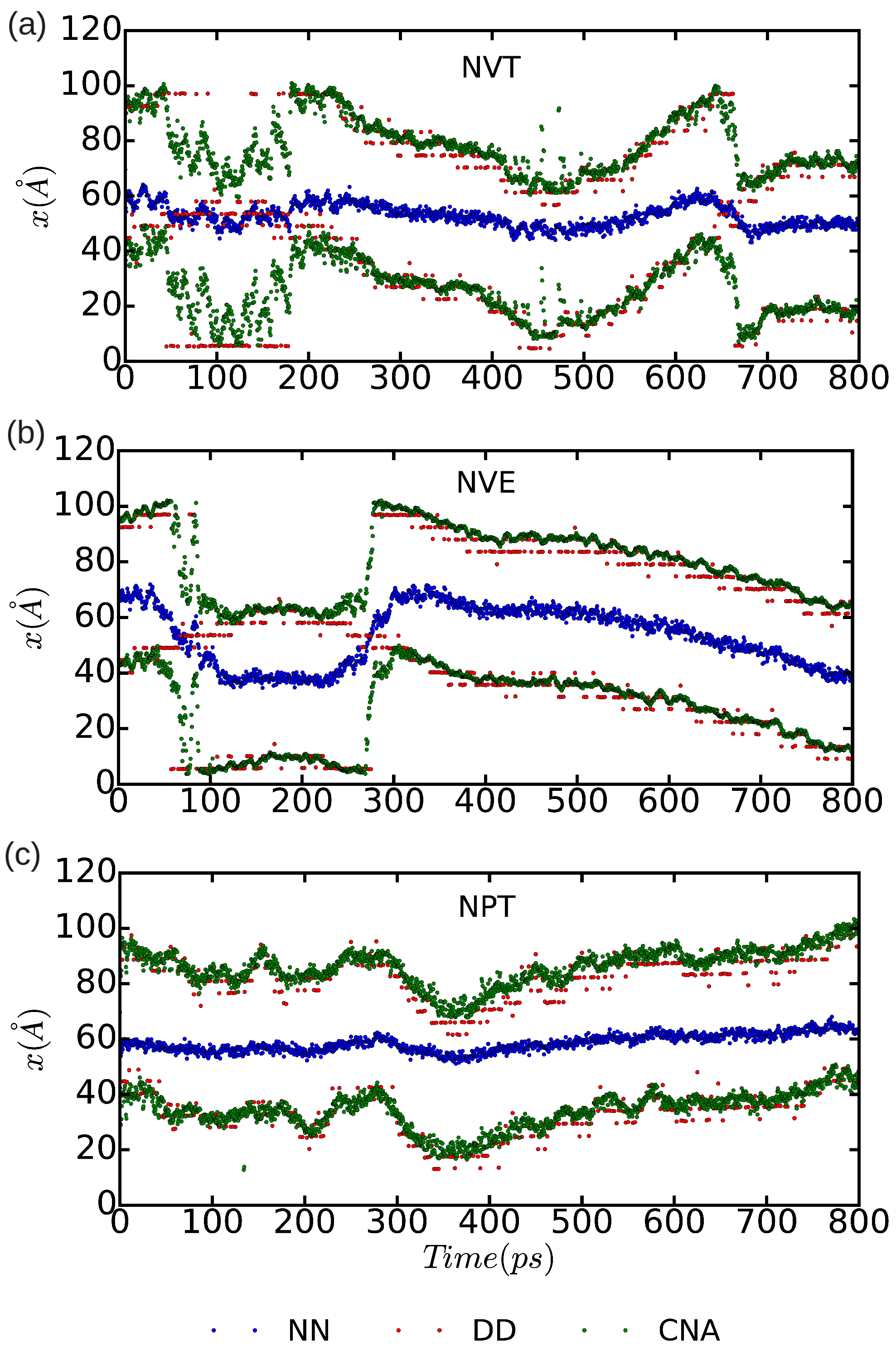

**Figure 11.**Position of the edge dissociated dislocation expressed as a function of time for a simulation cell containing $N=18424$ atoms. Molecular dynamics simulations have been performed in the three thermodynamic ensembles (

**a**) $NVT$, (

**b**) $NVE$, and (

**c**) $NPT$; the temperature has been fixed to 50 K, the pressure to zero, and the volume to the equilibrium one. In the $NVE$ case, an equilibrium temperature of 25 K is reached. “DD”, “NN”, and “CNA” stand for the analysis methods of differential displacement, nearest neighbors, and common neighbor, respectively.

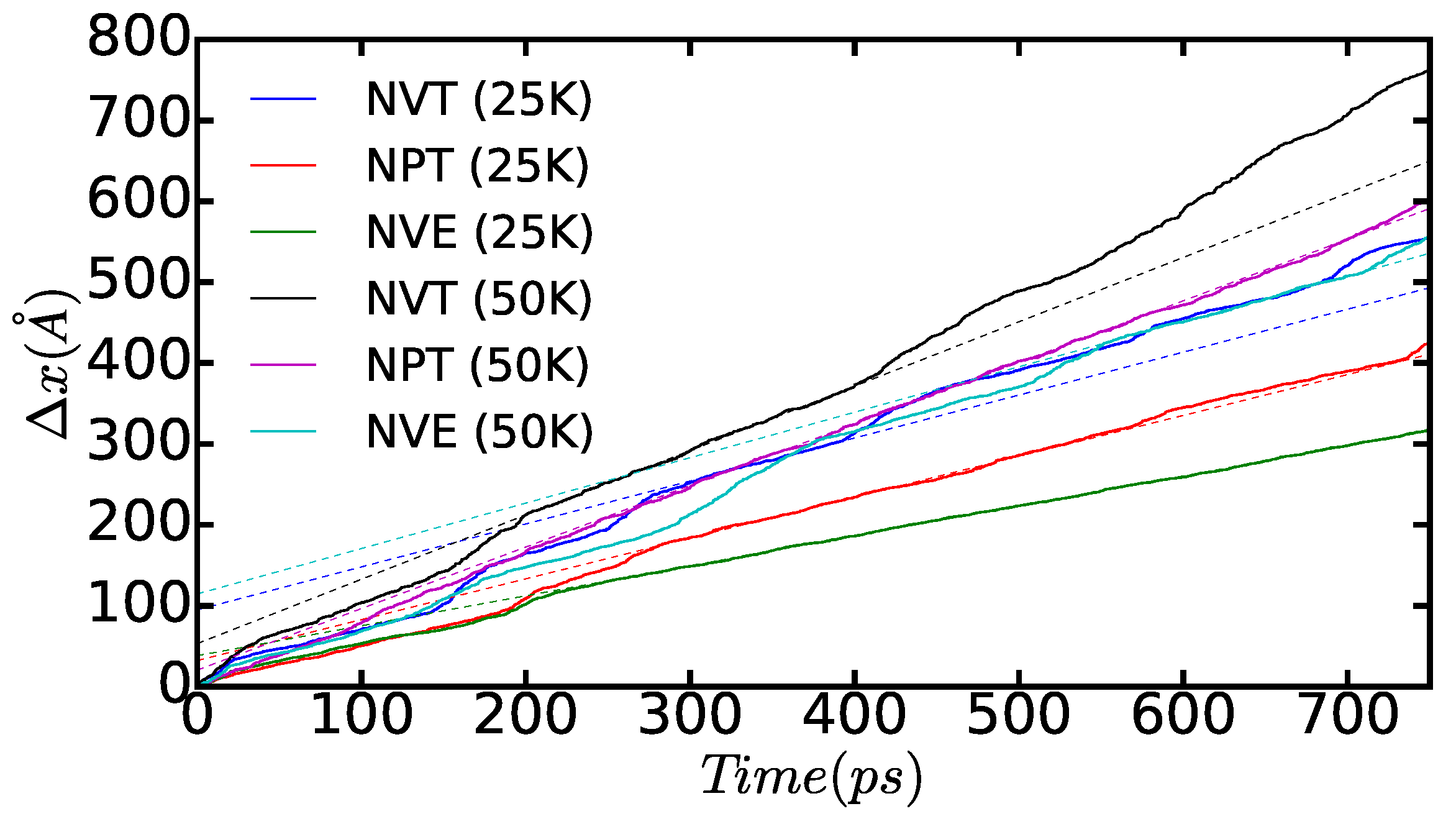

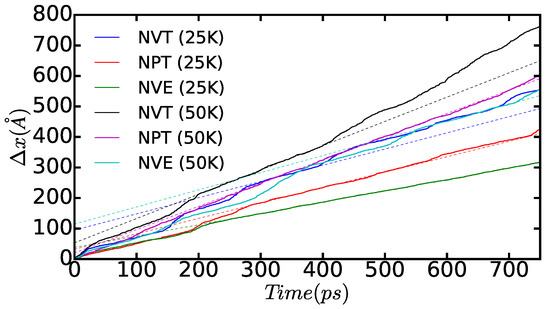

**Figure 12.**Time-accumulated average displacement of the dissociated edge dislocations expressed as a function of time, temperature, and simulated thermodynamic ensemble (n = 18,424 atoms). Solid lines represent the actual dislocation positions and dashed lines are linear fits performed on regions in which the dislocation motion is not disturbed by the simulation cell boundaries. Dislocation diffusion velocities are deduced directly from the slope of the linear fits.
