The Neutron Macromolecular Crystallography Instruments at Oak Ridge National Laboratory: Advances, Challenges, and Opportunities

Neutron Scattering Division, Oak Ridge National Laboratory, Oak Ridge, TN 37831, USA
Department of Molecular and Structural Biochemistry, North Carolina State University, Raleigh, NC 27695, USA
Department of Structural Biology, St. Jude Children’s Research Hospital, Memphis, TN 38105, USA
Authors to whom correspondence should be addressed.
Crystals 2018, 8(10), 388;
Submission received: 25 September 2018 / Revised: 3 October 2018 / Accepted: 5 October 2018 / Published: 11 October 2018
(This article belongs to the Special Issue Neutron Diffractometers for Single Crystals and Powders)


The IMAGINE and MaNDi instruments, located at Oak Ridge National Laboratory High Flux Isotope Reactor and Spallation Neutron Source, respectively, are powerful tools for determining the positions of hydrogen atoms in biological macromolecules and their ligands, orienting water molecules, and for differentiating chemical states in macromolecular structures. The possibility to model hydrogen and deuterium atoms in neutron structures arises from the strong interaction of neutrons with the nuclei of these isotopes. Positions can be unambiguously assigned from diffraction studies at the 1.5–2.5 Å resolutions, which are typical for protein crystals. Neutrons have the additional benefit for structural biology of not inducing radiation damage to protein crystals, which can be critical in the study of metalloproteins. Here we review the specifications of the IMAGINE and MaNDi beamlines and illustrate their complementarity. IMAGINE is suitable for crystals with unit cell edges up to 150 Å using a quasi-Laue technique, whereas MaNDi provides neutron crystallography resources for large unit cell samples with unit cell edges up to 300 Å using the time of flight (TOF) Laue technique. The microbial culture and crystal growth facilities which support the IMAGINE and MaNDi user programs are also described.

1. Introduction

Neutron diffraction is directly analogous to X-ray diffraction, but the information that is derived on molecular structure differs in several critical respects. Neutrons interact with nuclei, while X-rays interact with electrons, and neutron scattering lengths (b) show little uniformity across the periodic table [1]. This is in marked contrast to X-ray diffraction, where the strength of scattering depends directly on the atomic number (Z) of an atom (Table 1). As a result, atoms that are difficult to resolve in X-ray structural analysis may be more readily distinguished in a complementary neutron analysis. Most importantly for studies of biological systems, neutrons are extremely sensitive to hydrogen and its isotope, deuterium. In addition, neutrons are uncharged, have low thermal energies (0.1–10 meV), and are, thus, gentle non-ionizing probes that easily penetrate fragile biological materials without causing radiation damage.
At the atomic level, neutron diffraction is uniquely able to determine the location of individual hydrogen atoms in biological materials. This provides fundamental insight and mechanistic understanding of, for example, catalytic processes in enzymes, or of the proton shuttling/relay pathways involved in biological processes [2]. A major limitation, however, is that the inherent flux of neutron beams (106–108 neutrons cm−2 s−1) is orders of magnitude less than conventional X-ray beams, requiring larger crystals (>0.1 mm3) and extended data collection times (days or weeks) compared to those typical for X-ray analysis. In this paper we review the capabilities of the IMAGINE and MaNDi single-crystal neutron diffractometers installed at the Oak Ridge national Laboratory (ORNL) High Flux Isotope Reactor (HFIR) and Spallation Neutron Source (SNS), respectively. The progression in unit cell size that can be efficiently studied by IMAGINE (106 Å3) and MaNDi (107 Å3) combined with on-site protein crystal growth and deuteration facilities is enabling a broad range of neutron single-crystal studies of complex biological systems.

2. High Flux Isotope Reactor Cold Guide 4D, IMAGINE

The IMAGINE diffractometer is installed on the end-station of cold guide number 4 (CG4-D) at the HFIR. This position has a flux of 2 × 109 n/s/cm2 over the useful 2–10 Å wavelength range. The instrument receives neutrons from a 19 × 12 mm2 section of the CG4 guide. The neutron wavelength and bandpass delivered to the sample can be varied remotely by motorized translation of three neutron flat mirrors and three pairs of neutron filters that provide short wavelength (λmin = 2.0, 2.8, and 3.3 Å) and long wavelength (λmax = 3.0, 4.0, and 4.5 Å) cut-offs, respectively. A pair of elliptically-shaped mirrors then collects and focuses the resulting beam vertically and horizontally down to 2 × 3.2 mm2 at the sample position, with full width vertical and horizontal divergence of 0.5° and 0.6°, respectively, and delivery of ~3 × 107 n/s/cm2 in standard 2.8–4.0 Å quasi-Laue configuration [2,3]. Complete specifications of the IMAGINE instrument are listed in Table 2. IMAGINE is equipped with a neutron sensitive image plate detector [4]. The cylindrical image plate detector has high-efficiency, high spatial resolution, and provides good reciprocal space coverage on a continuous surface, reaching out to ~1.1 Å resolution.
The IMAGINE neutron image plate diffractometer is designed for rapid collection of high-resolution quasi-Laue data from small single crystals (>0.3 mm3) of moderate unit cell size (<150 Å). The IMAGINE diffractometer has served the structural biology community since entering the ORNL user program in 2013. However, the tunability of the optics and the recent development of extreme sample environment capabilities give the instrument the potential of serving diverse scientific user communities for the analysis of light atom positions in materials that are of interest across the fields of structural biology, pharmacology, chemistry, condensed matter physics, nano-structured materials and geological sciences [5]. In 2016, the instrument was equipped with a custom closed cycle refrigerator (CCR) covering a temperature range from 4.5 K to 400 K. The CCR enables parametric studies of magnetic and supramolecular structures, of incommensurate systems, and of phase transitions in soft condensed matter materials. It also provides cryo-cooling capabilities for macromolecular crystallography, which will enable data collection on enzyme samples with trapped intermediates whose room-temperature lifetime are too short to analyze structurally [6,7].

3. Spallation Neutron Source Beam Line 11B, MaNDi

The macromolecular neutron diffractometer (MaNDi) is situated at the first target station of the SNS [8]. The instrument is designed to collect neutron diffraction data from small single crystals (>0.1 mm3) with lattice constants between 10 and 300 Å [9]. A focusing neutron guide has been designed to filter the high-energy neutron component of the spectrum and to provide a narrow beam with a wide spectral window and angular divergence almost insensitive to neutron wavelength [10]. The neutron guide starts 6 m from the decoupled hydrogen moderator and three bandwidth choppers are located at 6.2, 7.2 and 10.5 m from the moderator. The chopper system delivers a wavelength bandwidth Δλ = 2.15 or 4.3 Å, which can be selected anywhere between 1–10 Å. The instrument includes a final interchangeable section of neutron guide and two slits, which can be used to alter the horizontal and vertical beam divergence between 0.12 and 0.80 (full width at half-maximum) at the sample position. This allows users to trade intensity for resolution, depending on the experimental requirements. The sample position is surrounded by a spherical detector array frame (DAF) which is currently populated with 40 out of a total of 46 possible SNS Anger camera detectors. The sample-to-detector distance varies from 39 to 45 cm currently giving a detector coverage of over 4 sr. The instrument goniometer is raised from the top of the DAF for sample loading. After a sample has been mounted, the diffraction goniometer translates downwards to interlock with a set of kinematic mounts on top of the DAF by a motorized goniometer lifting and lowering mechanism. Complete specifications of the MaNDi instrument are detailed in Table 2.
The MaNDi instrument entered the general user program in 2014. Data are typically collected at room temperature using capillary mounted crystals. An Oxford diffraction cryostream system provides an experimental temperature range of 80 to 400 K, which enables standard cryo-crystallography pins and loops to be used for data collection [11]. Cryogenic neutron data collection enables the study of transient protein ligand complexes and is in increasing demand.

4. Software

The software packages used for data reduction and refinement on IMAGINE and MaNDi are summarized in Table 3. While the data collection and reduction packages differ at each beamline, the reduced neutron datasets from all beam lines are compatible with standard user community packages for crystallographic analysis (Phenix.refine, SHELX, nCNS) and modelling (Coot) [12,13,14,15]. For indexing and integration, IMAGINE uses the LAUEGEN suite of software, which was developed originally for X-ray Laue crystallography and then adapted for neutron diffraction and cylindrical detector geometries [16,17]. MaNDi uses the Mantidplot [18] suite of programs to calibrate detectors, find peaks, find UB matrices, choose the symmetry of the unit cell, index peaks, integrate peaks, and visualize the data. These algorithms have been combined in a single crystal diffraction Event Data Reduction Interface for automated use [19]. Profile fitting method for peak integration was recently developed and implemented Wavelength normalization [20] is performed with Lscale and Lauenorm on IMAGINE and MaNDi, respectively [21,22]. SCALA from the CCP4 suite of programs can be used to scale and merge the data [23].
The CrystalPlan software package allows users to optimize data collection strategies, and maximize the efficient use of available beam time [24]. The goniometer settings are optimized using a genetic algorithm that starts with a population of random goniometer settings and finds combinations that maximize reciprocal space coverage and data completeness in the minimal number of frames. For example, in the case of carbonic anhydrase (P21) on MaNDi, comparison of data collected 10-degree increments about a single rotation axis with those optimized by CrystalPlan shows that the coverage increased from 62% to 82%, a gain of 20% for this crystal. With T4 lysozyme (P3221), collecting 10 data frames in 10° steps about a single axis results in 74% coverage, whereas collecting 10 frames in optimized orientations result in 87% coverage. CrystalPlan is fully integrated on MaNDi and will be interfaced with a kappa goniometer head on IMAGINE in 2018.

5. Protein Preparation and Crystal Growth

Neutron macromolecular crystallography remains a challenging experimental technique but provides unique information on H atoms that is often not accessible by other methods. One complication is that hydrogen also gives rise to a large incoherent neutron scattering background that limits the resolution of the data [25]. Since protein crystals typically contain ~50% solvent, this can be remedied, in part, by replacing H2O with D2O in the crystal. Total replacement of hydrogen by deuterium (perdeuteration) can be achieved by over expressing the protein in deuterated media [26]. Perdeuteration reduces the sample background by a factor of 40, enabling faster and more accurate data collection from smaller samples, and improving the quality of the neutron scattering length density maps. However, deuteration can also alter the hydrophobicity of a protein surface, interfering with crystal growth. Partial deuteration, using 100% D2O but hydrogenous carbon sources in expression media, results in ~80–85% after H/D exchange and has helped in several cases [27,28,29].
ORNL provides user access to specialized facilities for the production of perdeuterated proteins and for growth of large (>0.1 mm3) neutron quality crystals [30]. The Biodeuteration Laboratory supports large-scale (up to 5 L) high cell density growth of Escherichia coli and yeast in hydrogenated and deuterated culture media as well as small-scale (200 mL) fermentations for optimization [26]. The crystallization laboratory is equipped with biophysical characterization equipment, including a dynamic light scattering instrument, a circular dichroism spectropolarimeter, fluorescence microscope and stereomicroscopes, a Gryphon crystallization robot and a Scorpion liquid dispensing robot, and 13 temperature-controlled chambers and other devices for crystallogenesis and large crystal growth. An X-ray laboratory is equipped with a Rigaku high intensity micro-focus rotating anode X-ray generator, with one port outfitted for macromolecular crystallography while the other port is occupied by a Bio-SAXS small angle scattering instrument.

6. IMAGINE and MaNDi Complementarity

The IMAGINE and MANDI beamlines are designed to meet the complementary demands of capacity and capability. IMAGINE is designed for rapid collection (hours-days) of high resolution (~1.1 Å) Laue or quasi-Laue data from small single crystals (supra molecules: <0.05 mm3; proteins: >0.3 mm3) of moderately large unit cell size (<150 Å). By contrast, MaNDi is designed to collect high resolution (~1.0 Å) data on samples of 0.1 mm3 from the most challenging unit cells systems, (>150–300 Å), and is, thus, uniquely able to analyze much larger and more complex proteins and assemblies that are beyond the range of IMAGINE and other neutron facilities. While the capabilities of both instruments overlap for mid-range systems, IMAGINE provides work horse capacity for data collection, while MANDI provides unique capability for the most challenging and demanding systems.
The macromolecule structures deposited in the Protein Data Bank and solved against neutron crystallographic data collected on IMAGINE and MaNDi are listed in Table 4 and Table 5, respectively.

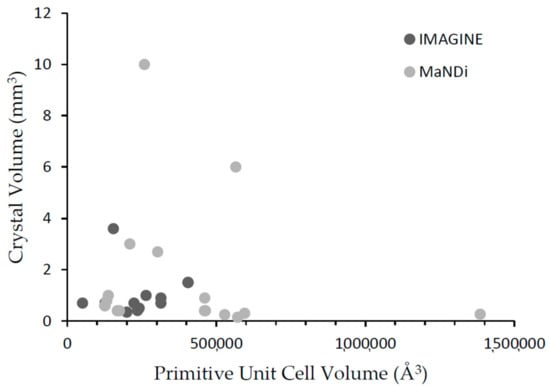

Figure 1 plots the volume of crystals used for data collection on IMAGINE and MaNDi against the volume of the primitive unit cell. The average diffracted intensity is proportional to the volume of the crystal, V, and inversely proportional to the square of the primitive unit cell volume, vo, while the number and density of reflections is directly related to the unit cell volume and the resolution of the data. As the tables and Figure 1 show, both instruments are pushing the limits of minimum crystal size unit cell needed for neutron single-crystal diffraction, which traditionally has been a limitation of this method. On IMAGINE, spatial overlap and deconvolution of reflections becomes limiting for systems with primitive unit cell volumes greater than ~450,000 Å3. By contrast, on MaNDi, the fine time-of-flight wavelength resolution (0.4%) enables the dense diffraction patterns from much larger unit cell (>150 Å) systems to be resolved. However, as the average diffracted intensity depends upon the V/vo2 ratio, analyzing these larger unit cell systems necessarily requires more beam time days. SNS operates ~200 days/annum, which enables MaNDi to tackle these more challenging problems and sets new horizons for spallation neutron crystallography. HFIR operates 165 days/annum, which enables IMAGINE to perform as a data collection workhorse.

7. Future Developments

IMAGINE can collect data from macromolecular, supramolecular, and small molecule materials crystals. The addition of closed cycle refrigerator (CCR) in 2016 that covers a temperature range from 4.5 K to 400 K now enables parametric studies of magnetic and supramolecular structures, of incommensurate systems, and of phase transitions in condensed matter materials. It also provides cryo-cooling capabilities for macromolecular crystallography, which will enable data collection on enzyme samples with trapped intermediates whose room-temperature lifetime is too short to analyze structurally [6,7]. In 2018, the first experiments using a new diamond cell that is optimized for single-crystal neutron diffraction and capable of achieving pressures of ~20 GP, demonstrated the potential to develop a new program of high-pressure science on the instrument [5].
Longer term, the planned 2022 replacement of the ender section located downstream of the HFIR cold source, which is known to be compromised, and upgrade of the front end of the CG-4 cold guide system will deliver a two- to four-fold increase in flux on the instrument.
MaNDi is uniquely placed in the global neutron crystallography community as a TOF-resolved Laue diffractometer for very large (>150 Å) unit cell systems. The switch from H2O to D2O in the moderator cooling system at the SNS in 2018 has increased the incident flux on sample at MaNDi by 30%, lowering the exposure time needed for each orientation. With SNS now operating at 1.4 MW, MaNDi will be able to collect data from smaller, more complex samples, such as membrane proteins and large enzyme complexes. The SNS is currently undergoing a power upgrade project that increase beam power to 2 MW at the first target station, while also paving the way for the construction of an SNS second target station (STS). The high brightness of the proposed neutron moderators at the STS are ideally matched to experiments utilizing small samples such as protein crystallography. The Ewald single crystal instrument proposed at STS will deliver a 60× increase in the flux available on MaNDi [53]. Thus, IMAGINE and MaNDi will continue to offer outstanding capabilities in the decade ahead, with current and near-term upgrades that are expected to deliver further significant enhancements in flux opening the way to new areas of science and more challenging studies ahead.

Author Contributions

Writing-Original Draft Preparation, F.M., L.C., M.J.C., A.K., D.A.A.M.; Writing-Review & Editing, F.M.


This research was funded by the National Science Foundation grant number 0922719.


This research used resources at the High Flux Isotope Reactor and Spallation Neutron Source, a DOE Office of Science User Facility operated by the Oak Ridge National Laboratory. F.M. acknowledge support from the USDA National Institute of Food and Agriculture, Hatch project 1010523. The installation of the IMAGINE instrument was supported in part by the National Science Foundation award 0922719.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Neutron Scattering Lengths and Cross Sections. Available online: accessed on (accessed on 10 October 2018).
  2. Schroder, G.C.; O’Dell, W.B.; Myles, D.A.A.; Kovalevsky, A.; Meilleur, F. Imagine: Neutrons reveal enzyme chemistry. Acta Crystallogr. D Biol. Crystallogr. 2018, 74, 778–786. [Google Scholar] [CrossRef] [PubMed]
  3. Meilleur, F.; Munshi, P.; Robertson, L.; Stoica, A.D.; Crow, L.; Kovalevsky, A.; Koritsanszky, T.; Chakoumakos, B.C.; Blessing, R.; Myles, D.A. The imagine instrument: First neutron protein structure and new capabilities for neutron macromolecular crystallography. Acta Crystallogr. D Biol. Crystallogr. 2013, 69, 2157–2160. [Google Scholar] [CrossRef] [PubMed]
  4. Wilkinson, C.; Lehmann, M.S.; Meilleur, F.; Blakeley, M.P.; Myles, D.A.A.; Vogelmeier, S.; Thoms, M.; Walsh, M.; McIntyre, G.J. Characterization of image plates for neutron diffraction. J. Appl. Crystallogr. 2009, 42, 749–757. [Google Scholar] [CrossRef]
  5. Haberl, B.; Dissanayake, S.; Wu, Y.; Myles, D.A.A.; Dos Santos, A.M.; Loguillo, M.; Rucker, G.M.; Armitage, D.P.; Cochran, M.; Andrews, K.M.; et al. Next-generation diamond cell and applications to single-crystal neutron diffraction. Rev. Sci. Instrum. 2018, 89, 092902. [Google Scholar] [CrossRef] [PubMed]
  6. Li, L.; Shukla, S.; Meilleur, F.; Standaert, R.F.; Pierce, J.; Myles, D.A.A.; Cuneo, M.J. Neutron crystallographic studies of t4 lysozyme at cryogenic temperature. Protein Sci. 2017, 26, 2098–2104. [Google Scholar] [CrossRef] [PubMed]
  7. Hiromoto, T.; Meilleur, F.; Shimizu, R.; Shibazaki, C.; Adachi, M.; Tamada, T.; Kuroki, R. Neutron structure of the T26H mutant of T4 phage lysozyme provides insight into the catalytic activity of the mutant enzyme and how it differs from that of wild type. Protein Sci. 2017, 26, 1953–1963. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Coates, L.; Cuneo, M.J.; Frost, M.J.; He, J.H.; Weiss, K.L.; Tomanicek, S.J.; McFeeters, H.; Vandavasi, V.G.; Langan, P.; Iverson, E.B. The macromolecular neutron diffractometer mandi at the spallation neutron source. J. Appl. Crystallogr. 2015, 48, 1302–1306. [Google Scholar] [CrossRef]
  9. Schultz, A.J.; Thiyagarajan, P.; Hodges, J.P.; Rehm, C.; Myles, D.A.A.; Langan, P.; Mesecar, A.D. Conceptual design of a macromolecular neutron diffractometer (MaNDi) for the SNS. J. Appl. Crystallogr. 2005, 38, 964–974. [Google Scholar] [CrossRef]
  10. Coates, L.; Stoica, A.D.; Hoffmann, C.; Richards, J.; Cooper, R. The macromolecular neutron diffractometer (MaNDi) at the Spallation Neutron Source, Oak Ridge: Enhanced optics design, high-resolution neutron detectors and simulated diffraction. J. Appl. Crystallogr. 2010, 43, 570–577. [Google Scholar] [CrossRef]
  11. Coates, L.; Tomanicek, S.; Schrader, T.E.; Weiss, K.L.; Ng, J.D.; Juttner, P.; Ostermann, A. Cryogenic neutron protein crystallography: Routine methods and potential benefits. J. Appl. Crystallogr. 2014, 47, 1431–1434. [Google Scholar] [CrossRef]
  12. Afonine, P.V.; Mustyakimov, M.; Grosse-Kunstleve, R.W.; Moriarty, N.W.; Langan, P.; Adams, P.D. Joint X-ray and neutron refinement with phenix.Refine. Acta Crystallogr. D Biol. Crystallogr. 2010, 66, 1153–1163. [Google Scholar] [CrossRef] [PubMed]
  13. Gruene, T.; Hahn, H.W.; Luebben, A.V.; Meilleur, F.; Sheldrick, G.M. Refinement of macromolecular structures against neutron data with Shelxl2013. J. Appl. Crystallogr. 2014, 47, 462–466. [Google Scholar] [CrossRef] [PubMed]
  14. 104 Patch for CNS; nCNS an Open Source Distribution Patch for CNS Macromolecular Structure Refinement; Los Alamos National Security: Los Alamos, NM, USA, 2007.
  15. Emsley, P.; Lohkamp, B.; Scott, W.G.; Cowtan, K. Features and development of coot. Acta Crystallogr. D Biol. Crystallogr. 2010, 66, 486–501. [Google Scholar] [CrossRef] [PubMed]
  16. Campbell, J.W. Lauegen, an X-windows-based program for the processing of laue X-ray-diffraction data. J. Appl. Crystallogr. 1995, 28, 228–236. [Google Scholar] [CrossRef]
  17. Campbell, J.W.; Hao, Q.; Harding, M.M.; Nguti, N.D.; Wilkinson, C. Lauegen version 6.0 and INTLDM. J. Appl. Crystallogr. 1998, 31, 496–502. [Google Scholar] [CrossRef]
  18. Arnold, O.; Bilheux, J.C.; Borreguero, J.M.; Buts, A.; Campbell, S.I.; Chapon, L.; Doucet, M.; Draper, N.; Leal, R.F.; Gigg, M.A.; et al. Mantid-data analysis and visualization package for neutron scattering and mu sr experiments. Nucl. Instrum. Meth. A 2014, 764, 156–166. [Google Scholar] [CrossRef]
  19. Schultz, A.J.; Jorgensen, M.R.V.; Wang, X.P.; Mikkelson, R.L.; Mikkelson, D.J.; Lynch, V.E.; Peterson, P.F.; Green, M.L.; Hoffmann, C.M. Integration of neutron time-of-flight single-crystal bragg peaks in reciprocal space. J. Appl. Crystallogr. 2014, 47, 915–921. [Google Scholar] [CrossRef]
  20. Sullivan, B.; Archibald, R.; Langan, P.S.; Dobbek, H.; Bommer, M.; McFeeters, R.L.; Coates, L.; Wang, X.P.; Gallmeier, F.; Carpenter, J.M.; et al. Improving the accuracy and resolution of neutron crystallographic data by three-dimensional profile fitting of Bragg peaks in reciprocal space. Acta Crystallogr. Sect. D 2018. Accepted. [Google Scholar]
  21. Arzt, S.; Campbell, J.W.; Harding, M.M.; Hao, Q.; Helliwell, J.R. Lscale—The new normalization, scaling and absorption correction program in the daresbury laue software suite. J. Appl. Crystallogr. 1999, 32, 554–562. [Google Scholar] [CrossRef]
  22. Helliwell, J.R.; Habash, J.; Cruickshank, D.W.J.; Harding, M.M.; Greenhough, T.J.; Campbell, J.W.; Clifton, I.J.; Elder, M.; Machin, P.A.; Papiz, M.Z.; et al. The recording and analysis of synchrotron X-radiation laue diffraction photographs. J. Appl. Crystallogr. 1989, 22, 483–497. [Google Scholar] [CrossRef]
  23. Winn, M.D.; Ballard, C.C.; Cowtan, K.D.; Dodson, E.J.; Emsley, P.; Evans, P.R.; Keegan, R.M.; Krissinel, E.B.; Leslie, A.G.W.; McCoy, A.; et al. Overview of the ccp4 suite and current developments. Acta Crystallogr. D Biol. Crystallogr. 2011, 67, 235–242. [Google Scholar] [CrossRef] [PubMed]
  24. Zikovsky, J.; Peterson, P.F.; Wang, X.P.P.; Frost, M.; Hoffmann, C. Crystalplan: An experiment-planning tool for crystallography. J. Appl. Crystallogr. 2011, 44, 418–423. [Google Scholar] [CrossRef]
  25. O’Dell, W.B.; Bodenheimer, A.M.; Meilleur, F. Neutron protein crystallography: A complementary tool for locating hydrogens in proteins. Arch. Biochem. Biophys. 2016, 602, 48–60. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Meilleur, F.; Weiss, K.L.; Myles, D.A. Deuterium labeling for neutron structure-function-dynamics analysis. Methods Mol. Biol. 2009, 544, 281–292. [Google Scholar] [PubMed]
  27. Kovalevsky, A.; Aggarwal, M.; Velazquez, H.; Cuneo, M.J.; Blakeley, M.P.; Weiss, K.L.; Smith, J.C.; Fisher, S.Z.; McKenna, R. “To be or not to be” protonated: Atomic details of human carbonic anhydrase-clinical drug complexes by neutron crystallography and simulation. Structure 2018, 26, 383–390. [Google Scholar] [CrossRef] [PubMed]
  28. Dajnowicz, S.; Johnston, R.C.; Parks, J.M.; Blakeley, M.P.; Keen, D.A.; Weiss, K.L.; Gerlits, O.; Kovalevsky, A.; Mueser, T.C. Direct visualization of critical hydrogen atoms in a pyridoxal 5′-phosphate enzyme. Nat. Commun. 2017, 8, 955. [Google Scholar] [CrossRef] [PubMed]
  29. Gerlits, O.; Wymore, T.; Das, A.; Shen, C.H.; Parks, J.M.; Smith, J.C.; Weiss, K.L.; Keen, D.A.; Blakeley, M.P.; Louis, J.M.; et al. Long-range electrostatics-induced two-proton transfer captured by neutron crystallography in an enzyme catalytic site. Angew. Chem. Int. Ed. 2016, 55, 4924–4927. [Google Scholar] [CrossRef] [PubMed]
  30. Bio Deuteration Laboratory. Available online: (accessed on 10 October 2018).
  31. Karen, V.L.; Mighell, A.D. Perform NIST*LATTICE Computations. Available online: (accessed on 25 September 2018).
  32. Wan, Q.; Bennett, B.C.; Wilson, M.A.; Kovalevsky, A.; Langan, P.; Howell, E.E.; Dealwis, C. Toward resolving the catalytic mechanism of dihydrofolate reductase using neutron and ultrahigh-resolution X-ray crystallography. Proc. Natl. Acad. Sci. USA 2014, 111, 18225–18230. [Google Scholar] [CrossRef] [PubMed]
  33. Wan, Q.; Kovalevsky, A.Y.; Wilson, M.A.; Bennett, B.C.; Langan, P.; Dealwis, C. Preliminary joint X-ray and neutron protein crystallographic studies of ecDHFR complexed with folate and NADP+. Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun. 2014, 70, 814–818. [Google Scholar] [CrossRef] [PubMed]
  34. Knihtila, R.; Holzapfel, G.; Weiss, K.; Meilleur, F.; Mattos, C. Neutron crystal structure of RAS GTPase puts in question the protonation state of the GTP gamma-phosphate. J. Biol. Chem. 2015, 290, 31025–31036. [Google Scholar] [CrossRef] [PubMed]
  35. Aggarwal, M.; Kovalevsky, A.Y.; Velazquez, H.; Fisher, S.Z.; Smith, J.C.; McKenna, R. Neutron structure of human carbonic anhydrase II in complex with methazolamide: Mapping the solvent and hydrogen-bonding patterns of an effective clinical drug. IUCrJ 2016, 3, 319–325. [Google Scholar] [CrossRef] [PubMed]
  36. Golden, E.; Yu, L.J.; Meilleur, F.; Blakeley, M.P.; Duff, A.P.; Karton, A.; Vrielink, A. An extended N-H bond, driven by a conserved second-order interaction, orients the flavin N5 orbital in cholesterol oxidase. Sci. Rep. 2017, 7, 40517. [Google Scholar] [CrossRef] [PubMed]
  37. O’Dell, W.B.; Agarwal, P.K.; Meilleur, F. Oxygen activation at the active site of a fungal lytic polysaccharide monooxygenase. Angew. Chem. Int. Ed. 2017, 56, 767–770. [Google Scholar] [CrossRef] [PubMed]
  38. O’Dell, W.B.; Swartz, P.D.; Weiss, K.L.; Meilleur, F. Crystallization of a fungal lytic polysaccharide monooxygenase expressed from glycoengineered Pichia pastoris for X-ray and neutron diffraction. Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun. 2017, 73, 70–78. [Google Scholar] [CrossRef] [PubMed]
  39. Gerlits, O.O.; Coates, L.; Woods, R.J.; Kovalevsky, A. Mannobiose binding induces changes in hydrogen bonding and protonation states of acidic residues in concanavalin a as revealed by neutron crystallography. Biochemistry 2017, 56, 4747–4750. [Google Scholar] [CrossRef] [PubMed]
  40. Wan, Q.; Parks, J.M.; Hanson, B.L.; Fisher, S.Z.; Ostermann, A.; Schrader, T.E.; Graham, D.E.; Coates, L.; Langan, P.; Kovalevsky, A. Direct determination of protonation states and visualization of hydrogen bonding in a glycoside hydrolase with neutron crystallography. Proc. Natl. Acad. Sci. USA 2015, 112, 12384–12389. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Vandavasi, V.G.; Weiss, K.L.; Cooper, J.B.; Erskine, P.T.; Tomanicek, S.J.; Ostermann, A.; Schrader, T.E.; Ginell, S.L.; Coates, L. Exploring the mechanism of beta-lactam ring protonation in the class a beta-lactamase acylation mechanism using neutron and X-ray crystallography. J. Med. Chem. 2016, 59, 474–479. [Google Scholar] [CrossRef] [PubMed]
  42. Langan, P.S.; Close, D.W.; Coates, L.; Rocha, R.C.; Ghosh, K.; Kiss, C.; Waldo, G.; Freyer, J.; Kovalevsky, A.; Bradbury, A.R. Evolution and characterization of a new reversibly photoswitching chromogenic protein, dathail. J. Mol. Biol. 2016, 428, 1776–1789. [Google Scholar] [CrossRef] [PubMed]
  43. Vandavasi, V.G.; Langan, P.S.; Weiss, K.L.; Parks, J.M.; Cooper, J.B.; Ginell, S.L.; Coates, L. Active-site protonation states in an acyl-enzyme intermediate of a class a beta-lactamase with a monobactam substrate. Antimicrob. Agents Chemother. 2017, 61, e01636-16. [Google Scholar] [CrossRef] [PubMed]
  44. Schaffner, I.; Mlynek, G.; Flego, N.; Puhringer, D.; Libiseller-Egger, J.; Coates, L.; Hofbauer, S.; Bellei, M.; Furtmuller, P.G.; Battistuzzi, G.; et al. Molecular mechanism of enzymatic chlorite detoxification: Insights from structural and kinetic studies. ACS Catal. 2017, 7, 7962–7976. [Google Scholar] [CrossRef] [PubMed]
  45. Bacik, J.P.; Mekasha, S.; Forsberg, Z.; Kovalevsky, A.Y.; Vaaje-Kolstad, G.; Eijsink, V.G.H.; Nix, J.C.; Coates, L.; Cuneo, M.J.; Unkefer, C.J.; et al. Neutron and atomic resolution X-ray structures of a lytic polysaccharide monooxygenase reveal copper-mediated dioxygen binding and evidence for N-terminal deprotonation. Biochemistry 2017, 56, 2529–2532. [Google Scholar] [CrossRef] [PubMed]
  46. Bacik, J.P.; Mekasha, S.; Forsberg, Z.; Kovalevsky, A.; Nix, J.C.; Cuneo, M.J.; Coates, L.; Vaaje-Kolstad, G.; Chen, J.C.; Eijsink, V.G.; et al. Neutron and high-resolution room-temperature X-ray data collection from crystallized lytic polysaccharide monooxygenase. Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun. 2015, 71, 1448–1452. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Kumar, P.; Serpersu, E.H.; Cuneo, M.J. A low-barrier hydrogen bond mediates antibiotic resistance in a noncanonical catalytic triad. Sci. Adv. 2018, 4, eaas8667. [Google Scholar] [CrossRef] [PubMed]
  48. Langan, P.S.; Vandavasi, V.G.; Cooper, S.J.; Weiss, K.L.; Ginell, S.L.; Parks, J.M.; Coates, L. Substrate binding induces conformational changes in a class a beta-lactamase that prime it for catalysis. ACS Catal. 2018, 8, 2428–2437. [Google Scholar] [CrossRef]
  49. Manzoni, F.; Saraboji, K.; Sprenger, J.; Kumar, R.; Noresson, A.L.; Nilsson, U.J.; Leffler, H.; Fisher, S.Z.; Schrader, T.E.; Ostermann, A.; et al. Perdeuteration, crystallization, data collection and comparison of five neutron diffraction data sets of complexes of human galectin-3C. Acta Crystallogr. D Biol. Crystallogr. 2016, 72, 1194–1202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Manzoni, F.; Wallerstein, J.; Schrader, T.E.; Ostermann, A.; Coates, L.; Akke, M.; Blakeley, M.P.; Oksanen, E.; Logan, D.T. Elucidation of hydrogen bonding patterns in ligand-free, lactose- and glycerol-bound galectin-3C by neutron crystallography to guide drug design. J. Med. Chem. 2018, 61, 4412–4420. [Google Scholar] [CrossRef] [PubMed]
  51. Azadmanesh, J.; Trickel, S.R.; Weiss, K.L.; Coates, L.; Borgstahl, G.E. Preliminary neutron diffraction analysis of challenging human manganese superoxide dismutase crystals. Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun. 2017, 73, 235–240. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Bommer, M.; Coates, L.; Dau, H.; Zouni, A.; Dobbek, H. Protein crystallization and initial neutron diffraction studies of the photosystem II subunit psbo. Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun. 2017, 73, 525–531. [Google Scholar] [CrossRef] [PubMed]
  53. Coates, L.; Robertson, L. Ewald: An extended wide-angle laue diffractometer for the second target station of the spallation neutron source. J. Appl. Crystallogr. 2017, 50, 1174–1178. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Volume of the crystals used for data collection on IMAGINE and MaNDi plotted against the volume of the primitive unit cell.
Figure 1. Volume of the crystals used for data collection on IMAGINE and MaNDi plotted against the volume of the primitive unit cell.
Crystals 08 00388 g001
Table 1. Neutron scattering lengths and X-ray scattering factors for atoms in biological macromolecules.
Table 1. Neutron scattering lengths and X-ray scattering factors for atoms in biological macromolecules.
Neutron coherent scattering length (10−12 cm)−0.3740.6670.6650.9360.581
Neutron incoherent cross section (Barns)80.272.0500.490
X-ray Scattering Factors (10−12 cm) sinθ/λ =
X-ray Scattering Factors (10−12 cm) sinθ/λ = 0.5 Å−
Table 2. Specifications of the neutron protein crystallography instrumentation available to external users at Oak Ridge National Laboratory.
Table 2. Specifications of the neutron protein crystallography instrumentation available to external users at Oak Ridge National Laboratory.
Neutron SourceReactorSpallation Source
ModeratorHydrogen cold source Decoupled hydrogen
Source frequencyn/a60 Hz
Avg. Flux~3 × 107 n/s/cm2
(2.8–4.0 Å)
~2.06 × 107 n/s/cm2
Flight Path13 m downstream CTAX instrument30 m
Beam size3.2 × 2.0 mm2Variable diameter pin holes: 1.0–6.0 mm
Scattering anglesHorizontal: ±151°
Vertical: ±48°
4 π
OpticsFlat mirrors, wavelength selection filters, Elliptical focusing mirrors & Bandwidth Choppers, Mirrors
Incident λ2–10 Å1–10 Å
Δ λ/λ25%2.15 Å or 4.3 Å window
0.4% resolution (TOF)
Detector typeNeutron Image PlateSNS Anger Camera
No. of detectors1 ½40
Detector active area1200 × 450 mm240 detectors (150 × 150 mm2)
Detector solid angle7.85 sr4.1 sr
Crystal size
>0.3 mm3>0.1 mm3
Unit cell dimension<150 Å <300 Å
Table 3. Data reduction and refinement software used on IMAGINE, MaNDi.
Table 3. Data reduction and refinement software used on IMAGINE, MaNDi.
Data collectionArinax GUISNS software CSS (EPICS)
Data collection strategyCrystalPlan (in 2018t)CrystalPlan
Data reductionLauegen, Lscale, SCALA/AIMLESSMantid, Lauenorm, SCALA/AIMLESS
Data visualizationARINAX GUI, ImageJMantid
Data analysis packagesPhenix.refine, SHELX, nCNS
Data ModelingCoot
Computing resourcesPC and Linux
Table 4. Protein structures solved using the IMAGINE instrument. DHFR, dihydrofolate reductase. MTAN, 5′-methylthioadenosine nucleosidase. LPMO, lytic polysaccharide monooxygenase. ConA, Concanavalin A. * The primitive unit cell volumes were computed using the online calculator [31].
Table 4. Protein structures solved using the IMAGINE instrument. DHFR, dihydrofolate reductase. MTAN, 5′-methylthioadenosine nucleosidase. LPMO, lytic polysaccharide monooxygenase. ConA, Concanavalin A. * The primitive unit cell volumes were computed using the online calculator [31].
ProteinPDB IDPrimitive Unit Cell Volume (Å3) *Crystal Volume (mm3)Reference
RAS GTPase4RSG223,7310.7[34]
MTAN5CCD 5JPC 5K1Z405,350
Carbonic Anhydrase5C8I126,4640.7[35]
HIV protease5E5K241,3730.5[29]
Cholesterol Oxidase5KWF235,4750.4[36]
LPMO (9)5TKI200,0720.3[37,38]
T4 Lysozyme5VNQ314,1290.7[6]
T4 Lysozyme5XPE314,2700.9[7]
Table 5. Protein structure solved using the MaNDi instrument. IPP, Inorganic Pyrophosphatase. LPMO, lyric polysaccharide monooxygenase. AAC, aminoglycoside acetyltransferase. MnSOD, manganese superoxide dismutase. FMO, Fenna-Matthews-Olson complex. RSFP, reversibly switchable fluorescent protein. CA-EZM, carbonic anhydrase in complex with ethoxzolamide. CA-DZM, carbonic anhydrase in complex with dorzolamide.
Table 5. Protein structure solved using the MaNDi instrument. IPP, Inorganic Pyrophosphatase. LPMO, lyric polysaccharide monooxygenase. AAC, aminoglycoside acetyltransferase. MnSOD, manganese superoxide dismutase. FMO, Fenna-Matthews-Olson complex. RSFP, reversibly switchable fluorescent protein. CA-EZM, carbonic anhydrase in complex with ethoxzolamide. CA-DZM, carbonic anhydrase in complex with dorzolamide.
ProteinPDB IDPrimitive Unit Cell Volume (Å3)Crystal Volume (mm3)Reference
Toho1 β-lactamase5A93460,2460.4[41]
Dathail (RSFP)5EBJ259,04110[42]
Toho1 β-lactamase5KSC461,0450.9[43]
Chlorite dismutase5NKU132,6790.8[44]
LPMO (10)5VG1303,5712.7[45,46]
Toho1 β-lactamase6C78463,740Not measured[48]
tRNA hydrolaseNot yet deposited571,4420.15[8]
MnSODNot yet deposited1,385,6150.26[51]
FMONot yet deposited595,2620.3Lu et al., 2018, Acta Crystallographica F, under review
Photosystem II subunit PsbONot Yet Deposited527,9550.25[52]
