Breathing 3D Frameworks with T-Shaped Connecting Ligand Exhibiting Solvent Induction, Metal Ions Effect and Luminescent Properties

by
Yong-Cong Ou
*,
Ying-Yi Song
,
Hui-Ming Du
,
Meng-Meng Hao
and
Jian-Zhong Wu
*
Guangzhou Key Laboratory of Materials for Energy Conversion and Storage, School of Chemistry and Environment, South China Normal University, Guangzhou 510006, China
*
Authors to whom correspondence should be addressed.
Crystals 2017, 7(10), 311; https://doi.org/10.3390/cryst7100311
Submission received: 18 August 2017 / Revised: 6 October 2017 / Accepted: 13 October 2017 / Published: 17 October 2017
(This article belongs to the Special Issue Crystal Structure Analysis of Supramolecular and Porous Solids)
Browse Figures
Versions Notes

Abstract

:
To study the structural effects in three-dimensional porous coordination polymers, three novel flexible porous coordination polymers—[Cd2(bpdc)2](DMF)3(H2O) (1) and [M(bpdc)](DMF)(H2O) (M = Cd (2), Zn (3))—have been synthesized under solvothermal conditions with d10 block metal ions and T-shaped connecting ligand. Complexes 1–3 crystallize in different space groups, but they display the same ant network. The first two complexes can transform into each other via the alteration of guest, whereas complex 3 shows no structural change. The structural details reveal that the size of metal ions might be responsible for the transformation of porous frameworks. Furthermore, luminescent properties have been explored, and a guest-dependent shift of emission peaks was observed, suggesting potential application of the complexes as a probe.

1. Introduction

The rational design and synthesis of porous coordination polymers (PCPs) and metal–organic frameworks (MOFs) have attracted a great deal of attention for more than two decades thanks to possibility of their structure regulation and potential applications in gas storage and separation [1,2,3,4], catalysis [5,6,7,8], magnetism [9,10], sensing [11,12,13], drug delivery [14,15], and so on [16]. The framework structures of PCPs/MOFs could depend on the type of metal ions, organic ligands, and the solvent used. Recently, breathing effects became of interest to solid-state chemists and physicists in the context of the flexibility and phase transitions of the frameworks [17,18]. Flexible PCPs were reported less frequently since the materials may become unstable when the coordination bonds and/or weak supramolecular interactions are changed. Flexible frameworks were assembled through flexible carboxylate ligands in our previous work [19], and it is of great importance for us to deepen the strategy to the construction with rigid ligands. Another reason for choosing rigid ligands is that the construction and regulation of PCPs becomes simplified.
The multidentate ligand 2,2′-bipyridine-5,5′-dicarboxylic acid (H2bpdc) is a good candidate because it contains two types of coordination groups—carboxylate groups and chelating position N-donors—which can act in linear bridging mode and/or T-shaped connecting mode [20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37]. To date, there are 20 different coordination modes for H2bpdc ligand observed in the structures retrieved from the Cambridge Structural Database (CSD version 5.38, February 2017) [38] (Figure 1, Scheme S1). Among those, type b usually results in zero dimensional molecular complexes, as it only acts as a chelating ligand via N-donors from the bipyridine [28]. To construct 3D flexible PCPs, although type a (T-shaped connecting mode) is reported more frequently, type c (linear bridging mode) is the most favorable option because the bpdc2− ligands in the former type often act essentially as rigid spacers [20,21,22,23]. Besides that, auxiliary ligands were also introduced to tune the flexibility of the frameworks [24]. It is interesting that there are relatively fewer reports on the flexible PCPs that are constructed with homometallic ions and pure H2bpdc ligand as T-shaped connecting modes, especially in type a [25].

2. Experimental

2.1. Materials and Physical Measurements

The reagents and solvents were commercially available and used as received without further purification. C, H, and N microanalyses were carried out with Elementar Vario-EL CHN elemental analyzer. Powder X-ray diffraction (PXRD) intensities for polycrystalline samples of 1–3 and solvent soaking samples were measured at 293 K on a Bruker D8 Advance Diffractometer (CuKα, λ = 1.54056 Å) by scanning over the range of 5°–50° with step of 0.2°/s. Simulated PXRD patterns of 1–3 were generated with Mercury software. Fourier transform infrared (FT-IR) spectra were recorded with KBr tablets in the range 4000–400 cm−1 on Perkin Elmer Spectrum One spectrometer. Thermogravimetric (TG) analysis was carried out on NETZSCH TG209F3 (NETZSCH, Bavaria, Germany) thermogravimetric analyzer. Nitrogen gas sorption isotherms for activated sample of 1 were measured on a volumetric adsorption apparatus (Bel-max, Osaka, Japan). The fluorescent spectra of solid samples of 1–3 were measured on Hitachi F-4600 at room temperature with a xenon arc lamp as the light source.

2.2. [Cd2(bpdc)2](DMF)3(H2O)

(1): A mixture of CdCl2·0.5H2O (0.2 mmol, 46 mg), H2bpdc (0.2 mmol, 48 mg), and DMF (15.0 mL) was put in a stainless steel reactor with Teflon liner (23 mL) at ambient temperature for a week, and then heated at 120 °C for 72 h and cooled to ambient temperature at a rate of ca. 3 °C·h−1 to give colorless block crystals (yields based on H2bpdc: 80 mg, 84.5%). Elemental analysis calculated for C33H35N7O12Cd2 (%): C 41.88, H 3.73, N 10.36; found (%): C 42.02, H 3.74, N 10.44.

2.3. [Cd(bpdc)](DMF)(H2O)

(2): Similar method as 1 except the solvent was replaced by a mixture solvent, DMF:H2O = 1:1. Colorless block crystals were obtained (yields based on H2bpdc: 24 mg, 26.9%). Elemental analysis calculated for C15H15N3O6Cd (%): C 40.42, H 3.39, N 9.43; found (%): C 40.21, H 3.14, N 9.44.

2.4. [Zn(bpdc)](DMF)(H2O)

(3): A mixture of ZnSO4·7H2O (0.2 mmol, 56 mg) and H2bpdc (0.2 mmol, 48 mg) was dissolved in DMF (12 mL), and adjusted to the pH value of ca. 8 with hexamethylenetetramine. After standing for one week in a stainless steel reactor with Teflon liner (23 mL) at ambient temperature, the mixture was heated at 120 °C for 72 h and cooled to ambient temperature at the rate of ca. 3 °C·h−1 to give light yellow block crystals (yields based on H2bpdc: 30 mg, 75.2%). Elemental analysis calculated for C15H15N3O6Zn (%): C 45.19, H 3.79, N 10.54; found (%): C 45.48, H 3.81, N 10.37.

2.5. X-ray Crystallography

Complexes 1–3 were sealed in a quartz tube with DMF solution and the diffraction data for 1–3 were collected on Oxford Diffraction Xcalibur Nova with Cu-Kα radiation (λ = 1.54184 Å) at 293(2) K, Bruker D8 QUEST diffractometer with MoKα radiation (λ = 0.71073 Å) at 293(2) K and Bruker Apex II CCD area detector diffractometer (MoKα radiation) at 296(2) K, respectively. Absorption corrections were applied by using multiscan program SADABS. The structures were solved using direct methods and refined using the SHELXTL program [39]. For complexes 2 and 3, the disorder of DMF and H2O molecules could not be modelled properly, hence the program SQUEEZE [40]—a part of the PLATON package of crystallographic software—was used to calculate the disordered solvent contribution and remove it from the overall intensity data. Further details of the structural analysis for complexes 1–3 are summarized in Table 1.

3. Results and Discussion

3.1. Synthesis Conditions

The development of a suitable synthetic method is of a primary importance in chemistry. Solvothermal method is widely used in the construction of PCPs, and there are many factors that could help to manipulate the structure of the product. It is surprising that there are rare cases of H2bpdc ligands which coordinate to form homometallic frameworks [29] with twelfth group (IIB) metal ions with the capability to form complexes. We have reported two complexes with group IIA metal ions—Ca(bpdc)(DMF)2(H2O)2 and Mg(bpdc)(H2O)3—which were obtained from DMF solution using solvothermal conditions [41]. Fortunately, while replacing the metal ions and adjusting the standing time before heating, three novel flexible PCPs formed with H2bpdc ligand and cadmium/zinc ions—[Cd2(bpdc)2](DMF)3(H2O) (1) and [M(bpdc)](DMF)(H2O) (M = Cd (2), Zn (3))—were produced and characterized. To our best knowledge, this is the first time when the flexible frameworks composed of cadmium ions and bpdc2− ligands are reported. It should be mentioned that the standing time for a week is necessary since if the mixture of reactants is placed directly at high temperature, the product is a non-crystalline solid. Because of the different properties shown between cadmium complexes and zinc complex, the mercury complex has been attempted in a similar way, but unfortunately no similar porous framework could be obtained.

3.2. Crystal Structures of 1–3

Single crystal X-ray diffraction analysis revealed that complex 1 crystallizes in the space group P21/c and is a three-dimensional coordination polymer with large pores in the structure. In the asymmetric unit, there are two independent Cd2+ atoms, two bpdc2− ligands, three DMF, and one H2O guest molecule. The Cd1 and Cd2 atoms are both in distorted octahedral geometry formed by four oxygen atoms from four carboxylate groups and two nitrogen atoms of the bipyridyl group (∑Cd1 = 97.5°, ∑Cd2 = 112.6°) [42] (Figure 2a), and two Cd atoms form a wheel dinuclear unit, Cd2(COO)4. The bpdc2− ligand, coordinating to five Cd atoms, is a T-shaped connector (type a) which is of two types (bpdc(N1,2) and bpdc(N3,4)), chelating atoms Cd1 and Cd2 atoms, respectively. The bpdc(N1,2) ligands as type f connect three Cd1 atoms into wavy 2D layers (Figure S1) which are further linked with the adjacent wavy layers composed of bpdc(N3,4) ligands and Cd2 atoms via the dinuclear units into 3D porous coordination framework (Figure 2b), which exhibits four types of open channels along the a-axis, c-axis, [101], and [111] directions (Figure S2).
From PLATON calculation [43], the total void volume for filling in potential solvent is about 1886 Å3, which is 49.8% of the unit cell volume for the porous structure. Among the described types of channels, the biggest one is a quadrangled open channel with the dimensions 3.5 × 11.9 Å in herringbone pattern stacking along [101] direction. Three DMF molecules and one water molecule, arranged in a line along that channel (Figure 2c), are retained via hydrogen bonding interactions (dC-H…O = 2.04–2.66 Å, ∠C–H…O = 114.0°–164.3 °) (Figure S3). While the dinuclear units Cd2(COO)4 are considered as six-connected nodes, the bpdc2− ligands can be regarded as three-connected T-shaped nodes, thus the 3D framework structure of complex 1 can be simplified into a (6,3) connected ant topological network with the Schläfli symbol of {44.62.88.10}{42.6} (Figure 2d). To the best of our knowledge, complex 1 is the first homometallic structure composed of Cd2+ ions and bpdc2– ligands.
The frameworks of complexes 2 and 3 are similar to that of complex 1, whereas a similar network, [Mn(bpydc)]·DMA, has been reported by Liu et al. [25]. Differences of the structural compositions of 1–3 are the numbers of guest molecules and the metal ion centers. Interestingly, for 2 and 3, the crystallographic data show that the structures crystallize in a higher symmetry space group Fddd, resulting in the asymmetric unit contents reduced by half (Figure S4). Furthermore, the frameworks of 2 and 3 became more square, although they are composed of similar dinuclear units and can be simplified into the same ant topology. Looking into structures of 1–3 (Figure 3), the size of metal ions might affect the construction of the frameworks. For the first two complexes, coordination bond lengths (Cd–O = 2.166(4)–2.446(4) Å, Cd–N = 2.372(4)–2.396(3) Å) are longer than those of complex 3 (Zn–O = 1.947(4)–2.384(3) Å, Zn–N = 2.208(4) Å), and the distortions of structures 1 and 2 are smaller than that of 3 (Table S1). Besides that, the different distortions, caused by different hydrogen bonding interactions (C16–H16A…O1W = 2.62 Å), in two pyridyl planes in complex 1 affect the symmetry of the dinuclear unit (Table S2). Therefore, the dihedral angles between the bipyridyl planes, 65.9°, 75.3°, and 78.3°, respectively, for 1–3 mainly result in the different distortions of the 3D coordination frameworks.

3.3. IR Spectra and TG Measurements

As the solvent molecules in complexes 2 and 3 could not be found from single-crystal X-ray diffraction data, the composition was confirmed via elemental analysis, IR (Figure 4a), and TG data (Figure 4b–d). IR spectra show that the absorption bands of COO− and bipyridyl groups are 1607 and 1396 cm−1, and 1378, 848, and 779 cm−1 respectively. The peaks at 1643, 1170, 1132, and 1034 cm−1 correspond to those of DMF molecules [44]. All TG data of complexes were measured from room temperature to 700 °C under nitrogen atmosphere heated at a rate of 10 °C/min. For 1, a weight loss of 26.0% from beginning to 140 °C corresponds to the loss of three DMF and one water molecules per formula unit (calc. 25.1%), which ensures that the formula obtained from X-ray diffraction is correct. After a long plateau, a large weight loss occurs from 320 °C to 500 °C in accordance with the decomposition of the organic ligands in the framework (found 48.5%, calc. 51.1%). For 2 and 3, the similar TG curves show that the weight loss from room temperature to 150 °C or 170 °C would correspond to the loss of one DMF and one water molecules in the formula, respectively (for 2, found 20.5%, calc. 20.4%; for 3, found 25.2%, calc. 23.7%). Since the mass loss of samples 2 and 3 continued after 700 °C, the PXRD of the remaining sample show that the peaks are corresponding to that of CdO and ZnO, respectively (Figure S5).

3.4. Stabilities and Structure Transformation

Because complexes 1–3 show long plateaus after the solvent molecules lost in TG data, the desolvated complexes were characterized with PXRD. Interestingly, the peaks of three desolvated samples—which are different from that of 1–3 with guest molecules—turned into a similar pattern and became broader which might be due to the distortion of the porous frameworks (Figure S6). This means that the crystallinities of all the frameworks could not be sustained, and unfortunately, the structures could not be retrieved through the powder diffraction data since the crystallinities were not good enough. Adsorption of N2 gas at 77 K for activated samples of 1 were measured and showed no adsorption capacity (Figure S7). On the other hand, the difference between 1 and 2 indicated that the possibility might exist that complex 1 could change into complex 2. Herein, after crystals of 1 were immersed in the DMF and H2O equimolar mixture for one week, the crystal structure changed into 2, and vice versa, which was confirmed by PXRD (Figure 5, I, II, III). However, for complex 3, it could not absorb more DMF molecules into the pores even if the dehydrated DMF was used. This phenomenon could be ascribed to the different metal properties and host–guest interactions [45].

3.5. Luminescent Properties

The solid-state photoluminescence properties of complexes 1–3 have been studied at room temperature. It is well known that the luminescent properties of d10 metal complexes could be affected by the coordination modes of organic ligands and/or the guest molecules [46]. Compared to the emission peaks (455 and 547 nm) of the H2bpdc [41], the emission peaks of 1 and 2—417 nm and 447 nm, respectively—are hypochromatically shifted whereas that of 3 (467 nm) is bathochromically shifted (Figure 6). The emissions could be attributed to the π–π* transition within the bipyridyl ligands, and the different shifts between cadmium complexes and zinc complex might be the metal ion effects in the coordination structure, because the energy levels are different. It is noticed that the emission band of 1 at 417 nm is obviously red shifting to the emission band of 2 at 447 nm, which might be ascribed to the different distortion of two pyridyl rings of the bpdc2– ligands and the effect of guest molecules [47]. Furthermore, the luminescent properties of desolvated samples of 1–3 show similar emission peaks at 460 nm (Figure S8). These complexes might be potentially used as a probe.

4. Conclusions

In summary, three novel d10 metal porous coordination polymers have been isolated with T-shaped connecting linkers and fully characterized. Here, complexes 1 and 2 with large porous channels exhibited structural transformation during the desorption/adsorption of DMF molecules, and further showed the shift of emission peaks which imply their potential use as a probe. However, the zinc complex 3 could not adsorb DMF molecules to change the structure and exhibited blue emission in fluorescence. This work introduces a special synthetic method and idea in crystallizing and tuning the pore structures, and could open the way to constructing novel complexes.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4352/7/10/311/s1, Scheme S1: Coordination modes displayed by H2bpdc ligand in metal complexes, as retrieved from the Cambridge Structural Database (CSD version 5.38, updated to Feb 2017); Figure S1: The wavy 2D layer structure of Cd1bpdc(N1,2); Figure S2: View of the 3D porous structure of 1 from direction on a-axis (a), c-axis (b), (101) (c) and (111) (d); Figure S3: The hydrogen bonding interactions (multi-color bonds) for the DMF and H2O molecules in complex 1; Figure S4: (a) The coordination environments of metal atoms and bpdc2− ligand and (b) the ant topological network for 2 and 3. (cyan balls and purple balls represent dinuclear units and bpdc2− ligands respectively); Figure S5: The PXRD patterns for the rest samples of 2 (a) and 3 (b) after TGA analysis, which corresponded to the patterns of CdO (monteponite, syn) and ZnO (Zincite, syn) respectively; Figure S6: The XPRD patterns for desolvated samples of 1–3; Figure S7: The N2 adsorption data at 77 K of the activated samples of 1; Figure S8: The luminescent properties for active samples of two metal complexes excited at 363 nm; Table S1: Selected bond lengths (Å) and angles (o) for 1–3; Table S2: Selected Hydrogen bond lengths (Å) and angles (o) for 1. Supporting figures: adsorption data and PXRD patterns. X-ray crystallographic file in CIF format (CCDC: 1548356, 1548357, 1548358). Supplementary data to this article can be found online at http://dx.doi.org/.

Acknowledgments

This work was supported by the NSFC (Grant No. 21401058) and Yong Innovative Talents Program of Guangdong (2014KQNCX058).

Author Contributions

Ying-Yi Song designed and performed the experiments; Hui-Ming Du and Meng-Meng Hao analyzed the data; Yong-Cong Ou and Jian-Zhong Wu wrote the paper.

Conflicts of Interest

The authors declare no competing financial interests.

References

  1. Kim, H.; Yang, S.; Rao, S.R.; Narayanan, S.; Kapustin, E.A.; Furukawa, H.; Umans, A.S.; Yaghi, O.M.; Wang, E.N. Water harvesting from air with metal-organic frameworks powered by natural sunlight. Science 2017, 356, 430–434. [Google Scholar] [CrossRef] [PubMed]
  2. Li, B.; Wen, H.-M.; Cui, Y.; Zhou, W.; Qian, G.; Chen, B. Emerging multifunctional metal–organic framework materials. Adv. Mater. 2016, 28, 8819–8860. [Google Scholar] [CrossRef] [PubMed]
  3. Li, J.-R.; Kuppler, R.J.; Zhou, H.-C. Selective gas adsorption and separation in metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef] [PubMed]
  4. Fan, C.B.; Gong, L.L.; Huang, L.; Luo, F.; Krishna, R.; Yi, X.F.; Zheng, A.M.; Zhang, L.; Pu, S.Z.; Feng, X.F.; et al. Significant enhancement of C2H2/C2H4 separation by a photochromic diarylethene unit: A temperature- and light-responsive separation switch. Angew. Chem. Int. Ed. 2017, 56, 7900–7906. [Google Scholar] [CrossRef] [PubMed]
  5. Zhao, S.-N.; Song, X.-Z.; Song, S.-Y.; Zhang, H.-J. Highly efficient heterogeneous catalytic materials derived from metalorganic framework supports/precursors. Coord. Chem. Rev. 2017, 337, 80–96. [Google Scholar] [CrossRef]
  6. Liu, J.; Chen, L.; Cui, H.; Zhang, J.; Zhang, L.; Su, C.-Y. Applications of metal–organic frameworks in heterogeneous supramolecular catalysis. Chem. Soc. Rev. 2014, 43, 6011–6061. [Google Scholar] [CrossRef] [PubMed]
  7. Zhao, M.; Ou, S.; Wu, C.-D. Porous metal-organic frameworks for heterogeneous biomimetic catalysis. Acc. Chem. Res. 2014, 47, 1199–1207. [Google Scholar] [CrossRef] [PubMed]
  8. Farrusseng, D.; Aguado, S.; Pinel, C. Metal–organic frameworks: Opportunities for catalysis. Angew. Chem. Int. Ed. 2009, 48, 7502–7513. [Google Scholar] [CrossRef] [PubMed]
  9. Ni, Z.-P.; Liu, J.-L.; Hoque, M.N.; Liu, W.; Li, J.-Y.; Chen, Y.-C.; Tong, M.-L. Recent advances in guest effects on spin-crossover behavior in Hofmann-type metal–organic frameworks. Coord. Chem. Rev. 2017, 335, 28–43. [Google Scholar] [CrossRef]
  10. Coronado, E.; Espallargas, G.M. Dynamic magnetic MOFs. Chem. Soc. Rev. 2013, 42, 1525–1539. [Google Scholar] [CrossRef] [PubMed]
  11. Lin, R.-B.; Liu, S.-Y.; Ye, J.-W.; Li, X.-Y.; Zhang, J.-P. Photoluminescent metal–organic frameworks for gas sensing. Adv. Sci. 2016, 3, 1500434–1500453. [Google Scholar] [CrossRef] [PubMed]
  12. Wales, D.J.; Grand, J.; Ting, V.P.; Burke, R.D.; Edler, K.J.; Bowen, C.R.; Mintova, S.; Burrows, A.D. Gas sensing using porous materials for automotive applications. Chem. Soc. Rev. 2015, 44, 4290–4321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Hu, Z.; Deiberta, B.J.; Li, J. Luminescent metal–organic frameworks for chemical sensing and explosive detection Chem. Soc. Rev. 2014, 43, 5815–5840. [Google Scholar] [CrossRef] [PubMed]
  14. Wyszogrodzka, G.; Marszałek, B.; Gil, B.; Dorożyński, P. Metal-organic frameworks: Mechanisms of antibacterial action and potential applications. Drug Discov. Today 2016, 21, 1009–1018. [Google Scholar] [CrossRef] [PubMed]
  15. Rocca, J.D.; Liu, D.; Lin, W. Nanoscale metal–organic frameworks for biomedical imaging and drug delivery. Acc. Chem. Res. 2011, 44, 957–968. [Google Scholar] [CrossRef] [PubMed]
  16. Horike, S.; Umeyama, D.; Kitagawa, S. Ion conductivity and transport by porous coordination polymers and metal-organic frameworks. Acc. Chem. Res. 2013, 46, 2376–2384. [Google Scholar] [CrossRef] [PubMed]
  17. Schneemann, A.; Bon, V.; Schwedler, I.; Senkovska, I.; Kaskel, S.; Fischer, R.A. Flexible metal–organic rameworks. Chem. Soc. Rev. 2014, 43, 6062–6069. [Google Scholar] [CrossRef] [PubMed]
  18. Lin, Z.-J.; Lv, J.; Hong, M.; Cao, R. Metal–organic frameworks based on flexible ligands (FL-MOFs): Structures and applications. Chem. Soc. Rev. 2014, 43, 5867–5895. [Google Scholar] [CrossRef] [PubMed]
  19. Ou, Y.-C.; Gao, X.; Zhou, Y.; Chen, Y.-C.; Wang, L.-F.; Wu, J.-Z.; Tong, M.-L. Magnetic properties and photoluminescence of lanthanide coordination polymers constructed with conformation-flexible cyclohexane-tetracarboxylate ligands. Cryst. Growth Des. 2016, 16, 946–952. [Google Scholar] [CrossRef]
  20. Liu, G.; Zeller, M.; Su, K.; Pang, J.; Ju, Z.; Yuan, D.; Hong, M. Controlled orthogonal self-assembly of heterometal-decorated coordination cages. Chem. Eur. J. 2016, 22, 17345–17350. [Google Scholar] [CrossRef] [PubMed]
  21. Gonzalez, M.I.; Bloch, E.D.; Mason, J.A.; Teat, S.J.; Long, J.R. Single-crystal-to-single-crystal metalation of a metal–organic framework: A route toward structurally well-defined catalysts. Inorg. Chem. 2015, 54, 2995–3005. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, S.; Li, L.; Zhao, S.; Sun, Z.; Luo, J. Construction of interpenetrated ruthenium metal–organic frameworks as stable photocatalysts for CO2 reduction. Inorg. Chem. 2015, 54, 8375–8379. [Google Scholar] [CrossRef] [PubMed]
  23. Blake, A.J.; Champness, N.R.; Easun, T.L.; Allan, D.R.; Nowell, H.; George, M.W.; Jia, J.; Sun, X.-Z. Photoreactivity examined through incorporation in metal-organic frameworks. Nat. Chem. 2010, 2, 688–694. [Google Scholar] [CrossRef] [PubMed]
  24. Bon, V.; Kavoosi, N.; Senkovska, I.; Müller, P.; Schaber, J.; Wallacher, D.; Többens, D.M.; Mueller, U.; Kaskel, S. Tuning the flexibility in MOFs by SBU functionalization. Dalton Trans. 2016, 45, 4407–4415. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, J.; Jing, X.; Cao, Y.; Li, G.; Huo, Q.; Liu, Y. Structural diversity and magnetic properties of three metal–organic frameworks assembled from a T-shaped linker. CrystEngComm 2015, 17, 604–611. [Google Scholar] [CrossRef]
  26. Wang, J.; Luo, J.; Zhao, J.; Li, D.-S.; Li, G.; Huo, Q.; Liu, Y. Assembly of two flexible metal–organic frameworks with stepwise gas adsorption and highly selective CO2 adsorption. Cryst. Growth Des. 2014, 14, 2375–2380. [Google Scholar] [CrossRef]
  27. Shen, L.; Gray, D.; Masel, R.I.; Girolami, G.S. Synthesis and characterization of a zinc metal–organic framework with chiral nano-pores. CrystEngComm 2012, 14, 5145–5147. [Google Scholar] [CrossRef]
  28. Gustafsson, M.; Su, J.; Yue, H.; Yao, Q.; Zou, X. A family of flexible lanthanide bipyridinedicarboxylate metal–organic frameworks showing reversible single-crystal to single-crystal transformations. Cryst. Growth Des. 2012, 12, 3243–3249. [Google Scholar] [CrossRef]
  29. Huh, S.; Jung, S.; Kim, Y.; Kim, S.-J.; Park, S. Two-dimensional metal–organic frameworks with blue luminescence. Dalton Trans. 2010, 39, 1261–1265. [Google Scholar] [CrossRef] [PubMed]
  30. Wang, J.; Luo, J.; Zhi, B.; Li, G.; Huo, Q.; Liu, Y. Anion-templated assembly of three indium–organic frameworks with diverse topologies. CrystEngComm 2014, 16, 9810–9816. [Google Scholar] [CrossRef]
  31. Zhao, B.; Fang, M.; Shi, P.-F.; Jiang, D.-X.; Chang, P.; Shi, W. A series of 3d–4f heterometallic three-dimensional coordination polymers: Syntheses, structures and magnetic properties. Dalton Trans. 2012, 41, 6820–6826. [Google Scholar]
  32. Liu, D.; Huxford, R.C.; Lin, W. Phosphorescent nanoscale coordination polymers as contrast agents for optical imaging. Angew. Chem. Int. Ed. 2011, 50, 3696–3700. [Google Scholar] [CrossRef] [PubMed]
  33. Wen, G.-X.; Wang, J.-F.; Wu, X.-Q.; Pan, L.-Q.; Li, D.-S. One novel near-infrared ytterbium metal–organic framework based on an unprecedented [Yb6(μ2-OH)2(μ3-OH)6]10+ cluster. Inorg. Chem. Commun. 2016, 70, 111–114. [Google Scholar] [CrossRef]
  34. Huang, S.-L.; Jia, A.-Q.; Jin, G.-X. Pd(diimine)Cl2 embedded heterometallic compounds with porous structures as efficient heterogeneous catalysts. Chem. Commun. 2013, 49, 2403–2405. [Google Scholar] [CrossRef] [PubMed]
  35. Ayhan, O.; Malaestean, I.L.; Ellern, A.; van Leusen, J.; Baca, S.G.; Kogerler, P. Assembly of cerium(III) 2,2′-bipyridine-5,5′-dicarboxylate-based metal–organic frameworks by solvent tuning. Cryst. Growth Des. 2014, 14, 3541–3548. [Google Scholar] [CrossRef]
  36. Lin, X.; Hong, Y.; Zhang, C.; Huang, R.; Wang, C.; Lin, W. Pre-concentration and energy transfer enable the efficient luminescence sensing of transition metal ions by metal–organic frameworks. Chem. Commun. 2015, 51, 16996–16999. [Google Scholar] [CrossRef] [PubMed]
  37. Zhao, R.; Mei, L.; Wang, L.; Chai, Z.-F.; Shi, W.-Q. Copper/zinc-directed heterometallic uranyl-organic polycatenating frameworks: Synthesis, characterization, and anion-dependent structural regulation. Inorg. Chem. 2016, 55, 10125–10134. [Google Scholar] [CrossRef] [PubMed]
  38. Allen, F.H.; Taylor, R. Research applications of the Cambridge Structural Database (CSD). Chem. Soc. Rev. 2004, 33, 463–475. [Google Scholar] [CrossRef] [PubMed]
  39. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar]
  40. Van Der Sluis, P.; Spek, A.L. BYPASS: An effective method for the refinement of crystal structures containing disordered solvent regions. Acta Cryst. 1990, A46, 194–201. [Google Scholar] [CrossRef]
  41. Ou, Y.-C.; Zhong, J.-X.; Song, Y.-Y.; Zhu, L.-L.; Wu, J.-Z. Two 1D chain structures derived from alkaline-earth metal complexes and 2,2′-bipyridine-5,5′-dicarboxylate ligand: Syntheses, crystal structures and luminescent properties. Chin. J. Inorg. Chem. 2016, 32, 738–744. [Google Scholar]
  42. Guionneau, P.; Marchivie, M.; Bravic, G.; Létard, J.F.; Chasseau, D. Co (II) molecular complexes as a reference for the spin crossover in Fe (II) analogues. Mater. Chem. 2002, 12, 2546–2551. [Google Scholar] [CrossRef]
  43. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13. [Google Scholar] [CrossRef]
  44. Nakamoto, K. Infrared and Raman Spectra of Inorganic and Coordination Compounds, 6th ed.; John Wiley and Sons, Inc.: Hoboken, NJ, USA, 2009. [Google Scholar]
  45. Klein, N.; Hoffmann, H.C.; Cadiau, A.; Getzschmann, J.; Lohe, M.R.; Paasch, S.; Heydenreich, T.; Adil, K.; Senkovska, I.; Brunner, E.; et al. Structural flexibility and intrinsic dynamics in the M2(2,6-ndc)2(dabco) (M = Ni, Cu, Co, Zn) metal–organic frameworks. J. Mater. Chem. 2012, 22, 10303–10312. [Google Scholar] [CrossRef]
  46. Kreno, L.E.; Leong, K.; Farha, O.K.; Allendorf, M.; Van Duyne, R.P.; Hupp, J.T. Metal–Organic Framework Materials as Chemical Sensors. Chem. Rev. 2012, 112, 1105–1125. [Google Scholar] [CrossRef] [PubMed]
  47. Allendorf, M.D.; Bauer, C.A.; Bhakta, R.K.; Houk, R.J.T. Luminescent metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1330–1352. [Google Scholar] [CrossRef] [PubMed]
Crystals 07 00311 g001 550

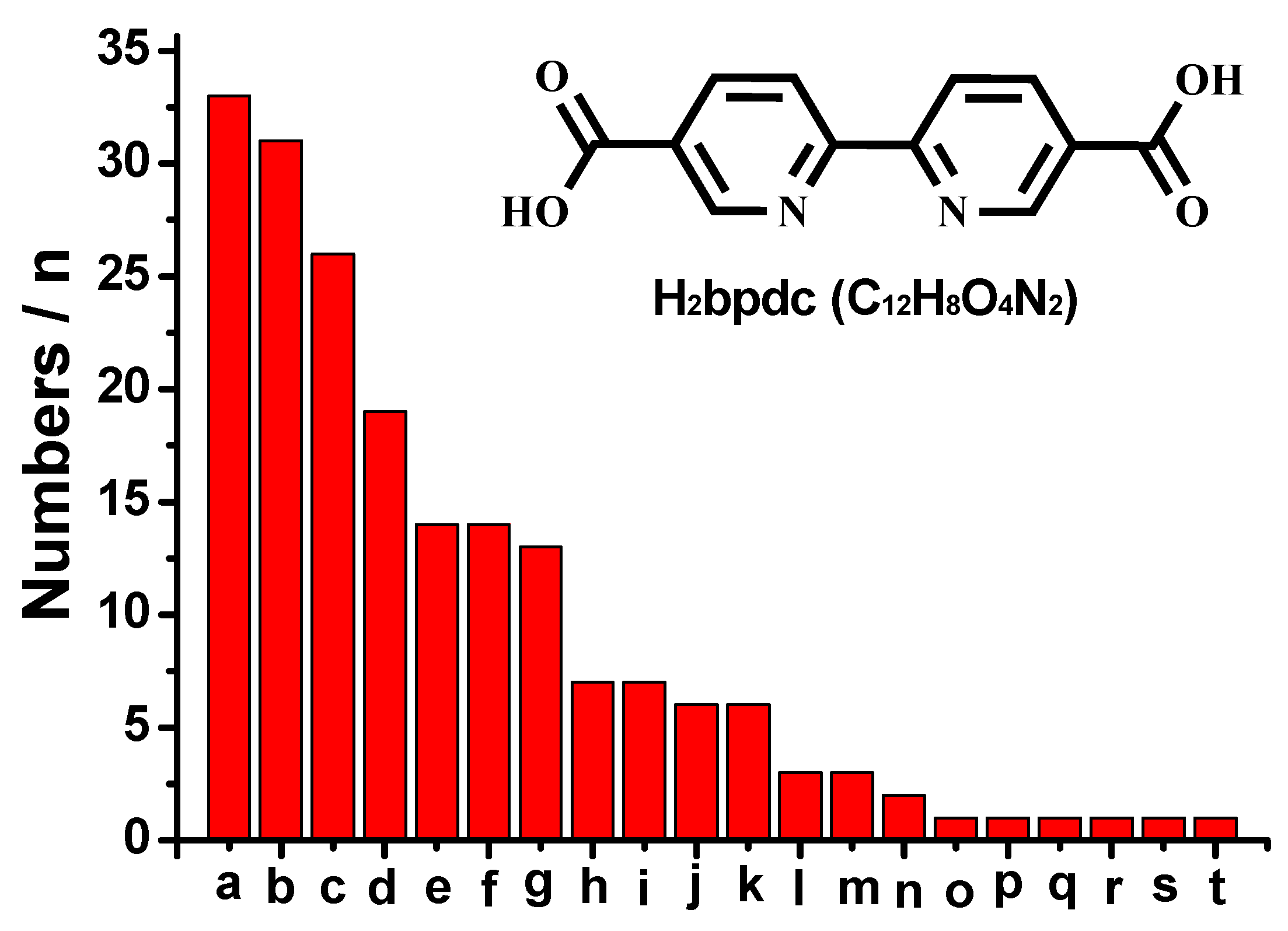

Figure 1. The number of published structures which contain H2bpdc ligands in different coordination modes. a–t represent the types of coordination modes, see Scheme S1.
Figure 1. The number of published structures which contain H2bpdc ligands in different coordination modes. a–t represent the types of coordination modes, see Scheme S1.
Crystals 07 00311 g001
Crystals 07 00311 g002a 550Crystals 07 00311 g002b 550

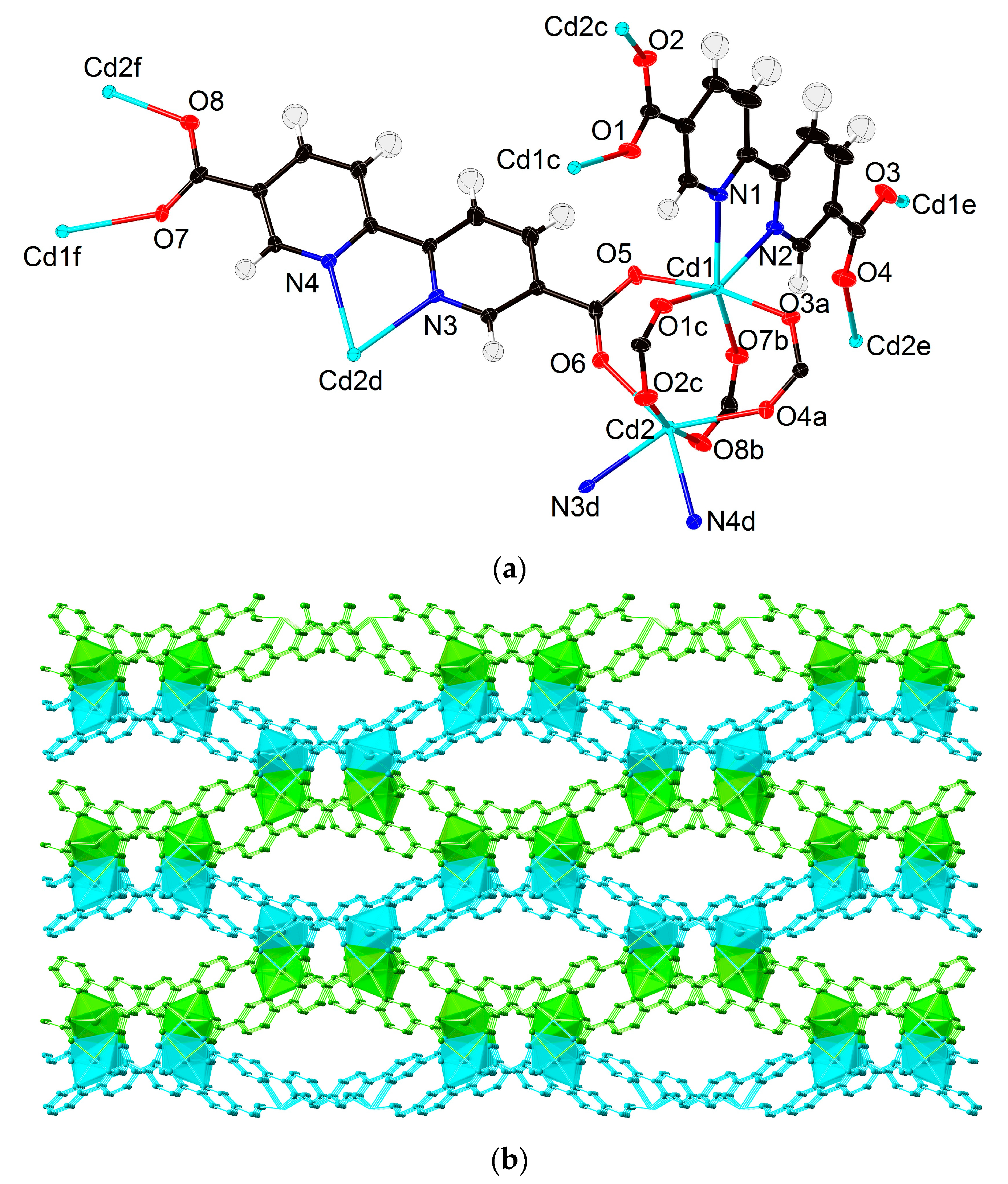

Figure 2. (a) Coordination environments of Cd2+ atoms and bpdc2− ligand in complex 1; (b) Polyhedral view (green and cyan polyhedrons represent the Cd1 and Cd2, respectively) for 3D framework composed of two infinite Cd(bpdc) plane along c-axis; (c) The guest molecules of DMF and H2O situated in the framework along the [101] direction; (d) The (6,3) connected topology network in complex 1.
Figure 2. (a) Coordination environments of Cd2+ atoms and bpdc2− ligand in complex 1; (b) Polyhedral view (green and cyan polyhedrons represent the Cd1 and Cd2, respectively) for 3D framework composed of two infinite Cd(bpdc) plane along c-axis; (c) The guest molecules of DMF and H2O situated in the framework along the [101] direction; (d) The (6,3) connected topology network in complex 1.
Crystals 07 00311 g002aCrystals 07 00311 g002b
Crystals 07 00311 g003 550
Figure 3. The difference in dihedral angles in the dinuclear units for 1 (a), 2 (b), and 3 (c) between the bipyridyl planes resulting in the different distortions of the 3D coordination frameworks, respectively (1 (d), 2 (e), and 3 (f)). The hydrogen bonding interaction in (a) impels the different distortions of two pyridyl planes.
Figure 3. The difference in dihedral angles in the dinuclear units for 1 (a), 2 (b), and 3 (c) between the bipyridyl planes resulting in the different distortions of the 3D coordination frameworks, respectively (1 (d), 2 (e), and 3 (f)). The hydrogen bonding interaction in (a) impels the different distortions of two pyridyl planes.
Crystals 07 00311 g003
Crystals 07 00311 g004a 550Crystals 07 00311 g004b 550

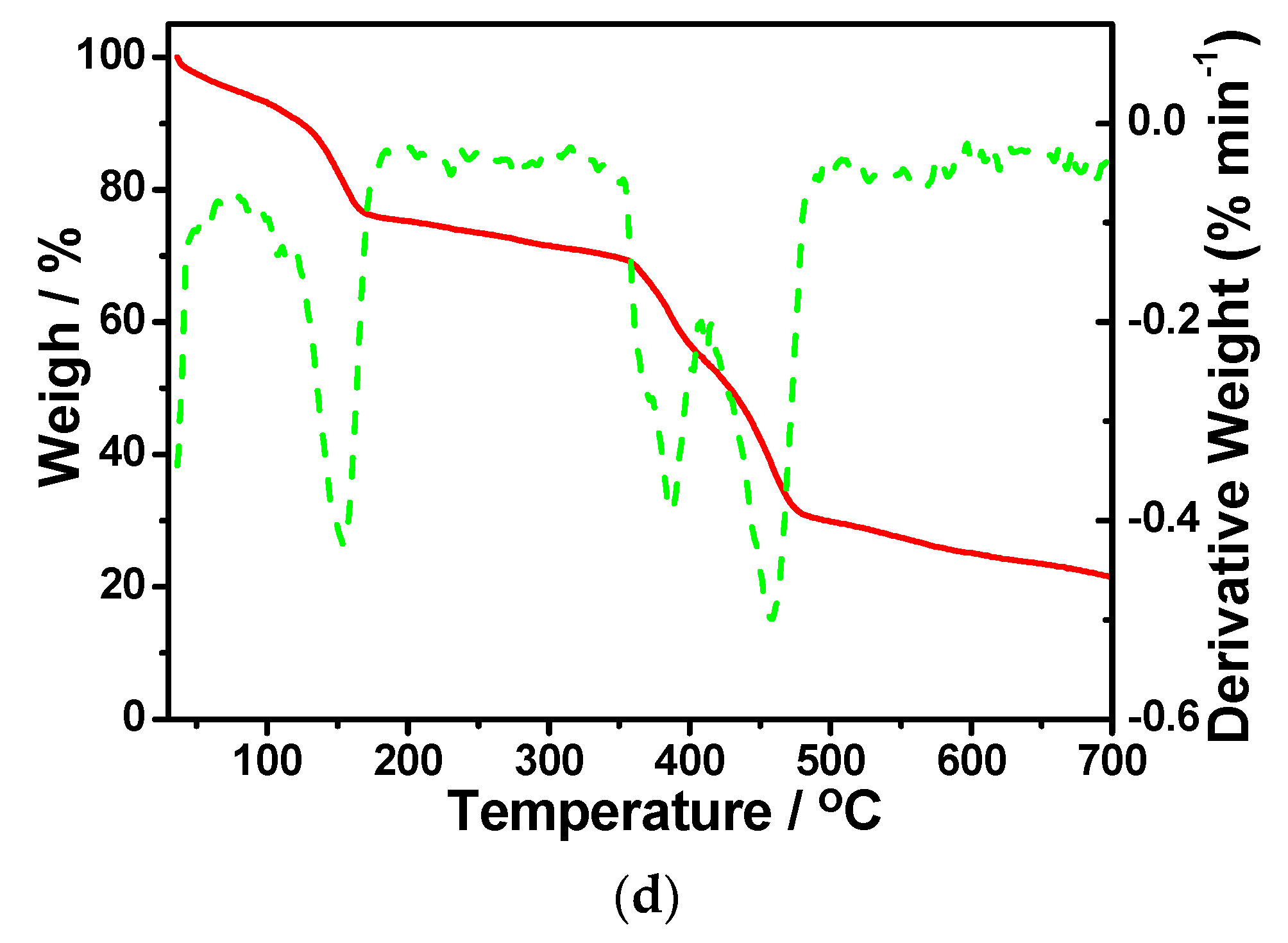

Figure 4. (a) IR spectra of 1–3. The thermogravimetric data and DTG analysis for 1 (b), 2 (c), and 3 (d).
Figure 4. (a) IR spectra of 1–3. The thermogravimetric data and DTG analysis for 1 (b), 2 (c), and 3 (d).
Crystals 07 00311 g004aCrystals 07 00311 g004b
Crystals 07 00311 g005 550

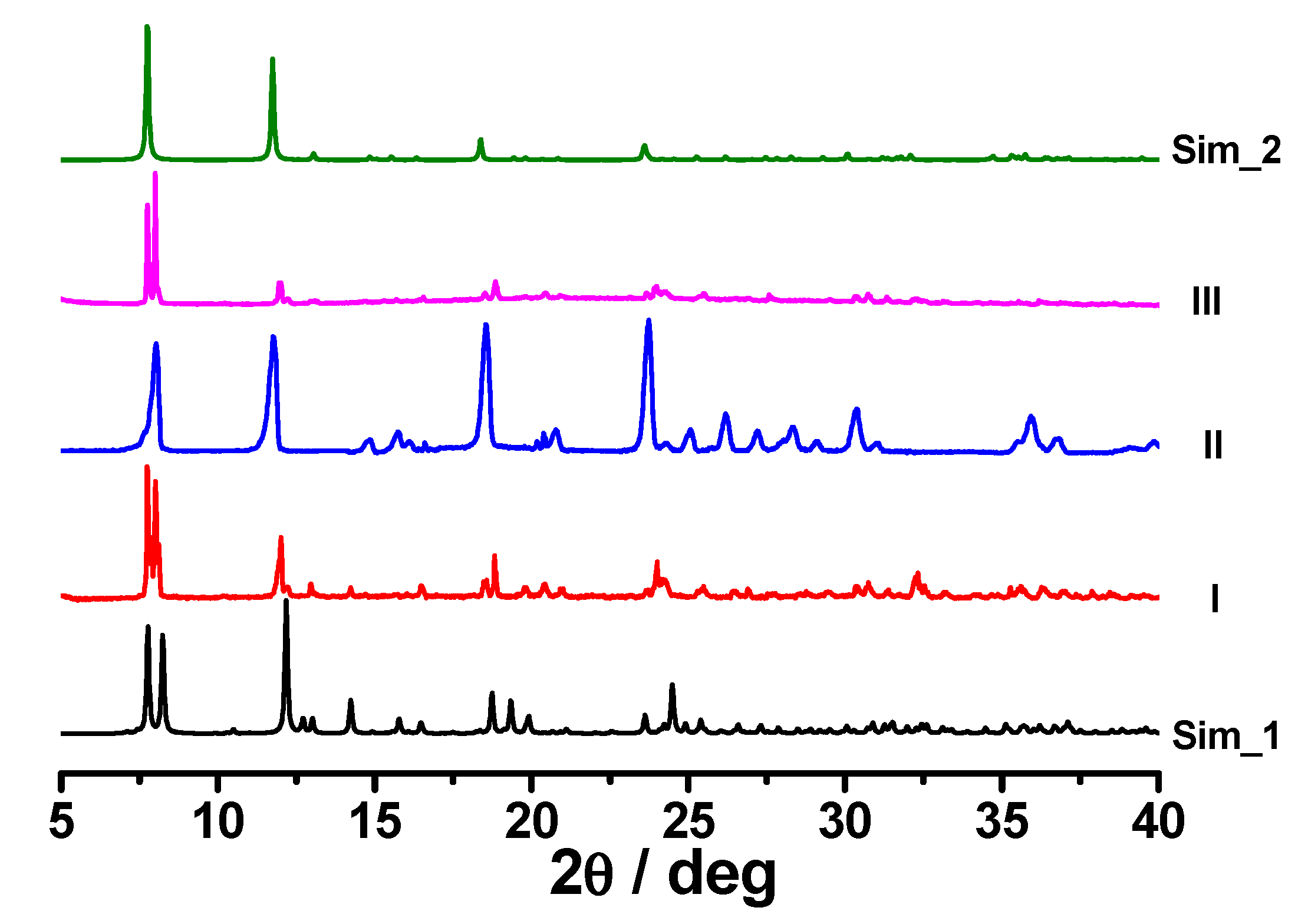

Figure 5. The powder XRD (PXRD) patterns showing the structural transformations of 1: (I) is the original sample; (II) is the sample immersed in DMF:H2O (1:1) for one week; (III) is sample II after being immersed back in DMF for one week. Sim_1 and Sim_2 represent the simulation patterns for 1 and 2, respectively.
Figure 5. The powder XRD (PXRD) patterns showing the structural transformations of 1: (I) is the original sample; (II) is the sample immersed in DMF:H2O (1:1) for one week; (III) is sample II after being immersed back in DMF for one week. Sim_1 and Sim_2 represent the simulation patterns for 1 and 2, respectively.
Crystals 07 00311 g005
Crystals 07 00311 g006 550

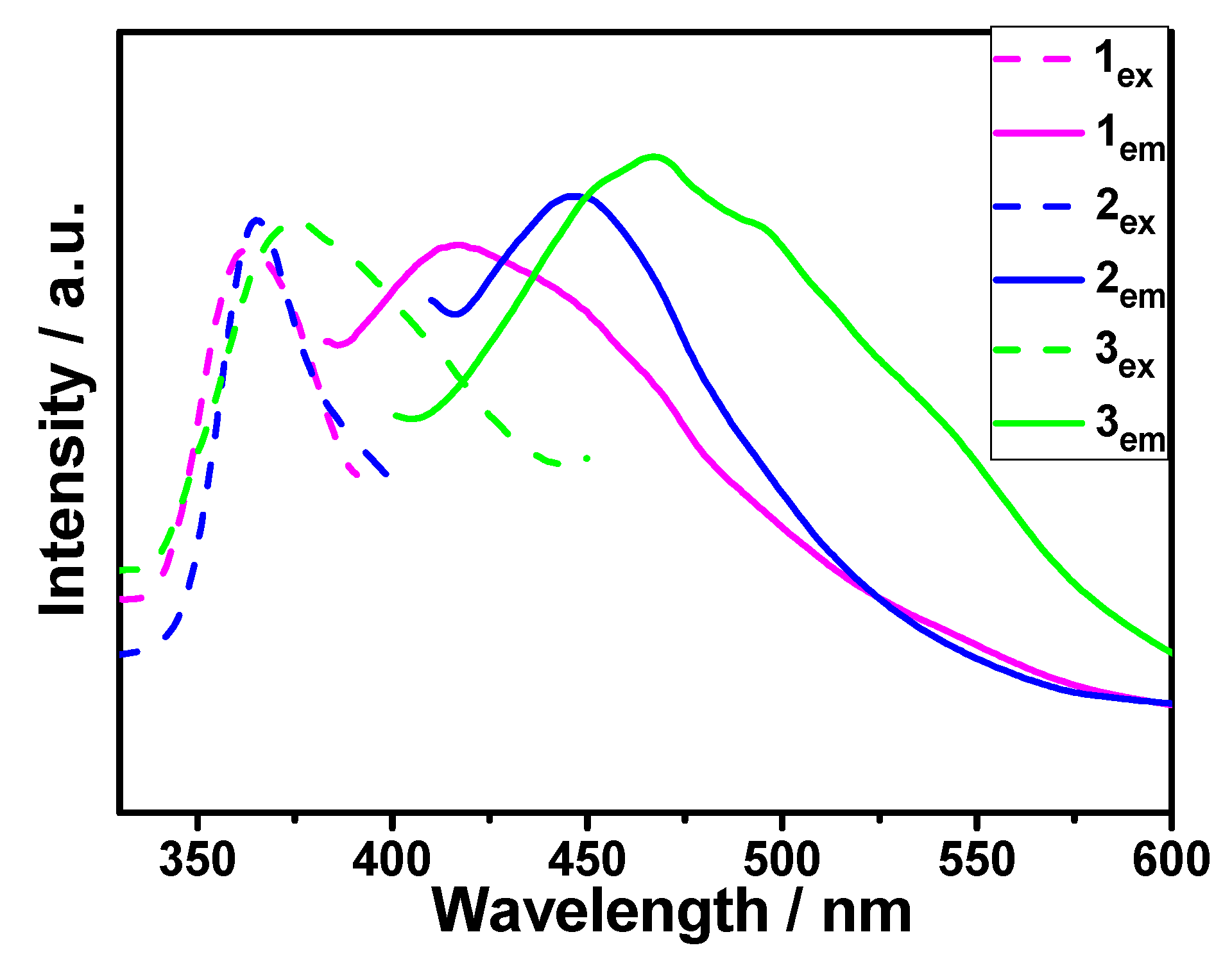

Figure 6. Luminescent properties of 1–3.
Figure 6. Luminescent properties of 1–3.
Crystals 07 00311 g006
Table
Table 1. Crystal data and structure refinements for 1–3.
Table 1. Crystal data and structure refinements for 1–3.
Complex1 (293 K)2 (293 K)3 (296 K)
Empirical formulaC33H35N7O12Cd2C15H15N3O6CdC15H15N3O6Zn
fw946.48445.70398.67
Crystal systemMonoclinicOrthorhombicOrthorhombic
Space groupP21/cFdddFddd
a/Å11.8988(2)17.4483(5)15.930(7)
b/Å24.8683(4)19.4148(6)19.280(8)
c/Å12.8119(2)23.8529(7)23.109(9)
β/°93.0640(10)9090
V/Å33785.66(11)8080.3(4)7097(5)
Z41616
ρcalcd/g cm−31.6611.4651.492
μ/mm−19.5991.1121.419
S1.0591.0701.017
R1 [a], wR2 [b] (I > 2σ(I))0.0407, 0.09930.0313(SQUEEZE), 0.0825(SQUEEZE)0.0589(SQUEEZE), 0.1563(SQUEEZE)
R1 [a], wR2 [b] (all data)0.0561, 0.11040.0375(SQUEEZE), 0.0873(SQUEEZE)0.0900(SQUEEZE), 0.1736(SQUEEZE)
[a] R1 = Σ||Fo| − |Fc||/Σ|Fo|; [b] wR2 = [Σw(Fo2 − Fc2)2/Σw(Fo2)2]1/2.
