Review

Recent Advances in Two-Dimensional Materials with Charge Density Waves: Synthesis, Characterization and Applications

by
Mongur Hossain
1,2,
Zhaoyang Zhao
1,2,
Wen Wen
1,2,
Xinsheng Wang
1,
Juanxia Wu
1 and
Liming Xie
1,2,*
1
CAS Key Laboratory of Standardization and measurement for Nanotechnology, CAS Center for Excellence in Nanoscience, National Center for Nanoscience and Technology, Beijing 100190, China
2
University of Chinese Academy of Sciences, Beijing 100190, China
*
Author to whom correspondence should be addressed.
Crystals 2017, 7(10), 298; https://doi.org/10.3390/cryst7100298
Submission received: 10 August 2017 / Revised: 25 September 2017 / Accepted: 26 September 2017 / Published: 3 October 2017
(This article belongs to the Special Issue Two-Dimensional Materials beyond Graphene and their Van der Waals Heterostructures)
Browse Figures
Versions Notes

Abstract

:
Recently, two-dimensional (2D) charge density wave (CDW) materials have attracted extensive interest due to potential applications as high performance functional nanomaterials. As other 2D materials, 2D CDW materials are layered materials with strong in-plane bonding and weak out-of-plane interactions enabling exfoliation into layers of single unit cell thickness. Although bulk CDW materials have been studied for decades, recent developments in nanoscale characterization and device fabrication have opened up new opportunities allowing applications such as oscillators, electrodes in supercapacitors, energy storage and conversion, sensors and spinelectronic devices. In this review, we first outline the synthesis techniques of 2D CDW materials including mechanical exfoliation, liquid exfoliation, chemical vapor transport (CVT), chemical vapor deposition (CVD), molecular beam epitaxy (MBE) and electrochemical exfoliation. Then, the characterization procedure of the 2D CDW materials such as temperature-dependent Raman spectroscopy, temperature-dependent resistivity, magnetic susceptibility and scanning tunneling microscopy (STM) are reviewed. Finally, applications of 2D CDW materials are reviewed.

1. Introduction

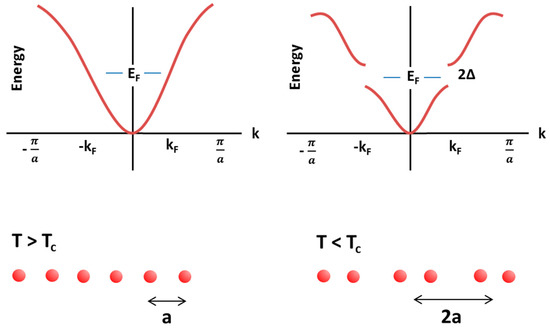

Recent breakthroughs in the synthesis techniques of 2D layered materials have facilitated the exploration of materials systems that were challenging in the past [1,2,3]. Transition metal dichalcogenides (TMDs) are a group of layered materials that has renewed interest due to their 2D confined structures [4,5]. TMDs disclose a variety of fascinating properties including semiconducting [6,7,8], superconducting [9], charge density waves (CDWs) [10,11], and so on. CDW is a ground state with a periodic modulation of charge density associated with a periodic distortion of the crystal lattice [12,13,14,15,16,17]. The transition to the CDW state usually is depicted as the consequence of Fermi surface nesting with wave vector Q = 2kF and exhibits an energy gap at Fermi energy in the quasi-1D counterpart (Figure 1) [18,19,20].

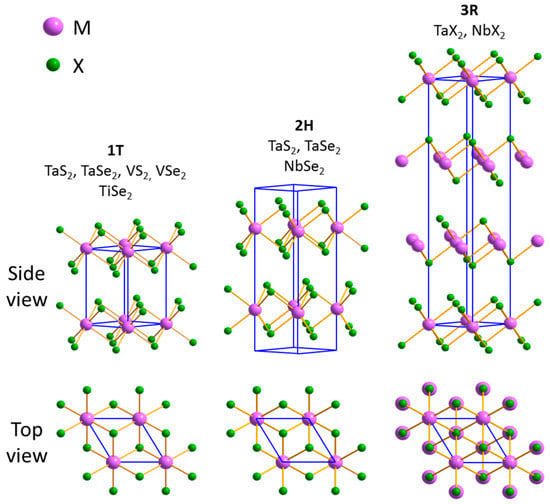

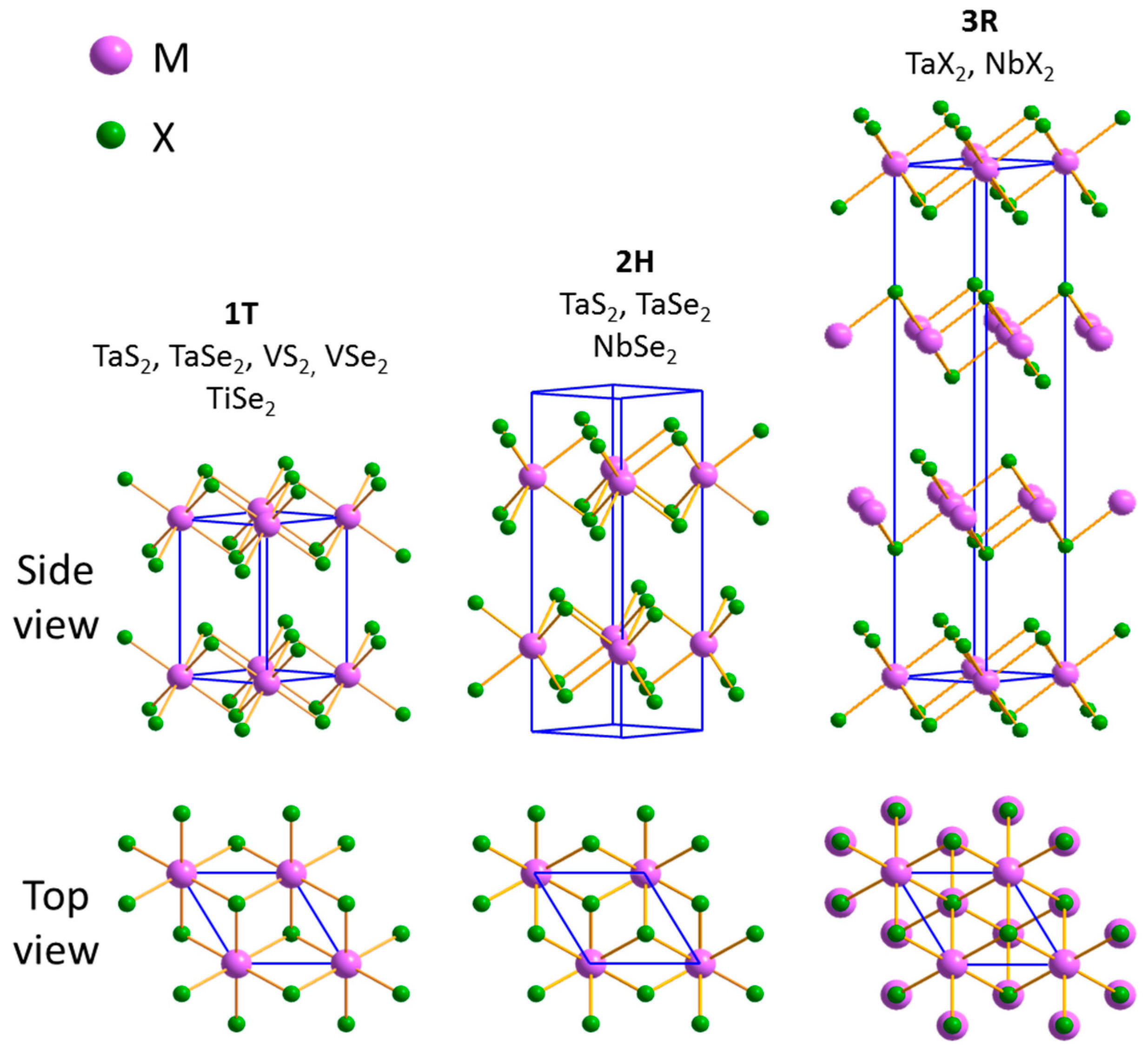

Several TMDs (in the form of X-M-X, M = V, Nb, Ta, Ti and X = S, Se or Te) with the chalcogen atoms in two hexagonal planes separated by a plane of metal atoms in the middle comprise a major family of 2D CDW materials. Adjacent layers in X-M-X are weakly bonded together, which can have different metal atom coordinations within the layer and different stacking between layers (Figure 2). The coordination configurations of metal atoms in 2D CDW materials can be octahedral (T) or trigonal prismatic (H). The phase transition with temperature of bulk CDW materials is summarized in Table 1. A variety of CDW phases such as commensurate CDW (C-CDW), nearly-commensurate CDW (NC-CDW) and incommensurate CDW (IC-CDW) can subsist at different temperatures.
In spite of more than three decades of comprehensive experimental and theoretical attempts, the driving force for the CDW transition remains arguable. Upon intercalation with copper [32], selenium [33], tellurium [34], iron [35] or applying pressure [36], the CDW ordering melts, and superconductivity emerges with a critical transition temperature of several Kelvin, which directly indicates the competition between CDW and superconductivity in 2D CDW materials.
In atomically thin 2D CDW materials, phase transitions can steer huge changes in electronic structure and then allow novel electronic devices. Electronic applications such as oscillators [37] and nonvolatile memory storage [38,39] have been demonstrated successfully in recent years, based on the charge density wave phase transitions. Although the investigations of bulk CDW materials have been done extensively for decades, as atomically thin materials, their role is simply up to date. In this review, we summarize the recent study on 2D CDW materials, including the synthesis, characterization and potential applications.

2. Synthesis of 2D CDW Materials

2.1. Mechanical Exfoliation of Bulk Materials

The first cleaving NbSe2 samples with the scotch tape method were reported much earlier by R. F. Frindt in 1972 [40]. However, thinner layers of 2D CDW materials, such as 1T-TaS2 [41,42], 2H-TaS2 [27], 1T-TaSe2 [42], 2H-TaSe2 [31], 2H-NbSe2 [43] and 1T-TiSe2 [11], have been reported recently by the mechanical exfoliation technique.

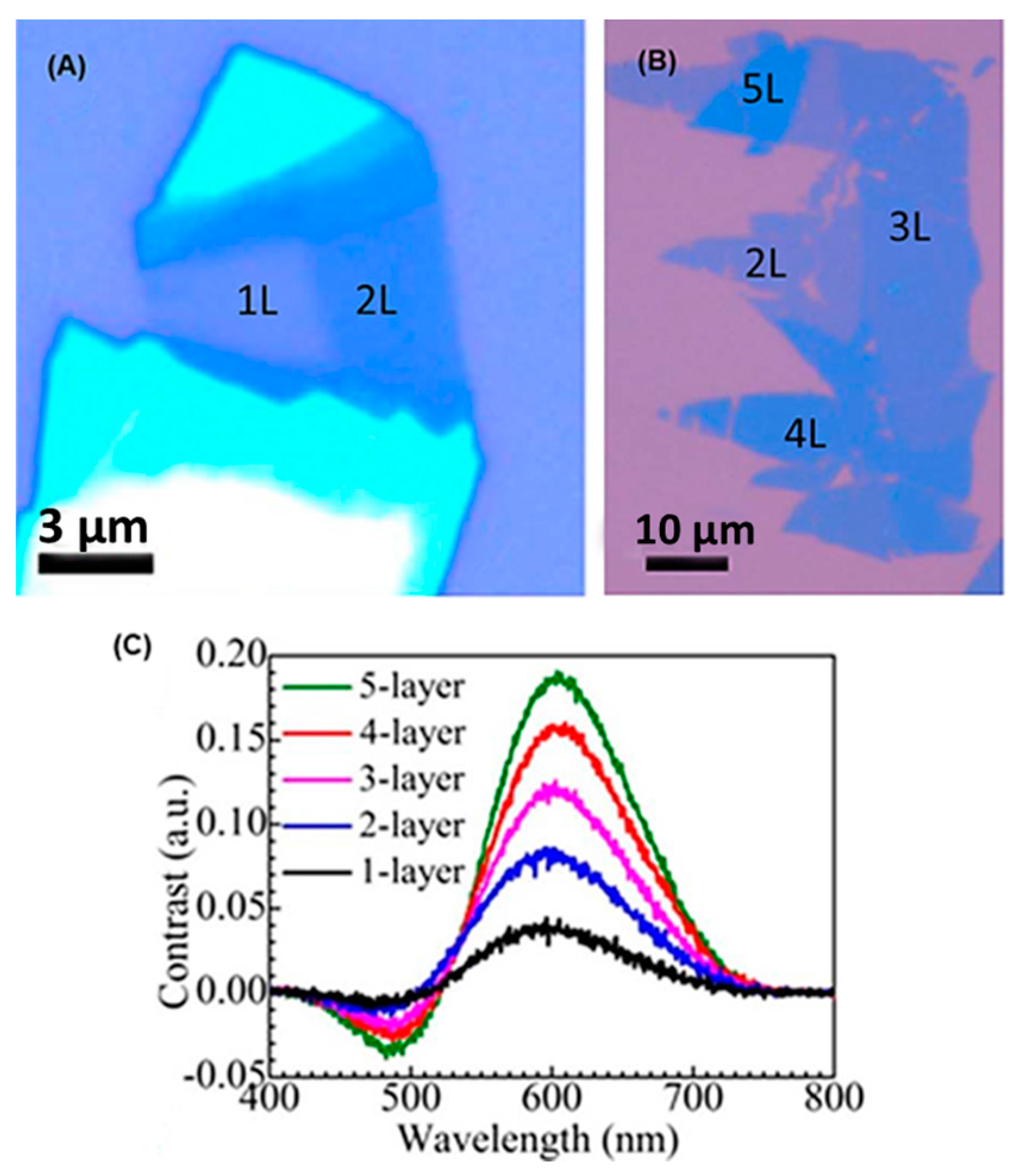

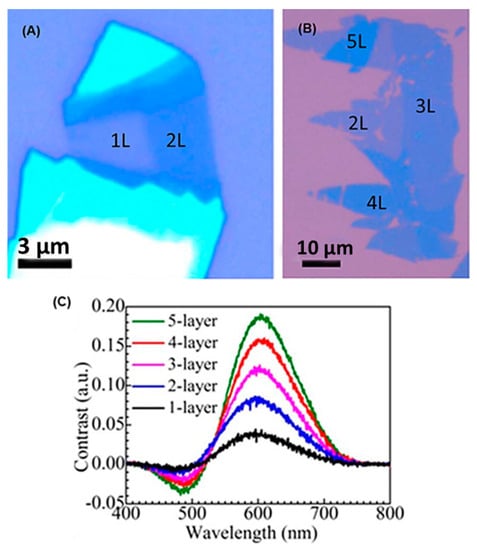

Figure 3 shows the first successful exfoliation of a tantalum diselenide (2H-TaSe2) monolayer and a few layers reported by P. Hyziyev et al. [31]. Using the conventional scotch tape procedure, thinner layers of TaSe2 samples were exfoliated onto 300 nm SiO2/Si substrates. Both white light contrast spectroscopy (WLCS) and atomic force microscopy (AFM) were used to identify the number of layers. The confirmation of the thin layers’ number can be difficult by AFM due to contamination and oxidation, usually if the samples have been exposed to surrounding air for a long time.

2.2. Liquid Exfoliation Method

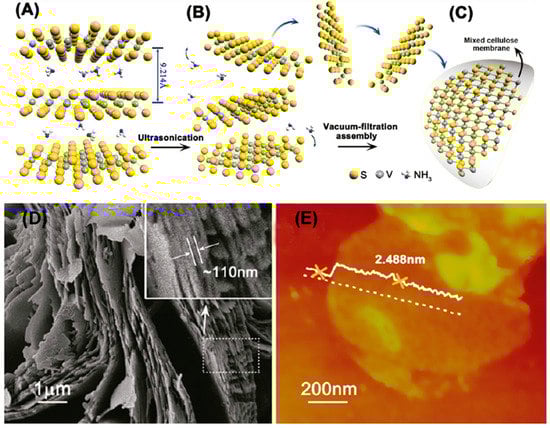

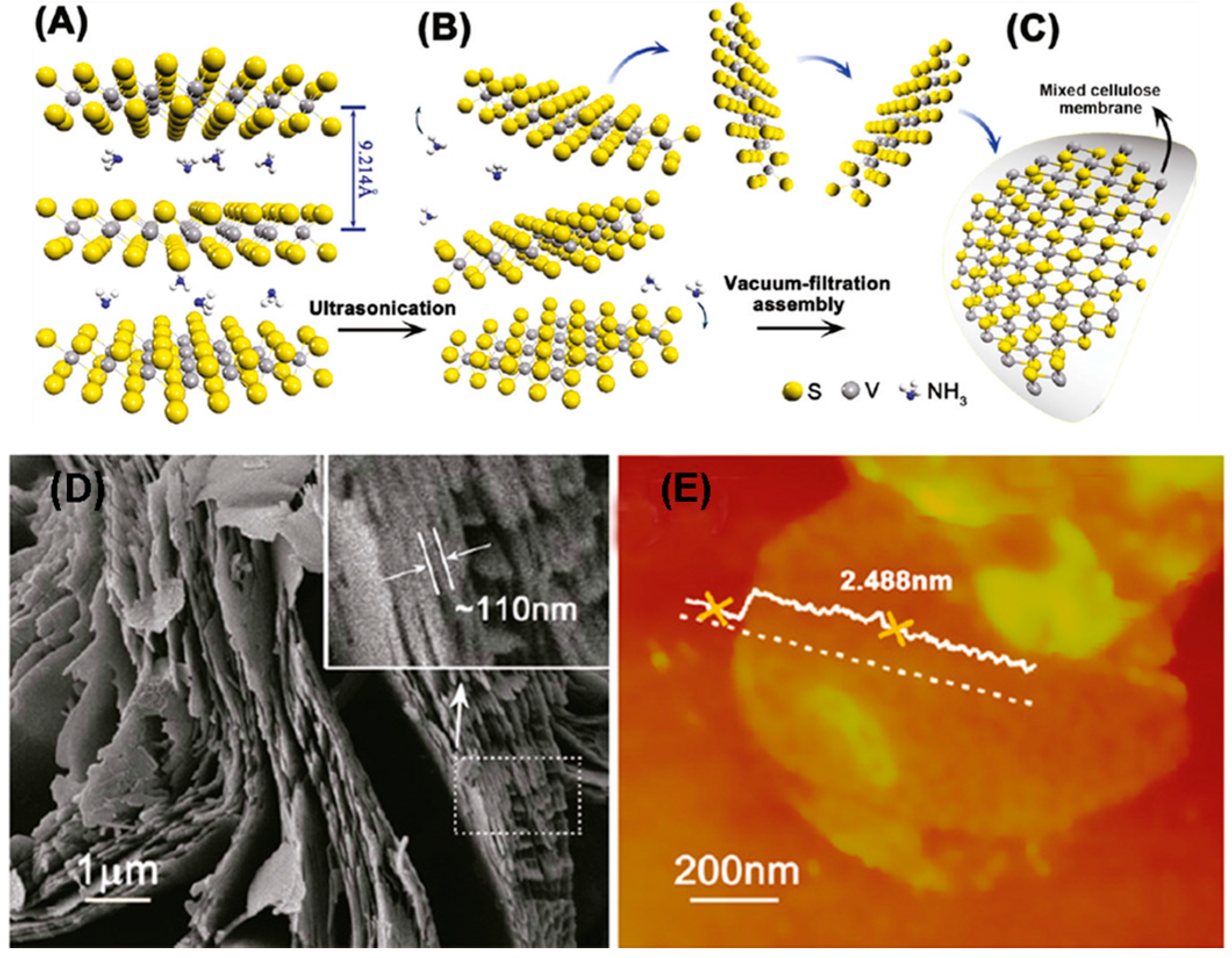

The liquid exfoliation method has shown its potential to prepare 2D ultrathin nanosheets of layered compounds, such as VS2 [44], VSe2 [4], TaS2 [45], TaSe2 [46] and NbSe2 [46]. In a procedure of liquid exfoliation of VS2 [44] (Figure 4), the VS2·NH3 precursor with NH3 molecules is interpolated into the S-V-S layers. Diffusion of NH3 molecules apart from the stacked layers breaks down the c axis periodicity. Then, ultrathin VS2 nanosheets are formed. A big advantage of the liquid exfoliation method is escaping the high-temperature, time-devouring solid-state procedure, as well as complicated equipment. It also offers high operational accessibility and a short reaction time.
In addition, another emerging method is electrochemical exfoliation. By fabricating a field effect transistor structure using an electrolyte as a gate medium and employing a comparatively high gate voltage, layered materials can be etched layer-by-layer, then leaving an ultrathin or even single-layered film. This technique was reported for the preparation of FeSe (a high-Tc superconductor) [47] and 2H-NbSe2 [48].

2.3. Chemical Vapor Transport

Chemical vapor transport (CVT) is a reliable technique for both research and commercial purposes to grow high quality TMD single crystals [49]. CVT growth of single crystals of TMDs associates the volatilization and reactions of solid precursors with the benefit of transport agents. Deposition of products in the form of single crystals is driven by a temperature gradient between the source and the growth regions [49]. Bulk CDW materials such as 1T-VSe2 [50], 1T-TaSe2 [28], 2H-TaSe2 [5,51] and 2H-NbSe2 [52] have been reported by the CVT method in recent years. For synthesis of 2D CDW materials, recently, J. Wang et al. reported controlled synthesis of two-dimensional 1T-TiSe2 on sapphire substrates with sub-10-nm thickness [53] (Figure 5). It is essential to introduce a growth substrate to guide the 2D growth of TMDs and dramatically slow down the growth of the bulk counterpart in the CVT method.

2.4. Chemical Vapor Deposition

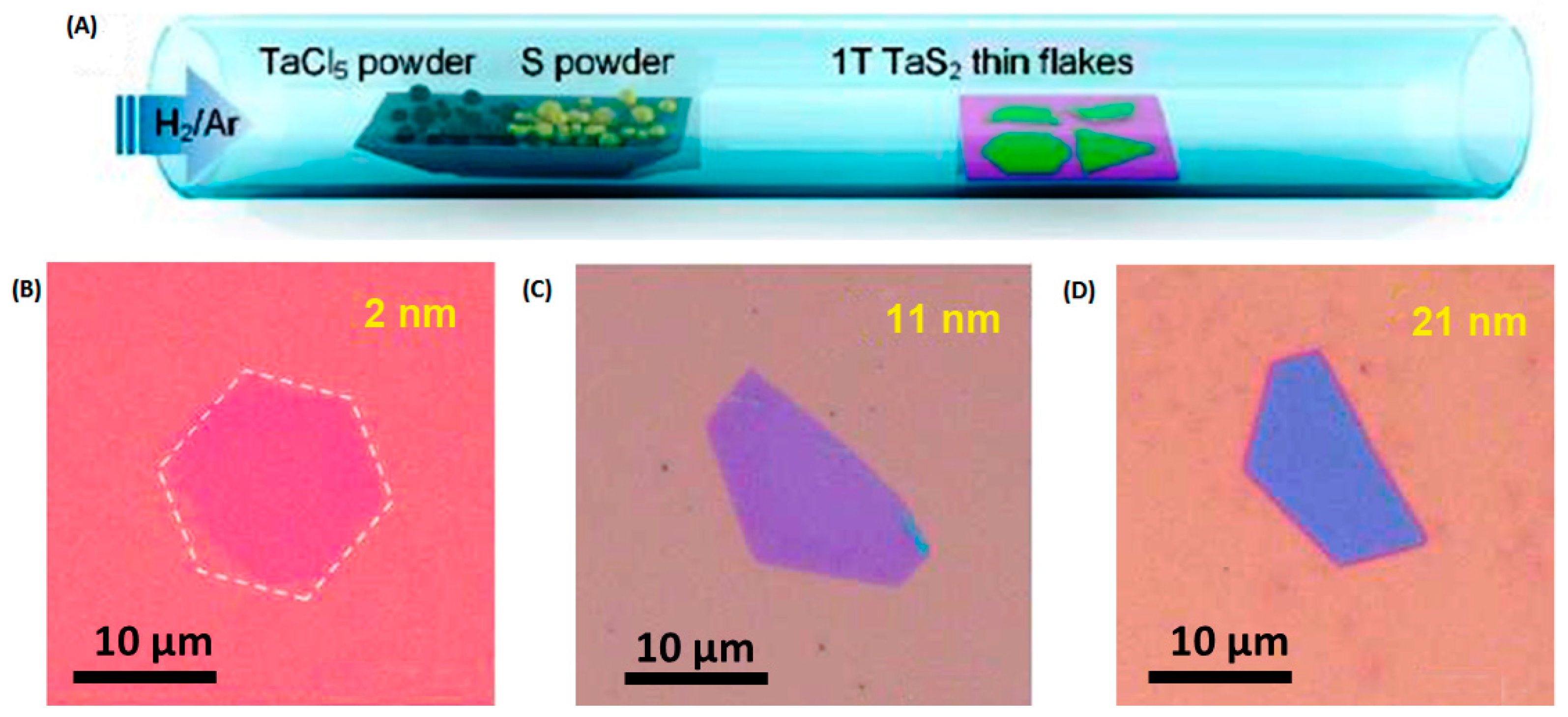

The CVD method is also considered as one of the main processing methods to synthesis 2D materials. CVD involves chemical reactions of gaseous reactants on a heated substrate surface [54,55]. The CVD approach has been used successfully in synthesizing 1T-VS2 [56,57], 1T-VSe2 [58,59], 2H-NbS2 [60], 3R-NbS2 [60], 2H-NbSe2 [61], 1T-TaS2 [62,63], 1T-TiSe2 [64], and so on. Contamination-free and high crystalline quality samples with potential for scaling-up are the great advantages of the CVD method [65].

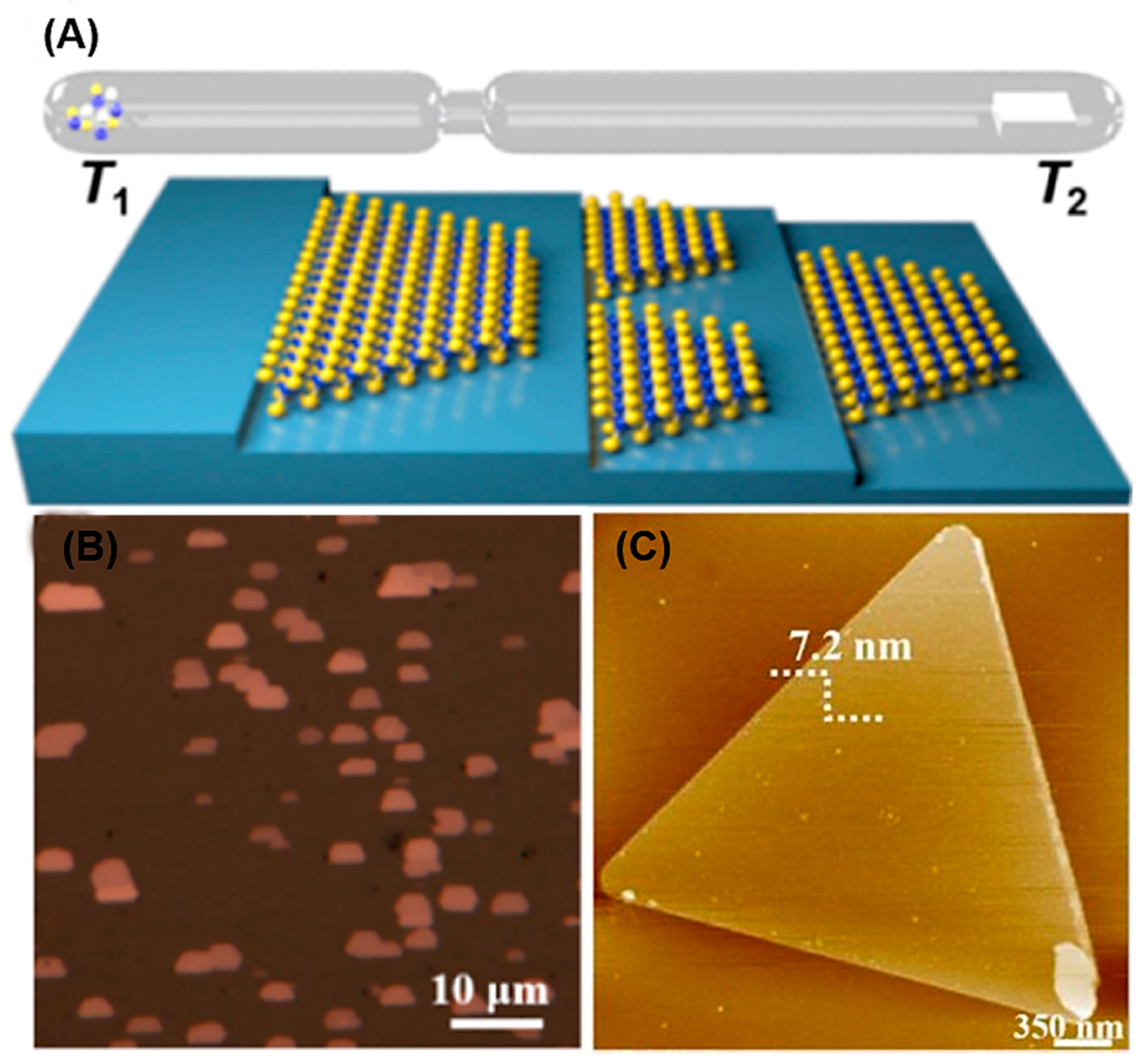

Later, W. Fu et al. reported the controlled synthesis of atomically-thin 1T-TaS2 [62] (Figure 6). The tantalum pentachloride (TaCl5) and sulfur (S) powder were used as precursors. As the carrier gas, a mixture of N2 with 10% of H2 was used. The reaction was usually carried out at 820 °C. In CVD synthesis, the system pressure, gas flow rate, precursor concentration, vaporization temperature of precursors, reaction temperature and deposition time play the key roles in controlling the quality of the crystals.

2.5. Molecular Beam Epitaxy

MBE technique has also been employed to prepare monolayer and few-layers of 2D CDW materials, such as TiSe2 [66,67], NbSe2 [68,69] and TaS2 [70] since the 1980s. The advantage of MBE growth is that it can produce a large area film with an uniform thickness. Furthermore, MBE gives an exceptionally low concentration of defects, which is extremely preferred in high performance electronic applications.

3. Characterization of 2D CDW Materials

3.1. Raman Spectroscopic Characterization

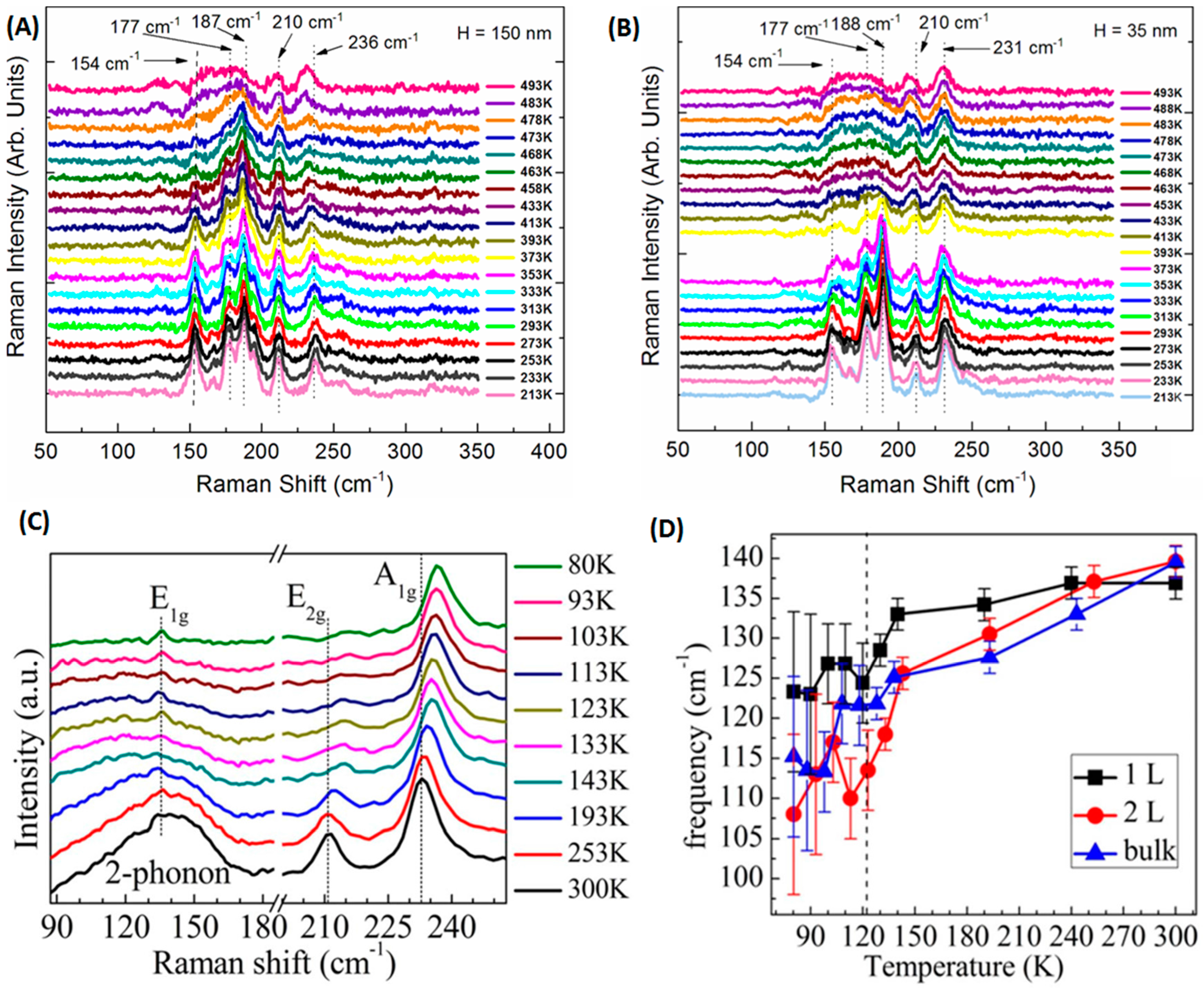

Temperature-dependent Raman spectroscopy is a powerful tool to understand the vibrational properties of 2D CDW materials. In recent years, temperature-dependent Raman spectra of 1T-VSe2 [71], 1T-TaS2 [72], 1T-TaSe2 [28], 2H-TaSe2 [31,73], 1T-TiSe2 [11] and 2H-NbSe2 [10] have been reported. In addition, Raman spectroscopy has been used vastly to investigate stacking order [74,75], number of layers [76], molecular doping [77], edge orientations [78,79], strain effects [80,81] and other properties of 2D materials.
TMDs with a metallic property can show Peierls transition by forming a superlattice over the underlying crystal lattice at definite critical temperatures. As a result, the overall energy of the system can be lowered [82,83]. Figure 7 depicts the temperature-dependent Raman spectra of 1T-TaSe2 and 2H-TaSe2 samples in the temperature ranges of 213–493 K and 80–300 K, respectively. Bulk 1T-TaSe2 crystals transform into the commensurate charge density wave (C-CDW) at 473 K and incommensurate charge density wave (IC-CDW) at 600 K [28]. The strong changes in the Raman spectra at around 473 K for 1T-TaSe2 can be seen (Figure 7A). Two Raman peaks (177 and 187 cm−1) of 1T-TaSe2 merge together, forming one broad peak, and their intensity also reduced as the material enters into the IC-CDW phase. It is noticeable that, at 473 K (I-CDW phase), the spectra of 1T-TaSe2 appear more as continua than sets of narrow peaks. This property could be elucidated by symmetry considerations. In the IC-CDW state, the translation equilibrium of the lattice vanishes, and the components of the phonon momentum are no longer favorable quantum numbers when it became parallel to the IC-CDW distortions. In the case of a thin sample (35 nm) (Figure 7B), it is also observed that the two Raman peaks commence merging, but the transition temperature is lower (413 K). These data clearly show that the transition temperature between the C-CDW and IC-CDW phases decreases for thinner 1T-TaSe2 film.
Bulk 2H-TaSe2 has a transition from the normal metal phase to the IC-CDW phase at 123 K, followed by the C-CDW phase transformation at 90 K [31,73]. From Figure 7C, the intensities of the two-phonon peak and E2g mode of 2H-TaSe2 lessen with decreasing temperature. In contrast, with reducing temperatures, the intensity of the two-phonon mode (E1g) expands. This feature can be interpreted as when reducing the background signal from the two phonon procedure that increases the visibility of this peak and also the strain-instigated effects due to dissimilarity in thermal expansion coefficients of thinner films and substrate [84,85]. The frequency changes of two-phonon modes for monolayer, bilayers and bulk samples are plotted as a function of temperature (Figure 7D), showing frequency jumps at 120 K, which also indicates the existence of the IC-CDW state in the thinner crystals of 2H-TaSe2.

3.2. Temperature-Dependent Resistivity and Magnetic Susceptibility

Temperature-dependent resistivity and magnetic susceptibility measurements are often used for probing the CDW property. As the temperature changes, an unusual response in resistivity and magnetic susceptibility has been observed in typical CDW material systems, such as 1T-VS2 [21], 1T-VSe2 [4,50,59], 1T-TaS2 [26,37,86] and 1T-TaSe2 [82] which is also an indication of CDW transition.

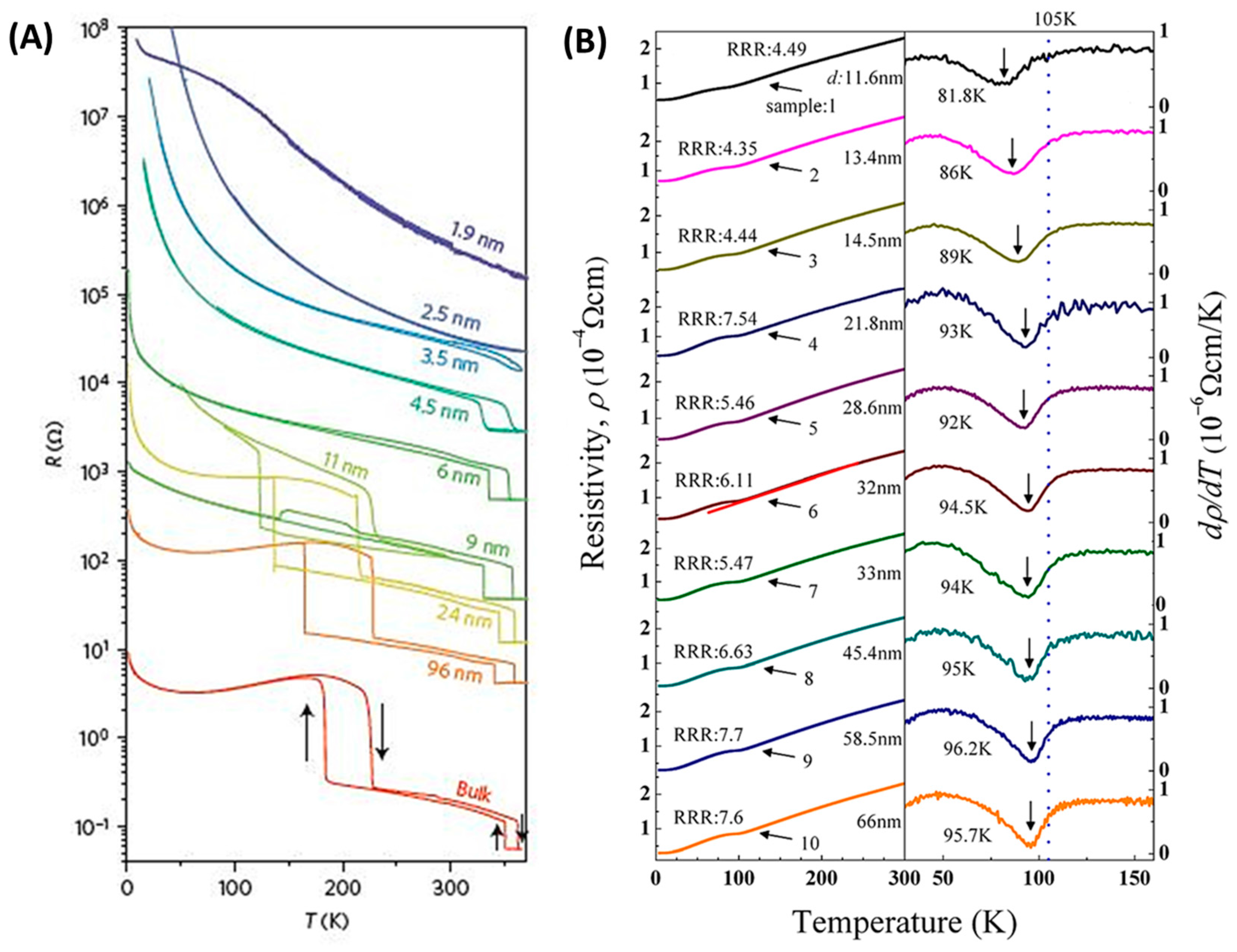

The thickness plays an important role in the CDW phase transition of 2D CDW materials. The thickness dependence of the NC-CDW to C-CDW phase transition temperature in 1T-TaS2 thin flakes had been reported by M. Yoshida et al. for the first time [87]. Figure 8A illustrates the temperature-dependent electrical resistivity of 1T-TaS2 for various thicknesses. The dimensionality effect on CDW states in 1T-TaS2 was analyzed by investigating pristine thin flakes by changing the thicknesses up to ∼2 nm [26,88]. It was demonstrated that both C-CDW/NC-CDW and NC-CDW/IC-CDW phase transitions are dynamically regulated for varying the sample thickness. As the sample is thinned, both transitions shifted to low temperatures and then instantly disappeared at critical thicknesses of ∼10 nm and ∼3 nm, respectively. The dielectric surrounding and surface contaminations may also have a role in the critical thicknesses, because thin samples are subject to extreme impacts from surface effects owing to the expanded surface-area-to-volume ratio. Additionally, CDW transition temperatures have been successfully tuned by using an ionic liquid as the gate medium in 1T-TaS2-based field effect transistors (FET) [87].
Temperature-dependent resistivity of 1T-VSe2 crystals with thickness ranging from 11.6–66 nm is shown in Figure 8B. The transition temperature decreases from 105 K in bulk form to 81.8 K in the 11.6-nm thicker flake. For 1T-VSe2 flakes, at the phase transition temperature, resistivity shows an upturn kink due to the CDW transition.
In contrast to 1T-TaS2 and 1T-VSe2, it is also reported that the CDW phase transition temperature can increase in the thinner materials. For instance, the liquid-exfoliated 4–8 layer-thick 1T-VSe2 sample shows the CDW phase transition temperature at 135 K, whereas the bulk sample shows it at 107 K [4]. A similar phenomenon has been observed from mechanically-exfoliated TiSe2 samples, where the transition temperature increases from 200–240 K, while thinning the thickness from the bulk to a few nanometers [11]. Moreover, X. Xi et al. reported the strongly enhanced CDW order in atomically-thin NbSe2 TCDW > 100 K for the exfoliated monolayer sample [10], while M. Ugeda et al. observed slightly weakened CDW order (TCDW ∼ 25 K) in the single layer NbSe2 grown on graphene by the MBE method [68]. These dissimilarities of the transition temperature still are not well understood. The sample quality, substrates and the fabricated device status could play crucial roles in CDW phase transitions.

3.3. Scanning Tunneling Microscopic Characterization

Atomic arrangement in 2D CDW materials regulates the electronic structures. STM imaging and scanning tunneling spectroscopy (STS) measurement are direct ways to reveal the atomic structure and the CDW energy gap of 2D CDW materials. M. M. Ugeda et al. reported STM measurements on ultrathin film of 2H-NbSe2 [68]. A 3 × 3 CDW structure in NbSe2 has been observed. Superconductivity also remains in the 2D limit, but the transition temperature is lowered to 1.9 K (7.2 K for the bulk material).

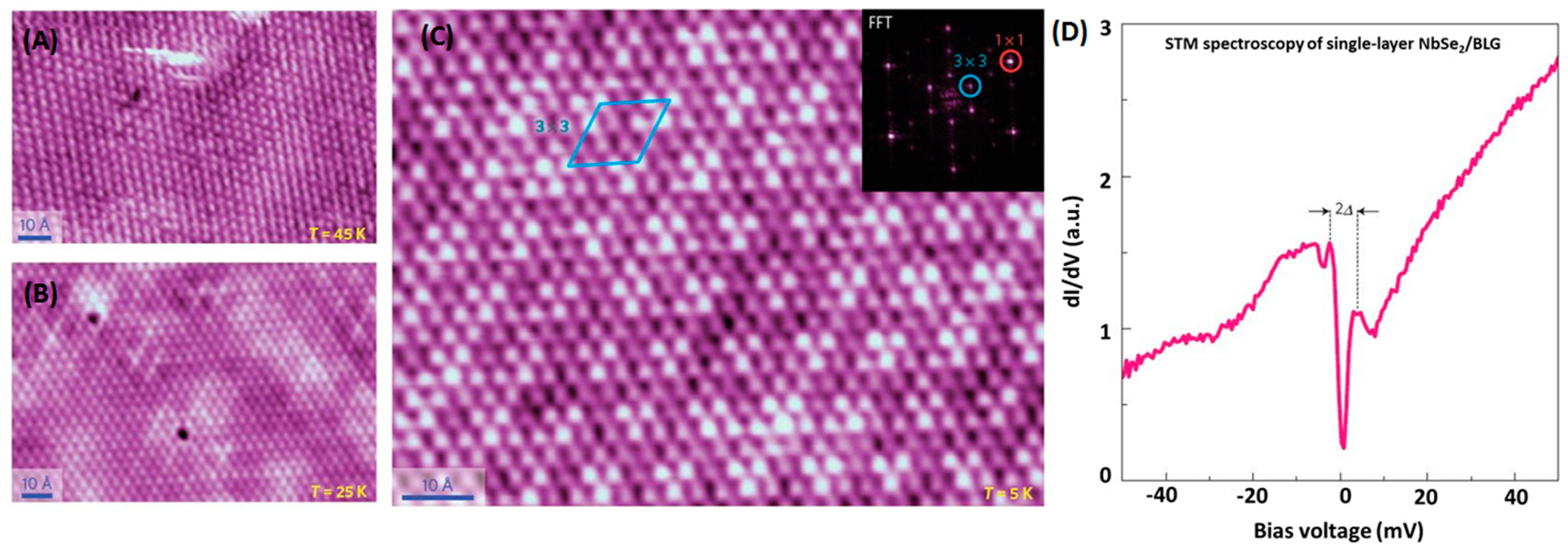

Figure 9A–C shows STM characterization for the NbSe2 monolayer (TCDW ∼ 35 K) in the temperature range from 45–5 K. At T = 45 K, the undistorted crystal structure is observed (Figure 9A). At T = 25 K, spotty and weak signatures of a superlattice become obvious (Figure 9B). The 3 × 3 CDW superlattice with the 1 × 1 atomic arrangement is developed fully and uniformly for the monolayer NbSe2 at 5 K (Figure 9C), which consists of the previously reported STM imaging of the bulk NbSe2 [20,89]. The low-bias dI/dV spectrum obtained for monolayer NbSe2 (Figure 9D) shows an energy gap feature centered at EF, possibly because of heterogeneity induced by the defects at the interface. The NbSe2 monolayer exhibits a keen sink at EF bounded by two narrow peaks that sit on top of an asymmetric background. The sink at EF does not reach all the way to zero, indicating that it is not a full gap in the electronic structure. STM measurements at 5 K reveal a CDW gap of ∆ = 4 meV at the Fermi energy, which is attainable by means of STM due to the shifting of bands crossing the Fermi level for a monolayer.

4. Applications of CDW Materials

4.1. Electrodes in Supercapacitors

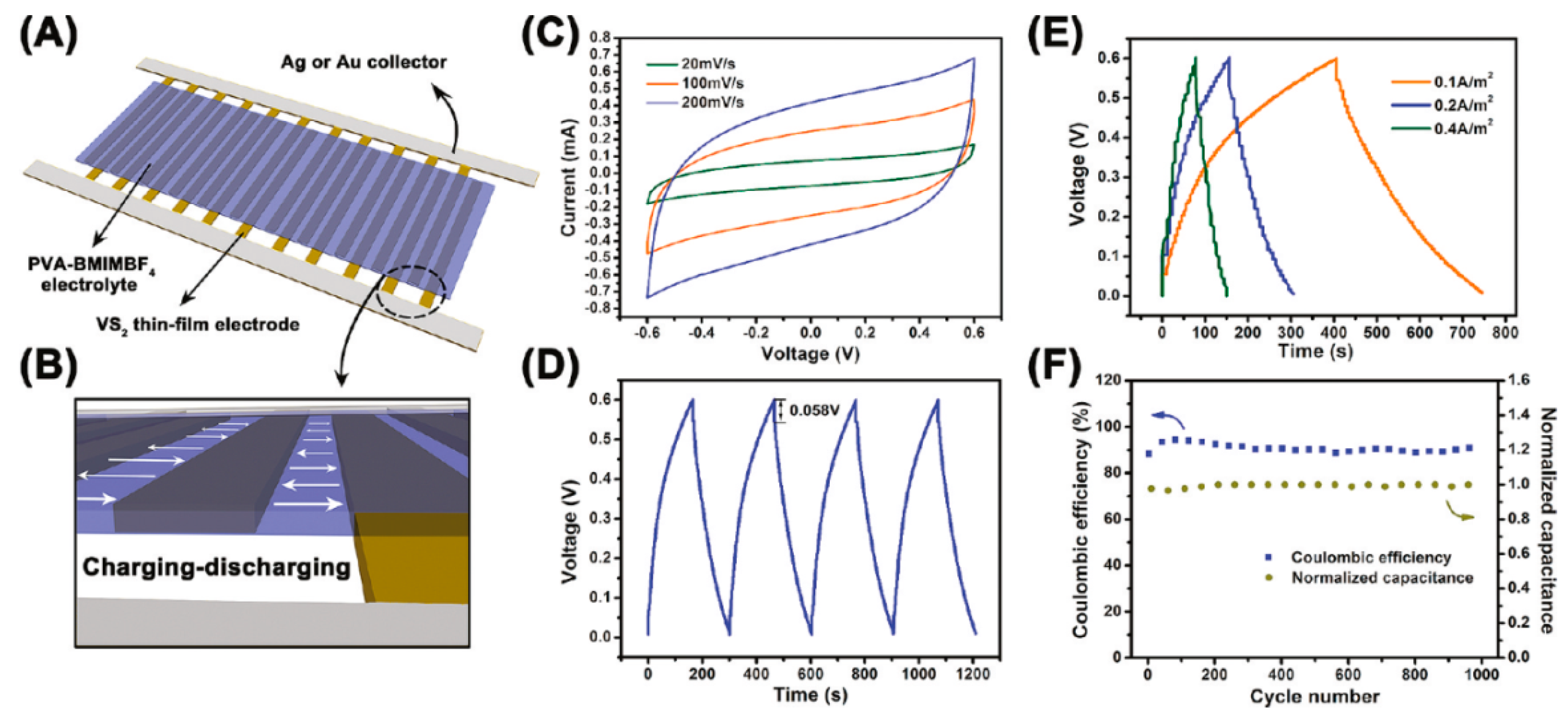

2D materials have provided new opportunities for ultrathin, transparent and flexible electronic devices. For supercapacitor application, conductivity and surface area are two demanding factors to evaluate the performance of supercapacitors [90]. Conventional inorganic graphene analogues (IGAs) are semiconducting or insulating with low conductivity, which hamper them from being employed as supercapacitor electrode materials [91,92]. In this aspect, thinner layers of 2D CDW materials could be a good choice. J. Feng et al. has reported using highly conductive ultrathin nanosheets of VS2 as the electrodes of in-plane supercapacitors [44] (see Figure 10), in which a high capacitance of 4760 μF/cm2 and an outstanding cycling lifetime (more than 1000 charge/discharge cycles) have been obtained.

4.2. Charge Density Wave-Based Oscillator

The CDW phase transition is associated with a lattice reconstruction, which results in much alteration of the material’s electrical properties. In the case of 1T-TaS2, when the applied electrical field is over 20 kV cm–1, the electrical conductivity instantly increases, which is ascribed to an insulator-to-metal transition (IMT) [93]. A contrary metal-to-insulator transition (MIT) is also observed when the voltage is swept back [93].

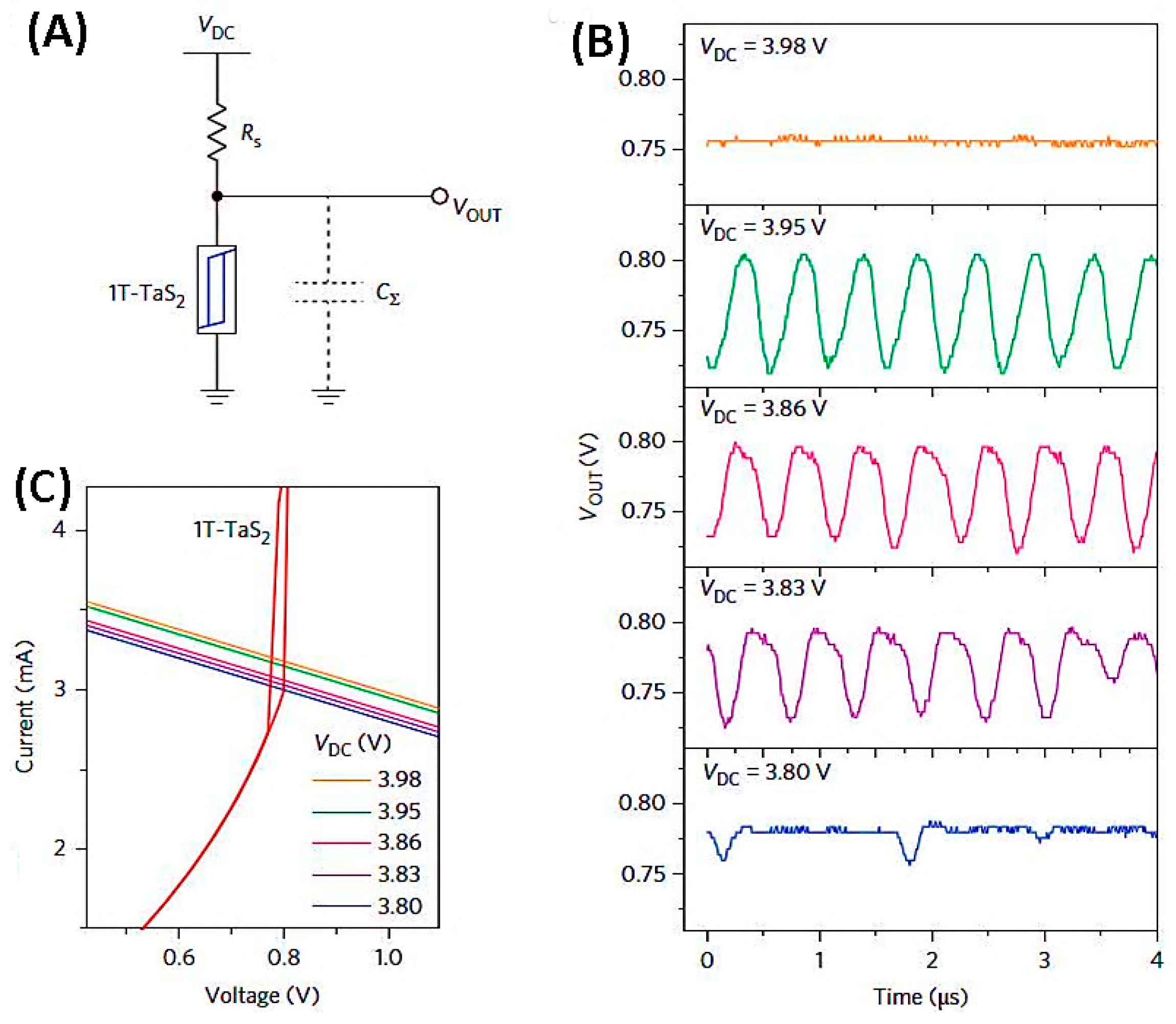

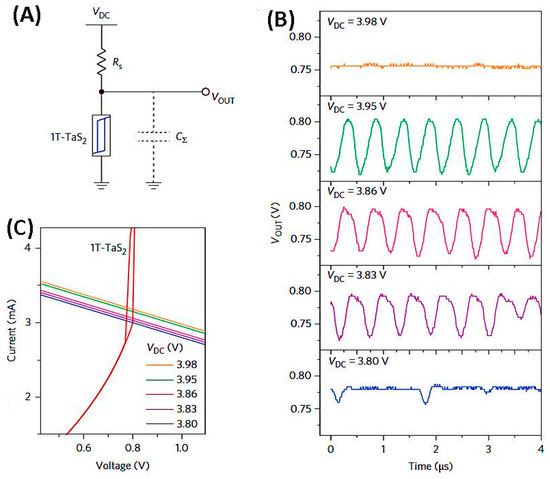

G. Liu et al. has reported a CDW-based oscillator using thinner layers of 1T-TaS2 [37] (see Figure 11). The voltage oscillation is from the negative differential resistance in the current sweeping of 1T-TaS2 devices. This oscillator can operate at a few MHz, but with potential up to THz.

4.3. Photodetector

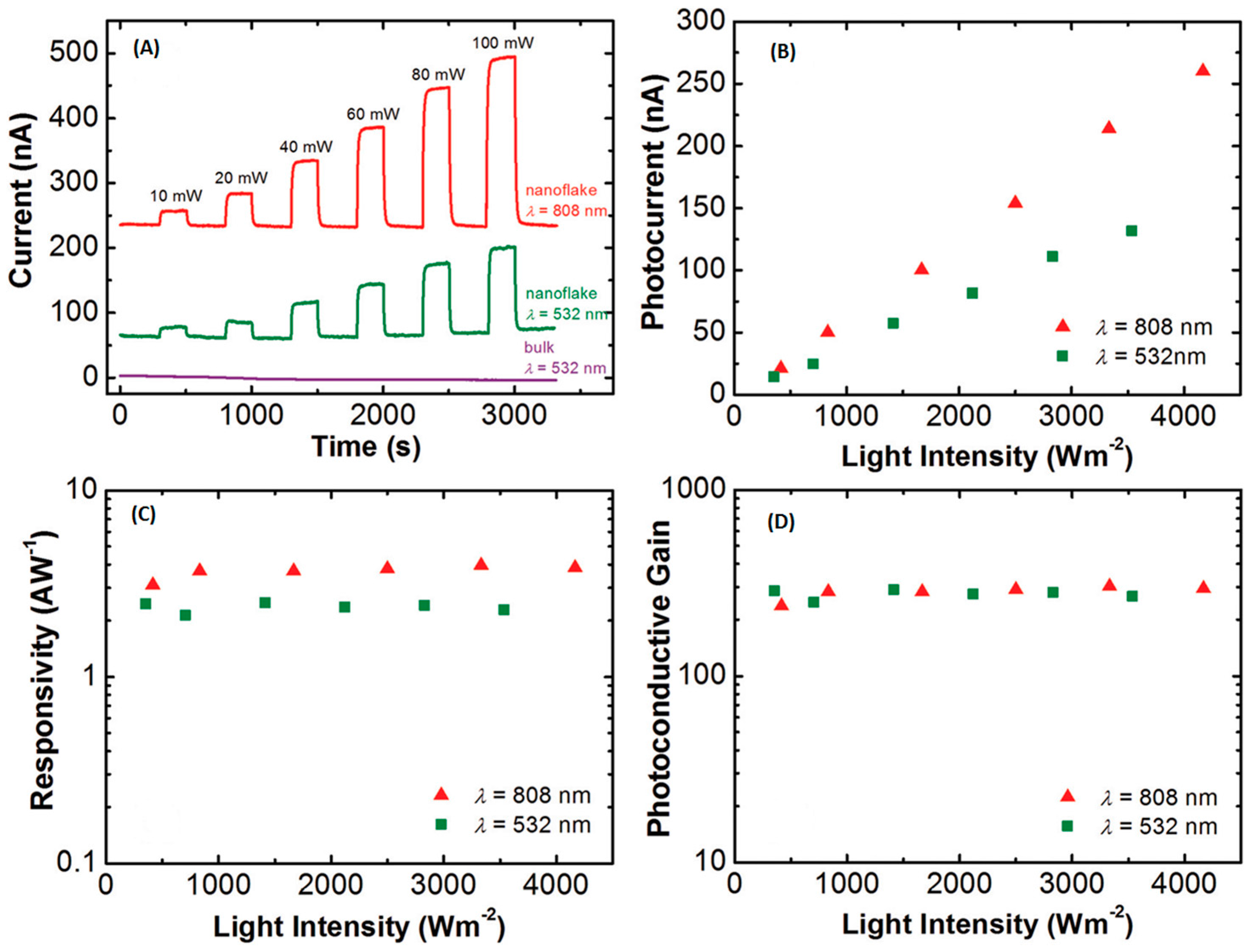

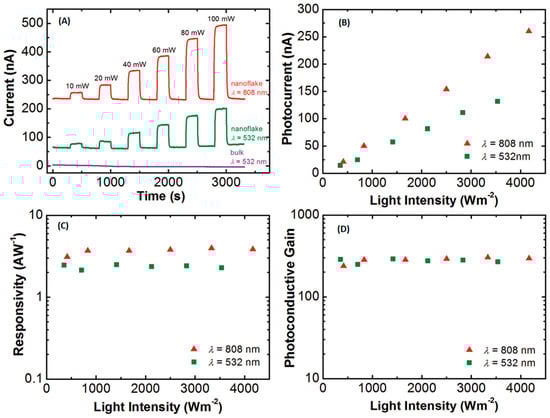

Photodetectors based on 2D heterojunctions have been studied extensively in recent years. 2H-NbSe2 crystals show a significant photoresponse at different wavelengths and intensity excitations. The photocurrent responsivity and photoconductive gain can reach 3.8 AW−1 and 300, respectively (Figure 12). The existence of electron trap states at the surface was responsible for the lower dark conductivity and expanded photoconductivity in the 2D 2H-NbSe2 nanostructures. This performance recognizes another prospect for utilization of 2D CDW materials as an optoelectronic component, as well as an ultrathin transparent conducting material.

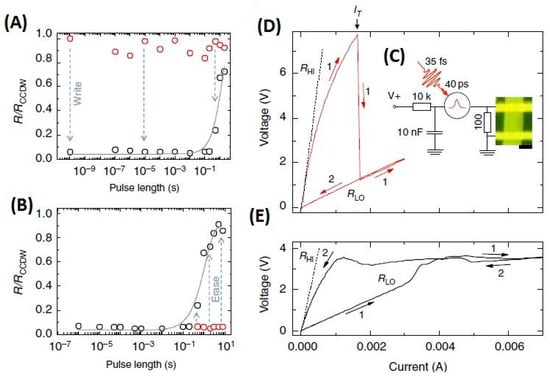

4.4. Nonvolatile Memory

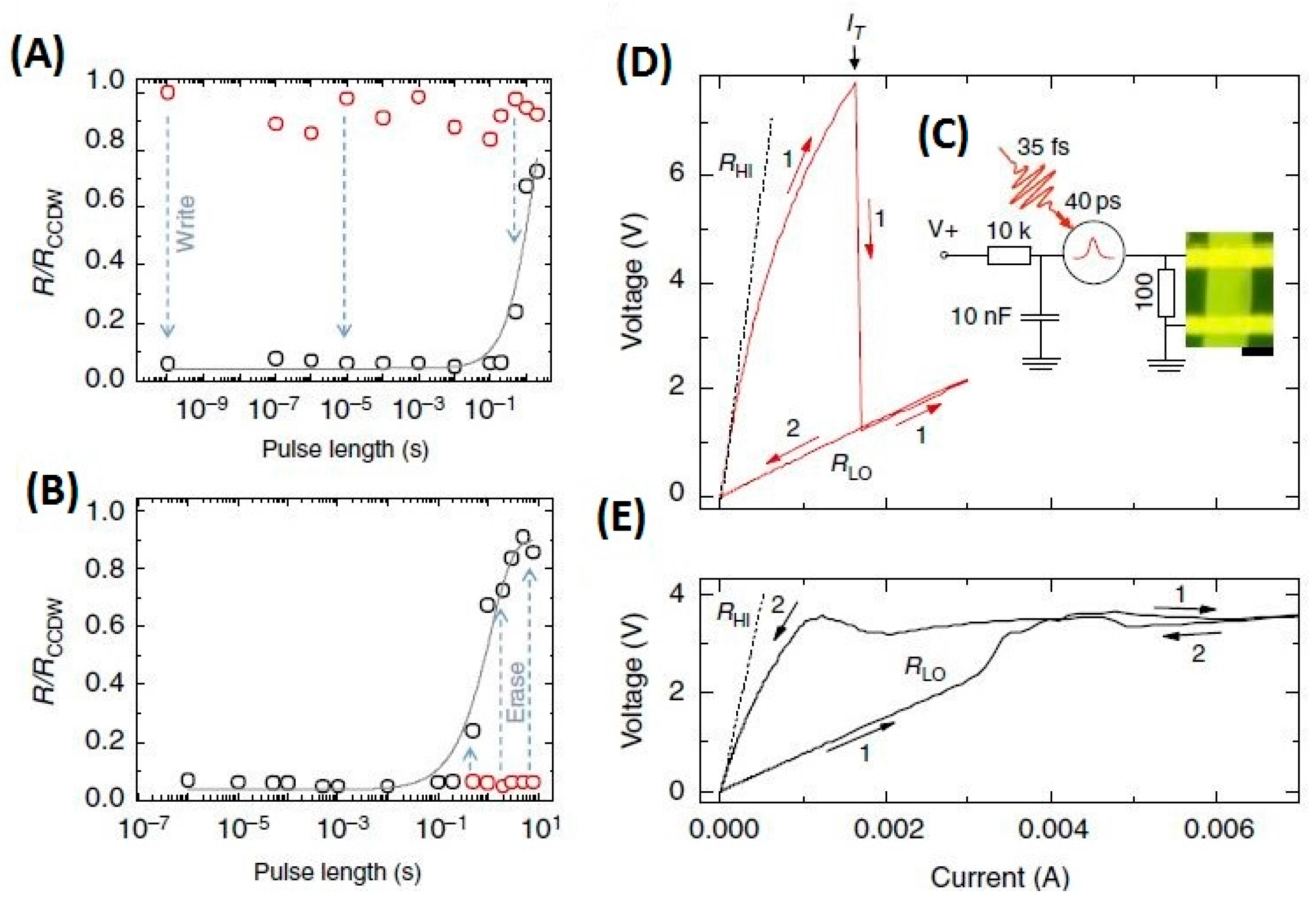

Semiconducting-based 2D TMDs and ferroelectric materials have been studied immensely to fabricate nonvolatile memory devices. Currently, the functionality of computer memory components is established on multi-stability, directed either by locally manipulating the density of electrons in the transistor or by changing the ferroelectric or magnetic order. A further possibility is switching between metallic and insulating phases by the ions’ motion. However, the speed is restricted by slow nucleation and diverse percolative growth. Recently, a 2D CDW material such as 1T-TaS2 has shown its potential to have the ultrafast current-driven nonvolatile switching, which showed the switching speed of 30 ps (Figure 13) [38]. L. Stojchevska et al. and M. Yoshida et al. also reported the photo-induced and current-driven nonvolatile memory function in the 1T-TaS2 thin flakes, respectively [39,94].

5. Sample Oxidation and Substrate Effect on CDW Transition

Bulk NbS2, NbSe2, TaS2 and TaSe2 are stable in air, but once cleaved to a few layers, then become highly air sensitive [1]. Oxygen (O2), water (H2O) and/or hydrocarbons can be adsorbed in the surface and react with the materials. Usually, by encapsulation with hexagonal boron nitride (h-BN) in an inert atmosphere, the intrinsic properties of atomically-thin crystals can be protected [37,88].
The substrate also plays a significant role in the fundamental properties of 2D materials. The choice of substrates can lead to distinct degrees of charge transfer and may also instigate mechanical instability, which leads to a change in carrier mobility and can be harmful for device processing [95]. Substrates can steer to modification of the band gap [96], along with indirect-to-direct band gap [97], modulation in the optical band gap and introduction of magnetism [98]. R. Zhao et al. reported tuning the phase transitions in 1T-TaS2 on different substrates [99], revealing that doping and charge transfer from the substrate have a minimal effect on CDW phase transitions, but substrate surface roughness is a predominant external factor on C-CDW transition temperature and hysteresis.

6. CDW Alloys

Two-dimensional CDW materials show a prosperous set of CDW orders, which typically coexist or compete with superconductivity. The mechanism of CDWs is still under controversy. There are a few reports that have proposed that the Fermi-surface nesting assists CDWs in the system [93,100,101,102,103,104], whereas some other studies have attributed this to the periodic-lattice-distortion structure [105,106]. Preparing a solid solution of various parent materials of the system and detecting the abnormality of the CDW properties may benefit understanding the CDW mechanism.

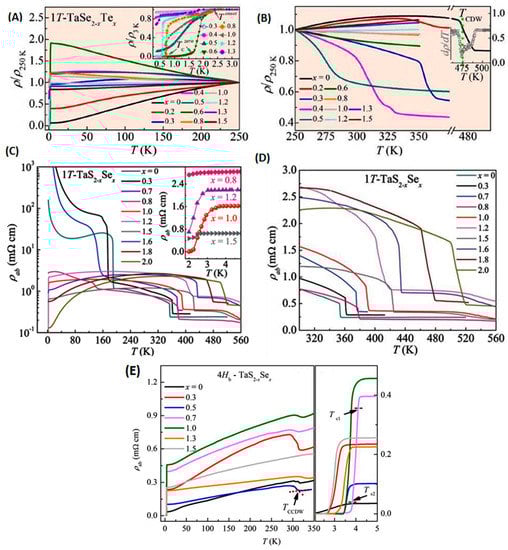

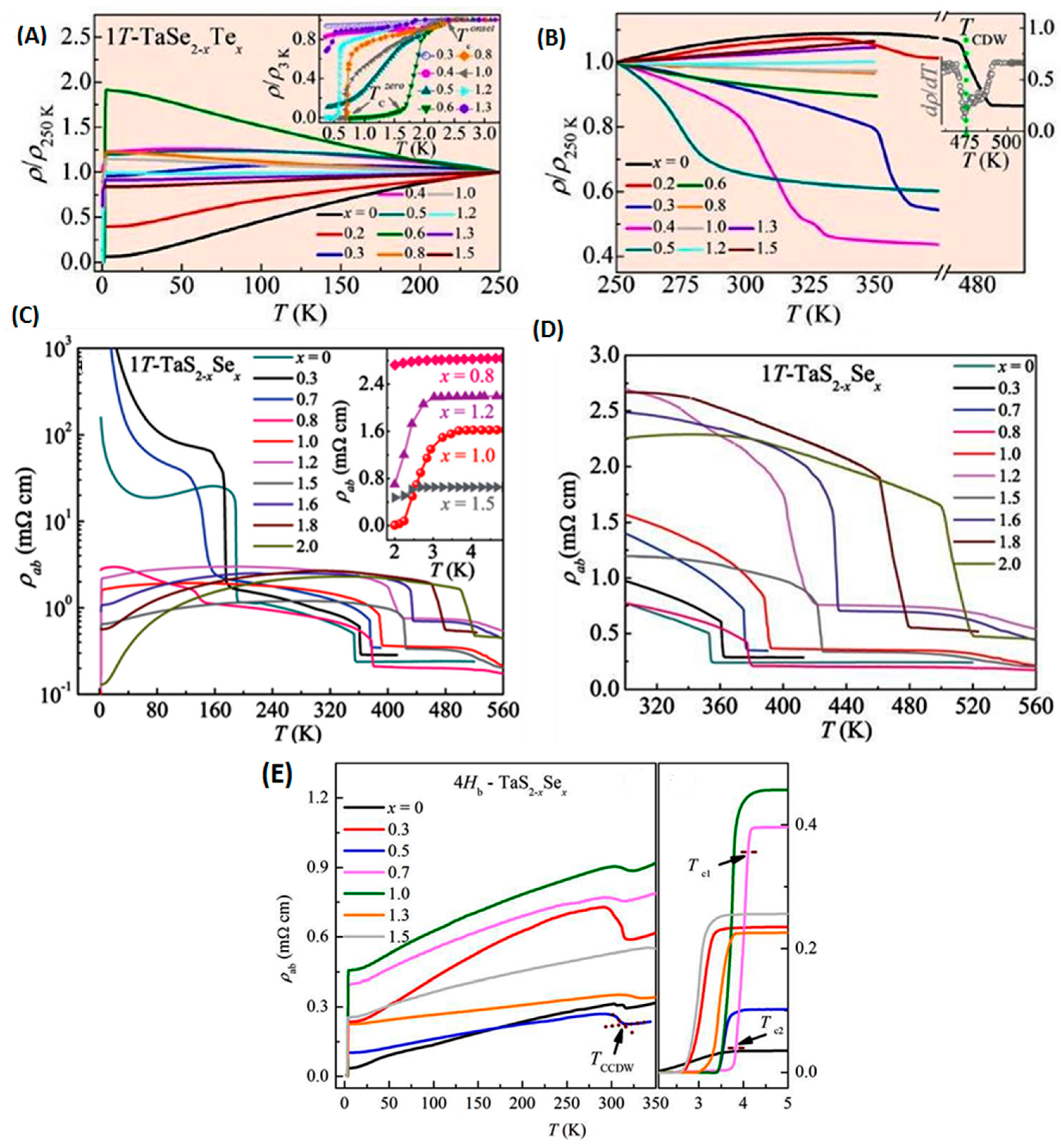

In recent years, some investigation have been performed on the CDW alloys like 4Hb-TaS2−X-SeX (0 ≤ X ≤ 2) [107], 1T-TaS2−XSeX (0 ≤ X ≤ 2) [33], 1T-TaSe2−XTeX (0 ≤ X ≤ 2) [108], 2H-NbSe2−XTeX (X = 0, 0.1, 0.2) [34], and 1T-FeXTa1–XS2 (0 ≤ X ≤ 0.05) [35] (see Figure 14). Recent study shows that superconductivity can be activated by Se-doping in layered charge density wave system 1T-TaS2–XSeX [33]. Coexistence of superconductivity and C-CDW in 4Hb-TaS2–X-SeX single crystals has been demonstrated lately [107]. Angle-resolved photoemission spectroscopy (ARPES) investigation on 1T-FeXTa1–XS2 (0 ≤ X ≤ 0.05) also denotes the direct experimental confirmation that superconductivity and NC-CDW coexist in real space [35]. Studies on 2H-TaS2 system are also widely analyzed by element doping [109]. For instance, Cu-intercalated single crystals of 2H-CuXTaS2 exhibit an outstanding enhancement of Tc from 0.8 K in 2H-TaS2 to 4.2 K in 2H-Cu0.03TaS2. It also suppresses the CDW transition to a low temperature [110].
Y. Liu et al. reported the nature of charge density waves and superconductivity in 1T-TaSe2−XTeX [108], which revealed that doping-activated disordered dispersion of Se/Te suppresses CDWs in 1T-TaSe2. The superconducting state with the highest Tc of 2.5 K was observed near CDWs. The superconducting volume is very little inside the CDW state and becomes substantial suddenly when the CDW state is completely suppressed.

7. Conclusions

Although there have been many publications on 2D CDW materials, the investigation on their properties and applications is still in its initial stage. The outstanding attributes of 2D CDW materials can offer enchanting new freedom for researchers to enhance the research activities in this rapidly expanding area. The prospective fields towards basic study are extensive including the advancement of new efficient approaches to prepare 2D crystals with a particular number of layers and upgrading the structural quality of the grown layers. The exploration of indispensable physicochemical characteristics of monolayer and few-layers crystals, strain effect, fabrication of interfacial attributes among the heterojunctions, the electric field and functionalization are all disclosed for expected research. In addition, the numerous opportunities of CDW materials and alloys with fascinating properties will make them an attainable material for future research that will help industries, as well as conclusively human beings.

Acknowledgments

We acknowledge the NSFC (Nos. 21373066 and 21673058), the Key Research Program of Frontier Sciences of CAS (QYZDB-SSW-SYS031), the Strategic Priority Research Program of CAS (XDA09040300), the Beijing Nova program (Z151100000315081) and the Beijing Talents Fund (2015000021223ZK17).

Author Contributions

Mongur Hossain and Liming Xie designed the project and wrote the manuscript. Juanxia Wu draw the crystal structures. Zhaoyang Zhao, Xinsheng Wang and Wen Wen assisted manuscript writing. All authors commented on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
